Samsung Bauhn Tizen ATV43UHDT-0123 User manual

User Manual
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ATV43UHDT-0123 PRODUCT CODE: 711425 01/2023
AUS
MODEL: ATV43UHDT-0123
UHD TV
™

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this manual.
We hope you will enjoy using your purchase for many years to come.

3
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Important Tips 5
Attaching the Stand 6
Wall-Mounting the TV 7
Connect to Power 8
Connect your Antenna 8
Controls and Connections 9
Get to Know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 12
Setup 12
Using the Remote Control 13
Remote Pairing 13
Smart Remote 14
Pairing the Remote 15
Using Voice Assistant 15
On-Screen Set Up 16
Displaying Your Smart Phone
Screen To The TV 17
Displaying Your PC Screen
To The TV 17
Control The TV With A Keyboard,
Mouse or Gamepad 17
Using The Keyboard And Mouse 18
Smart TV 19
Smart Hub 19

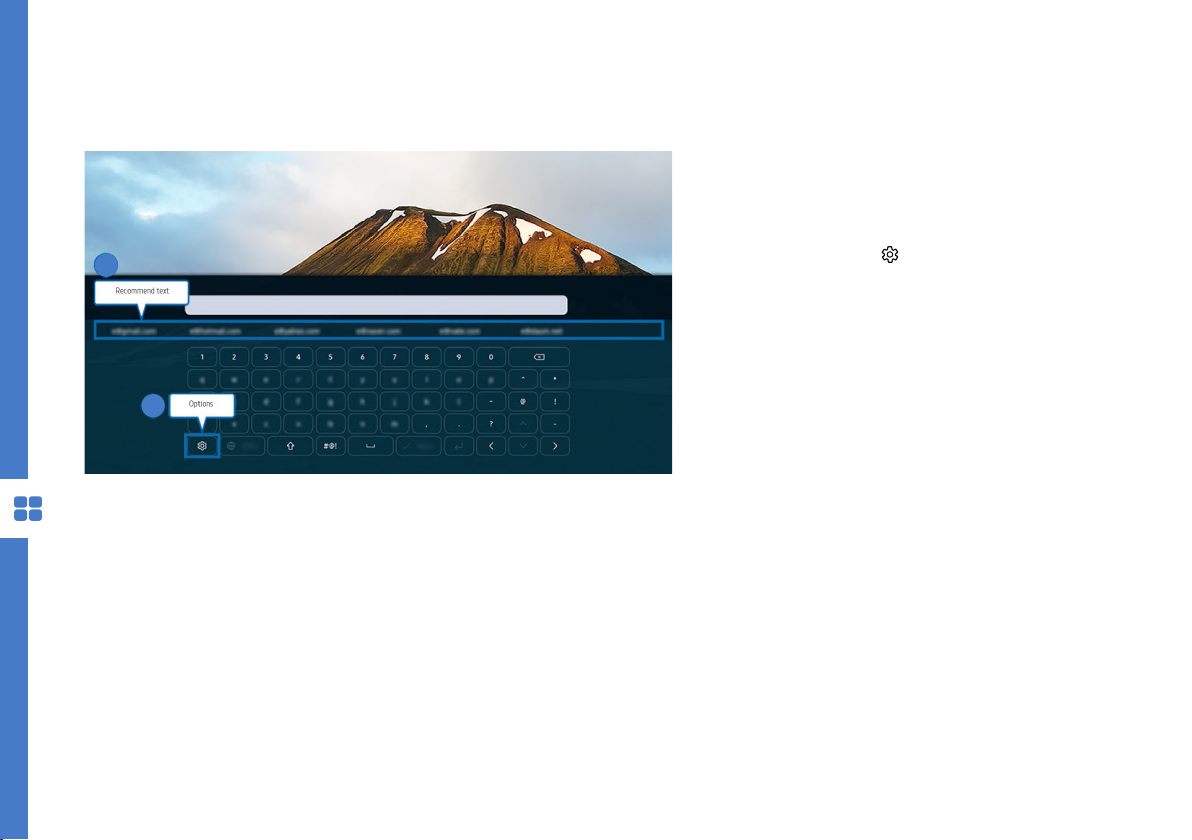

Using the On-Screen
Virtual Keyboard 20
Home Screen 21
Samsung Account 23
Using the Apps Service 24
Using the e-Manual 25
System and Support 26
High Dynamic Range (HDR) 30
TV Guide 31
Troubleshooting 33
Specications 36
Compliance and
Responsible Disposal 37
Warranty Information 38
Repair and Refurbished
Goods or Parts Notice 39

4 | UNPACK AND PREPARE
See the flap of the box
for how to handle the TV
without damaging it!
Unpack and Prepare

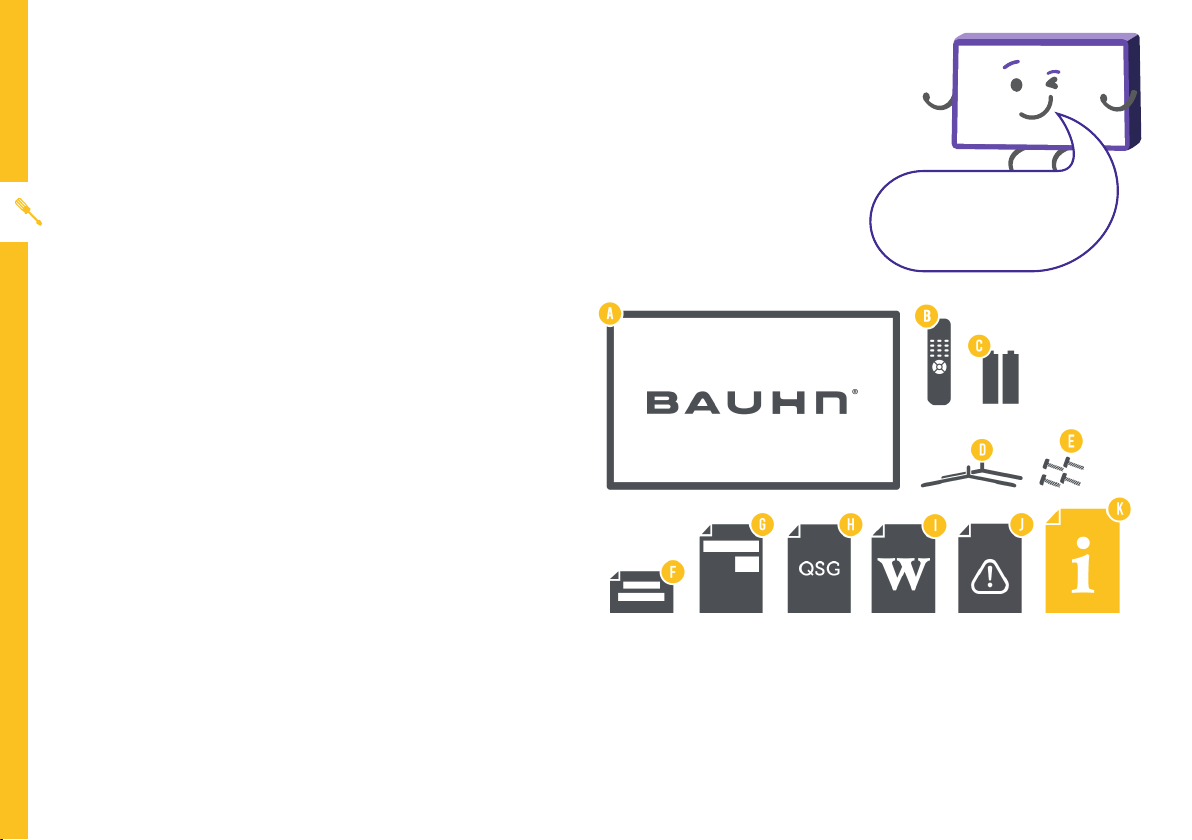

What's in the Box
In the box you will find:
A. 43" 4K Ultra HD Smart TV
B. Smart Remote
C. AAA Activ Energy Batteries (2)
D. TV Stands (2)
E. Screws for TV Stands (4)
F. Warning Sheet
G. TV Toppling Safety Message
H. Quick Start Guide
I. Warranty Certificate
J. General Safety Warnings
K. User Manual
You will need (not included):
• Phillips-head screwdriver (for stand installation)
• Someone to help you lift and install your TV
• Antenna cable (to watch live TV)
• Broadband internet connection (to use smart apps)
Before installing your new TV, check you have everything needed.

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit).
Attaching the Stand
• This TV is heavy! We recommend asking
someone to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• DO NOT place the TV standing upright without
its stand attached; it could damage the remote
sensor at the bottom of the TV.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.

UNPACK AND PREPARE | 7
200mm
Back of the TV
200mm
Wall-Mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this
TV (screws are not included).
• Unplug the TV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HD TV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on an HD TV.
Connect to Power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Connect your Antenna
Antenna cable not included.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels

CONTROLS AND CONNECTIONS | 9
Bottom View
Controls and Connections
Buttons on the TV
Get to Know your TV
• (On/Standby) : When the TV is off, press this button
to turn the TV on.
• When the TV is on, press once to access the on-screen
control menu.
• While on this menu, press once to switch between
menu options; press and hold for 1.5 seconds to select.
On/Standby light and
Remote sensor

10 | CONTROLS AND CONNECTIONS
Ports on the TV
1
HDMI IN
Use a high-speed
HDMI cable for
best picture and
sound quality.
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports Ultra HD. Requires a HDMI cable (not included).
2ANTENNA IN
FREE TO-AIR
TV
Connect your antenna for live TV. (Antenna cable not included).
3USB
STORAGE
Plug in a USB stick/drive to play media files stored on your USB
storage device (supported file codecs and extensions may vary).
1 3
2

CONTROLS AND CONNECTIONS | 11
4
DIGITAL
AUDIO OUT
(OPTICAL)
SOUND
Connect an external digital audio device. Use an Optical cable
(not included) to connect the unit with an amplifier, soundbar or
other audio decoding device for digital audio signal output.
5
AV IN
(CVBS)
You can use this to connect your DVD player. Supports
Standard Definition (SD) picture quality. Requires an AV cable
(not included).
6AUDIO IN
SOUND
You can use this to connect Audio to your TV for AV or
Component video inputs. Requires an AV cable (not included).
7LAN
INTERNET
Connect to your broadband modem using an Ethernet cable
(not included).
46
5 7
1

12 | REMOTE CONTROL
Setup
Insert two AAA size batteries according to the polarity
markings (+/-) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included
1
2
3

REMOTE CONTROL | 13
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.
The remote has a range of up to about 5 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.
5m
Remote Pairing
This remote control uses both Bluetooth®and IR
(infrared) to send its commands to the TV.
• You can use this remote control via IR for
most operations.
• To use advanced operations like voice
search, you need to pair the TV with the
remote control. See page 15 for more
information on pairing your remote.

14 | REMOTE CONTROL
Smart Remote
(POWER): Press to turn the TV on or off
NUMBER BUTTONS: Press to bring up
the virtual numeric pad on the screen.
Use the numeric keypad to enter numeric
values. Select numbers and then select
Done to enter a numeric value. Use to
change the channel, enter a PIN etc.
: Press and hold the button, speak a
command then release the button to run
Voice Assistant.
/ RETURN : Press to return to the
previous menu. Press when watching a
channel to return to the previous channel
: Move the button up or down
to adjust the volume. Press to mute/
unmute. Press and hold to directly go to
accessibility shortcuts
: Launch the Netflix app
: Launch the Amazon Prime Video app
Microphone
/ / / RED/GREEN/YELLOW/
BLUE: Press the button to run the
additional option for the current
function
/ / / : Press the UP/DOWN/
LEFT/RIGHT buttons to navigate the
menu or move the focus to highlight
items on the Home Screen
SELECT: Selects or runs a focused item.
When pressed while you are watching a
broadcast program, detailed program
information appears
: Press to display playback controls.
Use these to control the media content
that is playing
: Go to return to the Home Screen
: Move the button up or down
to change the channel. Press to access
DTV guide. Press and hold to display
channel list
: Launch the Samsung TV Plus
service

REMOTE CONTROL | 15
3s
When you turn the TV on for the first time,
the Smart Remote will pair with the TV
automatically. If it does not pair, point the
remote towards the TV sensor and press the
/ RETURN and buttons simultaneously
for 3 seconds.
Press and hold the button on the remote,
say a command then release the button.
The TV will recognise the voice command (i.e.
say "volume up" and the TV will increase the
volume setting accordingly).
Note: Voice Assistant is available only when the TV is connected to the internet.
You must also:
• Agree to Smart Hub's Terms Of Use
• Agree to a guidance regarding the collection and use of personal information of the Smart Hub Service
• Consent to the collection and use of personal information for the voice interaction-based service
Pairing the Remote
Using Voice Assistant

16 | ON-SCREEN SET UP
Make sure the TV is plugged
in at the power socket and
switched on. Press the button
to turn on the TV.
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
10-11) before connecting the TV to power.
If you are using a wired network, connect an ethernet cable to
the TV. The TV will automatically connect to the Internet.
If you are using a wireless connection, open "Network
Settings" and select "Wireless". The TV will scan for nearby
wireless networks. Make sure that the TV is within the range of
your wireless modem/router, and you have your Wi-Fi password
handy. Select your network, enter network password using the
on-screen keyboard and select ENTER. Press OK to connect.
Or, you can connect to the internet later by going to the User
Menu settings.
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / OK buttons
to select your preferences. You will be guided through:
1. Language 4. Terr./Cable Signal Detected
6. Checking For Updates
8. Select Your TV Source 10. Discover A Faster Way To Link Your Apps9. Set Current Time 11. Start Watch TV
7. Sign Into Your Samsung Account5. Terms And Conditions, Privacy Policy
2. Let’s Get Setup 3. Connect Your Devices To The Screen
If you make an error, you can update your preferences in
the settings menu later.
On/Standby light is WHITE
in standby mode.
On/Standby light is OFF
when the TV is on.

ON-SCREEN SET UP | 17
Displaying Your Smart Phone Screen To The TV
Displaying Your PC Screen To The TV
Control The TV With A Keyboard, Mouse or Gamepad
You can watch the screen of your smart phone on the TV screen through Smart View.
Press the button on the remote > Source > Press the button> Select "Connection Guide" > Smartphone >
Screen Sharing (Smart View).
• To turn off Screen Sharing (Smart View), disconnect the smart phone or press the button on the remote control.
• Using the Smart View menu on your smart phone, you can change the settings such as aspect ratio.
You can watch your Windows 10 PC screen on the TV screen through Screen Sharing (Wireless).
Press the button on the remote > Source > Press the button> Select "Connection Guide" > PC > Screen
Sharing (Wireless).
• On your Windows 10 computer, press the , P and K buttons on your keyboard, and select device name "Tizen
Smart TV" to start wireless display.
You can connect a keyboard, mouse or gamepad to make it easier to control your TV.
Press the button on the remote > Settings > General > External Device Manager > Input Device Manager.
• Plug in your keyboard, mouse or gamepad into the USB port on the back of the TV.
• Note: a mouse can only be used on the Internet app.
• You can find more detailed information by referring to > Source > Press the button> Select "Connection
Guide" > Input Device.

18 | ON-SCREEN SET UP
Using The Keyboard And Mouse
Note: the key operation may differ depending on the app or the keyboard.
Button Function
Directional keys Moves the focus
Windows key Displays TV settings
Enter Key Selects or runs a focused item
F1/F2/F3/F4 key buttons
F5 key Displays the Home Screen
F6 key Displays the Source Screen
F7 key Displays the Channel List
F8 key Mutes the sound
F9/F10 key Adjust the volume
F11/F12 key Change channels
Page Up/Down Scrolls a web page when on the Internet app
Left-click (mouse) Click a menu or link to start a function (only available
when on Internet app)
Right-click (mouse) Open, open link in new tab, enable scroll mode (only
available when on Internet app)

SMART TV | 19
Smart Hub
On Smart Hub, you can install and use various apps, view photos and videos or listen to music stored on external
storage devices.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal
information. You cannot use the additional features and services without giving consent. You can view the Terms &
Privacy by pressing > Settings > Terms & Privacy.
If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement,
press > Settings > Support > Device Care > Self Diagnosis > Reset Smart Hub.
Smart TV
• Some Smart Hub services are paid services.
• You must connected to the internet to use Smart Hub.
• Some Smart Hub features may not be supported.

20 | SMART TV
Using the On-Screen Virtual Keyboard
You can use the built-in virtual keyboard to enter text on your TV.
Press and hold the button on the remote, speak into the microphone and release the button.
When the virtual keyboard is on the screen, it will automatically generate your voice into text.
1. Recommend text : the virtual keyboard will
automatically generate related suggestions
when typing a word.
2. Options: Select on the screen and the
below options can be adjusted:
• Recommend text
• Reset recommended text memory
• Language
Image is for reference only. The image may differ.
1
2
