Once you have unpacked your TV, check to make sure that you
have all the parts shown here. If any piece is missing or broken,
call your dealer.
Accessories
List of Parts
BN68-00766E-00
Power Cord
(3903-000144)
Anynet Cable
(BN39-00518A)

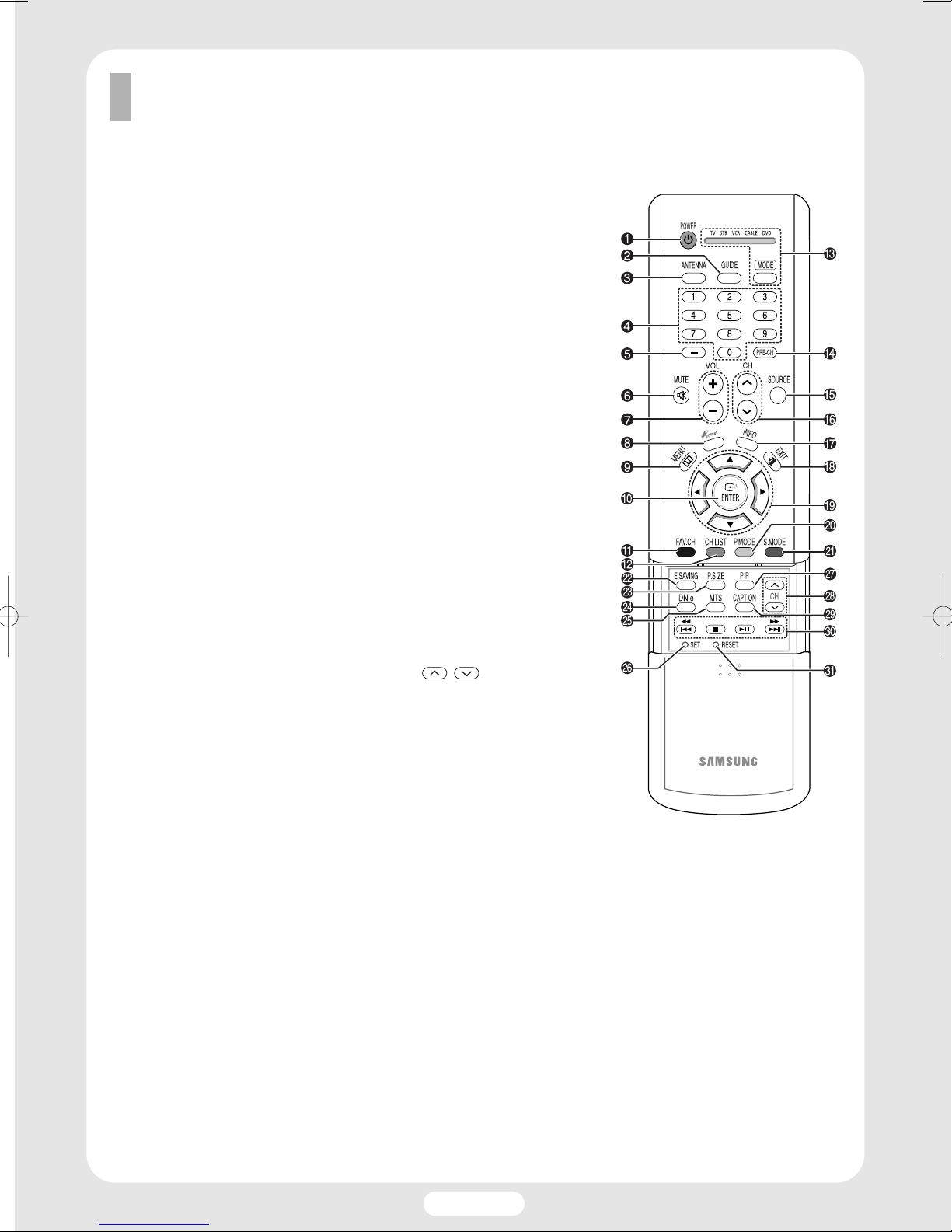

Owner’s Instructions Remote Control (BN59-00462A) /
AAA Batteries
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 1

English-2
Connecting VHF and UHF Antennas
1Plug the antenna lead into the ANT 2 IN (AIR IN)
on the TV.
Use the antenna cable, an accessory included
in the product package.
Antennas with 75-ohm Round Leads
If your antenna looks like this: it has 75-ohm round leads.
Connecting Cable TV
1Plug the incoming cable into the ANT 1 IN (CABLE
IN) on the TV.
Use the antenna cable, an accessory included
in the product package.
You can connect different cable systems to your TV, including cable without a Cable box, and cable
with a Cable box that descrambles some or all channels.
1Find the cable connected to the ANTENNA OUT
terminal on your Cable box. This terminal might be
labeled “ANT OUT”, “VHF OUT” or simply “OUT”.
2Connect the cable to the ANT 1 IN (CABLE IN) on
the TV.
Use the antenna cable, an accessory included
in the product package.
Cable with a Cable Box that Descrambles All Channels
Cable without a Cable Box
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 2

English-3
1Find and disconnect the cable that is
connected to the ANTENNA IN terminal
of your Cable box. This terminal might
be labeled “ANT IN”, “VHF IN” or
simply, “IN”. Connect this cable to a
two-way splitter.
Cable with a Cable Box that Descrambles Some (But Not All) Channels
To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial
cables (which you can buy from your Samsung dealer or any electronics store).
After you've made this connection, set the A/B switch to the “A” position for normal viewing.
Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to
“B”, you will need to tune your Set-Top Box to the Cable box's output channel, which is usually
channel 3 or 4.)
2Connect a coaxial cable between an
OUT terminal of the splitter and the
IN terminal of the Cable box.
3Connect a coaxial cable between the
ANTENNA OUT terminal of the
Cable box and the B-IN terminal
of the RF (A/B) switch.
4Connect a coaxial cable between the
other OUT terminal of the Cable box
and the A-IN terminal of the RF (A/B)
switch.
5Connect the last coaxial cable between
the OUT terminal of the RF (A/B)
switch and the ANT 1 IN (CABLE IN)
on the TV.
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 3

English-4
Connecting CableCARD
You must obtain a CableCARD from a local cable service provider.
1Insert the CableCARD into the “CableCARD” slot and the message “CableCARD Inserted”
is displayed on the screen. If the channel information does not exist, the message “Updating
Channel List” is displayed during channel information configuration. It could take several
minutes to update the channel information depending on your cable service provider.
2The pairing information containing a telephone number, CableCARD ID, Host ID, and other
information will be displayed in about 2~3 minutes. If an error message is displayed, please
contact your service provider.
3When the channel information configuration has finished, the message “Updating Completed”
is displayed, indicating that the channel list is now updated.
4The Channel list can now be displayed by pressing CH LIST button.
• Once the channel list has been updated, only the channels on the channel list can be
selected.
• Remove the CableCARD by carefully pulling it out with your hands since dropping the
CableCARD may cause damage to it.
TV
Power cord
From cable TV
Please insert the card as shown.
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 4

English-5
Connecting a VCR
Connecting a VCR to the Video or S-Video/Audio jack
Viewing camcorder tapes
Connect the Video/Audio
cables between the VIDEO
or S-VIDEO/AUDIO input
jacks on the TV and VIDEO
or S-VIDEO/AUDIO output
jacks on the VCR.
(Note: For better video, use
an S-Video cable.)
• Please be sure
to match the
color coded
input terminals
and cable jacks.
Connect a Video/Audio
cable between the VIDEO
or S-VIDEO/AUDIO input
jacks on the TV and the
VIDEO or S-VIDEO/AUDIO
output jacks on the
camcorder.
(Note: For better video, use
an S-VIDEO cable.)
• Please be sure
to match the
color coded
input terminals
and cable jacks.
TV
S-Video cable
Audio cable
Video cable
VCR
Power cord
Connecting a Camcorder
TV
S-Video cable
Audio cable
Video cable
Camcorder
Power cord
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 5

English-6
• Please be sure to match the color coded input terminals and cable jacks.
Connecting a DVD Player (480i, 480p)
Playing DVD
TV
Audio cable
Component cable
DVD Player
Power cord
1Connect the Y, PB, PR(COMPONENT1, 2) input jacks on the TV to the Y, PB, PRoutput jacks
on the DVD player using a component cable.
2Connect the AUDIO L/R (COMPONENT1, 2) input jacks on the TV to the AUDIO output jacks
on the DVD player using a audio cable.
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 6

English-7
• Please be sure to match the color coded input terminals and cable jacks.
1
Connect the cable or antenna to the antenna input jack on the DTV.
2
Connect the Y, P
B , P R (COMPONENT1, 2) or HDMI input jack on the TV to the Y, P B , P R or DVI output
jacks on the DTV receiver using a component or HDMI/DVI cable.
3
Connect the AUDIO L/R (COMPONENT1, 2 or DVI AUDIO IN) input jacks on the TV with the
AUDIO output jacks on the DTV receiver using an audio cable.
Connecting a DTV Receiver (480p, 720p, 1080i)
This TV displays the optimum picture in 720p mode.
Watching DTV
TV
DTV Receiver
HDMI/DVI cable
Audio cable
Component cable
Power cord
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 7

English-8
Connecting to HDMI (High Definition
Multimedia Interface) (480p, 720p, 1080i)
Watching DTV
• Please make
sure the HDMI
source’s power
is on before
selecting HDMI
from the
“Source List”
on the TV.
1Connect the cable or
antenna to the
antenna input jack on
the DTV.
2Connect the HDMI
input jack on the TV
with the HDMI output
jack on the DTV
Set-Top Box using an
HDMI cable.
TV
DTV Set-Top Box
HDMI cable
Power cord
1Connect the DVI
AUDIO (L, R) input
jacks on the TV
with the AUDIO
output jacks on the
Set-Top Box using
an audio cable.
2Connect the HDMI
input jack on the
TV and the VIDEO
output jack on the
Set-Top Box using
an HDMI/DVI cable.
Connecting a Digital TV Set-Top Box
(480p, 720p, 1080i)
By inputting a high-bandwidth digital content protection High-Definition picture source to the HDMI
input jack on the TV, High-Definition pictures can be displayed on the screen in their digital form.
Connecting to HDMI (High Definition Multimedia Interface)/DVI Compatible
TV
Audio cable
HDMI/DVI cable
From cable
or Antenna
Power cord DTV Set-Top Box
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 8

English-9
Connecting a Digital Audio System
1If your audio system has a coaxial digital audio input, connect to the “COAXIAL” output jack
on the TV.
2If your audio system has a optical digital audio input, connect to the “OPTICAL“ output jack
on the TV.
Be certain to remove the black cover from the optical output before inserting the cable.
3If your system has both coaxial and optical digital audio inputs, SAMSUNG recommends
you use the optical digital output on the TV.
Do not connect both optical and coaxial cables. This may damage your audio system.
●OPTICAL: converts the electric signal into an optical light signal, and transmits it through
glass fibers.
●COAXIAL: The digital audio signal is received through a coaxial copper cable.
There are many types of digital audio systems on the market today.
Asimplified illustration of an audio system is shown below. For more information, see your audio system
owner’s manual.
TV
Digital Audio System
Optical cable
Coaxial cable
Power cord
BN68-00766E-00Eng_0214 2/14/05 1:48 PM Page 9

English-10
Connecting to an Analog Amplifier
1The “AUDIO OUT
(AUDIO L/R)”
terminals cannot be
used for external
speakers.
You must hook them
up to an amplifier.
When an audio
amplifier is
connected to the
“AUDIO OUT
(AUDIO L/R)”
terminals:
Decrease the gain
(volume) of the
audio amplifier,
and adjust the
volume level with
the volume control
on the TV.
TV
Analog Amplifier
Audio cable
Power cord
Connecting a PC
1Connect a PC
cable between the
PC Output jack on
the PC and the
RGB input jack
(PC IN) on the TV.
2Connect a Audio
cable between the
Audio jack on the
PC and the Audio
input jacks (PC
AUDIO IN) on the
TV.
Connection to a Macintosh computer may require an adapter.
Connecting a PC (15p D-SUB) to the TV
• Please be sure
to match the
color coded
input terminals
and cable jacks.
• A PC will not
operate when
connected with a
HDMI/DVI cable.
Audio cable
PC cable
TV
PC
Power cord
