Samsung VC-7615V User manual

Operating Instructions
VACUUM CLEANER
❈Before operating this unit, please read the instructions carefully.
EN
Manuel d’instructions
FR
Handleiding
NL
VC-7600-EN-1 5/23/01 1:26 PM Page 1

EN-1
This appliance must be connected to the same mains voltage as shown on
the rating plate.
This vacuum cleaner is not suitable for removing any kind of liquid.
Carpets treated with a liquid cleaner must be allowed to dry before being
cleaned with the unit.
Never operate the vacuum cleaner without a dust bag.
The cover cannot be closed if a dust bag is not inserted. Please do not close
forcibly.
Keep children away from this vacuum cleaner. It must not be used on people
or animals.
Never use your appliance to vacuum matches, glowing embers, or
cigarette-ends. Avoid vacuuming hard, pointed objects, since they may
damage the appliance or dust bag.
If your vacuum cleaner has a fault, please contact your electrical retailer or an
authorized service agent.
If the mains cable is defective, the complete cable winder must be replaced
by a service agent.
Once you have unpacked the unit, do not simply throw the packing into the
household waste.
Take them to the appropriate collecting points for recycling.
IMPORTANT SAFEGUARDS
PROTECTING THE ENVIRONMENT
▲▲▲▲▲▲▲▲▲▲▲
VC-7600-EN-1 5/23/01 1:26 PM Page 2

EN-2

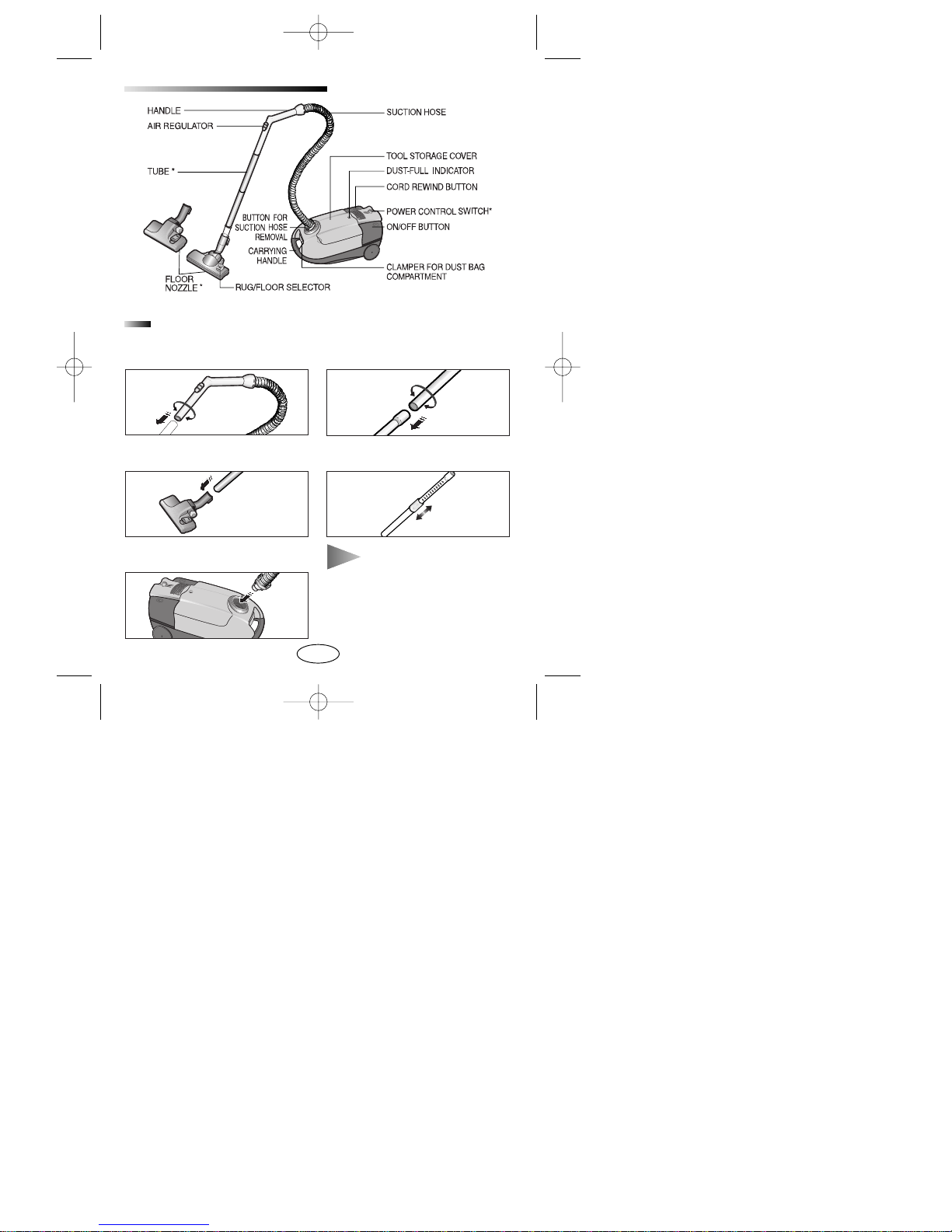

IDENTIFICATIONS OF PARTS

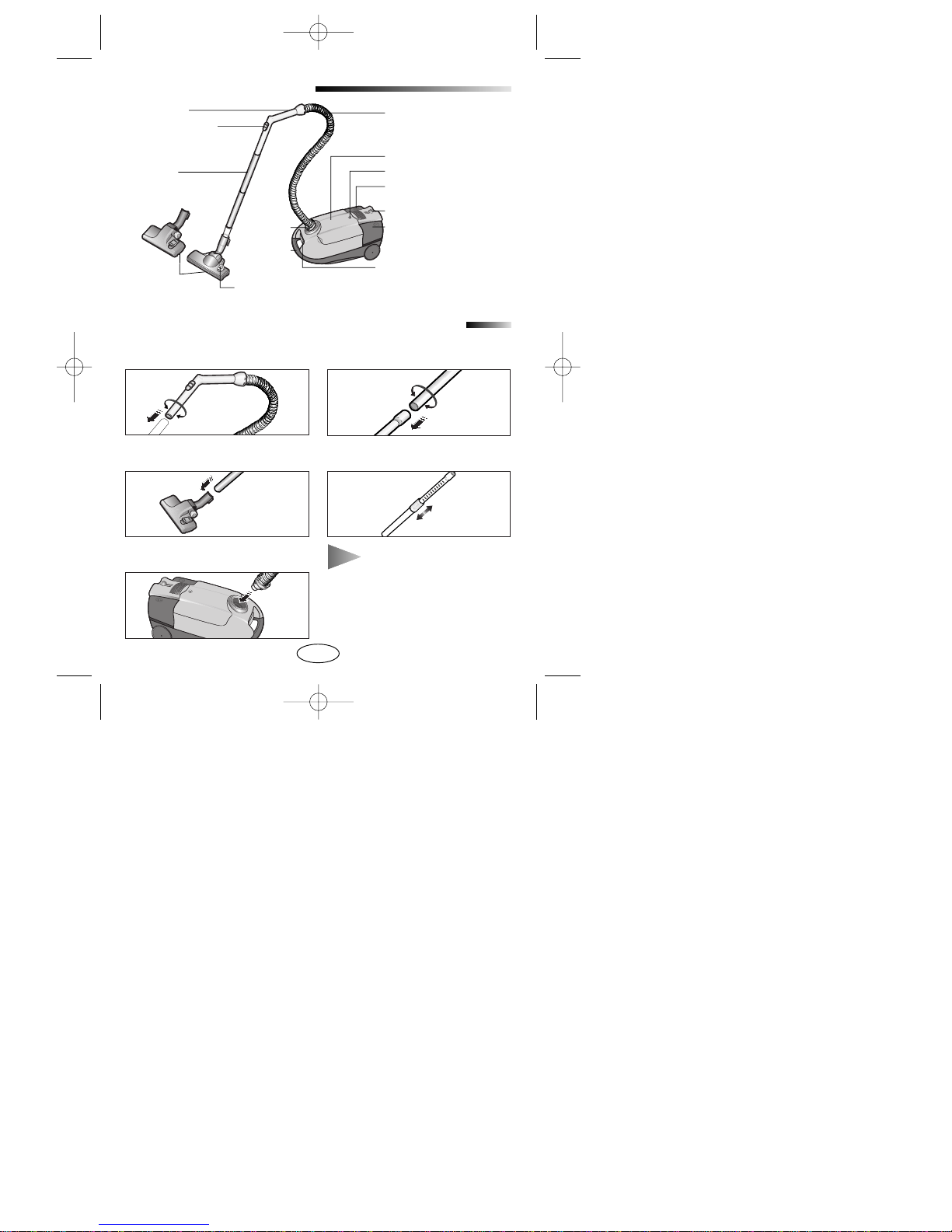

ASSEMBLING THE VACUUM - CLEANER READY FOR USE
1) Connect the suction hose to the
suction tube. 2) Connect the suction tubes together (depending on model).
3) Connect the nozzle to the suction
tube.
4) Connect the body connector to the
body of the cleaner. OPTION: Adjusting the telescopic
tube (depending on
model).
▲
Features marked with
* may vary according to model.
VC-7600-EN-1 5/23/01 1:26 PM Page 3

EN-3

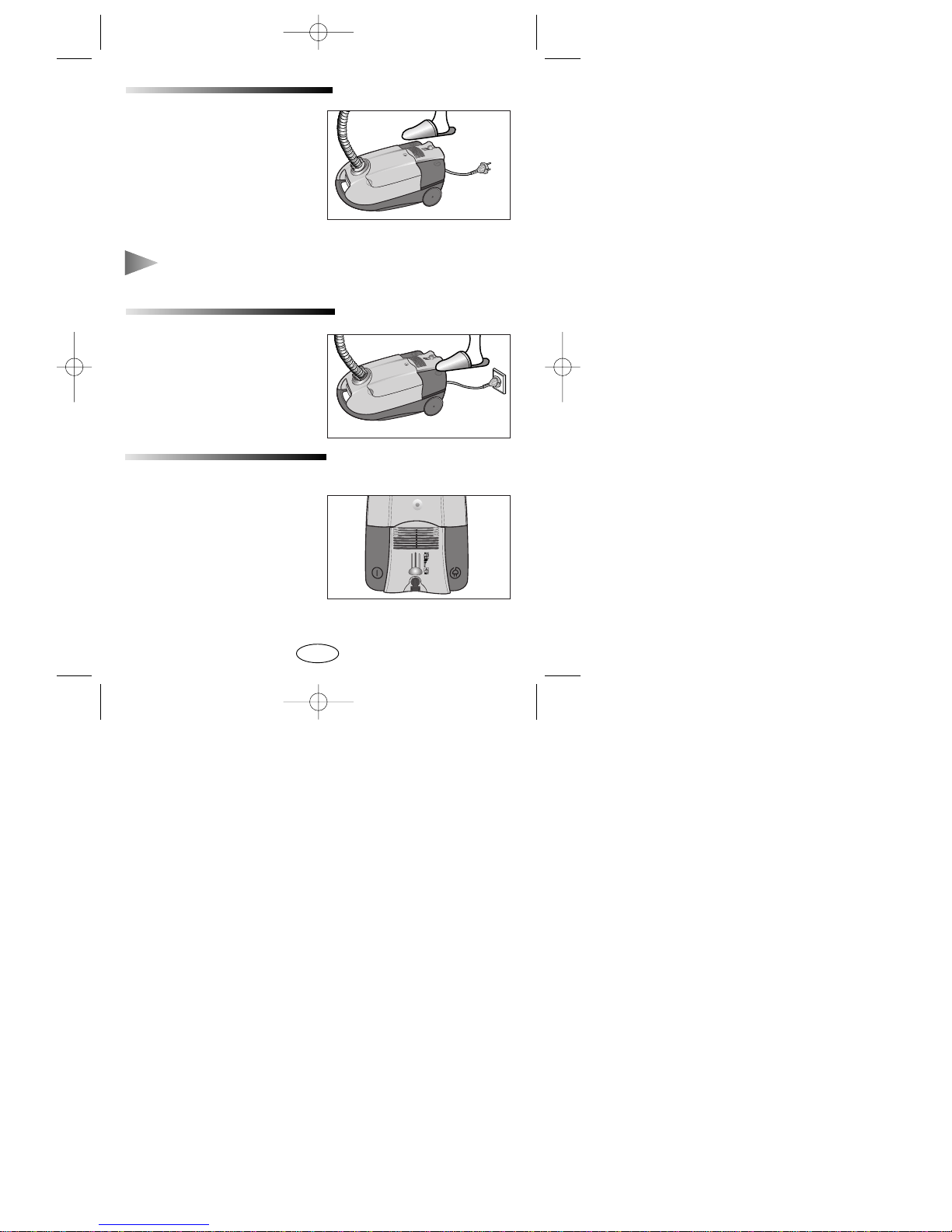

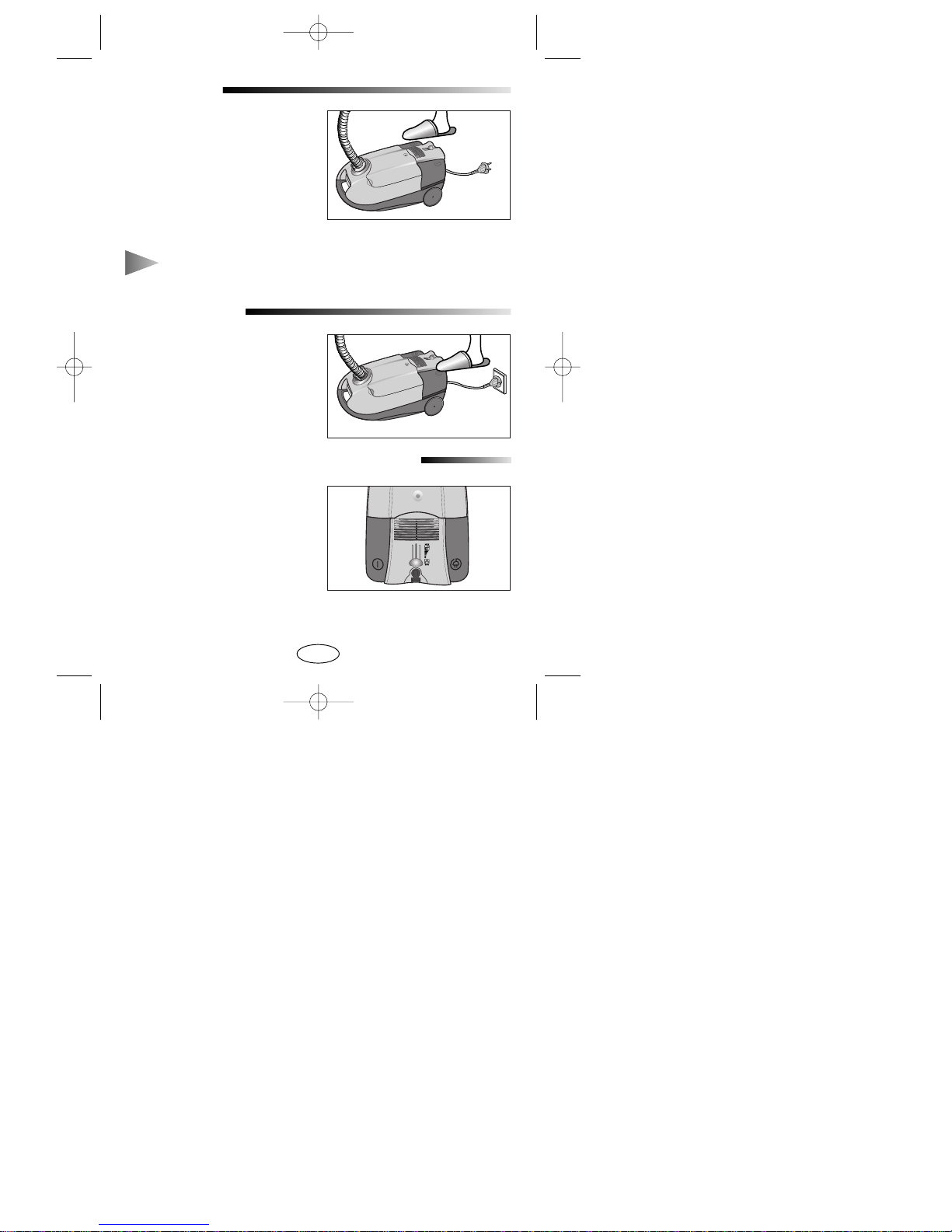

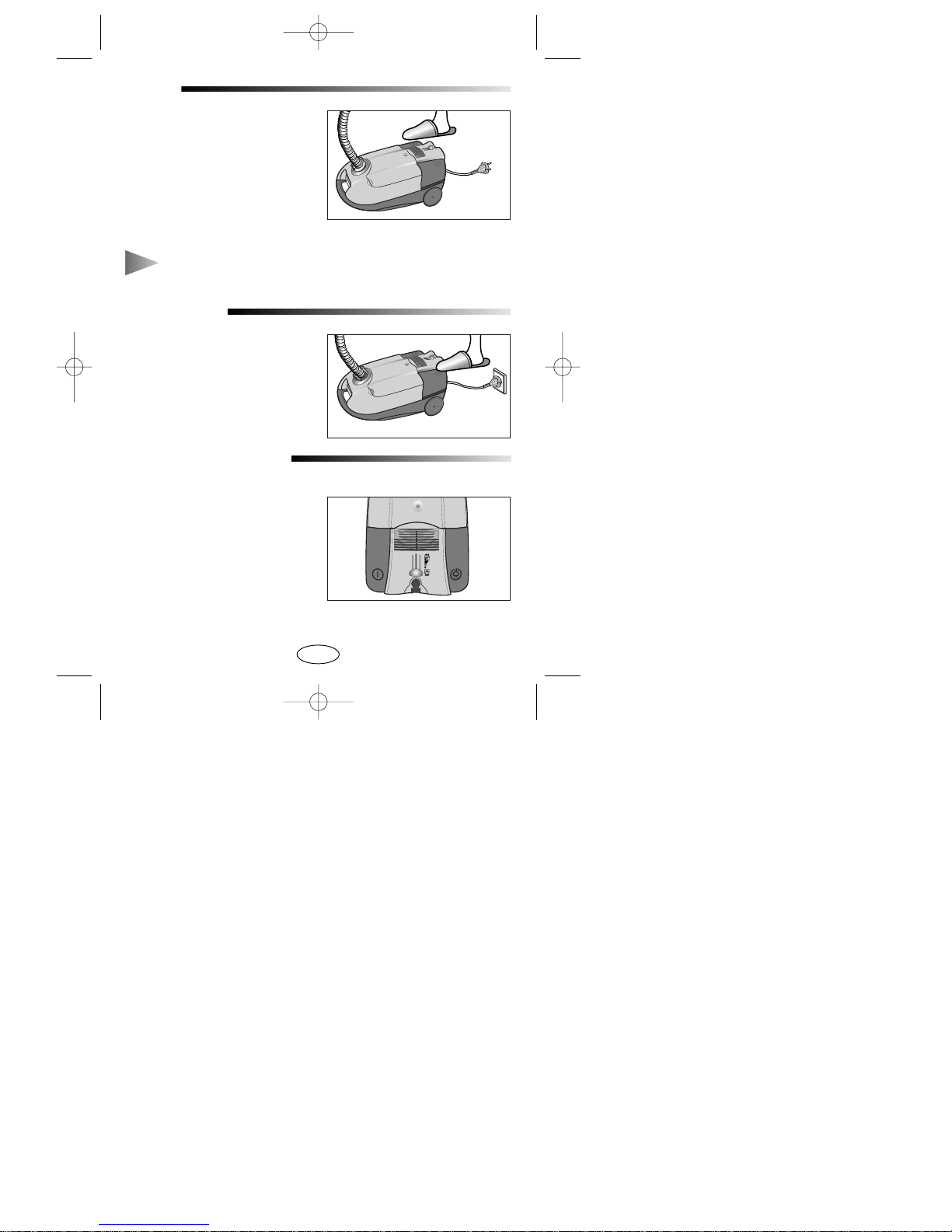

POWER CORD
ON / OFF SWITCH
POWER CONTROL (VARIABLE CONTROL TYPE ONLY)
1) PULLING OUT
The power cord is long enough to be
drawn out for convenience.
2) REWINDING
When you have finished cleaning,
disconnect the plug from the electri-
cal outlet and simply press the cord
rewind button lightly with your toe.
With the cord plugged into an electrical
outlet, start or stop the vacuum cleaner
by pushing lightly downward on the
switch with your toe.
The vacuuming power can be adjusted
to suit any situation with the electrical
power control.
MIN = For delicate fabrics, e.g.net
curtains.
MAX = For hard floors and heavily
soiled carpets.
NOTE: When removing the power cord from the electrical outlet, grasp the
plug, not the cord.
VC-7600-EN-1 5/23/01 1:26 PM Page 4

EN-4
NOTE: If the “Dust-Full” indicator continues to display “RED” even after
changing the dust bag, turn the cleaner off and check whether the
hose, tube or nozzle is clogged.
DUST-FULL INDICATOR

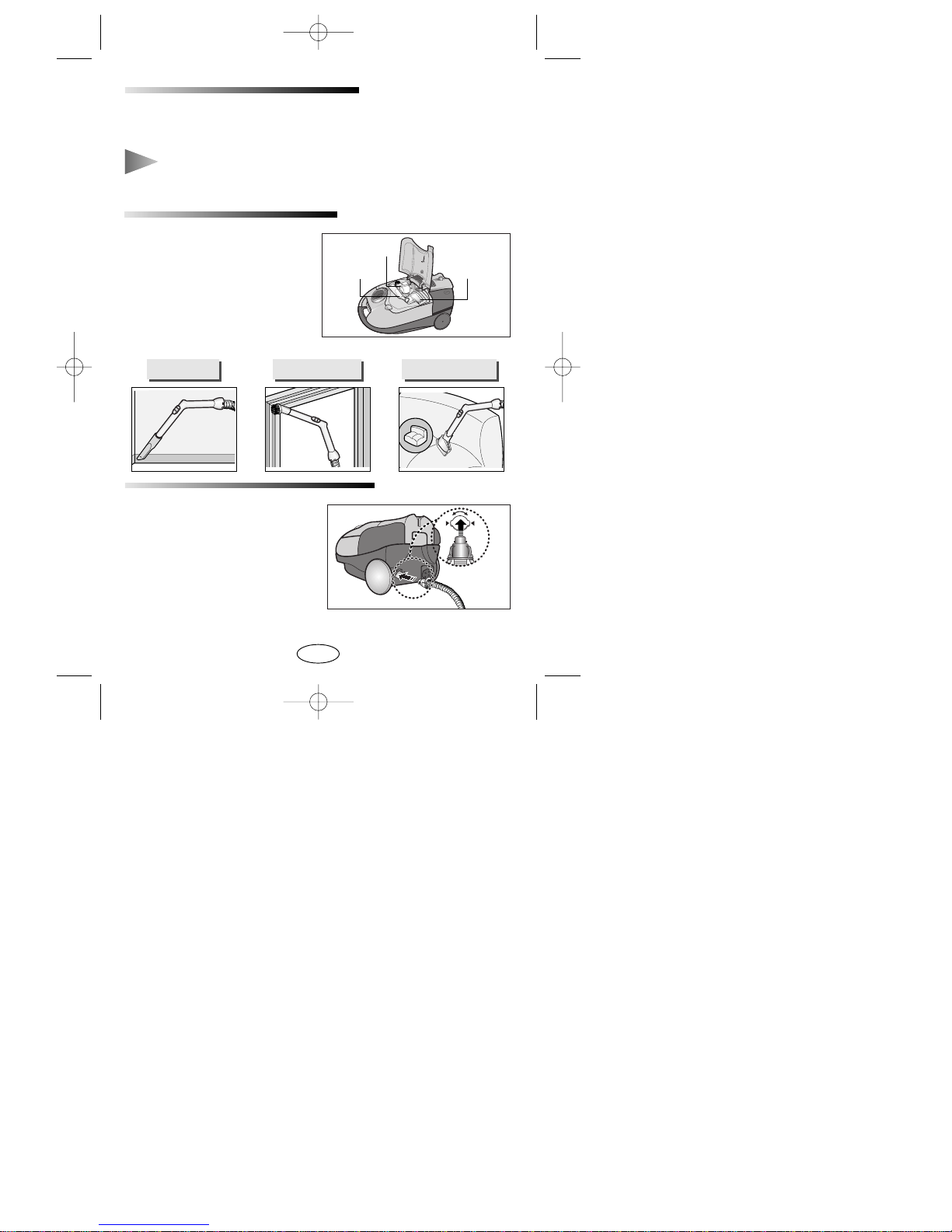

USING THE ACCESSORIES
USING THE BLOWER
If the “Dust-Full” indicator changes to “RED” while you are cleaning, the dust
bag requires replacement.
Pull the tool storage cover upward.
• Crevice tool for radiators, crevice,
corners, between cushions.
• Upholstery brush for cushions and
drapery.
• Dusting brush for furniture, shelves,
books, etc.
Located on the left rear side of the
cleaner.
1) Disconnect the hose from the body
of the
cleaner.
2) Connect the hose clamper to the
blow hole.
DUSTING BRUSH
CREVICE TOOL
UPHOLSTERY
BRUSH
CREVICE DUSTING UPHOLSTERY
VC-7600-EN-1 5/23/01 1:26 PM Page 5

EN-5
PARK POSITION
Located in the top rear side of the
vacuum-cleaner, there is a nozzle
support that can be used to park the
nozzle during pauses in cleaning.
TRANSPORTING AND STORING THE VACUUM CLEANER
For easy storage and transportation,
this vacuum cleaner has a clip system
built onto the body, which will keep the
tube, hose and nozzle in a vertical
position.

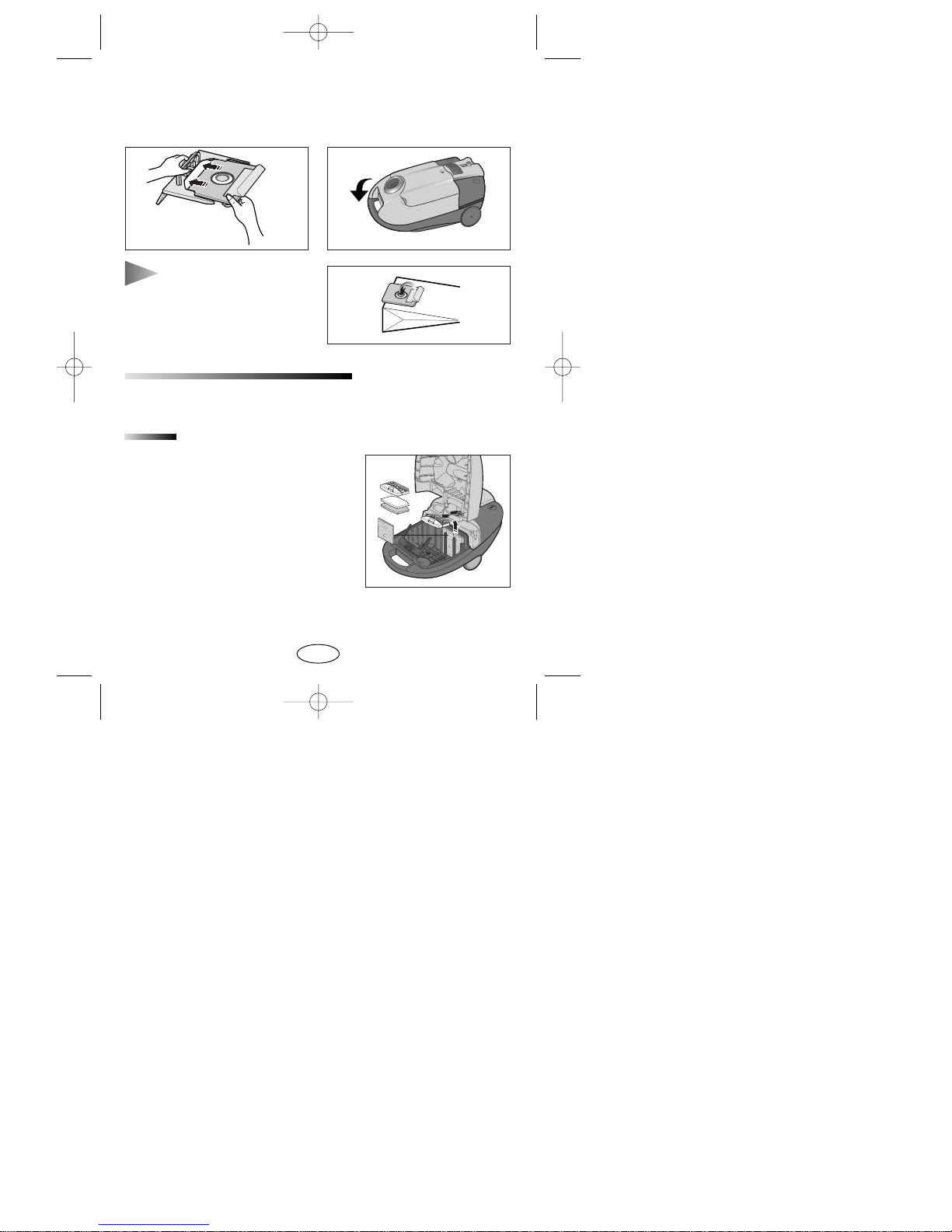

REPLACING THE DUST BAG(VP-77)
1) To open the dust cover of the dust
bag compartment, press the
clamper upward.
(The clamper is located at the front
of the dust cover)
2) Remove the carrying bag from the
cleaner.
VC-7600-EN-1 5/23/01 1:26 PM Page 6

EN-6
FOR CLOTH FILTER BAG
MAINTENANCE OR REPLACEMENT OF THE FILTERS
NOTE: Used dust bag can be sealed
by removing the film from the
paper and sticking the latter
over the suction opening.
(ONLY PAPER BAG)
After using, if the cloth filter bag is full of dust, clean the cloth filter bag and use
it again.
1) INLET-FILTER.
• Open the dust cover.
• After detaching the filter, shake off the dust, and
then insert it in its original position.
• Close the dust cover.
2) OUTLET-FILTER.
• Open the dust cover, and then pull grille-filter
forward.
• Remove and replace the exhausted outlet-filter.
• Push the grille filter, and then close the dust
cover.
3)
After removing the used dust bag,
insert the cardboard bag collar of the
new dust bag into the carrying bag,
and then insert it in its original position
4) Press the dust cover down gently
until the clamper relocks.
VC-7600-EN-1 5/23/01 1:26 PM Page 7

EN-7

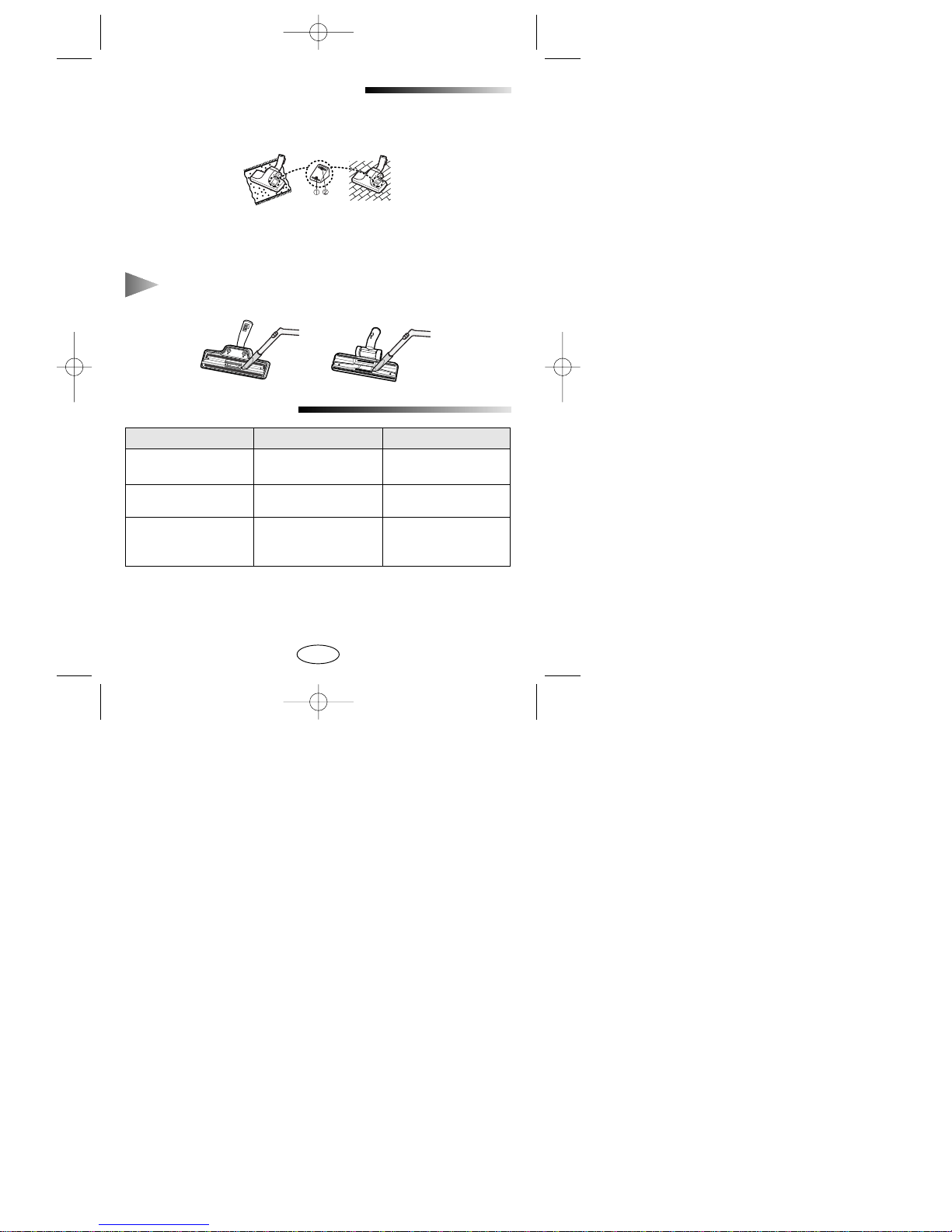

USAGE OF FLOOR NOZZLE
FOR RUG / FLOOR SELECTOR
Before use make sure that the position of the selector is in the right position for
the type of surface to be cleaned.
Select the carpet indicator ➀when cleaning carpets.
Select flat surface indicator ➁when cleaning the floors, tiles, etc.
NOTE: For optimum efficiency, clean floor brush with crevice tool.
TROUBLE SHOOTING
PROBLEM CAUSE REMEDY
Motor does not start. No power supply. Check cable, plug and
socket.
Suction force is gradually Filter, nozzle, suction hose Remove the object.
decreasing. or tube is blocked.
Cord does not rewind fully. Check that the cord is not Pull the cord out 2~3m &
twisted or wound unevenly. push down the cord rewind
button.
This Vacuum cleaner is approved the following.
EMC Directive : 89/336/EEC , 92/31/EEC and 93/68/EEC
Low Voltage Safety Directive : 73/23/EEC and 93/68/EEC
VC-7600-EN-1 5/23/01 1:26 PM Page 8

NL-1
Controleer of de spanning van uw stroomvoorziening dezelfde is als de
spanning die wordt aangegeven op het typeplaatje op de onderkant van de
stofzuiger.
Met deze stofzuiger kunt u geen water en andere vloeistoffen opzuigen.
Tapijten die behandeld zijn met een vloeibaar reinigingsmiddel, moeten goed
droog zijn voordat u ze met deze stofzuiger reinigt.
Gebruik de stofzuiger nooit zonder stofzuigerzak.
De klep kan alleen dicht wanneer er een stofzuigerzak in zit. Probeer niet om
de klep met geweld te sluiten terwijl er geen zak in zit.
Houd kinderen uit de buurt van de stofzuiger. Gebruik de stofzuiger niet op
mensen en dieren.
Gebruik de stofzuiger nooit om lucifers, gloeiende as of sigarettenpeuken op te
zuigen. Zuig nooit harde voorwerpen met scherpe randen op. Deze kunnen de
stofzuiger of de stofzuigerzak beschadigen.
Als uw stofzuiger problemen vertoont, moet u hem door de fabrikant of een
erkend servicecenter laten repareren.
Als het snoer defect is, moet u het snoer inclusief de opwinder door een
erkend servicecenter laten vervangen.
Gooi na het uitpakken van de stofzuiger het verpakkingsmateriaal niet bij uw
normale huisval.
Breng het naar een innamepunt voor afvalrecycling.
BELANGRIJKE VEILIGHEIDSWAARSCHUWINGEN
BESCHERMING VAN HET MILIEU
▲▲▲▲▲▲▲▲▲▲▲
VC-7600-NL-2 5/23/01 12:25 PM Page 2

NL-2
ONDERDELEN
DE STOFZUIGER VOOR GEBRUIK IN ELKAAR ZETTEN
1) Sluit het uiteinde van de handgreep
van de slang op de buis aan. 2) Zet de buizen in elkaar (afhankelijk van het model).
3) Sluit de zuigmond op de buis aan.
4) Sluit de slang op de stofzuiger aan. OPTIE: De telescoopbuis instellen
(afhankelijk van het model).
▲
De met
*
aangegeven kenmerken kunnen per model verschillen.
HANDGREEP
LUCHTREGELAAR
BUIS*
ZUIGMOND* TAPIJT/VLOER KNOP
DRAAGHENDEL
KNOP VOOR
VERWIJDERING
VAN DE SLANG
KLEM VOOR
STOFZAKCOMPARTIMENT
ZUIGKRACHTREGELAAR*
AAN/UIT KNOP
KNOP OPROLMECHANISME
VOLLE STOFZAK INDICATOR
KLEP OPBERGVAK ACCESSOIRES
SLANG
VC-7600-NL-2 5/23/01 12:25 PM Page 3
