Samsung VCJG Series User manual

English
Vacuum Cleaner
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only.
VCJG**** Series
DJ68-00661J-07.indb 1 2017. 5. 16. �� 9:56

02_ safety information
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it for your
reference.
WARNING
• Because these following operating instructions cover various models, the characteristics of
your vacuum cleaner may differ slightly from those described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Notes on the energy label
• Declared energy efficiency and cleaning performance class on carpet can be
met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the enclosed “Eco Hard
Floor” brush which is designed to meet the energy efficiency and cleaning
performance class on hard floor with joints and gaps.
• The values provided on the energy label have been determinded according to
the prescribed measuring process (in accordance with EN60312 - 1).
Eco Hard Floor
DJ68-00661J-07.indb 2 2017. 5. 16. �� 9:56

safety information _03
IMPORTANT SAFEGUARDS
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• WARNING: Do not use the vacuum cleaner when rug or floor is
wet.
Do not use to suck up water.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bag.
Change the dust bag before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts. Keep the vacuum cleaner away from stoves and
other heat sources. Heat can deform and discolour the plastic
parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner
as they may damage the cleaner parts. Do not stand on the
hose assembly. Do not put weight on the hose. Do not block the
suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before changing the dust bag or dust
container. To avoid damage, please remove the plug by grasping
the plug itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
DJ68-00661J-07.indb 3 2017. 5. 16. �� 9:56

04_ safety information
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
• For information on Samsung’s environmental commitments and
product specific regulatory obligations e.g.
REACH visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/data_corner.html
DJ68-00661J-07.indb 4 2017. 5. 16. �� 9:56

contents _05
Contents
ASSEMBLING THE CLEANER
06
OPERATING THE CLEANER
07
07 power cord
07 on/off switch
07 power control
MAINTAIN TOOLS AND FILTER
09
09 using accessory
11 maintain floor tools
12 check filter indicator
13 changing the dust bag
13 cleaning inlet filter
13 cleaning outlet filter
14 change the battery (optional)
TROUBLESHOOTING
15
DJ68-00661J-07.indb 5 2017. 5. 16. �� 9:56

06_ Assembling the cleaner
• For storage, park the floor nozzle.
Assembling the cleaner
OPTION
• Features may vary according to model.
DJ68-00661J-07.indb 6 2017. 5. 16. �� 9:56

Operating the cleaner _07
02 OPERATING THE CLEANER
POWER CORD
CAUTION
• When removing the plug from the electrical outlet, grasp the plug, not the
cord.
ON/OFF SWITCH
POWER CONTROL
Remote-control type (OPTIONAL)
- HOSE
1. Vacuum cleaner ON/OFF
Press the ON/OFF button to operate the vacuum cleaner.
Press again to stop the vacuum cleaner.
2. Vacuum cleaner MIN/MID
Press the MIN/MID button to operate the vacuum at a low level (for
curtain cleaning, etc.).
Press again to operate the vacuum in a MID mode.
3. Using at MAX
Press the MAX button to operate the vacuum at maximum intake.
Operating the cleaner
Sender
HANDLE CONTROL
[The cleaner is controlled by using
infrared signals.]
DJ68-00661J-07.indb 7 2017. 5. 16. �� 9:56

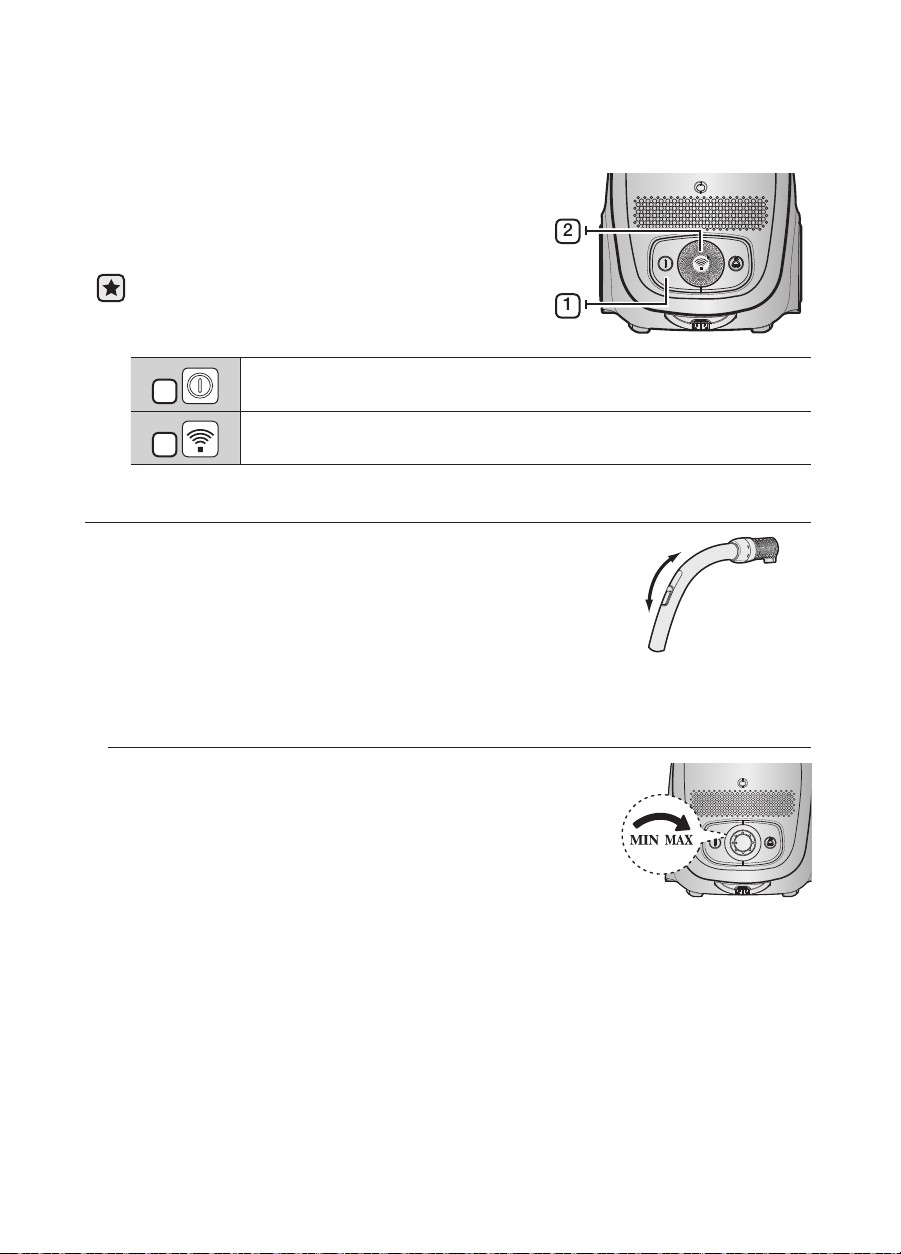

08_ Operating the cleaner
- BODY
Press the power ON/OFF button repeatedly to start and
to stop the vacuum cleaner.
(OFF →ON →OFF)
If the remote handle control is not working, the cleaner
can be operated using the ON/OFF button on the body of
the machine.
1The ON/OFF button operates the vacuum cleanner or stops it.
2
The INFRARED light indicates the part that receives the infra-red signal from the
handle control.
Body-control type (OPTIONAL)
- HOSE
To reduce suction for leaning draperies, small rugs, and other light
fabrics, pull the tap air until the hole is open
- BODY (VOLUME TYPE ONLY)
To control power level, just slide the power control bottom right
and left.
MIN = For delicate fabrics, e.g.net curtains.
MAX = For hard floors and heavily soiled carpets.
2
1
DJ68-00661J-07.indb 8 2017. 5. 16. �� 9:56

maintain tools and filter _09
03 MAINTAIN TOOLS AND FILTER
USING ACCESSORY
Pipe
• Adjust the length of the telescopic pipe by sliding the length
control button located in the center of the telescopic pipe
back and forth.
• To check for blockages, separate the telescopic pipe and
adjust to shorten. This allows for easier removal of waste
clogging the tube.
• Adjust the length of pipe by pushing the [PUSH] button of
the pipe.
• To check for blockages, separate the telescopic pipe and
adjust to shorten. This allows for easier removal of waste
clogging the tube.
maintain tools and filter
DJ68-00661J-07.indb 9 2017. 5. 16. �� 9:56

10_ maintain tools and filter
Accessory (Optional)
• Push the accessory on to the end of the
hose handle.
• Pull out and turn the dusting brush for
cleaning delicate areas.
• To use the upholstery tool, push the
accessory on to the end of the hose
handle in the opposite direction.
Accessory (Optional)
• Furniture brush for desk, Furniture and Floor.
DJ68-00661J-07.indb 10 2017. 5. 16. �� 9:56

maintain tools and filter _11
03 MAINTAIN TOOLS AND FILTER

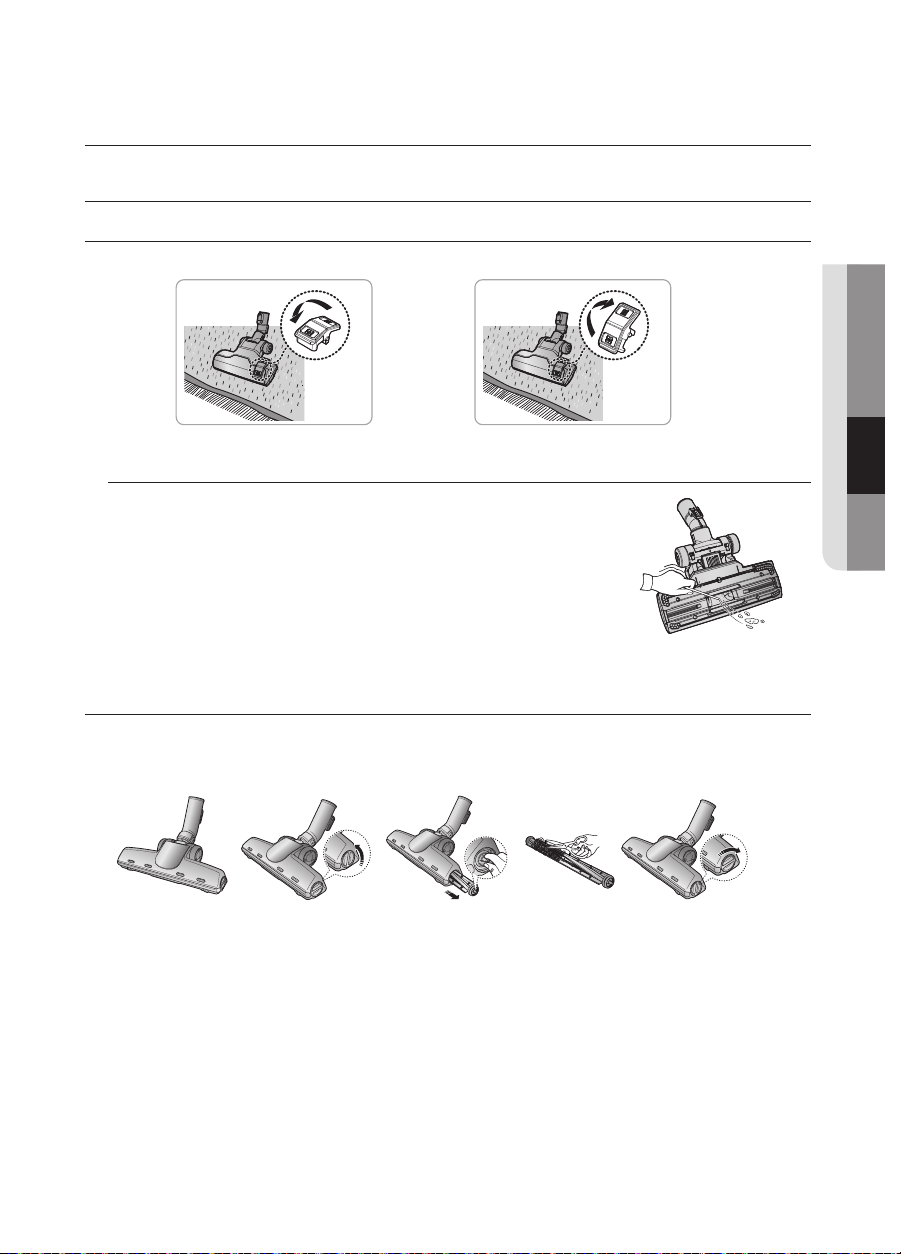

MAINTAIN FLOOR TOOLS
2-Step Brush
• Adjust the inlet lever according to the floor surface.
• Remove waste matter completely if the inlet is blocked.
Pet Brush (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around
the drum. In this case, clean the drum with care.
maintain tools and filter
Carpet Cleaning Floor Cleaning
DJ68-00661J-07.indb 11 2017. 5. 16. �� 9:56

12_ maintain tools and filter
CHECK FILTER INDICATOR
If the “Filter Check” indicator turns to red color while you are
cleaning, the dust bag requires replacement.
If the “Filter Check” indicator continues to display red color even
after having changed bag into new one, turn the cleaner off and
check if there is any clogging in the hose,tube,floor nozzle,or on
the inlet/outlet filter.
DJ68-00661J-07.indb 12 2017. 5. 16. �� 9:56

maintain tools and filter _13
03 MAINTAIN TOOLS AND FILTER
CHANGING THE DUST BAG
You can purchase dust bags in the shops where you bought this vacuum
cleaner.
Paper bag can be used as you prefer (Micro-bag:VP-78M, Paper-
bag:VP-77)
OPTIONAL
• For Cloth Bag
After using, if the cloth bag is full of dust, clean the cloth bag and use it
again.
CLEANING INLET FILTER
Don’t throw away the filter.
CLEANING OUTLET FILTER
Replacement filters are available at your local Samsung distributor.
maintain tools and filter
1 3 42
1 2 43
OPTIONAL
21 3
DJ68-00661J-07.indb 13 2017. 5. 16. �� 9:56

14_ maintain tools and filter
CHANGE THE BATTERY (OPTIONAL)
1. When the vacuum cleaner dows not work, replace the batteries. If
the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AA.
1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles
4. Dispose of the batteries property.
BATTERY TYPE : AA Size
WARNING
DJ68-00661J-07.indb 14 2017. 5. 16. �� 9:56

troubleshooting _15
04 TROUBLESHOOTING
troubleshooting
PROBLEM SOLUTION
Motor dows not start. • Check cable, pulg and socket.
• Leave to cool.
Suction force is gradually
decreasing. • Check for blockage and remove.
Cord does not rewind
fully. • Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner dows not
pick up dirt. • Check hose and replace if required.
Low or decreasing
suction • Please check filter and, if required, clean as illustrated in the instructions.
This Vacuum cleaner is approved the following.
Electromagnetic Compatibility Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
DJ68-00661J-07.indb 15 2017. 5. 16. �� 9:56

Product fiche
[English]
According to Commission Regulation (EU) No 665/2013 and No 666/2013
ASupplier Samsung Electronics., Co. Ltd
BModel VCJG05**
CEnergy Efficiency Class A+
DAnnual Energy Consumption
(kWh/yr) 22.0
E Carpet Cleaning Performance Class
C
F Hardfloor Cleaning Performance Class
A
GDust Re-Emission Class A
HSound Power Level (dBA) 76
IRatedInput Power (W) 500
JType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.
Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on methods in EN
60312-1 and EN 60704.
DJ68-00661J-07.indb 16 2017. 5. 16. �� 9:56

Memo
DJ68-00661J-07.indb 17 2017. 5. 16. �� 9:56

DJ68-00661J-07.indb 18 2017. 5. 16. �� 9:56

Svenska
Dammsugare
bruksanvisning
imagine the possibilities
Tack för att du köpt en Samsung-produkt.
✻Läs anvisningarna noga innan du börjar använda den här enheten.
✻Endast för inomhusanvändning.
VCJG**** Series
DJ68-00661J-07.indb 1 2017. 5. 16. �� 9:56

02_ säkerhetsinformation
säkerhetsinformation
SÄKERHETSINFORMATION
VARNING!
• Innan du använder apparaten bör du läsa den här handboken noga och spara den för
framtida bruk.
VARNING!
• Din apparats egenskaper kan skilja sig något från de som beskrivs i denna handbok,
eftersom boken täcker flera olika modeller.
FÖRSIKTIGHETS-/VARNINGSSYMBOLER SOM ANVÄNDS
VARNING! Anger att det föreligger risk för dödliga eller allvarliga skador.
IAKTTAG FÖRSIKTIGHET!
Anger att det föreligger risk för person- eller materialskada.
ÖVRIGA SYMBOLER SOM ANVÄNDS
Anger något som du INTe ska göra.
Anger något som du måste följa.
Indikerar att du måste koppla bort elkontakten från uttaget.
Information om energimärkningen
• Angiven energieffektivitet och rengöringsprestandaklass för matta kan uppfyllas
med den medföljande 2-stegsborsten.
• När det hårda golvet har skarvar och öppningar ska du använda den
medföljande borsten “Eko Hårt golv”, som är utformad för att uppfylla
energieffektiviteten och rengöringsprestandaklassen för hårda golv med skarvar
och öppningar.
• De värden som anges på energimärkningen har bestämts enligt den föreskrivna
mätprocessen (enligt EN60312 - 1).
Eko Hårt golv
DJ68-00661J-07.indb 2 2017. 5. 16. �� 9:56
