Samsung VCDC12 Series User manual

Vacuum Cleaner
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only. English
VCDC12**
VCDC20**
DJ68-00665H.indb 01DJ68-00665H.indb 01 2013.2.8 2:37:51 PM2013.2.8 2:37:51 PM

02_ safety information
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
WARNING
DJ68-00665H.indb 섹션1:02DJ68-00665H.indb 섹션1:02 2013.2.8 2:37:52 PM2013.2.8 2:37:52 PM

safety information _03
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully. Before switching on, make
sure that the voltage of your electricity supply is the same
as that indicated on the rating plate on the bottom of the
cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or
floor is wet.
Do not use to suck up water.
3. Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the
best efficiency.
4. Slide to the Stop(or Min)position before inserting a plug
into the electrical outlet.
5. Do not use the vacuum cleaner to pick up matches, live
ashes or cigarette butts.
Keep the vacuum cleaner away from stoves and other
heat sources. Heat can deform and discolour the plastic
parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum
cleaner as they may damage the cleaner parts. Do not
stand on the hose assembly. Do not put weight on the
hose.
Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the
DJ68-00665H.indb 섹션1:03DJ68-00665H.indb 섹션1:03 2013.2.8 2:37:52 PM2013.2.8 2:37:52 PM

04_ safety information
machine before unplugging from the electrical outlet.
Disconnect the plug from the electrical outlet before
changing the dust bag or dust container. To avoid
damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
8. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
9. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
10.The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
11.The use of an extension cord is not recommended.
12.If your vacuum cleaner is not operating correctly, switch
off the power supply and consult an authorized service
agent.
13.If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
14.Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
15.Unplug the cleaner when not in use. Turn off the power
switch before unplugging.
DJ68-00665H.indb 섹션1:04DJ68-00665H.indb 섹션1:04 2013.2.8 2:37:52 PM2013.2.8 2:37:52 PM

contents _05
contents
ASSEMBLING THE CLEANER
06
OPERATING THE CLEANER
07
07 ON/OFF Switch
07 Power Cord
08 Power-Control
MAINTAIN TOOLS AND FILTER
09
09 Using accessory
10 Maintain floor tools
11 Emptying the dust bin
12 When to clean the dust pack
13 Cleaning the dust pack
14 Cleaning the outlet filter
15 Change the battery (option)
TROUBLESHOOTING
16
DJ68-00665H.indb 섹션2:05DJ68-00665H.indb 섹션2:05 2013.2.8 2:37:52 PM2013.2.8 2:37:52 PM

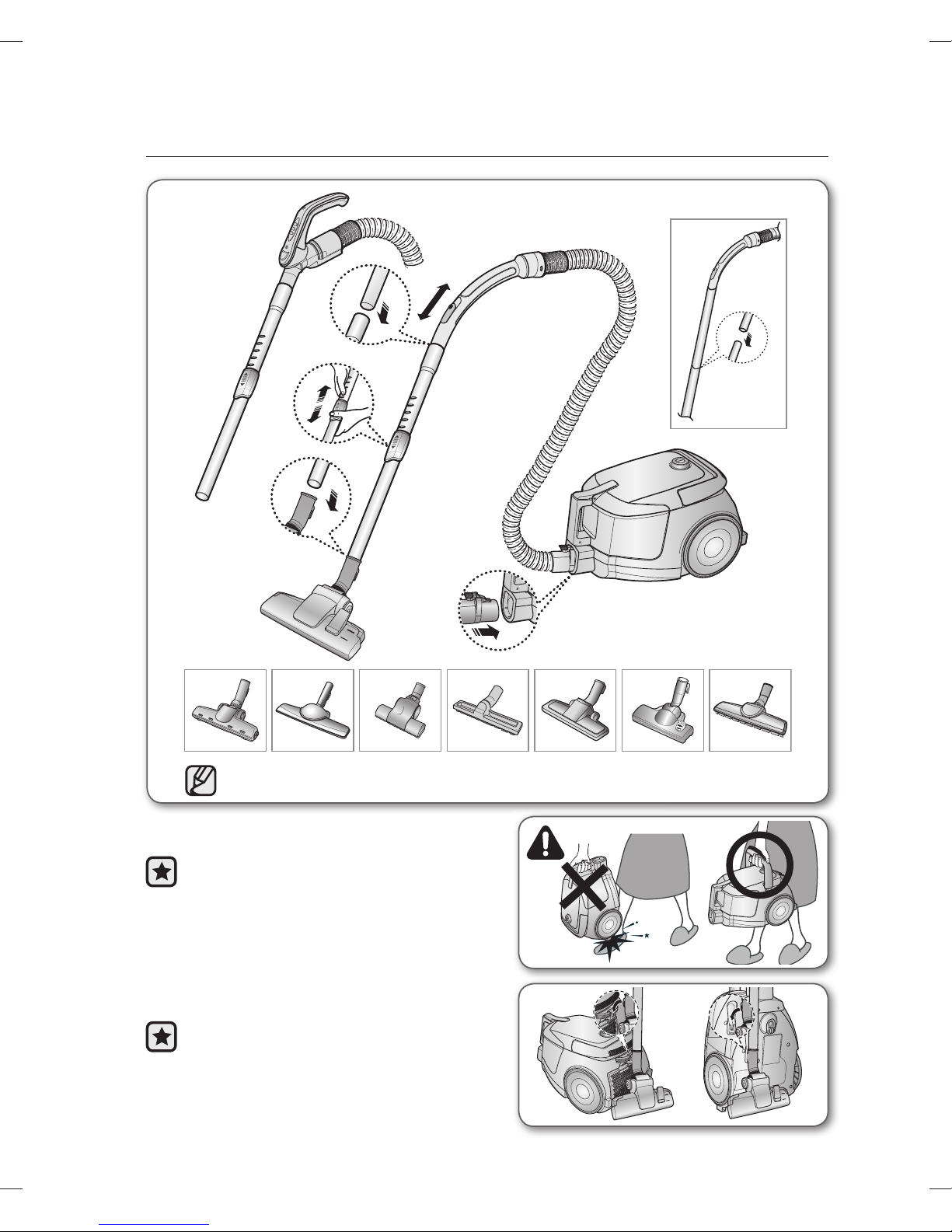

06_ assembling
assembling the cleaner

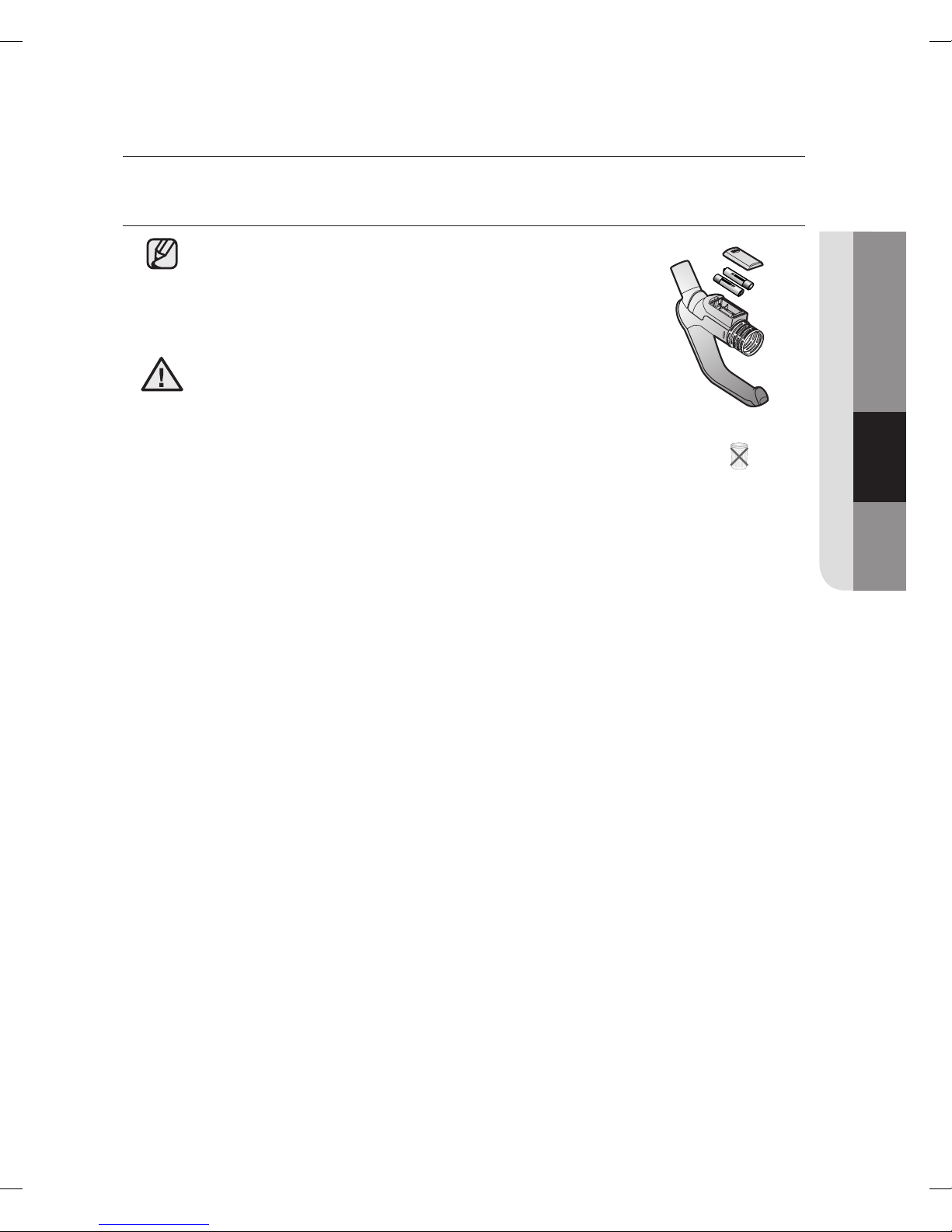

• Please do not press the button
of dust bin handle when carrying
machine.
• For storage, park the floor nozzle.
OPTION
• Features may vary according to model.
OPTION
DJ68-00665H.indb 섹션3:06DJ68-00665H.indb 섹션3:06 2013.2.8 2:37:52 PM2013.2.8 2:37:52 PM

operating _07

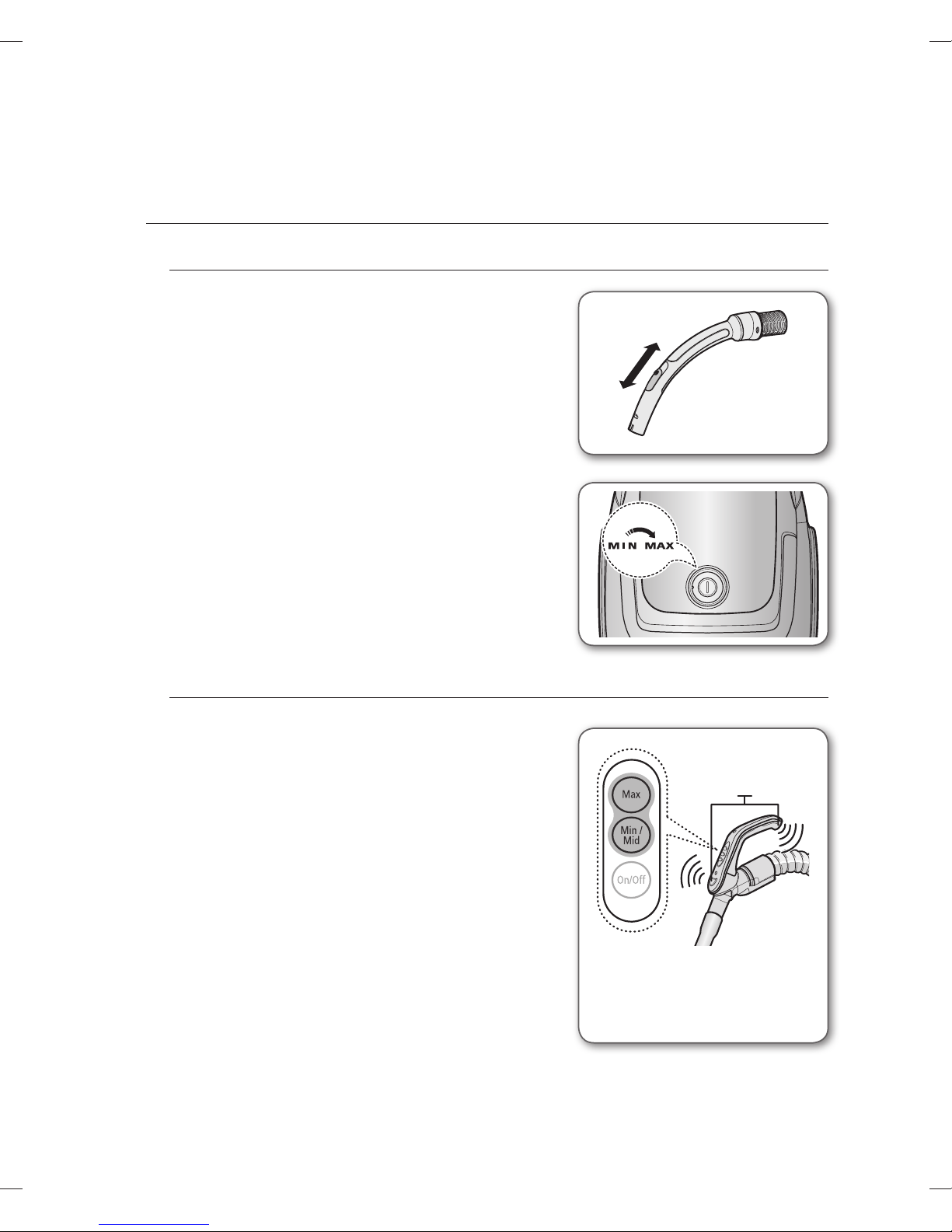

02 OPERATING
operating the cleaner
ON/OFF SWITCH
1) BODY CONTROL TYPE 2) HANDLE CONTROL TYPE
• When removing the plug from the electrical outlet, grasp
the plug, not the cord.
POWER CORD
CAUTION
DJ68-00665H.indb 섹션4:07DJ68-00665H.indb 섹션4:07 2013.2.8 2:37:54 PM2013.2.8 2:37:54 PM

08_ operating
POWER-CONTROL
BODY-CONTROL TYPE / ON/OFF TYPE
• HOSE
To reduce suction for cleaning draperies,
small rugs, and other light fabrics, pull
the tap air until the hole is open.
• BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net
curtains.
MAX = For hard floors and heavily soiled
carpets.
HANDLE CONTROL TYPE
• HOSE
Vacuum cleaner MODE (MIN/MID,MAX)
Press the MODE button repeatedly
to select the correct mode.
(ON) MIN
→
MID
→
MAX
sender
sender
Handle Control
The cleaner is controlled by
using infrared signals.
DJ68-00665H.indb 섹션4:08DJ68-00665H.indb 섹션4:08 2013.2.8 2:38:29 PM2013.2.8 2:38:29 PM

maintain _09
03 MAINTAIN
maintain tools and filter
USING ACCESSORY
Pipe (Option)
• Adjust the length of the telescopic pipe by
sliding the length control button located in the
center of the telescopic pipe back and forth.
• To check for blockages, separate the
telescopic pipe and adjust to shorten. This
allows for easier removal of waste clogging the
tube.
Accessory
• Dusting brush for furniture. shelves, books,
etc.
• Crevice tool for radiators, crevices, corners,
between cushions.
DJ68-00665H.indb 섹션5:09DJ68-00665H.indb 섹션5:09 2013.2.8 2:38:30 PM2013.2.8 2:38:30 PM

10_ maintain
MAINTAIN FLOOR TOOLS
2-Step Brush (Option)
• Adjust the inlet lever according to the floor
surface.
• Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning
Carpet Cleaning
Floor Cleaning
Floor Cleaning
Pet Brush (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
Blanket brush (Option)
Clogs on turbine keep brush from turning, thus need to be unclogged
as follows. For picking up pet hair and fibre on upholstery and bed
linen.
Remove waste matter completely when inlet is blocked.
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
To reassemble, align the cover to the front of the main
body and close. After closing the cover, ensure that the
lock button is turned to the ‘LOCK’ position.
Use for bedclothes only. Be cautious not to damage brush during
unclogging.
Turbine
Turbine
Brush
Brush
WARNING
DJ68-00665H.indb 섹션5:10DJ68-00665H.indb 섹션5:10 2013.2.8 2:38:30 PM2013.2.8 2:38:30 PM

maintain _11
03 MAINTAIN
maintain tools and filter

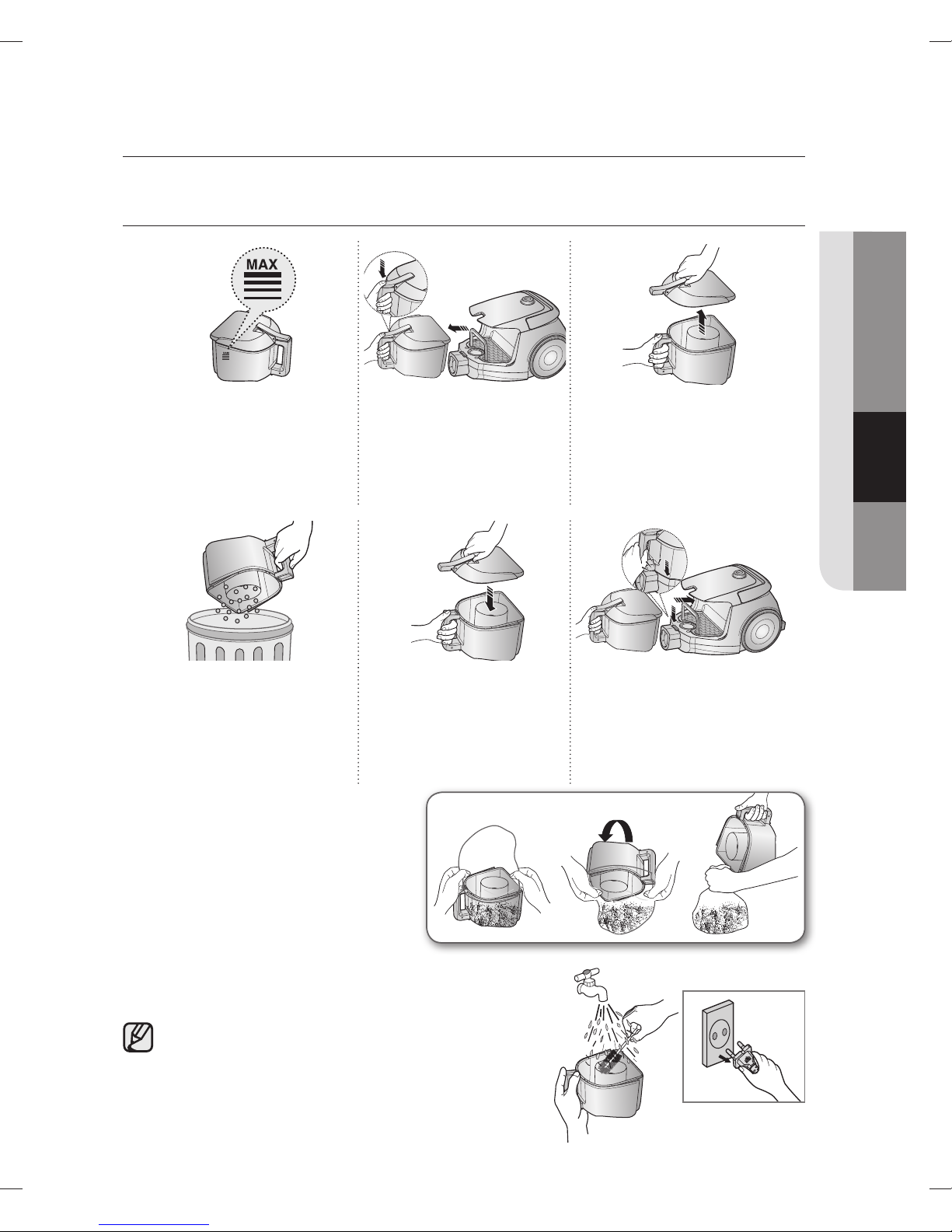

EMPTYING THE DUST BIN
1. Once dust reaches the
dust full mark, or sution
is noticeably reduced
during cleaning, empty
the dust bin.
2. Take the dust bin out
by pressing the button.
3. Separate the dust bin
cover.
4. Throw away dust into
the bin.
5. Close the dust bin
cover.
6. Before use, push the
dust bin into the main
body of the vacuum
cleaner until you hear
the “click” sound.
- Empty into a plastic bag
(recommended for asthma/
allergy sufferers)
You may rinse the dust bin with cold water.
click
click
DJ68-00665H.indb 섹션5:11DJ68-00665H.indb 섹션5:11 2013.2.8 2:38:31 PM2013.2.8 2:38:31 PM

12_ maintain
WHEN TO CLEAN THE DUST PACK
- If suction is noticeably reduced during cleaning, please check the dust pack as
indicated below.
Turn the
vacuum power
to ‘MAX’.
If suction is noticeably reduced with the inlet floating 10cm
above flat floor, clean it.
When suction is noticeably reduced continuously, please cleaning the Dust Pack as
shown in the following illustration.
HANDLE CONTROL TYPE
HANDLE CONTROL TYPE
BODY CONTROL TYPE
BODY CONTROL TYPE
DJ68-00665H.indb 섹션5:12DJ68-00665H.indb 섹션5:12 2013.2.8 2:38:32 PM2013.2.8 2:38:32 PM

maintain _13
03 MAINTAIN

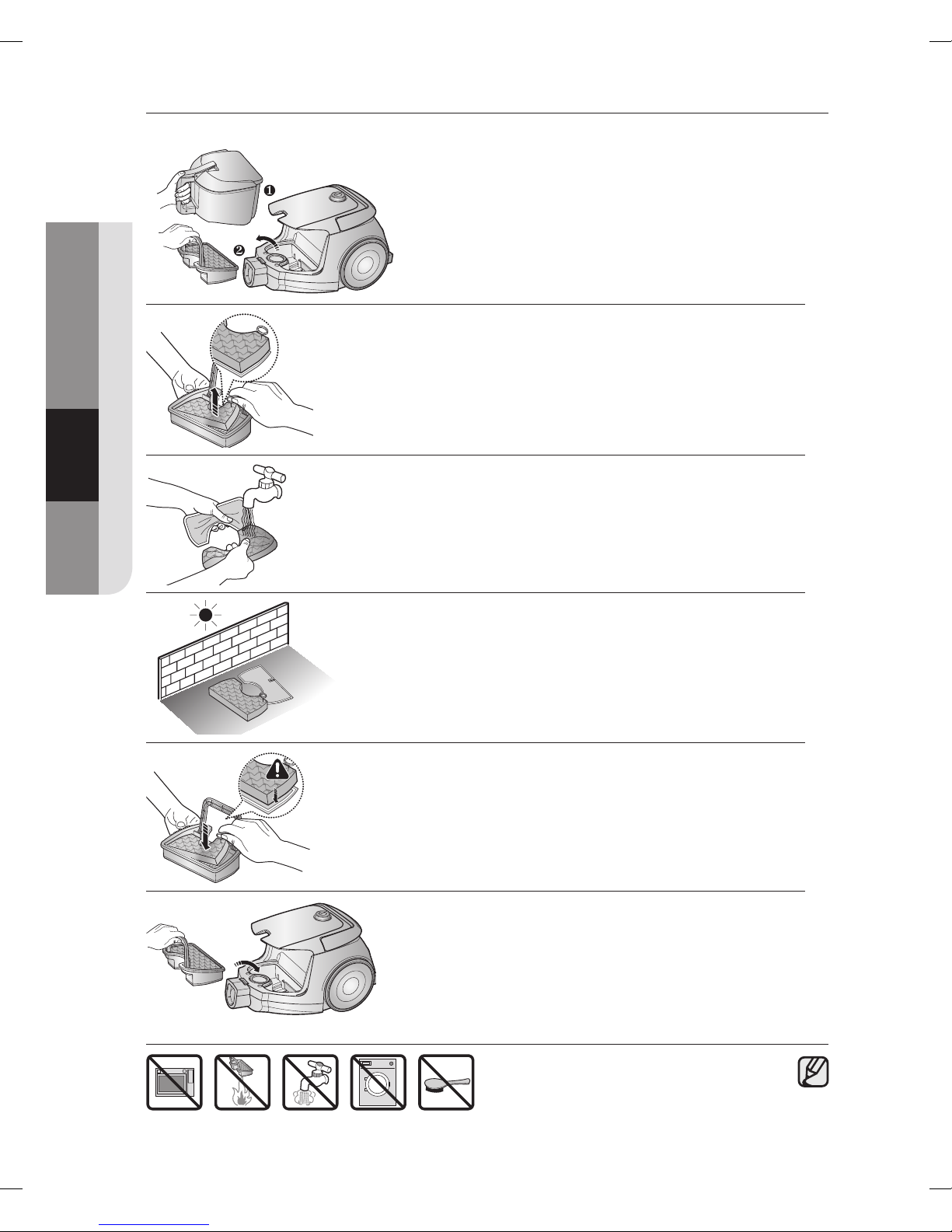

CLEANING THE DUST PACK
1. Remove the dust bin and dust pack as
shown.
2. Remove the sponge and filter from the dust pack.
3. Wash the sponge and the filter of the dust pack with
water.
4. Let the sponge and filter dry in the shade for more
than 12 hours.
5. Put the sponge and filter into the dust pack.
6. Put the assembled dust pack into the main
body.
Make sure the filter is completely dry
before putting it back into the vacuum
cleaner. Allow 12 hours for it to dry.
DJ68-00665H.indb 섹션5:13DJ68-00665H.indb 섹션5:13 2013.2.8 2:38:32 PM2013.2.8 2:38:32 PM

14_ maintain
maintain tools and filter
CLEANING THE OUTLET FILTER
Replacement filters are available at your local
Samsung distributor. OPTION
Press the fixed frame part at
the back of the main body to
remove.
OPTION - MICRO FILTER
Remove and replace the blocked
outlet filter.
DJ68-00665H.indb 섹션5:14DJ68-00665H.indb 섹션5:14 2013.2.8 2:38:33 PM2013.2.8 2:38:33 PM

maintain _15
03 MAINTAIN
maintain tools and filter
CHANGE THE BATTERY (OPTION)
1. When the vacuum cleaner dows not work, replace
the batteries. If the problem persists, please contact
our authorized dealer.
2. Use 2 batteries of size AA.
1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles
4. Dispose of the batteries property.
WARNING
BATTERY TYPE : AA
BATTERY TYPE : AA
Size
Size
DJ68-00665H.indb 섹션5:15DJ68-00665H.indb 섹션5:15 2013.2.8 2:38:33 PM2013.2.8 2:38:33 PM

16_ troubleshooting
troubleshooting
PROBLEM SOLUTION
Motor dows not start. • Check cable, pulg and socket.
• Leave to cool.
Suction force is gradually
decreasing. • Check for blockage and remove.
Cord does not rewind fully. • Pull the cord out 2-3m and push down the cord
rewind button.
Vacuum cleaner dows not pick
up dirt. • Check hose and replace if required.
Low or decreasing suction
• Please check filter and, if required, clean as
illustrated in the instructions. if filters are out of
condition change them to new ones.
Body overheating • Please check filters, If required clean as
illustrated in the instruction.
Static electicity discharge • Please decrease power suction.
DJ68-00665H.indb 섹션6:16DJ68-00665H.indb 섹션6:16 2013.2.8 2:38:34 PM2013.2.8 2:38:34 PM

ƾƷŲǾǧȘȶȔƾƭųLjȚȯƾƪƳƄŴȚNȈȍ
ǀƴƳƪƓȚǚƑȚ
ǚƵƯƁǽȱǍƤȚ
wǏƃƲƓȚȶǏŮƾƲŽȚȶǚƃƳŽȚǜžǚżǑƇźȚ
wȢǍƃƁǟƄŲǝżǍůȚ
ƾȹƸƆƁȤNjůǓƱƪŽȚȜǞŻǑŻƾƶů
wǝƄŽȚȥƼŮǛŻȶȢȚNjƉſȚNjűǞƁȴƾżȚȣȘƾžǑƇźȚ
ǚžƾżǚƳƪŮǙƴƉŽȚǗƄƴƁǽ
wȤȥǕźȢȚȶȤƾƄžȖȊǟŽȘǜƁǍƄžǀźƾƉƙȟȤƾƈƴŽǙƴƉŽȚƿƇŴȚ
ǚƱŴLjǙƴƉŽȚȬƾűȤȘ
ǀƸǣƾŮǍƷƳŽȚǀƉƶƳƓȚȪƾƲƄŽȚȳNjŸ
ȡƾŴȶȀŽ
wǍžLjȚȳǎŽȚȣȘǝŽNjƃƄŴȚȶȳǞŶǍƒȚǑƇźȚ
ƾƷǤƾƱƈſȚȶȖǓƱƪŽȚȜǞŻǑŻƾƶů
wǞƀƾƵżǝƱƸƮƶƄŮǛŻǍžLjȚȳǎŽȚȣȘȶljŵǍƓȚǑƇźǟűǍȽƁ
ȆȜNjƸűǀŽƾƇŮȝƾƇŵǍƓȚǜƳůǛŽȚȣȘȶȝȚȢƾŵȤȁƾŮljǤǞž
ȜNjƁNjűȷǍųƺŮƾƷŽNjƃƄŴƾź
ǛƉűǠźȜNjǣȚȥǀſǞƈŴȞȶNjŲ
ǀƉƶƳƓȚ
wƾƵżǍžLjȚȳǎŽȚȣȘƾƷƱƸƮƶƄŮǛŻȶȆȝƾƇŵǍƓȚǑƇźȔƾűǍŽȚ
ȝȚȢƾŵȤȁȚǠźljǤǞžǞƀ
ǁŮƾŰǀƸŮǍƷżȝƾƶƇŵǖƁǍƱů
wǓƱƪŽȚȜǞŻǒƱųȔƾűǍŽȚ
ƾƷŲǾǧȘȶȔƾƭųLjȚȯƾƪƳƄŴȚ
DJ68-00665H.indb 1DJ68-00665H.indb 1 2012.11.27 9:56:22 AM2012.11.27 9:56:22 AM

١٥_ ﺔﻧﺎﻴﺼﻟا
ﺔﻧﺎﻴﺼﻟا ٠٣
(ﻱرﺎﻴﺘﺧا) ﺔﻳرﺎﻄﺒﻟا ﺮﻴﻴﻐﺗ
١.ﻲﻓﻭ .تﺎﻳرﺎﻄﺒﻟا ﻝﺪﺒﺘﺳا ،ﻞﻤﻌﺗ ﻻﺔﻴﺋﺎﺑﺮﻬﻜﻟا ﺔﺴﻨﻜﳌا ﺖﻧﺎﻛ اذإ
.ﺪﻤﺘﻌﳌا ﺎﻨﻠﻴﻛﻮﺑ ﻝﺎﺼﺗﻻا ءﺎﺟﺮﻟا ،ﺔﻠﻜﺸﳌا راﺮﻤﺘﺳا ﺔﻟﺎﺣ
٢..AA ﻢﺠﺤﺑ ﻥﺎﺘﻳرﺎﻄﺑ ﻡﺪﺨﺘﺳا
١..ﺎﻬﻨﺤﺷ ةدﺎﻋإ ﻭأ تﺎﻳرﺎﻄﺒﻟا ﻚﻔﺑ ﺎﹰﻘﻠﻄﻣ ﻢﻘﺗ ﻻ
٢..رﺎﻨﻟا ﻲﻓ ﺎﻬﺋﺎﻘﻟإ ﻭأ تﺎﻳرﺎﻄﺒﻟا ﲔﺨﺴﺘﺑ ﺎﹰﻘﻠﻄﻣ ﻢﻘﺗ ﻻ
٣.(-)ﻭ(+) ﲔﺒﻄﻘﻟا ﺲﻜﻌﺗ ﻻ
٤..ﻢﻴﻠﺳ ﻞﻜﺸﺑ تﺎﻳرﺎﻄﺒﻟا ﻦﻣ ﺺﻠﺨﺗ
ﺮﻳﺬﲢ
ﺢﺷﺮﳌاﻭ تاﻭدﻷا ﺔﻧﺎﻴﺻ
AA ﻢﺠﺣ : ﺔﻳرﺎﻄﺒﻟا عﻮﻧ
DJ68-00665H.indb 15DJ68-00665H.indb 15 2013.2.8 2:40:4 PM2013.2.8 2:40:4 PM

ﺔﻧﺎﻴﺼﻟا _١٤
ﺢﺷﺮﳌاﻭ تاﻭدﻷا ﺔﻧﺎﻴﺻ
ﺢﺷﺮﳌا جﺮﺨﻣ ﻒﻴﻈﻨﺗ
.ﻚﻳﺪﻟ ﻲﻠﶈا Samsung عزﻮﻣ ﻯﺪﻟ ﻝاﺪﺒﺘﺳﻻا تﺎﺤﺷﺮﻣ ﺮﻓﻮﺘﺗ
ﻱرﺎﻴﺘﺧا
دﻮﺟﻮﳌا ﺖﺑﺎﺜﻟا رﺎﻃﻹا ءﺰﺟ ﻰﻠﻋ ﻂﻐﺿا
ﻲﺴﻴﺋﺮﻟا ﻢﺴﳉا ﻦﻣ ﻲﻔﻠﳋا ءﺰﳉﺎﺑ
.ﻪﺘﻟازﻹ
ﻱرﺎﻴﺘﺧا - ﻖﻴﻗﺪﻟا ﺢﺷﺮﳌا
ﻝاﺪﺒﺘﺳاﻭ دﻭﺪﺴﳌا جاﺮﺧﻹا ﺢﺷﺮﻣ ﺔﻟازﺈﺑ ﻢﻗ
.ﻪﺑ ﺮﺧآ
DJ68-00665H.indb 14DJ68-00665H.indb 14 2013.2.8 2:40:3 PM2013.2.8 2:40:3 PM

١٣_ ﺔﻧﺎﻴﺼﻟا
ﺔﻧﺎﻴﺼﻟا ٠٣
ﺔﺑﺮﺗﻷا ﺲﻴﻛ ﻒﻴﻈﻨﺗ
١..ﺢﺿﻮﻣ ﻮﻫ ﺎﻤﻛ ﺔﺑﺮﺗﻷا ﺔﻠﺳﻭ ﺔﺑﺮﺗﻷا ﺔﻳﻭﺎﺣ جاﺮﺧﺈﺑ ﻢﻗ
٢..ﺔﺑﺮﺗﻷا ﺔﻳﻭﺎﺣ ﻦﻣ ﺢﺷﺮﳌاﻭ ﺔﺠﻨﻔﺳﻹا جاﺮﺧﺈﺑ ﻢﻗ
٣..ﻩﺎﻴﳌﺎﺑ ﺔﺑﺮﺗﻷا ﺔﻳﻭﺎﳊ ﺢﺷﺮﳌاﻭ ﺔﺠﻨﻔﺳﻹا ﻞﺴﻐﺑ ﻢﻗ
٤.ﻰﺘﺣ ﺔﻋﺎﺳ ١٢ ﻦﻣ ﺮﺜﻛﻷ ﻞﻈﻟا ﻲﻓ ﺢﺷﺮﳌاﻭ ﺔﺠﻨﻔﺳﻹا ﻙﺮﺗا
.ﻒﲡ
٥..ﺔﺑﺮﺗﻷا ﺔﻳﻭﺎﺣ ﻞﺧاد ﺢﺷﺮﳌاﻭ ﺔﺠﻨﻔﺳﻹا ﻊﺿ
٦..ﻲﺴﻴﺋﺮﻟا ﻢﺴﳉا ﻞﺧاد ﺔﺑﺮﺗﻷا ﺔﻳﻭﺎﺣ ﻊﺿ
ةﺮﻣ ﻪﺗدﺎﻋإ ﻞﺒﻗ ﺎﹰﻣﺎﲤ ﻑﺎﺟ ﺢﺷﺮﳌا ﻥأ ﻦﻣ ﺪﻛﺄﺗ
١٢ ةﺪﳌ ﻪﻛﺮﺗا .ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ﺔﺴﻨﻜﳌا ﻞﺧاد ﻯﺮﺧأ
.ﻒﺠﻳ ﻰﺘﺣ ﺔﻋﺎﺳ
DJ68-00665H.indb 13DJ68-00665H.indb 13 2013.2.8 2:40:2 PM2013.2.8 2:40:2 PM
