Samsung WA10CG4545 Series User manual

Washing Machine
User manual
WA80CG4545**/WA85CG4545**/WA90CG4545**/
WA95CG4545**/WA10CG4545**
Untitled-15 1 2023-03-15()  4:11:08

English
English2
Contents
Safety information 3
What you need to know about the safety instructions 3
Important safety symbols 3
Important safety precautions 4
Critical installation warnings 5
Installation cautions 6
Critical usage warnings 7
Usage cautions 8
Critical cleaning warnings 8
Installation 9
What’s included 9
Installation requirements 10
Step-by-step installation 11
Before you start 19
Detergent guidelines 19
Smart Check 20
Laundry guidelines 21
Operations 26
Control panel 26
Simple steps to start 28
Cycle overview 29
Special features 30
Maintenance 32
Cleaning 32
Troubleshooting 39
Checkpoints 39
Information codes 43
Specification 46
Specification sheet 46
Untitled-15 2 2023-03-15()  4:11:08

English
English 3
Safety information
Congratulations on your new Samsung washing machine. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this manual to take full
advantage of your washing machine’s many benefits and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance. Please store the manual in a safe location close
to the appliance forfuture reference. Use this appliance only for its intended purpose as described in this
instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution and care when installing,
maintaining and operating yourwashing machine.
Because the following operating instructions covervarious models, the characteristics of your washing
machine may differ slightly from those described in this manual and not all warning signs may be
applicable. If you have any questions or concerns, contact your nearest service center or find help and
information online at www.samsung.com.
Important safety symbols
What the icons and signs in this usermanual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/orproperty damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
Afterreading this manual, store it in a safe place forfuture reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate
this appliance, familiarize yourself with its operation and exercise care when using it.
Untitled-15 3 2023-03-15()  4:11:09

English
Safety information
English4
Important safety precautions
WARNING
To reduce the risk of fire, electric shock, orinjury to persons when using your appliance, follow basic
precautions, including the following:
1. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
2. Foruse in Europe: This appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
3. Children should be supervised to ensure that they do not play with
the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
Untitled-15 4 2023-03-15()  4:11:09

English
English 5
6. Forwashing machines having ventilation openings in the base, the
installation instructions shall state that the openings must not be
obstructed by a carpet.
7. Foruse in Europe: Children of less than 3 years should be kept away
unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
9. This appliance is intended to be used in household only and it is not
intended to be used such as:
–staff kitchen areas in shops, offices and otherworking
environments;
–farm houses;
–by clients in hotels, motels and other residential type
environments;
–bed and breakfast type environments;
–areas for communal use in blocks of flats or in launderettes.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
Plug the power cord into a wall socket that meets local electrical specifications. Use the socket for this
appliance only, and do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
Untitled-15 5 2023-03-15()  4:11:09

English
Safety information
English6
• Ensure that the powervoltage, frequency, and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire. Plug the power plug into the wall
socket firmly.
Remove all foreign substances such as dust orwater from the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock orfire.
• Plug the power plug into the wall socket so that the cord is running towards the floor. If you plug the
power plug into the socket in the opposite direction, the electric wires within the cable may be damaged
and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product.
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national regulations.
Do not install this appliance near a heater or any inflammable material.
Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or
water (rain drops).
Do not install this appliance in a location exposed to low temperatures.
• Frost may cause the tubes to burst.
Do not use an electric transformer.
• This may result in electric shock or fire.
Do not use a damaged powerplug, damaged power cord, or loose wall socket.
• This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the powercord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Installation cautions
CAUTION
This appliance should be positioned in such a way that the power plug is easily accessible.
• Failure to do so may result in electric shock orfire due to electric leakage.
Untitled-15 6 2023-03-15()  4:11:09

English
English 7
Critical usage warnings
WARNING
If the appliance is flooded, turn off the water & power supplies immediately and contact your nearest
Samsung Customer Service.
• Do not touch the power plug with wet hands.
• Failure to do so may result in electric shock.
If the appliance generates a strange noise, a burning smell, or smoke, unplug the power plug immediately
and contact your nearest service center.
• Failure to do so may result in electric shock orfire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the
power plug. Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Do not let children play in or on the washing machine. In addition, when disposing of the appliance, remove
the lid.
• If trapped inside the product, children may suffocate to death.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other
inflammable or explosive substances.
• This may result in electric shock, fire, or an explosion.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not insert your hand or a metal object under the washing machine while an operation is in progress.
• This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.
• When the appliance needs to be repaired or reinstalled, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.
• In this case, the product will not be covered by the standard warranty provided by Samsung and no
responsibility can be attributed to Samsung for malfunctions or damages resulting from doing it.
Unplug the power plug when the appliance is not being used for long periods of time or during a thunder or
lightning storm.
• Failure to do so may result in electric shock orfire.
Do not put your hand into the spinning tub during the spin cycle.
• This may result in injury. If the tub does not stop spinning within 15 seconds afteryou open the lid,
contact your nearest Samsung Customer Service.
Do not let children (or pets) play in or on yourwashing machine. The washing machine lid does not open
easily from the inside and children may be seriously injured if trapped inside.
Untitled-15 7 2023-03-15()  4:11:09

English
Safety information
English8
Do not use the water to exceed 50 °C when using the hot water in yourwashing machine. Plastic parts may
be deformed or damaged, and this may result in electric shock or fire.
Usage cautions
CAUTION
When the washing machine is contaminated by a foreign substance such as detergent, dirt, food waste,
etc., unplug the power plug and clean the washing machine using a damp, soft cloth.
• Failure to do so may result in discoloration, deformation, damage, or rust.
The product you have purchased is designed for domestic use only. Using the product for business purposes
qualifies as a product misuse. In this case, the product will not be covered by the standard warranty
provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages
resulting from such misuse.
Do not stand on the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use the a strong acidic cleaning agent.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock orfire.
Untitled-15 8 2023-03-15()  4:11:09

English
English 9
Installation
Follow these instructions carefully to ensure proper installation of the washing machine and to prevent
accidents when doing laundry.
What’s included
Make sure all the parts are included in the product package. If you have a problem with the washing
machine or the parts, contact a local Samsung customer centre or the retailer.
07
08
10
11
06
05
04
01
03
02
09
01 Lid 02 Bubble Kit 03 Detergent drawer
04 Bleach compartment 05 Softener compartment 06 Filter
07 Levelling feet 08 Control panel 09 Speed Spray
10 Power cord 11 Drain hose
Untitled-15 9 2023-03-15()  4:11:09

English
Installation
English10
NOTE
• Lid: Make sure to keep the lid closed while the washing machine is operating.
• Filter: This collects lint that builds up from the laundry being washed.
• Levelling feet: Adjust the feet to level the washing machine on a flat floor.
Installation requirements
Electrical supply and grounding
WARNING
• Use an individual branch circuit specific to the washing machine.
• Do NOT use an extension cord.
• Use only the power cord that comes with the washing machine.
• Do NOT connect the ground wire to plastic plumbing, gas lines, or hot water pipes.
• Improperly connected grounding conductors may cause electric shock.
Levelling
• To prevent tumbling or noise, install the washing machine on a solid, flat floorwithout a platform or
bricks.
• Keep the washing machine at 10 cm from each adjacent wall.
Water supply
• Make sure water taps are easily accessible.
• Turn off the taps when the washing machine is not in use.
• Check forany leaks at the water hose fittings on a regular basis.
Drain
• Make sure the drain hose is not clogged.
• We recommend a standpipe in height of 90-100 cm. The drain hose must be connected through
the hose clip to the standpipe, and the standpipe must fully cover the drain hose. The standpipe
specifications mentioned here are only applicable to pump-type models.
Untitled-15 10 2023-03-15()  4:11:09

English
English 11
Step-by-step installation
STEP 1 Select a location
Location requirements:
• Solid, level surface without carpeting or flooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for ventilation and wiring
• The ambient temperature is always higher than the freezing point (0 ˚C)
• Away from a heat source

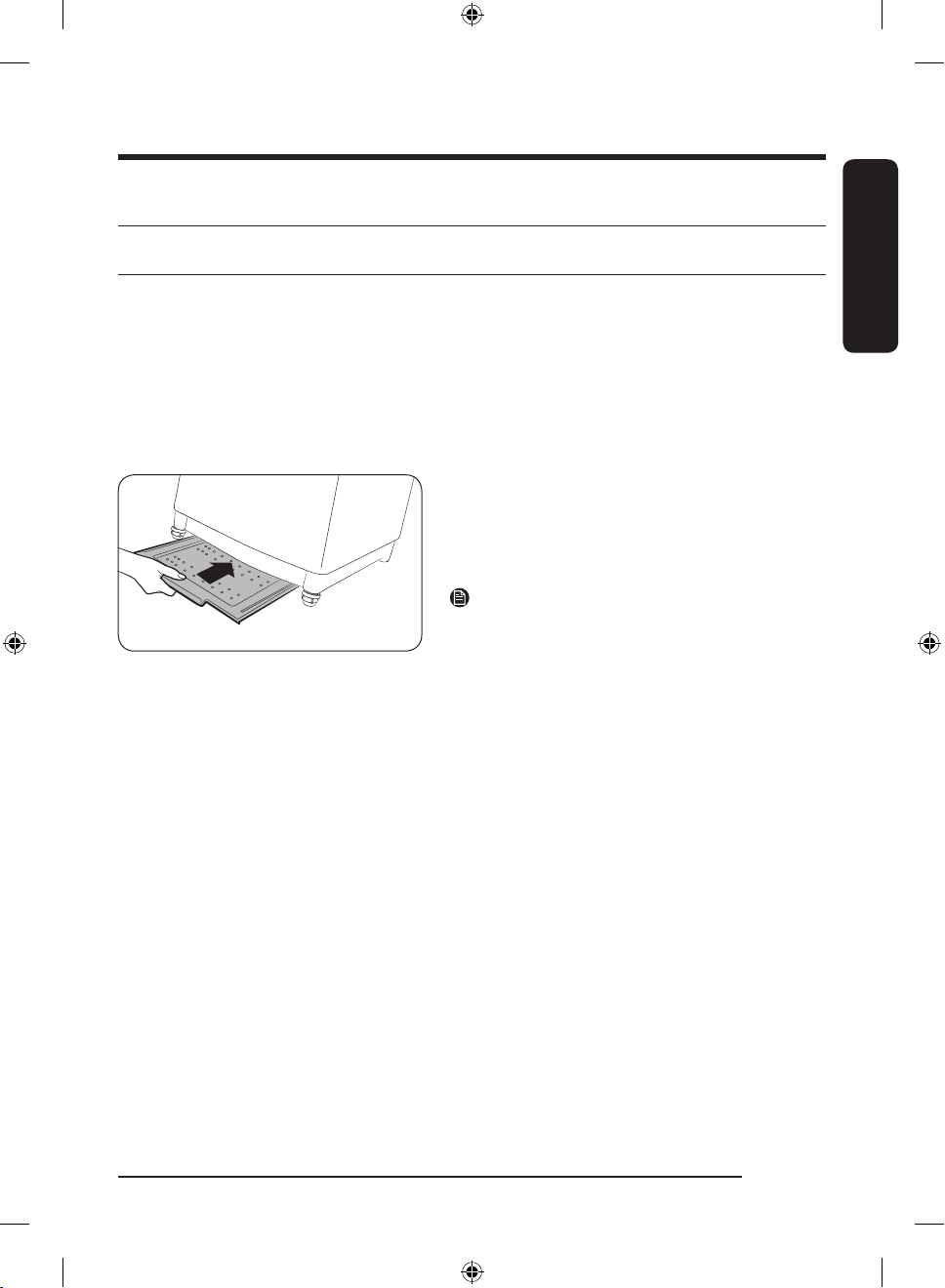

Anti-rat panel (applicable models only)
The washing machine comes with the Anti-rat panel
that protects small animals such as rats from entering
the machine.
Insert the panel into the bottom of the machine. To
facilitate the work, slightly lift up the bottom front.
NOTE
• Some models feature the Anti-rat panel that must
be inserted from the rear bottom of the model. For
this model, insert the Anti-rat panel before levelling
the machine. To facilitate the work, slightly lift up the
bottom rear.
• Availability of the Anti-rat panel depends on the
model.
Untitled-15 11 2023-03-15()  4:11:09

English
Installation
English12
STEP 2 Adjust the levelling feet
A
Unpack the product package.
1. Gently slide the washing machine into position.
Excessive force may damage the levelling feet (A).
2. Level the washing machine by manually adjusting
the levelling feet.
B
3. When levelling is complete, tighten the nuts (B) if
provided (some models may not have the nuts).
WARNING
Packaging materials can be dangerous to children. Dispose all packaging material (plastic bags,
polystyrene, etc.) out of children’s reach.
Untitled-15 12 2023-03-15()  4:11:09

English
English 13

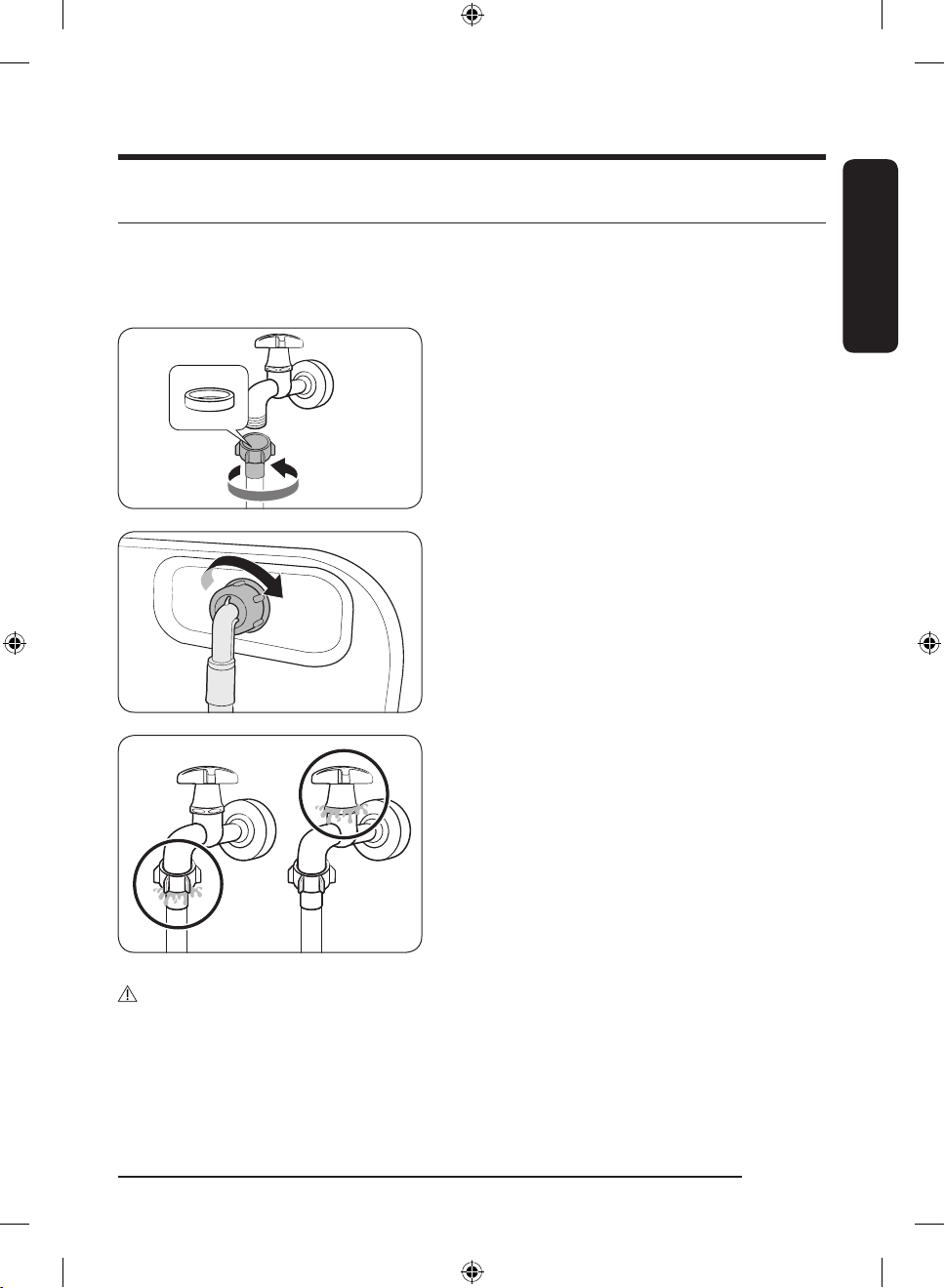

STEP 3 Connect the water hose
The provided water hose may differ depending on the model. Please follow the instruction according to the
provided water hose.
Connecting to a threaded watertap (applicable models only)
1. Connect the water hose to the water tap, and then
turn the connector clockwise as shown.
2. Connect the other end of the water hose to the inlet
valve on the back of the washing machine. Turn the
hose clockwise to tighten.
3. Open the water tap and check if there are any leaks
around the connection areas. If there are water leaks,
repeat the steps above.
WARNING
If there is a water leak, stop operating the washing machine and disconnect from the electrical supply.
Then, contact a local Samsung service centre in case of a leak from the water hose, or contact a plumbing
technician in case of a leak from the water tap. Otherwise, this may cause electric shock.
Untitled-15 13 2023-03-15()  4:11:09

English
Installation
English14
CAUTION
Do not stretch the water hose by force. If the hose is too short, replace the hose with a longer, high-
pressure hose.

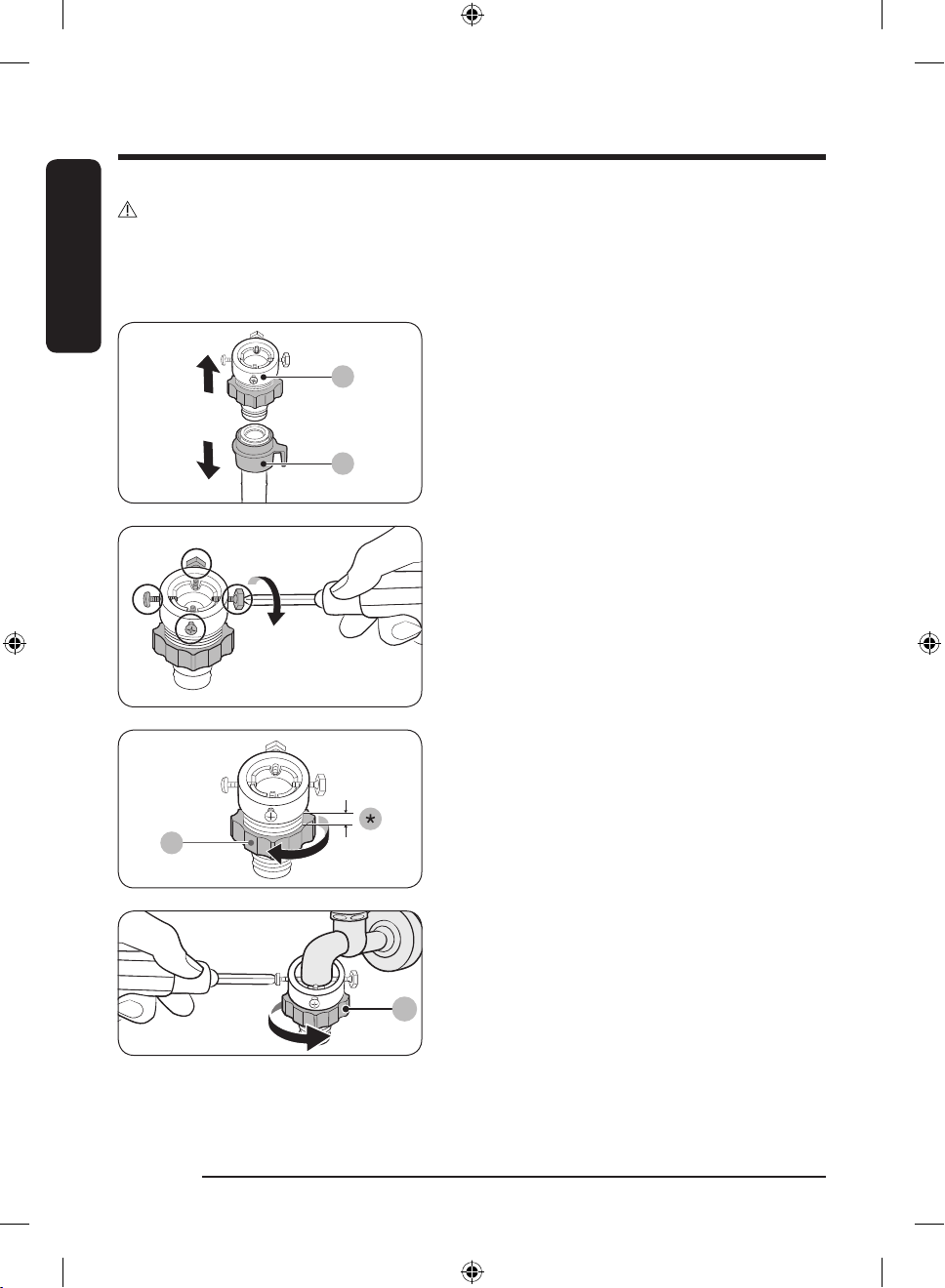

Connecting to a non-threaded watertap (applicable models only)
A
B
1. Remove the adaptor (A) from the water hose (B).
2. Use a Phillips screwdriver to loosen fourscrews on
the adaptor.
C
3. Hold the adaptor and turn part (C) in the arrow
direction to loosen it by 5 mm (*).
C
4. Insert the adaptor onto the water tap, and then
tighten the screws while lifting the adaptor.
5. Turn part (C) in the arrow direction to tighten it.
Untitled-15 14 2023-03-15()  4:11:10

English
English 15

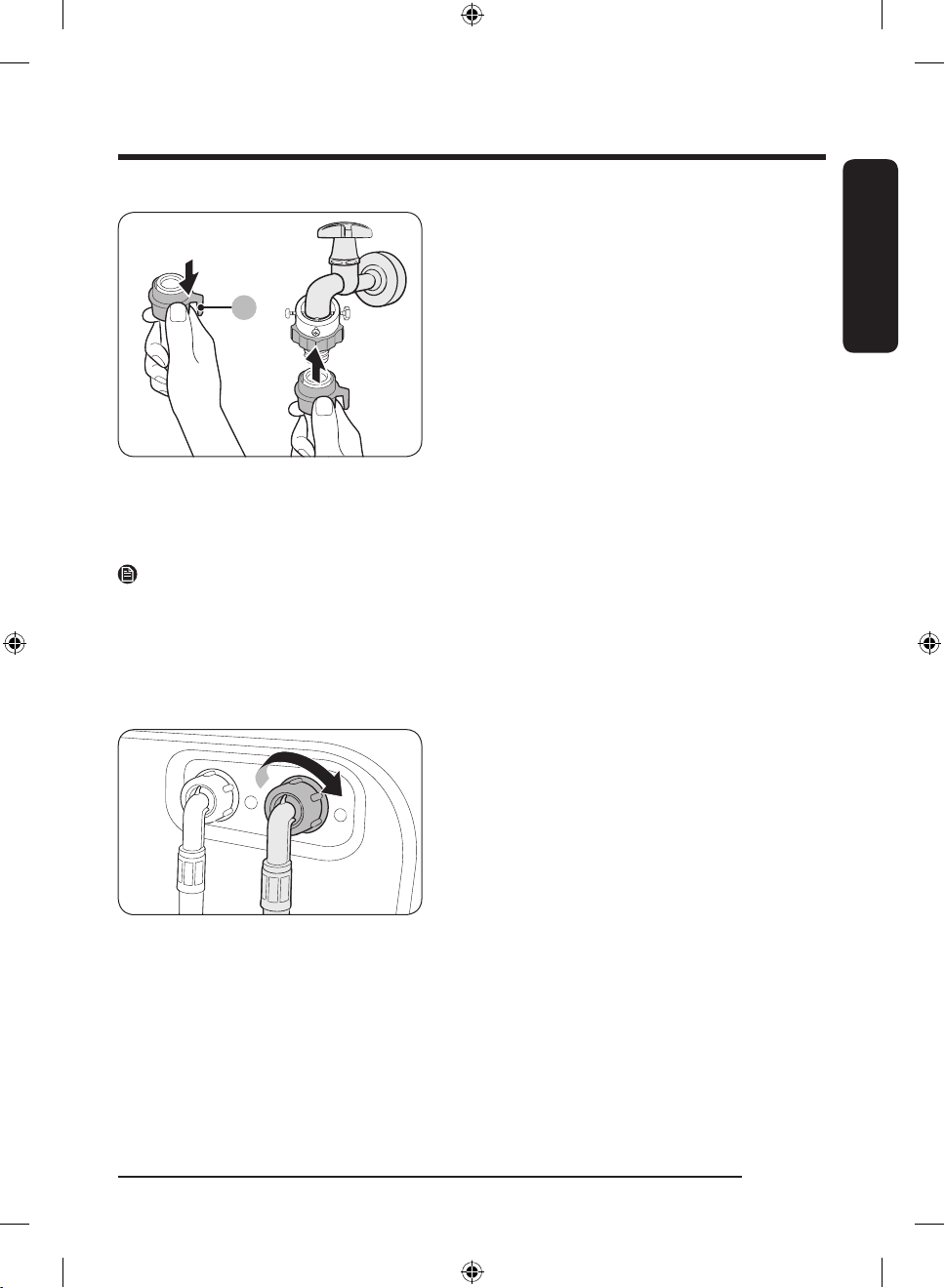

D
6. While pulling down part (D) on the water hose,
connect the water hose to the adaptor. Then, release
part (D). The hose fits into the adaptor with a clicking
sound.
7. To complete connecting the water hose, see 2
and 3 on the "Connecting to a threaded watertap
(applicable models only)" section.
NOTE
• After connecting the water hose to the adaptor, check if it is connected properly by pulling the water
hose downwards.
• Use a popular type of water taps. If the tap is square-shaped or too big, remove the spacer ring before
inserting the tap into the adaptor.
For models with an additional hot water inlet:
1. Connect the red end of the hot water hose to the hot
water inlet on the back of the machine.
2. Connect the other end of the hot water hose to the
hot water tap.
Untitled-15 15 2023-03-15()  4:11:10

English
Installation
English16
STEP 4 Position the drain hose
General type
1. Press and hold down the joint ring, and insert it into
the drain hose.
2. Insert the drain hose into the drain outlet. Make sure
to connect them firmly using the joint ring. The drain
hose is extensible. Adjust the length of the drain hose
as needed.
Untitled-15 16 2023-03-15()  4:11:10

English
English 17
A
Pump type (applicable models only)
1. Open the hose cap (A), and insert the drain hose.
Tighten the drain hose using the joint ring.
NOTE
• The position (side or rear) of the drain outlet depends
on the model.
• Availability of the hose cap depends on the model.

2. Connect the other end of the drain hose to a
standpipe or basin that is positioned 90-100 cm (*)
from the floor.
WARNING
Make sure the end of the drain hose is not submerged
by water. Otherwise, the washing machine may suffer
serious damage.
CAUTION
• Do not exceed 3 m (*) for the total length of extended
hoses.
• Do not let the drain hose run over doorsills that
protrude 5 cm (**) or more from the floor.
Untitled-15 17 2023-03-15()  4:11:11

English
Installation
English18
CAUTION
Do not run the drain hose under the bottom of the
machine.
STEP 5 Power on
Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, press Power to turn on
the washing machine.
STEP 6 Calibration Mode
Your Samsung washing machine detects the laundry weight automatically.
For more accurate weight detection, please run Calibration Mode after the installation.
To run Calibration Mode, follow these steps:
1. Remove laundry or any contents in the machine.
2. Press and hold Water Level and Delay End simultaneously for at least 3 seconds when the power is
turned on.
3. Press Start/Pause to activate Calibration Mode.
4. The pulsator rotates clockwise and anticlockwise approximately1 minute.
5. When Calibration Mode is finished, “0” appears on the display, and the washing machine automatically
turns off. The washing machine is now ready for use.
Untitled-15 18 2023-03-15()  4:11:11

English
English 19
Before you start
Detergent guidelines
To apply detergents
1. Open the lid.
2. Locate the detergent drawer, and slide it open.
3. Apply detergent (liquid or powder) into the detergent
compartment.
NOTE
Do not exceed the max line on the Bubble Kit (A) when
you put detergent (liquid or powder) into the detergent
compartment.
4. Add a recommended amount of fabric softener into
the softener compartment.
B
NOTE
• Bleach compartment (B): Add non-chlorine bleach as
instructed by the manufacturer.
• Do not pour colour-safe bleach into the bleach
compartment.
NOTE
• If you cannot see where the softener compartment is,
reveal it by turning the tub slightly.
• Use the softener compartment only for liquid fabric
softeners.
• Do not leave softener into the softener compartment
for a long time. The softener becomes hardened and
may not dissolve well.
NOTE
• It is normal fora small amount of water to remain in the detergent compartments at the end of the
cycle.
Untitled-15 19 2023-03-15()  4:11:11

English
Before you start
English20
• Do not use liquid fabric softener that is too sticky as it may not mix with the water sufficiently.
Smart Check
To enable this function, you must first download the Samsung Smart Washer app at the Play Store or the
Apple Store, and install it on a mobile device featuring a camera function.
The Smart Check function has been optimised for Galaxy & iPhone series (applicable models only).
1. Press and hold Wash and Rinse simultaneously for 3 seconds to enter the Smart Check mode.
2. The washing machine starts the self-diagnosis procedure and displays an information code if a problem
is detected.
3. Run the Samsung Smart Washer app on your mobile device, and tap Smart Check.
4. Put the mobile device close to the washing machine’s display so that the mobile device and the washing
machine face each other. Then, the information code will be recognised automatically by the app.
5. When the information code is recognised correctly, the app provides detailed information about the
problem with applicable solutions.
NOTE
• The function name, Smart Check, may differ depending on the language.
• If there is strong reflected light on the washing machine display, the app may fail to recognise the
information code.
• If the app fails to recognise the Smart Check code consecutively, enter the information code manually
onto the app screen.
Untitled-15 20 2023-03-15()  4:11:11
