BEFORE USING THE WASHER 1
CAUTIONS 1
PRECAUTIONS WHEN OPERATING 1
DESCRIPTION OF PARTS 2
CONTROL PANEL 2
WASHING PROCEDURE 3
TO WASH 3
SPIN DRY 3
RINSING 4
OVER FLOW RINSE 4
ADDITIONAL RINSE 4
INSTALLATION 5
ENVIRONMENT 5
HOW TO CLEAN THE FILTER 5
CONNECTING DRAIN HOSE 5
CLEANING THE MACHINE 5
LAUNDRY GUIDE 6
MAINTENANCE 6
TROUBLESHOOTING 6
SPECIFICATIONS
Owner s Instructions
Code no : DC68-01985A-00

1

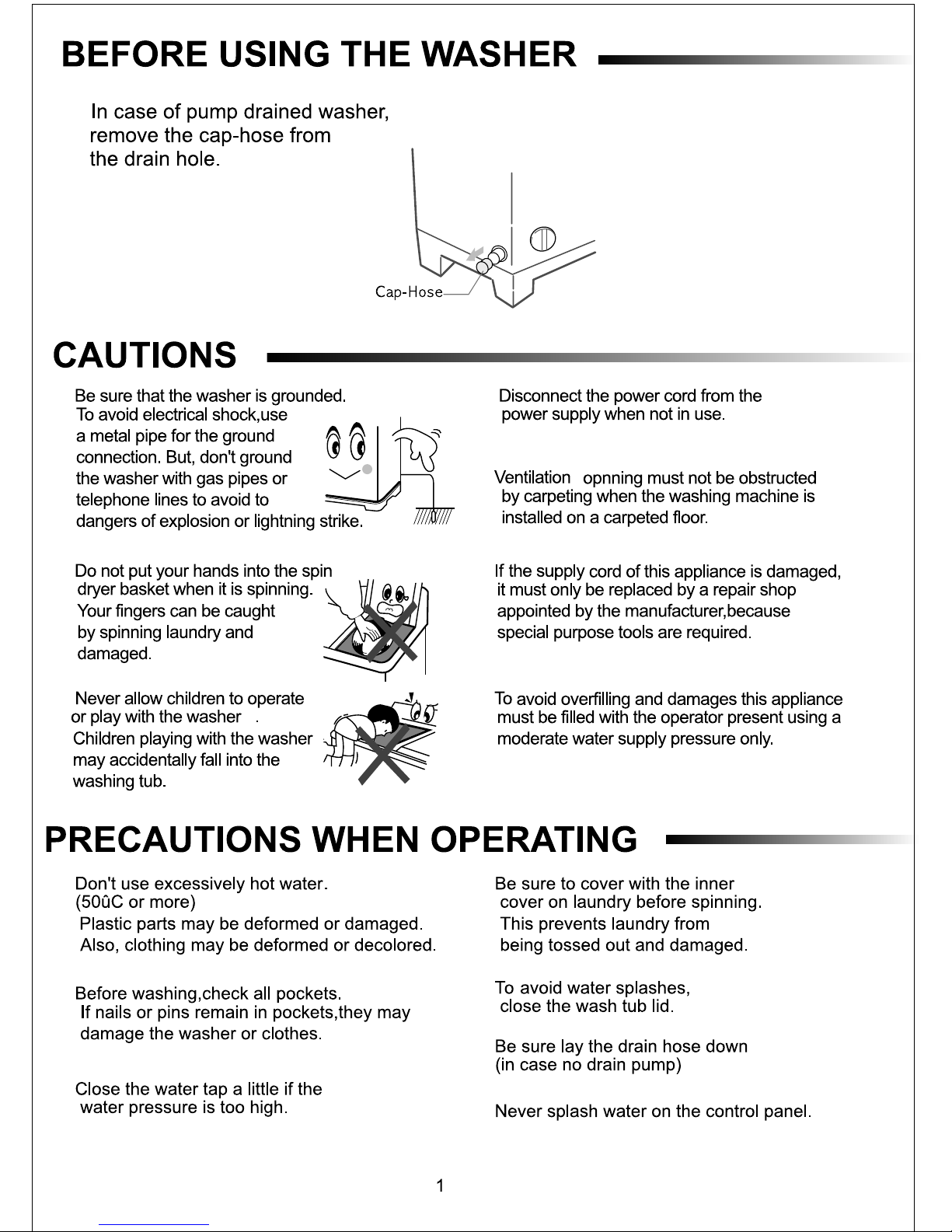

BEFORE USING THE WASHER
CAUTIONS
PRECAUTIONS WHEN OPERATING
In case of pump drained washer,
remove the cap-hose from
the drain hole.

Be sure that the washer is grounded.
To avoid electrical shock,use
a metal pipe for the ground
connection. But, don't ground
the washer with gas pipes or
telephone lines to avoid to
dangers of explosion or lightning strike.

Do not put your hands into the spin
dryer basket when it is spinning.
Your fingers can be caught
by spinning laundry and
damaged.

Ventilation opnning must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.

If the supply cord of this appliance is damaged,
it must only be replaced by a repair shop
appointed by the manufacturer,because
special purpose tools are required.

To avoid overfilling and damages this appliance
must be filled with the operator present using a
moderate water supply pressure only.

Never allow children to operate
or play with the washer .
Children playing with the washer
may accidentally fall into the
washing tub.

Be sure to cover with the inner
cover on laundry before spinning.
This prevents laundry from
being tossed out and damaged.

Before washing,check all pockets.
If nails or pins remain in pockets,they may
damage the washer or clothes.

Close the water tap a little if the
water pressure is too high.

To avoid water splashes,
close the wash tub lid.

Be sure lay the drain hose down
(in case no drain pump)

Never splash water on the control panel.

Disconnect the power cord from the
power supply when not in use.

Don't use excessively hot water .
(50ûC or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.





 









DESCRIPTION OF PARTS
INNER LID
When you open this lid while
the spin basket is spinning,
the spinning will be stopped
by breake system.
POWER CORD
WATER DRAIN HOSE
(WITHOUT PUMP)
DRAIN HOSE
(WITH PUMP)
SPIN DRYER
BASKET
WASH TUB LID
Be sure to keep the lid
closed during washing
and spinning.
LINT FILTER
WASH TUB
PULSATOR
DRAIN FILTER
(with pump)
The plugÕs shape may not
correspond with this drawing.
1. WASH SELECTOR
This is used to select wash action.
2. WASH TIMER
This is used to set the wash time, 1-15 minutes.
3. CYCLE SELECTOR
This is used to select the Washing /
Rinsing or draining
4. SPIN DRY TIMER
This is used to set the spin time, 1-5 minutes.(1-10 minites)
5.WATER SELECTOR
During washing,WATER SELECTOR KNOB should
be selected to wash.During spin rinsing,WATER
SELECTOR KNOB should be selected to spin.
CONTROL PANEL
SPIN DRYER LID
2
1 2 5 3 4

2. Set the WASH SELECTOR KNOB
to the desired mode.
WASHING PROCEDURE
3
SPIN DRY
1. Before starting washing, check the following;
Connect the water supply hose and open the water tap.
- Lay the drain hose down toward a sinkhole.
(In case no drain pump)
- Place the drain hose in sink or bath.
(In case drain pump)
-Connect the power cord to the power supply outlet .
3. Set the CYCLE SELECTOR KNOB to
‘
‘
WASH RINSE .(in case drain pump “
“
WASH )
5. Load laundry in the
wash tub.
6. Fill water in the wash tub
and add the detergent.
7. Set the WASH TIMER 1-15minutes.
8. After washing,set the
CYCLE SELECTOR KNOB
to 'DRAIN' for drain.
1. Transfer the clothes into the spin basket
and arrange the clothes evenly.3. Close the spin dryer lid.
4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and
close the inner lid.
inner lid
safty cover
4. Set the WATER SELECTOR
KNOB to WASH .
TO WASH
FOR B TYPE
-
(1-10 minutes)

ADDITIONAL RINSE
4
Set the WATER SELECTOR KNOB to
SPIN and CYCLE
SELECTOR KNOB to
ÔDRAINÕ.
RINSING
OVER FLOW RINSE
1. Set the CYCLE SELECTOR KNOB to
‘
‘
WASH RINSE .(In case drain pump “
“
WASH )
2. Supply the proper amount of water
as not to overflow the top of the
washing tub.
3. Set the WASH TIMER
2~3minutes.
3.As soon as the WASH TIMER
shuts off, turn off the water tap.
1.Keep suppling water
4. Drain the water.
Set the CYCLE
SELECTOR
KNOB to DRAIN
5.Repeat this cycle until drain water
is clean. (2~3 cycle)
2.Set the WASH
TIMER 6~8minutes. 4. Set the CYCLE
SELECTOR KNOB
to DRAIN .
1
2
3
4
5
6
inner lid
safety cover
After rinsing you can select this
course for more effective rinse
(Don't select only this course
for rinse.) Load the laundry
evenly into the spin basket.
Supply water for about 1minute.
Adjust the water flow to prevent
overflow from the wash tub.
After stopping water
supply, cover the
laundry with safety cover
and close the inner lid.
Close the spin dryer
lid.
Set the SPIN DRY
TIMER 2~3 minutes.
(Without pump) (with pump)
Adjust water pressure to ensure
that the amount of water supplied
does not exceed that water drained.

CONNECTING THE DRAIN HOSE
INSTALLATION
Leave some space
Space at last 15cm between the washer
and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2 )
Never install the washer near water.
Do not place the washer in steamy rooms or
where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight.
CLEANING THE MACHINE
5
ENVIRONMENT
1. OVERFLOW FILTER
Pull the upper side of the
overflow filter with
your fingers into the holes
in the direction of arrow as
shown in the figure.
2. CLEANING THE FILTER
Push the strainer(filter) out and take up the
filter as shown in figure.
Wash the filter and washing tub.
3. CLEANING THE WASHER BODY
Wipe off strains on the cabinet and operation panel with soft cloth.
Do not use benzene,thinners,cleanser,or wax, nor scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
1. Place a rag under the washer filter
not to wet the floor.
2. Rotate the filter counterclockwise
and pull out the filter.
3. Remove dirts and rotate
the filter clockwise until it
locks in position.
HOW TO CLEAN THE FILTER (In case drain pump)
Install the drain hose about
70~80cm above the ground
for pump model.
After pressing the joint ring(a), insert the drain hose(b)
to drain direction.
a
b

1. Disassemble a screws from the spin dryer hatch.
2. The spin dryer hatch is fixed to the brim by the concave
and convex parts at two places. Expand the concave
and convex parts, and pull up the spin
dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch.
Push in hatch firmly until
the catch at the front is
engaged securely.
TROUBLE
The washer
does not work.
Clothes will
not move freely.
Incomplete
spinning
TROUBLE
Incomplete
draining
The spin dryer
basket will not
run.
CHECK POINT
Check that the power cord is
connected to a power outlet well.
Power stoppage?
Is the laundry overloaded?
Are the laundry arranged evenly?
LAUNDRY GUIDE
MAINTENANCE
TROUBLE SHOOTING
6
SPIN DRY TIME
DETERGENT
WHEN YOU LOAD THE LAUNDRY INTO
THE SPIN BASKET.
Press the laundry evenly and put the safety
cover into the spin basket drum as shown in
the figure.
TIME
1min.
1~2min.
3~5min.
5min.
TYPE OF LAUNDRY
Thin(synthetic fiber)
wool
cotton
thick(cotton)
CHECK POINT
Is the filter clogged
with lint?
Is the spin dryer lid closed
completely?
Are laundry(socks,etc.)falling
out of the spin dryer basket and
clinging to the axle?
See To pick out...
on page 6.
AMOUNT OF
DETERGENT
37 g
45 g
54 g
WATER
LEVEL
Low (37l)
Mid (45l)
High (54l)
The amount of detergent is average.
Follow the instruction detergent printed
on the package for amount of detergent.
Choose the amount of detergent
depending on the fabric type.
TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safty,pull the power supply plug out of the socket.
WASHING
SELECTION
NORMAL
SOFT
WASHING TIME
10 to15minutes
8 to10minutes
7minutes
2 to 5minutes
2 to 5minutes
KINDS OF CLOTHING
Extremely solid heavy fabric
Linen,cotton,etc.
Ordinary clothes
(underwear,etc)
Slightly solied synthetic
fiber
100%wool,mixed wool knitting,
thin synthetic fiber with tags
indicating hand washing
WASHING TIME
screw


IF YOU NEED HELP.
Do not hesitate to call your local samsung service center.
They will be willing to help you.
Be sure to give them your name,address,telephone number and the purpose of the call.
SPECIFICATION
DIMENSIONS (W x D x H)mm
WATER PRESSURE
WEIGHT
EXTRACTION EFFICIENCY
STANDARD QUANTITY OF WATER
NOMAL CAPACITY
MOTOR INPUT
MOTOR MAX INPUT
RATING TIME
0.05~0.78 MPa
0.5 ~ 8.0 kg.f/cm
2
With out pump
With pump
792 x 465 x 951
29 kg
31 kg
50 %
54l
Washing : 6.0kg / Spinning 6.0kg
Washing 330W / Spinning 160W
480W
Washing 1Hour / Spinning 15minutes
