Samsung WT10J7 User manual

Owner’s Instructions
Before operating the unit, please read this manual throughly,
and retain for future reference.
BEFORE USING THE WASHER .................................................... 1
CAUTIONS ..................................................................................... 1
PRECAUTIONS WHEN OPERATING ........................................... 1
DESCRIPTION OF PARTS ............................................................ 2
CONTROL PANEL ......................................................................... 2
INSTALLATION .............................................................................. 3
ENVIRONMENT .......................................................................... 3
CHANGING THE POSITION OF THE DRAIN HOSE .................. 3
HOW TO CLEAN THE FILTER .................................................... 3
CONNECTING THE DRAIN HOSE ............................................. 3
CLEANING THE MACHINE ........................................................... 3
WASHING PROCEDURE .............................................................. 4
TO WASH .................................................................................... 4
SPIN DRY .................................................................................... 5
RINSING ...................................................................................... 5
OVER FLOW RINSE ................................................................... 5
ADDITIONAL RINSE ................................................................... 6
LAUNDRY GUIDE .......................................................................... 6
MAINTENANCE ............................................................................. 6
TROUBLESHOOTING
SPECIFICATIONS
Register your product at
www.samsung.com/global/register
CODE NO. : DC68-01942F
DC68-01942F_WT10J_IB_ENG+ARAB_No1 1 6/21/2006 3:51:16 PM

BEFORE USING THE WASHER
In case of pump drained washer, Take out personal belongings from pockets.
remove the cap-hose from Caution, Check the pockets!
the drain hole. Hairpins and coins cause
damages to clothes and
washing machine.
They make noise and
problems to the machine.
Must check the pocket.
CAUTIONS
Be sure that the washer is grounded. Disconnect the power cord from the
To avoid electrical shock,use power supply when not in use.
a metal pipe for the ground
connection. But, don’t ground Ventilation opening must not be obstructed
the washer with gas pipes or by carpeting when the washing machine is
telephone lines to avoid to installed on a carpeted oor.
dangers of explosion or lightning strike.
If the supply cord of this appliance is damaged,
Do not put your hands into the spin it must only be replaced by a repair shop
dryer basket when it is spinning. appointed by the manufacturer,because
 Yourngerscanbecaught special purpose tools are required.
by spinning laundry and
damaged. To avoid overlling and damages this appliance
must be lled with the operator present using a
Never allow children to operate moderate water supply pressure only.
or play with the washer.
Children playing with the washer For washing machines with ventilation openings
may accidentally fall into the in the base, that a carpet must not obstruct the
washing tub. openings.
PRECAUTIONS WHEN OPERATING
Don’t use excessively hot water. Be sure to cover with the safety
(50°C or more) cover on laundry before spinning.
Plastic parts may be deformed or damaged. This prevents laundry from
Also, clothing may be deformed or decolored. being tossed out and damaged.
Before washing,check all pockets. Be sure lay the drain hose(A) down.
If nails or pins remain in pockets,they may
damage the washer or clothes.
(WITHOUT PUMP)
Close the water tap a little if the
water pressure is too high.
To avoid water splashes, Be sure place the drain hose(A) in sink or bath
close the wash tub lid. about 70~80cm above the ground.
Never splash water on the control panel.
(WITH PUMP)
1
DC68-01942F_WT10J_IB_ENG+ARAB_No2 2 6/21/2006 3:51:20 PM

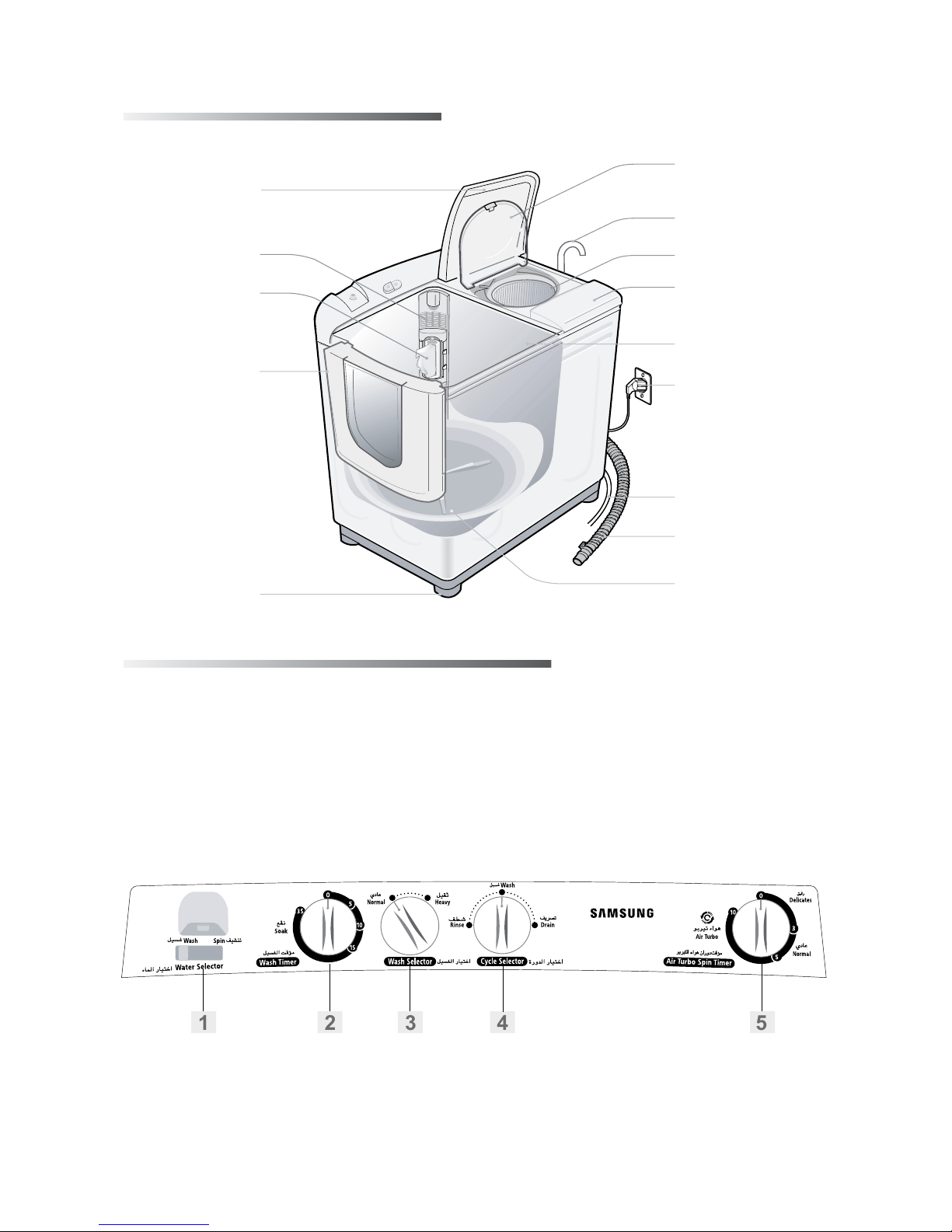

DESCRIPTION OF PARTS
SPIN DRYER LID
When you open this lid while INNER LID
the spin basket is spinning,
the spinning will be stopped DRAIN HOSE
by brake system. (WITH PUMP)
OVER FLOW FILTER SPIN DRYER BASKET
LINT FILTER SPIN DRYER HATCH
This is used for gathering
the dregs which are made
during washing. WASH TUB
WASH TUB LID POWER CORD
Be sure to keep the lid The plug’s shape may not
closed during washing
correspond with this drawing.
and spinning.
EARTH WIRE
(Option)
WATER DRAIN HOSE
CONTROL LEG (WITHOUT PUMP)
Adjust the control leg
for even placement. PULSATOR
Otherwise,excessive
vibration and noise can
occur during spinning.
CONTROL PANEL
1. WATER SELECTOR 4. CYCLE SELECTOR
During washing,WATER SELECTOR KNOB This is used to set the Washing/Rinsing
should be selected to wash.During spin rinsing, or Draining.
WATER SELECTOR KNOB should be selected to spin.
2. WASH TIMER 5. AIR TURBO SPIN TIMER
This is used to set the wash time, 1-15 minutes. This is used to set the spin time, 1-10 minutes.
3. WASH SELECTOR
You can wash laundry effectively by various
methods.
1 2 3 4 5
2
DC68-01942F_WT10J_IB_ENG+ARAB_No3 3 6/21/2006 3:51:22 PM

INSTALLATION
ENVIRONMENT HOW TO CLEAN THE FILTER (In case drain pump)
   1.Placearagunderthewasherlter
Leave some space nottowettheoor.
  Spaceatlast15cmbetweenthewasher 2.Rotatetheltercounterclockwise
  andthewall.  andpulloutthelter.
3. Remove dirts and rotate
Place the washer on a sturdy at surface. thelterclockwiseuntilit
If the washer is placed on an uneven or weak locks in position.
surface, noise or vibration may be occured. Remark : Should be cleaned
(Allowable is 2°) Filter at least 1 time a week.
Never install the washer near water. CONNECTING THE DRAIN HOSE
Do not place the washer in steamy rooms or Insert the drain hose(a) and push it tighly to be
where the washer is directly exposed to rain. connected as arrow direction.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices. (WITHOUT PUMP)
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight. Install the drain hose(A) about 70~80cm above the
ground for pump model.
CHANGING THE POSITION OF THE DRAIN HOSE
Before attempting to change the position of the
drain hose, disconnect the plug from the outlet.
1. Route the drain hose inside the machine.
2. Take out the drain hose from the opposite hole and
insert the drain hose into the hose holder.
CLEANING THE MACHINE
CLEANING THE LINT FILTER OVERFLOW FILTER
Ifthedregsarelledupinthelintlterafter Pulltheuppersideoftheoverowlter
nishingthewash,pushdown(1)andpullit withtwongersintothehole‘A’
out(2)asshowningure. inthedirectionofarrowas
Removethecollectedlintandrinsethelternet. showninthegure.
CLEANING THE COVER WINDOW SPIN
1. Rotate the cover window spin clockwise and pull out.
2. Cleaning the cover window spin.
3. Insert the cover window spin back and rotate it
counterclockwise until locks in positon.
Remark : Should be cleaned the cover window spin
at least 1 time a month.
CLEANING THE WASH TUB
Wipe off strains on the cabinet and operation
panel with soft cloth. Do not use benzene, thinners,
cleanser, or wax, nor scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
3
DC68-01942F_WT10J_IB_ENG+ARAB_No4 4 6/21/2006 3:51:26 PM

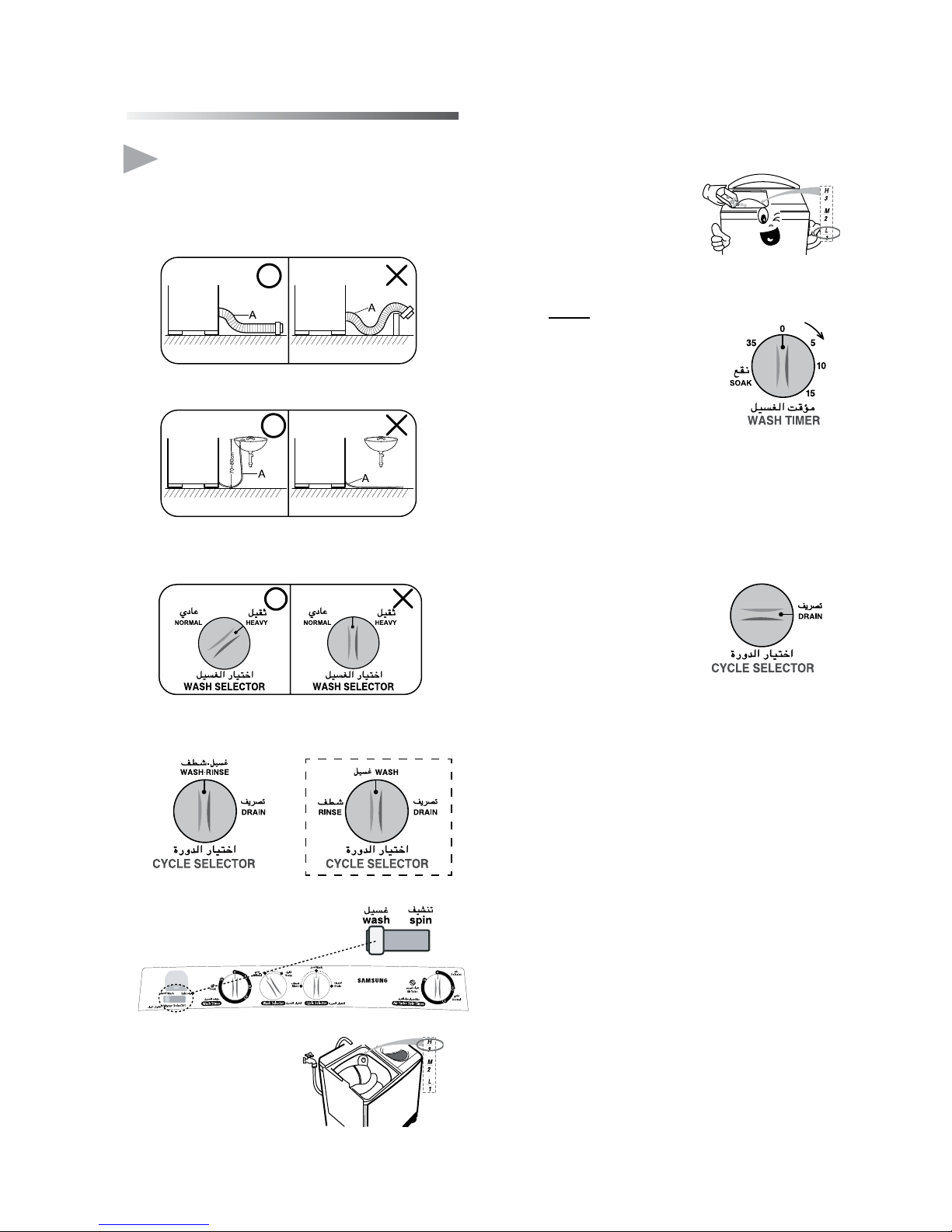

WASHING PROCEDURE
TO WASH ...................................................................................................................................
1. Before starting washing, check the following; 6. Fill water in the wash
•Connect the water supply hose and open the water tap. tub to the‘‘ L1’’lower
•Connect the power cord to the power supply outlet. water level by carefully
•Lay the drain hose(A) down toward a sinkhole. adjusting the tap water
and add the detergent.
7. Set the WASH TIMER 1-35 minutes.
(WITHOUT PUMP) SOAK
• Set the WASH TIMER
to the point more
than “15” for SOAK
• Place the drain hose(A) in sink or bath function.
about 70~80cm above the ground. • If the WASH TIMER is
set to the point less
than “15”, it leads to
WASH only. (No SOAK)
(WITH PUMP) • If Although the machine may stay still
maximum 5 minutes, if the WASH
TIMER is indicated over 15 minutes
position, it is just in the process
2. Set the WASH SELECTOR KNOB of soaking and not a breakdown.
to the desired mode.
‘NORMAL or HEAVY’ 8. After washing,set the
CYCLE SELECTOR KNOB
to ‘DRAIN’ for drain.
9. Soak-Washing
3. Set the CYCLE SELECTOR KNOB to 1) Place clothes into the WASH TUB.
‘WASH.RINSE’. (In case no drain pump.)
(‘WASH’ In case drain pump.) 2) Turn on tap or use bucket to ll the
WASH TUB with desired amount of
water.
3) Put detergent depending on the
water volume and detergent
package indications.
(Without pump) (With pump) 4) Set WASH TIMER to point between
“15” to “35” in the timer.
4. Set the WATER SELECTOR • Soak-Washing automatically
KNOB to WASH . starts the wash (15 min.) after the
soak (2 to 20 min.) is completed.
• The SOAK function (20 min.)
repeats the cycle that is
1.5 ~ 2.0 min. turning and
5. Put the cloths into the next 5 min. resting 3 times.
the wash tub and
set the same water
pressure to ll the
tub so as not to
exceed ‘H3’level.
4
DC68-01942F_WT10J_IB_ENG+ARAB_No5 5 6/21/2006 3:51:30 PM

SPIN DRY ...................................................................................................................................
1. Transfer the clothes into the spin basket 3. Close the spin dryer lid.
and arrange the clothes evenly.
4. Set the AIR TURBO SPIN TIMER
1-10 minutes.
2. Be sure to attach the safety cover and
close the inner lid.
5. Incomplete spining.(Severe vibration
or unbalance) See “When you load ...”
on page 6.
RINSING .....................................................................................................................................
1. Set the CYCLE SELECTOR KNOB to 3. Set the WASH TIMER
‘WASH.RINSE’. (In case no drain pump.) 2~3minutes.
(‘WASH’ In case drain pump.)
4. Drain the water.
Set the CYCLE SELECTOR
KNOB to ‘DRAIN’.
5. Repeat this cycle until drain water
(Without pump) (With pump) is clean. (2~3 cycles)
2. Supply the proper amount of water 6. In case no drain pump.
as not to overow the top of the - Be sure lay the drain hose down.
washing tub.In case drain pump.
- Be sure place the drain hose in sink or bath.
OVER FLOW RINSE ..................................................................................................................
1.Keep suppling water
Adjust water pressure to ensure
that the amount of water supplied 3. As soon as the WASH TIMER
does not exceed that water drained. shuts off, turn off the water tap.
(Without pump) (With pump)
2. Set the WASH 4. Set the CYCLE
TIMER 6~8minutes. SELECTOR KNOB
to ‘DRAIN’.
5
DC68-01942F_WT10J_IB_ENG+ARAB_No6 6 6/21/2006 3:51:34 PM

ADDITIONAL RINSE .................................................................................................................
After rinsing you can select this course for more effective rinse (Don’t select only this course for rinse.)
Load the laundry evenly After stopping water
into the spin basket. supply, cover the
laundry with safety cover
and close the inner lid.
Set the WATER SELECTOR KNOB to (b) Close the spin dryer lid.
SPIN(a) and CYCLE
SELECTOR KNOB to (a)
 ‘DRAIN’.(b)
Supply water for about 1minute. Set the AIR TURBO
Adjustthewaterowtoprevent SPIN TIMER 2~3 minutes.
overowfromthewashtub.
LAUNDRY GUIDE
AMOUNT OF CLOTHES
DETERGENT SPIN DRY TIME
- The amount of detergent is average
Follow the instruction detergent printed on the package for
amount of detergent.
- Choose the amount of detergent depending on the fabric type.
MAINTENANCE
WHEN YOU LOAD THE LAUNDRY INTO TO PICK OUT THE CLOTHING WHICH HAS
THE SPIN BASKET. FALLEN BETWEEN THE BASKET AND TUB.
Press the laundry evenly and put the safety For safety,pull the power supply plug out of the socket.
cover into the spin basket drum as shown in 1. Disassemble two screws from the spin dryer hatch.
thegure. 2. Pull up the spin dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch.
6
Water Level Low Midddle High
Shirts(Synthetics) 22 Pieces 29 Pieces 35 Pieces
Under Shirts(Cotton) 38 Pieces 48 Pieces 58 Pieces
Working clothes(Cotton) 16 Pieces 20 Pieces 25 Pieces
TIME TYPE OF LAUNDRY
1min. Thin(syntheticber)
1~2min. wool
3~5min. cotton
5min. thick(cotton)
10min.(AirTurbo) thick(cotton)
AMOUNT OF
DETERGENT
WATER
LEVEL
44 g Low ( 44l )
56 g Middle ( 56l )
67 g High ( 67l )
1
2
3
4
5
6
DC68-01942F_WT10J_IB_ENG+ARAB_No7 7 6/21/2006 3:51:38 PM

TROUBLE SHOOTING
SPECIFICATION
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
U.A.E
800SAMSUNG (7267864)
www.samsung.com/mea
DIMENSIONS (mm) W820mm x D524mm x H1000mm
WATER PRESSURE 0.05~0.78 MPa
0.5 ~ 8.0 kg.f/cm2
WEIGHT 36 kg
EXTRACTION EFFICIENCY 50 %
STANDARD QUANTITY OF WATER Low : 44 lMiddle : 56 lHigh : 67 l
RATING TIME Washing 1Hour Spinning 15minutes
TROUBLE CHECK POINT TROUBLE CHECK POINT
1. The washer
does not work.
Check that the power cord is
connected to a power outlet well.
Power stoppage?
4. Water dose not
drain.
In case no drain pump.
- Be sure lay the drain hose down.
In case drain pump.
- Be sure remove the cap-hose
from the drain hole.
See “Before using...” on page 1.
2. Clothes will not
move freely. Is the laundry overloaded?
5. The spin dryer
basket will not run.
Is the spin dryer lid closed
completely?
Are laundry(socks,etc.)falling
out of the spin dryer basket and
clinging to the axle?
See “To pick out...” on page 6.
3. Incomplete
spinning.
(Severe vibration
or unbalance.
Are the laundry arranged evenly?
See “When you load...” on page 6.
6. The water drains
out immediately.
In case no drain pump.
- Is the Cycle Selector set to drain?
- Is the drain hose clogged with scrap?
Hang up drain hose over the drain hose
hook. Half ll the wash tub with the
water and try for drain again.(Scrab
will be removed by water drain pressure.)
In case drain pump.
- Is the drain hose hung about
70~80 cm above the ground?
See “Connecting the drain...” on page 3.
DC68-01942F_WT10J_IB_ENG+ARAB_No8 8 6/21/2006 3:51:40 PM
