Sandrigarden SG 36/E VT User manual

DANGER: Do not start the Scarifier
when children, people or pets are
nearby.
Read the Operating and Service Instructions
carefully before using the Scarifier. Be thoroughly
familiar with its controls before any use.
DANGER - Do not put hands or feet near or under
rotating parts. Keep clear off the discharge opening
at all times. The blades continue to rotate after the
unit is switched off.
DANGER– Sharp tines- beware of
cutting fingers or toes remove spark
plug lead before maintenance
The engine is shipped without oil. DO NOT START until
the sump has been filled with oil. DO NOT FILL OVER
MAXIMUM LEVEL. Before starting, refer to the
attached motor manufacturer’s manual.

1. Read the Operating and Service Instruction carefully before using
the scarifier. Be thoroughly familiar with its controls and proper use
of the machine.
1. Never allow children or people unfamiliar with these instructions to
use the scarifier. Local regulations may restrict the age of the
operator.
2. Never operate the machine while people, especially children, or
pets are nearby.
3. Keep in mind that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
4. Wear ear protection and safety glasses at all times while operating
the machine.
5. While operating the machine. Always wear substantial footwear and
long trousers. Do not operate the machine when barefoot or
wearing open sandals.
6. Thoroughly inspect the area where the machine is to be used and
remove all stones, sticks, wires, bones and other foreign objects.
7. WARNING — Petrol is highly flammable;
8. Store fuel in containers specifically designed for this purpose.
9. Refuel outdoors only and do not smoke while refueling.
10.Add fuel before starting the engine. Never remove the cap of the
fuel tank or add petrol while the engine is running or when the
engine is hot.
11.If petrol is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any
source of ignition until petrol vapors have dissipated.
12.Replace all fuel tanks and container caps securely.
13.Replace faulty silencers.
14.Before using, always visually inspect to see that the blades, bolts
are not worn or damaged. Replace the blade assembly along with
fastening screws.

1. Do not operate the engine in a confined space where dangerous
carbon monoxide fumes can collect.
2. Operate the machine only in daylight or in good artificial light.
3. Avoid operating the machine in wet grass or take additional
precautions to avoid slipping.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. Always work across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Do not operate the machine on steep slopes.
9. Use extreme caution when reversing or pulling the machine
towards you.
10.Stop the blades if the machine has to be tilted for transportation. Do
not operate the blades when crossing surfaces other than grass,
and when transporting the machine to and from the working area.
11.Never operate the machine with defective guards, or without safety
devices, for example deflectors and/or catchers, in place.
12. Do not change the engine governor settings or over-speed the
engine.
13. Start the engine or switch on the motor carefully according to
instructions and with feet well away from the blades.
14. Do not tilt the machine when starting the engine or switching on
the motor, except if the machine has to be tilted for starting. In this
case, do not tilt it more than absolutely necessary and lift only the
part which is away from the operator.
15. Do not start the engine when standing in front of the discharge
chute.
16. Do not put hands or feet near or under rotating parts. Keep clear of
the discharge opening at all times.
17.Never pick up or carry a machine while the engine is running.
18.Stop the engine, disconnect the spark plug wire and for battery start
machines remove the ignition key.
a. Before clearing blockages or unclogging chute;
b. Before checking, cleaning or working on the machine;
c. After striking a foreign object. Inspect the machine for
damage and make repairs before restarting and operating
the machine;
d. If the machine starts to vibrate abnormally (check
immediately)
19.Stop the engine, disconnect the spark plug wire and for battery start
machines remove the ignition key.
a. Whenever you leave the machine.
b. Before refueling.

20.Reduce the throttle setting during engine shut down and, if the
engine is provided with a shut-off valve, turn the fuel off at the
conclusion of aerating or scarifying
21.When the engine is running the safety distance, given by the
handle, must always ne maintained.
1. Keep all nuts, bolts and screws tight to be sure the machine is in a
safe working condition.
2. Never store the machine with petrol in the tank inside a building
where fumes can reach an open flame or spark.
3. Allow the engine to cool before storing in any enclosure.
4. To reduce the fire hazard, keep the engine, silencer free of grass,
thatch, moss, leaves or excessive grease.
5. Check the catcher frequently for wear or deterioration.
6. Examine the machine regularly and replace worn or damaged parts
for safety.
7. If the fuel tank has to be drained, this should be done outdoors.
8. Regularly check or have your local dealer check the tightening of
blades and bolts that support the engine.
9. Blade replacement is a complex operation which involves specific
competence as well as special equipment. For safety reasons, this
operation must be carried out by your local dealer.

SCARIFICATION
Each year and on every lawn, moss and weeds take hold, which cause
the ground to become matted. By scarifying, the hard surface is cut,
allowing the grass to breathe and take up nutritional substances, oxygen
and water. Before scarifying, mow the lawn to a height of about 40 mm (an
inch). Only use the scarifier when the lawn is dry. The best period for
scarifying is during the growing season, from the end of April to the end of
September. Do this work at least once a year. To get a nice green effect,
we recommend using a fertilizer immediately after having used the
scarifier.

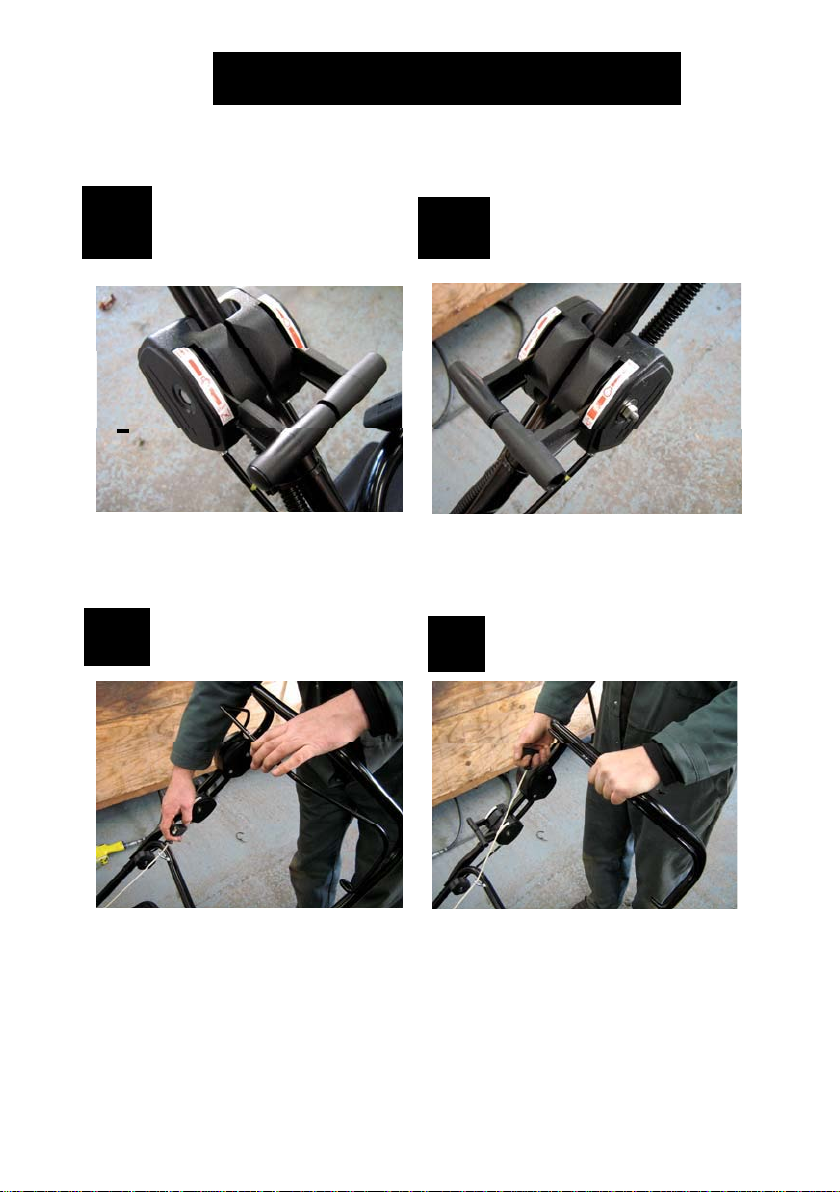

STARTING
•Move the choke control to the “CHOKE” position, .
•Move the accelerator control to the “FAST” position,
•Pull the Bail arm towards the handlebar until it stops,
•Grasp rope handle and pull slowly until resistance is felt.
Then pull cord rapidly to overcome compression, prevent
kickback and start engine. Repeat if necessary with choke in
RUN position and throttle in FAST. When engine starts,
operate in FAST position.
STOPPING
•Move the accelerator control to the minimum position
•Release the bail arm

32 kg

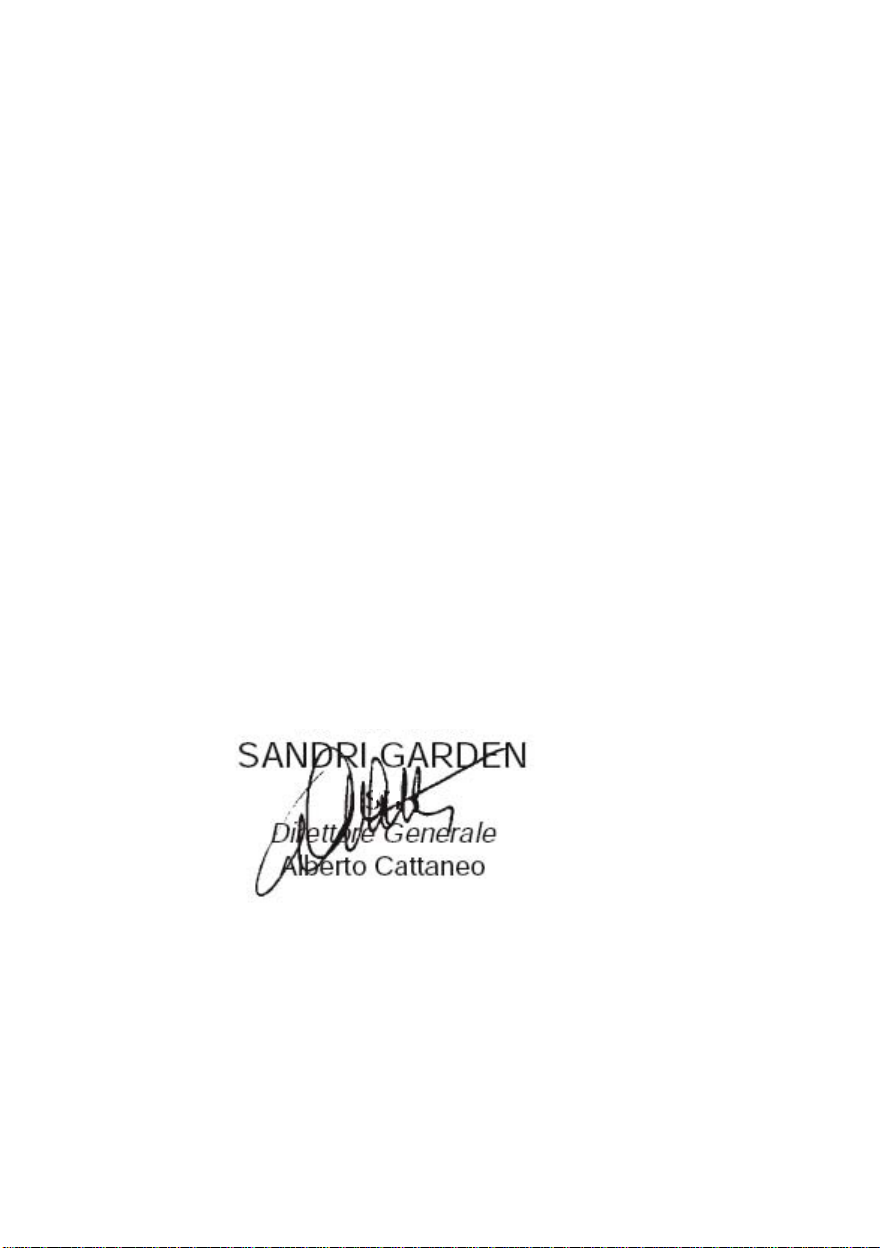

EC DECLARATION OF CONFORMITY
We SANDRIGARDEN srl, via Manzoni 22, 36027 ROSÀ (VI) ITALIA,
hereby declare, assuming full responsibility, that products type VT 3,5
SG 36/E VT are conform to the basic health and safety requirements
laid down by directive 2006/42/EC (EN 13684+A2: 2009), 2004/108/EC,
2000/14/EC Annex V.
Measured Sound Power Level LWA :94 dB(A)
Guaranteed Sound Power Level LWA :96 dB(A)
01-01-2010
S.p.A.

1 3069970 111-4587 Deck 1 2 4018490 111-4588 bushing for blade shaft 2 3 4018480 111-4589 bearing housing 2 4 2018470 111-4590 bearing 17x40x12 6203 RS 2 5 147490 111-4591 screw MX20 UNI 5739 6 6 144370 111-4592 plane washer M6X18 UNI 6593 14 7 145990 111-4593 screw 3,9x19 UNI 6954 2 8 2021950 111-4594 key 3/16" x 3/16"x1 1/2" 1 9 1037150 111-4595 grub screw 1 10 2051200 111-4596 gear pulley 1 11 106440 111-4597 pr. Torque Hex. nutM6 21 12 1022100 111-4598 screw TE UNF 1/4X5/8" 1 13 2025880 111-4599 blade shaft pulley 1 14 2025850 111-4600 belt 1 15 1035910 111-4601 plane washer 8,5x22x2 2 17 4018460 111-4602 blade-bearing stand off 2 18 2018440 111-4603 blade holder shaft 1 19 2018430 111-4604 blade 15 20 4018450 111-4605 blades stand off 14 21 145960 111-4606 screw M6X45 UNI 5739 8,8 2 22 144750 111-4607 washer M6 UNI 6592 2 23 142000 111-4608 Nut M6 UNI 5588-65 2 25 2045760 111-4609 spring 6 26 2045770 111-4610 busshing 1 27 3054150 111-4611 axles connecting bar 1 29 400520 111-4612 hand grip, height adjust lever 1 30 3045810 111-4613 lever 1 31 184540 111-4614 screw M8X30 UNI 5739 1 32 142760 111-4615 screw M6X16 UNI 5739 9 33 4018330 111-4616 axle bushing 4 34 3018310 111-4617 axle 2 36 2018100 111-4618 stand off 4 38 274040 111-4619 wheel Ø 200/27/12-39 ball bearing 4 39 144460 111-4620 bold washer M8 UNI6592 12 40 142030 111-4621 hex.nut M8 UNI 5588 4 41 2071610 111-4622 wheel cover 4
42 4051550 111-4623 belt cover 1 43 165110 111-4624 screw M6X25 UNI 5739 1 44 144450 111-4625 pr. Torque Hex. nutM8 8 45 152560 111-4626 screw M8X20 UNI 5739 6 46 2021910 111-4627 flap rod 1 47 145900 111-4628 rod cap 2 48 4051490 111-4629 grass flap 1 49 2019770 111-4630 flap spring 1 50 3008010 111-4631 left handle support 1 51 3008000 111-4632 right handle support 1 52 3018380 111-4633 bracket 1 53 147760 111-4634 plane washer 1 56 3018550 111-4635 frame 1 59 446330 111-4636 clamp 2 60 2008490 111-4637 knob 4 61 340060 111-4638 guard for hand hold 4 62 1022230 111-4640 screw TTQST M8X32,5 2 63 3052640 111-4641 lower handle 1 66 101740 111-4642 bolt M8X55 TTQST Q=25 FIL. 35 2 72 145480 111-4643 star washer M8 DIN 6798-E 3 73 142020 111-4644 screw M8X40 UNI 5737 4 76 442060 111-4645 retainer bolt for motor 4 77 1024440 111-4646 screw M6X20 UNI5933 2 82 144750 111-4647 plane washer M6 UNI 6592 1 84 2031510 111-4648 clamp for carter fixing 1 100 2018560 111-4649 grass bag 1 102 3069960 111-4650 upper handle 1 103 2071620 H290239 switch control lever 1 104 2074380 111-1816 left switch box 1 105 1071510 09765 screw for switch 3 106 2074950 111-4651 choke control box assy 1 107 1071660 111-4652 screw M6X90 UNI5737 1 108 2071630 111-2054 right switch box + cable 1 109 2074650 111-1773 switch spring 1 110 170530 111-4653 plane washer M6X18 UNI 6593 1 111 2074960 111-4654 control box assy 1 112 295640 111-4655 starter rope holder 1 113 142000 111-4656 nut M6 UNI 5588-65 1

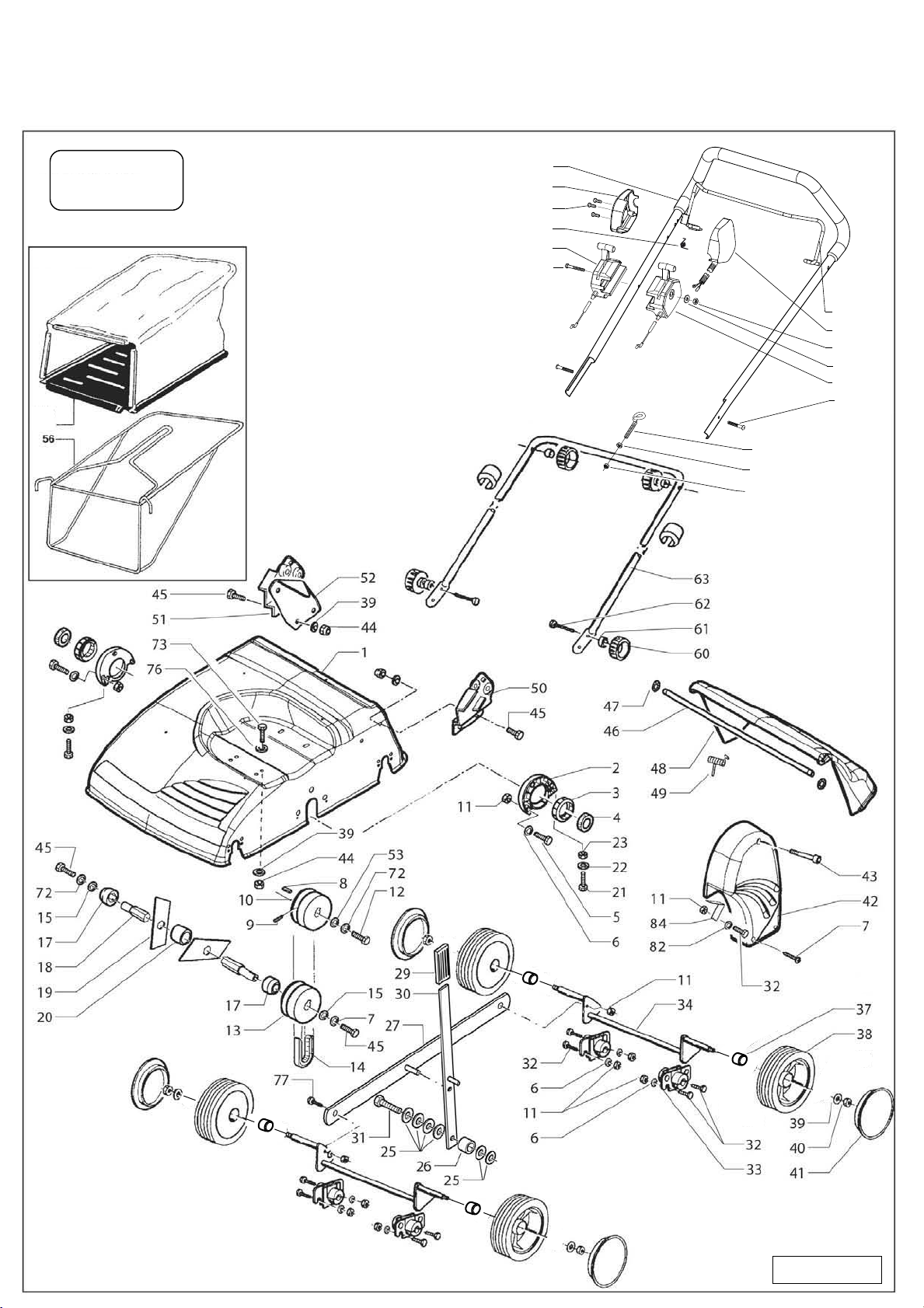

ILLUSTRATED PART LIST SG 36/E VT
TYPE LEVEL 01
6074790-100
ITEM # SANDRIGARDEN HAYTER DESCRIPTION QTY PART # PART#
ITEM # SANDRIGARDEN HAYTER DESCRIPTION QTY PART # PART#

6074790/100
112
113
11
103
108
11
111
110
66
102
107
106
105
104
109
SG 36/EVT
serie 01
100
