Sangean U-3 User manual

U3
User Manual

1
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5.Do not use this apparatus near water.
6. Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9.Do not defeat the safety purpose of the polarized or
grounding-type plug.Apolarized plug has two blades with one
wider than the other.Agrounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your
outlet. consult an electrician for replacement of the obsolete outlet.

2
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged. liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. To Reduce the Risk of Fire or Electric Shock,Do not Expose
ThisAppliance To Rain or Moisture.
16. The Shock Hazard Marking andAssociatedGraphical Symbol is
provided on the bottom panel of unit.
17.Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, shall not be placed on the apparatus.
GB

3

4

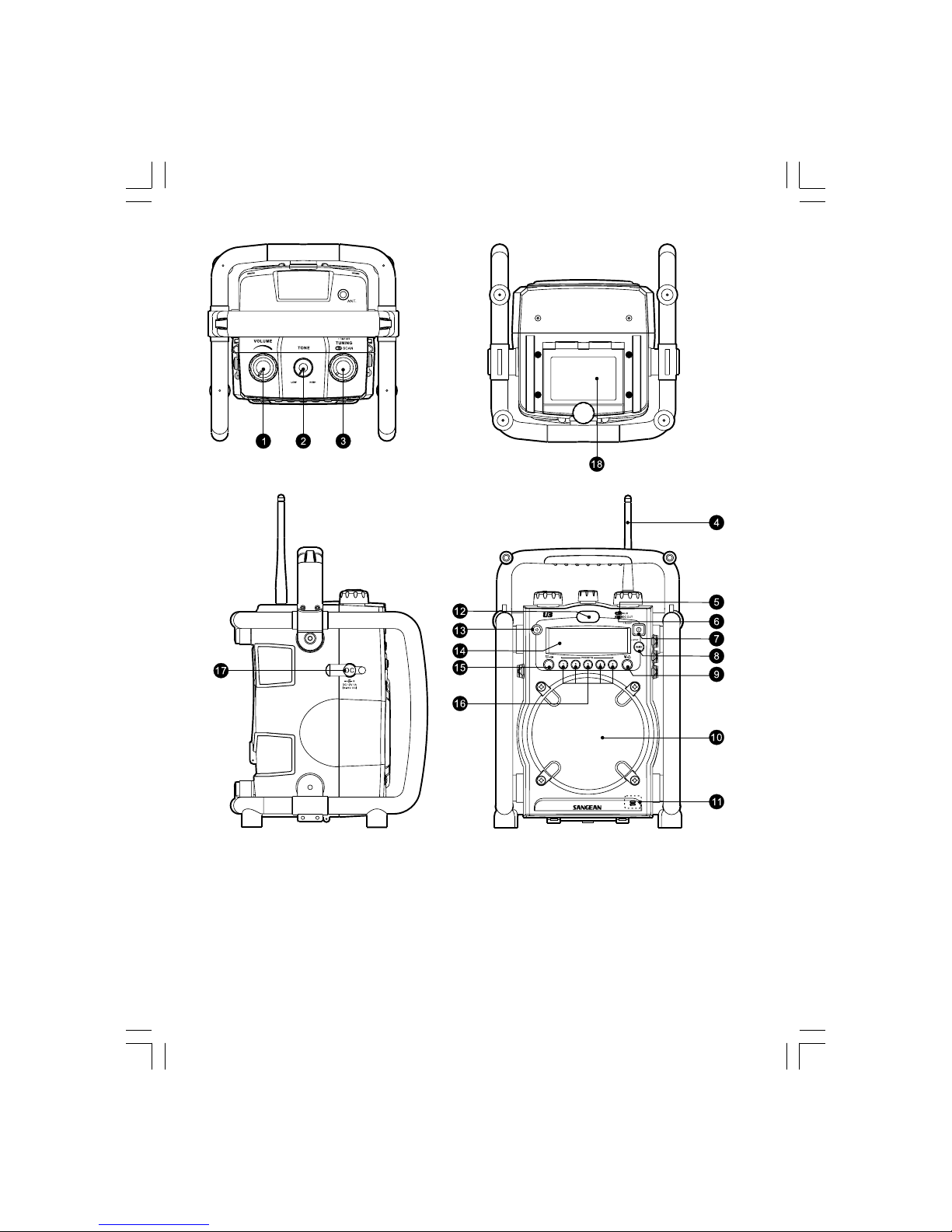

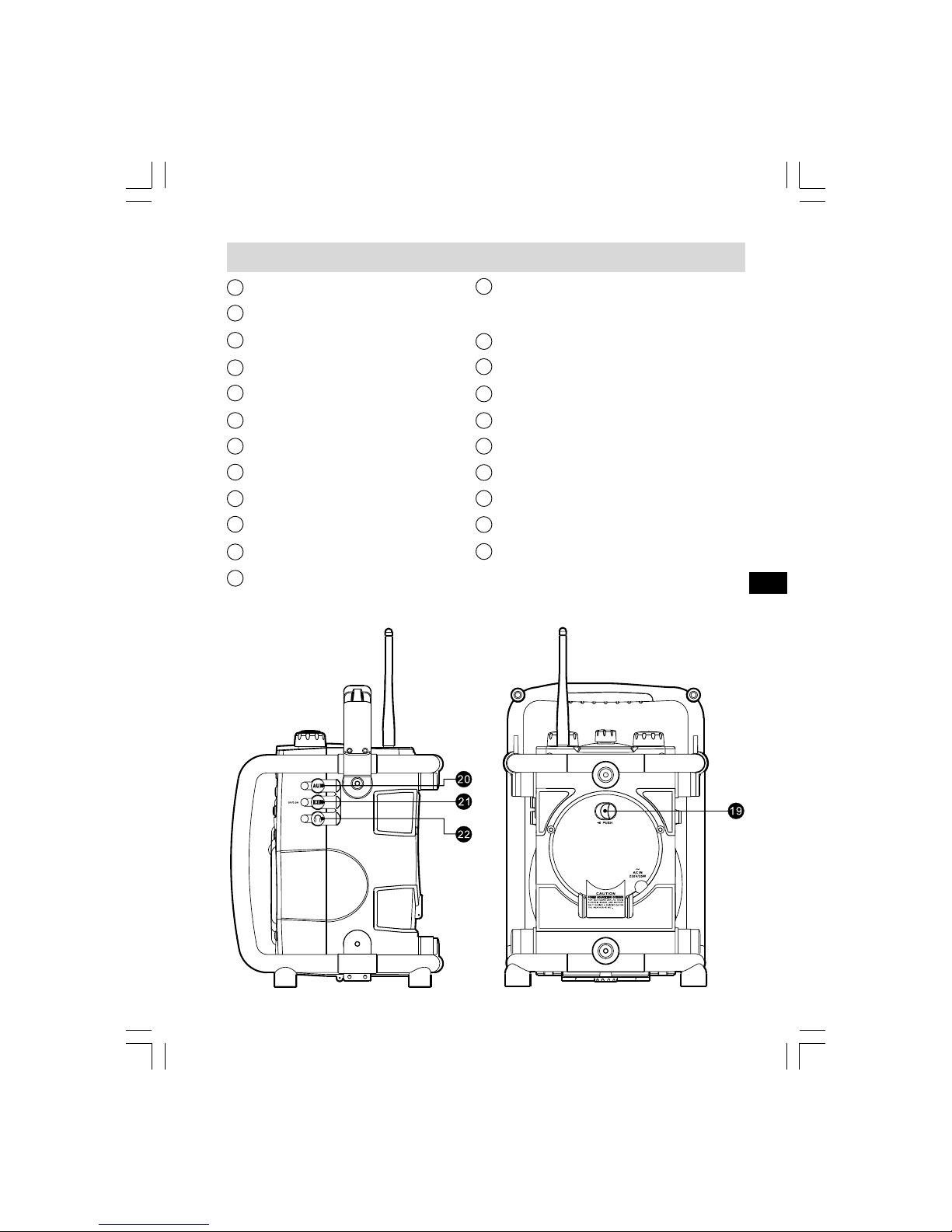

Control Tone Control
Aux In LED indicator
Power Button/Sleep
BuzzerAlarm
Buzzer
Light Switch
RadioAlarm
DC Input Socket
Open toAC Cord Compartment
DC Output Socket
Volume Control
Tuning Control/Time Set/Station Scan
FMAntenna
DC Out LED indicator
Band Selection
Speaker
Light
LCDDisplay
Preset station
Battery Compartment
AuxIn Socket
Headphone Socket
3
45
67
89
10 11
12 13
14 15
16 17
18
2
1
19
20 21
22 GB

5

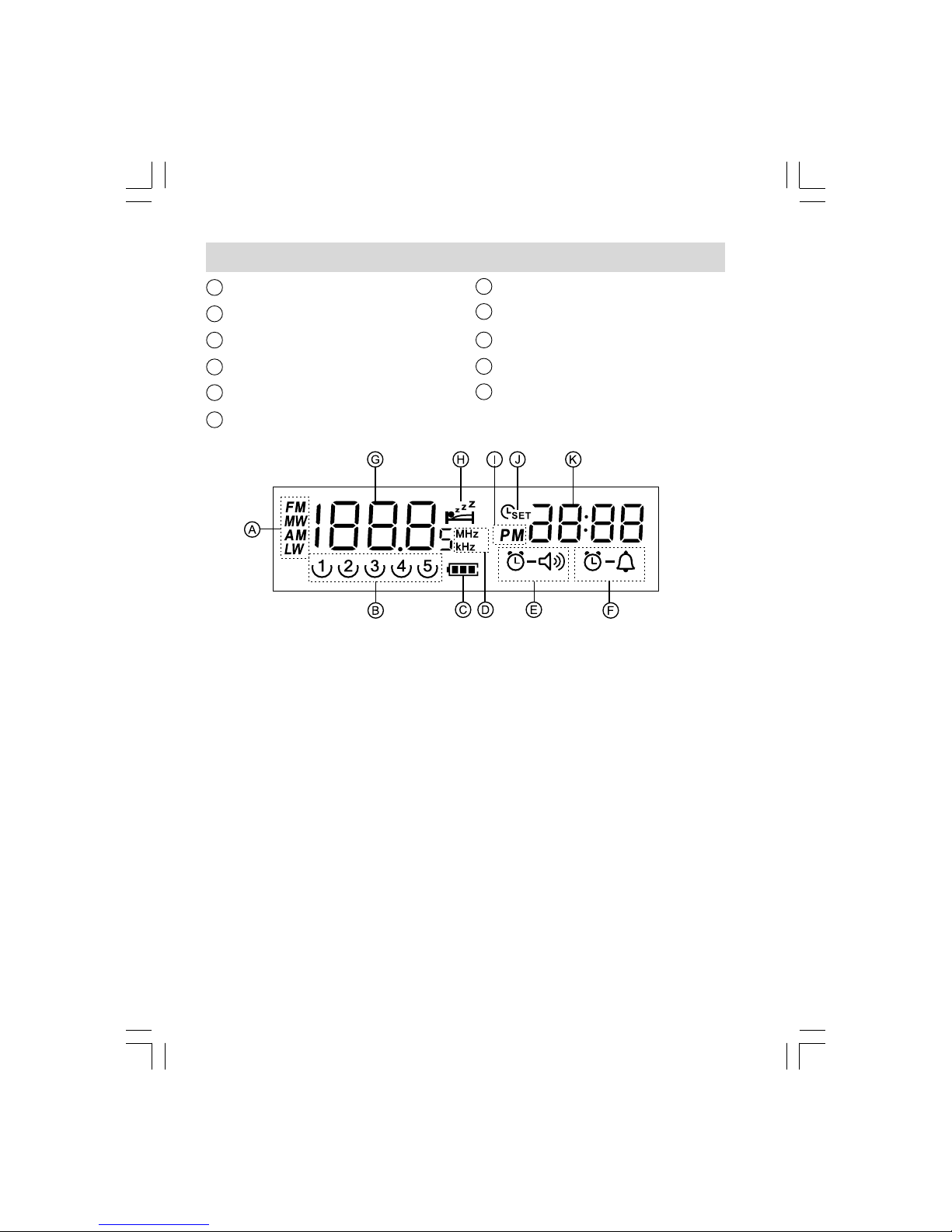

LCD Display Preset Stations
Frequencyunit
HWS BuzzerAlarm
Sleep and Snooze Status
Time Set
Band Indicator
Battery Power
RadioAlarm
Frequency
PM for Clock
Clock
F
AB
CD
E
G
J
I
H
K

6
GB
Power the radio
Note:
Insert back up battery prior to main batteries.
Back up battery is to back up the preset stations and also clock.
It is necessary to insert back up battery (2 x UM-3 1.5V, not supplied)
for memory back up even if you useAC power only. Without the back
up battery, time and preset station will get lost if removeAC power
cord fromAC outlet or duringAC power failure.
Back up battery compartment is located inside the main battery
compartment. Insert 2 xAAsize (UM-3) battery and ensure the
battery is inserted in accordance with the diagram shown.

1. Battery operation
Installing the batteries, first turn battery cover fixture anti-clockwise
to loosen and put down the battery cover. Insert 6 xDsize (UM-1)
battery into the compartment. Ensure the battery is inserted in
accordance with the diagram shown.
Close the battery cover and fasten the fixture by turning clockwise.
If the radio is not to be used for any extended period of time,
it is recommended that the battery is removed from the radio.
2. AC operation
Before you plug theAC cord into theAC socket, be sure the voltage
is correct. If you have batteries in the radio and use theAC power
cord, the batteries will automatically be disconnected.
Switch the “Open“ to theAC cord compartment to OPENposition,
pull back the compartment door and cylinder of theAC cord storage,
put out theAC cord to get the required length to theAC socket and
position theAC cord in the cut out in the lower right side of the
compartment door. Close the door.
You can store theAC cord after use in the opposite way you pull out
theAC cord.
3. Powered viaDC IN socket
The radio can be also powered via theDC INsocket which can allow
9-14 Volt DC, which is designed to be powered by the vehicle or the
boat so you can take the radio with you outdoors or on the boat.
An additional cigarette lighter cable is required (not supplied) for
this device.
7

8
Setting the clock
1. Clock can be set either the radio is power on or off.
2.Display will show “- : - -“ when the batteries are installed or when
the radio is connected to the mains supply.
3. Press inTuning control (Time Set) knob for more than 2 seconds,
display will flash time set symbol and also the hour digits,
followed by a beep.
4. Rotary Tuning Control (Time Set) knob to set the required hours.
5. Press in Tuning control knob, the minute digits will flash.
6. Rotary Tuning Control button to set required minute.
7. Press in Tuning Control button to complete time setting.
Operating the radio
This radio is equipped with three tuning methods – Scan tuning,
Manual tuning and Memory presets recall.
Scan Tuning
1. Press the Power button to turn on the radio.
2. Select the required waveband by pressing the Band button.
For FM band, be sure to screw in the rubber FM antenna properly
to get best reception. For MW (AM) band, rotate the radio to get
best signal.
3. Press and release Tuning Control /Time Set /Scan knob
(long press the knob more than 2 seconds will activate time
setting), the radio will up search and stop automatically when
it finds a radio station. Press the Scan button again to pick up
the found station.
GB

9
Note:
The radio will continue to search next available stations if you
do not press Scan button again when it finds a radio station.
4. Rotate the Volume Control and Tone Control to get required
sound level.
5. To turn off the radio, press the Power button.
Display will show OFF.
Manual tuning
1. Press the Power button to turn on the radio.
2. Select the required waveband by pressing the Band button.
Adjust the antenna as described above.
3.Asingle press on either rotate theTuning Control knob will
change the frequency in the following increments:
FM: 50 or 100 kHz
MW (AM): 9 or 10 kHz
4. Rotate the Volume Control and Tone Control to get required
sound level.
5. To turn off the radio, press the Power button.
Display will show OFF.

10
GB
Storing stations in preset memories
There are 5 memory presets for each waveband.
1. Press the Power button to turn on the radio.
2. Tune to required station using one of the methods previously
described.
3. Press and hold down the required preset until the radio beeps.
The preset number will appear in the display and the station will
be stored under chosen preset button.
4. Repeat this procedure for the remaining presets.
5. Stations stored in preset memories can be overwritten by
following above procedures.
Recalling stations from preset memories
1. Press the Power button to turn on the radio.
2. Select the required waveband.
3. Momentarily press the required Preset button, the preset number
and station frequency will appear in the display.
Setting the radio alarm
When the radio alarm is selected, the radio will turn on and play the
chosen radio station at the chosen alarm time. The radio alarm will
continue for one hour unless turned off by pressing the Power button.
Press the Power button whilst the alarm is activated will cancel the
alarm for 24 hours.

11
Note:
Radio alarm can be activated only until both radio alarm time and
radio alarmed station are set. Radio alarm will be automatically
switched to Buzzer alarm when the radio is in low battery status
or the selected radio alarm station signal is too weak.
a. Setting radio alarm time:
1. The radio alarm can be set either radio is on or off.
2. Press and release radio alarm button , the radio alarm symbol
will flash.
3.During radio alarm flashing, pressTuning control/Scan/Time Set
knob for more than 2 seconds followed by a beep tone.
4.Display Hour will flash, rotate Tuning Control knob to select the
hour then press inTuning control/Scan/Time Set knob again to
confirm hour setting.
5. Follow same procedure of setting hour to set required minute.
Press Tuning Control/Scan/Time Set knob again to complete
alarm time setting.
b. Setting radio alarmed station:
1.During setting radio alarm time and radio alarm symbol is flashing,
press Band button to activate the radio to select required wake-up
band and station by manual tuning and recall preset stations.
2. When above radio alarm time and station are set, press and hold
radio button for 2 seconds followed by a beep tone to switched
alarm on or off.Display will show when radio alarm is set.
Note:
If new radio alarm station is not selected, it will select the last
alarm station.

12
GB
Setting the HWS (Humane Wake System)
buzzer alarm
Abeep tone will activate when selecting the HWS alarm.
The alarm beep will increase in volume every 15 seconds for one
minute followed by one minute silence before repeating the cycle.
The HWS buzzer alarm will sound for one hour until turning off by
pressing the Power button. Press the Power button whilst the alarm
is activated will cancel the alarm for 24 hours.
1. The HWS buzzer alarm can be set either radio is on or off.
2. Press and release the HWS buzzer alarm button ,
the symbol will flash.
3.During the symbol flashes, long press theTuning Control/Scan/
Time Set knob for more than 2 seconds followed by a beep tone.
Display Hour digit will flash.
4. Rotate Tuning Control knob to select required alarm hour, then
press in Tuning Control knob again. The minute digit will then flash.
5. Rotate Tuning Control knob to select required alarmed minute the
press in Tuning Control knob to complete alarm setting.
6. Press and hold down HWS buzzer alarm button for more than
2 seconds followed by a beep tone to switch on or off the alarm.
Display will appear when HWS buzzer alarm has been set.

13
Snooze function
1. Whilst the alarm is activated, press any buttons except the
Power button will activate the snooze function.The radio or
HWS buzzer alarm will be silenced with interval of 5 minutes.
2. The display will flash both the snooze symbol and the alarm
symbol. The snooze function can repeatedly during the 1 hour that
the alarms are active.
Sleep function
The sleep timer will automatically switch off the radio after a preset
time has elapsed.
1. Press and continue to hold down the Power button for more than
2 seconds, followed by a beep tone, display will cycle through the
available sleep times in the order 60-45-30-15-120-90-60.
Release the Power button when the required sleep time appears
in the display. The symbol will appear in the display and the
radio will play the last station selected.
2. To cancel the sleep function, press the Power button,
the symbol will disappear and radio is off.
Display backlight
Press any buttons will illuminate the LCDdisplay for approx.
15 seconds.During scanning stations and alarm activated,
will also automatically illuminate the display.

14
GB
Setting tuning step
Tuning steps on some countries are different from where you
purchase the radio. If you buy the radio in Europe and intend to
use inNorthernAmerica or some SouthernAmerican countries,
you may have to adjust tuning step so the radio may continue to
serveyou well.
While radio is switched off, long press Step/Band button for
more than 2 seconds will first show current FM tuning step.
Continue pressing Step/Band button for approx. another 5 seconds
until display FM and 50 kHz (tuning step) flashing followed by a beep.
By rotate Tuning Control knob, you may adjust to 100 kHz per tuning
step.
After FM tuning step is reset, pressing Step/Band button again,
display will show MW and flash 9 kHz. By rotate Tuning Control knob,
you may adjust to 10 kHz per tuning step. Complete the setting by
pressing Step/Band button.
Aux and Headphones sockets
1. TheAux socket (3.5 mm) on the right side of your radio is for
use with a tape recorder/mini disc or any other equipment that
can provide a line level signal. Inserting a plug into the socket
automatically mutes the internal signal.AndAux LEDwill be on.
The Volume andTone control can be used to adjust sound level.
2. The Headphone socket (3.5 mm) located on the right side of your
radio is for use with either headphones or an earphone. Inserting
the headphone plug automatically mutes the internal loudspeaker.

15
DC out – charge your mobile phone
Note:
Always charge your mobile phone when the radio is
switched off.
Suitable for phones with 3.6 – 4.8 Volt batteries.
Please read instruction manual of your mobile phone.
Connect the supplied charging cable to theDC out.
ForNokia phones you can connect your phone directly to this cable.
For Sony Erisson mobile phones, connect the supplied plug adaptor
to go with the mobile phone connection. For other brand mobile
phones, you can source from mobile phone accessory stores to get
the suitable plugs.
Light
1. Your radio is fitted with a long life LEDlight located on the front
of your radio. The light may be switched on and off by gently
pressing the Light button.

16
GB
Specifications
Frequency Coverage:
FM 87.50 – 108 MHz
AM (MW)
520 – 1710 kHz (10 kHz)
522 – 1629 kHz (9 kHz)
AC Power:
AC 120V/60Hz/25W (USA)
AC 230V/50Hz/25W (Europe)
Batteries: 6 x UM-1 (D size )
DCIN :
12V/1A center pin positive (operational voltage 9-14V)
3.5 mm in diameter.
OutputPower:
5W 10% T.H.D. @ 100 Hz @DC battery 9V
7W 10% T.H.D. @ 100 Hz @ AC 230V or 110V
Headphones socket:
3.5 mm diameter, stereo jack, monaural output
Output power: 5 mW + 5 mW

17
Aux in socket:
3.5 mm diameter, stereo jack to be mixed as monaural
Input sensitivity: 100m Vrms at output 5W @ 100 Hz
Input impedance: 47 kohm
DC Out: 5V 500 mA
Speaker unit: 6.5 inches 8 ohm 15W, full range
InternalAntennasystem:
AM built-in ferrite aerial
FM built-in removable bended spring antenna
LED illuminator: 3 x white LED, current consumption 50 mA
Battery life:
Approx. 30 hours usingAlkaline batteries at 50mW output power.
Dimension: 262x385x271 mm
Weight: approx. 4.2 kgs

18
GB
If at any time in the future you should need to dispose of this product
please note that: Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice. (Waste Electrical and Electronic
Equipment Directive)

19
