SANicolet MINION EHS-720 User manual

1
www.sanicolet.com
MINION MIST SPRAYER
USER’S M ANUA L
Model No. : EHS-720

2
www.sanicolet.com
CONGRATULATIONS!
We trust your Minion Mist Sprayer will bring you many years of satisfaction. Our company
is offering this product with you in mind. We are very proud of our products and hope
that you are equally satisfied with the quality and performance. Thank you for your
support in choosing our produ ct s.
Operating Inst r u c t i ons
Please read these instructions and warnings carefully before using your Minion Mist Sprayer.
Charge battery completely before and after using the device for maximum performance and battery life.
WARNING: Small parts may cause choking hazard. Keep out of reach of children.
IMPORTANT SAFETY INS T RUC T I O NS
When you use the Minion Mist Sprayer, basic precautions should always be followed:
1. STUDY THE PRODUCT THOROUGHLY BEFORE OPERATING, BE FAMILIAR WITH ITS OPERATING
CONTROLS.
2. DO NOT OPERATE THE PRODUCT WHEN IN DOUBTS OR UNDER THE INFLUENCE OF ALCHOHOL
OR DRUGS.
3. DO NOT USE THE MINION SPRAYER WHEN THE BATTERY PACK IS DAMAGED.
4.DO NOT USE CORROSIVE LIQUID OR ETHYL ALCOHOL WITH THIS DEVICE.
WARNING
TO REDUCE THE RISK OF INJURY:
1. This is NOT a toy. Close attention is necessary when used near children.
2. Use only manufacturer’s recommended accessories and replacement parts.
Do not use with damaged cord or plug. Do not use the Minion Sprayer if it is damaged or dropped into water
or any other liquid and when it is not working as it should.
3. Do not use device when nozzle clogged; keep free of dust, lint, hair, and anything that may reduce flow or cause
clogging.
4. Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is
listed on the battery’s plate.
5. Do not spray water to the device, or put the battery pack & the whole device into water.
6. Do not use corrosive liquid or ethyl alcohol type disinfectant.
7. Do not allow the device to freeze. Always store indoors. Freezing will damage motor.
8. Do not attempt to disassemble the Minion Sprayer.
9.Do not try to use lead to connect two terminals on bottom of main device to the 120V AC or any other power
source, it may damage the motor and lead to serious injury.
10. Do not keep the battery charging overnight. Unplug the charger after full charge.

3
www.sanicolet.com
WORKING PRINCIPLE
Negative-ion Electrostatic Sprayer
The Minion Mist Sprayer comes with a 129W motor, negative ion generator built inside,
1.8L bottle, 20V rechargeable battery for spraying the disinfectant to help kill the
viruses, it is portable and can create very fine water fog which is perfect for disease
prevention for home, garden, indoors & outdoors, public area, hospital, school etc., it is an
economical and practical way to apply disinfectant.
Why the Minion Mist Sprayer is recommended to apply to spray disinfectant?
The core of the Minion Mist Sprayer is a specially designed anion generator that
continuously produces a high concentration of anions which are negatively charged,
most of the dust, particles and bacteria in the air are positively charged, the high
concentration of anions created can neutralize positively charged bacteria and particles in
the air, so that causes the bacteria & particles lose their charge & increase their weight to
settle on the ground after neutralization, combined with the disinfectant solution, the
Minion Mist Sprayer can kill bacteria effectively and easily.

4
www.sanicolet.com
OVERVIEW
NO.
Part Name
Part No.
1.
Spray Device
S20-QI003-01
2.
Battery Pack
BCP2-00627
3.
1.8L Container
SJ5-02080
4.
Charger
*DZ5-00505
● Size: 13x3.5x6in
● Voltage: 20V (DC)
● Motor Power: 129W
● Current: 6 amps
● Effective range: 10ft
SPECIFICATIONS
● Atomized volume: 2.4oz/min
● Charger input power: AC 100-240V 50hz/60hz
● Charging time: 3.5~4 hours
● Operating time: 25~30 minutes
● Container volume: 60oz
● Noise level: ~75DB
● Net weight: 3lbs

5
www.sanicolet.com
HOW TO OPERATE

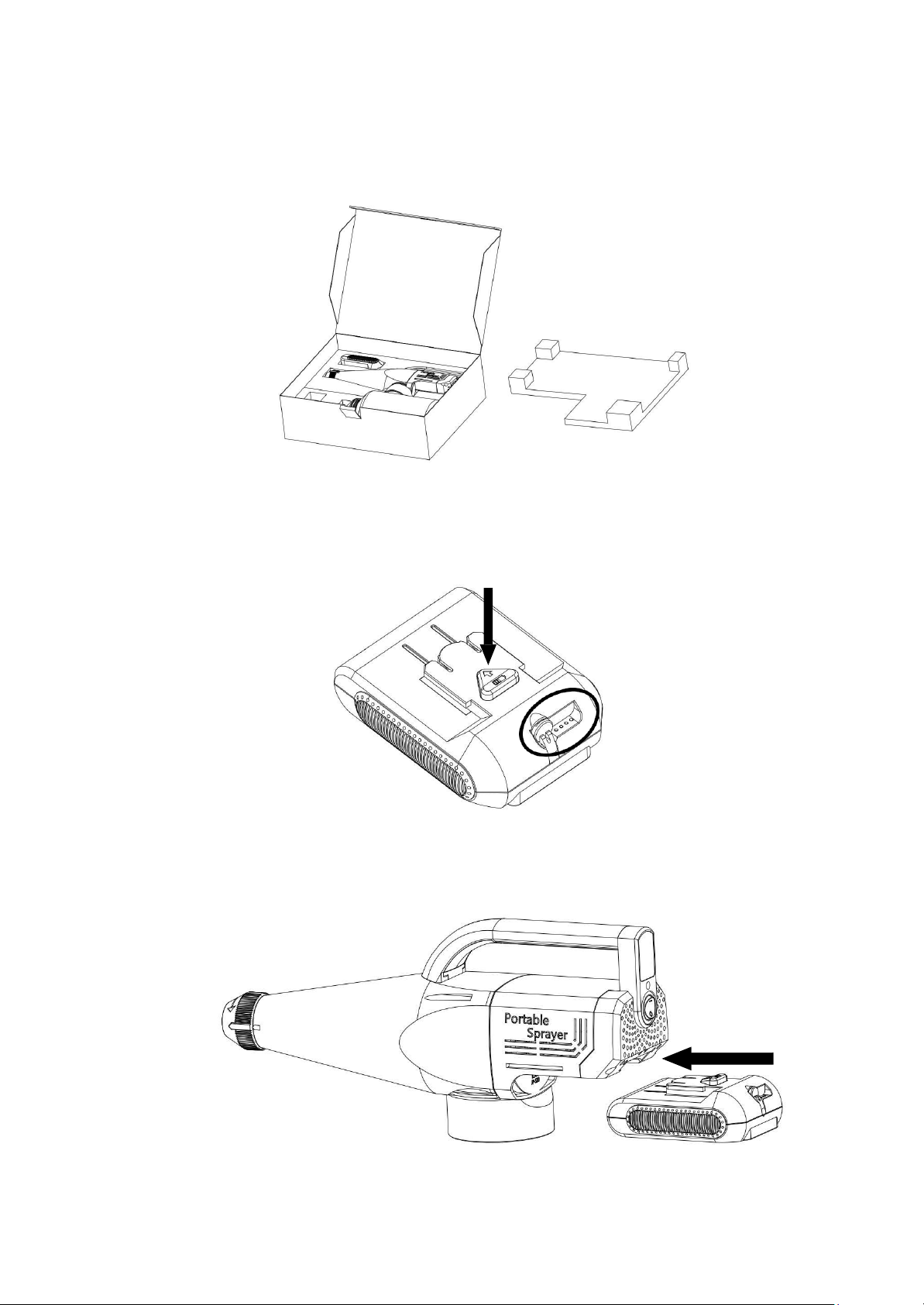

(1) Take the product out of the package and check if there are any parts missing or damage
before using.
(2) Check the battery gauge by holding the on/off switch on the battery pack, if the battery
level is less than 50% (less than 2 LED lights on), please recharge it before using.
(3) Mount the battery pack onto the bottom of the sprayer.

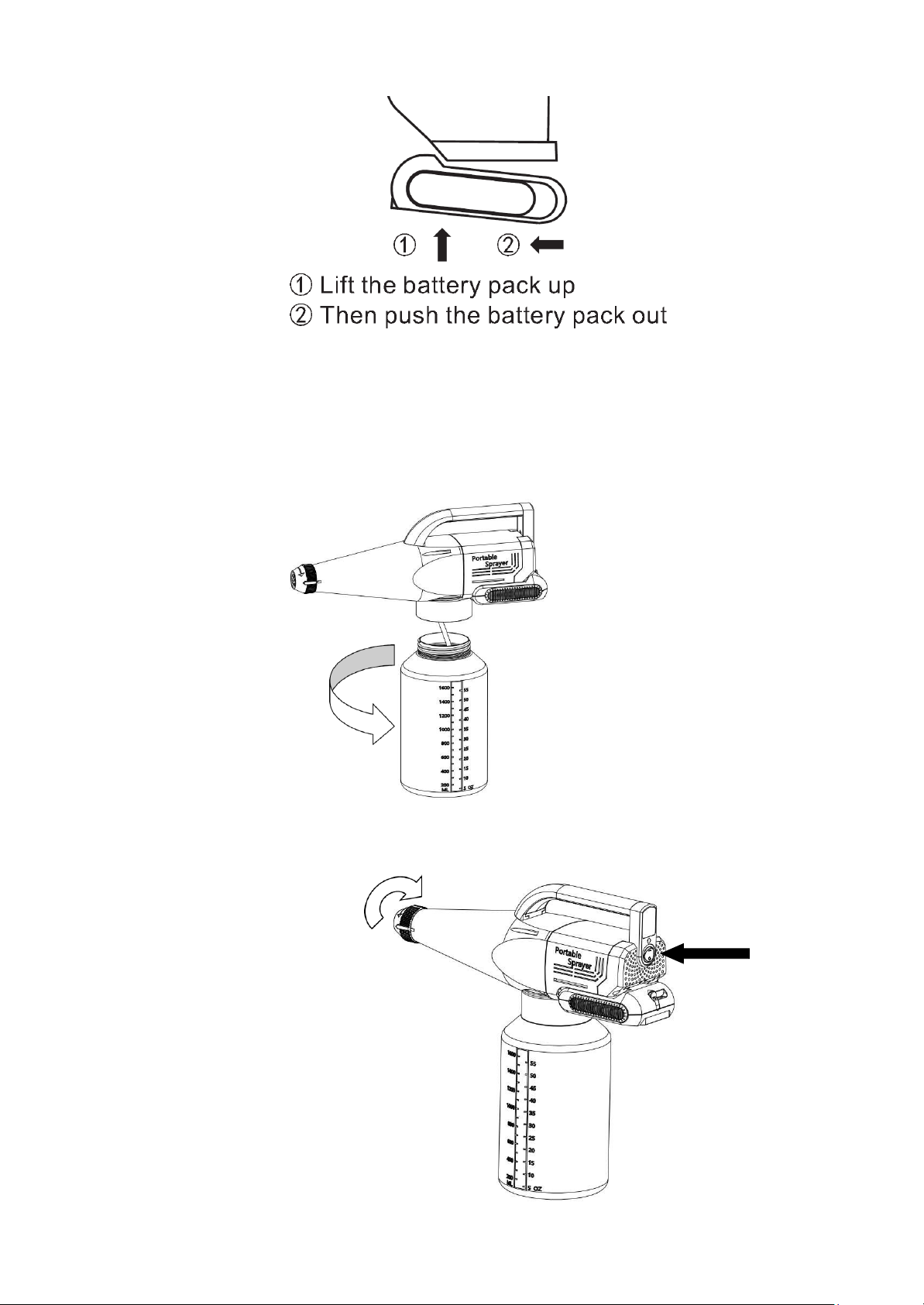

To remove the battery first lift the battery back up and then pull it out.

6
www.sanicolet.com
(4) Mix disinfectant or chemical liquids in proportion recommended by the supplier and fill
into the 1.8L container, and then screw the container on to the sprayer device.
Notes: Do not fill / use the corrosive liquid or ethyl alcohol with this device.
(5) Press the on/off switch on back of sprayer to start the job, the nozzle can be rotated to
adjust the flow rate of spraying.

7
www.sanicolet.com
MAINTENANCE & STORAGE
Your Minion Mist Sprayer should be stored in such a way to protect it from freezing. Do
not store this unit outdoors or on an area where temperatures will fall below 0°C (32°F).
This can cause extensive damage to the unit and void the warranty. After each time of use
and before storage, the following steps should be followed,
1) After each use and before long term storage, fill some clean water into the bottle
and run the sprayer to clean the residual disinfectant or chemicals inside the sprayer.
2) Store in cool, dry place away from children. Wipe clean with a damp cloth as
needed. Do not immerse sprayer device in water.
3) Remove the battery pack from the sprayer and recharge it in due time.
FOR BATTERY:
Do not store the battery in elevated temperature for an extended period of time.
Do not put the battery with sharp and fine metal wire or pin, these materials may touch both terminals of the
battery and cause it short circuit then lead a burnout or explosion.
Store the battery in a dry, cool and well-ventilated place, protect from direct exposure sunlight.
The battery must be stored in a partial state-of-charge, ideally 40-50% (2 LED lights on), recommended
temperature 0°C ~25°C, if it is not regular use, be sure to charge the battery to approx 50% SOC instead of fully
charged at least every 3 months.
To charge the battery, make sure use the original charger included in the package. Using different charger or
improper voltage may lead to failure such as burn out the battery or may cause serious injury.
Do not keep the battery charging overnight. Unplug the charger as soon as the battery is fully charged.
DISPOSAL
Electrical and electronic devices must never be disposed of in a regular
householdwaste!!
Consumers are legally obligated and responsible for the proper disposal of
electronic and electrical devices by returning them to collecting sites
designated for the recycling of electrical and electronic equipment waste.
For more information concerning disposal sites, please contact your local
authority or waste management company.
