Sanyo CLT-9660 User manual

s* o
INSTRUCTION MANUAL CLT-9660
Cordless telephone

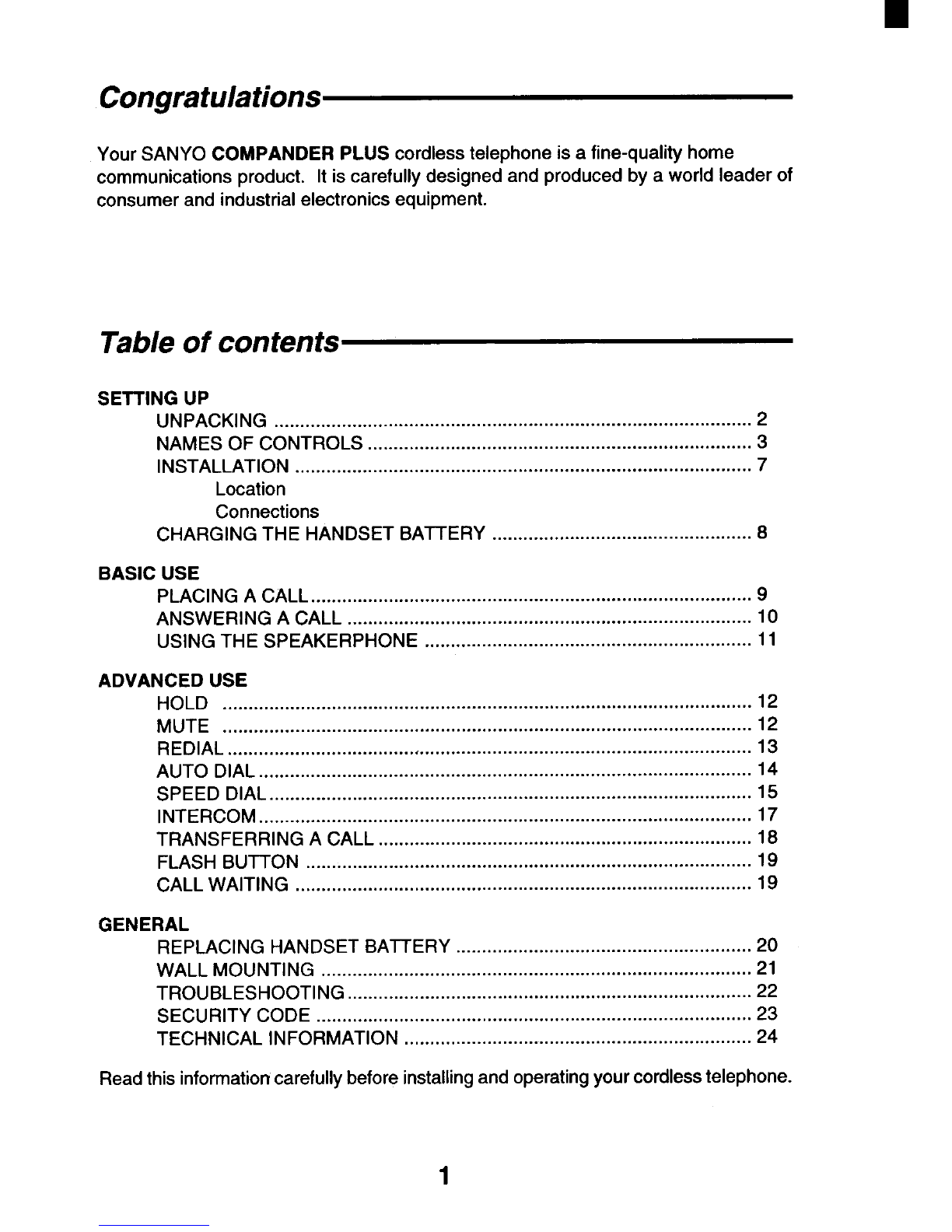

Congratulations
Your SANYO COMPANDER PLUS cordless telephone is afine-quality home
communications product. It is carefully designed and produced by aworld leader of
consumer and industrial electronics equipment.
Table of contents
SETTING UP
UNPACKING ............................................................................................ 2
NAMES OF CONTROLS .......................................................................... 3
INSTALLATION ........................................................................................ 7
Location
Connections
CHARGING THE HANDSET BATTERY .................................................. 8
BASIC USE
PLACING ACALL ..................................................................................... 9
ANSWERING ACALL .............................................................................. 10
USING THE SPEAKERPHONE ............................................................... 11
ADVANCED USE
HOLD ...................................................................................................... 12
MUTE ...................................................................................................... 12
REDIAL ..................................................................................................... 13
AUTO DIAL ............................................................................................... 14
SPEED DIAL ............................................................................................. 15

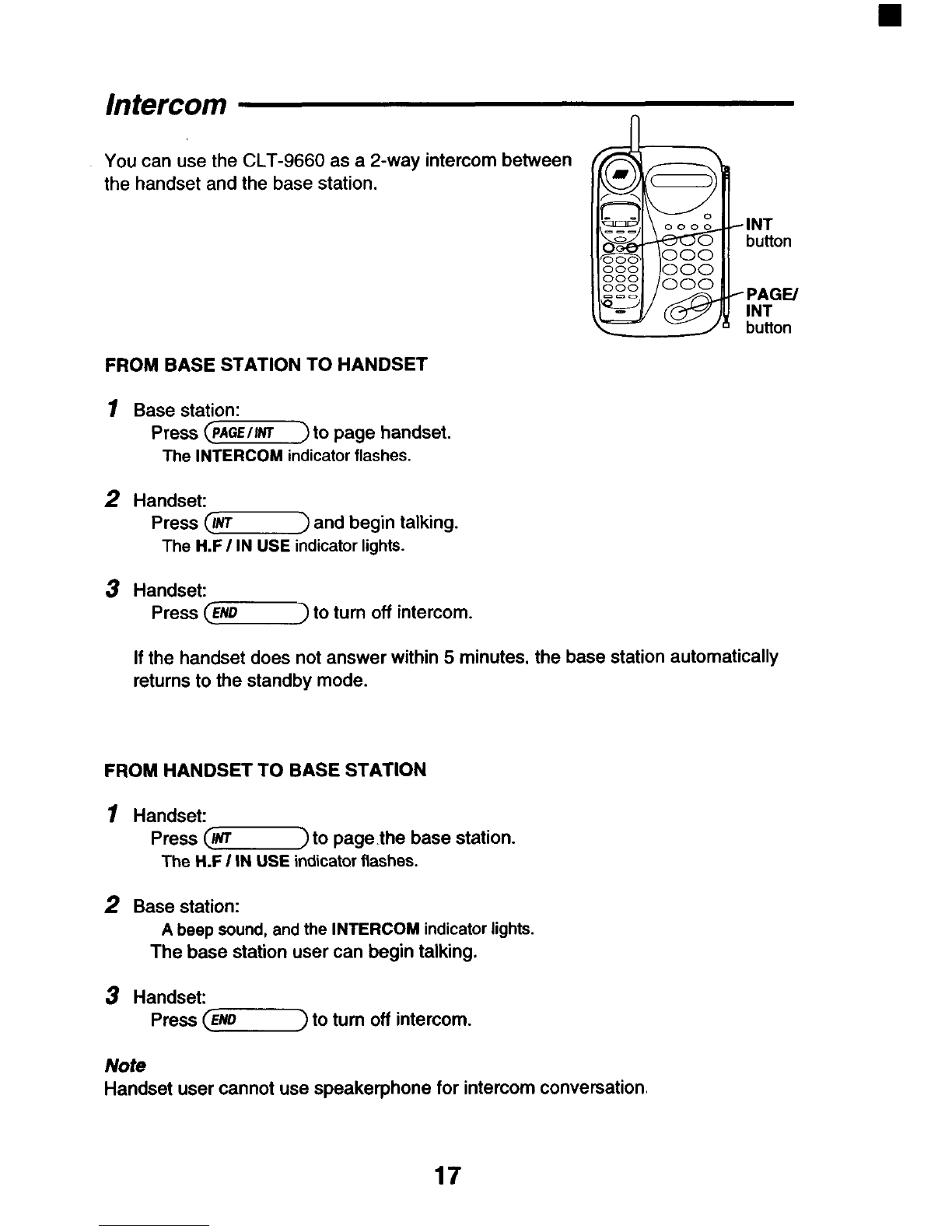

INTERCOM ............................................................................................... 17
TRANSFERRING ACALL ........................................................................ 18
FLASH BUTTON ...................................................................................... 19
CALL WAITING ........................................................................................ 19
GENERAL
REPLACING HANDSET BAITERY ......................................................... 20
WALL MOUNTING ................................................................................... 21
Troubleshooting ..............................................................................22
SECURITY CODE .................................................................................... 23
TECHNICAL INFORMATION ................................................................... 24
Read this information carefully before installing and operating your cordless telephone.
1

Unpacking
Check to make sure you have all the items that come with the telephone.
Handset with rechargeable battery Telephone cord BT lead
Base station Speed dial directoty sheet
ml
——
—.
—.
—=
—
——
AC adaptor Wall mount bracket
DESCRIPTION
Cordless telephones operate on the same principle as a two-way radio. The location
of the base station determines the range of operation. In most homes, maximum
range is obtained by locating the base station at the highest point in the house
The base station operates from a 230 volt AC electrical outlet. Connect the base
station to atelephone line by simply plugging it into astandard telephone jack. The
handset is powered by aheavy-duty rechargeable battery. n
CAUTION
Charge the handset before using the cordless phone for
the first time. Do not attempt to use the phone before
charging the battery pack for afull 10 hours.
2

Names of controls
BASE STATION
FIASH button
\\/
Used to get anew
dial tone.
REDIAUP button
Lets you automatically
call the last number you
dialed from the base station.
LAntenna
SPEAKER button
Used to place or receive acall using
the base station speakerphone.
3

Names of controls
BASE STATION
TEL indicator INTERCOM indicator
Flashes when acall is coming Lights when the intercom
in, the handset is paging or afeature is being used.
call is on hold.
Lights when the base station
IS muse.

Names of controls
HANDSET
3
Ant~nn~ ‘~~:,
volume.
5

Names of controls
HANDSET
POWER switch JRecharge contact
Turn the handset power points
on and off.
6

Installation
LOCATION
Avoid places near electrical equipment such as refrigerators, computers, TVs or
fluorescent lamps. These may cause interference or reduce the operating range of
the cordless telephone.
CONNECTIONS
Wall AC
Wall telephone
jack
1
2
3
4
5
Telephone cord
Insert the small plug of the AC adaptor into the DC 12V jack provided on the back
of the base station.
Plug the AC adaptor into an AC 230V wall outlet.
Insert one plug of the telephone cord into awall telephone jack and the other into
the TEL LINE jack on the base station.
Store the telephone cord by winding it around the cord holder on the back of the
base station.
Extend the base station antenna full-length.
Direct Wtre Connection
If your current phone is wired directly into the wall, have the phone company install a
wall phone jack.
Party Line or Pay Phone
Ifyou have aparty line or apay phone, telephone companies do not allow the installation
of cordless telephones, because they will not work correctly with these systems.
7

Charging the handset battery
r
IMPORTANT
Charge the handset before using the cordless phone for the first time.
Do not attempt to use the handset before charging it for afull 10 hours.
1
2
3
Place the handset on the base station and charge it
for 10 hours.
Bidirectional handset
The handset can be placed with the keypad facing
up or down.
Remove the handset from the base station.
Set the POWER switch to ON.
The BA1l. LOW indicator will flash when the handset needs recharging. Simply place
the handset in the base station cradle and charge itfor 10 hours. It is not necessary to
turn the POWER switch off after initial charging.
Note
●The handset battery can be recharged and reused many times.
●Repeated recharging for ashorter period may reduce the battery time.
●If the handset battery fails (the BATT. LOW indicator flashes) even after being
charged for 10 hours, replace it with anew Sanyo cordless telephone battery,
type 3N-270AA (See page 20).
ATTENTION
Securitv Code Setting
Your cordless telephone is shipped from the fdctory as a matched pair
(handset and base station). Before using the phone check that the serial
number of the handset and base station are the same.
If the serial numbers of the handset and base station do not match or if your
handset does not work with your base station please refer to this Instruction
Manual page 23 for details of the Security Code setting before callingfor service.
The Security Code must be set to match the handset to the base station for
correct operation.
8

Placing acall
USING THE HANDSET
dom
Make sure the handset POWER switch is ON. /->
1
2
3
B
~~, END button
Listen for adial tone by lifting the handset from the oTEL button
base station, or by pressing (~). 000
000
000 Dialing button
The green H.F /IN USE indicator lights. e..
~
Dial the number.
Press (~] to hang up.
(or return the handset to the base station.)
To adjust the volume
Use the VOLUME control (HIGH-NORMAL) on the side of the handset.
OUT-OF-RANGE ALARM
Awarning beep sounds if you take the handset too far away from the base station
while it is in use. You must return to operating area within 30 seconds to prevent the
telephone from hanging up automatically.
MULTICHANNEL ACCESS
This cordless telephone lets you select achannel from 5frequencies available to
transmit signals between the base station and handset. If you notice interference
during acall, simply select adifferent channel by pressing the SCAN button on the
handset.
9

Answering acall
ANSWERING WITH THE HANDSET
d
~)
m
Make sure the handset POWER switch is ON. +===%
1
2
3
IT
:*
END button
When acall comes in, the handset rings. ~TEL button
The H.F /IN USE indicator and the dialing keypad flash. ‘ggg
000
000
..-
Answer the call by lifting the handset from the base ‘Q___ J
station, or by pressing (~> or any button.
Press (~] to hang up, or place the handset
in the base station cradle.
Dial light (Handset only)
The dialing keypad of the handset flashes when an incoming call is ringing, and
lights up for 10 seconds when (~) is pressed or the handset is lifted from
the base station. Press adialing button any time to light it up again for 10 seconds.
10

Using the speakerphones
The CLT-9660 has two speakerphones--one on the handset and the other on the base
station--which allow you to answer and place acall on either unit. Both speakerphones
let you have ahandsfree phone conversation--no need to hold the handset.
BASE STATION HANDSET
To place acall from the base station: To place acall using the handset
speakerphone:
1Press @~) to get adial tone. 1Press @and listen for adial tone.
The SPEAKER indicator lights. The amber H.F/ IN USE indicator lights.
zDial the number. zDial the number.
aPress (s~) to hang up.
To answer acall at the base station:
1Press (s~) to answer acall.
The SPEAKER indicator lights.
zPress (-] again to hang up.
To adjust the speaker volume:
Adjust the VOLUME control left (low)
or right (louder). This will also change
the ringer volume level.
aPress ~~) to hang up.
To answer acall using the handset
speakerphone:
1Press @@.
The amber H.F /IN USE indicator lights.
2Press (~) to hang up.
To adjust the speaker volume:
Use the VOLUME control (HIGH-
NORMAL )on the side of the handset.
[
CAUTION
When using the handsfree handset speakerphone, keep the speaker (located
on the back of the handset )away from your ear to prevent any damage to
your ear.
11

Hold l-l
When acall is on hold, you and your caller can
not hear each other:
HOLD
button
BASE STATION HANDSET
~Press (H~] to place acall on 7Press (H~)to place acall on
hold. hold.
SPEAKER indicator flashes. The H.F /IN USE indicator flashes.
zPreSS (H~) again or zPress (H~) again or
(W~)to return to the call. (~) to return to the call.
While acall is on hold, notifying tone (a short beep) will be heard every 5seconds
from handset or the base station. If acall is on hold for more than 5minutes, the
telephone automatically disconnects from the line.
You can replace the handset on the base station while acall is on hold. To return to
the call, press (~) or (~] on the handset or ~s~> on the
base station, or simply liftthe handset.
Mute (For handset only) n
The MUTE button switches off the microphone
of the handset. You can hear your caller, but your
caller can’t hear you.
7Press and hold (~—)to mute the
microphone.
zRelease (~—)to return to the call.
12

You can automatically redial the last number called
(after getting abusy signal, for example. )
This CLT-9660 can redial anumber of up to 32 digits,
BASE STATION
1Press (~’ to get anew dial
tone.
2Press (R~).
The last number called from the base
station is automatically dialed out.
HANDSET
1
2
REDIAIJP
button
Press (~) to get anew dial
tone.
Press (R~’.
The lastnumbercalledfromthe handset
is automatically dialed out.
13

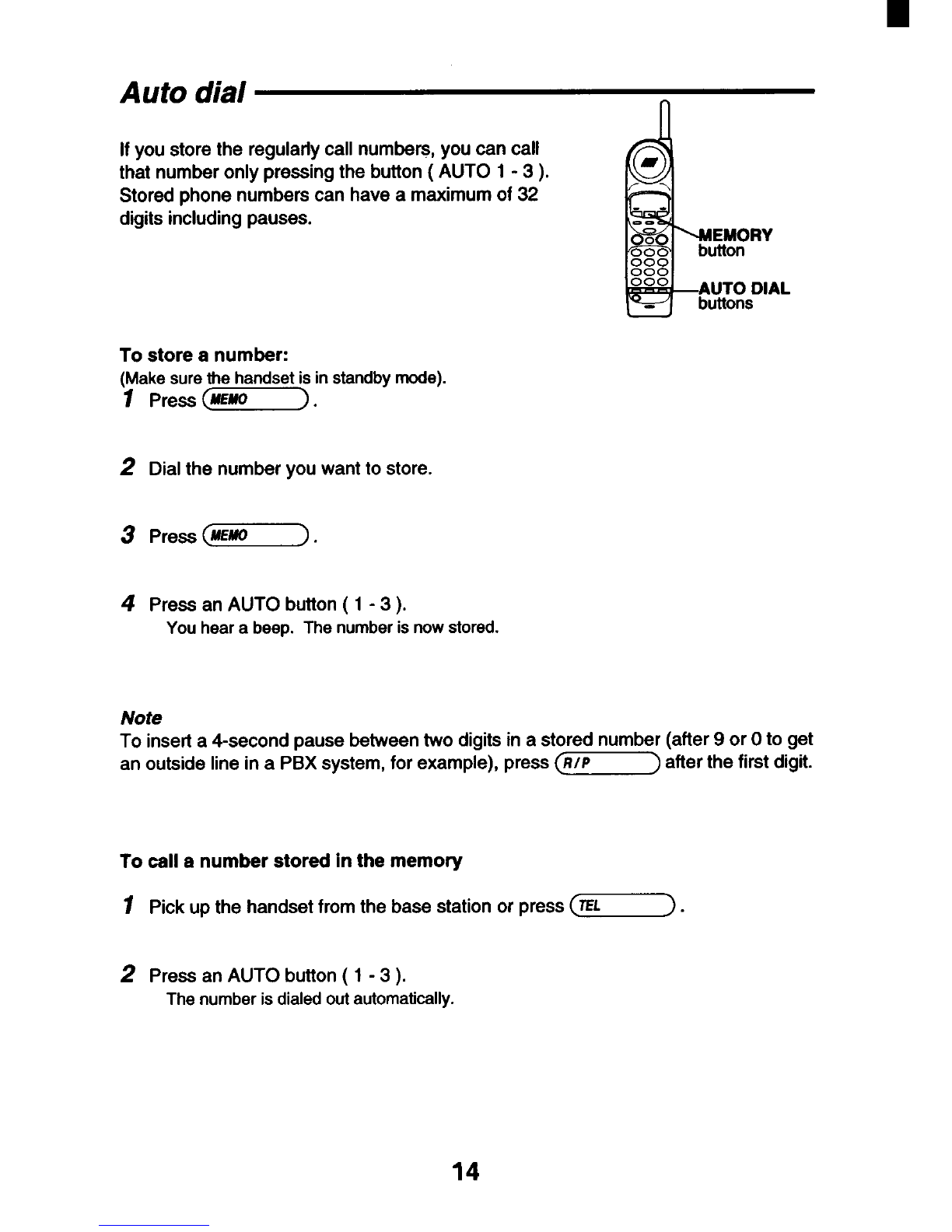

Auto dial n
If you store the regularly call numbers, you can call
that number only pressing the button (AUTO 1- 3).
Stored phone numbers can have amaximum of 32
digits including pauses. k
o
m
\
.-
.- 00 EMORY
000 button
000
000
000 AUTO DIAL
buttons
To store anumber:
(Make sure the handset is in standby mode).
1Press (N~).
zDial the number you want to store.
dPress an AUTO button (1- 3).
You hearabeep. The number is now stored.
Note
To insert a4-second pause between two digits in astored number (after 9or Oto get
an outside line in aPBX system, for example), press (R~) after the first digit.
To call anumber stored in the memory
~Pickup the handset from the base station or press (~).
zPress an AUTO button (1- 3).
The numberisdialedoutautomatically.
14

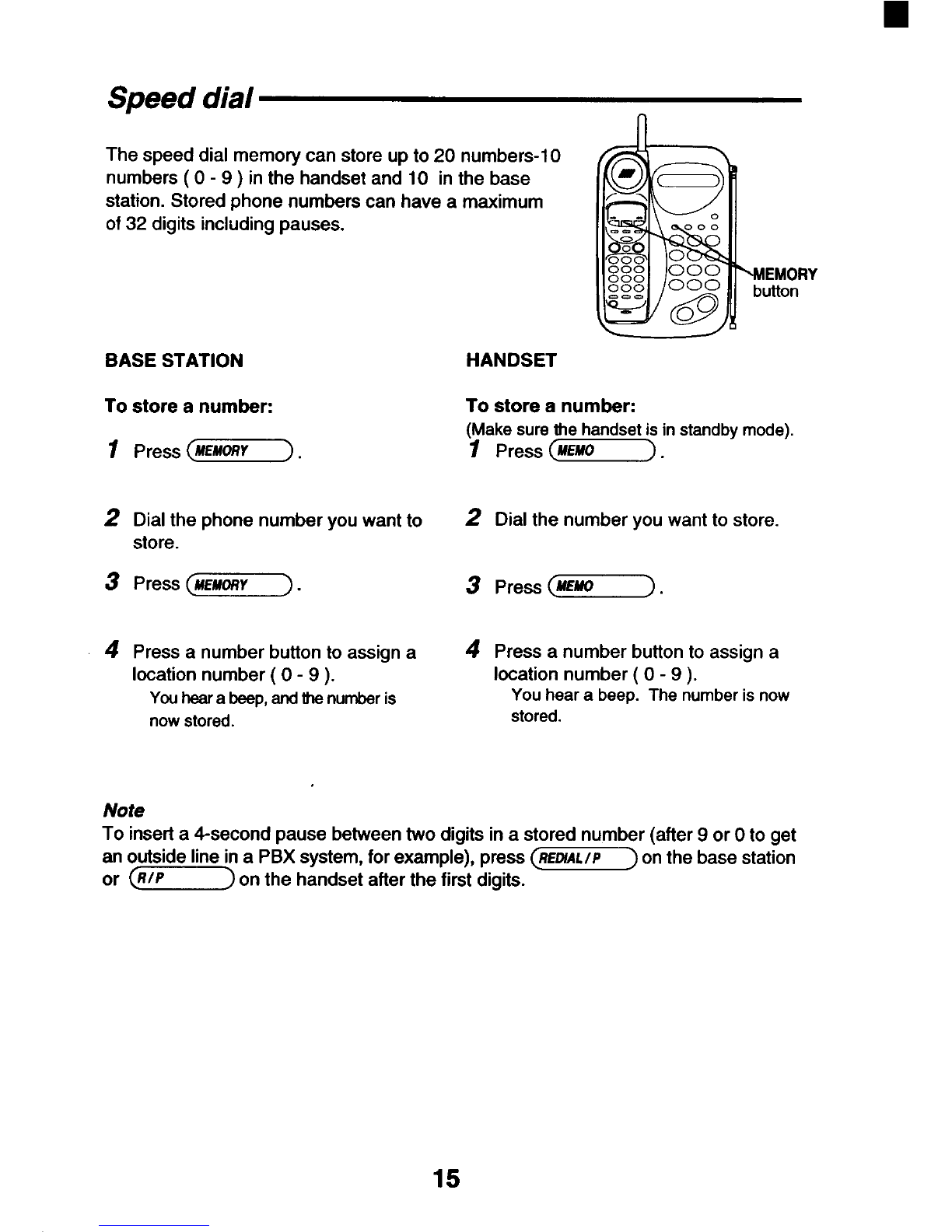

Speed dial n
The speed dial memory can store up to 20 numbers-1 O
numbers (O-9 )in the handset and 10 in the base
station. Stored phone numbers can have amaximum
of 32 digits including pauses.
Y
BASE STATION
To store anumber
1
2
3
4
Dial the phone number you want to
store.
Press (~~].
Press anumber button to assign a
location number (0- 9).
Youhsara beep,andthenumberis
nowstored.
HANDSET
To store anumber:
Dial the number you want to store.
(Make sure the handset is in standby mode).
7Press (~~>.
2
3
4Press anumber button to assign a
location number (0- 9).
You hear abeep. The numberisnow
stored.
Note
To insert a4-second pause between two digits in astored number (after 9or Oto get
an outside line in aPBX system, for example), press (R~) on the base station
or (R~] on the handset after the first digits.
15

Speed dial
BASE STATION
To call anumber stored in the memory:
1Press (s~).
The SPEAKER indicatorlights.
2Press (~).
sEnter the location number (0-9 )
assigned in the base station.
The numberisdialedoutautomatically,
To delete anumber from the base
station speed dial memory:
1Press (M~).
2Press (~) again.
HANDSET
To call anumber stored in the memory
7Press (~j.
sPress the location number (0-9 )
assigned in the handset.
The number is dialed out automatically.
To delete anumber from the handset
speed dial memory:
~Press (M~).
zPress (M~) again.
sEnter the location number (0-9 ). sEnter the l~cation number (0- 9).
You hearabeep, and the number is now You hear abeep.
erased. The number is now erased.
16

Intercom n
You can use the CLT-9660 as a 2-way intercom between
the handset and the base station.
FROM BASE STATION TO HANDSET
1
2
3
Base station:
Press ~~] to page handset.
The INTERCOM indicator flashes.
Handset:
Press @N~) and begin talking.
The H.F /IN USE indicatorlights.
Handset:
Press cE~j to turn off itIk?rCOm.
INT
button
PAGEI
INT
button
If the handset does not answer within 5minutes. the base station automatically
returns to the standby mode.
1Handset
Press ~~) to page.the base station.
The H.F /IN USE indicator flashes.
zBase station:
Abeep sound,andthe INTERCOM indicatorlights.
The base station user can begin talking.
sHandset:
Press ~~) to turn off intercom.
Note
Handset user cannot use speakerphone for intercom conversation
17

Transferring acall n
Acall can be transferred between the handset and the
base station.
INT
button
PAGE/
INT
button
FROM BASE STATION TO HANDSET
IBase station:
Press (p~) to alert the handset user.
The callis puton hold.
The TEL and INTERCOM indicatorsflash.
zHandset
Press ~~) to answer the base station.
The H.F /IN USE indicator lights.
sHandset:
Press (~) to talk to the caller.
Base station automatically switches to standby mode.
If the handset,does not answer, press (s~) to talk to the caller again.
FROM HANDSET TO BASE STATION
7Handset:
Press ~~) to page the base station.
The callis puton hold.
zBase station:
Aheap sounds, and the TEL indicator flashes. The INTERCOM indicator lights.
The base station user can answer the handset.
sBase station:
Press (s~) to talk to the caller.
Handset automatically turns off intercom mode
If the base station does not answer, press ~~) to talk to the caller again.
18

Flash button n
The FLASH button may be used to get anew dial tone
without pressing the END button or redating the
handset in the base station cradle.
FLASH TIME
Set the FLASH TIME switch on the base station
depending on your PBX system (100ms, 350ms or
600 ms ).
Call Waiting button
&
.9.
●1●35 96
FIASH TIME
Call Waiting service must be subscribed from your tele-
phone company or PBX system.
If you subscribe to Call Waiting... CALL
WAITING
~-
IWhen acall comes in while you are on the phone, you hear asoft beep.
2Press (c~) ((~)).
The firstcallerisputon holdandyoucan answerthe secondcaller.
sPress (c~) ((~)) again to talk to the first caller.
The second caller is now put on hold.
19
