Sanyo CLT-9960 User manual

CLT-9960
INSTRUCTION MANUAL
900-MHz
Digital Spread Spectrum
Cordless Telephone
with Call Manager Features
IMPORTANT
Charge the handset battery pack for a full 15 hours before using your
cordless handset for the first time.
www.sanyocanada.com
CLT9960 2nd 6/30/00 6:42 PM Page 1
All manuals and user guides at all-guides.com
all-guides.com

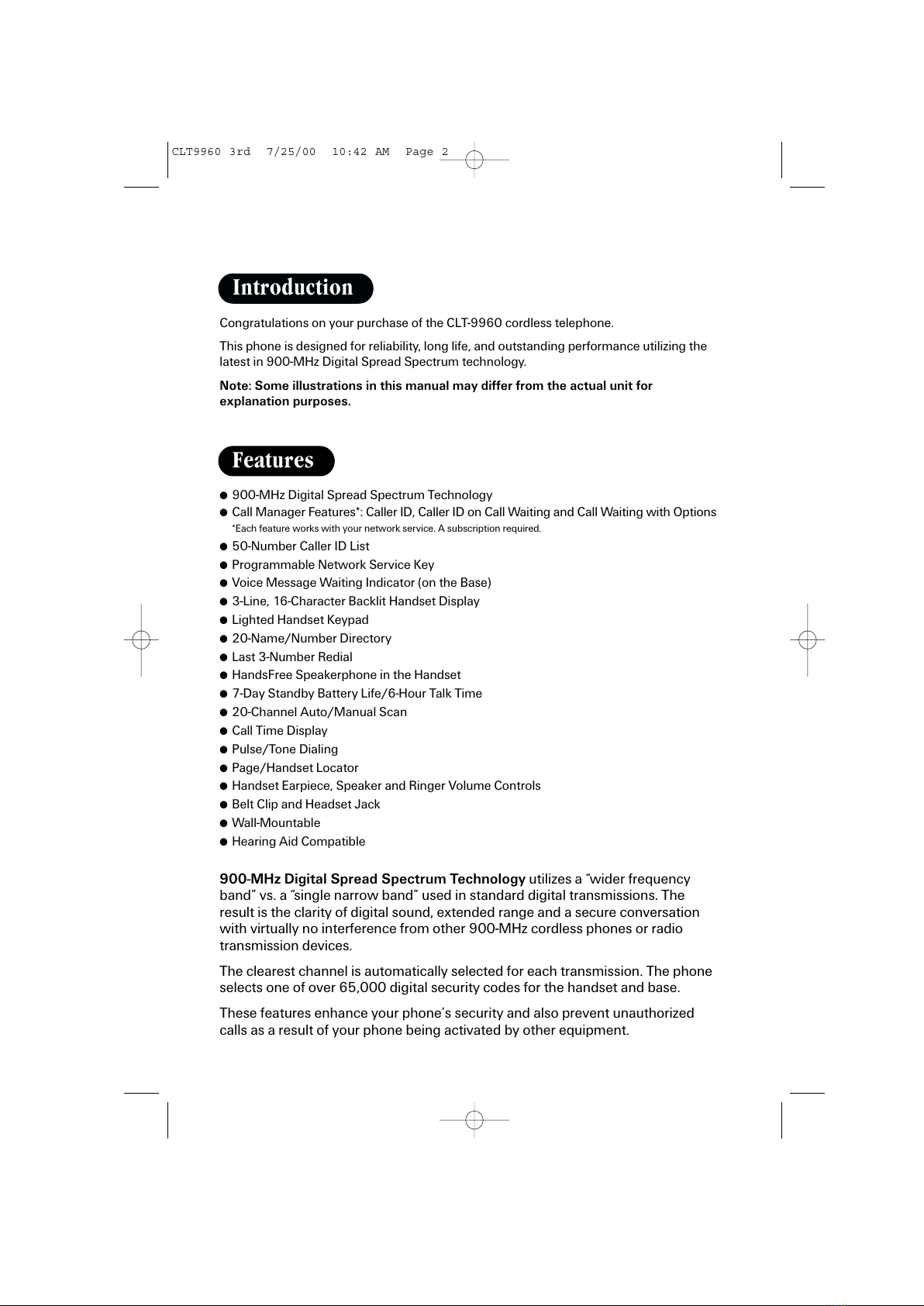

Congratulations on your purchase of the CLT-9960 cordless telephone.
This phone is designed for reliability, long life, and outstanding performance utilizing the
latest in 900-M z Digital Spread Spectrum technology.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
●900-M z Digital Spread Spectrum Technology
●Call Manager Features*: Caller ID, Caller ID on Call Waiting and Call Waiting with Options
*Each feature works with your network service. A subscription required.
●50-Number Caller ID List
●Programmable Network Service Key
●Voice Message Waiting Indicator (on the Base)
●3-Line, 16-Character Backlit andset Display
●Lighted andset Keypad
●20-Name/Number Directory
●Last 3-Number Redial
●andsFree Speakerphone in the andset
●7-Day Standby Battery Life/6- our Talk Time
●20-Channel Auto/Manual Scan
●Call Time Display
●Pulse/Tone Dialing
●Page/ andset Locator
●andset Earpiece, Speaker and Ringer Volume Controls
●Belt Clip and eadset Jack
●Wall-Mountable
●earing Aid Compatible
900-MHz Digital Spread Spectrum echnology utilizes a “wider frequency
band” vs. a “single narrow band” used in standard digital transmissions. The
result is the clarity of digital sound, extended range and a secure conversation
with virtually no interference from other 900-M z cordless phones or radio
transmission devices.
The clearest channel is automatically selected for each transmission. The phone
selects one of over 65,000 digital security codes for the handset and base.
These features enhance your phone’s security and also prevent unauthorized
calls as a result of your phone being activated by other equipment.
Introduction
Features
CLT9960 3rd 7/25/00 10:42 AM Page 2
All manuals and user guides at all-guides.com

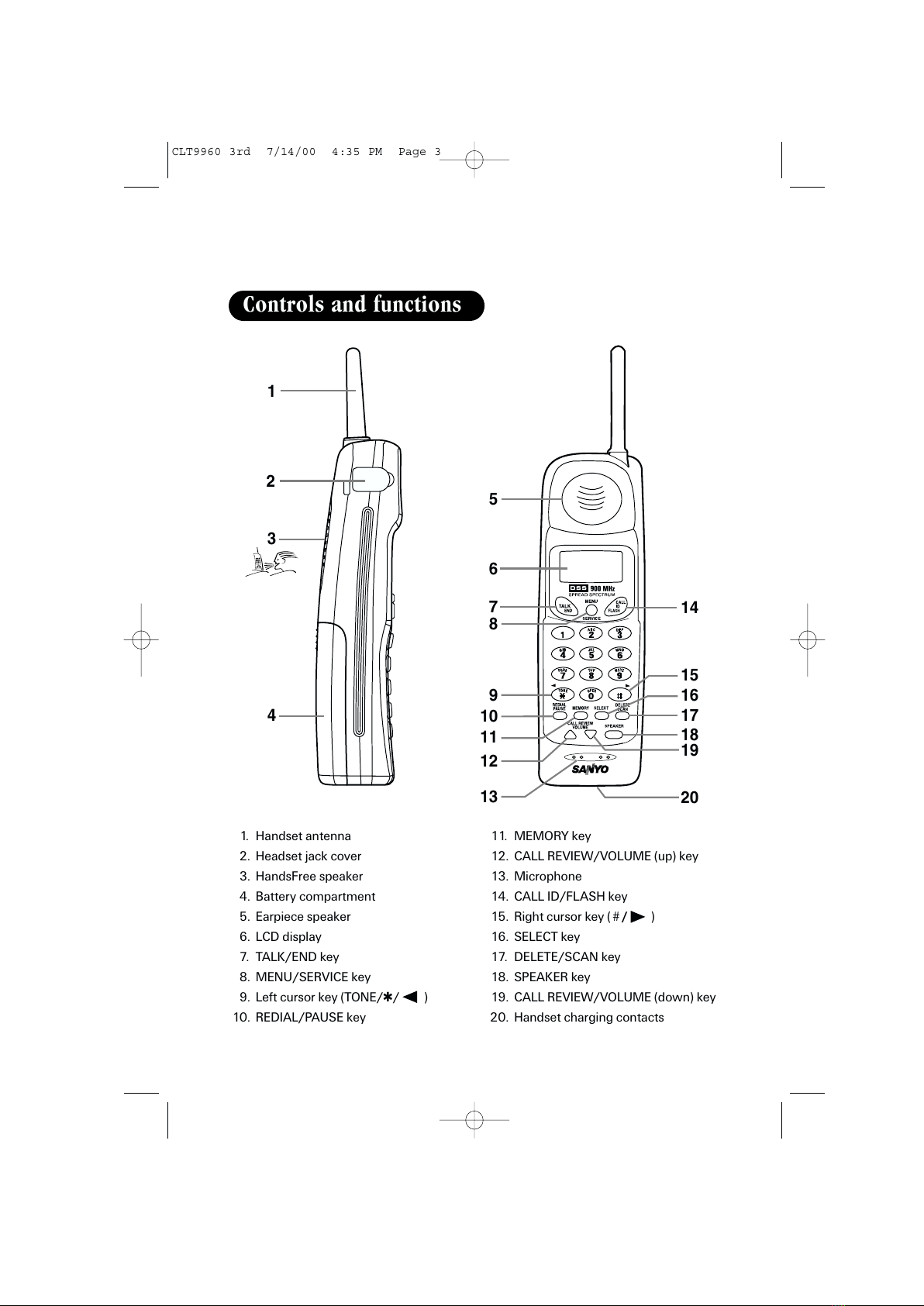

1. Handset antenna
2. Headset jack cover
3. HandsFree speaker
4. Battery compartment
5. Earpiece speaker
6. LCD disp ay
7. TALK/END key
8. MENU/SERVICE key
9. Left cursor key (TONE/✱/)
10. REDIAL/PAUSE key
11. MEMORY key
12. CALL REVIEW/VOLUME (up) key
13. Microphone
14. CALL ID/FLASH key
15. Right cursor key ( #/ )
16. SELECT key
17. DELETE/SCAN key
18. SPEAKER key
19. CALL REVIEW/VOLUME (down) key
20. Handset charging contacts
Controls and functions
1
2
4
3
5
6
7
8
10
9
11
12
13
14
19
20
18
17
16
15
CLT9960 3rd 7/14/00 4:35 PM Page 3
All manuals and user guides at all-guides.com

22
23
24
25
26
21
27
28 29 30
21. Bottom bracket
22. andset retainer
23. Base charging contacts
24. PAGE/FIND key
25. C ARGE/IN USE indicator
26. VOICE MAIL indicator
27. Base antenna
28. TONE/PULSE switch
29. DC power input
30. Phone jack
CLT9960 2nd 6/30/00 6:42 PM Page 4
All manuals and user guides at all-guides.com

E1
Introduction/Features ..............................................inside front cover
Controls and Functions............................................inside front cover
Getting started
Read this first..........................................................................................E2
Step 1: Checking the package contents.........................................E3
Step 2: Setting up the ase unit .......................................................E4
Desktop use .............................................................................E5
Mounting the ase unit on a wall ......................................E7
Step 3: Preparing the attery pack ..................................................E9
Basics
Making a call ........................................................................................E11
HandsFree Speakerphone in the Handset ...................................E12
Receiving a call....................................................................................E13
Call Waiting ..........................................................................................E13
Lighted keypad ....................................................................................E14
Scanning ...............................................................................................E14
Adjusting the ringer and earpiece volume...................................E14
Redialing a call.....................................................................................E15
Directory
Storing phone num ers and names ..............................................E17
Making calls from the directory ......................................................E19
Editing a stored name and/or phone num er ............................E21
Erasing a stored name and phone num er .................................E23
Caller ID features
Caller ID .................................................................................................E24
When the telephone rings................................................................E26
Viewing the Caller ID list...................................................................E27
Deleting information from the Caller ID list .................................E28
Using the Caller ID list .......................................................................E30
Using Caller ID on Call Waiting service.........................................E32
Advanced calling features
List of features .....................................................................................E33
Voice mail access ...............................................................................E34
Paging ...................................................................................................E35
Accessing calling features ...............................................................E36
Pre-programmed calling features...................................................E37
Adding new features .........................................................................E38
Call Waiting with Options.................................................................E40
Additional Information
Changing the digital security code.................................................E41
Installing the elt clip.........................................................................E42
Headset installation ...........................................................................E42
Note on power source.......................................................................E43
Maintenance ........................................................................................E43
Troubleshooting......................................................................................E44
Technical Information...........................................................................E45
Warranty ...................................................................................................E46
Sanyo-On-Site SOS) Information ....................................................E47
Getting Started
Basics
Directory
Caller ID
Features
Advanced Calling
Features
CONTENTS
Additional
Information
CLT9960 3rd 7/14/00 2:01 PM Page 5
All manuals and user guides at all-guides.com

E2
This cord ess te ephone must be set up before use. Fo ow these steps:
Step 1 (page E3)
Unpack and check the te ephone and accessories.
Step 2 (page E4 to E8)
Choose the best ocation to set
up the base unit.
Base unit
Step 3 (page E9 to E10)
Insert the battery pack into the handset. You
must charge the battery pack for at east
15 hours before using the phone.
Handset
About the digital security code
This cord ess te ephone uses a digita security code to prevent unauthorized access to
your base unit. This security code prevents other cord ess handsets from making ca s
through your base unit.
A random security code wi be assigned automatica y between your base unit and
handset when you charge the battery pack for the first time.
If you want to reset the security code, see page E41.
GETTING STARTED
Read this first
CLT9960 2nd 7/5/00 7:21 PM Page 6
All manuals and user guides at all-guides.com
all-guides.com

E3

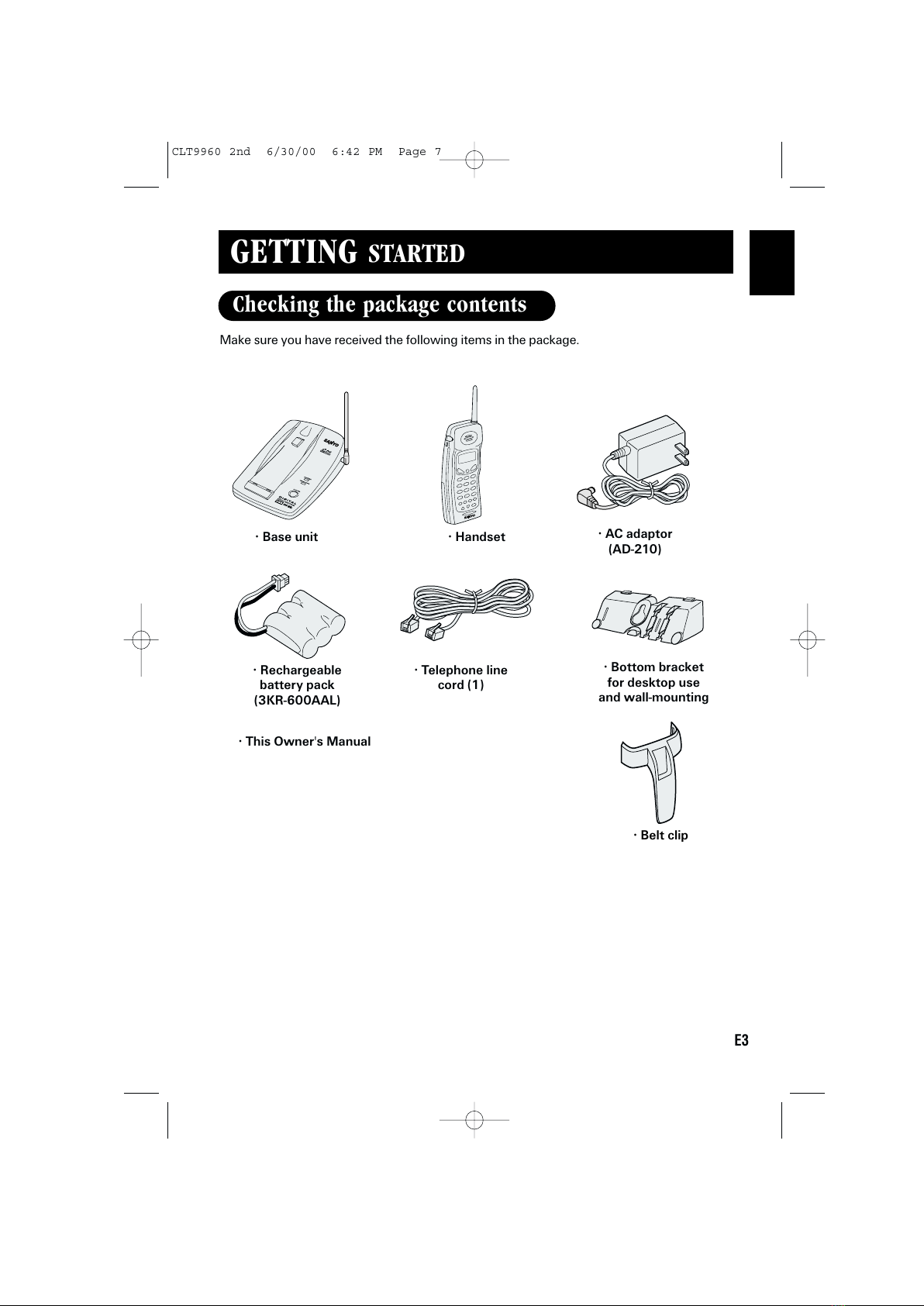

Make sure you have received the following items in the package.
• Base unit • Handset • AC adaptor
(AD 210)
• Rechargeable
battery pack
(3KR 600AAL)
• Telephone line
cord (1)
• Bottom bracket
for desktop use
and wall mounting
• This Owner's Manual
• Belt clip
Checking the package contents
GETTING STARTED
CLT9960 2nd 6/30/00 6:42 PM Page 7
All manuals and user guides at all-guides.com

E4
Avoid p aces near e ectrica equipment such as refrigerators, computers, TVs,
microwaves or f uorescent amps. These may cause interference or reduce the operating
range of the cord ess te ephone.
Do the following steps:
• Choose the best ocation
• Connect the base unit
• Choose the dia ing mode
• The location should be close to both a phone jack and a continuous power outlet which is
not switchable.
• Be sure there is sufficient space to raise the base antenna fully to a vertical position.
• The base can be placed on a desk, tabletop or mounted on a standard wall plate.
Notes:
Setting up the base unit
GETTING STARTED
CLT9960 2nd 7/5/00 7:21 PM Page 8
All manuals and user guides at all-guides.com

When connecting the power cord, make sure it does not create a trip or
fire/electrical hazard. Avoid places where it could become chafed.
E5
Connect the base unit
If you want to install the base unit
on the wall, see page E7.
To telephone outlet
To TEL LINE
To DC IN 9V
AC adaptor
(supplied)
Telephone line cord
(supplied)
3
2
To AC outlet
1 Snap the bottom bracket into the notches on the base.
2 Connect the AC adaptor to the DC IN 9V jack and to a standard 120-V AC wall outlet.
Then raise the antenna to a vertical position.
3 Connect the telephone line cord to the TEL LINE jack and to a telephone outlet.
Note:
Desktop use
GETTING STARTED
To assure proper handset charging, the bottom bracket must be attached.
Note:
1
CLT9960 2nd 6/30/00 6:42 PM Page 9
All manuals and user guides at all-guides.com

E6
Choose the dialing mode
Depending on your dialing system, set the TONE/PULSE switch as follows:
If your dialing system is Set the switch to
Tone TONE
Pulse PULSE
If you are not sure of your dialing system
Make a trial call with the TONE/PULSE switch set to TONE.
If the call connects, leave the switch as is; otherwise, set to PULSE.
PULSE
TONE
•Use only the supplied AD-210 AC adaptor. Do not use any other AC adaptor.
•Connect the AC adaptor to a continuous power supply.
•Place the base unit close to the AC outlet so that you can unplug the AC adaptor easily.
•If your telephone outlet is not modular, contact your telephone company for assistance.
Notes:
GETTING STARTED
CLT9960 2nd 6/30/00 6:42 PM Page 10
All manuals and user guides at all-guides.com

E7

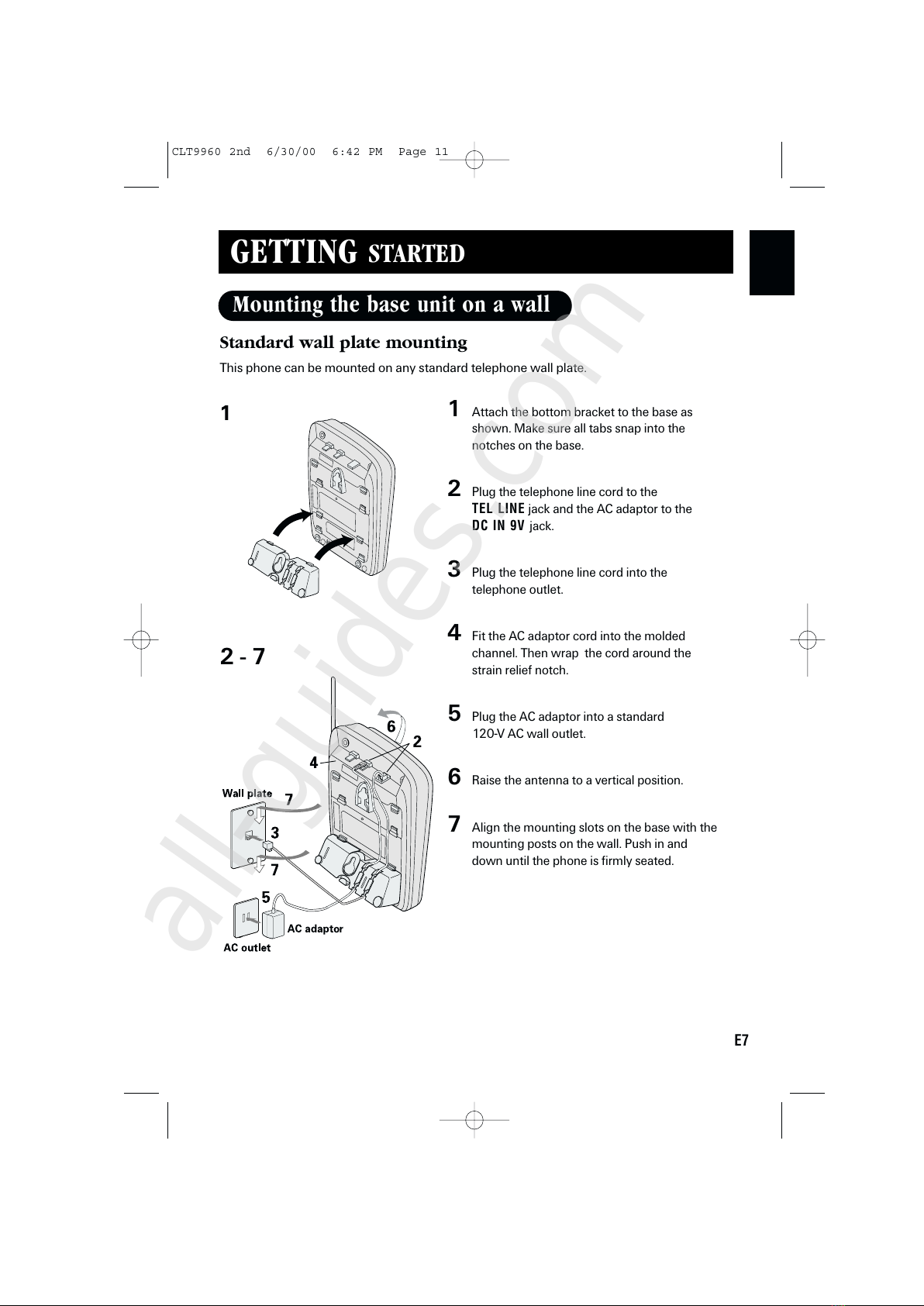

Standard wall plate mounting
This phone can be mounted on any standard telephone wall plate.
1 Attach the bottom bracket to the base as
shown. Make sure all tabs snap into the
notches on the base.
2 Plug the telephone line cord to the
TEL LINE jack and the AC adaptor to the
DC IN 9V jack.
3 Plug the telephone line cord into the
telephone outlet.
4 Fit the AC adaptor cord into the molded
channel. Then wrap the cord around the
strain relief notch.
5 Plug the AC adaptor into a standard
120-V AC wall outlet.
6 Raise the antenna to a vertical position.
7 Align the mounting slots on the base with the
mounting posts on the wall. Push in and
down until the phone is firmly seated.
1
2 7
Mounting the base unit on a wall
GETTING STARTED
CLT9960 2nd 6/30/00 6:42 PM Page 11
All manuals and user guides at all-guides.com
all-guides.com

TOP
3/16 in.
3-15/16 in.
(4.8 mm)
(100 mm)
E8

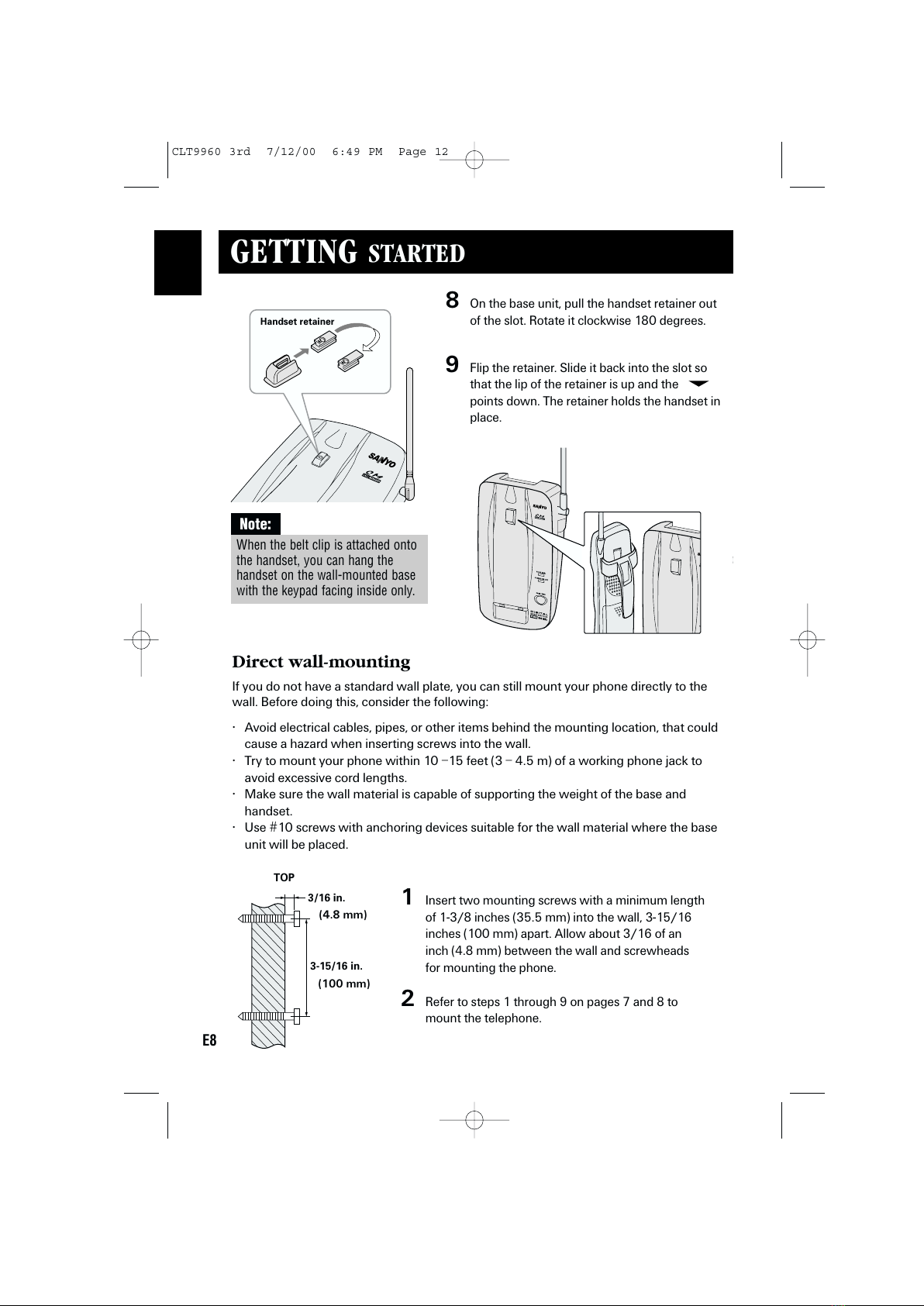

Direct wall-mounting
If you do not have a standard wall plate, you can still mount your phone directly to the
wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location, that could
cause a hazard when inserting screws into the wall.
• Try to mount your phone within 0 – 5 feet (3 – 4.5 m) of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of the base and
handset.
• Use #0 screws with anchoring devices suitable for the wall material where the base
unit will be placed.
1 Insert two mounting screws with a minimum length
of -3/8 inches (35.5 mm) into the wall, 3- 5/ 6
inches ( 00 mm) apart. Allow about 3/ 6 of an
inch (4.8 mm) between the wall and screwheads
for mounting the phone.
2 Refer to steps through 9 on pages 7 and 8 to
mount the telephone.
8 On the base unit, pull the handset retainer out
of the slot. Rotate it clockwise 80 degrees.
9 Flip the retainer. Slide it back into the slot so
that the lip of the retainer is up and the
points down. The retainer holds the handset in
place.
Handset retainer
When the belt clip is attached onto
the handset, you can hang the
handset on the wall-mounted base
with the keypad facing inside only.
Note:
GETTING STARTED
CLT9960 3rd 7/12/00 6:49 PM Page 12
All manuals and user guides at all-guides.com

E9
Charge the battery pack for at least 15 hours before you start using your phone.
1 Press on the battery cover and slide the cover
down until it comes off.
2 Plug in the battery pack connector with the
correct polarity (black and red wires), then insert
the battery pack into the battery compartment.
3 Slide the battery cover on until it snaps into
place.
4 Place the handset on the base.
5 Make sure that the CHARGE/IN USE indicator
lights. If the indicator does not light, check to
see that the AC adaptor is plugged in and that
the handset makes good contact with the base
charging contacts.
CHARGE/IN USE
BLACK
RED
Use only the battery pack supplied or the specified
Sanyo types with your phone.
Type: SANYO 3KR-600AAL or SANYO/GE GES-PCF01
Note:
Preparing the battery pack
GETTING STARTED
CLT9960 3rd 7/12/00 6:49 PM Page 13
All manuals and user guides at all-guides.com

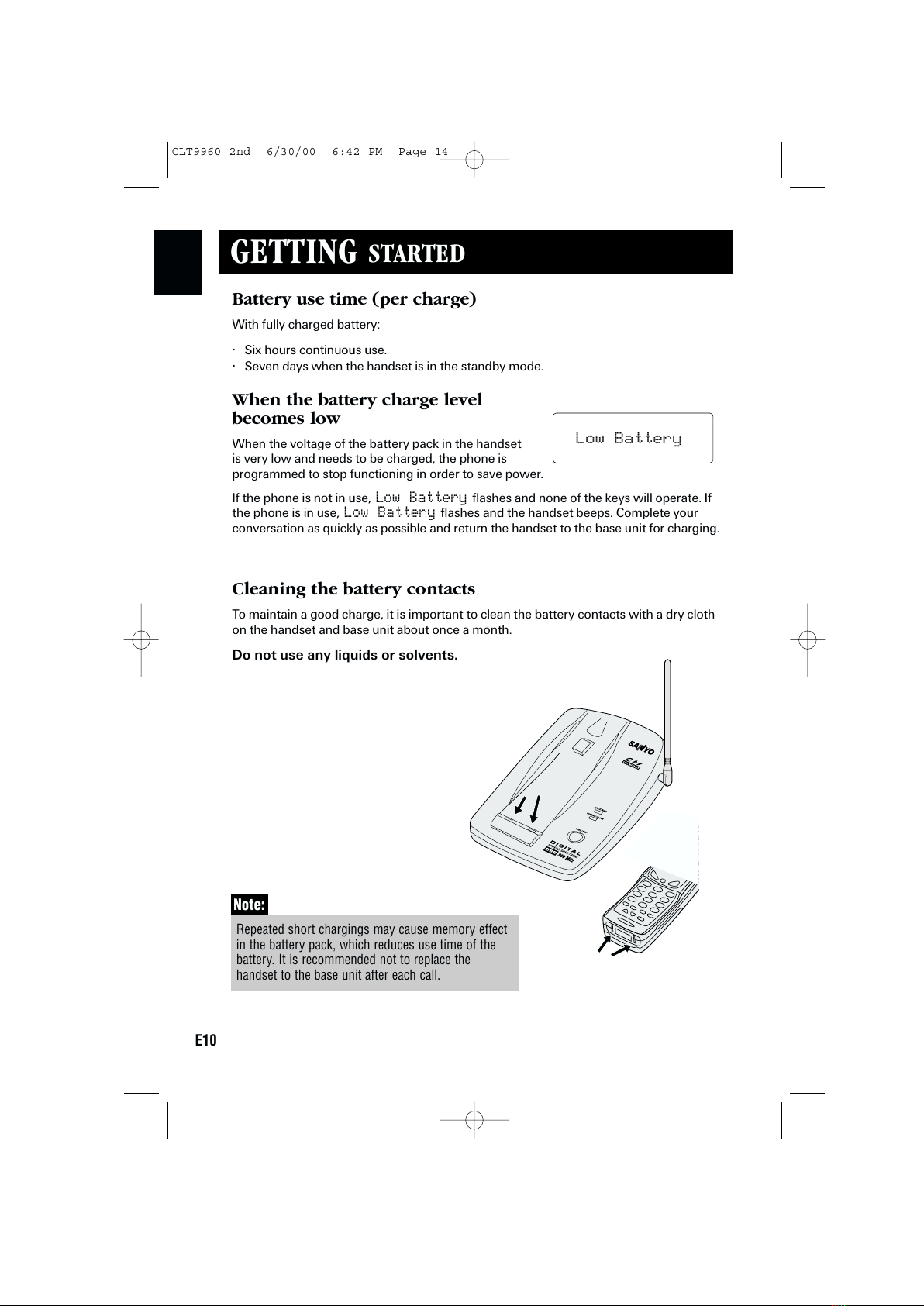

E10
Battery use time (per charge)
With fully charged battery:
• Six hours continuous use.
• Seven days when the handset is in the standby mode.
When the battery charge level
becomes low
When the voltage of the battery pack in the handset
is very low and needs to be charged, the phone is
programmed to stop functioning in order to save power.
If the phone is not in use,
Low Battery flashes and none of the keys will operate. If
the phone is in use,
Low Battery flashes and the handset beeps. Complete your
conversation as quickly as possible and return the handset to the base unit for charging.
Cleaning the battery contacts
To maintain a good charge, it is important to clean the battery contacts with a dry cloth
on the handset and base unit about once a month.
Do not use any liquids or solvents.
Low Battery
GETTING STARTED
Note:
Repeated short chargings may cause memory effect
in the battery pack, which reduces use time of the
battery. It is recommended not to replace the
handset to the base unit after each call.
CLT9960 2nd 6/30/00 6:42 PM Page 14
All manuals and user guides at all-guides.com

Other Operations
When you want to: Do this:
Adjust the earpiece volume Press or during the call.
Temporarily switch to tone dialing Press . The subsequent numbers
(When the base is set to pulse mode) dialed will be sent as tone dialing.
Enter a pause in the dialing sequence Press REDIAL/PAUSE.
3 The number is dialed. The call time display
appears about 5 seconds after line connection.
4 To hang up, press TALK/END (or place the
handset on the base).
The call time display remains for about
5 seconds after disconnection.
E11
Dialing from standby mode
1 Enter the phone number. (Up to 32 digits.)
Example :Enter 9057609944
2 Press TALK/END . Talk flashes in the display.
The volume setting is displayed. For example, if
the volume is set to high, the display shows:
9057609944
Talk
9057609944
Talk
<High>
Talk 0:00
9057609944
5:15
BASICS
• Press DELETE/SCAN if you enter a wrong number at step 1.
•Press and hold DELETE/SCAN to delete all numbers at once.
•You must press a key within 20 seconds or the phone will return to standby.
Notes:
Making a call
CLT9960 2nd 6/30/00 6:42 PM Page 15
All manuals and user guides at all-guides.com

Dialing from talk mode
1 Press TALK/END or SPEAKER . Talk flashes on the display.
The volume setting is displayed.
For example, if the volume is set to high, the display shows:
The call-time display appears.
2 Dial the phone number.
Example :Enter 9057609944
3 To hang up, press TALK/END or SPEAKER (or place the
handset in the base)
. The call time display remains for about
5 seconds after disconnection.
E12
Talk
Talk
<High>
Talk 0:17
9057609944
10:03
BASICS
Note:
Repeated short chargings may cause memory effect in the battery
pack, which reduces use time of the battery. It is recommended
not to replace the handset to the base unit after each call.
• Press SPEAKER during a call to switch to HandsFree
conversation using the handset speakerphone.
• Press SPEAKER again to end the call.
• Press TALK/END to return to normal conversation using
the earpiece speaker.
HandsFree Speakerphone in the Handset
Talk
Talk
<High>
Talk 0:17
9057609944
Press TALK/EN Press SPEAKER
CLT9960 3rd 7/12/00 6:49 PM Page 16
All manuals and user guides at all-guides.com
all-guides.com

E13
1 The phone rings. Incoming call appears.
2 Press TALK/END . Talk , the call time display and the
volume setting appear.
You can also press
SPEAKER to answer the call.
If you subscribe to Caller ID Service, the display may show
the caller’s name/number. (See page E24)
3 Talk with the caller.
4 To hang up, press TALK/END .
The call time display remains for about
5 seconds after disconnection.
Incoming Call
Talk 0:02
Talk 0:00
<Normal>
5:15
Any key answer when ringing
When the handset is off the base, press any handset key to answer the incoming call.
AutoTalk when ringing
When the AutoTalk setting is on, you can simply lift the handset from the base to answer
the phone. See “Setting Caller ID options” on page E24 for more details.
Note: You must subscribe to Call Waiting service to use this feature.
When a call is received during a telephone call already in progress, you hear a beep.
Press CALL ID/FLASH to switch to the new call.
If you also subscribe to Caller ID on Call Waiting (Visual Call Waiting), you will see the
name and number of the second caller. (See page E32.)
Receiving a call
Call Waiting
BASICS
CLT9960 3rd 7/12/00 6:49 PM Page 17
All manuals and user guides at all-guides.com

E14
Ringer volume
In the standby mode, press CALL REVIEW/
VOLUME or on the handset to set
the handset ringer volume.
The phone has two ringer tones, each with
two volume levels.
Earpiece volume/handset speaker volume
Pressing CALL REVIEW/VOLUME or
during a telephone call will change the earpiece
volume/handset speaker volume. This setting will
remain in effect even after you hang up the
telephone.
When you press in Loud mode or press in Normal mode, an error tone
sounds.
Ringer A High
Ringer A Low
Ringer B High
Ringer B Low
<High>
<Mediu >
<Loud>
<Nor al>
Scanning
Lighted keypad
Adjusting the ringer and earpiece volume
BASICS
Your phone automatically selects the clearest possible channel every time you
receive or place a call. Should you wish to switch channels during a call, the handset
provides a DELETE/SCAN button.
The dialing keypad and the TALK/END key on the handset light up when you press
any key on the keypad. The light turns off if no key is pressed for 5 seconds.
CLT9960 2nd 6/30/00 6:42 PM Page 18
All manuals and user guides at all-guides.com

TALK/END
E15
The last three phone numbers dialed can be quickly redialed.
Redialing from standby mode
1 Press REDIAL/PAUSE.
The phone number that was last dialed appears in the
display.
2 Press REDIAL/PAUSE again.
Each press of
REDIAL/PAUSE will display one of the
last three numbers dialed.
3 Press TALK/END . Talk appears in the display, then
the volume setting is displayed.
4 Then the selected number is dialed. The call time
display appears 5 seconds after line connection.
5 To hang up, press TALK/END (or place the handset on
the base). The call time display remains for about
5 seconds.
Most
recent
•If the dialed number exceeds 32 digits, only the first 32 digits are retained for redialing.
•If no numbers have been dialed using this phone, you hear an error beep and no redialing
will be made.
Notes:
Redialing a call
BASICS
<Redial1>
9057609944
REDIAL/PAUSE
REDIAL/PAUSE
REDIAL/PAUSE
<Redial2>
2145551234
<Redial3>
9725554321
CLT9960 2nd 6/30/00 6:42 PM Page 19
All manuals and user guides at all-guides.com

E16
Redialing from talk mode
1 Press TALK/END .
Talk appears on the disp ay.
2 Press REDIAL/PAUSE .
The ast number dia ed wi be disp ayed. On y the ast
number dia ed can be accessed whi e in ta k mode.
3 To hang up, press TALK/END (or p ace the handset on the
base).
Talk
Talk
<High>
• Only the last number dialed can be accessed after TALK/END
has been pressed.
•If no numbers have been dialed using this phone, you hear an
error beep and no redialing will be made.
Notes:
BASICS
CLT9960 2nd 7/5/00 7:21 PM Page 20
All manuals and user guides at all-guides.com
