Sanyo DP42848 User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
240W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 32 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . . 5.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1049mm
HEIGHT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754.4mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . 259.1mm
REFERENCE No. SM780152
DP42848, N4VJ, PRODUCT CODE 113015308
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY. . . . . . . . . . . . . . . . . . . 6-8
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . 9-24
CABINET PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . 25
COMPONENT AND TESTPOINT LOCATIONS . . . . 26-28
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 29
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 30
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . 31-38
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . 39-41
CONTROL PORT FUNCTIONS . . . . . . . . . . . . . . . . . 42-43
SIGNAL FLOW CHARTS . . . . . . . . . . . . . . . . . . . . . . 44-51
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 53
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 54
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 55
SCHEMATIC DIAGRAMS . . . . . . . . . . . . . . . . . . . . . 56-57
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP42848 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P42848-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to
the Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
© Sanyo Manufacturing Corporation 2008

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provided
inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSATIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or
circuit assembly.
7. Incidental body movements, such as, lifting a foot from a
carpeted floor or the rubbing of fabric together can gener-
ate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
0.15 μF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.
SAFETY INSTRUCTIONS

— 3 —
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the ser-
vice adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (–) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor Lor Mkey to select the desired ser-
vice menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor < or >key to adjust the data.
The <or >key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.

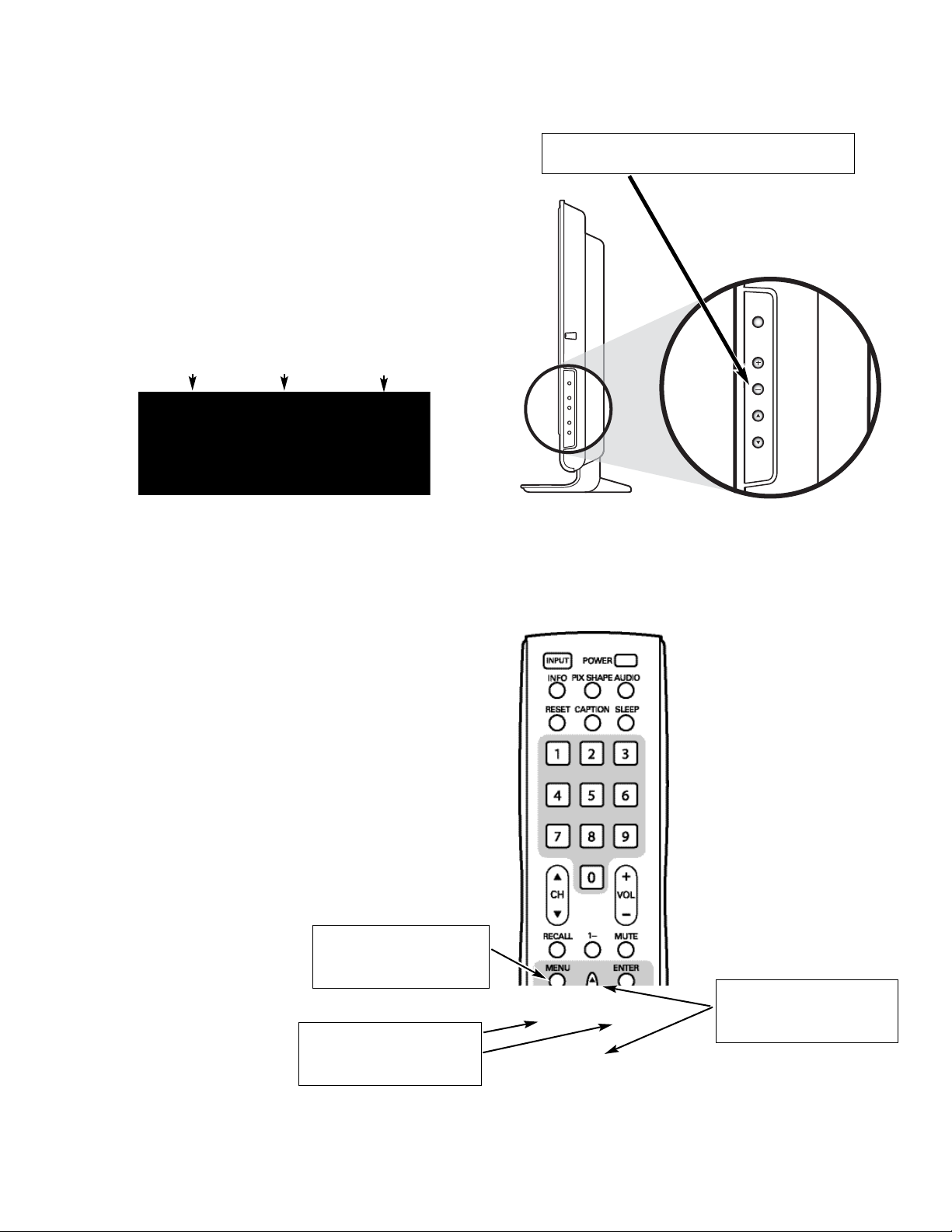

Figure 1. Service Menu Display
HEX DATA
0 8 6 V O L 3 0
ITEM NO. TITLE
POWER
VOL
CH
POWER
VOL
CH
Volume – :Enter Service Menu
Menu:
Exit Service Menu
Cursor LM:
Select Item
Cursor < >:
Adjust the data

— 4 —
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC801 (EEPROM) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadeci-
mal 00. See 087 above. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadeci-
mal 30. See 088 above. If this program code is wrong the
TV will not operate properly.
No. Title Initial Data Note
1A0 MUTE A0h Audio mute at Power ON
086 VOL 30h Volume setup inspection
087 OP1 00h Option 1 Data (HDMI)
088 OP2 30h Option 2 Data (Display Panel)
101 1R00 00h ROM Correction Data
102 1R01 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
• All data except in gray box area is fixed. Do not change for correct operating.
• Data in gray box is initial and can be set according to adjusment information.

— 5 —

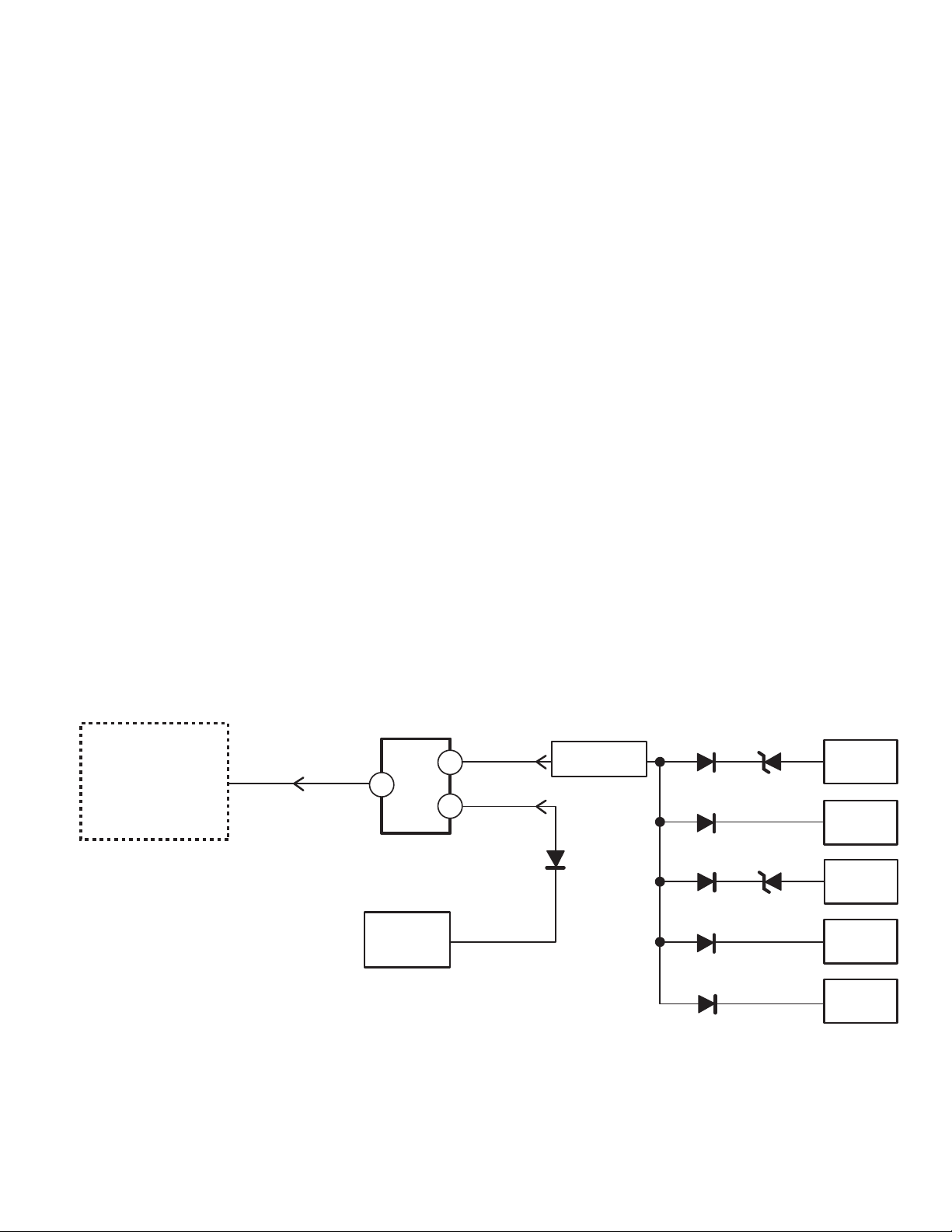

POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
CPU it is necessary to disconnect the AC cord for a
short time.
CPU (IC800) is programmed so the set will go to standby
mode when there is circuit failure as described below.
(Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC800 pin 32 and pin 23.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within three seconds.
32
18
IC800 (CPU)
D1621 D
8
5
D1653
D1620
23
Power Fail
Power On
Power Fail
2
1
(LVDS)
Power Board
Inverter
Main
D1671
D1683
K8B
D1677
IC1670
9V
IC001
12V
Q1609
3.3V
IC1650
5V
IC1681
12V
LVDS
9
Q810/Q811
D6052 6
D6051 IC6051
3.3V

— 6 —
MECHANICAL DISASSEMBLY
BACK CABINET REMOVAL
Remove 13 screws (A:4X14) and 1 screw (B:3X6) to
take the back Cabinet off.
A
A
A
A
A
A
A
A
A
AAA
A
B
ATTENTION
IThis LCDTV uses several different kinds of screws. Using the correct screw is required
to prevent damage.
IThe gaskets are provided to prevent interference to other radio and television
receivers.The gaskets must be returned to their previous positions after servicing.
ILead wires must be redressed to previous positions after servicing.

— 7 —
MAIN BOARD, POWER UNIT AND STAND REMOVAL
Power Unit
C
D
D
D
Main Board
E
E
D
D
D
D
D
D
D
DC
C
E
E
1: Stand Removal
Position TV face down on a padded or cushioned surface to
protect the screen and finish.
Remove 4 screws (E:6X16) and remove stand.
2: Main Board Removal
Remove 3 screws (C:3X8, Terminal side) and 5 screws
(D:3X10) to take the main board off.
3: Power Unit Removal
Remove 6 screws (D:3X10) to take the power unit off.

— 8 —
CONTROL BOARD AND SPEAKER REMOVAL
Remove 2 screws (A:4X14) to take the control board off.
SPEAKER REMOVAL
Remove 4 screws (B:4X14) to take off each speaker.
LCD PANEL REMOVAL
1. Disconnect the lead wires from LCD panel, speakers, and control board.
2. Remove 8 screws (A:4X14), and 4 screws (F:4X8) to take the mounting bracket (chassis base) off.
3. Lift the LCD panel from the front cabinet.
A
F
F
A
A
F
F
A
A
B
B

— 9 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A .
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Tolerance Symbols:
A...0.05% B...0.1% C...25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%
Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON .............
MT-FILM ..............
OXIDE-MT ...........
SOLID ..................
MT-GLAZE ...........
WIRE WOUND .....
CERAMIC RES ....
FUSIBLE RES .....
Performance Symbols:
A...General B...Non-flammable
Z...Low noise
Other... Temperature coefficient
Rated Wattage
CARBON 4.7K J A 1/4W
Read description of the Resistor as follows:
NOTES:
(Example)
Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire Wound
Ceramic
Fusible
RESISTORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A :Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H :±3% J :±5% K :±10%
L :±15% M :±20% N :±30%
P :+100-0% Q :+30-10% T :+50-10%
U :+75-10% V :+20-10% W :+100-10%
X :+40-20% Y :+150-10% Z : +80-20%
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite Film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic
Semiconductive Electrolytic
CAPACITORS

— 10 —
Schematic
Location Part No. Description
CAPACITORS
C001 CPXLB1C100YAJ NP-ELECT 10U M 16V
CPXLB1C100ZAJ NP-ELECT 10U M 16V
C002 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C006 CEXLB1H100VDJ ELECT 10U M 50V
C007 CEXLB1C101VDJ ELECT 100U M 16V
C008 CK1H102KLZBNG CERAMIC 1000P K 50V
C009 CK1H102KLZBNG CERAMIC 1000PK 50V
C013 CPXLB1C100YAJ NP-ELECT 10U M 16V
CPXLB1C100ZAJ NP-ELECT 10U M 16V
C015 CEXLB1C222VDJ ELECT 2200U M 16V
C016 CEXLB1H100VDJ ELECT 10U M 50V
C017 CEXLB1H100VDJ ELECT 10U M 50V
C801 CK1A105KLZBNG CERAMIC 1U K 10V
C802 CK1H104KLZBNG CERAMIC 0.1U K 50V
C803 CEXLB1V470VDJ ELECT 47U M 35V
C804 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C805 CK1H103KLZBNG CERAMIC 0.01U K 50V
C807 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C809 CC1H220JLZCNG CERAMIC 22P J 50V
C810 CC1H220JLZCNG CERAMIC 22P J 50V
C811 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C812 CC1H470JLZCNG CERAMIC 47P J 50V
C813 CC1H470JLZCNG CERAMIC 47P J 50V
C814 CK1H103KLZBNG CERAMIC 0.01U K 50V
C816 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C818 CK1H222KLZBNG CERAMIC 2200P K 50V
C819 CEXLB0J221VDJ ELECT 220U M 6.3V
C821 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C822 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C823 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C824 CK1H103KLZBNG CERAMIC 0.01U K 50V
C825 CC1H470JLZCNG CERAMIC 47P J 50V
C1002 CEXLB1V470VDJ ELECT 47U M 35V
C1003 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1004 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1011 CEXLB1H100VDJ ELECT 10U M 50V
C1012 CEXLB1H100VDJ ELECT 10U M 50V
C1013 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1014 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1015 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1016 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1017 CEXLB1H4R7VDJ ELECT 4.7U M 50V
C1205 CEXLB1V470VDJ ELECT 47U M 35V
C1251 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1606 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1608 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1609 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1610 CEXLB1E102VDJ ELECT 1KU M 25V
C1611 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1612 CC1H221JLZCNG CERAMIC 220P J 50V
C1613 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1614 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1617 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1618 CK1H392KLZBNG CERAMIC 3900P K 50V
C1620 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1621 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1622 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1623 CK1H103KLZBNG CERAMIC 0.01UK 50V
C1624 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1625 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1626 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1627 CE0J102MZVALC ELECT 1000U M 6.3V
C1628 CEXLB0J102VDJ ELECT 1000U M 6.3V
C1629 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1630 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1631 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1641 CE1E102MZVANC ELECT 1000U M 25V
C1642 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1647 CEXLB0J102VDJ ELECT 1000U M 6.3V
C1648 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1649 CK1A105KLZBNG CERAMIC 1U K 10V
C1650 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1655 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1656 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1657 CEXLB1E102VDJ ELECT 1KU M 25V
C1658 CK1H222KLZBNG CERAMIC 2200P K 50V
C1659 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1660 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1669 CEXLB1V471VDJ ELECT 470U M 35V
C1670 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1672 CEXLB1C101VDJ ELECT 100U M 16V
C1673 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1675 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1678 CEXLB1C101VDJ ELECT 100U M 16V
C1679 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1680 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1681 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1682 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1683 CEXLB1V471VDJ ELECT 470U M 35V
C1684 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1685 CEXLB1E102VDJ ELECT 1KU M 25V
C1686 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1687 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1689 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1690 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1693 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1694 CEXLB1V470VDJ ELECT 47U M 35V
C1803 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C1810 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1811 CEXLB1C101VDJ ELECT 100U M 16V
C1903 CEXLB1V470VDJ ELECT 47U M 35V
C1904 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1905 CC1H470JLZCNG CERAMIC 47P J 50V
C3200 CK1A105KLZBNG CERAMIC 1U K 10V
C3201 CK1A105KLZBNG CERAMIC 1U K 10V
C3202 CK1A105KLZBNG CERAMIC 1U K 10V
C3203 CK1A105KLZBNG CERAMIC 1U K 10V
Schematic
Location Part No. Description

— 11 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C3204 CK1H223KLZBNG CERAMIC 0.022U K 50V
C3205 CK1H222KLZBNG CERAMIC 2200P K 50V
C3206 CK1H104KLZBNG CERAMIC 0.1U K 50V
C3208 CK1A105KLZBNG CERAMIC 1U K 10V
C3209 CK1A105KLZBNG CERAMIC 1U K 10V
C3210 CK1A105KLZBNG CERAMIC 1U K 10V
C3211 CK1A105KLZBNG CERAMIC 1U K 10V
C3212 CK1A105KLZBNG CERAMIC 1U K 10V
C3213 CK1A105KLZBNG CERAMIC 1U K 10V
C3214 CK1A105KLZBNG CERAMIC 1U K 10V
C3215 CK1H222KLZBNG CERAMIC 2200P K 50V
C3216 CK1H104KLZBNG CERAMIC 0.1U K 50V
C3217 CK1A105KLZBNG CERAMIC 1U K 10V
C3218 CK1A474KLZBNG CERAMIC 0.47U K 10V
C3219 CK1A105KLZBNG CERAMIC 1U K 10V
C3220 CK1A105KLZBNG CERAMIC 1U K 10V
C3221 CK1A105KLZBNG CERAMIC 1U K 10V
C3222 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3223 CEXLB1C222VDJ ELECT 2200U M 16V
C5501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5502 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5503 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5504 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5505 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5506 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5507 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5508 CE1V470MZVALC ELECT 47U M 35V
C5509 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5511 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5512 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5513 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5514 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5515 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5516 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5517 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5519 CK1A105KLZBNG CERAMIC 1U K 10V
C5522 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5523 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5524 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5525 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5526 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5527 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5528 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5529 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5531 CK1A105KLZBNG CERAMIC 1U K 10V
C5532 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5534 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5535 CK1A105KLZBNG CERAMIC 1U K 10V
C5536 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5537 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5538 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5539 CK1A105KLZBNG CERAMIC 1U K 10V
C5541 CK1A105KLZBNG CERAMIC 1U K 10V
C5543 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5544 CK1A105KLZBNG CERAMIC 1U K 10V
C5545 CK1A105KLZBNG CERAMIC 1U K 10V
C5546 CK1A105KLZBNG CERAMIC 1U K 10V
C5547 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5548 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5549 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5551 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5552 CK1H102KLZBNG CERAMIC 1000P K 50V
C5553 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5554 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5555 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5556 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5557 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5558 CK1H102KLZBNG CERAMIC 1000P K 50V
C5559 CE1V470MZVALC ELECT 47U M 35V
C5563 CK1A105KLZBNG CERAMIC 1UK 10V
C5564 CK1H104ZLZFNG CERAMIC 0.1UZ 50V
C5565 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5566 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5567 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5568 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5569 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5571 CK1H102KLZBNG CERAMIC 1000P K 50V
C5573 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5574 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5575 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5576 CK1H102KLZBNG CERAMIC 1000P K 50V
C5577 CK1A105KLZBNG CERAMIC 1U K 10V
C5578 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5579 CK1A105KLZBNG CERAMIC 1U K 10V
C5581 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5582 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5583 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5584 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5585 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5586 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5587 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5588 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5589 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5591 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5592 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5593 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5594 CK1H223KLZBNG CERAMIC 0.022U K 50V
C5596 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5597 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5598 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5599 CE1V470MZVALC ELECT 47U M 35V
C5601 CE0J221MZVALC ELECT 220U M 6.3V
C5602 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5603 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5605 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5606 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5608 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5609 CE0J221MZVALC ELECT 220U M 6.3V

— 12 —
Schematic
Location Part No. Description
C5611 CC1H470JLZCNG CERAMIC 47P J 50V
C5612 CC1H470JLZCNG CERAMIC 47P J 50V
C5614 CC1H470JLZCNG CERAMIC 47P J 50V
C5615 CC1H470JLZCNG CERAMIC 47P J 50V
C5617 CC1H470JLZCNG CERAMIC 47P J 50V
C5618 CC1H470JLZCNG CERAMIC 47P J 50V
C5621 CC1H470JLZCNG CERAMIC 47P J 50V
C5622 CC1H470JLZCNG CERAMIC 47P J 50V
C5624 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5625 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5627 CC1H470JLZCNG CERAMIC 47P J 50V
C5628 CC1H470JLZCNG CERAMIC 47P J 50V
C5629 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5631 CK1A105KLZBNG CERAMIC 1U K 10V
C5632 CK1A105KLZBNG CERAMIC 1U K 10V
C5633 CK1A105KLZBNG CERAMIC 1U K 10V
C5634 CK1A105KLZBNG CERAMIC 1U K 10V
C5635 CK1A105KLZBNG CERAMIC 1U K 10V
C5636 CK1A105KLZBNG CERAMIC 1U K 10V
C5637 CK1A105KLZBNG CERAMIC 1U K 10V
C5638 CK1A105KLZBNG CERAMIC 1U K 10V
C5639 CK1A105KLZBNG CERAMIC 1U K 10V
C5641 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5642 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5643 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5644 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5645 CK1A105KLZBNG CERAMIC 1U K 10V
C5646 CK1A105KLZBNG CERAMIC 1U K 10V
C5647 CK1A105KLZBNG CERAMIC 1U K 10V
C5651 CK1A105KLZBNG CERAMIC 1U K 10V
C5652 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5653 CK1A105KLZBNG CERAMIC 1U K 10V
C5654 CC1H470JLZCNG CERAMIC 47P J 50V
C5655 CC1H470JLZCNG CERAMIC 47P J 50V
C5656 CK1A105KLZBNG CERAMIC 1U K 10V
C5657 CK1A105KLZBNG CERAMIC 1U K 10V
C5661 CK1A105KLZBNG CERAMIC 1U K 10V
C5662 CK1A105KLZBNG CERAMIC 1U K 10V
C5663 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5664 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5665 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5666 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5667 CK1A105KLZBNG CERAMIC 1U K 10V
C5668 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5669 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5671 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5672 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5673 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5674 CK1A105KLZBNG CERAMIC 1U K 10V
C5675 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5676 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5677 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5678 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5679 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5681 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5682 CK1A105KLZBNG CERAMIC 1U K 10V
C5683 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5684 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5685 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5686 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5687 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5688 CK1A105KLZBNG CERAMIC 1U K 10V
C5689 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5695 CK1A105KLZBNG CERAMIC 1U K 10V
C5696 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5698 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5699 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5701 CE0J221MZVALC ELECT 220U M 6.3V
C5702 CK1A105KLZBNG CERAMIC 1U K 10V
C5703 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5704 CK1A105KLZBNG CERAMIC 1U K 10V
C5705 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5706 CK1A105KLZBNG CERAMIC 1U K 10V
C5707 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5708 CK1A105KLZBNG CERAMIC 1U K 10V
C5709 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5710 CC1H471JLZCNG CERAMIC 470P J 50V
C5711 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5712 CK1A105KLZBNG CERAMIC 1U K 10V
C5713 CK1A105KLZBNG CERAMIC 1U K 10V
C5714 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5715 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5716 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5717 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5718 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5719 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5720 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5721 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5722 CC1H471JLZCNG CERAMIC 470P J 50V
C5723 CK1A105KLZBNG CERAMIC 1U K 10V
C5724 CK1A105KLZBNG CERAMIC 1U K 10V
C5725 CK1A105KLZBNG CERAMIC 1U K 10V
C5726 CK1A105KLZBNG CERAMIC 1U K 10V
C5727 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5728 CK1A105KLZBNG CERAMIC 1U K 10V
C5729 CK1A105KLZBNG CERAMIC 1U K 10V
C5730 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5731 CK1A105KLZBNG CERAMIC 1U K 10V
C5732 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5733 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5734 CK1A105KLZBNG CERAMIC 1U K 10V
C5735 CK1A105KLZBNG CERAMIC 1U K 10V
C5736 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5737 CK1A105KLZBNG CERAMIC 1U K 10V
C5738 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5739 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5741 CK1A105KLZBNG CERAMIC 1U K 10V
C5742 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
Schematic
Location Part No. Description

— 13 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C5743 CK1A105KLZBNG CERAMIC 1U K 10V
C5744 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5745 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5746 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5747 CK1A105KLZBNG CERAMIC 1U K 10V
C5748 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5751 CE1V470MZVALC ELECT 47U M 35V
C5755 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5756 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5761 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5762 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5763 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5764 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5765 CK1A105KLZBNG CERAMIC 1U K 10V
C5766 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5767 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5802 CC1H680JLZCNG CERAMIC 68P J 50V
C5803 CC1H680JLZCNG CERAMIC 68P J 50V
C5804 CC1H680JLZCNG CERAMIC 68P J 50V
C5806 CC1H270JLZCNG CERAMIC 27P J 50V
C5807 CC1H270JLZCNG CERAMIC 27P J 50V
C5808 CC1H270JLZCNG CERAMIC 27P J 50V
C5810 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5811 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5812 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5814 CC1H120JLZCNG CERAMIC 12P J 50V
C5815 CC1H120JLZCNG CERAMIC 12P J 50V
C5816 CC1H120JLZCNG CERAMIC 12P J 50V
C5818 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5819 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5820 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5821 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5822 CEXLB1H100VDJ ELECT 10U M 50V
C5823 CEXLB1H100VDJ ELECT 10U M 50V
C5902 CK1A105KLZBNG CERAMIC 1U K 10V
C5904 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5905 CE1H100MZVALC ELECT 10U M 50V
C6052 CK1A105KLZBNG CERAMIC 1U K 10V
C6053 CK1A105KLZBNG CERAMIC 1U K 10V
C6054 CE0J221MZVALC ELECT 220U M 6.3V
C6055 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6060 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6061 CK1A105KLZBNG CERAMIC 1U K 10V
C6065 CK1A105KLZBNG CERAMIC 1U K 10V
C6066 CE0J221MZVALC ELECT 220U M 6.3V
C6072 CK1A105KLZBNG CERAMIC 1U K 10V
C6073 CK1A105KLZBNG CERAMIC 1U K 10V
C6074 CE0J221MZVALC ELECT 220U M 6.3V
C6075 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6101 CK1H102KLZBNG CERAMIC 1000P K 50V
C6102 CK1H102KLZBNG CERAMIC 1000P K 50V
C6106 CC1H220JLZCNG CERAMIC 22P J 50V
C6107 CC1H220JLZCNG CERAMIC 22P J 50V
C6110 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6111 CEXLB0J102VDJ ELECT 1000U M 6.3V
C6112 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6118 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6119 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6121 CC1H120JLZCNG CERAMIC 12P J 50V
C6122 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C6123 CC1H120JLZCNG CERAMIC 12P J 50V
C6124 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C6125 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6201 CC1H471JLZCNG CERAMIC 470P J 50V
C6202 CC1H680JLZCNG CERAMIC 68P J 50V
C6203 CC1H680JLZCNG CERAMIC 68P J 50V
C6204 CC1H680JLZCNG CERAMIC 68P J 50V
C6205 CC1H471JLZCNG CERAMIC 470P J 50V
C6206 CC1H680JLZCNG CERAMIC 68P J 50V
C6207 CEXLB1H100VDJ ELECT 10U M 50V
C6208 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6209 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6210 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6212 CEXLB1H100VDJ ELECT 10U M 50V
C6270 CE1H100MZVALC ELECT 10U M 50V
C6271 CEXLB1H100VDJ ELECT 10U M 50V
C6272 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6273 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6274 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6275 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6276 CEXLB1H100VDJ ELECT 10U M 50V
C6277 CEXLB1H100VDJ ELECT 10U M 50V
C6278 CK1A105KLZBNG CERAMIC 1U K 10V
C6279 CK1A105KLZBNG CERAMIC 1U K 10V
C6354 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6361 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C6362 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6363 CEXLB1H100VDJ ELECT 10U M 50V
C6364 CEXLB1C101VDJ ELECT 100U M 16V
C6365 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6401 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C6402 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6403 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6404 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6405 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C6407 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6408 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6409 CE0J222MZVALC ELECT 2200U M 6.3V
C6410 CE0J222MZVALC ELECT 2200U M 6.3V
C6412 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6413 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6421 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6422 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C6424 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6425 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6426 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6502 CK1H104ZLZFNG CERAMIC 0.1U Z 50V

— 14 —
Schematic
Location Part No. Description
C6503 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6504 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6505 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6509 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6510 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6511 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6512 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6513 CK1H102KLZBNG CERAMIC 1000P K 50V
C6514 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6515 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6516 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6517 CEXLB1V470VDJ ELECT 47U M 35V
C6518 CEXLB1V470VDJ ELECT 47U M 35V
C6519 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6520 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6521 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6522 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6523 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6524 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6525 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6526 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
DIODES
D801 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D803 DZUDZS3.9B--G ZD UDZS-TE-173.9B
D804 DZUDZS6.2B--G ZD UDZS-TE-176.2B
D1611 DDD1FM3-----G DIODE D1FM3
D1612 DDD1FM3-----G DIODE D1FM3
D1613 DDD1FH3-----G DIODE D1FH3
D1620 DZUDZS3.0B--G ZD UDZS3.0B-TE-17
D1621 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1641 DDD1FM3-----G DIODE D1FM3
D1663 DD1SS352----G DIODE 1SS352-(TPH3
DD1SS355----G DIODE 1SS355-TE-17
D1671 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1677 DD1SS352----G DIODE 1SS352-(TPH3
DD1SS355----G DIODE 1SS355-TE-17
D1681 DDD1FM3-----G DIODE D1FM3
D1683 DD1SS352----G DIODE 1SS352-(TPH3
DD1SS355----G DIODE 1SS355-TE-17
D1902 DLSLR343MC3FN LED R-343MC3F
D3216 DDRB551V-30-G DIODE B551V-30 TE-17
D6051 DZUDZS3.0B--G ZD UDZS3.0B-TE-17
D6052 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
INTEGRATED CIRCUITS
IC001 QLA42205-E--N IC LA42205-E
IC800 QXXAVC980---M IC LC875932A-
IC801 QLE24C042M-EP IC LE24C042M
QXXAVC820---P IC AT24C04N-10SU-1.8
IC801 QXXAVC844---P IC CAT24C04WI-GT3
IC802 QTC7SET08FU-P IC TC7SET08FU
IC803 QTC7SH08FU--P IC TC7SH08FU (TE85L)
IC1251 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1600 QBD9842FV---P IC BD9842FV-E2
IC1610 QLA5774MPE--P IC LA5774MP-DL-E
IC1650 QMP2106DK---P IC MP2106DK
IC1670 QXXAVC692---P IC PQ1LAX95MSPQ
IC1681 QLA5774MPE--P IC LA5774MP-DL-E
IC1691 QPST600DMT--P IC PST600DMT
IC3200 QNJW1142CV--P IC NJW1142CV
IC5500 QXXAVC969---M IC 215-0684001--00
IC5700 QXXAVC967---P IC HYB18T512161B2F-25
IC5750 QXXAAJQ0880-- IC NAND128W3A2BN6E
IC5900 QM51957BFP--P IC M51957BFP
IC6051 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6060 QXXAVC976---P IC PQ018EN02ZPH
IC6071 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6200 QNJM4558M---P IC NJM4558M-TE2
IC6270 QXXAVC944---P IC WM8781GEDS/R
IC6400 QEP387APBF--M IC EP387APBF
IC6504 QXXAVC972---M IC SII9185A
COILS
L001 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L002 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L003 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L005 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L006 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L801 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L802 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L803 1LB4L26B0740G INDUCTOR, 220 OHM
L804 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1000 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1202 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1601 1LB4L26B0740G INDUCTOR, 220 OHM
L1602 1LB4L26B0740G INDUCTOR, 220 OHM
L1603 1LB4L26B0740G INDUCTOR, 220 OHM
L1604 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1605 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1608 1LB4L26B0740G INDUCTOR, 220 OHM
L1609 1LB4L26B0740G INDUCTOR, 220 OHM
L1612 1LB4L26B0740G INDUCTOR, 220 OHM
L1613 1LB4L26B0740G INDUCTOR, 220 OHM
L1614 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1615 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1616 1AV4L26B5930N INDUCTOR, 10 UH
L1617 1LB4L26B1000N INDUCTOR, 15 UH
1AV4L2WK150MN INDUCTOR, 15 UM
L1618 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1619 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
Schematic
Location Part No. Description

— 15 —
Schematic
Location Part No. Description Schematic Location Part No. Description
L1620 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1621 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1622 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1623 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1624 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1625 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1626 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1627 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1628 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1632 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1641 1LB4L26B1030N INDUCTOR, 56 UH
1AV4L2WK560MN INDUCTOR, 56 UM
L1642 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1643 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1651 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1652 1LB4L26B1000N INDUCTOR, 15 UH
1AV4L2WK150MN INDUCTOR, 15 UM
L1653 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1663 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1672 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1681 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1682 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1684 1LB4L26B1030N INDUCTOR, 56 UH
1AV4L2WK560MN INDUCTOR, 56 UM
L1690 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1691 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1692 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1693 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1694 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1695 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1697 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1698 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1701 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1702 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1703 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1704 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1706 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1707 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1708 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1709 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1710 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1711 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1712 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1713 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1714 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1715 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1716 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1717 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1718 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1719 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1720 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1721 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1722 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1723 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1724 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1725 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1726 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1727 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1728 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1729 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1730 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1731 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1732 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1733 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1734 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1735 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1736 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1737 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1738 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1739 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1740 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1741 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1742 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1743 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1744 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1745 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1746 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1747 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1748 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1749 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1750 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L5502 1AV4L2FB150MG INDUCTOR, 15U M
L5521 1LB4L26B0740G INDUCTOR, 220 OHM
L5522 1LB4L26B0740G INDUCTOR, 220 OHM
L5531 1LB4L26B0740G INDUCTOR, 220 OHM
L5532 1LB4L26B0740G INDUCTOR, 220 OHM
L5533 1LB4L26B0740G INDUCTOR, 220 OHM
L5534 1LB4L26B0740G INDUCTOR, 220 OHM
L5535 1LB4L26B0740G INDUCTOR, 220 OHM
L5536 1LB4L26B0740G INDUCTOR, 220 OHM
L5537 1LB4L26B0740G INDUCTOR, 220 OHM
L5538 1LB4L26B0740G INDUCTOR, 220 OHM
L5539 1LB4L26B0740G INDUCTOR, 220 OHM
L5541 1LB4L26B0740G INDUCTOR, 220 OHM
L5542 1LB4L26B0740G INDUCTOR, 220 OHM
L5543 1LB4L26B0740G INDUCTOR, 220 OHM
L5544 1LB4L26B0740G INDUCTOR, 220 OHM
L5545 1LB4L26B0740G INDUCTOR, 220 OHM
L5546 1LB4L26B0740G INDUCTOR, 220 OHM
L5547 RGF1000JTCANL MT-GLAZE 1 00 JA 1 /10W
L5548 RGF1000JTCANL MT-GLAZE 1 00 JA 1 /10W
L5549 1LB4L26B0740G INDUCTOR, 220 OHM
L5551 1LB4L26B0740G INDUCTOR, 220 OHM
L5552 1AV4L2GAR47JG INDUCTOR, 0.47U J
L5554 1AV4L2GAR47JG INDUCTOR, 0.47U J
L5556 1AV4L2GAR47JG INDUCTOR, 0.47U J

— 16 —
Schematic
Location Part No. Description
L5558 1AV4L2GAR47JG INDUCTOR, 0.47U J
L5561 1LB4L26B0740G INDUCTOR, 220 OHM
L5562 1LB4L26B0740G INDUCTOR, 220 OHM
L5579 1AV4L2GAR47JG INDUCTOR, 0.47U J
L5582 1AV4L2GAR47JG INDUCTOR, 0.47U J
L5591 1LB4L26B0700G INDUCTOR, 120 OHM
L5592 1LB4L26B0700G INDUCTOR, 120 OHM
L5593 1LB4L26B0700G INDUCTOR, 120 OHM
L5594 1LB4L26B0700G INDUCTOR, 120 OHM
L5595 1LB4L26B0700G INDUCTOR, 120 OHM
L5596 1LB4L26B0700G INDUCTOR, 120 OHM
L5597 1LB4L26B0700G INDUCTOR, 120 OHM
L5701 1LB4L26B0740G INDUCTOR, 220 OHM
L5751 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L5761 1LB4L26B0700G INDUCTOR, 120 OHM
L5762 1LB4L26B0700G INDUCTOR, 120 OHM
L5802 1AV4L2GA150JG INDUCTOR, 15U J
L5803 1AV4L2GA150JG INDUCTOR, 15U J
L5804 1AV4L2GA150JG INDUCTOR, 15U J
L5805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6051 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6052 1LB4L26B0740G INDUCTOR, 220 OHM
L6060 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6064 1LB4L26B0740G INDUCTOR, 220 OHM
L6071 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6072 1LB4L26B0740G INDUCTOR, 220 OHM
L6095 1AV4L2GAR47JG INDU CTOR, 0.47U J
L6097 1AV4L2GAR47JG INDUCTOR, 0.47U J
L6102 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6103 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6104 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6105 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6106 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6107 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6108 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6109 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6110 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6111 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6112 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6113 1LB4L26B0700G INDUCTOR, 120 OHM
L6114 1LB4L26B0700G INDUCTOR, 120 OHM
L6116 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6118 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6119 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6120 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6121 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6122 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6123 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6124 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6125 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6126 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6127 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6128 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6129 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6201 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6270 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6271 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6310 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6311 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6312 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6354 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6355 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6401 1LB4L26B0740G INDUCTOR, 220 OHM
L6402 1LB4L26B0740G INDUCTOR, 220 OHM
L6403 1LB4L26B0740G INDUCTOR, 220 OHM
L6410 1AV4L3CY201MG IMPEDANCE, 200 OHMM
L6411 1AV4L3CY201MG IMPEDANCE, 200 OHMM
L6412 1AV4L3CY201MG IMPEDANCE, 200 OHMM
L6413 1AV4L3CY201MG IMPEDANCE, 200 OHMM
L6414 1AV4L3CY201MG IMPEDANCE, 200 OHMM
L6501 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6505 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6509 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6510 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6511 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6512 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L6513 1LB4L26B0740G INDUCTOR, 220 OHM
L6514 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L6515 1LB4L26B0740G INDUCTOR, 220 OHM
L6516 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6518 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7008 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7010 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7011 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7012 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7013 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7014 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7015 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7016 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7017 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7022 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7023 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7025 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7026 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7027 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7028 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7029 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
L7030 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1 /10W
TRANSISTORS
Q802 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Schematic
Location Part No. Description

— 17 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q805 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q808 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q809 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q810 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q811 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q813 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q814 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q815 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1006 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1007 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1251 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1252 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1261 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1262 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0

— 18 —
Schematic
Location Part No. Description
Q1262 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1609 T2SJ615-E---P TR 2SJ615-TD-E
Q1610 TFSS163-E---P TR FSS163-TL-E
Q1611 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1612 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1613 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1615 T15C02CH----P TR 15C02CH
Q1641 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1651 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1681 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1802 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1803 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5771 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5772 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5773 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5802 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5803 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Schematic
Location Part No. Description

— 19 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q5804 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5806 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5807 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5808 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5901 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5902 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6333 TXXLBB005---P TR MMBTSA1235F
T2SA1037AK-RP TR 2SA1037AK-T146-R
T2SA1037AK-SP TR 2SA1037AK-S-T146
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q6351 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6352 T2SC2411K-Q-P TR 2SC2411K-T146-Q
Q6361 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6362 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6363 TMCH6306----P TR MCH6306-TL
Q6501 TXXLBB006---P TR MMBTSC3928R
T2SC2412K-R-P TR 2SC2412KT146R
T2SC2412K-S-P TR 2SC2412KT146S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB0
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
RESISTORS
R001 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R002 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R003 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R004 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R007 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R801 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R802 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R803 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R804 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R806 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R808 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R809 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R810 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R813 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R814 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R815 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R817 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R818 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W

— 20 —
Schematic
Location Part No. Description
R820 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R824 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R826 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R828 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R829 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R830 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R831 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R832 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R833 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R834 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R835 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R836 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R838 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R841 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R842 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R843 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R845 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R846 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R847 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R848 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R852 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R853 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R854 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R855 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R856 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R857 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R860 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R866 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R867 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R869 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R870 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R871 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R873 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R875 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R876 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R879 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R880 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R881 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R882 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R883 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R884 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R886 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R887 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R888 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R889 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R891 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R892 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R893 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R894 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R897 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R900 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R901 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R902 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R903 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R904 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R905 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R906 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R907 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R908 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R909 1LB4L26B0700G INDUCTOR 120 OHM
R910 1LB4L26B0700G INDUCTOR 120 OHM
R911 1LB4L26B0700G INDUCTOR 120 OHM
R912 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R913 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R914 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R917 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R918 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1000 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1002 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1004 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1005 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1007 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1008 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1009 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1010 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1011 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1012 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1013 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1014 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1019 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1021 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1025 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1031 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1037 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1043 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1049 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1051 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1052 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1053 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1054 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1055 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1056 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1057 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1058 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1059 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1060 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1061 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1062 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1063 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1064 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1065 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1066 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1067 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1068 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1069 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1070 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1071 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1072 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
Schematic
Location Part No. Description
