Thank you for purchasing this Sanyo product.
Please read these instructions carefully before operating this
Product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
50 mm16.171 mmXT-43A081F
Y
E
A
R
S

2
Chapter 1: Introduction
Chapter 3: Using your TV
Chapter 4: Other Information
4
3
4
4
4
5
5
18
18
19
15
15
15
15
6
6
7
9
15
16
17
Use Environment ................................................................................................................................
Cleaning .............................................................................................................................................
Hanging the TV Set on the Wall ..........................................................................................................
................................................................................................................................
Standard accessories .......................................................................................................................
Optional accessories ...........................................................................................................................
Basic connection .................................................................................................................................
External Equipment.............................................................................................................................
Remote Control Functions .................................................................................................................
.............................................................................................................................. 10
Base Installation

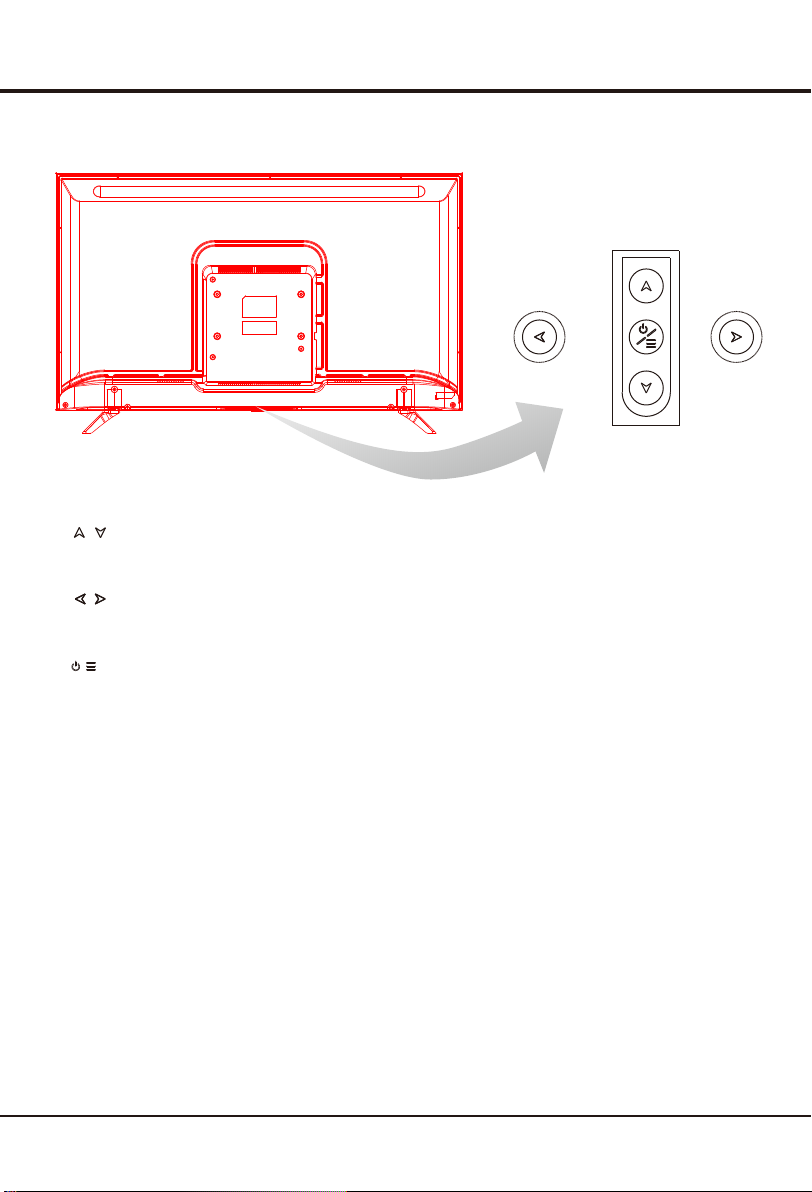

Buttons on the TV
Smart TV ...............................................................................................................................................
Network .................................................................................................................................................
System ..................................................................................................................................................
20
Support .................................................................................................................................................
Chapter 2: Connections and Setup
11
11
.......................................................................................................................................
Switching off .........................................................................................................................................
13
Initial Setup .............................................................................................................................................
12
Network Connection .................................................................................................................................
Switching on
Accessing channels ..............................................................................................................................
Watching connected devices ................................................................................................................
Volume...................................................................................................................................................
Using System Settings...........................................................................................................................
Power connection and aerial...............................................................................................................
Picture....................................................................................................................................................
...................................................................................................................................................
Channel .................................................................................................................................................
Sound
Troubleshooting ...................................................................................................................................
Safety Precautions .............................................................................................................................
24
25
Specifications ......................................................................................................................................
Table of Contents
HOME Page ..........................................................................................................................................21
Multimedia............................................................................................................................................. 22
Supported file format in Media Player.................................................................................................. 23

Table-top use / Wall Hanging
110 – 240 V ~ 50/60 Hz
When mounting the product on a wall or ceiling,
be sure to install the product according to the
method recommended by the manufacturer. This
is a safety feature.
When mounting the product on a wall or ceiling,
be sure to install the product according to the
method recommended by the manufacturer. This
is a safety feature.
3
Introduction
110 – 240 V ~
50/60 Hz
Sanyo service center.Sanyo service center

4
Do not place the set on an unstable cart, stand, or table.
Place the set on a place that allows good ventilation.
Do not use the set near damp, and cold areas. Protect
the set from overheating.
Keep the set away from direct sunlight.
Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
Do not use the set near dust place.
Use Environment
Introduction
Base Installation
To fix the double support base on the unit by screws,
the installation is completed.
1 Connect the pedestal to the TV set
Put the two pedestals on the designated positions
of the TV set carefully.
Lay your TV flat (screen down) on the edge of a
table or bench. Make sure that you put down a
soft cushion or cloth so that your TV is not
scratched.
2 Fasten and tighten the screws
Carefully put in screws and fasten them securely.

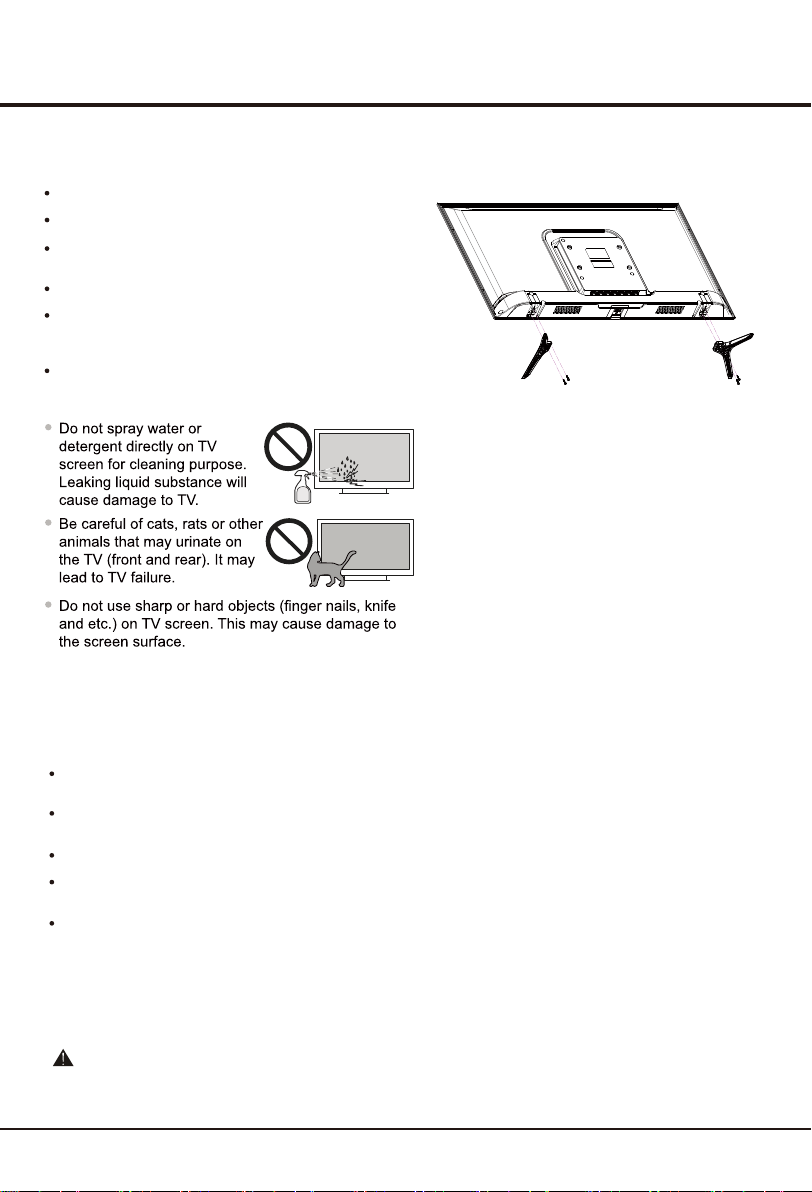

Hanging the TV Set on the Wall
Warning: This operation requires two people.
To ensure a safe installation, observe the following safety
notes:
Check that the wall can support the weight of the TV
set and wall mount assembly.
Follow the mounting instructions provided with the wall
mount.
The TV set must be installed on a vertical wall.
Make sure to use only screws suitable for the material
of the wall.
Make sure that the TV set cables are placed so that
there is no danger of tripping over them.
All other safety instructions about our TV sets are also
applicable here.
Note：
Graphics contained within this operating
instructions are for presentation only.
WARNING:
The batteries shall not be exposed to excessive heat
such as sunshine, fire or the like.
Cleaning

5
Battery
(AA size, 2 pcs)
Screws
Rear of the TV
Introduction
Remote
Control Pedestal
Accessories may not be placed all together. Take care not to throw them away unintentionally.
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
young children accidentally. Keep these parts out of reach of young children.
Operating
Instructions
32” Screws:ST4X15(4EA)
43” Screws:ST4X20(4EA)
32” class
100 mm
100 mm

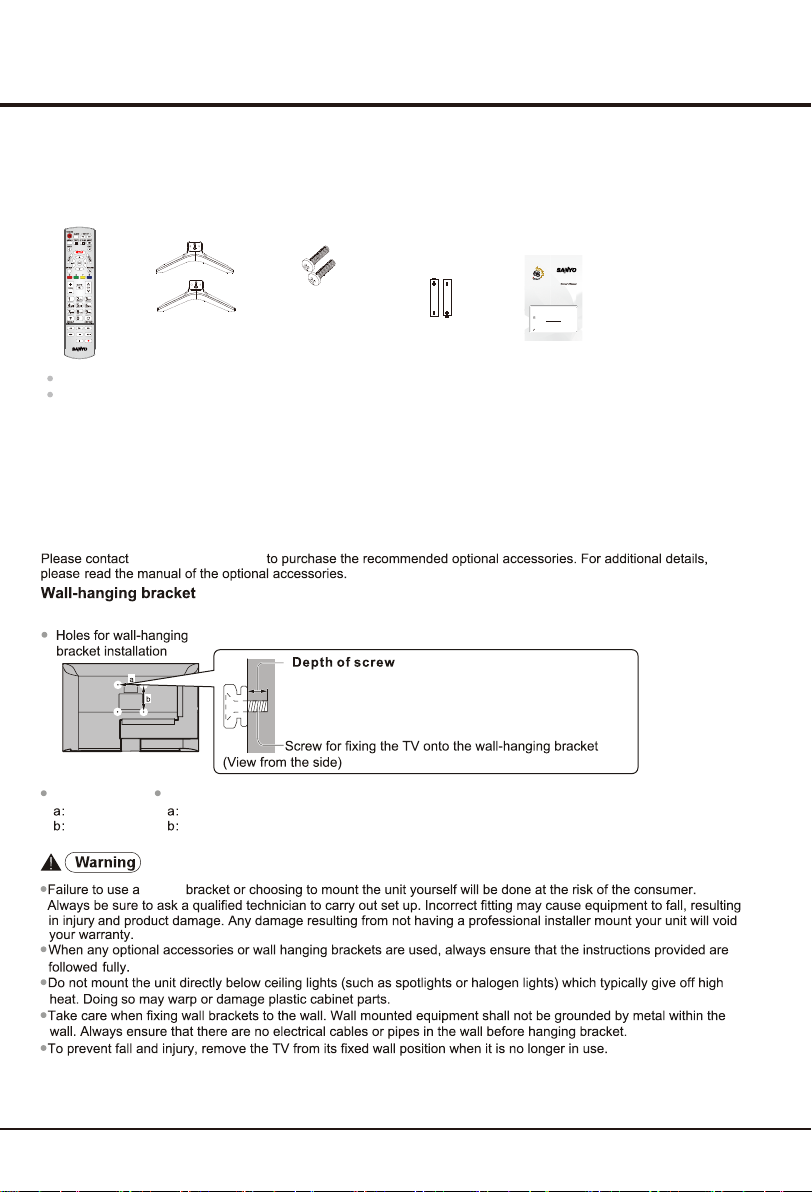

Standard accessories
Optional accessories
Sanyo service center
Sanyo
43” class
200 mm
100 mm
Screw specs
32"：M4*8
43"：M6*12
32"：6 mm
43"：14 mm
Productpage
(HD/FHD)
XT-32A081H
LED TV
E-mail:[email protected]
Needhelp? Please Call at Toll Free No.1800 419 5088
Toobtain a more detailed Electronic Copy of this
Manualor much further contents,go to product page
atour website www.sanyoappliance.in
Thankyou for purchasing this Sanyo product.
Pleaseread these instructions carefully before operating this
Productand retain them for future reference.
Theimages shown in this manual are for illustrative purposes only.
XT-43A081F
Y
E
A
R
S

Introduction
6
Basic Connection
Terminals
Power connection and aerial
Note
Do not place the RF cable under the TV.
To obtain optimum quality picture and sound, an aerial, the correct cable(75Ω coaxial), and the correct terminating
plug are required.
If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial
socket and the TV.
Your Sanyo Service Centre or dealer may be able to assist you in obtaining the correct aerial system for
your particular area and the accessories required.
Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs
incurred, are the responsibility of you, the Customer.
1
LAN
4
HDMI 2
(Sound Ou t) SPDIF ANTENNAHDMI 1 USB 2.0
USB 2.0
R
L
VIDEO
AV IN
AUDIO
AUDIO OUT
3
2
6
5
7
1 LAN
2 AUDIO OUT
3 AV IN
4 HDMIx2
(P.8)
(P.12)
(P.7)
(P.7)
(P.7)
(P.8)
5 USBx2
6 SPDIF
7 ANTENNA (See below)
AC cord
110 – 240 V ~
50/60 Hz
Power Connection
Connect the TV’s power cable to a power outlet.
ANTENNA cable
TV
Aerial
ANTEN NA

7
Introduction
External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
Check the type of terminals and cable plugs are correct when connecting.
Please also read the manual of the equipment being connected.
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.
AV Cable are often color-coded to
connectors. Connect yellow to yellow,
red to red, white to white.
HDMI cable
Rear of the TV
VCR
or Camcorder
Camcorder
Recorder / Player
Game console
or
USB devices
HDMI equipment
AV devices
VIDEO L-AUDIO-R
AV cable
AV IN
AUD IO
VIDEO
Never remove the USB device or turn off the TV while using
the USB device.
The First inserted USB will be regarded as Device C as default,
and Second inserted USB would be reflected as Device D.
Note: If your device has an HDMI connection, we recommend
you use that to get the best quality possible.
If the external device has a DVI output only, use a DVI to
HDMI adapter cable to connect to the HDMI terminal.
Note: For the audio receiver control Sound Out, firstly you must
have a device which supports HDMI Sound Out, then connect it
to the HDMI2 port. When the "Soundbar ready" is enabled on
your TV, the TV set's speakers will mute automatically and the
audio will be outputted on your sound device system.
5 V 500 mA
USB 2.0
USB 2.0
HDMI 1 HDMI 2
(Sound Out)
LR

8
Introduction
Rear of the TV
External Equipment
SPDIF cable
Amplifier with
speaker system
AUDIO OUT
Audio cable
