INSTRUCTION MANUAL
Xacti Library
Thank you for purchasing this product.
Please read this Instruction Manual carefully before using the Xacti Library. Make
sure to read and understand the separate booklet “SAFETY MANUAL”. Keep the
warranty and other documentation in a safe place for future reference.
About Xacti Library
iA camera that includes the Xacti Library feature allows you to connect the
camera to an external hard disk (commercially sold) and copy files from
your camera directly to the hard disk. Enjoy seeing the superior quality of
high definition images recorded with your camera on your TV.
iCheck your camera’s instruction manual to see if your camera has the Xacti
Library feature.
iSee “SPECIFICATIONS” on page 34 in this manual for details about which
hard disks can be connected.
iThe appearance of the camera and/or external hard disk shown in this
manual’s illustrations may be different from the devices that you are using.
Symbols used in this manual
HINT Indicates further instructions or special points of practical
interest.
CAUTION Points that require special attention.
(page xx) Refer to the page indicated for detailed information.

iEnglish
GETTING STARTED USING THE
Xacti Library
Setup
1 Connect a TV and a hard disk to the docking station, and set the
camera in the docking station.
* Please make sure that the camera and all devices are turned OFF
before proceeding.
To power outlet
Use the USB cable and the
dedicated USB converter cable
included with your camera to
connect the hard disk to the
docking station.
Use the cable included with
your camera to connect a
TV to the docking station.
Set input to “VIDEO”
Hard disk

English ii
Copy files from the card
2 Copy files from the card installed in your camera to the hard disk.
iFile copying from the camera to the hard disk begins.
iWhen copying is complete, press the SET button.
MAIN MENU
DATA TRANSFER
PLAYBACK
ALBUM
OKEXIT
OK
DATA TRANSFER
BEGIN TRANSFER
TRANSFER SETTINGS
1Turn on the camera, TV and hard disk.
2Select “DATA TRANSFER”,
and press the SET button.
3Select “BEGIN TRANSFER”,
and press the SET button.

iii English
GETTING STARTED USING THE Xacti Library
Playback
3 Play back the files you copied to the hard disk.
iThe rest of the playback procedure is the same as for normal camera
operation.
iWhen you have finished using the camera, turn it off and remove it from
the docking station.
SELECT OK
2007.09.01 ROLL001
2007.12.24 ROLL001
PLAY
MAIN MENU
DATA TRANSFER
PLAYBACK
ALBUM
OKEXIT
1Select “PLAYBACK”, and
press the SET button.
2Select the desired ROLL to
play back, and press the SET
button.

1English
CONTENTS
HOW TO ENJOY THE Xacti Library FEATURE .................................... 3
Copying files between the camera and hard disk made easy ........ 3
Reproduce the high quality of captured images ............................. 4
Use the album feature to organize your files .................................. 5
SETUP
ASSEMBLE THE DEVICES ................................................................... 6
Camera ........................................................................................... 6
Docking station ............................................................................... 6
Remote control unit ......................................................................... 7
Hard disk ......................................................................................... 7
TV ................................................................................................... 8
Others ............................................................................................. 8
CONNECTIONS .................................................................................... 9
START THE Xacti Library .................................................................... 10
COPY
COPY FILES FROM THE CARD TO THE HARD DISK ...................... 11
COPY FILES FROM THE HARD DISK TO THE CARD ...................... 12
COPY SINGLE FILES .......................................................................... 14
COPY OPERATION SETTINGS .......................................................... 15
Display the Transfer Settings Screen ........................................... 15
Specify how to treat files after they are copied ............................. 16
File information display setting ..................................................... 17
PLAYBACK
PLAY HARD DISK FILES .................................................................... 18
Play back an album ...................................................................... 20
PLAY CAMERA FILES ........................................................................ 21

English 2
ORGANIZE (ALBUM)
CREATE A NEW ALBUM .....................................................................22
Add files from other folders/rolls ....................................................24
Confirming the playback settings (slideshow settings) ..................26
EDIT AN ALBUM ..................................................................................27
Add files to an album .....................................................................27
Move album files ...........................................................................29
Remove album files .......................................................................31
DELETE AN ALBUM ............................................................................33
APPENDICES
SPECIFICATIONS ................................................................................34
Xacti Library compatible hard disks ...............................................34
Hard disk directory configuration ...................................................35

3English
HOW TO ENJOY THE Xacti Library
FEATURE
The Xacti Library feature is a system that allows you to save the files stored in
your camera’s card to a large-capacity hard disk—all without using a
computer.
Copying files between the camera and hard
disk made easy
You can copy files recorded with your camera to a hard disk, as well as
transferring files from the hard disk to your camera’s card.

English 4
Reproduce the high quality of captured images
Because the files from your hard disk can be output directly to your TV, you
can enjoy watching video clips without losing any of the recorded high
definition. You can also play back the files from the camera’s card.

5English
HOW TO ENJOY THE Xacti Library FEATURE
Use the album feature to organize your files
Organizing your files into albums is a snap. It’s easy to find the files you’re
looking for to include in the album, because you select them from “rolls” you
copied to the hard disk.
HINT
iThe original meaning of “roll” comes from conventional cameras, in which
rolls of film are used. In a digital camera, however, recorded files are stored
on a card (or the internal memory), and so one card (or one internal
memory) is said to comprise a virtual “roll”. For example, when copying
files by rolls, all the files from the camera are copied to the hard disk at one
time.
OK
PLAY ALBUM
EDIT ALBUM
DELETE ALBUM
CREATE NEW ALBUM

English 6
SETUP
SETUP
ASSEMBLE THE DEVICES
You will need the following devices in order to use the Xacti Library.
Camera
To check if your camera has the Xacti Library feature, please refer to the
instruction manual that accompanied the camera.
Docking station
Use the docking station that was included with your camera.

7English
ASSEMBLE THE DEVICES
Remote control unit
Use the remote control unit that was included with your camera.
Hard disk
The hard disk should have a USB terminal that is USB 2.0 High Speed
compatible. For more information about compatible hard disks, please see
page 34 and visit our website at: http://www.sanyo-dsc.com/

English 8
SETUP
TV
By using a HD (high definition) compatible TV, you will be able to enjoy the
excellent image quality of video clips recorded in the HD mode.
Others
iA connection cable between the docking station and the TV (example:
S-AV interface cable, component cable, HDMI cable, etc.) is necessary.
iA connection cable between the docking station and the hard disk
(example: USB interface cable , USB converter cable, etc.) is necessary.

9English
CONNECTIONS

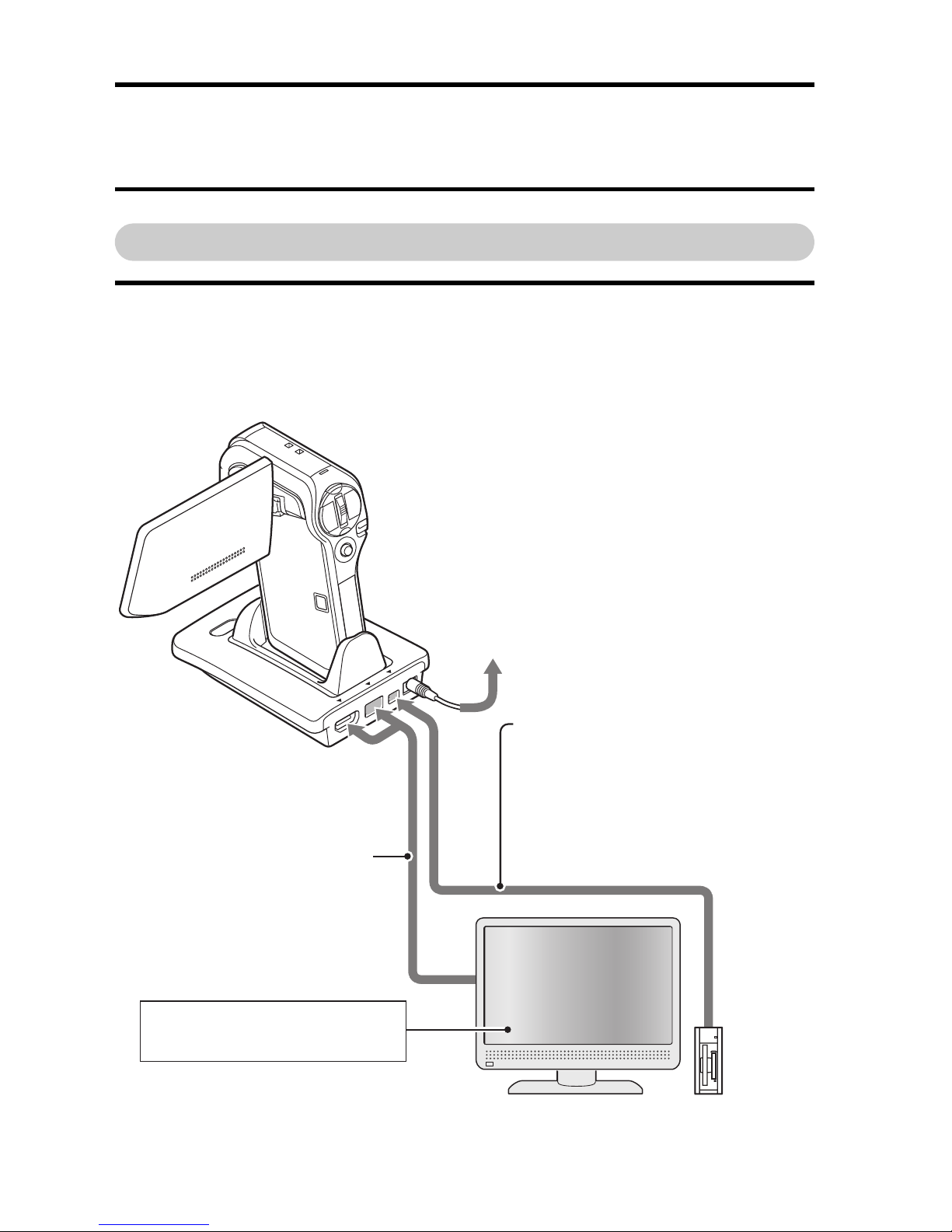

Connect all the devices.
* Please make sure that the camera and all devices are turned OFF before
proceeding.
CAUTION
Caution when disconnecting cables
iWhen using the Xacti Library, do not remove the camera from the docking
station, or disconnect the USB cable. If the USB cable is disconnected
while accessing the media, not only may the stored files be damaged, but it
may also become necessary to reformat the media, and in doing so, lose
all the data.
iBe sure to turn off the camera before removing it from the docking station.
By turning off the camera, you will be able to safely disconnect the drive.
To reduce spurious radiation
To power outlet
Use the USB cable and the
dedicated USB converter
cable included with your
camera to connect the hard
disk to the docking station.
Use the cable included with
your camera to connect a
TV to the docking station.
Set input to “VIDEO”
Hard disk

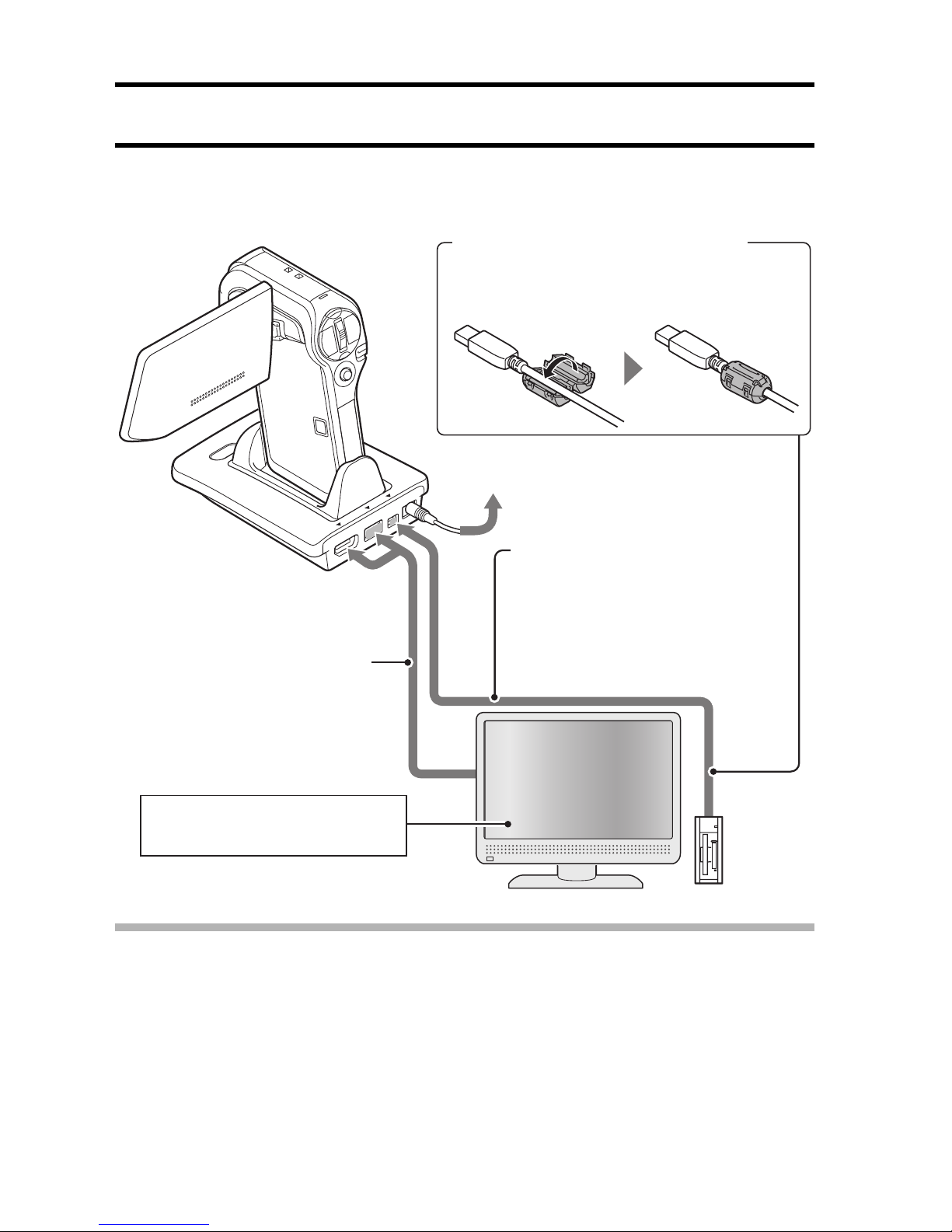

iPlease affix the core (included).

English 10
SETUP
START THE Xacti Library
When all the necessary devices have been connected, start the Xacti Library.
The Xacti Library operation can be performed using the camera’s controls,
but it is recommended that you instead use the remote control unit while
watching your TV screen. The following procedure is for when using the
remote control unit.
1 Turn on the devices in the
following order: TV→hard
disk→camera.
hWhen the camera is turned on,
the Xacti Library Main Menu
appears.
DATA TRANSFER:
Copy files (pages 11 and 12).
PLAYBACK:
Play back files (pages 18 and 21).
ALBUM:
Create and edit albums as well as
play them back (pages 22 and 27).
hIf the hard disk is being used for
the first time with the Xacti
Library, a screen confirming that
you wish to create a library
appears. In this case, proceed to
step 2.

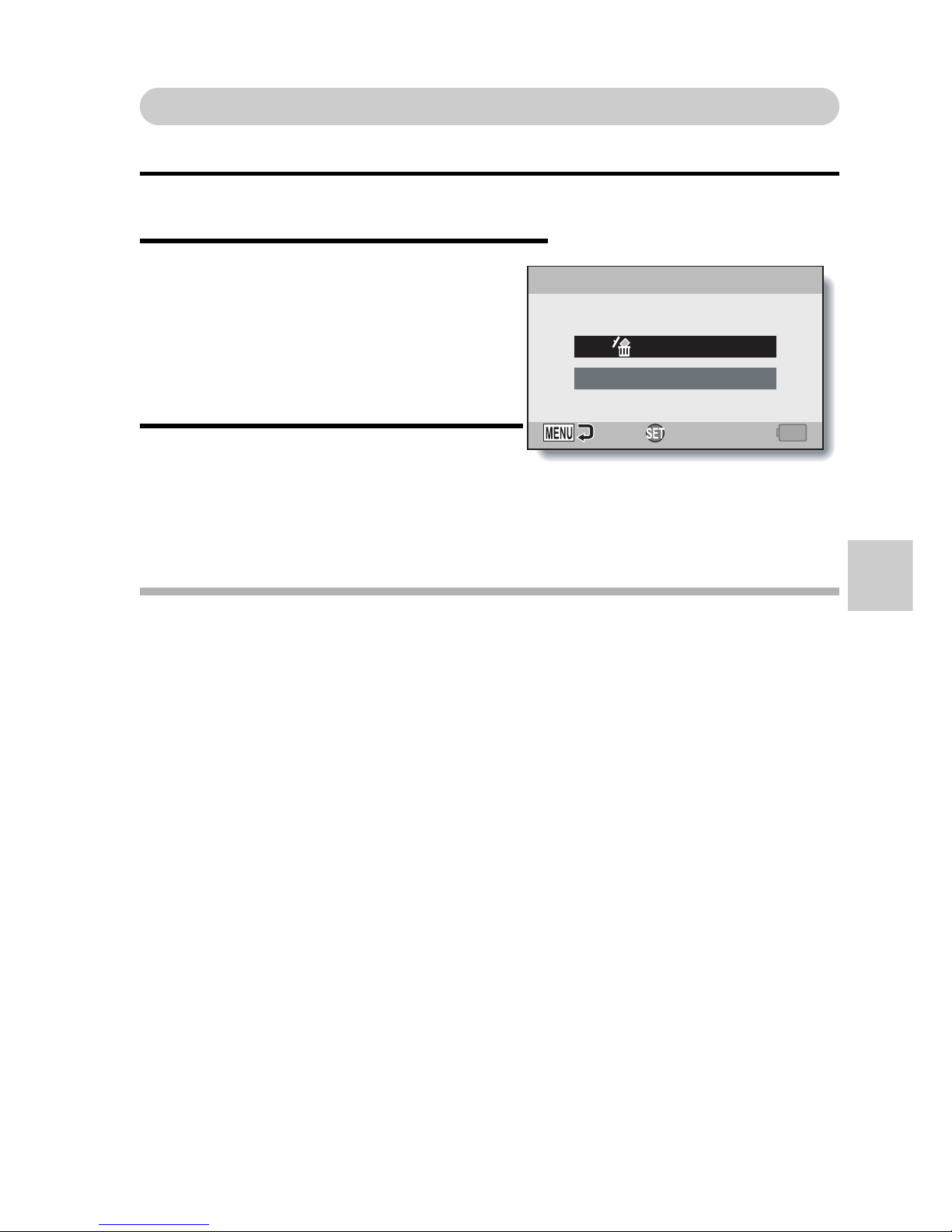

2 Select “YES”, and press the SET button.
hA library is created, and the Main Menu appears.
HINT
iIf your hard disk is one that can turn ON/OFF automatically, it will do so
when the camera is turned ON/OFF.
OKEXIT
MAIN MENU
DATA TRANSFER
PLAYBACK
ALBUM
<Main Menu>

11 English
COPY
COPY FILES FROM THE CARD TO
THE HARD DISK
Copy files from the card installed in your camera to the hard disk.
1 Start Xacti Library (page 10).
2 Select “DATA TRANSFER” from
the Main Menu, and press the
SET button.
hThe Data Transfer Screen
appears.
hPressing the MENU button will
return you to the Main Menu.
3 Select “BEGIN TRANSFER”, and
press the SET button.
hFile copying begins.
hWhen copying is complete, press
the SET button.
OK
DATA TRANSFER
BEGIN TRANSFER
TRANSFER SETTINGS

English 12
COPY
COPY FILES FROM THE HARD
DISK TO THE CARD
Copy files from the hard disk to the card installed in your camera.
1 Start Xacti Library (page 10).
2 Select “DATA TRANSFER” from
the Main Menu, and press the
SET button.
hThe Data Transfer Screen
appears.
3 Select “TRANSFER SETTINGS”
and press the SET button.
hThe Transfer Settings Screen
appears.

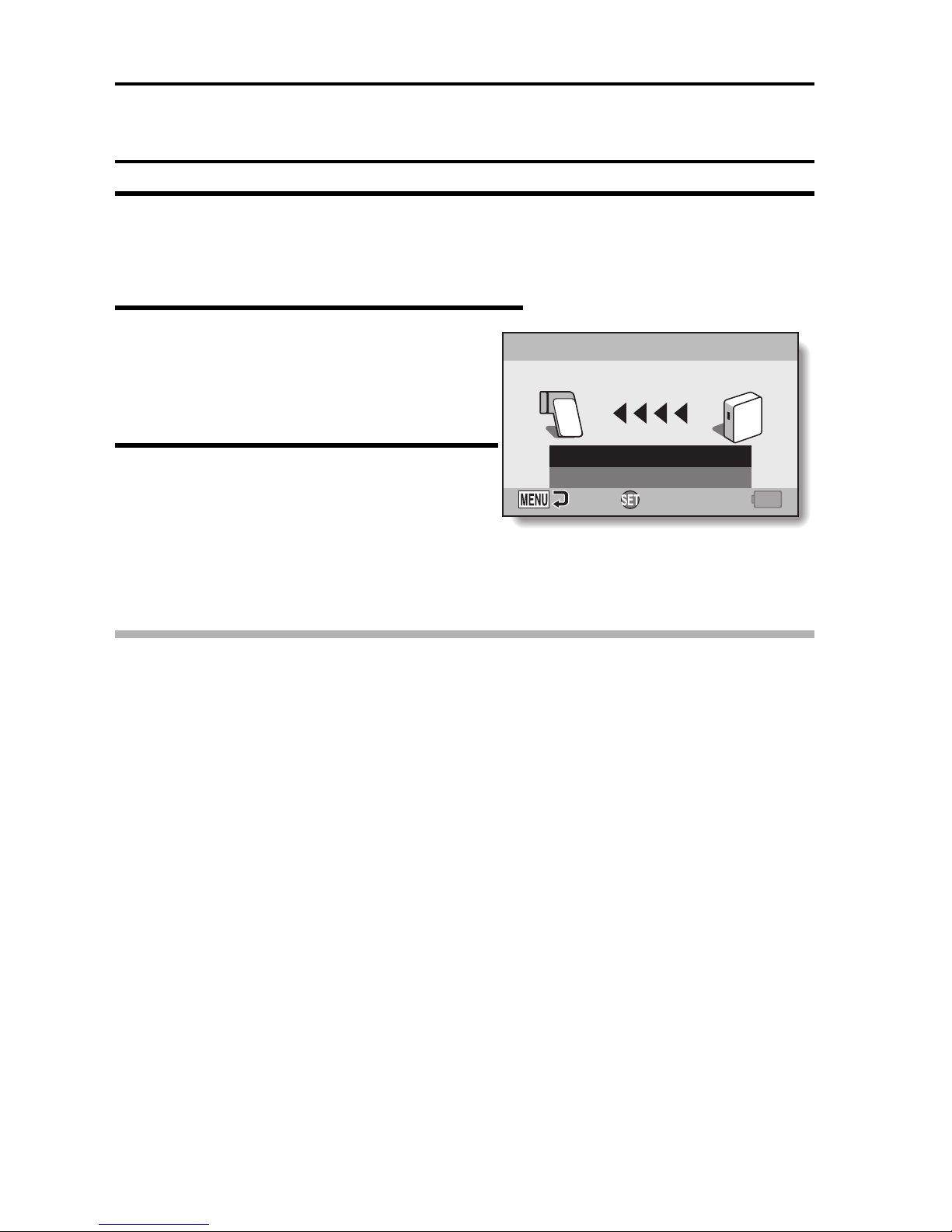

4 Select “FROM→TO”, and press
the SET button.
hThe screen to set the transfer
direction appears.
LIBRARY→CARD:
Copy files from the hard disk to the
card.
CARD→LIBRARY:
Copy files from the card to the hard
disk.
OK
DATA TRANSFER
BEGIN TRANSFER
TRANSFER SETTINGS
OK
INFO DISPLAY
FROM ➞TO
DELETE AFTER TRANSFER
TRANSFER SETTINGS
OK
FROM ➞TO
CARD ➞LIBRARY
LIBRARY ➞CARD

13 English
COPY FILES FROM THE HARD DISK TO THE
CARD
5 Select “LIBRARY→CARD”, and press the SET button.
hYou are returned to the Transfer Settings Screen.
hThe screen to select the roll you wish to copy appears.
6 Select the desired roll, and press
the SET button.
hThe Data Transfer Screen
appears.
7 Select “BEGIN TRANSFER”, and
press the SET button.
hFile copying begins.
hWhen copying is complete, press
the SET button.
HINT
iWhen you select “DATA TRANSFER” on the Main Menu and press the
SET button, the data transfer direction automatically becomes
CARD→LIBRARY.
OK
DATA TRANSFER
BEGIN TRANSFER
TRANSFER SETTINGS

English 14
COPY
COPY SINGLE FILES
Copy individual files while using the TV or the monitor to confirm the file.
1 While the Playback Screen is displayed, press the MENU button,
select “COPY” from the Tab 2 menu of the NORMAL Mode Playback
Menu, and press the SET button.
hThe Copy Screen appears.
LIBRARY→CARD:
Copy files from the hard disk to the
card.
CARD→LIBRARY:
Copy files from the card to the hard
disk.
2 Display the file you wish to copy.
3 Select the desired copy direction, and press the SET button.
4 Select “COPY”, and press the SET button.
hCopying begins.
HINT
To delete files
iThe procedure to delete files is performed from the Playback Screen. The
procedure to delete files is the same as that for deleting files from the
camera.
iWhen copying files from the card to the hard disk, you can select to have
the original files deleted at the same time (page 16).
OK
CARD ➞LIBRARY
LIBRARY ➞CARD
COPY

15 English
COPY OPERATION SETTINGS
Specify the copy direction, as well as how files are treated after they are
copied.
Display the Transfer Settings Screen
1 Start Xacti Library (page 10).
2 Select “DATA TRANSFER” from
the Main Menu, and press the
SET button.
hThe Data Transfer Screen
appears.
3 Select “TRANSFER SETTINGS”
and press the SET button.
hThe Transfer Settings Screen
appears.
OK
DATA TRANSFER
BEGIN TRANSFER
TRANSFER SETTINGS
OK
INFO DISPLAY
FROM ➞TO
DELETE AFTER TRANSFER
TRANSFER SETTINGS

English 16
COPY
Specify how to treat files after they are copied
After copying a file, specify whether or not it will be deleted.
1 Display the Transfer Settings Screen (page 15).
2 Select “DELETE AFTER
TRANSFER”, and press the SET
button.
hThe screen to select whether or
not to delete the original file after
copying appears.
3 Select the desired option, and
press the SET button.
hYou are returned to the Transfer
Settings Screen.
HINT
iThe setting to delete the original file after copying can be made only when
copying files from the card to the hard disk. When copying files from the
hard disk to the card, this option is not available.
OK
DO NOT DELETE
DELETE
DELETE AFTER TRANSFER
