SERVICE MANUAL Colour Television
Product Code: 111359614 (CM21SP81)
111359634 (CM21SP81A)
Original Version
Chassis Series: AC5-CG
C2ES/C2ESA
FILE NO.
Model No. CM21SP81
CM21SP81A
(Middle East)
Give complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television trans-
mission system and power source differ
from the design specifications. Refer to the
specification table.
Specifications
Power Source . . . . . . . . . AC110-240V, 50Hz/60Hz.
Colour System . . . . . . . . PAL/SECAM/NTSC4.43/NTSC/PAL-60Hz
Television System . . . . . . B/G, D/K, K’, I, M/M
Channel Coverage . . . . . VHF: E2-E12, R1-R12, K1-K9, A2-A13, J1-J12
UHF: 21-69, A14-A69, J13-J62
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack ✕ 2 (1Vp - p, 75Ω)
Audio inputs: Phono jack ✕2 (436mVrms, more than 40KΩ)
Video monitor outputs: Phono jack ✕1 (1Vp - p, 75Ω)
Audio monitor outputs: Phono jack ✕1 (436mVrms, less than 600Ω)
Sound Output (RMS) . . . . 6W
Speaker . . . . . . . . . . . . . 6 cm ✕ 12 cm ✕2 pcs.
Dimensions . . . . . 619 (W) ✕ 461 (H) ✕ 485 (D) mm
Weight . . . . . . . . approx. 22.0 Kg
Specifications subject to change without notice.
REFERENCE NO. SM5110579
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
Service Ref. No. CM21SP81-00
CM21SP81A-00
-




+CH
MENU
TV/AV
VIDEOAUDIO

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service Adjustments with replacing Memory IC (IC802) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-25
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this ser-
vice manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take
necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high volt-
age check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .

A101
TUNER
SAW
FILTER
X161
IF IN 5/6
IC201
IF/VIDEO/CHROMA
SELECTED VIDEO OUT
EXT. VIDEO IN
19
20
21
R-OUT
B-OUT
G-OUT
IC501
VERT. /DEF.
23
27
VERT. OUT
HORIZ. OUT
15
IC801
CPU
T471
FBT
HEATER
Q431
H-DRIVE
Q432
H-OUT
HV
L902
DY
CRT UNIT
Q901
CRT
T431
H-DRIVE
TRANS.
HV
FOCUS
SCREEN
R
B
G
D1910
LED
A1901A
RC RECEIVER
FRONT CONTROL
KEYS
SW1901 - SW1906
IC802
EEPROM
4
3
6
5
SDA
SCL
32
12 28
ON-TIMER
RC-IN
KEY-IN
40
REAR
AV TERMINAL
VIDEO MONITOR OUT
AUDIO MONITOR OUT
46
44
VIDEO OUT
INT. VIDEO IN
42
VIDEO IN
AUDIO IN
SP901
IC001
AUDIO AMP.
261
AUDIO OUT
AUDIO OUT
SP902 12 8
52
54
SIF OUT
SIF IN
RGB
MATRIX
19 20 21
OSD R-OUT
OSD B-OUT
OSD G-OUT
OSD R-IN
OSD B-IN
OSD G-IN
14
15
16
180V
9V
REAR
AV
TERMINAL
FRONT
AV TERMINAL
VIDEO IN
AUDIO IN
SWITCH
VR631 130V
24V
11V
9V
5VRC
Reg.
POWER SUPPLY CIRCUIT
T611
CONVERTER
TRANS.
IC281
SECAM
7
9
R-Y OUT
B-Y OUT
35
34
17
VIDEO IN
1H DL
AUDIO OUT 2
AUDIO MONITOR OUT
51
EXT. AUDIO IN
-3-

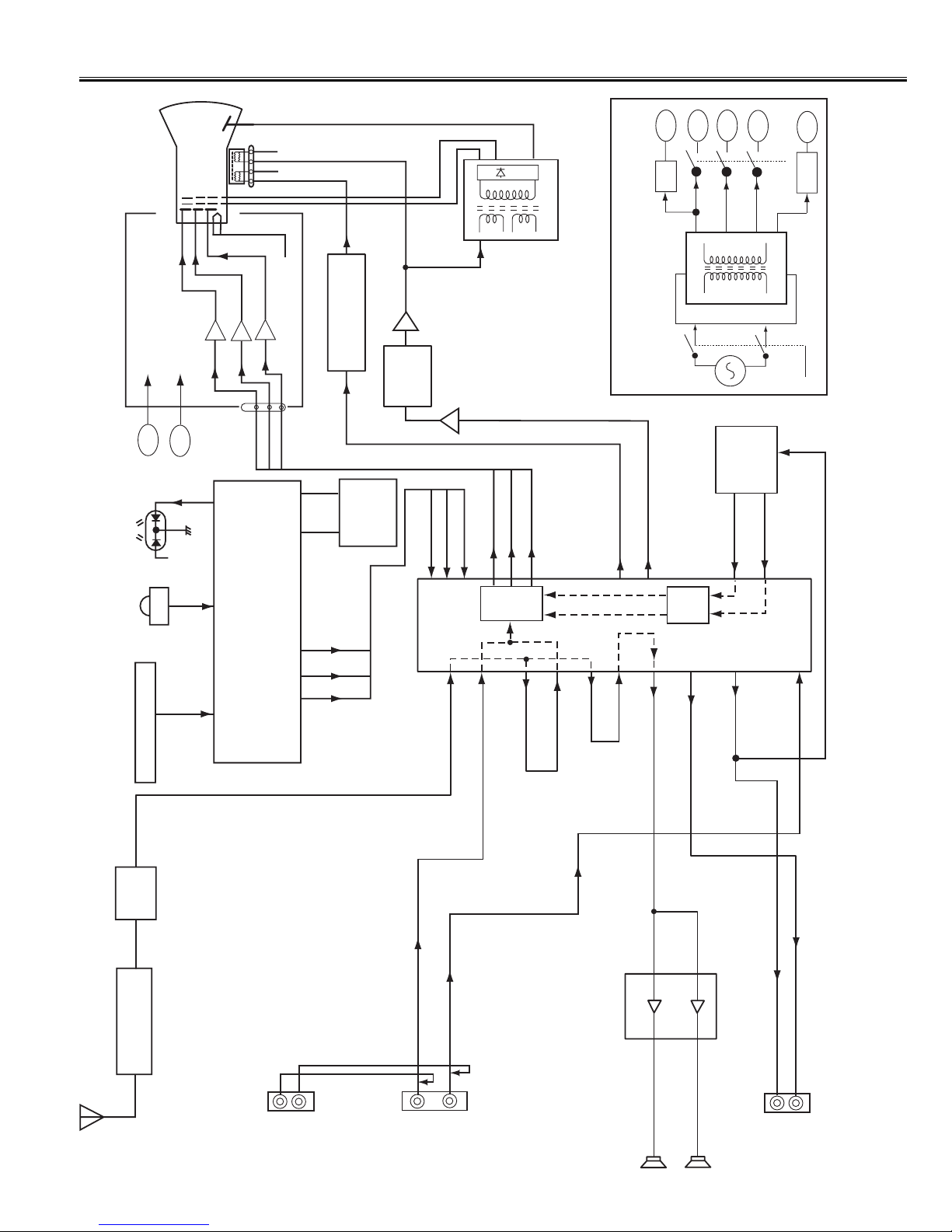

Chassis Block Diagrams (MAIN SIGNAL PROCESSING CIRCUIT)

-4-
Chassis Block Diagrams
SYSTEM CONTROL
BASS EXPANDER ON/OFF (ON=HIGH) BASS EXPANDER CIRCUIT
34
11 12
COLOUR SYSTEM OPTION INPUT
KEY SWITCH IN KEY
SWITCH
SCL
2
1
31
SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
IF/VIDEO / CHROMA/DEF.
IC801
CPU
QXXAVC305P
22
19 20
21
18
17
27
34
7 6
32
28
33
OSD BLK OUT(Active=High)
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High)
DEFLECTION
CIRCUIT
HORIZ. SYNC IN (ACTIVE=LOW)
VERT. SYNC IN (ACTIVE=LOW)
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
SCL
SDA
IC802
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
9 29
SOUND MUTE (MUTE=H)
IC001
AUDIO AMP.
VIF-M OUTPUT (HIGH=NTSC, LOW=OTHER)
A101
F/S TUNER
AFT SIGNAL INPUT
10
RESET INPUT (RESET=LOW)
13
56
SECAM KILLER INPUT (HIGH=SECAM)
SCL
SDA
11 12
5
4

-5-
IC Block Diagrams

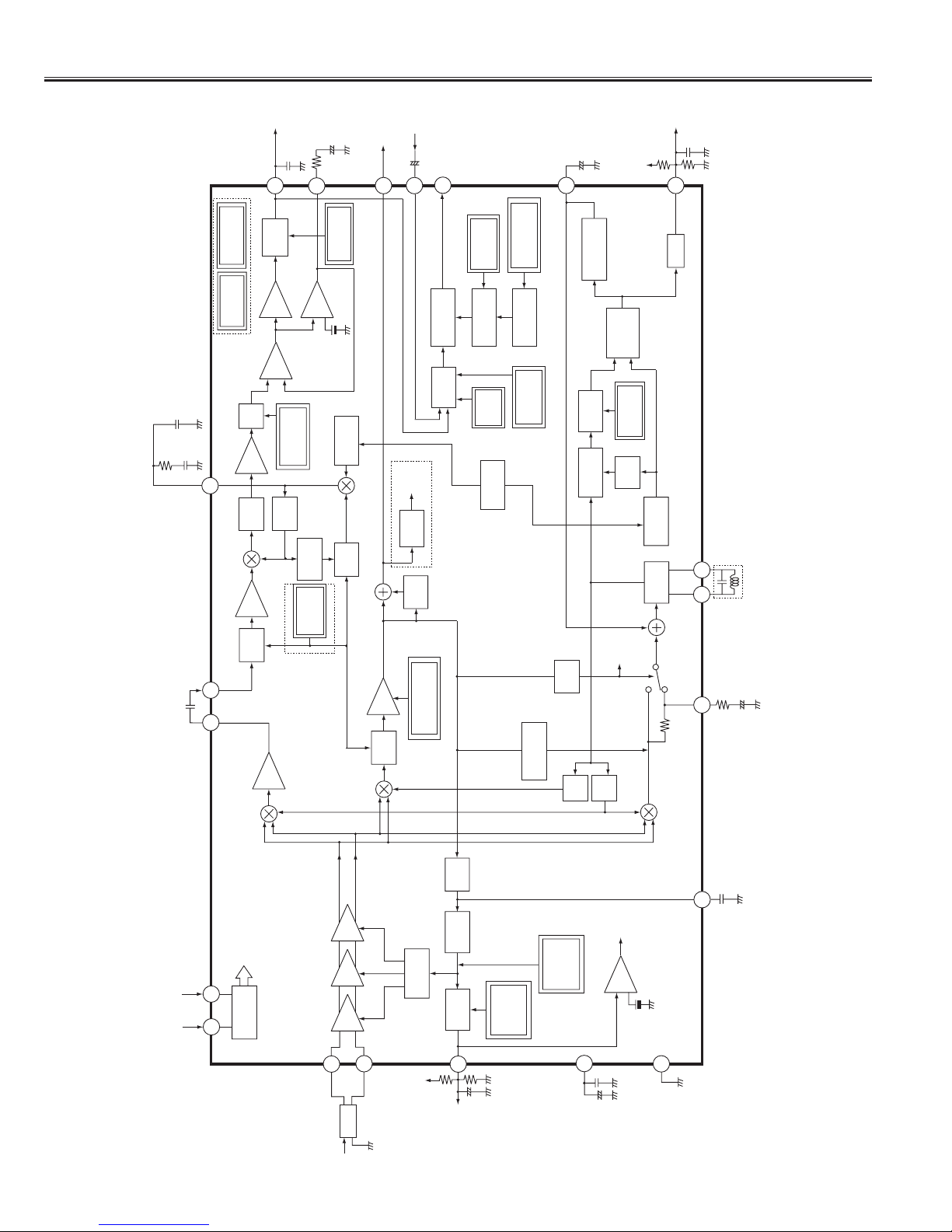

IC201 < IF/Video/Chroma/Def. > LA76818A
1
DC
VOL
SW
FM
DET
23456
IF
AGC
RF
AGC
VIF
7
8910
IF
VCC 5V
11 12 13
BUS
PEAKING
CORING
BLACK
STRETCH
SYNC
SEP
14 15
ABL
DC
REST
CLAMP
OSD
CONTRAST
BRIGHT
16 17 18 19 20
CONTRAST
BRIGHT
RGB
MATRIX
OSD
SW
DRIVE/OUT-OFF
VCC
21 22 23
FSC/
SYNC SW
24 25 26 27
VER
RAMP HOR
VCC
H
VCC
VER
C/D
HOR
OUT
PHASE
SHIFTER
AFC2
AFC1
VER
SEP
HOR
C/D
1/256
COLOR
CLAMP
LPF
ALC
+
SW
CLAMP
DEMO
PA L
SW
ACC
BPF
ON/OFF
DELAY
LINE
SW
TRAP
AFT
VIDEO
DET
TRAP
LIM
AMP
BPF
SPLL
BPF
VIDEO
AMP
IF
IDENT VIDEO
SW APC1 TINT
VXO DDS APC2
DC ADS.
CLAMP
VCO
1H DELAY
HOR
VCO
FBP
2829
30
31
32
1H
VCC
33
34
353637
38
39
40
41
42
CLMP
43
4445
CLMP
V/C VCC
5V
46
47
48
4950
A2C
PLL
51
525354
Audio Output
FM Output/Selected
Audio Output
PIF AGC
RF AGC Output
PIF Input1
PIF Input 2
IF Ground
IF Vcc
FM Filter
AFT Output
Bus Data
Bus Clock
ABL
Red Input
Green Input
Blue Input
Fast Blanking Input
RGB Vcc
Red Output
Green Output
Blue Output
fsc output or C
Sync output
Vertical Output
Ramp ALC Filter
Horizontal/BUS Vcc
Horizontal Output
Horizontal AFC Filter
Flyback Pulse Input
VCO IREF
Clock (4MHz) Outupt
CCD Vcc
CCD Filter
CCD/Horizontal Ground
SECAM B-Y Input
(Cb Input)
SECAM R-Y Input
(Cr Input)
Chroma APC2 Filter
Clamp Filter
4.43 MHz Crystal
Chroma APC1 Filter
Selected Video Output
Video/Vertical/BUS Ground
External Video Input(Y-IN)
Video/Vertical Vcc
Internal Video Input (S-C IN)
Black Level Detector
Video Output
VCO Filter
VCO Coil 2
VCO Coil 1
APC Filter
Ext. Audio Input
SIF Output
SIF APC Filter
SIF Input

IC Block Diagrams
-6-

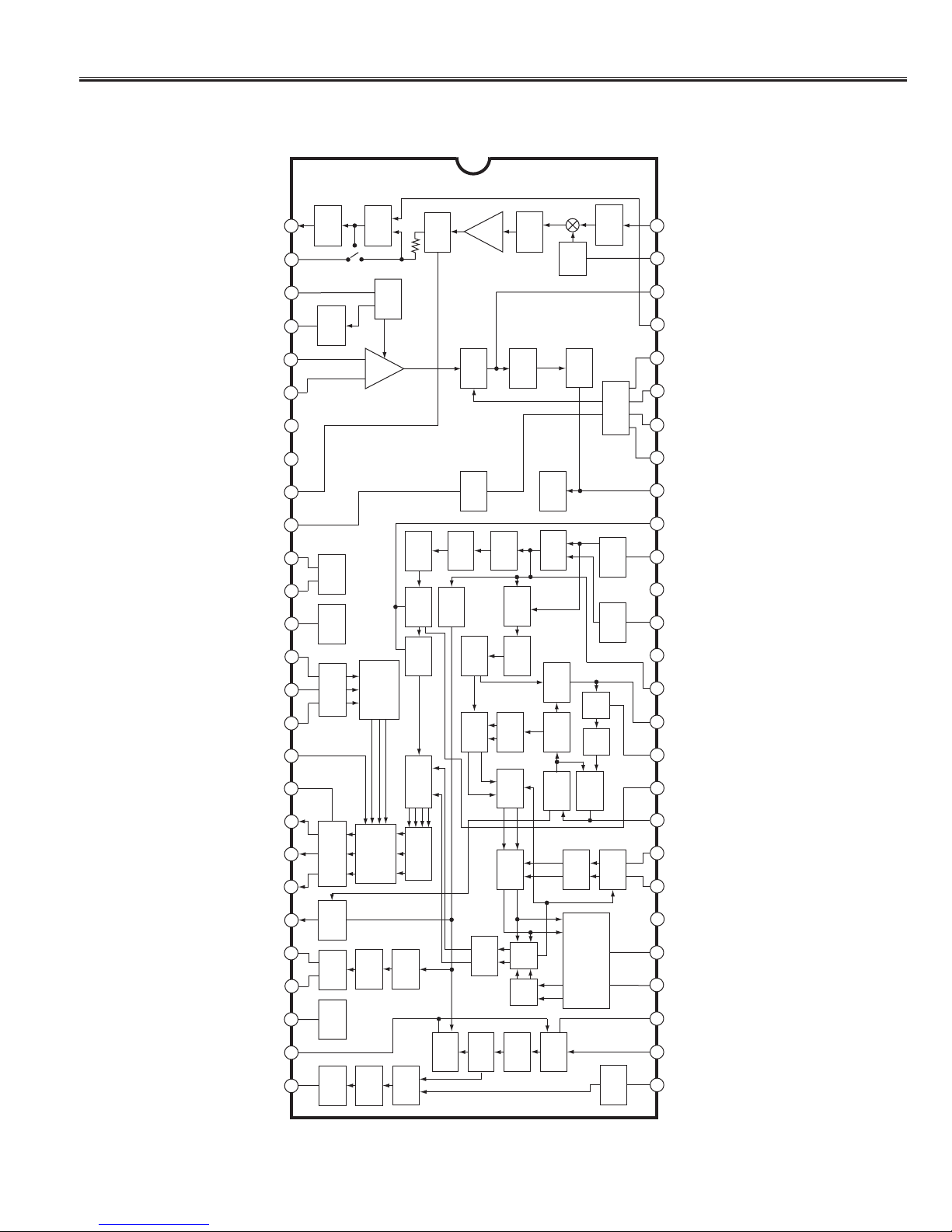

IC201 <IF System Block Diagram> LA76818A
11 12
BUS
Interface
SAW
5
6
4
8 7
PIF
In1
PIF
In2
IF In
9V
30K
RF AGC
Out
120K
IF VCC
IF
GND
VIF AMP
VIF 1 VIF 2 VIF 3
IF AGC
Drive
RF
AGC
2ndIF
AGC
RF AGC
Delay
6bit
IF AGC
Def
1bit
+
-
(6 Vcc)/7
To
BUS
3
0.022u PIF
AGC
IF
AGC
Data Clock
APC
Det
+π/4
-π/4
Snd
Det
Amp
52
SIF.Out
Sound
Tr a p
Video
Det
Buzz
Canceller
50
APC
Filter
330
0.47u +
PLL Pull-in SW
To
BUS
Lock
Det
Video.Level
3bit
Amp
54
10p
SIF.In
Sound
BPF
VCO.Coil
VCO
COIL1
VCO
COIL2
48 49
VIF
VCO
Chroma
Counter
B/N INV
IF
Ident
OSC
C/D
Amp
SIF. Sys
2bit
pre-
scaller
SIF
VCO
500K
BPF
SIF
APC
Filter
1K
0.01u 1000p
53
LIM
AMP
FM
Det
FM.Level
5bit
Chroma
C/D
APC
Det
500K
Det
To
BUS
Chroma
VCO
VIF
Counter
Reset
Pulse
VCO
Ident
VIF.Sys
2bit
Phase
Detector
A.MUTE
1bit
VOLUME
D/A
VOLUME
Filter
A.SW
1bit
Input
Select VOLUME
(ATT)
-
+
-
+
2.5V
Amp
FM Gain
1bit Deem-TC
1bit
De-
emph
FM Mute
1 bit
2
9
46
51
1
A.Fil.Def
1bit
VOLUME
7bit
47
VCO
Alignment
AFT 10 AFT
Vcc
100K
100K
0.1u
VCO
Filter
+
0.47u
Audio.out
+
Audio in
10u
Video
Out
FM
Filter
+
1u
FM
Out
0.01u
+
to BUS Line
+

-7-
IC Block Diagrams

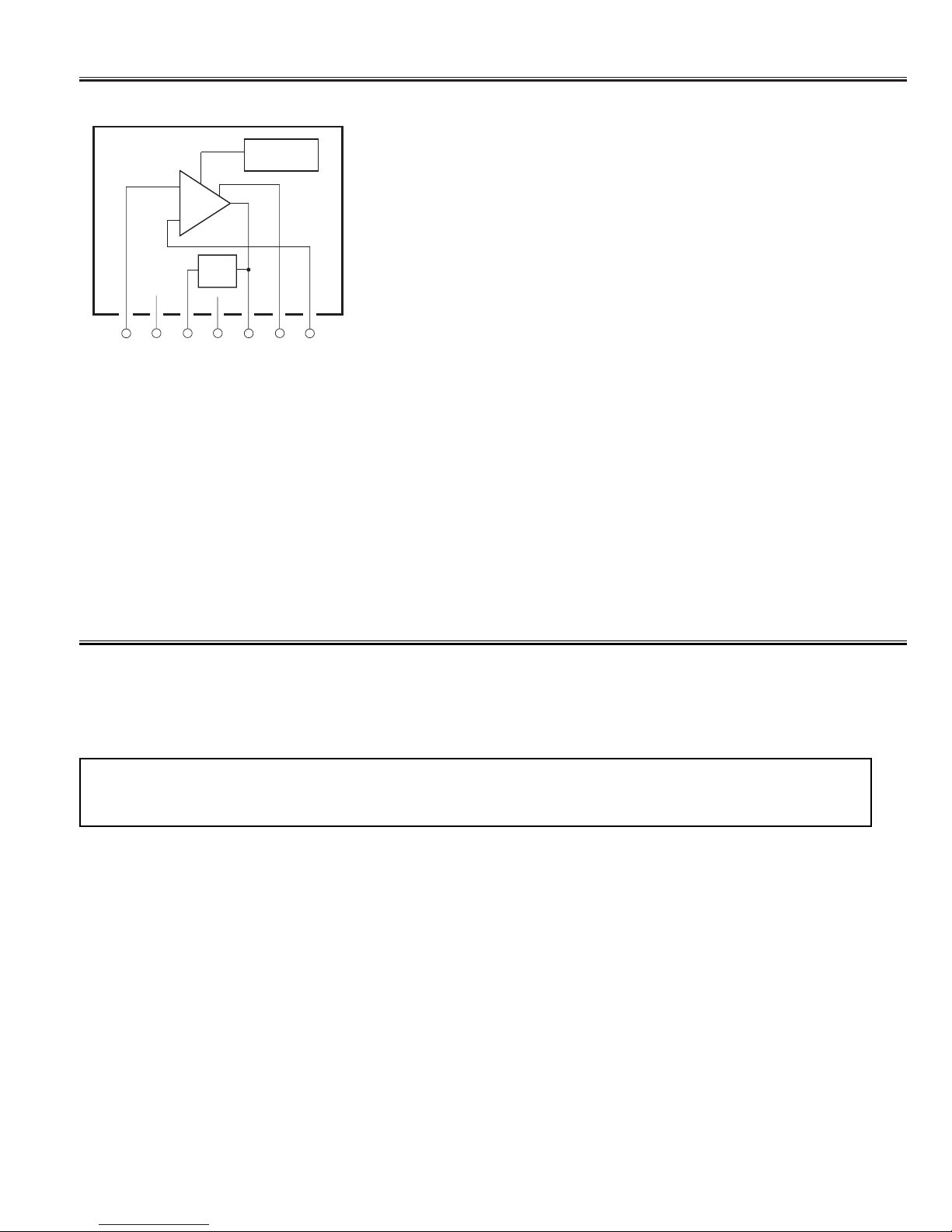

IC501 < Vertical Output > LA78040/N
Thermal
Protection
-
+
AMP
Pump
Up
1
INVERTING INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT STAGE Vcc
7
NON INV. INPUT
Service Information
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality
occurs during TV reception, the TV set goes to the stand-by mode.
When an abnormality occurs during TV reception, it causes pin 27 of the CPU to go continually Low(less than
0.75V) for about one second. The CPU detects that this has occurred and outputs the signal from pin 31 to
switch off the power supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again
via either the main power switch or the ON-OFF button on the remote control. This will work only if the power
supply trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be
restored and the circuit will have to be repaired.
■Protection Circuit

-8-
Service Adjustments with Replacing Memory IC(IC802)
Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each
circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].
[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & play : No executed
- Inhibit data : Cancelled
- Ch skip data : Cancelled
- Sound volume data : 10/63 steps.
- Volume Lock : OFF
- Tuning Lock : OFF
- Colour system : AUTO
1
CLR
Press and hold for more than 2 seconds
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
RF AGC Item 01, RF AGC
Horizontal centre Item 02, H-PHA
Vertical size Item 04, V-SIZ
Vertical-S correction Item 05, V-SCO
Vertical linearity Item 06, V-LIN
Gray scale Item 14-17, 19-21
Further adjustment please refer to page 12 and 13.
TV/AV MENU
CH

Service Adjustments with Replacing Memory IC(IC802)
-9-
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
01 RFAGC 0~63 31 RF AGC Adj.
02 H-PHA 0~31 9 H-Phase (H-Centering) Adj. (50Hz)
03 V-POS 0~63 40
V-Position (V-Centering) Adj. (50Hz)Fixed.
04 V-SIZ 0~127 78 V-Size Adj. (50Hz)
05 V-SCO 0~31 10 V-S Correction (50Hz)
06 V-LIN 0~31 20 V-Linearity Adj. (50Hz)
07 H-P60 -16~+15 +5 H-PHASE Adj. (60Hz)
08 V-S60 -
64~+32 0 V-Size Adj. (60Hz)
09 OSDHP 0~255 26 OSD H-Position Adj.
10 OSDC 0~127 45 OSD Contrast Adj.
11 V-SCP 0~7 7 Correction of the V-size
accompanying brightness change.
12 H-SCP 0~7 7 Correction of the H-size
accompanying brightness change.
13 SBIAS 0~127 105 Sub Bias Adj. (Do not change)
14 RBIAS 0~255 0 Red Bias Adj.
15 GBIAS 0~255 0 Green Bias Adj.
16 BBIAS 0~255 0 Blue Bias Adj.
17 RDRIV 0~127 64 Red Drive Adj.
18 GDRIV 0~15 8 Green Drive Adj.
19 BDRIV 00~127 64 Blue Drive Adj.
20 1-LINE APPEAR White Balance Adj.
21 DRV White Balance Adj.
22 B-YD 0~15 8 B-Y DC level Adj.
23 R-YD 0~15 8 R-Y DC level Adj.
24 B-YDN -
16~+15 0 NTSC B-Y DC level Adj.
25 R-YDN - 16~+15 0 NTSC R-Y DC level Adj.
26 SBDC -
16~+15
−6 SECAM B-Y DC level Adj.
27 SRDC - 16~+15 −2 SECAM R-Y DC level Adj.
28 G-YA 0,1 0 G-Y angle Adj.
29 RBGB 0~15 8 R-Y, B-Y Gain Blance Adj. (Do not change.)
30 RBAG 0~15 8 R-Y, B-Y Angle Adj. (Do not change.)
31 G-YAN 0,1 0 NTSC G-Y Angle Adj.
32 RBGBN - 16~+15 0 NTSC R-Y, B-Y Gain Balance Adj.
33 RBAGN - 16~+15 0 NTSC G-Y, B-Y Angle Adj.
34 COGV 0~3 0 Coring Gain Adj.
35 BLKS 0~3 3 Setting of Black stretch start.
36 BLKG 0~3 3 Setting of Black stretch gain.
37 BRTA 0,1 0 On and off of ABL.
38 BRST 0,1 0 Setting of ABL.
39 BRTH 0~7 0 Setting of ABL.
40 WPL 0~3 2 White peak limitter.
41 YGAM 0~3 0 Y Gamma setting.
42 PORW 0,1 0 Switching of Pre-shoot and
Over shoot in AV mode.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
DATA INITIAL
No. ITEM RANGE SETUP SCRIPTION
DATA
43 PORS 0~3 2 Pre-shoot/Over shoot Adj. in AV mode.
44 RFCO 0~3 0 RF Coring Gain Adj.
45 PORWN 0,1 0
Switching of RF Pre-shoot and Over shoot.
46 PORSN 0~3 0 RF Pre-shoot/Over shoot Adj.
47 TINT -16~+15 0 RF Tint Adj.
48 TINT443 -16~+15 -12 NTSC 4.43 Tint Adj.
49 SHRF -32~+31 0 RF Sharpness Adj.
50 TEXTC
- 128~+127 0 OSD TEXT Contrast.
51 VOLUM 0~255 127 Volume Control Adj.
52 DEEM 0~1 0 De emphasis TC.
53 VIFSW 0~3 0 VIF System Switch.
54 SIFSW 0~3 1 SIF System Switch.
55 V-LVL 0~7 4 Video Level Adj.
56 FMLVL 0~31 16 FM Level Adj.
57 IFOM-S 0,1 0 Over Modulation Switch
58 IFMN-S 0,1 1 Audio Monitor Switch
59
IFTRAPS 0,1 1 SIF Trap Switch ON/OFF
60 IFMLVL 0~255 136 Video Level & Modulation
61 TRAP-T 0~7 4 Trap Test
62 H-FRQ 0~63 34 Horizontal Frequency
63 FBTS 0,1 0 FBT Blanking Switch
64 COOP 0~7 7 Color Killer Option
65 HBLKL 0~7 7 H-Blanking Control. (Left)
66 HBLKR 0~7 3 H-Blanking Control. (Right)
67 AFCRF 0,1 0 RF AFC gain & Gate Adj.
68 VSRF 0,1 0 RF Vert. Sync. Separation Adj.
69 CDMRF 0~7 0 RF Vert. Count-Down Circuit Adj.
70 AFCAV 0,1 1 AV AFC Gain & Gate Adj.
71 VSUAV 0,1 0 AV Vert Sync. Separation Adj.
72 CDMAV 0~7 0 AV Vert Count-Down Circuit Adj.
73 HLVDRF 0,1 1 H Lock, V Detect RF
74 HLVDAV 0,1 1 H Lock, V Detect AV
75 VCO-SW 0,1 0 C-VCO Adj. Switch
76 VCO-ADJ 0~3 3 C-VCO Adj.
77 CROSS-BW 0~3 0 Output Pattern Picture
78
AVNCON
0~127 64 AV Blue Back Signal Contrast
79 AVNBRI 0~127 64 AV Blue Back Signal Brightness
80 POMT 0~127 25 Power Mute Time Adj.
81 CHMT 0~31 10 Channel Change Mute time Agj.
82 SYST 0~15 5 The number of times that a colour system AUTO is judged.
83 S-STE 0~3 0 Stereo/Mono Option. 0=MONO,
1=SIMPLE AV STEREO, 2,3=AV STEREO
84 VOLTBL 0~1 1 Volume Table
85 MPP 0,1 0 Multi Personal Preference function on/off
o=without M.P.P., 1=with M.P.P.
( /JE0090B)

-10-
Service Adjustments with Replacing Memory IC(IC802)
Notes: The initial value that the CPU writes down the CPU ROM data to the memory when replaced the memory IC.
TV set may not operate correctly with this initial value. It is required to set up the fine adjustment for service
adjustments described in the above.
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
86 TUNER 0,1 0 Tuner Option
87 AV123 0~3 0 AV1/AV2/AV3 Option, 0=AV only,
1=AV1, AV2, 2~3=AV1, AV2,AV3
88 OPT POS 0,1 1 Programme number Option,
Position No. Option, 0=100 pos., 1=256 pos.
89 GAME 0,1 1 GAME Option,
0=without GAE, 1=with GAME
90 LANGUAGE
0,1 1 Language Option,
0=without Language, 1=with Language
91 OPT COL 0~7 5 Colour System Option,
0~1=PAL only,
2=VMT, 3=China/Indonesia, 4=3 System,5~7=Multi
92 OPT SIF 0~7 3 SIF System Option
93 OPT BASS 0~3 2 Bass Expander Option,
0=without BASS, 1~2=BASS EXPANDER, 3=WOOFER
94 OPT SURR 0,1 0 Surround Option,
0=without SURROUND, 1=with SURROUND
95 SUB-BT 0,1,2 0
Audio IC (NJW1142)Sub Bass Treble adj.
96 A-AGC 0,1,2 0
Audio IC (NJW1142) AGC adj.
300 R00 0~255 154 ROM Correction
301 R01 0~255 242 ROM Correction
302 R02 0~255 166 ROM Correction
303 R03 0~255 246 ROM Correction
304 R04 0~255 3 ROM Correction
305 R05 0~255 0 ROM Correction
306 R06 0~255 0 ROM Correction
307 R07 0~255 0 ROM Correction
308 R08 0~255 2 ROM Correction
309 R09 0~255 229 ROM Correction
310 R10 0~255 144 ROM Correction
311 R11 0~255 13 ROM Correction
312 R12 0~255 239 ROM Correction
313 R13 0~255 141 ROM Correction
314 R14 0~255 238 ROM Correction
315 R15 0~255 141 ROM Correction
316 R16 0~255 237 ROM Correction
317 R17 0~255 141 ROM Correction
318 R18 0~255 236 ROM Correction
319 R19 0~255 141 ROM Correction
320 R20 0~255 235 ROM Correction
321 R21 0~255 141 ROM Correction
322 R22 0~255 33 ROM Correction
323 R23 0~255 155 ROM Correction
324 R24 0~255 6 ROM Correction
325 R25 0~255 33 ROM Correction
326 R26 0~255 154 ROM Correction
327 R27 0~255 246 ROM Correction
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
328 R28 0~255 0 ROM Correction
329 R29 0~255 0 ROM Correction
330 R30 0~255 0 ROM Correction
331 R31 0~255 0 ROM Correction
332 R32 0~255 0 ROM Correction
333 R33 0~255 0 ROM Correction
334 R34 0~255 0 ROM Correction
335 R35 0~255 0 ROM Correction
336 R36 0~255 0 ROM Correction
337 R37 0~255 0 ROM Correction
338 R38 0~255 0 ROM Correction
339 R39 0~255 0 ROM Correction
340 R40 0~255 107 ROM Correction
341 R41 0~255 127 ROM Correction
342 R42 0~255 7 ROM Correction
343 R43 0~255 3 ROM Correction
344 R44 0~255 234 ROM Correction
345 R45 0~255 144 ROM Correction
346 R46 0~255 3 ROM Correction
347 R47 0~255 33 ROM Correction
348 R48 0~255 166 ROM Correction
349 R49 0~255 249 ROM Correction
350 R50 0~255 33 ROM Correction
351 R51 0~255 167 ROM Correction
352 R52 0~255 34 ROM Correction
353 R53 0~255 0 ROM Correction
354 R54 0~255 0 ROM Correction
355 R55 0~255 0 ROM Correction
356 R56 0~255 0 ROM Correction
357 R57 0~255 0 ROM Correction
358 R58 0~255 0 ROM Correction
359 R59 0~255 0 ROM Correction
360 R60 0~255 0 ROM Correction
361 R61 0~255 0 ROM Correction
362 R62 0~255 0 ROM Correction
363 R63 0~255 0 ROM Correction
364 R64 0~255 0 ROM Correction
365 R65 0~255 0 ROM Correction
366 R12 0~255 0 ROM Correction
367 R13 0~255 0 ROM Correction
368 R68 0~255 0 ROM Correction
369 R69 0~255 0 ROM Correction
370 R70 0~255 0 ROM Correction
371 R71 0~255 0 ROM Correction
372 R72 0~255 160 ROM Correction

-11-
Service Adjustments with Replacing Memory IC(IC802)
ADDRESS
DRV
SI. 00100101S2.11111000
DATA
B 64
21 R 64
ADDRESS
V-SCO
SI. 00100101S2.11111000
DATA
9
05
ADDRESS
RF AGC
SI. 00100101S2.11111000
DATA
30
01

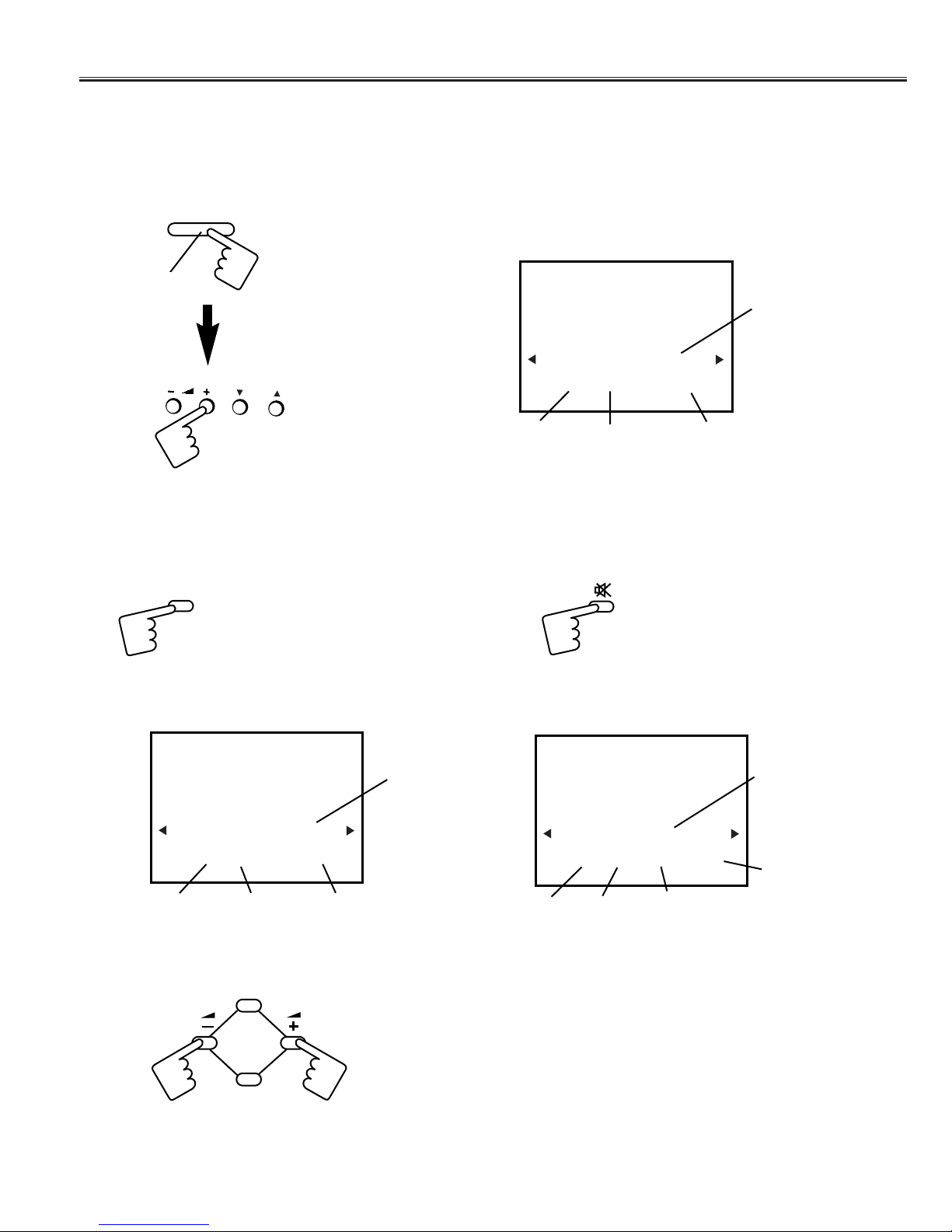

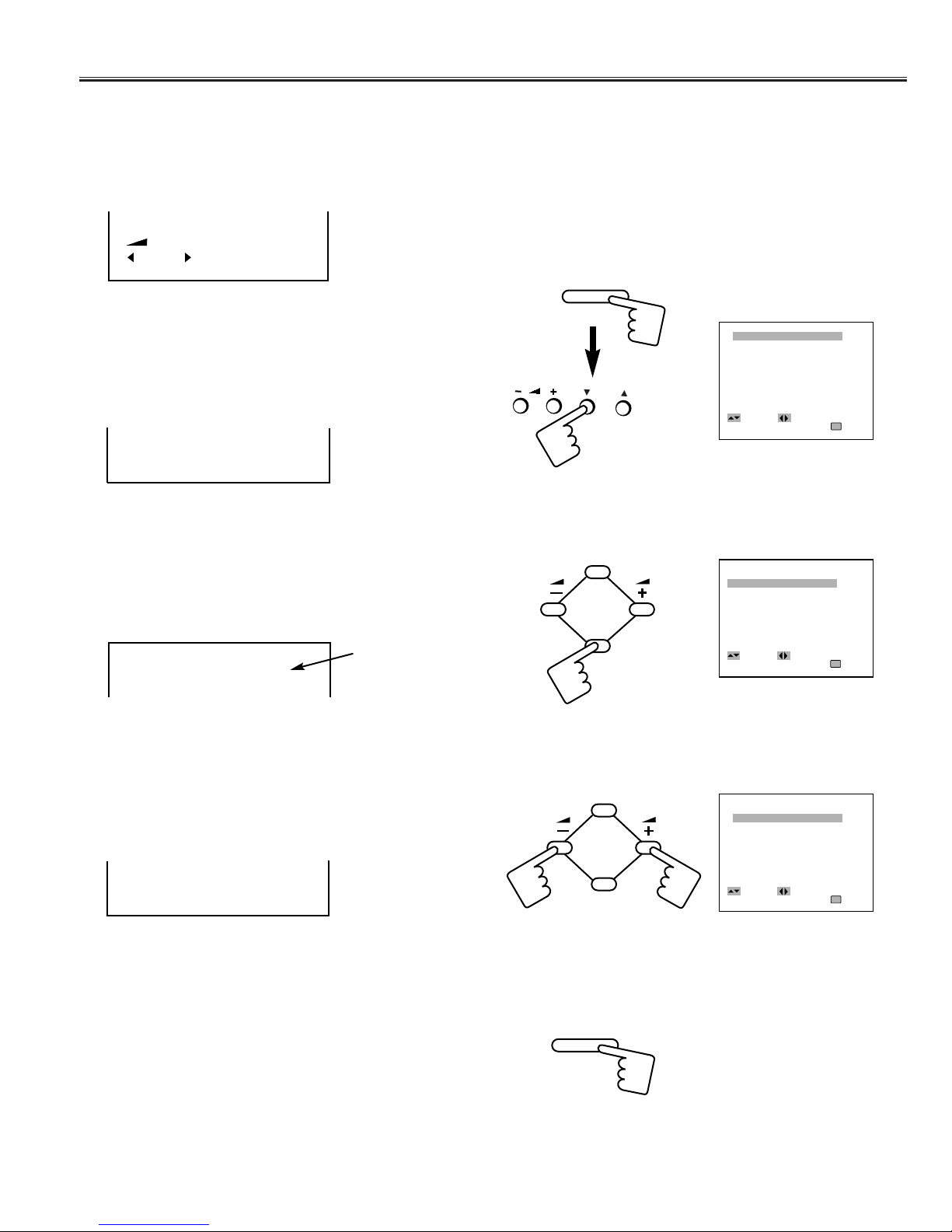

[Entering to Service Mode]
1. Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.
Following setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Read Status
Item No. Item Data value
Display for [RF AGC] RF AGC adjustment
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
MENU
MENU
01➔02➔03➔04➔05......96... ...92➔93➔94➔95➔96......01
TIMER
P▲
P▼
CH

-12-
Service Mode Adjustments
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 11.
NOTE: Do not attempt this adjustment with weak signal.

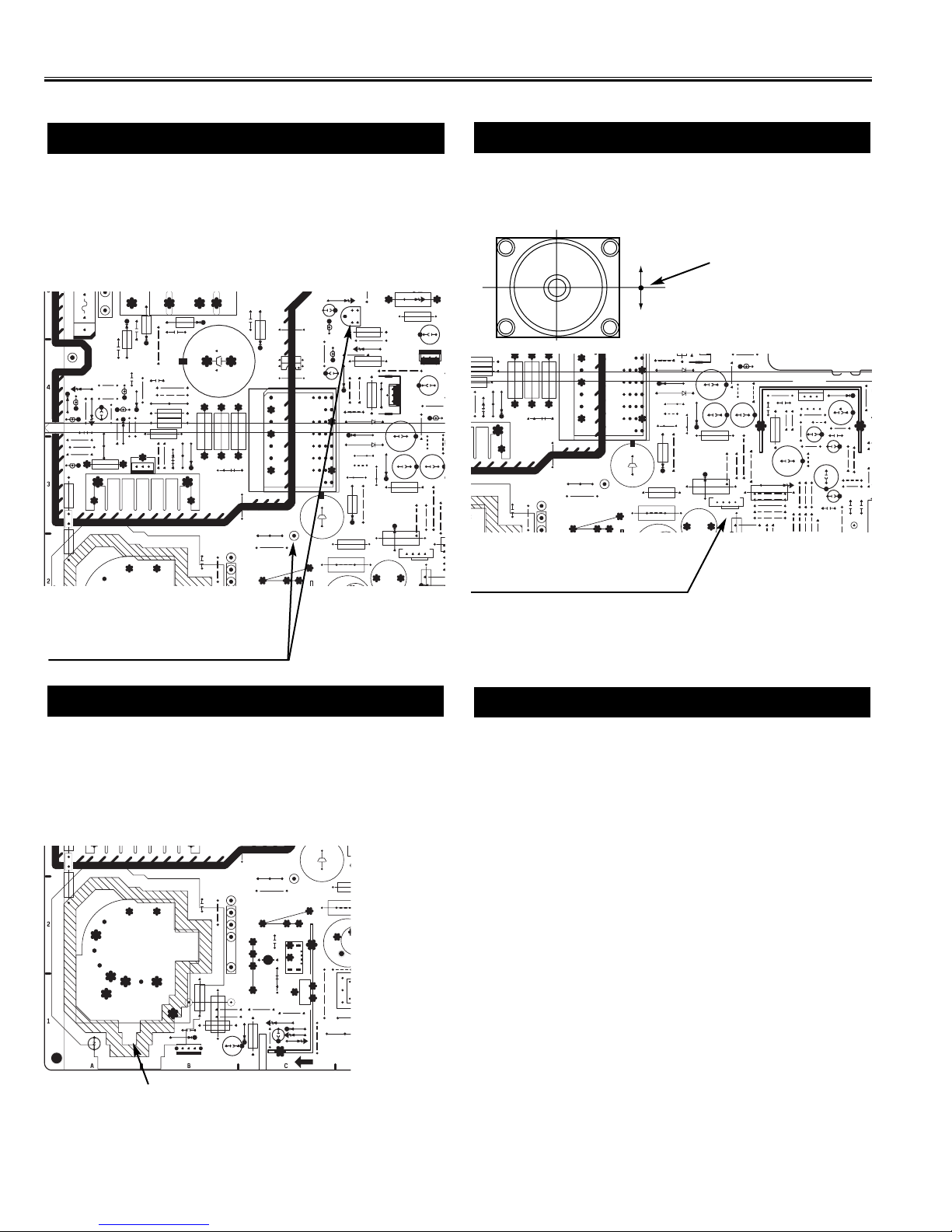

(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.
(2) Select [RF AGC] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from service mode.
Item 01 [RF AGC] AGC
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [H-PHA] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from service mode.
Item 02 [H-PHA] HORIZONTAL CENTRE
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Select [V-SIZ] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from service mode.
Item 04 [V-SIZ] VERTICAL SIZE
cUpper
Center
Bottom
d
e
a
b
Upper
Center
Bottom
Horizontal centre
Vertical size
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-SCO] in the service mode.
(5) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(6) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(7) Exit from service mode.
Item 05 [V-SCO] V-S CORRECTION
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-LIN] in the service mode.
(5) Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(6) Exit from service mode.
Item 06 [V-LIN] VERTICAL LINEARITY

-13-
Service Mode Adjustments
13
11
10
7
6
5
4
3
21
8
AC5CG CHASSIS
DIP
H
4
C441-H4
C441-H3 C441-H2 C441-H1
TP-B
C435-H4 C435-H3 C435-H2 C435-H1
R629
JP486
R
R355
C524
KDY-1KDY-3
KDY-4
KDY-5 JP442
C441B
J433
J402
C441
C441A
JP501
L441
L441A
L4
4
L441-H3
C437
JP437
R435A-H2
R435A-H1
R435
JP436
C435A
C436
C436A
C435C435B
KDY-6
KDY
Q432-H5
Q432
Q432-H3Q432-H1
Q432-H4
Q432-H2
D421
D468
R479
R426
R422
R423
R424
D476
C469
D467
R475
C486
C491
D485
R488 R481
KQ
C471
T471A
T471-H11
T471-H10
T471
T471-H8
T471-H7
T471-H2
T471-H12
T471-H1
T471-H4
L631
12
C641
R485
D448
R486
FBT
H
(1) Receive the monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Set each value of Item-14 RBIAS, 15 GBIAS, 16 BBIAS, 17 RDRIV and 19 BDRIV mode to 64.
(5) Select Item-20 mode to be one horizontal scanning line and turn the screen volume on the FBT to obtain just visible
one coloured line.
(6) Press the 1 (Red Bias
-
), 2 (Red Bias +), 5 (Green Bias
-
), 6 (Green Bias +), 9 (Blue Bias
-
)or 0 (Blue Bias +)
button to adjust the brightness of each colour until a dim white line produced. Please see the control button alloca-
tions in this mode.
(7) Select Item-21 DRV mode to enter the white balance adjusting mode.
(8) Press the 3 (Red Drive
- ), 4 (Red Drive +), -/-- (Blue Drive - )or RECALL (Blue Drive +) button alternately to
produce normal black and white picture.
(9) Exit from the service mode.
(10) Check for proper grey scale tracking at all brightness levels.
NOTE: If the grey scale adjustment is made after picture tube replacement, check the high voltage.
Items 14-17, 19-21 GREY SCALE
MAIN BOARD
SCREEN VR
(Under side)
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
Red Bias
-
Red Bias +
Green Bias -
Blue Bias +
Red Drive +
Blue Drive -
Blue Drive +
Green Bias +
Blue Bias -
Red Drive -
Press the MENU
button to exit
from service
mode.

-14-
Service Adjustments
Following adjustments are not required to readjust when replacing the memory IC.
Note: +B (+130V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage Check.
(1) Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2) Tune receiver to an active channel and confirm TV is
operating properly.
(3) Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
voltage is within 24.0 KV and 26.5 KV at maximum
beam current.
(4) Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 28.0 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
10
7
E
2
7
9
7
7
10
1
C644
C643
D632
C632
D634
C634
D633
C633
R642
C631
R643
T611-H14
T611-H10
T611A
Q683
JP683
IC501-H1
IC501
IC501-H2
R512
C518
C520
R519
R518
R514
R515
C510
C517
C521
R516
C514
R511
C232
C231
R357
C210
C201
C202
R211
J211
J2
3
C515
R522
D512
J521
C511
J511
R510
T611B
J609
Q613-H4
Q613-H2
T611-H7
T611-H4
3
-H1
R613Z-H2
R613Z
C611A
R
617
C608A
R613-H2
3
Z-H1
R605
C608
R611
R604
R603
R613
0
4-H1
R604-H2
C611
L604
D611
C629
J2
3
J2
8
J2
8
J2
8
J212
JP204
J285 J286 J287
T611C
D662
J202
J633
D507
J502
J243
J525
J631
D631
J
1
C441-H4
C441-H
3
C441-H
2
C441-H1
D682
TP-B
R352
R501
R525
R355
C524
KDY-4
KDY-5
L442-H1
L442-H2
JP442
C441B
C441
JP501
R441
L442
L441-H2
KDY-6
T471A
1
L631
J421
J468
J241
J352
R212
D249
R243
C641
SW501
J501
JP632
J512
J
1
JW201
V-CENTER
VERT.-OUT
10
16
17
E
12
43
KE-1 KE-2
E
E
E
E
E
F601
T
4AL250V
KG
16 9
71
17
1016
E
E
3
21
A
C627
C644
C643
JP633
D632
C632
D634
C634
D633
C633
R662-H1 R662-H2
R662
C
661
Q661A
R642
C631
JP631
R638
R639
D686
R637
R635
VR631
D685
J645
Q661
5
R643
D661
C610
T611-H14
T611-H10
T611A
B
R661
C662
Q683
JP683
R686
C521
J521
T611B
R623
D605
D610
J609
Q613-H4
Q613-H5
Q613-H2
Q613-H3
Q613-H1
T611-H7
T611-H4
T611-H2
R616
R624
Q616
R622
D618
R621
Q615
R613-H1
R613Z-H2
R613Z
Q613-H
Q613
C611A
R617
C608A
R613-H2
R613Z-H1
R605
C604
D604
C603
R602-H4 R602-H3
J603
C606
D606
R602-H2
D603
C605
TP-EE
F601B
G
-2 KG-3
L605
J605
R618
D613
C608
C607-H2
C607
R611
R612
R604
R603
C612
R613
Q612
D617
R607
C613
R619
C614
R604-H1
R604-H2
R612-H2 R612-H1
C611
L604
Q611
Q614
D611
L603
R609
R620
R606
R615
D616
D619
C629
C628
T611C
T611
D662
R631
C635
C607-H1
R602-H1
Q635 Q686
J633
R628
D507
J502
J243
J525
J631
D631
C441-H4
C441-H3 C441-H2 C441-H1
D682
TP-B
R352
R629
R501
R525
R355
C524
KDY-4
KDY-5
L442-H1
L442-H2
JP442
C441B
C441
JP501
R441
L442
L
L441-H2
KDY-6
T471A
T471-H2 T471-H1
L631
C641
SW501
J501
C615
D645
C654
R654
D654A
D654
JP632
JP654
Q613A
V-CENTER
+B ADJ.
13
11
10
7
6
5
4
3
21
8
AC5CG CHASSIS
DIP
H
4
C441-H4
C441-H3 C441-H2 C441-H1
TP-B
C435-H4 C435-H3 C435-H2 C435-H1
R629
JP486
R
R355
C524
KDY-1KDY-3
KDY-4
KDY-5 JP442
C441B
J433
J402
C441
C441A
JP501
L441
L441A
L4
4
L441-H3
C437
JP437
R435A-H2
R435A-H1
R435
JP436
C435A
C436
C436A
C435C435B
KDY-6
KDY
Q432-H5
Q432
Q432-H3Q432-H1
Q432-H4
Q432-H2
D421
D468
R479
R426
R422
R423
R424
D476
C469
D467
R475
C486
C491
D485
R488 R481
KQ
C471
T471A
T471-H11
T471-H10
T471
T471-H8
T471-H7
T471-H2
T471-H12
T471-H1
T471-H4
L631
12
C641
R485
D448
R486
FBT
H
(1) Connect DC meter to TP-B and the ground.
(2) Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3) Adjust B-voltage to be 130 ± 1V DC by using VR631.
B-VOLTAGE SUPPLY CHECKING
(1) Receive the monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
MAIN BOARD
B-Voltage Supply Adjustment
Focus VR
(Upper side)
MAIN BOARD
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Adjust the vertical centre of the picture with SW501.
VERTICAL CENTRE
Vertical centre
Vertical Cerntre Adjustment

-15-
Special Function
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
1To enter into the special function setting mode, press and hold the MENU button of the remote control, then press the
PROGRAMME DOWN button on the TV set.
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
2Select an item of the special functions by pressing the PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the
VOLUME + or
- button. To cancel, set to “ OFF”.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “91” to “99”
and “0” are set Music Mode. Only sound is provided and any
picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
AV
MUSIC Turns black
screen
4Press the MENU button of the remote control to return to
the normal TV mode.
(1) Volume Lock setting
P▲
P▼
P▲
P▼
SOUND
BASS EXPANDER ON
IIIIIIII
MENU
MENU
OFF
ON
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
OFF
OFF
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
CH

-16-
Purity and Convergence Adjustment
RED
BLUE
Adjust tabs together to
superimpose red and
blue horizontal line.
Figure- 2 BLUE AND RED LINE MOVEMENT Figure- 3 BLUE/RED AND GREEN MOVEMENT
Adjust tabs together to
superimpose red/blue
and green horizontal
line.
Adjust tabs angle to superimpose
blue and red vertical line.
Adjust tabs angle to superimpose
red/blue and green vertical line.
GREEN
BLUE / RED
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT
1. Demagnetize the picture tube and receiver using an external
degaussing coil. When replacing picture tube or deflection
yoke, mount deflection yoke and purity-convergence magnets
assembly properly, see figures 1 and 4.
2. Turn Red and Blue guns off and provide only Green raster.
Rotate Screen control to fully counterclockwise. Rotate Red
and Blue Bias controls fully counterclockwise. Slowly rotate
Green Bias control clockwise to produce Green raster.
3. Loosen the screw holding the Deflection Yoke and remove the
3 Rubber Wedges, and slide the Deflection Yoke fully forward.
4. Rotate and spread the Tabs of the two Purity Magnets to cen-
tre the vertical green belt in the picture screen. The Purity
Magnets are also adjusted to obtain vertical centring of the
raster.
5. Slowly slide the Deflection Yoke backward until a uniform
green screen is obtained.
6. Check the purity of the red and blue screens for uniformity,
turn off other colours to check this (use bias controls).
Readjust the yoke position if necessary until all screens are
pure.
7. Adjust each Bias control and screen control to obtain white
raster. Refer to Gray Scale Adjustment. If part of the picture
screen is coloured, adjust the Deflection Yoke position forward
or backward slightly.
8. Tighten the mounting screw of the Deflection Yoke. Adjust
Convergence next.
CENTRE CONVERGENCE ADJUSTMENT
1. Use a dot crosshatch pattern signal.
2. Turn Red and Blue guns on and turn off Green gun. Adjust the
angle between the Tabs of the Four Pole Magnet 1 and 2, and
superimpose the Red and Blue vertical lines in the centre area
of the picture screen. Refer to figure 2.
3. Keeping the mutual angle of the Tabs of the Four Pole Magnet
turn them together to superimpose the Blue and Red horizon-
tal lines in the centre area of the picture screen. Refer to fig-
ure 2.
4. Turn Green gun on and adjust Six Pole Magnet 3 and 4 that
the Green line superimposed on the Red/Blue lines.
This is the same procedure used in steps 2 and 3.
Refer to figure 3.
OUTER AREA CONVERGENCE ADJUSTMENT
Slightly loosen the screw holding the Deflection Yoke. Adjust the
Deflection Yoke to converge the detail in the outer area (left side
and right side) of the picture screen by orbital movement of the
front of the Yoke, then secure the Deflection Yoke in appropriate
position by putting the wedges as illustrated. Tighten screw hold-
ing the Deflection Yoke.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW
Figure 4. Deflection Yoke Movement
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)

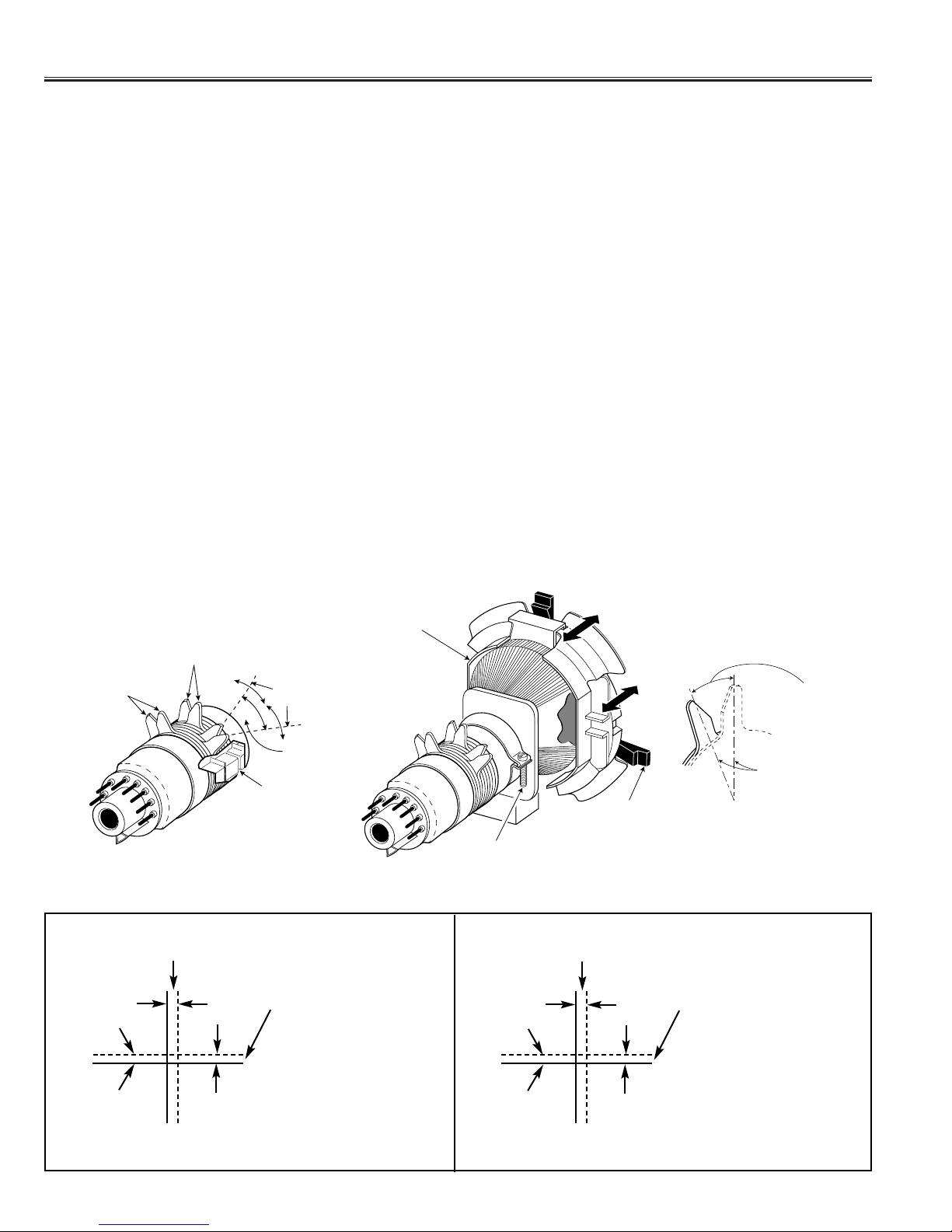

Figure 1. Purity and Convergence Magnets
MAGNET TABS
ANGLE OF MAGNET TABS
Figure 5. Adjusting Magnet

Cabinet Parts List
-17-
11
12
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
9
10
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
1 610 291 4665 BUTTON POWER-C4WD
610 229 8406 SPRING-E3HA
2 610 282 0386 DEC IND-F8PA
3 610 291 4672 BUTTON UNITED-C4WD
4 645 030 7348 BADGE,SANYO
or 645 039 1866 BADGE,SANYO
5 610 313 1825 ASSY. CABINET FRONT-C2ES
5-a 610 313 1801 ASSY. CABINET FRONT-C2ES
5-b 610 282 0393 GRILLE SPEAKER RIGHT-F8PA
5-c 610 282 0409 GRILLE SPEAKER LEFT-F8PA
5-d 610 274 0325 DEC SPEAER SHEET-F6FC
6 610 303 8438 CABINET BACK-C4WSA
7 610 310 7226 LABEL RATING-C2ES
(MODEL CM21SP81)
610 310 7233 LABEL RATING-C2ESA
(MODEL CM21SP81A)
8 610 256 7670 HOLDER AC CORD-SGP-D4VA
9 645 054 3579 ASSY,REMOCON JXMYA
10 610 300 5102 RC-BATTERY LID-JXMYA
11 645 042 4519 ROD ANTENNA ASSY
or 645 004 8616 ROD ANTENNA ASSY
or 645 004 8753 ROD ANTENNA ASSY
12 645 003 2837 ANT MATCHING BOX
or 610 230 3216 ANT MATCHING BOX
610 310 7417 INSTRUCTIONS MANUAL-C4FY
(English + Arabic)
610 310 7424 SIMPLIFIED INST-C4FY
(Spanish + Russian)
Key No. Part No. Description Key No. Part No. Description
-




+CH
MENU
TV/AV
VIDEOAUDIO
AUDIO IN VIDEO IN
AUDIO OUT VIDEO OUT
ANT. 75Ω
1
2
3
4
5-a
5-b
8
6
7
5-c
5-d

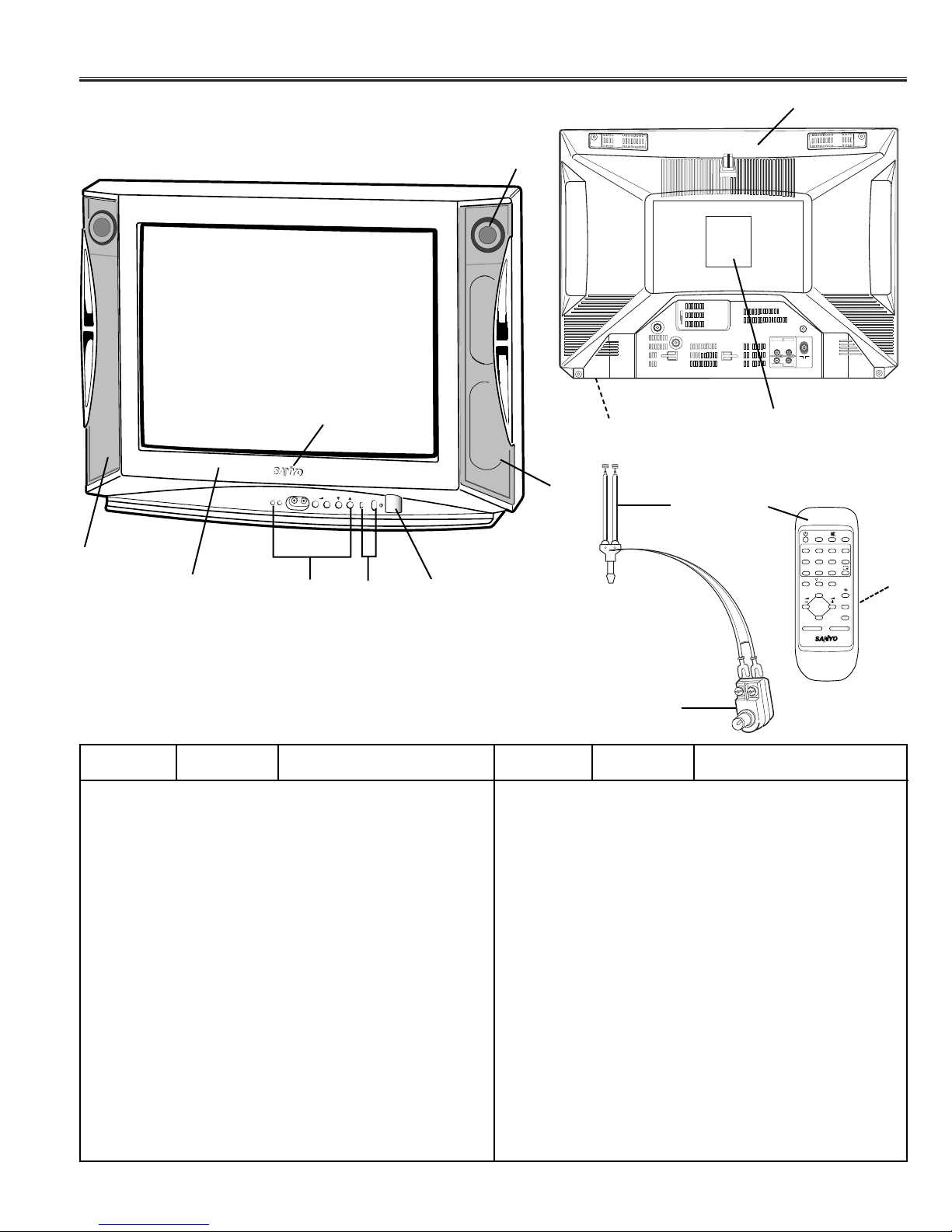

Model CM21SP81 & CM21SP81A

-18-
C2ES
OUT OF CIRCUIT BOARD
PICTURE TUBE
Q901 414 010 5502 CRT A51QAE320X (N)
COIL
L901 645 051 5514 COIL,DEGAUSSING
645 051 5521 COIL,DEGAUSSING
L902 645 038 3885 YOKE,DEFLECTION
MISCELLANEOUS
SP901 645 002 4313 SPEAKER,8
645 054 3050 SPEAKER,8
SP902 645 002 4313 SPEAKER,8
645 054 3050 SPEAKER,8
W901 645 039 9251 CORD,POWER-2.0MK-A5003
W902 610 311 4408 ASSY,WIRE GND CONNECTOR C
610 313 2174 ASSY,PWB,MAIN C2ES
1AA0B10S1290A
TRANSISTOR
Q011 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q021 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q031 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1003 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1004 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1011 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
!
!
!
!
Chassis Electrical Parts List (Model CM21SP81 & CM21SP81A)
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
Note: Parts order must contain Service Ref. No., Part No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF F : ±1PF G : ±2pF
R : ±0.25-0pF S : ±0-0.25pF E : +0-1pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10% Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES....Fusible
NOTES:

405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1012 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q111 405 015 9701 TR 2SC2814-F4-TB
Q122 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q173 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1902 405 134 5905 TR 2SA1037AK-T146-R
405 147 2205 TR 2SA1037AK-S-T146
405 002 0308 TR 2SA1037K T146 R
405 002 0407 TR 2SA1037K T146 S
405 002 6706 TR 2SA1179-M6-TB
405 002 6904 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
Q261 406 000 6804 TR 2SA1015-G(SAN)-TPE2
405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
Q431 405 018 0507 TR 2SC3332-R
405 018 0606 TR 2SC3332-S
Q432 406 017 1908 TR TT2140LS-YB11
Q611 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q612 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q613 405 181 4609 TR 2SK3264
Q614 405 006 6504 TR 2SA984-E
405 006 6702 TR 2SA984-F
Q615 406 000 6804 TR 2SA1015-G(SAN)-TPE2
405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
Q616 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q631 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q635 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q661 405 059 9903 TR 2SD1913-R-RA
405 060 0005 TR 2SD1913-S-RA
Q666 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q681 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q683 405 089 0000 TR 2SA1707-S
405 089 0109 TR 2SA1707-T
405 009 6907 TR 2SB985-S
405 009 7003 TR 2SB985-T
Q684 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q685 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q686 406 000 6804 TR 2SA1015-G(SAN)-TPE2
405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
Q818 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q861 405 134 5905 TR 2SA1037AK-T146-R
405 147 2205 TR 2SA1037AK-S-T146
405 002 0308 TR 2SA1037K T146 R
405 002 0407 TR 2SA1037K T146 S
405 002 6706 TR 2SA1179-M6-TB
405 002 6904 TR 2SA1179-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
-19-
C2ES
Ref. No. Part No. Description Ref. No. Part No. Description

-20-
C2ES
Q871 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q881 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q886 405 014 4509 TR 2SC2412K T146 R
405 014 4608 TR 2SC2412K T146 S
405 015 8704 TR 2SC2812-L6-TB
405 015 8902 TR 2SC2812-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
INTEGRATED CIRCUIT
IC001 409 568 6101 IC AN7522N
IC201 409 517 5902 IC LA76818A
IC202 409 241 5407 IC BA178M05T
409 265 4806 IC L78M05CV
409 172 1509 IC MC78M05CT
409 320 5700 IC UPC78M05AHF
IC281 409 564 6105 IC LA7642NM-TLM-E
IC501 409 449 4103 IC LA78040
409 507 0900 IC LA78040N
IC651 409 241 5407 IC BA178M05T
409 265 4806 IC L78M05CV
409 172 1509 IC MC78M05CT
409 320 5700 IC UPC78M05AHF
IC801 410 486 2007 IC LC863448W-XXXX-TLM
IC802 409 459 4506 IC 24LC16B/P
CAPACITOR
C001 404 084 8301 ELECT 470U M 16V
403 044 1703 ELECT 470U M 16V
C011 404 084 9209 ELECT 4.7U M 50V
403 051 0607 ELECT 4.7U M 50V
C012 404 087 5406 ELECT 22U M 50V
403 050 2800 ELECT 22U M 50V
C021 404 084 9209 ELECT 4.7U M 50V
403 051 0607 ELECT 4.7U M 50V
C023 403 215 2201 CERAMIC 0.01U K 50V
C024 403 215 2201 CERAMIC 0.01U K 50V
C026 403 113 4109 CERAMIC 2200P K 50V
C031 404 087 5406 ELECT 22U M 50V
403 050 2800 ELECT 22U M 50V
C1001 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C1002 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C1003 404 087 1606 ELECT 0.1U M 50V
403 047 8402 ELECT 0.1U M 50V
C1007 404 084 8806 ELECT 1U M 50V
403 049 0008 ELECT 1U M 50V
C101 404 084 8301 ELECT 470U M 16V
403 044 1703 ELECT 470U M 16V
C1010 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C1011 404 084 8004 ELECT 220U M 16V
403 043 0202 ELECT 220U M 16V
C1012 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C1013 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C1017 404 084 8806 ELECT 1U M 50V
403 049 0008 ELECT 1U M 50V
C106 404 084 9308 ELECT 47U M 50V
403 051 3103 ELECT 47U M 50V
C107 404 084 9308 ELECT 47U M 50V
403 051 3103 ELECT 47U M 50V
C111 403 215 2201 CERAMIC 0.01U K 50V
C112 403 215 2201 CERAMIC 0.01U K 50V
C113 403 215 2201 CERAMIC 0.01U K 50V
C120 403 284 4304 CERAMIC 0.022U K 50V
C121 403 215 2201 CERAMIC 0.01U K 50V
C122 404 084 7809 ELECT 100U M 16V
403 042 2405 ELECT 100U M 16V
C123 401 105 7909 MT-GLAZE 0.000 ZA 1/16W
C132 404 084 8707 ELECT 0.47U M 50V
403 048 6308 ELECT 0.47U M 50V
C135 404 084 8707 ELECT 0.47U M 50V
403 048 6308 ELECT 0.47U M 50V
C138 403 284 4304 CERAMIC 0.022U K 50V
C171 403 155 2101 CERAMIC 1500P K 50V
C172 403 215 2201 CERAMIC 0.01U K 50V
C174 403 157 1904 CERAMIC 10P D 50V
C178 404 084 9209 ELECT 4.7U M 50V
403 051 0607 ELECT 4.7U M 50V
C1902 404 087 5406 ELECT 22U M 50V
403 050 2800 ELECT 22U M 50V
C201 404 084 9803 NP-ELECT 1U M 50V
403 086 2300 NP-ELECT 1U M 50V
C202 403 058 2604 POLYESTER 0.015U J 50V
403 179 3207 POLYESTER 0.015U J 50V
C203 403 215 2201 CERAMIC 0.01U K 50V
C204 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C205 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C206 403 342 3300 CERAMIC 0.1U K 25V
C207 403 342 3300 CERAMIC 0.1U K 25V
C209 404 084 8707 ELECT 0.47U M 50V
403 048 6308 ELECT 0.47U M 50V
C210 404 084 8400 ELECT 1000U M 25V
403 045 1504 ELECT 1000U M 25V
C212 403 155 4204 CERAMIC 15P J 50V
C218 401 105 7909 MT-GLAZE 0.000 ZA 1/16W
C219 403 215 2201 CERAMIC 0.01U K 50V
C221 403 342 3300 CERAMIC 0.1U K 25V
C222 403 342 3300 CERAMIC 0.1U K 25V
C223 403 342 3300 CERAMIC 0.1U K 25V
C224 403 342 3300 CERAMIC 0.1U K 25V
C225 404 084 8806 ELECT 1U M 50V
403 049 0008 ELECT 1U M 50V
C226 404 084 8806 ELECT 1U M 50V
403 049 0008 ELECT 1U M 50V
C230 403 215 2201 CERAMIC 0.01U K 50V
C231 403 260 2904 MT-COMPO 0.33U J 50V
C232 403 260 2904 MT-COMPO 0.33U J 50V
C233 404 084 8905 ELECT 10U M 50V
403 049 4204 ELECT 10U M 50V
C234 403 215 2201 CERAMIC 0.01U K 50V
C243 403 215 2201 CERAMIC 0.01U K 50V
C244 404 091 5409 ELECT 1000U M 10V
403 039 9004 ELECT 1000U M 10V
C245 404 084 9803 NP-ELECT 1U M 50V
403 086 2300 NP-ELECT 1U M 50V
C246 404 084 8806 ELECT 1U M 50V
403 049 0008 ELECT 1U M 50V
C247 404 084 9001 ELECT 2.2U M 50V
Ref. No. Part No. Description Ref. No. Part No. Description
