Sanyo CP21G1(C) User manual

SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . .AC110 - 240V, 50/60Hz.
Colour System . . . . . . . .PAL, NTSC4.43, NTSC, PAL 60Hz
Television System . . . . .B/G, D/KK’, I, M/M
Channel Coverage . . . . .VHF: E2-E12, R1-R12, K1-K9, J1-J12, A2-A13,
0-11, 5A(Aus.), 1-11(NZ)
UHF: 21-69, A14-A69, J13-J62, 28-69(Aus.)
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . .38.0 MHz
Aerial Input Impedance .75Ω
Ext. Terminals
Video inputs: Phono jack 2 (1.0Vp
- p, impedance 75Ω)
Audio inputs: Phono jack 2 (436mVrms, impedance more than 40KΩ)
Video monitor output: Phono jack 1 (1.0Vp
- p, 75Ω)
Speaker . . . . . . . . . . . . . . ∅8 cm  2 pcs.
Sound Output (RMS) . . . 3W
Dimensions . . . . . . . . . . . 502 (W) 462 (H) 493 (D)mm
Weight . . . . . . . . . . . . . . .approx. 19.5 Kg
Specifications subject to change without notice
Original Version
Chassis Series: AC6-A
C4MVC
FILE NO.
Model No. CP21G1(C)
Service Ref. No. CP21G1-20
(Australia)
Give complete “SERVICE REF. NO.” for parts
order or servicing. It is shown on the rating plate
at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Product Code: 111367036
REFERENCE NO. SM3010080
CH
VIDEO AUDIO
TV/AV MENU
POWER
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSC
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 1

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
CPU Port Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service Adjustment with Replacing Memory IC(IC801) . . . . . . . . . . . . 8-11
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mechanical Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-25
Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Voltages and Waveforms Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high
voltage check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:48 AM Page 2

IC001
AUDIO AMP.
A101
TUNER
IC801
MEMORY
IC201
CPU/CHROMA/
IF/VIDEO/DEF.
RC
RECEIVER
LED
FRONT
KEYS
AUDIO (L)-IN
AUDIO (L)-IN
AUDIO (L)-OUT
V-IN
V-OUT
SP901
IC501
VERTICAL
Q431
T431
H-DRIVE
TRANS Q432
STB
10
R-OUT
G-OUT
B-OUT
V-OUT
H-OUT
KEY-IN
RC-IN
ON-TIMER
VIDEO-IN
OUT
IF OUT
X161
SAW
FILTER IF-IN
IF-IN
VIDEO-OUT
T471
FBT
SDA/SCL
T611
CONVERTER
TRANS
5V-1
5VRC
9V
24V 14V
130V
IC202
IC651
PRIMARY
CIRCUIT
D610
HV
FOCUS
SCREEN
Q901
CRT
L902
DY
AC
(Power ON=High)
17
1
12
13 14
21
54
52 29
26
39
31/32
5/6
4
8
63
64
5
CPU, TUNER, MEMORY
VERTICAL
AUDIO AMP.
FBT, TUNER
AUDIO CONTROL CPU, VERTICAL
11
14
12 13
ABL
10 FEED BACK
V-IN
AV-FRONT
AV-REAR
+
VIDEO-IN 46
AUDIO-OUT 6
5
FM-OUT
EXT. AUDIO-IN 9
-3-

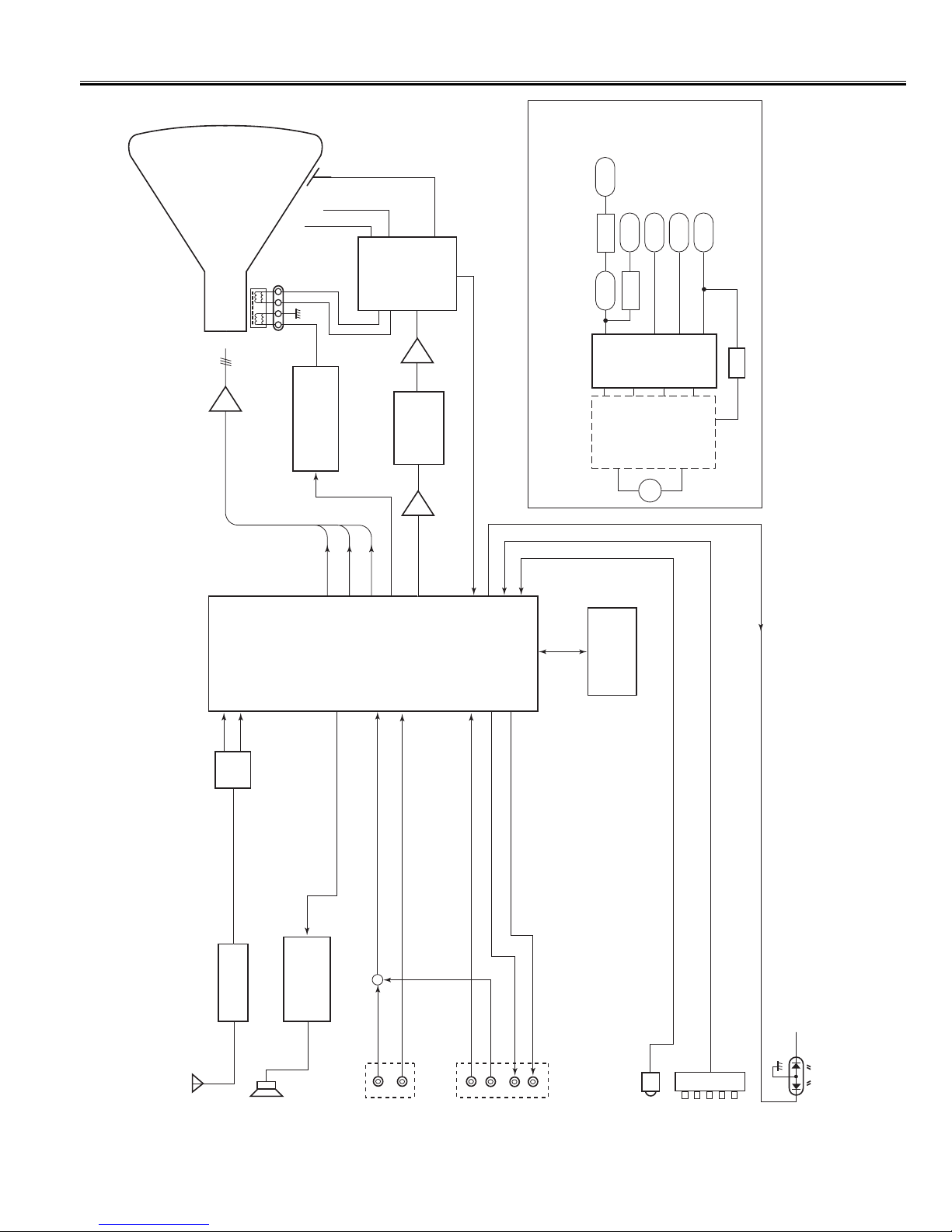

Chassis Block Diagrams
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 3

Chassis Block Diagrams
-4-
39 KEY SWITCH IN KEY
SWITCH
IIC SCL
32
31
36
IIC SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
QXXAVC647---N
12 13
14
23
3132
34 33
29
26
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High) CRT UNIT
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
IIC SCL
IIC SDA
IC801
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
30
SOUND MUTE (MUTE=H)
IC001
AUDIO AMP.
A101
F/S TUNER
RESET INPUT (RESET=LOW) 40
56
5
4
9
EXT. AUDIO INPUT
System Control
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 4

-5-
IC201 < CPU/IF/Video/Chroma/Def.> LA76931AD56S1-E
IC Block Diagrams
CLOCK
CONTROL
I/O
PORT 0
RAM
ROM
BASE
TIMER
CPU
CORE
OSD BUS CLOCK
CONTROL TIMER
0ADC
RST
PLL
VDD
AFT
RESET
CPU TST R
CPU TST G
CPU TST B
CVBS
PDC
ENABLE
VS
HS
R
G
B
FS
I
DATA
CLOCK
C-SYNC
I/O
PORT 1
V DET
RESET
BUS
HS
VS
FBP
AFC1
AFC2
PHASE
SHIFTER
HOR
VCC
VER
RAMP
VER
SEP
SYNC
SEP
COLOR
CLAMP
TINT
D1 SW
1H DL
HOR
VCO
1/256
HOR
C/D
CLMP
DC ADJ
APC2
DDS
VXO
VCO
FSC
SYNC APC1
ACC
YC SW
PAL SW
DEMO
BPF
VIDEO
SW
CLMP CLMP
DC
REST
TRAP V/Y
SW
DL
SHARP
BG SG
RGB
MATRIX
CONTRAST
BRIGHT
VER
C/D
OSD
SW
OSD
OSD
CONTRAST
ABL
ACL DRIVE/OUT-OFF
HOR
OUT
SPLL
AFT
VIDEO
AMP
DAH
VCO
SW
RF
AGC
TRAP
IF
AGC
VIF
AMP
VIDEO
DET
SOUND
DET
LIM
AMP
BPF
500K
DET
BPF
FM
DET
FM
AMP
SW
DC
VOL
18P
15P
510K
0.01U
100U
+
VDD
AN4/P04
AN5/P05
AN6/P06
AN7/P07
150K
0.33U
2.2U 100
0.033U
CPU GND
0.01U
100
100U
20K
FBP
0.1U
YC-C
YC-Y
1U
1U
750
1U
DVD-Y
CB
0.1U
4.43M
0.1U
CR
SVO/FSC
0.047U
0.47U
12K
1U
0.01U
100U
EXT-V
VCC:5V
VCD
INT-V
VCC
OUT
VIDEO
RF-AGC
IF IN
1U
680K
2.2U
560 0.47U
47K 47K
0.1U
SAW
FIL
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
+
+
+
+
+
+
+
+
+
+
+
10P
0.022U
39K 1U
+
0.022U
1500P
10K 0.01U
+
100U
0.01U
+
10U
+
100U
42
+
0.01U
FM
OUT
VOLUME
OUT
5V EXT-AUDIO
IN
ABL RGB
9V
R
OUT
G
OUT
B
OUT
V RAMP
0.47U
(M)
0.015U
(M)
VER
OUT
(METAL FILM)
4.7K
+
100U
0.01U
120
VDD
0.015U
+
1U 3K
HOR
OUT
1CHIP GND
INT0/P00
INT1/P01
P02
INT3/P03
IRAD
PWMI/P14
PWM2/P15
P17
PWM3/P16
SDA1/P12
SCK1/P13
32
3130
29
28
27
26
25
24
23
22
21
2019
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 5

-6-
IC Block Diagrams

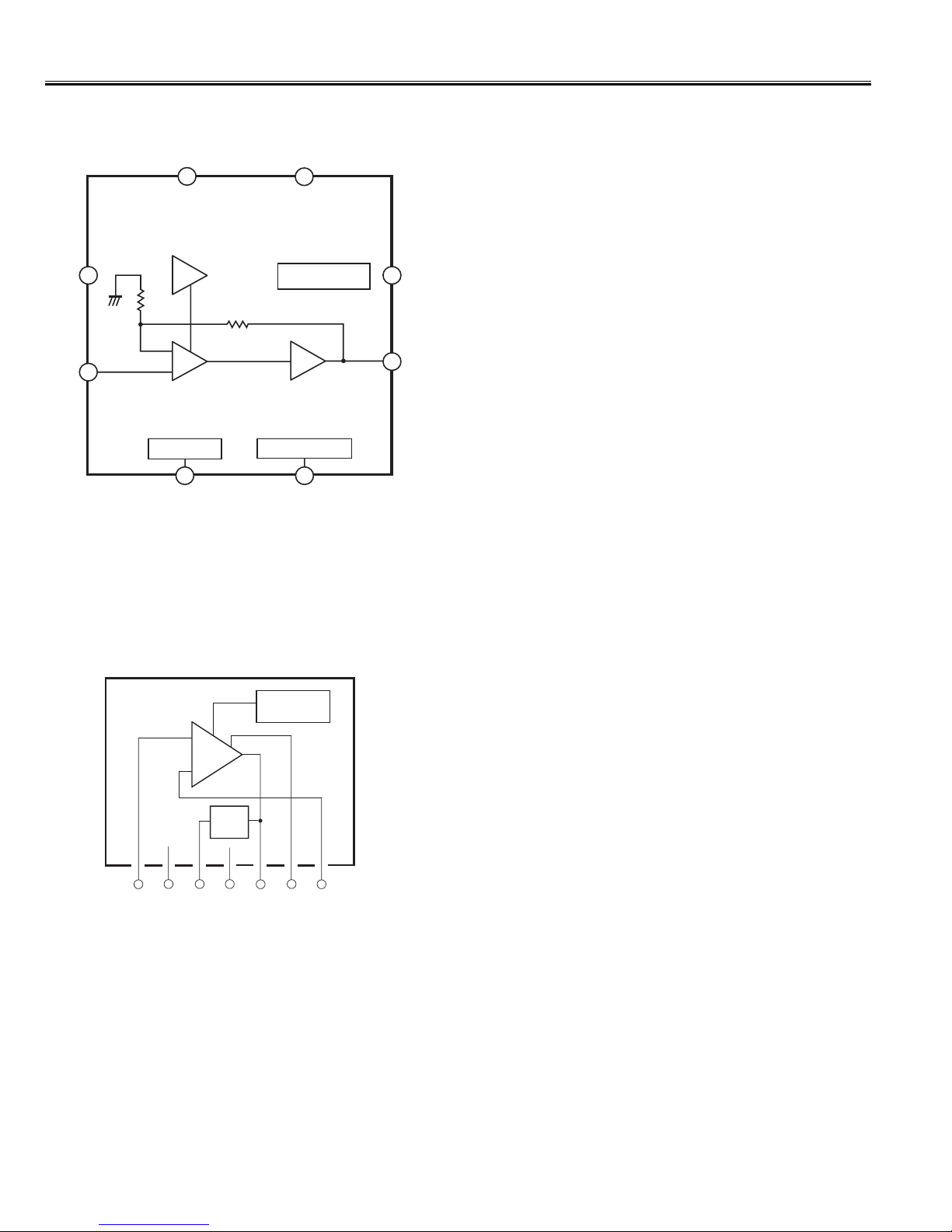

IC001 < Audio AMP.> LA42051-E
Standby VCC
Power
GND
OUT
P. P
Ripple
Filter
IN
Pre
GND
REF amplifier
Input amplifier Output amplifier
Thermal protection circuit
Ripple Filter Block Pop noise prevention block
16
3
48
10
57
IC501 < Vertical Output > LA78040/LA78040N
Thermal
Protection
-
+
AMP
Pump
Up
1
INVERTING INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT STAGE Vcc
7
NON INV. INPUT
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 6

-7-
CPU Port Functions
Pin No. Function Name Function
1 SIFout SIF Output (NICAM)
2 IFAGC-F IF AGC Filter
3 SIF-IN SIF Input
4 FM-F Filter for the DC loop of FM detector
5 FMout FM detector output
6 Aud out Audio output
7 SND-APC-F Snd VCO frequency is locked at 500kHz from SIF
8 IF-Vcc DC Supply pin for IF circuit
9 VM/Ext-A-IN External audio signal input
10 ABL Auto Beam Limiter function
11 RGB Vcc Vcc input pin of RGB output block function
12 R-Out R signal output pin function
13 G-Out G signal output pin function
14 B-Out B signal output pin function
15 NC Not Connected
16 Vramp To generate a ramp waveform for the reference V-out
17 V-out Output pin of vertical synchronization ramp signal
18 Iref Producing reference current function
19 H-Vcc Vcc of Horizontal deflection and BUS interface
20 AFC-F AFC Filter pin of horizontal VCO function
21 H-out Horizontal output pin
22 VCD-GND Video Chroma Deflection GND
23 Power Fail IN Power Fail Input function
24 S-TERM IN S-Video input
25 STATUS IN Factory PC mode status (L=ON)
26 Remote IN Remote Control signal receiver
27 P14/PWM1
28 P15/PWM2
29 ON-TIMER LED OUT On timer led out function
30 MUTE OUT Mute out function
31 IIC SDA1 IIC-Bus Data Line
32 IIC SCK1 IIC-Bus Clock Line
33 X’tal Crystal Oscillator
34 X’tal Crystal Oscillator
35 5V Supply (5V)
36 Power Out Power On/Off signal output
37 Bass Expander Bass Expander On/Off function
ON/OFF OUT
38 VIF M OUT VIF M Out/Bilingual Out function
/Bilingual Out
39 AD KEY IN Key signal input
40 RESET RESET pin function
41 FILT FILT pin function
42 GND Ground
43 CCD-Vcc Vcc (5V) pin for 1H delay-line
44 FBP-IN Fly Back Pulse Input
45 YC-C Y/C-C Input function
46 YC-Y Y/C-Y Input function
Pin No. Function Name Function
47 C-APC2 AFC filter pin of chroma VCO. (3.58MHz)
48 DVD-Y DVD-Y Input
49 CB-IN CBInput (for DVD)
50 X’tal 4.43MHz Crystal
51 CR-IN CRInput (for DVD)
52 SVO/FSC Selected Video Output or FSC Output
53 C-APC-F Chroma APC Filter
54 Ext-Video-IN Ext Video Input & Y Input in S-VHS mode
55 VCD-Vcc Video Chroma Deflection VCC
56 Int-Video-IN Int. Video Input & Chroma Signal Input in S-
VHS mode
57 Blk-F Black peak level detection in black stretch circuit.
58 PIF-APC-F APC filter pin for PLL circuit function.
59 AFT Automatic Fine Tuning Output pin
60 Video out Video Output pin
61 RF AGC RF AGC Output pin
62 IF-GND Ground of IF circuit
63 VIF IN PIF input pin
64 VIF IN PIF input pin
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 7

-8-
Service Adjustments with Replacing Memory IC(IC801)
Note: The CPU (IC201) and memory IC (IC801) store the service adjustments data and controls data for each
circuit.When the Memory IC(IC801) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].

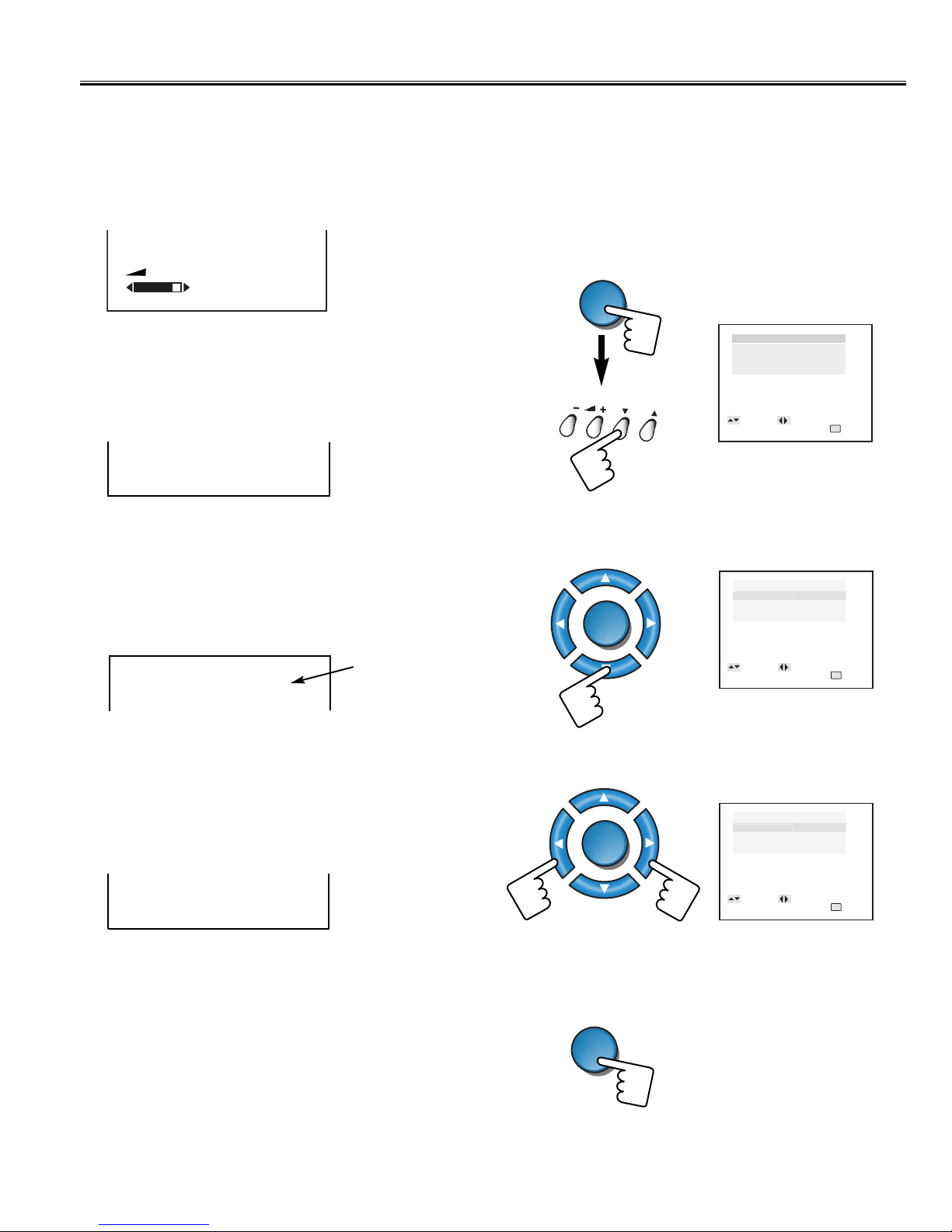

[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
5. Switch off the TV set by pressing the Power Switch button on the TV set while the above On-Screen Display is
still on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & play : No executed
- Inhibit data : Cancelled
- Ch skip data : Cancelled
- Sound volume data : 10/63 steps.
- Volume Lock : OFF
- Colour system : AUTO
CLR
CLR
Press and hold for more than 2 seconds
CH
TV/AV MENU
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
RF AGC Item 01, RF AGC
Horizontal centre Item 02, H-PHA
Vertical Position Item 04, V-SHIFT
Vertical linearity Item 06, V-LIN
Vertical-S correction Item 07, V-SCO
Gray scale Item 17-20, 22-24
Further adjustment please refer to page 12 and 13.
CH
TV/AV MENU
(displayed in yellow color)
(displayed in red color)
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 8

-9-
Service Adjustments with Replacing Memory IC(IC801)
MENU
ADDRESS
DRV R 64 B 64
SI. 11100101S2.11110001
DATA
23
ADDRESS
V-SCO
SI. 11100101S2.11110001
DATA
12
06
ADDRESS
RF AGC
SI. 11100101S2.11110001
DATA
30
01

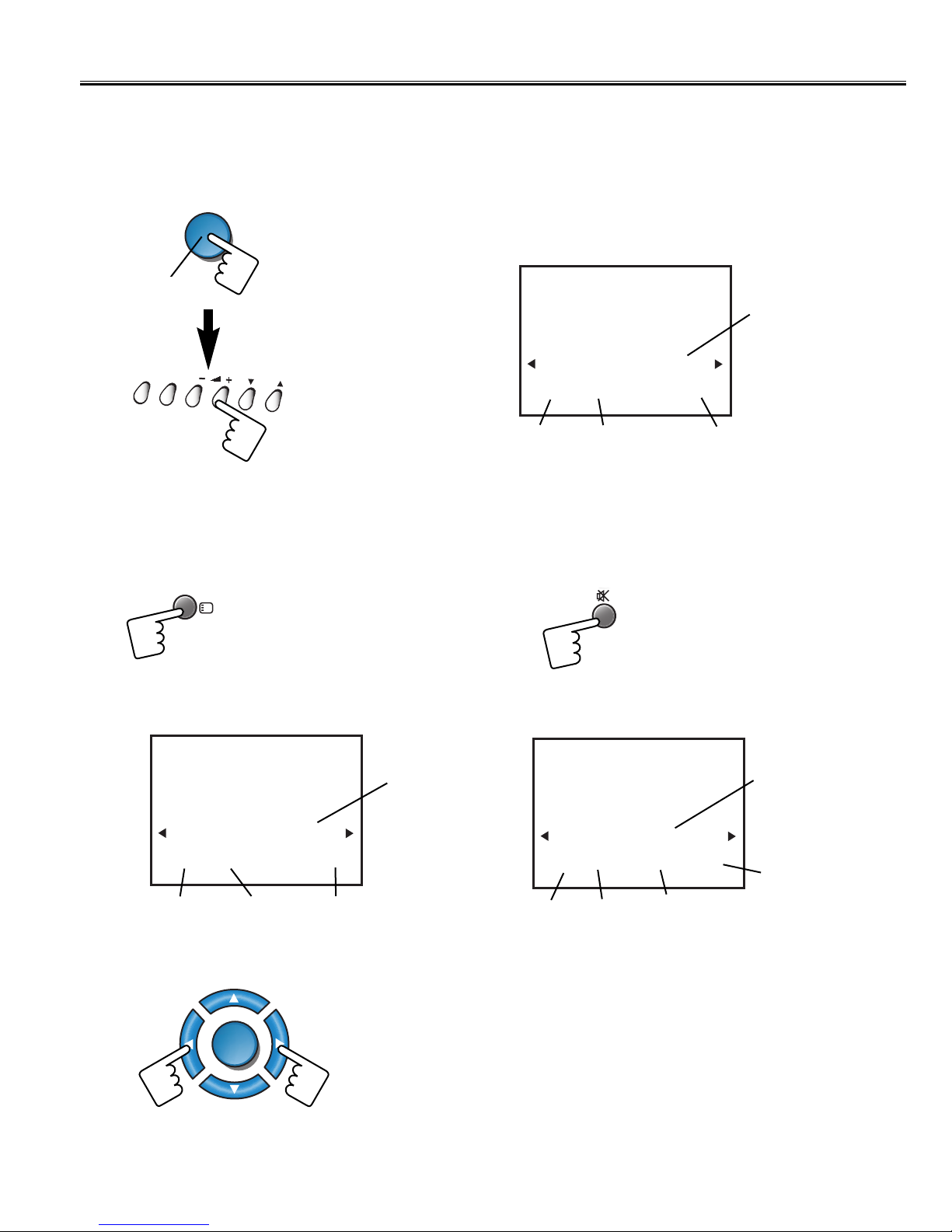

[Entering to Service Mode]
1. Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.
Following setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Read Status
Item No. Item Data value
Display for [RF AGC] RF AGC adjustment
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
MENU
MENU
0102030405......96... ...9695949392......01
CH
TV/AV MENU
TIMER
x
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 9

-10-
Service Adjustments with Replacing Memory IC(IC801)
(/JE0214A)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
01 RFAGC 0~63 27 RF AGC Adj.
02 H-PHA 0~31 15 H-Phase (H-Centering) Adj. (50Hz)
03 V-POS 0~63 40 V-Position Adj. (50Hz)
04 V-SHIFT 0~15 8 V-Phase (V-Centering) Adj. (50Hz)Fixed.
05 V-SIZ 0~127 50 V-Size Adj. (50Hz)
06 V-LIN 0~31 16 V-Linearity Adj. (50Hz)
07 V-SCO 0~31 8 V-S-Correction (50Hz)
08 VTRANS 0, 1 0 Data transmission between V Retrace
09 VRES 0, 1 0 Vertical Reset Timing
10 H-P60 -16~+15 +3 H-Phase Adj. (60Hz) difference val.
11 V-S60 -64~+63 -8 V-Size Adj. (60Hz) difference val.
12 V-SHIF60 -16~+15 -4 V-Phase Adj. (60Hz) difference val.
13 OSDHP 0~255 32 OSD H-Position Adj.
14 OSDC 0~3 5 OSD Contrast Adj.
15 V-SCP 0~7 7 V-Size COMP Adj.
16 SBIAS 0~255 105 Sub Bias Adj.
17 RBIAS 0~255 0 Red Bias Adj.
18 GBIAS 0~255 0 Green Bias Adj.
19 BBIAS 0~255 0 Blue Bias Adj.
20 RDRIV 0~127 64 Red Drive Adj.
21 GDRIV 0~15 8 Green Drive Adj.
22 BDRIV 0~127 64 Blue Drive Adj.
23 1 Line Appear White Balance Adj.
24 DRV White Balance Adj.
25 B-YD 0~15 10 B-Y DC Level Adj.
26 R-YD 0~15 10 R-Y DC Level Adj.
27 B-YDN - 16~+15 0 NTSC B-Y DC level Adj.
28 R-YDN - 16~+15 0 NTSC R-Y DC level Adj.
29 SBDC - 16~+15 0 SECAM B-Y DC Level Adj.
30 SRDC - 16~+15 0 SECAM R-Y DC Level Adj.
31 B-YDD - 16~+15 -4 DVD B-Y DC Level Adj.
32 R-YDD - 16~+15 -4 DVD R-Y DC Level Adj.
33 RGBTEMP 0, 1 0 RGB Temp SW
34 RGBTEST 0, 1 0 RGB Test
35 DRVTEST 0, 1 0 Drive Test Mode
36 HALFTONE 0, 1 2 Halftone Color
37 G-YA 0, 1 1 G-Y Angle
38 GYAMP 0~15 3 G-Y Amplitude Adjust
39 RBGB 0~15 8 R-Y / B-Y Gain Balance
40 RBAG 0~15 8 R-Y / B-Y angle
41 G-YAN 0, 1 0 NTSC G-Y Angle
42 GYAMPN -8~+7 0 NTSC G-Y Amplitude Adj.
43 RBGBN - 16~+15 0 NTSC R-Y / B-Y Gain Balance
44 RBAGN - 16~+15 0 NTSC R-Y / B-Y Angle
45 RBGBDN - 16~+15 +10 DVD NTSC R-Y / B-Y Gain Balance
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
46 RBAGDN - 16~+15 +10 DVD NTSC R-Y / B-Y Angle
47 VOLFIL 0, 1 0 DAC Volume filter disable
48 IF-AGC 0, 1 0 IF AGC defeat
49 COGV 0~3 0 Coring Gain
50 BLKS 0~3 3 Blk.str.start(W/Defeat)
51 BLKG 0~3 3 Blk.str.gain
52 BRTA 0, 1 0 Brt.Abl.Def
53 BRST 0, 1 0 Mid.Stp.Def
54 BRTH 0~7 0 Bright.Abl.Treshold
55 WPL 0~3 2 White Peak Limit Op. Point
56 YGAM 0~3 0 Y Gamma Start
57 PRS 0~3 0 Pre-shoot AV Adj.
58 ORS 0~3 2 Over-shoot AV Adj.
59 DCREST 0~3 0 Select Luminance DC Restoration
60 RFCO 0~3 1 RF Coring Gain Difference
61 PRSN 0~3 0 Pre-shoot RF Adj.
62 ORSN 0~3 2 Over-shoot RF Adj.
63 CTRAP 0~7 4 Chroma Trap Control
64 CBPF 0~3 0 Chroma BPF Control
65 CBPFN 0~3 1 Chroma BPF Control NTSC
66 CBPFAVN 0~ 3 0 Chroma BPF Control AV NTSC
67 TINT -16~+15 +8 Tint RF
68 TINT443 -16~+15 0 Tint (NTCS4.43)
69 SHRF -32~+31 -5 RF Sharpness
70 COL TEST 0, 1 1 Color Test
71 CODP -16~+15 -6 DVD PAL Color
72 CODN -16~+15 +5 DVD NTSC Color
73 TINTDN -16~+15 -7 DVD NTSC Tint
74 YTH 0~3 0 Select Y signal sensitivity for Blue Strect
75 YGAIN 0~3 0 Select Blue Stretching gain w/ defeat
76 RWIDTH 0~3 0 R Width
77 ROFFSET 0~3 0 R Offset
78 BWIDTH 0~3 0 B Width
79 BOFFSET 0~3 0 B Offset
80 VOLUM 0~127 127 Volume Control Adj.
81 DEEM 0, 1 0 De-emphasis TC
82 VIFSW 0~3 0 VIF System Switch
83 SIFSW 0~3 1 SIF System Switch
84 V-LVL 0~7 4 Video Level
85 V-LVLOFS 0~3 1 Video Level Offset
86 FMGAIN 0, 1 0 FM Gain
87 IFOM-S 0, 1 0 Over Modulation Switch
88 IFMN-S 0, 1 1 Audio Monitor Sw. Monitor or FM
89 IFTRPS 0, 1 1 IC inside SIF Trap Sw ON-OFF
90 IFMLVL 0~15 0 IF Over Modulation Level Adj.
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 10

-11-
Service Adjustments with Replacing Memory IC(IC801)
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
91 IFTEST1 0, 1 0 IF Test 1
92 TRAPT 0~7 4 Sound Trap-Test
93 H-FRQ 0~63 20 Horizontal Frequency
94 FBTS 0, 1 0 FBPBLK Switch
95 COOP 0~7 7 Color Killer Option
96 HBLKL 0~3 7 H-Blanking Control Left
97 HBLKR 0~3 3 H-Blanking Control Right
98 AFCRF 0, 1 0 RF AFC Gain & gate Adj.
99 VSURF 0, 1 0 RF VSync. Separation sensitivity
100 CDMRF 0~7 0 RF Vertical count down circuit Adj.
101 AFCAV 0, 1 1 AV AFC Gain & gate Adj.
102 VSUAV 0, 1 0 AV Vsync. Separation sensitivity
103 CDMAV 0~7 0 AV Vertical count down circuit Adj.
104 HLVDRF 0, 1 1 H Lock, V Det.
105 HLVDAV 0, 1 1 H Lock, V Det.
106 VTEST 0~3 0 Select Vertical DAC test mode
107 VCOTEST 0~15 0 IF VCO free run Freq. Adj.
108 C.VCOADJ 0~7 4 Control free run Freq. of Chroma VCO
109 VCOFREQ 0~255 40 ES Sample IF VCO Freq. Adj.
110 CROSS-BW 0~3 0 Pattern Output
111 AVNCON 0~127 64 AV non-signal Contrast
112 AVNBRI 0~127 64 AV non-signal Brightness
113 POMT 0~127 25 Power Mute Time
114 CHMT 0~31 7 Channel Change Mute Time Adj.
115 SYST 0~15 5 The number of times that a color sys-
tem AUTO is judged
116 S-STE 0~3 0 Stereo/Mono Option, 0=Mono,
1=Simple AV Stereo, 2,3=AV Stereo
117 VOLTBL 0, 1 1 Volume Table Select
118 MPP 0, 1 0 Multi Personal Preference function
on/off 0=without M.P.P., 1=with M.P.P.
119 TUNER 0, 1 0 Tuner Option
120 BOOSTER 0, 1 0 Booster Option
121 OPT AVIN 0~3 2 AV1/AV2/AV3 Option, 0=AVonly,
1=AV1,AV2, 2~3=AV1, AV2, AV3
122 OPT POS 0, 1 1 Programme number option, position
No. Option, 0=100 pos., 1=256 pos.
123 LANGUAGE 0, 1 1 Language Option, 0=without la-
nguage, 1=with language
124 OPT COL 0, 1 0 Color System Option
125 OPT SIF 0, 1 1 SIF System Option
126 OPT BASS 0~3 0 BASS Expander Option, 0=without BASS,
1~2=BASS EXPANDER, 3=WOOFER
127 OPT SURR 0, 1 1 Surround Option
128 OPT BLBK 0, 1 1 Blue Back Option
129 AUDGAIN 0~7 0 Gain Control LV1116
130 L/RGAIN 0~7 7 L/R Output Gain Control LV1116
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
300 R00 0~255 0 ROM Correction
301 R01 0~255 0 ROM Correction
302 R02 0~255 0 ROM Correction
303 R03 0~255 0 ROM Correction
304 R04 0~255 0 ROM Correction
376 R76 0~255 0 ROM Correction
377 R77 0~255 0 ROM Correction
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 11

-12-
Service Mode Adjustments
R486
C471
T471-H11
T471-H2
T471-H4
T471-H7
T471-H10
T471-H1
T471
R4
MAIN BOARD
SCREEN VR
(Under side)
(1) Receive a monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Select No. 17 RBIAS (Red Bias), No, 18 GBIAS (Green Bias), and No. 19 BBIAS (Blue Bias) and set each data to 0
by pressing the VOLUME + or - key.
(5) Select No. 20 RDRIV (Red Drive) and No. 22 BDRIV (Blue Drive) and set each data to 64 by pressing the VOLUME
+ or - key.
(6) Turn Screen Control on the FBT (T471) to minimum (fully counter-clock-wise).
(7) Select No. 23 (1-line appear).
(8) Advance Screen Control clockwise to obtain just visible one colour line. If line does not appear, place this control to
maximum (fully clockwise).
(9) Raise each Bias Level with 1, 2, 5, 6, 9 and 0 keys to obtain just visible white line.
(10) Select No. 24 DRV (Drive Adjustments).
(11) Adjust Red and Blue Drive Levels alternately with 3, 4, -/-- or RECALL key to produce normal black and white
picture in highlight areas.
(12) Check for proper grayscale at all brightness levels. To turn off the TV Service Menu display, press the MENU key.
Note: If the Grayscale adjustment is made after picture tube replacement, check the High Voltage

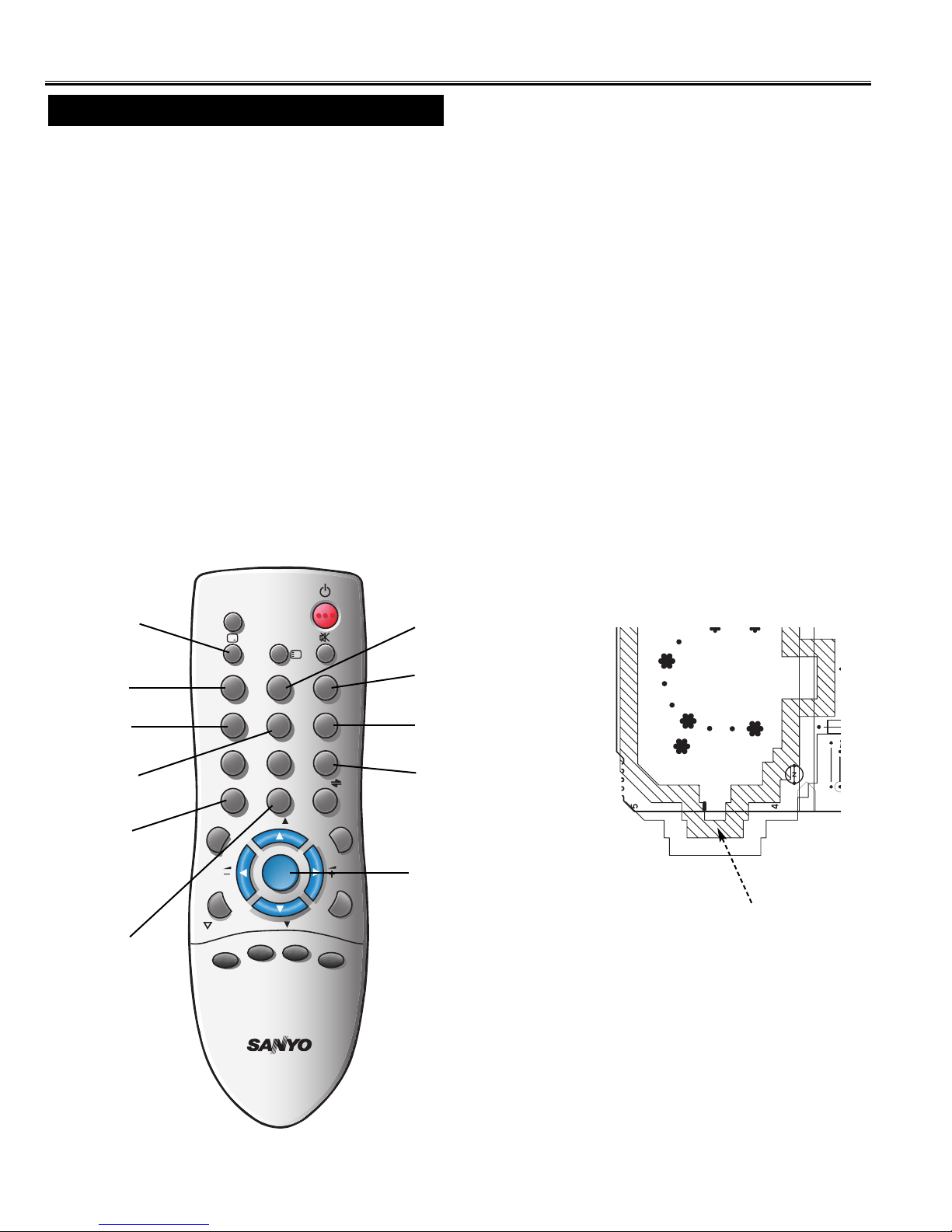

Items 17-20, 22-24 GREY SCALE
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSC
Red Bias -
Red Bias +
Green Bias -
Green Bias +
Blue Bias -
Blue Bias +
Press the MENU button to exit
from service mode.
Red Drive -
Red Drive +
Blue Drive -
Blue Drive +
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 12

-13-
Service Mode Adjustments
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 9.
NOTE: Do not attempt this adjustment with weak signal.
(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.
(2) Select [RF AGC] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from service mode.
Item 01 [RF AGC] AGC
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [H-PHA] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from service mode.
Item 02 [H-PHA] HORIZONTAL CENTRE
(1) Receive a monochrome circular pattern..
(2) Set the brightness and contrast to maximum.
(3) Select [V-SIZ] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from service mode.
Item 05 [V-SIZ] VERTICAL SIZE
Horizontal centre
Vertical size
cUpper
Center
Bottom
d
e
a
b
Upper
Center
Bottom
(1) Receive a crosshatch pattern.
(2) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(3) Select [V-SCO] in the service mode.
(4) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(5) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(6) Exit from service mode.
Item 07 [V-SCO] V-S CORRECTION
(1) Receive a crosshatch pattern.
(2) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(3) Select [V-LIN] in the service mode.
(4) Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(5) Exit from service mode.
Item 06 [V-LIN] VERTICAL LINEARITY
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [V-POS] in the service mode.
(4) Change value to be optimum verticall centre position.
(5) Exit from service mode.
Item 04 [V-SHIFT] VERTICAL CENTRE
Vertical centre
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 13

-14-
Service Adjustments
Following adjustments are not required to readjust when replacing the memory IC.
Note: +B (+130V) Voltage Check and GrayscaleAdjustment
mustbe completedbeforeattempting HighVoltageCheck.
(1) Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2) Tune receiver to an active channel and confirm TV is
operating properly.
(3) Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
voltage is within 24.0 KV and 26.0 KV at maximum
beam current.
(4) Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 27.5 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
34
21
F601
E
E
17
1016
17
916
17
10
C644
D634
JW4
J631
C643
C609-H1
C609-H2
D610
C628
F601B
D603
C603
D604
C604
R631 R632
C629
C634
C633
C631
D6
D633 J608
J607
R690
C609
R613
R604
C610
C613
611
612
R605
C611
C615
D612
D613
R607
C614
D611
R606
J605
J603
J606
J604
R610
D614
R643
J612
JW
JW
IC601
T611-H10
T611-H15
T611-H11
T611-H13
T611-H1
T611-H3
T611-H7
R355
C641
L631
C356
Q
Q401
R410
R411
R409
J613
J614
T611-H6
J619
J620
J618
C614A
+B
ADJST
R650
JP665
TP-B
JP671
R603
JW12
JW13
R685 R691
JP632
J610
VR631
D686
L632
C691
R635
D631
T611A
T611
T611B
J40
J502
T611-H2
T611-H16
T611-H12
C616
(1) Connect DC meter to TP-B and the ground.
(2) Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3) Adjust B-voltage to be 130 ± 0.5V DC by using VR631.
B-VOLTAGE SUPPLY CHECKING
(1) Receive the monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
MAIN BOARD
B-Voltage Supply Adjustment
MAIN BOARD
TP-B
E
E
7
10
7
9
7
10
JW4
J631
C629
J607
JW9
JW8
T611-H10
R355
J609 D441
C641
L631
C356
R486
C471
T471-H11
T471-H2
T471-H4
T471-H7
T471-H10
T471-H1
T471
KDY-6
J501
KDY-5 KDY-4
KDY-1
KDY-3
KQ
R485
C435
R424
KDY
Q405
Q401
R410
R411
R409
J613
C435-H2
R650
JP665
TP-B
JP671
D631
C435C
5
2
L
Focus VR
(Upper side)
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 14

-15-
Special Function
1To enter into the special function setting mode, press and
hold the MENU button of the remote control, then press the
PROGRAMME DOWN button on the TV set.
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
2Select an item of the special functions by pressing the
PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the VOLUME + or - button. To cancel, set to “ OFF”.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “247” to
“255” and “0” are set Music Mode. Only sound is provided and
any picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
AV
MUSIC Turns black
screen
4Press the MENU button of the remote control to return to the normal TV mode.
(1) Volume Lock setting
SOUND
MENU
AV START
T
UNIN
G
L
OCK
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
AV START
T
UNIN
G
L
OCK
VOLUME LOCK
MUSIC MODE
OFF
ON
OFF
OFF
SELECT ADJUST
M
EXIT
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
CH
MENU
MENU
MENU
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 15

-16-
Purity and Convergence Adjustment
RED
BLUE
Adjust tabs together to
superimpose red and
blue horizontal line.
Figure- 2 BLUE AND RED LINE MOVEMENT Figure- 3 BLUE/RED AND GREEN MOVEMENT
Adjust tabs together to
superimpose red/blue
and green horizontal
line.
Adjust tabs angle to superimpose
blue and red vertical line.
Adjust tabs angle to superimpose
red/blue and green vertical line.
GREEN
BLUE / RED
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT
1. Demagnetize the picture tube and receiver using an external
degaussing coil. When replacing picture tube or deflection
yoke, mount deflection yoke and purity-convergence magnets
assembly properly, see figures 1 and 4.
2. Turn Red and Blue guns off and provide only Green raster.
Rotate Screen control to fully counterclockwise. Rotate Red
and Blue Bias controls fully counterclockwise. Slowly rotate
Green Bias control clockwise to produce Green raster.
3. Loosen the screw holding the Deflection Yoke and remove the
3 Rubber Wedges, and slide the Deflection Yoke fully forward.
4. Rotate and spread the Tabs of the two Purity Magnets to cen-
tre the vertical green belt in the picture screen. The Purity
Magnets are also adjusted to obtain vertical centring of the
raster.
5. Slowly slide the Deflection Yoke backward until a uniform
green screen is obtained.
6. Check the purity of the red and blue screens for uniformity,
turn off other colours to check this (use bias controls).
Readjust the yoke position if necessary until all screens are
pure.
7. Adjust each Bias control and screen control to obtain white
raster. Refer to Gray Scale Adjustment. If part of the picture
screen is coloured, adjust the Deflection Yoke position forward
or backward slightly.
8. Tighten the mounting screw of the Deflection Yoke. Adjust
Convergence next.
CENTRE CONVERGENCE ADJUSTMENT
1. Use a dot crosshatch pattern signal.
2. Turn Red and Blue guns on and turn off Green gun. Adjust the
angle between the Tabs of the Four Pole Magnet 1 and 2, and
superimpose the Red and Blue vertical lines in the centre area
of the picture screen. Refer to figure 2.
3. Keeping the mutual angle of the Tabs of the Four Pole Magnet
turn them together to superimpose the Blue and Red horizon-
tal lines in the centre area of the picture screen. Refer to fig-
ure 2.
4. Turn Green gun on and adjust Six Pole Magnet 3 and 4 that
the Green line superimposed on the Red/Blue lines.
This is the same procedure used in steps 2 and 3.
Refer to figure 3.
OUTER AREA CONVERGENCE ADJUSTMENT
Slightly loosen the screw holding the Deflection Yoke. Adjust the
Deflection Yoke to converge the detail in the outer area (left side
and right side) of the picture screen by orbital movement of the
front of the Yoke, then secure the Deflection Yoke in appropriate
position by putting the wedges as illustrated. Tighten screw hold-
ing the Deflection Yoke.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW
Figure 4. Deflection Yoke Movement
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)

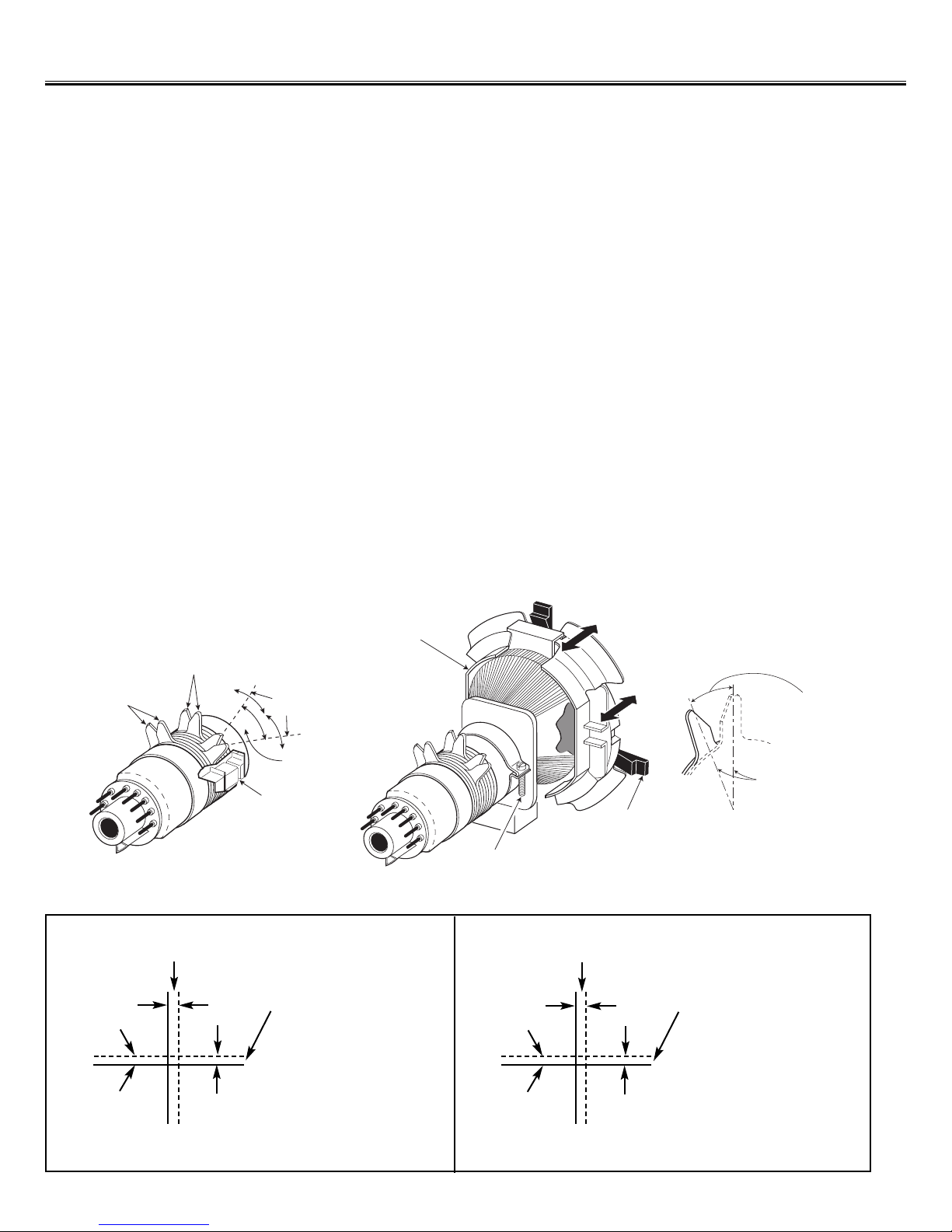

Figure 1. Purity and Convergence Magnets
MAGNET TABS
ANGLE OF MAGNET TABS
Figure 5. Adjusting Magnet
Note: The form of deflection yoke changes with models.
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 16

-17-
INPUT
A
U
D
I
O
V
I
D
E
O
ANT. 75Ω
Mechanical Disassembly
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 6 screws.
2. Pull off cabinet back and remove.
Figure 1. Cabinet Back Removal
When an abnormality occurs during TV reception, it causes pin 23 of the Processor to go continually Low (less
than 2.0V) for about 2 second. The Processor detects that this has occurred and outputs the signal from pin 36
to switch off the power supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again
via either the main power switch or the ON-OFF button on the remote control. This will work only if the power sup-
ply trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and
the circuit will have to be repaired.
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality
occurs during TV reception, the TV set goes to the stand-by mode.
Protection Circuit
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the dag
coating (picture tube grounding lead).
3. Disconnect Degaussing coil socket (KE), Picture tube
socket, Deflection yoke connector (KDY), Speaker connectors
(KL), picture tube ground lead, and 2nd anode lead.
4. Remove chassis completely by sliding it straight back.
DEGAUSSING
COIL
DEGAUSSING
COIL HOLDER
PICTURE-TUBE
GROUNDING LEAD
TO PICTURE TUBE
SOCKET BOARD
GROUND
DEGAUSSING COIL
SOCKET
PICTURE TUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken to
keep these assemblies intact, unless picture tube is being
replaced. Discharge the picture tube to the coating before
handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on a soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order. Properly
install the degaussing coil and picture tube grounding lead on
the picture tube. See Figure 2.
Note: If Picture Tube is being replaced, mount the Degaussing Coil
properly on the tube. See Figure 2.
Figure 2. Picture Tube Removal
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 17

CH
VIDEO AUDIO
TV/AV MENU
POWER
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSC
-18-
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
1 610 320 2617 BUTTON POWER-A-C4EA
2 610 304 8468 DEC.IND-C4EA
3 610 326 0075 BUTTON UNITED-C4EH
4 610 320 2662 CABINET FRONT-A-C4MA
5 645 040 4672 BADGE,SANYO*43.5X10L43.5
or 645 041 7269 BADGE,SANYO*43.5X10L43.5
or 645 075 2162 BADGE,SANYO*43.5X10L43.5
6 610 306 8848 CABINET BACK-C4MY
7 645 071 1145 ASSY,REMOCON JXPSC
8 610 313 3393 RC-BATTERY LID-JXPLA
610 322 0925 INSTRUCTION MANUAL-C5SWC
Key No. Part No. Description Key No. Part No. Description
INPUT
A
U
D
I
O
V
I
D
E
O
ANT. 75Ω
6
8

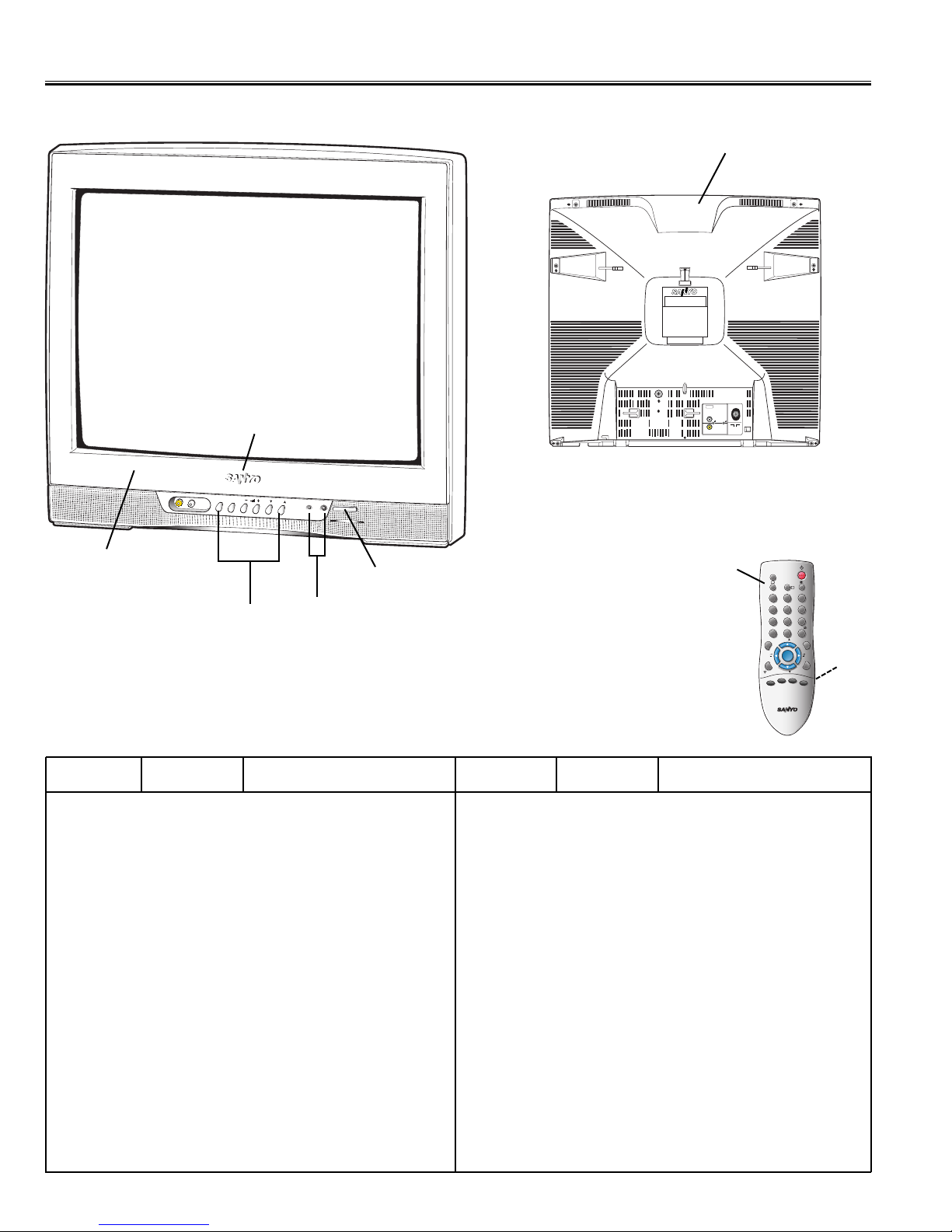

Cabinet Parts List C4MVC
1
2
3
4
5
7
SM_21-C4MVC(AC6-A)AUS 9/5/06 9:24 AM Page 18

-19-
C4MVC
OUT OF CIRCUIT BOARD
PICTURE TUBE
Q901 4140105502 CRT A51QAE320X (N)
L902 6450764417 YOKE,DEFLECTION
Q901-1 6100031739 CG PURITY MAGNET
6450088674 MAGNET,CG.PR
Q901-2A 6101170154 DY SPACER-D4AK
6102337891 DY SPACER E2HA
6102904154 DY SPACER-F8LZ
Q901-2B 6101170154 DY SPACER-D4AK
6102337891 DY SPACER E2HA
6102904154 DY SPACER-F8LZ
Q901-2C 6101170154 DY SPACER-D4AK
6102337891 DY SPACER E2HA
6102904154 DY SPACER-F8LZ
COIL
L901 6450515514 COIL,DEGAUSSING
6450515521 COIL,DEGAUSSING
MISCELLANEOUS
SP901 6450634642 SPEAKER,16
SP902 6450634642 SPEAKER,16
W901 6450655111 CORD,POWER-2.4MK-A5003
6450646102 CORD,POWER-2.4MK-A5003
W902 6102828092 ASSY WIRE,GND CONECTOR F7
6103260099 ASSY,PWB,MAIN C4MVC
1AA0B10S1700A
TRANSISTOR
Q001 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
Q111 4050159721 TR 2SC2814-F4-TB
Q122 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q402 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
!
!
!
!
Chassis Electrical Parts List
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
Note: Parts order must contain Service Ref. No., Part No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF F : ±1PF G : ±2pF
R : ±0.25-0pF S : ±0-0.25pF E : +0-1pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10% Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES....Fusible
NOTES:
P List-C4MVC 9/5/06 9:36 AM Page 19

-20-
C4MVC
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
Q431 4050180517 TR 2SC3332-R
4050180616 TR 2SC3332-S
Q432 4060171908 TR TT2140LS-YB11
Q511 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
Q631 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
Q641 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
Q661 T2SD1913-RRAN TR 2SD1913-R-RA
4050599903 TR 2SD1913-R-RA
T2SD1913-SRAN TR 2SD1913-S-RA
4050600005 TR 2SD1913-S-RA
Q681 4050118411 TR 2SC1740S-Q
4050118510 TR 2SC1740S-R
4050118619 TR 2SC1740S-S
4050122012 TR 2SC1815-GR
4050122111 TR 2SC1815-O
4050122319 TR 2SC1815-Y
4050207511 TR 2SC945A-PA
4050207719 TR 2SC945A-QA
4050207917 TR 2SC945A-RA
Q683 4050890010 TR 2SA1707-S
4050890119 TR 2SA1707-T
4050096917 TR 2SB985-S
4050097013 TR 2SB985-T
Q684 4050118411 TR 2SC1740S-Q
4050118510 TR 2SC1740S-R
4050118619 TR 2SC1740S-S
4050122012 TR 2SC1815-GR
4050122111 TR 2SC1815-O
4050122319 TR 2SC1815-Y
4050207511 TR 2SC945A-PA
4050207719 TR 2SC945A-QA
4050207917 TR 2SC945A-RA
Q886 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
4051843510 TR 2SD0601A-S-TX
INTEGRATED CIRCUIT
IC001 4096435718 IC LA42051-E
IC201 4105869401 IC LA76931AD56S1-E
IC202 4092415407 IC BA178M05T
4092654806 IC L78M05CV
4091721509 IC MC78M05CT
4093205700 IC UPC78M05AHF
IC501 4094494103 IC LA78040
4095070900 IC LA78040N
IC601 4105643100 IC STR-W6754(LF2003)
IC651 4092415407 IC BA178M05T
4092654806 IC L78M05CV
4091721509 IC MC78M05CT
4093205700 IC UPC78M05AHF
IC801 4104958007 IC AT24C16A-10PI-2.7
4094594506 IC 24LC16B/P
CAPACITOR
C001 4040875109 ELECT 470U M 25V
4030475035 ELECT 470U M 25V
C002 4040897200 ELECT 100U M 25V
4030449521 ELECT 100U M 25V
C005 4033363517 CERAMIC 0.47U K 16V
C006 4032152112 CERAMIC 8200P K 50V
C011 4040848707 ELECT 0.47U M 50V
4030486328 ELECT 0.47U M 50V
C015 4040875109 ELECT 470U M 25V
4030475035 ELECT 470U M 25V
C1001 4040848806 ELECT 1U M 50V
4030490018 ELECT 1U M 50V
C1002 4040848905 ELECT 10U M 50V
4030494224 ELECT 10U M 50V
C1008 4040848905 ELECT 10U M 50V
4030494224 ELECT 10U M 50V
C1009 4040848806 ELECT 1U M 50V
4030490018 ELECT 1U M 50V
C101 4040848301 ELECT 470U M 16V
4030441743 ELECT 470U M 16V
C104 4040849308 ELECT 47U M 50V
4030513123 ELECT 47U M 50V
C105 4031133815 CERAMIC 1000P K 50V
C106 4040875406 ELECT 22U M 50V
4030502810 ELECT 22U M 50V
C111 4032152211 CERAMIC 0.01U K 50V
C112 4032152211 CERAMIC 0.01U K 50V
C114 4032152211 CERAMIC 0.01U K 50V
C120 4032844314 CERAMIC 0.022U K 50V
C121 4032152211 CERAMIC 0.01U K 50V
C122 4040847809 ELECT 100U M 16V
4030422425 ELECT 100U M 16V
C123 4011057919 MT-GLAZE 0.000 ZA 1/16W
C132 4033363517 CERAMIC 0.47U K 16V
C138 4032844314 CERAMIC 0.022U K 50V
C171 4031552111 CERAMIC 1500P K 50V
C172 4032152211 CERAMIC 0.01U K 50V
C174 4031571914 CERAMIC 10P D 50V
C176 4011057919 MT-GLAZE 0.000 ZA 1/16W
C1902 4040875406 ELECT 22U M 50V
Ref. No. Part No. Description Ref. No. Part No. Description
P List-C4MVC 9/5/06 9:36 AM Page 20
