SERVICE MANUAL
SAFETY INSTRUCTIONS............................. 2
SERVICE ADJUSTMENTS ........................... 3

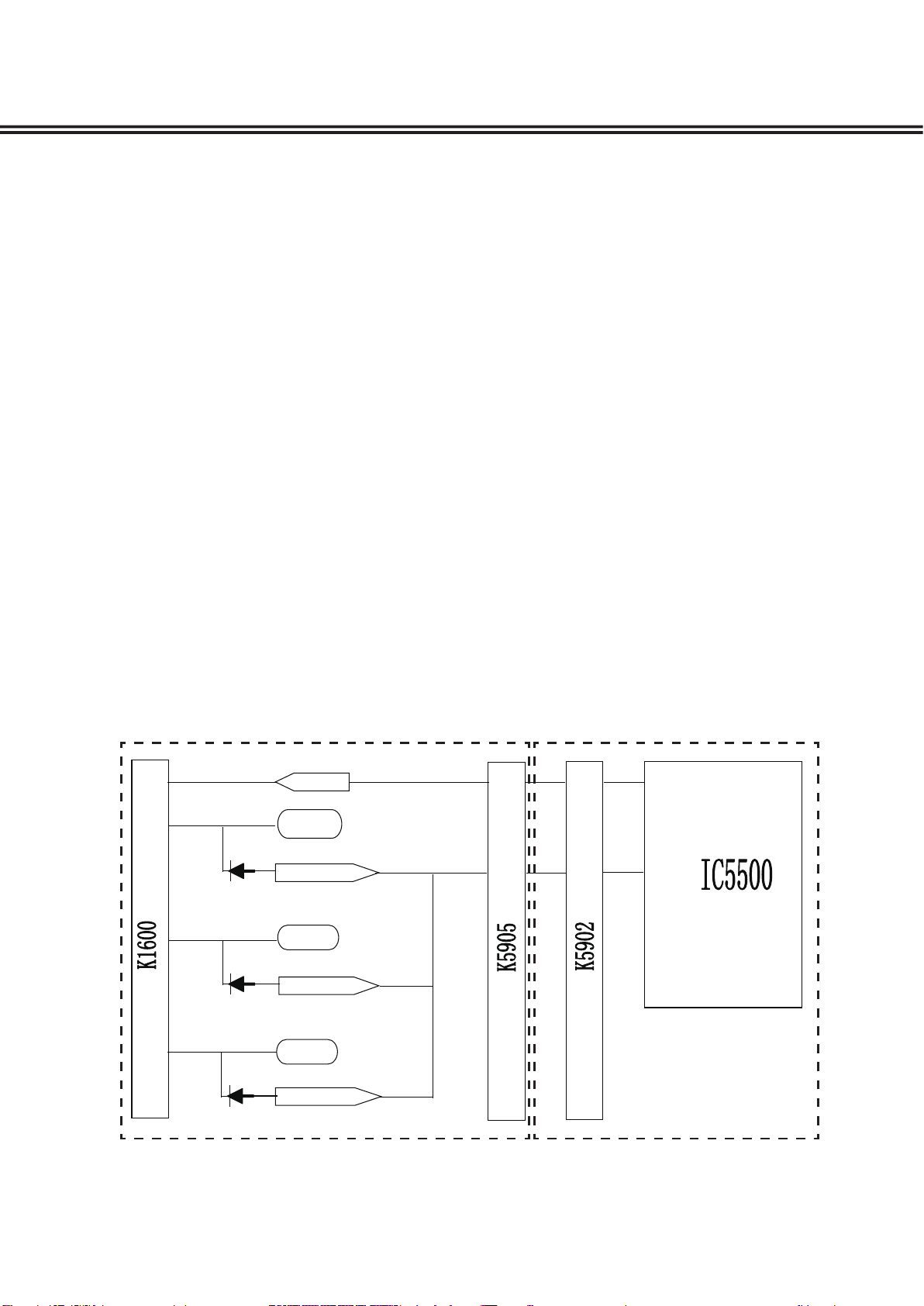

POWER FAILURE CIRCUIT .......................... 7
MECHANICAL DISASSEMBLY ...................... 8
CHASSIS ELECTRICAL PARTS LIST ........... 11
COMPONENT AND TESTPOINT LOCATIONS ..... 20
BLOCK DIAGRAM POWER LINES .............. 27
BLOCK DIAGRAM SIGNAL LINES ............... 28
IC BLOCK DIAGRAMS ................................. 29
TROUBLESHOOTING FLOW CHARTS ....... 36
CONTROL PORT FUNCTIONS .................... 39
SCHEMATIC NOTES .................................... 40
IC, DIODE, AND TRANSISTOR PIN LAYOUTS ..... 41
CAPACITOR AND RESISTOR CODE CHART ... 42
SCHEMATIC DIAGRAMS ............................. 43
DP19640, N8JE, PRODUCT CODE 113023204
Contents
FILE NO.
NOTE: Match the chassis NO.
on the unit's back cover
with the chassis NO. in
the Service Manual.
If the Original Version
Service Manual Chassis
NO. does not match the
unit's, additional Service
Literature is required.
You must refer to "Notices"
to the Original Service
Manual prior to servicing
the unit.
Chassis NO. P19640-00
REFERENCE NO. SM3010462
Remote Control Digital
Color Television
ORIGINAL VERSION
Servicing should be performed by only trained and qualified service personnel.
POWER RATING................................. 120VAC
34 W(AVG.)
ANTENNA INPUT IMPEDANCE............... 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL................... 2-3 (VHF),
14-69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY..... 32 KEY REMOTE CONTROL
SOUND OUTPUT..............................3.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER................ 45.75MHz
SOUND IF CARRIER................... 41.25MHz
COLOR SUB CARRIER............... 42.17MHz
CABINET DIMENSIONS
WIDHT........................................... 460.3mm
HEIGHT......................................... 337.1mm
DEPTH INCLUDING BASE.............. 152mm
Specifications
© 2010 Sanyo Manufacturing Corporation

-2-
SAFETY INSTRUCTIONS
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a oating
ground with the potential of one half the AC line voltage
in respect to earth ground. Service should not be
attempted by anyone not familiar with the precautions
necessary when working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the
power line between the receiver and the AC line
before any service is performed on the receiver.
2. Comply with all caution and safety-related notes
provided inside the cabinet, on the chassis, and
on the back.
3. When replacing a chassis in the cabinet, always
be certain that all the protective devices are installed
properly, such as control knobs, adjustment covers,
shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray
parts or tools have been left inside. Before returning
any television to the customer, the service technician
must perform the following safety checks to be sure
that the unit is completely safe to operate without
danger of electrical shock.
Remove AC plug from the 120 VAC outlet and place
a jumper across the two blades. Connect one lead
of an ohmmeter to the jumpered AC plug, and touch
the other lead to each exposed antenna terminal
(UHF and VHF antenna terminals). The resistance
must measure between 1M ohm and 5.2M ohm. Any
resistance value below or above this range indicates
an abnormality which requires corrective action.
ANTENNA COLD CHECK
LEKAGE GURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet.
(Do not use an isolation transformer for this check.)
Use an AC voltmeter, that has 5000 ohms per volt or
more sensitivity. Connect a 1500 ohm 10 watt resistor,
paralleled by a 0.15 μF 150 VAC capacitor, between
a known good earth ground (water pipe, conduit, etc.)
and all exposed metal parts of the cabinet (antennas,
handle bracket, metal cabinet, screw heads, metal
overlays, control shafts, etc.). Measure the AC voltage
across the 1500 ohm resistor. The AC voltage should
not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault
must be located and corrected. Repeat the above test
with the receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE
ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep
in mind the necessary product safety precautions.
Pay special attention to the replacement of components
marked with a in the parts list and in the schematic
diagrams. To ensure safe product operation, it is
necessary to replace those components with the
exact same PARTS.
SERVICING ELECTROSTATICALLY
SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be
damaged by static electricity are referred to as
Electrostatically Sensitive (ES) devices. Examples of
typical ES devices are: Integrated Circuits (IC), Field-
Effect Transistors (FET), and “chip” components.
The following techniques should be observed strictly,
to reduce the occurrence of semiconductor damage
due to electrostatic discharge.
1. Immediately prior to handling any semiconductor
component or an assembly containing a semiconductor
device or devices, discharge the electrostatic
buildup on your body by touching a known earth
ground. You may also obtain and wear a commercially
available discharging wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it
on a conductive surface, such as, aluminum foil,
to prevent buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or
unsolder ES devices.
4. Use only anti-static solder removal devices. Some
suction-type devices can generate static electricity
adequate to damage ES devices.
5. A replacement ES device will come packaged in
protective material (conductive foam, aluminum
foil, or some comparable conductive material). Do
Not remove an ES device from its protective
packaging unless you are prepared to install it
immediately.
6. Precisely prior to removing an ES device from its
protective packaging, touch the protective
packaging to the chassis or assembly in which the
device will be installed.
CAUTION: Be sure that no power is applied to the
chassis or circuit assembly.
7. Incidental body movements, such as, lifting a foot
from a carpeted oor or the rubbing of fabric together
can generate static electricity sufcient to damage
ES devices. Therefore, minimize all body movements
while handling exposed (unpackaged) ES devices.

-3-
This set has an On-screen Menu system included in
the CPU that allows remote operation for most of the
service adjustments.
rHow to select the service item and adjust data:

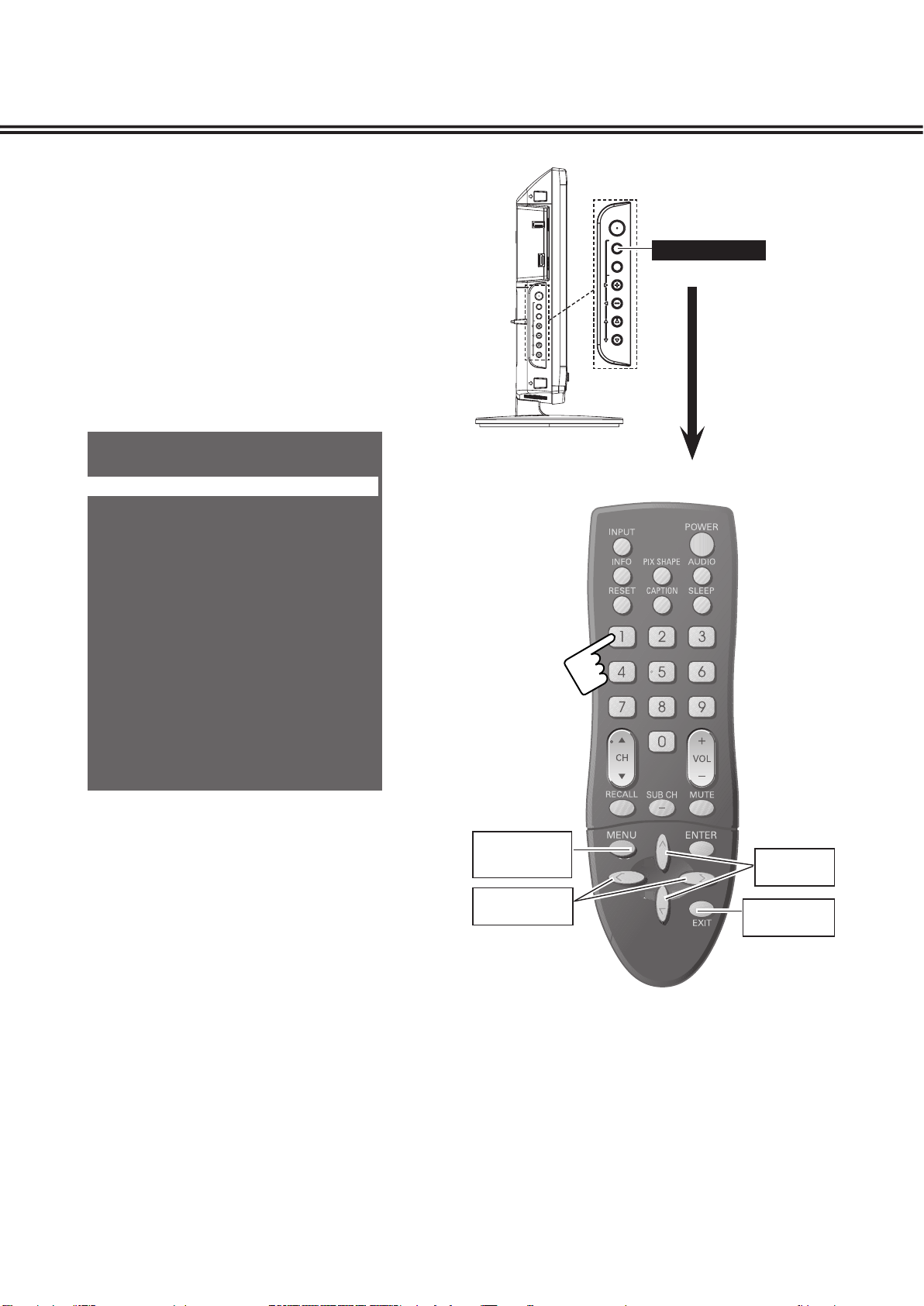

On-screen Service Menu System
Quick operation is needed to enter Service Mode.
rHow to enter the Service Menu
1. Press and hold the MENU button on Side Controls.
2. Keep pressing the MENU button and press “1” button
on the remote control, and the Service Mode Menu
will be displayed.
With the menu, press ▲, ▼, ◄ or ►button to navigate
through the options or adjust an option. Press ENTER
button to confirm a selection or enter a sub-menu.
Press MENU button to return to previous layer menu.
rTo exit service mode
Press EXIT button to exit service mode.
Side Controls
[ Service Mode Menu ]
SERVICE MODE
ADC ADJUST
WB SETTING
PICTURE SETTING
AUDIO SETTING
TEST PATTERN
BACKLIGHT
GEOMETRY
OTHERS
USB UPDATE
SW Version: US1R_V2.25_CPT19
Compile Time: May 15 2010. 16:25:35
SVN Number: r668+
ADC CALIBRATION
GENERAL
POWER
MENU
INPUT
ENTER/OK
VOL
CH
POWER
MENU
INPUT
ENTER/OK
VOL
CH
Open or close the On-Screen Menu.
MENU button
Remote Control
MENU button:
Return to previous
layer menu
◄► button:
Adjust the data
▲▼ button:
Select Item
EXIT button:
Exit Service Mode
SERVICE ADJUSTMENTS

-4-
SERVICE ADJUSTMENTS
rSetting the Initial data
1. RESET
If the Main Board or Flash IC (IC5800) is not replaced, to set the initial data, please follow the instructions
below:
1) To set the value of Hotel Mode to 00.
Two methods can be selected here:
 Enter the Service Mode, Select "OTHERS" by pressing ▲ or ▼ button, then press ENTER button to enter
OTHERS menu. With the menu, press ▲ or ▼ button to select Hotel Mode and then press ◄ or ► button
to set its value to 00.
Keep pressing the Volume - button on the side control, and after reconnect the AC power supply, appears
on the screen the Hotel Mode menu. Press the Volume +/- buttons on the side control or the ◄ or ►
button on the remote control to set the value to 00.
2) Press the EXIT button to quit the menu; by pressing twice the RESET button on the remote control
restore TV to its factory settings.
2. Enter the Service Mode, and select OTHERS
This adjustment is controlled by the CPU (IC5500), and those adjustment data are memorized into the
memory IC (IC5800). Therefore, Main board or the memory IC (IC5800) is replaced, these data will be
disappeared. Readjust should be made. Initial data is provided in the CPU ROM, when the memory IC
(IC5800) is replaced with new one. CPU ROM data is loaded into the memory. Initial data is provided to
operating the monitor basically.
Note: This process can be operated only when the Main Board or Flash IC (IC5800) is replaced.
Enter the Service Mode.
Select "OTHERS" by pressing ▲ or ▼ button, then press ENTER button to enter OTHERS menu.
 With the menu, press ▲, ▼ buttons to select PC DDC Initial and NVM Initial, then press ENTER button,
after NVM initial operation is finished, please exit the menu. Disconnect the AC power supply and reconnect
it, then all the data will return to factory default settings.
3. Picture quality adjustment
After executed initial function, for operating the monitor quality performance, ADC CALIBRATION and WB
SETTING should be readjusted. Please enter Service Mode to adjust data.
OTHERS SETTING MENU
Store Mode
Hotel Mode 01
NVM Initial Do
PC DDC Initial Do
PC-Tool Off
Store Mode Off

-5-
SERVICE ADJUSTMENTS
rADC CALIBRATION
1. Enter the Service Mode.
2. Select "ADC CALIBRATION" by pressing ▲ or ▼ button, then press ENTER button to enter ADC
CALIBRATION menu.
3. Press ▲ or ▼ button to select "SOURCE" item, press ◄or ►button to select YUV-HD or PC.
(1). For YPbPr(HD) source, the signal should be 1080i�60Hz, 8 step 100% color bar.For YPbPr(HD) source, the signal should be 1080i�60Hz, 8 step 100% color bar.
(2). Enter theEnter the ADC CALIBRATION menu. PressPress ▲ or ▼ button to select "SOURCE" item.
(3). Press ◄or ►button to select YUV-HD.
(4). Press ▲ or ▼ button to select AUTO ADC item, then press ENTER button.
(1). For PC source, the signal should be 1024x768�60Hz, 8 step 100% color bar.For PC source, the signal should be 1024x768�60Hz, 8 step 100% color bar.
(2). Enter theEnter the ADC CALIBRATION menu. PressPress ▲ or ▼ button to select "SOURCE" item.
(3). Press ◄or ►button to select PC.
(4). Press ▲ or ▼ button to select AUTO ADC item, then press ENTER button.
4. Exit the Service Mode.
Wait for about several seconds until AUTO ADC adjust completed. Then press EXIT button to exit.
Note: If you want to adjust any item, please consult qualified service personnel.
ADC CALIBRATION
SOURCE : RGB
Gain Vin-A(Y/G) 41
Gain Vin-B(Cb/B) 47
Gain Vin-C(Cr/R) 47
AUTO ADC START
YUV-HD
SOURCE YUV-HD
PC

-6-
rWB SETTING
Pattern
White Pattern 100% (in AV mode).
Condition
Picture Mode: STANDARD
Color Temperature: NORMAL
Aging Time: More than 10 minutes
Adjustment
1. Enter the Service Mode.
2. Select "WB SETTING" by pressing ▲ or ▼ button, then press ENTER button to enter WB SETTING
menu. Usually it only need to set the value of Base Drive R, Base Drive G and Base Drive B, and it is
not necessary to set the value of others.
3. Exit the Service Mode.
After adjustment, confirm white balance again by normal picture.
Note:
Maybe BASE data for each TV set is different. And the items are for factory setting and Service Centre.
WB MENU
Base Drive G +0
Base Drive B +0
Color Temp Normal
Drive R +0
Drive G +0
Drive B +0
WB Source CVBS2
Drive R +0
Drive G +0
Drive B +0
Cutoff R +0
Cutoff G +0
Cutoff B +0
SERVICE ADJUSTMENTS
Base Drive R +0

-7-
POWER FAILURE CIRCUIT
SAFETY PRECAUTIONS
CPU (IC5500) is programmed so the set will go to standby mode when there is circuit failure as described
below. (Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function included in the CPU which checks for an
abnormal condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the following that results in a low voltage supply, the
CPU will turn the unit off to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC5500 pin G22.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any of these failures remains uncorrected, the CPU
will shut off the power within three seconds.
Check the following if the unit is turned off by the power failure detector.
1. Disconnect the AC power cord (120V AC line) for a short time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage supplies.
4. If any of these voltages is low, the power failure detector should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If the power failure is detected when the TV set is switched on, the set will enter the standby mode;
If such power failure is detected 3 times continously, the set cannot be switched On. To reset the
operating programs of the CPU it is necessary to disconnect the AC cord for a short time.
D1601
POWER_FAIL0
P12V
D1602
POWER_FAIL0
P14V
POWER_ON
D1600
POWER_FAIL0
POWER_5V
1
4,5
7
8,9
29
14
14
29
L19
G22
MainSub

-8-
[ Disassembly Diagram ]
CABINET FRONT
CABINET BACK
DEC. RC
STAND BASE
PANEL
SPEAKER
MOUNTING HANGER
MECHANICAL DISASSEMBLY
MAIN BOARD
POWER BOARD
BUTTON

-9-
1. STAND REMOVAL
Note: Position TV face down on a padded or cushioned surface to protect the screen and finish.
Remove 2 screws (4X16) to take the STAND off.
STAND
2. CABINET FRONT REMOVAL
Remove 6 screws (3X14) to take the CABINET FRONT off.
MECHANICAL DISASSEMBLY
CAUTION: This LCD TV uses several different kinds of screws. Using the correct screw is necessary to
prevent damage. Lead wires must be redressed to their previous locations after servicing.

-10-
4. ASSY, PWB, MAIN Board、ASSY, PWB, POWER Board、
MOUNTING HANGER and DEC IND RC Board Removal
4.1 Remove 10 screws (3X10) to take ASSY, PWB, MAIN off.
4.2 Remove 2 screws (3X10) to take MOUNTING HANGER off.
4.3 Remove 5 screws (3X10) to take ASSY, PWB, POWER off.
4.4 Remove 1 screw (3X10) to take DEC IND RC Board off.
ASSY, PWB, POWER
ASSY, PWB, MAIN
MOUNTING
HANGER
DEC IND RC PWB
3. LCD PANEL REMOVAL
Remove 1 screw (3X8) to take LCD PANEL off.
MECHANICAL DISASSEMBLY

-11-
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
– 9 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Key No. Part No. Description Key No. Part No. Description
CAPACITORS
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10% Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID........... Tantalum Oxide Solid Electrolytic
AL-SOLID........... Aluminium Solid Electrolytic
ELECT................ Aluminum Foil Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A: General B: Non flammable
Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES....Fusible
RESISTORS
NOTES:
Read description of the Resistor as follows:
(Example)
NOTES:
Read description of the Capacitor as follows:
(Example)
CHASSIS ELECTRICAL PARTS LIST
CAPACITORS
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10% Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID........... Tantalum Oxide Solid Electrolytic
AL-SOLID........... Aluminium Solid Electrolytic
ELECT................ Aluminum Foil Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A: General B: Non flammable
Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES....Fusible
RESISTORS
NOTES:
Read description of the Resistor as follows:
(Example)
NOTES:
Read description of the Capacitor as follows:
(Example)

-12-
N8JE
OUT OF CIRCUIT BOARD
LCD PANEL
EL901 6451026743 LCD(CLAA185WA03)
MISCELLANEOUS
SP901 6520032095 SPEAKER,8
SP902 6520032095 SPEAKER,8
U901 6520032361 LIPS
W1600 6520032026 ASSY,WIRE
W5901 6520032002 CORD 30PIN (LVDS)
W901 6451030238 CORD,POWER-2.0MK-VTR-2
6520031975 CORD,POWER-2000MK
WSP 6520032293 NON STANDARD WIRE ASSY-JP
6103488042 ASSY,PWB,MAIN N8JE
1AA0B10S30400
TRANSISTOR
Q5500 4052156926 TR PMV40UN
Q6520 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q6521 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q6522 4060224208 TR 2N7002
Q6800 4060224406 TR RQJ0201UGDQA#H1
Q6801 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
INTEGRATED CIRCUIT
IC5500 4107108003 IC R8J04014BG-RJ
IC5700 4106917408 IC A3R12E4JFF-G8E
IC5800 4107080309 IC MX25L3205DM2I-12G-N8JE
4107080408 IC AT26DF321-SU-N8JE
IC5900 4106716308 IC XC6108N28AMR
IC6500 4096959313 IC RT9711CGB
IC6800 4096952116 IC LV5803M-TE-L-E
IC6801 4096889313 IC LM1117S-ADJ
IC6802 4096889313 IC LM1117S-ADJ
IC6803 4096941219 IC ST1S10PHR
CAPACITOR
C5500 4033690524 CERAMIC 0.01U K 25V
C5501 4034670911 CERAMIC 0.1U K 25V
C5502 4034670911 CERAMIC 0.1U K 25V
C5503 4034670911 CERAMIC 0.1U K 25V
C5504 4034670911 CERAMIC 0.1U K 25V
C5505 4033690524 CERAMIC 0.01U K 25V
C5506 4033690524 CERAMIC 0.01U K 25V
C5507 4034670911 CERAMIC 0.1U K 25V
C5508 4034670911 CERAMIC 0.1U K 25V
C5509 4034670911 CERAMIC 0.1U K 25V
C5510 4034670911 CERAMIC 0.1U K 25V
C5511 4034670911 CERAMIC 0.1U K 25V
C5512 4034670911 CERAMIC 0.1U K 25V
C5513 4033690524 CERAMIC 0.01U K 25V
C5514 4034670911 CERAMIC 0.1U K 25V
C5515 4034670911 CERAMIC 0.1U K 25V
C5516 4034670911 CERAMIC 0.1U K 25V
C5517 4034670911 CERAMIC 0.1U K 25V
C5518 4034670911 CERAMIC 0.1U K 25V
C5519 4034670911 CERAMIC 0.1U K 25V
C5520 4041212903 CERAMIC 2.2U K 10V
C5520 4033827811 CERAMIC 2.2U K 10V
C5521 4041212903 CERAMIC 2.2U K 10V
C5521 4033827811 CERAMIC 2.2U K 10V
C5522 4041212903 CERAMIC 2.2U K 10V
C5522 4033827811 CERAMIC 2.2U K 10V
C5523 4041212903 CERAMIC 2.2U K 10V
C5523 4033827811 CERAMIC 2.2U K 10V
C5524 4041212903 CERAMIC 2.2U K 10V
C5524 4033827811 CERAMIC 2.2U K 10V
C5525 4034670911 CERAMIC 0.1U K 25V
C5526 4033687316 CERAMIC 10U K 6.3V
C5527 4041212903 CERAMIC 2.2U K 10V
C5527 4033827811 CERAMIC 2.2U K 10V
C5528 4033687316 CERAMIC 10U K 6.3V
C5529 4034670911 CERAMIC 0.1U K 25V
C5530 4034670911 CERAMIC 0.1U K 25V
C5531 4034670911 CERAMIC 0.1U K 25V
C5532 4034670911 CERAMIC 0.1U K 25V
C5533 4034670911 CERAMIC 0.1U K 25V
C5534 4034670911 CERAMIC 0.1U K 25V
C5535 4034670911 CERAMIC 0.1U K 25V
C5536 4034670911 CERAMIC 0.1U K 25V
C5537 4034670911 CERAMIC 0.1U K 25V
C5538 4034670911 CERAMIC 0.1U K 25V
C5539 4034538518 CERAMIC 1000P K 50V
C5544 4040948902 CERAMIC 56P J 50V
C5545 4033690524 CERAMIC 0.01U K 25V
C5546 4033690524 CERAMIC 0.01U K 25V
C5547 4034670911 CERAMIC 0.1U K 25V
C5548 4033687316 CERAMIC 10U K 6.3V
C5549 4034670911 CERAMIC 0.1U K 25V
C5550 4033687316 CERAMIC 10U K 6.3V
!
!
Chassis Electrical Parts List
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
Note: Parts order must contain Chassis No., Part No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 12

C5551 4034670911 CERAMIC 0.1U K 25V
C5552 4034670911 CERAMIC 0.1U K 25V
C5553 4034450513 CERAMIC 0.33U K 10V
C5563 4034423814 ELECT 330U M 6.3V
C5563 4034029917 ELECT 330U M 6.3V
C5564 4033687316 CERAMIC 10U K 6.3V
C5565 4034670911 CERAMIC 0.1U K 25V
C5566 4034670911 CERAMIC 0.1U K 25V
C5567 4034670911 CERAMIC 0.1U K 25V
C5568 4034670911 CERAMIC 0.1U K 25V
C5569 4034670911 CERAMIC 0.1U K 25V
C5570 4034670911 CERAMIC 0.1U K 25V
C5571 4034670911 CERAMIC 0.1U K 25V
C5572 4034670911 CERAMIC 0.1U K 25V
C5573 4034670911 CERAMIC 0.1U K 25V
C5574 4033687316 CERAMIC 10U K 6.3V
C5575 4034670911 CERAMIC 0.1U K 25V
C5576 4034670911 CERAMIC 0.1U K 25V
C5577 4034670911 CERAMIC 0.1U K 25V
C5578 4034670911 CERAMIC 0.1U K 25V
C5579 4034670911 CERAMIC 0.1U K 25V
C5580 4034537016 CERAMIC 33P J 50V
C5581 4034537016 CERAMIC 33P J 50V
C5582 4034670911 CERAMIC 0.1U K 25V
C5583 4034670911 CERAMIC 0.1U K 25V
C5584 4034420417 CERAMIC 0.022U K 25V
C5585 4032835718 CERAMIC 2200P K 50V
C5586 4034670911 CERAMIC 0.1U K 25V
C5587 4033945812 CERAMIC 4.7U K 16V
C5588 4034670911 CERAMIC 0.1U K 25V
C5589 4033687316 CERAMIC 10U K 6.3V
C5590 4033687316 CERAMIC 10U K 6.3V
C5591 4034670911 CERAMIC 0.1U K 25V
C5592 4034670911 CERAMIC 0.1U K 25V
C5593 4034670911 CERAMIC 0.1U K 25V
C5594 4034670911 CERAMIC 0.1U K 25V
C5595 4034670911 CERAMIC 0.1U K 25V
C5596 4034670911 CERAMIC 0.1U K 25V
C5597 4034670911 CERAMIC 0.1U K 25V
C5598 4034670911 CERAMIC 0.1U K 25V
C5599 4034670911 CERAMIC 0.1U K 25V
C5600 4034670911 CERAMIC 0.1U K 25V
C5601 4034670911 CERAMIC 0.1U K 25V
C5602 4034670911 CERAMIC 0.1U K 25V
C5603 4034670911 CERAMIC 0.1U K 25V
C5604 4034670911 CERAMIC 0.1U K 25V
C5605 4034670911 CERAMIC 0.1U K 25V
C5606 4034670911 CERAMIC 0.1U K 25V
C5607 4034670911 CERAMIC 0.1U K 25V
C5608 4034670911 CERAMIC 0.1U K 25V
C5609 4034670911 CERAMIC 0.1U K 25V
C5610 4034670911 CERAMIC 0.1U K 25V
C5611 4034670911 CERAMIC 0.1U K 25V
C5612 4033687316 CERAMIC 10U K 6.3V
C5613 4034670911 CERAMIC 0.1U K 25V
C5614 4033687316 CERAMIC 10U K 6.3V
C5615 4034670911 CERAMIC 0.1U K 25V
C5616 4034423814 ELECT 330U M 6.3V
C5616 4034029917 ELECT 330U M 6.3V
C5617 4033687316 CERAMIC 10U K 6.3V
C5618 4034670911 CERAMIC 0.1U K 25V
C5626 4034670911 CERAMIC 0.1U K 25V
C5627 4034670911 CERAMIC 0.1U K 25V
C5628 4034670911 CERAMIC 0.1U K 25V
C5629 4034670911 CERAMIC 0.1U K 25V
C5630 4034670911 CERAMIC 0.1U K 25V
C5631 4034670911 CERAMIC 0.1U K 25V
C5632 4034670911 CERAMIC 0.1U K 25V
C5633 4034670911 CERAMIC 0.1U K 25V
C5634 4034670911 CERAMIC 0.1U K 25V
C5635 4034670911 CERAMIC 0.1U K 25V
C5636 4034670911 CERAMIC 0.1U K 25V
C5637 4034670911 CERAMIC 0.1U K 25V
C5638 4034670911 CERAMIC 0.1U K 25V
C5639 4034670911 CERAMIC 0.1U K 25V
C5640 4034670911 CERAMIC 0.1U K 25V
C5641 4034670911 CERAMIC 0.1U K 25V
C5642 4033687316 CERAMIC 10U K 6.3V
C5643 4034800912 CERAMIC 220P K 50V
C5644 4034800912 CERAMIC 220P K 50V
C5645 4041034901 CERAMIC 4.7U K 6.3V
4033835212 CERAMIC 4.7U K 6.3V
C5646 4041034901 CERAMIC 4.7U K 6.3V
4033835212 CERAMIC 4.7U K 6.3V
C5647 4034670911 CERAMIC 0.1U K 25V
C5648 4034670911 CERAMIC 0.1U K 25V
C5700 4034670911 CERAMIC 0.1U K 25V
C5701 4034670911 CERAMIC 0.1U K 25V
C5702 4034670911 CERAMIC 0.1U K 25V
C5703 4034670911 CERAMIC 0.1U K 25V
C5704 4034670911 CERAMIC 0.1U K 25V
C5705 4034670911 CERAMIC 0.1U K 25V
C5706 4034670911 CERAMIC 0.1U K 25V
C5707 4034670911 CERAMIC 0.1U K 25V
C5708 4034670911 CERAMIC 0.1U K 25V
C5709 4034670911 CERAMIC 0.1U K 25V
C5710 4034670911 CERAMIC 0.1U K 25V
C5711 4034670911 CERAMIC 0.1U K 25V
C5712 4034670911 CERAMIC 0.1U K 25V
C5713 4034670911 CERAMIC 0.1U K 25V
C5714 4034670911 CERAMIC 0.1U K 25V
C5715 4034670911 CERAMIC 0.1U K 25V
C5716 4034670911 CERAMIC 0.1U K 25V
C5718 4034670911 CERAMIC 0.1U K 25V
C5719 4034670911 CERAMIC 0.1U K 25V
C5720 4033687316 CERAMIC 10U K 6.3V
C5800 4034670911 CERAMIC 0.1U K 25V
C5802 4034670911 CERAMIC 0.1U K 25V
C5901 4034670911 CERAMIC 0.1U K 25V
C5903 4033766219 CERAMIC 0.22U K 10V
C6500 4034670911 CERAMIC 0.1U K 25V
C6501 4034670911 CERAMIC 0.1U K 25V
C6502 4034030319 ELECT 220U M 10V
C6520 4033687316 CERAMIC 10U K 6.3V
C6521 4034670911 CERAMIC 0.1U K 25V
C6800 4033819915 ELECT 470U M 16V
C6802 4034670911 CERAMIC 0.1U K 25V
C6803 4034420417 CERAMIC 0.022U K 25V
C6805 4034670911 CERAMIC 0.1U K 25V
C6806 4033860917 ELECT 100U M 16V
C6807 4033690524 CERAMIC 0.01U K 25V
C6808 4034670911 CERAMIC 0.1U K 25V
C6809 4032246019 CERAMIC 4700P K 50V
C6810 4034670911 CERAMIC 0.1U K 25V
C6811 4033860917 ELECT 100U M 16V
C6812 4034670911 CERAMIC 0.1U K 25V
C6813 4033687316 CERAMIC 10U K 6.3V
C6814 4033690524 CERAMIC 0.01U K 25V
C6815 4034670911 CERAMIC 0.1U K 25V
C6816 4033687316 CERAMIC 10U K 6.3V
C6817 4033690524 CERAMIC 0.01U K 25V
C6818 4034670911 CERAMIC 0.1U K 25V
C6819 4034670911 CERAMIC 0.1U K 25V
C6823 4033906615 ELECT 22U M 10V
-13-
N8JE
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 13

-14-
N8JE
C6824 4034670911 CERAMIC 0.1U K 25V
C6852 4034670911 CERAMIC 0.1U K 25V
C6853 4034525013 CERAMIC 4.7U K 25V
C6854 4041212903 CERAMIC 2.2U K 10V
4033827811 CERAMIC 2.2U K 10V
C6855 4033819915 ELECT 470U M 16V
C6856 4033797312 CERAMIC 4700P K 50V
C6857 4041067800 CERAMIC 1U K 10V
4040949701 CERAMIC 1U Z 10V
4033588316 CERAMIC 1U K 10V
4033645811 CERAMIC 1U K 10V
RESISTOR
R5500 4012942917 MT-GLAZE 560 FA 1/16W
R5501 4012249016 MT-GLAZE 10K JA 1/16W
R5502 4012249016 MT-GLAZE 10K JA 1/16W
R5503 4012249016 MT-GLAZE 10K JA 1/16W
R5504 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5505 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5506 4013368815 MT-GLAZE 6.8K FA 1/16W
R5507 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5508 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5509 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5512 4012943112 MT-GLAZE 1K FA 1/16W
R5513 4012249313 MT-GLAZE 1K JA 1/16W
R5514 4012249313 MT-GLAZE 1K JA 1/16W
R5515 4013674411 MT-GLAZE 6.04K FA 1/16W
R5516 4012249016 MT-GLAZE 10K JA 1/16W
R5517 4012249719 MT-GLAZE 22 JA 1/16W
R5518 4012249719 MT-GLAZE 22 JA 1/16W
R5520 4012249016 MT-GLAZE 10K JA 1/16W
R5521 4012249016 MT-GLAZE 10K JA 1/16W
R5530 4013674312 MT-GLAZE 261 FA 1/16W
R5531 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5533 4012249016 MT-GLAZE 10K JA 1/16W
R5534 4013368815 MT-GLAZE 6.8K FA 1/16W
R5535 4012249016 MT-GLAZE 10K JA 1/16W
R5537 4012249313 MT-GLAZE 1K JA 1/16W
R5540 4012249016 MT-GLAZE 10K JA 1/16W
R5542 4012249016 MT-GLAZE 10K JA 1/16W
R5543 4012249016 MT-GLAZE 10K JA 1/16W
R5544 4012249016 MT-GLAZE 10K JA 1/16W
R5545 4012249016 MT-GLAZE 10K JA 1/16W
R5547 4012250319 MT-GLAZE 33 JA 1/16W
R5548 4012250319 MT-GLAZE 33 JA 1/16W
R5549 4012251415 MT-GLAZE 47K JA 1/16W
R5550 4012249412 MT-GLAZE 1M JA 1/16W
R5551 4012251415 MT-GLAZE 47K JA 1/16W
R5552 4012249511 MT-GLAZE 2.2K JA 1/16W
R5553 4012249016 MT-GLAZE 10K JA 1/16W
R5554 4012249313 MT-GLAZE 1K JA 1/16W
R5555 4012249016 MT-GLAZE 10K JA 1/16W
R5559 4012249016 MT-GLAZE 10K JA 1/16W
R5560 4012249016 MT-GLAZE 10K JA 1/16W
R5561 4012249016 MT-GLAZE 10K JA 1/16W
R5562 4012249016 MT-GLAZE 10K JA 1/16W
R5563 4012349914 MT-GLAZE 6.8K JA 1/16W
R5564 4012405610 MT-GLAZE 3K JA 1/16W
R5565 4012350019 MT-GLAZE 7.5K JA 1/16W
R5566 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5567 4012248811 MT-GLAZE 100 JA 1/16W
R5568 4012249313 MT-GLAZE 1K JA 1/16W
R5569 4012249016 MT-GLAZE 10K JA 1/16W
R5570 4012727811 MT-GLAZE 100 FA 1/16W
R5571 4012727811 MT-GLAZE 100 FA 1/16W
R5572 4012249016 MT-GLAZE 10K JA 1/16W
R5573 4012249016 MT-GLAZE 10K JA 1/16W
R5574 4012249016 MT-GLAZE 10K JA 1/16W
R5575 4012251217 MT-GLAZE 4.7K JA 1/16W
R5576 4012251217 MT-GLAZE 4.7K JA 1/16W
R5578 4012249016 MT-GLAZE 10K JA 1/16W
R5580 4012249016 MT-GLAZE 10K JA 1/16W
R5581 4012249016 MT-GLAZE 10K JA 1/16W
R5582 4012249016 MT-GLAZE 10K JA 1/16W
R5583 4012249016 MT-GLAZE 10K JA 1/16W
R5584 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5585 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5588 4012251415 MT-GLAZE 47K JA 1/16W
R5589 4012251415 MT-GLAZE 47K JA 1/16W
R5590 4012249016 MT-GLAZE 10K JA 1/16W
R5591 4012249016 MT-GLAZE 10K JA 1/16W
R5594 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5595 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5596 4012251217 MT-GLAZE 4.7K JA 1/16W
R5700 4012250319 MT-GLAZE 33 JA 1/16W
R5701 4012250319 MT-GLAZE 33 JA 1/16W
R5702 4012250319 MT-GLAZE 33 JA 1/16W
R5703 4012250319 MT-GLAZE 33 JA 1/16W
R5704 4012250319 MT-GLAZE 33 JA 1/16W
R5705 4012250319 MT-GLAZE 33 JA 1/16W
R5706 4012250319 MT-GLAZE 33 JA 1/16W
R5707 4012250319 MT-GLAZE 33 JA 1/16W
R5708 4012250319 MT-GLAZE 33 JA 1/16W
R5709 4012372516 MT-GLAZE 4.7 JA 1/16W
R5710 4012372516 MT-GLAZE 4.7 JA 1/16W
R5711 4013025510 MT-GLAZE 120 FA 1/16W
R5712 4012250319 MT-GLAZE 33 JA 1/16W
R5713 4012727811 MT-GLAZE 100 FA 1/16W
R5714 4012727811 MT-GLAZE 100 FA 1/16W
R5715 4012250319 MT-GLAZE 33 JA 1/16W
R5716 4012250319 MT-GLAZE 33 JA 1/16W
R5717 4012250319 MT-GLAZE 33 JA 1/16W
R5718 4012250319 MT-GLAZE 33 JA 1/16W
R5719 4012250319 MT-GLAZE 33 JA 1/16W
R5720 4012250319 MT-GLAZE 33 JA 1/16W
R5721 4012250319 MT-GLAZE 33 JA 1/16W
R5722 4012250319 MT-GLAZE 33 JA 1/16W
R5723 4012250319 MT-GLAZE 33 JA 1/16W
R5724 4012250319 MT-GLAZE 33 JA 1/16W
R5725 4012250319 MT-GLAZE 33 JA 1/16W
R5726 4012250319 MT-GLAZE 33 JA 1/16W
R5800 4012249016 MT-GLAZE 10K JA 1/16W
R5801 4012249719 MT-GLAZE 22 JA 1/16W
R5802 4012249719 MT-GLAZE 22 JA 1/16W
R5803 4012249016 MT-GLAZE 10K JA 1/16W
R5805 4012249719 MT-GLAZE 22 JA 1/16W
R5806 4012249719 MT-GLAZE 22 JA 1/16W
R5807 4012249719 MT-GLAZE 22 JA 1/16W
R5808 4012249016 MT-GLAZE 10K JA 1/16W
R5815 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5816 4012249016 MT-GLAZE 10K JA 1/16W
R5900 4012248910 MT-GLAZE 100K JA 1/16W
R5901 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5903 4012249016 MT-GLAZE 10K JA 1/16W
R5904 4012249016 MT-GLAZE 10K JA 1/16W
R5905 4012249016 MT-GLAZE 10K JA 1/16W
R5906 4012249016 MT-GLAZE 10K JA 1/16W
R5907 4012249016 MT-GLAZE 10K JA 1/16W
R5911 4012249016 MT-GLAZE 10K JA 1/16W
R5912 4012249016 MT-GLAZE 10K JA 1/16W
R5913 4012249016 MT-GLAZE 10K JA 1/16W
R5914 4012249016 MT-GLAZE 10K JA 1/16W
R5915 4012249313 MT-GLAZE 1K JA 1/16W
R5916 4012249313 MT-GLAZE 1K JA 1/16W
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 14

R5917 4012249313 MT-GLAZE 1K JA 1/16W
R5918 4012249313 MT-GLAZE 1K JA 1/16W
R5920 4012261513 MT-GLAZE 0.000 ZA 1/16W
R5923 4012251811 MT-GLAZE 47 JA 1/16W
R6502 4012261513 MT-GLAZE 0.000 ZA 1/16W
R6503 4012249016 MT-GLAZE 10K JA 1/16W
R6505 4010375014 MT-GLAZE 0.000 ZA 1/10W
R6506 4012261513 MT-GLAZE 0.000 ZA 1/16W
R6507 4012261513 MT-GLAZE 0.000 ZA 1/16W
R6520 4012249917 MT-GLAZE 22K JA 1/16W
R6521 4012249917 MT-GLAZE 22K JA 1/16W
R6522 4012248811 MT-GLAZE 100 JA 1/16W
R6523 4012249313 MT-GLAZE 1K JA 1/16W
R6524 4012258117 MT-GLAZE 10 JA 1/16W
R6525 4012249016 MT-GLAZE 10K JA 1/16W
R6526 4012249016 MT-GLAZE 10K JA 1/16W
R6534 4012251217 MT-GLAZE 4.7K JA 1/16W
R6535 4012251217 MT-GLAZE 4.7K JA 1/16W
R6536 4012251217 MT-GLAZE 4.7K JA 1/16W
R6537 4012251217 MT-GLAZE 4.7K JA 1/16W
R6545 4012249917 MT-GLAZE 22K JA 1/16W
R6801 4012248811 MT-GLAZE 100 JA 1/16W
R6802 4012250616 MT-GLAZE 5.6K JA 1/16W
R6803 4012943013 MT-GLAZE 10K FA 1/16W
R6805 4012942610 MT-GLAZE 4.7K FA 1/16W
R6806 4013388110 MT-GLAZE 1.2K FA 1/16W
R6807 4012248910 MT-GLAZE 100K JA 1/16W
R6808 4012249016 MT-GLAZE 10K JA 1/16W
R6809 4012249917 MT-GLAZE 22K JA 1/16W
R6810 4012248910 MT-GLAZE 100K JA 1/16W
R6811 4012943112 MT-GLAZE 1K FA 1/16W
R6812 4012994916 MT-GLAZE 470 FA 1/16W
R6813 4012943112 MT-GLAZE 1K FA 1/16W
R6814 4012994916 MT-GLAZE 470 FA 1/16W
R6815 4011506011 MT-GLAZE 0.000 ZA 1/10W
R6816 4012175414 MT-GLAZE 47K FA 1/16W
R6817 4012641919 MT-GLAZE 10K FA 1/10W
R6818 4012184614 MT-GLAZE 5.6K FA 1/16W
R6823 4012248910 MT-GLAZE 100K JA 1/16W
R6825 4012261513 MT-GLAZE 0.000 ZA 1/16W
R6826 4012249016 MT-GLAZE 10K JA 1/16W
COIL
L5500 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5501 4012556510 MT-GLAZE 100 JA 1/10W
L5502 4012556510 MT-GLAZE 100 JA 1/10W
L5503 6450835100 INDUCTOR,0.22U J
L5506 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5507 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5508 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5509 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5510 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5511 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5512 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L5513 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L6501 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L6800 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L6801 6520031746 INDUCTOR,10UH
L6803 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L6805 6520031753 INDUCTOR,3.6UH
L6806 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
DIODE
D6521 4072350813 DIODE 1SS387 TPL3
D6800 4072518718 DIODE SS3P3-E3/84A
MISCELLANEOUS
IC6520 4060203609 TR UPA672T-T1-A
K6500 6520031494 SOCKET,HDMI 19P
K6502 6520030626 SOCKET,USB 4P
SC6520 6450763502 SURGE-ABSORBER
SC6521 6450763502 SURGE-ABSORBER
SC6522 6450763502 SURGE-ABSORBER
SC6523 6450763502 SURGE-ABSORBER
X5500 6520031388 OSC.CRISTAL 25.000MHZ
6103488066 ASSY,PWB,SUB N8JE
1AA0B10S3050A
TRANSISTOR
Q001 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q002 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q003 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1020 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
-15-
N8JE
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 15

-16-
N8JE
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1605 4060224406 TR RQJ0201UGDQA#H1
Q1606 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1609 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1610 4060214407 TR MMBTSC3928R
4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
INTEGRATED CIRCUIT
IC001 4095691907 IC LA42052-E
IC100 4094374712 IC L88M05TL-TL
IC1501 4096973913 IC LE24C023M-TLM-E
4107058308 IC M24C02-WMN6TP
IC1502 4093973015 IC TC7SET04FU-(TE85L)
IC1503 4093973015 IC TC7SET04FU-(TE85L)
IC1601 4095599015 IC AMS1117-3.3
4096836515 IC LM1117S-3.3
IC1603 4095599015 IC AMS1117-3.3
4096836515 IC LM1117S-3.3
CAPACITOR
C001 4041084104 ELECT 100U M 16V
4032112918 ELECT 100U M 16V
C002 4041088706 NP-ELECT 4.7U M 50V
C003 4041045600 CERAMIC 220P K 50V
4040913207 CERAMIC 220P K 50V
4031576216 CERAMIC 220P K 50V
C004 4041045600 CERAMIC 220P K 50V
4040913207 CERAMIC 220P K 50V
4031576216 CERAMIC 220P K 50V
C005 4041088706 NP-ELECT 4.7U M 50V
C007 4041123506 ELECT 4.7U M 50V
4040973409 ELECT 4.7U M 50V
C008 4040988502 ELECT 2200U M 16V
C009 4040972402 ELECT 1K U M 25V
C010 4041036608 CERAMIC 0.22U K 16V
4032812412 CERAMIC 0.22U K 16V
4033645910 CERAMIC 0.22U K 16V
C011 4041036608 CERAMIC 0.22U K 16V
4032812412 CERAMIC 0.22U K 16V
4033645910 CERAMIC 0.22U K 16V
C012 4041036608 CERAMIC 0.22U K 16V
4032812412 CERAMIC 0.22U K 16V
4033645910 CERAMIC 0.22U K 16V
C013 4041036608 CERAMIC 0.22U K 16V
4032812412 CERAMIC 0.22U K 16V
4033645910 CERAMIC 0.22U K 16V
C014 4040972402 ELECT 1K U M 25V
C015 4040970101 ELECT 1U M 50V
4032001123 ELECT 1U M 50V
C100 4041097906 ELECT 220U M 16V
4032115216 ELECT 220U M 16V
C101 4041129300 ELECT 470U M 16V
4040988700 ELECT 470U M 16V
C102 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1021 4031925915 CERAMIC 0.1U K 25V
C103 4041047901 CERAMIC 22P J 50V
4040947608 CERAMIC 22P J 50V
4031459915 CERAMIC 22P J 50V
C104 4041047901 CERAMIC 22P J 50V
4040947608 CERAMIC 22P J 50V
4031459915 CERAMIC 22P J 50V
C106 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1505 4041040209 CERAMIC 100P J 50V
4040946403 CERAMIC 100P J 50V
4031573611 CERAMIC 100P J 50V
C1506 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1507 4041040209 CERAMIC 100P J 50V
4040946403 CERAMIC 100P J 50V
4031573611 CERAMIC 100P J 50V
C1519 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1618 4041130801 ELECT 100U M 16V
4040971801 ELECT 100U M 16V
C1619 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1620 4041130801 ELECT 100U M 16V
4040971801 ELECT 100U M 16V
C1621 4041036202 CERAMIC 0.01U K 25V
4040950707 CERAMIC 0.01U K 25V
C1622 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1628 4041130801 ELECT 100U M 16V
4040971801 ELECT 100U M 16V
C1629 4041036202 CERAMIC 0.01U K 25V
C1629 4040950707 CERAMIC 0.01U K 25V
4031551817 CERAMIC 0.01U K 25V
C1630 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1634 4041130801 ELECT 100U M 16V
4040971801 ELECT 100U M 16V
C1635 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1636 4041130801 ELECT 100U M 16V
4040971801 ELECT 100U M 16V
C1637 4041036202 CERAMIC 0.01U K 25V
4040950707 CERAMIC 0.01U K 25V
C1638 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 16

C1640 4040972600 ELECT 470U M 25V
C1641 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1643 4040972600 ELECT 470U M 25V
C1644 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1645 4031350717 CERAMIC 1U K 25V
C1646 4040988700 ELECT 470U M 16V
C1647 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C3103 4041045600 CERAMIC 220P K 50V
4040913207 CERAMIC 220P K 50V
4031576216 CERAMIC 220P K 50V
C3112 4041045600 CERAMIC 220P K 50V
4040913207 CERAMIC 220P K 50V
4031576216 CERAMIC 220P K 50V
RESISTOR
R005 4012560418 MT-GLAZE 12K JA 1/10W
R006 4010634616 OXIDE-MT 8.2 JA 1W
4010634606 OXIDE-MT 8.2 JA 1W
R007 4010634616 OXIDE-MT 8.2 JA 1W
4010634606 OXIDE-MT 8.2 JA 1W
R008 4013122516 MT-GLAZE 2.2 FA 1/2W
R009 4013122516 MT-GLAZE 2.2 FA 1/2W
R012 4011505915 MT-GLAZE 10K JA 1/10W
R014 4011505816 MT-GLAZE 100K JA 1/10W
R015 4011624012 MT-GLAZE 560 JA 1/10W
R017 4012556510 MT-GLAZE 100 JA 1/10W
R018 4011623015 MT-GLAZE 22K JA 1/10W
R019 4011506011 MT-GLAZE 0.000 ZA 1/10W
R020 4011505915 MT-GLAZE 10K JA 1/10W
R021 4011505915 MT-GLAZE 10K JA 1/10W
R051 4011544211 MT-GLAZE 0.000 ZA 1/4W
R052 4011544211 MT-GLAZE 0.000 ZA 1/4W
R053 4011506011 MT-GLAZE 0.000 ZA 1/10W
R1000 4012562719 MT-GLAZE 75 JA 1/10W
R1007 4012562719 MT-GLAZE 75 JA 1/10W
R1008 4012556510 MT-GLAZE 100 JA 1/10W
R101 4012556510 MT-GLAZE 100 JA 1/10W
R1012 4012562719 MT-GLAZE 75 JA 1/10W
R1013 4012566014 MT-GLAZE 27K JA 1/10W
R1014 4011623411 MT-GLAZE 39K JA 1/10W
R1015 4012566014 MT-GLAZE 27K JA 1/10W
R1016 4011623411 MT-GLAZE 39K JA 1/10W
R102 4012556510 MT-GLAZE 100 JA 1/10W
R1020 4011506110 MT-GLAZE 2.2K JA 1/10W
R1021 4012563815 MT-GLAZE 1.5K JA 1/10W
R1022 4011623114 MT-GLAZE 3.3K JA 1/10W
R1023 4011622919 MT-GLAZE 220 JA 1/10W
R1024 4012562719 MT-GLAZE 75 JA 1/10W
R1025 4011505816 MT-GLAZE 100K JA 1/10W
R1030 4012562719 MT-GLAZE 75 JA 1/10W
R1034 4012562719 MT-GLAZE 75 JA 1/10W
R1038 4012562719 MT-GLAZE 75 JA 1/10W
R104 4011506011 MT-GLAZE 0.000 ZA 1/10W
R1042 4012566014 MT-GLAZE 27K JA 1/10W
R1043 4011623411 MT-GLAZE 39K JA 1/10W
R1045 4012566014 MT-GLAZE 27K JA 1/10W
R1046 4011623411 MT-GLAZE 39K JA 1/10W
R105 4011506011 MT-GLAZE 0.000 ZA 1/10W
R106 4011506011 MT-GLAZE 0.000 ZA 1/10W
R108 4011623718 MT-GLAZE 4.7K JA 1/10W
R109 4011623718 MT-GLAZE 4.7K JA 1/10W
R112 4010691609 OXIDE-MT 68 JA 2W
R113 4010691609 OXIDE-MT 68 JA 2W
R1500 4011623718 MT-GLAZE 4.7K JA 1/10W
R1503 4011623718 MT-GLAZE 4.7K JA 1/10W
R1510 4012562719 MT-GLAZE 75 JA 1/10W
R1511 4012562719 MT-GLAZE 75 JA 1/10W
R1512 4012562719 MT-GLAZE 75 JA 1/10W
R1513 4012565611 MT-GLAZE 47 JA 1/10W
R1514 4012565611 MT-GLAZE 47 JA 1/10W
R1515 4012565611 MT-GLAZE 47 JA 1/10W
R1519 4011623411 MT-GLAZE 39K JA 1/10W
R1520 4011623411 MT-GLAZE 39K JA 1/10W
R1521 4012566014 MT-GLAZE 27K JA 1/10W
R1522 4012566014 MT-GLAZE 27K JA 1/10W
R1523 4011506110 MT-GLAZE 2.2K JA 1/10W
R1524 4012558712 MT-GLAZE 22 JA 1/10W
R1525 4011506110 MT-GLAZE 2.2K JA 1/10W
R1526 4012558712 MT-GLAZE 22 JA 1/10W
R1527 4011506011 MT-GLAZE 0.000 ZA 1/10W
R1528 4011506011 MT-GLAZE 0.000 ZA 1/10W
R1529 4012556510 MT-GLAZE 100 JA 1/10W
R1530 4012556510 MT-GLAZE 100 JA 1/10W
R1531 4011623718 MT-GLAZE 4.7K JA 1/10W
R1601 4011506011 MT-GLAZE 0.000 ZA 1/10W
R1602 4011505915 MT-GLAZE 10K JA 1/10W
R1610 4012566014 MT-GLAZE 27K JA 1/10W
R1611 4012566014 MT-GLAZE 27K JA 1/10W
R1612 4011505915 MT-GLAZE 10K JA 1/10W
R1659 4011506219 MT-GLAZE 1K JA 1/10W
R1670 4011505915 MT-GLAZE 10K JA 1/10W
R1671 4011505915 MT-GLAZE 10K JA 1/10W
R1951 4012557715 MT-GLAZE 11K JA 1/10W
R1952 4012559214 MT-GLAZE 6.2K JA 1/10W
R1953 4012565413 MT-GLAZE 3.6K JA 1/10W
R1954 4012565918 MT-GLAZE 2.7K JA 1/10W
R1955 4011622810 MT-GLAZE 1.8K JA 1/10W
R1956 4012561613 MT-GLAZE 1.3K JA 1/10W
R3103 4011505915 MT-GLAZE 10K JA 1/10W
R3110 4011505915 MT-GLAZE 10K JA 1/10W
R3114 4011505915 MT-GLAZE 10K JA 1/10W
R3115 4011505915 MT-GLAZE 10K JA 1/10W
COIL
L1000 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1001 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1002 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1003 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1004 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1005 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1006 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1007 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1008 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1009 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1010 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1500 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1501 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1502 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1503 4011506011 MT-GLAZE 0.000 ZA 1/10W
L1504 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L1602 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L1603 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
-17-
N8JE
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 17

-18-
N8JE
L1605 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
L1611 6450363894 INDUCTOR,220 OHM
6520016989 INDUCTOR,220 OHM
6520032071 INDUCTOR,220 OHM
DIODE
D1500 4072128818 DIODE KDS160-RTK
4080627201 DIODE 1SS35
4080660000 DIODE L1SS355T1G
4071630411 DIODE 1SS352-(TPH3)
4071490817 DIODE 1SS355-TE-17
D1501 4072128818 DIODE KDS160-RTK
4080627201 DIODE 1SS35
4080660000 DIODE L1SS355T1G
4071630411 DIODE 1SS352-(TPH3)
4071490817 DIODE 1SS355-TE-17
D1502 4072089713 ZD UDZS-TE-175.6B
4080629700 ZENER DIODE MM3Z5V6B
D1503 4072089713 ZD UDZS-TE-175.6B
4080629700 ZENER DIODE MM3Z5V6B
D1600 4072128818 DIODE KDS160-RTK
4080627201 DIODE 1SS35
4080660000 DIODE L1SS355T1G
4071630411 DIODE 1SS352-(TPH3)
4071490817 DIODE 1SS355-TE-17
D1601 4072128818 DIODE KDS160-RTK
4080627201 DIODE 1SS35
4080660000 DIODE L1SS355T1G
4071630411 DIODE 1SS352-(TPH3)
4071490817 DIODE 1SS355-TE-17
D1602 4072128818 DIODE KDS160-RTK
4080627201 DIODE 1SS35
4080660000 DIODE L1SS355T1G
4071630411 DIODE 1SS352-(TPH3)
4071490817 DIODE 1SS355-TE-17
MISCELLANEOUS
A101 6451025319 TUNER,U/V
J005 4011506011 MT-GLAZE 0.000 ZA 1/10W
J006 4011506011 MT-GLAZE 0.000 ZA 1/10W
J101 4011506011 MT-GLAZE 0.000 ZA 1/10W
J102 4011506011 MT-GLAZE 0.000 ZA 1/10W
J103 4011506011 MT-GLAZE 0.000 ZA 1/10W
J105 4011506011 MT-GLAZE 0.000 ZA 1/10W
J1516 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5903 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5905 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5906 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5907 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5908 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5909 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5910 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5911 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5912 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5913 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5915 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5916 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5917 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5918 4011506011 MT-GLAZE 0.000 ZA 1/10W
J5919 4011506011 MT-GLAZE 0.000 ZA 1/10W
K1000 6520031418 JACK,RCA-3
K1001 6520031449 JACK,RCA-1
K1002 6520031425 JACK,RCA-5
K1003 6520031432 SOCKET,DIN 4P
K1502 6520029934 SOCKET,D-SUB 15P
K1503 6520029958 JACK,PHONE D3.6
SC1000 6450763502 SURGE-ABSORBER
SC1001 6450763502 SURGE-ABSORBER
SC1002 6450763502 SURGE-ABSORBER
SC1003 6450763502 SURGE-ABSORBER
SC1004 6450763502 SURGE-ABSORBER
SC1005 6450763502 SURGE-ABSORBER
SC1006 6450763502 SURGE-ABSORBER
SC1007 6450763502 SURGE-ABSORBER
SC1008 6450763502 SURGE-ABSORBER
SC1009 6450763502 SURGE-ABSORBER
SC1010 6450763502 SURGE-ABSORBER
SC1500 6450763502 SURGE-ABSORBER
SC1501 6450763502 SURGE-ABSORBER
SC1504 6450763502 SURGE-ABSORBER
SC1505 6450763502 SURGE-ABSORBER
SC1506 6450763502 SURGE-ABSORBER
SC1507 6450763502 SURGE-ABSORBER
SC1508 6450763502 SURGE-ABSORBER
SC1951 6450763502 SURGE-ABSORBER
SC1952 6450763502 SURGE-ABSORBER
SW1951 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1952 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1953 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1954 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1955 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1956 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
SW1957 6450034701 SWITCH,PUSH 1P-1TX1
6450194887 SWITCH,PUSH 1P-1TX1
6520018761 SWITCH,PUSH 1P-1TX1
ZD001 4072505817 ZENER DIODE KDZ10V
4072065618 ZENER DIODE UDZS-TE-1710B
4080632403 ZENER DIODE MM3Z 10B
6103488073 ASSY,PWB,RC+LED N8JE
1AA0B10S3050B
TRANSISTOR
Q1900 4052203115 TR ISA1235AC1E
4052203016 TR ISA1235AC1F
4060214308 TR MMBTSA1235F
4051345925 TR 2SA1037AK-T146-R
4051472215 TR 2SA1037AK-S-T146
4051739615 TR 2SA1235A1E
4051739714 TR 2SA1235A1F
Q1901 4052203115 TR ISA1235AC1E
4052203016 TR ISA1235AC1F
4060214308 TR MMBTSA1235F
4051345925 TR 2SA1037AK-T146-R
4051472215 TR 2SA1037AK-S-T146
4051739615 TR 2SA1235A1E
4051739714 TR 2SA1235A1F
CAPACITOR
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:05 PM Page 18

C1900 4041036905 CERAMIC 0.1U K 25V
4040950806 CERAMIC 0.1U K 25V
4033423310 CERAMIC 0.1U K 25V
C1901 4034374611 CERAMIC 10U K 25V
C1902 4034374611 CERAMIC 10U K 25V
RESISTOR
R1900 4011623015 MT-GLAZE 22K JA 1/10W
R1901 4011622711 MT-GLAZE 180 JA 1/10W
R1902 4012566212 MT-GLAZE 270 JA 1/10W
R1903 4011623015 MT-GLAZE 22K JA 1/10W
R1905 4011506110 MT-GLAZE 2.2K JA 1/10W
R1906 4012565611 MT-GLAZE 47 JA 1/10W
R1907 4011506011 MT-GLAZE 0.000 ZA 1/10W
DIODE
D1900 4071589204 LED SPR-39MVWF
D1900A 6520015586 LED SPACER-N3EA
6550026538 LED SPACER-N3EA
MISCELLANEOUS
U1900 6520031999 UNIT,REMOCON,RECEIVER
CABINET PARTS LIST
-- 6103489209 CABINET FRONT-N8JE
-- 6103489254 DEC IND RC-N8JE
-- 6103475424 BADGE SANYO-BH4A
-- 6102764857 SPACER SHEET-S4KF
-- 6103483115 SPACER SHEET A-BH4A 5X200
-- 4111926303 SCR P-TAP FLG 3X10E
-- 6103489223 BUTTON UNITED-N8JE
-- 6103489216 CABINET BACK-N8JE
-- 6103489308 MOUNTING HANGER A-N8JE
-- 6103489292 RUBBER PAD-N8JE
-- 6103509525 STAND BASE A-N8JE
-- 6103494579 BAG A-N8JE
ACCESSORIES LIST
-- 6520033191 REMOCON,GXFA
-- 6103329550 RC-BATTERY LID-GXCB
or
-- 6520030855 REMOCON,GXCF
-- 6103329550 RC-BATTERY LID-GXCB
-- 6103496160 INSTRUCTION MANUAL-N8JE
-- 6103496924 QUICK-N EASY SETUP GUIDE
-- 6103496931 DONT RETURN HDTV SHEET
-- 4112027009 SCR TPG BRZ 4X16 (2pcs)
-19-
N8JE
Ref. No. Part No. Description Ref. No. Part No. Description
P List-N8JE(US1-R) 6/7/10 1:06 PM Page 19

-20-
COMPONENT AND TESTPOINT LOCATIONS
1
1
??? ***
DP19640.MAIN.PWB
1AA4B10S0600A
2
32
1
31
K5902
2
1
40
39
K5903
SH1
SH2
SH3
SH4
K6502
1
2
39
40
K5901
C5574
C5575
C5576
C5577
C5578
R5551
C5579
R5554
R5555
R5556
R5557
R5558
C5582
C5583
R6500
C5588
R5561
C5589
R6502
R5566
R5567
R5568
R5569
C5592 C5593
C5594
C5595
C5596
C5597
R5570
C5598
R5571
C5599
R5575 R5576
R5577
R5578
R5584
R5586
R5588
L6803
L6804
C5600
C5601
C5602
C5603
C5604
C5605
C5606
C5607
C5608
C5609
C5803
C5610
C5611
C5612
C5613 C5615
C5617
C5618
C5626 C5627
C5628
C5629
C5630
C5631
C5632
C5633
C5634
C5635
C5636
C5637
C5638
C5639
1
4
5 8
IC5801
R5809
C5640
C5641
C5642
C5643 C5644
R5810
C5645
R5811
C5646
R5812
R5813
C5648
R5814
R5815
L5505
L5506
L5507
L5508
L5510
L5511
C6803
Q6800
C6804
Q6801
C6807
C6808
C6809
C6810
C6812
C6813
C6814 C6815
C6816
C6817 C6818
C6819
R6800
R6801
R6802
R6803
R6804
R6805
R6806
R6807
R6808
R6809
R6810
R6811
R6812
R6813 R6814
R6815
R6816
R6817
R6818
R6823
R6824
R6825
C6856
C5500
Q5500
C5507 C5509
C5700
C5701
C5702
C5703
C5704
C5510
C5705
C5706
C5707
C5708 C5709
C5901
C5519
C5902
C5903 C5904
C5710
C5711
C5712
C5713
C5714
C5715
C5716
C5718
C5719
C5525
C5526
R5500
R5501
C5529
R5503
C5720
C5915
R5506
C5916
C5530 C5531
C5532
C5533
C5534
SC01
C5535
C5536
R5703
C5537
R5704
C5538
SC05
R5705
C5539
SC06
R5706
R5512
R5707
R5513
SC08
R5708
R5514
R5709
R5515
R5517
R5900
R5518
R5901
R5902
R5903
R5904
R5710
R5905
R5711
R5906
R5907
R5713
C5547
IC5900
R5908
R5714
R5520
C5548
R5521
C5549
R5716
R5717
R5910
C5550
R5911
C5551
R5912
R5913
C5553
R5914
C5554
C5555
C5556
C5557
R5530
C5558
R5919
R5531
R5532
R5534
R5536
R5537
R5920
R5538
R5921
R5922
R5923
C5564
C5565
C5566
C5567
C5568
R5541
C5569
R5547 R5548
C5570
R5549
C5571
C5572
C5573
R5590
R5591
R5592R5593
IC6801
IC6802
C6857
R5818
R5817
C5552
L6502
R5596
C5651
C5649
C5650
A30C5
MAIN BOARD (Solder Side)
