Sanyo DP32746 User manual

Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
155W (Avg), 2.7A (Max)
Antenna Input Impedance . . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
Remote Ready . . . . . . . . . . 32 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 3.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . T315XW01 V5
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 812mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 614mm
Depth including base . . . . . . . . . . . . . . . . 201mm
REFERENCE No. SM780112
DP32746, N3HE, PRODUCT CODE 111379904
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments . . . . . . . . . . . . . . 3 - 5
Power Failure Circuit . . . . . . . . . . . . . . . . 6
Mechanical Disassemblies. . . . . . . . . 7 – 8
Chassis Electrical Parts List . . . . . . . 9 - 20
Cabinet Parts List . . . . . . . . . . . . . . . . . . 21
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 22 – 25
Block Diagrams . . . . . . . . . . . . . . . . 26 – 31
Trouble Shooting Flow Charts . . . . 32 – 34
Control Port Functions. . . . . . . . . . . 35 – 36
Schematic Notes . . . . . . . . . . . . . . . . . . . 37
Pin Layouts. . . . . . . . . . . . . . . . . . . . . . . . 38
PC Board Connections and Locations . . 39
Capacitor and Resistor Codes . . . . . . . . 40
Schematic Diagrams . . . . . . . . . . . . 41 – 48
AS
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP32746 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P32746-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
AS
POWER
CH
VOL
DIGITAL
DOLBY
with a double “Z” is a registered trademark
of Sanyo Manufacturing Corporation.
Servicing should be performed by only trained and qualified service personnel.
© Sanyo Manufacturing Corporation 2006

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating ground with the
potential of one half the AC line voltage in respect to earth ground.
Service should not be attempted by anyone not familiar with the
precautions necessary when working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power line
between the receiver and the AC line before any service is
performed on the receiver.
2. Comply with all caution and safety-related notes provided on the
side of the cabinet, inside the cabinet, and on the chassis.
3. When replacing a chassis in the cabinet, always be certain that all
the protective devices are installed properly, such as control
knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly inspect the
inside of the cabinet to see that no stray parts or tools have been
left inside.
Before returning any television to the customer, the service
technician must perform the following safety checks to be sure
that the unit is completely safe to operate without danger of
electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a jumper
across the two blades. Connect one lead of an ohmmeter to the
jumpered AC plug, and touch the other lead to each exposed antenna
terminal (UHF and VHF antenna terminals). The resistance must
measure between 1M ohm and 5.2M ohm. Any resistance value
below or above this range indicates an abnormality which requires
corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not use an
isolation transformer for this check.) Use an AC voltmeter, that has
5000 ohms per volt or more sensitivity. Connect a 1500 ohm 10 watt
resistor, paralleled by a 0.15 µF 150 VAC capacitor, between a
known good earth ground (water pipe, conduit, etc.) and all
exposed metal parts of the cabinet (antennas, handle bracket, metal
cabinet, screw heads, metal overlays, control shafts, etc.). Measure
the AC voltage across the 1500 ohm resistor. The AC voltage should
not exceed 750 mV. A reading exceeding 750 mV indicates that a
dangerous potential exists. The fault must be located and correct-
ed. Repeat the above test with the receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER WITHOUT
TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in mind
the necessary product safety precautions. Pay special attention
to the replacement of components marked with a star () in the
parts list and in the schematic diagrams. To ensure safe product
operation, it is necessary to replace those components with the
exact same PARTS.
SERVICING ELECTROSTATICALLY SENSATIVE DEVICES
Semiconductors (solid-state devices) that can be damaged by static
electricity are referred to as Electrostatically Sensitive (ES) devices.
Examples of typical ES devices are: Integrated Circuits (IC), Field-
Effect Transistors (FET), and “chip” components. The following
techniques should be observed strictly, to reduce the occurrence of
semiconductor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor component or
an assembly containing a semiconductor device or devices, dis-
charge the electrostatic buildup on your body by touching a
known earth ground. You may also obtain and wear a commer-
cially available discharging wrist strap device.
CAUTION: Be sure to remove the wrist strap before applying
power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a conduc-
tive surface, such as, aluminum foil, to prevent buildup or
exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsolder ES
devices.
4. Use only anti-static solder removal devices. Some suction-type
devices can generate static electricity adequate to damage ES
devices.
5. A replacement ES device will come packaged in protective material
(conductive foam, aluminum foil, or some comparable conductive
material). Do Not remove an ES device from its protective packag-
ing unless you are prepared to install it immediately.
6. Precisely prior to removing an ES device from its protective pack-
aging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or circuit
assembly.
7. Incidental body movements, such as, lifting a foot from a carpeted
floor or the rubbing of fabric together can generate static electricity
sufficient to damage ES devices. Therefore, minimize all body
movements while handling exposed (unpackaged) ES devices.
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.

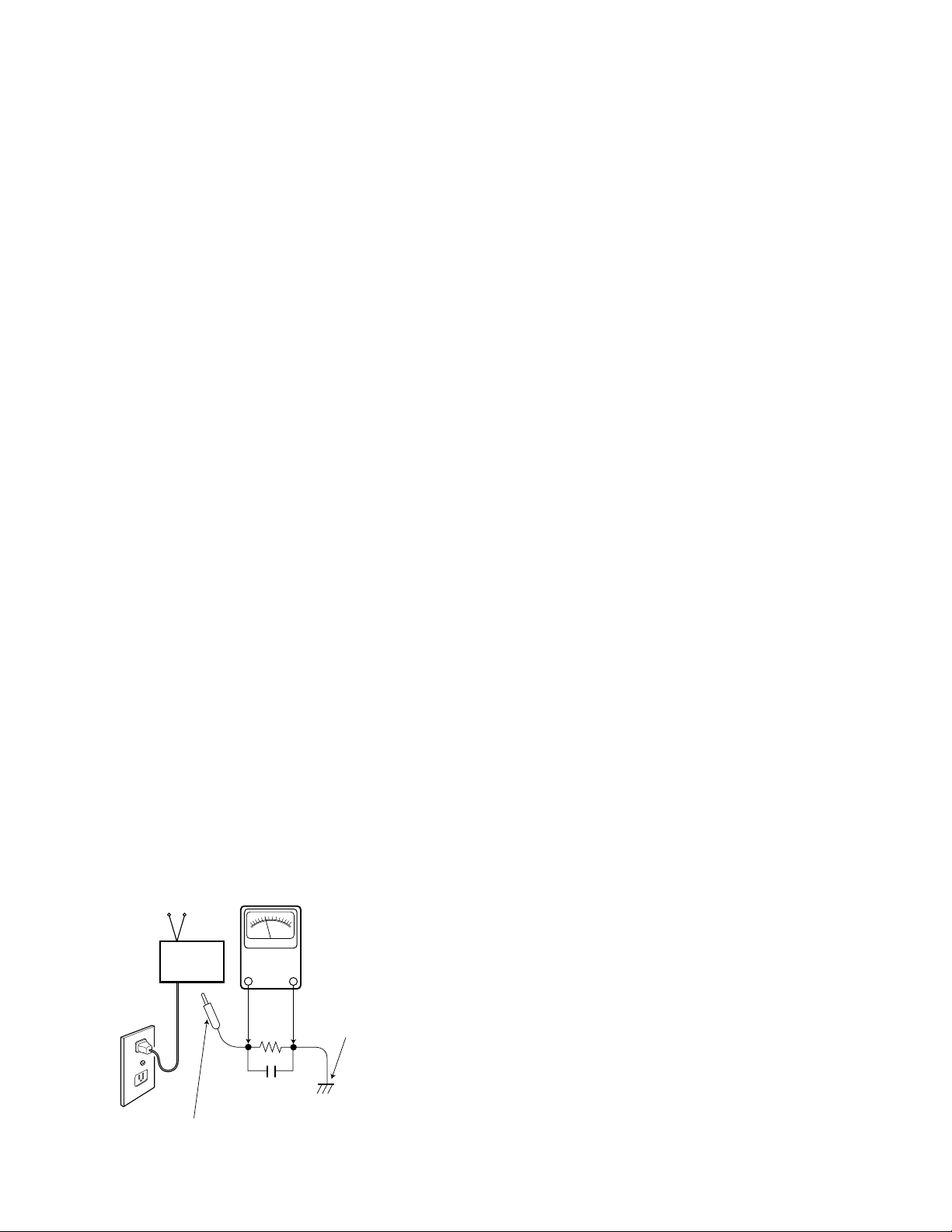

Voltmeter Hook-up for Leakage Current Check.
SAFETY INSTRUCTIONS

POWER
VOL
CH
POWER
VOL
CH
1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
TUNER MUTE
SLEEP
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the ser-
vice adjustments.
ON-SCREEN SERVICE MENU SYSTEM

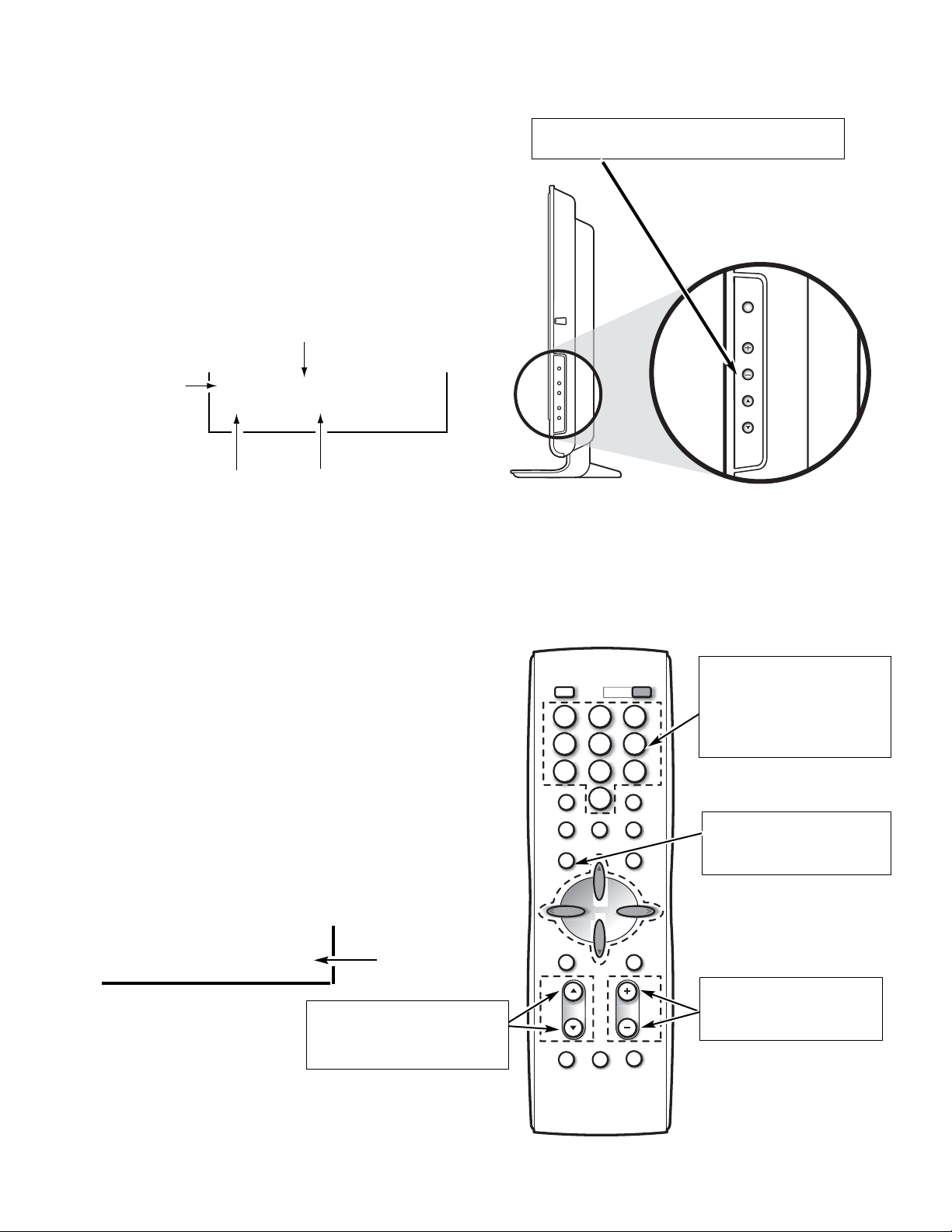

1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (–) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Channel or key to select the desired
service menu item you want to adjust. See page 4
for the On-screen Service Menu.
•Use the Volume + or – key or number keys to adjust
the data.
The + or – keys will increase or decrease the data
sequentially. The number keys (0 ~ 7) toggle only
their respective bits between 1 and 0 and are used to
change the Sub-Address. For example to change bit
5 press the number 5 key. See below.
Note: Using the + or – is not recommended due to possi-
ble rapid changes.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
— 3 —
SERVICE ADJUSTMENTS
(b7) (b6) (b5) (b4) (b3) (b2) (b1) (b0)
0 1 0 1 0 1 1 0 BINARY DATA
(8 bit)
Menu:
Exit Service Menu
Volume + / –:
Adjust Service Menu
Numeric:
0, 1, 2, 3, 4, 5, 6, 7:
Change Binary Data
Volume – :Enter Service Menu
080 ATT
07 00000111
Figure 1. Service Menu Display
ITEM NO.
TITLE
BINARY DATA
(8 bit)
HEX DATA
Channel  :
Select Item

— 4 —
ON-SCREEN SERVICE MENU
•All data except in gray box area is fixed. Do not change for correct operation.
•Data in gray box is initial. Can be set according to adjustment information.
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. See page 3 for On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprossesor used in this model is a multi-purpose type and is used in several different models. To ensure proper
operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OPT) should be hexadeci-
mal 09 (00001001 binary). See 087 above. If this program
code is wrong the TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadeci-
mal 00 (00000000 binary). See 088 above. If this program
code is wrong the TV will not operate properly.
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
080 ATT 07 07 00000111 Attenuation -MTS Input Level (3~0)
081 SPC 20 20 00100000 Spectral - High Separation (5~3)
082 WDB 20 20 00100000 Wide Band - Low Separation (5~0)
083 SCO 00 00 00000000 Sub Color (NOT AVAILABLE)
084 STI 00 00 00000000 Sub Tint (NOT AVAILABLE)
085 SB 00 00 00000000 Sub Bright (NOT AVAILABLE)
086 SSH 00 00 00000000 Sub Sharpness (NOT AVAILABLE)
087 OP1 09 09 00001001 b4:26=1, b3:W/HDMI=1, LCD b1,b0=0
088 OP2 00 00 00000000 b1:Aspect 16:9=1, 4:3=0
1C0 ↓↓↓00000000 Not Used
1FF ↓↓↓↓Not Used
200 1R01 00 00 00000000 ROM Correction Data
↓↓ ↓ ↓ ↓↓
298 2R48↓00 00 00000000 ROM Correcetion Data

— 5 —
SERVICE ADJUSTMENTS (Continued)
MULTI-SOUND SECTION ADJUSTMENTS
Note: Multi-Sound Section must be adjusted after
A101 (U/V Tuner), IC3401 (MTS Decoder), Digital
Module or IC802 (EEPROM) is replaced.
INPUT LEVEL ADJUSTMENT
1. Connect a signal to the analog antenna terminal with
audio of 1 KHZ100% modulation.
2. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
3. Connect voltmeter (RMS) to TP317 and ground on the
Main PC board.
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu will now appear.
5. Select NO. 080 (ATT: MTS Input Level) with the
or  key.
6. Adjust the + or – key for a voltmeter reading of 400 ±
20 mVrms at TP317.

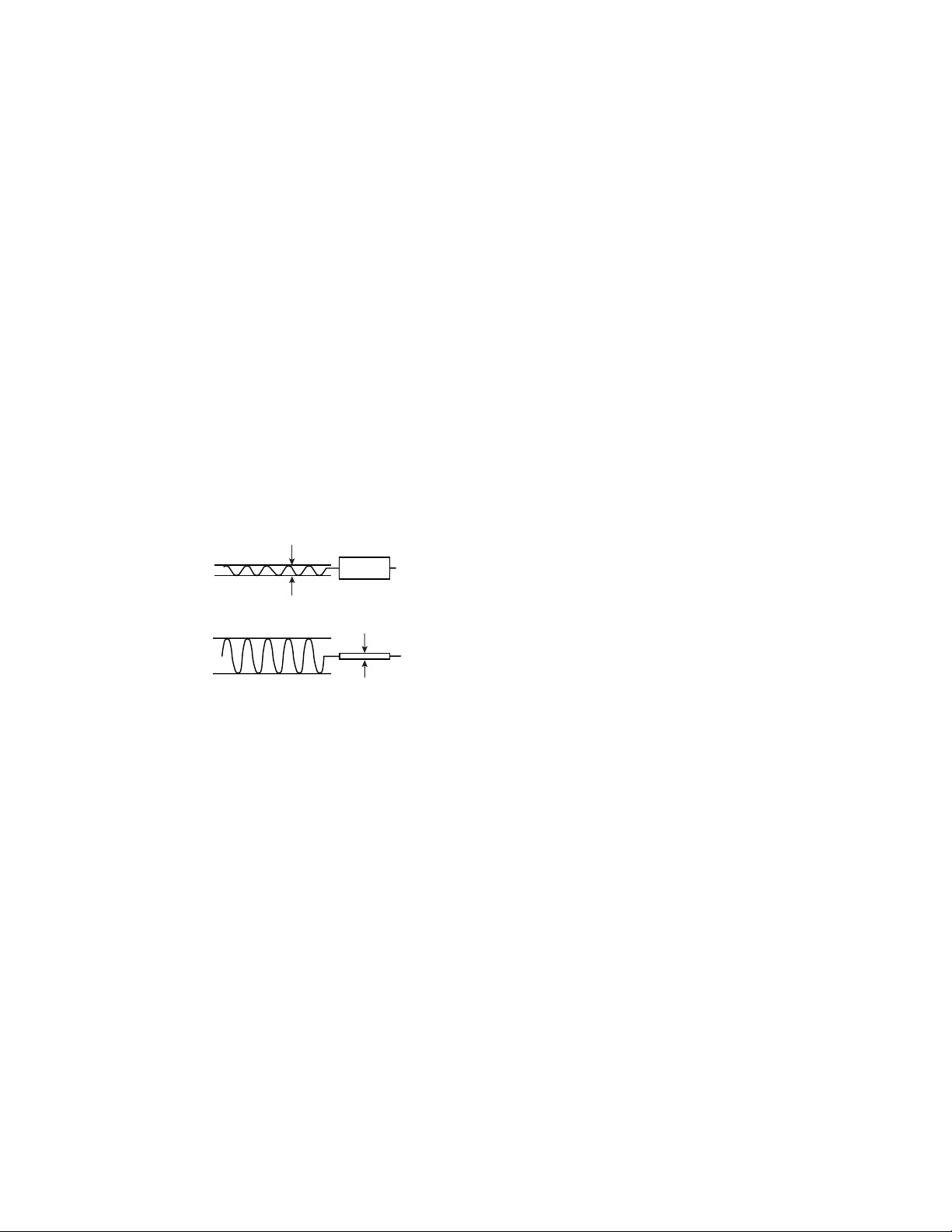

Minimize L leakage
Minimize R leakage
4KHz
300Hz
TP317 (R)
TP318 (L)
Figure 2. Separation Adjustments
SEPARATION ADJUSTMENT
7. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
8. Connect oscilloscope CH1 to TP317 and CH2 to TP318
and ground.
9. Connect an MTS TV/Stereo generator to antenna terminal.
10. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu will now appear.
11. Select pilot, 300Hz audio frequency and Left modulating
signal.
12. Select NO. 082 (WDB: Wide Band) with the or key.
13. Adjust the + or – key for minimum low frequencies at
TP317. See Figure 2.
14. Select 4 KHz audio frequency and Right modulating signal.
15. Select NO.0 81 (SPC: Spectral) with the or key.
16. Adjust the + or – key for minimum high frequencies at
TP318. See Figure 2.
Repeat adjustments (steps 11–16) until no further decreases
in amplitude can be obtained. Press the MENU key to turn
off the Service Menu display.

— 6 —

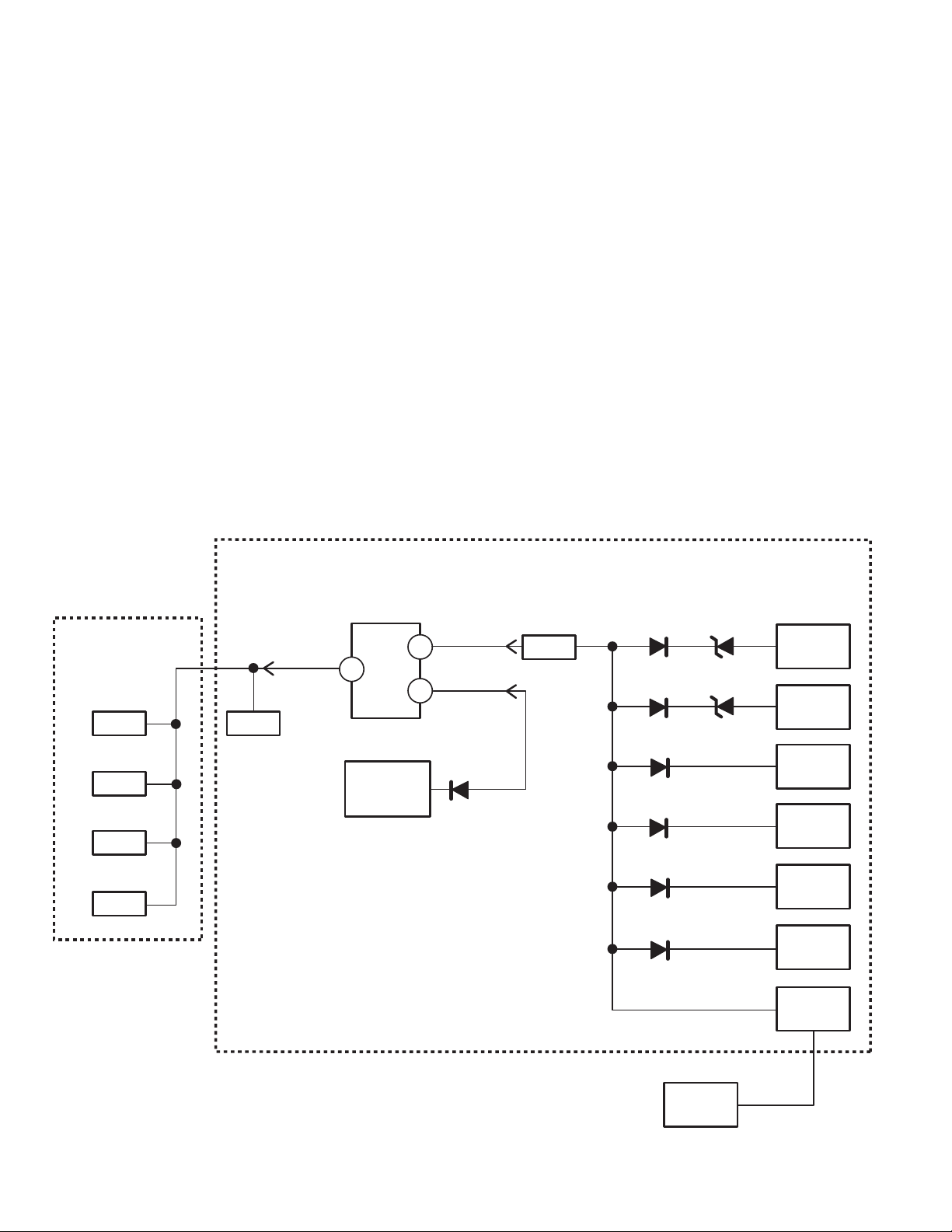

POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for at least
10 seconds.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note:This unit is equipped with a Power Surge Protection
feature included in the CPU. If power failure occurs
three times within 15 minutes, the CPU will stop func-
tioning automatically to help prevent secondary
damage. (TV will not turn on by pressing the power
key.) To reset the operating programs within the CPU,
disconnect the AC power cord for at least 10 seconds.
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies, including the power
supply for the LVDS (LCD Panel).
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
1. Power Failure: Detected voltage failure for main board
and digital board circuits. (Connected to IC801 pin 32.)
2. Power Failure (LVDS): Detected voltage failure for LCD
panel. (Connected to IC801 pin 36.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within three seconds.
32
14
IC801 (CPU)
D1603 2
2
4,5
2
2
D1673 D1612
Q602 Q1673
Q607
Q610
Q611
D1602
36
Power Fail
Power On
Power Fail
2
(LVDS)
Power
Main
D1683
D1641
D1682
D1652
K8R
24V
IC1641
9V
IC1631
5V
D1651
33V
IC1601
3.3VD
IC1611
1.8VD
DM
PIN19
K6MA
IC1621
5/12V
LVDS
Q803

— 7 —

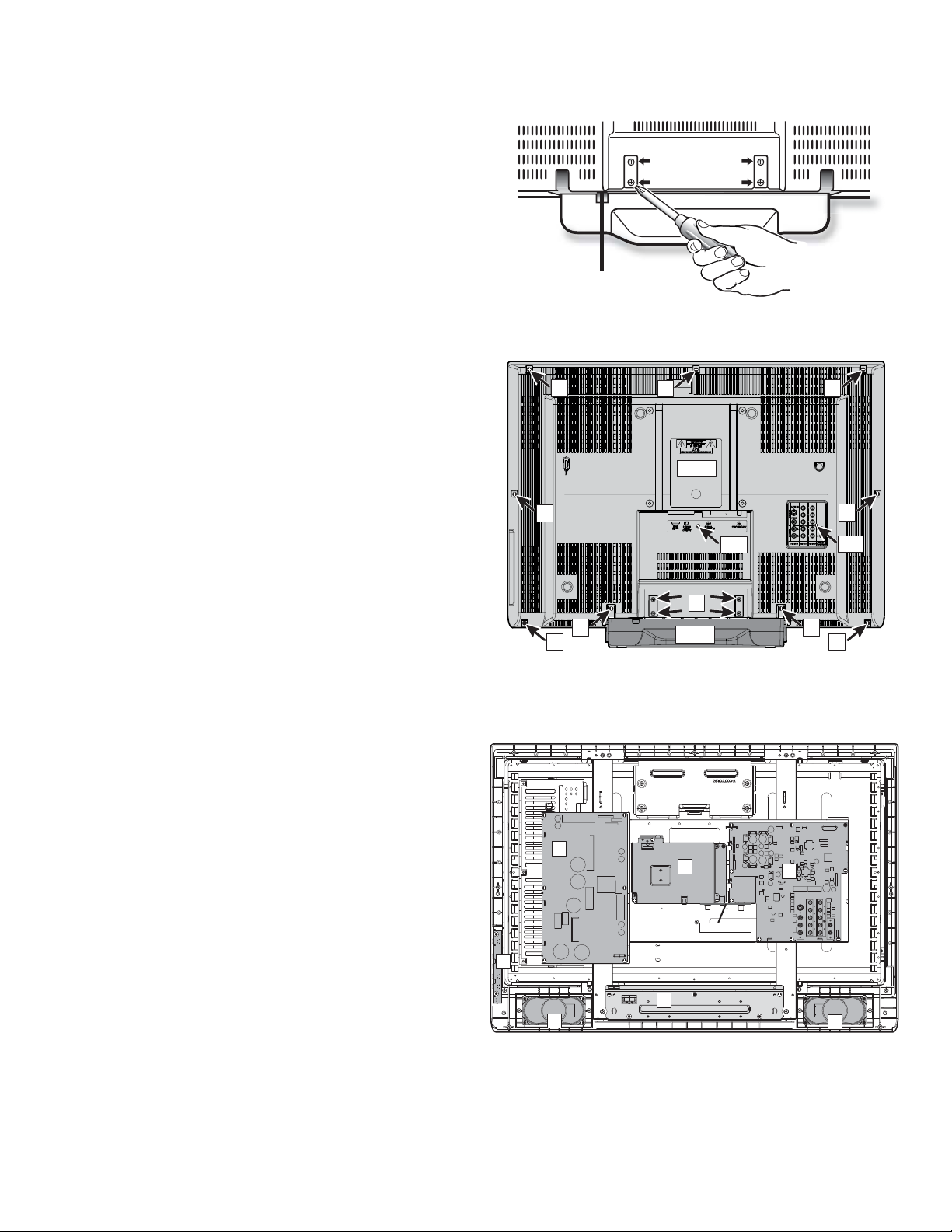

STAND REMOVAL
Note: Position TV face down on a padded or cush-
ioned surface to protect the screen and finish.
Remove 4 screws “A” to take the stand off.
MECHANICAL DISASSEMBLY
CABINET BACK REMOVAL
Remove 11 screws to take the cabinet back (C/B) off.
(B: 4X14 9pcs; B1: 3X8 1pc; B2: 4X8 1pc)
Note: The cabinet back can be removed without
removing the stand.
CAUTION: This LCD TV uses several different kinds of
screws. Using the correct screw is neces-
sary to prevent damage. Lead wires must
be redressed to their previous locations
after servicing.
B
A
STD
C/B
B1
B
B
B
B
B2
B
B
B
B
CHASSIS AND PARTS LOCATIONS
1. Digital Board
2. Main Board
3. Power Board
4. Key Switch Board
5. Speakers
6. Mounting stand (stand base)
55
12
3
4
6
Earth Plate

— 8 —
1: DIGITAL BOARD REMOVAL
1-1. Remove the tuner nuts from the analog and digital
tuners and remove earth plate connecting the
tuners.
1-2. Remove 4 screws (3X6) to take off the digital board.
2: MAIN BOARD REMOVAL
2-1. Remove the tuner nuts from the analog and digital
tuners and remove earth plate connecting the
tuners.
2-2. Remove 9 screws (3X6) to take off the main board.
3: POWER BOARD REMOVAL
3-1. Remove 6 screws (3X6) to take off the power board.
4: CONTROL BOARD REMOVAL
4-1. Remove 2 screws (4X14–special screw) to take off
the control board.
5: SPEAKER REMOVAL
5-1. Remove 4 screws (4X14–special screw) to take off
the speaker.
6: STAND BASE REMOVAL
6-1. Remove 5 screws to take off the stand base.
4X14–special screw 3 pcs
3X6 2 pcs.

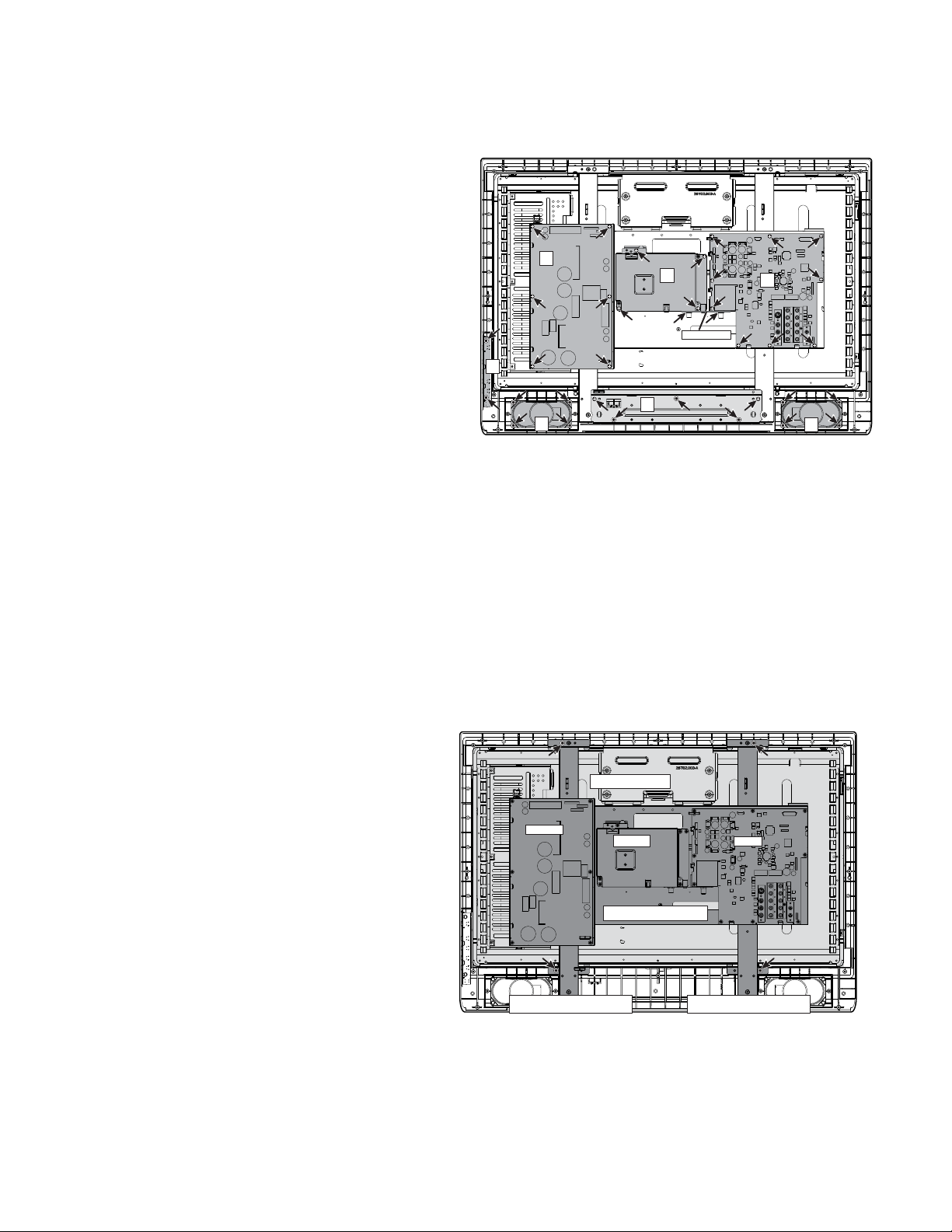

LCD PANEL REMOVAL
1: STAND BASE REMOVAL
1-1. Remove 5 screws to take off the stand base.
See above.
2: LCD PANEL REMOVAL
2-1. Disconnect the lead wires from the LCD panel,
speakers, and control board.
2-2. Remove 4 screws (4X14–special screw) and take
off the mounting frames with the chassis plate,
power board, main board, and digital board.
2-3. Lift the LCD panel from the front cabinet.
55
12
3
4
6
Earth Plate
LCD Panel
Main
Digital
Chassis Plate
Mounting Frame Mounting Frame
Power
MECHANICAL DISASSEMBLY (CONT.)

— 9 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR () IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BY A STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE, ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A STAR.
Schematic
Location Part No. Description Schematic Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Tolerance Symbols:
A...0.05% B...0.1% C...25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%
Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON .............
MT-FILM ..............
OXIDE-MT ...........
SOLID ..................
MT-GLAZE ...........
WIRE WOUND .....
CERAMIC RES ....
FUSIBLE RES .....
Performance Symbols:
A...General B...Non-flammable
Z...Low noise
Other... Temperature coefficient
Rated Wattage
CARBON 4.7K J A 1/4W
Read description of the Resistor as follows:
NOTES:
(Example)
Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire Wound
Ceramic
Fusible
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A :Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H :±3% J :±5% K :±10%
L :±15% M :±20% N :±30%
P :+100-0% Q :+30-10% T :+50-10%
U :+75-10% V :+20-10% W :+100-10%
X :+40-20% Y :+150-10% Z : +80-20%
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite Film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic
Semiconductive Electrolytic
CAPACITORS RESISTORS

— 10 —
Schematic
Location Part No. Description Schematic Location Part No. Description
MAIN PC BOARD
CAPACITORS
C002 CEXLB1E101WAN ELECT 100U M 25V
C004 CK1H472KLZBNG CERAMIC 4700P K 50V
C005 CPXLB1C100ZAN NP-ELECT 10U M 16V
C007 CK1H472KLZBNG CERAMIC 4700P K 50V
C008 CPXLB1C100ZAN NP-ELECT 10U M 16V
C009 CEXLB1H4R7WAN ELECT 4.7U M 50V
C012 CEXLB1V222WAN ELECT 2200U M 35V
C013 CEXLB1E102WAN ELECT 1000U M 25V
C014 CEXLB1E102WAN ELECT 1000U M 25V
C101 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C102 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C105 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C106 CEXLB1H470WAN ELECT 47U M 50V
C107 CEXLB1A222WAN ELECT 2200U M 10V
C805 CC1H220JLZCNG CERAMIC 22P J 50V
C806 CC1H220JLZCNG CERAMIC 22P J 50V
C807 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C811 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C813 CEXLB1A470WAN ELECT 47U M 10V
C814 CK1H222KLZBNG CERAMIC 2200P K 50V
C815 CC1H220JLZCNG CERAMIC 22P J 50V
C816 CC1H220JLZCNG CERAMIC 22P J 50V
C820 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C825 CC1H330JLZCNG CERAMIC 33P J 50V
C826 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C827 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C829 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C834 CEXLB0J471WAN ELECT 470U M 6.3V
C835 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C836 CC1H120JLZCNG CERAMIC 12P J 50V
C837 CC1H120JLZCNG CERAMIC 12P J 50V
C838 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C839 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C840 CK1H333KLZBNG CERAMIC 0.033U K 50V
C841 CEXLB1H2R2WAN ELECT 2.2U M 50V
C842 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1001 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1002 CEXLB1C100WAN ELECT 10U M 16V
C1003 CEXLB1C100WAN ELECT 10U M 16V
C1004 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1005 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1021 CEXLB1C101WAN ELECT 100U M 16V
C1022 CEXLB1C100WAN ELECT 10U M 16V
C1023 CEXLB1C100WAN ELECT 10U M 16V
C1024 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1025 CEXLB1C100WAN ELECT 10U M 16V
C1026 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1027 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1061 CEXLB1C331WAN ELECT 330U M 16V
C1062 CEXLB1C100WAN ELECT 10U M 16V
C1063 CEXLB1C100WAN ELECT 10U M 16V
C1064 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1065 CEXLB1C100WAN ELECT 10U M 16V
C1066 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1067 CEXLB1H2R2WAN ELECT 2.2U M 50V
C1101 CEXLB1E4R7WAN ELECT 4.7U M 25V
C1102 CEXLB1E4R7WAN ELECT 4.7U M 25V
C1201 CEXLB1C101WAN ELECT 100U M 16V
C1202 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1203 CEXLB1H100WAN ELECT 10U M 50V
C1204 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1251 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1252 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1601 CEXLB1C102WAN ELECT 1000U M 16V
C1602 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1604 CEXLB0J102WAN ELECT 1000U M 6.3V
C1605 CH1H105JAGANN MT-COMPO 1U J 50V
C1611 CEXLB1C102WAN ELECT 1000U M 16V
C1612 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1614 CEXLB0J102WAN ELECT 1000U M 6.3V
C1615 CH1H105JAGANN MT-COMPO 1U J 50V
C1641 CEXLB1C102WAN ELECT 1000U M 16V
C1642 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1643 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1644 CEXLB1C102WAN ELECT 1000U M 16V
C1651 CEXLB1C101WAN ELECT 100U M 16V
C1652 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1653 CEXLB1E4R7WAN ELECT 4.7U M 25V
C1654 CEXLB1H101WAN ELECT 100U M 50V
C1655 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1656 CK1H102KLZBNG CERAMIC 1000P K 50V
C1657 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1661 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1662 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C1663 CK1H102KLZBNG CERAMIC 1000P K 50V
C1664 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C1665 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1666 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1681 CEXLB1C102WAN ELECT 1000U M 16V
C1682 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1684 CEXLB1A102WAN ELECT 1000U M 10V
C1685 CH1H105JAGANN MT-COMPO 1U J 50V
C1691 CEXLB1V102WAN ELECT 1000U M 35V
C1694 CEXLB1V471WAN ELECT 470U M 35V
C1695 CH1H105JAGANN MT-COMPO 1U J 50V
C1696 CEXLB1C100WAN ELECT 10U M 16V
C1697 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1801 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1851 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1852 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1853 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1854 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1855 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3401 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V

— 11 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C3402 CEXLB1HR10WAN ELECT 0.1U M 50V
C3403 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V
C3404 CK1H562KLZBNG CERAMIC 5600P K 50V
C3405 CK1H123KLZBNG CERAMIC 0.012U K 50V
C3406 CEXLB1H1R0WAN ELECT 1U M 50V
C3407 CEXLB1HR47WAN ELECT 0.47U M 50V
C3408 CEXLB1C470WAN ELECT 47U M 16V
C3409 CEXLB1E4R7WAN ELECT 4.7U M 25V
C3410 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3411 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V
C3412 CEXLB1E4R7WAN ELECT 4.7U M 25V
C3413 CEXLB1C102WAN ELECT 1000U M 16V
C3414 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V
C3415 CK1H272KLZBNG CERAMIC 2700P K 50V
C3416 CK1H473KLZBNG CERAMIC 0.047U K 50V
C3417 CT1A3R3KDRANG TA-SOLID 3.3U K 10V
C3418 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V
C3419 CT1A100KDRANG TA-SOLID 10U K 10V
C3420 CEXLB1H1R0WAN ELECT 1U M 50V
C3421 CEXLB1H1R0WAN ELECT 1U M 50V
C3422 CEXLB1H1R0WAN ELECT 1U M 50V
C3423 CEXLB1H1R0WAN ELECT 1U M 50V
C3424 CEXLB1H1R0WAN ELECT 1U M 50V
C3425 CK1H223KLZBNG CERAMIC 0.022U K 50V
C3426 CK1H472KLZBNG CERAMIC 4700P K 50V
C3427 CPXLB1H4R7ZAN NP-ELECT 4.7U M 50V
C3428 CEXLB1HR10WAN ELECT 0.1U M 50V
C3429 CK1H472KLZBNG CERAMIC 4700P K 50V
C3430 CEXLB1C471WAN ELECT 470U M 16V
DIODES
D002 DDRM11C-----N DIODE RM11C
D801 DD1SS355----G DIODE 1SS355 TE-17
D802 DZUDZS6.2B--G ZENER DIODE UDZS6.2B TE-17
D803 DD1SS355----G DIODE 1SS355 TE-17
D810 DD1SS355----G DIODE 1SS355 TE-17
D811 DD1SS355----G DIODE 1SS355 TE-17
D1601 DDYG812S04R-N DIODE YG812S04R
D1602 DZUDZS3.0B--G ZD UDZS3.0B-TE-17
D1603 DD1SS355----G DIODE 1SS355 TE-17
D1611 DDYG812S04R-N DIODE YG812S04R
D1612 DZUDZS3.6B--G ZD UDZS-TE-173.6B
D1641 DD1SS355----G DIODE 1SS355 TE-17
D1651 DDRB500V-40-G DIODE RB500V-40-TE-17
D1652 DD1SS355----G DIODE 1SS355 TE-17
D1673 DD1SS355----G DIODE 1SS355 TE-17
D1681 DDRK46-304--N DIODE RK46 015-304
D1682 DD1SS355----G DIODE 1SS355 TE-17
D1683 DD1SS355----G DIODE 1SS355 TE-17
D1691 DDYG812S04R-N DIODE YG812S04R
D1692 DD1SS355----G DIODE 1SS355 TE-17
D1693 DD1SS355----G DIODE 1SS355 TE-17
D3401 DDSB07-03C--P DIODE SB07-03C-TB
INTEGRATED CIRCUITS
IC001 QLA42052-E--N IC LA42052-E
IC801 QXXAAJQ0724-- IC LC87F4164AU-LCD001
IC801 QXXAVC755---M IC LC8741XXXA
IC802 Q24LC08BT/SNP IC 24LC08BT/SN
IC803 QMN1381-Q---N IC MN1381-Q
IC805 QTC7SH08F---P IC TC7SH08F(TE85L, F)
IC806 QTC7SET08F--P IC TC7SET08F-TE85L
IC1201 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1251 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1601 QLA5774-E---N IC QLA5774-E---M
IC1611 QLA5774-E---N IC QLA5774-E---M
IC1621 QLA5774-E---N IC QLA5774-E---M
IC1631 QLA5774-E---N IC QLA5774-E---M
IC1641 QXXAVB833---N IC SI-3090FA LF1113
IC1651 QFA7700V----G IC FA7700V-TE1
IC3401 QCXA2234Q---P IC CXA2234Q-T6
COILS
L001 1AV4L26B2770G INDUCTOR, 220 OHM
L003 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L005 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L006 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L007 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L100 1AV4L2FB150MG INDUCTOR, 15U M
L101 1AV4L2FB150MG INDUCTOR, 15U M
L102 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L103 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L104 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L105 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L106 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L107 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L108 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L801 1AV4L26B2770G INDUCTOR, 220 OHM
L802 1AV4L26B2770G INDUCTOR, 220 OHM
L803 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L804 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L805 1AV4L26B2770G INDUCTOR, 220 OHM
L806 1AV4L26B2770G INDUCTOR, 220 OHM
L1001 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1021 1AV4L2FB150MG INDUCTOR, 15U M
L1101 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1201 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1251 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1601 1AV4L26B2770G INDUCTOR, 220 OHM
L1602 1AV4L26B2770G INDUCTOR, 220 OHM
L1603 1AV4L2JJ470KN INDUCTOR, 47U K
L1604 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1605 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1606 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1607 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W

— 12 —
Schematic
Location Part No. Description Schematic Location Part No. Description
L1608 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1609 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1610 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1611 1AV4L26B2770G INDUCTOR, 220 OHM
L1612 1AV4L26B2770G INDUCTOR, 220 OHM
L1613 1AV4L2JJ330MN INDUCTOR, 33U M
L1621 1AV4L26B2770G INDUCTOR, 220 OHM
L1624 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1625 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1626 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1627 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1628 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1630 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1631 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1632 1AV4L2JJ470KN INDUCTOR, 47U K
L1635 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1641 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1642 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1643 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1644 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1651 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1652 1AV4L2PX222JG INDUCTOR, 2.2M J
L1658 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1659 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1661 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1663 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1664 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1665 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1666 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1667 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1668 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1669 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1670 1AV4L26B2770G INDUCTOR, 220 OHM
L1671 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1673 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1674 1AV4L26B2770G INDUCTOR, 220 OHM
L1675 1AV4L26B2770G INDUCTOR, 220 OHM
L1676 1AV4L26B2770G INDUCTOR, 220 OHM
L1677 1AV4L26B2770G INDUCTOR, 220 OHM
L1678 1AV4L26B2770G INDUCTOR, 220 OHM
L1679 1AV4L26B2770G INDUCTOR, 220 OHM
L1682 1AV4L26B2770G INDUCTOR, 220 OHM
L1683 1AV4L2JJ330MN INDUCTOR, 33U M
L1684 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1685 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1687 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L1801 1AV4L26B2770G INDUCTOR, 220 OHM
L2803 RGFR000ZTAANL MT-GLAZE0.000 ZA 1/10W
L3401 1AV4L2FB3R3MG INDUCTOR, 3.3U M
TRANSISTORS
Q001 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q101 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q801 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q803 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q804 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q805 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S

— 13 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q810 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q811 T2SC2411K-Q-P TR 2SC2411K-T146-Q
Q1021 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1022 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1023 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1061 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1062 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1063 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1101 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1102 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1201 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1202 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1251 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R

— 14 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q1251(Cont.) T2SC3928A1S-P TR 2SC3928A1S
Q1252 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1621 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1651 T5HN01C-----P TR 5HN01C-TL
Q1672 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1673 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1690 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1691 T2SC2411K-Q-P TR 2SC2411K-T146-Q
Q3403 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q3404 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q3405 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
RESISTORS
R001 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R002 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R003 RGF8201JTCANL MT-GLAZE 8.2K JA 1/10W
R004 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R005 RGF8201JTCANL MT-GLAZE 8.2K JA 1/10W
R006 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R007 RWXAA5270JKAN WIRE WOUND 27 JA 5W
R008 RWXAA5270JKAN WIRE WOUND 27 JA 5W
R009 RGF1502JTCANL MT-GLAZE 15K JA 1/10W
R014 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R101 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R102 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R103 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R104 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R105 RGF56R0JTCANL MT-GLAZE 56 JA 1/10W
R109 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R110 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R802 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R804 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R807 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R809 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R811 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R812 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R814 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R815 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R816 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R817 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R818 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R821 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R822 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R823 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R824 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R828 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R829 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R830 RGF1002JTCANL MT-GLAZE 10K JA 1/10W

— 15 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R831 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R832 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R833 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R834 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R838 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R839 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R840 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R841 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R842 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R843 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R844 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R846 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R847 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R848 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R849 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R850 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R851 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R853 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R854 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R855 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R856 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R857 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R858 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R859 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R860 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R861 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R862 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R863 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R864 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R865 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R866 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R867 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R868 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R870 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R873 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R874 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R875 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R876 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R883 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R884 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R885 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R887 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R888 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R889 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R890 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R891 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R895 RGF4703JTCANL MT-GLAZE 470K JA 1/10W
R897 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R899 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1001 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1002 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1003 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1004 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1005 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1006 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1007 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1008 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1009 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1010 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1011 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1012 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1013 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1014 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1015 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1021 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1022 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1023 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1024 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1025 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1027 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1028 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1029 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1030 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1031 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1032 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1033 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1034 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1035 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1036 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1037 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1038 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1039 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1040 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1041 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1042 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1043 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1045 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1046 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1047 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1048 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1061 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1062 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1063 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1064 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1065 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1067 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1068 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1069 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1070 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1071 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1072 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1073 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1074 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1075 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1076 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1077 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1078 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1079 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W

— 16 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R1080 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1081 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1082 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1083 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1084 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1085 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1086 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1087 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1101 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1102 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R1103 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1104 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1105 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1106 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1201 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1202 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1203 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1204 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1205 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1206 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1253 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1254 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1255 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1256 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1257 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1260 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1601 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1602 RGF8200JTCANL MT-GLAZE 820 JA 1/10W
R1603 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1626 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1631 RGF2701FTCANL MT-GLAZE 2.7K FA 1/10W
R1632 RGF3900JTCANL MT-GLAZE 390 JA 1/10W
R1651 RGF5603JTCANL MT-GLAZE 560K JA 1/10W
R1652 RGF1802JTCANL MT-GLAZE 18K JA 1/10W
R1653 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1654 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R1655 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1656 RGF1201FTCANL MT-GLAZE 1.2K FA 1/10W
R1657 RGF3902FTCANL MT-GLAZE 39K FA 1/10W
R1658 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R1659 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1662 RGF8200JTCANL MT-GLAZE 820 JA 1/10W
R1671 RGF6800FTCANL MT-GLAZE 680 FA 1/10W
R1672 RGF3900JTCANL MT-GLAZE 390 JA 1/10W
R1673 RGF1801FTCANL MT-GLAZE 1.8K FA 1/10W
R1675 RGF2701FTCANL MT-GLAZE 2.7K FA 1/10W
R1676 RGF2700JTCANL MT-GLAZE 270 JA 1/10W
R1677 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1678 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1680 RG122R0JTEANL MT-GLAZE 22 JA 1W
R1682 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1683 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1685 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R1687 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R1688 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1690 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1692 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1693 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1801 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1802 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1803 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1804 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1805 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1806 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1807 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1808 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1810 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1811 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1812 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1813 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1814 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1815 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R3401 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3402 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3403 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3404 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3405 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3406 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R3407 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R3414 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R3415 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3416 RGF1501JTCANL MT-GLAZE 1.5K JA 1/10W
R3417 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R3418 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R3419 RGF6802FTCANL MT-GLAZE 68K FA 1/10W
R3420 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R3421 RGF3001JTCANL MT-GLAZE 3K JA 1/10W
R3422 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R3425 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R3426 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R3427 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R3428 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3431 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R3432 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
SURGE–ABSORBERS
SC1001 1AV4Z30B0220G SURGE-ABSORBER
SC1002 1AV4Z30B0220G SURGE-ABSORBER
SC1003 1AV4Z30B0220G SURGE-ABSORBER
SC1004 1AV4Z30B0220G SURGE-ABSORBER
SC1005 1AV4Z30B0220G SURGE-ABSORBER
SC1006 1AV4Z30B0220G SURGE-ABSORBER
SC1021 1AV4Z30B0220G SURGE-ABSORBER
SC1022 1AV4Z30B0220G SURGE-ABSORBER
SC1023 1AV4Z30B0220G SURGE-ABSORBER
SC1024 1AV4Z30B0220G SURGE-ABSORBER
SC1025 1AV4Z30B0220G SURGE-ABSORBER
SC1061 1AV4Z30B0220G SURGE-ABSORBER

— 17 —
Schematic
Location Part No. Description Schematic Location Part No. Description
SC1062 1AV4Z30B0220G SURGE-ABSORBER
SC1063 1AV4Z30B0220G SURGE-ABSORBER
SC1064 1AV4Z30B0220G SURGE-ABSORBER
SC1065 1AV4Z30B0220G SURGE-ABSORBER
SC1101 1AV4Z30B0220G SURGE-ABSORBER
SC1102 1AV4Z30B0220G SURGE-ABSORBER
SC1801 1AV4Z30B0220G SURGE-ABSORBER
SC1802 1AV4Z30B0220G SURGE-ABSORBER
SC1803 1AV4Z30B0220G SURGE-ABSORBER
SC1804 1AV4Z30B0220G SURGE-ABSORBER
SC1805 1AV4Z30B0220G SURGE-ABSORBER
SC1806 1AV4Z30B0220G SURGE-ABSORBER
SC1807 1AV4Z30B0220G SURGE-ABSORBER
MISCELLANEOUS
A101 1AV4F1FAM0170 TUNER, TU/IF
A800 1AA0B10N17400 ASSY, PWB, MAIN N3HE
K1001 1AV4J31B07700 TERMINAL, BOARD
K1021 1AV4J12B3960N JACK, RCA-5(6-1)
K1061 1AV4J12B3960N JACK, RCA-5(6-1)
K1101 1AV4J12B3970N JACK, RCA-2
1LB4J12B08100 JACK, RCA-2
X801 1AV4V10B0560N OSC, CRYSTAL 32.768KHZ
1AV4V10B0570N OSC, CRYSTAL 32.768KHZ
POWER PC BOARD
CAPACITORS
C605 CK3A102KANHNN CERAMIC 1000P K 1K
C608 CGXAV27474DAN MT-POLYEST 0.47U M 275V
CGXAV27474DDN MT-POLYEST 0.47U M 275V
C613 CGXAV27104DBN MT-POLYEST 0.1U M 275V
C614 CK3A102KANHNN CERAMIC 1000P K 1K
C616 CK3A102KANHNN CERAMIC 1000P K 1K
C619 CKXAV2E102ABW CERAMIC 1000P M 250V
CKXAV2E102BBW CERAMIC 1000P M 250V
C625 CK1E105KGNBNG CERAMIC 1U K 25V
C628 CK1E105KGNBNG CERAMIC 1U K 25V
C629 CGXAV27474DAN MT-POLYEST 0.47U M 275V
CGXAV27474DDN MT-POLYEST 0.47U M 275V
C637 CKXAV2E102ABW CERAMIC 1000P M 250V
CKXAV2E102BBW CERAMIC 1000P M 250V
C638 CKXAV2E102ABW CERAMIC 1000P M 250V
CKXAV2E102BBW CERAMIC 1000P M 250V
C639 CK1H104KLZBNG CERAMIC 0.1U K 50V
C640 CK1H563KLZBNG CERAMIC 0.056U K 50V
C641 CK3A102KANHNN CERAMIC 1000P K 1K
C642 CK1H331KLZBNG CERAMIC 330P K 50V
C643 CK1E105KGNBNG CERAMIC 1U K 25V
C644 CGXAV27104DBN MT-POLYEST 0.1U M 275V
C645 CE1V470M4ZANN ELECT 47U M 35V
C646 CK1C475KGMBNG CERAMIC 4.7U K 16V
C647 CEXAV2D821CJN ELECT 820U M 200V
CEXAV2D821FDN ELECT 820U M 200V
C648 CK1C475KGMBNG CERAMIC 4.7U K 16V
C649 CKXAV2E102ABW CERAMIC 1000P M 250V
CKXAV2E102BBW CERAMIC 1000P M 250V
C651 CK1E105KGNBNG CERAMIC 1U K 25V
C652 CK1E224KLZBNG CERAMIC 0.22U K 25V
C658 CK3A152KANHNN CERAMIC 1500P K 1K
CK3A152KCRDAN CERAMIC 1500P K 1K
CK3A152KCTBNN CERAMIC 1500P K 1K
C659 CM2W224KCBACN MT-POLYPRO 0.22U K 450V
C662 CK1H103KLZBNG CERAMIC 0.01U K 50V
C663 CE1E102M2FANN ELECT 1000U M 25V
CE1E102M6QANN ELECT 1000U M 25V
C664 CE1V681M2FANN ELECT 680U M 35V
CE1V681M6QANN ELECT 680U M 35V
C665 CE1E101M4ZANN ELECT 100U M 25V
C666 CK1H104KLZBNG CERAMIC 0.1U K 50V
C668 CE1V681M2FANN ELECT 680U M 35V
CE1V681M6QANN ELECT 680U M 35V
C671 CE1E102M2FANN ELECT 1000U M 25V
CE1E102M6QANN ELECT 1000U M 25V
C676 CE1V471M2FANN ELECT 470U M 35V
CE1V471M6QANN ELECT 470U M 35V
C690 CEXAV2D821CJN ELECT 820U M 200V
CEXAV2D821FDN ELECT 820U M 200V
C696 CK1H563KLZBNG CERAMIC 0.056U K 50V
C1620 CK3D222KANHNN CERAMIC 2200P K 2K
CK3D222KCRDNN CERAMIC 2200P K 1K
CK3D222KCTBNN CERAMIC 2200P K 2K
C1621 CK1H102KLZBNG CERAMIC 1000P K 50V
C1622 CK1H332KLZBNG CERAMIC 3300P K 50V
C1623 CEXAV2D471CHN ELECT 470U M 200V
CEXAV2D471ERN ELECT 470U M 200V
C1624 CC1H101JLZCNG CERAMIC 100P J 50V
C1625 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1626 CE1V101M4ZANN ELECT 100U M 35V
C1627 CK3D221KANHNN CERAMIC 220P K 2K
CK3D221KCRDNN CERAMIC 220P K 2K
CK3D221KCTBNN CERAMIC 220P K 2K
C1630 CK3A102KANHNN CERAMIC 1000P K 1K
CK3A102KCRDNN CERAMIC 1000P K 1K
CK3A102KCTBNN CERAMIC 1000P K 1K
C1631 CE1C222MMYANN ELECT 2200U M 16V
CE1C222M6RANN ELECT 2200U M 16V
C1632 CE1C222MMYANN ELECT 2200U M 16V
CE1C222M6RANN ELECT 2200U M 16V
C1634 CK3A102KANHNN CERAMIC 1000P K 1K
CK3A102KCRDNN CERAMIC 1000P K 1K
CK3A102KCTBNN CERAMIC 1000P K 1K
C1635 CE1C222MMYANN ELECT 2200U M 16V
CE1C222M6RANN ELECT 2200U M 16V
C1636 CK0J106KGMBNG CERAMIC 10U K 6.3V
C1637 CK1H104KLZBNG CERAMIC 0.1U K 50V

— 18 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C1638 CK1C225ZGMFNG CERAMIC 2.2U Z 16V
C1692 CE1C222MMYANN ELECT 2200U M 16V
CE1C222M6RANN ELECT 2200U M 16V
DIODES
D601 DD1SS355----G DIODE 1SS355 TE-17
D603 DDXAVB024---N DIODE D10XB80-7101
D604 DCPC123YC2--N PHOTO COUPLE PC123YC2
D605 DCPC123YC2--N PHOTO COUPLE PC123YC2
D606 DCPC123YC2--N PHOTO COUPLE PC123YC2
D607 DDERC05-10B-N DIODE ERC05-10B
DDRM11C-----N DIODE RM11C
D608 DDERC05-10B-N DIODE ERC05-10B
DDRM11C-----N DIODE RM11C
D624 DDXAVB022---N DIODE SF15NC15M-7112
DDYG865C10MYN DIODE YG865C10R-MY
D627 DDXAVB022---N DIODE SF15NC15M-7112
DDYG865C10MYN DIODE YG865C10R-MY
D639 DZUDZS27B---G ZD UDZS27B-TE-17
D641 DZUDZS18B---G ZD UDZS18B-TE-17
D642 DDSFPL-52---P DIODE SFPL-52V
D643 DD1SS355----G DIODE 1SS355 TE-17
D644 DD1SS355----G DIODE 1SS355 TE-17
D645 DD1SS355----G DIODE 1SS355 TE-17
D646 DZPTZ13B----G ZENER DIODE PTZ13B-TE25
D647 DD1SS355----G DIODE 1SS355 TE-17
D670 DD1SS355----G DIODE 1SS355 TE-17
D1606 DDRM11C-----N DIODE RM11C
D1607 DDSFPL-52---P DIODE SFPL-52V
D1608 DD1SS355----G DIODE 1SS355 TE-17
D1609 DZUDZS10B---G ZENER DIODE UDZS10B TE-17
D1610 DZUDZS10B---G ZENER DIODE UDZS10B TE-17
D1613 DDSFPL-52---P DIODE SFPL-52V
D1615 DDEG01C-----N DIODE EG01C
D1616 DZUDZS8.2B--G ZENER DIODE UDZS8.2B TE-17
D1617 DDRM11C-----N DIODE RM11C
D1618 DDRM11C-----N DIODE RM11C
D1620 DD1NU41-----N DIODE 1NU41
D1621 DCPC123YC2--N PHOTO COUPLE PC123YC2
D1622 DCPC123YC2--N PHOTO COUPLE PC123YC2
D1628 DDXAVB023---N DIODE SF10NC15M-7112
DDYG862C10MYN DIODE YG862C10R-MY
D1629 DDXAVB023---N DIODE SF10NC15M-7112
DDYG862C10MYN DIODE YG862C10R-MY
D1630 DD1SS355----G DIODE 1SS355 TE-17
D1633 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
INTEGRATED CIRCUITS
IC603 QL6598D-----P IC L6598D
IC671 QUPC1093J---N IC UPC1093J
IC1602 QMR4010-7101N IC MR4010-7101
IC1604 QUPC1093J---N IC UPC1093J
COILS
LF641 1AV4F35B1290N LINE FILTER
LF642 1AV4F35B1290N LINE FILTER
L613 1AV4L2GB4R7MN INDUCTOR, 4.7U M
L614 1AV4L2GB4R7MN INDUCTOR, 4.7U M
L617 1LB4Z21B0150N CORE, PIPE
L619 1LB4Z21B0150N CORE, PIPE
L620 1LB4Z21B0150N CORE, PIPE
L621 1LB4Z21B0090N CORE, PIPE
L1622 1LB4Z21B0090N CORE, PIPE
TRANSISTORS
Q602 T2SD2226K-V-P TR 2SD2226K-T146-V
T2SD2226K-W-P TR 2SD2226KT146W
Q603 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q604 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q605 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1179N-M7P TR 2SA1179N-M7-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q606 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB

— 19 —
Schematic
Location Part No. Description Schematic Location Part No. Description
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q641 T2SK3555-FMYN TR 2SK3555-01MR-MY
Q642 T2SK3555-FMYN TR 2SK3555-01MR-MY
Q670 T2SD2226K-V-P TR 2SD2226K-T146-V
T2SD2226K-W-P TR 2SD2226KT146W
Q1609 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1610 T2SD2226K-V-P TR 2SD2226K-T146-V
T2SD2226K-W-P TR 2SD2226KT146W
Q1611 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC2812N-L7P TR 2SC2812N-L7-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
RESISTORS
RT603 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
RT604 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R602 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R604 RDA2203JPCANN CARBON 220K JA 1/2W
R605 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R606 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R607 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R608 RGF10R0JTCANL MT-GLAZE 10 JA 1/10W
R609 DHXAVB019---N THERMISTOR NTPAD5R1LDNB0
R620 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R622 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R623 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R624 RS11501JGCANN OXIDE-MT 1.5K JA 1W
R631 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R632 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R633 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R635 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R636 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R637 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R639 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R640 RGA8202JTDANL MT-GLAZE 82K JA 1/2W
R642 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R644 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R649 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R650 RGA1000JTDANL MT-GLAZE 100 JA 1/2W
R651 RGA47R0JTDANL MT-GLAZE 47 JA 1/2W
R652 RGA56R0JTDANL MT-GLAZE 56 JA 1/2W
R653 RG11202JTEANL MT-GLAZE 12K JA 1W
R654 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R655 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R657 RGA3300JTDANL MT-GLAZE 330 JA 1/2W
R658 RGA4701JTDANL MT-GLAZE 4.7K JA 1/2W
R659 RGA10R0JTDANL MT-GLAZE 10 JA 1/2W
R661 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R662 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R663 RGA3300JTDANL MT-GLAZE 330 JA 1/2W
R664 RGA10R0JTDANL MT-GLAZE 10 JA 1/2W
R665 RS21002JGDANN OXIDE-MT 10K JA 2W
R666 RS21002JGDANN OXIDE-MT 10K JA 2W
R667 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R668 RGF3901FTCANL MT-GLAZE 3.9K FA 1/10W
R669 RGF3901FTCANL MT-GLAZE 3.9K FA 1/10W
R670 RGF8200FTCANL MT-GLAZE 820 FA 1/10W
R671 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R672 RGA3301JTDANL MT-GLAZE 3.3K JA 1/2W
R673 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R674 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R675 RGF10R0JTCANL MT-GLAZE 10 JA 1/10W
R677 RCXAAA3304MUN SOLID 3.3M MA 1/2W
RDXLBA335KWAN SOLID 3.3M KA 1/2W
RXXAVA335JAAN RESISTER 3.3M JA 1/2W
R678 FFXAVB005SG-J FUSE 125V 4A
R679 RDD47R0JPAANN CARBON 47 JA 1/6W
R680 RGF8201JTCANL MT-GLAZE 8.2K JA 1/10W
R681 RGF8201JTCANL MT-GLAZE 8.2K JA 1/10W
R682 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R683 RGF8200JTCANL MT-GLAZE 820 JA 1/10W
R684 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R685 RG15600JTEANL MT-GLAZE 560 JA 1W
R1606 RS21003JGDANN OXIDE-MT 100K JA 2W
R1610 RS14700JGCANN OXIDE-MT 470 JA 1W
R1611 RGF10R0JTCANL MT-GLAZE 10 JA 1/10W
R1612 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1613 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1614 RGA4700JTDANL MT-GLAZE 470 JA 1/2W
R1615 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1616 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1617 RGF3301FTCANL MT-GLAZE 3.3K FA 1/10W
R1618 RGF4700FTCANL MT-GLAZE 470 FA 1/10W
R1619 RGF3001FTCANL MT-GLAZE 3K FA 1/10W
R1620 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1621 RGF2402FTCANL MT-GLAZE 24K FA 1/10W
R1622 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1623 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1624 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1625 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1627 RGE1002JTBANL MT-GLAZE 10K JA 1/8W
R1633 RGA10R0JTDANL MT-GLAZE 10 JA 1/2W
R1634 RS2R390JGDANN OXIDE-MT 0.39 JA 2W
R1635 RGE5601JTBANL MT-GLAZE 5.6K JA 1/8W

— 20 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R1636 RGE7501JTBANL MT-GLAZE 7.5K JA 1/8W
R1637 RGE8201JTBANL MT-GLAZE 8.2K JA 1/8W
R1638 RFXAVA471JFNN FUSIBLE RES 470 J- 1/2W
R1641 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1642 RS2R560JGDANN OXIDE-MT 0.56 JA 2W
R1691 RGA8202JTDANL MT-GLAZE 82K JA 1/2W
R1696 RGF6801JTCANL MT-GLAZE 6.8K JA 1/10W
TRANSFORMERS
T1606 1LB4L51B0820N TRANS, POWER, PULSE
T605 1AV4L51B6740N TRANS, POWER, PULSE
MISCELLANEOUS
A601 1AA0B10N1750A ASSY, PWB, POWER N3HE
F601 F32S4R0A2LTTS FUSE 250V 4A
F601A 1AV4J20B00100 HOLDER, FUSE
1AV4J20B0120J HOLDER, FUSE
1AV4J20B0171J HOLDER, FUSE
F601B 1AV4J20B00100 HOLDER, FUSE
1AV4J20B0120J HOLDER, FUSE
1AV4J20B0171J HOLDER, FUSE
RL1603 1AV4S20B0460N RELAY
1AV4S20B0480N RELAY
RL601 1AV4S20B0460N RELAY
1AV4S20B0480N RELAY
RL670 1AV4S20B0820N RELAY
1AV4S20B0821N RELAY
SC611 1AV4Z30B0170N SURGE-ABSORBER
VA611 DVXAAEV0043-- VARISTOR ENC471D-14AS
VA612 DVXAAEV0043-- VARISTOR ENC471D-14AS
W601 1AV4W10B09406 CORD, POWER-2.0MK-A5003
CONTROL PC BOARD
CAPACITORS
C1902 CEXLB1C100WAN ELECT 10U M 16V
C1904 CK1E104ZLZFNG CERAMIC 0.1U Z 25V
C1905 CK1H102KLZBNG CERAMIC 1000P K 50V
COILS
L1901 1AV4L2B95R6KN INDUCTOR, 5.6U K
1AV4L2GU5R6KN INDUCTOR, 5.6U K
RESISTORS
R1901 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1902 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1903 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1904 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1905 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1906 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R1907 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1909 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1910 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1911 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
SWITCHES
SW1901 1AV4S10B0900J SWITCH, PUSH 1P-1T
1AV4S10B5650J SWITCH, PUSH 1P-1TX1
SW1902 1AV4S10B0900J SWITCH, PUSH 1P-1T
1AV4S10B5650J SWITCH, PUSH 1P-1TX1
SW1903 1AV4S10B0900J SWITCH, PUSH 1P-1T
1AV4S10B5650J SWITCH, PUSH 1P-1TX1
SW1904 1AV4S10B0900J SWITCH, PUSH 1P-1T
1AV4S10B5650J SWITCH, PUSH 1P-1TX1
SW1905 1AV4S10B0900J SWITCH, PUSH 1P-1T
1AV4S10B5650J SWITCH, PUSH 1P-1TX1
A1900 1AA0B10N1750B ASSY, PWB, KEYSW N3HE
A1901 1AV4U20B24401 UNIT, REMOCON RECEIVER
DIGITAL PC BOARD
A5500 1AA0B10N17900 ASSY, PWB, DIGITAL N3HE
Nonservicable part. No discreet parts provided for this pc board.
MISCELLANEOUS
EL901 1AV4T40B75500 LCD (T315XW01 V5)
SP901 1LB4A10B03800 SPEAKER, 8
SP902 1LB4A10B03800 SPEAKER, 8
