SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . . . AC110-240V, 50Hz/60Hz.
Colour System . . . . . . . . PAL/SECAM/NTSC4.43/NTSC/PAL-60Hz
Television System . . . . . . B/G, D/K, K’, I, M/M
Channel Coverage . . . . . VHF: E2-E12, R1-R12, K1-K9, A2-A13, J1-J12
UHF: 21-69, A14-A69, J13-J62
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack x 2 (1Vp - p, 75Ω)
S-Video inputs: Din 4 pin x 1 (Separate Y/C signal input)
Audio inputs: Phono jack (L/R) x 2 (436mVrms, more than 40KΩ)
Video monitor outputs: Phono jack x 1 (1Vp - p, 75Ω)
Audio monitor outputs: Phono jack (L/R) x 1 (436mVrms, less than 600Ω)
Headphone jack: Mini stereo jack x 1
Speaker . . . . . . . . . . . . . . 6 cm x 12 cm x 2 pcs.
Sound Output (RMS) . . . . 5W + 5W
Dimensions . . . . . . . . . . . 750 (W) x 582 (H) x 503 (D)mm
Weight . . . . . . . . . . . . . . . approx. 46.8 Kg
Specifications subject to change without notice.
Product Code:
111351630 (CM29AF8X)
111351650 (CM29AF8XA)
Original Version
Chassis Series: FC3-A
C2SLZ/C2SMZ
FILE NO.
Model No. CM29AF8X
CM29AF8XA
Service Ref. No. CM29AF8X-00
CM29AF8XA-00
(Middle East)
Give complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
REFERENCE NO. SM5110534
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
-
+
P
MENU
TV/AV

Contents
-2-
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this ser-
vice manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take
necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high volt-
age check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Mechanical Disassemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service Adjustments with replacing Memory IC (IC802) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-30

-3-
Chassis Block Diagrams
A101
TUNER
SAW
FILTER
X161A
IF IN 5/6
IC201
IF/VIDEO/CHROMA
VIDEO/
(S-Y) IN 19
20
21
R-OUT
B-OUT
G-OUT
IC281
SECAM
6
7
R-Y
B-Y
35
34
IC501
VERT. /DEF.
23
27
VERT. OUT
HORIZ. OUT
15
IC801
CPU
T471
FBT
HEATER
PCC
CIRCUIT
Q461-Q462
Q431
H-DRIVE
Q432
H-OUT
HV
L902
DY
CRT UNIT
CRT
T431
H-DRIVE
TRANS.
HV
FOCUS
SCREEN
IC701
TRIPLE VIDEO
OUTPUT AMP.
R
B
G
1
2
3
9 8
7
R
B
G
D1910
LED
A1901A
RC RECEIVER
FRONT
CONTROL
KEYS
SW1901~ SW1906
IC802
EEPROM
4
3
6
5
SDA
SCL
32
12 28
ON-TIMER
RC-IN
KEY-IN
REAR AV1
INPUT TERMINAL
FRONT
AV2
INPUT TERMINAL
VIDEO MONITOR OUT
AUDIO MONITOR OUT(LEFT)
AUDIO MONITOR OUT(RIGHT)
46
44
VIDEO OUT
S-C IN
42
AV1
AV2
VIDEO IN
AUDIO IN (LEFT)
AUDIO IN (RIGHT)
VIDEO IN
AUDIO IN (LEFT)
AUDIO IN (RIGHT)
SP901
SP902
IC001
AUDIO AMP.
7
12
4
2
IC3701
AUDIO CONTROL /
SURROUND
23
8
R
L
2
FM OUT
(TV OUT)
2/5
1/3
L/R, L/L,R/R SW
15
1
30 4
L
R
L-OUT
R-OUT
IC3702
52
54
SIF OUT
SIF IN
K001
HEADPHONE
JACK
IC1201
AUDIO-SW
11
13
15
2
3
4
1/5
L-OUT
R-OUT
IC1501
VIDEO SW
IC1401
VIDEO-SW
9
6
4
1
7
215
1
13
12
14
5
4
3
INT. VIDEO
EXT. VIDEO
VIDEO
MONITOR
OUT
Y
EXT. VIDEO
AV1 VIDEO IN
Y-IN
C-IN
AV2 VIDEO IN
12/14
AV1
AV2
S-TERMINAL
Y- I N C-IN
14
VIDEO IN
1H DL
RGB
MATRIX
19 20 21
OSD R-OUT
OSD B-OUT
OSD G-OUT
OSD R-IN
OSD B-IN
OSD G-IN
14
15
16
SWITCH
POWER SUPPLY CIRCUIT
T611
CONVERTER
TRANS.
28V AUDIO AMP.
17
24V VERT. DEF./HORIZ. DEF.
14
13
5VRC
Reg.
IC681 CPU/EEPROM
15 AUDIO CTL/AV SW
IC201
IC202
Reg.
5V-1
9V
VR631 140V
Reg. 36V
FBT
TUNER
+B Adj.
MAIN SIGNAL PROCESSING CIRCUIT

12 KEY SWITCH IN KEY
SWITCH
TV/AV SWITCH (TV=LOW, AV=HIGH)
SCL
2
1
31
SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
IF/VIDEO / CHROMA/DEF.
IC801
CPU
QXXAVC044P
22
19 20
21
18
17
27
34
7 6
32
28
23
33
OSD BLK OUT(Active=High)
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High)
DEFLECTION
CIRCUIT
HORIZ. SYNC IN (ACTIVE=LOW)
VERT. SYNC IN (ACTIVE=LOW)
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
SCL
SDA
IC802
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
24
26
IC001
AUDIO AMP.
VIF-M OUTPUT (HIGH=NTSC3.58, LOW=OTHER)
A101
F/S TUNER
AFT SIGNAL INPUT
10
RESET INPUT (ACTIVE=LOW)
13
MUTE OUTPUT (MUTE ON=HIGH) 29
AV1/AV2 SWITCH (AV1=LOW, AV2=HIGH)
IC1201
AUDIO SWITCH
56
SECAM KILLER INPUT (HIGH=SECAM)
IC3701
AUDIO CONTROL
&
SURROUND
13 14
11
10
IC1401
VIDEO SWITCH
8
11 12
IC3702
L/R, L/L, R/R
SWITCH 9
17
10
18
9
IC1501
VIDEO SWITCH
11
3
(AV1=LOW, AV2=HIGH)
(Y =LOW, AV VIDEO=HIGH)
(Y =LOW, AV VIDEO=HIGH)
10
(INT. VIDEO =LOW, EXT. VIDEO=HIGH)
50/60Hz OUTPUT (60Hz=LOW, 50Hz=HIGH)
30
34 S-TERMINAL INPUT (S-IN=LOW)
-4-
Chassis Block Diagrams

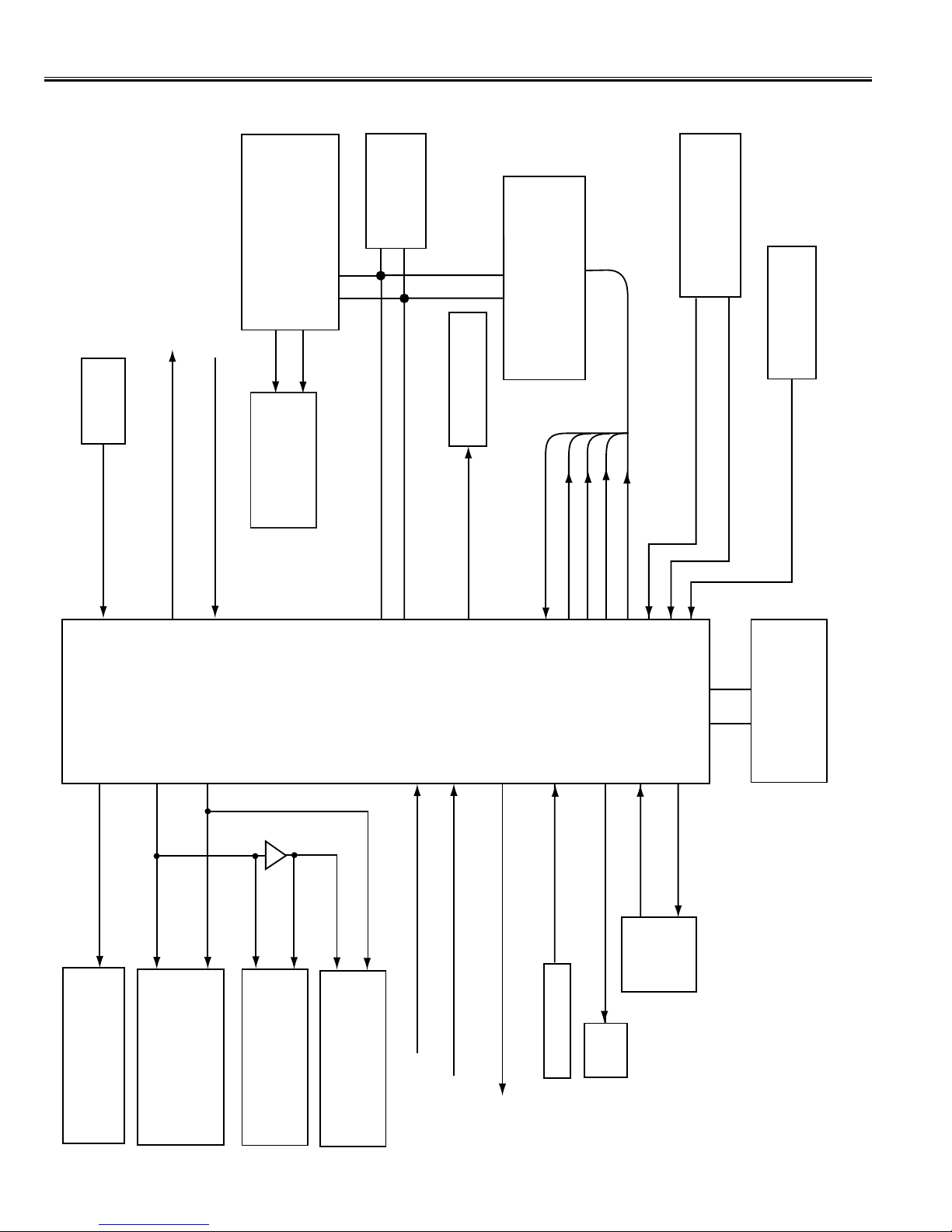

SYSTEM CONTROL

-5-
IC Block Diagrams

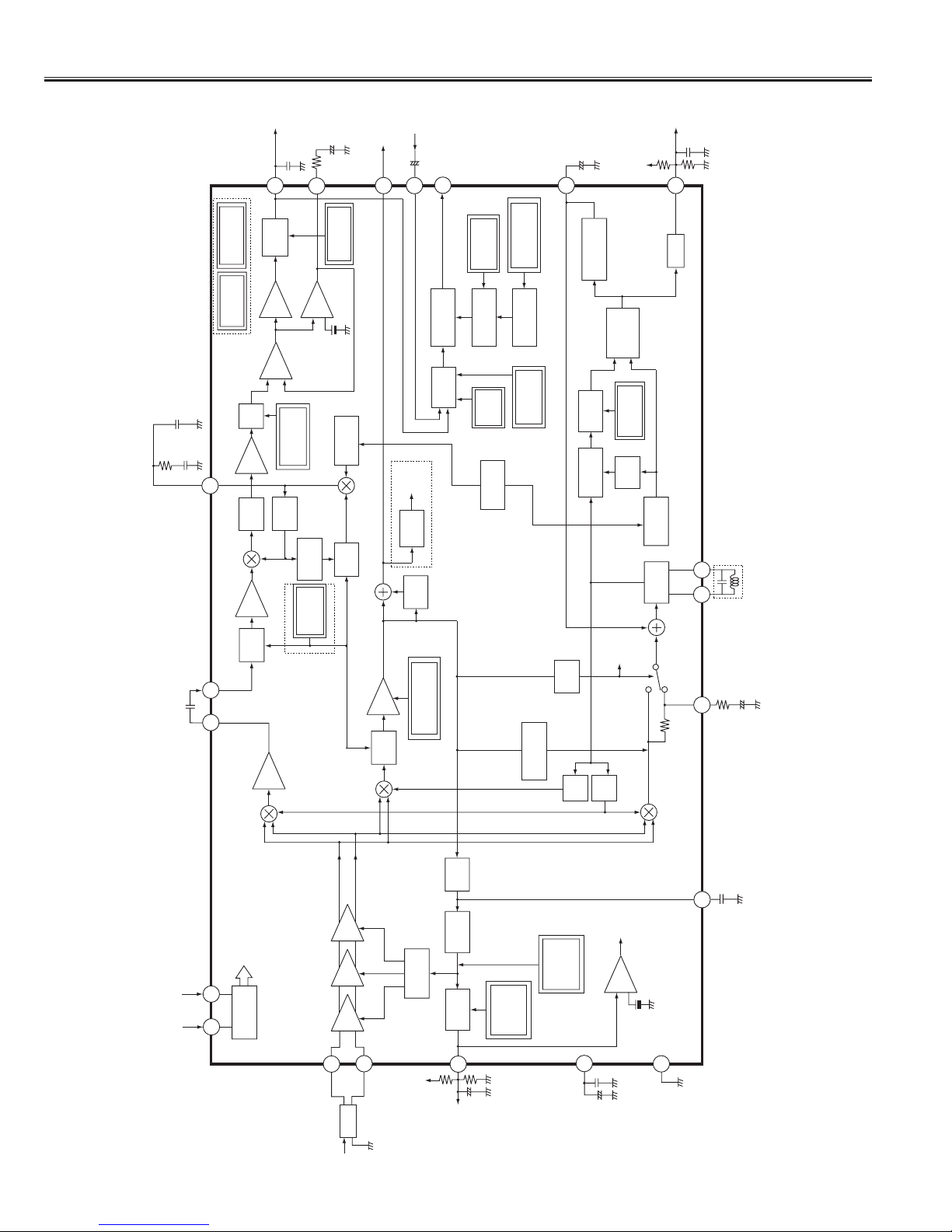

IC201 < IF/Video/Chroma/Def. > LA76818
1
DC
VOL
SW
FM
DET
23456
IF
AGC
RF
AGC
VIF
7
8910
IF
VCC 5V
11 12 13
BUS
PEAKING
CORING
BLACK
STRETCH
SYNC
SEP
14 15
ABL
DC
REST
CLAMP
OSD
CONTRAST
BRIGHT
16 17 18 19 20
CONTRAST
BRIGHT
RGB
MATRIX
OSD
SW
DRIVE/OUT-OFF
VCC
21 22 23
FSC/
SYNC SW
24 25 26 27
VER
RAMP HOR
VCC
H
VCC
VER
C/D
HOR
OUT
PHASE
SHIFTER
AFC2
AFC1
VER
SEP
HOR
C/D
1/256
COLOR
CLAMP
LPF
ALC
+
SW
CLAMP
DEMO
PAL
SW
ACC
BPF
ON/OFF
DELAY
LINE
SW
TRAP
AFT
VIDEO
DET
TRAP
LIM
AMP
BPF
SPLL
BPF
VIDEO
AMP
IF
IDENT VIDEO
SW APC1 TINT
VXO DDS APC2
DC ADS.
CLAMP
VCO
1H DELAY
HOR
VCO
FBP
2829
30
31
32
1H
VCC
33
34
353637
38
39
40
41
42
CLMP
43
4445
CLMP
V/C VCC
5V
46
47
48
4950
A2C
PLL
51
525354
Audio Output
FM Output/Selected
Audio Output
PIF AGC
RF AGC Output
PIF Input1
PIF Input 2
IF Ground
IF Vcc
FM Filter
AFT Output
Bus Data
Bus Clock
ABL
Red Input
Green Input
Blue Input
Fast Blanking Input
RGB Vcc
Red Output
Green Output
Blue Output
fsc output or C
Sync output
Vertical Output
Ramp ALC Filter
Horizontal/BUS Vcc
Horizontal Output
Horizontal AFC Filter
Flyback Pulse Input
VCO IREF
Clock (4MHz) Outupt
CCD Vcc
CCD Filter
CCD/Horizontal Ground
SECAM B-Y Input
(Cb Input)
SECAM R-Y Input
(Cr Input)
Chroma APC2 Filter
Clamp Filter
4.43 MHz Crystal
Chroma APC1 Filter
Selected Video Output
Video/Vertical/BUS Ground
External Video Input(Y-IN)
Video/Vertical Vcc
Internal Video Input (S-C IN)
Black Level Detector
Video Output
VCO Filter
VCO Coil 2
VCO Coil 1
APC Filter
Ext. Audio Input
SIF Output
SIF APC Filter
SIF Input

IC Block Diagrams
-6-

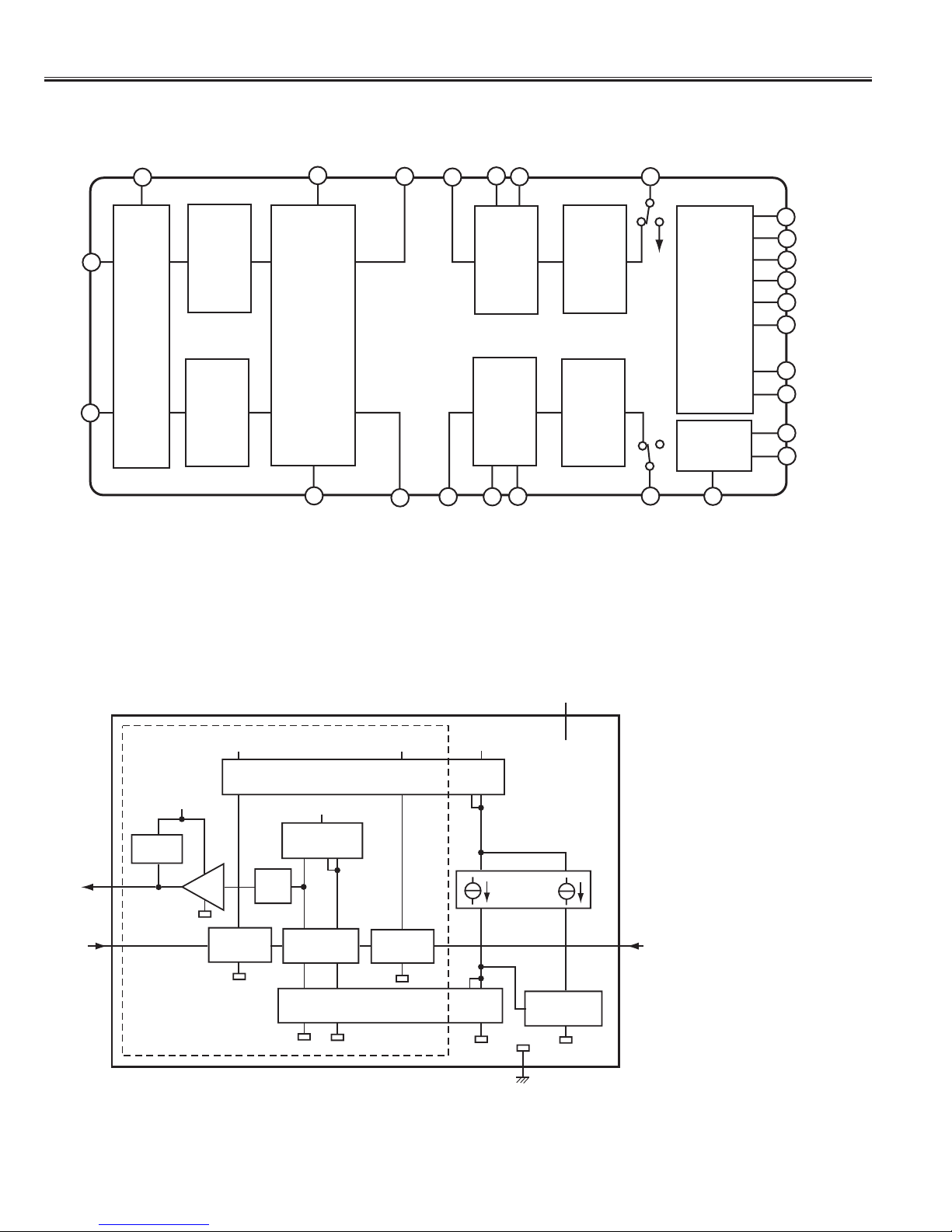

IC201 <IF System Block Diagram> LA76818
11 12
BUS
Interface
SAW
5
6
4
8 7
PIF
In1
PIF
In2
IF In
9V
30K
RF AGC
Out
120K
IF VCC
IF
GND
VIF AMP
VIF 1 VIF 2 VIF 3
IF AGC
Drive
RF
AGC
2ndIF
AGC
RF AGC
Delay
6bit
IF AGC
Def
1bit
+
-
(6 Vcc)/7
To
BUS
3
0.022u PIF
AGC
IF
AGC
Data Clock
APC
Det
+π/4
-π/4
Snd
Det
Amp
52
SIF.Out
Sound
Trap
Video
Det
Buzz
Canceller
50
APC
Filter
330
0.47u +
PLL Pull-in SW
To
BUS
Lock
Det
Video.Level
3bit
Amp
54
10p
SIF.In
Sound
BPF
VCO.Coil
VCO
COIL1
VCO
COIL2
48 49
VIF
VCO
Chroma
Counter
B/N INV
IF
Ident
OSC
C/D
Amp
SIF. Sys
2bit
pre-
scaller
SIF
VCO
500K
BPF
SIF
APC
Filter
1K
0.01u 1000p
53
LIM
AMP
FM
Det
FM.Level
5bit
Chroma
C/D
APC
Det
500K
Det
To
BUS
Chroma
VCO
VIF
Counter
Reset
Pulse
VCO
Ident
VIF.Sys
2bit
Phase
Detector
A.MUTE
1bit
VOLUME
D/A
VOLUME
Filter
A.SW
1bit
Input
Select VOLUME
(ATT)
-
+
-
+
2.5V
Amp
FM Gain
1bit Deem-TC
1bit
De-
emph
FM Mute
1 bit
2
9
46
51
1
A.Fil.Def
1bit
VOLUME
7bit
47
VCO
Alignment
AFT 10 AFT
Vcc
100K
100K
0.1u
VCO
Filter
+
0.47u
Audio.out
+
Audio in
10u
Video
Out
FM
Filter
+
1u
FM
Out
0.01u
+
to BUS Line
+

-7-
IC Block Diagrams
Thermal
Protection
-
+
AMP
Pump
Up
1
INVERTING INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT STAGE Vcc
7
NON INV. INPUT
IC001 < Audio AMP.> TA8200AH
4
5
3
1
2
69
7
10
12
11
8
+
Ripple Filter
AMP.1
IN 1 +
+
+
+
++
IN 1
Pre-GND
400Ω
400Ω20KΩ
20KΩ
+
AMP.2
IN 2 IN 2
+
Vcc
Vcc
OUT 1
PW-GND
OUT 2
+
+
RL
RL
10 9
Pulse
DET
Pulse
I/F
Clamp
VCO
SW2
11
Filter
PLL
DET
12
13
System
SW1
LIM
KILLER
Bell/EQU
Filter
SW3
1415
ACC
Bell/EQU
Adj
16
123
ID-KIL ID
45
F0 Adj
67
SW/ALC
8
F0-Fil Kil-Fil 4.43DC ID-Fil 4M-DC R-Y Out B-Y Out GND
4MHz InSC-In
4.43MHz In
AV/SECAMKil-Out
Video In
VccEQU-Adj
IC281 <SECAM Decoder> LA7642N
1
IN 3
2
Vcc
3
SW1
4
OUT
5
GND
6
IN1-Y
7
IN1-C
8
SW2
9
IN 2
SW
6dB
(-6dB)
CLAMP
CLAMP
CLAMP
BIAS
6dB
SW
15K
SW1 SW2 OUT
L
H
-
L IN 1
L
H
IN 2
IN 3
IC1401 < VIDEO Switch > MM1188XS
IC501 < Vertical Output > LA78041

IC Block Diagrams
-8-
VDD VDD VDD
VDD
MIRROR 2
VDD
FLASH-
DIODE
1x
VOC
Inverting
Input
(3x)
1,2,3
9,8,7
3x
VDD
6
5
4
Non-inverting
Input
Vip
MIRROR 1
Vbias
MIRROR 3
LEVEL-
SHIFTER 1 LEVEL-
SHIFTER 2
DIFFERENTIAL
STAGE
CURRENT
SOURCES
GND
THERMAL
PROTECTION
Note: One amplifier shown.
Cathode
Output
(3x)
Vi
IC701 < Triple Video Output Amplifier. > TDA6103Q
IC3701 < Audio Control & Surround > NJW1138MP
10 7
1
6
98
20
22
5
4
NJRC
ORIGINAL
SURROUND
&
SIMULATED
SURROUND
IIC BUS
INTERFACE
AGC
BIAS
TONE
VOL 1
TONE
27
VOL 1
VOL 2
VOL 2
19
18
17
14
13
16
15
21
30
23
24
25
26
12
11
IN 1a
AGC SS-FIL OUT 1a IN 2a TONE
Ha TONE
La OUT 2a
CVA
CVB
CTH
CTL
AUX0
AUX1
SCL
SDA
V+
GND
VREF
OUT 2b
SR-FIL OUT 1b IN 2b TONE
Hb
TONE
Lb
IN 1b

-9-
Mechanical Disassemblies
DEGAUSSING
COIL DEGAUSSING
COIL HOLDER
DEGAUSSING
COIL SOCKET To CRT
unit ground
PICTURE TUBE
GROUND LEAD
Service Information
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs
during TV reception, the TV set goes to the stand-by mode.
When an abnormality occurs during TV reception, it causes pin 27 of the CPU to go continually Low (less than
0.75V) for about one second. The CPU detects that this has occurred and outputs the signal from pin 31 to switch
off the power supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again via
either the main power switch or the ON-OFF button on the remote control. This will work only if the power supply
trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and the
circuit will have to be repaired.
■Protection Circuit
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 10 screws.
2. Pull off cabinet back and remove.
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the dag
coating (picture tube grounding lead).
3. Disconnect Degaussing coil socket (KE), Picture tube socket,
Deflection yoke connector (KDY), Speaker connectors (K002
and K003), and 2nd anode lead.
4. Remove chassis completely by sliding it straight back.
PICTURE TUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken
to keep these assemblies intact, unless picture tube is
being replaced . Discharge the picture tube to the coat-
ing before handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on the soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube ground
ing lead on the picture tube. See Figure 2.
Note: If the Picture Tube is being replaced, mount the
Degaussing Coil on the picture tube. See Figure 2.
Figure 2.
Picture Tube Removal
ANT. 75Ω
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
Figure 1. Cabinet Back Removal

-10-
Service Adjustments with Replacing Memory IC (IC802)
[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & play : No executed
- Inhibit data : Cancelled
- Ch skip data : Cancelled
- Sound volume data : 10/63 steps.
- Volume Lock : OFF
- Tuning Lock : OFF
- Colour system : AUTO
1
CLR
Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each
circuit. When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].
Press and hold for more than 2 seconds
-
+
P
MENU
TV/AV
-
+
P
MENU
TV/AV

-11-
Service Adjustments with Replacing Memory IC (IC802)
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
RF AGC Item 01, RF AGC
Horizontal centre Item 02, H-PHA
Vertical size Item 04, V-SIZ
Vertical-S correction Item 05, V-SCO
Vertical linearity Item 06, V-LIN
Gray scale Item 14-17, 19-21
Further adjustment please refer to page 14 and 15.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
NO. ITEM DATA
RANGE INITIAL
DATA DESCRIPTION
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
RF AGC Adj.RF AGC 00~63 22
H-Phase (H-Centering) Adj. (50Hz)H-PHA 00~31 5
V-Position (V-Centering) Adj. (50Hz) Fixed.V-POS 00~63 40
V-Size Adj. (50Hz)V-SIZ 00~127 74
V-S Correction (50Hz). Strech or shrink at center of screen
V-SCO 00~31 16
V-Linearity Adj. (50Hz)
V-LIN 00~31 21
H-Centering Adj. (60Hz)H-P60 -16~+15 +3
V-Size Adj. (60Hz)
V-S60 -64~+32 -2
OSD H-Position Adj.
OSDHP 00~255 26
OSD Contrast Adj.OSDC 00~127 40
Correction of the V-size accompanying brightness change. V-SCP 00~07 7
Correction of the H-size accompanying brightness change.H-SCP 00~07 7
Sub Bias Adj.SBIAS 00~127 105
Red Bias Adj.RBIAS 00~255 0
Green Bias Adj.GBIAS 00~255 0
Blue Bias Adj.BBIAS 00~255 0
Red Drive Adj.RDRIV 00~127 64
Green Drive Adj.GDRIV 00~15 8
Blue Drive Adj.BDRIV 00~127 64
1-LINE APPEAR
21 DRV White Balance Adj.
22 B-YD 00~15 8B-Y DC level Adj.. Colour compensation (PAL)
23 R-YD 00~15 8R-Y DC level Adj.. Colour compensation (PAL)
24 B-YDN -16~+15 0NTSC B-Y DC level Adj. (Difference value from PAL.)
25 R-YDN -16~+15 0NTSC R-Y DC level Adj. (Difference value from PAL.)
26 SBDC -16~+15 - 8 SECAM B-Y DC level Adj. (Difference value from PAL.)
27 SRDC -16~+15 - 5 SECAM R-Y DC level Adj. (Difference value from PAL.)
28 G-YA 0,1 0G-Y angle Adj. (Colour Phase G-Y Demodulation 0=240 degree, 1=253 degree)
29 RBGB 00~15 8 R-Y, B-Y Gain Blance Adj. (Do not change.)
30 RBAG 00~15 8R-Y, B-Y Angle Adj. (Do not change.)
31 G-YAN 0,1 0NTSC G-Y Angle Adj. (Difference value from PAL.)
32 RBGBN -16~+15 0NTSC R-Y, B-Y Gain Balance Adj. (Difference value from PAL.)
33 RBAGN -16~+15 0NTSC G-Y, B-Y Angle Adj. (Difference value from PAL)
34 COGV 00~03 0Coring Adj. (Base colour)
35 BLKS 00~03 3 Black stretch effective point selection, 0=OFF, 1-3=FREE
36 BLKG 00~03 3Setting of Black stretch gain. 0=OFF, 1-3=FREE
37 BRTA 0,1 0 On and off of ABL. 0=ON, 1=OFF
38 BRST 0,1 0ABL Effect Limit SW. 0=With Limitter, 1=Without Limitter
39 BRTH 00~07 0ABL Threshold Pint.
(Do not change)
40
41
42
43
44
White peak limitter. 0=OFF, 1-3=With LimitterWPL 00~03 2
Y Gamma setting. 0=OFF, 3=Max (Do not change)YGAM 00~03 0
Switching of Pre-shoot and Over shoot in AV mode. 0=Pre, 1=Over
PORW 0,1 0
Pre-shoot/Over shoot Adj. in AV mode.PORS 00~03 2
RF Coring Gain Adj.
RFCO 00~03 0
OBJECT
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC801

-12-
Service Adjustments with Replacing Memory IC (IC802)
NO. ITEM DATA
RANGE
INITIAL
DATA DESCRIPTION
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Switching of RF Pre-shoot and Over shoot. 0=Pre, 1=Over
PORWN 0,1 0
RF Pre-shoot/Over shoot Gain Adj.
PORSN 00~03 0
RF Tint Adj.
TINT -16~+15 0
NTSC 4.43 Tint Adj.
TINT 443 -16~+15 -12
RF Sharpness Adj.SHRF -32~+31 0
OSD TEXT Contrast.TEXTC -128~+127 0
Volume Control Adj.VOLUM 00~255 127
De emphasis TC. 0=50µs (PAL), 1=75µs (NTSC)DEEM 00~01 0
VIF System Switch. 00=38MH, 01=38.9MH, 02=45.75MH, 03=58.75MHVIFSW 00~03 0
SIF System Switch.SIFSW 00~03 1
Video Level Adj. (36-pin Detect Out) (Fixed)V-LVL 00~07 4
FM Level Adj.FMLVL 00~31 16
Over Modulation Switch. 0=OFF, 1=ON (With Limitter)IFOM-S 0,1 0
FM Out or Monitor Out Switch. 2-pin Out, 0=FM OUT, 1=MONITOR OUTIFMN-S 0,1 0
IFTRPS
60 IFMLVL Modulation Level
61
H-FRQ 00~63 34 Correction of Horizontal Frequency. (Fixed)
62
FBTS 0,1 0Switching of H-blanking and Flyback Pulse. 0=INT. H-BLK,1=INT. & EXT.H-BLK
63
COOP 00~07 2Setting of Colour Killer Level. 0= -30db, 7= -40db
64
HBLKL 00~07 7H-Blanking Control. (Left)
65
HBLKR 00~07 3H-Blanking Control. (Right)
66
AFCRF 0,1 0RF AFC Gain & Gate Adj. 0=AUTO, 1=COMPULSION
67
VSURF 0,1 0RF V-Sync. Separation Sensibirity. 0=NORMAL, 1=HIGH
68
CDMRF 00~07 0
RF V-Countdown Circuit Adj. 50/60Hz Jage, Sync. Trigger 0=AUTO, 1=Ext. Trigger
69
AFCAV 0,1 0AV AFC Gain & Gate Adj. (AV for item 67)
70
VSUAV 0,1 0AV V-Sync. Separation Adj. (AV for item 68)
71
CDMAV 00~07 0AV V-Countdown Circuit Adj. (AV for item 69)
72
HLVDRF 0,1 1
Incorrect operation prevention at the time of a special signal (RF mode), 0=Fix, 1=Variable
73
HLVDAV 0,1 1
Incorrecr operation prevention at the time of a special signal (AV mode), 0=Fix, 1=Variable
74
VCO-SW 0,1 04.43Mhz Coring Adj. 0=for +, 1=for Minu
75
VCO-ADJ 00~03 3C-VCO Adj.
76
CROSS-BW 00~03 0Pattern Output. 00=Normal, 01=Black, 02=White, 03=Cross hatch
77
AVNCON 00~127 64 Contrast Adj. of the blue back in AV mode.
78
AVNBRI 00~127 64 Brightness Adj. of the blue back in AV mode.
0,1 1SIF Trap Switch. 0=OFF, 1=ON
00~255 136
79
POMT 00~127 25 Picture Mute at the time of power ON.
80
CHMT 00~31 10 Picture Mute at the time of channel change.
81
SYST 00~15 5Selection of the number of times of a Colour system judgment.
82
S-STE 0,1 1AV Stereo/Mono Option. 0=Mono, 1=AV Stereo
83
VOLTBL 0~1 0Volume Curve Table. 0=B-Curve, 1=C-Curve
84
MPP
BASS
0,1
0,1
1Multi P-P Option. 0=Without Multi P-P 1=With Multi P-P
A-AGC 0~2
CPU Debug Date.
371 R71 0~255 0CPU Debug Date.
372 R72 0~255 0CPU Debug Date.
304 R04 0~255
CPU Debug Date.
303 R03 0~255
CPU Debug Date.
SUB-BT 0~2
0AGC Setting of AUDIO IC. 0=OFF, 1=ON(540mV), 2=ON(300mV)
AS TAT E 0,1
Sub Bass Treble Setting of AUDIO IC. 0= -3db, 1=0db, 2=+3db
SURROUND 0,1
Audio Status Option. 0=Without , 1=With Audio Status
Surround Option. 0=Without Surround, 1=With Surround
300 R00 0~255
301 R01 0~255
CPU Debug Date.
302 R02 0~255
CPU Debug Date.
1
0
0
0
0
0
0
85
86
87
88
89
90
TRAPT Trap Frequency Adj.
00~07 4
OBJECT
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
IC201
CPU
CPU
CPU
CPU
CPU
CPU
CPU
IC3701
IC3701
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
CPU
1Bass Expander Option. 0=Without Bass Expander, 1=With Bass Expander
1
Notes: The initial value that the CPU writes down the CPU ROM data to the memory when replaced the memory IC.
TV set may not operate correctly with this initial value. It is required to set up the fine adjustment for service
adjustments described in the above.

-
+
P
MENU
TV/AV
-13-
Service Adjustments with Replacing Memory IC(IC802)
TIMER
P▲
P▼
ADDRESS
DRV
SI. 00100101S2.11111000
DATA
B 64
21 R 64
ADDRESS
V-SCO
SI. 00100101S2.11111000
DATA
9
05
ADDRESS
RF AGC
SI. 00100101S2.11111000
DATA
30
01
[Entering to Service Mode]
1. Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.
Following setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Read Status
Item No. Item Data value
Display for [RF AGC] RF AGC adjustment
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
MENU
MENU
01➔02➔03➔04➔05......90... ...90➔89➔88➔87➔86......01

-14-
Service Mode Adjustments

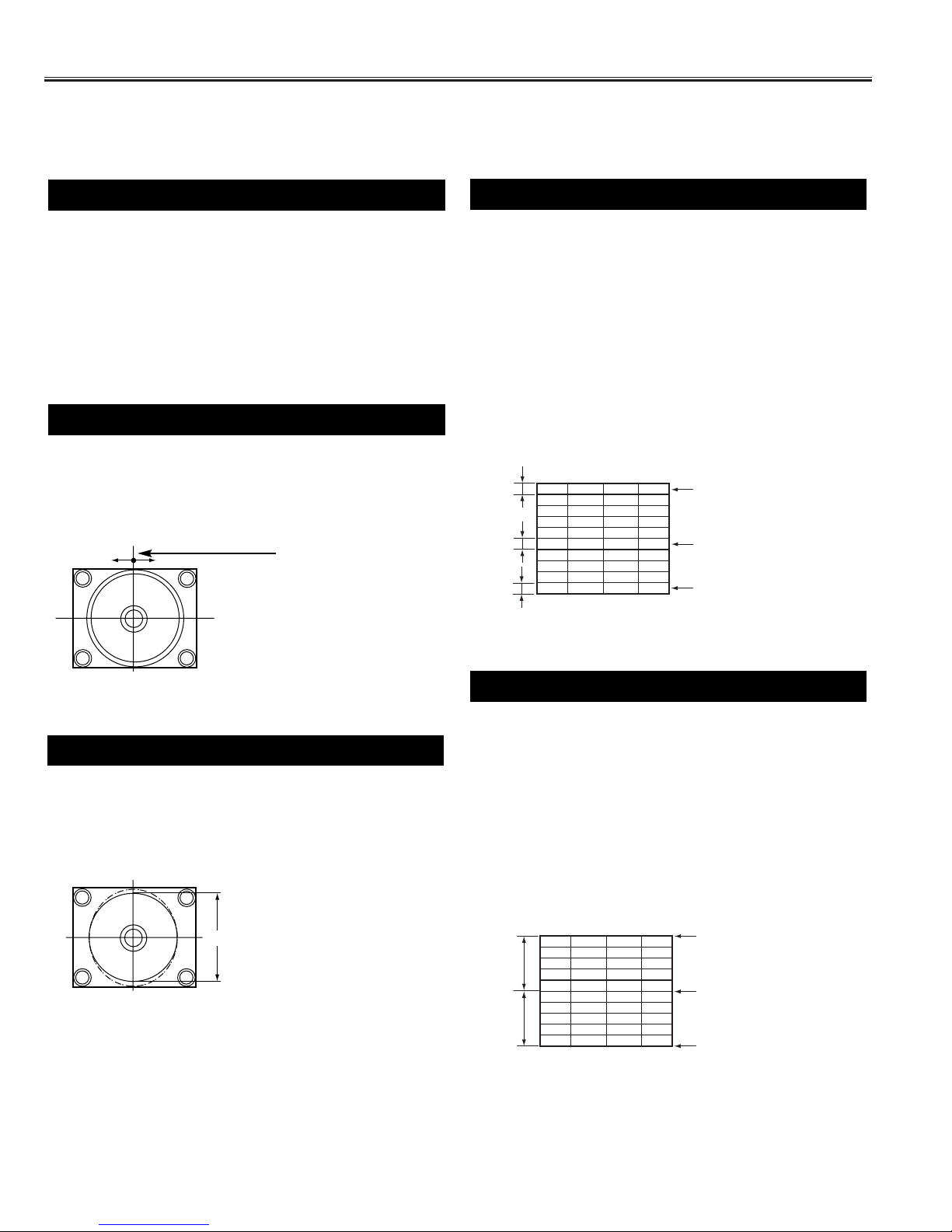

Vertical size
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 13.
NOTE: Do not attempt this adjustment with weak signal.
(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.
(2) Select [RF AGC] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from service mode.
Item 01 [RF AGC] AGC
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [H-PHA] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from service mode.
Item 02 [H-PHA] HORIZONTAL CENTRE
Horizontal centre
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Select [V-SIZ] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from service mode.
Item 04 [V-SIZ] VERTICAL SIZE
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-SCO] in the service mode.
(5) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(6) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(7) Exit from service mode.
Item 05 [V-SCO] V-S CORRECTION
cUpper
Center
Bottom
d
e
(1) Receive a crosshatch pattern.
(2) Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-LIN] in the service mode.
(5) Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(6) Exit from service mode.
Item 06 [V-LIN] VERTICAL LINEARITY
a
b
Upper
Center
Bottom

-15-
1
C515
R487
KQ
T471-H5
T471-H1
KDY-1
JP409
JP407
JP403
JP405
C527
C514
R488
J410
R477A
C486
R492
C491
D485
R475
R485
D
4
R484
C420
C420
-
H3
D438
KDY
R441
JP411
R477
JP408
JP404
T471-H2
J216
C471
JW24
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H4
T471-H8
T471-H10
T471
FBT.
T471A
JP483
L442
R442
FC3A CHASSIS

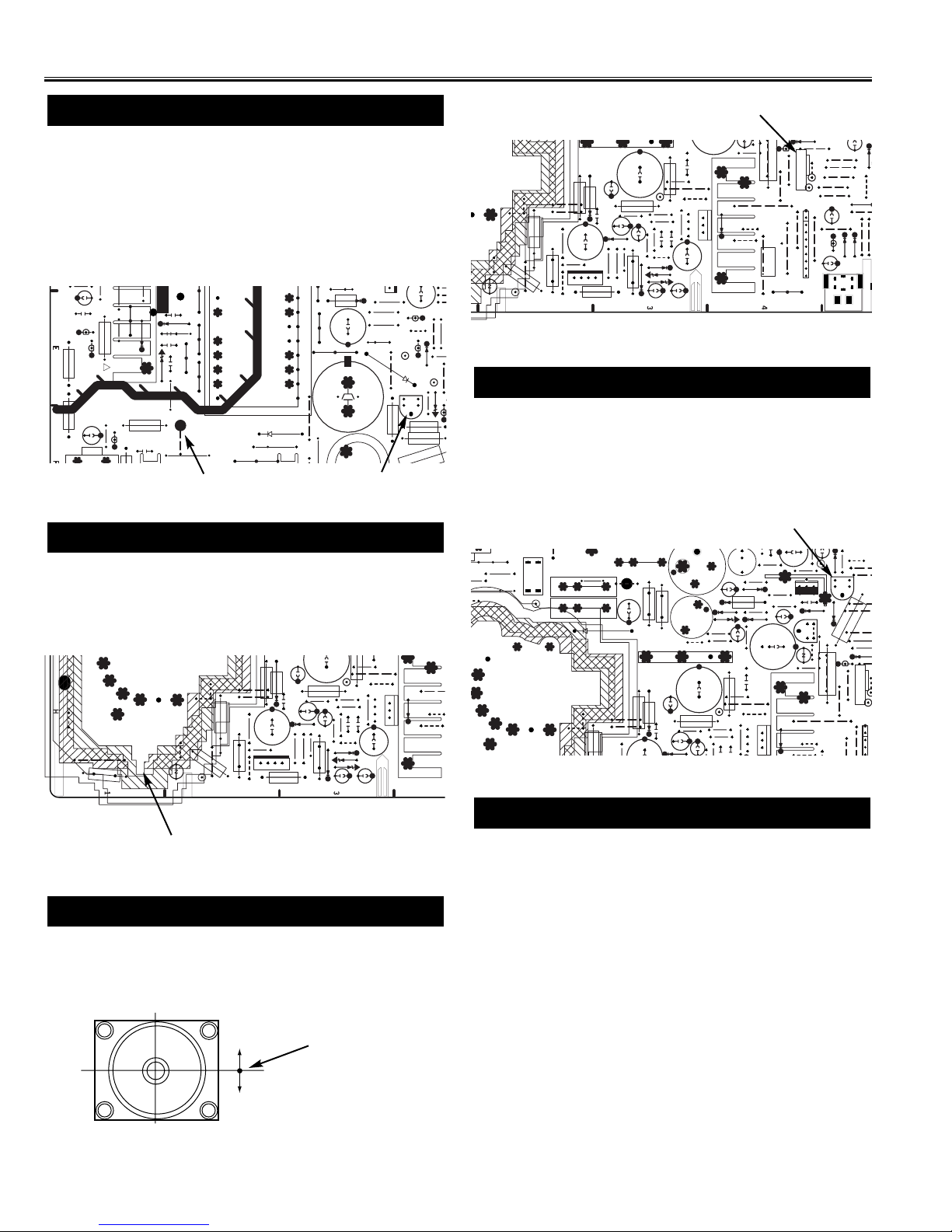

(1) Receive the monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Set each value of Item-14 RBIAS, 15 GBIAS, 16 BBIAS, 17 RDRIV and 19 BDRIV mode to 64.
(5) Select Item-20 mode to be one horizontal scanning line and turn the screen volume on the FBT to obtain just visible
one coloured line.
(6) Press the 1 (Red Bias
- ), 2 (Red Bias +), 5 (Green Bias - ), 6 (Green Bias +), 9 (Blue Bias - )or 0 (Blue Bias +)
button to adjust the brightness of each colour until a dim white line produced. Please see the control button alloca-
tions in this mode.
(7) Select Item-21 DRV mode to enter the white balance adjusting mode.
(8) Press the 3 (Red Drive
- ), 4 (Red Drive +), -/-- (Blue Drive - )or RECALL (Blue Drive +) button alternately to
produce normal black and white picture.
(9) Exit from the service mode.
(10) Check for proper grey scale tracking at all brightness levels.
NOTE: If the grey scale adjustment is made after picture tube replacement, check the high voltage.
Items 14-17, 19-21 GREY SCALE
Service Mode Adjustments
MAIN BOARD
SCREEN VR
(Under side)
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
Red Bias -
Red Bias +
Green Bias
-
Blue Bias +
Red Drive +
Blue Drive
-
Blue Drive +
Green Bias +
Blue Bias -
Red Drive -
Press the MENU
button to exit
from service
mode.

E
JP463
VR463
Q461
Q461A
Q461-H2
Q461-H1
JW15
C524
C521
VR462
R518
C515
C437
J
2
R502
C487
J414
J515
J516
JP412
IC501-H3
IC501-H2
T471-H5
J406
T471-H1
KDY-6
KDY-3KDY-1
JP409
JP405
J1504
J
4
Q540
R540
C540
D642
J503
JWW1
JW1
R473
D465
R467
D462 C467
R469
D466
R464
D421
R426
C470
J1501
D512
J501
R512
C527
R519
R515
R522
SW501
R501
R525
R516
C514
C468
C464
R463
R465
R462
D469
J029
R488
R492
C491
D485
C423-H2 C423-H3
C423
C423-H1 C420-H1
C420
C420-H3
C420-H2
2
2
L431
D438
C441-H2
C441-H3
C441
3
R435
R423
1
2
KDY
C441-H1
R441
D461
R466
3
R461
C463
JP408
JP404
T471-H2
R481A
T471-H7
T471-H11
T471-H6
T471-H4
T471-H8
T471-H10
T471
FBT.
J026
J209
JP1502
J405
Q
432
IC501
J504
L442-H1
L442-H2
L442
L441-H2
L441-H1
L441-H3
L441
D441
R442
JP436
C423A
H-SIZE
PCC
J540
JW36
R514
VERT.OUT
V-CENTER
1
JW15
4
R518
5
R487
KQ
IC501-H3
0
1-H2 IC501-H1
T471-H5
JP409
JP407
JP403
JP405
D512
J501
J502
R512
C518
C527
R519
C520
R515
R522
C510
C517
R516
C514
R511
R510
J028
J029
D476
R488
J410
R477A
C486
R492
C491
D485
R475
R485
R474
C449
D468
D467
D448
C469
D486
R486
R484
R477
JP408
JP404
J216
C471
JW24
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H8
T471-H10
T471A
IC501
IC501A
JP483
J504
FC3A CHASSIS
VERT.OUT
E
E
E
E
9
10
9
10
E
JW17
JW16
C425A
C424A
Q613-H4
C651-H1 C651-H2
C655
D651
T611-H16
C465
R672
D671
R671
J607
Q
J605
VR651
R662
R661
D661
R663
R664
J611
R657
Q681
R655
R652
6
65
J604
J413
R434
C432
T43
C434
R431
Q431
R433
C425
C424
L432
D439
T4
3
L652
L651
C651
D652
C652
R644
R
643
R631
R628
R624
R623
R622
Q612
Q611
L615
D617
D616
C644
C613
L616 L613
C615
D611
C618A
C617
C616
L611
L612
R629
T611
CONVERTER TRANS.
T611-H8
T611-H7
T611-H6
T611-H5
T611-H3
T611-H17
T611-H13
T611-H12
T611-H11
C629
J8
2
J8
2
J8
2
Q613-H2
OUT
Q613A
R445
L462-H
3
L462
L462-H2
Q652
J612
C618
+B
TP-B
!
-16-
Service Adjustments
(1) Connect a DC meter to TP-B and the ground.
(2) Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3) Adjust B-voltage to become 140 ± 1V DC by using
VR651.
B-VOLTAGE SUPPLY CHECKING
Note: +B (+140V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage Check.
(1) Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2) Tune receiver to an active channel and confirm TV is
operating properly.
(3) Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
voltage is within 28 KV and 30 KV at maximum
beam current.
(4) Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 32 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
(1) Receive a monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
TP-B
Focus VR (Upper size)
MAIN BOARD
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Adjust the vertical centre of the picture with SW501.
VERTICAL CENTRE
Vertical centre
SW501
VR651
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) If the picture is too wide, or narrow, adjust horizontal
width control (VR462) for proper width.
(4) Select several other channels and check horizontal
width.
HORIZ. WIDTH ADJUSTMENT
VR462
1
E
E
JW15
C524
C521
R518
C515
R487
KQ
J024
J515
J516
IC501-H3
IC501-H2 IC501-H1
-
H1
KDY-6
KDY-3KDY-1
L1501
J018
D1032
JP409
JP407
JP405
J1504
J409
J1205
J1206
J1204
J1207
J1208
Q540
R540
J1501
D512
J501
J502
R512
C518
C527
R519
C520
R515
R522
SW501
R501
C510
C517
D501
R525
R516
C514
R511
R510
J028
J029
D476
R488
J410
R477A
C486
R492
C491
D485
R475
R485
R474
C449
D468
D467
D448
C469
D486
R486
R484
JP408
JP404
C471
JW24
R483
R481
R481A
T471-H10
1
.
1
230
J1203
30
J021
D1402 D1401
C1082
Q1402
J025
IC1401
VIDEO SW
J026
J209
C1401
JP1502
K1004
IC501
IC501A
JP483
J504
JP501 JW31
FC3A CHASSIS
JW36
VERT.OUT
(SOLDER
SIDE)
IC1501
VIDEO SW
V-CENTER

-
+
P
MENU
TV/AV
-17-
Special Function
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “91” to “99”
and “0” are set Music Mode. Only sound is provided and any
picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
AV
MUSIC Turns black
screen
SOUND BASS ON
18
(1) Volume Lock setting
(5) Language selection for the on screen display
Either Thai or English can be selected as the language of the
screen display.
1To enter into the special function setting mode, press and
hold the MENU button of the remote control, then press the
PROGRAMME DOWN button on the TV set.
2Select an item of the special functions by pressing the PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the VOLUME + or - button. To cancel, set to “ OFF”.
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
4Press the MENU button of the remote control to return to
the normal TV mode.
P▲
P▼
P▲
P▼
MENU
OFF
OFF
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
OFF
ON
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
LANG / ENGLISH
To select language:
1) Select LANG/ by pressing the PRGRAMME UP or
DOWN button.
2) Select either Thai or English by pressing the VOLUME + or
- button.
LANG / ENGLISH
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
LANG / ENGLISH
MENU

-18-
Purity and Convergence Adjustment
Signals: Use a pattern generator which can output red,
green, blue and white raster and crosshatch
pattern signals.
Procedure: Carry out purity adjustment first, and then carry
out convergence adjustment.
Preparation: The deflection yoke may have several
correction magnets attached to its outer
edge. If replacing the picture tube, the
positions of the magnets can be changed and
they can be re-used, so remove these
magnets and keep them safely so that they
do not get lost.
PURITY ADJUSTMENTS
1. Place the picture so that its front faces west.
2. Insert the power plug into a wall outlet, and then turn on
the power for the TV and de-magnetize the TV using its
own degaussing circuit.
3. Loosen the screw which is holding the deflection yoke
(with integrated purity magnets), and them move the
deflection yoke forward as far as it will go. Remove the
rubber wedge at this time.
4. Turn off the red and blue raster so that only the green
raster is on.
5. Adjust the angle between the tabs (wings) on purity
magnets to center the vertical green belt in the picture
tube screen. (See Figures 2 and 3.)
NOTE: This adjustment can only be carried out by
changing the angle, not by rotating the tabs up and
down.
6. Gently move the deflection yoke back to the position
where the green band fills the whole of the picture tube
screen, and then tighten the screw to secure the
deflection yoke in place.
7. If there is any color distortion around the edges, correct
it by attaching magnets to the outer edge of the
deflection yoke. The magnets should be attached so
that the line running from the position of the distortion to
the center of the picture tube intersects the deflection
yoke. The colors on the magnets indicate the north and
south poles of the magnets. Attach the magnets in
whichever direction causes the distortion to
disappear.(See Figures 1 and 4. The south and north
pole positions are shown as a guide.)
8. Switch the screen to red and blue rasters and check that
there is no color distortion. If there is any distortion,
adjust the angles of purity magnets tabs or the forward-
back position of the deflection yoke, or change the
attachment positions of the
correction magnets.
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
Deflection yoke
mounting scrrew
Rubber wedge
Correction
magnet
Move the deflection
yoke back and forth to
adjust the purity
GREEN band
Magnet attachment position
Deflection
Yoke outer edge
Color distortion
Figure 1
Figure 2
Figure 3
Figure 4
N
S
1
2
3
4
SIX-POLE
MAGNET TABS
FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
Change the angle to adjust the green band so that it is
centered in the screen.

Purity and Convergence Adjustment
-19-
CONVERGENCE ADJUSTMENT
Preparation: After carrying out purity adjustment and
before proceeding to convergence
adjustment, provisionally insert the rubber
wedge so that there is no vertical or
sideways play in the deflection yoke.
Signals: Display a crosshatch pattern.
1. Red/blue center adjustment
Adjust the angle between the tabs (1) and (2) in Figure
5 and rotate them together until the lines of the red and
blue crosshatch patterns (vertical and horizontal lines)
are superimposed in the center of the screen.
2. Green and red/blue center adjustment
Adjust the angle between the tabs (3) and (4) in Figure
5 and rotate them together until the lines of the green
crosshatch pattern are superimposed with the red/blue
crosshatch pattern (vertical and horizontal lines) which
were superimposed in step 1).
3. Vertical lines at screen center (Red and Blue)
Use the VR2 control (see Figure 8) at the top of the
deflection yoke to correct the vertical line convergence
at the center of the screen.(See Figure 9.)
4. Vertical lines at screen top and bottom
Use the VR1 control (see Figure 8) at the top of the
deflection yoke to correct the vertical line convergence
at the top and bottom of the screen. (See Figure 10.)
5. Horizontal lines at screen top and bottom
Rotate the Deflection yoke to the left or right to correct
the horizontal line convergence at the top and bottom of
the screen. (See Figure 11.)
If vertical lines are intersecting at the top and bottom,
use a screwdriver to adjust the Balance coil at the top of
the deflection yoke. (See Figure 12.)
Red
Blue
Figure 6
Red/Blue
Green
Figure 7
Red Blue
Figure 9
Figure 5
Adjust the angle rotation of tabs
(1) and (2) to align the vertical
and horizontal lines.
Adjust the angle and rotation of
tabs (3) and (4) to align the vertical
and horizontal lines.
Use the VR2 control to correct.
Red
Blue
Figure 10
Use the VR1 control to correct.
Blue
Red
Figure 11
Rotate the DY to correct.
Blue
Red
Figure 12
Use the Balance coil to correct
1
2
3
4
SIX-POLE
MAGNET TABS
FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
Balance
coil
VR1
VR2
Figure 8

-
+
P
MENU
TV/AV
-20-
Cabinet Parts List (Model CM29AF8X, CM29AF8XA)
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
L - AUDIO - R
VIDEO
AV2 INPUT
ANT. 75Ω
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
0
7
14
85
23
6
9
P▲
P▼
JXMYA
-/--
PP
TV/AV
A B
CH SCAN
TIMER
MENU PIC MODE
SWAP
BASS SURROUND
12
13
1 610 284 7628 ASSY,BUTTON POWER-C2SA
610 229 8406 SPRING-E3HA
2 610 284 7758 DEC.IND-C2SA
3 610 284 7635 ASSY,BUTTON UNIT-C2SA
4 610 284 7741 DOOR COVER-C2SA
5 610 284 7765 DEC SHEET DOOR-C2SA
6 610 298 7706 ASSY,CABINET FRONT-C2SJ
6-a 610 298 7768 CABINET FRONT C2SJ
6-b 610 298 7799 DOOR-C2SJ
7 645 040 4672 BADGE,SANYO
or 645 041 7269 BADGE,SANYO
8 610 284 7833 SPRING PLATE-C2SA
9 610 303 7325 CABINET BACK-C2SW
10 610 310 6717 LABEL RATING-C2SLZ
(Service Ref.No.CM29AF8X-00)
610 310 6724 LABEL RATING-C2SMZ
(Service Ref.No.CM29AF8XA-00)
11 610 256 7670 HOLDER AC CORD-SGP-D4VA
12 645 054 3579 ASSY,REMOCON JXMYA
13 610 300 5102 RC-BATTERY LID-JXMYA
610 311 6013 INSTRUCTION MANUAL-C5GR-B
(ENGLISH + ARABIC)
610 310 7493 SIMPLIFIED INST-C5GR-A
(SPANISH + RUSSIAN)
Key No. Part No. Description Key No. Part No. Description
1
2
3
6-b
5
7
9
10
6-a 4
8
11
