CE14A1-E
Service Manual Model:
CRT 14” A34EAC01X06
CHASSIS No 2100
EC1 V7
Colour Television
11/01/2000 Ref. Nº MS CE14A1-E
Give complete “SERVICE PART No” for parts order or
servicing, it is shown on the rating sheet on the cabinet
back of the TV set.
Note
This TV receiver will not work properly in foreign countries
where the television transmission system and power
source differ from the design specifications. Refer to the
specifications for the design specifications.

Service Manual CE14A1-E
2
1.-SAFETY INSTRUCTIONS
Read this page before doing any operation of adjustment, maintenance or repair the TV set described.
Only skilled personnel of Sanyo Technical Service should do the adjustment, maintenance or repair of TV set.
1.1.- WARNING.
For the correct and safe use of the TV set, it is essential that the service personnel follow the process of safety
generally accepted and the safety precautions specified in this manual.
An isolation transformer should be connected in the power line between the receiver and the AC line when a service is
performed on the primary side of the converter transformer of the set.
1.2.- PRECAUTION AGAINST X-RAYS.
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X-
RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. If high voltage exceeds
specified limits, take necessary corrective action. Carefully follow the instructions for +B1 volt power supply
adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
COMPLIANCE TO STANDARDS
All of those marked with Xor must be
replaced with original parts
WARNING! This TV set contains components which
are particularly sensitive to static electricity (ESD).
It is recommended that all due precaution be taken
handling integrated circuits and semiconductors.
1.3.- Recommendations to protect our environment
Stand-by mode: In order to save energy and to maintain an optimum picture quality, it is advisable to switch off the TV
using the ON/OFF button located at the front of TV set.
Used batteries: The batteries in the remote control of these models do not contain mercury. However, SANYO
recommends that you do not dispose of used batteries in domestic refuse. Please, contact your dealer or your local
authorities for information regarding the disposal of used batteries or your nearest collection point.
Recommendation about the end-of-life: These SANYO TV sets have been designed and manufactured using high
quality materials which can be recycled and reused. In the future, when the life cycle of these sets come to an end,
specialised companies can disassemble it and reuse certain materials. This reduces the impact of waste in our
environment. Please, contact with your local authorities for information regarding the disposal of your set when the
time arrives. Help us to conserve the environment we live in!

Service Manual CE14A1-E
3
2.-TECHNICAL CHARACTERISTICS
Cathode-ray tubes In-Line gun type.14” (35 cm)
Tuning-system Voltage synthesis, 75 programs in non-volatile memory, AFT, fine tuning,
automatic, semiautomatic and manual channel-search.
Program selection Sequential selection from the controls on the set. Direct selection of any
program from the remote-control device.
Receiving channel E2..........E4; S1........S10
E5..........E12; S11.......S41
E21........E69
Reception system Systems D/K and B/G
Colour system PAL
Audio Power Power-rating 1,2 watts. (RMS) 10% Distortion
Number of speakers 1 Full Range 16 Ω
Aerial External aerial-socket 75 ohms IEC.
Jack for headphones Mono jack 3'5 m/m.
AV connectors 1 Scart connector 21-pin standard CENELEC AV/RGB.
Power source 220V.......240V. AC 50 Hz
Power consumption 56 Watts. (maximum consumption).
4,2 Watts. (Stand-by condition)
Timer function Switch on, off and alarm time delay are programmable in OSD over 24
hours.
Hotel mode This TV set has the possibility of being programmed in Hotel mode and
Hotel Rental mode.
2.1.-SAFETY.
It fulfils the safety requirements established in the regulation.
- EN 60065:1993.
2.2.-EMC (Electromagnetic Compatibility)
It fulfils the EMC requirements established in the regulation.
- EN 55013:1990/A12:1994
- EN 55020:1994.
- EN 60555-2:1987.

Service Manual CE14A1-E
4
3.-SPECIAL MODE FOR FACTORY
The factory mode is a special TV working mode, thought to aid the manufacturing process and it is identified by the
message “FAC”. This mode is not intended for customer use..
The Factory mode differences with respect to normal mode are the followings:
1. The TV set does not pass to standby mode after 10 min. without aerial signal input. Instead it remains
switched on.
2. The adjustments speed is four times quicker.
3. The standby mode is disabled.
To take TV set out of Factory mode, push the key of remote control.
4.-DESCRIPTION OF HOTEL MODE
By defect the TV set switches on with the program in which is was switched off, but it is also possible to force it to
switch on in a program that can be chosen between the 1 and 8 or AV.
The TV set has a special mode of operation that is adapted for use in hotels, hospitals, etc. In this case the
maximum volume level is limited to the volume chosen when the hotel mode is enabled. Furthermore, in this mode it
is not possible to do channel searching neither to modify the fine tuning control. Additionally there is the “Hotel
Rental” mode in which it is only possible to change the program with the remote control, and it is not possible to do
so with the front keys.
These software configurations are stored in the non volatile memory and therefore they remain even though
the TV set is disconnected from the power supply. The Hotel mode configuration can be changed by pushing the SET
front key and without loosing it, pushing the key of remote control. In the case of Rental mode, the modification
procedure is the same as above but it is necessary to previously set the colour control to zero. When all this is done,
the following indication appears on the screen:
00 HOTEL
The first, most significant digit indicates weather Hotel mode is chosen or not
0 êNormal mode
1 êHotel mode
2 êHotel Rental mode
The last, least significant digit indicates the programme in which the set switches on
0 êThe same as it was selected when the TV set was switched off.
1 êAlways programme position 1.
2 êAlways programme position 2.
..........
8 êAlways programme position 8.
9 êAlways AV mode.
The wanted code should be introduced with the numerical keys of remote control. Always to push the complete code.
Example:
00 êNormal mode. Switches on with the same programme selected when the TV set was switched off.
10 êHotel mode. Switches on with the same programme selected when the TV set was switched off.
11 êHotel mode. Always switches on in programme 1
21 êHotel Rental mode. Always switches on in programme 1.
09 êNormal mode. Always switches on in AV mode
5.-ACTIVATION OF THE INITIAL AUTOMATIC CHANNEL-SEARCH.
In order to reset the initial automatic channel-search function, enter the tuning menu by keeping pushed the frontal
SET key for a few seconds. Afterwards select the AUTO tuning mode by pushing several times the + or - key. Then
push the Mkey to start searching and switch-off the TV set before any station is found. When the TV set is switched
on again it will remain in the same situation as when it was switched off.

Service Manual CE14A1-E
5

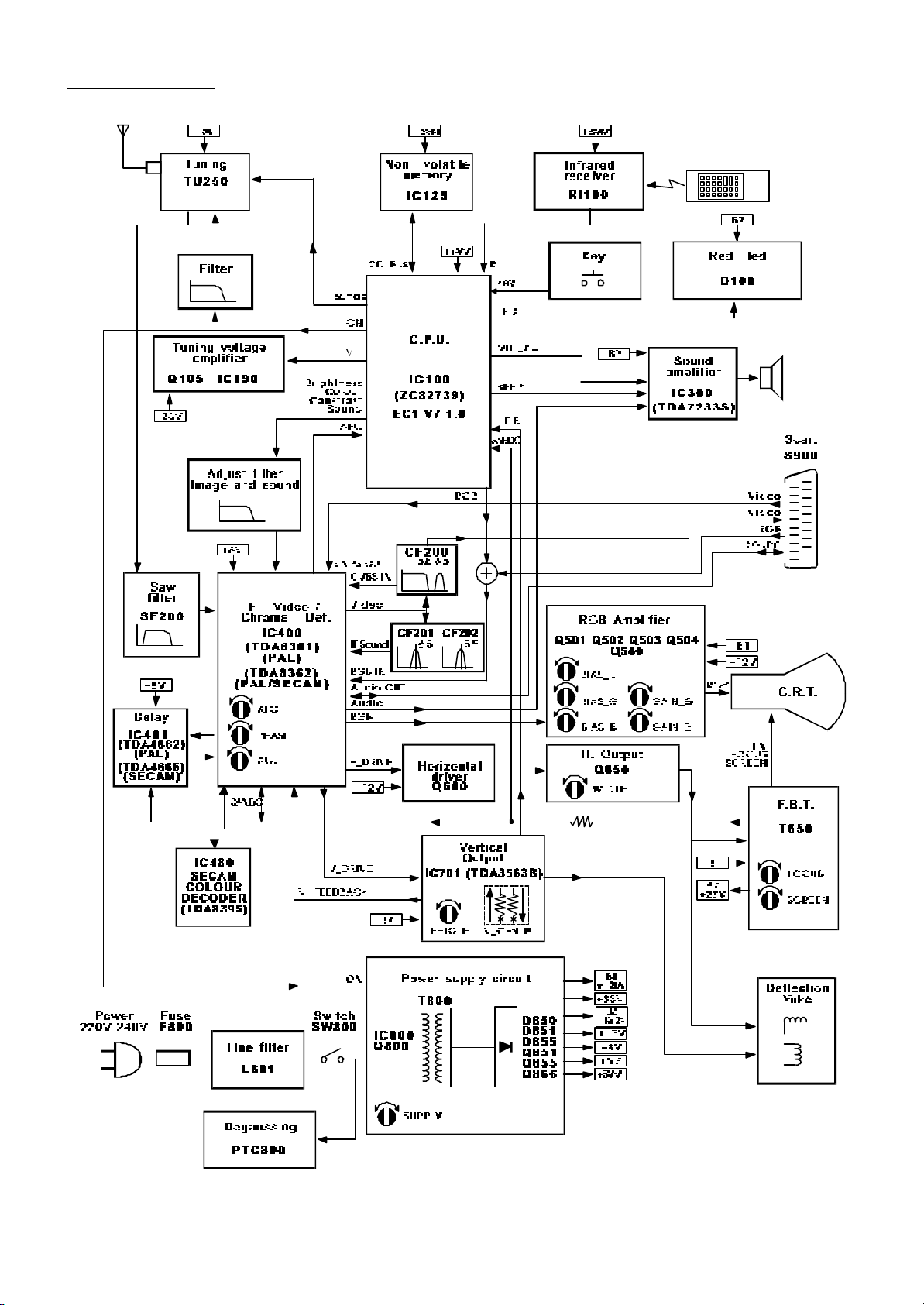

6.- BLOCK DIAGRAM

Service Manual CE14A1-E
6
7.- SERVICE ADJUSMENT LOCATIONS

Service Manual CE14A1-E
7
8.- ADJUSTMENT
ADJUST
ORDER AJUSTMENT SIGNAL CONDITIONS TEST POINT ADJUSTMENT SPECIAL FEATURES INSTRUMENT
1B1 Power
supply Circular pattern Picture TV: Normal Œ Sound: Volume to minimum B1 Cathode D-850 VR800 Adjust VR800 to obtain: +120V. ±0.5V DC Voltmeter Resolution >0,1V.
2.A IF Detector
AFC IF Signal 38,9MHz into
pin1 SF200
Level of apply IF signal (38,9MHz) of
80 to 250 mVrms on 75Ωin sync. AFC_OUT R211 L201 Adjust L201 to obtain a voltage of 3,5V. ±0,2V. Ž The aerial should be disconnected so that it does not
interfere with the applied IF signal
IF Generator.
DC Voltmeter
Resolution>0,1V.
2.B AGC Circular
pattern
Band UHF
Channel 25
Level of aerial signal
60,0 dBµV. (1.0 mVrms.) Pin AGC TU250 VR200 Adjust VR200 to obtain a voltage of 3,3V ± 0.2V. Pattern generator DC Voltmeter
Resolution>0,1V.
3.A Vertical size Circular
pattern TV controls: Normal ŒCRT screen VR702 Adjust VR702 to make the picture cover the whole screen vertically and to get the battlements are hidden Visual adjust
3.B Vertical centre Circular
pattern TV controls: Normal ŒCRT screen North
Orientation
R712
R713 In case the picture is shifted up or down more than of 3mm. from screen centre, resistor R713 or R712
respectively should be cut. Readjust vertical size if
necessary.
Visual adjust
4.A Horizontal
width Circular pattern TV controls: Normal ŒCRT screen L654 Adjust L654 so that the picture covers the whole screen horizontally and the battlements are hidden. Visual adjust
4.B Horizontal
centre Circular pattern TV controls: Normal ŒCRT screen VR600 Adjust VR600 to centre the picture in horizontal direction. Readjust horizontal width if necessary. Visual adjust
5.A Cut-off
preadjustment AV Mode Without signal TV controls: Normal ŒCRT cathode Chassis ground VR503 VR504
VR505
Adjust VR503, VR504 and VR505 to obtain 110 Volt. ,
+/- 1,5 Volts. DC Voltmeter Resolution >0,1V.
5.B G2 AV Mode
Without signal TV controls: Normal Œ G2 to minimum. Service Line •CRT screen G2 Potentiometer Set the G2 voltage for one colour to be just visible Visual adjust
5.C Cut-off AV Mode
Without signal TV controls: Normal Œ Service Line •CRT screen VR503 VR504
VR505
Adjust the potentiometers corresponding to those
cathodes that are not conducting, in order to obtain a
tenuous line without colour tone (White)
Visual adjust
5.D Tone Circular
pattern Colour to minimum and rest of controls in normal ŒCRT screen VR501 VR502 The potentiometers must be adjusted in order to obtain an acceptable colour tone. In case of doubt, they must
be adjusted to the same value of the divider R503/R504
Visual adjust
6Focus Circular
pattern TV controls: Normal ŒCRT screen FOCUS Adjust to obtain the best possible focusing in the centre of screen. Visual adjust
8.1.- NOTES ABOUT THE ADJUSTMENT:
In case of doing several adjustments follow the adjustment order in this table, for example, the adjusts Nº2 (AFC detector and AGC) prevails over the Nº6 (FOCUS), adjustment Nº5B (G2) prevails over the Nº5C (Cut-off).
ŒFactory picture control normal has the following OSD positions:
•Brightness: 34 (Push key “+” 34 times starting at minimum position)
•Contrast: 57
•Colour:32
•Sound:34
•The service line is obtained by connecting a resistor of 100 Ωfrom the test point (R718-C713) to ground. If it is shorted to ground directly, the TV set might pass to Stand-by (due to actuation of the deflection circuit protection).
ŽThere can be found 2 positions of the L201 core for which the voltage in R211 is of 3,5V, but the only correct position is that in which that the voltage goes up as the core is introduced in the body of de L201, and the picture is
acceptable.

Service Manual CE14A1-E
8
9.- CE14A1-E CABINET PARTS LIST
.
Ref. No.
.
.
Part No.
.
.
Description
.
YP 4 0020120218 SANYO Badge
YP 5 0340206705 Infrared Plate 14" ECO 96 H
YF 1 2700046416 Front Cabinet Assy 14" ECO/96
YF 2 0590258356 Back Cover 14" EC-1 V7
YF 3 0130213416 Key 14" ECO/96
YF 5 0130213705 Key Assy 14" ECO/96
YF 6 0390245108 Rating Plate CE14A1-E
YF23 0890161318 Screw HI-LO 5,8X27 W/Washer
YF24 0890191315 Screw AR 4X15

Service Manual CE14A1-E
9

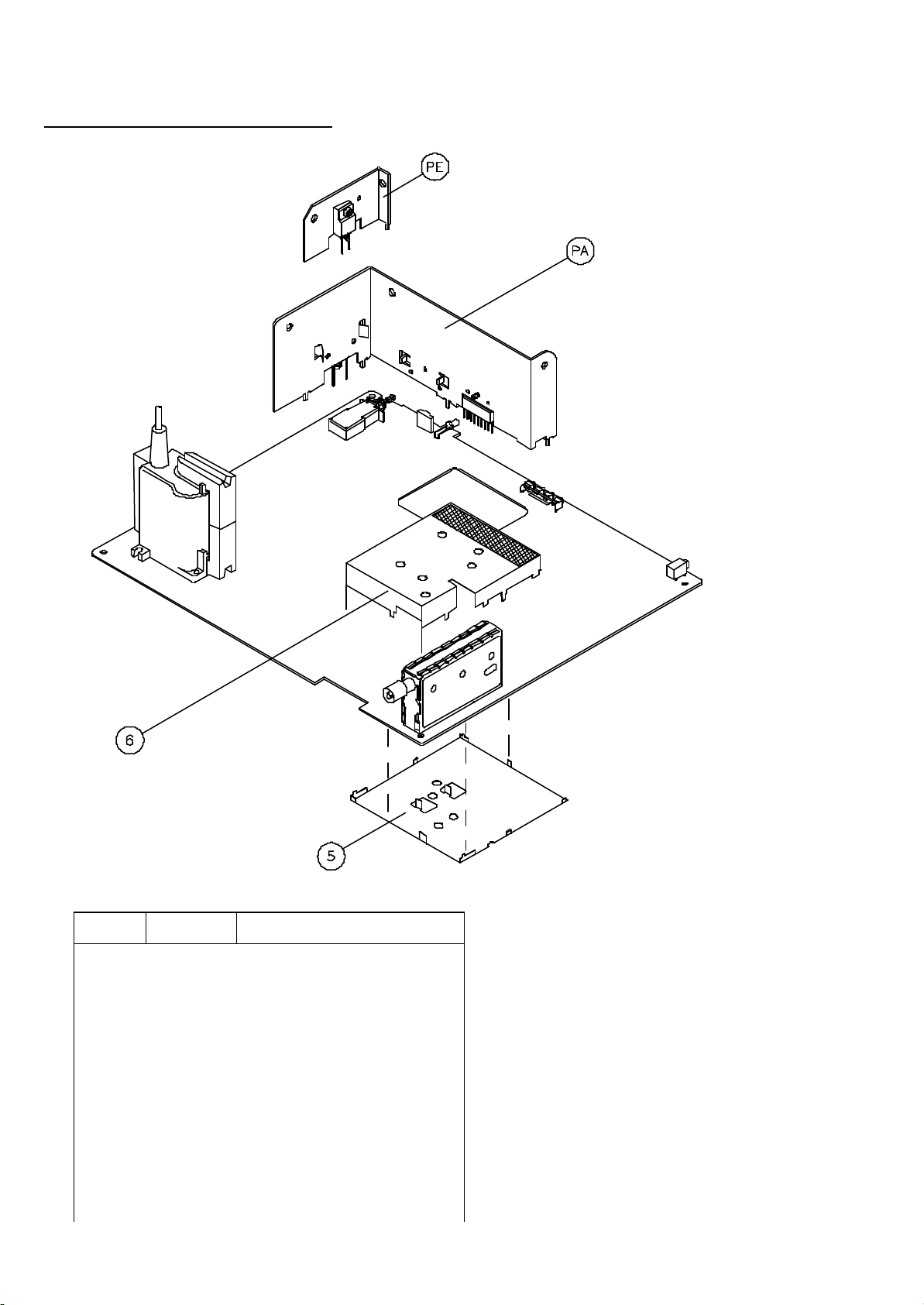

10.- CHASSIS ELECTRICAL PARTS LIST
.
Ref. No.
.
.
Part No.
.
.
Description
.
YG 5 X0080112113 Copper Side Shield IF
YG 6 X0080112022 Component Side Shield IF
Assy PA
Q650 0360305403 2SD 1649 CA
IC701 0360501811 TDA 3653B/N2
YR10 0200224517 Heatsink Z Deflection
YR10A 0640705117 Eyelet 2,5-3
YR11 0010106300 Spring CLIP 56379
YR12 0970200804 Silicon Grease YG6260
YR13 0890519606 Screw 2,9X6,5
Assy PE
Q800 0360310718 MOS SSS4N60 AS
YR50 0200223444 Heatsink L-55X32
YR51 0890519705 Screw 2,9X9,5
YR52 0970200804 Silicon Grease YG6260
YR53 0050709104 Washer

Service Manual CE14A1-E
Ref. No. Part No. Description Ref. No. Part No. Description
10
PCB CODE FOR AFTER SALES SERVICE
Assy 6110365209 Main PCB
+ Socket TRC
PCB SOCKET TRC
CON FG 0330144106 Ribbon Wire Holder 3 P.
CON FI 0330144304 Ribbon Wire Holder 5 P.
CON.FG 0160065223 Polarized Band, Gray 3P. 400+6+6
CON.FI 0160065629 Polarized Band 5P. 350+6+6
CON.FK 0640202610 Earth Wire 270 mm.
CAPACITORS
C501 0240126417 Ceramic 180 pF. 2% 100V.
C502 0240126417 Ceramic 180 pF. 2% 100V.
C503 0240126417 Ceramic 180 pF. 2% 100V.
C504 0240590901 Ceramic 2200pF +80-20% 2KV.
C505 0270341324 Polyester 100 nF. 10% 250V.
C540 0250461290 Electrolytic 100 µF. 16V
DIODES
D541 0360130819 1N 4148
PCB04 0750150518 Socket PCB EC-1 V7
TRANSISTORS
Q501 0360331029 JC 558 B
Q502 0360161301 BF 422
Q503 0360161301 BF 422
Q504 0360161301 BF 422
Q540 0360331029 JC 558 B
RESISTORS
R501 0790733703 Carbon 360 Ω5% 1/4W.
R502 0790149009 Carbon 6,2 KΩ5% 1/4W.
R503 0790137707 Carbon 680 Ω5% 1/6W
R504 0790133607 Carbon 330 Ω5% 1/6W.
R505 0790147102 Carbon 4,7 KΩ5% 1/4W.
R506 0790134001 Carbon 390 Ω5% 1/6W
R507 0790577142 Metal Oxide 12 KΩ5% 2W.
R508 0790134001 Carbon 390 Ω5% 1/6W
R509 0790577142 Metal Oxide 12 KΩ5% 2W.
R510 0790134001 Carbon 390 Ω5% 1/6W
R511 0790577142 Metal Oxide 12 KΩ5% 2W.
R512 0790129100 Carbon 150 Ω5% 1/4W.
R513 0790129100 Carbon 150 Ω5% 1/4W.
R514 0790129100 Carbon 150 Ω5% 1/4W.
R515 0790036917 Carbon 1,5 KΩ5% 1/2W.
R516 0790037709 Carbon 3,3 KΩ5% 1/4W.
R517 0790036917 Carbon 1,5 KΩ5% 1/2W.
R518 0790037709 Carbon 3,3 KΩ5% 1/4W.
R519 0790036917 Carbon 1,5 KΩ5% 1/2W.
R520 0790037709 Carbon 3,3 KΩ5% 1/4W.
R521 0790135701 Carbon 470 Ω5% 1/6W.
R522 0790135701 Carbon 470 Ω5% 1/6W.
R523 0790036917 Carbon 1,5 KΩ5% 1/2W.
R527 0790130504 Carbon 180 Ω5% 1/6W
R528 0790131908 Carbon 220 Ω5% 1/6W.
R540 0790141600 Carbon 1,5 KΩ5% 1/6W.
R541 0790151500 Carbon 10 KΩ5% 1/6W.
R543 0470040007 Jumper Lead 0,6 mm.
VARIABLE RESISTOR
VR501 0770511160 VR 220 Ω
VR502 0770511160 VR 220 Ω
VR503 0770511467 VR 10 KΩ
VR504 0770511467 VR 10 KΩ
VR505 0770511467 VR 10 KΩ
SOCKET 0330161613 CRT Socket
MAIN PCB
CF200 0090412701 Ceramic TRAP Filter 5,5/6,5 MHz
CF201 0090412800 Ceramic Filter 6,5 MHz.
CF202 0090412503 Ceramic Filter 5.5 MHz.
CONNECTORS
CN FB 0330144007 Ribbon Wire Holder 2 P.
CN FC 0330270307 2P. Socket
CN FE 0330115106 2P. Socket X RTM 1/6/8
CN FF 0330129701 4 P. Socket
CN FG 0330144106 Ribbon Wire Holder 3 P.
CN FI 0330144304 Ribbon Wire Holder 5 P.
CN.FB 0160202016 Polarized Band 2P. 320+6+6
CAPACITORS
C100 0250320793 Electrolytic 10 µF. 16V.
C101 0240143214 Ceramic 10 nF. +80-20% 63V.
C105 0240430306 Ceramic 100 pF. 2% 100V.
C112 0250220456 Electrolytic 1 µF. 100V.
C117 0250240496 Electrolytic 2,2 µF. 63V.
C126 0240143214 Ceramic 10 nF. +80-20% 63V.
C132 0250220456 Electrolytic 1 µF. 100V.
C138 0270341431 Polyester 100 nF. 10% 63V.
C162 0250320793 Electrolytic 10 µF. 16V.
C166 0270341431 Polyester 100 nF. 10% 63V.
C170 0250220456 Electrolytic 1 µF. 100V.
C172 0240640300 Ceramic 6800 pF. -20+50% 100V.
C174 0240143214 Ceramic 10 nF. +80-20% 63V.
C175 0250410891 Electrolytic 47 µF. 16V.
C190 0240143214 Ceramic 10 nF. +80-20% 63V.
C191 0270381031 Polyester 220 nF. 10% 63V.
C193 0270341431 Polyester 100 nF. 10% 63V.
C196 0240143214 Ceramic 10 nF. +80-20% 63V.
C200 0240111716 Ceramic 10 pF. 2% 100V.
C201 0250220456 Electrolytic 1 µF. 100V.
C202 0250320793 Electrolytic 10 µF. 16V.
C203 X0240143214 Ceramic 10 nF. +80-20% 63V.
C204 0250320793 Electrolytic 10 µF. 16V.
C206 0270341431 Polyester 100 nF. 10% 63V.
C207 0250320793 Electrolytic 10 µF. 16V.
C208 0250320793 Electrolytic 10 µF. 16V.
C211 0240551242 Ceramic 1000 pF. +80-20% 50V.
C230 0240121715 Ceramic 68 pF. 2% 100V.
C231 0240121715 Ceramic 68 pF. 2% 100V.
C232 0240551242 Ceramic 1000 pF. +80-20% 50V.
C233 0240143214 Ceramic 10 nF. +80-20% 63V.
C234 0240143214 Ceramic 10 nF. +80-20% 63V.
C250 0250461290 Electrolytic 100 µF. 16V
C256 0250360492 Electrolytic 22 µF. 16V.
C301 0240551242 Ceramic 1000 pF. +80-20% 50V.
C302 0250320793 Electrolytic 10 µF. 16V.
C304 0270341431 Polyester 100 nF. 10% 63V.
C305 0250410891 Electrolytic 47 µF. 16V.
