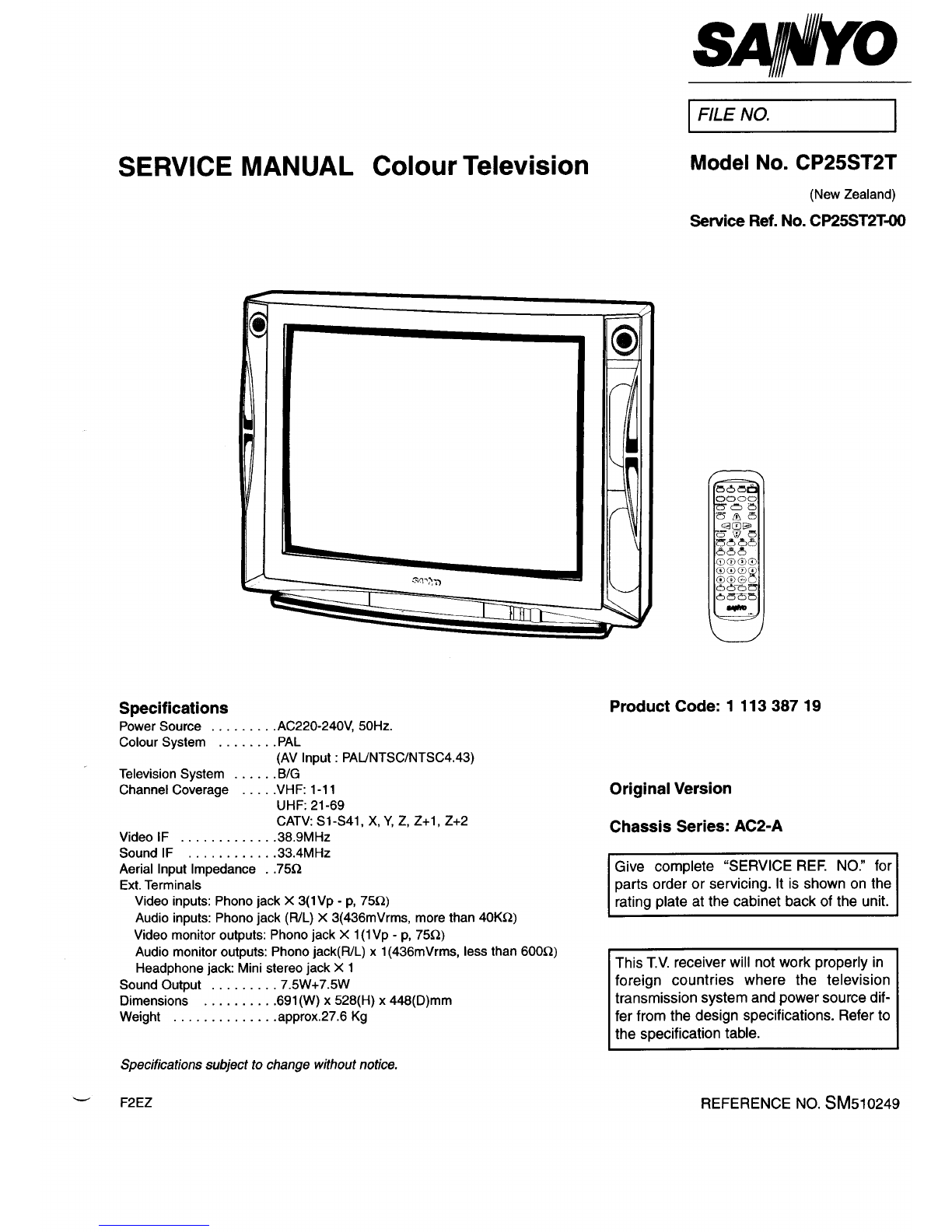

SERVICE MANUAL Colour Television Model No. CP25ST2T
(New Zealand)
Service Ref.No. CP25ST2T_
.
—
Specifications
Power Source .........AC220-240V, 50 Hz.
Colour System ........PAL
(AV Input: PAIJNTSC/NTSC4.43)
Television System ......B/G
Channel Coverage ....VHF: 1-11
UHF: 21-69
CATV S1-S41 ,X, Y, Z, Z+l ,Z+2
Video IF .38.9MHz
Sound lF”:I:: jjjjj; j.33.4MHz
Aerial Input Impedance ..75Q
Ext. Terminals
Video inputs: Phono jack X3(1 Vp -p, 75!2)
Audio inputs: Phono jack (R/L) X3(436mVrms, more than 40KQ)
Video monitor outputs: Phono jack X1(1Vp -p, 75Q)
Audio monitor outputs: Phono jack(tUL) x1(436mVrms, less than 600Q)
Headphone jack Mini stereo jack X1
Sound Output .........7.5W+7.5W
Dimensions ..........691(W) x528(H) x448(D)mm
Weight ..............approx.27.6 Kg
Product Code: 111338719
Original Version
Chassis Series: AC2-A
IGive complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Specifications subject to change without notice.
wF2EZ REFERENCE NO. SM510249

Contents
Safety Notice ........................................................................2

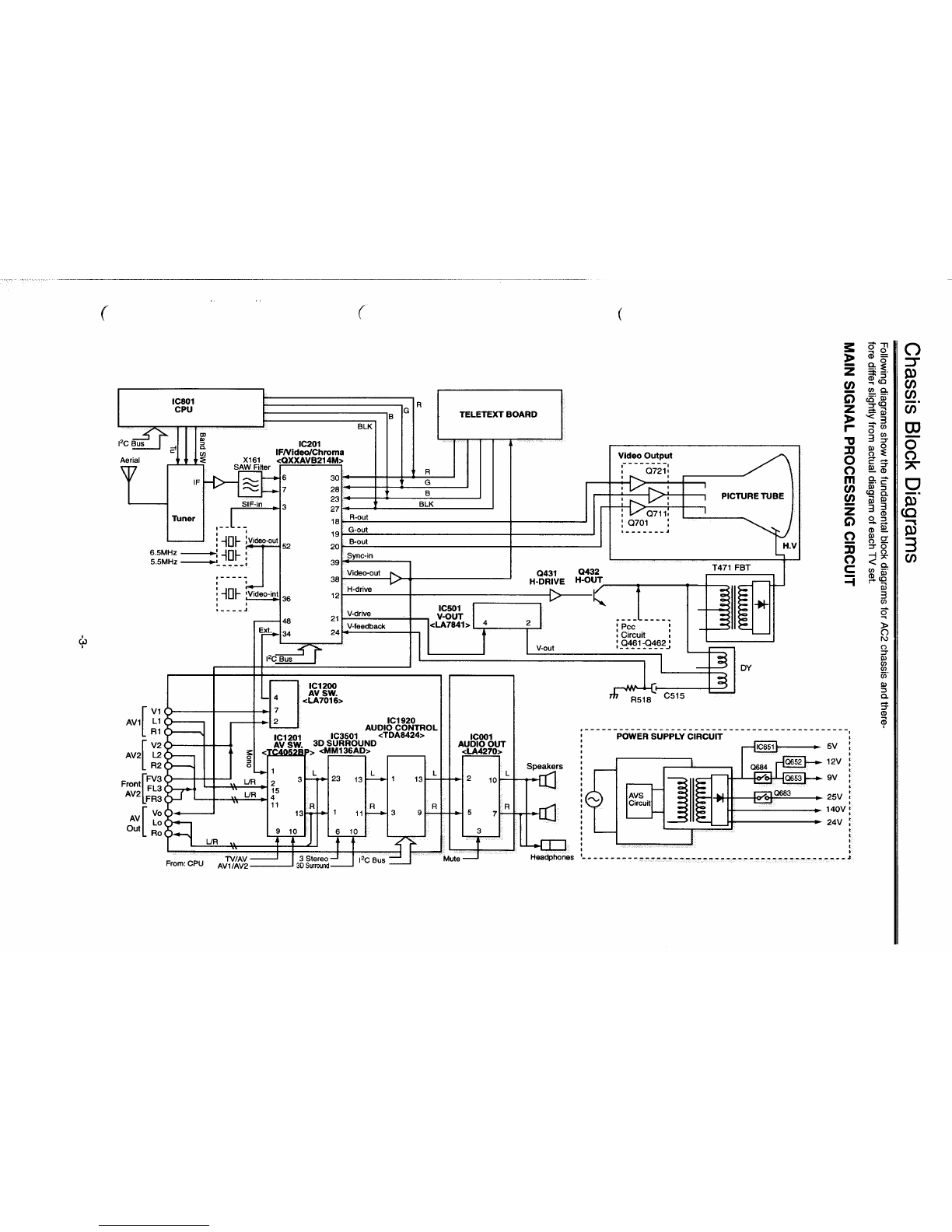

Chassis Block Diagram ..............................................................3-4

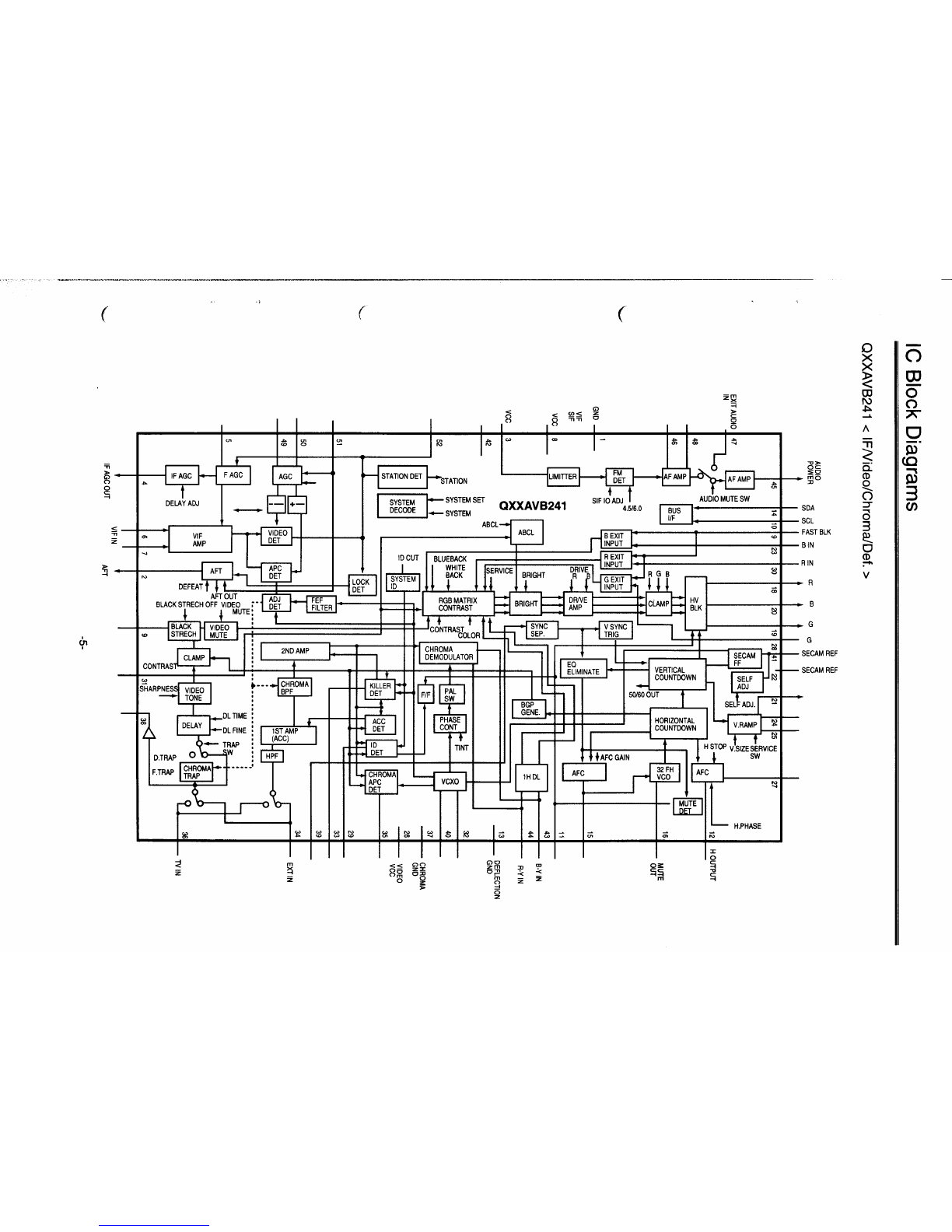

lC Block Diagrams ..................................................................5-7
Service Adjustments Location ...........................................................8
Service Adjustments with replacing Memory IC(IC802) .....................................9-11
Service Mode Adjustments ..........................................................12-13
Special Functions .................................................................14-17
Purity and Convergence Adjustment .....................................................18
Cabinet Parts List ...................................................................19
Chassis Electrical Parts List.... .....................................................20-30
Safety Notice
SAFETY PRECAUTIONS
l: An isolation transformer should reconnected in the 3: When replacing achassis inthe cabinet, alwaysbe
power line between the receiver and the AC line certain that all the protective devices are installed
when aservice is performed on the primary of the properly, such as, control knobs, adjustment covers
converter transformer of the set. or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
2: Comply with all caution and safety-related notes pro- customer, the service technician must be sure that
videdon the cabinet back, inside the cabinet, onthe it is completely safe to operate without danger of
chassis orthe picture tube. electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structedto limit X-RADIATION emissions. Forcontinued X-RADIATION protection, the replacement tube mustbe
thesame typeas the original including suffix letter. Excessive high voltage may produce potentially hazardous
-RADIATION.TO avoid such hazards, the high voltage must be maintained within specified limit. Refer tothisser-
vice manual, high voltage adjustment for specific high voltage limit. lf high voltage exceeds specified limits, take
necessary corrective action.Carefully followthe instructions for+Bl voltpowersupply adjustment, and high volt-
age check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when acomponent replacement is made in any area of areceiver.
Components indicated by mark ~in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark ~.No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark ~.
d
-2-

.,.,,.,..,
.,
~(
IC801
CPU ~R
(
TELETEXT BOARD
Lrl ICI 200
4AV SW.
<LA7016>
[
VI
AV1 L1
RI
[
V2
AV2 L2
R2
[
FV3
F:v”; FL3
FR3
[
AV :
0“’ Ro
Icool
A<U&l:2~o~T
o
2L
10
57 R
3
Speakers
P
E
Hssdphonss
*-4= IC515
,------------------------------------ ---------
1POWER SUPPLY CIRCUIT
1
1
1+
m
IIC&4 G652 -
1
1
1
1
1
1
I
1
1
1: : 1~fi
0653
AVS
Circuit
1
1
M-l-B (X83 b
1
III
t
5V ;
12V ;
1
9V ;
t
25V :
140V :
24V :
t
1
t
t

+
h====
-J-Tun SOUND MUTE
4
ON-TIMER LED
4
TV(L)/AV (H)
4
AVI (L)/AV2(H)
4
SIF4.5M Sw
4
SIF 5.5M SW
4
SIF 6.5M SW
4
WOOFER ON/OFF
3D SURROUND ONIOFF
3D STEREO ON/OFF
4
POWER ON(H)/OFF(L)
4
OPTION SW (POSITION)
Osc
EM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
42
41
40
39
38
37
36
CSOI ;
CPU 33
32
31
30
29
28
27
26
25
24
23
22
E
3.58M SW
50160Hz SW
ACK
STATUS
SCL --i
2
41
1
~- .. . .. .. . .. .. .. ..
,
,0
I
key switches
&
option SW.
IPROTECT

. . ->...wH”wm r...,r.-,<,.m.. =<..,. >--=., -.-.,.—-.— —.
.)
(((
?j.
ABCL X
. .
G’
sDLTIME i
.DELAY DLFINE ;
~TRAP :
D.TRAP ow:
~,mw CHROMA ....-*
HCHROMA
i--- ~pF
&
1’
HPF
1
1
ICxo I
T
d1-
BGP
GENE.
G
-----+1
i
+IIN
—VERTICAL
COUNTDOWN
(,
1+ +AFC GAIN
IAFC
11111
HIILH.PHASE
iA
—SDA
—SCL
—FAST BLK
—BIN
—RIN v
-G
—G
—SECAM REF
—SECAM REF

LA7841 eVertical Output >
LA4270 cSound Output >
EiEEhi@
1-
LA7841
I2345,6 7
LA4270 300 1
,,* CH1 I
+
r
Thermal
Shutdown
Over
7{?
Voltage
Ri ple +
Fi//er CH2
30K
Vcc
ATfl I
STR81 145A <Double Rectifier>
I
>1Al
rl 22
21
,~Q1 Q3 *‘
r2 r3 II
iSTR811 45P
2
3
4
5
Pin Function
1Delay
T1
T2
Gate
Common
---

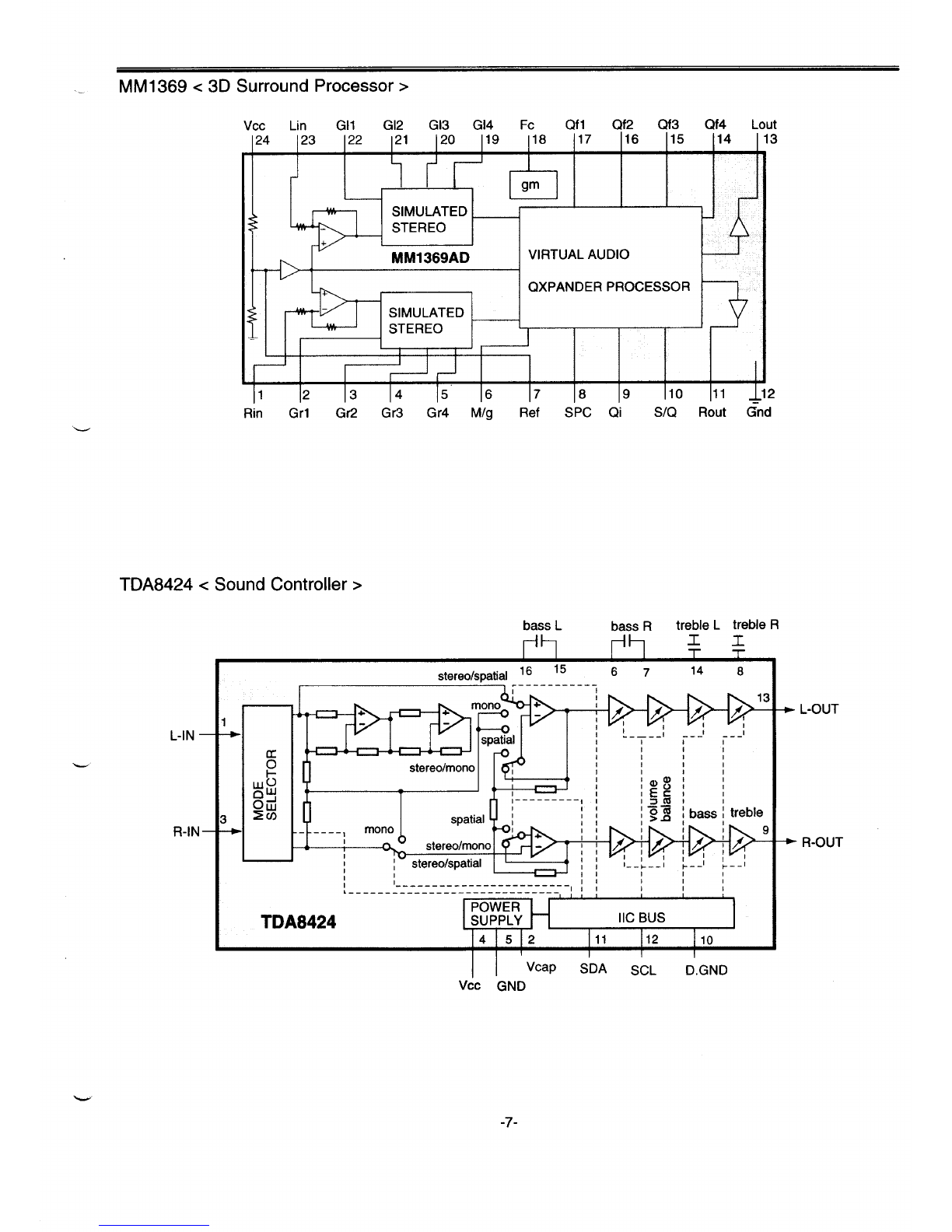

MM1369 e3D Surround Processor >
Vcc Lin Gll G12 G13 G14 Fc Qf 1Qf2 Qf3 Qf4 LI
24 123 22 121 120 ]19 118 17 16 15 14
gm 1
CIMI IIATFl_l I 1 r-
M369AD IVIRTUAL AUDIO \-
Mfi
It ~QX,ANDER,RO=SSOR k
+-’T~SIMULATED
STEREO
I
I
1 2 3 14 15” 678 9 10 11 _l 2
—
Rin Grl Gr2 Gr3 Gr4 M/g Ref SPC Qi S/Q Rout Gnd
TDA8424 <Sound Controller>
bass Lbass Rtreble Ltreble R
fihfihz~
L-IN –
R-lN -
stereo/spatial 16 15 67 14 8
,----------- -
1-.v ---
1
1111 I11
------------------------ ,,,
,----------------------------- ,J,
TDA8424 POWER
SUPPLY
zL-OUT
+R-OUT
11’ Vcap SDA SCL D’.GND
Vcc GND
-7-

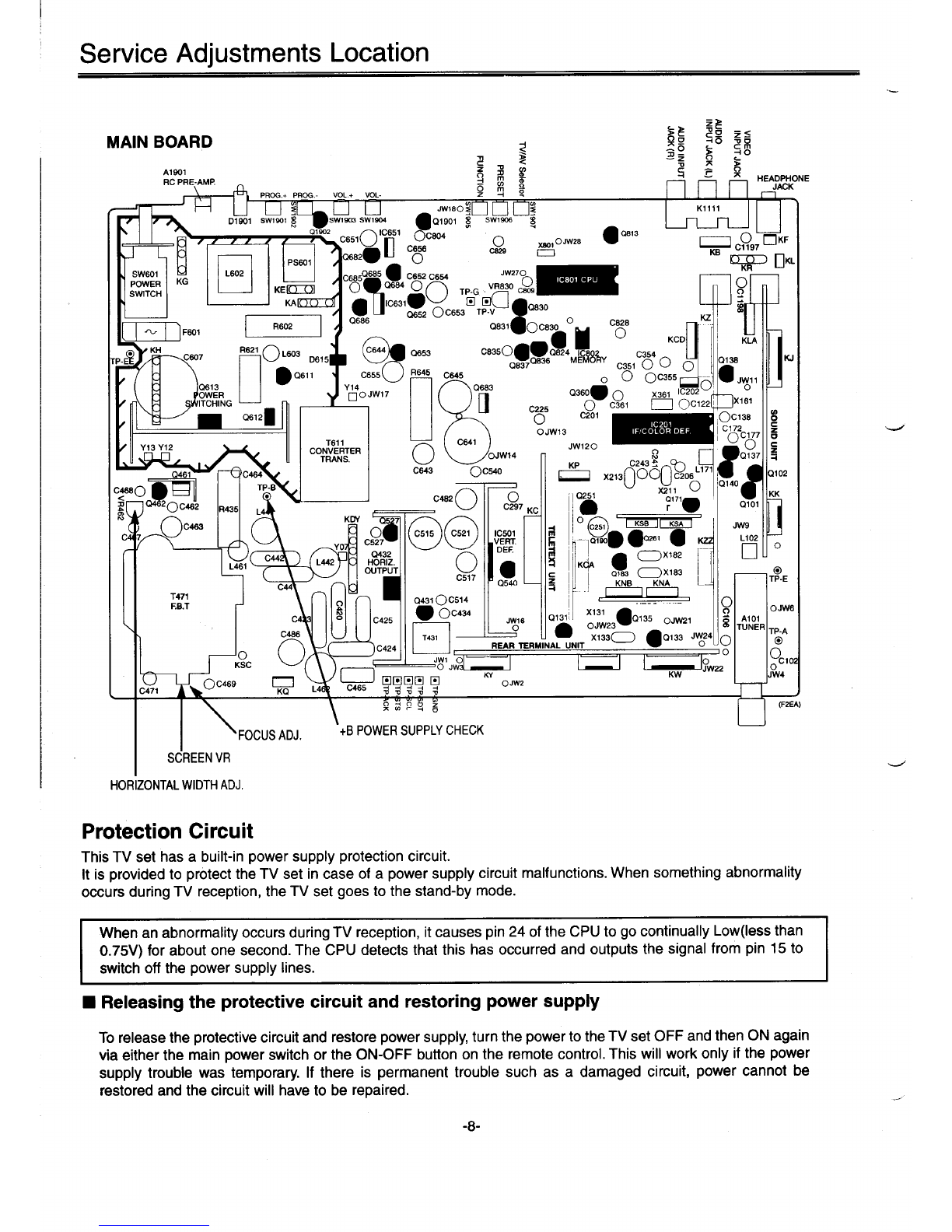

Service Adjustments Location
E
HORIZONTAL WIDTH ADJ
I\u
FOCUS ADJ. ‘+B POWER SUPPLY CHECK
SCREEN VR d
Protection Circuit
This TV set has abuilt-in power supply protection circuit.
It is provided to protect the TV set in case of apower supply circuit malfunctions. When something abnormality
occurs during TV reception, the TV set goes to the stand-by mode.
When an abnormality occurs during TV reception, it causes pin 24 of the CPU to go continually Low(less than
0.75V) for about one second. The CPU detects that this has occurred and outputs the signal from pin 15 to
switch off the power supply lines.
■Releasing the protective ch’cuitand restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again
via either the main power switch or the ON-OFF button on the remote control. This will work only if the power
supply trouble was temporary. If there is permanent trouble such as adamaged circuit, power cannot be
restored and the circuit will have to be repaired.
-8-

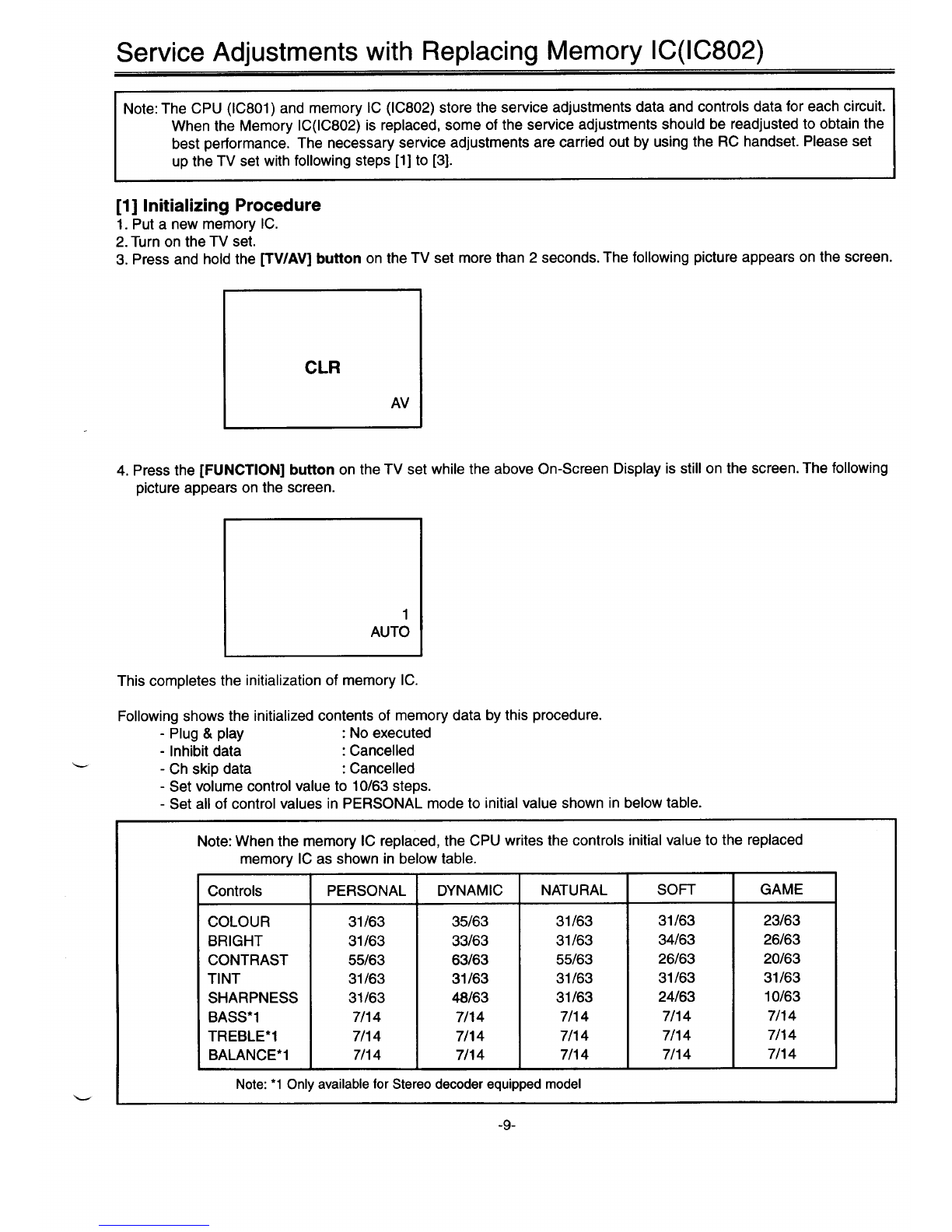

Service Adjustments with Replacing Memory IC(IC802)
Note: The CPU (IC801 )and memory IC (IC802) store the service adjustments data and controls data for each circuit.
When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to obtain the
best performance. The necessary service adjustments are carried out by using the RC handset. Please set
up the TV set with following steps [1] to [3].
[1] Initializing Procedure
1.Put anew memory IC.
2. Turn on the TV set.
3. Press and hold the ~V/AV] button on the TV set more than 2seconds. The following picture appears on the screen.
CLR
Av
4. Press the [FUNCTION] button on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
1
AUTO
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
-Plug &play :No executed
-Inhibit data :Cancelled
-Ch skip data :Cancelled
-Set volume control value to 10/63 steps.
-Set all of control values in PERSONAL mode to initial value shown in below table.
Note: When the memory IC replaced, the CPU writes the controls initial value to the replaced
memory IC as shown in below table.
Controls PERSONAL DYNAMIC NATURAL SOFT GAME
COLOUR 31/63 35/63 31/63 31/63 23/63
BRIGHT 31/63 33/63 31/63 34/63 26/63
CONTRAST 55/63 63/63 55/63 26/63 20/63
TINT 31/63 31/63 31/63 31/63 31/63
SHARPNESS 31/63 48/63 31/63 24/63 10/63
BASS*1 7/147/1 47/1 47/1 47/14
TREBLE*1 7/147/1 47/1 47/1 47/14
BALANCE*1 7/147/1 47/147/1 47/14
Note: ●1Only available for Stereo decoder equipped model
-9-

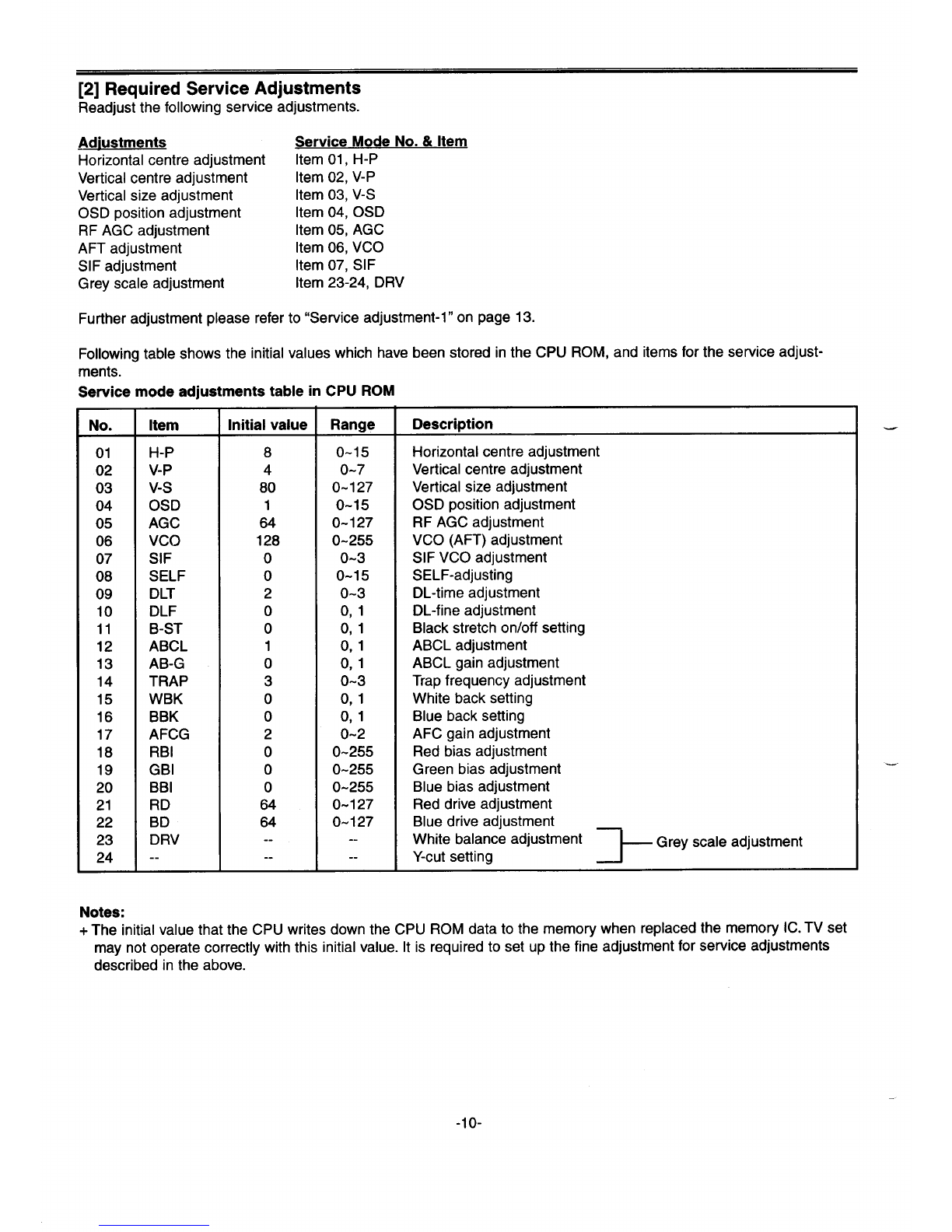

[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. &Item
Horizontal centre adjustment Item 01, H-P
Vertical centre adjustment Item 02, V-P
Vertical size adjustment Item 03, V-S
OSD position adjustment Item 04, OSD
RF AGC adjustment Item 05, AGC
AFT adjustment Item 06, VCO
SIF adjustment Item 07, SIF
Grey scale adjustment Item 23-24, DRV
Further adjustment please refer to “Service adjustment-1” on page 13.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjust-
ments.
Service mode adjustments table in CPU ROM
No. Item Initial value Range Description
01 H-P 80-15 Horizontal centre adjustment
02 v-P 40-7 Vertical centre adjustment
03 v-s 80 0-127 Vertical size adjustment
04 OSD 10-15 OSD position adjustment
05 AGC 64 0-127 RF AGC adjustment
06 Vco 128 0-255 VCO (AFT) adjustment
07 SIF o0-3 SIF VCO adjustment
08 SELF o0-15 SELF-adjusting
09 DLT 20-3 DL-time adjustment
10 DLF o0, 1DL-fine adjustment
11 B-ST o0, 1Black stretch on/off setting
12 ABCL 10, 1ABCL adjustment
13 AB-G o0, 1ABCL gain adjustment
14 TRAP 30-3 Trap frequency adjustment
15 WBK o0, 1White back setting
16 BBK o0, 1Blue back setting
17 AFCG 20-2 AFC gain adjustment
18 RBI o0-255 Red bias adjustment
19 GBI o0-255 Green bias adjustment
20 BBI o0-255 Blue bias adjustment
21 RD 64 0-127 Red drive adjustment
22 BD 64 0-127 Blue drive adjustment
23 DRV .. -- White balance adjustment +Grey scale adjustment
24 -- -- -- Y-cut setting
-.
Notes:
+The initial value that the CPU writes down the CPU ROM data to the memory when replaced the memory IC. TV set
may not operate correctly with this initial value. It is required to set up the fine adjustment for service adjustments
described in the above.
-1o-

L
[Entering to Service Mode]
1. Press and hold the [FUNCTION] button on the TV set and press the [1] button on the remote control handset.
Following setting setting items appears on the screen.
Display for [AGC] AGC adjustment
It(
/
0010010
05 AGC 63
ii No. Ite’m Data value
~Read Status
Display for [DRV] White balance adjustment
I~Read Status
0010010
23 DRV R64 B64-
I1 1 Data value for Blue
lte~ No. Ite’m Data value for Red
2. Select item by pressing the [OFF TIMER] or [MUTE] button on the remote control handset.
13. Adjust value by pressing the [VOLUME +] or [VOLUME -]button on the remote control handset.
ITo return to normal TV mode, press the [FUNCTION] button on the TV set or on the remote control handset.
[3] Special Function Setting
L1.Following items should be set up in the special function mode, please refer to “Special Functions” on page 15 for
actual setting up.
-Volume Lock :OFF
-Tuning Lock :OFF
-AV Start :OFF
-Blue Back :OFF
-Music Mode :OFF
2. Confirm following system setting by pressing [RECALL] button on the remote control handset.
~“ -Colour system :AUTO
P
f-SIF system :s-1
●Note: There may be not available the above function depending on the specification of TV set.
-11-

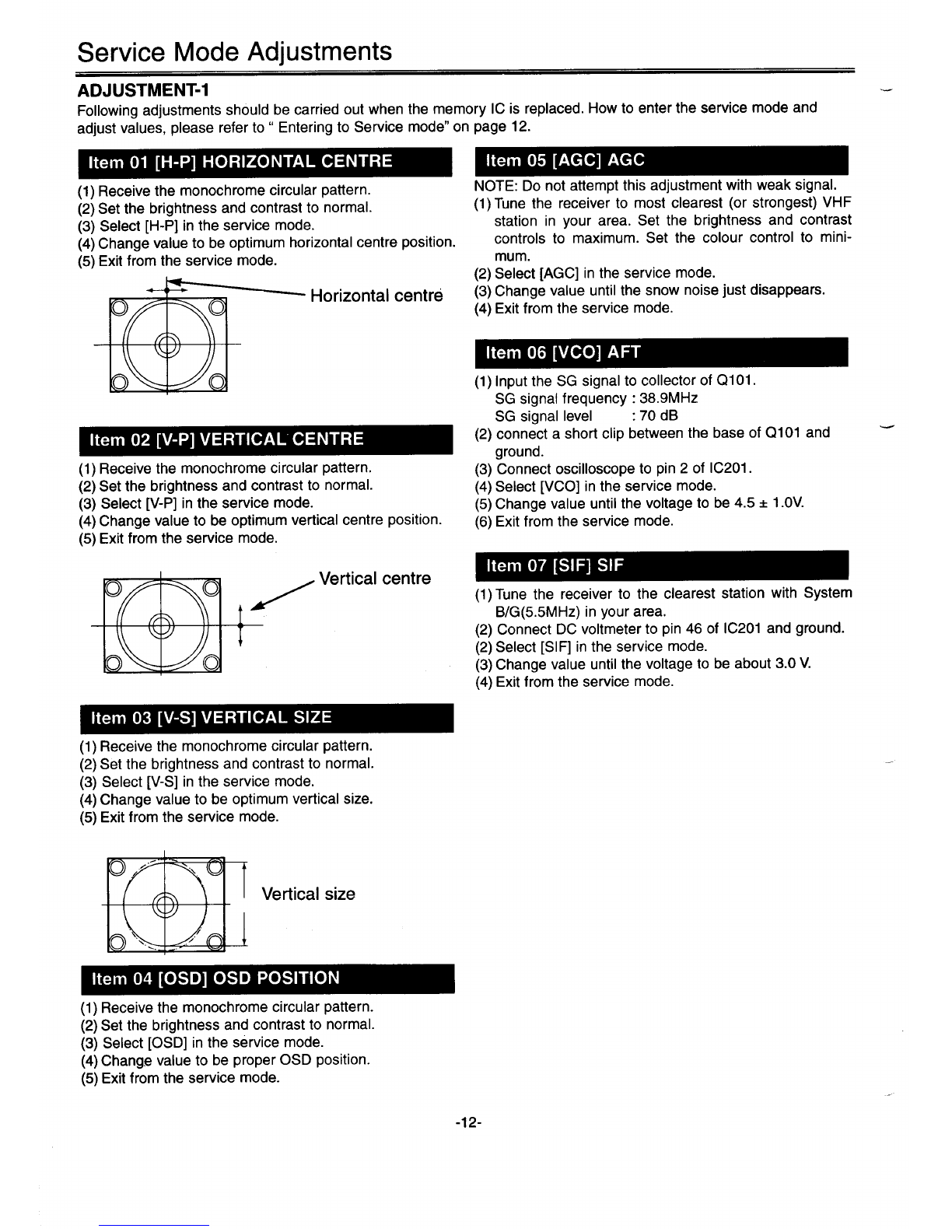

Service Mode Adjustments
ADJUSTMENT-1
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to” Entering to Service mode” on page 12.
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [H-P] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from the service mode.
DHorizontal centre
.O
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [V-P] in the service mode.
(4) Change value to be optimum vertical centre position.
(5) Exit from the service mode.
Vertical centre
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [V-S] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from the service mode.
Vertical size
NOTE: Do not attempt this adjustment with weak signal.
(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to mini-
mum.
(2) Select [AGC] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from the service mode.
(1) Input the SG signal to collector of Q101.
SG signal frequency :38.9 MHz
SG signal level :70 dB
(2) connect ashort clip between the base of Q101 and -
ground.
(3) Connect oscilloscope to pin 2of IC201.
(4) Select [VCO] in the service mode.
(5) Change value until the voltage to be 4.5 *1.OV.
(6) Exit from the service mode.
(1) Tune the receiver to the clearest station with System
B/G(5.5MHz) in your area.
(2) Connect DC voltmeter to pin 46 of IC201 and ground.
(2) Select [SIF] in the service mode.
(3) Change value until the voltage to be about 3.0 V.
(4) Exit from the service mode.
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [OSD] in the service mode.
(4) Change value to be proper OSD position.
(5) Exit from the service mode.
-12-

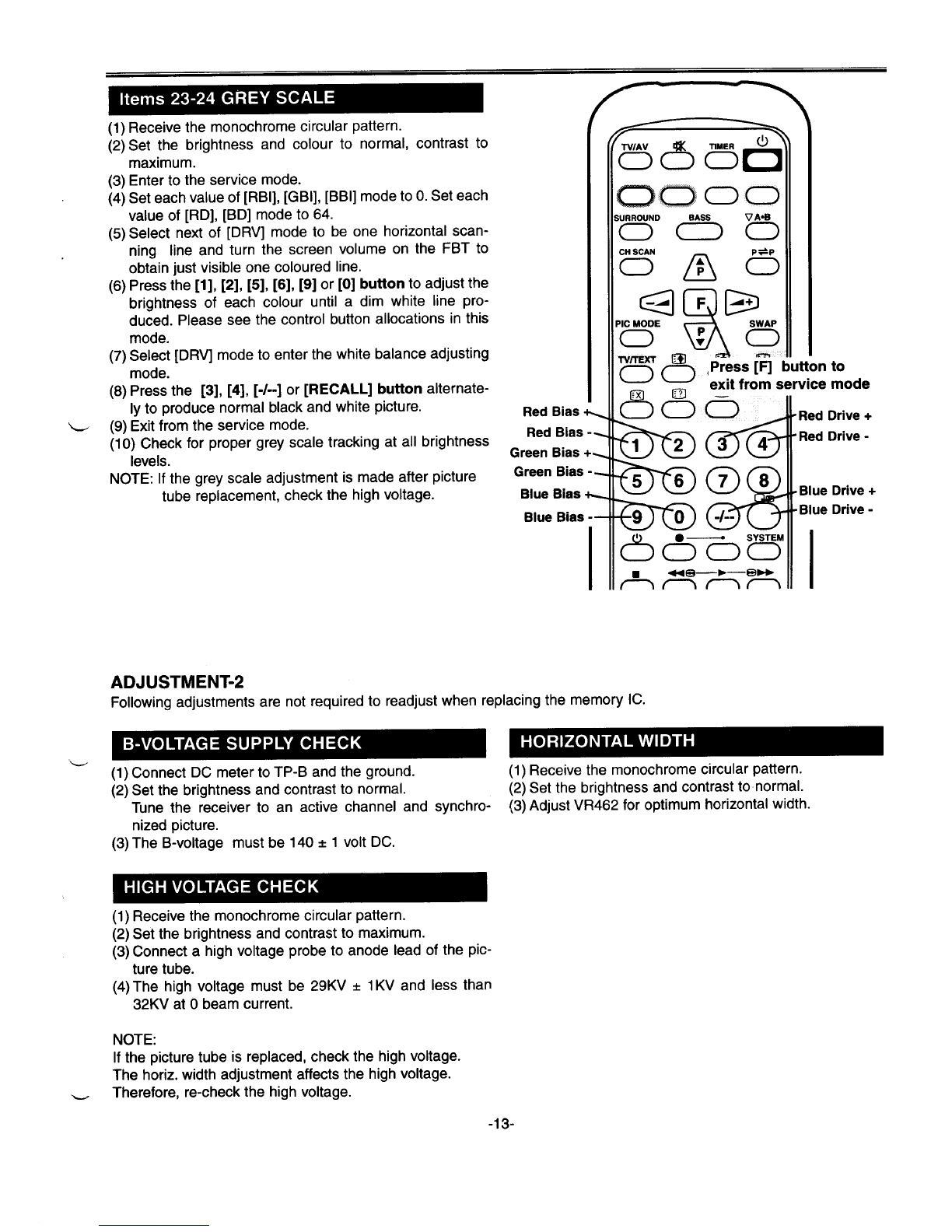

(1) Receive the monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to
maximum.
(3) Enter to the service mode.
(4) Set each value of [RBI], [GBI], [BBI] mode to O.Set each
value of [RD], [BD] mode to 64.
(5) Select next of [DRV] mode to be one horizontal scan-
ning line and turn the screen volume on the FBT to
obtain just visible one coloured line.
(6) press the [11,[21,[5], [6], [9] or [0] buttonto adjust the
brightness of each colour until adim white line pro-
duced. Please see the control button allocations in this
mode.
(7) Select [DRV] mode to enter the white balance adjusting
mode.
(8) Press the [3], [4], ~/--] or [RECALL]button alternate-
ly to produce normal black and white picture. Red Bias L
Q(9) Exit from the service mode.
(I o) Check for proper grey scale tmcting at all brightness ~r~~~~~~~:
levels.
NOTE: If the grey scale adjustment is made after picture Green Bias --
tube replacement, check the high voltage. Blue Bias &
Blue Bias --
@xlD
Twmx’r ml
00 :x E3
%12
Ikton to
cm+.
,Press [F] I
exit from service mode
d
oRed Drive +
34 Rad Drive -
ADJUSTMENT-2
Following adjustments are not required to readjust when replacing the memory IC.
-(1) Connect DC meter to TP-B and the ground. (1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to normal. (2) Set the brightness and contrast to normal.
Tune the receiver to an active channel and synchro- (3) Adjust VR462 for optimum horizontal width,
nized picture.
(3) The B-voltage must be 140 f1volt DC.
(1) Receive the monochrome circular pattern.
(2) Set the brightness and contrast to maximum.
(3) Connect ahigh voltage probe to anode lead of the pic-
ture tube.
(4) The high voltage must be 29KV f1KV and less than
32KV at Obeam current.
NOTE:
If the picture tube is replaced, check the high voltage.
The horiz. width adjustment affects the high voltage.
kTherefore, re-check the high voltage.
-13-

Special Functions
The following special functions can be set up on this TV set.
(1) VOLUME LOCK SETTING
(2) TUNING LOCK SETTING
(3) AV START SETTING
(4) BLUE BACK SETTING
(5) MUSIC MODE SEITING
1Volume Lock setting 1
With this function, amaximum volume limit can be set at any level.
1Press the LEVEL button to set the desired maximum volume.
LEVEL ( - )
+
CHSCAN
o
$-A
IODE o
<
FA+
SWAP
ot’
LEVEL (+)
ASOUND
11111111--------
~To enter Special Function setting mode, press and hold the FUNCTION button on the TV set, then press the
&remote control RECALfJCOLOUR SYSTEM button .
TV/AV PT F
*
@@
IFUNCTION
VOLUME LOCK OFF
SYSTEM
~Set VOLUME LOCK to the” ON” position by pressing the LEVEL (+ or - ) button. To cancel, set to the” OFF”
Qposition.
I!q’’i”ir
O“AO LEVEL (+)
o
FA+
ODE SWAP
o
LEVEL ( - )
VOLUME LOCK ON
T
4Press the RECALIJCOLOUR SYSTEM button to return to the normal TV mode.
-14-

Once TUNING LOCK is switched on, further channel tuning (Pre-set) is not possible.
4To enter Special Function setting mode, press and hold the FUNCTION button on the TV set, then press the remote
~control RECALIJCOLOUR SYSTEM button .
TVIAV PT F
*
(@m)
IFUNCTION
VOLUME LOCK OFF
w
‘RECALIJ
COLOUR SYSTEM
2Select” TUNING LOCK” by pressing the FUNCTION button on the remote control or the TV set.
t
FUNCTION
TUNING LOCK OFF
3Set TUNING LOCK to the” ON” position by pressing the LEVEL (+ or -)button. To cancel, set to the” OFF”
position.
LEVEL( - ) k
CH SCAN
o
-A
DE
~o
&
o
FA+
SWAP
o
z’LEVEL(+)/
TUNING LOCK ON
.4Press the I?ECALIJCOLOUR SYSTEM button to return to the normal TV mode.
0
-15-

II
Set AV-START to ON and every time the TV set is switched on, AV1
will be the initial programme position. AV1
1
2
To enter Special Function setting mode, press and hold the
remote control RECALIJCOLOUR SYSTEM button .
Select” AV START” by pressing the FUNCTION button on
FUNCTION button on the TV set, then press the
the remote control or the TV set.
F
Set AV START to the” ON” position by pressing the LEVEL (+ or -)button. To cancel, set to the” OFF” posi-
Press the RECALIJCOLOUR SYSTEM button to return to the normal TV mode.
Blue Back setting
ITurns blue when no
When BLUE BACK is on, ablue background will appear, if asignal is received.
programme position that is not receiving asignal is selected. 67
1To enter Special Function setting mode, press and hold the remote control RECALUCOLOUR SYSTEM button .
~TV mode ~
FUNCTION button on the TV set, then press the
Select” BLUE BACK “by pressing the FUNCTION button on the remote control or the TV set.
21 ~m~UNCT,ON r
Set BLUE BACK to the” ON” position by pressing the LEVEL (+ or - ) button. To cancel, set to the” OFF” posi-
3jL(-)jj@mLEVEL(+) r
ON /
4Press the RECALUCOLOUR SYSTEM button to return to the normal TV mode.
.4,
-16-

Music Mode setting
]K!.-,=,
When Music Mode is ON, Programme position from “91” to “99 and “O
are set Music Mode. Only sound is provided and any picture is not on
the screen under Music Mode. L
4To enter Special Function setting mode, press and hold the FUNCTION button on the TV set, then
~remote control RECALIJCOLOUR SYSTEM button .
TWAV PT b
*
@@
{
FUNCTION
&
0
78
I
. ..
YSTEM
r
VOLUME LOCK OFF
RECALU
COLOURSYSTEM
2Select” MUSICMODE” by pressing the FUNCTION button on the remote control or the TV set.
‘5F=++FuNcT’ON
MUSIC MODE OFF
press the
L
3Set MUSIC MODE to the” ON” position by pressing the LEVEL (+ or - ) button. To cancel, set to the” OFF”
position.
LEVEL( - )
@
-A
ODE 0
<
F4+
SWAP
0rLEVEL(+)
/
MUSIC MODE ON
4Press the RECALIJCOLOUR SYSTEM button to return to the normal TV mode.
-17-

Purity and Convergence Adjustment
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment –
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT 8. Tighten the mounting screw of the Deflection Yoke.
1. Demagnetize the picture tube and receiver using an Adjust Convergence next.
external degaussing coil. When replacing picture tube or
deflection yoke, mount deflection yoke and purity-con- CENTRE CONVERGENCE ADJUSTMENT
vergence magnets assembly properly, see figures 1 and 1. Use adot crosshatch pattern signal.
4. 2. Turn Red and Blue guns on and turn off Green gun.
2. Turn Red and Blue guns off and provide only Green Adjust the angle between the Tabs of the Four Pole
raster. Rotate Screen control to fully counterclockwise. Magnet 1 and 2, and superimpose the Red and Blue
Rotate Red and Blue Bias controls fully counterclock- vertical lines in the centre area of the picture screen.
wise. Slowly rotate Green Bias control clockwise to pro- Refer to figure 2.
duce Green raster. 3. Keeping the mutual angle of the Tabs of the Four Pole
3. Loosen the screw holding the Deflection Yoke and Magnet turn them together to superimpose the Blue and
remove the 3Rubber Wedges, and slide the Deflection Red horizontal lines in the centre area of the picture
Yoke fully forward. screen. Refer to figure 2.
4. Rotate and spread the Tabs of the two Purity Magnets 4. Turn Green gun on and adjust Six Pole Magnet 3 and 4
to centre the vertical green belt in the picture screen. that the Green line superimposed on the Red/Blue lines.
The Purity Magnets are also adjusted to obtain vertical This is the same procedure used in steps 2 and 3. -
centring of the raster. Refer to figure 3.
5. Slowly slide the Deflection Yoke backward until auni-
form green screen is obtained. OUTER AREA CONVERGENCE ADJUSTMENT
6. Check the purity of the red and blue screens for unifor- Slightly loosen the screw holding the Deflection Yoke.
mity, turn off other colours to check this (use bias con- Adjust the Deflection Yoke to converge the detail in the
trols). Readjust the yoke position if necessary until all outer area (left side and right side) of the picture screen by
screens are pure. orbital movement of the front of the Yoke, then secure the
7. Adjust each Bias control and screen control to obtain Deflection Yoke in appropriate position by putting the
white raster. Refer to Gray Scale Adjustment. If part of wedges as illustrated. Tighten screw holding the Deflection
the picture screen is coloured, adjust the Deflection Yoke.
Yoke position forward or backward slightly.
DEFLECTION YOKE
FOUR- POLE
MAGNET TASS
w
Figure- 1. PURITY ANDCONVERGENCEMAGNETS Figure-4. AllJUSTMENT DEFLECTION YOKE
Adjust tabs angle to superimpose Adjust tabs angle to superimpose
blue and red vertical line. red/blue and green vertical line.
:+F’’’’” :*F’;”
Figure- 2BLUE AND RED LINE MOVEMENT IFigure- 3BLUE/RED AND GREEN MOVEMENT
-18-

Cabinet Parts List F2EZ
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
7
1(
4/
5“ 46-a-2 ~\1
I
El I@au El
‘&b
9%.‘-’1
o
Key No. Part No. Description Key No. Part No. Description
1610 275 2335 BUTTON POWER ‘1 610 275 2366 CABINET BACK
610 229 8406 SPRING 8 610 280 3259 LABEL RATING
2610 273 4812 DEC IND 9645 030 7485 ASSY,REMOCON JXMEA
3610 273 9275 DEC CONTROL SHEET 10 610 261 8020 RC-BATTERY LID
4610 104 2505 LATCH PUSH,7.9X6.9BK
ox 645 019 2449 LATCH PuSH,7.9X6.9BK 610 280 3228 INSTRUCTIONS MANUAL
5645 030 7355 BADGE,SANYO
6610 280 1675 ASSY , CABINET FRONT
6-a 610 280 1606 COMPL,CABINET FRONT
6-a-1 610 280 1033 CABINET FRONT
6-a-2 610 273 4799 DOOR
6-a-3 645 019 2210 HANDLE
6-b 610 273 3983 GRILLE SPEAKER RIGHT
6-c 610 273 3990 GRILLE SPEKAER LEFT
6-d 610 274 0325 DEC SPEAKER SHEET
6-e 610 273 4805 DEC SPEAKER
-19-

Chassis Electrical Parts List F2EZ
Product safety should be considered when acomponent replacement is made in any area of areceiver.
Components indicated by aAmark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
Note Parts order must contain Service Ref. No., Pari No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
Ref. No. Part No. Description Ref. No. Part No. Description
NOTES: OUT OF CIRCUIT BOARD
Read description in the Capacitor and Resistor as follows: PICTURE TUBE
CAPACITOR AQ901 414 008 2803 CRT A59KPR84x(S1)
CERAMIC 100P K50V Q901A 610 003 1739 CG PURITY NAGNET
c!
~ .a,.,v.,,.g,
L645 008 8674 MAGNET, CG. PR
Q901B1 610 233 7891 DY SPACER E2HA
Tolerance Symbols: Q901B2 610 233 7891 DY SPACER E2HA
Less than 10PF Q901B3 610 233 7891 DY SPACER E2HA
A: Not specified B:H.IPF C:iO.25PF Q901B4 610 233 7891 DY SPACER E2HA
D :iO.5PF F:kl PF G:+2pF
R:&3.25-OPF S:+0-O.25PF E:+0-lPF
More than 10PF COIL
A:Not specified B:MIl% C:+0.25% AL901 610 030 4956 DEGAUSSING COIL
D :+0.5% F:+l% G:H% 645 004 5981 COIL, DEGAUSSING
H :+3% J :+5% K :+Io% 645 027 9195 COIL, DEGAUSSING
L :il5% M :HO% N :f30%
P :+100-0% 610 229 4170 DEGAUSSING COIL
Q :+30-10% T :+50-10% A L902
U :+i’s-lo~o v :+20-10% w :+100-10?”0 645 005 1050 YOKE, DEFLECTION
X :+40-20% Y :+150-1O“/&Z :+80-20Y0 MISCELLANEOUS
Rated value P=pico farad, U=micro farad SP901 645 002 4313 SPEAKER,8
Material: SP902 645 002 4313 SPEAKER,8
CERAMIC ...........Ceramic Aw901 645 009 9991 CORD, POWER
MT-PAPER .........Metallized Paper W903A 610 275 0065 ASSY,25” WIRE GND CONNECT
POLYESTER ......Polyester
MT-POLYEST .....Metallized Polyester
POLYPRO .......... Polypropylene 6102739077 ASSY PWB TEXT F2EA
MT-POLYPRO ....Metallized Polypropylene
COMPOFILM .....Composite film 1AAObl 0E~76B0
MT-COMPO ........Metallized Composite
Sl_YRENE ...........Styrene TRANSISTOR
TA-SOLID...........Tantalum
Solid Q1OO1
AL-SOLID ...........Aluminium Solid 405 011 8401 TR 2SC1740S-Q
ELECT...,,,.,, .......Electrolytic 405 011 8500 TR 2SC1740S-R
NP-ELECT ...... Non-polarised Electrolytic 405 011 8609 TR 2SC1740S-S
OS-SOLID ..... Aluminium Solid with Organic Semiconductive Electrolytic 405 012 2002 TR 2SC1815-GR
DL-ELECT .......... Double Layered ElactrolyIic 405 012 2101 TR 2sC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
RESISTOR 405 020 7907 TR 2sc945A-RA
CARBON 4.7K JAl/4W Q1OO2 405 011 8401 TR 2SC1740S-Q
~[
[
I
~RatadWattege 405 011 8500 TR 2SC1740S-R
Performance Symbols 405 011 8609 TR 2SC1740S-S
AGeneral B: Nonflammable ZLownoise 405 012 2002 TR 2sc1815-GR
Other Temperature coefficient 405 012 2101 TR 2SC1815-O
Tolerance Symbols: 405 012 2309 TR 2SC1815-Y
A:K105% B:ti.1% c:ti.25yoD:iO.5% 405 020 7501 TR 2sc945A-pA
F +1% G:@=A J:+5% K:+1O% 405 020 7709 TR 2sc945A-QA
M:i20% P+5-15%
Rated value, ohms: 405 020 7907 TR 2sc945A-RA
KI,000, M:I,000,OOO Q1OO3 405 011 8401 TR 2SC1740S-Q
Material: 405 011 8500 TR 2sC1740S-R
CARBON ...........Carbon 405 011 8609 TR 2SC1740S-S
MT-FILM...,, ....... Metal Film 405 012 2002 TR 2sc1815-GR
OXIDE-MT ......... Oxide Metal Film 405 012 2101 TR 2SC1815-O
SOLID ................ Compmition 405 012 2309 TR 2SC1815-Y
MT-GLAZE, ........Metal Glaze 405 020 7501 TR 2sc945A-pA
WIRE WOUND...Wire Wound
CERAMICRES.. Ceramic 405 020 7709 TR 2sc945A-QA
FUSIBLE RES ....Fusible 405 020 7907 TR 2SC945A-RA
Q1OO7 405 011 8401 TR 2sC1740S-Q
-
_,
-20-
