Sanyo DS31820 User manual

AS
FILE NO.
SERVICE MANUAL
(SUPPLEMENT) Remote Control Color
Television DS32224 (U.S.A.)
(CANADA)
ORIGINALVERSION
Chassis No. 32224-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to
the Original Service Manual
prior to servicing the unit.
G7TPA, PRODUCT CODE 111370488 REFERENCE No. SS780048
THIS CHASSIS IS SIMILARTO MODEL DS31820, CHASSIS NUMBER
31820-00. SERVICE INFORMATION GIVEN INTHIS MANUAL IS ONLY
THE DIFFERENCE INFORMATION FROM MODEL DS31820, CHASSIS
NUMBER 31820-00. FOR ADDITIONAL SERVICE INFORMATION, REFER
TOTHE SERVICE MANUAL FOR CHASSIS NUMBER 31820-00 USED IN
MODEL DS31820 (SM780083).
MENU VOL
POWER
CH
+
_
AS

1 610 295 9048 CABINET FRONT ASSY 610 312 2113 CABINET FRONT ASSY
9 610 295 7884 BUTTON UNIT 610 312 3981 BUTTON UNIT
10 610 267 0851 CAP RC 610 265 3786 CAP RC
610 299 5763 DEC SHEET N/A NOT USED
11 610 293 2560 SANYO BADGE 610 312 5008 SANYO BADGE
610 299 9600 OWNER’S MANUAL 610 312 0942 OWNER’S MANUAL
645 052 5018 RC TRANSMITTER 645 058 8150 RC TRANSMITTER
DIFFERENCES
MODEL DS32224 (Chassis No. 32224-00) SAME AS MODEL DS31820 (Chassis
No. 31820-00) EXCEPT:

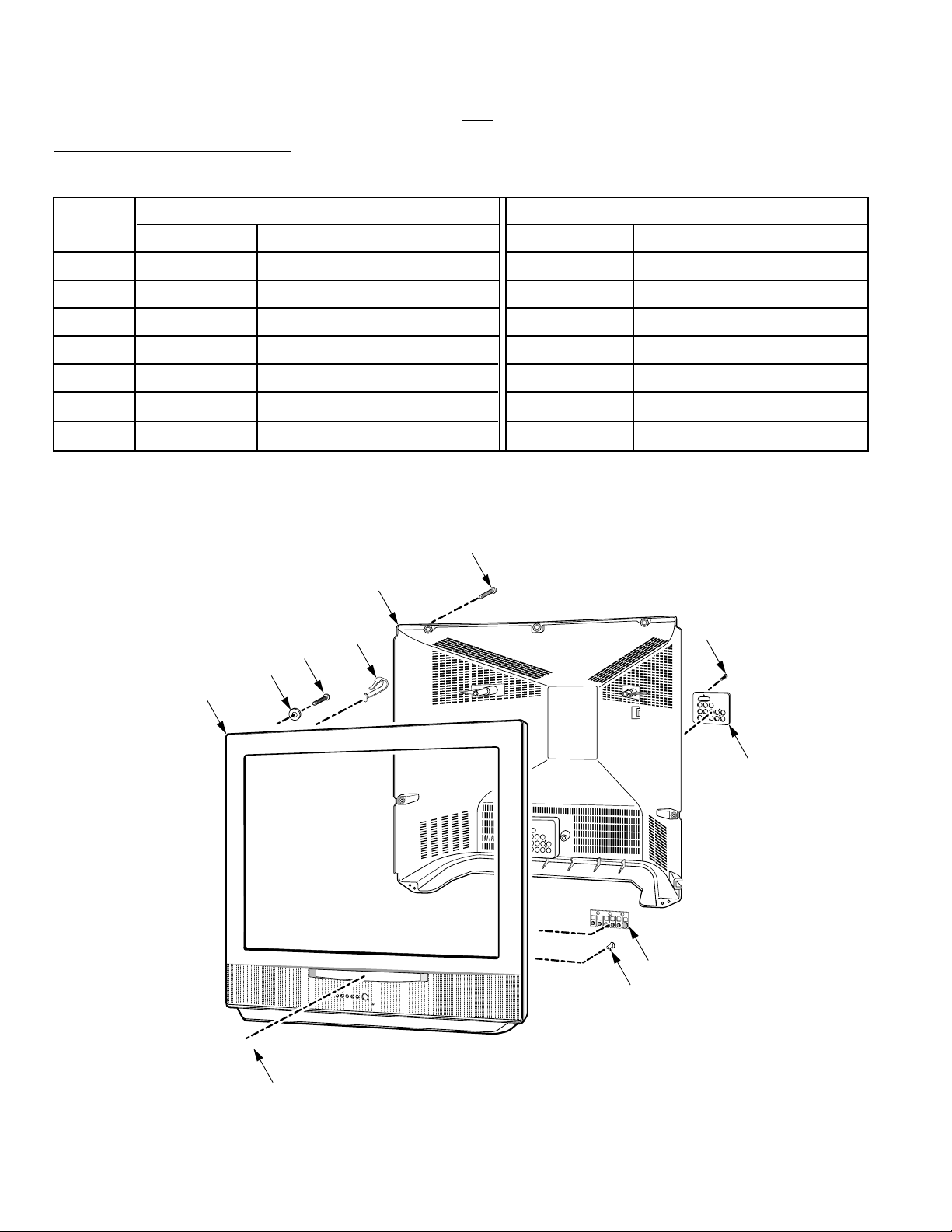

1. INTHE CABINET / ACCESSORY PARTS LIST
MODEL DS31820 (Chassis No. 31820-00) MODEL DS32224 (Chassis No. 32224-00)
Part No. Description
KEY NO. Part No. Description
MENU VOL
POWER
CH
+
_
AS
1234
5
7
9
10
11
6
8
– 2 –

A100 610 300 2125 ASSY, PWB, MAIN 610 312 2564 ASSY, PWB, MAIN
A700 610 300 6802 ASSY, PWB, CRT 610 312 2571 ASSY, PWB, CRT
A1000 610 300 2132 ASSY, PWB, AV 610 312 2588 ASSY, PWB, AV
Q901 414 010 6905 CRT M78JUA361X72 414 010 7001 CRT M80JUA068X72
2. INTHE CHASSIS ELECTRICAL PARTS LIST
MODEL DS31820 (Chassis No. 31820-00) MODEL DS32224 (Chassis No. 32224-00)
Part No. Description
KEY NO. Part No. Description
– 3 –

March / 2004 / 2000 SMC Printed in U.S.A.
For parts or service contact
21605 Plummer Street
Chatsworth, CA 91311 (U.S.A.)
300 Applewood Crescent,
Concord, Ontario L4K 5C7 (CANADA)
SANYO FISHER SERVICE

AS
FILE NO.
SERVICE MANUAL Remote Control Color
Television DS31820 (U.S.A.)
(CANADA)
ORIGINALVERSION
Chassis No. 31820-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments. . . . . . . . . . . . . 3 - 10
Service Hints. . . . . . . . . . . . . . . . . . . . . . 10

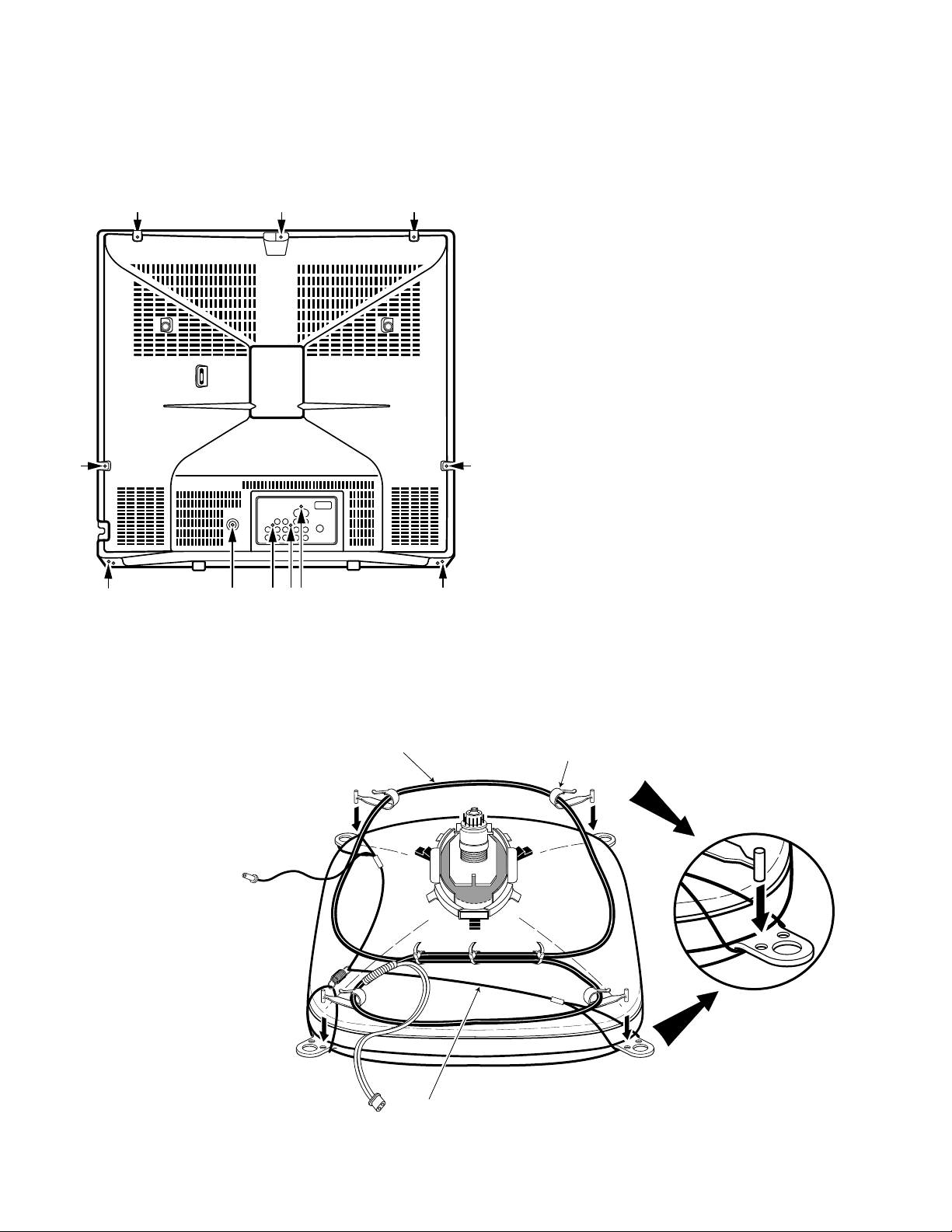

Mechanical Disassemblies. . . . . . . . . . . 11
Chassis Electrical Parts List . . . . . . 12 - 23
Cabinet Parts List . . . . . . . . . . . . . . . . . . 24
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 25 - 28
Schematic Insert . . . . . . . . . . . . . . . 29 - 36
Schematic Notes . . . . . . . . . . . . . . . . . 29
Pin Layouts . . . . . . . . . . . . . . . . . . . . . 29
Capacitor and Resistor Codes . . . . . . 29
Block Diagram. . . . . . . . . . . . . . . 30 - 31
Voltage Charts . . . . . . . . . . . . . . . 30 - 32
Waveforms. . . . . . . . . . . . . . . . . . . . . . 32
Main PC Board . . . . . . . . . . . . . . . 33 - 36
Audio/Video Board. . . . . . . . . . . . 35 - 36
CRT Socket Board . . . . . . . . . . . . . . . . 33
Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . 120V, 60Hz
89W (Avg), 2.5A (Max)
Antenna Input Impedance. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
Remote Ready . . . . . . . . . . 43 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 1.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
Picture Tube. . . . . . . . . . . . . . . . . . M78JUA361X72
Semiconductors
Integrated Circuits. . . . . . . . . . . . . . . . . . . . . . . 15
Transistors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Except within Tuner and RC Pre-Amp.
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754 mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732 mm
Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 538 mm
REFERENCE No. SM780083
DS31820, G7SVM, PRODUCT CODE 111359085
AS
MTSSTEREO

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed on the side of the cabinet, inside the cabinet, on the
chassis, and the picture tube.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
DO NOT OPERATE THIS TELEVISION RECEIVER
WITHOUT THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in solid-state receivers is
the picture tube. The picture tube is specially constructed to
limit X-Ray emission. For continued X-RADIATION protection,
the replacement tube must be the same type as the original
(including the suffix letter in the part numbers). Excessive high
voltage may produce potentially hazardous X-RADIATION. To
avoid such hazards, the high voltage must be maintained within
specific limits. Refer to the X-RADIATION WARNING NOTE on
the CHASSIS SCHEMATIC in this service manual for specific
high voltage limits. If the high voltage exceeds specified limits,
check the components specified on the chassis schematic
diagram and take the necessary corrective action. Carefully
follow the instructions for the +B Voltage Check and the High
Voltage Check to maintain the high voltage within the specified
limits.
HIGHVOLTAGE HOLD-DOWNTEST
To prevent X-RADIATION from the picture tube due to
excessive high voltage, a HOLD-DOWN circuit is provided in
the high voltage circuit. Every time the receiver is serviced,
the high voltage HOLD-DOWN circuit must be tested for
proper operation. Refer to the HIGH VOLTAGE HOLD-
DOWN TEST in service adjustments.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
star (★) in the parts list and in the schematic diagrams. To
ensure safe product operation, it is necessary to replace
those components with the exact same PARTS.
SAFETY INSTRUCTIONS
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.

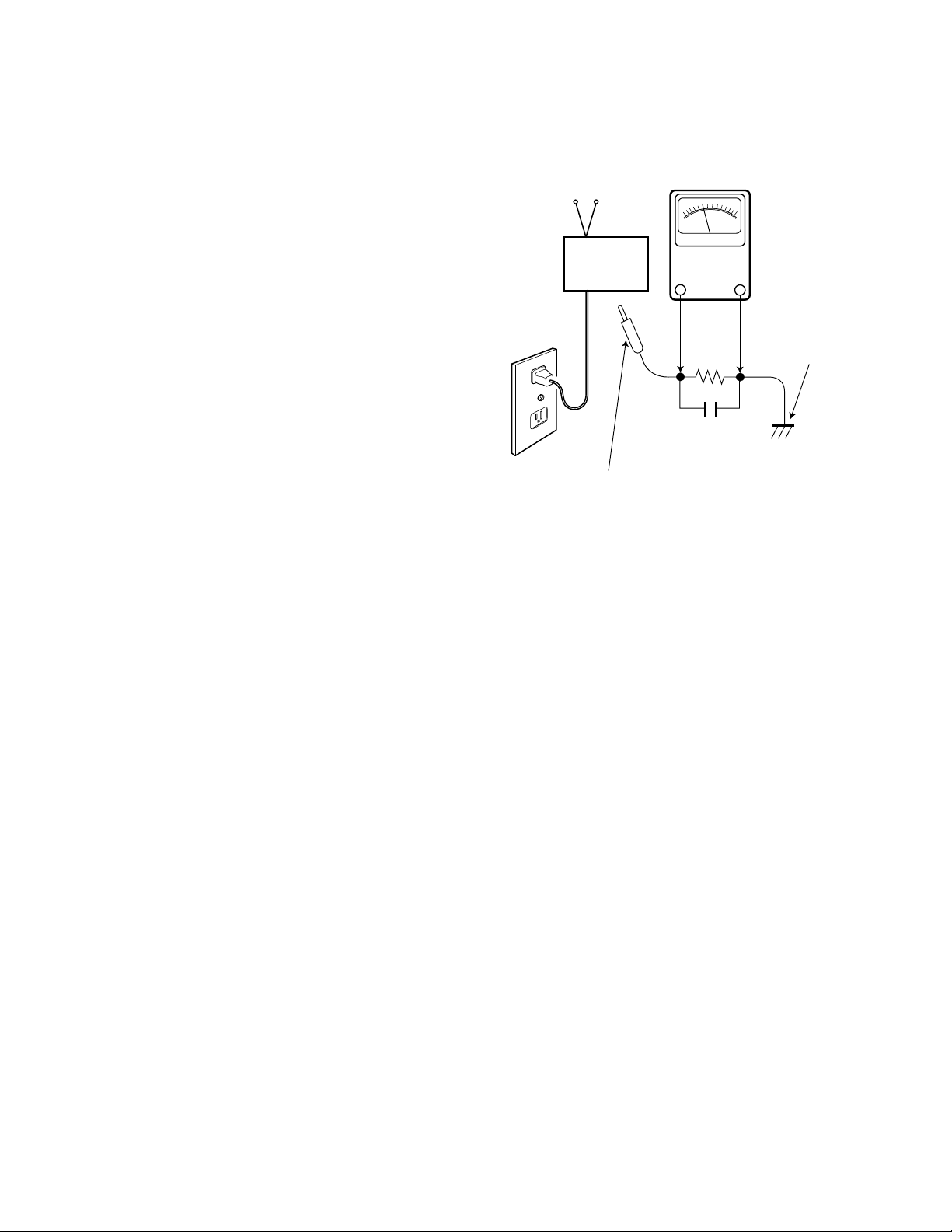

Voltmeter Hook-up for Leakage Current Check.

GENERAL
ThissethasanOn-screenServiceMenusystemincludedintheCPUthatallowsremoteoperationformostoftheserviceadjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•While pressing the MENU key, reconnect the AC power cord. The Service Menu Display will now appear. (See Figure 1.)
2. Service Adjustments:
•Press the ▲or ▼key to select the desired service menu you want to adjust. (See page 5 for On-screen Service Menu.)
•Use the + or – key to adjust the data.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu display.
SERVICE ADJUSTMENTS
— 3 —
IC802 (EEPROM) REPLACEMENT
When IC802 (EEPROM) is replaced, IC801 (CPU) will automatically write the initial reference data into IC802 for basic TV operation.
However, the bus data should be checked and some bus data should be set up before attempting the service adjustments.
(See pages 5 – 7 for detailed bus data information.)
INITIAL BUS DATA SETUP
Note: When IC802 (EEPROM) is replaced, change the following initial reference data for proper TV operation before
attempting service adjustments.
1. Disconnect the AC power cord (AC 120V line).
2. While pressing the MENU key, reconnect the AC power cord. The Service Menu display will now appear.
3. Select NO. 4 VS (V Size) with ▲or ▼key. Adjust the data with + or – key for 17.
4. Select NO. 5 VLN (V Linearity) with ▲or ▼key. Adjust the data with + or – key for 8.
5. Select NO. 6 VSC (V S Correction) with ▲or ▼key. Adjust the data with + or – key for 2.
6. Select NO. 7 HP (H Position) with ▲or ▼key. Adjust the data with + or – key for 24.
7. Select NO. 8 EWD (H Width) with ▲or ▼key. Adjust the data with + or – key for 34.
8. Select NO. 9 EWA (Pincushion Amp) with ▲or ▼key. Adjust the data with + or – key for 35.
9. Select NO. 10 EWP (Upper Corner Pincushion) with ▲or ▼key. Adjust the data with + or – key for 34.
10. Select NO. 12 BOW (AFC Bow) with ▲or ▼key. Adjust the data with + or – key for 7.
11. Select NO. 13 ANG (AFC Angle) with ▲or ▼key. Adjust the data with + or – key for 8.
12. Select NO. 14 UVL (Upper V Lin) with ▲or ▼key. Adjust the data with + or – key for 0.
13. Select NO. 15 LVL (Lower V Lin) with ▲or ▼key. Adjust the data with + or – key for 0.
14. Select NO. 16 EWT (Pincushion Phase) with ▲or ▼key. Adjust the data with + or – key for 4.
15. Select NO. 17 VC (V Compression) with ▲or ▼key. Adjust the data with + or – key for 5.
16. Select NO. 21 RB (Red Cutoff) with ▲or ▼key. Adjust the data with + or – key for 6.
17. Select NO. 22 GB (Green Cutoff) with ▲or ▼key. Adjust the data with + or – key for 0.
18. Select NO. 23 BB (Blue Cutoff) with ▲or ▼key. Adjust the data with + or – key for 0.
19. Select NO. 26 STI (Sub Tint) with ▲or ▼key. Adjust the data with + or – key for 15.
20. Select NO. 27 SCO (Sub Color) with ▲or ▼key. Adjust the data with + or – key for 9.
21. Select NO. 28 SB (Sub Bright) with ▲or ▼key. Adjust the data with + or – key for 12.
22. Select NO. 29 SSH (Sub Sharpness) with ▲or ▼key. Adjust the data with + or – key for 2.
NO. DATA
XX OPT XXX XXXXXXXX
Figure 1. Service Menu Display
ITEM NO.
TITLE BINARY DATA
(8 bit)
DECIMAL DATA

— 4 —
INITIAL BUS DATA SETUP (Cont.)
23. Select NO. 33 DCO (Dynamic Color Switch) with ▲or ▼key. Adjust the data with + or – key for 0.
24. Select NO. 39 DCR (DC Reset) with ▲or ▼key. Adjust the data with + or – key for 3.
25. Select NO. 40 YGM (Y Gamma Correction) with ▲or ▼key. Adjust the data with + or – key for 2.
26. Select NO. 51 HBR (H Blanking Right) with ▲or ▼key. Adjust the data with + or – key for 0.
27. Select NO. 60 OPT (SA Option 1) with ▲or ▼key. Adjust the data with + or – key for 32.
28. Select NO. 61 OP2 (SA Option 2) with ▲or ▼key. Adjust the data with + or – key for 82.
29. Select NO. 62 HR (OSD Position) with ▲or ▼key. Adjust data with + or – key for 34.
30. Select NO. 63 SCA (Sub Color) with ▲or ▼key. Adjust data with + or – key for 2.
31. Select NO. 64 STA (Sub Tint Offset) with ▲or ▼key. Adjust the data with + or – key for 254.
32. Select NO. 67 SBT (Sub Tint) with ▲or ▼key. Adjust the data with + or – key for 5.
33. Select NO. 68 SBL (Sub Color) with ▲or ▼key. Adjust the data with + or – key for 12.
34. Select NO. 70 RTN (Tint Offset for RF) with ▲or ▼key. Adjust the data with + or – key for 0.
35. Select NO. 71 RCL (Color Offset for RF) with ▲or ▼key. Adjust the data with + or – key for 0.
36. Select NO. 74 PPR (Preshoot/Overshoot Ratio for RF) with ▲or ▼key. Adjust the data with + or – key for 1.
37. Select NO. 79 DTN (Tint Offset for YUV) with ▲or ▼key. Adjust the data with + or – key for 4.
38. Select NO. 80 DCL (Color Offset for YUV) with ▲or ▼key. Adjust the data with + or – key for 16.
39. Select NO. 92 EVB (Vertical Blanking Width Top for 16:9) with ▲or ▼key. Adjust the data with + or – key for 2.
40. Select NO. 95 EVA (Vertical Size Offset for 16:9) with ▲or ▼key. Adjust the data with + or – key for 22.
41. Select NO. 97 SED (H Width Offset for 16:9) with ▲or ▼key. Adjust the data with + or – key for 255.
42. Select NO. 98 SEA (Pin Offset for 16:9) with ▲or ▼key. Adjust the data with + or – key for 255.
43. Select NO. 103 VAP (Vertical Aspect) with ▲or ▼key. Adjust the data with + or – key for 26.
44. Select NO. 104 VSR (Vertical Scroll) with ▲or ▼key. Adjust the data with + or – key for 31.
45. Select NO. 105 ATT (MTS Input Level) with ▲or ▼key. Adjust the data with + or – key for 6.
46. Select NO. 106 WDB (MTS Low Separation) with ▲or ▼key. Adjust the data with + or – key for 31.
47. Select NO. 107 SPC (MTS Hi Separation) with ▲or ▼key. Adjust the data with + or – key for 21.
48. Select NO. 109 PCO (PIP Chroma Gain) with ▲or ▼key. Adjust the data with + or – key for 40.
49. Select NO. 110 PTI (PIP Tint) with ▲or ▼key. Adjust the data with + or – key for 40.
50. Select NO. 111 PUV (PIP Top Location) with ▲or ▼key. Adjust the data with + or – key for 26.
51. Select NO. 113 PLH (PIP Left Location) with ▲or ▼key. Adjust the data with + or – key for 13.
52. Select NO. 114 PRH (PIP Right Location) with ▲or ▼key. Adjust the data with + or – key for 105.
53. Select NO. 115 PCN (PIP Y Signal Gain) with ▲or ▼key. Adjust the data with + or – key for 43.
54. Press the MENU key to turn off the Service Menu display.
SERVICE ADJUSTMENTS (Cont.)

— 5 —
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. (See pages 3 and 4 for Initial Bus Data Setup.)
NO. TITLE INITIAL REFERENCE INITIAL SETUP RANGE OF DATA FUNCTION
DATA DATA
01 HFR 7 7 0~63 Horizontal Frequency
02 C16 244 244 0~255 16:9 Mode Contrast Offset
03 VPO 0 0 0~63 Vertical Position
04 VS 29 17* 0~63 Vertical Size
05 VLN 6 8* 0~15 Vertical Linearity
06 VSC 0 2* 0~15 Vertical S Correction
07 HP 20 24* 0~63 Horizontal Position
08 EWD 29 34* 0~63 Horizontal Width
09 EWA 43 35* 0~63 Pin Amp
10 EWP 29 34* 0~63 Up Corner Pin
11 EWB 37 37 0~63 Bottom Corner Pin
12 BOW 10 7* 0~15 AFC Bow
13 ANG 9 8* 0~15 AFC Angle
14 UVL 2 0* 0~15 Upper Vertical Linearity
15 LVL 1 0* 0~15 Lower Vertical Linearity
16 EWT 8 4* 0~15 Pin Phase
17 VC 6 5* 0~15 Vertical Compression
18 RD 31 31 0~63 Red Drive
19 GD 31 31 0~63 Green Drive
20 BD 31 31 0~63 Blue Drive
21 RB 13 6* 0~15 Red Cutoff
22 GB 2 0* 0~15 Green Cutoff
23 BB 8 0* 0~15 Blue Cutoff
24 FLS 3 3 0~3 Filter System
25 SCN 11 11 0~15 Sub Contrast
26 STI 7 15* 0~15 Sub Tint
27 SCO 7 9* 0~15 Sub Color
28 SB 7 12* 0~31 Sub Bright
29 SSH 0 2* 0~255 Sub Sharpness
30 AFC 0 0 0~3 AFC Gain (Except TV Mode)
31 REF 0 0 0, 1 Reference Pulse Position
32 CDM 3 3 0~3 CD Mode Select
33 DCO 1 0* 0, 1 Dynamic Color Switch
34 ABL 1 1 0, 1 ABL Mode Switch
35 BAT 1 1 0, 1 ABL Level Switch 4:3 Mode
36 B16 1 1 0, 1 ABL Level Switch 16:9 Mode
37 CTP 1 1 0, 1 Chroma Trap Off Switch
38 CBP 0 0 0, 7 Chroma Bandpass Filter Switch
39 DCR 2 3* 0~3 DC Transmission select Switch
40 YGM 1 2* 0~3 Gamma Correction Select
41 POS 1 1 0, 1 Preshoot/Overshoot Switch
42 WP 0 0 0~3 RGB Limit Level
43 VM 3 3 0~3 Velocity Modulation
44 GYA 0 0 0, 1 G-Y Angle
45 CRS 0 0 0, 1 Aging Mode
46 HMA 1 1 0, 1 H Mask On/Off
47 HBS 1 1 0, 1 Horizontal Blanking Switch

Table 1. ON-SCREEN SERVICE MENU (Continued)
— 6 —
NO. TITLE INITIAL REFERENCE INITIAL SETUP RANGE OF DATA FUNCTION
DATA DATA
48 VBL 0 0 0~3 Vertical Blanking
49 WVB 0 0 0, 1 WV Blanking Select
50 HBL 15 15 0~15 Horizontal Blanking Left
51 HBR 5 0* 0~15 Horizontal Blanking Right
52 AFR 0 0 0~3 AFC Gain (TV Mode)
53 RHS 0 0 0, 1 Horizontal Sync Slice Level for RF
54 RVS 0 0 0, 1 Vertical Sync Slice Level for RF
55 EHS 0 0 0, 1 Horizontal Sync Slice Level for AV
56 EVV 1 1 0, 1 Vertical Sync Slice Level for AV
57 CDR 3 3 0~3 CD Mode (TV)
58 BGP 1 1 0, 1 BGP Switch
59 FSC 1 1 0, 1 FSC Switch
60 OPT 0 32* 0~255 Option 1 (See Note 1 page 6)
61 OP2 2 82* 0~255 Option 2 (See Note 2 page 6)
62 HR 23 34* 0~63 OSD Horizontal Position
63 SCA 0 2* 0~255 Color Offset (‘00’ In Adjust)
64 STA 0 254* 0~255 Tint Offset (‘00’ In Adjust)
65 SUB –- – – Not Used
66 SBC 11 11 0~15 Sub Contrast
67 SBT 15 5* 0~15 Sub Tint for Adjustment
68 SBL 15 12* 0~31 Sub Color for Adjustment
69 RCN 0 0 0~255 Contrast Offset for RF
70 RTN 253 0* 0~255 Tint Offset for RF
71 RCL 2 0* 0~255 Color Offset for RF
72 RBR 0 0 0~255 Bright Offset for RF
73 RSP 0 0 0~255 Sharpness Offset for RF
74 PPR 0 1* 0, 1 Pre/Overshoot Ratio for RF
75 SSF 3 3 0~3 Sharpness FO for S Input
76 AKB 48 48 0~255 AKB Timer
77 VMT 72 72 0~255 Video Mute Timer
78 DCN 249 249 0~255 Contrast Offset for YUV
79 DTN 254 4* 0~255 Tint Offset for YUV
80 DCL 10 16* 0~255 Color Offset for YUV
81 DBR 0 0 0~255 Bright Offset for YUV
82 DSP 0 0 0~255 Sharpness Offset for YUV
83 DVM 0 0 0~255 Velocity Offset for YUV
84 CBO 7 7 0~15 Cb Offset for YUV
85 CRO 7 7 0~15 Cr Offset for YUV
86 DRD 0 0 0~255 Red Drive Offset for YUV
87 DGD 0 0 0~255 Green Drive Offset for YUV
88 DBD 0 0 0~255 Blue Drive Offset for YUV
89 DRC 0 0 0~255 Red Cutoff Offset for YUV
90 DGC 0 0 0~255 Green Cutoff Offset for YUV
91 DBC 0 0 0~2557 Blue Cutoff Offset for YUV
92 EVB 3 2* 0~3 Vertical Blanking Width Top for 16:9
93 EWV 0 0 0, 1 Vertical Blanking Width Bottom for 16:9
SERVICE ADJUSTMENTS (Cont.)

— 7 —
PROGRAM CODES
The microprossesor used in this model is a multi-purpose type and is used in several different models. To ensure proper
operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 60 OPT) should be decimal 32
(00100000 binary). See page 4 INITIAL DATA SETUP, step
28, for set up procedure. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 61 OP2) should be decimal 82
(01010010 binary). See page 4 INITIAL DATA SETUP,
step 29, for set up procedure. If this program code is
wrong the TV will not operate properly.
BIT FUNCTION DATA
01
0 ~1 NOT USED — —
2 SCAN VELOCITY NONE YES
3 CLOCK NONE YES
4 NOT USED — —
5 WIDE MODE NONE YES
6 SURROUND NONE YES
7 NOT USED — —
BIT FUNCTION DATA
01
0SHIPPING CONDITION NORMAL COOL
OF COLOR ENHANCER
1 COLOR ENHANCER NONE YES
2 INITIAL CH & XDS NONE YES
3 FIXED/VARIABLE FIXED FIX/VAR
4 PIP NONE YES
5 AV INPUTS AV1/2 AV1/2/3
6 BASS & TREBLE / TONE BASS & TR TONE
7 V-GUIDE NONE YES
NO. TITLE INITIAL REFERENCE INITIAL SETUP RANGE OF DATA FUNCTION
DATA DATA
94 EVS 0 0 0~255 Vertical Position Offset for 16:9
95 EVA 14 22* 0~255 Vertical Size Offset for 16:9
96 ERE 0 0 0, 1 Reference Pulse Position for 16:9
97 SED 254 255* 0~255 Horizontal Width Offset for 16:9
98 SEA 254 255* 0~255 Pin Offset for 16:9
99 SET 255 255 0~255 Pin Phase Offset for 16:9
100 DHS 0 0 0~255 Horizontal Width Offset for YUV
101 DHC 0 0 0~255 Horizontal Center Offset for YUV
102 EDC 0 0 0, 1 EW DC On/Off
103 VAP 32 26* 0~63 V Aspect
104 VSR 17 31* 0~63 V Scroll
105 ATT 10 6* 0~15 MTS Input Level
106 WDB 32 31* 0~63 MTS Low Separation
107 SPC 32 21* 0~63 MTS Hi Separation
108 SBO 0 0 0~255 Sub Bright Detector Voltage Offset
109 PCO 90 40* 0~127 PIP Chroma Gain
110 PTI 42 40* 0~63 PIP Tint
111 PUV 24 26* 0~255 PIP Top Location
112 PDV 147 147 0~255 PIP Bottom Location
113 PLH 15 13* 0~255 PIP Left Location
114 PRH 101 105* 0~255 PIP Right Location
115 PCN 67 43* 0~127 PIP Y Signal Gain
116 PBS 15 15 0~63 PIP BGP Phase for VCXO
117 – – – – Not Used
118 DRV 31 31 0~63 Red Drive Adjustment (See Grayscale Adjustment)
31 31 0~63 Blue Drive Adjustment (See Grayscale Adjustment)
119 – – – – Screen Adjust (See Grayscale Adjustment)

— 8 —
SERVICE ADJUSTMENTS (Continued)
ANTENNA CONNECTIONS
This receiver is designed for UHF/VHF reception. A 75 ohm
terminal is provided for UHF and VHF receptions. When
connecting a CATV antenna system, connect the 75 ohm
coaxial cable directly to the 75 ohm terminal. For 300 ohm
VHF antenna, use an adapter (not included with the TV set).

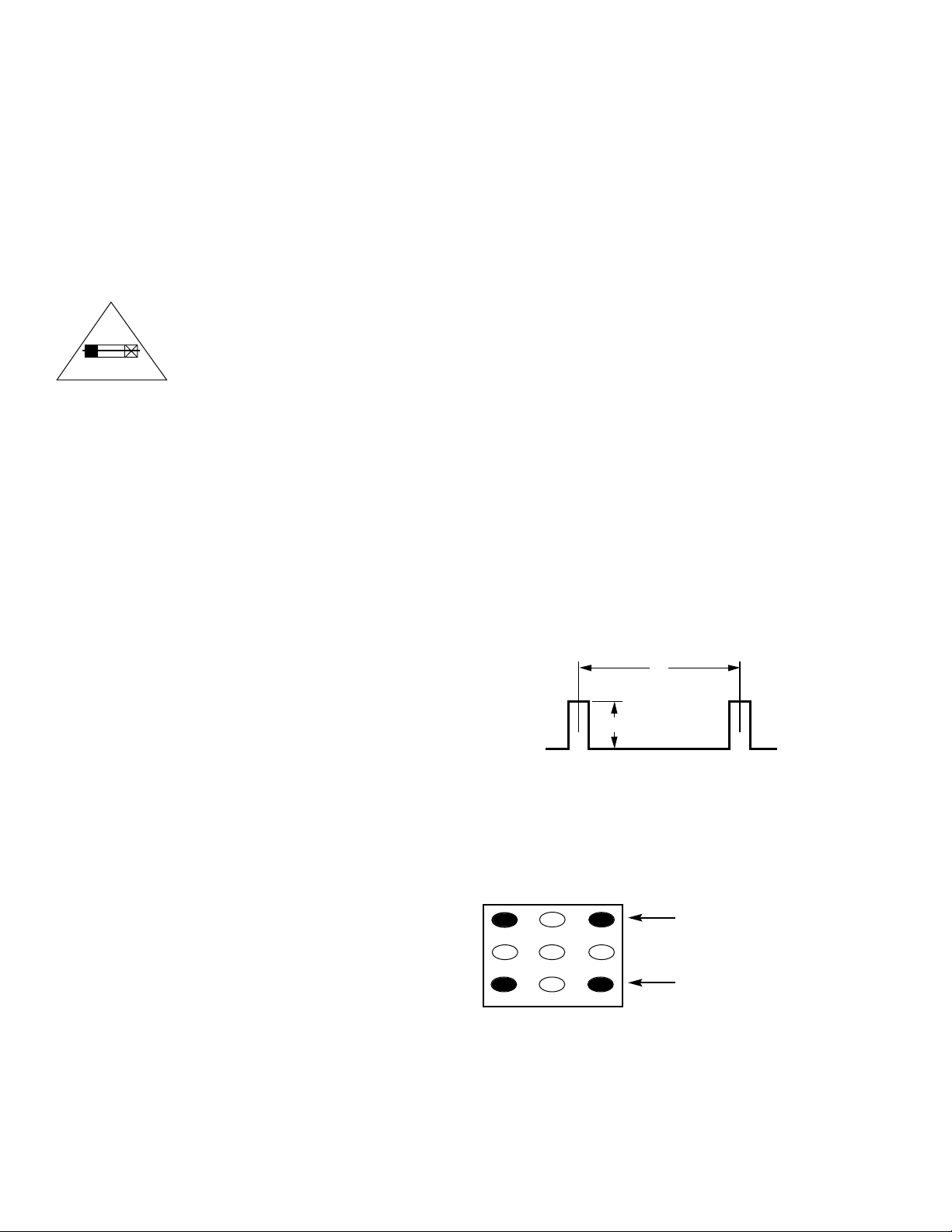

CIRCUIT PROTECTION
Fuse F601 (4A) is included in the AC line. This fuse must be
replaced with the proper fuse (see Parts List).
+BVOLTAGE CHECK
Connect Voltmeter + lead to TJ1 130V and – lead to ground
(TE7). Connect receiver to AC 120V line. Tune receiver to an
active channel. Reset the picture controls to the FACTORY
PRESET levels (press remote control RESET key twice).
Voltage must measure between +128.0V and +132.0V. If the
voltage is out of this range, the power circuit must be
checked. No +B adjustment is provided on this chassis.
HORIZONTALWIDTH ADJUSTMENT
1. Tune receiver to an active channel.
2. Check the picture for proper width. If width is not correct,
perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 08 EWD (Horizontal Width) with ▲or ▼key.
6. Adjust the data with + or – key for proper width. To turn
off the Service Menu display, press the MENU key.
HORIZONTAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the horizontal center of TV screen.
If picture is not centered horizontally, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 07 HP (Horizontal Position) with ▲or ▼key.
6. Adjust the data with + or – key for horizontal center. To
turn off the Service Menu display, press the MENU key.
VERTICAL SIZEADJUSTMENT
1. Tune receiver to an active channel.
2. Check the vertical size of the picture. If the vertical size is
too large or small, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 04 VS (Vertical Size) with ▲or ▼ key.
6. Adjust the data with + or – key for full scan. To turn off
the Service Menu display, press the MENU key.
VERTICAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the center of TV screen. If picture
center is too low, add resistor R513 (1K ohm 1W). If picture
center is too high, change resistor R512 from 1K ohm 1/2W
to a 470 ohm 1W.
GRAYSCALE ADJUSTMENT
1. Connect a color-bar generator to the antenna terminals.
2. Switch the generator to the white pattern.
3. Set the picture controls to the Sports level or Reset (use
MENU key and ▲or ▼ key or RESET key).
4. Turn off the receiver and disconnect the AC power cord
(120V AC line).
5. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
6. Select NO. 18 RD (Red Drive), NO. 19 GD (Green Drive), and
NO. 20 BD (Blue Drive) with ▲or ▼key and set each data to
31 with + or – key.
7. Select NO. 21 RB (Red Cutoff) with ▲or ▼ key and set
data to 6 with + or – key.
8. Select, NO. 22 GB (Green Cutoff), and NO. 23 BB (Blue
Cutoff) with ▲or ▼ key and set each data to 0 with + or
– key.
9. Set NO. 28 SB (Sub Brightness) data to 12, NO. 29 SSH
(Sub Sharpness) data to 2, NO. 33 DCO (Dynamic Color
Switch) data to 0, and NO. 108 SBO (Sub Bright Offset)
data to 0 with ▲or ▼, and + or – keys.
10. Connect oscilloscope probe (at least 50:1) to TP47G and
ground lead to TE47 on the CRT Socket PWB.
11. Select Service Menu NO. 119 with ▲or ▼key.
12. Adjust Screen Control (T402) to obtain 20 VP-P from
black to white level. (See Figure 2.)
13. Select the Service Menu NO. 118 DRV (Drive Adjustments)
with ▲or ▼key.
14. Adjust Red and Blue Drive Levels alternately with 1, 3, 7, or 9
key to produce normal black and white picture in highlight
areas. The Drive Level adjustment data will be written in the
Service Menu No. 18 and 20 automatically. (See Figure 3.)
17. Check for proper grayscale at all brightness levels.
Note: If Grayscale Adjustment is made after picture tube
replacement, check Brightness Level Adjustment.
CAUTION FOR CONTINUED PROTECTION AGAINST
A RISK OF FIRE, REPLACE ONLY WITH THE
SAME TYPE 4A, 125V FUSE.
ATTENTION : POUR MAINTENIR LA PRO-
TECTION CONTRE LES RISQUES
D’ INCENDIE UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE 4A, 125V.
4A 125V
1H
20 Vp-p
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
Figure 3. Remote Control Number keys’ functions in
Service Menu NO. 118 DRV
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
Figure 2.

— 9 —
BRIGHTNESS LEVELADJUSTMENT
Note: Grayscale Adjustment and High Voltage Check must be
completed before attempting Brightness Level
Adjustment.
1. Connect a color-bar generator to the antenna terminals.
2. Switch the generator to the crosshatch pattern.
3. Reset the picture controls to the Sports level.
4. Connect voltmeter (high impedance) + lead to terminal
TP51 and – lead to terminal TP50 on main board. Set
voltmeter for 1.5V ~ 3V range.
5. Turn off the receiver and disconnect the AC power cord.
6. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
7. Select NO. 28 SB (Sub Brightness) with ▲or ▼key.
8. Adjust the data with + or – key for 890 mVDC.
9. Press the MENU key to turn off the Service Menu display.
10. Check brightness level on every active channel, readjust
(repeat steps 5 ~ 9), if necessary.
Note: Do not set to excessive brightness level, otherwise
the contrast level will be suppressed.
HIGHVOLTAGE HOLD-DOWNTEST
Every time the receiver is serviced, the HIGH VOLTAGE
HOLD-DOWN circuit must be tested for proper operation by
following these steps:
1. Connect receiver to 120V AC line. Tune receiver to active
channel. Reset the picture controls to the Sports level.
2. Check that the voltage measured between TP7 and TE7
(ground side) is within 16.5 VDC to 21 VDC. If the voltage
is out of this range, the Hold-Down Circuit must be checked.
3. Connect a DC Voltage supply to TP7 and TE7 through a
100 ohm 1/4W resistor. Adjust the DC voltage to 23 VDC.
The receiver should shutdown, losing raster and sound.
Then the receiver should turn off automatically. This
reaction indicates that the Hold-Down circuit is function-
ing properly. If the receiver does not shutdown, a
malfunction is indicated and its cause must be found and
corrected.
4. To obtain picture again, remove the DC Supply and wait
a few minutes. Now turn on the receiver.
HIGHVOLTAGE CHECK
Note: +B (+130V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage
Check.
1. Connect high voltage voltmeter – lead to ground, and
connect + lead to anode of picture tube.
2. Tune receiver to an active channel and confirm TV is
operating properly.
3. Eliminate the beam current by adjusting the contrast and
brightness controls to minimum.
4. Confirm high voltage is within 27.8 KV and 32.0 KV. If
reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
FOCUSADJUSTMENT
Adjust focus control (T402) for well defined scanning lines.
MULTI-SOUND SECTIONADJUSTMENTS
Note: Multi-Sound Section must be adjusted after
A101 (U/V Tuner), IC3401 (MTS Decoder), or IC802
(EEPROM) is replaced.
INPUT LEVELADJUSTMENT
1. Connect a signal to the antenna terminals with audio of
1 KHZ100% modulation.
2. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
3. Connect voltmeter (RMS) to TP317 and ground.
4. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
5. Select NO. 105 ATT (MTS Input Level) with the ▲or ▼
key.
6. Adjust the + or – key for a voltmeter reading of 400 ± 20
mVrms at TP317.
SEPARATIONADJUSTMENT
7. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
8. Connect oscilloscope CH1 to TP317 and CH2 to TP318
and ground.
9. Connect an MTS TV/Stereo generator to antenna terminal.
10. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
11. Select pilot, 300Hz audio frequency and Left modulating
signal.
12. Select NO. 106 WDB (Wideband) with the ▲or ▼key.
13. Adjust the + or – key for minimum low frequencies at
TP317. (See Figure 4.)
14. Select 4 KHz audio frequency and Right modulating signal.
15. Select NO. 107 SPC (Spectral) with the ▲or ▼key.
16. Adjust the + or – key for minimum high frequencies at
TP318. (See Figure 4.)
Repeat adjustments (steps 11–16) until no further decreases
in amplitude can be obtained. Press the MENU key to turn
off the Service Menu display.
PURITYAND CONVERGENCEADJUSTMENTS
Purity and Convergence have been aligned at the factory.
No re-alignment is necessary.
Minimize L leakage
Minimize R leakage
4KHz
300Hz
TP317 (R)
TP318 (L)
Figure 4. Separation Adjustments

— 10 —
SERVICE ADJUSTMENTS (Continued)
PINCUSHION CORRECTIONADJUSTMENT
1. Connect a color-bar generator to the antenna terminals
and select a crosshatch pattern.
2. Set the picture controls to the Sports level.
3. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
4. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
5. Select No. 16 EWT with ▲or ▼key and adjust with + or –
key for equal tilt at top and bottom.
6. Select No. 09 EWA with ▲or ▼key and adjust with + or –
key for straight vertical lines at the center.
7. Select No. 10 EWP with ▲or ▼key and adjust with + or –
key for straight vertical lines at the top.
8. Select No. 11 EWB with ▲or ▼key and adjust with + or –
key for straight vertical lines at the bottom.
9. Repeat steps 5 through 8 for best pincushion adjustment.
10. Press the MENU key to turn off the Service Menu display.
Figure 7.
Figure 5.
Figure 6.
Adjust No. 16 EWT for equal tilt:
Ta=Tb, Tc=Td.
Ta Tc
Tb Td
Adjust No. 09 EWA for the center
part of the vertical line to be straight.
Adjust No. 10 EWP for straight verti-
cal lines at the top.
Adjust No. 11 EWB for straight verti-
cal lines at the bottom.
EWP
EWB
SERVICE HINTS
POWER FAILURE DETECTOR
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies, including the power
supply derived from the Horizontal Output Transformer.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent unnecessary
damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
•Stoppage of the Horizontal Output Oscillator caused by
the X-Radiation protection Hold-Down Circuit.
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within 3 seconds.
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for at least
10 seconds.
2. Connect a DC Voltmeter to the following TEST POINTS.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within 3 seconds.
5. Check all circuits listed above.
Note: This unit is equipped with a Power Surge Protection
feature included in the CPU. If power failure occurs
three times within 15 minutes, the CPU will automati-
cally stop functioning to help prevent secondary
damage. (TV will not turn on by pressing the power
key.) To reset the operating programs within the CPU,
disconnect the AC power cord for at least 10 seconds.
TJ4 26V
TJ6 5V
D429 Cathode 8V

— 11 —
MECHANICAL DISASSEMBLIES
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 11 screws.
2. Pull off cabinet back and remove.
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the
dag coating (picture tube grounding lead).
3. Disconnect degaussing coil socket (KD), picture tube
socket, deflection yoke connector (KX), speakers
connector (KSP), picture tube ground lead, and 2nd
anode lead.
4. Remove chassis completely by sliding it straight back.
PICTURETUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken to
keep these assemblies intact, unless picture tube is being
replaced. Discharge the picture tube to the coating before
handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on a soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube
grounding lead on the picture tube. See Figure 2.
Note: If Picture Tube is being replaced, mount the Degaussing
Coil properly on the tube. See Figure 2.
Figure 2. Picture Tube Removal
Figure 1. Cabinet Back Removal
DEGAUSSING
COIL DEGAUSSING
COIL HOLDER
PICTURE TUBE
GROUNDING LEAD
TO PICTURE TUBE
SOCKET BOARD
GROUND
DEGAUSSING COIL
SOCKET

— 12 —
CHASSIS ELECTRICAL PARTS LIST
CAPACITORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V Rated Voltage
Tolerance Symbols:
less than 10PF
A . .Not specified
B . .±0.1PF C . .±0.25PF
D . .±0.5PF F . .±1PF
G . .±2PF R . .+0.25 - 0PF
S . .+0 - 0.25PF E . .+0 - 1PF
more than 10PF
A . .Not specified
B . .±0.1% C . .±0.25%
D . .±0.5% F . .±1%
G . .±2% H . .±3%
J . .±5% K . .±10%
L . .±15% M . .±20%
N . .±30% P . .+100 - 0%
Q . .+30 - 10% T . .+50 - 10%
U . .+75 - 10% V . .+20 - 10%
W .+100 - 10% X . .+40 - 20%
Y . .+150 - 10% Z . .+80 - 20%
Rated Value: P...Pico Farad U...Micro Farad
Material:
CERAMIC . . . . . .Ceramic
MT-PAPER . . . . .Metalized Paper
POLYESTER . . .Polyester
MT-POLYEST . .Metalized Polyester
POLYPRO . . . . .Polypropylene
MT-POLYPRO . .Metalized Polypropylene
COMPO-FILM . .Composite Film
MT-COMPO . . . .Metalized Composite
STYRENE . . . . . .Styrene
TA-SOLID . . . . .Tantalum Solid
AL-SOLID . . . . . .Aluminum Solid
ELECT . . . . . . . .Electrolytic
NP-ELECT . . . . .Non-Polarized Electrolytic
OS-SOLID . . . . .Aluminum Solid with Organic
Semiconductive Electrolytic
C001 404 084 3801 ELECT 1U M 50V
C002 404 084 3801 ELECT 1U M 50V
C003 403 224 6009 CERAMIC 4700P K 50V
C004 403 224 6009 CERAMIC 4700P K 50V
C010 404 084 3009 ELECT 220U M 16V
C011 404 084 3009 ELECT 220U M 16V
C015 404 084 3306 ELECT 470U M 16V
C101 404 084 2408 ELECT 470U M 6.3V
C103 403 224 6108 CERAMIC 0.01U K 50V
C104 403 357 9601 CERAMIC 0.1U Z 50V
C107 403 224 6108 CERAMIC 0.01U K 50V
C112 404 084 3207 ELECT 47U M 16V
C113 403 357 9601 CERAMIC 0.1U Z 50V
C200 403 224 6108 CERAMIC 0.01U K 50V
C202 403 235 4902 CERAMIC 470P K 50V
C203 404 084 5706 MT-POLYEST 0.47UJ 63V
C205 404 084 6901 NP-ELECT 1U M 50V
C206 403 357 9601 CERAMIC 0.1U Z 50V
C207 403 345 9606 CERAMIC 0.47U K 10V
C208 403 345 9606 CERAMIC 0.47U K 10V
C209 403 296 0004 CERAMIC 0.1U K 25V
C210 403 296 0004 CERAMIC 0.1U K 25V
C211 403 224 6108 CERAMIC 0.01U K 50V
C212 403 224 6108 CERAMIC 0.01U K 50V
C213 403 224 6108 CERAMIC 0.01U K 50V
C214 403 357 9601 CERAMIC 0.1U Z 50V
C215 404 084 4204 ELECT 4.7U M 50V
C216 403 296 0004 CERAMIC 0.1U K 25V
C217 404 084 6901 NP-ELECT 1U M 50V
C218 403 235 4605 CERAMIC 270P K 50V
C219 403 224 5705 CERAMIC 1000P K 50V
C220 404 084 3702 ELECT 0 .47U M 50V
C221 404 084 4204 ELECT 4.7U M 50V
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
X-RADIATION PRECAUTIONS, HIGH VOLTAGE HOLD-DOWN TEST, and PRODUCT SAFETY NOTICE on Page 2.
Notes: Parts having Location Number are located on the following boards.
Numbers 300, 1000, 3400 Series . . . . . . . . . . . . . . . . .On the AV Board and Main Board
Numbers 700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Picture Tube Socket Board.
Numbers 900 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .Out of Board.
All Other Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR (★) INTHIS PARTS LIST ANDTHE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BYA STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE,ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BYA STAR.
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.

— 13 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C222 404 084 4204 ELECT 4.7U M 50V
C223 404 085 4302 ELECT 4700U M 10V
C236 403 357 9601 CERAMIC 0.1U Z 50V
C245 403 224 5507 CERAMIC 22P J 50V
C246 403 235 0607 CERAMIC 100P J 50V
C247 403 235 0607 CERAMIC 100P J 50V
C251 403 234 9601 CERAMIC 15P J 50V
C253 403 224 6108 CERAMIC 0.01U K 50V
C271 404 087 0500 ELECT 220U M 10V
C301 403 041 8804 ELECT 10U M 16V
C302 403 041 8804 ELECT 10U M 16V
C303 403 357 9601 CERAMIC 0.1U Z 50V
C306 403 357 9601 CERAMIC 0.1U Z 50V
C307 403 042 2405 ELECT 100U M 16V
C308 403 319 4804 CERAMIC 0.22U Z 16V
C309 403 357 9304 CERAMIC 560P J 50V
C311 403 043 9106 ELECT 47U M 16V
C312 403 357 9601 CERAMIC 0.1U Z 50V
C313 403 357 9601 CERAMIC 0.1U Z 50V
C314 403 357 9601 CERAMIC 0.1U Z 50V
C316 403 357 9601 CERAMIC 0.1U Z 50V
C317 403 357 9601 CERAMIC 0.1U Z 50V
C322 403 357 9601 CERAMIC 0.1U Z 50V
C323 403 357 9601 CERAMIC 0.1U Z 50V
C333 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
C351 403 224 6108 CERAMIC 0.01U K 50V
C352 404 085 4906 ELECT 2200U M 10V
C355 403 224 5606 CERAMIC 2700P K 50V
C356 404 084 6901 NP-ELECT 1U M 50V
C358 403 224 6108 CERAMIC 0.01U K 50V
C359 404 084 6901 NP-ELECT 1U M 50V
C363 403 258 9304 NP-ELECT 10U M 25V
C369 403 235 5305 CERAMIC 1200P K 50V
C381 403 076 3607 CERAMIC 470P K 500V
C382 403 357 9601 CERAMIC 0.1U Z 50V
C384 403 224 6108 CERAMIC 0.01U K 50V
C385 403 224 6108 CERAMIC 0.01U K 50V
C405 404 084 3702 ELECT 0 .47U M 50V
★C406 403 076 3607 CERAMIC 470P K 500V
★C407 403 076 0507 CERAMIC 2200P K 500V
C408 403 103 0005 ELECT 4.7U M 160V
★C411 403 343 8205 MT-POLYPRO7800P H 1 .5KV
404 077 4600 MT-POLYPRO7800P H 1.5K
★C412 403 343 8205 MT-POLYPRO7800P H 1 .5KV
404 077 4600 MT-POLYPRO7800P H 1.5K
★C413 403 083 4307 POLYPRO 0.022U J 400V
★C414 403 083 3409 POLYPRO 0.015U J 400V
★C416 403 346 7126 MT-POLYPRO 0.27U J 250V
403 372 6807 MT-POLYPRO 0.27U J 250V
★C417 403 379 0303 MT-POLYPRO 0.24U J 250V
403 346 7027 MT-POLYPRO 0.24U J 250V
403 372 6708 MT-POLYPRO 0.24U J 250V
★C419 403 158 9107 MT-POLYEST 2.2U K 100V
C421 404 087 0500 ELECT 220U M 10V
C422 403 066 6106 MT-POLYEST 0.47U J 250V
C434 403 087 1302 NP-ELECT 0.47U M 160V
★C436 403 324 3106 CERAMIC 820P K 3K
★C437 403 076 4000 CERAMIC 4700P K 500V
C461 403 074 8901 CERAMIC 680P K 50V
C462 403 224 6108 CERAMIC 0.01U K 50V
C463 404 086 5704 POLYESTER 2200P K 63V
C466 404 084 4204 ELECT 4.7U M 50V
C482 404 084 4709 ELECT 47U M 1 00V
C484 404 084 4204 ELECT 4.7U M 50V
★C486 403 076 3607 CERAMIC 470P K 500V
C487 404 087 3402 ELECT 1000U M 35V
C493 404 056 5307 NP-ELECT 2.2U M 100V
C497 404 084 2200 ELECT 100U M 6 .3V
C502 403 053 2104 ELECT 220U M 35V
C503 403 204 1802 ELECT 3.3U K 50V
C504 403 045 9807 ELECT 2200U M 25V
C506 404 084 5201 POLYESTER 0.018UK 63V
★C511 403 058 5407 POLYESTER 0.15U K 50V
403 141 5802 POLYESTER 0.15U J 50V
403 274 9302 POLYESTER 0.15U J 50V
403 274 9401 POLYESTER 0.15U K 50V
C516 404 084 4204 ELECT 4.7U M 50V
★C601 404 066 2204 MT-POLYEST 0.22U M 275V
404 071 2404 MT-POLYEST 0.22U M 250V
404 089 1703 MT-POLYEST 0.22U M 275V
★C602 403 075 7101 CERAMIC 1000P K 500V
★C603 403 075 7101 CERAMIC 1000P K 500V
★C604 403 075 7101 CERAMIC 1000P K 500V
★C606 404 088 2909 CERAMIC 1000P M 250V
404 088 7102 CERAMIC 1000P M 250V
★C608 403 271 9701 CERAMIC 3300P K 1K
★C609 404 075 5005 ELECT 470U M 200V
404 089 3509 ELECT 470U M 200V
C612 404 089 6302 MT-POLYEST 0.18U J 63V
C613 404 086 5209 POLYESTER 0.012U J 63V
C620 404 086 5100 POLYESTER 0.1U J 63V
C622 404 084 3306 ELECT 470U M 16V
★C625 403 266 5008 CERAMIC 2700P K 1K
C626 403 043 1902 ELECT 2200U M 16V
C628A 404 037 0703 ELECT 470U M 160V
C629 404 084 3009 ELECT 220U M 16V
C630 404 084 3801 ELECT 1U M 50V
★C631 404 088 2909 CERAMIC 1000P M 250V
404 088 7102 CERAMIC 1000P M 250V
★C632 404 088 3005 CERAMIC 2200P M 250V
404 088 7201 CERAMIC 2200P M 250V
C634 404 084 3207 ELECT 47U M 16V
C636 403 224 6108 CERAMIC 0.01U K 50V
C683 404 084 3009 ELECT 220U M 16V
C688 404 084 2804 ELECT 100U M 16V
C689 403 357 9601 CERAMIC 0.1U Z 50V
C693 404 084 3801 ELECT 1U M 50V
C731 404 087 0500 ELECT 220U M 10V

— 14 —
C741 404 087 2801 ELECT 0.22 M 50V
★C742 403 077 2807 CERAMIC 1000P Z 2K
C745 403 159 7409 MT-POLYEST 0.1U K 250V
C747 403 260 0900 ELECT 47U M 250V
C801 403 224 6108 CERAMIC 0.01U K 50V
C806 404 084 2705 ELECT 10U M 16V
C811 404 084 3801 ELECT 1U M 50V
C822 404 091 6406 ELECT 220U M 6.3V
C831 403 076 0200 CERAMIC 220P K 500V
C835 403 224 6108 CERAMIC 0.01U K 50V
C853 404 087 1200 ELECT 0.1U M 50V
C854 403 235 1000 CERAMIC 220P J 50V
C856 404 084 3801 ELECT 1U M 50V
C857 403 235 1000 CERAMIC 220P J 50V
C858 403 224 5705 CERAMIC 1000P K 50V
C861 403 235 0607 CERAMIC 100P J 50V
C1001 403 041 8804 ELECT 10U M 16V
C1002 403 042 7707 ELECT 22U M 16V
C1004 403 224 6108 CERAMIC 0.01U K 50V
C1005 403 224 6108 CERAMIC 0.01U K 50V
C1007 403 224 6108 CERAMIC 0.01U K 50V
C1011 403 224 6108 CERAMIC 0.01U K 50V
C1021 403 041 8804 ELECT 10U M 16V
C1026 403 041 8804 ELECT 10U M 16V
C1032 403 043 0202 ELECT 220U M 16V
C1051 403 042 7707 ELECT 22U M 16V
C1052 403 042 7707 ELECT 22U M 16V
C1053 403 042 7707 ELECT 22U M 16V
C1081 404 084 3306 ELECT 470U M 16V
C1091 403 224 6108 CERAMIC 0.01U K 50V
C1902 404 084 2705 ELECT 10U M 16V
C3401 404 087 1200 ELECT 0.1U M 50V
C3404 404 089 6500 NP-ELECT 4.7U M 50V
C3406 403 325 2504 CERAMIC 0.012U K 50V
C3407 403 235 5701 CERAMIC 5600P K 50V
C3408 404 084 3702 ELECT 0 .47U M 50V
C3411 404 084 3702 ELECT 0 .47U M 50V
C3412 404 084 3207 ELECT 47U M 16V
C3413 404 084 4204 ELECT 4.7U M 50V
C3414 404 084 2804 ELECT 100U M 16V
C3416 404 089 6500 NP-ELECT 4.7U M 50V
C3417 404 084 4204 ELECT 4.7U M 50V
C3418 404 089 6500 NP-ELECT 4.7U M 50V
C3421 403 224 5606 CERAMIC 2700P K 50V
C3422 403 323 3602 CERAMIC 0.047U K 50V
C3423 403 342 9203 TA-SOLID 3.3U K 10V
C3424 404 089 6500 NP-ELECT 4.7U M 50V
C3426 403 299 1820 TA-SOLID 10U K 10V
C3427 404 084 3801 ELECT 1U M 50V
C3431 403 224 6009 CERAMIC 4700P K 50V
C3432 404 087 1200 ELECT 0.1U M 50V
C3433 403 224 6009 CERAMIC 4700P K 50V
C3434 403 343 4603 CERAMIC 0.022U K 50V
C3435 404 084 4204 ELECT 4.7U M 50V
C3436 404 089 6500 NP-ELECT 4.7U M 50V
C3437 404 084 4204 ELECT 4.7U M 50V
C3439 404 089 6500 NP-ELECT 4.7U M 50V
C8002 404 084 3207 ELECT 47U M 16V
C8003 403 235 0409 CERAMIC 68P J 50V
C8011 403 235 0409 CERAMIC 68P J 50V
C8012 403 296 0004 CERAMIC 0.1U K 25V
C8014 403 323 3602 CERAMIC 0.047U K 50V
C8015 403 319 4804 CERAMIC 0.22U Z 16V
C8017 403 319 4804 CERAMIC 0.22U Z 16V
C8021 403 357 9601 CERAMIC 0.1U Z 50V
C8022 404 084 3207 ELECT 47U M 16V
C8023 403 357 9601 CERAMIC 0.1U Z 50V
C8024 404 084 3207 ELECT 47U M 16V
C8026 403 357 9601 CERAMIC 0.1U Z 50V
C8027 403 224 6108 CERAMIC 0.01U K 50V
C8028 403 224 6108 CERAMIC 0.01U K 50V
C8031 403 357 9601 CERAMIC 0.1U Z 50V
C8032 404 084 3207 ELECT 47U M 16V
C8033 403 357 9601 CERAMIC 0.1U Z 50V
C8034 403 224 6108 CERAMIC 0.01U K 50V
C8035 403 224 6108 CERAMIC 0.01U K 50V
C8036 404 084 2705 ELECT 10U M 16V
C8037 403 357 9601 CERAMIC 0.1U Z 50V
C8041 403 357 9601 CERAMIC 0.1U Z 50V
C8042 404 084 3207 ELECT 47U M 16V
C8051 403 235 0409 CERAMIC 68P J 50V
C8052 403 224 6108 CERAMIC 0.01U K 50V
C8053 403 235 0805 CERAMIC 150P J 50V
C8054 403 224 6108 CERAMIC 0.01U K 50V
C8055 403 357 9601 CERAMIC 0.1U Z 50V
C8056 403 357 9601 CERAMIC 0.1U Z 50V
C8057 403 357 9601 CERAMIC 0.1U Z 50V
C8058 403 224 6108 CERAMIC 0.01U K 50V
C8059 404 084 3207 ELECT 47U M 16V
C8060 403 296 0004 CERAMIC 0.1U K 25V
C8071 404 084 2705 ELECT 10U M 16V
C8072 404 084 2705 ELECT 10U M 16V
C8074 403 235 0607 CERAMIC 100P J 50V
C8076 403 235 0607 CERAMIC 100P J 50V
C8077 403 235 4902 CERAMIC 470P K 50V
C8081 404 084 3702 ELECT 0 .47U M 50V
C8082 403 224 5804 CERAMIC 2200P K 50V
C8091 403 224 6108 CERAMIC 0.01U K 50V
J1006TM 404 084 4204 ELECT 4.7U M 50V
J1007TM 404 084 4204 ELECT 4.7U M 50V
J1013TM 404 084 4204 ELECT 4.7U M 50V
J1014TM 404 084 4204 ELECT 4.7U M 50V
Schematic
Location Part No. Description Schematic Location Part No. Description

— 15 —
DIODES
D101 408 047 6205 ZENER DIODE MTZJ36A (36V)
D205 407 108 5300 DIODE SB07-03N
D206 407 206 5608 ZENER DIODE UDZS10B (10V)
D207 407 206 5608 ZENER DIODE UDZS10B (10V)
D208 407 206 5608 ZENER DIODE UDZS10B (10V)
D210 407 108 5300 DIODE SB07-03N
D276 407 149 0807 DIODE 1SS355 TE-17
D277 407 149 0807 DIODE 1SS355 TE-17
D278 407 149 0807 DIODE 1SS355 TE-17
D279 407 149 0807 DIODE 1SS355 TE-17
D340 407 149 0807 DIODE 1SS355 TE-17
D351 407 206 5608 ZENER DIODE UDZS10B (10V)
D353 407 056 7906 ZENER DIODE RD5.1EB1 (5.1V)
407 099 5006 ZENER DIODE MTZJ4.7A (4.7V)
D406 407 006 4108 DIODE ERB44-04
D407 407 095 8001 DIODE ERD07-15L
★D421 407 158 1307 ZENER DIODE HZ11B2L (11V)
★D422 407 158 1307 ZENER DIODE HZ11B2L (11V)
D428 408 047 4409 ZENER DIODE MTZJ15A (15V)
D429 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D461 407 013 4207 DIODE 1S2076
407 013 4306 DIODE 1S2076A
407 078 2705 DIODE 1SS244
D471 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D472 407 166 7605 ZENER DIODE MTZJ2.0B (2V)
D481 407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
407 124 6404 DIODE ERA18-04
D482 407 011 4407 DIODE TVR1G
D483 407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
407 124 6404 DIODE ERA18-04
D490 408 047 7707 ZENER DIODE MTZJ5.6C (5.6V)
D495 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D501 407 005 8602 DIODE ERA15-02
407 011 3004 DIODE S5277B
407 088 6502 DIODE MPG06D
408 009 9404 DIODE 1N4002ID
D502 407 118 2207 ZENER DIODE 1Z75 (75V)
D503 408 047 6205 ZENER DIODE MTZJ36A (36V)
D508 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
★D601 407 124 9801 DIODE RBV-608
D609 407 007 6903 DIODE ES1Z
407 124 5605 DIODE RMPG06D
407 124 6503 DIODE ERA18-02
408 009 9008 DIODE BYD33D
D610 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D611 407 057 6304 ZENER DIODE RD7.5EB1 (7.5V)
407 099 5808 ZENER DIODE MTZJ7.5A (7.5V)
★D612 407 104 2402 PHOTO COUPLE PC817C
407 106 6101 PHOTO COUPLE PC817D
407 147 5705 PHOTO COUPLE ON3131S
407 175 9904 PHOTO COUPLE TLP621-1-BL
D614 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D621 407 007 7603 DIODE EU2
★D624 407 129 6706 DIODE RU4YX LF-L1
407 211 6102 DIODE FE301-1L43
★D625A 407 191 3900 DIODE FML-G16S
D627 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D629 407 054 7007 ZENER DIODE RD16EB1 (16V)
407 099 7208 ZENER DIODE MTZJ16A (16V)
D680 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D683 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D687 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D693 407 057 2702 ZENER DIODE RD6.2EB2 (6.2V)
407 099 5402 ZENER DIODE MTZJ6.2B (6.2V)
D694 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D702 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D703 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D704 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D705 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D712 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D713 408 047 6502 ZENER DIODE MTZJ5.1A (5.1V)
D714 408 047 6502 ZENER DIODE MTZJ5.1A (5.1V)
D715 408 047 6502 ZENER DIODE MTZJ5.1A (5.1V)
D722 407 006 3903 DIODE ERB43-04
407 011 4407 DIODE TVR1G
D732 407 057 8308 ZENER DIODE RD8.2EB2 (8.2V)
407 063 9504 ZENER DIODE MTZJ8.2B (8.2V)
Schematic
Location Part No. Description Schematic Location Part No. Description

— 16 —
D741 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D751 407 118 2207 ZENER DIODE 1Z75 (75V)
D752 407 118 2207 ZENER DIODE 1Z75 (75V)
D753 407 118 2207 ZENER DIODE 1Z75 (75V)
D754 408 048 2404 ZENER DIODE MTZJ12B (12V)
D820 407 149 0807 DIODE 1SS355 TE-17
D831 407 222 5903 ZD UDZS-TE-173.6B (3.6V)
D1001 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1002 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1011 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1021 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1026 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1051 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1052 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1053 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D1901 408 047 9206 ZENER DIODE MTZJ7.5C (7.5V)
D8000 407 099 4504 ZENER DIODE MTZJ3.9A (3.9V)
INTEGRATED CIRCUITS
IC002 409 275 7903 IC LA4525
★IC201 409 496 1506 IC CXA2142BS
IC301 409 491 5608 IC TDA9183T/N1
IC486 409 366 7904 IC UPC78M09AHF
409 367 2809 IC BA178M09T
409 370 0007 IC MC78M09CT
409 377 5401 IC L78M09CV
★IC501P 409 492 9704 IC LA7847
★IC601 409 172 8102 IC SE130NH
IC681 409 066 7303 IC UPC78L05J
409 241 8309 IC TA78L05S
IC701 409 476 5104 IC TDA6108JF/N1
IC801 410 433 2609 IC M37272MA-***** T4
IC802 409 333 3700 IC 24LC02B/P
409 376 1503 IC ST24C02B6
409 440 8902 IC M24C02-BN6
409 495 6908 IC CAT24WC02P
409 497 0706 IC S524C20D21-DCB0
409 528 8404 IC S524A40X21-DCB0
IC1001 409 051 3006 IC TC4053BP
IC1002 409 051 3006 IC TC4053BP
IC1003 409 051 3006 IC TC4053BP
IC3401 409 467 1108 IC CXA2134Q-T6
IC8001 409 466 6302 IC M65667SP
COILS
★LF601 645 042 7510 LINE FILTER
L101 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L223 645 011 0276 INDUCTOR, 2.7U K
645 016 2800 INDUCTOR, 2.7U K
L242 645 003 9652 INDUCTOR, 10U J
L243 645 015 5000 INDUCTOR, 56U J
L301 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L302 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L303 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L306 645 008 2856 INDUCTOR, 39U K
645 016 3012 INDUCTOR, 39U K
L401 645 036 4327 INDUCTOR, 1.0U, FILTER
L402 652 000 2180 CORE, PIPE
L403 610 078 6820 PIPE CORE
★L413 645 029 8035 COIL, LINEARITY
L414 610 031 1367 INDUCTOR 202J
610 211 3488 INDUCTOR
645 005 5645 INDUCTOR, 2200U K
645 007 8361 INDUCTOR, 2000U
L416A 645 013 8676 INDUCTOR, 350U
L601 610 078 6820 PIPE CORE
L621 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L623 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L625 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L628 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L721 645 001 4796 INDUCTOR, 150U K
L801 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L821 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L851 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L881 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
L882 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
★L901 645 039 2559 COIL, DEGAUSSING
645 041 1830 COIL, DEGAUSSING
645 051 9215 COIL, DEGAUSSING
L1901 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L8007 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L8008 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
Schematic
Location Part No. Description Schematic Location Part No. Description
