Sanyo CP29EF1 User manual

SERVICE MANUAL Colour Television
FILE NO.
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSG
TV/AV MENU - + CH
POWER
Original Version
Chassis Series: FC6-A
BA4V/BA4W
Model No. CP29EF1
(Australia / New Zealand)
Give complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Service Ref. No. CP29EF1-00 (BA4V)
CP29EF1-50 (BA4W)
Product Code: 113003716
Specifications
Power Source . . . . . . . . . . AC220-240V, 50Hz/60Hz.
Colour System . . . . . . . . . PAL/NTSC4.43/NTSC/PAL-60Hz
Television System . . . . . . B/G, D/KK’, I, M/M
Channel Coverage . . . . . VHF: E2-E12, R1-R12, K1-K9, J1-J12, A2-A13
0-11, 5A(Aus), 1-11(NZ)
UHF: 21-69, A14-A69, J13-J62, 28-69(Aus)
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack x 2 (1Vp - p, 75Ω)
DVD Input: Component Video Jack-Y 1 (1.0Vp-p, impedance 75Ω)
Component Video Jack CB/CR 1 (0.7Vp-p, impedance 75Ω)
Audio inputs: Phono jack (L/R) x 2 (500mVrms, more than 47KΩ)
Video monitor outputs: Phono jack x 1 (1Vp - p, 75Ω)
Audio monitor outputs: Phono jack (L/R) x 1 (500mVrms, less than 820Ω)
Headphone jack: Mini stereo jack x 1
Sound Output (RMS) . . . . 7.5W + 7.5W
Speaker . . . . . . . . . . . . . 6 cm 12 cm 2 pcs
Dimensions . . . . . . . . . . . . 750 (W) 581 (H) 497 (D)mm
Weight . . . . . . . . . . . . . . . . approx. 47.5 Kg
Specifications subject to change without notice.
REFERENCE NO. SM3010346
- NOTE -
Service Ref. No. CP29EF1-00 is electrically the
same as Service Ref. No. CP29EF1-50.
The difference between Service Ref. No.
CP29EF1-00 and CP29EF1-50 is as follow:
1) Destination CP29EF1-00...Australia
CP29EF1-50...New Zealand
SM_29-BA4V(FC6-A)AUS 6/4/08 4:53 PM Page 1
All manuals and user guides at all-guides.com
all-guides.com

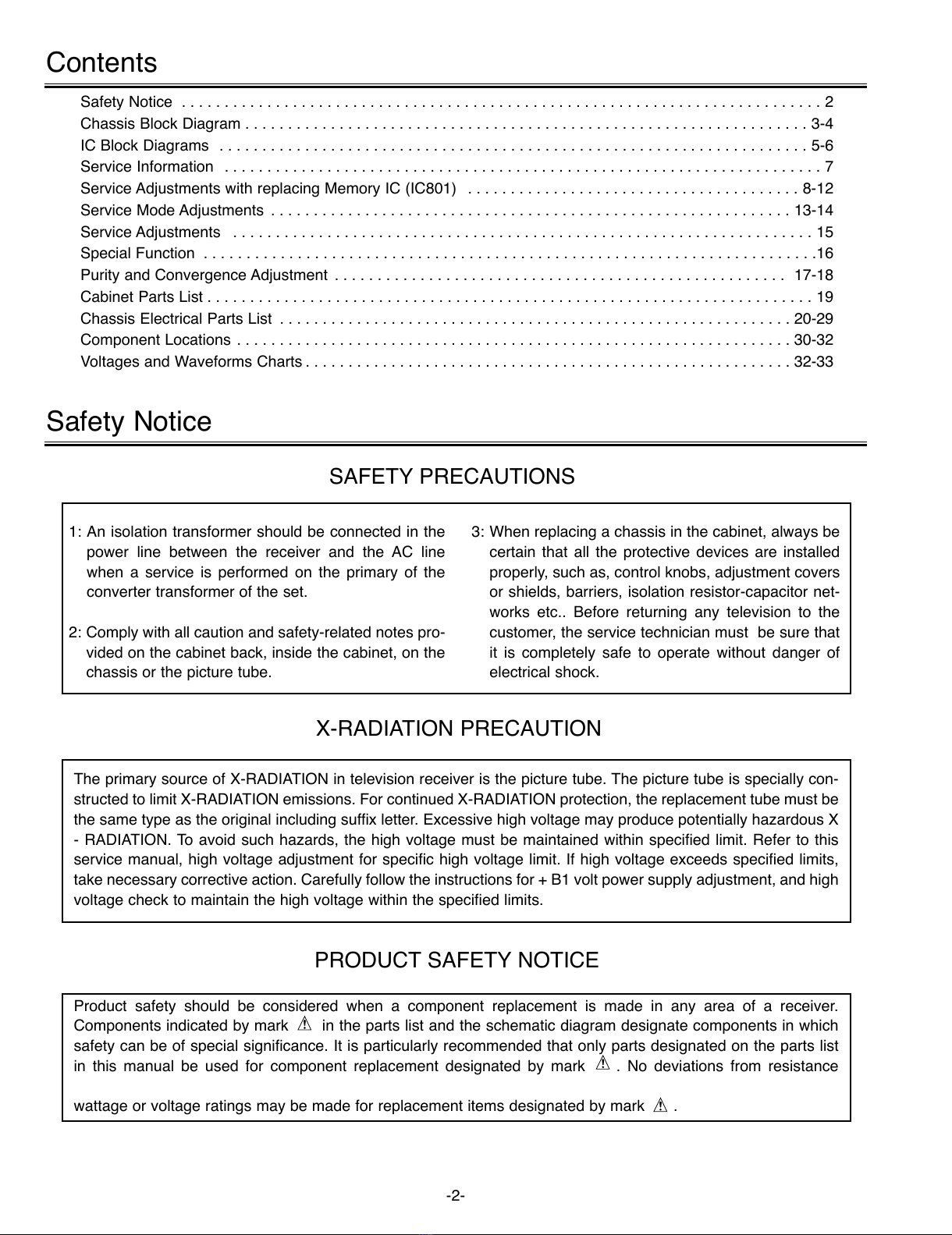

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

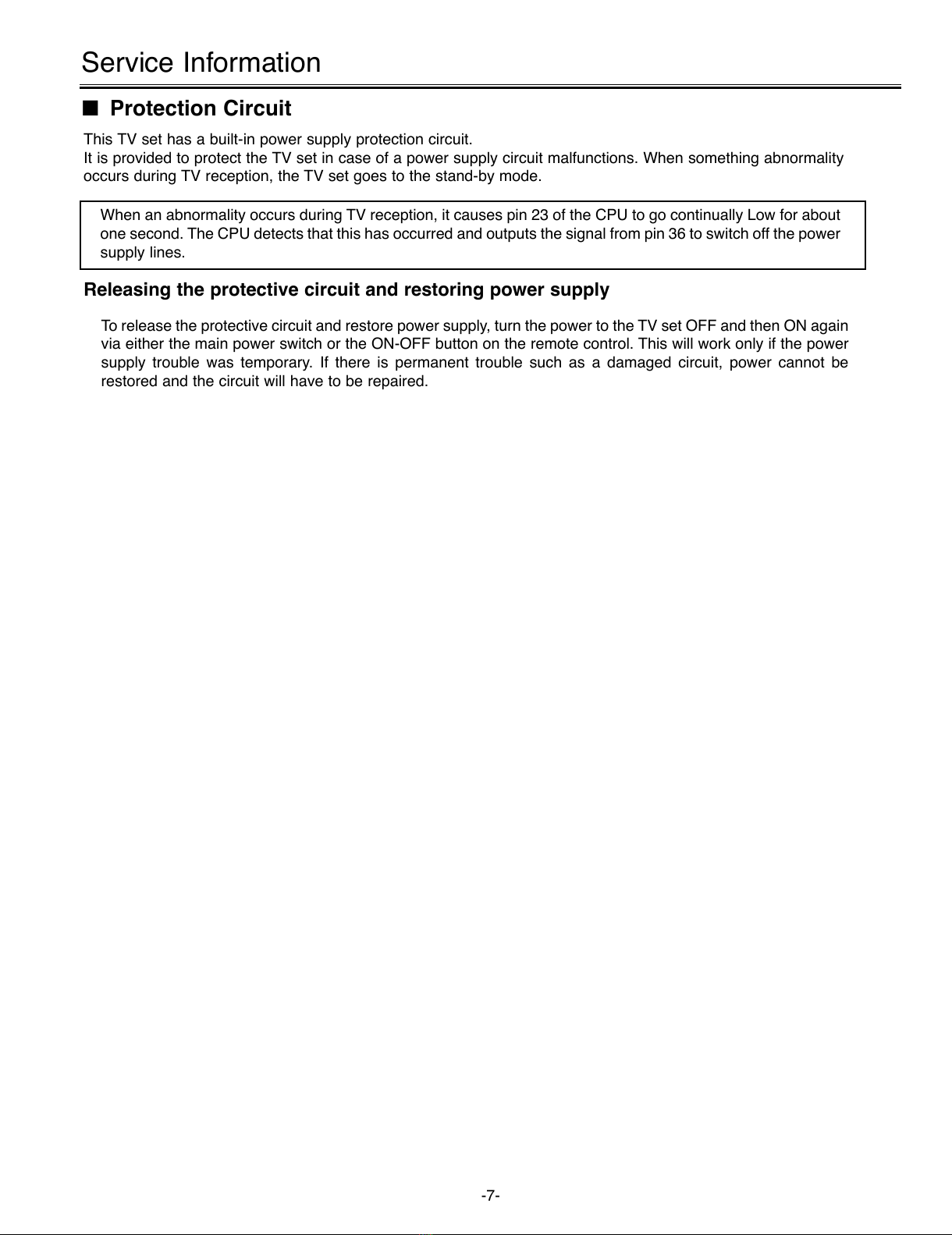

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

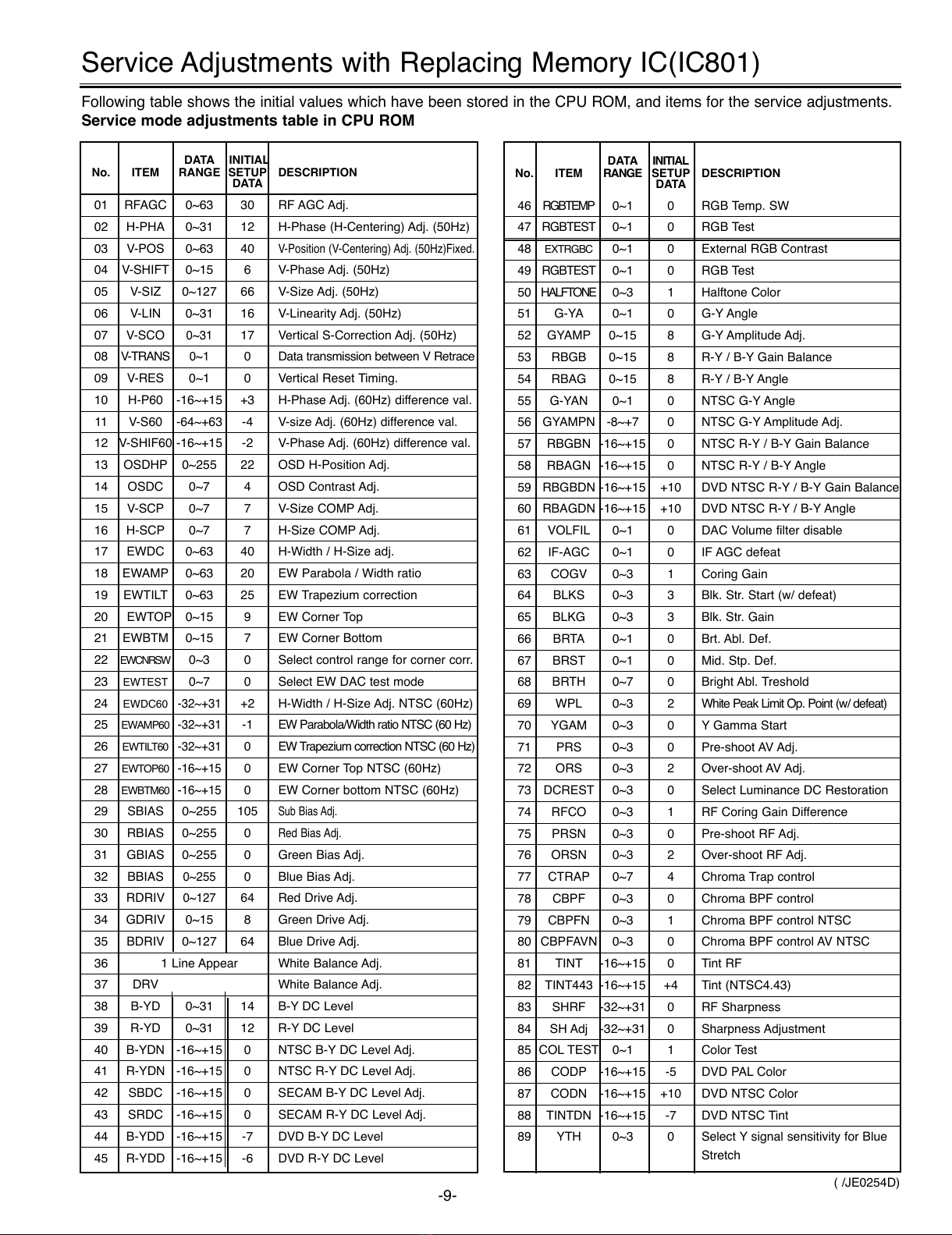

Service Adjustments with replacing Memory IC (IC801) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

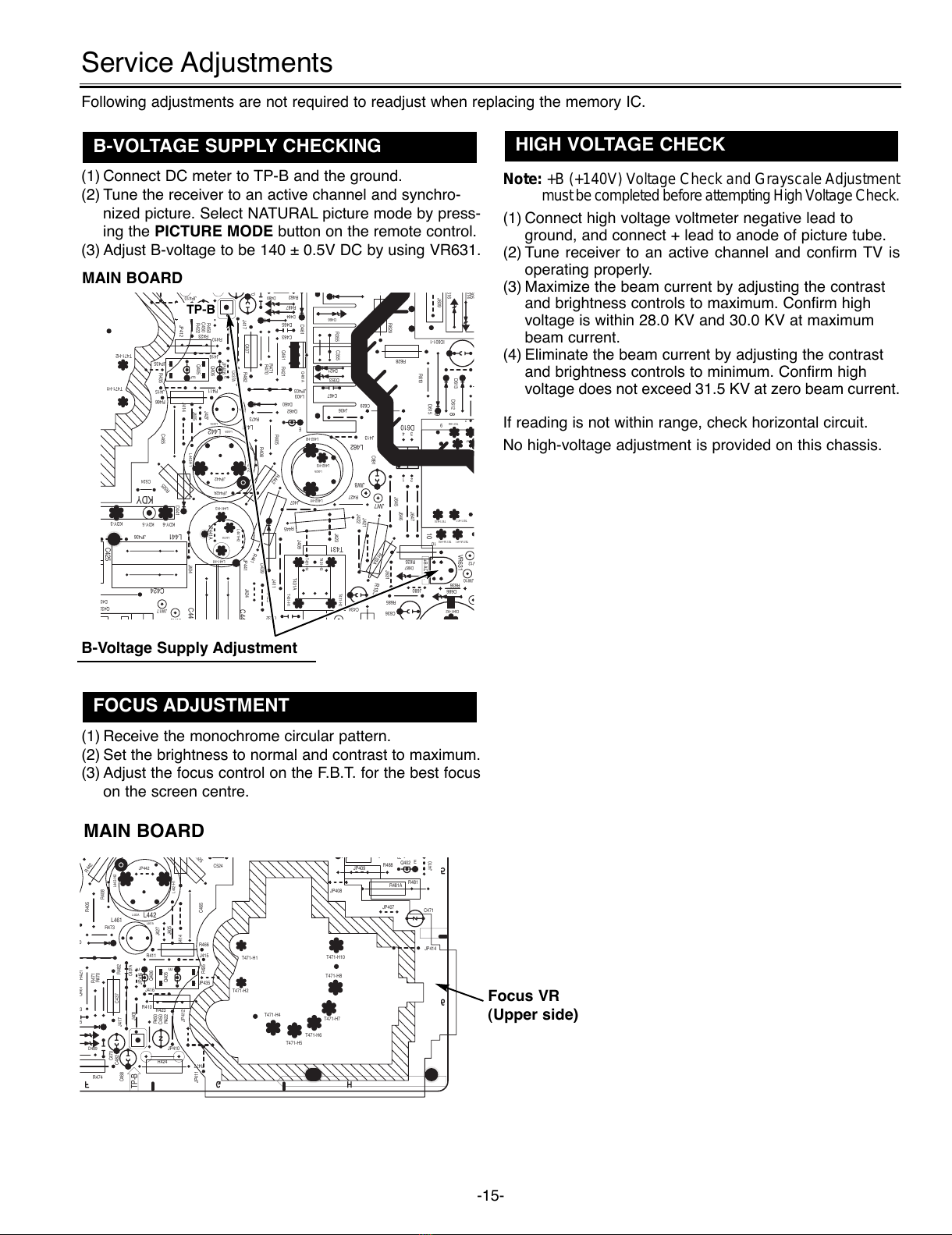

Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

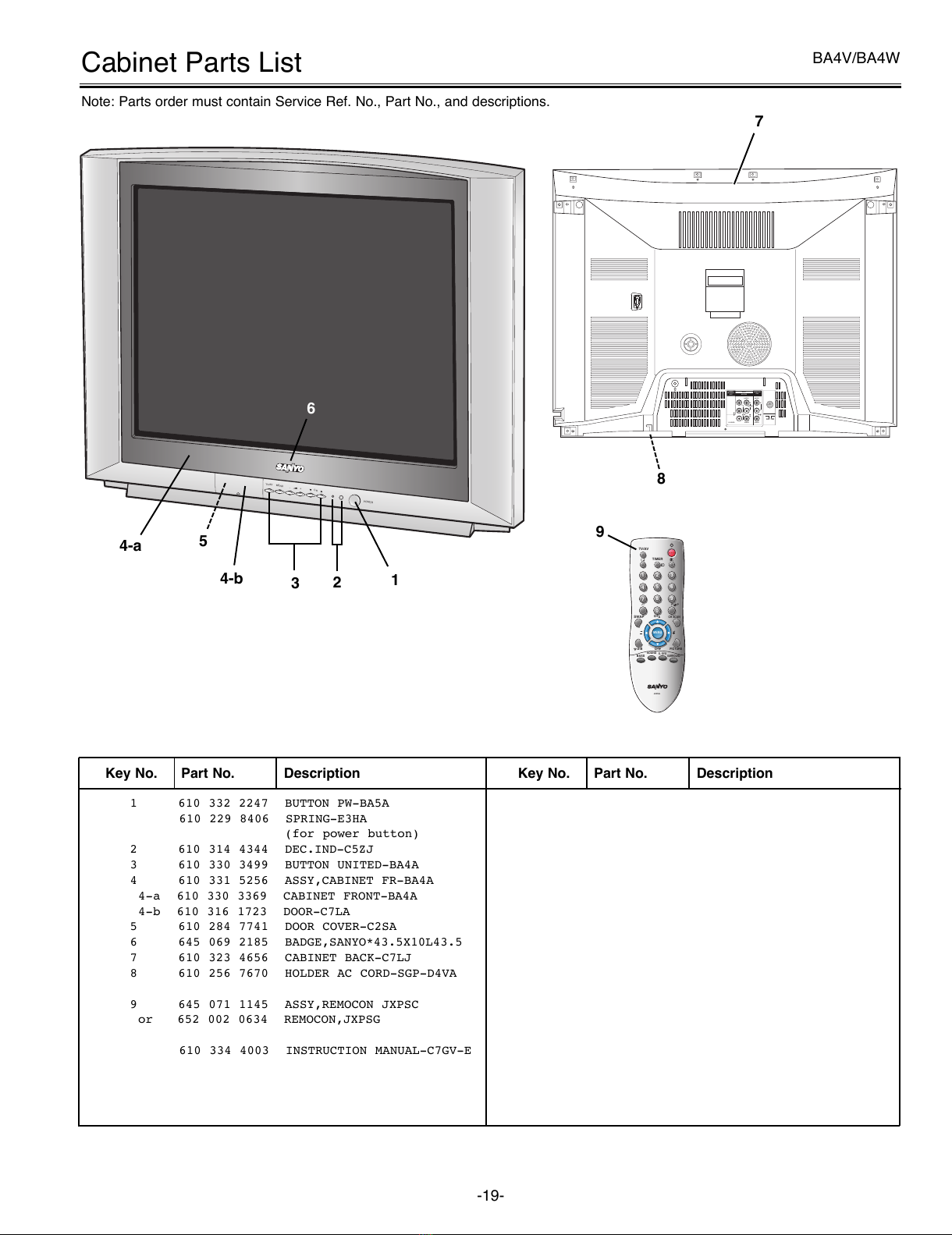

Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

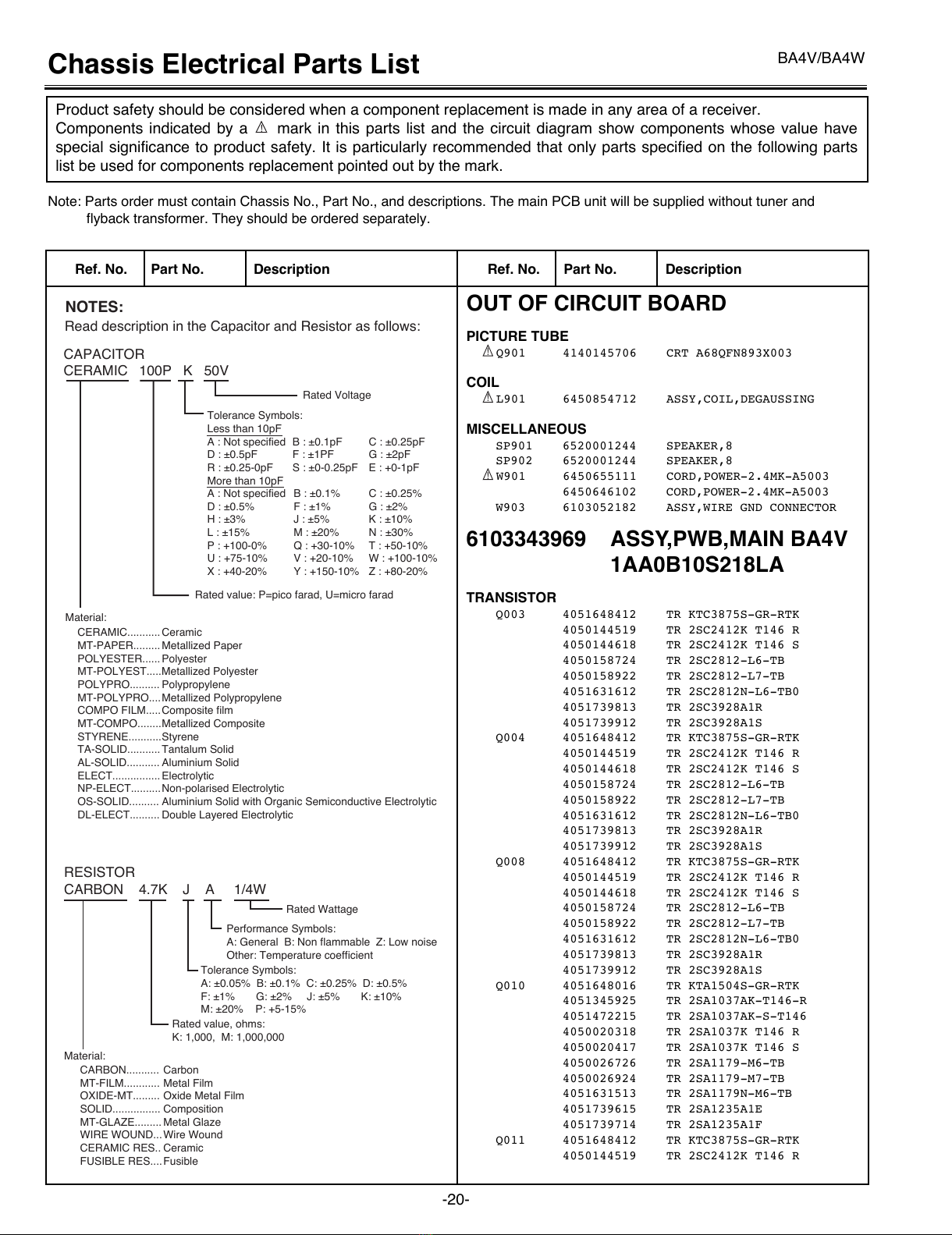

Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-29
Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32
Voltages and Waveforms Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high
voltage check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
SM_29-BA4V(FC6-A)AUS 6/4/08 7:13 PM Page 2
All manuals and user guides at all-guides.com

-3-

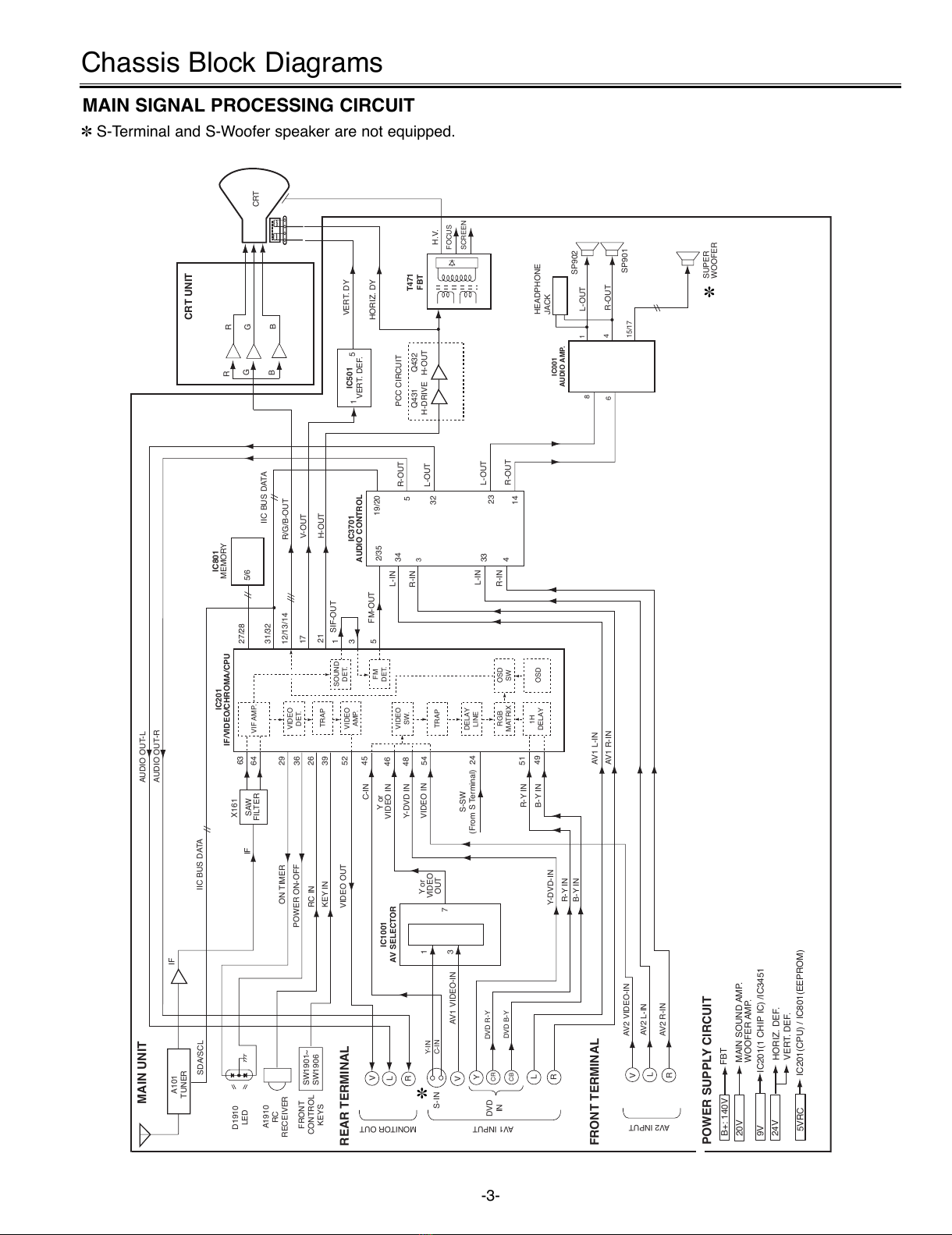

Chassis Block Diagrams
A101
TUNER
IC1001
AV SELECTOR
V
L
R
MONITOR OUT
AV1 INPUT
V
S-IN
CR
CB
Y
L
R
DVD
IN
Y or
VIDEO IN
C-IN
IC801
MEMORY
H.V.
Q431
H-DRIVE
IC501
VERT. DEF.
CRT UNIT
IC001
AUDIO AMP.
SP902
SP901
CRT
MAIN UNIT
REAR TERMINAL
32
5
8
64
1
SAW
FILTER
63
HEADPHONE JACK
3
Y-IN
C-IN
7
48
45
VIDEO OUT
1
IC201
IF/VIDEO/CHROMA/CPU
Y or
VIDEO
OUT
15
Q432
H-OUT
VERT. DY
T471
FBT
FOCUS
SCREEN
HORIZ. DY
L-OUT
R-OUT
SUPER WOOFER
R-Y IN
B-Y IN
51
49
52
AUDIO OUT-R
AUDIO OUT-L
DVD R-Y
DVD B-Y
Y-DVD-IN
AV1 R-IN
AV1 VIDEO-IN
B+: 140V
24V
20V
9V
5VRC
FBT
HORIZ. DEF.
VERT. DEF.
MAIN SOUND AMP. WOOFER AMP.
IC201(1 CHIP IC) /IC3451
IC201(CPU) / IC801(EEPROM)
POWER SUPPLY CIRCUIT
R
B
G
R
B
G
64 29 36 26 39
X161
IF
IF
AV1 L-IN
Y-DVD IN
VIDEO IN
46
R-Y IN
B-Y IN
FRONT TERMINAL
V
L
R
AV2 INPUT
IC3701
AUDIO CONTROL
54
AV2 VIDEO-IN
AV2 L-IN
AV2 R-IN
2/35
34
4
33
19/20
3
14
23
15/17
5/6
27/28 31/32
IIC BUS DATA
12/13/14
17
21 H-OUT
V-OUT
R/G/B-OUT
FM-OUT
5
L-IN
L-IN
R-IN
R-IN
R-OUT
L-OUT
PCC CIRCUIT
R-OUT
L-OUT
1
3
SIF-OUT
VIF AMP.
VIDEO
DET.
TRAP
VIDEO
AMP.
SOUND
DET.
FM
DET.
VIDEO
SW.
TRAP
DELAY
LINE
RGB
MATRIX
OSD
SW
OSD
1H
DELAY
A1910
RC
RECEIVER
SW1901~ SW1906
D1910
LED
FRONT
CONTROL
KEYS
ON TIMER
POWER ON-OFF
KEY IN
RC IN
SDA/SCL
S-SW
(From S Terminal) 24
IIC BUS DATA
MAIN SIGNAL PROCESSING CIRCUIT
 S-Terminal and S-Woofer speaker are not equipped.


SM_29-BA4V(FC6-A)AUS 6/4/08 4:53 PM Page 3
All manuals and user guides at all-guides.com

-4-
Chassis Block Diagrams
SYSTEM CONTROL
BASS EXPANDER / WOOFER (BASS ON=HIGH)
37
39 KEY SWITCH IN KEY
SWITCH
IIC SCL
32
31
36
IIC SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
QXXAVC568N
12 13
14
23
2827
34 33
29
26
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High) CRT UNIT
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
IIC SCL
IIC SDA
IC801
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
30
SOUND MUTE (MUTE=H)
IC001
AUDIO AMP.
A101
F/S TUNER
RESET INPUT (RESET=LOW)
40
56
5
4
IC3701
AUDIO CONTROL
19
20
S-VIDEO IN (S-IN=LOW) 24
QXXAVC796---N
SM_29-BA4V(FC6-A)AUS 6/4/08 4:53 PM Page 4
All manuals and user guides at all-guides.com

-5-

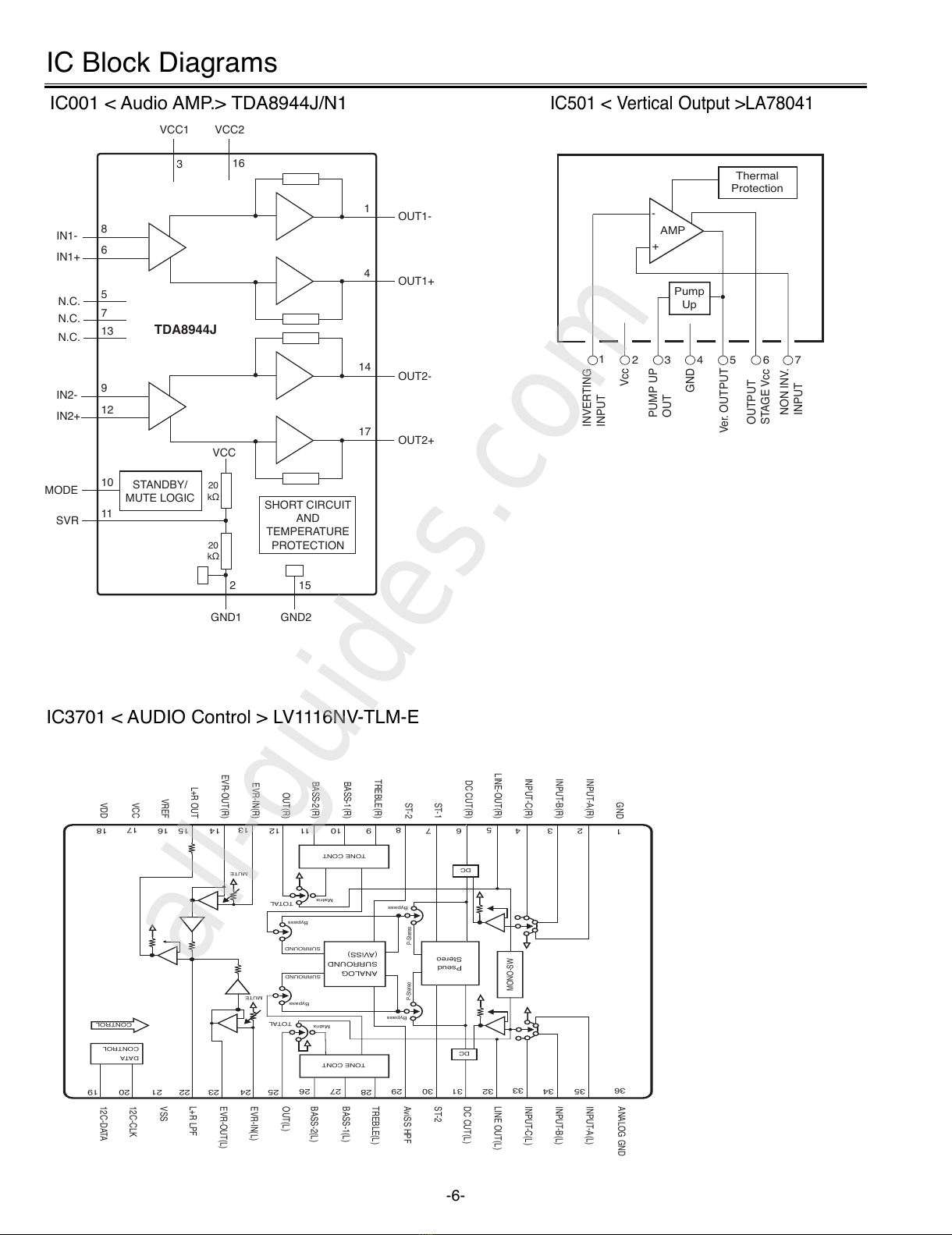

IC Block Diagrams

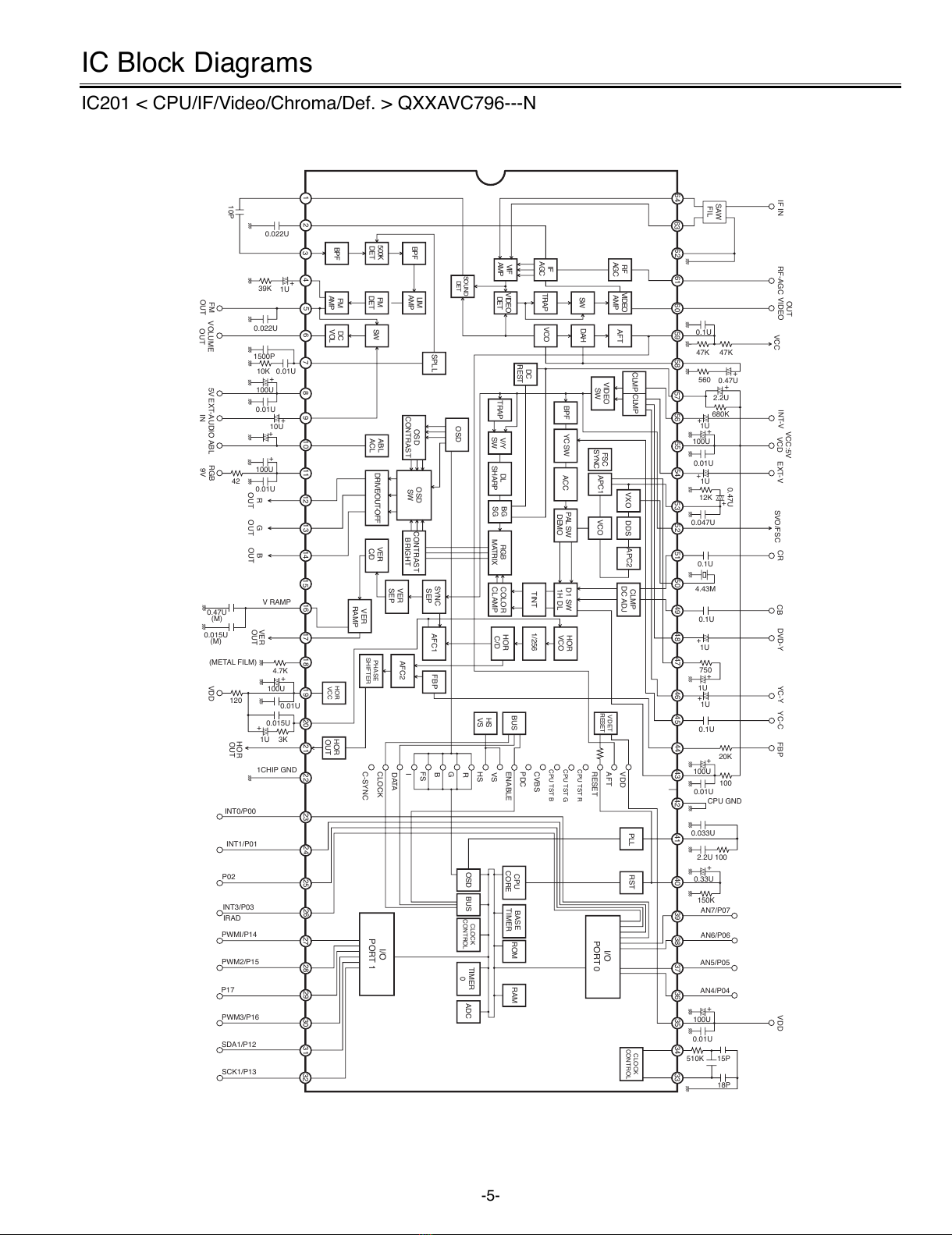

IC201 < CPU/IF/Video/Chroma/Def. > QXXAVC796---N
