Sanyo C14ZA25 User manual

INSTRUCTION MANUAL
Colour Television
Cl 4ZA20
Cl 4ZA25
Teletext (Model C14ZA25 only)
Special Function
AVInput &Output Terminal

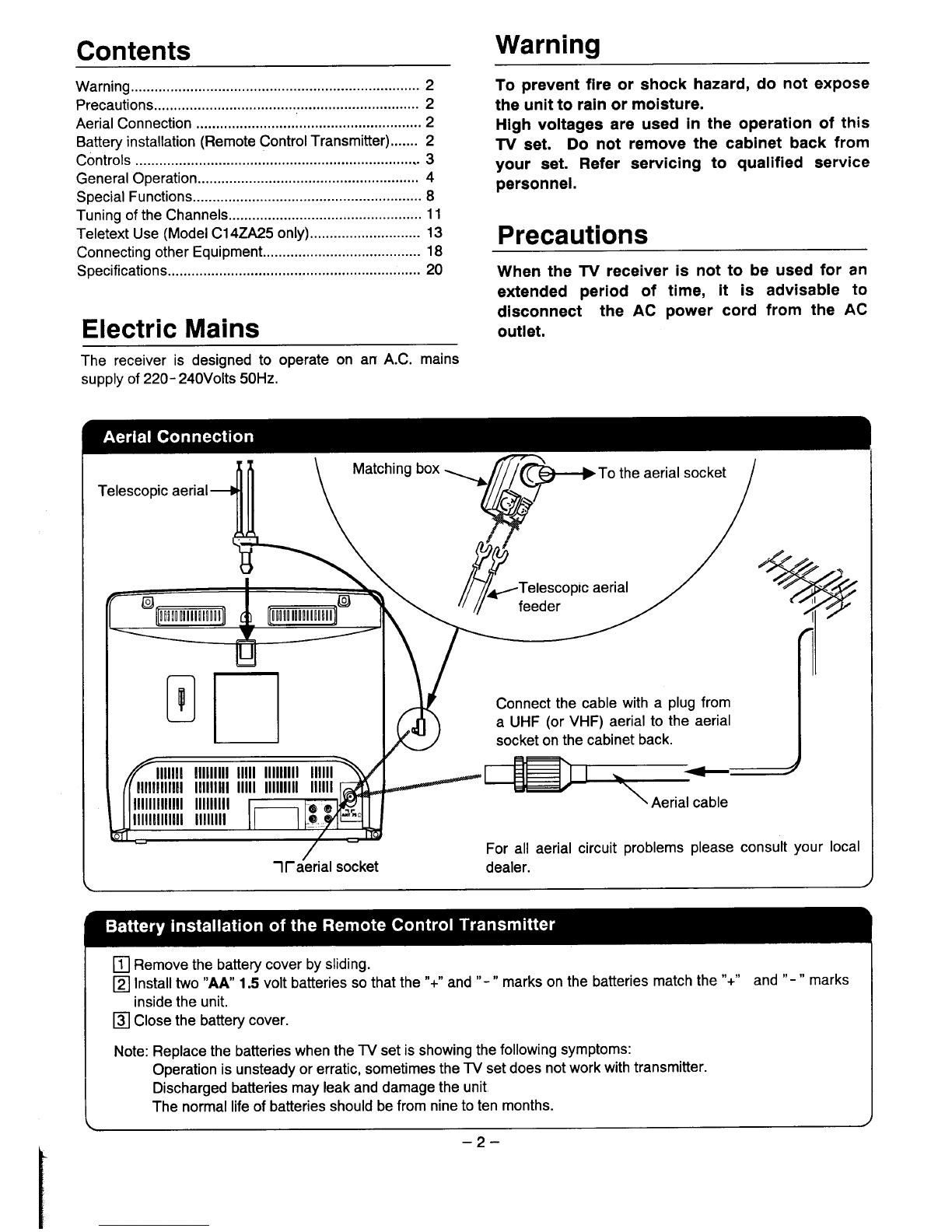

Contents Warning
Warning ......................................................................... 2
Precautions ................................................................... 2
Aerial Connection ......................................................... 2
Battery installation (Remote Control Transmitter) ....... 2
Controls ........................................................................ 3
General Operation ........................................................ 4
Special Functions .......................................................... 8
Tuning of the Channels ................................................. 11
Teletext Use (Model C14ZA25 only) ............................ 13
Connecting other Equipment ........................................ 18
Specifications ................................................................ 20
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
High voltages are used in the operation of this
TV set. Do not remove the cabinet back from
your set. Refer servicing to qualified service
personnel.
Precautions
When the TV receiver is not to be used for an
extended period of time, it is advisabie to
Electric Mains disconnect the AC power cord from the AC
outlet.
The receiver is designed to operate on an A.C. mains
Sllppiy Of 220- 2@vOltS 50 Hz.
1( Matching box
/
To the aerial socket
Telescopic aerial
*&
../
w
111111!!1111111111111111111111111111
!1!11!111!!11!1!1111111111111111111111111
1!!1111!11!!111!1!1111
1111!1!111!1111!11111 e.,
)/
/
1r<erial socket
Connect the cable with aplug from
aUHF (or VHF) aerial to the aerial
socket on the cabinet back.
\Aefial cable
For all aerial circuit problems please consult your local
dealer.
❑Remove the battery cover by sliding.
❑Install two “AA 1.5 volt batteries so that the “+” and”-” marks on the batteries match the “+” and “-” marks
inside the unit.
I❑Close the battery cover.
Note: Replace the batteries when the TV set is showing the following symptoms:
Operation is unsteady or erratic, sometimes the TV set does not work with transmitter.
Discharged batteries may leak and damage the unit
The normal life of batteries should be from nine to ten months.

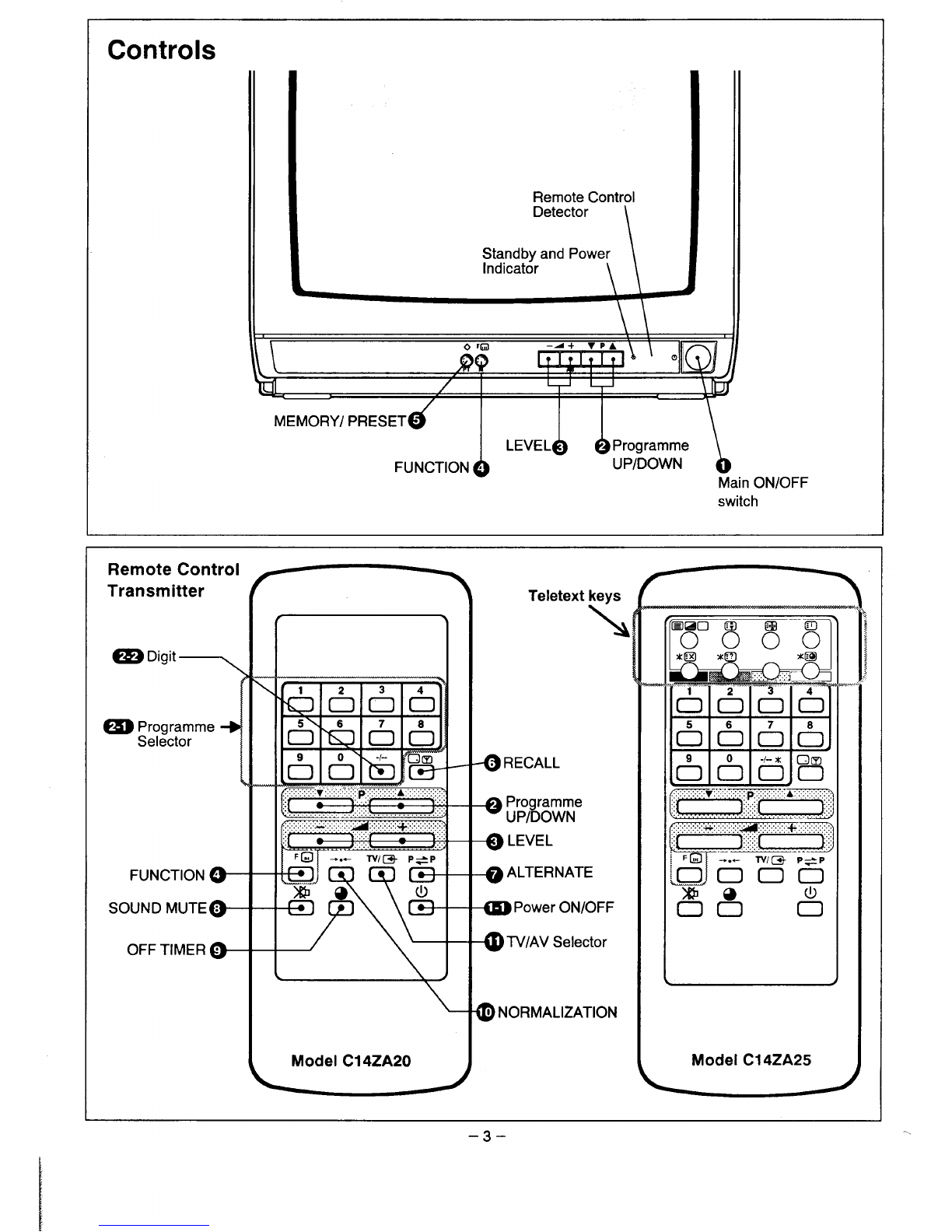

Controls
Remote Control
MEMORY/ PRESET
FUNCTION ~UP/DOWN Main ON/OFF
switch
\
,<,,,.
,1
f
/
t
–3–

General Operation
“o “00
To switch on or off the TV; To set the TV to standby mode;
Press the Main ON/OFF ~
button.
The power of the TV is turned on,
or off completely.
Important !
Be sure to set the Main ON/OFF switch
the power failure occurs while viewing.
f
mm’
+.:.:.:.:.:.:~.:.:,:,:,:,:,:.:
..:.:::A:::.:.:.:.::.:..
,...........
..’xL-x
*~
/!!)8 6
sss the Power ON/OFF button ~
To turn on theTV, press again.
Oto the off position, if
To turn on the TV from standby
mode;
Press (J
P
Power ON/OFF ~
(remote control transmitter)
v
or
or
,.,.,.,.:.:.:.,V::.,.,.
. . . . . . . . . .’.”.:......<pw+.A :::::::::::::
VT ,,,,,
.,,.,, ,,,,,
...... ,,,,,
.,,..,,.,
......
,,..
Programme UP/DOWN o
(remote control transmitter)
1to 9, 0Key
P(remote control
transmitter)
or -d+TPA
mProgramme
UP/DOWN @
(TV set)
\
\AUTO SHUT OFF I I
This TV set incorporates the AUTO SHUT OFF function. Remaining time
Even if the TV is left on after you have gone to sleep, the TV set changes
to the standby mode within 10 minutes after all broadcasts have ended.
L,
29
–lo
\
To select aprogramme directly For example;
m
Programr
Selector
/
Digit
To select aprogramme 8
fTo select aprogramme 10
-1--*
,6Press the Digit ~key. 1
=-l ’67810,
(To select aprogramme 27
-/--*
,(7
?ti.rz?ld
–4–

.
General Operation
To select achannel
Remote Control Transmitter
[
.
Front controls of the TV
or oFQ -A +VPA
W’
Programme UP/DOWN
To adjust the sound volume
IdSOUND
111111 --------- LEVEL
J
To display the on screen indications, press the RECALL
key.
..........p.. ...+.+..A.;.:.:.:.,.,.. =
‘fftimer+291’
Screen display disappears after
about 5seconds.
Press the ALTERNATE @key, and the programme position
alternately select the previous position and the present position,
~’..’.t
,,,,,,,,,,,,,,,,,,.,,,,,
...,. I-v/mPAP
u
-Q
ALTERNATE
–5–
will I
42
I
For example, now you are watching programme position
“4” but you watched programme position “2” previously. If
you press the ALTERNATE key, programme position “2”
immediately appears.

General Operation
Should you wish to mute the sound (e.g. While talking on
the telephone), press the SOUND MUTE ~key.
,,,.,,,
Q‘Om ‘g
00 ~SOUND MUTE
ASOUND MUTE
111111 ---------
To switch the sound back on,
press SOUND MUTE key again.
The TV set will be turned off after about 30,60,90 or 120
Press the OFF TIMER ~key.
~:~ ....
,.,,,.,
,.
!FGI[ -.+ lv/~ P*P
q:0 ~
o\~OFFTIMER
To cancel the OFF TIMER
Press the OFF TIMER key until”- –“appears.
minutes.
I‘- ++30-+1-6CI
No off timer After 30 minutes After 60 minutes
L+ I-120 +1 -90
After 120 minutes After 90 minutes
IJust one minute before switching off the TV, “–01” ‘
and channel number will be displayed on the
screen.
Y– 01 25
IIII
This function lets you store the settings (for colour, brightness, contrast, sharpness, sound volume)in memory for both
picture and the sound, and these setting levels can be recalled by pressing the NORMALIZATION @key of the remote
control transmitter.
To store the picture and sound settings
(1) Set the picture and sound to the desired levels. —> ASOUND
111111--------- etc.
(2) Press the MEMORY/PRESETO ~button while the control function display is still visible on the screen,
orQ rfyfy .1 ->1 .!y’’’’:’- I
c
~MEMORY/ PRESET -
NOTE: The control settings will not be saved if the MEMORY button is pressed after the control function display has
left the screen.
-
[,!
IFQ:
~,~ -.+’’”’”’”:,=‘o:”
‘e ~M
Press the NORMALIZATION @key.
*The colour, brightness, contrast, sharpness and
NORMALIZATION sound volume settings which you stored using the
MEMORY button are recalled.
–6–

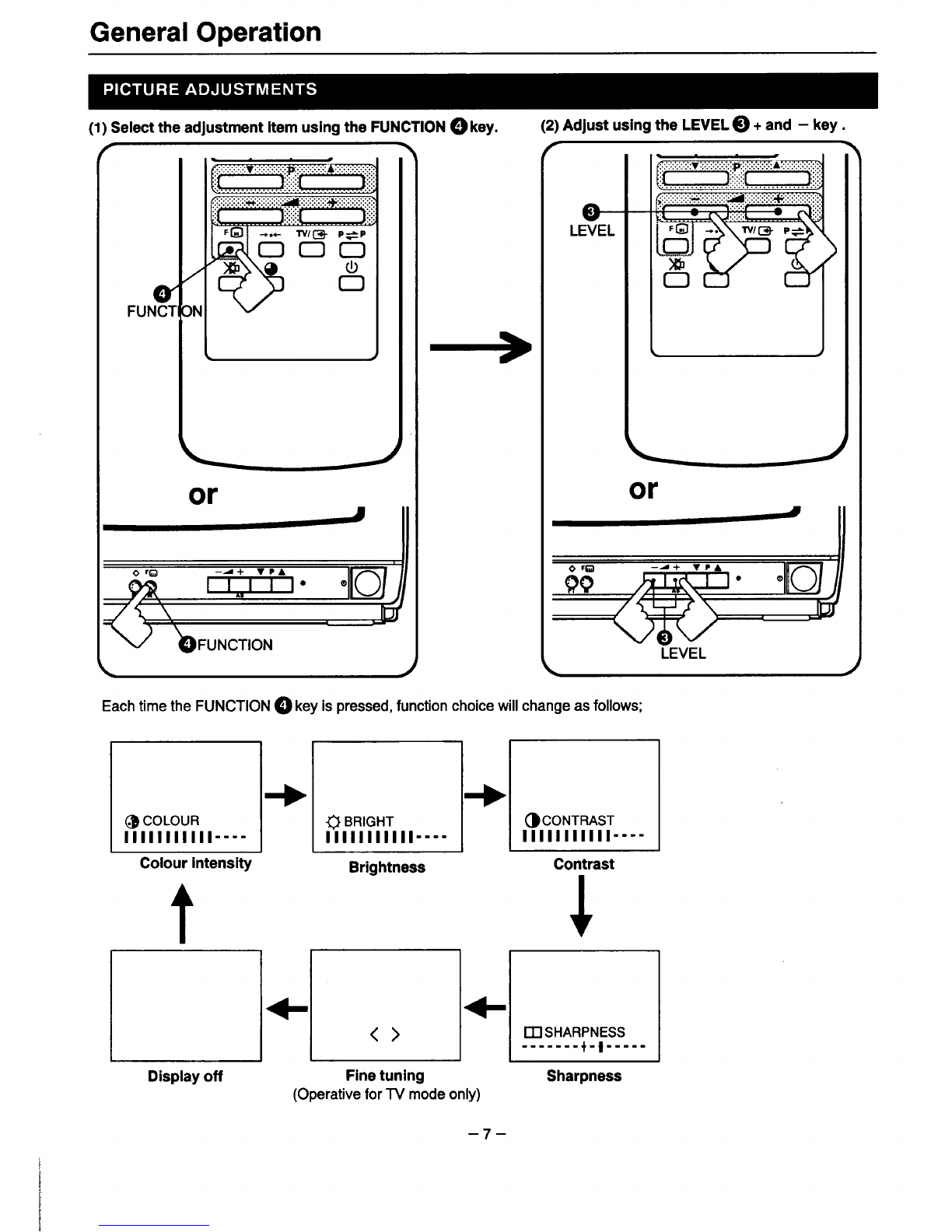

General Operation
(1) Select the adjustment item using the FUNCTION Okey. (2) Adjust using the LEVEL @+ and –key.
FU
-II
LEVEL
or aI
oFQ -A+ TPA
W?
iEVEL
Each time the FUNCTiON ~key is pressed, function choice wiii change as foiiows;
@COLOUR
11111111111 ----
Coiour intensity
~BRIGHT
11111111111 ----
IBrightness
I
Il+
I I <>
II1
~CONTRAST
11111111111 ----
Contrast
+IUISHARPNESS
------- t-i-----
Dispiay off Fine tuning Sharpness
(Operative for TV mode oniy)
–7–

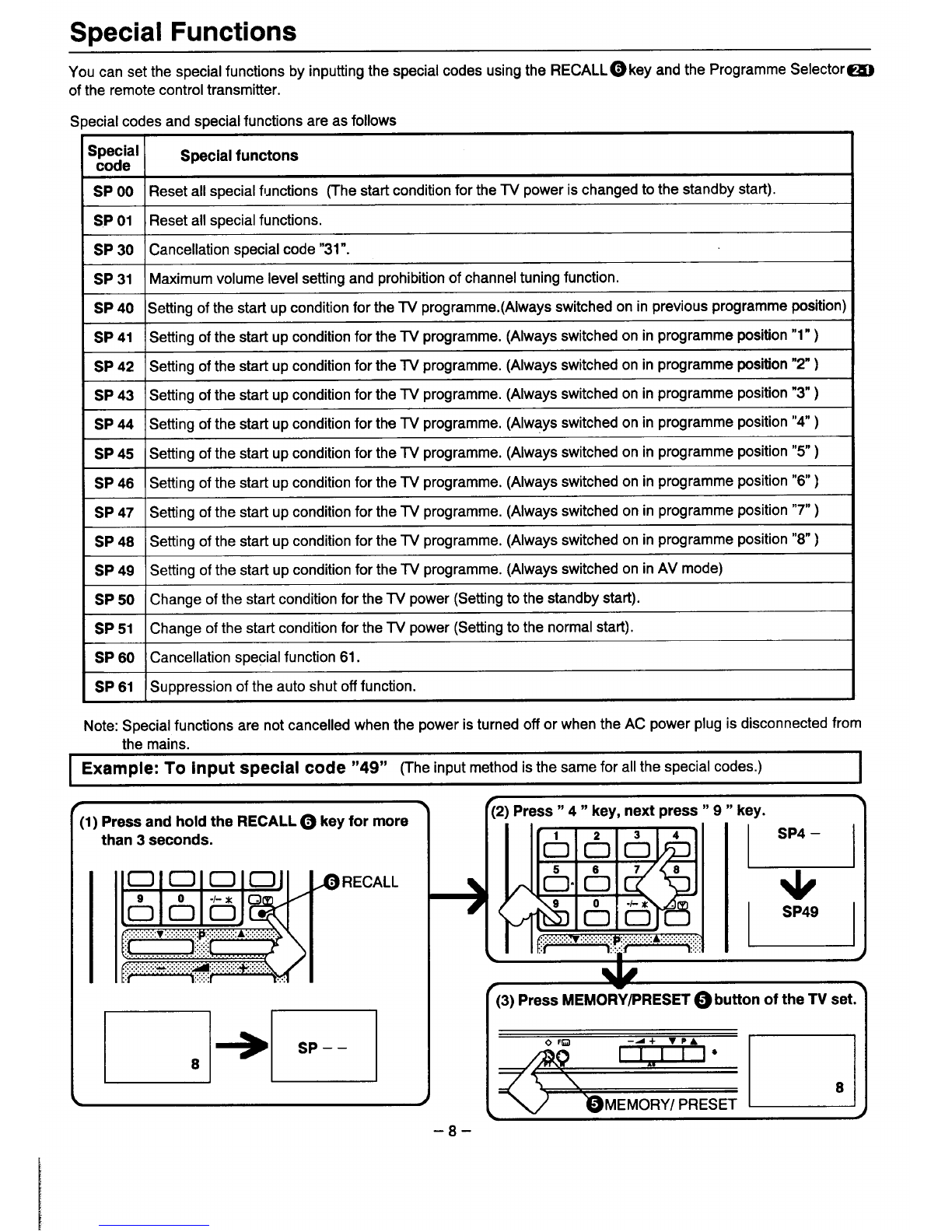

Special Functions
You can set the special functions by inputting the special codes usingthe RECALL@ key and the Programme Selector=
of the remote control transmitter.
Special codes and special functions are as follows
special Special functons
code
SP 00 Reset all special functions (The start condition for the TV power is changed to the standby start).
SP 01 Reset all special functions.
SP 30 Cancellation special code “31”.
SP 31 Maximum volume level setting and prohibition of channel tuning function.
SP 40 Setting of the startup condition for the TV programme.(Always switched on in previous programme position)
SP 41 Setting of the startup condition for the TV programme. (Always switched on in programme position”1” )
SP 42 Setting of the startup condition for the TV programme. (Always switched on in programme position “T )
SP 43 Setting of the startup condition for the TV programme. (Always switched on in programme position”~ )
SP 44 Setting of the startup condition for the TV programme. (Always switched on in programme position “4” )
SP 45 Setting of the startup condition for the TV programme. (Always switched on in programme position “5” )
SP 46 Setting of the startup condition for the TV programme. (Always switched on in programme position”6 )
SP 47 Setting of the startup condition for the TV programme. (Always switched on in programme position “7”)
SP 48 Setting of the startup condition for the TV programme. (Always switched on in programme position “8” )
SP 49 Setting of the startup condition for the TV programme. (Always switched on in AV mode)
SP 50 Change of the start condition for the TV power (Setting to the standby start).
SP 51 Change of the start condition for the TV power (Setting to the normal start).
SP 60 Cancellation special function 61.
SP 61 Suppression of the auto shut off function.
Note: Special functions are not cancelled when the power is turned off or when the AC power plug is disconnected from
the mains.
Example: To input special code “49” (The input method is the same for all the special codes.) I
(1) Press and hold the RECALL ~key for more
than 3seconds.
Baw
d
:.::.::.:.::
V,:,:.:.:.:.:.:.:y’x’x “.”’”.”’.”.
((—G, .......
...........
,.:.;.:.:.:.,.:.n.;.:.:.:.;.:&..:.;.:...... . ........
2“3:-...:
~RECALL
LPI-2 4$$
d
(2) Press” 4” key, next press”
b h (M
b b 78
‘bad
.......
............... .:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.:.
., ,.,.,
:....”
,.,.-, ,.,.,
key. 1
u
b,
SP49
-●
(3) Press MEMORY/PRESET ~button of the TV set.
Q‘-e
MEMORY/ PRESET u
-8–

Special Functions
■When “SPO1” is input, all special functions are reset.
9When “SPOO” is input, all special functions are cancelled, and the start condition for TV power is changed to the
standby start condition, meaning that the picture will not appear even when the mains ON/OFF switch ~is set at the
on position. To turn on the TV set from the standby mode, press the Power ON/OFF,~,Programme UP/DOWN @or
Programme Selector ~key.
“SP31” is used to set alimit for the maximum volume level while keeping the current preset programme position in
memory.
When “SP31” is entered, the volume output at the time of entering the code is placed in the memory as the maximum
volume level. In other words, with this code it is possible to set the maximum volume at your preference. Entering this
code automatically suppresses the preset function, so that even if the preset button is pressed, the preset mode will
remain inactive,
(1)Set the disirable volume level using the LEVELO key.
~LEVEL IASOUND
11111111 -----”
(2j Input “SP31”.
The volume level set in this
procedure will be memorized
as the maximum volume level.
To cancell “SP 31”, input “SP 30”.
When “SP 50” is entered, the start condition of the TV power is set to the standby start condition, meaning that the picture
will not appear even when the Mains ON/OFF switch ~is set at the on position(The TV set remains in standby mode).
To return the TV’s power start condition to its original condition(normal start condition), input “SP51”.
When “SP 61” is entered, the auto shut off function is suppressed.
AUTO SHUT OFF
(Refer to page 4)
‘L
29
–lo
To cancell “SP61”, input “SP60”.
–9–

Special Functions
.
These functions can be used to change the startup condition of the TV set as follows;
When “SP40” is input
~2L Previous”
programme
position
When “SP41” is input When “SP42” is input
The TV will always switch on in The TV will always switch on in
programme position 1. programme position 2.
The previously viewed programme
position is always selected.
“SP43” ,,sp44,, “SP45”
(+’I7 H-J 8+7
“SP46” ,,sp47,, ,,Sp48,,
,}sp49,,
/!%7
1,
The TV will always switch on in
AV mode.
–lo–

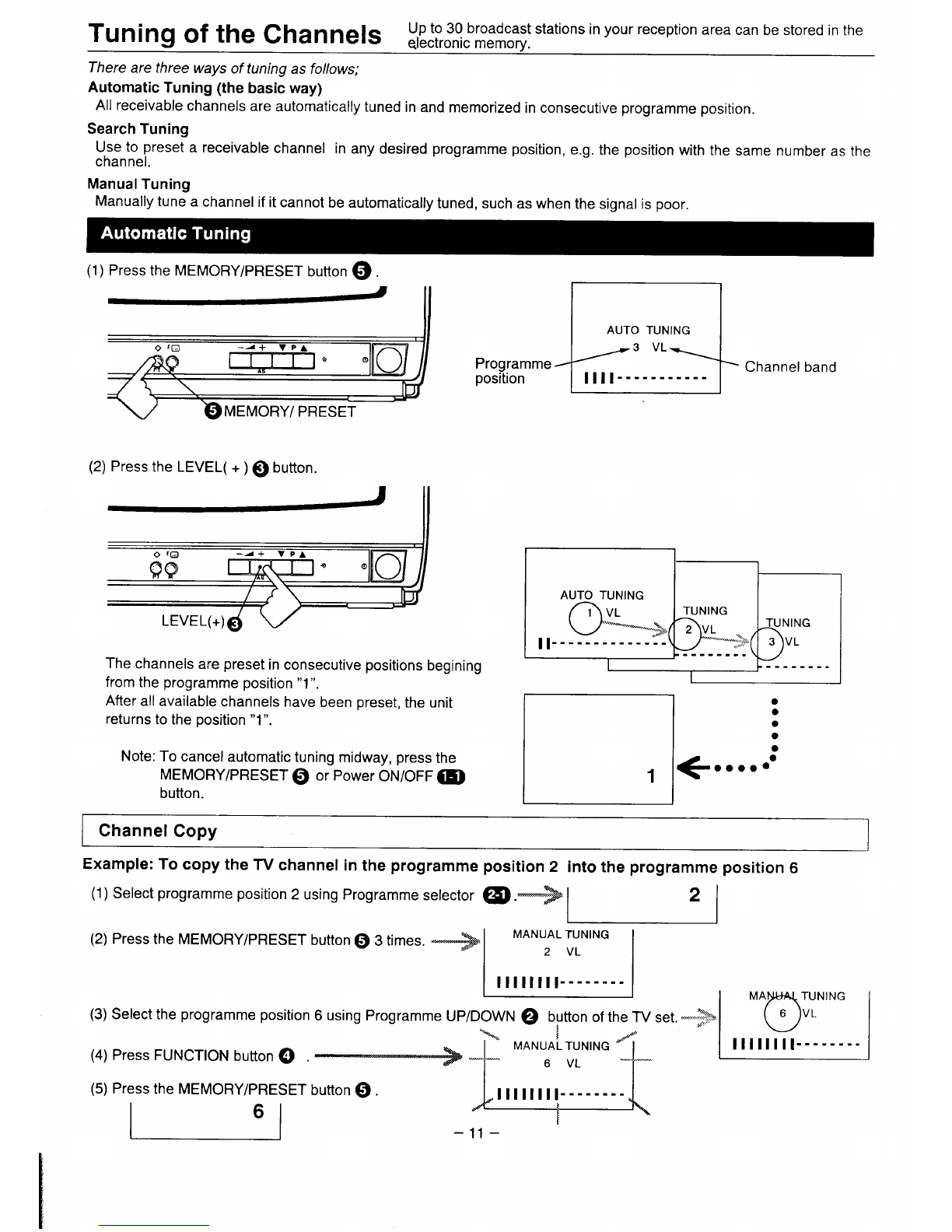

Up to 30 broadcast stations in your reception area can be stored in the
Tuning of the Channels .Iectronic memory.
There are three ways of tuning as follows;
Automatic Tuning (the basic way)
All receivable channels are automatically tuned in and memorized in consecutive programme position.
Search Tuning
Use to preset areceivable channel in any desired programme position, e.g. the position with the same number as the
channel.
Manual Tuning
Manually tune achannel if it cannot be automatically tuned, such as when the signal is poor.
(1) Press the MEMORY/PRESET button ~.
4II
(2) Press the LEVEL(+) Qbutton.
o,~ —A +VPA
9(7 I
/
LEVEL(+)
The channels are preset in consecutive positions begining
from the programme position “1”.
After all available channels have been preset, the unit
returns to the position “1”.
Note: To cancel automatic tuning midway, press the
MEMORY/PRESET @or Power ON/OFF ~
button.
AUTO TUNING
@_.:,*( yG ,,
11-------------- ‘—-3”
------- .r------- .
I
i
●
●
●
●
1+“”’””:
Channel Copy
Example: To copy the TV channel in the programme position 2into the programme position 6
(1)Select programme position 2using Programme selector ~.+ 2I
(2) Press the MEMORY/PRESET button ~3times. +
E
,’”, q. ‘m
(3) Select the programme position 6using Programme UP/DOWN ~button of the TV set. Mm...:...... .+
(4) Press FUNCTION button @,._> ~~ MANUALTUNING
(5) Press the MEMORY/PRESET button ~.
L-
–11–

Tuning of the Channels
Example: To preset achannel in programme position 6
Search Tuning JManual Tuning
+7 ~1
%:.y,+p f&~..#..,.:#
:.,:{,fi,, ,W: ;.;.,,?;#
‘,:,...,:.:,. .,;;,:.
(1) Select programme position 6using Programme selector ~. 6
?v
!
\.@
(2) Press the MEMORY/PRESET button @Wice. (2) Press the MEMORY/PRESET button @3times
~$R~=T”’Yd
‘m
—f~ ~1
<*$,::#%&g,j,@
..
>{
(3) Press the LEVEL(+) or (–)@ button. (3) Press and hold the LEVEL(+) or(–) ~buttor
until the desired station appears.
E‘6@% ,“DJ 1,;:;:;: ~
When astation is found, ....
searching stops automatically. LEVEL
—i )L
?:t,f
,.fl
Y:,i,: .
(4) Press the FUNCTION button ~of the TV set.
(5) Press the MEMORY/PRESET button Qtwice. (5) Press the MEMORY/PRESET button ~.
L“‘~~J1 61
This completes the presetting. ~MEMORY/ PRESET This completes the presetting.
Repeat steps 1to 5for other desired channels.
–12–

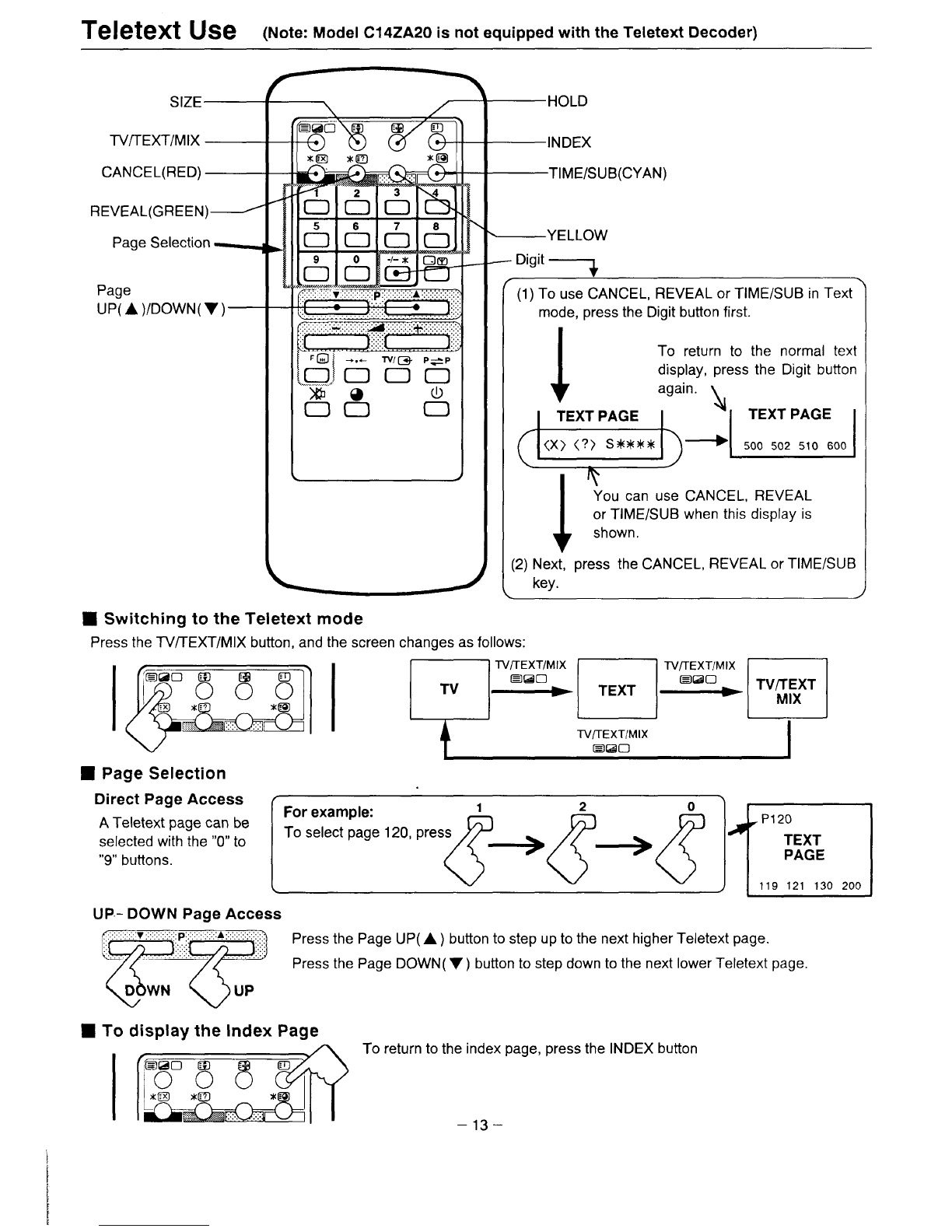

Teletext uSe (Note: Model C14ZA20 is not equipped with the Teletext Decoder)
““t –
TV/TEXT/MIX
CANCEL(RED)
3
R’V’AL(GREEN)
Page Selection
Page
IZ
:::
:=’~
.:............. ,.,,,,,.,.
.
,,..,.
,,,,,,,
I“a”’’’’’’””””’’’’’’””-
Fra’+.- TV/@P*P
.0! 000
&& 8
—
—
\
HOLD
INDEX
TIME/SUB(CYAN)
—YELLOW
—Diait ~+
UP( A)/DOWN( V)
HSwitching to the Teletext mode
Press the TV/TEXT/MIX button, and the screen changes as follows:
(1) To use CANCEL, REVEAL or TIME/SUB in Text
mode, press the Digit button first.
1
To return to the normal text
display, press the Digit button
again.
(ll]~m
1
You can use CANCEL, REVEAL
or TIME/SUB when this display is
shown.
(2) Next, press the CANCEL, REVEAL or TIME/SUB
key.
,Page Selection
F1-Fl-F
III1
Direct Page Access
ATeletext page can be
selected with the “O” to
“9” buttons.
fFor example:
&+&+&’ j-
To select page 120, press
L
UP- DOWN Page Access
8=?=
::::.,:.::::,;:.:........
..,.,.,.:.:p:::::..:::::::A:::::::::::::::;:;, Press the Page UP(A) button to step up to the next higher Teletext page.
Press the Page DOWN(7) button to step down to the next lower Teletext page.
,To display the Index Page
I[L*
To return to the index page, press the INDEX button
–13–

Teletext Use
■Sub- Coded Page Access
When aTeletext information page exceeds more than one screen of information, it may take some time for the automatic
changing of the sub- pages to reach the sub- page you require.
it is possible to enter your required sub- page and continue watching the normal programme until the correct sub- page is
found.
(1)
(2)
(3)
(4)
Select atext page which has sub pages.
Press the Digit button.
‘1 ~=q I I ,)(, :;PAGES****I’
~,:..::.:.:.:.:.:.:j:;p;ti::
L‘“i
Press the TIME/SUB button. /
fu3
P
S**** To go back to normal Teletext page
entry mode, press the Digit button
TEXT PAGE again.
LJ
Enter the desired sub- page.
<Example:
To enter the sub
page “1O”, you must
press the O, 0, 1, and
Obutton. &~~~ ~=1
\
(5) Press the CANCEL button. \
(6) Press the TV~EXT/MIX button to display the received sub- page.
9Viewing TV while searching for apage
Note:
To clear the sub- coded page, enter anew page number.
It is not possible to select another television station during a
sub -page access operation.
In some cases it can take some time to look for apage. In the interval you
CANCEL button. can view the TV by pressing the Digit and
ElE30
K1..!+f!..
CANCEL
&Normal TV Picture
v
El)
P351 P308 When the
the page
TEXT appear on
PAGE picture.
(x) (?) S**** –14–
page arrives, P351 ‘
number will
the normal TV TEXT
PAGE
350 352 360 400

Teletext Use
NHOLD B
When atext page has sub- pages, you can prevent the sub
page being automatically changed by pressing the HOLD
button. Press the HOLD button again to resume page change (2 e’
or enter anew page number.
■Double letter height
Either the top or bottom half of the
display can be expanded by pressing
the SIZE button.
vTEXT PAGE
HOLD
ISIZE +Upper half of
the screen
DISPLAY
Lower half of
the screen
I
■Displaying concealed information
Some of the text pages are in the form of aquiz or puzzle.
The answer to these can be revealed by pressing the Digit and REVEAL button.
‘~c~~+&}-l+&j-l ‘
REVEAL REVEAL
\J
■News flash
(1) In the text mode, select (2) Press the Diait button. (3) Press the CANCEL (4) As soon as news comes
anewsflash page.
~500
NEWS FLASH
599 501 510 600
(TEXT mode)
NEWS FIJ4SH
(x) {?) S*?%*?%
(TEXT mode)
Note : It is not possible to select another TV station
during aNEWS FLASH. You should first switch
back to TV reception by pressing the
TV/TEXT/MIX button.
button. in, the word “NEWS
n
FLASH” and the news
r\]
appears over the normal
., TV picture.
‘!,“
T
—E %+1 &L’
(Normal TV picture) NEWS FLASH
#Ag..%
]
(5) Press the TV/TEXT/MIX
button.
Evao
‘ld 1
.-
11
(TEXT mode)
–15–

Teletext Use
HUpdated Page
There are pages which are updated as events progress, such as sports results, news reports and traffic information.
If you have selected one of the above pages from the
informed about the other events;
P300
Updated Page
399 301 310 400
(TEXT mode)
“-- *(1) Press the Digit
8
button.
P300
Updated Page
(x) (?) S****
(TEXT mode)
list of contents and you want to view television but still be kept
Note: It is not possible to select another TV station
during an UP -DATE. You should first switch
back to TV reception by pressing the TV/
TEXT/MIX button.
(3) As soon as this page is
*@g
~E(
-’K
If the time is required while aprogramme is being viewed, press
the TIME/SUB *~ button.
Providing that the channel being viewed is also transmitting
teletext, the time will appear at the top righthand of the screen
for five seconds. The digits displayed represent
hours/minutes/seconds.
(Normal TV picture) (Normal TV picture)
EKao
d
(4) Press the TV/TEXT/MIX
button.
P300
Updated Page
399 101 310 400
(TEXT mode)
TIME/SUB (Normal TV picture)
–16–

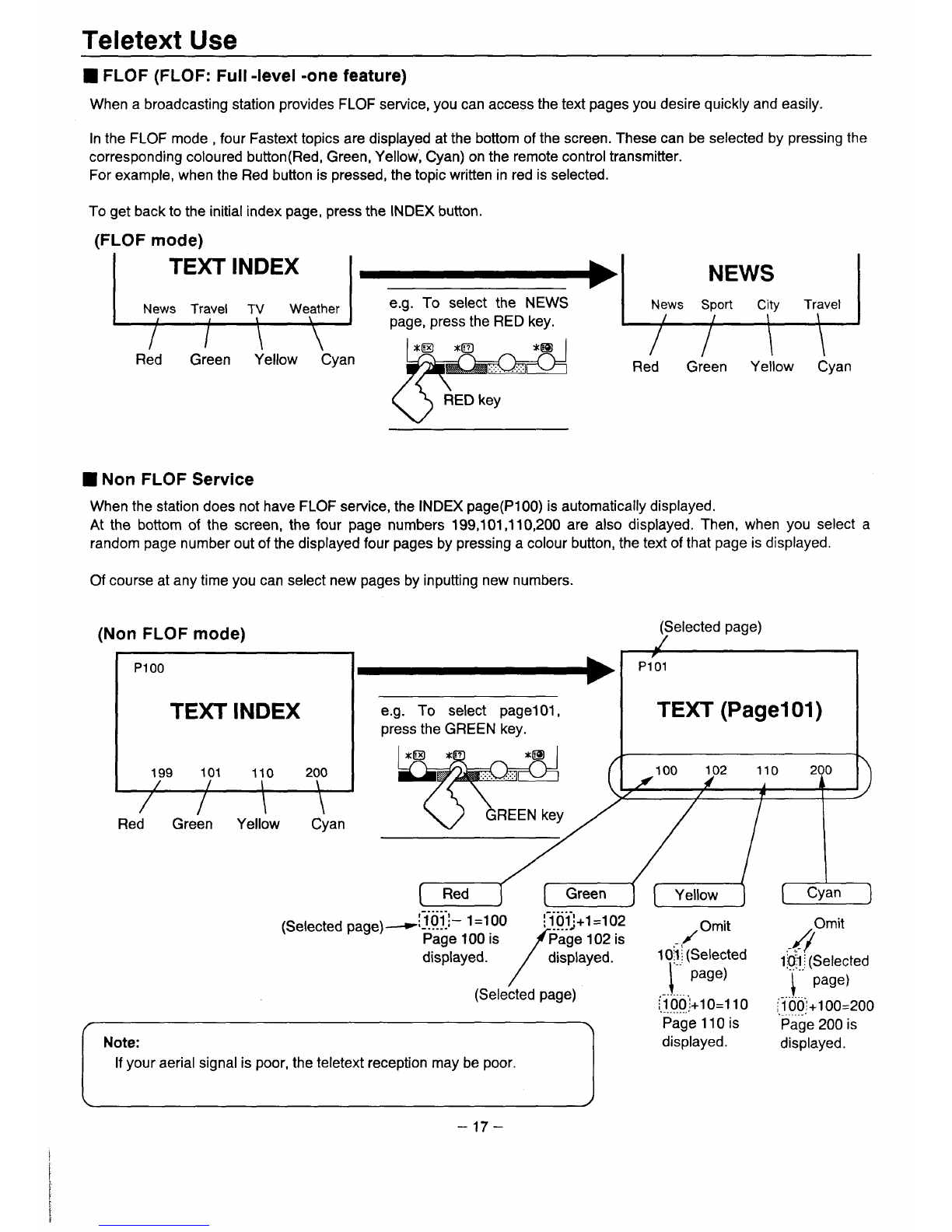

Teletext Use
■FLOF (FLOF: Full -level -one feature)
When abroadcasting station provides FLOF service, you can access the text pages you desire quickly and easily.
In the FLOF mode ,four Fastext topics are displayed at the bottom of the screen. These can be selected by pressing the
corresponding coloured button(Red, Green, Yellow; Cyan) on the remote control transmitter.
For example, when the Red button is pressed, the topic written in red is selected.
To get back to the initial index page, press the INDEX button.
(FLOF mode)
TEXT INDEX
News Travel TV Weather
//\ \
NEWS
e.g. To select the NEWS News Sport City Travel
page, press the RED key. I I \
*=
Red x~
Yellow *@l
Green Cyan \
Red Green Yellow Cyan
vfiED key
■Non FLOF Service
When the station does not have FLOF service, the INDEX page(Pl 00) is automatically displayed.
At the bottom of the screen, the four page numbers 199,101,110,200 are also displayed. Then, when you select a
random page number out of the displayed four pages by pressing acolour button, the text of that page is displayed.
Of course at any time you can select new pages by inputting new numbers.
(Non FLOF mode) ~Selected page)
Ploo
TEXT INDEX
199 101 110 200
Red Green Yellow Cyan
e.g. To select pagel Ol,
press the GREEN key. (
/
P101
TEXT (Pagel 01)
100 102 110 200
w[Green
(Selected page)~~~o~– 1‘100 flo~+l=lo2
{Page 102 is Omit
Page 100 is .,/
displayed.
/
displayed. 10jlj (Selected
Ipage)
(Selected page) :ioo’\+l 0=11 o
..........
f\Page 110 is
Note: displayed.
If your aerial signal is poor, the teletext reception maybe poor.
.Omit
‘)
.Kf
l{lj (Selected
1page)
;700+100=200
.........
Page 200 is
displayed.
–17–

Connecting other Equipment
. .
c- .*-A s.
(A/V Terminal)
mRear of the Set
Connect the video and audio outputs of aVCR, video
disc player, etc. to the input jacks of this TV set. Tapes
and discs can be played back. VIDEO/AUDIO Input level
Level lmDedance I
VIDEO INPUT I1,Ovp-p75 Q
AUDIO INPUT 1436mVrmsl More than 40K Q
to Audio Output+
To watch the video input picture
(1)Press the TV/AV Selector@
F18
(2) Set the VCR to playback mode.
To return to the TV mode;
Press the TV/AV Selector again.
TVIAV
Selector
(A/V Terminal)
Rear of the Set
The AV output terminal provides audio and video output
for TV broadcasts being received. They are used to
record TV broadcasts.
To record TV broadcasts, Select the TV mode using
TVIAV Selector @
to video input@ VCR for recording
~dlun- -~
Recording TV broadcasts to audio input+
VIDEO/AUDIO output level
Level Impedance
VIDEO OUTPUT 1,Ovp -p75 Q
AUDIO OUTPUT 436mVrms Less than 600 Q
–18–

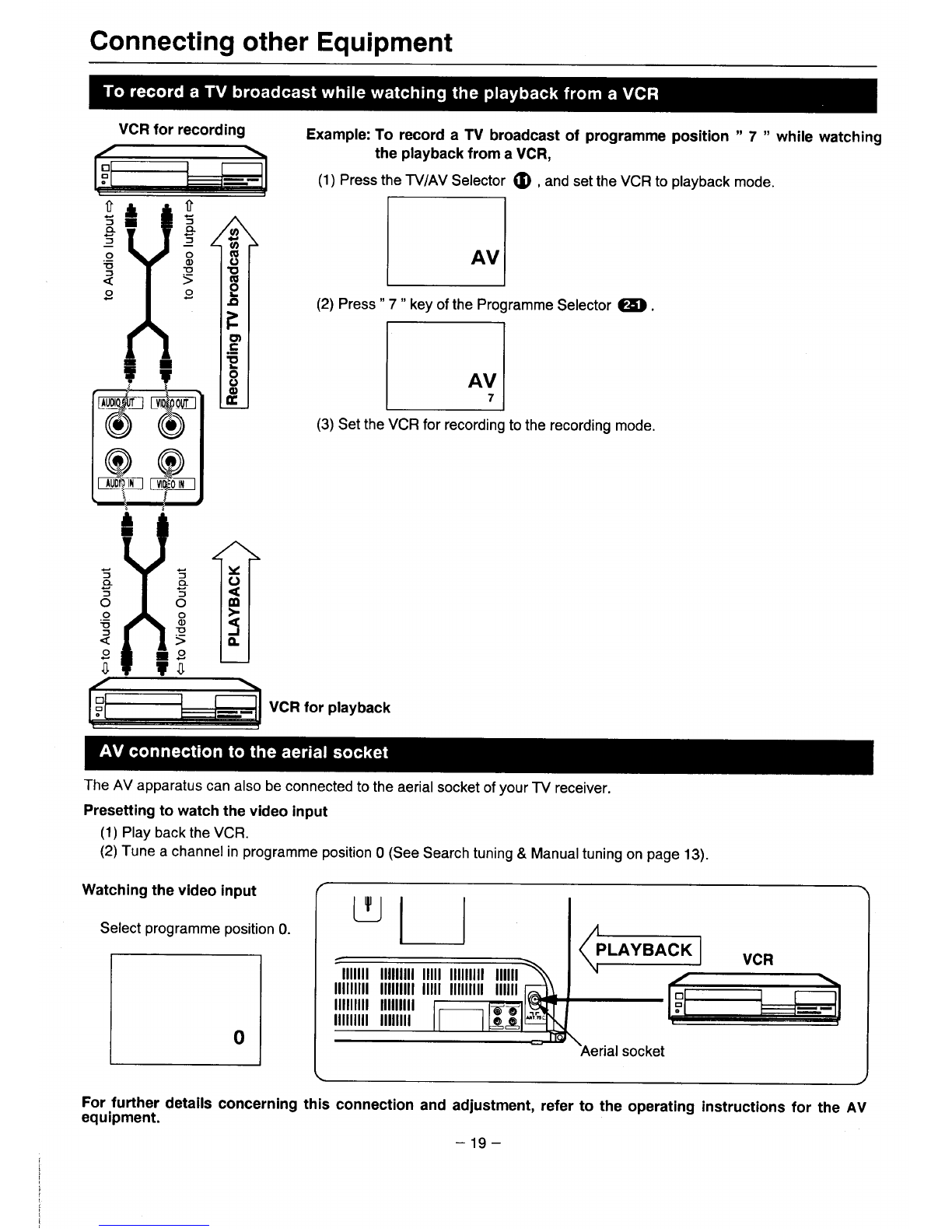

Connecting other Equipment
VCR for recording Example: To record aTV broadcast of programme position “7“while watching
the playback from aVCR,
(1) Press the TV/AV Selector @,and set the VCR to playback mode.
n
Av
(2) Press” 7” key of the Programme Selector ~.
U
(3) Set the VCR for recording to the recording mode,
VCR for playback
The AV apparatus can also be connected to the aerial socket of your TV receiver.
Presetting to watch the video input
(1)Play back the VCR.
(2) Tune achannel in programme position O(See Search tuning & Manual tuning on page 13).
Watching the video input /\
N
Select programme position O. u
El .2
111111111111111111111111111111111111 @= ‘CR
11111111111111111111111111111111111111
111111111111111111
11111111111111111 ~g J%L -
0Aerial socket
For further details concerning this connection and adjustment, refer to the operating instructions for the AV
equipment.
–19–

Specifications
Power source AC 220-240 Volts, 50Hz.
Receiving system PAL- B/G
Channel coverage VHF: 1-11
UHF:21-69
Aerial input impedance
Audio output
Ext. terminals
Dimensions
Weight
75 Q
3.OW (Peak music power output)
AV inputs:
Video input(Phono jack) x1
Audio input(Phono jack) x1
AV outputs:
Video output(Phono jack) x1
Audio output(Phono jack) x1
362.7(W) x330(H) x379.5 (D)mm
approx. 9.2 Kg
Specifications subject to change without notice.
SAf//YO
SANYO ELECTRIC co., Ltd
Pari No. 1AA6P1 P0361 -- E7HZ (A7-A)
