sanyuan CS Quick start guide

SAN YUAN ELECTRIC HOIST
CS
TYPE PARTS LIST
MAINTENANCE AND
OPERATIONAL INSTRUCTIONS
Thank you for your wise choice of our distinguished electric hoist.
For your better understanding of the performance of this model,
Operational safety and inspection, please read carefully and keep this
manual in a safe place.
SAN YUAN ENTERPRISE CO., LTD

- - 1

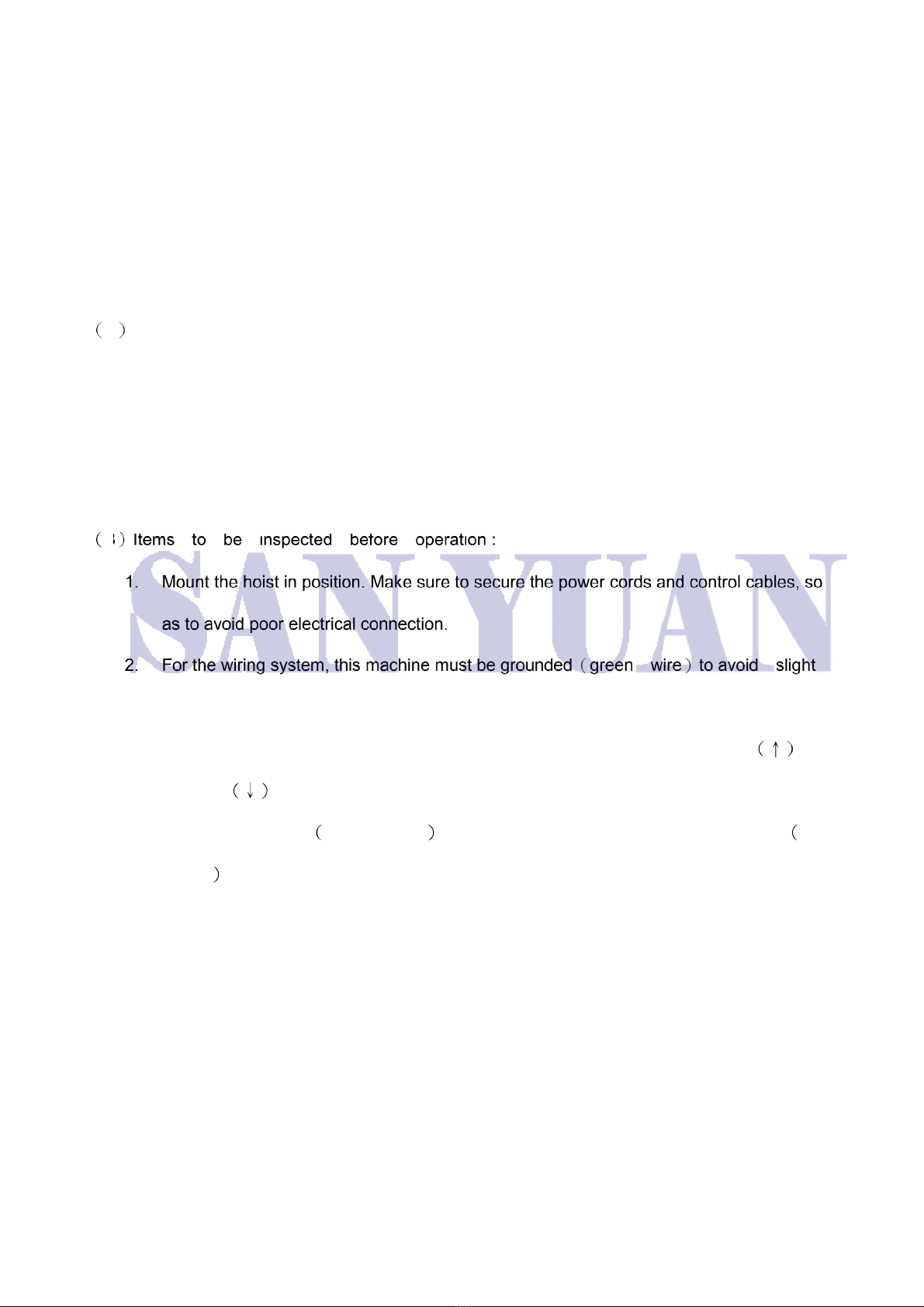

CAUTIONS IN OPERATION AND MAINTENANCE
An electric hoist has been used as a safe and convenient machine to save time and labor in
operation. Before use, however, careful attention must be paid to operational safety and inspection
procedures. Therefore, before operating this electric hoist, please read the following instructions
and follow correct operational methods. Otherwise, it will not perform properly as is expected.
A
Before the installation, please ensure the delivery to have the exact specifications as you had
purchased. This machine has been sub ected to strict inspection before delivery ex-work. In
case of any trouble caused during the handling process, please contact your local distributor or
service station. We shall provide best services to meet your satisfaction.
B Items to be inspected before operation :
1. Mount the hoist in position. Make sure to secure the power cords and control cables, so
as to avoid poor electrical connection.
2. For the wiring system, this machine must be grounded green wire to avoid slight
leakage caused by static charge.
3. Depress the button switch when the machine runs in idle and check if the UP and
DOWN operation is consistent with the switch indication.
4. The surface of chain Wire ROPE must be kept clean and oiled, to avoid the chain Wire
ROPE from interwinding.
5. To store the chain, lower the chain to the lower limit, mount the chain bag onto the hoist,
then, put the chain into the chain container.
6. Check the correct operation of the brake stop device.

- - 2
C CAUTIONS FOR THE USE OF ELECTRICAL HOIST
1. For the sake of safety, do not apply a load in excess of the rated load.
2. Ensure if the load is tightly fastened?
3. Before applying the load, the chain Wire ROPE must be straightened to buffer the
impact.
4. The center of gravity of the load should be hoisted. Never operate unbalanced hoisting.
For inclined hoisting by the electric hoist, the inclination should be kept within 15 .
If possible, try to avoid inclined hoisting.
5. During the hoisting of load, allow no person to stay below or nearby the load, to avoid any
in ury.
6. To move the electric hoist with a load, do not pull the control cable in a transverse
direction, so as to avoid the electric cable from being broken.
7. Make sure to depress the switch to the full limit. NEVER operate abrupt positive then
reverse rotation or inch movement.
8. During hoisting, try to keep the hook from reaching the upper and lower limits, so to
minimize the wear of the Cluch lining.
9. A stop device must be fitted when the transverse pulley reaches the terminal of l-beam, so
to avoid the hoist from damage or slipping off he end.
10. For outdoor use of electric hoist, keep the hoist from direct sunshine, rain and wind. There
should be a proper shelter (such as rain resistant hood, etc.)
11. There is a stop button on the lower hook to prevent the steel cable from escaping.
Therefore, make sure the cable is in the correct position on the lower hook and keep the
safety angle within 60°. (See diagram)
D Routine and regular inspection items of electrical hoist :
To ensure the proper performance of this machine and extend its service life, please make the
following routine checks.

- - 3
D-1 Routine inspection items:
1. Depress the button switch and let the hoist run idle, check if the upward and downward
operation are normal?
2. Is the hoist operation smooth? Is there abnormal noise when it is with load?
3. Check if the chain is oiled or damaged?
4. Is the brake operation normal when the winding is stopped?
5. Is the lower hook wasily rotating?
D-2 Regular inspection items:
1. Inspection of LINK chain
LINK chain is the most important part of the electrical chain hoist, which is made of special
alloy steel with heat treatment. The purpose is to withstand wear and tension. In case the
surface is dried and rusted, it will cause interwoven chains which may break. Therefore,
the surface must be oiled frequently (use normal lubricating oil). In case the chain is
deformed, cracked, elongated, worn, in excess of the following standards, new parts
must be replaced:
CHAIN WEAR LIMITS:
MEASUREMENT/DIAMETER 6.3
7.1
Original measurement 6.3 7.1
Critical measurement d mm 5.7 6.4
Original measurement 19.1 20.2
Critical measurement p mm 20 21
2. Inspection of gear:
a. Regular replacement of lubricating oil in the gearbox.
b. Check if the gear surface is cracked or worn.
3. Inspection of hook:
a. In case of abnormal deformation, damage or breakage at the opening of the hook, it
must be replaced with new.
b. In case the wear extent of the hook is in excess of 10%, it must be replaced with a
new part.
4. Inspection of pushbutton switch:
a. Are the inner and outer screws of the pushbutton switch loosened? Is the electric
wire damaged?
b. Is there foreign substance between the contact points? Are the contact points
abnormally worn?
5. Inspection of main unit:
a. Is the wiring system in the main unit secured? Is the electric wire aged or damaged?
b. Are the inner or outer screws of the main unit loosened?
c. Is the panel or casing of the main unit deformed?

- - 4
Our CS TYPE CHAIN HOIST has been specially designed and tested. So the main body is
especially short, and your operating space is widened. The following the points must be followed
in the operation.

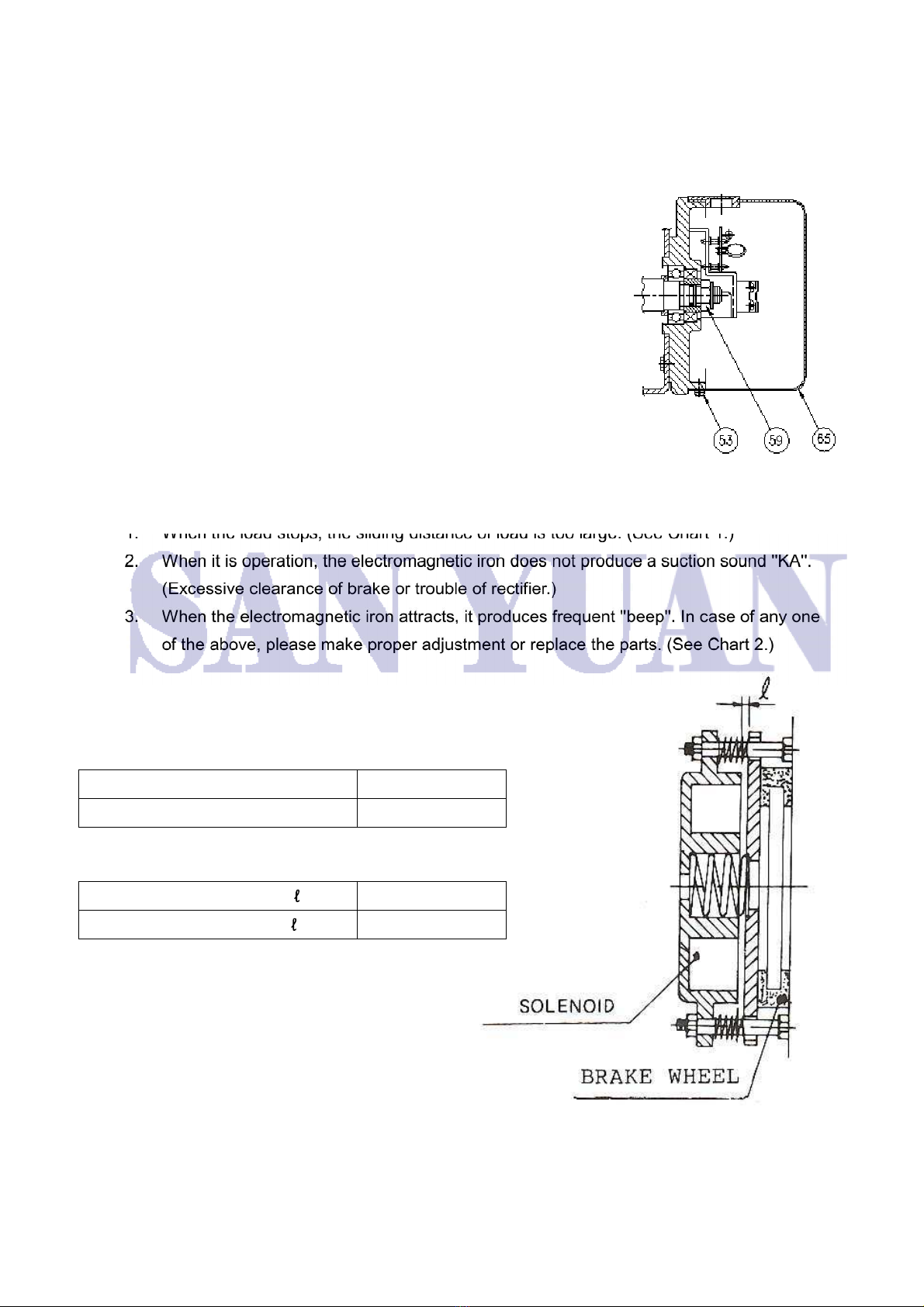

(A) Inspection of clutch:
This hoist is fitted with a safety clutch, so that the motor will
run idle when the hook reaches the upper and lower limits
or the load is excessive. If the limits are reached, the load is
excessive, or the use is frequent, the clutch plate will be
seriously worn and could not withstand the load. In that
case, loosen the chain and remove the screw (53), open
the gear rear cover (65), and tighten the nut (59) in it. (See
the illustration on the right. )
(B) Inspection of brake:
1. When the load stops, the sliding distance of load is too large. (See Chart 1.)
2. When it is operation, the electromagnetic iron does not produce a suction sound ''KA''.
(Excessive clearance of brake or trouble of rectifier.)
3. When the electromagnetic iron attracts, it produces frequent ''beep''. In case of any one
of the above, please make proper ad ustment or replace the parts. (See Chart 2.)
CHART 1 CRITICAL SLIDING DISTANCE
CHART 2 CRITICAL BRAKE CLEARANCE
STANDARD RANGE 5 – 15 mm
CRITICAL RANGE within 20 mm
STANDARD CLEARANCE 0.3 – 0.5 mm
CRITICAL CLEARANCE within 0.9 mm

- - 5

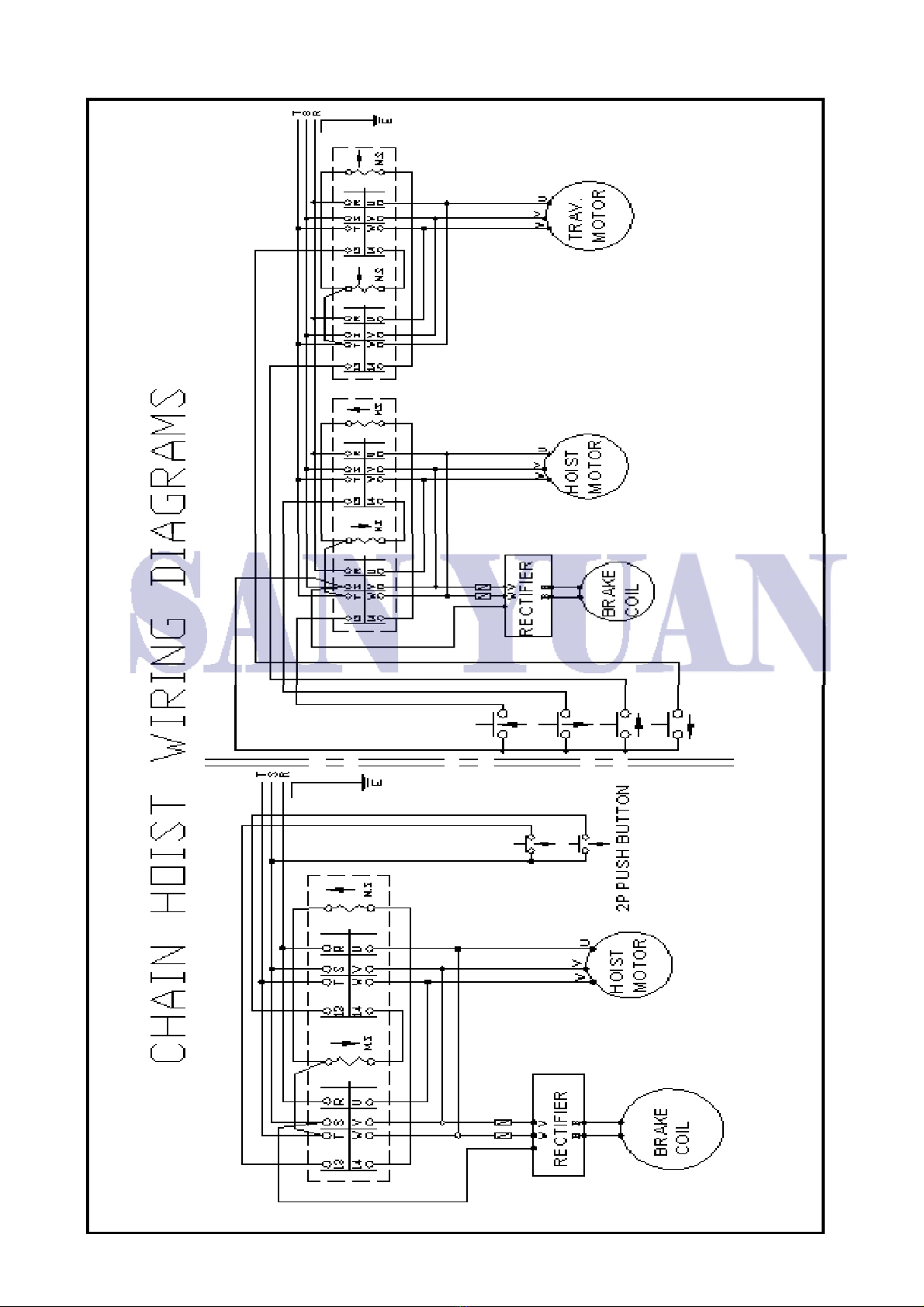

- - 6

- - 7

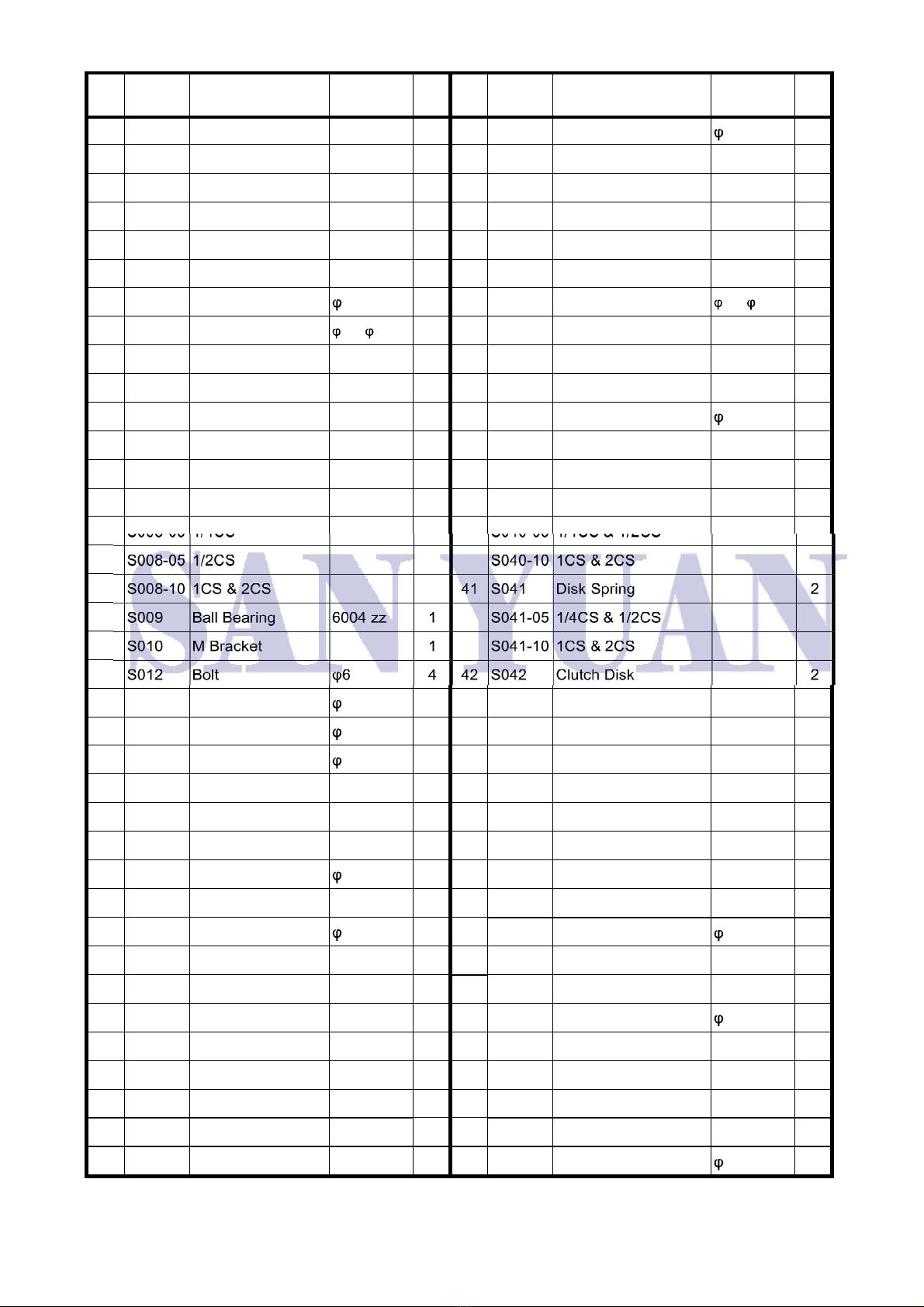

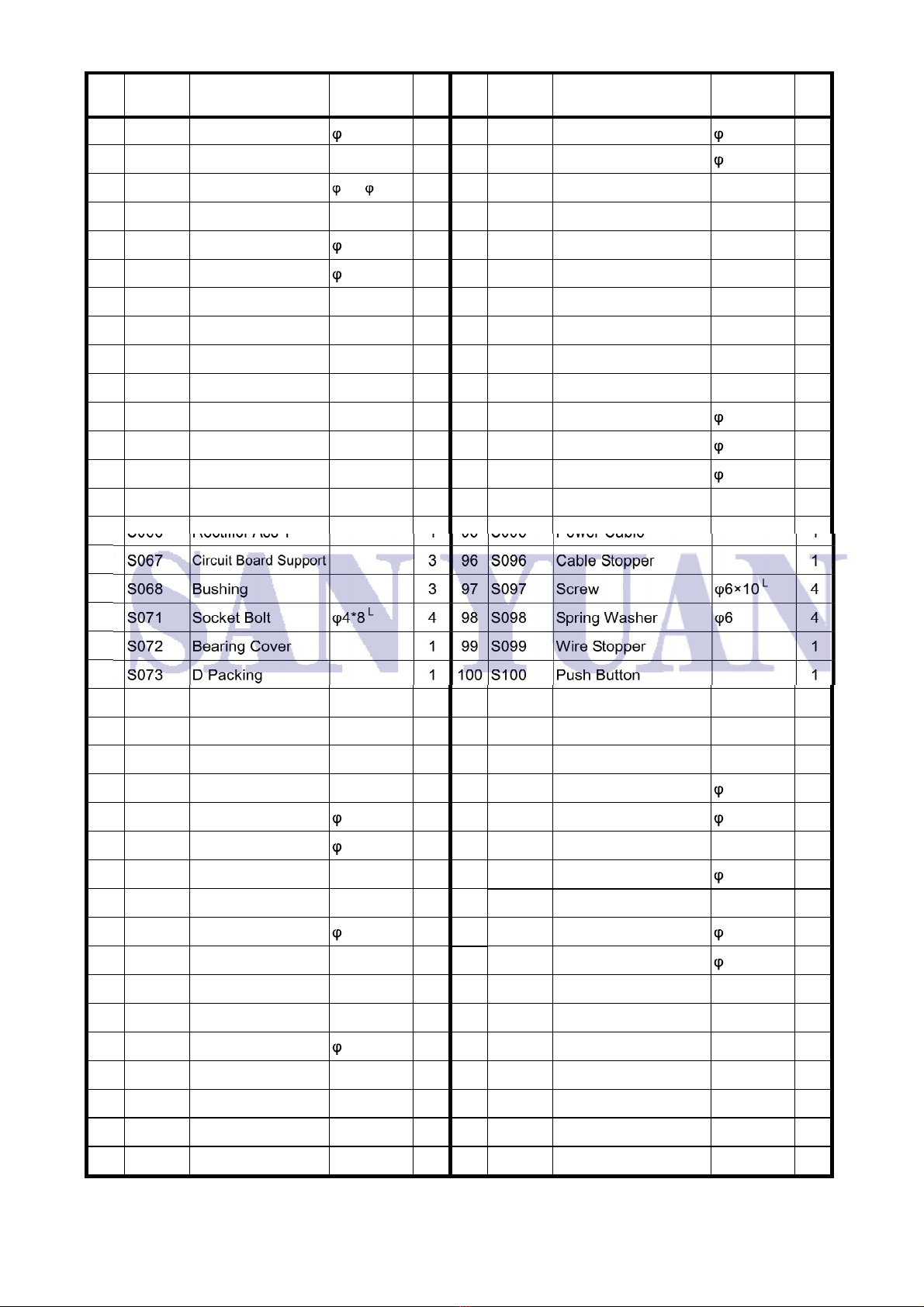

CHAIN HOIST PART LIST
NO.
PART
NO. PART NAME SIZE Q,TY
NO.
PART
NO. PART NAME SIZE Q,TY
1 S001 Upper Hook Ass’Y 1 27 S027 Spring Washer 8 4
S001-05 1/4CS & 1/2CS 28 S028 Control Box 1
S001-10 1CS 29 S029 Magnetic Switch 2
S001-20 2CS 30 S030 Sprocket 1
2 S002 M Frame 1 S030-05 1/4CS & 1/2CS
3 S003 Ball Bearing 6008 zz 1 S030-10 1CS & 2CS
4 S004 Snap Ring 68 1 31 S031 Oil Seal
38× 58×7
1
5 S005 Oil Seal
17× 30×8
1 32 S032 Ball Bearing 6007 zz 1
6 S006 Ball Bearing 6003 zz 1 33 S033 A Packing 1
7 S007 Rotor Ass’Y 1 34 S034 Bearing Cover 1
S007-03 1/4CS 35 S035 Screw 5×10
L
1
S007-05 1/2CS 36 S036 B Packing 2
S007-10 1CS & 2CS 37 S037 Ball Bearing 6004 zz 1
8 S008 Housing Ass’Y 1 40 S040 2ND Pinion 1
S008-03 1/4CS S040-05 1/4CS & 1/2CS
S008-05 1/2CS S040-10 1CS & 2CS
S008-10 1CS & 2CS 41 S041 Disk Spring 2
9 S009 Ball Bearing 6004 zz 1 S041-05 1/4CS & 1/2CS
10 S010 M Bracket 1 S041-10 1CS & 2CS
12 S012 Bolt 6 4 42 S042 Clutch Disk 2
S012-05 1/4CS & 1/2CS 6×105
L
S042-05 1/4CS & 1/2CS
S012-10 1CS & 2CS 6×143
L
S042-10 1CS & 2CS
13 S013 Spring Washer 6 4 43 S043 1ST Gear 1
14 S014 Brake Wheel 1 S043-05 1/4CS & 1/2CS
15 S015 Pressure Plate 1 S043-10 1CS & 2CS
16 S016 Spring 4 44 S044 Sleeve 1
17 S017 U NUT 8 4 S044-05 1/4CS & 1/2CS
18 S018 M Cover 1 S044-10 1CS & 2CS
21 S021 Screw 4×6
L
4
45 S045 Washer 23 1
22 S022 Snap Ring S58 4 S045-05 1/4CS & 1/2CS
23 S023 Brake Coil 1
S045-10 1CS & 2CS
S023-1 Brakes The Coil 46
S046 Bolt 6×12
L
8
S023-2 Brake Hull 47
S047 Lock Washer 4
S023-3 Snap Ring S58 50
S050 C Packing 1
S023-4 Electric Wire Wrap 51
S051 Gear Case Flange 1
25 S025 Brake Spring 1
52 S052 Ball Bearing 6004 zz 1
26 S026 Support 4
53 S053 Screw 5×6
L
3

- - 8
CHAIN HOIST PART LIST
NO.
PART
NO. PART NAME SIZE Q,TY
NO.
PART
NO. PART NAME SIZE Q,TY
54 S054 Spring Washer 5 3 84 S084 Socket Bolt 6×10 5
55 S055 Plate Spring 1 85 S085 Spring Washer 6 5
56 S056 Oil Seal
26× 38×8
1 86 S086 G Frame 1
57 S057 Sleeve 1 87 S087 E Packing 1
58 S058 O Ring 12 1 88 S088 Sprocket Guide 1
59 S059 U NUT 12 1 S088-05 1/4CS & 1/2CS
61 S061 Rectifier Base 1 S088-10 1CS & 2CS
62 S062 Name Plate 1 89 S089 Guide Wheel 1
S062-03 1/4CS S089-05 1/4CS & 1/2CS
S062-05 1/2CS S089-10 1CS & 2CS
S062-10 1CS 91 S091 Oil Plug 8×12
L
1
S062-20 2CS 92 S092 Oil Ring 8 1
64 S064 Terminal 1 93 S093 Screw 5×6
L
1
65 S065 G Cover 1 94 S094 Side Cover 1
66 S066 Rectifier Ass’Y 1 95 S095 Power Cable 1
67 S067
Circuit Board Support
3 96 S096 Cable Stopper 1
68 S068 Bushing 3 97 S097 Screw 6×10
L
4
71 S071 Socket Bolt 4*8
L
4 98 S098 Spring Washer 6 4
72 S072 Bearing Cover 1 99 S099 Wire Stopper 1
73 S073 D Packing 1 100 S100 Push Button 1
74 S074 Ball Bearing 6201 zz 1 S100-2 2P Button
75 S075 1ST Pinion 1 S100-4 4P Button
S075-05 1/4CS & 1/2 CS S100-6 6P Button
S075-10 1CS & 2CS 101 S101 Screw 6×8
L
3
76 S076 Snap Ring 35 1 102 S102 Spring Washer 6 3
77 S077 Washer 35 1 103 S103 Oil plug 1
S077-05 1/4CS & 1/2 CS 104 S104 Oil Ring 10 1
S077-10 1CS & 2CS 105 S105 Link Chain 1
78 S078 Snap Ring 62 1 S105-05 1/4CS & 1/2CS 6.3
79 S079 2ND Gear 1 S105-10 1CS & 2CS 7.1
S079-05 1/4CS & 1/2 CS 106 S106 Cushion Rubber 1
S079-10 1CS & 2CS S106-05 1/4CS& 1/2CS
81 S081 Bolt 6*12
L
4 S106-10 1CS & 2CS
82 S082 Lock Washer B 2 107 S107 Chain Hanger Pin A 1
83 S083 Gear Case 1 108 S108 Split Pin 4
S083-05 1/4CS & 1/2 CS
S083-10 1CS & 2CS

- - 9
CHAIN HOIST PART LIST
NO.
PART
NO. PART NAME SIZE Q,TY
NO.
PART
NO. PART NAME SIZE Q,TY
109 S109 Lowe Hook ASS'Y 1
S109-05 1/4CS & 1/2CS
S109-10 1CS
S109-20 2CS
110 S110 Latch 1
S110-05 1/4CS & 1/2CS
S110-10 1CS
S110-20 2CS
111 S111 Spring Pin 1
112 S112 Hook Spring 1
113 S113 Chain Container 1
S113-a For 6M Chain
S113-b For 12M Chain 1
S113-c For 18M Chain 1
114 S114
Chain Hanger Pin B
1
115 S115 Chain Stopper 1
118 S118 NUT 10 6
119 S119 Spring Washer 10 6
120 S120 CS Stud 3
123 S123 NUT 8 5
124 S124 Spring Washer 8 2
125 S125 Sleeve 8 1
126 S126 Bolt 8 1

- - 10
MOTOR TROLLEY
CAUTIONS FOR THE USE OF MOTOR TROLLEYS
1. Before mounting the motor trolley on the I-beam, the width of I-beam must be
measured. As shown in the following diagram, ad ust the clearance between the two
wheels of the trolley to the correct position. Then, mount it onto the I-beam and tighten
the nuts at two ends.
TYPE MEASURE MENT OF I-BEAM ADJUSTING THE POSITION OF THE WASHER
1/4~1MT 150 75 5.5
2~3MT 200 100 7
5MT 250 125 7.5
1/4~1MT 200 100 7
2~3MT 250 125 7.5
5MT 300 150 8
1/4~1MT 250 125 7.5
2~3MT 300 150 8
5MT 450 175 11
2. The paint on the contact surface of the moving wheel and I-beam must be removed.
Otherwise, the wheel will run idle, interfere with the grounding connection and cause
electrostatic charge.
3. The gear of the moving wheel with gear must be regularly oiled use normal grease .
But do not oil the wheel surface and I-beam. Otherwise, it will run idle and perform no
movement.
4. Check if the pressure plate is bent, deformed, the coating surface of the electrical
cable is aged, damaged or disconnected.
5. Check if the bolts, nuts and snap rings are loosened or disengaged.

- - 11

- - 12

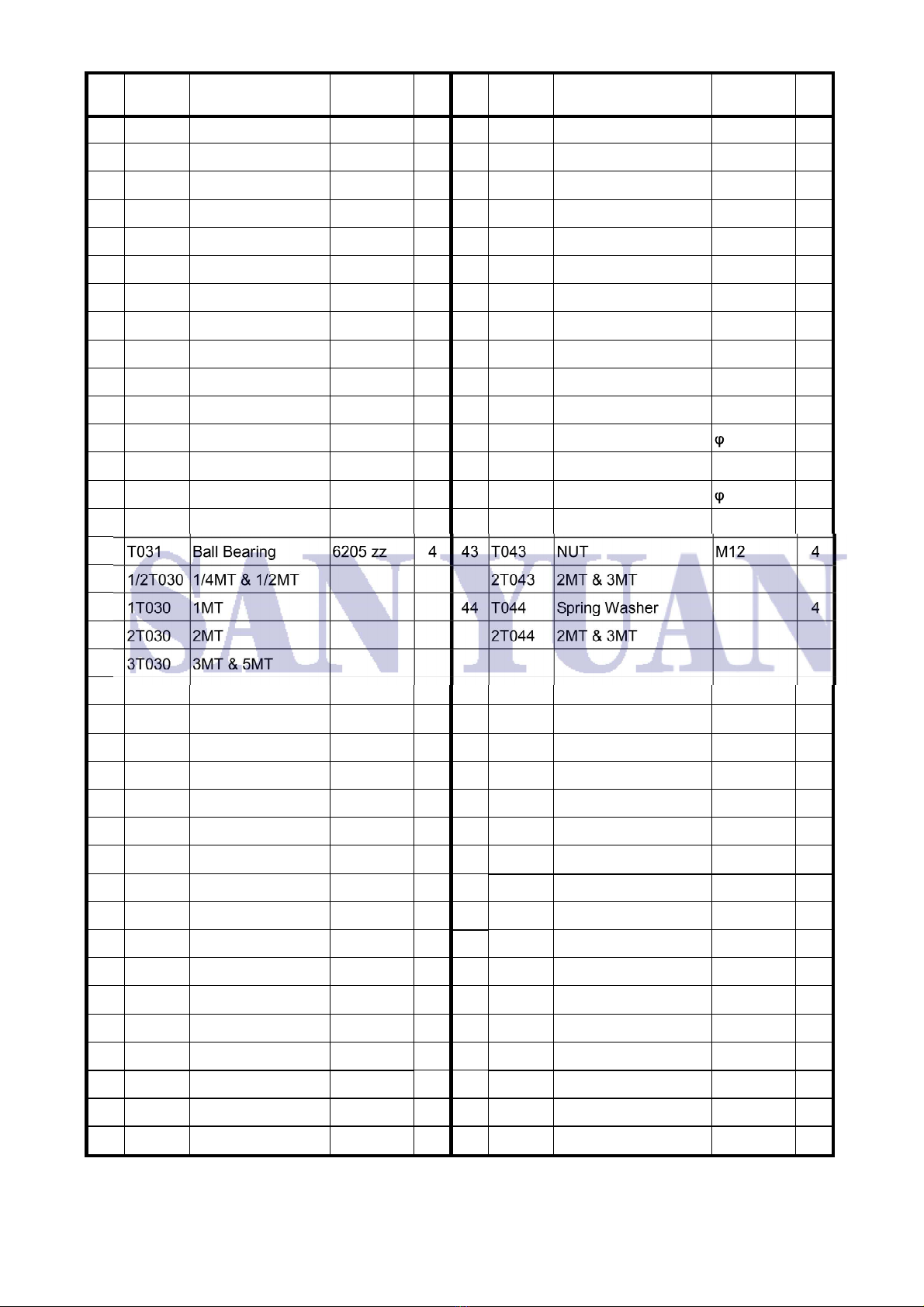

MOTOR TROLLEY PART LIST
NO.
PART
NO. PART NAME SIZE Q,TY
NO.
PART
NO. PART NAME SIZE Q,TY
1 T001 Gear Wheel 2 11 T011 Rotor Ass'y 1
1/2T001 1/4MT & 1/2MT 1/2 T010 1/4MT & 1/2MT
1T001 1MT 1T010 1MT
2T001 2MT 2T010 2MT & 3MT
3T001 3MT 5T010 5MT
5T001 5MT 12 T012 Ball Bearing 6005zz 1
2 T002 2ND Pinion 1 13 T013 End Bracket 1
2T002 2MT 1/2T013 1/4MT & 1/2MT
3T002 3MT 1T013 1MT
5T002 5MT 2T013 2MT - 5MT
3 T003 A Frame 1 14 T014 Bolt 6×135
L
4
1/2T003 1/4MT & 1/2MT 1/2T014 1/4 & 1/2MT
1T003 1MT 1T014 1MT
2T003 2MT 2T014 2MT - 5MT
3T003 3MT 15 T015 Spring Washer 6 4
5T003 5MT 16 T016 Pressure Plate 1
4 T004 Ball Bearing 6004 zz 1 17 T017 Spring 1
1T004 1/4MT-1MT 18 T018 Washer 12 1
2T004 2MT & 3MT 19 T019 NUT M12 1
5T004 5MT 20 T020 M Cover 1
5 T005 1ST Gear 1 21 T021 Screw M4×5
L
3
2T005 2MT 22 T022 Spring Washer 4 3
3T005 3MT 23 T023 Ball Bearing 6004 zz 1
5T005 5MT 2T023 2MT-5MT
6 T006 Key 7×7×20
L
1 24 T024 Bolt M8×50
L
3
2T006 2MT-5MT 2T024 2MT-5MT
7 T007 Snap Ring S20 1 25 T025 NUT 1" 2
2T007 2MT-5MT 1T025 1/4MT & 2MT
8 T008 Ball Bearing 6003zz 1 3T025 3MT
2T008 2MT-5MT 5T025 5MT
9 T009 Gear Box 1 26 T026 Spring Washer 1 2
2T009 2MT-5MT 1T026 1/4 -2MT
10 T010 Housing Ass'y 1 3T026 3MT
1/2 T010 1/4MT & 1/2MT 5T026 5MT
1T010 1MT
2T010 2MT & 3MT
5T010 5MT

- - 13
MOTOR TROLLEY PART LIST
NO.
PART
NO. PART NAME SIZE Q,TY
NO.
PART
NO. PART NAME SIZE Q,TY
27 T027 Distant Ring 4 35 T035 Control Box 1
1T027 1/4MT & 1/2MT ST035
1/4MT-5MT 220V OR 380V
2T027 3MT 36 T036 Name Plate 1
5T027 5MT 1/4T036 1/4MT
28 T028 Hanger Pin 1 1/2T036 1/2MT
1/2T028 1/4MT & 1/2MT 1T036 1MT
1T028 1MT 2T036 2MT
2T028 2MT 3T036 3MT
3T028 3MT 5T036 5MT
5T028 5MT 40 T040 Screw M12×150
L
2
30 T030 Snap Ring S25 4 2T040 2MT & 3MT
1/2T030 1/4MT & 1/2MT 41 T041 Dist Collar 13 2
1T030 1MT 2T041 2MT & 3MT
2T030 2MT 42 T042 Distant Ring 13 8
3T030 3MT& 5MT 2T042 2MT & 3MT
31 T031 Ball Bearing 6205 zz 4 43 T043 NUT M12 4
1/2T030 1/4MT & 1/2MT 2T043 2MT & 3MT
1T030 1MT 44 T044 Spring Washer 4
2T030 2MT 2T044 2MT & 3MT
3T030 3MT & 5MT
32 T032 Snap Ring R52 4
1/2T030 1/4MT & 1/2MT
1T030 1MT
2T030 2MT
3T030 3MT & 5MT
33 T033 Wheel 2
1/2T033 1/4MT & 1/2MT
1T033 1MT
2T033 2MT
3T033 3MT
5T033 5MT
34 T034 B Frame 1
1/2T033 1/4MT & 1/2MT
1T033 1MT
2T033 2MT
3T033 3MT
5T033 5MT
