Sapphire Audio IPC-AM4-SA User manual

User’s Manual
AMD AM4 Socket Mainboard
IPC-AM4-SA
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.0
eptember 28, 2021

~ ii ~
Federal Communications Commission (FCC) Statement
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules These limits are designed to
provide reasonable protection against harmful interference in a residential
installation This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with instructions contained
in this manual, may cause harmful interference to radio and television
communications However, there is no guarantee that interference will not occur
in a particular installation
If this product does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the product into an outlet on a circuit different from that to which
the receiver is connected
Consult the dealer or an experienced radio/TV technician for help

Note1: Connecting this device to peripheral devices that do not comply
with Class B requirements, or using an unshielded peripheral data
cable, could also result in harmful interference to radio or television
reception

Note2: The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could
void the user’s authority to operate this product

Note3: To ensure that the use of this product does not contribute to
interference, it is necessary to use shielded I/O cables
CE: Radiation of EN 55022 & Immunity of EN 55024

~ iii ~
aste Electrical and Electronic Equipment ( EEE) Statement
To protect the global environment, this product must be sent to separate collection
facilities for recovery and recycling.
DISPOSAL
Do not dispose of this product as unsorted municipal waste. Collect such
waste separately for special treatment.
Manufacturer
Sapphire Technology Limited
Unit 909- 9 9, 9/F., Tower 2 Grand Central Plaza
38 Shatin Rural Committee Road
Shatin, Hong Kong

~ iv ~
Table of Contents
Chapter 1 Introduction .............................................................................1
1-1 Mainboard Specifications ................................................................1
1-2 Mainboard Layout ...........................................................................4
I/O Back Panel ................................................................................7
1-3 Mainboard Dimension .....................................................................8
Chapter 2 Installation ...............................................................................9
2-1 Before You Begin ............................................................................9
2-2 Installing the I/O Shield ...................................................................9
2-3 Securing to the Chassis ..................................................................9
2-4 Installing the CPU and Fan Heatsink ............................................10
2-5 Installing System Memory .............................................................10
Memory Configuration ...................................................................11
Memory Installation ....................................................................... 11
2-6 Installing Expansion Cards ...........................................................12
PCI-Express Slot ...........................................................................12
M.2 M-Key Slot ..............................................................................13
2-7 Connecting Cables and Jumper Settings ......................................14
Front Panel Header .......................................................................14
SATA3 Connector ..........................................................................15
USB3.2 Gen 1 Header ..................................................................16
CFPA Header ................................................................................16
S/PDIF Header ..............................................................................16
Speaker Header ............................................................................17
Case Open Header .......................................................................17
Addressable LED Strip Fan Header (1x6 pin, 2.00mm pitch) ........17
Addressable LED Strip Header (1x4 pin, 2.54mm pitch) ...............17
Addressable LED Strip Header (1x4 pin, 2.00mm pitch) ...............18
Fan Headers .................................................................................18
2-8 LED Status Indicators ...................................................................19
Chapter 3 Configuring the BIOS ............................................................20

~ v ~
3-1 Select Boot Device .......................................................................20
3-2 Enter BIOS Setup .........................................................................20
3-3 EZ Mode/Advanced Mode ............................................................21
3-4 Main Menu ....................................................................................23
3-5 Performance Menu .......................................................................24
3-6 Advanced Menu ............................................................................26
3-7 Security Menu ...............................................................................35
3-8 Boot Menu ....................................................................................37
3-9 Save & Exit Menu .........................................................................39
Chapter 4 Driver Installation ...............................................................41
4-1 Driver Install ..................................................................................41

~ ~
Chapter 1 Introduction
1-1 Mainboard Specifications
CPU
AMD
®
3rd Generation Ryzen processor in the AMD
®
socket AM4
Chipset
AMD
®
B550 chipset
Graphics
AMD
®
Radeon graphics series
Supports two independent displays with DisplayPort and HDMI port
-One DisplayPort supports a maximum resolution of 3840x2160@60Hz/144Hz
* Support for DisplayPort 1 4 version, HDCP 2 3 and HDR
-One HDMI port supports a maximum resolution of 3840x2160@60Hz/120Hz
* Support for HDMI 2 1 version, HDCP 2 3 and HDR
System Memory
Two 288-pin DDR4 SDRAM DIMM (ECC/Non ECC) sockets
Supports 1 2V DDR4-2133/2400/2666/2933/3200 (OC up to 4600+) DIMMs
with dual channel architecture
Supports 8GB, 16GB, 32GB and 64GB DDR4 DIMMs up to maximum 128GB
Expansion Slots
One PCI-Express 4 0 x16 slot (Depend on AMD 3rd Gen Ryzen processor)
One PCI-Express 3 0 x16 slot (Depend on AMD 3rd Gen Ryzen with Radeon
Graphics processor)
One M 2 Slot E-key (optional)
Two M 2 Slot M-key (PCIe 3 0 x4/SATA) with 2280 storage type for SSD
USB Ports
Three USB3 2 Gen 1 ports (Blue) at back panel supporting transfer speed up to
5Gbps

~ 2 ~
Two USB3 2 Gen 2 ports (Red) at back panel supporting transfer speed up to
10Gbps
One USB3 2 Type C port Gen 2 port at back panel supporting transfer speed
up to 10Gbps
One USB3 2 Gen 1 onboard headers supporting transfer speed up to 5Gbps
Supports wake-up from S3 and S4 modes
SATA Ports
Four SATA3 ports with 6Gb/s data transfer rate, supports RAID 0, RAID 1 and
RAID 10
Supports AHCI (Advanced Host Controller Interface)
Onboard LAN
One Gigabit Ethernet from Realtek
®
RTL8111H Gigabit controller
Onboard A dio
Supports 7 1-channel High-Definition audio from Realtek ALC1220 codec
I/O
Onboard NUVOTON NCT6796D-E LPC bus I/O controller
Supports Hardware Monitor for fan speed monitoring, CPU and system
temperature
Back Panel I/O Ports
1 x DisplayPort
1 x HDMI Port
3 x USB3 2 Gen 1 ports (Blue)
2 x USB3 2 Gen 2 ports (Red)
1 x USB3 2 Type C Gen 2 port
1 x RJ45 LAN port
3 x audio jacks
Internal I/O Connectors
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector

~ 3 ~
4 x SATA3 connectors
1 x USB3 2 Gen 1 header (2x10 pin) , 2 00mm pitch
1 x Front Panel header (2x5 pin), 2 54mm pitch
1 x Front Audio header (2x5 pin), 2 54mm pitch
1 x S/PDIF header (1x3 pin), 2 54mm pitch
1 x Case Open header (1x2 pin), 2 54mm pitch
1 x Speaker header (1x4 pin), 2 54mm pitch
1 x Battery header (1x2 pin), 2 54mm pitch
1 x CPU Fan header (1x4 pin), 2 54mm pitch
1 x SYSTEM Fan header (1x4 pin), 2 54mm pitch
1 x Addressable LED Strip Fan header (1x6 pin), 2 00mm pitch
1 x Addressable LED Strip header (1x4 pin), 2 54mm pitch
1 x Addressable LED Strip header (1x4 pin), 2 00mm pitch
BIOS
128Mb SPI Flash with AMI based BIOS
Supports ACPI (Advanced Configuration and Power Interface)
Onboard button to clear the CMOS data
Dimensions
Size: 170mm×170mm, Mini-ITX form factor
Operating systems
Supports Windows 10 64bit
Environmental
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -20°C~80°C (-4°F~176°F)
Relative Humidity: 10%~90%

~ 4 ~
1-2 Mainboard Layout
The following figure shows the location of components on the mainboard
See page 6 for component description
Front view of mainboard:
1
1
1
2
1
4
3
5
6
7
9
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
20
2
2
2
3
8
2
1
0

~ 5 ~
Back view of mainboard:
See next page for details.
Note:
Picture is for reference only, actual board may be slightly different.
2
4
2
5

~ 6 ~
Item Component description
1
AMD CPU socket AM4
2
AMD B550 Chip
3
DDR4 DIMM *2
4
PCI-E 4 0 x16 Slot
5
M 2 M-key for SSD device
6
M 2 E-key (Optional)
7
24-Pin ATX Power Connector
8
8-pin ATX_12V Power Connector
9
SATA3 Connector *4
10
USB 3 0 Gen 1 Header
(Note)
, 2 54mm pitch
11
Front Panel Header, 2 54mm pitch
12
Front Panel Audio Header, 2 54mm pitch
13
S/PDIF Header, 2 54mm pitch
14
Case Open Header, 2 54mm pitch
15
Speaker Header, 2 54mm pitch
16
CPU Fan Header, 2 54mm pitch
17
SYSTEM Fan Header, 2 54mm pitch
18
Addressable LED Strip Fan header (1x6 pin), 2 00mm pitch
19
Addressable LED Strip header (1x4 pin), 2 54mm pitch
20
Addressable LED Strip header (1x4 pin), 2 00mm pitch
21
Battery Header, 2 54mm pitch
22
BIOS
23
Back Panel Connectors (see next page for detail)
24
M 2 M-key for SSD device
25
Addressable LED Strip
Note: USB 3 0 Gen 1 Header can be used to connect 2 USB devices

~ 7 ~
I/O Back Panel
Item Description Item Description
1 Display Port 5 USB3 2 Gen 2 Port *2 (Red)
2 HDMI Port 6 USB3 2 Type C Gen 2 Port
3 USB3 2 Gen 1 Port *3 (Blue) 7 10/100/1000M RJ45 LAN Port
4 Clear CMOS Button
8
Audio Port *3
LEDs of LAN Port Indicators
Two LEDs are built into the RJ-45 LAN connector These LEDs indicate the status
of the LAN
A dio Jack Config ration
This mainboard provides 7 1 channel audio It is easy to differentiate between
the audio functions by referring to the color of the jacks
Jack
Headphone/
2 channel 4 channel
5.1 channel 7.1 channel
Line In/Rear Speaker ut (Blue) V V V
Line ut/Front Speaker ut (Lime) V V V V
Mic In/Center/Subwoofer Speaker ut (Pink) V V
Front Panel Line ut/Side Speaker ut V
LED LED Color LED state Indicates
A Green
ff LAN link is not established
n LAN link is established
Blinking LAN activity is occurring
B
N/A ff 10 Mb/s data rate
Green n 100 Mb/s data rate
Yellow n 1000 Mb/s data rate
8
2
7
DP2
COM2
1
3 5 6 3
4

~ 8 ~
1-3 Mainboard Dimension
PCB size: 170 x 170mm

~ 9 ~
Chapter 2 Installation
2-1 Before You Begin
Please take note of all precautions before you install anything on to the
mainboard or change any of the mainboard settings
Turn off the power to your system and discharge your body’s static electric
charge by touching a grounded surface—for example, the metal surface of the
power supply—before performing any hardware procedure
The manufacturer assumes no liability for any damage, caused directly or
indirectly, by improper installation of any components by unauthorized service
personnel If you do not feel comfortable performing the installation, consult a
qualified computer technician
Damage to system components, the mainboard, and injury to you may result if
power is applied during installation
2-2 Installing the I O Shield
The mainboard comes complete with an I/O shield When installed in the chassis,
the shield blocks radio frequency transmissions, protects internal components
from dust and foreign objects, and promotes correct airflow within the chassis
Install the I/O shield before installing the mainboard in the chassis Place the
shield inside the chassis Press the shield into place so that it fits tightly and
securely If the shield does not fit, obtain a properly sized shield from the chassis
supplier
2-3 Securing to the Chassis
When installing the mainboard, you have to secure the mainboard into the
chassis by fastening with nine screws Please refer to your chassis manual for
instructions on installing

~ 0 ~

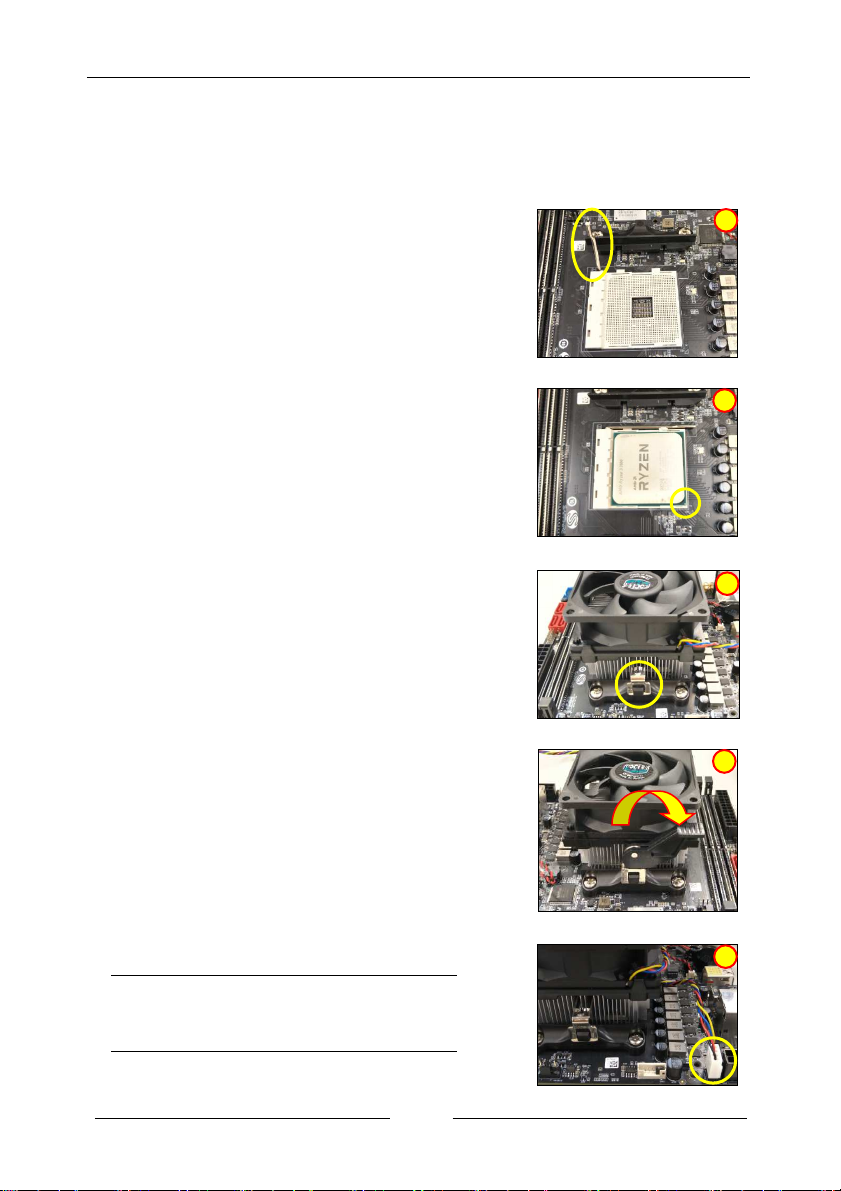

2-4 Installing the CPU and Fan Heatsink
Follow the steps below to install the CPU & cooler correctly
1 Open the socket lever and rise to a 90 degree
angle
2 Align the CPU pin one (small triangle marking)
and gently insert the CPU into the socket then
close the socket lever

Note:
Apply some thermal paste on surface of CPU
for better heat dispersion
3 Place the cooler on the CPU Engage one side of
the clip onto the CPU mount first then press
down the other side of the clip
4 Turn the lever from left to right to fasten the
CPU cooler If in doubt, refer to your CPU cooler
manual for installing the cooler
5 Connect the 4-wire fan cable to the 4-pin
CPUFAN header on the mainboard
PS:
Pictures for installation reference only, the
actual board may be slightly different.
1
2
3
4
5

~ ~
2-5 Installing System Memory
This mainboard has two 288-pin DIMM sockets for DDR4 memory
Supports 8GB, 16GB, 32GB and 64GB DDR4 DIMMs up to maximum 128GB
 Supports 1 2v DDR4-2133/2400/2666/2933/3200 (OC up to 4600+) DIMMs
with dual channel architecture
Make sure that you install memory modules of the same type and density in
different channel DIMM slots for Dual-Channel mode
Memory Configuration
To use 1 DIMM: Install into either DIMM slot 1 or slot 2
To use 2 DIMMs: Install into DIMM slot 1 and DIMM slot 2
Memory Installation
DDR4 and DDR3 memory modules are physically different Please only install
DDR4 DIMMs on this mainboard To make sure you have the correct DIMM,
check that all the notches line up with the DDR4 DIMM slot
To install the DIMM, follow these steps:
1 Pull both clips on either side of the slot outwards Align the DIMM module
with the slot
2 Press modules straight down until the plastic clips close and the module fits
tightly into the DIMM slot Push clips inwards to make sure they are in place

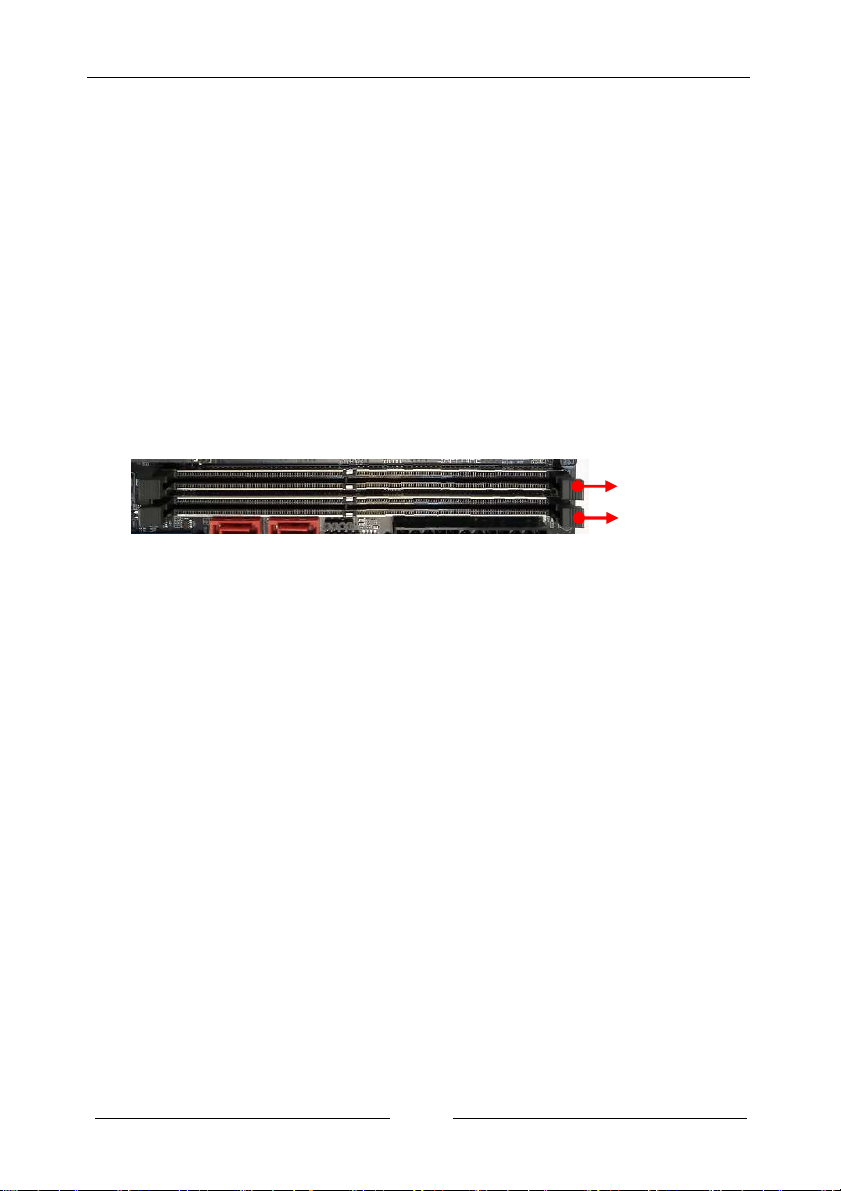

To remove DIMM from a socket, gently spread the socket’s retention arms to
disengage them from the DIMM
Note: To avoid damaging the DIMM, do not touch its contact edge
DIMM1
DIMM
2

~ 2 ~
2-6 Installing Expansion Cards
The mainboard provides:
One PCI-Express 4 0 x16 slot
One M 2 Slot E-key (Optional)
Two M 2 Slot M-key (PCIe 3 0 x4/SATA) with 2280 storage type for SSD
PCI-Express Slot
To install the PCI-Express card
1 Place the card in an available PCI Express slot and press down on the card
until it is completely seated in the slot If the card is not seated properly, it
could cause a short across the pins
2 Secure the card’s metal bracket to the chassis back panel with a screw
M :
M.2 E-key (Optional)
M
2:
(On the front of mainboard
)
M.2 M-key for M.2 SSD device
Note:
Recommended torque for the M.2
hold down screws: ~ .5lbf.
PE
:
PCI-E 4.0 x 6 Slot
M
3
:
(On the
back
of mainboard
)
M.2 M-key for M.2 SSD device

~ 3 ~
Removing Device Caution
Remove the M.2 SSD device at a 20-degree angle.
Please DO NOT pull up the M.2 SSD device to avoid damage to the M.2 slot.
M.2 M-Key Slot
To install the M 2 SSD device (type 2280):
1 Loosen two screws of heatsink and remove PCH
heatsink (M 2 slot on the back of mainboard,
no need to remove PCH heatsink)
2 Remove the screw and align the notch on the
M 2 slot edge connector with the tab in the slot
3 Plug the M 2 slot firmly into the slot at a
20-degree angle, and until it clicks into place
4 Fasten M 2 slot onto the nut with screw
Note:
The mainboard in the picture is not
actual mainboard, just for reference.
2
1
3
4
20
o
Supported module type: 22
8
0
Key M Slot
Key M
5 contacts
5 pins
Unit: mm
22
0
20
o

~ 4 ~
2-7 Connecting Cables and Jumper Settings
This section takes you through all the necessary connections on the mainboard
Front Panel Header
The front panel header (CFP, 2 00mm pitch) on this motherboard is used to
connect the front panel switches and LEDs
PWR_LED
Attach the front panel power LED cable to these two pins of the connector
The Power LED indicates the system’s status
System Status
Power LED indicates
S0
The LED i
s on
S5
The LED is off
S3
The LED will blink
S4
The LED is off
PW_ON
Attach the power button cable from the case to these two pins Pressing the
power button on the front panel turns the system on and off rather than
using the onboard button
HD_LED
Attach the hard disk drive indicator LED cable to these two pins The HDD
indicator LED indicates the activity status of the hard disks
Note: The HDD indicator LED supports SATA HDD only
RESET
Attach the Reset switch cable from the front panel of the case to these two
pins The system restarts when the RESET switch is pressed
Header Pin Signal
HD_LED
HD_PWR
3
HD Active
PWRLED
2
PWR LED
+
4
PWR LED
-
RESET
5
Ground
7
RST BTN
PWRSW
6
PWR BTN
8
Ground
No C
onnect
9
+5V
Empty
0
Empty
1
P R_LED
+
_
2
9
10
P _ON
HD_LED
RST
+
_

~ 5 ~

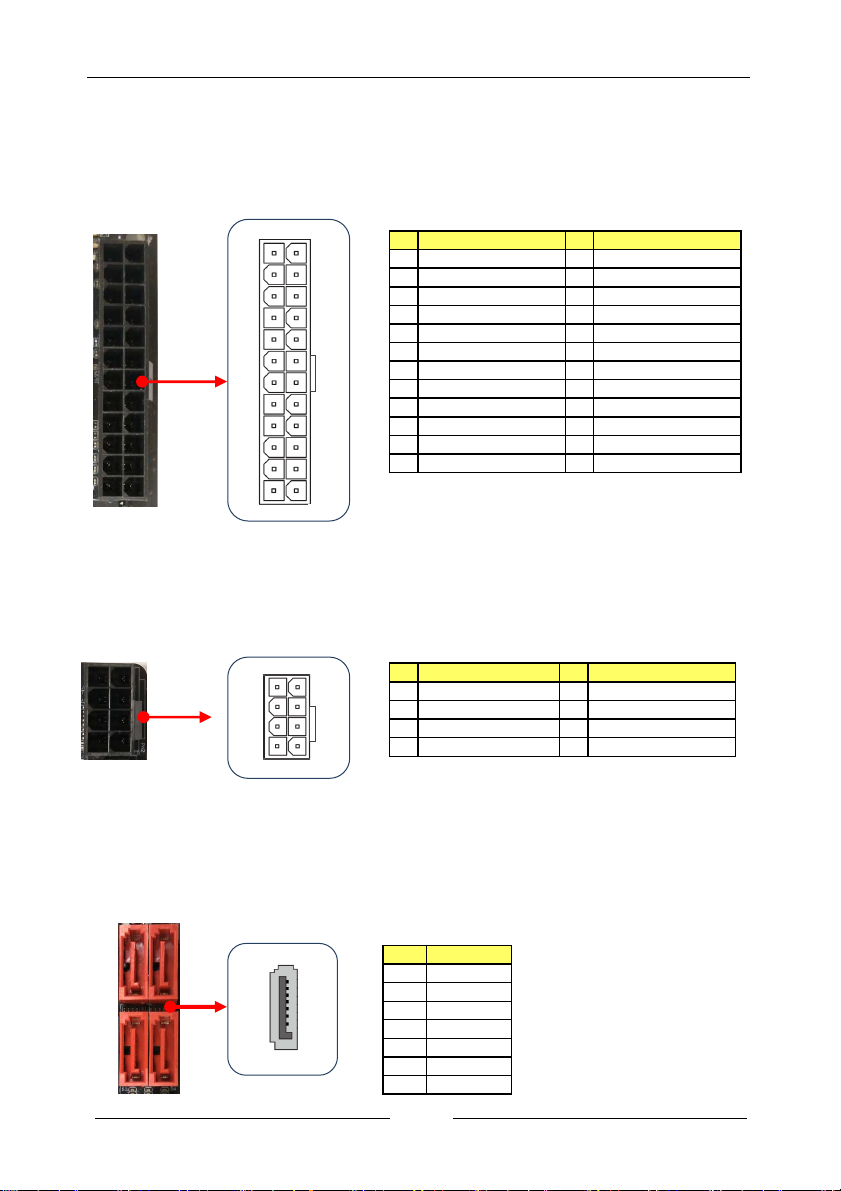

24-pin 12V ATX Power Connector
PW1 is the main power supply connector Make sure that the power supply
cable pins are properly aligned with the connector on the mainboard Firmly
plug the power supply cable into the connector and make sure it is secure
8-pin 12V ATX Power Connector
The PW2 power connector is used to provide power to the CPU Align the power
plug to the connector and press firmly until seated
SATA3 Connector
The S1 to S4 are SATA3 connector and works at speeds of up to 6G/s Each cable
can be used to connect one SATA drive to the mainboard Support RAID 0, 1
and 10 function
Pin
Definition
Pin
Definition
3.3V 3 3.3V
2 3.3V 4 - 2V
3 GND 5 GND
4 +5V 6 PS_ON
5 GND 7 GND
6 +5V 8 GND
7 GND 9 GND
8 Power Good 20 NC
9 5VSB (stand by +5V) 2 +5V
0 + 2V 22 +5V
+ 2V (only for 2x 2-pin ATX) 23 +5V (only for 2x 2-pin ATX)
2 3.3V (only for 2x 2-pin ATX) 24 GND (only for 2x 2-pin ATX)
Pin
Definition
Pin
Definition
GND (only for 2x4-pin 2V) 5 + 2V (only for 2x4-pin 2V)
2 GND (only for 2x4-pin 2V) 6 + 2V (only for 2x4-pin 2V)
3 GND 7 + 2V
4 GND 8 + 2V
Pin Definition
GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
1
7
24
12
1
13
8
4
1
5
S3
S1
S2
S4
