Sarabec CM-1 User manual

22 English
General information
The CM-1 communication system makes it noticeably easier for hearing-impaired
people to take part in conversations in difficult situations.
Each time you switch it on, take care to ensure that the volume on
the CM-1 receiver is set correctly to suit your personal needs in
order to avoid possible damage resulting from excessive volume.
To do this, turn the volume control down low.
The CM-1 communication system contains small parts which can be swallowed and
is not suitable for children under the age of 3.
If the device is not used properly, the manufacturer will not accept any liability for
damage and injury.

English 23
General information page 22
Standard scope of delivery 24
Commissioning and description of the controls
The CM-1 communication system 25
CM-1 receiver 25
CM-1 transmitter 29
CM-1 charger 32
Transport pouch 34
The CM-1 communication system in everyday use
At a presentation 35
Meeting around a table 36
In direct dialogue 37
On a trip – in a car, in a train compartment or on an airplane 37
Enjoying music or TV programmes 38
Changing the transmission frequency 38
Appendix
Safety instructions 39
Environmental advice/Disposal 39
Maintenance and care 40
Warranty 40
CE symbol 40
Technical data at a glance 41

24 English
Standard scope of delivery
16 84
710 2 3 9
No. Device component Quantity delivered
1 CM-1 transmitter 1
2 CM-1 receiver and ring loop 1
3 CM-1 charger with a bridge element and 2
safety screws
4 Power supply unit 1
5 Teleloop (induction loop) 1
6 Carrying loop 1
7 Pin to set the transmitter frequency 1
8 Adio cable 1
9 Transport pouche 1
10 Battery »AAA« 3
Operating instructions 1
Warranty card 1
The complete pack contains the following components:
5

English 25
Commissioning and description of the controls
The CM-1 communication system
The CM-1 communication system is used for the wireless transmission of speech,
music and sounds between a CM-1 transmitter and a CM-1 receiver which may be up
to 30 m apart.

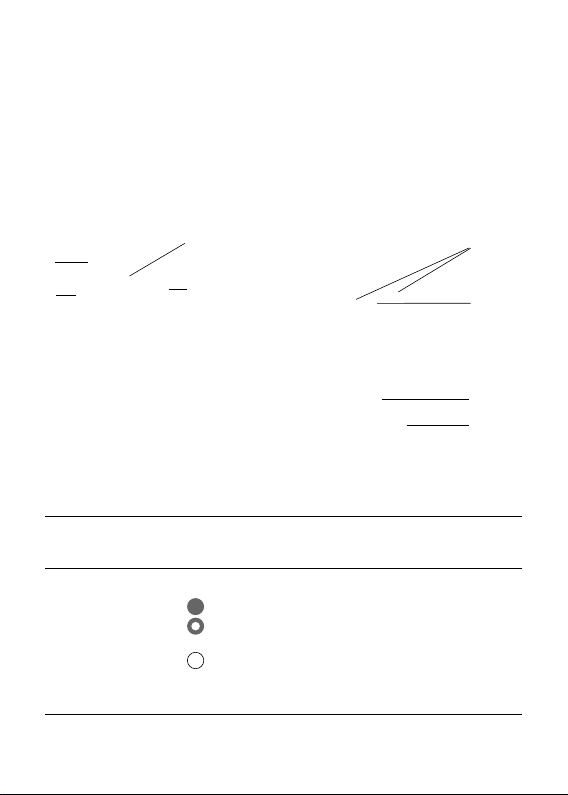

CM-1 receiver
No. Control feature Function and application CM-1 receiver
1HI/LO Switch HI Accentuates the transmission of the treble tones
selector switch setting LO Accentuates the transmission of the bass tones
2LED (red) Battery charge status when device is switched on
Continuous light Battery is adequately charged
Flashing light Will need to be recharged soon,
approx. 2 hours "reserve"
No light Battery discharged. Place the CM-1
receiver on the CM charger to recharge
the battery.
1
3
2
4
6
7
8
5

26 English
No. Control feature Function and Application CM-1 receiver
3Volume Switch 0 No effective tone transmission
controller setting 1,2 low volume. (Recommended setting
during commissioning)
3,4 Medium volume
5,6 High volume
4On/off switch Switch On Push the switch up to activate your
setting CM-1 receiver
Off Push the switch down to deactivate
your CM-1 receiver
5Headset jack Option for connecting a headset directly
6Frequency There is a slide switch for setting the following 3 frequency
selector switch ranges in the battery compartment of the CM-1 receiver:
Switch A 863,500 MHz
setting B 864,000 MHz
C 864,500 MHz
7Battery compart- The battery compartment is located on the bottom right of the
ment cover device. The battery is inserted into it.
8Teleloop Teleloop socket

English 27
Inserting the teleloop into the CM-1 receiver:
The CM-1 receiver can be used in two ways:
•via the teleloop which is supplied
•via a headset (not included in the scope of delivery)
In order to ensure successful transmission via a teleloop, your hearing aid must have an
integrated telecoil (T-coil) with which the sound information is transmitted inductively to
your hearing aid. Hearing aids generally tend to have a small T/MT switch which can be
used to set your hearing aid to inductive reception.
1. Insert the two plugs fully into the jacks on the top of the device. The marking on the
side of the plugs points towards the headset jack.
2. Turn the plugs through 90° so that the markings on the side point towards the top of
the device.
Teleloop (wound up)
Headset

28 English
Inserting the battery into the CM-1 receiver:
The device runs on a rechargeable "AAA"-type battery. It can also run on a non-
rechargeable battery.
Where necessary, only use original replacement batteries.
If you run your CM-1 communication system on disposable batteries, don't place the
receiver onto the CM charger.
Ensure that the battery is placed the right way around into the battery
compartment. The stipulated installation direction is indicated on the bot-
tom of the battery compartment.
N.B. This battery is not adequately charged upon delivery and has to be
charged fully on the CM charger first of all.
1. Switch off your CM1 receiver.
2. Remove the battery compartment cover from your CM-1 receiver.
3. Place the supplied battery into the battery compartment (note the polarity!).
4. Place the cover onto the battery compartment.
5. Place the CM-1 receiver into one of the CM chargers.
The green LED on the CM charger flashes throughout the charging process.
The battery is fully charged after 12 hours.
!

English 29
CM-1 transmitter
No. Control feature Function and application CM-1 transmitter
1Microphone Two microphones a defined distance from the area where the
unit sound is picked up.
2LED (red) Battery charge status when device is switched on
Continuous light Battery is adequately charged
Flashing light Will need to be recharged soon. You
have approx. 2 hours »reserve«
No light Battery discharged. Place the CM-1
transmitter on the CM charger to
recharge the battery.
1
2
59
6
3
4
8
7

No. Control feature Function and application CM-1 transmitter
3Mode Switch Super Zoom Dialogue: audibly reduces disrup-
selector switch setting tive sounds from the sides and from
behind. When the device is switched
on, the change to this switch position
is indicated acoustically by three sig-
nal pulses.
Zoom Meeting: audibly reduces disrup-
tive sounds from behind and, at the
same time, amplifies signals from in
front. When the device is switched
on, the change to this switch position
is indicated acoustically by two signal
pulses.
Omni Presentation: amplifies the signals
from all directions. When the device
is switched on, the change to this
switch position is indicated acousti-
cally by a signal pulse.
4On/off switch Switch On Push the switch up to activate your
setting CM-1 transmitter
Off Push the switch down to activate your
CM-1 transmitter
5Audio input Facility for connecting the CM-1 transmitter directly
socket (LINE) to your television or music system.
Use the audio cable supplied.
6Stand Fould-out stand
30 English

No. Control feature Function and application CM-1 transmitter
English 31
7Frequency There is a slide switch on the back of the device for setting
selector switch the following 3 frequency ranges:
Switch A 863,500 MHz
setting B 864,000 MHz
C 864,500 MHz
Slide the selector switch to the required frequency position using
the supplied pin.
Bear in mind at all times that the CM-1 transmitter and the CM-1
receiver have to be set to the same frequency ranges.
Different frequency ranges prevent each transmission.
8Battery compart- The battery compartment is located on the back of the device
ment cover and holds both batteries.
9Recording Insert the knob of the pendant cord into the circular part of the
device device and engage the knob perceptibly by pushing it towards
pendant cord he tip of the device.
Inserting the batteries into the CM-1 transmitter:
The device runs on two rechargeable "AAA"-type batteries. It can also run on non-
rechargeable batteries.
Where necessary, only use original replacement batteries.
If you run your CM-1 communication system on disposable batteries, don't place the
transmitter onto the CM charger.

Ensure that the batteries are placed the right way around into the battery
compartment. The stipulated installation direction is indicated on the
bottom of the battery compartment.
N.B. This battery is not adequately charged upon delivery and has to be
charged fully on the CM charger first of all.
1. Switch off the CM1 transmitter.
2. Remove the battery compartment cover
3. Place the supplied batteries into the battery compartment (note the polarity!).
4. Place the cover onto the battery compartment.
5. Place the CM-1 transmitter onto one of the CM chargers.
The green LED on the CM charger flashes throughout the charging process.
The battery is fully charged after 12 hours.
32 English
CM charger
2
31 54
!

English 33
No. Control feature Function and application CM-1 charger
112 V Jack for the power supply unit on the back of the
voltage input CM-charger.
Installation of the CM charger
1. Plug the power supply unit into the 230 V mains.
2. Connect the CM charger to the power supply unit by inserting the round connector
of the power supply unit into the DC jack on the back of the CM charger.
2Chraging cradle 3-pin charging cradle to hold the CM-1 transmitter unit or
for device CM-1 receiver unit upright.
components
3LED (red) Standby indicator
4LED (green) Charge indicator
5Bridge element There is a connector slot in the base under a plastic cover.
connector slot A bridge element can be pushed into it to enable two CM chargers
to be connected.
6Bridge Bridge element for connecting two CM chargers electrically.
element

34 English
Interconnecting two CM chargers
1. Disconnect the two chargers, which you wish to join, from the mains supply.
2. Detach one bridge element from the base of one of the chargers.
3. On the first charger, remove the plastic covers from the bridge element connector slot.
Slide the bridge element into the connector slot.
4. Fix the bridge element in place through the underside of the device base using the
supplied screws.
5. Remove the corresponding plastic cover from the second charger.
6. Place the second charger onto the bridge element that protrudes out from the first
charger.
7. Slide the second charger flush against the first charger.
8. Fix the second charger in place through the underside of the device base onto the
bridge element using the supplied screws.
9. Connect one of the two chargers to the power supply unit by inserting the round
connector of the power supply unit into the DC jack on the back of the CM charger.
Where there are two chargers connected together, only use one power supply unit!
Transport pouch
!

English 35
The CM-1 communication system in everyday use
At a presentation
1. Set your hearing aid to "T" or "MT" in order to transmit sound information directly to
the T-coil in your hearing aid via the teleloop, or connect a headset to a CM-1 receiver.
2. Slide the mode selector switch to the Omni position.
3. Position your CM-1 transmitter as centrally as possible, e.g. on the conference table.
4. Use the fold-out stand to raise the microphone unit somewhat and to mechanically
dampen jolting noises from the surface of the table.
5. Switch the CM-1 transmitter and CM-1 receiver on at the on/off switch.
6. Adjust the transmission volume to a comfortable level by setting the volume controller
on your CM-1 receiver to an appropriate level.
 You are seated in groups around a number of
tables in a presentation room, for example.
Sound is distributed evenly throughout the
room via a loudspeaker system.
Occasional questions are put to the speaker
from people seated at the groups of tables.
Use "Omni" transmision mode.
You can influence the tone of the sound transmitted by varying the tone
pattern on the HI/LO selector switch: the HI position accentuates the
transmission of the treble tones.

36 English
Meeting "around" a table
1. Set your hearing aid to "T" or "MT" in order to transmit sound information directly to
the T-coil in your hearing aid via the teleloop, or connect a headset to a CM-1 receiver.
2. Slide the mode selector switch to the Zoom position.
3. Position your CM-1 transmitter as close as possible to the speaker, whereby the
device's microphone unit should be pointing as directly as possible towards the
speaker.
4. Switch the CM-1 transmitter and CM-1 receiver on at the on/off switch.
5. Adjust the speech volume to a comfortable level by setting the volume controller on
your CM-1 receiver to an appropriate level.
 You are taking part in the meeting shown.
 The other people are speaking at different
levels.
 Use the "Zoom" transmission mode to reduce
disruptive sounds from behind perceptibly and,
at the same time, to amplify speech in front of
you.

English 37
In "direct" dialogue
1. Change the position of your CM-1 transmitter so that it is pointing as directly as
possible towards the other person.
2. Slide the mode selector switch to the Super Zoom position.
3. Adjust the transmission volume to a level which is reasonable for the conversation.
 You are having a more private conversation
with another person.
 You would like to concentrate fully on this
person.
 You are distracted by all the other types of
noise.
 Use "Super Zoom" transmission mode to reduce
all noises from the sides and from behind
perceptibly and to filter out the other person.
On a trip – in a car, in a train compartment or on an airplane
You are on a journey, for instance as part of a travel group on a train or bus, accompa-
nied by someone in the car or traveling alone by air. You want to be able to chat to the
person sitting beside you during the trip, however the person isn't sitting on the same
side as your hearing aid.
The situation is compounded by all the other disruptive sounds on board, especially the
permanent noise from the air-conditioning, in an airplane for example.
Just like having a private conversation at a meeting, you need to amplify all the sounds
made by the other person with the greatest possible concentration.
The CM-1 produces the desired effect in Super Zoom transmission mode by reducing all
noises from the sides and from behind perceptibly and by filtering out the conversation
with the other person.

38 English
Enjoying music or TV programmes
There is an audio input jack on the CM-1 transmitter which you can connect directly to
your television or music system using the supplied audio cable.
How to connect a device:
1. Switch off the CM-1 transmitter and the CM-1 receiver.
2. Set the volume control on the CM-1 receiver to a low value.
3. Insert the two cinch plugs (Ø 3.5mm) into the audio input jack of the CM-1 trans-
mitter.
4. Insert the other two cinch plugs into the audio output jack of your television or music
system.
5. Switch the CM-1 transmitter and the CM-1 receiver back on.
6. Adjust the transmission volume to a comfortable level.
Changing the transmission frequency
If you experience transmission interference, this may be due to the fact that there are
two CM-1 systems being operated in close proximity to one another.
The CM-1 transmitter and CM-1 receiver are capable of communicating in three different
frequency ranges. The frequency ranges are characterized by the letters "A“, "B“ and "C“
and apply to transmitters and receivers alike.
Bear in mind at all times that the CM-1 transmitter and the CM-1
receiver have to be set to the same frequency ranges. Discrepancy in
frequency ranges will prevent any transmission.
1. Switch off the CM-1 transmitter and the CM-1 receiver.
2. Open the battery compartment on your CM-1 receiver and take out the battery.
3. Use the supplied pin to adjust the frequency selector switch inside the battery
compartment.
4. Re-insert the battery and place the cover on the battery compartment.
5. Turn the CM-1 transmitter around so that it is facing away from you.
6. Use the supplied pin to adjust the frequency selector switch on the back of the
CM-1 transmitter to the same value that you had previously selected for your
CM-1 receiver.
7. Switch the CM-1 transmitter and the CM-1 receiver back on.
!

English 39
Safety instructions
The CM-1 communication system is designed in accordance with the current state of the
art and recognized safety rules. Pay attention to the following safety instructions:
•Position the charger on a non-slip base.
•Lay the connecting cable so that it cannot be tripped over.
•Never expose the device to the following sources of influence:
- heaters
- direct sunlight
- moisture
•Protect the device from damp, dust, aggressive fluids and vapors.
•Only connect the connecting cables to the designated sockets / jacks.
•Only connect approved accessories.
•Under no circumstances may modifications of a technical or non-technical nature be
made to the communication system.
•The CM-1 communication system contains small parts which can be swallowed and
is not suitable for children under the age of 3.
Appendix
Disposal
Disposal of used electric and electronic units (applicable in the countries of the
European Union and other European countries with a separate collection system).
The symbol on the product or the packaging indicates that this product is not to be
handled as ordinary household waste but has to be returned to a collecting point for
the recycling of electric and electronic units. You protect the environment and health of
your fellow men by the correct disposal of this products. Environment and health are
endangered by a faulty disposal. Material recycling helps to reduce the consumption of
raw material. You will receive further information on the recycling of this product from
your local community, your communal disposal company or your local dealer.

40 English
Maintenance and care
The CM-1 does not require any maintenance. If the unit does become dirty, simply wipe
it clean with a soft, damp cloth. Never use spirits, thinners or other organic solvents.
Do not set up the unit where it will be exposed to full sunlight for long periods.
In addition it must be protected against excessive heat, moisture and severe mechanical
shock.
Warranty
The warranty covers the repair of the product and returning it to you free of charge
during the warranty period. It is essential that you send in the product in its original
packaging, so do not throw the packaging away. The warranty does not apply to damage
caused by incorrect handling or attempts to repair the unit by people not authorized by
Repairs under warranty are only carried out providing you have filled in and returned the
enclosed warranty card from the dealer as well as a copy of the sales slip.
Always specify the product number in any event.
CE symbol
The CM-1 conforms to the requirements of EU Directive 1999/5/EC
on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity.
Conformity with the afore-mentioned directive is confirmed by the
CE symbol on the telephone.

Technical data
CM-1 transmitter
Dimensions (H x W x D): 19 x 37x120 mm
Weight: 64 g
Power supply: 2 x 1,2V NiMH-batteries (LR03 type)
Charge time (following complete discharge): max. 12-14h
Operating time (load-dependent): max. 10-12h
CM-1 receiver
Dimensions (H x W x D): 20 x 39 x 96 mm
Weight: 45 g
Power supply: 1 x 1,2V NiMH-batteries (LR03 type)
Charge time (following complete discharge): max. 12-14h
Operating time (load-dependent): max. 10-12h
CM charger
Dimensions (H x W x D): 67 x 83 x 65 mm
Weight: 94g
Power supply via a PSU: Primary 220/230 V 50-60 Hz AC /
Secondary 12 V DC
English 41
