BXB Electroics EDC-1051 User manual

BXB ELECTRONICS CO., LTD.
1/23 www.bxb.tw
E
E
ED
D
DC
C
C-
-
-1
1
10
0
05
5
51
1
1
E
E
Ea
a
as
s
sy
y
y
D
D
Di
i
ig
g
gi
i
it
t
ta
a
al
l
l
C
C
Co
o
on
n
nf
f
fe
e
er
r
re
e
en
n
nc
c
ce
e
e
S
S
Sy
y
ys
s
st
t
te
e
em
m
m
U
U
Us
s
se
e
er
r
r M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
V
V
Ve
e
er
r
rs
s
si
iio o
on
n
n:
:: 2 2
2.
..0 0
0
D
D
Da
a
at
tte e
e:
:: M M
Ma
a
ay
y
y
1 1
10
0
0,
,, 2 2
20
0
01
1
12
2
2

BXB ELECTRONICS CO., LTD.
2/23 www.bxb.tw
Contents page
Overview............................................................................................................... 3
Safety Instructions ................................................................................................ 5
Installation............................................................................................................. 6
Connection between main control unit & microphone units.........................................6
EDC 1051 Operation and Function....................................................................... 7
Front Panel Description ........................................................................................ 7
Rear Panel Description......................................................................................... 8
1. Turn On ....................................................................................................................... 9
2. LCD Instructions...................................................................................................... 10
3. System Operations & Settings................................................................................ 11
3.1 Talking Microphones Display..............................................................................................11
3.2 Conference Mode Setting ....................................................................................................12
3.3 Open Microphone Number Setup........................................................................................13
3.4 Automatic Turn Off Mic Time Setup...................................................................................13
3.5 Volume Setting.....................................................................................................................14
Microphone Description ...................................................................................... 15
Tabletop Chairman Unit - EDC 1011...............................................................................15
Tabletop Delegate Unit - EDC 1012................................................................................16
Flush-mounted Chairman Unit - EDC 1021 ...................................................................17
Flush-mounted Delegate Unit - EDC 1022.....................................................................18
Flush-mounted Chairman Unit - EDC 1023 ...................................................................19
Flush-mounted Delegate Unit - EDC 1024.....................................................................20
EDC1051 Main Control Unit Technical Specification................................................... 21
Microphone Unit Technical Specification..................................................................... 22

BXB ELECTRONICS CO., LTD.
3/23 www.bxb.tw
Overview
Thank you for purchasing EDC 1000 conference system from BXB Electronics Co.
EDC1000 is the easiest digital conference system with superb performance and elegant design
which can be used in various conference rooms.
EDC1051 main control unit has the latest built-in digital control module which can control up to
10 chairman units and 127 delegate units. What’s more, the digital volume control module and
communication control module can definitely meet your requirements for any occasion.
The main control unit runs auto-detection to check if all the units work properly when turning on,
facilitating timely system detection.
High reliability is our utmost purpose when developing EDC1000 conference system. Each
main control unit and its fittings have all gone through careful assembly and strict test in our ISO
9001 approved factory. The excellent performance, high reliability and reasonable price make it
the indispensable conference system for you.

BXB ELECTRONICS CO., LTD.
4/23 www.bxb.tw
System Features
Main Control Unit
1. Auto-detect connection
2. Digital control capability: 10 chairman units and 127 delegate units
3. 1(20*4) LCD screen and 3 conference mode setting buttons: MODE, UP, DN
4. built-in digital volume control module
5. built-in software control module
Chairman Unit
1. Types: Tabletop and flush-mounted
2. Microphone on/off button, control button
3. built-in conference digital volume control module
4. Pliable in anywhere within circuit
5. A maximum of 10 units can be installed
6. ID code setting: 7-bit DIP switch
Delegate Unit
1. Types: Tabletop, flush-mounted and hand-held
2. Microphone on/off button
3. A maximum of 127 units can be installed
4. ID code setting: 7-bit DIP switch

BXB ELECTRONICS CO., LTD.
5/23 www.bxb.tw
Safety Instructions
1. Please read and observe these instructions before installing and using the apparatus.
2. Use only accessories specified by the manufacturer. The manufacturer is not liable for damage
caused by the use of non-specified accessories.
3. Install the apparatus and its accessories carefully. Strike and fierce shaking may damage the
apparatus.
4. Make sure the power cord is fixed properly.
5. Do not overload wall outlets and extension cords as this can result in a risk of fire or short circuit.
6. To reduce the risk of damage from lightning strikes, it is important that all electric cables should
be bonded to the same grounding point.
7. Do not block any ventilation openings to prevent overheating and malfunction.
8. Do not expose the apparatus to rain or moisture.
Humidity may lead inside components to damage. Appropriate shelter is necessary when
placing it outside (Best working environment: Temperature 0°C ~ 40°C <32°F ~ 104°F>,
humidity below 90%).
9. Please do not switch on and off the apparatus rapidly.
Rapid switch on and off the apparatus should be avoided all the time to prevent inside sensitive
electronic circuits from being damaged by surges.
10.Do not clean the apparatus and its accessories with chemical solvents. Use only a clean,
dry/dampish cloth.
11.Refer to maintenance technician when the apparatus has been damaged in any way, such as:
A• power-supply cord or plug is damaged
B• liquid has been spilled in
C• has been exposed to rain or moisture
D• has been dropped
E• objects have fallen into the apparatus
F• does not operate normally
12.Note: When the printed circuit board is going through electric static treatment, correct ESD
safety precaution and grounding should be assured.
13.Note: Before connecting the apparatus to main AC, please select the supply voltage in
accordance with the wall voltage in your country to prevent damage. Refer to Installation and
Setting (Page 8) for selecting.
14.Warning: Do not disassemble or remodel the product, as these actions may lead to electrical
shock or damage. The guarantee on the product will become null if the product is ever
disassembled.

BXB ELECTRONICS CO., LTD.
6/23 www.bxb.tw
Installation

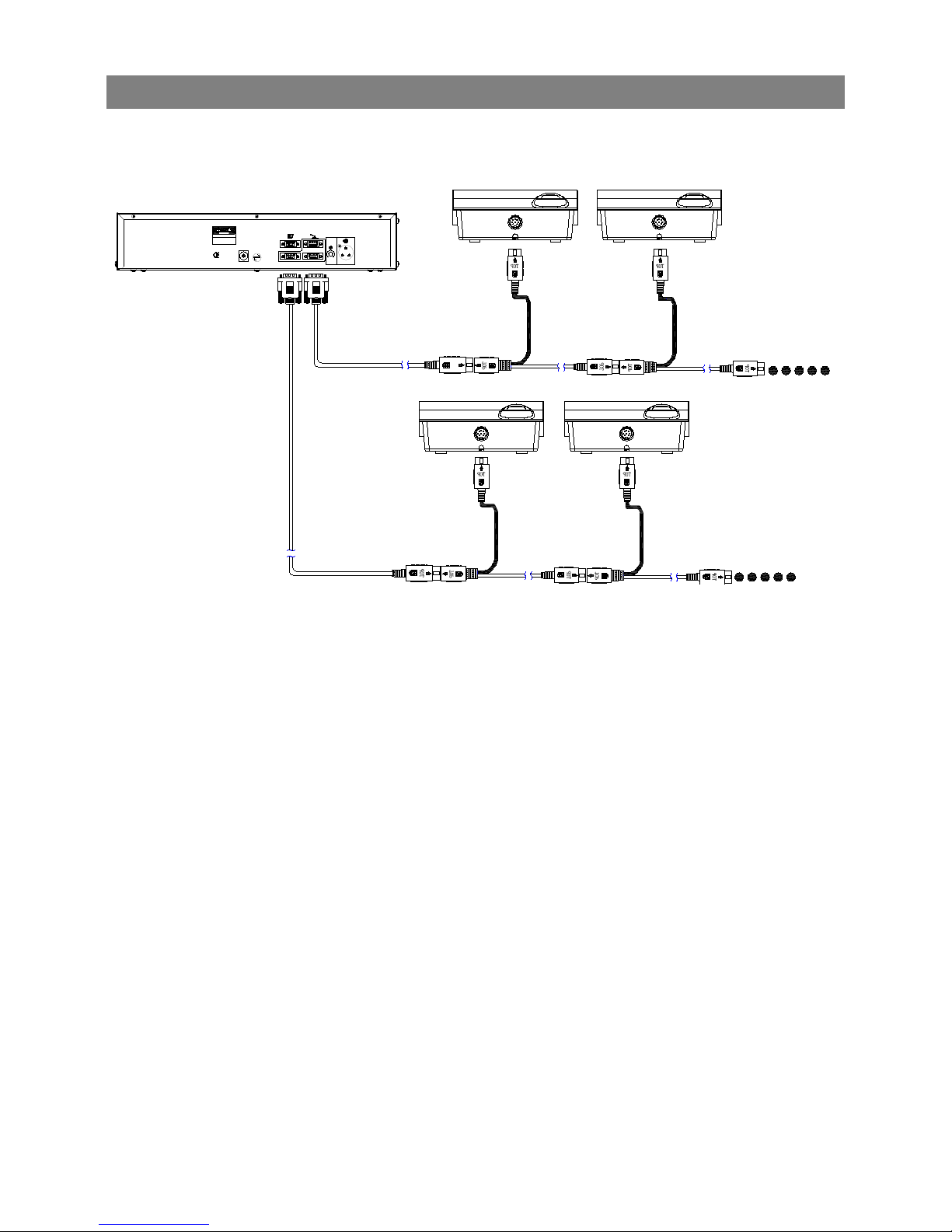

Connection between main control unit & microphone units
1M
2.5M
TOP
2.5M
1M
1M
2.5M
2.5M
1M
12M 1M
101
DC FUSE
Aux Output
L. Spearer
Conference Link
IOIOI
http://www.bxb.com.tw
MADE IN TAIWAN
!
CAUTION
RISK OF ELECTRIC SHOCK
DONO T OPEN
CAUTION:
．TOPREVENT ELECT RIC SHOCK
DO NOT REMOVE COVER(OR BACK)
．NOUSER SERVICEABLE PARTS
TOQU ALIFIED SERVICE PERSONNEL
12M
There are three groups of microphone port on the main control unit, which can be connected
randomly.
Chairman/delegate unit is equipped with hidden connecting terminal. While connecting, BXB
Advanced Y shape fast cord is adopted to form hidden wiring with simple and beauty effect.
The chairman microphone can be plugged at any place without order limitation.
Please make sure the power is off before unplugging the unit.

BXB ELECTRONICS CO., LTD.
7/23 www.bxb.tw
EDC 1051 Operation and Function
Front Panel Description
-8 -5 0
-2 +2
Mode Up Down
Power
Conference System Control Unit
1
2
3
4
1. Power switch
2. Conference mode setting buttons
MODE Mode select button
UP Mode parameter increase / volume up
DN Mode parameter decrease/ volume down
3. Volume output LED indicator
4. Control mode 20×4 LCD screen

BXB ELECTRONICS CO., LTD.
8/23 www.bxb.tw

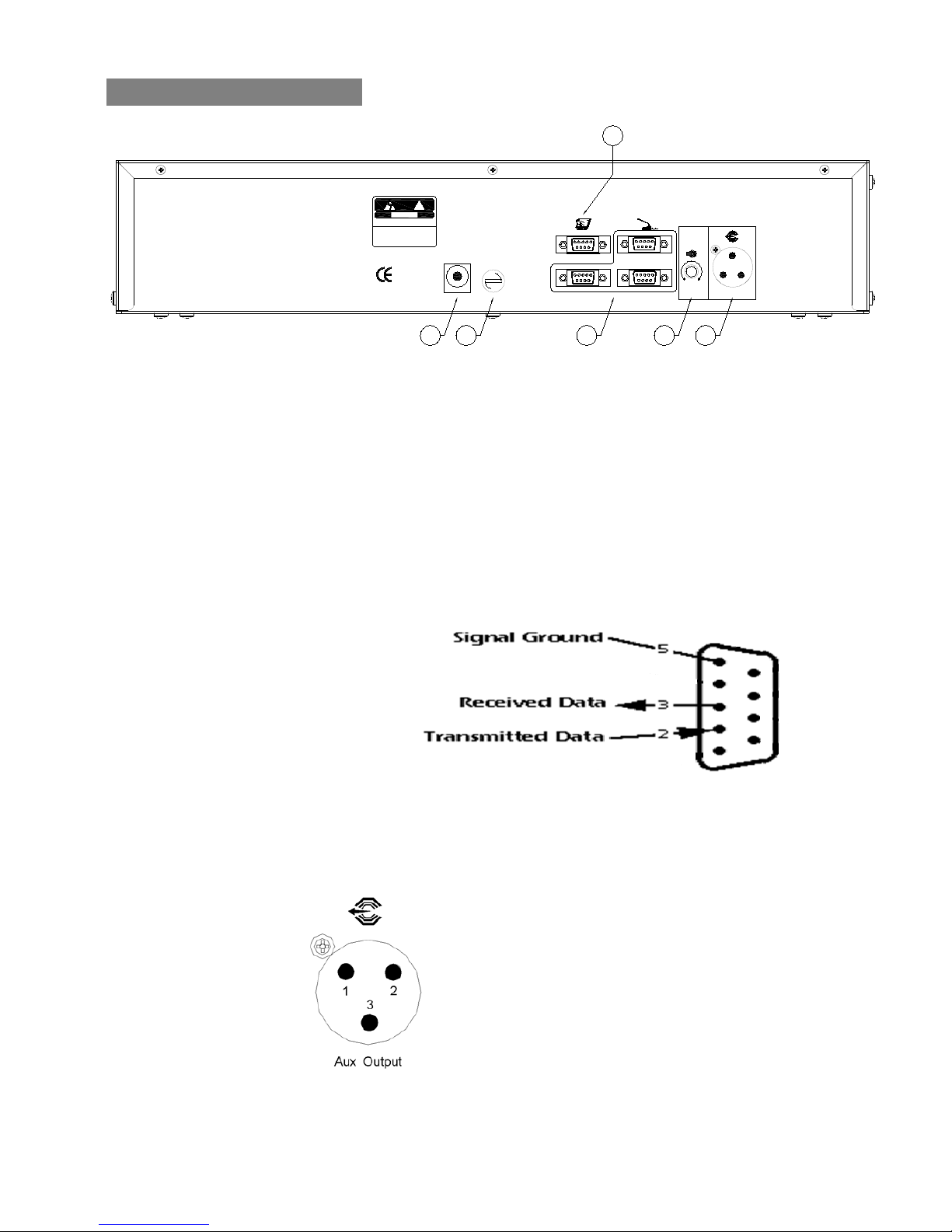

Rear Panel Description
10
1
DC FUSE
Aux Output
L. Spearer
Conference Link
IOIOI
http://www.bxb.com.tw
MADE IN TAIWAN
!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
．TO PREVENT ELECTRIC SHOCK
DO NOT REMO VE COVER(OR BACK)
．NO USER SERVICEABLE PARTS
TO QUALIFIE D SERVICE PERSONNEL
6
1
2345
1. Aux output terminal (XLR).
2. L. speaker volume control – for conference unit built-in loudspeaker
3. Link 1~3 – Conference unit connectors
4. DC fuse (DC 250V/8A).
5. Power input 100V ~ 240V.
6. RS-232 port
2nd foot: Transmitted Data (Tx)
3rd foot: Received Data (Rx)
5th foot: Signal Ground(G)
※Aux output terminal pin diagram
1:Ground
2:Sound (Aux)
3:Empty

BXB ELECTRONICS CO., LTD.
9/23 www.bxb.tw
1.Turn On
1.1 After confirming all the wiring is done, switch on the main controller and the LCD will display
following information:
B X B E D C 1 . 0 V e r s i o n
C o n f e r e n c e P A S y s t e m
1.2 Later, the system will start auto-scanning all connected conference microphones; LCD will
display following information:
M e m o r y C h e c k
· · · · · · O K
1.3 After scanning completes, LCD will display following information (default page).
1 N O : N o M i C
2 M O D E :
N o r m a l
3 O P E N - M I C : 0 2 M i c
4 A U T O - O F F : 3 0 S e c
NOTE：
1. When the main controller is turned on, the system start auto-scanning if all the microphones
work properly. Red light ring on normal microphone stays on while flashing ones mean
connection failure.
2. In this case, turn off the unit and check whether the microphone connection is correct or not.
Switch it on and check again.
3. Press any of the microphone unit or wait for 30 seconds, light ring on microphones will be
turned off, the conference is ready to go.

BXB ELECTRONICS CO., LTD.
10/23 www.bxb.tw
2.LCD Instructions
5 S Y S T E M L E V E L
P A V O I C E : 8 0 %
1.NO: Shows speaking microphone ID code: 3groups of ID code per page.
i.Chairman microphone ID code:1 ~ 10
ii.Delegate microphone ID code:001 ~ 127
2.MODE:
i.Normal：Normal Mode
ii.Override：Override Mode
iii.Chairman：Chairman Mode
3.OPEN-MIC: Give limit to the number of talking microphones: 1~9or all.
4.AUTO-OFF (Automatic Mic-off): 30/45 seconds & and manual turn off.
5.Adjust volume by pressing "UP" button ▲or "Down" button ▼.
※When stop pressing buttons for 30 seconds, the system will save the setting automatically
and goes back to default page.
1 N O :
2 M O D E : N o r m a l
3 O P E N - M I C :
0 2 M
i c
4 A U T O
-
O F F :
3 0 S e c
○
1
○
2
○
3
○
4
○
5
○
1

BXB ELECTRONICS CO., LTD.
11/23 www.bxb.tw
3.System Operations & Settings
3.1 Talking Microphones Display
3.1.1 When conference microphone is using, the red light ring on it will be on. Meanwhile, its ID
code will be displayed on the LCD on main control unit.
3.1.2 Three using microphones codes can be shown on the preset menu.
1 N O : 0 0 1 0 0 2 0 0 3
2 M O D E : N o r m a l
3 O P E N - M I C :
0 2 M i c
4 A U T O - O F F :
3 0 S e c
3.1.3 If more than 3 microphones are in use, “” icon will be displayed on the up-right of the
LCD. Pressing MODE button LCD screen will show ” ◘” press “UP” and ”DN” button to
check codes of using microphone.
1
◘
N O : 0 0 1 0 0 2 0 0 3 
2 M O D E : N o r m a l
3 O P E N - M I C : 0 2 M i c
4 A U T O - O F F : 3 0 S e c
3.1.4 The symbol of “◘” icon indicates function is selected. Press MODE to switch items to setup
conference modes.
Note: All figures shown on this manual is only for examples. Each main control unit has
been through a series of QC test before leaving factory. Default values are not
identical, users can change settings simply followed by the instructions below.

BXB ELECTRONICS CO., LTD.
12/23 www.bxb.tw
3.2 Conference Mode Setting
3.2.1 Press MODE button move “◘” icon to 2. MODE Normal (flashing) press “UP” or
“DN” to change the conference mode.
3.2.2 Following are all the conference modes:
※All setting will not restrict chairman microphones.
Normal:
Delegate microphones can press the talk button and speak freely (within open mics
limit). Press talk button again to turn off after speaking.
Chairman:
Only chairman microphone can speak. Other delegate mics become invalid.
可
Override:
Example 1: If you limit only 1delegate microphone can be on, while the 2nd delegate
press TALK button, the 1st microphone will be switched off automatically.
Example 2: If you limit 3delegate microphones, turning on the 4th delegate unit will turn
off the 1st talking delegate unit; turning on the 5th will turn off the 2nd, in a word, only 3
microphones can be on at a time. 1~9microphones can be setup and chairman unit
won’t be limit in any of the modes.
1 N O : 0
0
1 0 0 2 0 0 3
2 ◘M O D E : N o r m a l
3 O P E N - M I C : 0 2 M i c
4 A U T O - O F F : 3 0 S e c
1 ◘N O :
2 M O D E : C h a i r m a n
3 O P E N - M I C : N O M i c
4 A U T O - O F F : 3 0 S e c

BXB ELECTRONICS CO., LTD.
13/23 www.bxb.tw
3.3 Open Microphone Number Setup
3.3.1 Select “Open- Mic”: ALL Mic/ 1-9 microphones.
3.3.2 Press MODE button move” ◘” to OPEN - MIC 03 Mic will be flashing press UP or
DN to change numbers.
3.3.3 Limit number of open delegate microphones from 1~9.
4.3.3.1 OPEN –MIC：1 Mic Only 1delegate microphone can talk at a time.
4.3.3.2 OPEN –MIC：9 Mic Up to 9delegate microphones can talk at a time.
4.3.3.3 OPEN –MIC：ALL Mic All the delegates can talk.
3.4 Automatic Turn Off Mic Time Setup
3.4.1 Automatic mic off time (30/45 sec) could be set up. Delegate unit will be automatically
switched off when receiving no sound input for 30/45 sec.
3.4.2 Press MODE button move “◘” to AUTO –OFF30 Sec will be flashing press UP or
DN button to switch 30/45 sec.
3.4.3 After finish talking in 30/45 secs, delegate microphones will be turned off automatically.
3.4.3.1 AUTO –OFF：30 Sec Delegate microphones will be turned off in 30 sec.
3.4.3.2 AUTO –OFF：45 Sec Delegate microphones will be turned off in 45 sec.
1 N O : 0 0 1 0 0 2 0 0 3
2 M O D E : N o r m a l
3 ◘O P E N - M I C : 0 3 M i c
4 A U T O - O F F : 3 0 S e c
1 N O : 0 0 1 0 0 2 0 0 3
2 M O D E : N o r m a l
3 O P E N - M I C :
0 3 M i c
4 ◘A U T O - O F F : 3 0 S e c

BXB ELECTRONICS CO., LTD.
14/23 www.bxb.tw
3.5 Volume Setting
To adjust system volume, please press UP button▲ or Down button▼ on the main control
unit, the LCD will be shown as follow:
※When stop pressing buttons for 30 seconds, the system will save the setting automatically
and goes back to default page.
P A V O I C E : 6 0 %

BXB ELECTRONICS CO., LTD.
15/23 www.bxb.tw
Microphone Description
Tabletop Chairman Unit - EDC 1011
Operation：
1. Press “Talk” button to turn on microphone. Both the button and the light ring on microphone
will light up.
2. When turn on the microphone, build-in speaker on the unit will be silent to prevent echo.
3. Press “Control” button to turn off all delegate microphones. Delegate can press “Talk” button
again to continue talking.
4. DIN type microphone and the base can be separated. It is not only easy to install and
maintain for fixed areas, but also easy to transport and store for mobile areas.
5. Single Y-shaped connection cable and the built-in socket make the conference area tidy and
neat.
○
1 Talk button（with backlight indication）
○
2 Chairman Control Button（with backlight
indication）
○
3 Build-in speaker for decentralized sound
○
4 Built-in socket for DIN type microphone
○
5 Recorder output plug
○
6 Built-in socket for connection cable

BXB ELECTRONICS CO., LTD.
16/23 www.bxb.tw

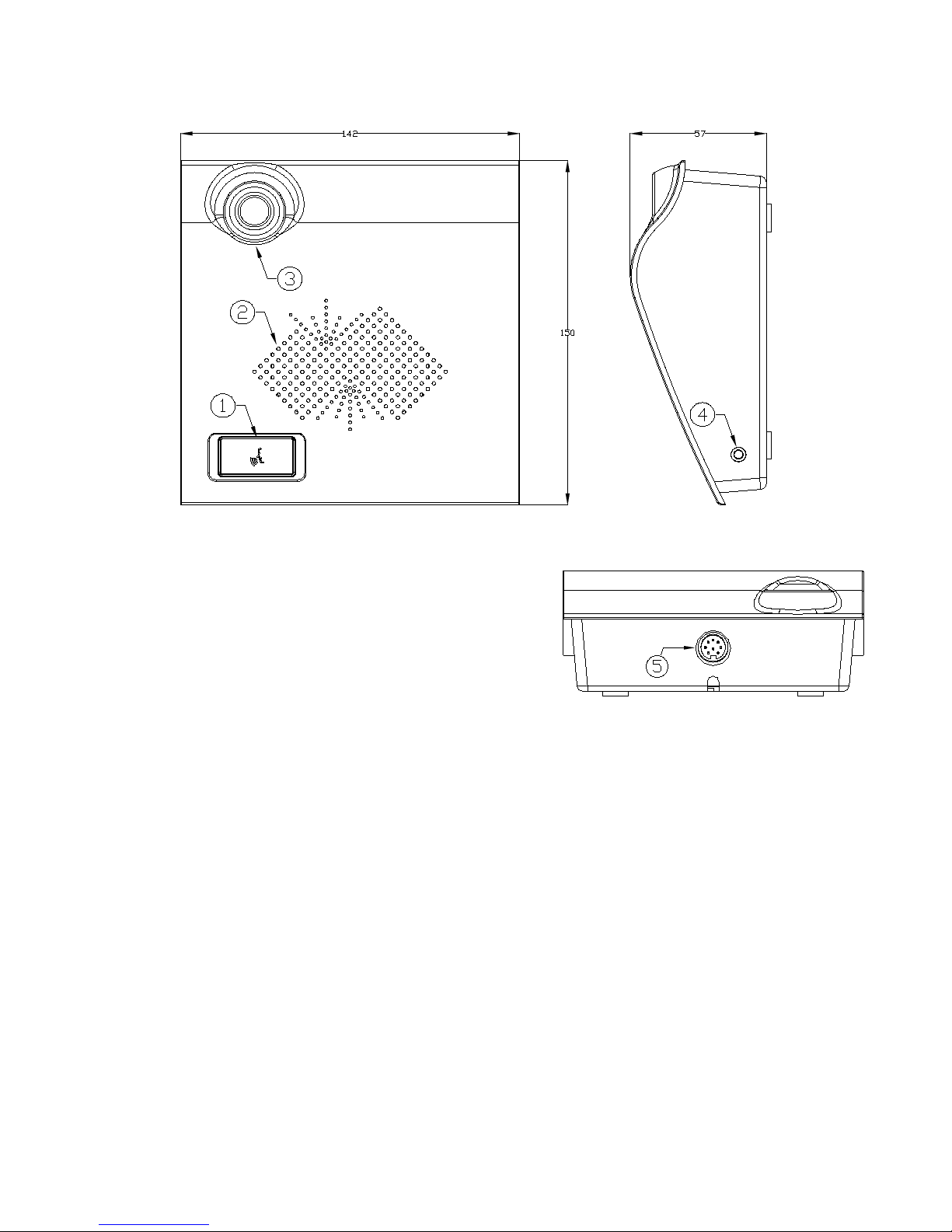

Tabletop Delegate Unit - EDC 1012
Operation：
1. Press “Talk” button to turn on microphone. Both the button and the light ring on microphone
will light up.
2. When turn on the microphone, build-in speaker on the unit will be silent to prevent echo.
3. DIN type microphone and the base can be separated. It is not only easy to install and
maintain in fixed areas, but also easy to transport and store in mobile areas.
4. Single Y-shaped connection cable and the built-in socket make the conference area tidy and
neat.
○
1 Talk button（with backlight indication）
○
2 Build-in speaker for decentralized sound
○
3 Built-in socket for DIN type microphone
○
4 Recorder output plug
○
5 Built-in socket for connection cable

BXB ELECTRONICS CO., LTD.
17/23 www.bxb.tw
Flush-mounted Chairman Unit - EDC 1021
Operation：
1. Press “Talk” button to turn on microphone. Both LED above it and the light ring on
microphone will light up.
2. When turn on the microphone, build-in speaker on the unit will be silent to prevent echo.
3. Press “Control” button to turn off all delegate microphones. Delegate can press “Talk”
button again to continue talking.
4. DIN type microphone and the base can be separated. It is easy to install, maintain and
store.
5. Single Y-shaped connection cable and the built-in sockets make the conference room tidy
and neat.
TALK
CONTROL
REC
mm
EAR
VOL
CONFERENCE SYSTEM
○
1 Talk button（with indication
LED）
○
2 Chairman control button（with
indication LED）
○
3 Recorder output plug
○
4 Earphone output plug and
volume control
○
5 Build-in speaker for
decentralized sound
○
6 Built-in socket for DIN type
microphone
○
7Built-in sockets for connection
cable

BXB ELECTRONICS CO., LTD.
18/23 www.bxb.tw

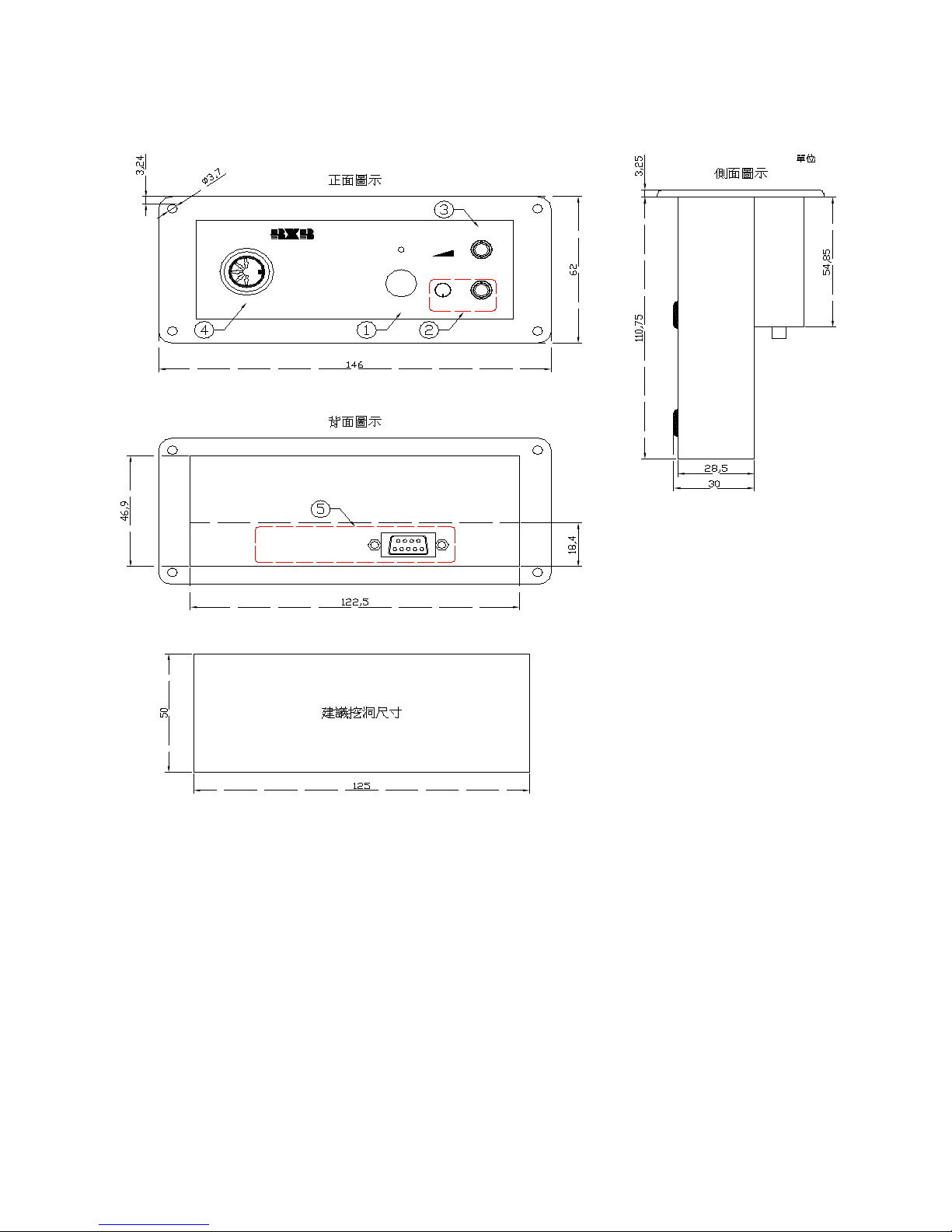

Flush-mounted Delegate Unit - EDC 1022
Operation：
1. Press “Talk” button to turn on microphone. Both LED above it and the light ring on
microphone will light up.
2. When turn on the microphone, build-in speaker on the unit will be silent to prevent echo.
3. DIN type microphone and the base can be separated. It is easy to install, maintain and
store.
4. Single Y-shaped connection cable and the built-in sockets make the conference room tidy
and neat.
CONFERENCE SYSTEM
VOL
EAR REC
TALK
mm
○
1 Talk button（with indication
LED）
○
2 Recorder output plug
○
3 Earphone output plug and
volume control
○
4 Build-in speaker for
decentralized sound
○
5 Built-in socket for DIN type
microphone
○
6 Built-in sockets for connection
cable

BXB ELECTRONICS CO., LTD.
19/23 www.bxb.tw

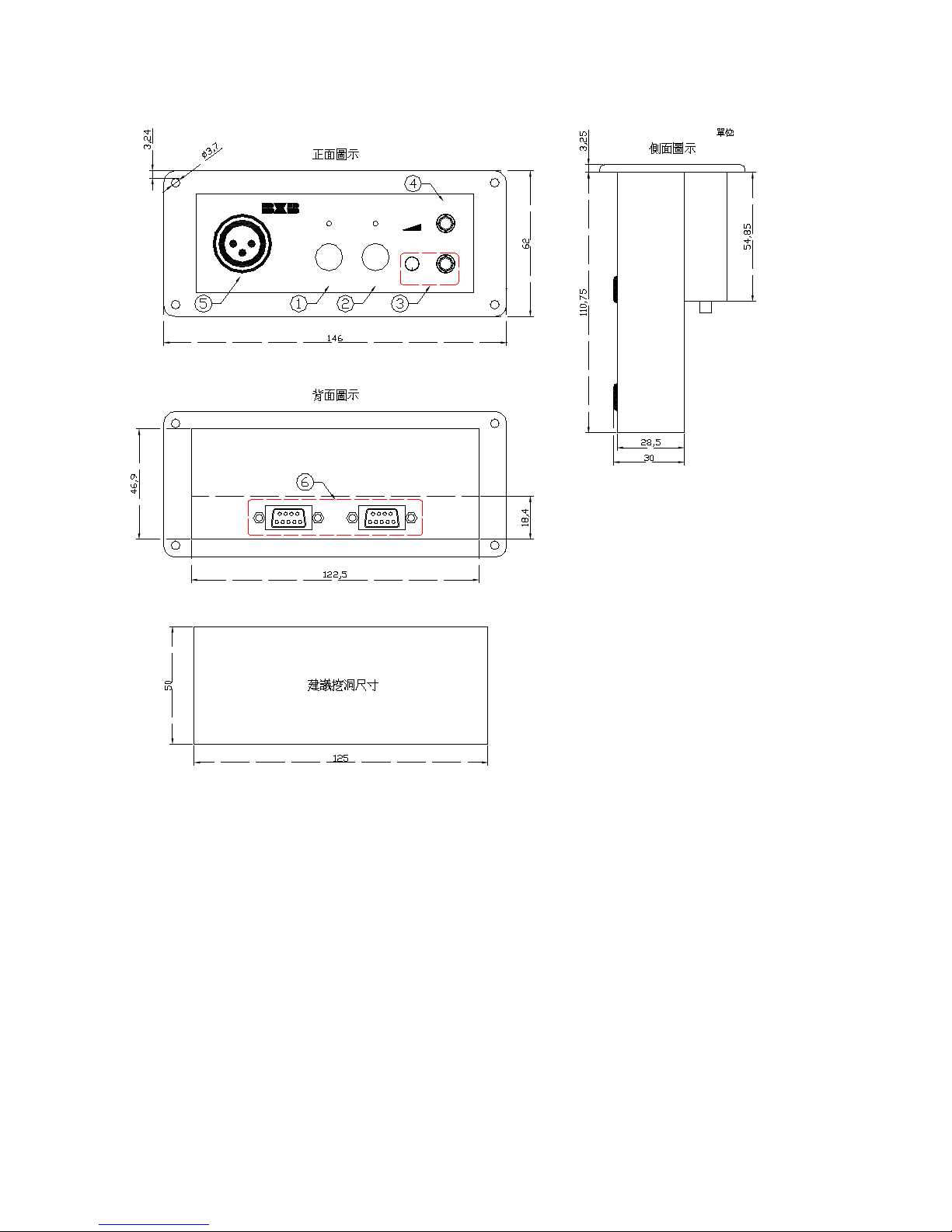

Flush-mounted Chairman Unit - EDC 1023
Operation：
1. Press “Talk” button to turn on microphone. Both LED above it and the light ring on
microphone will light up.
2. Press “Control” button to turn off all delegate microphones. Delegate can press “Talk”
button again to continue talking.
3. XLR type microphone and the base can be separated. It is easy to install, maintain and
store.
4. Single Y-shaped connection cable and the built-in sockets make the conference room tidy
and neat.
12
3
REC
EAR
VOL
TALK
CONFERENCE SYSTEM
mm
CONTROL
○
1 Chairman control button（with
indication LED）
○
2 Talk button（with indication
LED）
○
3 Earphone output plug and
volume control
○
4 Recorder output plug
○
5 Built-in socket for XLR type
microphone
○
6 Built-in sockets for connection
cable

BXB ELECTRONICS CO., LTD.
20/23 www.bxb.tw
Flush-mounted Delegate Unit - EDC 1024
Operation：
1. Press “Talk” button to turn on microphone. Both LED above it and the light ring on
microphone will light up.
2. XLR type microphone and the base can be separated. It is easy to install, maintain and
store.
3. Single Y-shaped connection cable and the built-in sockets make the conference room tidy
and neat.
○
1 Talk button（with indication
LED）
○
2 Earphone output plug and
volume control
○
3 Recorder output plug
○
4 Built-in sockets for XLR type
microphone
○
5 Built-in socket for connection
cable
mm
CONFERENCE SYSTEM
TALK VOL EAR
REC
