Introduction
This manual is used on the conference control host D6201. The manual includes the system
introduction, the precautions for use, the system connection instructions, and the product instructions
for the conference control host D6201. Users should carefully read this manual before connecting and
installing and using it, and follow the instructions in the manual. .
Instructions marked with this mark on the rear panel of the machine are all matters that
must be taken care of. Please be sure to use or operate them in accordance with these instructions.
Please keep this manual in a safe place for future use.
D—V0.6
Facture 2018-5-23

* * CONTENT
i

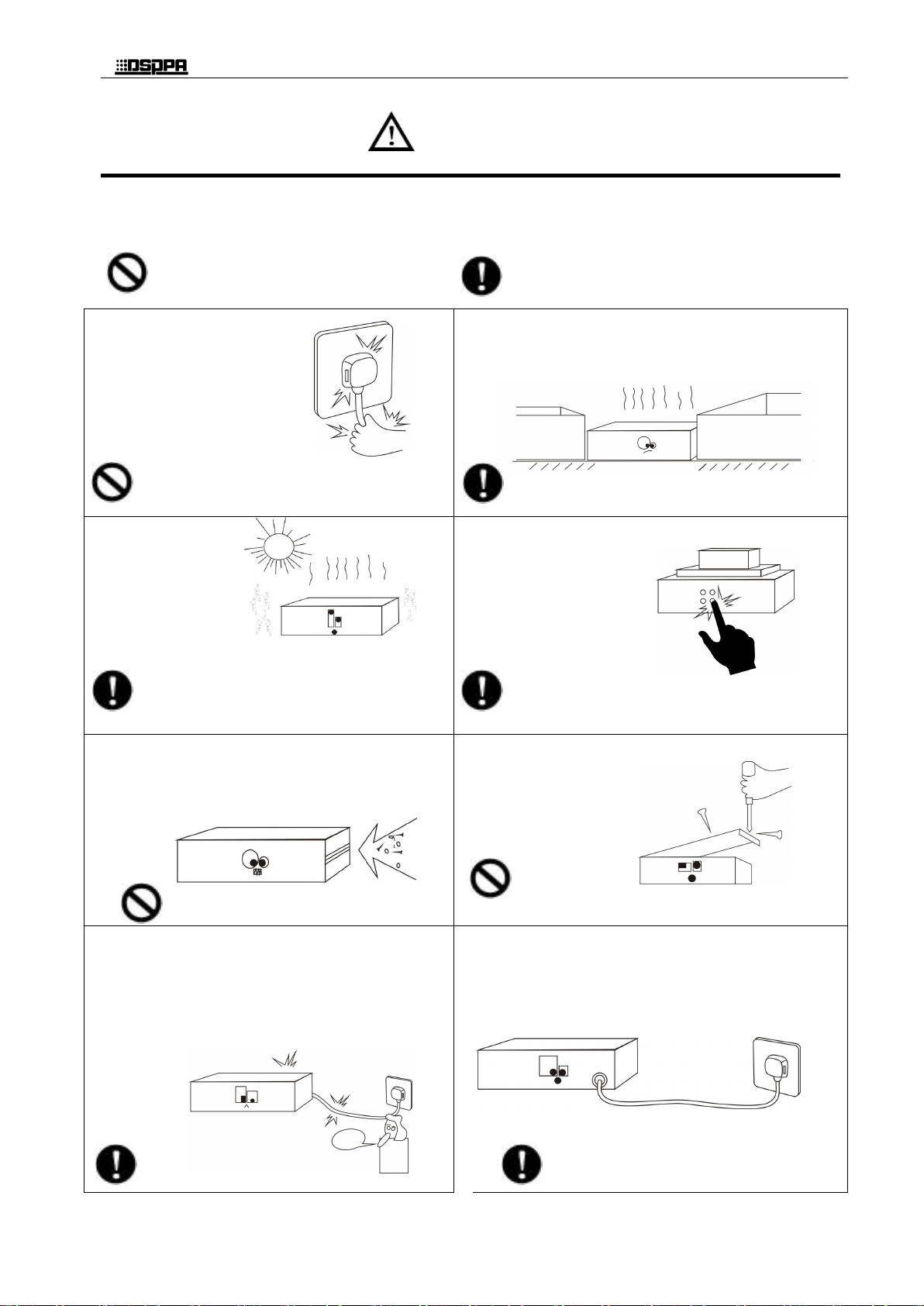

Caution
To assure the finest performance, please use or operate the product in accordance with corresponding
instructions.
This symbol indicates "forbidden content" This symbol indicates "compulsory content"
■ Please make sure that the
power wire is NOT damaged.
Do NOT unplug the equipment
by pulling the power wire;
otherwise it may cause electric
shock, short circuit or fire.
■ When the equipment is in use, DO NOT block the air
outlet which should be kept clear, in order to avoid
overheat.
■Do NOT store this
equipment in any
place with heavy
dust or vibration, or
where it is extremely
cold or hot.
■ Please do NOT place any heavy article on this
equipment. Please operate
switches, buttons or
external audio source
carefully.
■ Please prevent foreign matters (such as paper,
metal etc.) entering the equipment through the gaps
or opening, in such cases, please cut off the power
supply
immediat
ely.
■ Do NOT attempt to remove any internal component
from the equipment, or
to
modify the equipment in
whatever manner.
■ In case that sound is suddenly off or there is
abnormal odor or smoke, please unplug the
equipment from the power socket to avoid potential
electric shock, fire or other accident. The equipment
should be inspected by professional personnel.
Burning Smell
■ If the equipment is not in use for a long period, please
unplug it from the AC power socket to realize zero
energy consumption.

Content
1. PRODUCT INSTRUCTION................................................................................................................................. 1
1.1 EQUIPMENT INTRODUCTION.......................................................................................................................1
1.2 FEATURES........................................................................................................................................................... 1
2.APPEARANCE INTRODUCTION......................................................................................................................2
2.1 FRONT PANEL.................................................................................................................................................2
2.2 REAR PANEL................................................................................................................................................... 2
3. CONNECTION INTRODUCTION ....................................................................................................................4
3.1 SYSTEM CONNECTION ..................................................................................................................................4
4. OPERATION GUIDE .......................................................................................................................................... 5
4.1 CONFIGURATION ........................................................................................................................................... 5
4.1.1 BOOT DEVICE .................................................................................................................................................. 5
4.1.2 PLAY MUSIC...................................................................................................................................................... 5
4.1.3 NUMBER OF SPEECH..........................................................................................................................................5
4.1.4 VIDEO FOLLOW ON-OFF ..................................................................................................................................5
4.1.5 CAMERA SELECT ............................................................................................................................................. 6
4.1.6 MEETING MODE.................................................................................................................................................6
4.1.7 SOUND EFFECT CONTROL ................................................................................................................................7
4.1.8 RECORD CONTROL ..........................................................................................................................................8
4.2 SYSTEM CONFIGURATION .......................................................................................................................... 8
4.2.1NETWORK SETTING ...........................................................................................................................................9
4.2.2 CAMERA TRACKING POSITION SETTING .......................................................................................................... 9
4.2.3 MICROPHONE UNIT DETECTION .................................................................................................................... 10
4.2.4 CONFERENCE MICROPHONE ID SETTING ......................................................................................................... 11
4.2.5 CONFERENCE MICROPHONE SETTING ............................................................................................................12
4.2.6 SET SPEAK TIME............................................................................................................................................. 14
4.2.7 CHIME SET ....................................................................................................................................................14
4.2.8 SYSTEM TIME SETTING ..................................................................................................................................14
4.2.9 DISPLAY SETTING .......................................................................................................................................... 15
4.3 EXTENDED HOST ADDRESS ENCODING SETTING.............................................................................. 17
4.4 HOST FUSE HANDLING METHOD............................................................................................................. 19
NOTICE FOR USE.................................................................................................................................................. 21
PACKING LIST....................................................................................................................................................... 21
PERFORMANCE.....................................................................................................................................................22

* * Conference Host
1
1. Product Instruction
1.1 Equipment Introduction
The D6201 is a digital conference system host that integrates advanced camera management and control
functions such as automatic camera tracking, 4.3-inch True Color touch screen control, and intuitive graphical
interface display. The digital conference system host is the core device of the entire conference system. It
supplies power to the connected conference microphone units. It can realize conference control, unit setting,
electronic voting, camera tracking, audio input and output functions, and can seamlessly dock with the control
system. It’s suitable for all kinds of large and small meeting events.
1.2 Features
Conform to IEC 60914 international standard
The conference host can connect to 128 conference Mic, can extend to 4096 conference Mic via extender
8-pin conference cable connection, support cascaded connection
FIFO, NORMAL, VOICE, FREE, APPL five conference modes
Support simultaneous speakers limit setting of 1/2/3/4/5/6
Support management of Voting and Speech Limit etc.
4.3” TFT touch screen, friendly graphical interface, easy to use
Support Chinese/English system languages, other languages can be customized
Support VIP Mic setting (up to 30), VIP Mic can speak freely in all the 5 conference modes
Built-in DSP sound processor, support low-cut, frequency-shift and equalizer control
Support conference recording, manually or automatically
With Mic detection function, manually or automatically
Support speech timing function, can set up speech time limit and reminder
Support video tracking, with 6 HDMI in and 1 HDMI out, 6 BNC in and 1 BNC out
With RS232 interface to link with central control system, with RS422 interface to control 6 cameras
8-pin female interfaces: 1 for Interpretation Host, 1 for extender, 3 for conference Mic
RCA interfaces: 2 AUX input, 2 AUX output, 2 Alarm input with override function
XLR interfaces: 2 AUX output to amplification system
+5V Alarm trigger interface: interact with the 2 Alarm RCA input
RJ45 interface: based on TCP/IP protocol, support computer remote control
Support Android pad remote control
The shell is made of all-metal materials. The connection between the circuit and the shell is enhanced with
the ground wire. It has a contact type 4kV and an air-type 8kV antistatic capability.
High-end design, 2U standard chassis, can be installed in a 19” standard cabinet.

* * Conference Host
2
2. Appearance Introduction

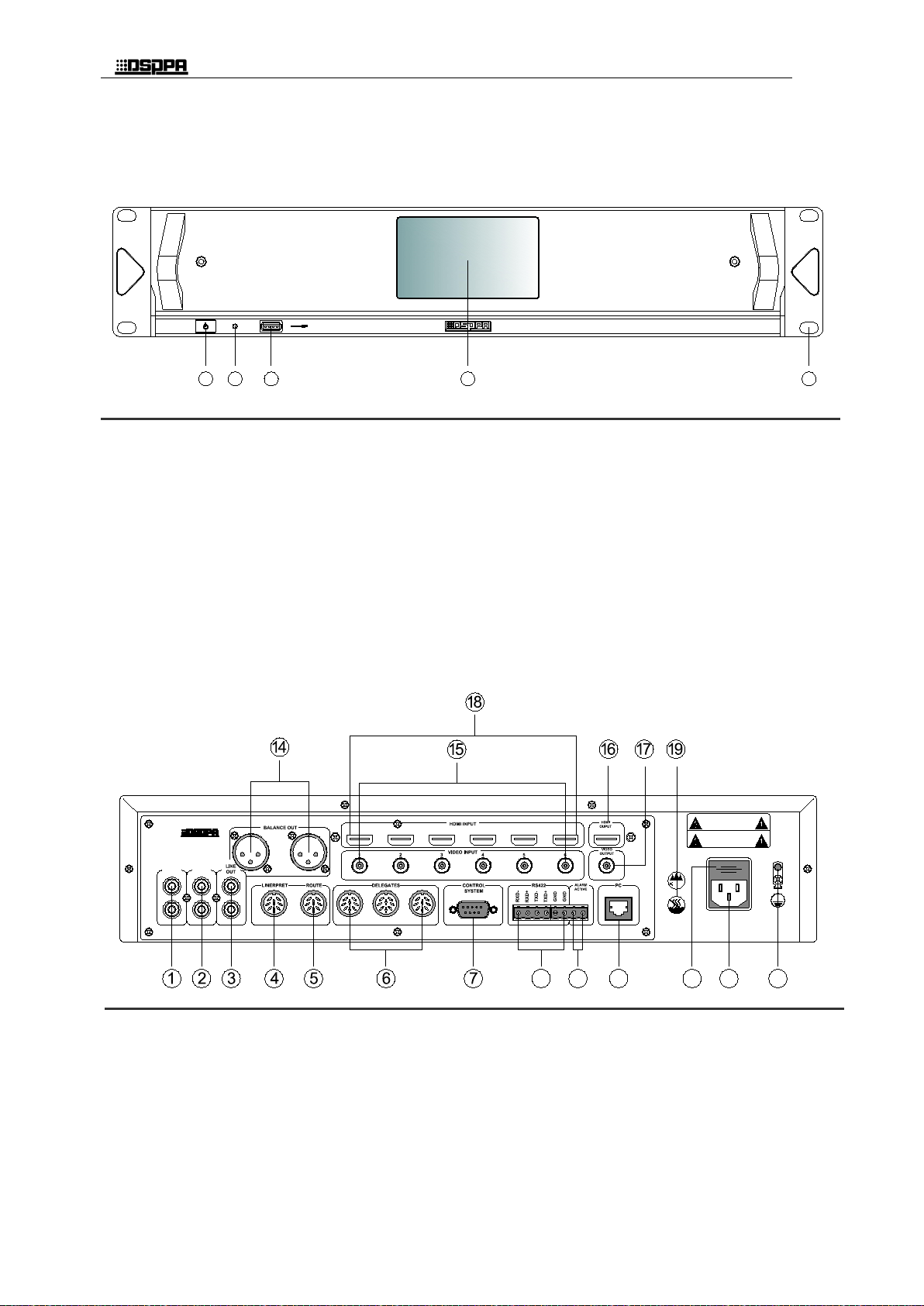

2.1 Front panel
PROFESSIONAL DIGITAL CONFERENCE SYSTEM
D6201
USB
1 2 3 4 5
Functions on front panel of the controller:
1. Power switch (POWER)
Power is on when the button is pushed
down and is off when the button is
ejected.
2. Power indicating light (ON)
The indicating light will be on, when the
system is powered on, and it is off when
the system is powered off.
3. USB port (USB)
For connection of USB flash disks
during the recording process;
A mouse with USB port may be
connected to operate the system.
4. LCD touch screen display
For display of function icons and menus
in the operation process; touch screen is
used in configuration.
5. Screw holes for installation in cabinet
2.2 Rear panel
广州市迪士普音响科技有限公司
Guangzhou DSPPA Audio Co.,Ltd.
请勿打开,以免触电
RISK OF ELECTRIC SHOCK
DO NOT OPEN
警告
CAUTION!
AC220V~50Hz 320W
F2AL250V
ALARM
IN
LINE
IN
1 2 3 4 5 6
-
+
商标：
型号：D6201
品名：会议主机
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
8 9 10 11 12 13
2000m

* * Conference Host
3
Functions on rear panel of the controller:
1. Warning audio signal input port (ALARM IN)
It is used for connection to warning signals
from the fire control center and is interlocked
to the warning triggering signal as mentioned
in ⑨.
2. Line audio signal input port (LINE IN)
It is for connection of sound source or sound
console equipment to provide line audio signal
to this system.
3. Mix output of audio signal (LINE OUT)
It is for connection of amplifiers, and the
output signal includes line audio signals,
warning signals and microphone signals.
4. Port for connection of interpreter controller to
the system
(INTERPRET)
5. Extension port (ROUTE)
It is used to connect the conference controller
and extension controllers and to transmit audio
signals and communication signals.
6. Conference unit output port (3-way output,
DELEGATES1-3)
The three ports allows connection of up to 128
conference units.
7. Port for central control system (CONTROL
SYSTEM)
It is used to connect the system to a smart
central control system, to realize centralized
control over the conference system by far
infrared.
8. Camera control port (RS422)
It is used for connection of control signals of 4
cameras, which are connected in serial manner.
9. Fire alarm interlocking and activation port
(ALARM ACTIVE)
The system adopts +5V voltage to trigger the
alarm interlocking, in which "Alarm" will be
displayed on the screen of all conference units
and the microphones of all conference units
will be deactivated.
When the +5V voltage on this port is off, the
system will automatically return to the
working status before such alarm.
10. Ethernet port (PC)
The conference can realize remote control via
TCP/IP network;
When the system is connected to a WIFI
network, it allows wireless conference control
via a tablet PC.
11. Fuse in power supply of the system
F2AL250V fuse socket;
If the fuse is blown, please replace it with a
fuse of the same specification;
If the fuse is blown, it indicates equipment
fault, so please replace the fuse after such fault
has been eliminated;
See description on Page 30 for procedures of
replacing the fuse.
12. Power input
AC220V/50Hz/320W power input.
13. Grounding connection
It is used to connect the conference controller
to the ground, so as to avoid electric shock or
equipment damages caused by electric
leakage.

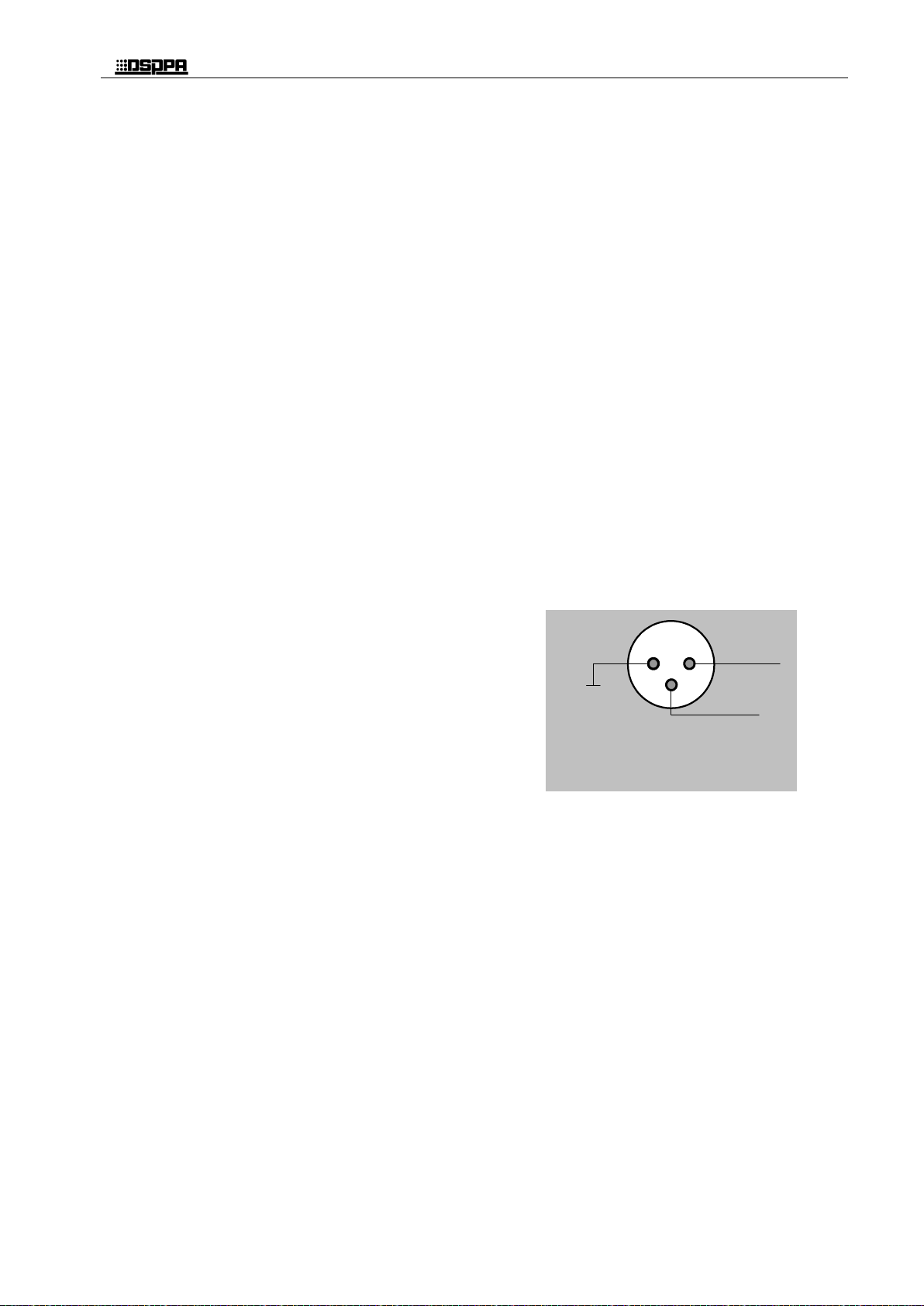

14. Mix output of audio signals (Cannon balance
output socket)
This port is connected in parallel to output port
as mentioned in ③(LINE OUT), and is a
balance output socket. The signals on the three
pins are defined as below:
15. 6 common cameras connection ports
Each port allows connection to one camera;
All 6 cameras connected to this system must
be of the same brand;
Cameras are connected by coaxial cable.
16. HD video output interface
Connect the projector and other video equipment,
Input the camera content to the big screen
17. Common Video output port
The port is used for connection to projectors or
other video equipment, with which the content
captured by cameras will be output to a large
1
2
3
GND
Reverse input
Obverse input
Three-wire Cannon plug

* * Conference Host
4
screen.
18. 6 HD camera connection port
Each port allows connection to one camera;
All 6 cameras connected to this system must
be of the same brand;
Cameras are connected by coaxial cable.
19.This label means "applies only to areas under
2000 meters above sea level and safe use in
non-tropical climate conditions.”
3. Connection
3.1 System connection
广州市迪士普音响科技有限公司
Guangzhou DSPPA Audio Co.,Ltd.
请勿打开,以免触电
RISK OF ELECTRIC SHOCK
DO NOT OPEN
警告
CAUTION!
AC220V~50Hz 320W
F2AL250V
ALARM
IN
LINE
IN
1 2 3 4 5 6
-
+
商标：
型号：D6201
品名：会议主机
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
9
1
2
3
45
7
8
6
2000m
PROFESSIONAL DIGITAL CONFERENCE SYSTEM D6237
PROFESSIONAL DIGITALCONFERENCE SYSTEM D6233B
PRIORITY TALK
PROFESSIONAL DIGITALCONFERENCE SYSTEM D6234B
TALK
D6222
D6231
D6222
Extender
Extender
D6234B
D6237
D6236
D6234B
Projector
Central control system
Router
LAN/WLAN
PC
Pad
Amp.
Fire alarm system
DVDPlayer
Alarm trigger signal
Alarm trigger signal

* * Conference Host
5
4. Operation Guide
4.1 Configuration
After all the installation and connection of
the system is completed, the various
functions need to be set for the conference
control host, and all settings must be
completed before the meeting starts.
4.1.1 Boot device
Press the power switch (the blue indicating
light will be on), and the equipment will start
its operating system and then start the
conference control software. After the system
is started, the conference system will be
initialized, which will take some time. After
the initialization, the system will show the
main interface (start interface).
Main functions displayed on the main
interface, excluding system time displayed on
the top, include:
"Number of units connected to the system"
"Speech settings"
"Camera tracking"
"Camera selection"
"Conference mode"
"EQ Control"
"Recording operation"
"System settings"
Users can access the corresponding operating
interface by touching these icons on the touch
screen.
4.1.2 Play Music
Touch the "song play" icon on the main
interface to enter the song playback setting
interface (the first identification of U disk
needs 30s-2min, depending on the U disk
memory size, please wait patiently). Before
the song is played, you must insert the USB
disk that has been recorded into the song as
the sound source. Song playback and
recording cannot be performed at the same
time. The interface is as shown below:
4.1.3 Number of speech
The limit of the number of speech set in this item
is valid in the non-fully open conference mode
(FREE). Users can view the number of active
speech by touching the icon of "Speech" on the
main interface, and enter the configuration interface
of "Allow Speak Number". The interface is shown
below:
The interface indicates the number of currently
active speeches, number of speech application and
the maximum speech allowed, of which the
maximum speech allowed may be modified by
pressing the small arrows in the value box:
1) Touch the UP arrow to increase such value by 1;
2) Touch the DOWN arrow to decrease such value
by 1;
3) The maximum active speeches is 6;
4) After configuration and viewing operations are
completed, touch the icon to close the
unit limit interface and return to the main
interface.

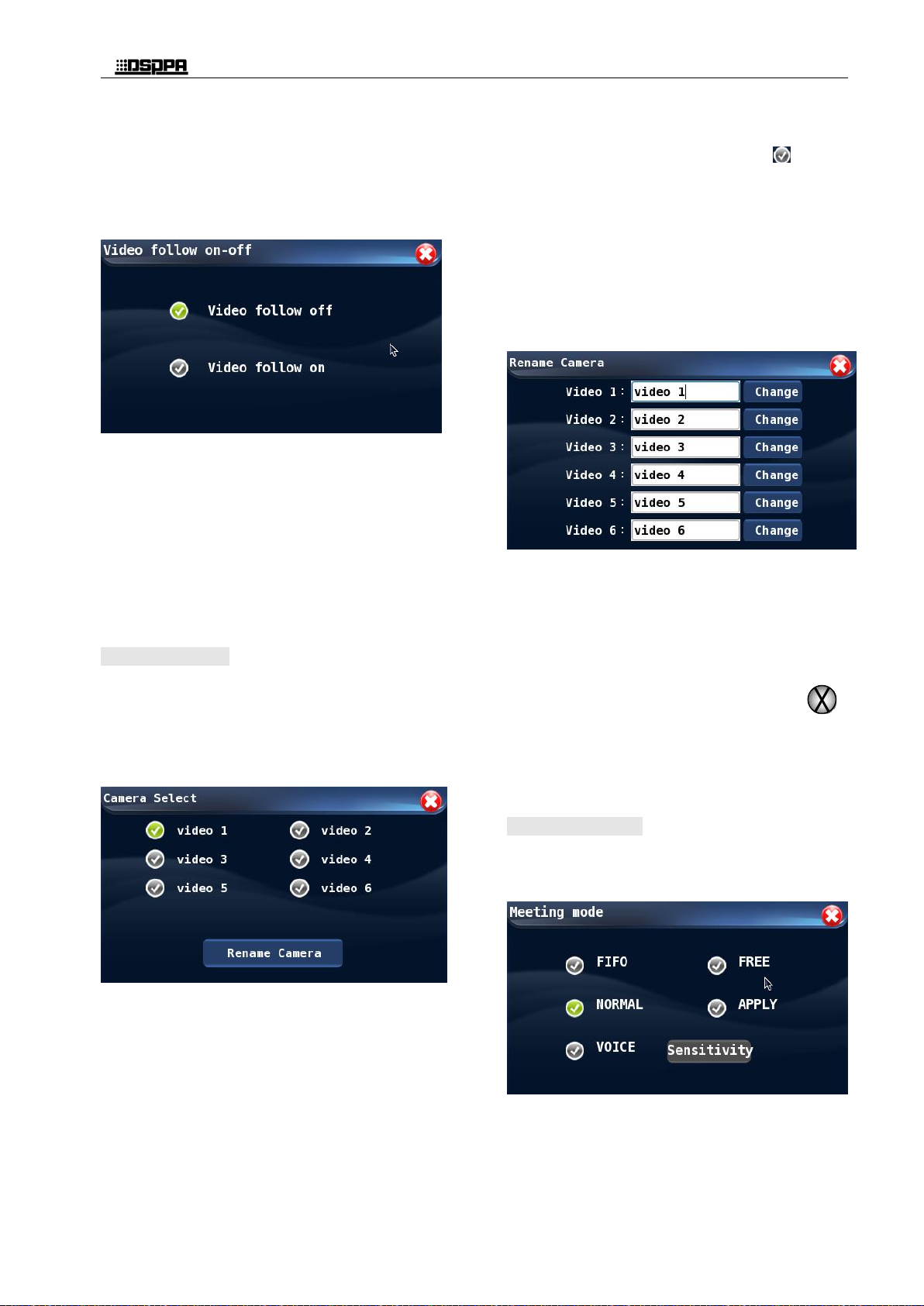

4.1.4 Video follow on-off
On the main interface, touch the "Video follow
on-off" icon to enter the configuration interface of
Set the speak
numbers.
