SAT-Kabel MIK 9-S User manual

MIK 9-S
OPERATING INSTRUCTIONS
Mini Info Channel – self starting
Chemnitzer Straße 11 .09217 Burgstädt
Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH
SAT
Kabel -
®

2
Thank you for buying of a product of the company SAT-Kabel .
This operating instruction shall explain you the function of the device and shall make easy the use. If
you have questions or proposals for improvements, please contact us.
®
Scope of delivery 3
Product specification 3
Controls 3
What is necessary 3
Installation of the MIK 9-S 4
Self initialization 4
Interval settings 5
LED display 5
Other feature 5
Creating of the pictures 6
Storage of the pictures 6
Cleaning and maintenance 7
Final remarks 7
Guarantee 7

Scope of Delivery
1 MIK 9-S, Basic equipment with wall fastening rail
1 Audio/video cable
1 Memory card (with example files)
1 Operating instructions
1 Plug-on power supply 5 V DC/2 A
Product specification
!
!
!
!
!
!
Simultaneously playback of picture and tone files as slide show in a format 16:9
Supported file format:
JPEG, MP3
connections:
video (composite) und audio (stereo)
Power supply
Suitable memory cards
CF, SD, MMC
Special features
self start after power blackout or system crash
Necessary items
!
!
For playback at least a TV set with A/V input (RCA)
For playback in an antenna system a suitable modulator with A/V input
For creating of the contents and storage on a memory card a PC with card reader and a suitable
software for creating and processing of the desired information
For attention!
With the MIK 5S it is not possible to write data on the memory card. Please pay
attention at the playback of picture and sound material to the current
legislation, especially to the copyright.
3
Controls
Front side Back side
LED
DC socket
Interval
switch
Inserting slot
for memory cards
Signal outputs
(Cinch sockets)

4
Self initialization
The special feature of this device is the automatic self start after a mains blackout.
A direct new start (cold start) of the MIK 9-S is only possible by disconnecting of the power supply and
with it the break of the mains power. (see also: LED display)
The self initialization starts new after a mains blackout or a system crash. If the first start fails (LED red),two
further starts are activated. At false start the device activates after a time of five minutes three further trials.
Installation of the MIK 9-S
Never insert the memory card with force into the card slot
If you cannot insert the memory card without force, may be, it is wrong
inserted.
!
!
!
!
!
!
!
Connect the MIK 9-S by means of an audio/video cable with the modulator or with a TV set for
checking. If another audio source is used, connect it to the audio inputs of the modulator
yellow = video white = audio left red = audio right
Switch on the monitoring TV set – at antenna system the modulator.
Insert the CF card into the card slot (please don t use force).
Set the desired interval time with the toggle switches.
(See also: interval setting)
Connect the power cable to the POWER socket of the MIK 9-S.
The MIK 9-S is now ready for use.
Put the power supply of MIK 9-S into the power socket. The LED shines yellow and the instrument
starts automatically. After ca. 30 s the video signal will be added and the LED shines green. The
sending activity begins. Naturally on the memory card must be pictures in JPG format.
If the LED shines or flashes red or the MIK 9-S don t work after ca. 30 s, disconnect the power
supply from the power socket and repeat the procedure after a few minutes. If nevertheless the
instrument don t work, read the text in item LED display.
’
’
’
VIDEO
MOD.
AUDIO
TV
POWER VIDEO/AUDIO
230 V~
MIK 5S
L
R

5
LED display
Die LED shows the operating condition of the MIK 9-S.
LED off device switched out, no power supply
LED yellow device starts (duration ca. 30 s)
LED green device is in operation
LED green / flashes shortly yellow , however it is new started because of an
error (fault report)
This display is set back to normal condition after ca. 1 hour, if
no further fault occurs. (LED green)
LED red or flashes ret Fault!
No data are read from the memory card.
It has been carried out three new starts without result.
Possible causes: > no or not readable data on the memory card
> installed player is defective
If after several trials the MIK 9-S don’t work or it is defective, please get in touch with us.
device is in operation
> wrong or defective memory card

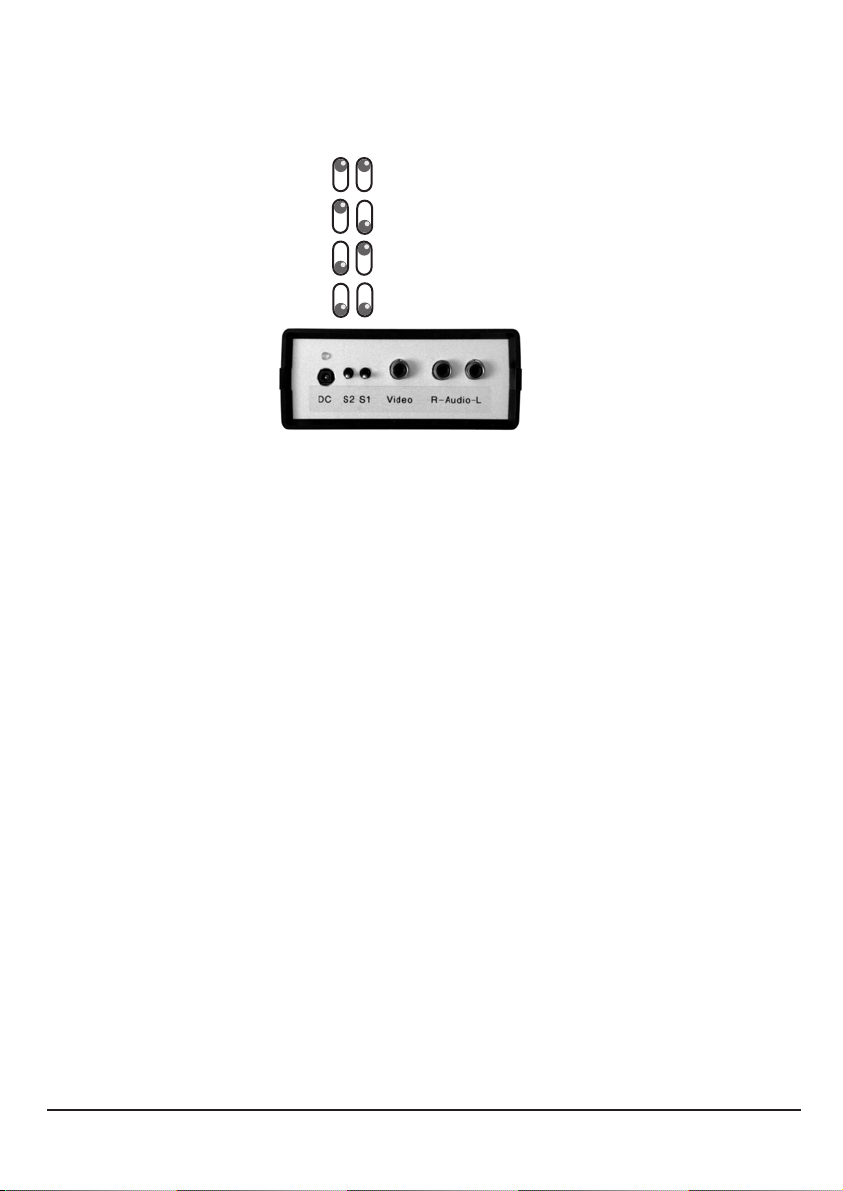

Interval settings
The setting of the interval time for the picture change is made by the both switches on the front side of the
device. This should be made before the starting up. If the switches are adjusted during the operation,
after maximum ten seconds the device starts new.
Switch setting (11) = 60 seconds
(00) = 5 seconds
(10) = 30 seconds
(01) = 10 seconds
Other feature
!
!
!
!
Pictures are automatically converted to a wide screen format
Picture are automatically scaled down (also large digital photos with e. g. 7 megapixel are read
and displayed)
Picture and music files are alphabetically assorted and played back (see: storage of the pictures)
The TV output standard is PAL

6
Storage of the pictures
Start a new folder on the hard disk of the computer to store the created pictures. Never don’t overwrite
the original files (especially pictures) during the processing. Because a JPG is a compacted format, a
repeated storage with overwriting causes a loss of the quality or to a total loss of the picture! Another
reason for a separate folder is the arrangement of the sequence at the playback. The MIK 9-S plays back
the created files in alphabetical order. So it is possible to realize a corresponding order.
A simple example shall it display (keep attention to “pre nulls”):
example example
picture0002.jpg flying.jpg picture2.jpg
picture0003.jpg summer.jpg picture202.jpg
picture0202.jpg sport.jpg picture203.jpg
picture0203.jpg winter.jpg picture3.jpg
etc. etc. etc.
Keep attention to the changed sequence in example 3 by the notation without nulls.
The same takes place at all other data formats too.
Now insert the memory card of the MIK 9-S into the corresponding card slot of the computer. A new disk
drive is seen. The created files you have to copy to this disk drive without to start a folder – thus into the so
called root directory.
example 1 2 3
picture0001.jpg bathing.jpg picture1.jpg
………
Creating of picture
For creating and storage of the suitable data on the memory card a separate computer with a suitable
software is necessary. Computer and software knowledge are assumed. Normally a graphic and/or
picture processing program is used. A few of it are also available as freeware or open-source-software. A
program is suitable, if a creation of pictures in a format JPG is possible. The colour depth should be 24
bit (16,7 mill. colours). For dimensions of the picture in pixel is tested:
for format 4:3: 720 × 656 (768 × 700)
for format 16:9: 720 × 492 (768 × 525)
Example for a display in format 4:3:
A picture or a graphic in format 4:3 can be made according e. g. 640 × 480, 800 × 600 or 1024 ×
768 [pixel]. If the picture is finished, it is to convert to 720 × 656 [pixel]. The proportion of the picture
don’t now comply with the original format, but it is displayed by the MIK 9-S over the whole screen.

7
Guarantee
State July 2006
For this instrument will be granted a service life (in following called guarantee) to following
conditions:
This guarantee is valid for new instruments purchased in Germany.
New instruments and their components, which are defective because of production faults
and/or material faults, are repaired or are replaced from SAT-Kabel® against a
corresponding instrument.
For wear parts, like accumulators, keyboards, housings, bags, connecting cables this
guarantee is valid for 6 month from the purchasing date.
The guarantee claim expires at matings by the purchaser or third persons.
At defects, caused by improper handling or operating, by wrong installation or store, by
improper connection or mounting, no guarantee is granted.
For not justified demand of our service we charge for our service the usual payment for
material, working hours and forwarding costs.
Repairs are only made with filled service covering.
(Forms for service coverings and further information are found in the standard form contracts under:
)
+
+
+
+
+
+
+
www.sat-kabel.de
This operating instruction has been drown up . E
n
Updated operating instructions in PDF form can be also downloaded from our internet homepage.
(www.sat-kabel.de)
to the best of our knowledge rrors, technical
amendme ds and developments are subject to change without notice!
Final remark
We wish you a lot of success with this possibility, with low cost to distribute information for a specific group
of people over a antenna system. For requirements and ideas, to be beyond the scope of this small info
channel grasp, we naturally have professional systems.
When faults or problems occur with the device, please get in contact with our staff. We will definitely find
a solution. Even questions for picture processing and creation of graphics can be answered. Also the
making of pictures/ slide show we can assume for you.
Cleaning and maintenance
The surface of the housing can be cleaned with a dry, soft and lintfree cloth. Do not use aggressive
solvents for the cleaning.

SAT-Kabel®
©04/2009 SAT-Kabel (CDX3)
®
Errors, technical amendmends and developments are subject to change without notice!
