Compact Fluorescent Basics
Fighting Fluorescent Phobia
The biggest misconception that still stigmatizes
fluorescent light sources pertains to their color
rendering. Many consumers still associate
fluorescent with having an unflattering green
cast. They are probably thinking of products
they’ve seen at the cool end of the spectrum,
or fluorescent lighting in institutional settings.
You can combat these negative associations
from fluorescent’s aesthetically impaired past
by educating your customers about lamp
color and color rendering.
The Color Rendering Index (CRI) is a rating
scale up to 100 that rates a light source’s
ability to accurately convey true color. Light
sources with a low CRI will make objects
and skin tones appear washed out and dull.
Lamps with high CRI ratings bring life to a
subject and make colors more vivid. Many
CFLs have CRI ratings that exceed 80, which
is considered excellent.
Lamp color, on the other hand, is based on a
color temperature scale with a measurement
called Kelvin. A warm color of light would be
in the 2000K to 3000K range and would make
reds, oranges and yellows more dominant.
Light sources with a color temperature in the
4000K range would feature more blue or
cool tones. The variety of color temperature
options and CRI ratings for fluorescent light
sources have improved dramatically thanks
to advances in the types of phosphors used.
So now your customers can see themselves
in their best light without sacrificing energy
savings.

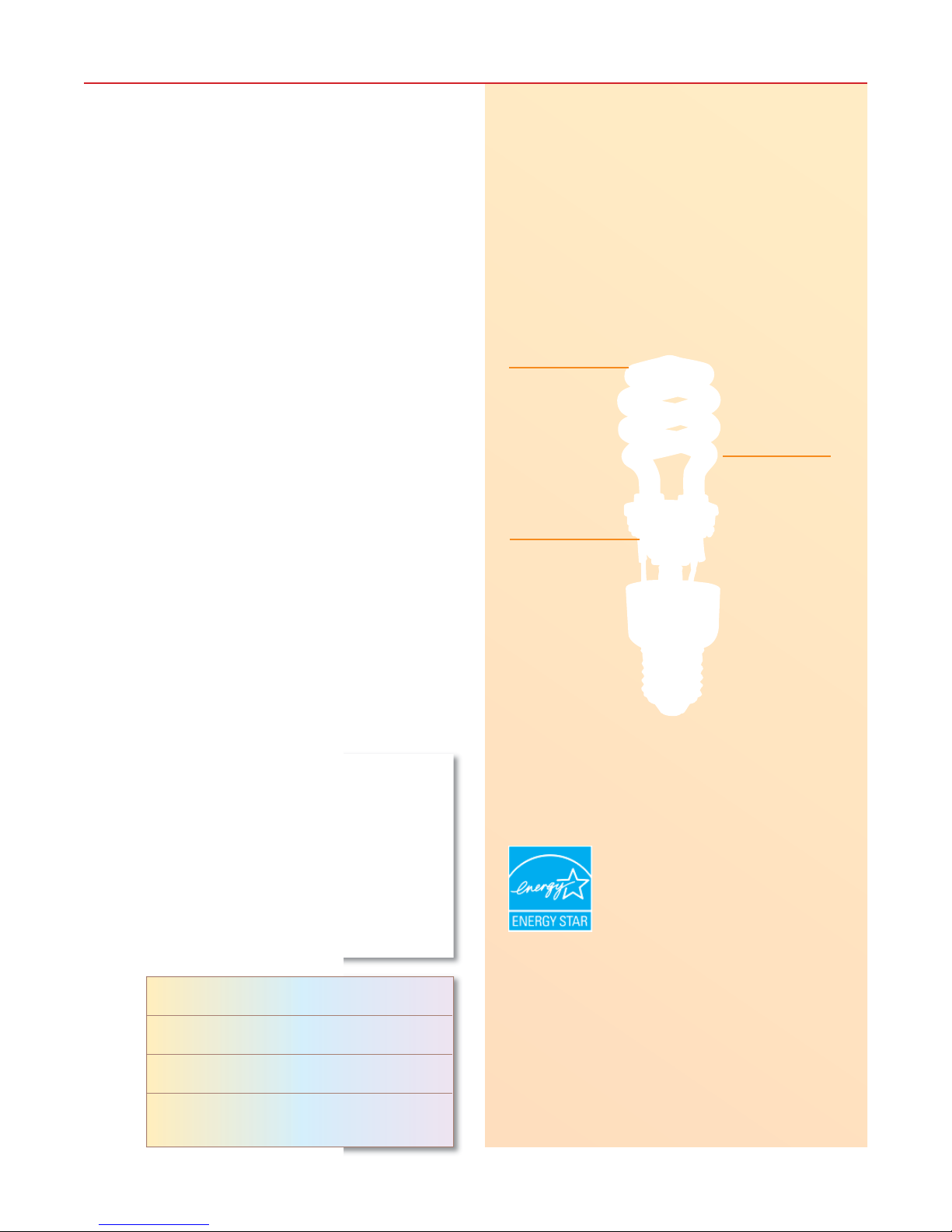

Light Bulb
Anatomy
Tri-Phosphor
Coating
This mixture
converts ultraviolet
light into visible
light with superior
color rendition and
a high efficacy
averaging 60
lumens per watt.
Electronic
Ballast
These high-tech
devices enable the
lamp to light up
immediately with no
flickering or noise.
Solid-state circuitry
allows for three-way,
dimmable and
photocell models.
FLUORESCENT
How it works: Fluorescent lamps are phosphorous-
coated tubes filled with a low-pressure mercury
vapor. Light is produced by passing an electric arc
between tungsten cathodes at opposite ends of the
tube. This causes the mercury vapor to generate a
radiant energy.
Compact
Fluorescent
Tube
An alternative to
traditional linear
tubes, these
smaller-tubes
have been
configured into
new shapes to
reduce their size
and increase their
light output.
WhatIsEnergyStar?
Celebrating its 10th anniversary this
year, Energy Star ®is a government-
backed symbol for energy efficiency,
jointly managed by the U.S.
Environmental Protection Agency (EPA)
and the U.S. Department of Energy
(DOE). The label was created to help consumers easily
identify products that save energy and help to protect
the environment.
Energy Star manufacturer partners may place
the label on products that meet the high energy
efficiency guidelines of the program. To keep up
with technological advances, Energy Star reviews the
guidelines for each product category and tightens
them as necessary to ensure that, generally, only the
top 25 percent of products in each category can earn
the label.

Recessed lighting, whether used
for general illumination or above
sinks and stovetops, can take
R30 or R40 fluorescent reflector
lamps. The fact that these bulbs
last up to 10 times longer than
incandescents means fewer
trips up the ladder to change
them. For under-cabinet lights
or surface fluorescent fixtures,
install Energy Star-rated products
that accept linear T8 lamps with
electronic ballasts to ensure
peak efficiency.
Bulbs will likely be visible in pen-
dants over kitchen islands or a
table, so compact fluorescents
with a familiar “A” lamp style are
best. Because dimmable com-
pact fluorescents are available,
the light level can adjust to
accommodate tasks or mood-
setting entertaining.
Here, too, recessed lighting can
benefit from the use of R30 or
R40 fluorescent reflector lamps.
If line voltage track lighting is
used instead or in addition,
those fixtures can take R20 or
R30 fluorescent reflector lamps.
Portable lamps—table or
floor—are great candidates
for spiral CFLs, which maximize
light output with their unique
shape and exposed tubes. New
mini spiral models have petite
tubes and smaller ballasts for
tighter spaces without sacrificing
efficacy. Spiral CFLs are also
available with candelabra bases
for use in chandeliers, although
this type of light source is best in
shaded applications.
Spiral CFLs are available in
bug light versions for use
outdoors. Torpedo-style
fluorescents, which come
with standard screw-in or
candelabra bases, can
replace flame-shaped
incandescent bulbs that are
visible behind
the panels of exterior
lanterns.
Outdoor fixtures benefit greatly from energy-efficient light
sources because they are usually left on for extended
periods of time, so the cumulative wattage saved is
significant. For this same reason, the long life of these
bulbs makes a big difference, requiring fewer bulb
changes and less maintenance.
Kitchen
Living Room
Bedrooms 4
Outdoor
Beneficial Bulbs for Every Room
Bathroom
Incandescent bulbs in
standard theatrical-style
vanity strips can be replaced
with globe-shaped compact
fluorescent sources. Color
rendering is important in
this room, so choose bulbs
that have a CRI of 80 or
better. Consumers are also
most comfortable with color
temperatures at the warm
end of the spectrum in bathrooms, so 3000K would be an
appropriate choice. Fluorescent sources provide sufficient
light for activities such as shaving or applying makeup
without casting harsh shadows.
The average home’s
bedrooms as a whole—
including master, guest and
children’s rooms—account
for 10 percent of its energy
used for lighting. Bedside
table lamps or swing-arm
wall sconces will benefit from
spiral CFLs, particularly those
models that offer three-
way settings and dimming
capability.
Tiffany lamps are enhanced by fluorescent sources
because they create even illumination behind the colorful
glass. Flush mounts with ventilation are also conducive to
these sources because there are no visible “hot spots.”
Since the fluorescent sources themselves are cool to the
touch when in operation, there is less to worry about when
they’re used in a child’s bedroom.
Energy Star recommends putting energy-efficient bulbs in the five most-used lamps or fixtures.
Since these areas of the home have the highest energy use for lighting, these “high five” are good
places to start—with plenty of options to suit most applications.

Compact Fluorescent Lamps
71
compact fluorescent lamps
Visit our website at www.satco.com
Screw In Lamps
Mini Spiral Lamps 120 Volt
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
5Mini Spiral Cand. S6297 20W EFMSP5/30 2700 82 48/12 Box 10000 250 4.13” 1.81”
Med. S6298 20W EFMSP5/30 2700 82 48/12 Box 10000 250 4.06” 1.81”
Suitable for enclosed fixtures
9Mini Spiral Med. S6200 50W EFMSP9/30 3000 82 24/6 Blister 10000 500 4.45” 1.81”
Cand. S6251 50W EFMSP9/30 3000 82 24/6 Blister 10000 500 4.45” 1.81”
Suitable for enclosed fixtures
11 Mini Spiral Med. S6201 55W EFMSP11/30 3000 82 24/6 Blister 6000 550 4.45” 1.81”
Cand. S6252 55W EFMSP11/30 3000 82 24/6 Blister 6000 550 4.76” 1.81”
Suitable for enclosed fixtures
13 Mini Spiral Med. S6202 60W EFMSP13/30 3000 82 24/6 Blister 10000 800 4.96” 1.81”
S6223 60W EFMSP13/50 5000 82 24/6 Blister 10000 800 4.96” 1.81”
Cand. S6253 60W EFMSP13/30 3000 82 24/6 Blister 10000 800 4.96” 1.81”
Suitable for enclosed fixtures
15 Mini Spiral Med. S6203 
65W + EFMSP15/30 3000 82 24/6 Blister 10000 900 4.80” 2.13”
S6224 65W + EFMSP15/50 5000 82 24/6 Blister 10000 900 4.80” 2.13”
Suitable for enclosed fixtures
18 Mini Spiral Med. S6243 75W EFMSP18/30 3000 82 24/6 Blister 10000 1100 5.28” 2.13”
26 Mini Spiral Med. S6204 100W EFMSP26/30 3000 82 24/6 Blister 10000 1600 5.94” 2.13”
S6225 100W EFMSP26/50 5000 82 24/6 Blister 10000 1600 5.94” 2.13”
Mini Spiral
Cand.
Mini Spiral
Med.

Compact Fluorescent Lamps
compact fluorescent lamps
72
Don’t see the lamp you need? Call Customer Service 1-800-43-SATCO
Standard Spiral Lamps
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
15 Spiral Med. S6205 65W EFSP15/30 3000 82 24/6 Blister 6000 900 5.35” 2.17”
S6226 65W EFSP15/50 5000 82 24/6 Blister 6000 900 5.35” 2.17”
Suitable for enclosed fixtures
20 Spiral Med. S6206 85W EFSP20/30 3000 82 24/6 Blister 6000 1200 5.67” 2.36”
S6227 85W EFSP20/50 5000 82 24/6 Blister 6000 1200 5.67” 2.36”
23 Spiral Med. S6207 90W EFSP23/30 3000 82 24/6 Blister 6000 1380 6.02” 2.36”
S6228 90W EFSP23/50 5000 82 24/6 Blister 6000 1380 6.02” 2.36”
26 Spiral Med. S6209 100W EFSP26/30 3000 82 24/6 Blister 6000 1600 6.14” 2.36”
S6229 100W EFSP26/50 5000 82 24/6 Blister 6000 1600 6.14” 2.36”
32 Spiral Med. S6210 125W EFSP32/30 3000 82 24/6 Blister 6000 1920 6.73” 2.64”
S6240 125W EFSP32/50 5000 82 24/6 Blister 6000 1920 6.73” 2.64”
Standard & Mini Spiral Specialty Lamps
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
12/
20/
26
Spiral Med. S6211 50W/
85W/
100W
EFSP12/20/26/30K
3-WAY
3000 82 24/6 Blister 6000 660/
1200/
1600
6.02” 2.36”
15 Mini Spiral Med. S6254 60w
Bug
EFMSP15/BUG
Yellow
82 24/6 Blister 10000 N/A 4.80” 2.13”
Suitable for enclosed fixtures
23 Spiral Med. S6212 25-
85W
EFSP23/30/DIM
Dimmable
3000 82 24/6 Blister 6000 1380 6.02” 2.36”
S6257 85W EF23/SPL/PHOTO/30
With Photocell
3000 82 24/6 Blister 6000 1380 6.14” 2.36”
Spiral
Med.

Compact Fluorescent Lamps
73
compact fluorescent lamps
Visit our website at www.satco.com
Enclosed & Decorative Lamps
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
3Torpedo Cand. S6219 15W EFTOR3/30 3000 82 24/6 Blister 6000 120 4.96” 1.65”
Med. S6221 15W EFTOR3/30 3000 82 24/6 Blister 6000 120 4.96” 1.65”
7Torpedo Cand. S6220 30W EFTOR7/30 3000 82 24/6 Blister 6000 280 4.96” 1.57”
Med. S6222 30W EFTOR7/30 3000 82 24/6 Blister 6000 280 4.96” 1.57”
A19 Med. S6233 30W EF7A19/30 3000 82 24/6 Blister 6000 300 4.54” 2.36”
9A19 Med. S6239 40W EF9A19/30 3000 82 24/6 Blister 6000 450 4.61” 2.44”
11 A19 Med. S6246 55W EF11A19/30 3000 82 24/6 Blister 6000 540 4.96” 2.44”
15 A19 Med. S6216 60W EF15A19/30 3000 82 24/6 Blister 6000 720 5.39” 2.64”
Globe Med. S6218 60W EFG15/30 3000 82 24/6 Blister 6000 720 5.39” 3.31”
S6242 60W EFG15/50 5000 82 24/6 Blister 6000 720 5.39” 3.31”
Bullet Med. S6217 60W EFT15/30 3000 82 24/6 Blister 6000 720 5.51” 1.97”
S6241 60W EFT15/50 5000 82 24/6 Blister 6000 720 5.51” 1.97”
Reflector Lamps
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
5R20 Med. S6244 30W EFR205/30 3000 82 24/6 Blister 6000 260 4.21” 2.52”
11 R20 Long Med S6245 50W EFR20L11/30/120 3000 82 24/6 Blister 6000 330 4.96” 2.52”
15 R30 Med. S6213 60W EFR3015/30 3000 82 24/6 Blister 6000 550 5.39” 3.74”
S6255 60W EFR3015/DIM/30
Dimmable
3000 82 24/6 Blister 6000 525 6.10” 3.74”
Torpedo
Cand.
Torpedo
Med.
A19
Med.
Globe
Med.
Bullet
Med.
R20
Med.
R20
Long
Med.
R30
Med.

Compact Fluorescent Lamps
compact fluorescent lamps
74
Don’t see the lamp you need? Call Customer Service 1-800-43-SATCO
Reflector Lamps (cont.)
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
23 BR38 Med. S6215 85W EFPAR3823/30 3000 82 24/6 Blister 6000 960 6.50” 4.72”
Indoor/Outdoor Rated
UL Listed Wet Location
R40 Med. S6214 85W EFR4023/30 3000 82 24/6 Blister 6000 920 6.50” 5.00”
S6256 85W EFR4023/DIM/30
Dimmable
3000 82 24/6 Blister 6000 920 7.00” 5.00”
Circline Tube With Electronic Ballast
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
22 Circline Med. S6259 75W EF/FC8/T9/WW 3000 12/6 Blister 10000 1060 2.99” 8.39”
S6261 75W EF/FC8/T9/D 6500 12/6 Blister 10000 1060 2.99” 8.39”
Export 230 Volt
Watts Bulb Base
Satco
Product
Number
Approx
Incand
Equiv Lamp Code
Color
Kelvin
Temp CRI
Master/
Inner
Carton Pkg Type
Avg.
Rated
Hours Initial Lumens MOL (Length) MOD (Diameter)
13 Mini Spiral Med. S6247 60W
EFMSP13/50/230V 5000 82 24/6 Blister 10000 800 4.96” 1.81”
26 Mini Spiral Med. S6248 100W
EFMSP26/50/230V 5000 82 24/6 Blister 10000 1600 5.94” 2.13”
11 R20 Long Med. S6249 50W
EFR20L11/50/230V 5000 82 24/6 Blister 6000 330 4.96” 2.52”
15 Globe Med. S6250 60W EFG15/50/230V 5000 82 24/6 Blister 6000 720 5.39” 3.31”
BR38
Med.
R40
Med.
Circline
Med.
Mini Spiral
Med.
Globe
Med.
R20
Long
Med.

Compact Fluorescent Lamps
75
compact fluorescent lamps
Visit our website at www.satco.com
Plug In Lamps – ENV & ECO S
Twin Tube 2-Pin For Magnetic Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
5T4 G23
S6300 CFS5W/827 2700 82 50/5 Hang Box 10000 230 4.2”
S6700 SCF5DS/827 2700 82 50 Box 10000 230 4.2”
S6301 CFS5W/841 4100 82 50/5 Hang Box 10000 230 4.2”
S6701 SCF5DS/841 4100 82 50 Box 10000 230 4.2”
7T4 G23
S6302 CFS7W/827 2700 82 50/5 Hang Box 10000 400 5.3”
S6702 SCF7DS/827 2700 82 50 Box 10000 400 5.3”
S6303 CFS7W/835 3500 82 50/5 Hang Box 10000 400 5.3”
S6703 SCF7DS/835 3500 82 50 Box 10000 400 5.3”
S6304 CFS7W/841 4100 82 50/5 Hang Box 10000 400 5.3”
S6704 SCF7DS/841 4100 82 50 Box 10000 400 5.3”
S6305 CFS7W/850 5000 82 50/5 Hang Box 10000 400 5.3”
S6705 SCF7DS/850 5000 82 50 Box 10000 400 5.3”
9T4 G23
S6306 CFS9W/827 2700 82 50/5 Hang Box 10000 580 6.5”
S6706 SCF9DS/827 2700 82 50 Box 10000 580 6.5”
S6307 CFS9W/835 3500 82 50/5 Hang Box 10000 580 6.5”
S6707 SCF9DS/835 3500 82 50 Box 10000 580 6.5”
S6308 CFS9W/841 4100 82 50/5 Hang Box 10000 580 6.5”
S6708 SCF9DS/841 4100 82 50 Box 10000 580 6.5”
S6309 CFS9W/850 5000 82 50/5 Hang Box 10000 580 6.5”
S6709 SCF9DS/850 5000 82 50 Box 10000 580 6.5”
13 T4 GX23
S6310 CFS13W/827 2700 82 50/5 Hang Box 10000 800 7.1”
S6710 SCF13DS/827 2700 82 50 Box 10000 800 7.1”
S6380 CFS13W/830 3000 82 50/5 Hang Box 10000 800 7.1”
S6780 SCF13DS/830 3000 82 50 Box 10000 800 7.1”
S6311 CFS13W/835 3500 82 50/5 Hang Box 10000 800 7.1”
S6711 SCF13DS/835 3500 82 50 Box 10000 800 7.1”
S6312 CFS13W/841 4100 82 50/5 Hang Box 10000 800 7.1”
S6712 SCF13DS/841 4100 82 50 Box 10000 800 7.1”
S6313 CFS13W/850 5000 82 50/5 Hang Box 10000 800 7.1”
S6713 SCF13DS/850 5000 82 50 Box 10000 800 7.1”
Twin
Tube
G23
Twin
Tube
GX23

Compact Fluorescent Lamps
compact fluorescent lamps
76
Don’t see the lamp you need? Call Customer Service 1-800-43-SATCO
Twin-Tube 4-Pin For Electronic & Dimming Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI Carton Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
5T4 2G7 S6411 SCF5DS/E/827 2700 82 50 Box 10000 230 3.4”
S6412 SCF5DS/E/841 4100 82 50 Box 10000 230 3.4”
7T4 2G7 S6413 SCF7DS/E/827 2700 82 50 Box 10000 400 4.5”
S6414 SCF7DS/E/841 4100 82 50 Box 10000 400 4.5”
9T4 2G7 S6415 SCF9DS/E/827 2700 82 50 Box 10000 580 5.7”
S6416 SCF9DS/E/841 4100 82 50 Box 10000 580 5.7”
13 T4 2GX7 S6417 SCF13DS/E/827 2700 82 50 Box 10000 800 6.2”
S6418 SCF13DS/E/830 3000 82 50 Box 10000 800 6.2”
S6419 SCF13DS/E/841 4100 82 50 Box 10000 800 6.2”
Quad Tube 2-Pin For Magnetic Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
9T4 G23-2 S6314 CFD9W/827 2700 82 50/5 Hang Box 10000 525 4.3”
S6714 SCF9DD/827 2700 82 50 Box 10000 525 4.3”
S6315 CFD9W/830 3000 82 50/5 Hang Box 10000 525 4.3”
S6715 SCF9DD/830 3000 82 50 Box 10000 525 4.3”
S6316 CFD9W/835 3500 82 50/5 Hang Box 10000 525 4.3”
S6716 SCF9DD/835 3500 82 50 Box 10000 525 4.3”
13 T4 GX23-2 S6317 CFD13W/827 2700 82 50/5 Hang Box 10000 780 4.6”
S6717 SCF13DD/827 2700 82 50 Box 10000 780 4.6”
S6318 CFD13W/830 3000 82 50/5 Hang Box 10000 780 4.6”
S6718 SCF13DD/830 3000 82 50 Box 10000 780 4.6”
S6319 CFD13W/835 3500 82 50/5 Hang Box 10000 780 4.6”
S6719 SCF13DD/835 3500 82 50 Box 10000 780 4.6”
S6320 CFD13W/841 4100 82 50/5 Hang Box 10000 780 4.6”
S6720 SCF13DD/841 4100 82 50 Box 10000 780 4.6”
Twin
Tube
2G7
Quad
Tube
G23-2
Quad
Tube
GX23-2
Twin
Tube
2GX7

Compact Fluorescent Lamps
77
compact fluorescent lamps
Visit our website at www.satco.com
Quad Tube 2-Pin For Magnetic Ballasts (cont.)
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
18 T4 G24q-2 S6321 CFD18W/827 2700 82 50/5 Hang Box 10000 1250 6”
S6721 SCF18DD/827 2700 82 50 Box 10000 1250 6”
S6322 CFD18W/830 3000 82 50/5 Hang Box 10000 1250 6”
S6722 SCF18DD/830 3000 82 50 Box 10000 1250 6”
S6323 CFD18W/835 3500 82 50/5 Hang Box 10000 1250 6”
S6723 SCF18DD/835 3500 82 50 Box 10000 1250 6”
S6324 CFD18W/841 4100 82 50/5 Hang Box 10000 1250 6”
S6724 SCF18DD/841 4100 82 50 Box 10000 1250 6”
22 T5 GX32D-2 S2970 FDL22LE/D 2800 84 50 Box 10000 1200 6”
S2971 FDL22EX/D 5000 84 50 Box 10000 1200 6”
26 T4 G24D-3 S6325 CFD26W/827 2700 82 50/5 Hang Box 10000 1825 6.8”
S6725 SCF26DD/827 2700 82 50 Box 10000 1825 6.8”
S6326 CFD26W/830 3000 82 50/5 Hang Box 10000 1825 6.8”
S6726 SCF26DD/830 3000 82 50 Box 10000 1825 6.8”
S6327 CFD26W/835 3500 82 50/5 Hang Box 10000 1825 6.8”
S6727 SCF26DD/835 3500 82 50 Box 10000 1825 6.8”
S6328 CFD26W/841 4100 82 50/5 Hang Box 10000 1825 6.8”
S6728 SCF26DD/841 4100 82 50 Box 10000 1825 6.8”
28 T5 GX32D-3 S2972 FDL28LE/D 2800 84 50 Box 10000 1600 6.8”
S2973 FDL28EX/D 5000 84 50 Box 10000 1600 6.8”
Quad
Tube
GX32D-2
Quad
Tube
G24D-3
Quad
Tube
GX32D-3
Quad
Tube
G24q-2

Compact Fluorescent Lamps
compact fluorescent lamps
78
Don’t see the lamp you need? Call Customer Service 1-800-43-SATCO
Quad Tube 4-Pin For Electronic & Dimming Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
13 T4 G24q-1 S6329 CFD13W/4P/827 2700 82 50/5 Hang Box 12000 900 5.2” 2
S6729 SCF13DD/E/827 2700 82 50 Box 12000 900 5.2” 2
S6330 CFD13W/4P/830 3000 82 50/5 Hang Box 12000 900 5.2” 2
S6730 SCF13DD/E/830 3000 82 50 Box 12000 900 5.2” 2
S6331 CFD13W/4P/835 3500 82 50/5 Hang Box 12000 900 5.2” 2
S6731 SCF13DD/E/835 3500 82 50 Box 12000 900 5.2” 2
S6332 CFD13W/4P/841 4100 82 50/5 Hang Box 12000 900 5.2” 2
S6732 SCF13DD/E/841 4100 82 50 Box 12000 900 5.2” 2
18 T4 G24q-2 S6333 CFD18W/4P/827 2700 82 50/5 Hang Box 12000 1250 5.8” 2
S6733 SCF18DD/E/827 2700 82 50 Box 12000 1250 5.8” 2
S6334 CFD18W/4P/830 3000 82 50/5 Hang Box 12000 1250 5.8” 2
S6734 SCF18DD/E/830 3000 82 50 Box 12000 1250 5.8” 2
S6335 CFD18W/4P/835 3500 82 50/5 Hang Box 12000 1250 5.8” 2
S6735 SCF18DD/E/835 3500 82 50 Box 12000 1250 5.8” 2
S6336 CFD18W/4P/841 4100 82 50/5 Hang Box 12000 1250 5.8” 2
S6736 SCF18DD/E/841 4100 82 50 Box 12000 1250 5.8” 2
26 T4 G24q-3 S6337 CFD26W/4P/827 2700 82 50/5 Hang Box 12000 1825 6.5” 2
S6737 SCF26DD/E/827 2700 82 50 Box 12000 1825 6.5” 2
S6338 CFD26W/4P/830 3000 82 50/5 Hang Box 12000 1825 6.5” 2
S6738 SCF26DD/E/830 3000 82 50 Box 12000 1825 6.5” 2
S6339 CFD26W/4P/835 3500 82 50/5 Hang Box 12000 1825 6.5” 2
S6739 SCF26DD/E/835 3500 82 50 Box 12000 1825 6.5” 2
S6340 CFD26W/4P/841 4100 82 50/5 Hang Box 12000 1825 6.5” 2
S6740 SCF26DD/E/841 4100 82 50 Box 12000 1825 6.5” 2
Triple Tube 2-Pin For Magnetic Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI Carton Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
18 T4 GX24D-2
S4367
SCF18DT/827 2700 82 50 Box 12000 1200 4.8”
26 T4 GX24D-3
S4368
SCF26DT/827 2700 82 50 Box 12000 1800 5.4”
Quad
Tube
G24q-3
Triple
Tube
GX24D-2
Triple
Tube
GX24D-3
Quad
Tube
G24q-1
Quad
Tube
G24q-2

Compact Fluorescent Lamps
79
compact fluorescent lamps
Visit our website at www.satco.com
Triple Tube 4-Pin For Electronic & Dimming Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
13 T4 GX24q-1
S4369
SCF13DT/E/827 2700 82 50 Box 12000 900 4.2” 2
S6496 CFT13W/4P/830 3000 82 50/5 Hang Box 12000 900 4.2” 2
S4370
SCF13DT/E/830 3000 82 50 Box 12000 900 4.2” 2
S6497 CFT13W/4P/835 3500 82 50/5 Hang Box 12000 900 4.2” 2
S4371
SCF13DT/E/835 3500 82 50 Box 12000 900 4.2” 2
S6498 CFT13W/4P/841 4100 82 50/5 Hang Box 12000 900 4.2” 2
S4372
SCF13DT/E/841 4100 82 50 Box 12000 900 4.2” 2
18 T4 GX24q-2 S6741 SCF18DT/E/IN/827 2700 82 50 Box 12000 1200 4.4” 2
S6342 CFT18W/4P/830 3000 82 50/5 Hang Box 12000 1200 4.4” 2
S6742 SCF18DT/E/IN/830 3000 82 50 Box 12000 1200 4.4” 2
S6343 CFT18W/4P/835 3500 82 50/5 Hang Box 12000 1200 4.4” 2
S6743 SCF18DT/E/IN/835 3500 82 50 Box 12000 1200 4.4” 2
S6344 CFT18W/4P/841 4100 82 50/5 Hang Box 12000 1200 4.4” 2
S6744 SCF18DT/E/IN/841 4100 82 50 Box 12000 1200 4.4” 2
26 T4 GX24q-3 S6745 SCF26DT/E/IN/827 2700 82 50 Box 12000 1800 5” 2
S6346 CFT26W/4P/830 3000 82 50/5 Hang Box 12000 1800 5” 2
S6746 SCF26DT/E/IN/830 3000 82 50 Box 12000 1800 5” 2
S6347 CFT26W/4P/835 3500 82 50/5 Hang Box 12000 1800 5” 2
S6747 SCF26DT/E/IN/835 3500 82 50 Box 12000 1800 5” 2
S6348 CFT26W/4P/841 4100 82 50/5 Hang Box 12000 1800 5” 2
S6748 SCF26DT/E/IN/841 4100 82 50 Box 12000 1800 5” 2
32 T4 GX24q-3 S6749 SCF32DT/E/IN/827 2700 82 50 Box 12000 2400 5.6” 2
S6350 CFT32W/4P/830 3000 82 50/5 Hang Box 12000 2400 5.6” 2
S6750 SCF32DT/E/IN/830 3000 82 50 Box 12000 2400 5.6” 2
S6351 CFT32W/4P/835 3500 82 50/5 Hang Box 12000 2400 5.6” 2
S6751 SCF32DT/E/IN/835 3500 82 50 Box 12000 2400 5.6” 2
S6352 CFT32W/4P/841 4100 82 50/5 Hang Box 12000 2400 5.6” 2
S6752 SCF32DT/E/IN/841 4100 82 50 Box 12000 2400 5.6” 2
Triple
Tube
GX24q-3
Triple
Tube
GX24q-1
Triple
Tube
GX24q-2

Compact Fluorescent Lamps
compact fluorescent lamps
80
Don’t see the lamp you need? Call Customer Service 1-800-43-SATCO
Triple Tube 4-Pin For Electronic & Dimming Ballasts (cont.)
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI
Master/
Inner
Pack Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
42 T4 GX24q-4 S6753 SCF42DT/E/IN/827 2700 82 50 Box 12000 3200 6.5” 2
S6354 CFT42W/4P/830 3000 82 50/5 Hang Box 12000 3200 6.5” 2
S6754 SCF42DT/E/IN/830 3000 82 50 Box 12000 3200 6.5” 2
S6355 CFT42W/4P/835 3500 82 50/5 Hang Box 12000 3200 6.5” 2
S6755 SCF42DT/E/IN/835 3500 82 50 Box 12000 3200 6.5” 2
S6356 CFT42W/4P/841 4100 82 50/5 Hang Box 12000 3200 6.5” 2
S6756 SCF42DT/E/IN/841 4100 82 50 Box 12000 3200 6.5” 2
57 T4 GX24q-5 S6421 SCF57DT/E/IN/827 2700 82 50 Box 12000 4300 7.76” 2
S6422 SCF57DT/E/IN/830 3000 82 50 Box 12000 4300 7.76” 2
S6423 SCF57DT/E/IN/835 3500 82 50 Box 12000 4300 7.76” 2
S6424 SCF57DT/E/IN/841 4100 82 50 Box 12000 4300 7.76” 2
Flat Tube 4-Pin For Electronic Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI Carton Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
18 T5 2G10 S6772 SCF18DF/830 3000 82 10 Box 10000 1100 4.8”
S6773 SCF18DF/841 4100 82 10 Box 10000 1100 4.8”
24 T5 2G10 S6774 SCF24DF/830 3000 82 10 Box 10000 1700 6.7”
S6775 SCF24DF/841 4100 82 10 Box 10000 1700 6.7”
36 T5 2G10 S6776 SCF36DF/830 3000 82 10 Box 10000 2800 8.5”
S6777 SCF36DF/841 4100 82 10 Box 10000 2800 8.5”
Triple
Tube
GX24q-5
Flat
Tube
2G10
Triple
Tube
GX24q-4

Compact Fluorescent Lamps
81
compact fluorescent lamps
Visit our website at www.satco.com
Long
Twin
Tube
2G11
Long Twin Tube 4-Pin For Electronic Ballasts
Watts Bulb Base
Satco
Product
Number Lamp Code CCT (K) CRI Carton Pkg Type
Avg.
Rated
Hours Lumens MOL Notes
18 T5 2G11 S6757 SFT18DL/830 3000 82 10 Box 12000 1250 9”
S2964 SFT18DL/830/RS 3000 82 10 Box 20000 1250 10.5”
S6758 SFT18DL/835 3500 82 10 Box 12000 1250 9”
S2965 SFT18DL/835/RS 3500 82 10 Box 20000 1250 10.5”
S6759 SFT18DL/841 4100 82 10 Box 12000 1250 9”
S2966 SFT18DL/841/RS 4100 82 10 Box 20000 1250 10.5”
24 T5 2G11 S6760 SFT24DL/830 3000 82 10 Box 12000 1800 12.9” 1
S6761 SFT24DL/835 3500 82 10 Box 12000 1800 12.9” 1
S6762 SFT24DL/841 4100 82 10 Box 12000 1800 12.9” 1
36 T5 2G11 S6763 SFT36DL/830 3000 82 10 Box 12000 2900 16.6” 1
S6764 SFT36DL/835 3500 82 10 Box 12000 2900 16.6” 1
S6765 SFT36DL/841 4100 82 10 Box 12000 2900 16.6” 1
40 T5 2G11 S6766 SFT40DL/830/RS 3000 82 10 Box 20000 3150 22.6”
S6767 SFT40DL/835/RS 3500 82 10 Box 20000 3150 22.6”
S6768 SFT40DL/841/RS 4100 82 10 Box 20000 3150 22.6”
50 T5 2G11 S2967 SPLL50W/30/RS 3000 82 25 Box 14000 4300 22.5”
S2968 SPLL50W/35/RS 3500 82 25 Box 14000 4300 22.5”
S2969 SPLL50W/41/RS 4100 82 25 Box 14000 4300 22.5”
55 T5 2G11 S6769 SFT55DL/835 3000 82 10 Box 12000 4800 21.1”
S6770 SFT55DL/835 3500 82 10 Box 12000 4800 21.1”
S6771 SFT55DL/841 4100 82 10 Box 12000 4800 21.1”

Compact Fluorescent Lamps
compact fluorescent lamps
82
Compact Fluorescent Cross References
Satco/ENV Sylvania Philips GE NEMA Generic
Order
Code
Order
Code
S6300
CFT5W/827 S6700 CF5DS/827 PL-S5W/827 F5BX/SPX27/827 CFT5W/G23/841
S6301 CFT5W/841 S6701 CF5DS/841 No Equal F5BX/SPX41/840 CFT5W/G23/827
S6302 CFT7W/827 S6702 CF7DS/827 PL-S7W/827 F7BX/SPX27/827 CFT7W/G23/827
S6303 CFT7W/835 S6703 CF7DS/835 PL-S7W/835 F7BX/SPX35/835 CFT7W/G23/835
S6304 CFT7W/841 S6704 CF7DS/841 PL-S7W/841 F7BX/SPX41/840 CFT7W/G23/841
S6305 CFT7W/850 S6705 CF7DS/850 PL-S7W/850 No Equal CFT7W/G23/850
S6306 CFT9W/827 S6706 CF9DS/827 PL-S9W/827 F9BX/SPX27/827 CFT9W/G23/827
S6307 CFT9W/835 S6707 CF9DS/835 PL-S9W/835 F9BX/SPX35/835 CFT9W/G23/835
S6308 CFT9W/841 S6708 CF9DS/841 PL-S9W/841 F9BX/SPX41/840 CFT9W/G23/841
S6309 CFT9W/850 S6709 CF9DS/850 PL-S9W/850 No Equal CFT9W/G23/850
S6310 CFT13W/827 S6710 CF13DS/827 PL-S13W/827 F13BX/SPX27/827 CFT13W/GX23/827
S6380 CFT13W/830 S6780 CF13DS/830 PL-S13W/830 F13BX/SPX30/830 CFT13W/GX23/830
S6311 CFT13W/835 S6711 CF13DS/835 PL-S13W/835 F13BX/SPX35/835 CFT13W/GX23/835
S6312 CFT13W/841 S6712 CF13DS/841 PL-S13W/841 F13BX/SPX41/840 CFT13W/GX23/841
S6313 CFT13W/850 S6713 CF13DS/850 PL-S13W/850 F13BX/SPX50 CFT13W/GX23/850
S6411 CF5DS/E/827 No Equal No Equal CFT5W/2G7/827
S6412 CF5DS/E/841 No Equal No Equal CFT5W/2G7/841
S6413 CF7DS/E/827 No Equal No Equal CFT7W/2G7/827
S6414 CF7DS/E/841 No Equal No Equal CFT7W/2G7/841
S6415 CF9DS/E/827 No Equal No Equal CFT9W/2G7/827
S6416 CF9DS/E/841 No Equal No Equal CFT9W/2G7/841
S6417 CF13DS/E/827 No Equal No Equal CFT13W/2GX7/827
S6418 CF13DS/E/830 No Equal No Equal CFT13W/2GX7/830
S6419 CF13DS/E/841 No Equal No Equal CFT13W/2GX7/841
S6314 CFD9W/827 S6714 CF9DD/827 No Equal F9DBX23T4/SPX27 CFQ9W/G23/827
S6315 CFD9W/830 S6715 CF9DD/830 No Equal No Equal CFQ9W/G23/830
S6316 CFD9W/835 S6716 CF9DD/835 No Equal No Equal CFQ9W/G23/835
S6317 CFD13W/827 S6717 CF13DD/827 PL-C13W/827/USA F13DBX23T4/SPX27 CFQ13W/GX23/827
S6318 CFD13W/830 S6718 CF13DD/830 PL-C13W/830/USA F13DBX23T4/SPX30 CFQ13W/GX23/830
S6319 CFD13W/835 S6719 CF13DD/835 PL-C13W/835/USA F13DBX23T4/SPX35 CFQ13W/GX23/835
S6320 CFD13W/841 S6720 CF13DD/841 PL-C13W/841/USA F13DBX23T4/SPX41 CFQ13W/GX23/841
S6321 CFD18W/827 S6721 CF18DD/827 PL-C18W/827 F18DBXT4/SPX27 CFQ18W/G24d/827
S6322 CFD18W/830 S6722 CF18DD/830 PL-C18W/830 F18DBXT4/SPX30 CFQ18W/G24d/830
S6323 CFD18W/835 S6723 CF18DD/835 PL-C18W/835 F18DBXT4/SPX35 CFQ18W/G24d/835
S6324 CFD18W/841 S6724 CF18DD/841 PL-C18W/841 F18DBXT4/SPX41 CFQ18W/G24d/841
S2970 
FDL22LE/D No Equal PL-C15MM/22W/827 No Equal CFQ20W/GX32d/827
S2971 
FDL22EX/D No Equal No Equal No Equal CFQ20W/GX32d/850
S6325 CFD26W/827 S6725 CF26DD/827 PL-C26W/827 F26DBXT4/827 CFQ26W/G24d/827
S6326 CFD26W/830 S6726 CF26DD/830 PL-C26W/830 F26DBXT4/830 CFQ26W/G24d/830
S6327 CFD26W/835 S6727 CF26DD/835 PL-C26W/835 F26DBXT4/835 CFQ26W/G24d/835
S6328 CFD26W/841 S6728 CF26DD/841 PL-C26W/841 F26DBXT4/841 CFQ26W/G24d/841
S2972 
FDL28LE/D No Equal PL-C15MM/28W/827 No Equal CFQ27W/GX32d/827
S2973 
FDL28EX/D No Equal No Equal No Equal CFQ27W/GX32d/850
S6329 CFD13W/4P/827 S6729 CF13DD/E/827 PL-C13W/827/4P F13DBX/SPX27/4P CFQ13W/G24q/827
S6330 CFD13W/4P/830 S6730 CF13DD/E/830 PL-C13W/830/4P F13DBX/SPX30/4P CFQ13W/G24q/830
S6331 CFD13W/4P/835 S6731 CF13DD/E/835 PL-C13W/835/4P F13DBX/SPX35/4P CFQ13W/G24q/835
S6332 CFD13W/4P/841 S6732 CF13DD/E/841 PL-C13W/841/4P F13DBX/SPX41/4P CFQ13W/G24q/841
S6333 CFD18W/4P/827 S6733 CF18DD/E/827 PL-C18W/827/4P F18DBX/SPX27 CFQ18W/G24q/827
S6334 CFD18W/4P/830 S6734 CF18DD/E/830 PL-C18W/830/4P F18DBX/SPX30 CFQ18W/G24q/830
S6335 CFD18W/4P/835 S6735 CF18DD/E/835 PL-C18W/835/4P F18DBX/SPX35 CFQ18W/G24q/835

Compact Fluorescent Lamps
83
compact fluorescent lamps
Compact Fluorescent Cross References
Satco/ENV Sylvania Philips GE NEMA Generic
Order
Code
Order
Code
S6336
CFD18W/4P/841 S6736 CF18DD/E/841 PL-C18W/841/4P F18DBX/SPX41 CFQ18W/G24q/841
S6337 CFD26W/4P/827 S6737 CF26DD/E/827 PL-C26W/827/4P F26DBXT4/SPX27/4P CFQ26W/G24q/827
S6338 CFD26W/4P/830 S6738 CF26DD/E/830 PL-C26W/830/4P F26DBXT4/SPX30/4P CFQ26W/G24q/830
S6339 CFD26W/4P/835 S6739 CF26DD/E/835 PL-C26W/835/4P F26DBXT4/SPX35/4P CFQ26W/G24q/835
S6340 CFD26W/4P/841 S6740 CF26DD/E/841 PL-C26W/841/4P F26DBXT4/SPX41/4P CFQ26W/G24q/841
S6420 CF13DT/E/827 No Equal F13TBX/SPX27/A/4P CFTR13W/GX24q/827
CFT13W/4P/830 S6496 CF13DT/E/830 No Equal F13TBX/SPX30/A/4P CFTR13W/GX24q/830
CFT13W/4P/835 S6497 CF13DT/E/835 No Equal F13TBX/SPX35/A/4P CFTR13W/GX24q/835
CFT13W/4P/841 S6498 CF13DT/E/841 No Equal F13TBX/SPX41/A/4P CFTR13W/GX24q/841
S6741 CF18DT/E/IN/827 PL-T18W/827/4P F18TBX/SPX27/A/4P CFTR18W/GX24q/827
S6342 CFT18W/4P/830 S6742 CF18DT/E/IN/830 PL-T18W/830/4P F18TBX/SPX30/A/4P CFTR18W/GX24q/830
S6343 CFT18W/4P/835 S6743 CF18DT/E/IN/835 PL-T18W/835/4P F18TBX/SPX35/A/4P CFTR18W/GX24q/835
S6344 CFT18W/4P/841 S6744 CF18DT/E/IN/841 PL-T18W/841/4P F18TBX/SPX41/A/4P CFTR18W/GX24q/841
S6745 CF26DT/E/IN/827 PL-T26W/827/4P F26TBX/SPX27/A/4P CFTR26W/GX24q/827
S6346 CFT26W/4P/830 S6746 CF26DT/E/IN/830 PL-T26W/830/4P F26TBX/SPX30/A/4P CFTR26W/GX24q/830
S6347 CFT26W/4P/835 S6747 CF26DT/E/IN/835 PL-T26W/835/4P F26TBX/SPX35/A/4P CFTR26W/GX24q/835
S6348 CFT26W/4P/841 S6748 CF26DT/E/IN/841 PL-T26W/841/4P F26TBX/SPX41/A/4P CFTR26W/GX24q/841
S6749 CF32DT/E/IN/827 PL-T32W/827/4P F32TBX/SPX27/A/4P CFTR32W/GX24q/827
S6750 CFT32W/4P/830 S6750 CF32DT/E/IN/830 PL-T32W/830/4P F32TBX/SPX30/A/4P CFTR32W/GX24q/830
S6751 CFT32W/4P/835 S6751 CF32DT/E/IN/835 PL-T32W/835/4P F32TBX/SPX35/A/4P CFTR32W/GX24q/835
S6752 CFT32W/4P/841 S6752 CF32DT/E/IN/841 PL-T32W/841/4P F32TBX/SPX41/A/4P CFTR32W/GX24q/841
S6753 CF42DT/E/IN/827 PL-T42W/827/4P F42TBX/827/A/4P/EOL CFTR42W/GX24q/827
S6754 CFT42W/4P/830 S6754 CF42DT/E/IN/830 PL-T42W/830/4P F42TBX/827/A/4P/EOL CFTR42W/GX24q/830
S6755 CFT42W/4P/835 S6755 CF42DT/E/IN/835 PL-T42W/835/4P F42TBX/827/A/4P/EOL CFTR42W/GX24q/835
S6756 CFT42W/4P/841 S6756 CF42DT/E/IN/841 PL-T42W/841/4P F42TBX/827/A/4P/EOL CFTR42W/GX24q/841
S6421 CF57DT/E/IN/827 No Equal F57QBX/827/A/4P/EOL CFTR57W/GX24q/827
S6422 CF57DT/E/IN/830 PL-H60W/830/4P F57QBX/830/A/4P/EOL CFTR57W/GX24q/830
S6423 CF57DT/E/IN/835 No Equal F57QBX/835/A/4P/EOL CFTR57W/GX24q/835
S6424 CF57DT/E/IN/841 PL-H60W/841/4P F57QBX/841/A/4P/EOL CFTR57W/GX24q/841
S6757 FT18DL/830 PL-L18W/830 F18BX/SPX30 FT18W/2G11/830
S2964 FT18/DL/830/RS No Equal F18BX/SPX30/RS FT18W/2G11/RS/830
S6758 FT18DL/835 PL-L18W/835 F18BX/SPX35 FT18W/2G11/835
S2965 FT18DL/835/RS No Equal F18BX/SPX35/RS FT18W/2G11/RS/835
S6759 FT18DL/841 PL-L18W/841 F18BX/SPX41 FT18W/2G11/841
S2966 FT18DL/841/RS No Equal F18BX/SPX41/RS FT18W/2G11/RS/841
S6760 FT24DL/830 PL-L24W/830 F27BX/SPX30/RS FT24W/2G11/830
S6761 FT24DL/835 PL-L24W/835 F27BX/SPX35/RS FT24W/2G11/835
S6762 FT24DL/841 PL-L24/841 F27BX/SPX41/RS FT24W/2G11/841
S6763 FT36DL/830 PL-L36W/830 F39BX/SPX30/RS FT36W/2G11/830
S6764 FT36DL/835 PL-L36W/835 F39BX/SPX35/RS FT36W/2G11/835
S6765 FT36DL/841 PL-L36W/841 F39BX/SPX41/RS FT36W/2G11/841
S6766 FT40DL/830/RS PL-L40W/830/RS/IS F40/30BX/SPX30 FT40W/2G11/RS/830
S6767 FT40DL/835/RS PL-L40W/835/RS/IS F40/30BX/SPX35 FT40W/2G11/RS/835
S6768 FT40DL/841/RS PL-L40W/841/RS/IS F40/30BX/SPX41 FT40W/2G11/RS/841
S2967 S
PL-L50W/830/RS No Equal PL-L50W/830/RS F50BX/SPX30/RS FT50W/2G11/RS/830
S2968 S
PL-L50W/835/RS No Equal PL-L50W/835/RS F50BX/SPX35/RS FT50W/2G11/RS/835
S2969 S
PL-L50W/841/RS No Equal PL-L50W/841/RS F50BX/SPX41/RS FT50W/2G11/RS/841
S6769 FT55DL/830/RS No Equal F55BX/830 FT55W/2G11/RS/830
S6770 FT55DL/835/RS No Equal F55BX/835 FT55W/2G11/RS/835
S6771 FT55DL/841/RS No Equal F55BX/841 FT55W/2G11/RS/841

Compact Fluorescent Lamps Notes
compact fluorescent lamps
84
CF General Notes
= Product by a manufacturer other than Satco
S= Product by one of the Primary lamp
manufacturers
=
Rule of Thumb for Compact Fluorescent Lamps: Divide
wattage of incandescent lamp by 4 to determine
approximate wattage of compact fluorescent lamp
that will provide similar light output.
Caution: Unless otherwise stated, Self Ballasted
CF Lamps cannot be used on dimming circuits,
emergency exit fixtures or lights, electronic timers,
photocells or lighted switches. In outdoor applications,
use only in enclosed fixtures to avoid exposure to
weather. Use only on 120V, 60 Hz circuits.
ENV and ECO fluorescent lamps are designed to pass
the Federal Toxic Characteristic Leaching Procedure
(TCLP) criteria for classification as non-hazardous waste
in most states. TCLP test results are available upon
request. Lamp disposal regulations may vary, check
your local & state regulations. For more information,
please visit www.lamprecycle.org.
Minimum starting temperature for 2-pin CF lamps:
CF5: -22 degrees F; CF7: -4 degrees F; CF9: 14
degrees F; CF13DS: 14 degrees F; CF13DD: -4
degrees F; CF18DD: 5 degrees F; CF18DT: -4 degrees
F; CF26: 14 degrees F.
There is a NEMA supported, industry issue where T2, T4,
and T5 fluorescent and compact fluorescent lamps
operated on high frequency ballasts may experience
an abnormal end-of-life phenomenon. This end-of-
life phenomenon can result in one or both of the
following: 1. Bulb wall cracking near the lamp base. 2.
The lamp can overheat in the base area and possibly
melt the base and socket. NEMA recommends that
high frequency compact fluorescent ballasts have
an end-of-life shutdown circuit which will safely and
reliably shut down the system in the rare event of an
abnormal end-of-life failure mode described above.
The final requirements of this system are yet to be
defined by ANSI. For additional information refer to
NEMA papers on their WEBSITE at www.NEMA.org.
CF Notes
1These lamps may also be operated on rapid
start circuits. On rapid start circuits the 24 watt
lamp operates at 27 watts and the 36 watt lamp
operated at 39 watts. Rated lamp life is unchanged.
2This 4-pin CF lamp has an internal end-of-life
mechanism (EOL) that shuts down the lamp
preventing abnormal end-of life failure modes. This
lamp was designed for use with high frequency
ballasts that do not have their own end-of-life (lamp)
sensing circuits, but it is also compatible with high
frequency ballasts that have their own end-of-life
(lamp) sensing circuits.
