Satfi DP300 User manual

SATFI UK User Manual Ver. 1.0
SATFI UK
DP300
User Manual

SATFI UK User Manual Ver. 1.0
- 1-
1 Introduction
Specification………………….…………………………………………………….7
Antenna System Overview…………………………………………………….8
Direct Broadcast Satellite Overview………………………….…………..9
System Components……………………………………………………………10
2 Installation
Unpacking the Unit………………………………..…………………….......12
Preparing for the installation……………………………………………….13
Selecting the location………….……………………………………….……...14
Equipment and cable installation…………..…………………………….16
Setting the LNB Skew Angle(Manual Skew version only)………..17
3 Operation
Receiving Satellite TV Signals…………….……………………………….20
Turning the System On/Off…………..………………..…………………..20
Changing Channels………………………….…………………...…..………..21
Watching TV…………………………………………………………..……..…..21
Switching between Satellites………………………………………………..21
Operating the IDU……………………………………….…………………..22
4 Troubleshooting
Simple Check……………………………………………..………………….26
Causes and Remedies……………………………….……..……………….27
T
able of contents

SATFI UK User Manual Ver. 1.0
- 2-
i Appendix A
How to set the skew angle……………………………………………..…….29
ii Appendix B
Satellite Coverage Map…………………..………………………..…….34
iii Appendix C
Antenna Drawing..….…………………….………………………………….38

SATFI UK User Manual Ver. 1.0
- 3-
Diagrams
Figure 1-1 System Diagram……………………………..………………………..8
Figure 1-2 Satellite Blockage…………..………………………………………..9
Figure 1-3 System Components…………………………….…………………10
Figure 2-1 Unpacking the Unit……………………………………………….12
Figure 2-2 Selecting the Location…………………………………..……….15

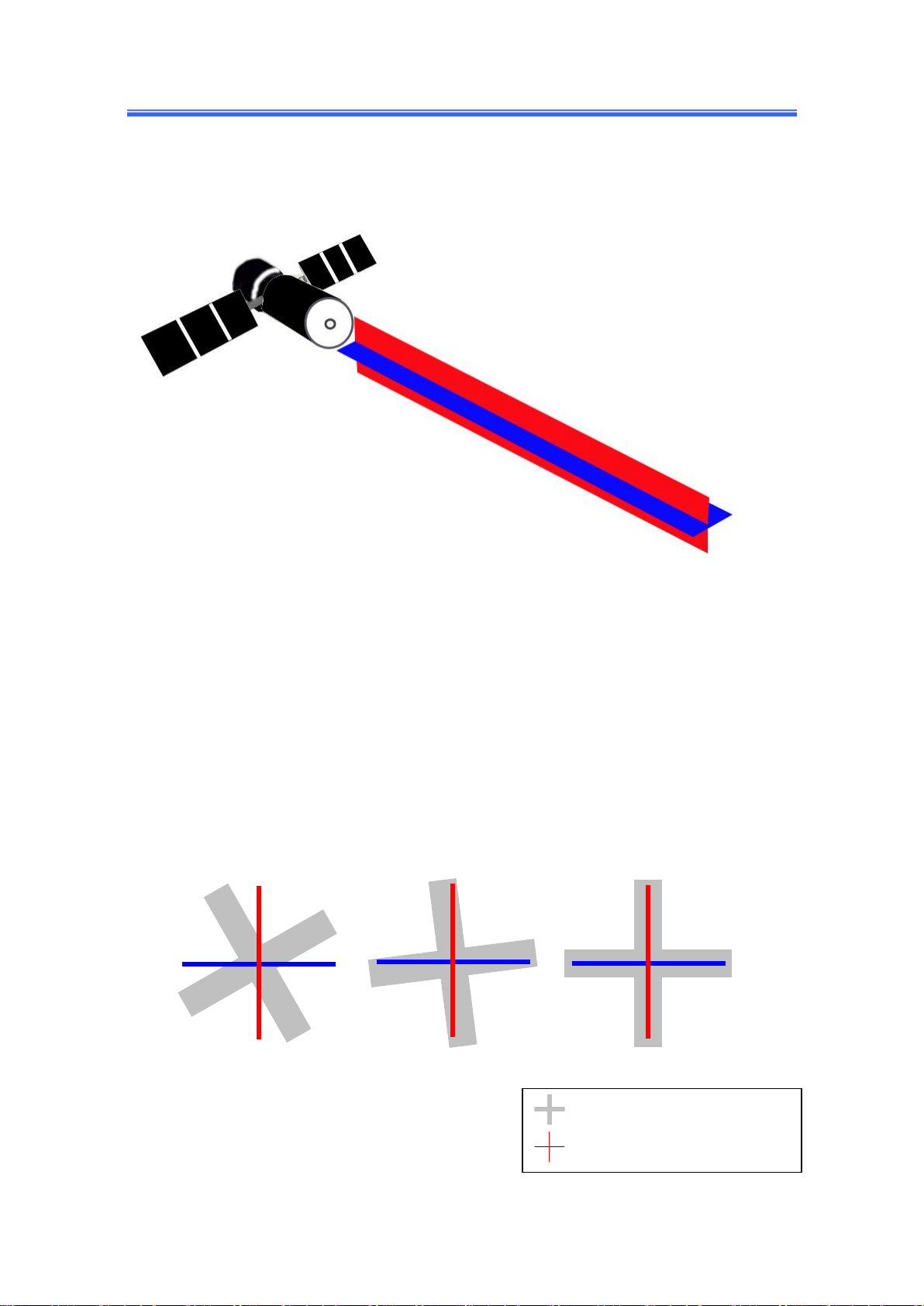

Figure 2-3 Satellite Signals…………………………………………………..…17
Figure 2-4 Best Skew Angle……………………………………..………..……17
Figure 3-1 Appearance of IDU………………………………………....……22
Figure 3-2 Functions of LED…………..………………………………………23
Figure 3-3 Auto sleep mode…………..………………………………………24
Figure C-1 USB Port………….…..…………….………………………24

SATFI UK User Manual Ver. 1.0
- 4-
Tables
Table 1-1 Specification……..…………………………………….………………..7
Table 2-1 Parts included…………...…………………………………………….12

SATFI UK User Manual Ver. 1.0
- 5-
Notes, Cautions, and Warnings
Caution –Improper handling by unqualified personnel can cause serious
damage to this equipment. Unqualified personnel who tamper with this
equipment may be held liable for any resultant damage to the equipment.
Install under DRY conditions ONLY! Do not install this system in the rain,
or under any wet conditions. Moisture may affect electronics and void
warranty!
Warning –2 people are required to install the antenna onto the roof. Do
not try to install the antenna by yourself.
Note –Before you begin, carefully read each of the procedures in this
manual. If you have not performed similar operations on comparable
equipment, do not attempt to perform these procedures.

SATFI UK User Manual Ver. 1.0
- 6-
SATFI UK satellite antenna system is the innovative and a technologically advanced
satellite Stationary system. SATFI UK has a unique combination of state-of-the art
components with the most sophisticated satellite acquisition and tracking programs to
provide the following features:
■ Fast satellite acquisition
■ Compatible with any Satellite Receiver
■ Compatible with all Direct Broadcast Satellites (DBS)
■ Built-in HD Digital Broadcast Location (DVB-S2)
■ Capable of High Definition receiving
Specification………………….…………………………………………………….7
Antenna System Overview…………………………………………………….8
Direct Broadcast Satellite Overview………………………….…………..9
System Components……………………………………………………………10
I
ntroduction

SATFI UK User Manual Ver. 1.0
- 7-
Specification
Antenna Type
Waveguide
Frequency Band
Ku Band
Radome Dimension
260x550
Antenna Weight
7kg
Antenna Gain
33dBi
Minimum EIRP
51dBW
Polarization
V/H
Type of Stabilization
2-Axis Step Motor
Elevation Range
15°to 60°
Azimuth Range
Unlimited
Rotation Rate
50°/sec
Temperature Range
-20°to 70°
Power
12~24VDC
Table 1-1 Specification

SATFI UK User Manual Ver. 1.0
- 8-
Antenna System Overview

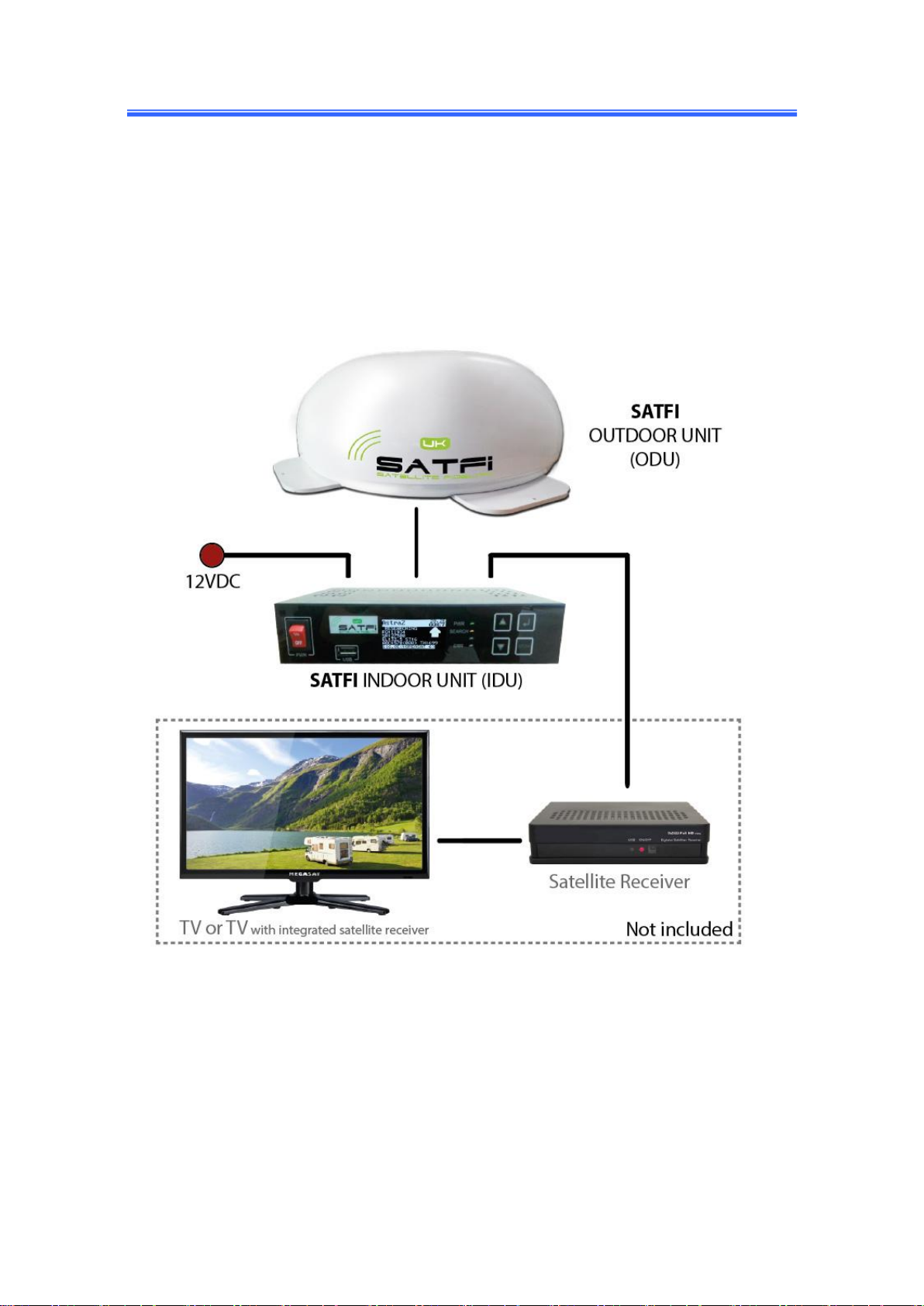

A complete satellite TV system, illustrated in Figure 1-1, includes SATFI UK antenna
connected to an IDU, a satellite TV receiver, and a television set.
Figure 1-1 System Diagram

SATFI UK User Manual Ver. 1.0
- 9-
Direct Broadcast Satellite Overview
Direct Broadcast Service (DBS) satellites broadcast audio, video and data information
from satellites located 22,000 miles away in space. A satellite system, such as SATFI
UK antenna, should include a dish and satellite receiver to receive the signals and
process them for use by the consumer decoder & TV equipment. The system requires
a clear view of the satellite to maximize the signal reception.
Blocked !

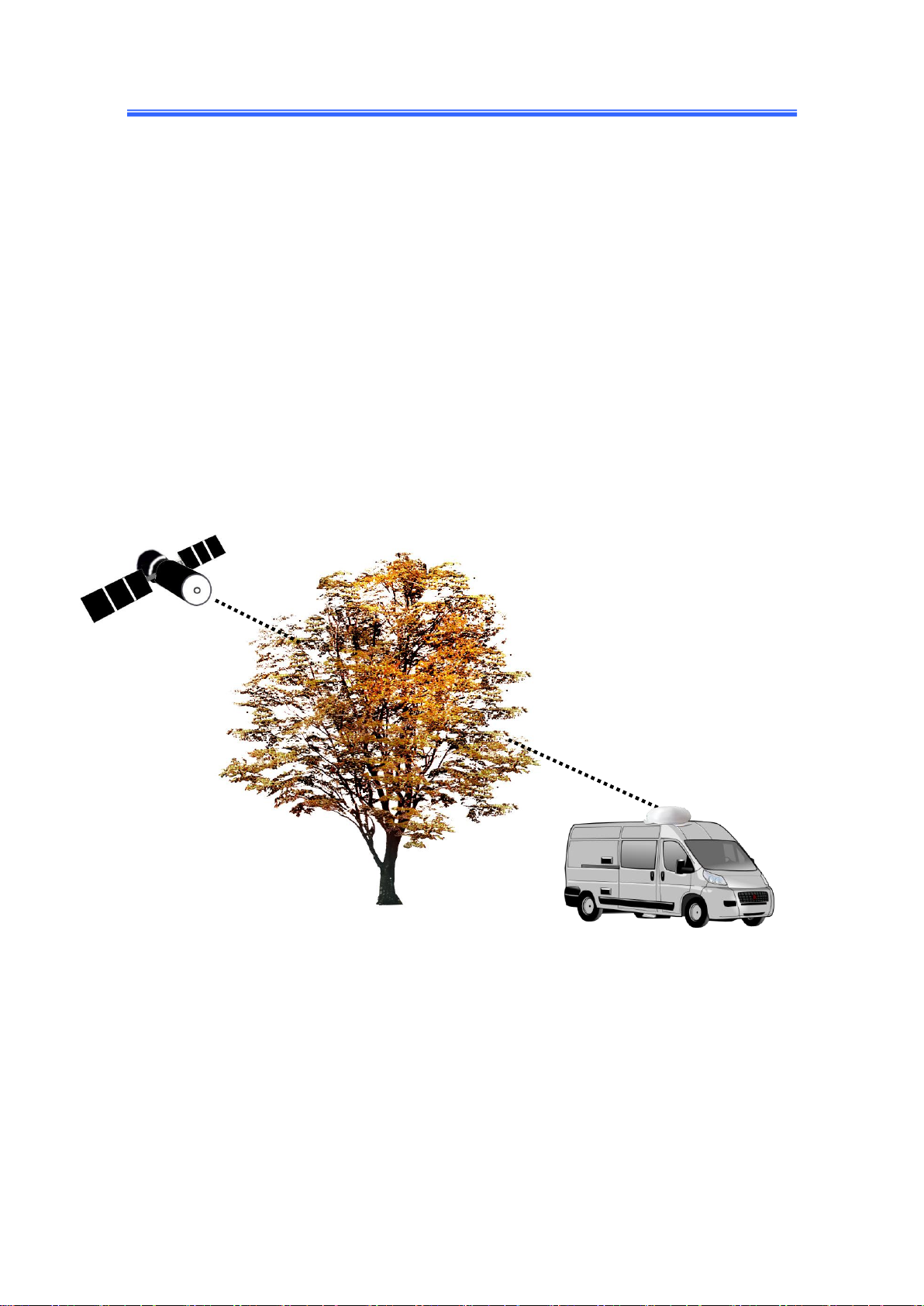

Figure 1-2 Satellite Blockage

SATFI UK User Manual Ver. 1.0
- 10 -
Objects such as tall trees, bridges and buildings that block this view will cause a loss
of signal. The signal will be quickly restored once the antenna has a clear line of sight
again. Heavy rain, cloud, snow or ice may also interfere with the signal reception
quality. If the satellite signal is lost due to blockage or severe weather condition,
services from the receiver will be lost (picture will freeze frame and may disappear).
When the satellite signal strength is again high enough, then the receiver will resume
providing desired programming services.
System Components
Antenna Unit
The antenna unit houses the antenna positioning
mechanism, LNB (low noise block), and control
elements within a radome. Weathertight
connectors join the power, signal, and control
cable from the InDoor unit.
IDU (InDoor Unit)
The IDU is the system’s user interface, providing
access to the system and its functions through an
LCD and three buttons. The IDU also serves as
the vehicle’s junction box, allowing the system
to use vehicle’s power, and supply and receive
data to/from the antenna unit.
Figure 1-3 System Components

SATFI UK User Manual Ver. 1.0
- 11 -
This section offers a general explanation of how to properly install the SATFI UK
antenna. Installation of SATFI UK antenna must be accomplished by or under the
supervision of an authorized dealer for the Limited Warranty to be valid and in force.
The steps in the installation and setup process are as follows:
Unpacking the unit……………….…………………………………………….12
Preparing for the installation……………………………………………….13
Selecting the location………….……………………………………….……...14
Equipment and cable installation…………..…………………………….16
Setting the LNB Skew Angle…………………..…………………………….17
I
nstallation

SATFI UK User Manual Ver. 1.0
- 12 -
Unpacking the unit
1. Open box and remove packing material.
The following items are included in the packaging of SATFI UK antenna.
Item
Description
Quantity
1
SATFI UK Antenna Unit
1 each
2
IDU(In Door Unit)
1 each
3
Power Cable(1.5m)
1 each
4
Coaxial Cable (10m)
1 each
5
Coaxial Cable (1m)
1 each
6
Mounting feet (fitted to antenna)
1 set
7
Cable gland
1 each
8
User Manual
1 set
Table 2-1 Parts included
2. Lift dome out of box vertically. Then lift unit out of box vertically. Do not turn
box and “roll” out, or turn upside down to remove.
Figure 2-1 Unpacking the unit
Lift Unit straight up
out of the carton!

SATFI UK User Manual Ver. 1.0
- 13 -
Preparing for the installation
Install Tools and Materials
SATFI UK antenna system is designed for simple installation and setup. However, the
following list of equipment or items should be available during installation of SATFI
UK antenna.
■ Electric drill and drill bits
■ 11mm spanner & Philips 2 screwdriver
■ Weatherproof & UV stable adhesive sealant
■ Fasteners suitable for specific application (roof construction)
1. Verification of the Vehicle’s Power Supply.
■ Confirm that the vehicle’s power supply is 12VDC~24VDC (negative ground).
2. Verification of the Satellite Receiver and IDU’s attachment and the electricity
supply
■ Attach Satellite Receiver and IDU in the interior of the vehicle.
■ Connect the power of satellite receiver and IDU.
■ Once the power of satellite receiver and IDU is verified, it confirms that both
Satellite Receiver and IDU are working normally.
3. Procedure of the satellite’s attachment and installation.
■ Attach the satellite on the flat surface area of the vehicle’s roof.
■ Locate the IDU & satellite receiver securely within the vehicle.
■ Connect each end of the Coaxial antenna cable to the satellite’s terminal and the
IDU.
■ Connect the IDU and the satellite receiver box together through the coaxial
cable.
■ Make sure that the satellite is working normally, once the power is applied.
Warning : Things to consider when installing the antenna.
■ Turn off the power when attaching or detaching the antenna.
■ Make sure that the attached antenna is fixed on the flat surface.
■ When attaching, ensure that all the products are adhered properly.
■ Ensure that all the cables are connected properly.

SATFI UK User Manual Ver. 1.0
- 14 -
Selecting the location
Determine the optimum mounting location for the antenna radome assembly. It should
be installed where :
1. The antenna has a clear line-of-sight view to as much of the sky as is practical.
Choose a location where masts or other structures (like air conditioning units) do
not block the satellite signal from the dish as the vehicle turns.
2. The antenna is at least 5 feet away from other transmitting antennas (HF, VHF
and radar) that may generate signals that interfere with SATFI UK antenna. The
further away SATFI UK antenna is from these other antennas, the less impact their
operation will have on it.
3. Confirm that roof mounted equipment such as air-conditioning units, sky-lights,
roof-boxes are all unhindered by the location of the antenna unit. Ideally mount it
on the center-line and where the roof structure has additional support that can be
used to secure the feet to.
4. The antenna radome assembly should be rigidly mounted to the vehicle. If
necessary, reinforce the mounting area to assure that it does not flex due to the
vehicle motion or vibration. Care should be used to ensure that fasteners and
adhesive have been used correctly and allowed to cure fully before driving.
5. Carefully select the best location through which to drill the cable pass-through
hole (consider possible hidden cable and pipe runs as well as the ability to seal the
hole once cable is inserted) so that there is minimal cable trailing around on the
roof and that it passes to the interior in a suitable discreet location. If the cable is
to be shortened please ensure the interior end is cut and re-made with a high-
quality compression type connector.

SATFI UK User Manual Ver. 1.0
- 15 -
Best Location
Poor Location
Figure 2-2 Selecting the location
Perform a through site inspection on the roof for the antenna to be mounted.
1. The antenna must have a clear view of the sky and the horizon in all
directions to avoid blockage of the satellite signal.
2. The antenna should be on the top of the vehicle.

SATFI UK User Manual Ver. 1.0
- 16 -
Equipment and cable installation
This offers a general explanation of how to install the IDU and satellite receiver
properly to the inside of the vehicle connecting with coaxial cable.
1. The Coaxial cable is routed from the antenna to the IDU inside the vehicle via the
supplied roof gland which should be carefully sealed with UV & weatherproof
adhesive sealant.
2. After deciding where to place the IDU and satellite receiver, make sure that both
units are placed in a dry and protected area.
3. The IDU and satellite receiver should be placed away from any heat source and in
an area with proper ventilation.
4. Ensure that there are at least 3cm of space around both units for ventilation and
connection of cables. Do not stack the units on top of each other.
5. The following describes the basic wiring configurations for SATFI UK antenna
system.
■ Connect the Coaxial cable to SATFI UK antenna port on the back of the
IDU
■ Connect one end of the supplied coaxial cable to the receiver port on the
back of the IDU
■ Connect the other end of the coaxial cable to the satellite receiver

SATFI UK User Manual Ver. 1.0
- 17 -
Setting the LNB skew angle
Figure 2-3 Satellite signals
Your SATFI UK antenna is preconfigured for UK wide use –this section is for
information only, no adjustments are required.
Signals transmitted in vertical(red) and horizontal(blue) wave offset exactly 90º from
each other. Since linear satellite signals are oriented in a precise cross pattern, SATFI
UK antenna’s receiving element, called an LNB (low-noise block) must be oriented in
the same way to optimize reception. This orientation adjustment is referred to as the
LNB’s “skew angle.” Figure 1-4 illustrates how skew determines the amount of signal
the LNB collects. The more signal, the better reception.
Figure 2-4 Best Skew Angle
Bad skew
Good skew
Best skew
: LNB “signal collector”
: Satellite Signal

SATFI UK User Manual Ver. 1.0
- 18 -
The correct skew setting varies depending upon your geographic location, since the
orientation of your antenna to the satellite changes as you move. For complete details
about adjusting the LNB’s skew angle, see “Appendix A –How to Set the Skew
Angle”

SATFI UK User Manual Ver. 1.0
- 19 -
SATFI UK antenna system is easy to use. Under normal conditions, operation of
SATFI UK antenna requires no intervention from the user. Antenna unit initialization
and satellite acquisition is completely automatic.
Receiving Satellite TV Signal….………………………………………….20
Turning the System On/Off……………………………………………….20
Changing Channels…………….……………………………………….……..21
Watching TV…………………………….…………..……………………………21
Switching between Satellites…………………..………………………….21
Operating the IDU…..…………………………..……………………………22
O
peration
