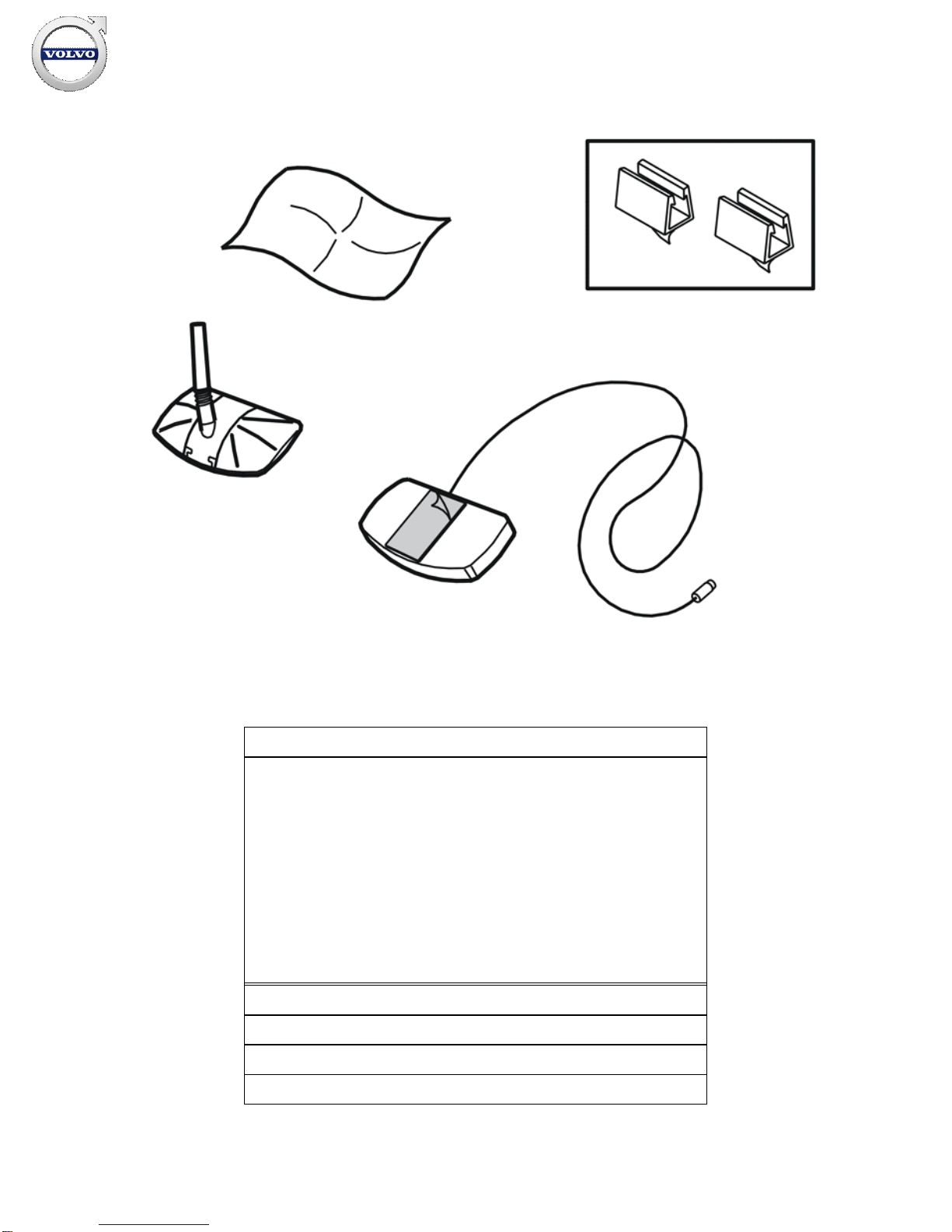

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
When installing the antenna the window must remain at a
temperature of at least +10°C.
Note!
When installing on the rear windscreen, the antenna must not
be installed on the heating loops in the windscreen.
However, the antenna is not affected by the area of the
windscreen shaded black.
Note!
Points 1 -7 apply to the S60, V70 (00-) and the S80
Points 8 -14 apply to the S40 and V40
Points 15 -21 apply to other models from model year -00 and
earlier, and to the C70.
Applies to the S60, V70 (00-) and the S80
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 3 / 17

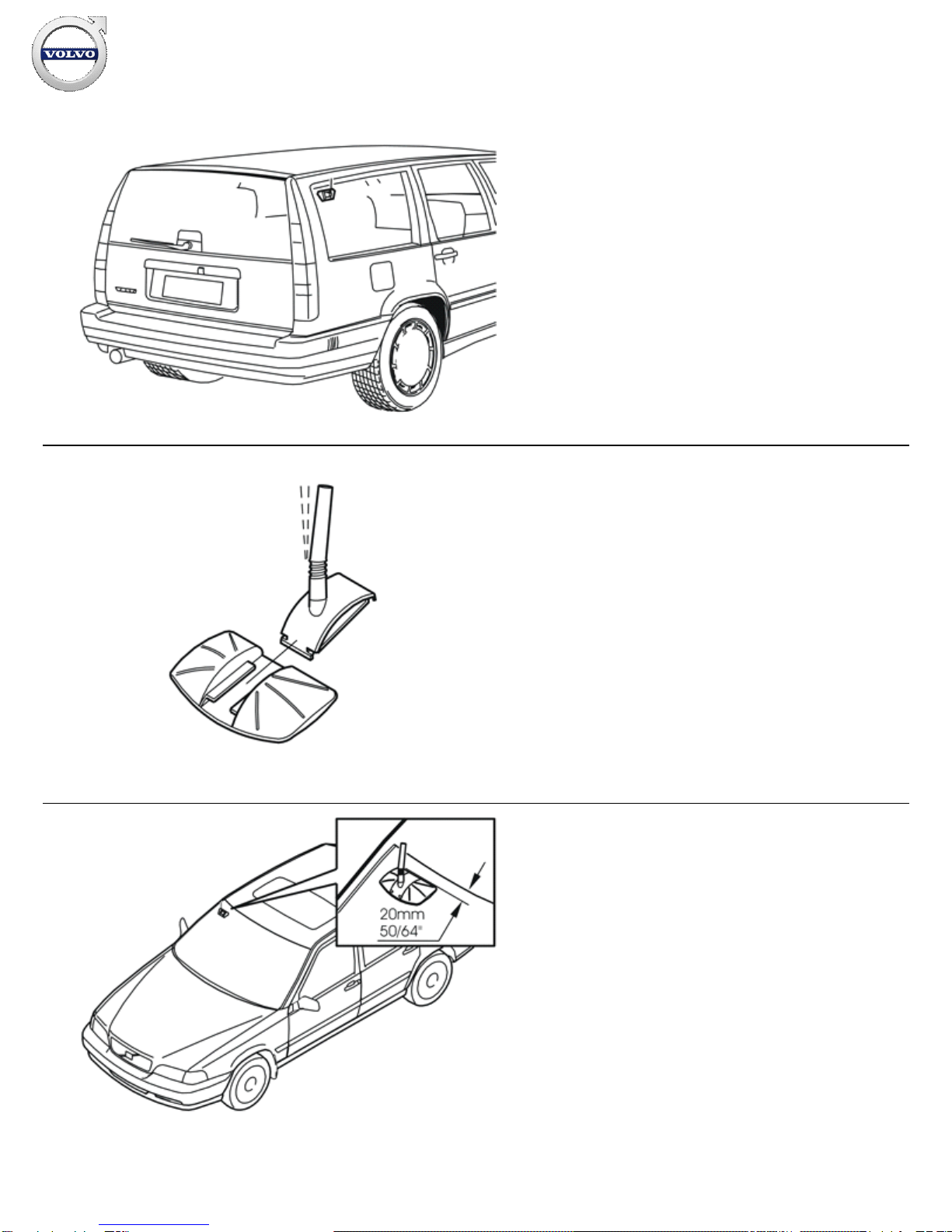

1A
M3903209
1B
M3903027
Applies to the S60, V70 (00-) and the S80
Positioning the antenna
Illustration A applies to the S60 and the S80
In the upper right corner of the rear windshield as illustrated.
Illustration B applies to the V70 (00-)
At the top rear of the left-hand rear side window as illustrated.
2
A3902551
Install the antenna on the external base module.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 4 / 17

3A
M3903261
3B
M3903028
Installing the external base module
Illustration A applies to the S60 and the S80
Illustration B applies to the V70 (00-)

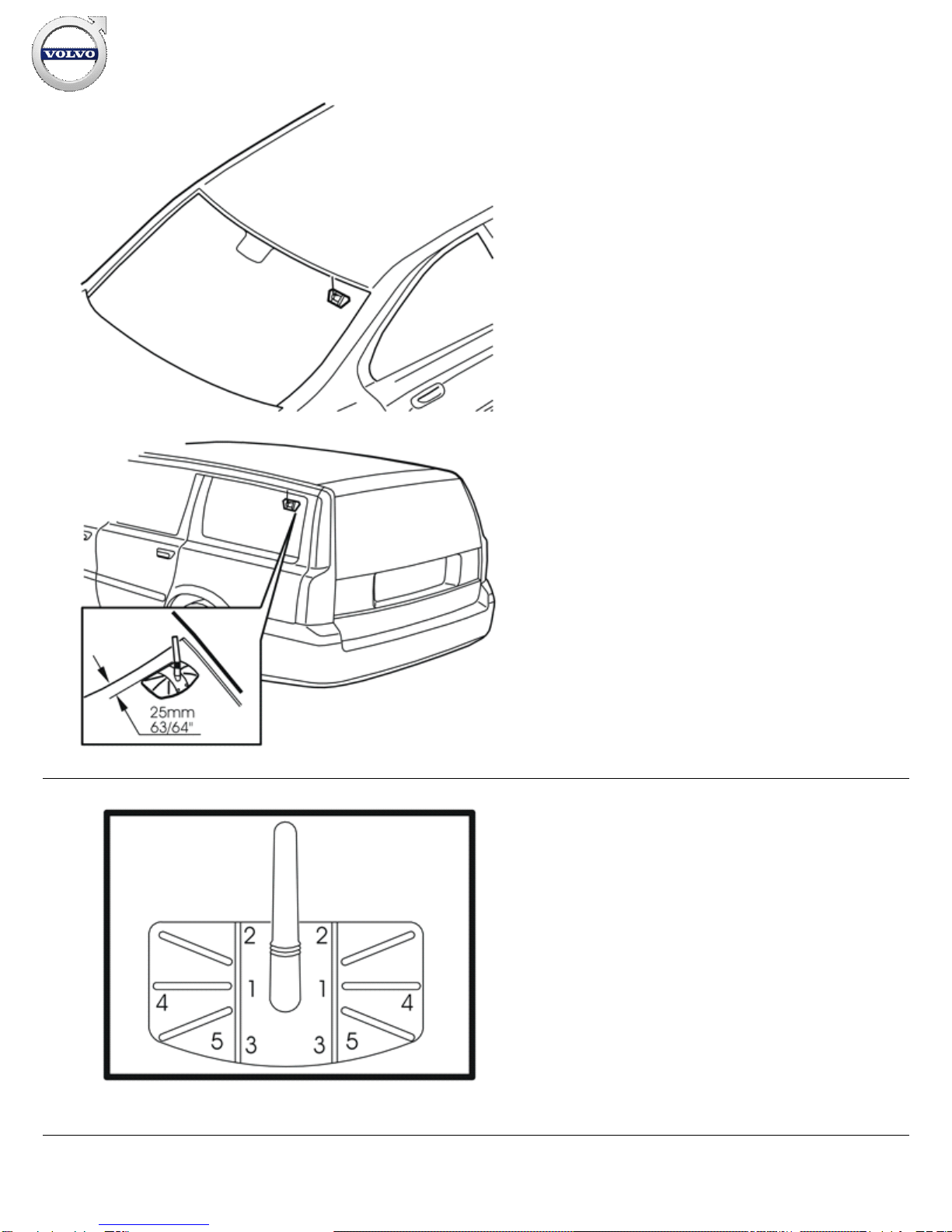

Check the position (see the illustration). Ensure that the antenna
does not come into contact with the window mouldings. Ensure
that the antenna can be removed from the external base module
when washing the car etc.
Carefully clean the surface of the glass. Use the cleaning cloth
supplied. Wipe dry using a rag. For optimum adhesion, warm the
glass. Use a hairdryer for example.
4
M3903379
Remove the backing from the external base module. Secure the
external base module on the windscreen. Press hard on points
1, 2, 3, 4 and 5, in order, for 3-4 seconds
Ensure that the tape is sealed around the external base module.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 5 / 17

5
A3902556

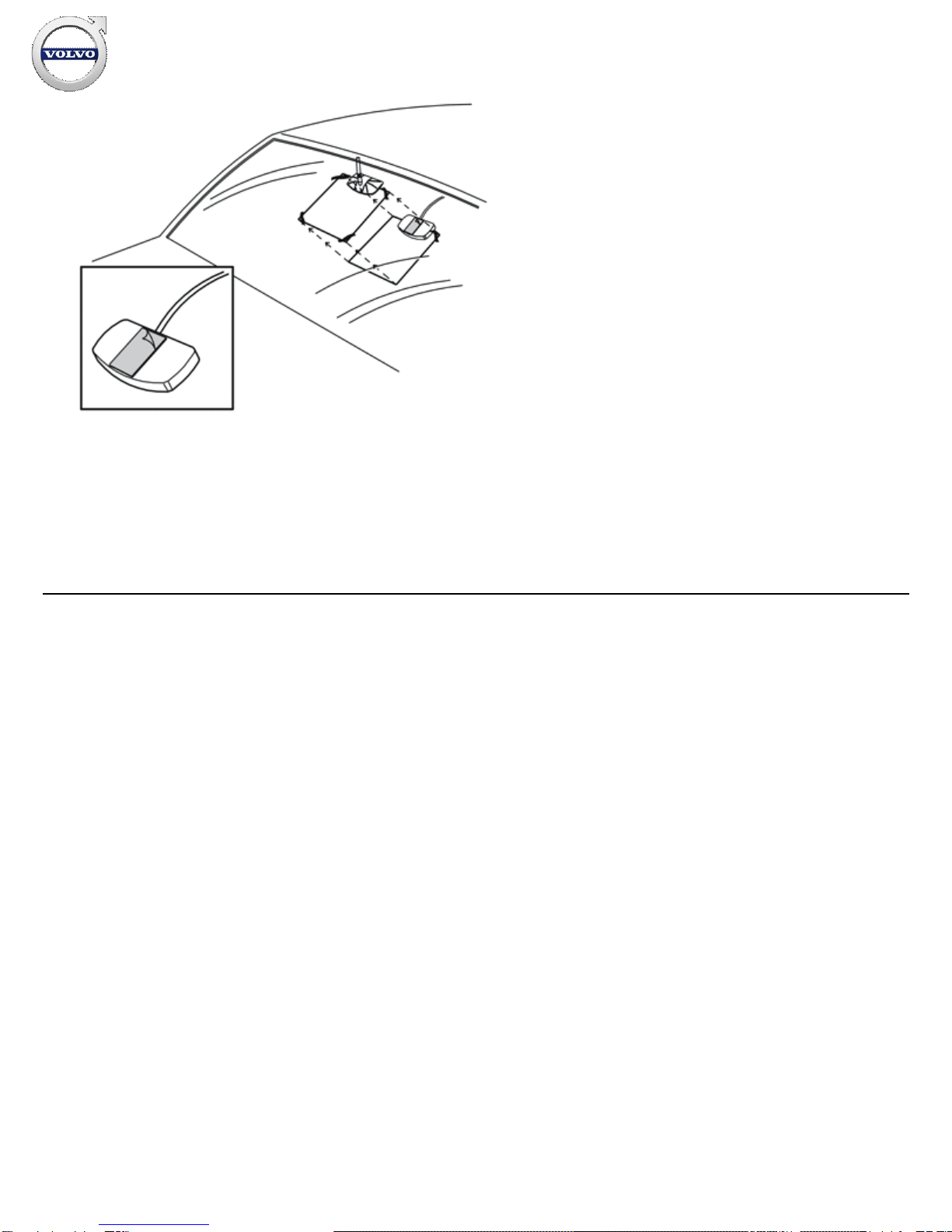

Installing the internal base module
Templates are provided to facilitate installation of the internal
base module. The templates are necessary because the black
shading on the windscreen may conceal the external base
module.
Cut -out the two templates found at the start of the instructions
Align one template on the installed external base module. Secure
it using tape
Carefully clean the interior surface of the glass. Use the cleaning
cloth supplied. Wipe dry using a rag
Install the second template on the interior, edge to edge with the
external template.
The internal and external base modules must be positioned
directly opposite each other.
Install the internal module in the cut -out of the second template.
Install the internal module base in the same way as the external
module base
Remove the templates.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 6 / 17

6A
A3902560
6B
M3903026

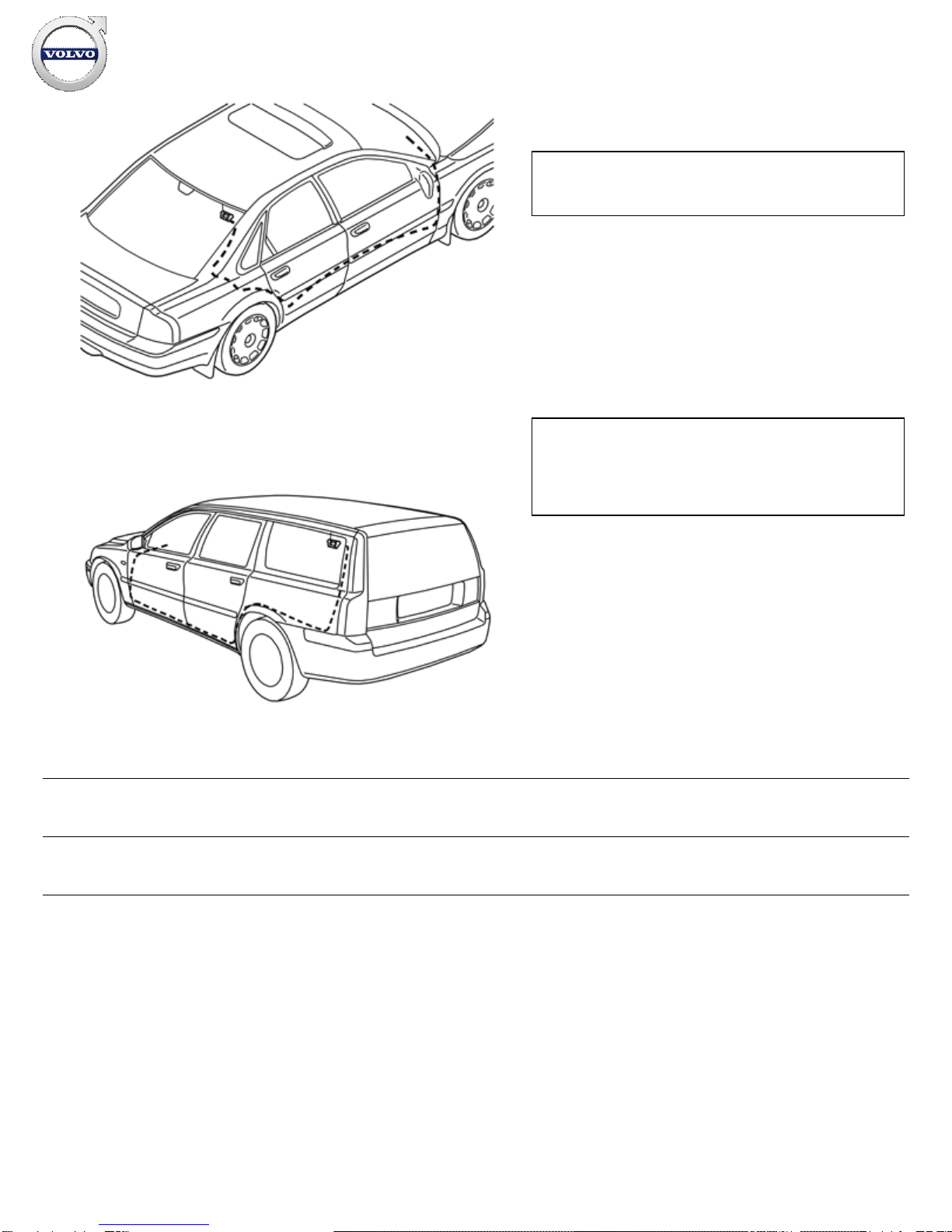

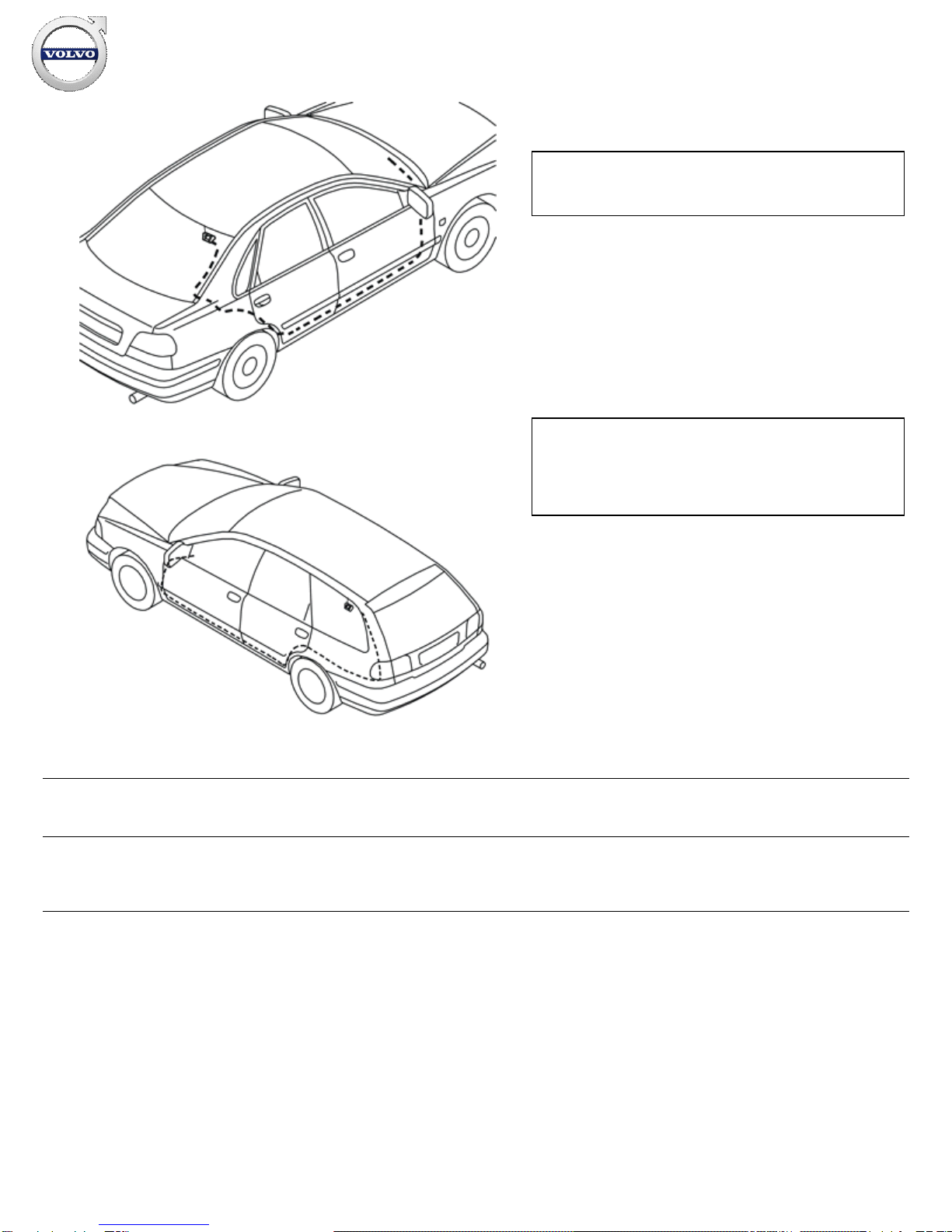

Routing the antenna cable
The clips in the kit are used to secure the antenna cable, to the
windscreen frame for example.
Illustration A applies to the S60 and the S80
Route the cable via the C post and down inside the side cushion
for the backrest to the cable duct on the floor, then along the
wiring under the dashboard to the telephone.
Illustration B applies to the V70 (00-)
Route the cable inside the D post panel down to and along the
left rear wheel well, behind the left side cushion, along the sills
and up the dashboard to the telephone.
Warning!
Ensure that the cable is not routed over the inflatable curtain.
Note!
Route the cable far enough down the bottom edge of the rear
windscreen so that the cable is clear of the gas generator for
the inflatable curtain.
7
Align the antenna so that it is vertical to the ground.
Applies to S40 and V40
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 7 / 17

8A
M3903209
8B
G3903899
Applies to S40 and V40
Positioning the antenna
Illustration A applies to the S40
In the top right hand corner of the rear windscreen.
Illustration B applies to the V40
At the top rear of the left-hand rear side window.
9
A3902551
Install the antenna on the external base module.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 8 / 17

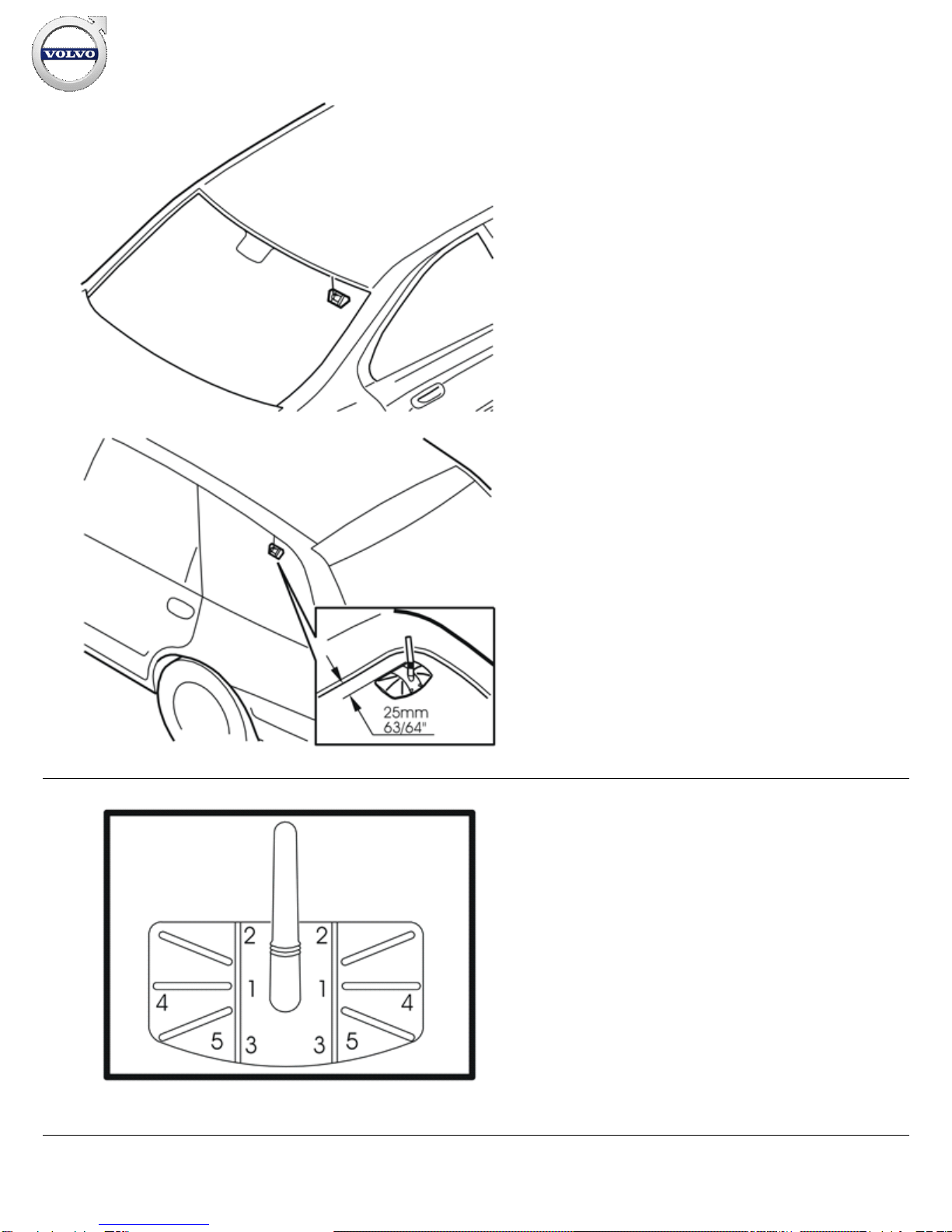

10A
M3903261
10B
G3903900
Installing the external base module
Illustration A applies to the S40
Illustration B applies to the V40
Check the position (see the illustration). Ensure that the antenna
does not come into contact with the window mouldings. Ensure
that the antenna can be removed from the external base module
when washing the car etc.
Carefully clean the surface of the glass. Use the cleaning cloth
supplied. Wipe dry using a rag. For optimum adhesion, warm the
glass. Use a hairdryer for example.
11
M3903379
Remove the backing from the external base module. Secure the
external base module on the windscreen. Press hard on points
1, 2, 3, 4 and 5, in order, for 3-4 seconds
Ensure that the tape is sealed around the external base module.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 9 / 17

12
A3902556
Installing the internal base module
Templates are provided to facilitate installation of the internal
base module. The templates are necessary because the black
shading on the windscreen may conceal the external base
module.
Cut -out the two templates found at the start of the instructions
Align one template on the installed external base module. Secure
it using tape
Carefully clean the interior surface of the glass. Use the cleaning
cloth supplied. Wipe dry using a rag
Install the second template on the interior, edge to edge with the
external template.
The internal and external base modules must be positioned
directly opposite each other.
Install the internal module in the cut -out of the second template.
Install the internal module base in the same way as the external
module base
Remove the templates.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 10 / 17

13A
G3903902
13B
G3903901
Routing the antenna cable
The clips in the kit are used to secure the antenna cable, to the
windscreen frame for example.
Illustration A applies to the S40
Route the cable via the C post and down inside the side cushion
for the backrest to the cable duct on the floor, then along the
wiring under the dashboard to the telephone.
Illustration B applies to the V40
Route the cable inside the D post panel down to and along the
left rear wheel well, behind the left side cushion, along the sills
and up the dashboard to the telephone.
Warning!
Ensure that the cable is not routed over the inflatable curtain.
Note!
Route the cable far enough down the bottom edge of the rear
windscreen so that the cable is clear of the gas generator for
the inflatable curtain.
14
Align the antenna so that it is vertical to the ground.

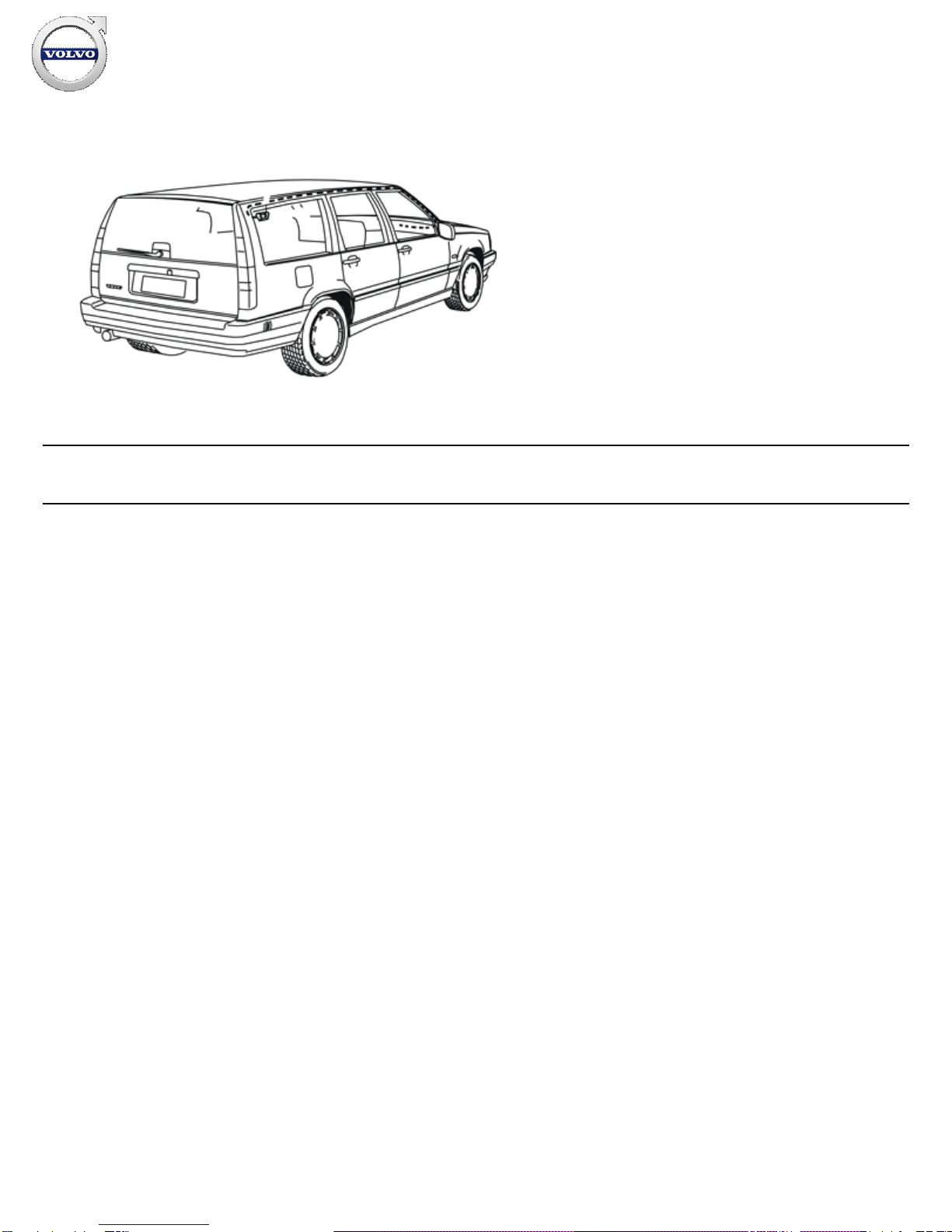

Applies to other models from model year -00 and earlier
and to the C70
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 11 / 17

15A
A3902547
15B
M3903209
15C
A3902548
Applies to other models from model year -00 and earlier
and to the C70

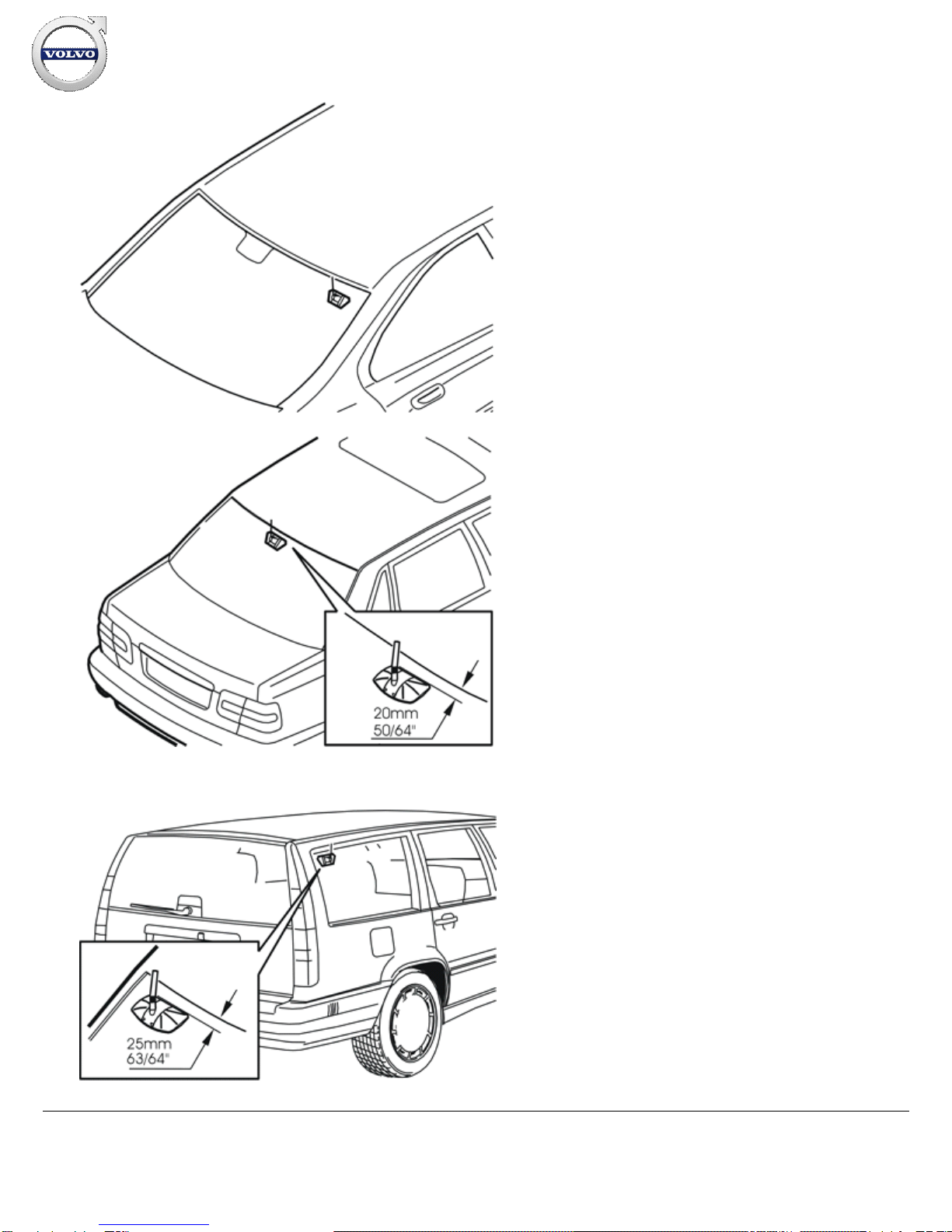

Positioning the antenna
Illustration A Windscreen
In the top right -hand corner of the windscreen.
Illustration B 4-doors, rear windscreen with high level
stop brake lamp
In the top right hand corner of the rear windscreen.
Illustration C 4-doors, rear windscreen
At the top centre of the rear windscreen.
Illustration D 5-doors
At the top rear of the right-hand rear side window.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 12 / 17

15D
A3902549
16
A3902551
Install the antenna on the external base module.
17A
A3902552
Installing the external base module
Illustration A Windscreen
Illustration B 4-doors, rear windscreen with high level
stop brake lamp
Illustration C 4-doors, rear windscreen
Illustration D 5-doors
Check the position (see the illustrations). Ensure that the antenna
is clear of the windscreen trim and wiper blade. Ensure that the
antenna can be removed from the external base module when
washing the car etc.
Carefully clean the surface of the glass. Use the cleaning cloth
supplied. Wipe dry using a rag. For optimum adhesion, warm the
glass. Use a hairdryer for example.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 13 / 17

17B
M3903261
17C
A3902553
17D
A3902554
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 14 / 17

18
M3903379
Remove the backing from the external base module. Secure the
external base module on the windscreen. Press hard on points
1, 2, 3, 4 and 5, in order, for 3-4 seconds
Ensure that the tape is sealed around the external base module.
19
A3902556
Installing the internal base module
Templates are provided to facilitate installation of the internal
base module. The templates are necessary because the black
shading on the windscreen may conceal the external base
module.
Cut -out the two templates found at the start of the instructions
Align one template on the installed external base module. Secure
it using tape
Carefully clean the interior surface of the glass. Use the cleaning
cloth supplied. Wipe dry using a rag
Install the second template on the interior, edge to edge with the
external template.
The internal and external base modules must be positioned
directly opposite each other.
Install the internal module in the cut -out of the second template.
Install the internal module base in the same way as the external
module base
Remove the templates.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 15 / 17

20A
A3902557
20B
A3902561
20C
A3902558
Routing the antenna cable
The clips in the kit are used to secure the antenna cable, to the
windscreen frame for example.
Illustration A Windscreen
Route the cable via the A post and on under the dashboard to
the telephone.
Illustration B 4-doors, rear windscreen with high level
stop brake lamp
Route the cable from the side of the rear windscreen via the roof
to the telephone.
Illustration C 4-doors, rear windscreen
Route the cable inside the panel via roof, down at the A post and
under the dashboard to the telephone.
Illustration D 5-doors
Route the cable inside the panel via roof, down at the A post and
under the dashboard to the telephone.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 16 / 17

20D
A3902559
21
Align the antenna so that it is vertical to the ground.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Glass mounted GSM combined antenna - 9172729 - V1.0
Page 17 / 17
