Satson HDM-SPL-2422DS User manual

HDM-SPL-2422DSHDM-SPL-2422DS
1x2 HDMI 2.0a Splitter with
Built-in & User Adjustable EDID
Management
rev: 180103
Made in Taiwan
7.1 CH
AUDIO
7.1 CH
AUDIO
User Manual
2.2 2.0

Safety and Notice
The HDM-SPL-2422DS 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID
Management has been tested for conformance to safety regulations and requirements, and
has been certied for international use. However, like all electronic equipments, the HDM-SPL-
2422DS should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
INTRODUCTION .......................................................................................................... 1
FEATURES ................................................................................................................... 1
PACKAGE CONTENTS ................................................................................................ 1
SPECIFICATIONS ........................................................................................................ 2
PANEL DESCRIPTIONS .............................................................................................. 3
DIP SWITCH SETTING ................................................................................................ 4
HARDWARE INSTALLATION ....................................................................................... 4
CONNECTION DIAGRAM ............................................................................................ 5
NOTICE ........................................................................................................................ 6
LIMITED WARRANTY .................................................................................................. 7
TABLE OF CONTENTS

1
The HDM-SPL-2422DS 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID
Management provides the most cost effective and advanced HDMI splitter solution on the
market, by which the high denition video and high quality audio can be transmitted to 2 different
locations without losing quality. HDM-SPL-2422DS supports HDR and the true 4K2K video!
With built-in USB firmware update mechanism, the compatibility among countless HDMI
sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4
8bits and high definition audio support, HDM-SPL-2422DS is suitable for high quality HDMI
broadcasting, digital signage and education applications!
● 1x HDM-SPL-2422DS
● 1x DC 5V wall wart
● 1x User manual
PACKAGE CONTENTS
INTRODUCTION
HDMI 2.0a compliant
Supports 4K2K@60 4:4:4 8bits
Supports HDR*, which is 4K2K@60 4:2:0 10bits**
HDCP 2.2 and 1.4 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Supports resolution downscaling from 4K2K to 1080P***
Supports default EDID and EDID learning from display
Supports xvYCC, x.v.Color & Deep Color
Mini-USB rmware update for expanding compatibility
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Easy installation
HDR = High Dynamic Range.
The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz.
1. NOT supports
2. HDM-SPL-2422DS can bypass 4K HDR data content, but can NOT process it and make HDR content
100% t into 1080p
*
**
***
●
●
●
●
●
●
●
●
●
●
●
●
FEATURES
(1) Resoluon downscaling from 4K2K@60 4:2:2 to 1080P
(2) Frame rate conversion
(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0

2
SPECIFICATIONS
Model Name HDM-SPL-2422DS
Technical
Role of usage 1x2 Distribution Amplier (Splitter)
HDMI compliance HDMI 2.0a
HDCP compliance HDCP 2.2 / 1.4
Video bandwidth Single-link 600MHz [18Gbps]
Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact
discharge]
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Firmware update Feasible via Mini-USB port
Input 1x HDMI
Output 2x HDMI
HDMI connector Type A [19-pin female]
Dip switch EDID Mode selection
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 92 x 62 x 20mm [3.6" x 2.5" x 1"]
Package 198 x 137x 74mm [7.8" x 5.39" x 2.91"]
Carton 420 x 400 x 300mm [16.53" x 15.75" x 11.81"]
Weight Model 190g [6.7 oz]
Package 673g [1.5 lbs]
Fixedness Wall-mounting case
Power supply 5V 2A DC
Power consumption 10 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Front Panel
1
EDID MODE: See more detail in the DIP SWITCH SETTING section
2
Mini-USB: For technical support only [rmware update]
3
Power LED:Lights on when device is ready
4
Signal LED: Input signal LED indicator
5
Signal LED:Output 1-2 signal LED indicator
Rear Panel
6
HDMI IN: Connect to a HDMI input source
7
HDMI OUT1: HDMI outputs to HDMI displays
8
HDMI OUT2: HDMI outputs to HDMI displays
9
+5V DC: Connect to the +5V DC 2A power supply unit
1
2
3
4
5
6
7
8
9
iSignal LED light on when device is connect to source and display.

4
Broadcasts HDMI signal to 2 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.
HARDWARE INSTALLATION
DIP SWITCH SETTING
DIP Switch Position Description
Pin 2 Pin 3 Pin 4
O []O []O []Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio
On []O []O []Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio
O []On []O []Ultra HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 7.1ch audio
On []On []O []Ultra HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 2ch audio
O []O []On []Full-HD(1080p@60) – 12bit 3D video & 7.1ch audio
On []O []On []Full HD(1080p@60) – 8bit 2D video & 2ch audio
O []On []On []Learning EDID from output 1
On []On []On []Auto EDID analysis learning mode*
DIP Switch Position
Description
Pin 1
O []Working Mode
On []Firmware Update mode
iAutomatic EDID learning will detect all the connected HDMI equipped monitors and analyze
all the content of EDID. The EDID with minimal resolution support will be the reference EDID
for incoming HDMI source players.

5
CONNECTION DIAGRAM

6

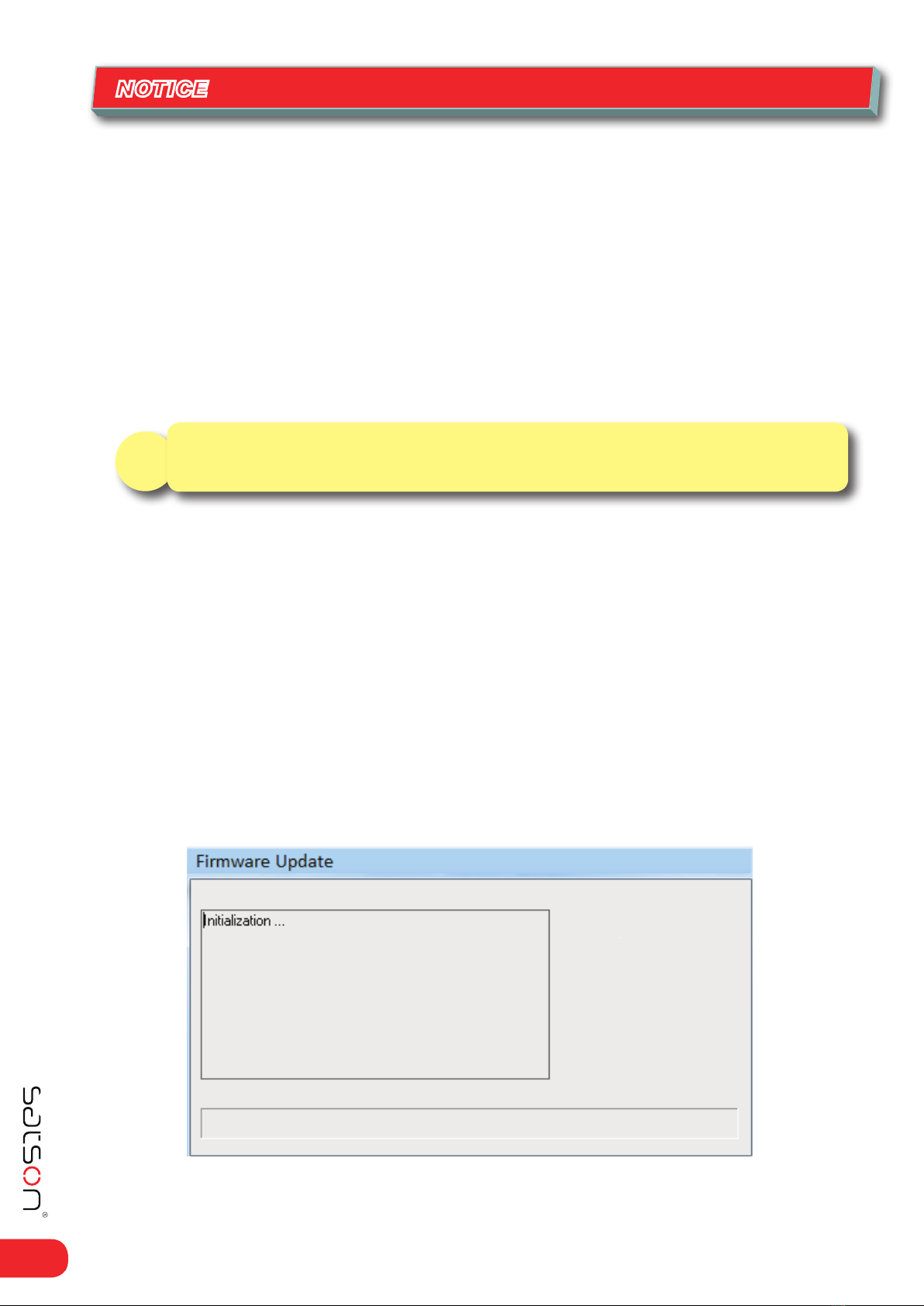

NOTICE
1. If somehow user cannot get video output, please try to adjust EDID dip switch to “[pin2,pin3,pin4]=[--]”
or “[pin2,pin3,pin4]=[--]” for trouble shooting. Under “[pin2,pin3,pin4]=[--]”, there will be video
output. The only requirement is that the display has to support at least Full HD. If default Full-HD EDID still
cannot work, user can switch to “[pin2,pin3,pin4]=[--]” to learn the EDID from output 1 to customize
the EDID information. (Please note that the display with lowest resolution must be connected to output 1)
2. While connecting a new monitor to the splitter under “[pin2,pin3,pin4]=[--]” (under auto EDID analysis
learning mode), experiencing a short period of time without displaying might be expected. The splitter will do
Automatic EDID learning and generate the best EDID among all connected monitors.
3. Firmware update is proceeded through Mini-USB.
1) Save the rmware le(.bin) & software in the same folder.
2) a) Power on the device,
b) connect the Mini-USB cable between PC and device, &
c) set the PIN1 dip switch to “On []”(rmware update mode)
3) Open rmware update software and then device will start to update rmware automatically.
4) After update process is done, software will show “Success” message and then be closed automatically.
5) Set the PIN1 dip switch to “Off []”(working mode)
6) Power cycle the device
iIf the user wants to change EDID mode, please power cycle the device after setting dip switch.
Select to [pin2,pin3,pin4]=[--] - Full-HD(1080p@60) – 8bit 2D video & 2ch audio
1) Set the dip switch to “[pin2,pin3,pin4]=[--]”
2) Power on the device
Select to [pin2,pin3,pin4]=[--] - Learning EDID from output 1
1) Set the dip switch to “[pin2,pin3,pin4]=[--]”
2) Power on the device
3) It will automatically learn EDID from output 1

7
LIMITED WARRANTY
The SELLER warrants the HDM-SPL-2422DS 1x2 HDMI 2.0a Splitter with Built-in & User
Adjustable EDID Management free from defects in the material and workmanship for 1 year from
the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in
good working order within 1 year warranty period, The SELLER, at its option, repair or replace
the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modications including static discharge and power surge. This warranty is offered
by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from
the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure
the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or tness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters are
limited to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained
in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the HDM-SPL-2422DS features and specifications is subject to change without further
notice.
