Satson HDMI-SPL-2105C User manual

7.1 CH
AUDIO
7.1 CH
AUDIO
HDMI-SPL-2105CHDMI-SPL-2105C
1x5 HDMI & Full 3D support
over Single CAT5 Distribution Amplifier
with Local Output
rev: 111027
Made in Taiwan
User Manual

Safety and Notice
The HDMI-SPL-2105C 1x5 HDMI & Full 3D support over Single CAT5 Distribution Amplier
with Local Output has been tested for conformance to safety regulations and requirements,
and has been certied for international use. However, like all electronic equipments, the HDMI-
SPL-2105C should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
INTRODUCTION ............................... 1
FEATURES ........................................ 1
PACKAGE CONTENTS ..................... 1
SPECIFICATIONS ............................. 2
PANEL DESCRIPTIONS .................. 3
SWITCH SETTING ............................ 4
EDID LEARNING ............................... 5
HARDWARE INSTALLATION ............ 5
CONNECTION DIAGRAM ................ 6
PIN DEFINITION ............................... 7
NOTICE ............................................. 8
PERFORMANCE GUIDE .................. 8
TABLE OF CONTENTS

1
INTRODUCTION
The HDMI-SPL-2105C 1x5 HDMI & Full 3D support over Single CAT5 Distribution Amplier with
Local Output provides the most exible solution by which the high denition video and high quality audio
can be transmitted to different locations over a long distance. The devices are cascadable, allowing you
to extend HDMI compliant displays almost anywhere. The input HDMI source can be duplicated and
distributed to up to 4 HDMI enable displays through cost effective Cat-5/5e/6 cables with HDMI over
CAT5 receivers (HDMI-EXT-0101C-RX and/or HDMI-EXT-1111C-RX). For convenience, HDMI-SPL-
2105C is also equipped a local HDMI output for monitoring. With the built in equalization, the input HDMI
cable can be extended up to 20 meters (66 feet) long under Full HD, and make the overall transmission
distance superior than regular HDMI splitters or matrix switches in the market.
FEATURES
● Support HDMI Deep Color & full 3D
● HDCP compliant
● Regenerates the HDMI signal
● HDMI local output for monitoring
● Supports default HDMI EDID and has the ability to learn the EDID of displays
● Extends up to 20m (66ft) of input HDMI cable
● Extends up to 60m (200ft) of output Cat-5/5e/6 solid UTP cable under HD (720p / 1080i)
● Extends up to 40m (130ft) of output CAT-5/5e/6 solid UTP cable under Full HD (1080p)
● Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission
● Allows cascading
● Perfectly integrated with other HDMI over CAT5 series products
iThe length depends on the characteristics and quality of the cables. Higher resolutions and
longer transmission distances require low skew cables (<25ns/100m) for best performance.
Unshielded CAT6 with metal RJ-45 connectors is recommended.
PACKAGE CONTENTS
● 1x HDMI-SPL-2105C
● 1x DC 5V 4A wall wart
● 1x User Manual

2
SPECIFICATIONS
Model Name HDMI-SPL-2105C
Technical
Role of usage 1x5 Distribution Amplier Transmitter [TX]
HDMI compliance HDMI Deep Color & full 3D
HDCP compliance Yes
Video bandwidth Single-link 225MHz [6.75Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
Transmission over
UTP[24-bit color]
Full HD (1080p): 40m (130ft) [Cat5e] / 50m (165ft) [Cat6]
HD (720p/1080i): 50m (165ft) [Cat5e] / 60m (200ft) [Cat6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization Built-in
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Input 1x HDMI
Output 4x RJ-45 + 1x HDMI
HDMI connector Type A [19-pin female]
RJ-45 connector WE/SS 8P8C
Rotary control switch None
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 194 x 110 x 27mm [7.6" x 4.3" x 1.1"]
Package 270 x 175 x 80mm [10.6" x 6.9" x 3.1"]
Carton 450 x 370 x 300mm [1'6" x 1'3" x 11.8"]
Weight Model 588g [1.3 lbs]
Package 1000g [ 2.2 lbs]
Fixedness 1U rack-mounting with ears
Power supply 5V 4A DC
Power consumption 13 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Front Panel
2
1
1
POWER: bright - power on; dark - power off.
2
SIGNAL: bright - HDMI source signal is detected; dark - no HDMI signal.
Rear Panel
3
4
5
6
3
+5V DC power: connect to 5V 4A DC interlocking power adapter
4
HDMI IN: connected to HDMI source
5
HDMI OUT: HDMI output for local monitor
6
UTP OUT 1~4: CAT output

4
TOP Panel
7
8
9
10
7

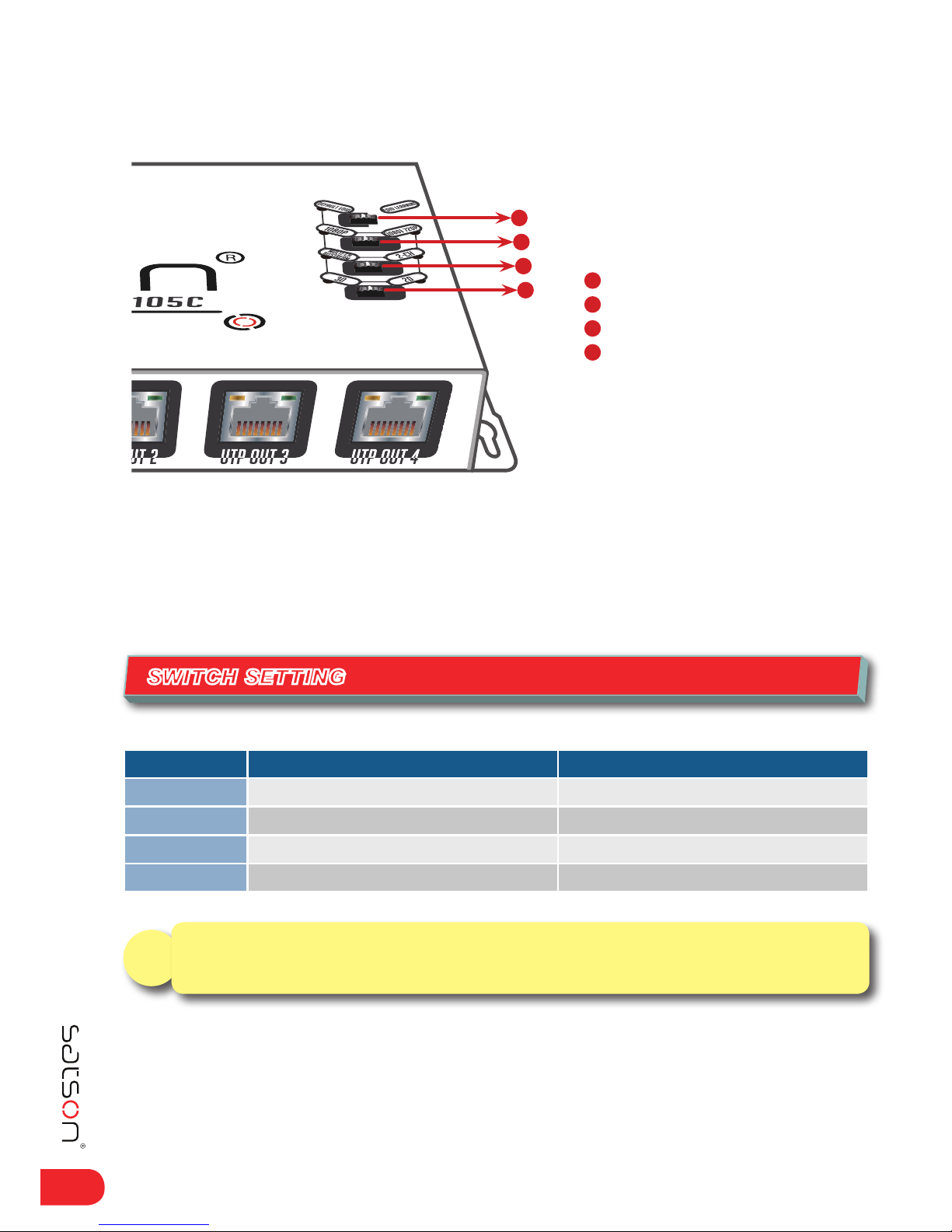

SW1: EDID Mode
8
SW2: EDID - Full HD/HD Selection
9
SW3: EDID - Audio Selection
10
SW4: EDID - 3D/2D Selection
SWITCH SETTING
Left Position Right Position
SW1 Default EDID EDID Learning
SW2 Full HD HD
SW3 Audio - Multi Channel Audio - 2 Channel
SW4 3D 2D
iThe instant switching enables only when the video and audio setting of the source has been
adjusted to "Auto" or "Pass-through"

5
EDID LEARNING
1. Power up the HDMI-SPL-2105C. Connect to HDMI OUT with the display you want the HDMI-SPL-
2105C to learn its EDID.
2. To learn the display's EDID for source device connected to HDMI OUT, Set SW1 to Right Position.
Power on and wait for about 5 seconds to complete the EDID learning process.
HARDWARE INSTALLATION
Broadcasts HDMI signals to four remote displays with a local port
1. Turn off all devices, including sources and displays.
2. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI IN port.
3. Connect the receivers (HDMI-EXT-0101C-RX or HDMI-EXT-1111C-RX) via Cat-5/5e/6 cables to each
HDMI Signal OUTPUT port.
4. Connect the local HDMI equipped monitor.
5. Plug in 5V 4A DC power supply.
6. Power on the HDMI displays.
7. Power on the HDMI source device.

6
CONNECTION DIAGRAM
HDMI-SPL-2105C
HDMI-EXT-0101C-RX
HDMI-EXT-0101C-RX
15M@
15M@
40M@
40M@
HDMI cable
Cat.x cable
HDMI
HDMI

7
PIN DEFINITION

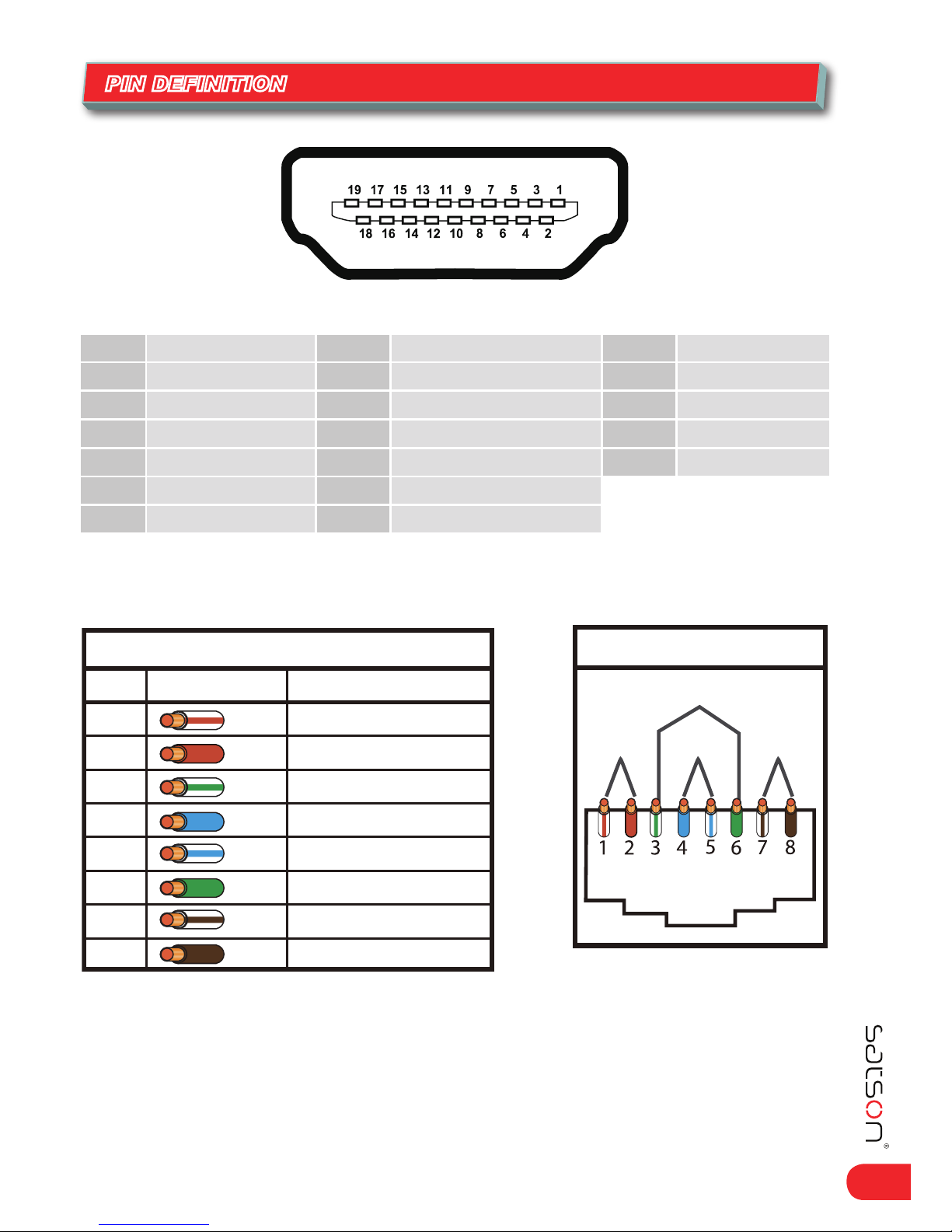

Type A (Receptacle) HDMI
Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL
Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 SDA
Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground
Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield Pin 18 +5V Power
Pin 5 TMDS Data1 Shield Pin 12 TMDS Clock– Pin 19 Hot Plug Detect
Pin 6 TMDS Data1– Pin 13 CEC
Pin 7 TMDS Data0+ Pin 14 Reserved (N.C. on device)
CAT5 [RJ45]
Function
TX0-
TX0+
TX1-
TX2-
TX2+
TX1+
TXC-
TXC+
PIN
1
2
3
4
5
6
7
8
Color
W-O
O
W-G
BL
W-BL
G
W-BR
BR
Data Link TIA/EIA-568-B
W-OOW-G
JACK POSITION
PAIR3
PAIR1PAIR2PAIR4
RJ-45 Jack
G
W-BL
W-BR
BR
BL

8
NOTICE
1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve
and provide DVI or HDMI display EDID information.
2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
3. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form
of fixed length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A
solid UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
4. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended.
5. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use double shielded STP cables to improve EMI problems, which is worsen in long transmission.
6. Because the quality of the category cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]
generally can produce better transmission performance among all HDMI inputs.
PERFORMANCE GUIDE
Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6
Solid Unshielded (UTP)   
Shielded (STP)   
Stranded Unshielded (UTP)   
Shielded (STP)   
Termination Please use EIA/TIA-568-B termination (T568B) at any time
