Saunum Air IQ Operation manual

Saunum Sauna Control Unit Air IQ
INSTRUCTIONS FOR USE AND INSTALLATION

2
3
THE BEST SAUNA
EXPERIENCE TO HAVE!
I
am very glad that you have invested in the Saunum
device, and I believe that our innovative techno logy
will offer you a wonderful and extraordinary sauna
experience.
I have a degree in thermal engineering and come from
Southern Estonia, where my love for saunas began.The special
feature of local historic smoke saunas is the lower temperature
and higher humidity level than, for example, a classic Finnish
sauna. In ordinary saunas, the stone volume of the sauna
heater is generally small. Such an arrangement can cause a
sudden, burning hot and an extremely uneven temperature,
where your head and shoulder level is really hot, but your feet
are left cold. Such an experience can be quite unpleasant and
may cause headaches and lead to body stress. However, in an-
cient smoke saunas and Native American saunas, the stones
were rst heated during the day. Then the heat stored in the
stones was used to cleanse the body and create a truly enjoy-
able sauna experience.
Inspired by the experience of a smoke sauna, I wanted to
create an innovative solution that combines the best features
of an authentic sauna with modern technology; enabling a
pleasantly mild and relaxing sauna experience without pain-
fully scorching steam. For that, however, I had to solve the
problem of how to achieve an even temperature, at both the
head and foot levels. My development work was supported
by research done alongside Tallinn University of Technology,

2 3
in which we analysed the thermal stratication and air move-
ment in the sauna room. Saunum was born in cooperation
between scientic thinking and technological innovation.
Saunum’s unique patented mixing system of air layers cap-
tures the hot sauna that rises under the ceiling of the sauna
room, mixes it with the cooler air from the surface of the oor,
and directs the milder sauna back evenly. This makes for an
enjoyable, unaggressive heat. You can sit in the sauna for a
longer time, and enjoy a sweat and a deep cleanse without
feeling tired. The stone volume of our heaters is signicantly
larger than other sauna heaters, which is the reason for the
especially pleasant indoor climate with long and soft steam.
A moist steamy sauna, a therapeutic salt sauna, or a healthy
aroma sauna – all of these functions are available on
Saunum’s devices to create a truly relaxing sauna experience.
When using Himalayan salt balls in our device, salt ions that
are benecial to skin and respiratory tract evaporate and the
sauna circulates these into the air. Adding a sauna aroma sys-
tem that blends sauna and healthy aroma oil creates an even
more enjoyable sauna environment.
Saunum’s sauna devices are suitable for both adults and
children.
Have a pleasant sauna!
Andrus Vare
The creator of Saunum

4 5
Saunum congratulates you
on choosing an innovative
sauna control unit!

4 5
CONTENTS
Warnings and notes ___________________________________
DIRECTION FOR USE
Using the heater and instructions for bathing _______________
Control unit ________________________________________
Indicators __________________________________________
Heating ___________________________________________
Using the sauna heat equalizing function _________________
Configuring the sauna _________________________________
Sauna scheduling ____________________________________
Technical data _______________________________________
INSTRUCTIONS FOR INSTALLATION
Installing the display panel _____________________________
Installing the power unit _______________________________
Electrical connections _________________________________
Installing the door sensor ______________________________
Warranty conditions _________________________________
Installation report ____________________________________
6
8
9
11
12
12
13
17
20
22
25
26
28
29
30
CONTENTS

Saunum Sauna Control Unit Air IQ
INSTRUCTIONS FOR USE AND INSTALLATION

6 7
WARNINGS AND NOTES
the sauna if they feel light-headed, dizzy, or
experience heat exhaustion. It is prohibited
to sleep inside the heated sauna. Users
should take care to avoid falling asleep
while using the sauna.
The electrical device should only be con-
nected to the mains in accordance with
all laws and regulations by a licenced,
professional, certified electrician.
After connecting and installing the
control unit, the installer must
inform the sauna owner or operator
of all operat-ing requirements.
The requirements for use must be given
by the owner or operator to everyone
who uses the sauna.
All maintenance other than regular
surface cleaning of the product must
be performed by a trained professional.
Always disconnect the AirIQ from
the mains before carrying out any
maintenance work!
•Check the control unit for visible
damage before installation and
use. Do not use a damaged device
or a device that has been modied
from the original manufacturer's
condition in any way.
• It is vital to install the AirIQ
according to the instructions for
installation and use. Failure to
carefully follow all instructions
can cause the risk of fire or short-
circuit, leading to property dam-
age, bodily injury, or death.
• Do not install accessories that have
not been approved by the manu-
facturer. If suitable accessories are
installed in the AirIQ sauna, follow
the accessory-specific operating
and installation instructions to
ensure safety!
• If the supply cord is damaged, it
must be replaced by the manufac-
turers' service partner or a similarly
qualified licenced, professional,
certified electrician to avoid a
hazard.
•Clean the display panel by using a
damp cloth. Use only mild cleaning
agents, never solvents or corrosive
chemicals. Allow the product to dry
thoroughly before operation.
• This product should not be
dis-posed of with general
household waste. When recycling
your prod-uct, take it to your local
collection facility or contact the
place of purchase.

8 9

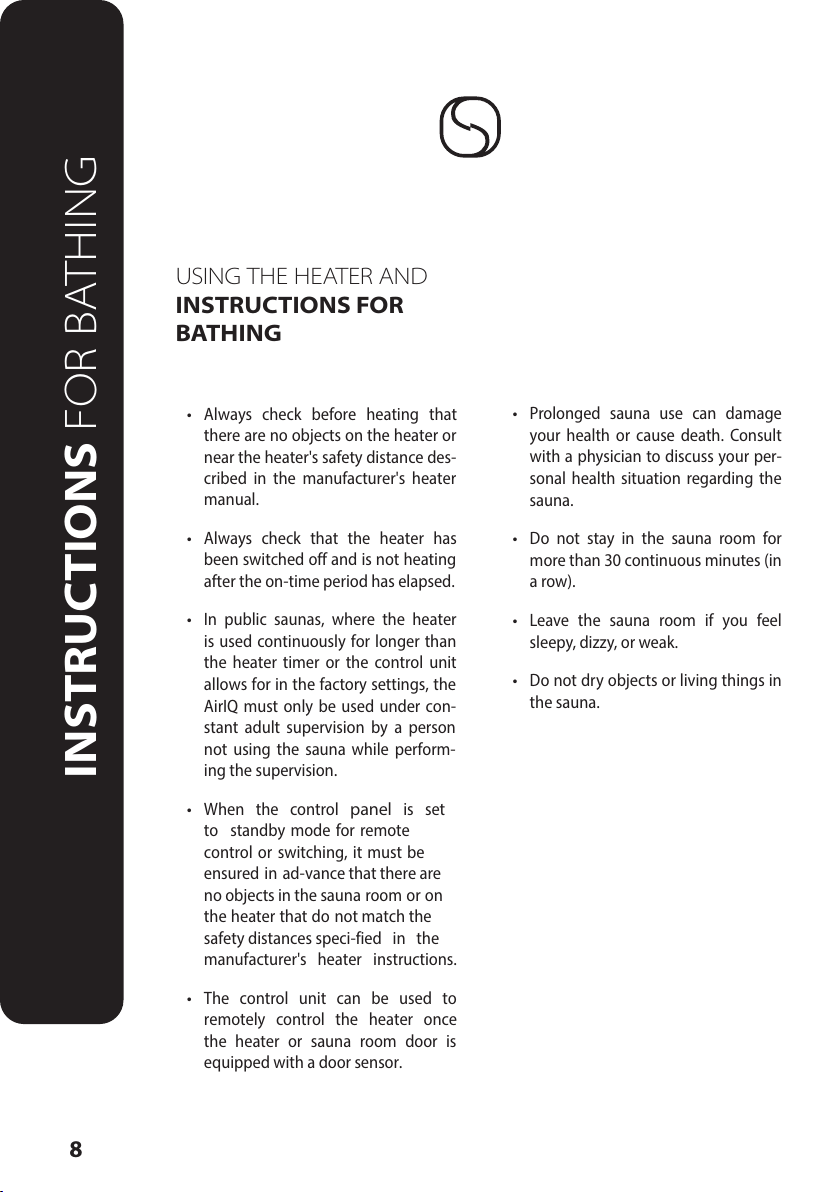

USING THE HEATER AND
INSTRUCTIONS FOR
BATHING
• Always check before heating that
there are no objects on the heater or
near the heater's safety distance des-
cribed in the manufacturer's heater
manual.
•Always check that the heater has
been switched off and is not heating
after the on-time period has elapsed.
•Inpublic saunas, where the heater
is used continuously for longer than
the heater timer or the control unit
allows for in the factory settings, the
AirIQ must only be used under con-
stant adult supervision by a person
not using the sauna while perform-
ing the supervision.
•When the control panel is set
to standby mode for remote
control or switching, it must be
ensured in ad-vance that there are
no objects in the sauna room or on
the heater that do not match the
safety distances speci-fied in the
manufacturer's heater instructions.
•The control unit can be used to
remotely control the heater once
the heater or sauna room door is
equipped with a door sensor.
• Prolonged sauna use can damage
your health or cause death. Consult
with a physician to discuss your per-
sonal health situation regarding the
sauna.
• Do not stay in the sauna room for
more than 30 continuous minutes (in
a row).
• Leave the sauna room if you feel
sleepy, dizzy, or weak.
• Do not dry objects or living things in
the sauna.
INSTRUCTIONS FOR BATHING

8 9
CONTROL UNIT
The Saunum sauna control unit AirIQ con-
sists of adisplay panel (1), a power unit
(2), a temperature sensor (3), a door
sensor (4) and temperature sensor and
power unit cords(5).
CONTROL UNIT
The control unit can be used to pre-set the
temperature and start time of the
heater and to switch the Saunum sauna
heat equalizing module.
The temperature of the sauna room is
regu-lated based on sensor information.
The temperature sensor and the overheat
protector are located in the sensor casing at
the top of the hot air intake.
1.
2.
3.
4.
5.
Tolerance
(except
radii &
chamfers) ≤
3
6
30
120
400
1000
2000
4000
>
0,5
3
6
30
120
400
1000
2000
Tolerances for linear and angular dimensions
without individual tolerance indications ISO2768-m (medium)
±0,1
±0,1
±0,2
±0,3
±0,5
±0,8
±1,2
±2
Tolerance
for external
radii &
chamfer
±0,2
±0,5
±1
>
10
50
120
400
≤
10
50
120
400
Tolerance
for angular
dimension
±1°
±0°30'
±0°20'
±0°10'
±0°5'
App:
Drw:
Chk:
Size: A4
Sheet:
Rev.
Tolerance:
1
F
E
D
C
B
1
A
2
4
F
D
E
3
B
C
A
4
1.4301 (X5CrNi18-10)
Sand after laser cutting
-; -
2/2
1:1
0.03
SA-P087-20
00
Scale
Weight: kg
Metric:mm
Material:
Finish:
Surface roughness symbols acc. ISO 1302
General tolerance symbols acc. ISO 2768
Geometric tolerance symbols acc. ISO 1101
Drawing number:
-; -
RS; 17.02.2023
Temperature sensor housing
C:\Users\Roman\OneDrive - Saunum Saunas OÜ\SAUNUM\Saunum Saunas OÜ\Saunum 3D\Primary Master\
Welding tolerances EVS-EN ISO 13920 - B
Welding connections ISO 2553
Quality level weld EVS-EN ISO 5817 - C
Welding:
* PCS/SET
Printed: 22.03.2023
Type: PLATE 0,6
This document and its contents are the property of Saunum Group Ltd. and must not be copied, reproduced or disclosed to any third party without prior written permission. Contravention will be prosecuted.
Saunum Saunas OÜ
Suur-Paala 19, 11415 Tallinn, Estonia
www.saunum.com

10 11
USING THE HEATER
WITH THE CONTROL UNIT
The heating elements will automatically
turn o when the sauna room reaches the
temperature selected on the control panel.
The control unit will automatically turn the
heating elements on and o to maintain
the desired temperature.
The heater will turn o when the set time
ends, the "STOP" button is pressed, or if an
error occurs.
CONTROL UNIT
• This device controls the sauna tem-
perature and the motor speed of the
heat equalizing module.
• Enables three preset sauna types
that can be changed and updated by
the sauna owner.
• Enables the user to select a time for
the sauna to be ready for entry and
enjoyment.
• Shows a notification that the sauna is
ready via a screen notification. When
using the Saunum App, and on the
mobile app.
• Enables the user to select their
language of choice.
• Includes Screen lock / Child lock.
• Includes overheating protection.
• The desired functions can be
selected from the intuitive screen,
the numerical values displayed in red
can be changed.
• Remote control – with the Saunum
mobile app.
Devices with in-app support enabled can
also be controlled and configured via a
mobile phone.
Remote control of the heater can be
used only when a door sensor has been
installed. The heater can only be
switched on remotely when the door
is closed. If the circuit is open, the heater
will not start.
After completing the installation of the
control unit, this manual should be given
to the owner of the sauna. The product
owner should provide the manual to all
persons using or operating the sauna.
Please read more instructions for instal-
lation, use, and recycling in the original
user manual of the control unit. Saunum
reserves the right to modify this manual
from time to time, and modifications w ill
be posted to www.saunum.com. Failure
to follow the instructions could result in
personal injury, death, fire, and/or proper-
ty damage, and the device's warranty may
be voided.
INSTRUCTIONS FOR USE

10 11
1. Menu
2. Light
3. Time
4. Heater state
5. Wi-Fi connection
“Sauna ready”
starting time
Temperature
Sauna duration
AirIQ
AirIQ speeds
Heater power kW
Sauna room volume
Screen lock / Child lock
Value increase
Value decrease
Move to next view
INSTRUCTIONS FOR USE
INDICATORS
Light
1 2 3 5
4
Glass surface area
Repeat sauna
session

12 13
HEATING
1. Tap the screen to get started.
Setting a sauna ready time.
The “sauna ready” time is when the sauna
room has reached the programmed tem-
perature.
2. Tap the "Start" button to start heating
the sauna.
While the sauna is in heating mode, it is
possible to change the “sauna ready” time
and the temperature by tapping on the
time and temperature controls and select-
ing the desired numbers.
USING THE SAUNUM
SAUNA HEAT EQUALIZING
FUNCTION
WARNING! The heat equalizing
function should not be used during
initial room heat up, as it can
result in a pro-longed heating time
and potential over-heating.
Use the heat equalizing function
ONLY when actively using the sauna. To
protect the sauna from overheating,
the heat equalizing module can also
start independently. Do not use the heat
equalizingfunction unattended.
INSTRUCTIONS FOR USE

12 13

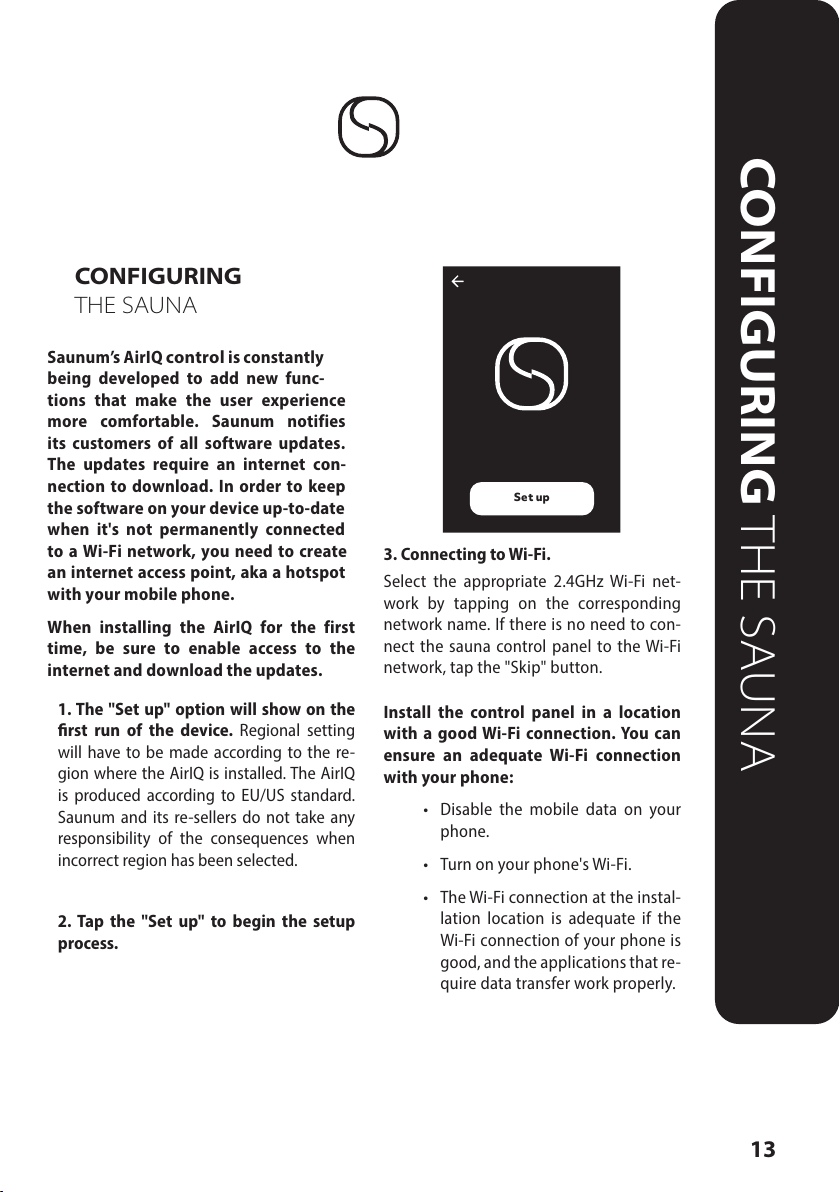

CONFIGURING
THE SAUNA
Saunum’s AirIQ control is constantly
being developed to add new func-
tions that make the user experience
more comfortable. Saunum notifies
its customers of all software updates.
The updates require an internet con-
nection to download. In order to keep
the software on your device up-to-date
when it's not permanently connected
to a Wi-Fi network, you need to create
an internet access point, aka a hotspot
with your mobile phone.
When installing the AirIQ for the first
time, be sure to enable access to the
internet and download the updates.
1. The "Set up" option will show on the
rst run of the device. Regional setting
will have to be made according to the re-
gion where the AirIQ is installed. The AirIQ
is produced according to EU/US standard.
Saunum and its re-sellers do not take any
responsibility of the consequences when
incorrect region has been selected.
2. Tap the "Set up" to begin the setup
process.
3. Connecting to Wi-Fi.
Select the appropriate 2.4GHz Wi-Fi net-
work by tapping on the corresponding
network name. If there is no need to con-
nect the sauna control panel to the Wi-Fi
network, tap the "Skip" button.
Install the control panel in a location
with a good Wi-Fi connection. You can
ensure an adequate Wi-Fi connection
with your phone:
•Disable the mobile data on your
phone.
•Turn on your phone's Wi-Fi.
•The Wi-Fi connection at the instal-
lation location is adequate if the
Wi-Fi connection of your phone is
good, and the applications that re-
quire data transfer work properly.
CONFIGURING THE SAUNA
Set up

14 15

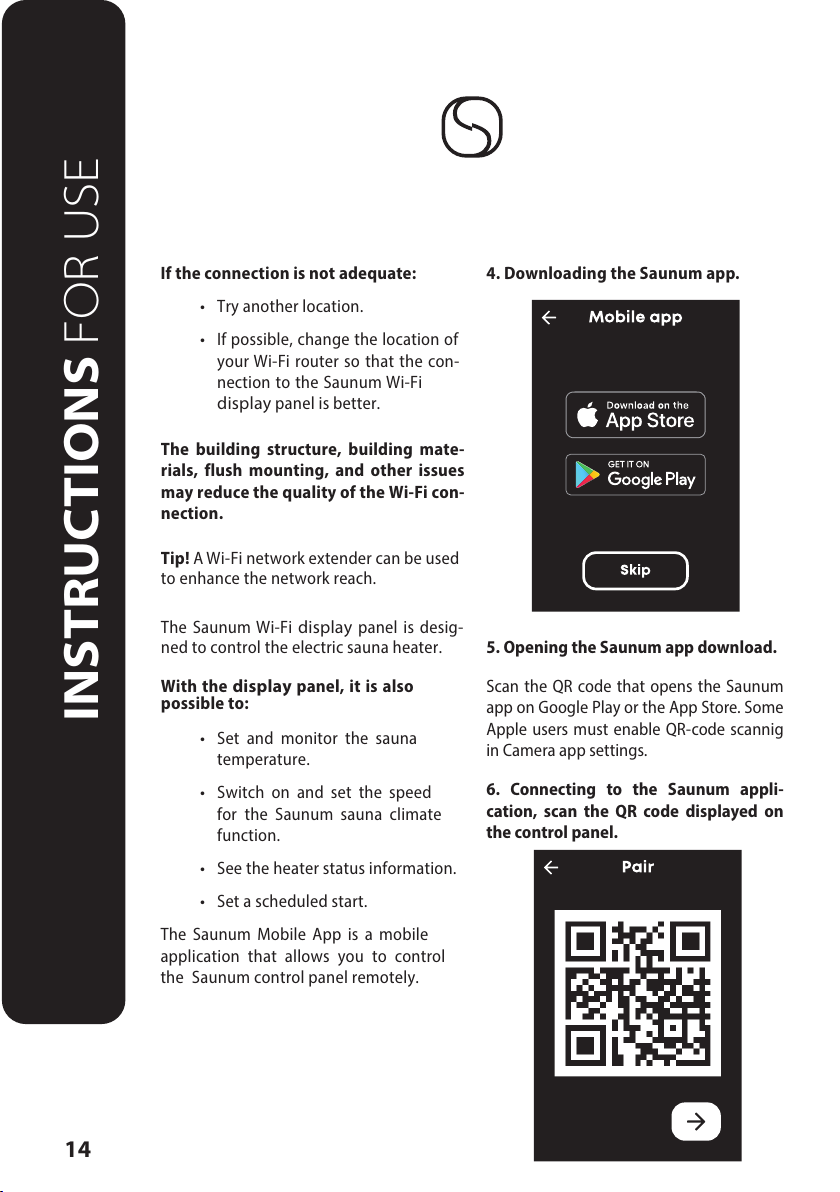

4. Downloading the Saunum app.
5. Opening the Saunum app download.
Scan the QR code that opens the Saunum
app on Google Play or the App Store. Some
Apple users must enable QR-code scannig
in Camera app settings.
6. Connecting to the Saunum appli-
cation, scan the QR code displayed on
the control panel.
If the connection is not adequate:
• Try another location.
• If possible, change the location of
your Wi-Fi router so that the con-
nection to the Saunum Wi-Fi
display panel is better.
The building structure, building mate-
rials, flush mounting, and other issues
may reduce the quality of the Wi-Fi con-
nection.
Tip! A Wi-Fi network extender can be used
to enhance the network reach.
The Saunum Wi-Fi display panel is desig-
ned to control the electric sauna heater.
With the display panel, it is also
possible to:
• Set and monitor the sauna
temperature.
• Switch on and set the speed
for the Saunum sauna climate
function.
• See the heater status information.
• Set a scheduled start.
The Saunum Mobile App is a mobile
application that allows you to control
the Saunum control panel remotely.
INSTRUCTIONS FOR USE

14 15
INSTRUCTIONS FOR USE
7. Setting the time zone.
The local time zone (UTC) conguration is
required if the sauna control panel has been
previously connected to the Wi-Fi network.
8. Setting the date and time.
9. Setting units (1/2).
10. Setting the temperature unit (2/2).

16 17

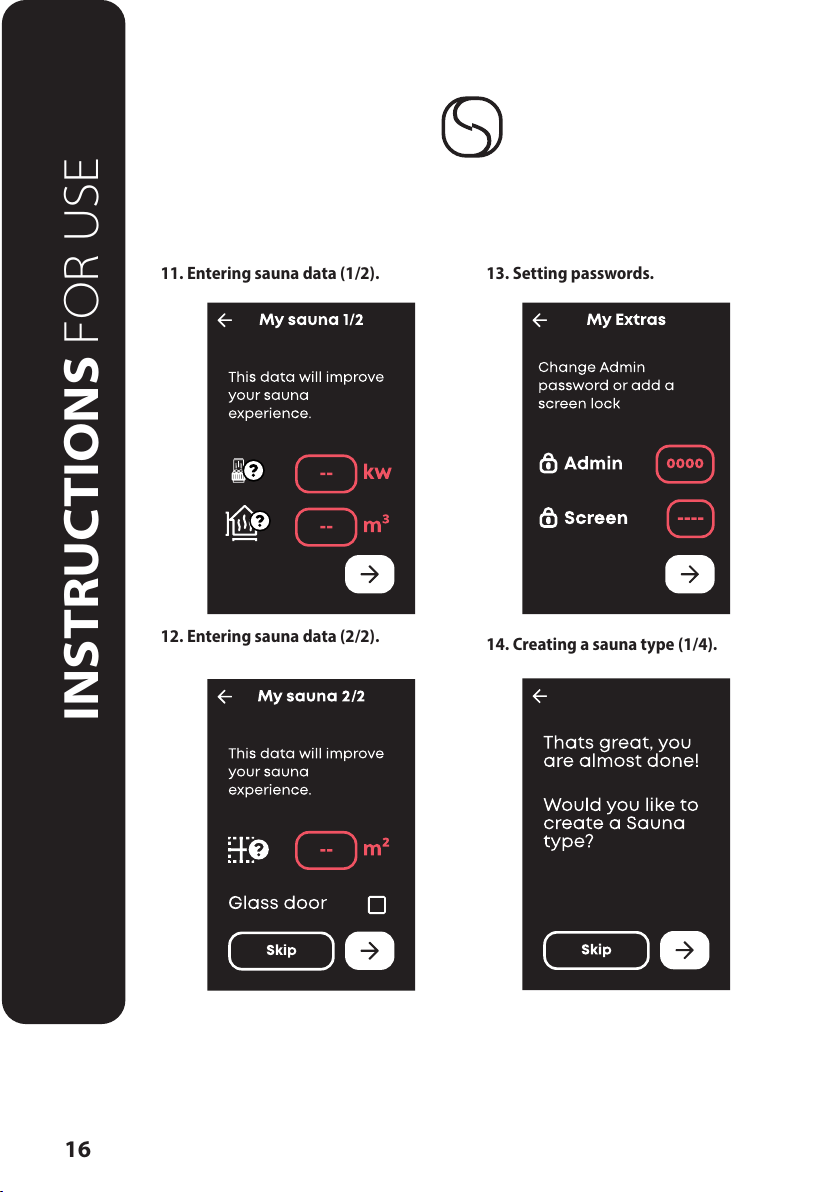

11. Entering sauna data (1/2).
12. Entering sauna data (2/2).
13. Setting passwords.
14. Creating a sauna type (1/4).
INSTRUCTIONS FOR USE

16 17
INSTRUCTIONS FOR USE

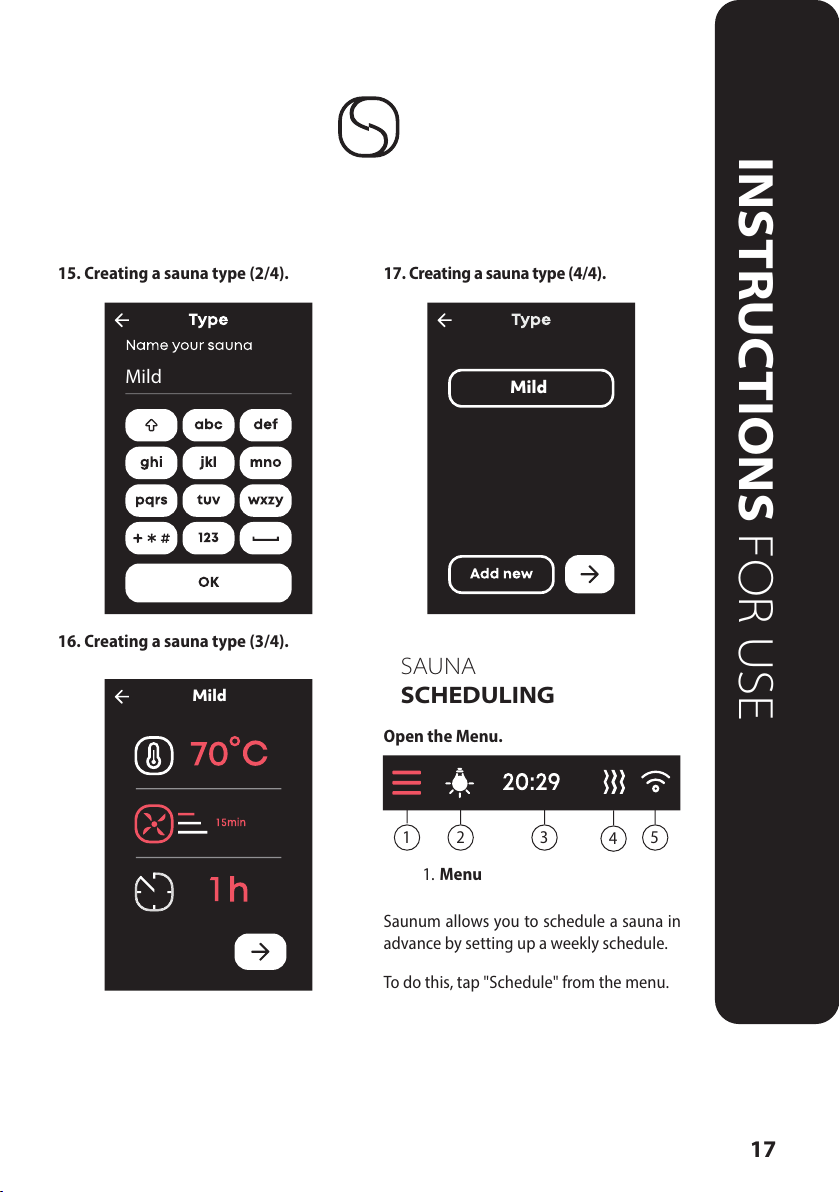

15. Creating a sauna type (2/4).
16. Creating a sauna type (3/4).
17. Creating a sauna type (4/4).
SAUNA
SCHEDULING
Open the Menu.
Saunum allows you to schedule a sauna in
advance by setting up a weekly schedule.
To do this, tap "Schedule" from the menu.
Mild
Mild
Mild
1. Menu
1 2 3 5
4

18 19
Always make sure the heater and area
around the heater are clear before a sched-
uled sauna session.
Note that the planned sauna session does
not start if the door has been left open at
that time.
1. Open the Schedule.
2. Setting the day.
Before the selected time arrives, a message
will appear stating that the heating session
will start soon.
You can cancel the session by tapping
"Cancel”.
If you do not cancel it, the session will
begin and, after the desired temperature
is reached, it will run for 30 minutes,
after which time it will stop unless the
session is manually confirmed.
3. Setting the time.
4. Setting the sauna type.
Mild
Hot 80
55
INSTRUCTIONS FOR USE
Norm

18 19
INSTRUCTIONS FOR USE

20 21
TECHNICAL DATA
DISPLAY PANEL:
• Temperature adjustment range
104 – 194 °F.
• Pre-setting the schedule for the
week.
•Temperature rating -4°F - 145°F
• Allows you to set the operating
time of the heater: up to 1 hours in
a private sauna, up to 6 hours in a
public sauna.
•IP20
•Heat equalizing module
three-speed control.
• Dimensions: 0.8 in. × 3.3 in. ×
4.1 in.
POWER UNIT:
• Supply voltage: 240V 1N~.
• Heater power rating up to 12 kW.
• Heaters with higher power need
a separate “contactor box.”
• Dimensions: 2.36 in. × 10.11 in. ×
6.5 in.
• Safety device: overheat protector.
•IP64
•Temperature rating -4°F - 113°F
TECHNICAL DATA
