Savi Mini Melody User manual
INSTALLATION AND USERS GUIDE
2013/14 SAVI MELODY (COLOR)
2013/14 SAVI BLANCO (WHITE)
2013/14 SAVI SOL (COLOR)
IMPORTANT NOTICE - ATTENTION INSTALLER: This Installation and
Users Guide contains important information about the installation,
operation and safe use of this swimming pool/spa light. This Guide
should be given to the owner and/or operator of this equipment.
2013/14 SAVI BLANCO PRO (WHITE)
IMPORTANT WARNING & SAFETY INSTRUCTIONS
DANGER - SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THESE
LIGHTS ARE NOT INSTALLED AND USED CORRECTLY
DANGER - INSTALLERS, POOL OPERATORS AND POOL OWNERS MUST
READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE USING
THESE LIGHTS
WARNING - Before installing this product, read and follow all warning
notices and instructions in this Guide. Failure to follow warnings and
instructions can result in severe injury, death or property damage. For
more information contact company at numbers contained within Guide.
WARNING - These underwater swimming pool lights MUST BE installed by a
licensed or certified electrician or a qualified pool professional in accordance with
the National Electric Code (NEC) or the Canadian Electric Code (CEC), CSA C22.1.
All applicable local installation codes and ordinances must also be adhered to.
Improper installation will create an electrical hazard which could result in death or
serious injury to pool users, installers or others due to electrical shock.
ALWAYS DISCONNECT THE POWER TO THE POOL LIGHT(S) BEFORE SERVICING.
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Products in this Guide are covered
under one or more of the following
patents: 6,827,464 7,244,037 6,971,760
5,617,496 5,617,497 5,789,471
5,528,714 5,33,228 6,200,012
6,48,952 6,422,730 6,367,100
6,398,397 6,393,192 6,375,342
7,204,602 7,229,027
The following are registered
trademarks and designs of
Next Step Products: Savi,
Endglow, Sideglow Oasis
9400 Southridge Park Ct #200 Orlando FL 32819
Tel: 407.855.5630 Fax: 407.210.8679
nextstepproduct.com
2014 MINI MELODY (COLOR)
2014 MINI BLANCO (WHITE)
DOES NOT APPLY TO THE P SERIES
OF LIGHTS
MINI MEL/MINI BLANCO/MELODY/BLANCO/BLANCO PRO/SOL
Underwater LED Lights
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
CAUTION! SAFETY PRECAUTIONS
TURN OFF MAIN POWER TO LIGHT BEFORE INSTALLATION /SERVICE
SAVI Lights are a low voltage light and should NEVER be electrically
connected to a power source other than an approved pool “Safety Rated”
UL Listed outdooor rated Class 3,12VAC Transformer. Failure to comply
will either damage or destroy SAVI Lights and VOID the Warranty.
STEP 1
The light must be installed in or on a wall of the pool (or
water feature) with the top of the lens opening not less than 4
inches (10.16cm) below the normal water level of the pool.
STEP 2
Snake the 2-conductor electric cord through the conduit outlet
of the wall into the conduit and up to the location of
the
12VAC pool transformer. Cut off excess cord after allowing
for
service and length of run to the transformer. Pull the snug
to the wall
STEP 3
Using enclosed Lens Key, thread the light into the wall fitting until it is
snug. Please provide Pool Owner with minimum of 1 key upon job
completetion (see winterization clause above)
NOTE: Requires the use of a 1-1/2” threaded wall fitting.
Product Names
WATTS AMPS MINIMUM CONDUIT
REQUIREMENTS
14 1.2 9”
10 0.83
20 1.67
28 2.3
MINI MEL
MINI BLANCO
SAVI-MELODY
MELODY BLANCO
BLANCO PRO
SAVI SOL 14"
NOTE: Make sure all protective coverings have been removed.
An example of an approved pool transformer is the Intermatic model PX-100 or PX-300.
Refer to WIRE GAUGE AND WIRE LENGTH guide for for proper wire gauge size in
reference to the use of Junction Boxes installations. NOTE: SAVI Lights can be used
with any UL Listed outdoor rated Class 3, 12VAC transformer provided the wattage and
amperage is not exceeded by the total wattage and amperage in use.
A Division of Next Step Products
9400 SOUTHRIDGE PARK COURT SUITE 200 ORLANDO, FLORIDA 32819 USA
Tel: 407.855.5630 Fax: 407.210.8679 nextstepproduct.com
4” MIN. FROM WATER
LEVEL TO TOP OF LENS
1.5” Pipe1” min. Pipe
Sweeps ONLY
No 90 degree bends
4” MIN. FROM WATER
LEVEL TO TOP OF LENS
12VAC Pool Transformer
Allow 18” - 24”
slack for
Service Loop
Conduit to 12VAC transformer
Tighten
NOTE: Service
Loop not applicable
for Junction Box
Installations.
1.5” THREADED WALL FITTING
1.5” Pipe through bond beam for a minimum of 14” then 1” conduit
min. with sweeps / no 90 degree bends. We highly recommend
the use of 1.5" pipe throughout the entire width of the bond beam.
NOTE: Use of 1.5” pipe with 14” min. length will accommodate all
SAVI Lighting nicheless products. See Minimum Conduit
Lengths listed above.
Winterization Clause
Pool Water Level must be drained down 12” below light(s) position in pool wall. We
recommend that the lights be loosened from their wall fitting to allow drainage of water
that might have accumulated within conduit. Consult your local Swimming Pool
Professional for proper local area winterization processes. At NO TIME should water be
removed from the pool without checking ground water tables.
Small Gasket
Large Gasket
Flat Gasket
NOTE: For Vinyl wall Fittings use both rubber
gaskets. For Gunite and Fiberglass remove
the Small gasket and use the Large one only.
4” MIN. FROM WATER
LEVEL TO TOP OF LENS
Vertical Installation for
Benches, Swimouts and
Fountains
NOTE: No separate ground or bonding wire is required for
the Melody, Blanco, Blanco Pro or SOL low voltage lights which
have no exposed metal. They do not require a niche.
For Replacement LED Light Cartridges
see Light Cartridge Replacement Page
9"
14"
All products listed above come in a variety of cord length
Typical Lengths are: 30-50-100 & 150FT
18"-24" of excess cord recommended as service loop.
LIGHTS ARE SERVICABLE - DO NOT
REMOVE ENCLOSURE/CORD FROM CONDUIT
NOTE: Check with Local Building officials as to what conduit/pipe is acceptable
INSTALLATION INSTRUCTIONS-2013/14 SERVICABLE PRODUCT
6
5
.5
.42
3”
3”
OPERATION INSTRUCTIONS
Synchronization Process for Savi LED Color Pool and Spa Lights
Important Note: All xtures must be tied into the same transformer, circuit or switch for synchronization
to occur.
LIGHT SYNCHRONIZATION
1. Turnthelightsonandwaitfor20seconds.Thelightswillfirst comeonwhitefor10-15secondsandthenreturntothe
colormodeitwasonpriortobeingturnedoff.(Ifthisistheinitialinstallation,thelightswillreturntowhatevermode
they were in when last receiving power).
2. Donotmovetothenextstepuntilsteponeiscomplete.
3. Tosynchronizelights,turnthelightsoff,wait6-9secondsandthenturnthembackon.Youshouldseethreequick
flashes (red,green&blue),andthenallthelightswillresettothefirstcolormode(TreasureIsland).
4. (A)Ifyoudonotseethreequickflashes thenthelightsdidnotreset.
(B)Ifyoudidnotwaitlongenough(shorterthan6seconds)thelightswilladvancetotheirnextcolormode.Theyare
not synched as each light could be in different color modes.
(C)Ifyouwaittoolong(longerthanthe9seconds)theyallwillgotowhitefor10-15seconds,lookinglikethey’re
synchedBUTAFTER15secondstheywillreturntotheirpreviouscolormode(whichatthispointthelightsare
stillunsynchronized).
5. Repeatstep1-3untilsynchronizationisaccomplished.
6. To confirmthelightshavebeensynchronized(TreasureIslandMode)-thebestwayisto:turnthelightsofffor1-2
seconds and turn back on – DO THIS TWICE. All the lights should be in the SAVI BLUE color mode. If they are all
fixedonBLUE–youhavenowsynchronizedyourlights.Ifnot–turnthelightsoffformorethan20seconds–Turn
back on and proceed to Step 1.
OPERATING THE LIGHT
7. Tomovetothenextcolormode,Turnthelights offfor1-2secondsandturnbackon.Repeatuntildesiredcolormode
is found.
Example:IfyoufollowedstepsixandarenowonSAVIBlueandwantthelightstobeWhite,thenthelightsmustbe
turnedoffandon(7)seventimestobringyoutoMoonlightWhite.
1. Treasure Island / Slow color change
2. MoonlightWhite/FixedWhite
3. SAVIBlue/FixedBlue
4. SargassoSea/FixedGreen
5. BlueLagoon/FixedLightBlue
6. PassionPink/FixedMagenta
7. CaribbeanHues/BlueandGreenSlowColorChange
8. Copacabana/Magenta,YellowandOrangeSlowColorChange
9. Danceparty/MultiColorStrobeEffect
8. Thelightshavememory.Ifthelightsareofffor10secondsormore,thenexttimethelightsareturnedon,theywill
gotowhiteforapproximately10-15secondsandthenreturntothelastcolormodetheywereonpriortobeingturned
off(Step1listedabove).Thisfunctionallowsyoutokeepyourlightsreturningtoyourfavoritecolormodeeverytime
the lights are turned back on.
Ifyouhaveinternetaccess,pleasegotowww.nextstepproduct.com/SAVI/support.html and click on the link under USER
GUIDES that says “synchronous process” for a video that demonstrates how this process works.
A Division of Next Step Products
9400SOUTHRIDGEPARKCOURTSUITE200 ORLANDO,FLORIDA32819USA
Tel:407.855.5630Fax:407.210.8679nextstepproduct.com
IMPORTANT: READ FIRST
SAVI LED UNDERWATER LIGHTS ARE LOW VOLTAGE FIXTURES. IMPROPER
WIRE GAUGE AND WIRE LENGTH CAN AFFECT THE PERFOMANCE OF THESE
PRODUCTS. FOLLOW THE GUIDES BELOW TO DETERMINE THE PROPER
OPERATION AND OPTIMUM PERFORMANCE OF SAVI LIGHTS.
!
WIRE GAUGE & WIRE LENGTH GUIDE

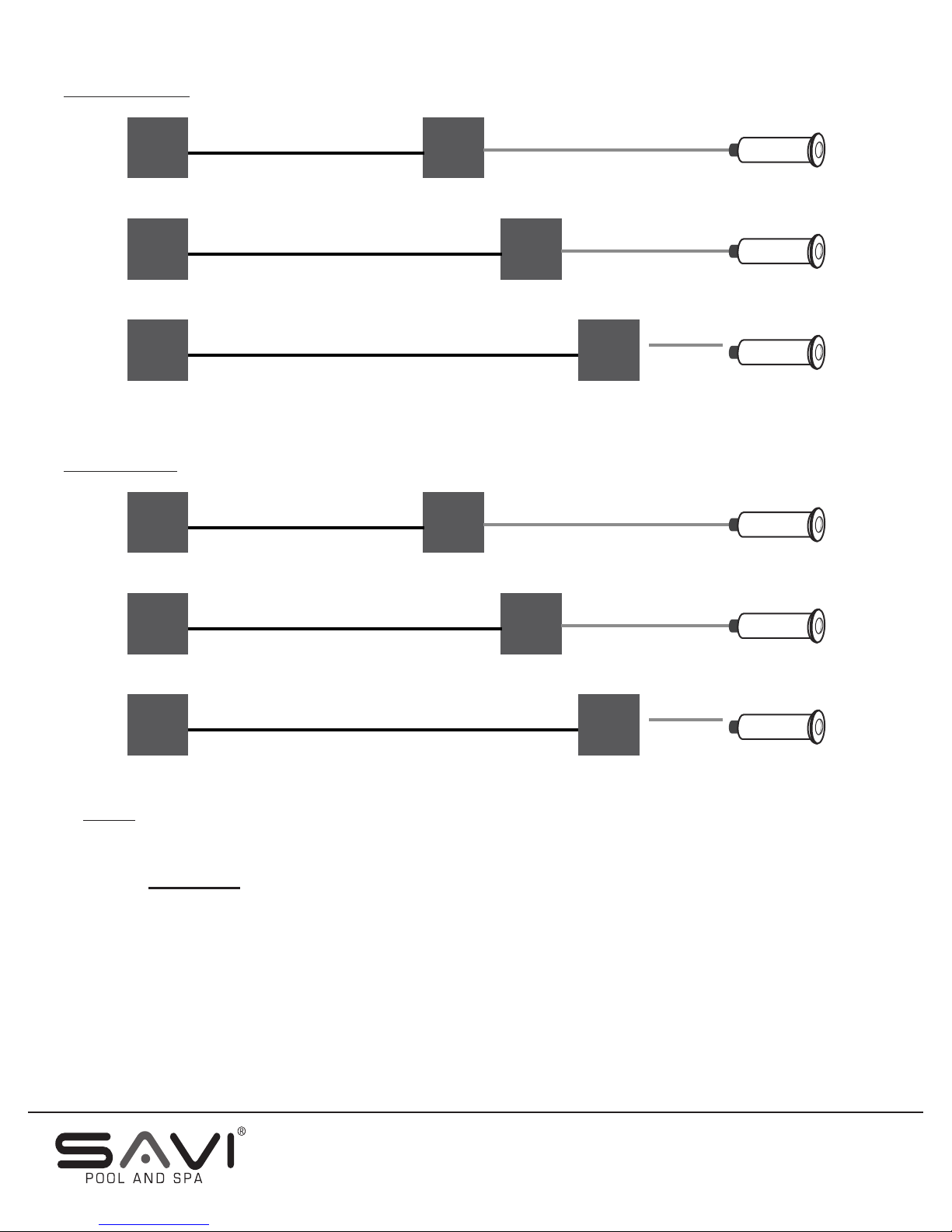

JUNCTION BOX
Black Hot Line
Crimp Style Connectors
Recommended
Crimp Style Connectors
Recommended
BLK BLK
WHT WHT
White Neutral
Green Ground
LOW VOLTAGE (12VAC) TRANSFORMER
PX100 or PX300
NOTE: This Diagram is to be used as a guide line only for a typical System Installation and should only be used
as such. It is the Installers sole responsibility to verify and assure that proper gauging of secondary wiring
from the Transformer to the J-Box are in compliance with your local, State and National Electrical Codes.
JBT
JUNCTION BOX
BUS BAR
PX100 / PX300 MAX WATTAGE
MAX WATTAGE
MAX WATTAGE
0-50ft 100ft cord 168W
12GA
12V
SAVI Pool and Spa | 9400 Southridge Park Court Suite 200 | Orlando | Florida | 32819 | USA | T. 407.855.5630 nextstepproduct.com
JBT 100ft 50ft cord 126W
10GA
12V
JBT 130ft 20ft cord 98W
8GA
12V
JBT
JUNCTION BOX
BUS BAR
PX100 / PX300
0 - 50ft 100ft cord 210W
12GA
13V
JBT 51 - 100ft 50ft cord 168W
10GA
13V
JBT 101 - 125ft 10ft cord 154W
8GA
13V
JBT
JUNCTION BOX
BUS BAR
PX300 ONLY
0-50ft 100ft cord 240W
12GA
14V
JBT 51 - 100ft 50ft cord 224W
10GA
14V
JBT 101 - 125ft 10ft cord 196W
8GA
14V
NOTE: The use of Solid Core over Stranded wire and terminating at Bus Bars is strongly recommended.
A Division of Next Step Products
9400SOUTHRIDGEPARKCOURTSUITE200 ORLANDO,FLORIDA32819USA
Tel:407.855.5630 Fax:407.210.8679nextstepproduct.com
NOTE: Min. 12VAC: / Max 13VAC. The maximum run of service between transformer and lights should not
exceed 150ft in total length, inclusive of the use of J Box or not.
JBT
JUNCTION BOX
BUS BAR
PX100 / PX300 MAX WATTAGE
MAX WATTAGE
MAX WATTAGE
0-50ft 100ft cord 168W
12GA
12V
SAVI Pool and Spa | 9400 Southridge Park Court Suite 200 | Orlando | Florida | 32819 | USA | T. 407.855.5630 nextstepproduct.com
JBT 100ft 50ft cord 126W
10GA
12V
JBT 140ft 10ft cord 98W
8GA
12V
JBT
JUNCTION BOX
BUS BAR
PX100 / PX300
0 - 50ft 100ft cord 210W
12GA
13V
JBT 100ft 50ft cord 168W
10GA
13V
JBT 130ft 20ft cord 136W
8GA
13V
JBT
JUNCTION BOX
BUS BAR
PX300 ONLY
0-50ft 100ft cord 240W
12GA
14V
JBT 100ft 50ft cord 224W
10GA
14V
JBT 130ft 20ft cord 182W
8GA
14V
A Division of Next Step Products
9400SOUTHRIDGEPARKCOURTSUITE200 ORLANDO,FLORIDA32819USA
Tel:407.855.5630Fax:407.210.8679nextstepproduct.com
NOTE: Please use appropriate low voltage supply to pool lights, ie. if 12V is appropriate voltage DO NOT
use 13V or 14V tap on transformer output (if so equipped),
WARNING - DO NOT run 120V and Low Voltage wires in the same conduit or enclosures.
ALL Savi LED Colored Lights including Savi Color LED Light Drivers are designed to work or synchronize with
each other. Please follow all installations for proper installation and follow Sychronization Instructions for
proper operation. OUR SAVI STANDARD LED LIGHTS WILL NOT WORK WITH P SERIES LED LIGHTS
All Savi White LED Lights and White LED Drivers are designed to allow for the option of dimming or light

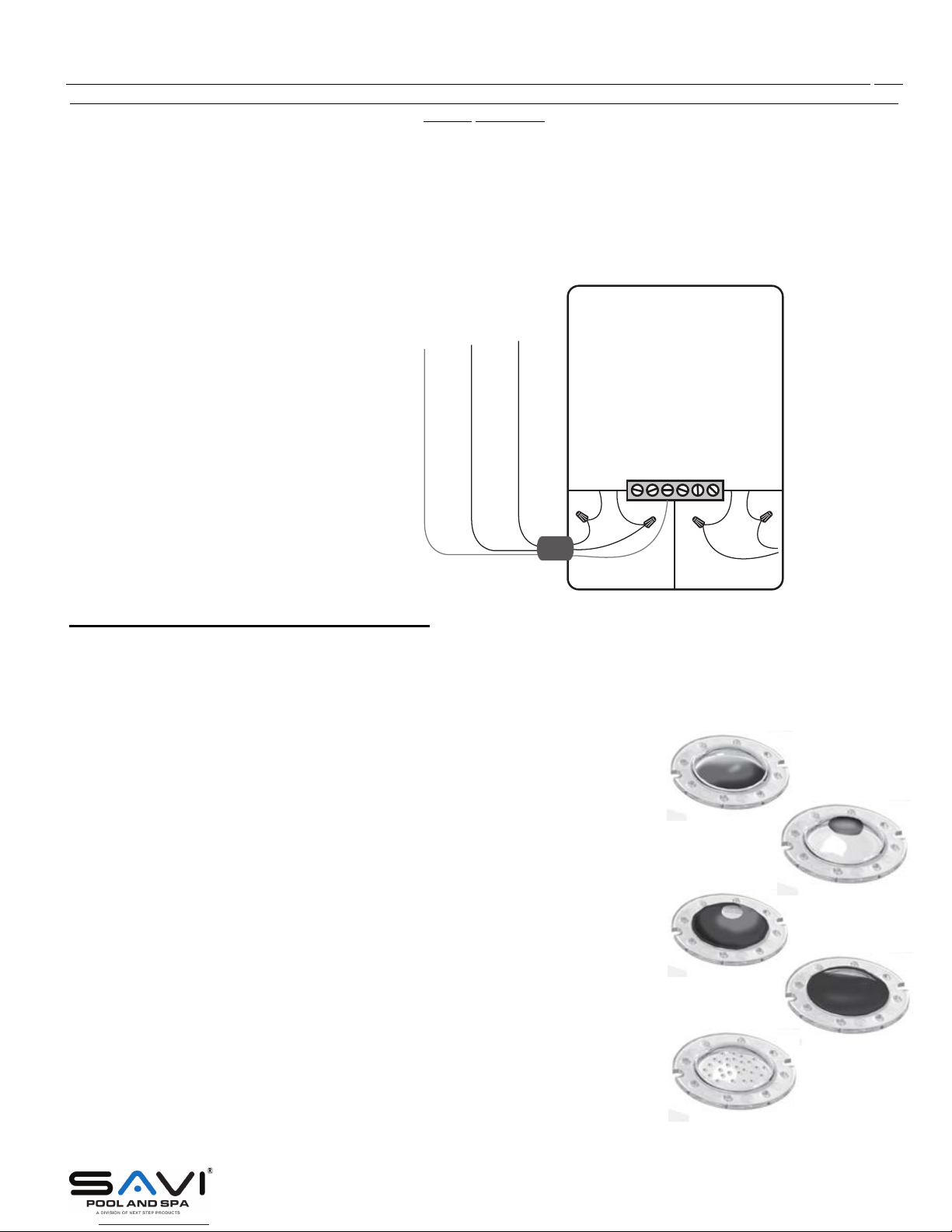

output reduction. See enclosed information regarding general guidelines for dimming of our Savi LED
White Lights.
Black Hot Line
Crimp Style Connectors
Recommended
Crimp Style Connectors
Recommended
BLK BLK
WHT WHT
White Neutral
Green Ground
LOW VOLTAGE TRANSFORMER
PX100 or PX300
THE FOLLOWING INFORMATION IS FOR GENERAL INSTALLATION OF DIMMING SWITCHS OR CONTROLS FOR USE
WITH SAVI BLANCO, MINI BLANCO, BLANCO PRO WHITE LED LIGHTS. THIS INCLUDES BLANCO PRO WHITE LED
LIGHT DRIVERS.
All WHITE LED Savi Lights can be dimmed by the use of simplistic dimming switches. These directions specify those switches
that are for independent or stand a lone use. For achieving dimming by the use of automatic or home based energy control
systems please consult those controls systems instructions. AT NO TIME SHALL ANY SWITCH OR CONTROL BE
INSTALLED ON THE 12V SIDE OF THE TRANSFORMER IN AN ATTEMPT TO DIM LIGHTS. DOING SO MAY DAMAGE
THE LED LIGHT CARTRIDGE AND VOID WARRANTY.
White Neutral
Black Hot Line
Dimmer Switch installed in
proper electrical enclosure
DESIGNER LENS SERIES OPTION:
Savi Pool & Spa has created a unique set of options for our LED Series of lights - designer lens. Each one has
the ability to create fantastic lighting effects within the pools interior. No other company can offer these lighting
effects. These are so unique that we have a Patent Pending on this series. Look below and see if any one fits
into your pool environment. Keep in mind that these lenses can be added on to any of our 2013 LED Lights -
even if they have already been installed.
HALF DOME - This escutcheon adds over the existing lens to allow you to
direct 1/2 the light in a direction you want. Downwards-to light a pools
interior without light shining upwards. Upwards to light a waterfeature or
sideways to put light where it might be needed but no where else
HALO LENS - This lens allows for gentle lighting in an area but knocks down
the center beam. This allows for installation on walls, etc where there might be
an opposite wall, etc where you want to eliminate generating a "hot" spot.
Great general lighting but softly.
SPOT LENS - Just the opposite of the Halo whereas we knock down the general
lighting and focus more of the light forwards. Great for illuminating that special
feature.
CATS EYE - This lens reduces the light eminating but for just a "slice" of light
that is broad but thin. An incredible effect for illuminating but without spilling
light all over.
DIAMOND - WOW want to really create something special? The Diamond lens
creates incredible points of light throughout the interior. The points will be
different the farther away from the light they are. Put the LED colored light on
DANCE PARTY MODE AND WATCH THE FUN BEGIN!
9400 SOUTHRIDGE PARK COURT, SUITE 200, ORLANDO, FL 32819 USA
TEL: 407.855.5630 FAX: 407.210.8679 nextstepproduct.com
Minumum and Maximum Cord Lengths Per Voltage Input
V
oltages are determined by the measured Voltage level @ the
Bus Bar where the Transformer and Cords are connected while on White
MINI MEL/MINI BLANCO/MELODY/BLANCO MIN/MAX VOLTAGE PER CORD LENGTH
CORD LENGTH Min. Voltage Max. Voltage
15 Feet 7.8Vac 12.0Vac
30 Feet 8.6Vac 12.2Vac
50 Feet 9.4Vac 12.4Vac
100 Feet 10.7Vac 13.2Vac
150 Feet 11.82V 13.8Vac
MEL-SOL & BLANCO PRO MIN/MAX VOLTAGE PER CORD LENGTH
CORD LENGTH Min. Voltage Max. Voltage
20 Feet 9.8Vac 12.0Vac
30 Feet 9.92Vac 12.2Vac
50 Feet 10.34Vac 12.56Vac
100 Feet 10.9Vac 13.5Vac
150 Feet 11.43Vac 14.1Vac
Next Step Products provides these guidelines as a reference for proper operation. Failure to adhere
specifications could result in improper operation or synchronization of lights.
ALL VOLTAGE READINGS ARE TAKEN WHILE LIGHTS ARE ALL SET TO WHITE
As these Charts address the Minimum - please remember that at no time should the MAXIMUM
distance with or without J Box extend past 150 ft.
9400 SOUTHRIDGE PARK COURT, SUITE 200, ORLANDO, FL 32819 USA
TEL: 407.855.5630 FAX: 407.210.8679 nextstepproduct.com
BASIC TROUBLESHOOTING GUIDE - FOR ADDITIONAL INFORMATION CONTACT
TECHNICAL SERVICES AT TELEPHONE NUMBERS LISTED BELOW
ALL LIGHTS FAIL TO ILLUMINATE - Check 120V power supply into transformer - Check for 12V
output at transformer - check or reset GFCI. Make sure 120 volts has not been used in the
installation of these lights - damage is assured and is NON WARRANTY.
ONE OR MORE LIGHTS DIM - This is generally caused by a poor connection or improper wire
gauge. To determine if light or lights has fault - separate each light from all other lights and
independently wire 12V to this light only. Repeat process on each light. If junction box is used -
recheck for proper connection of light cord. AGAIN IF A JUNCTION BOX IS BEING USED - VERIFY
THAT THE CORRECT WIRE GAUGE IS BEING USED BETWEEN TRANSFORMER AND JUNCTION BOX.
EVEN THOUGH OTHER LIGHTS MIGHT WORK CORRECTLY - IMPROPER WIRE GAUGE SIZE COULD
ALLOW 1 OR MORE LIGHTS TO WORK IMPROPERLY. Measure and verify that proper low voltage is
being supplied to lights - see WIRE GAUGE & WIRE LENGTH GUIDE CHART.
BLINKING, FLASHING, NON WORKING LIGHTS - This is generally caused by a poor connection
or improper wire gauge. To determine if light or lights has fault - separate light from all other lights
and independently wire 12V to this light only. Repeat process on each light. If junction
box is used - recheck for proper connection of light cord. AGAIN IF A JUNCTION BOX IS BEING
USED - VERIFY THAT THE CORRECT WIRE GAUGE IS BEING USED BETWEEN TRANSFORMER
AND JUNCTION BOX. EVEN THOUGH OTHER LIGHTS MIGHT WORK CORRECTLY - IMPROPER
WIRE GAUGE SIZE COULD ALLOW 1 OR MORE LIGHTS TO WORK IMPROPERLY. Measure and
verify that proper low voltage is being supplied to lights - see WIRE GAUGE & WIRE LENGTH
GUIDE CHART. MOST IMPORTANTLY SEE CHART FOR MIN/MAX VOLTAGE & CORD
LENGTH CHART.
2013/14 SAVI LED LIGHTING PRODUCTS
COLORED LIGHTS OUT OF SYNCH - Follow Synchronization Instructions in this Guide. Be very
patient and read instruction carefully. If lights fail to synchronize - verify that proper wire
connections are being achieved for those lights that are out of step with others. Generally a lights
failure to sync with the rest is: improper voltage supply or poor connection to light.
NOTE: In most situations problems come down to 4 main faults: improper voltage supply,
improper wiring gauge,improper/poor wiring connections or the light itself.
2013/14 SAVI LED LIGHTS ARE FIELD SERVICABLE AND THE CORD AND LIGHT BODY
FIXTURE SHOULD NOT BE REMOVED COMPETELY FROM THE CONDUIT OR POOL. THERE SHOULD
BE ENOUGH CORD SUPPLIED IN THE SERVICE LOOP TO REMOVE LIGHT FROM WALL FITTING AND
LIFTED ABOVE WATER LEVEL FOR LED LIGHT CARTRIDGE REPLACEMENT. IF THERE IS NOT
ENOUGH CORD IN SERVICE LOOP OR IT CANNOT BE ACCESSED - POOL WATER CAN BE DRAINED
BELOW LIGHT TO ACCESS FRONT OF LIGHT.
DO NOT PULL LIGHT AND CORD ENTIRELY FROM CONDUIT UNLESS INSTRUCTED BY COMPANY.
SAVI POOL AND SPA WILL NOT ACCEPT ENTIRE LIGHTS BEING RETURNED FOR SERVICE
UNLESS INSTRUCTED BY COMPANIES TECHNICAL SERVICES DEPARTMENT
ONLY LED LIGHT CARTRIDGES SHOULD BE REPLACED OR EXCHANGED WITH THE
2013/14 PRODUCT
Refer to the Light Cartridge Replacement Instructions included in this Guide for light replacement.
WARNING: All servicing of Savi LED Lights should be done by a licensed or certified electrican or a
qualified pool professional in accordance with the National Electric Code (NEC) or Canadian Electric
Code (CEC)
For additional troubleshooting assistance or installation advice please contact Technical
Services at telephone number below.
TURN OFF MAIN POWER TO LIGHT BEFORE INSTALLATION
STEP 1
TURN OFF MAIN POWER TO LIGHT BEFORE
REPLACING LIGHT CARTRIDGE. Be sure the
light fixture is in a dry environment. Remove the (8)
eight screws from the lens with the tool provided.
Pull the lens from the fixture body. Remove and
discard the O-ring between the Lens and Fixture
Body.
STEP 2
Using the tool provided, insert and turn the thread-
ed portion into the extraction hole in the face of the
Light Cartridge. Pull the Light Cartidge from the
housing body.
STEP 3
Insert the replacement cartridge into the housing
body. Line up the TAB at the end of the circut board
with the receiving slot inside the housing body.
It may be necessary to slowly turn the Light
Cartridge until the TAB lines up with the SLOT.
STEP 4
Clean the Lens and the Enclosure of any remaining
old Silicone before applying new Silicone and replac-
ing the Lens. Replace the O-ring with the new one
provided. Attach the lens onto the fixture body.
Tightly secure the eight (8) screws indicated in the
diagram to the right. Once all screws are tight, slowly
submerse in water, checking for any air bubbles -
quickly remove from water bubbles appear as it
indicates the seal is not water tight. Retighten the
screws and test for bubbles again.
STEP 5
Reset the fixture into the wall fitting and turn the power ON.
Apply a new silicone bead to
the lens with tube provided
after cleaning the lens and
body of old silicone.
WINTERIZING
The water level should be lowered to approximately 12
inches below the pool lights, make certain the water is
drained out of the wall housing. Consult a Local Swimming
Pool Professional for proper winterization. Minimum
safeguard requires dropping the water level 2”-4” below
the light. At NO TIME should there be water removed from
the pool without checking ground water tables.
LIGHT CARTRIDGE REPLACEMENT
9400 Southridge Park Court Suite 200 Orlando, Florida 32819 USA T. 407.855.5630 NextStepProduct.com
LED LIGHT FIXTURESSHOULD NEVER BE ELECTRICALLY
CONNECTED TO A POWER SOURCE OTHER THAN AN APPROVED POOL “SAFETY"UL LISTED
OUTDOOR RATED CLASS 3, 12VAC TRANS-FORMER. THE SAVI NOTE SHOULD ONLY BE CONNECTED
TO THE SAVI M4 CONTROLLER. FAILURE TO COMPLY WILL EITHER DAMAGE OR DESTROY THE LIGHT
FIXTURE AND VOID THE WARRANTY.
TAB
SCREW TIGHTENING DIAGRAM
SILICONE BEAD ON LENS
SLOT
O-Ring
New O-Ring
Lens
Extraction Tool /
Screw Driver
Light Cartridge
Replacement
Light Cartridge
Fixture Body
1
23
4
5
6
7
8
LC111912
MELODY-CARTRIDGE-KIT
BLANCO-CARTRIDGE-KIT
BLANCOPRO-CARTRIDGE-KIT
SOL-CARTRIDGE-KIT
LIMITED PRORATED WARRANTY
Next Step Products LLC and its wholly owned subsidiaries and divisions (herein referred to as “the Company”),
warranties its products, excluding lamps, to be free from defects in material and/or workmanship, under normal
condition,useandservice,foraperiodofFive(5)yearsfromthedate of manufacture. During the first two (2) years
100% coverage on all parts, 3rd (3) year all warranty parts will be replaced at
35%
of the then current List Price of such
part and in years Four & Five (4&5) all warranty parts wil be replaced at 50% of the then current List price of such part.
This specific warranty is for parts only and specifically excludes all labor charges associated with warranty items.
TERMS AND CONDITIONS:
ThiswarrantyonlyapplieswhentheCompany’sproductsareproperlywiredandinstalledtogetherasasystem;
andoperatedwithintheelectricalvaluesshownontheCompany’sspecification sheets;usedinlightingequipment
designedandapprovedfortheapplicationandenvironmentalconditions(temperature,humidity)withinthenormal
specified operatingrangeofthesystem.Thiswarrantydoesnotapplytoanyabnormaluseinviolationofanyapplicable
standard,codeorinstructionsforuseininstallationsincludingthosecontainedinthelatestNationalElectricalCode
(NEC),theStandardsforSafetyofUnderwritersLaboratory,Inc.(UL),StandardsfortheAmericanNational
StandardsInstitute(ANSI),inCanada,theCanadianStandardsAssociation(CSA),Europe(CE),Australia(C-
Tick).Thiswarrantywillnotapplyintheeventofconditionsdemonstratingabnormaluseorstress,including
under/overvoltageconditions, excessiveswitchingcycles,excessiveoperatinghours,alterations,accident,theft,
misuse,abuseanddamagedcausedbynegligentinstallation,impropermaintenanceorwhereadequatecarehasnot
beentakentopreventdamagetothelightingsystem.ReplacementoftheCompany’sproductcomponentswithany
othermanufacturerwillvoidtheentirewarranty.
WARRANTY SERVICE CLAIMS:
TheCompanymustissueaReturnMaterialAuthorization(RMA)numberforallrequestsforwarrantyreview.Toexpedite
service,pleasecontacttheCompany’sCustomerRepresentativewhereyoupurchasedtheproduct.Ifyouareunsure
whetherasituationexiststhatiscoveredbythiswarranty,pleasecontacttheCompany’scustomerservicedepartment
from the company or division where you purchased the product for assistance. In the event of a defect in material or
workmanshipduringthewarrantyperiod,theCompanywillrepairorreplace(atitsowndiscretion)itsproductsunder
the conditions of the warranty.
AcompletelistoftheCompany’sbrandsandtheirwarrantyservicecontactinformationcanbefoundattheendthe
warranty.
RETURN OF DEFECTIVE PRODUCT:
AftercontactingthepropercompanyordivisionandreceivingtheRMA#,thepurchaser/usershallpromptlyreturnthe
productafterreceivinginstructionsregardingif,whenandwheretoshipproduct.Productmustbereturnedwithin30
daysofreceivingRMA#.ShippingboxmustbeclearlymarkedwithRMA#.Failuretofollowthisprocedureshallvoidthis
warranty.Thecompanywillcoverexpensesformaterialbutwillnotcovershippingcosts.Productsreturnedwithoutan
RMA#willberefusedandreturnedtosenderatthesendersexpense.
REPLACEMENTOFPRODUCT,LIMITSOFLIABILITY:
TheforegoingshallconstitutetheexclusiveremedyofthepurchaserandthesoleliabilityofNextStepProductsLLC
and its wholly-owned subsidiaries and divisions regarding its products and component warranty. NO WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS MADE OR IS TO BE IMPLIED. In no event shall
NextStepProductsLLCoritswholly-ownedsubsidiariesordivisionsbeliableforanyothercostsordamagesincluding
laborcharges,lostprofits orrevenues,incidental,specialorconsequentialdamages.TheCompanyreservestheright
toexamineallfailedproductsandcomponentstodeterminethecauseoffailureandpatternsofusageandreserves
theright to be the sole judge as to whether any product or component is defective and covered under this warranty.
THIS WARRANTY IS ONLY TO THE ORIGNAL PURCHASER OF PRODUCT AND DOES NOT TRANSFER.
October1, 2013
A Division of Next Step Products
9400SOUTHRIDGEPARKCOURTSUITE200 ORLANDO,FLORIDA32819USA
Tel:407.855.5630Fax:407.210.8679nextstepproduct.com
This manual suits for next models
13
Table of contents
