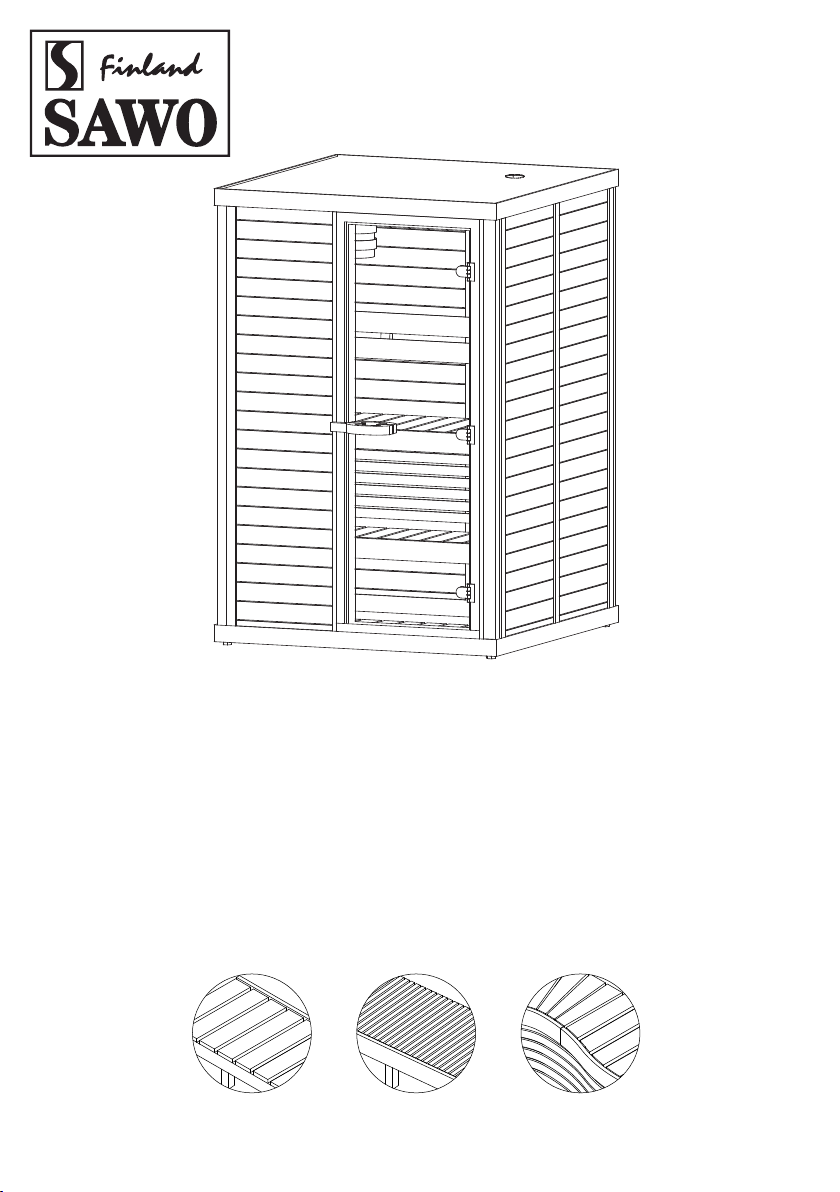

Sawo A Generic User manual

Version: 1.5 Note: Above images are for illustrative reference only and may differ from actual item.
A Generic
Sauna Room
Assembly
Manual
Classic Bench Piano Bench Wave Bench

2
TABLE OF CONTENT
NOTE!
Warranty is not covering damages
which are caused by installing, using or
maintenance of contrary guidelines in
this manual. Contact for your retailer in
warranty questions.
Parts List Exterior and Interior.........................................................3
Parts List Interior (L-type Bench) .....................................................4
Parts List Interior (Wave-type Bench)...............................................5
Screws for Room Exterior and Interior .............................................6
Wall Assembly ...............................................................................7
Ceiling Assembly ............................................................................9
Moulding Installation Sequence ..................................................... 10
Interior Furnishes Assembly .......................................................... 12
Interior Furnishes Assembly (Bench Support) ................................. 14
Interior Furnishes (Bench Covers).................................................. 15
Electrical Layout........................................................................... 16
Sauna Maintenance ...................................................................... 18

3
Note: Above images are for illustrative reference only and may differ from actual item.
1
2
2
3
4
5
6
8
7
3
3
3
1
2
3
7
4
5
6
7
8
10
11
12
9

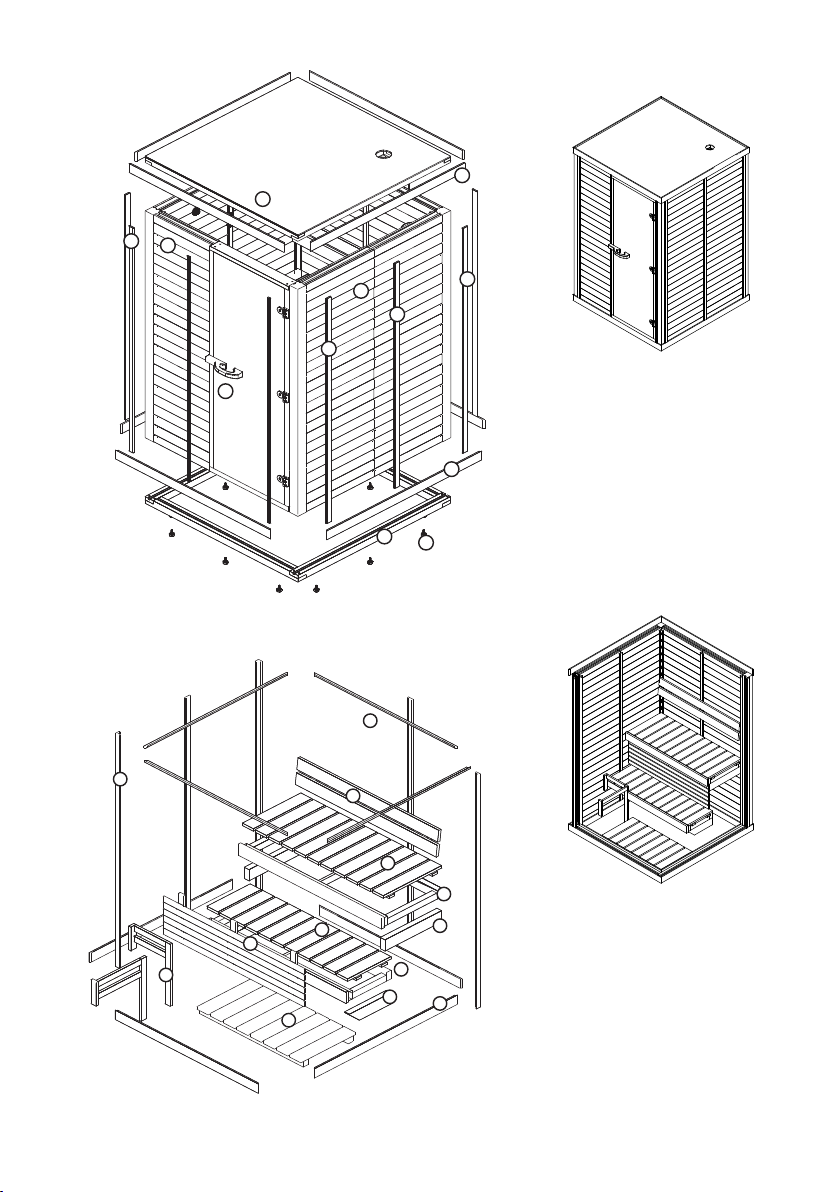

Parts List Exterior
Parts List Interior
1. Ceiling Assembly
2. Wall Elements
3. Exterior Mouldings
4. Top Exterior Mouldings
5. Bottom Exterior Mouldings
6. Main Base Frame
7. ABS Bolt Leveler
8. Door Set
1. Back Rest
2. Top Bench Cover
3. Top Bench Frame
4. Bench Siding
5. Lower Bench Cover
6. Lower Bench Frame
7. Bench Supports
8. Flooring
9. Collapsible heater guard
10. Internal Mouldings
11. Internal Top Mouldings
12. Internal Bottom Horizontal Mouldings

4Note: Above images are for illustrative reference only and may differ from actual item.
1
2
34
5
5
5
66
77
5
3
33
4
4
4
21
6
7
1. Upper Bench Cover 1A
2. Upper Bench Cover 1B
3. Upper Bench Frame 1A
4. Upper Bench Frame 1B
5. Diagonal Support
6. Bench Siding
7. Upper Bench Support
1. Lower Bench Cover 2A
2. Lower Bench Cover 2B
3. Lower Bench Support Frame 2A
4. Lower Bench Support Frame 2B
5. Collapsible Heater guard
6. Sauna Flooring
7. T-Support
(L-type Lower Bench)
Parts List Interior (L-type Bench)
*For larger sauna room.
Diagonal Support
T-Support
Classic Bench Piano Bench

5
Note: Above images are for illustrative reference only and may differ from actual item.
1
4
2
3
5
6
6
7
8
3
1
2
3
4
4
4
5
6
7
7
8

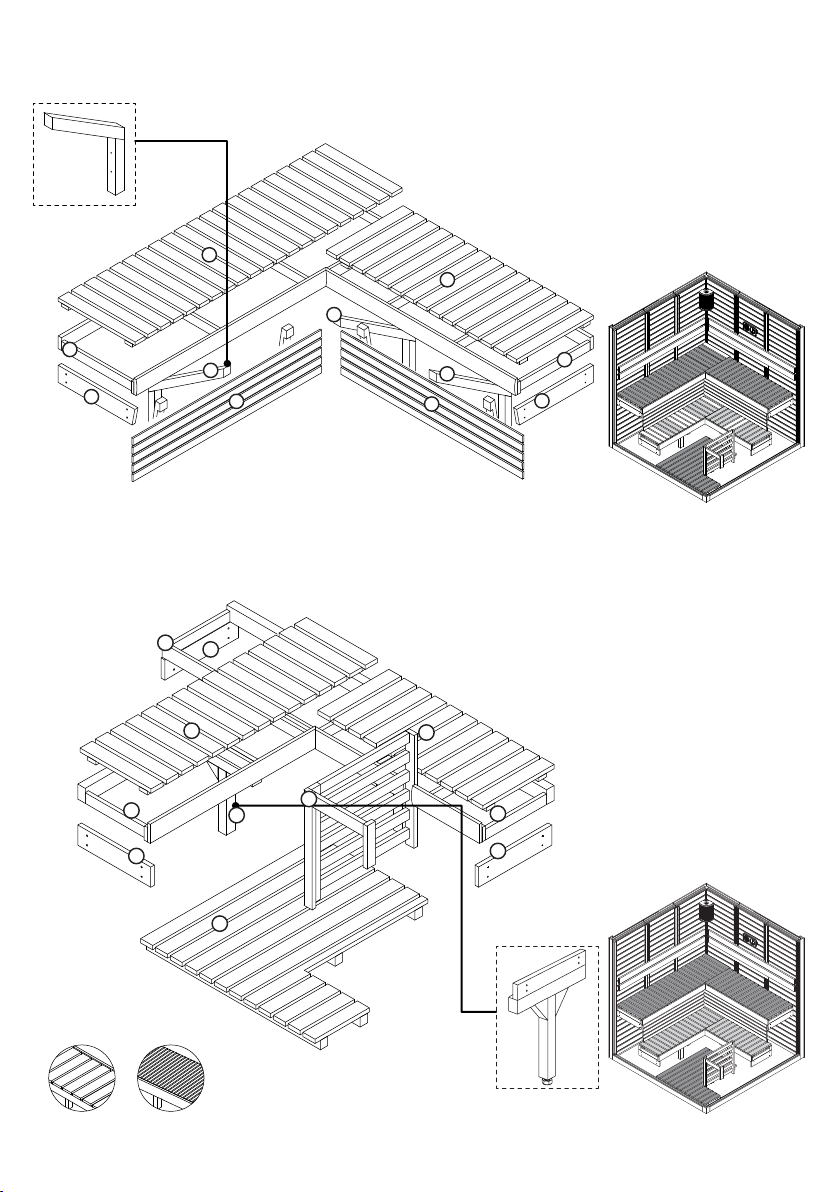

Parts List Interior (Wave-type Bench)
*For room with wave design benches.
Parts List Interior (L-type Wave Bench)
*For room with larger wave design benches.
1. Upper Bench Cover
2. Upper Bench Frame
3. Upper Bench Support
4. Lower Bench Cover
5. Lower Bench Frame
6. Lower Bench Support
7. Bench Siding
8. Collapsible heater guard
1. Back Rest
2. Upper Bench Cover
3. Upper Bench Frame
4. Upper Bench Support
5. Lower Bench Cover
6. Lower Bench Frame
7. Lower Bench Support
8. Bench Siding

6Note: Above images are for illustrative reference only and may differ from actual item.
6RM08-027 /
6RM08-919
Door Jamb
Vertical Moulding
42mm thick
Vertical Moulding Small
22mm thick
Horizontal Moulding
75mm wide
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 / 6RM08-109 /
6RM08-951
568
Screw Cap Door Jamb
ABS Bolt Leveler
Twist to adjust
height
6RM08-032 / 6RM08-921
Bench Siding
6RM08-125 / 6RM08-923
Upper and Lower Bench Frame
6RM08-125 / 6RM08-923
Upper and Lower Bench Support
6RM08-032 / 6RM08-921
Heater Guard
6RM08-036 / 6RM08-920
Back Rest
4SRC5-002
Screw Cap for Back Rest
Corner Moulding
Vertical Moulding
42mm thick
6RM17-002
Cam Lock Bolt
Screws for Room Exterior
Screws for Room Interior

7
Note: Above images are for illustrative reference only and may differ from actual item.
1
23
4
FitFit
Use Leveler to make the
frame leveled.
Optional.
After the base frame is leveled, t in the ceiling
assembly on the base frames to check if it ts nicely
and leveled (great help after wall assembly).
Do not seal the gap underneath the base frame. The gap is the
passage way of the fresh air inside the sauna room.
Make sure the nish ooring where the sauna room will be placed is
water proof with incline oor towards the drain.
Twist ABS BOLT to adjust
height.

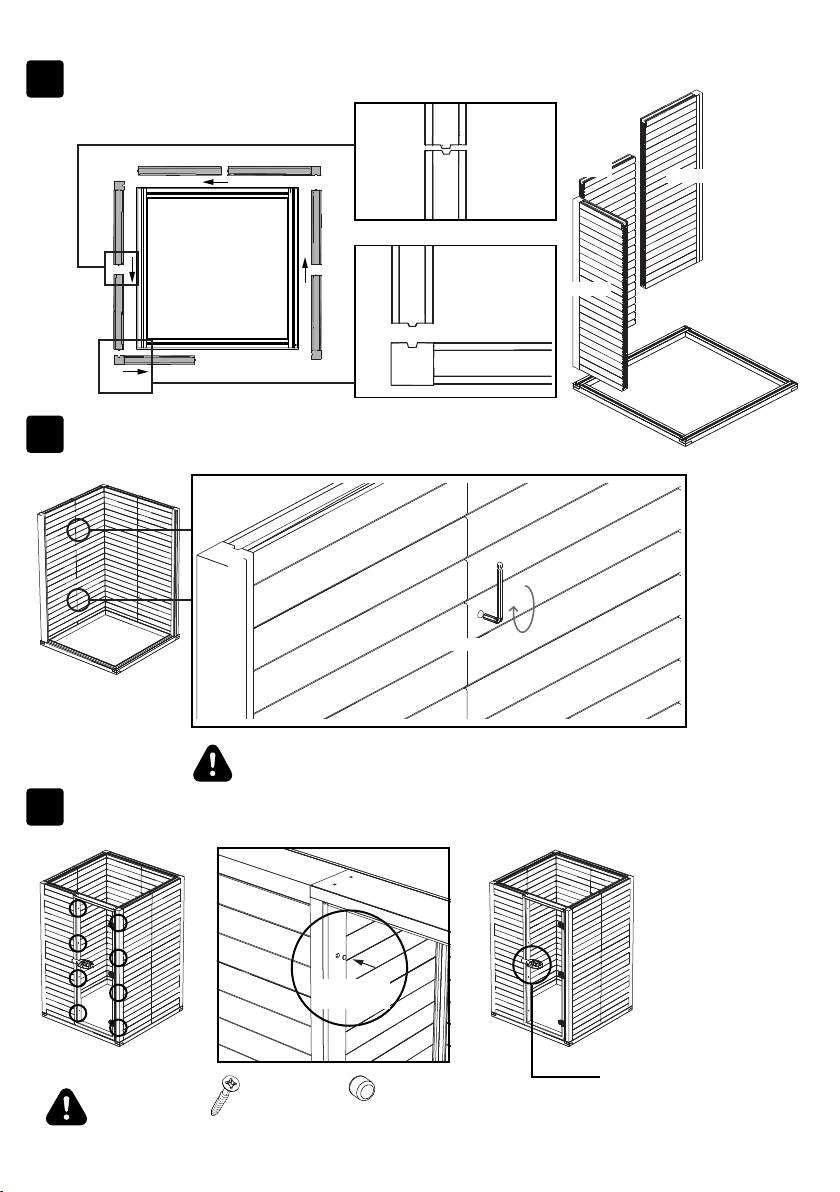

Wall Assembly
Insert cam lock bolts on wall panels.
Cam Lock Open
Side View
Cam Lock Close
6RM17-002
Cam Lock Bolt
For big sauna room base
frame connection.
No. 1 is underneath the
door and numbers increase
clockwise.
Connect base frames according to their corresponding numbers.
01
02
Make sure cam lock
is in open position
Cam Lock Bolt

8Note: Above images are for illustrative reference only and may differ from actual item.
Wall1
Wall2
Wall3
Wall 4 Wall5
Wall6
Wall7
Wall 1
Wall 2 Wall 3
Screw Cap
for door jamb
Wall Assembly
Attach wall panels according to their label. Take note of the grooves direction
(arrow direction).
Secure walls with cam locks.
04
Secure door jamb with screws then cover with screw caps.
05
Before moving on to securing the next wall element, make sure that both cam locks
are properly secured.
See door handle manual
Isometric View
Plan View
Tongue and Groove
Secure jamb from
both sides
03
Allen Wrench
6RM08-027 /
6RM08-919
Door Jamb Screw
568
Screw Cap Door Jamb

9
Note: Above images are for illustrative reference only and may differ from actual item.
Attach ceiling assembly via tongue to
Groove.
06

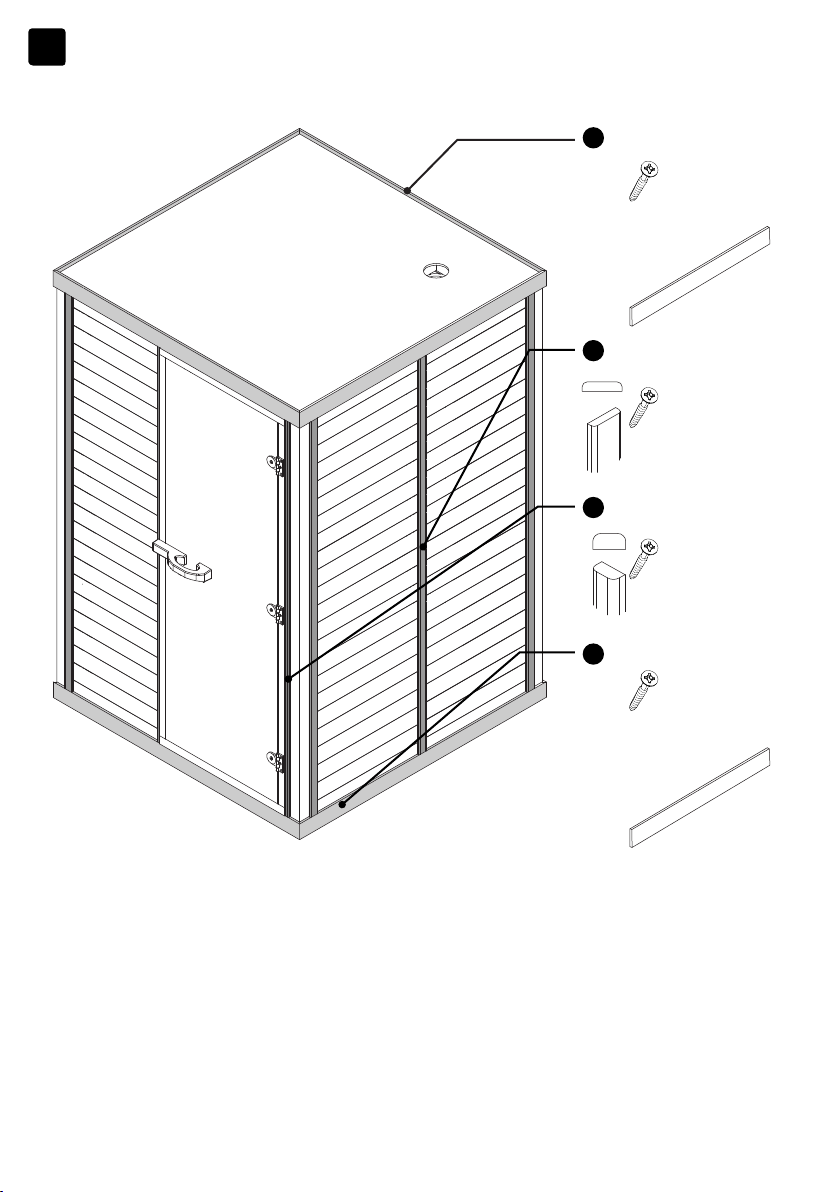

Attach all mouldings in sequence. (External, internal, top and bottom).
07
Check that the
ventilation hole
is in the right
position (refer
to plan drawing
for ventilation
location).
At this stage make sure all internal mouldings are attached as it will
be hard to do once the benches are installed.
*Ceiling assembly for big sauna room
(more than 1 ceiling)
Ceiling to ceiling connection side view
Interior ceiling moulding
Ceiling Assembly
Vertical Moulding
42mm thick
Vertical Moulding
Small 22mm thick
Vertical Moulding
42mm thick
Horizontal Moulding
75mm wide
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951

10 Note: Above images are for illustrative reference only and may differ from actual item.
Moulding Installation Sequence
From the inside, follow the sequence below.
7.1
Internal top mouldings
Internal horizontal bottom
mouldings
Internal corner mouldings
Internal wall mouldings
Internal Top Moulding
Corner Moulding
Vertical Moulding
42mm thick
Horizontal Moulding
75mm thick
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
1
2
3
4

11
Note: Above images are for illustrative reference only and may differ from actual item.
From the outside, follow the illustration sequence below.
7.2
Vertical Moulding
Vertical Moulding Small
Horizontal Moulding
Horizontal Moulding
1
2
3
4
Vertical Moulding
42mm thick
Horizontal Moulding
75mm thick
Horizontal Moulding
75mm thick
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
6RM08-123 /
6RM08-109 /
6RM08-951
Vertical Moulding Small
22mm thick
6RM08-123 /
6RM08-109 /
6RM08-951

12 Note: Above images are for illustrative reference only and may differ from actual item.
810
360

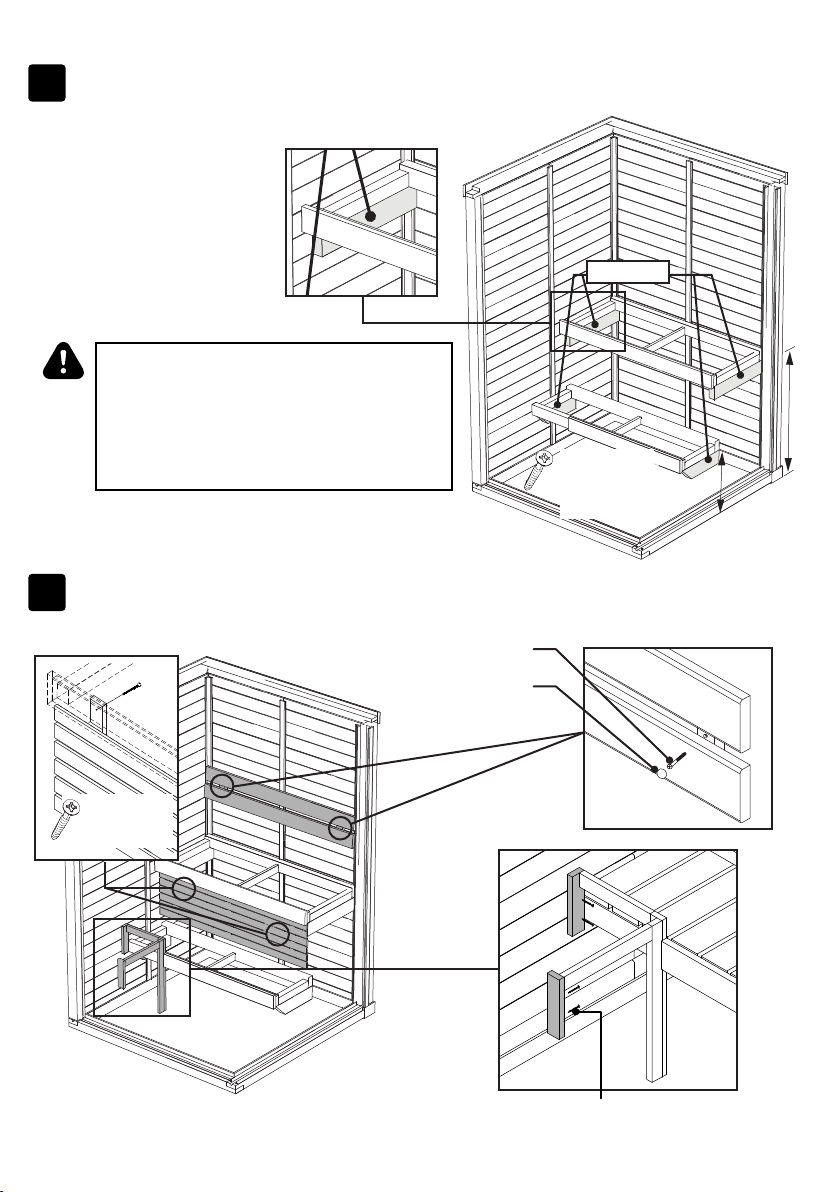

Bench Support
Interior Furnishes Assembly
Attach bench support at suggested height with screws, then place over the bench
frame assembly and screw to wall.
Attach heater guard, back rest and bench siding.
09
Screw Cap
• If using wall mounted heater, make sure to install the
mounting plates before installing the heater guard.
• Height dimensions should be taken in reference to the base
frame. There are markers as well on the wall panels as
reference for bench support mounting.
• Bench supports at each end of the bench should be installed
as close to the back wall as possible or it will collide with the
bench siding when it is installed.
08
6RM08-032 / 6RM08-921
Screw
6RM08-032 /
6RM08-921
Bench Siding
6RM08-036 / 6RM08-920
Screw
6RM08-125 /
6RM08-923
Upper and Lower
Bench Support

13
Note: Above images are for illustrative reference only and may differ from actual item.
Classic Bench Piano Bench Wave Bench
Attach top/lower bench covers and ooring.
10
On large sauna rooms, the ooring needs to be
placed rst as it will be hard to place inside once the
bench supports are installed.

14 Note: Above images are for illustrative reference only and may differ from actual item.
810
360
900
450
Interior Furnishes Assembly (Bench Support)
Diagonal Support installation
T-Support
For Lower Bench
Support.
Attach bench support at suggested height.
Upper and lower bench heights.
Bench Supports
Diagonal Support
for upper bench
support
*For big sauna rooms
Adjust the ABS bolt to good
height after installing the
T-support.
Diagonal supports should
be installed so that they are
ushed with the bench frame.
6RM08-125 /
6RM08-923
Diagonal Support
6RM08-125 /
6RM08-923
Diagonal Support
6RM08-125 /
6RM08-923
Upper and Lower Bench
Support
6RM08-032 /
6RM08-921
T-Support

15
Note: Above images are for illustrative reference only and may differ from actual item.
Interior Furnishes (Bench Covers)
Attach upper and lower bench covers, then proceed with the heater guard. Lastly attached
the ooring.
Upper Bench
Lower Bench
Collapsible
heater guard
Flooring
*For big sauna rooms
Classic Bench Piano Bench Wave Bench
6RM08-032 /
6RM08-921
Heater Guard
6RM08-032 /
6RM08-921
Heater Guard

16 Note: Above images are for illustrative reference only and may differ from actual item.
Heater
& Sensor
A
C
B
Junction Box
Ventilation
Sauna Light
Conduit
Conduit
Conduit
1500
Power
Controller
Electrical Layout
Electrical/Wiring locations.
11
Separate Control Installation
(NS model heaters only)
A conduit pipe is provided for the control
unit.
If wanting to ush the control unit into the
wall, cut a hole according to your control
unit’s specications. See heater control
manual.
You can hide the power controller on the
top of the sauna room.
Control unit must not be
ushed to the wall, near or on
the wall where the heater is
installed. Use control unit inter-
face holder if necessary.
Refer to heater control
instruction manual for wiring
connections.
Conduit to control unit
Conduit location
Control
12
Electrical Conduit Locations:
A. For heater and regulating sensor.
B. For sauna light switch and heater control.
C. For sauna light.
Wire Installation:
1. Install junction / utility box /power controller into the
ceiling roof as indicated.
2. Insert wires into the electrical conduit designated for
thesauna light switch (for NB heaters) or sauna control
unit (for NS heaters).
3. Insert wires into the electrical conduit designated for
theheater (see technical detail).Extra wire jacket is
provided for hooking up single wires to the heater.
Disregard the extra wire jacket if you are using a rubber
cable that is specied in the heater’s manual.
4. Tapping of wires will be done at the junction box.

17
Note: Above images are for illustrative reference only and may differ from actual item.
The wall has a pre-drilled hole(s) for the lights. Insert
wire(s) to the conduit(s) provided for the lights.
When ordering sauna room with NB heater, a dimmer
switch is provided for the light(s).
When using NS heater, refer to the heater control
instruction manual for the light installation.
Note: Sensor installation is for Separate control
heater models only.
A pre-drilled hole for the sensor is provided for separate
control heaters.
Sensor is placed directly above the heater. Refer to
the heater control instruction manual for the sensor
installation.
Sensor Installation
13
Light Installation
14

18
Sauna Maintenance
AFTER EVERY SAUNA SESSION:
9It is recommended to use bench towels during sauna session to prevent sauna
benches getting dirty.
9After sauna session, leave heater on for 30 minutes so sauna will dry faster. After
that, open air vents or sauna door.
9Empty pail from water.
AT LEAST 1 -4 TIMES PER YEAR:
9Wash sauna surfaces with warm water and multi-purpose detergent. Use soft brush.
Wash sauna benches, ceiling, oor and walls. Do not use detergent which includes
ammonia or chlorine. Rinse surfaces with cold water and ventilate sauna room
well. If needed, protect wood surfaces with wood treatment oil. Read carefully the
instructions of wood treatment oil from product packaging.
9If sauna benches are not getting clean after washing, sand the benches with
sandpaper. Protect benches with wood oil. Do not heat the sauna room straight after
treatment.
9If there is calcium stains or other dirt on the heater cover, clean it with mild soap
water. You can also use SAWO Decalcifying solution for washing the stains. Dry after
wash.
9Clean glass surfaces with window cleaning agent or dish soap. Rinse well and dry
with a squeegee or a dry cloth.
9Check screws (door, sauna benches, railings). Tighten up if necessary.
9Clean the oor drain.

www.sawo.com | inf[email protected]
Subject to change without notice.
SaunaRoom_GenericManual_En0221
