SAWTOOTH ST-DCP-61 User manual

Operating Instructions
ST-DCP-61
61-Key Multifunctional Performance
LED Display Electrical Piano

Caution
Be sure to follow the below warnings to avoid hurting yourself or others and to avoid
damage to the equipment.
Warning:
------------------------------------------------------------
• Do not disassemble or modify this instrument. Otherwise, Electric shock, burns, or
other harm may be incurred. For all internal inspections and repair, be sure to take
this unit to a qualified professional.
• If any wear or damage occurs to the power cord or plug, or you experience any
power failures, or you smell an unusual odor, you should immediately turn off the
power, remove the plug, and contact your local technician.
• Before cleaning your electric keyboard, be sure to power off and unplug the power
cord. Do not operate with wet hands and do not wipe and clean the piano with a
corrosive solvent.
• Do not mount the electrical piano on a mobile stand, slanted, or otherwise unstable
surface. Otherwise, the piano may fall causing damage to the piano or harm to the
user. Be sure to secure the electric piano to the stand with the provided screws.
• Keep the electric piano from rain, wet places, or areas of high humidity. Do not place
the following items on the electric piano:
o Containers full of water or other liquids.
o Small Metal Objects that can fall into the piano, such as hairpins, sewing
needles, coins.
o Open flames.
Caution
-------------------------------------------
• Avoid placing the piano in the following places to prevent the surface and internal
components of the piano from damage:
o Places of high humidity and dust
o The kitchen or any other place with fumes.
o In places of direct sunlight or anywhere else that may cause the instrument
to become too hot.
o Near other electronic appliances, such as the TV, radio, speakers, etc. To
avoid electrical noise disturbances.
• Do not place heavy items on the piano and do not press any buttons or keys too
hard.

• When not using the piano for long periods, please remove the plug. When removing
the plug, be sure to pull it out by the plug and not the wires.
• Be sure to follow all instructions when installing the rack. Make sure to fasten all
screws and fasteners.
• When moving the electric piano, lift with at least two people. If you try to move the
piano on your own, you may strain yourself or cause damage to the piano.
• Be sure to regularly check that screws remain fastened.
• Do not place power cord near high sources of heat. Avoid over wrapping the power
cord. Do not place anything heavy on power cord, and do not place the power cord
where people walk.
• Do not play music too loudly for extended periods of time. Be careful with
headphones, as loud music will hurt your ears.

Table of Contents
Panel control and external function-----------------------------------------------------1
1、 Panel control-----------------------------------------------------------------------------1
2、 External function------------------------------------------------------------------------1
Preparation before performance---------------------------------------------------------1
1、 Power switch connect-------------------------------------------------------------------1
External function------------------------------------------------------------------------------2
1、 Pedal Sustain-----------------------------------------------------------------------------2
2、 Use of Headphone-----------------------------------------------------------------------2
3、 Connection with Amplifier of Hi-Fi Equipment--------------------------------------2
Basic Operation------------------------------------------------------------------------------2
1、 Turn on power switch ------------------------------------------------------------------2
2、 Adjustment of Master Volume---------------------------------------------------------3
Voice----------------------------------------------------------------------------------------------3
1、 Voice Selection---------------------------------------------------------------------------3
Effect & Control--------------------------------------------------------------------------------3
1、 Touch-------------------------------------------------------------------------------------3
2、 Keyboard Split---------------------------------------------------------------------------3
3、 Dual Voice--------------------------------------------------------------------------------3
4、 Sustain------------------------------------------------------------------------------------3
5、 Vibrato------------------------------------------------------------------------------------4
6、 Metronome-------------------------------------------------------------------------------4
7、 Data wheel------------------------------------------------------------------------------4
Style & style function-----------------------------------------------------------------------4
1、 Selecting style---------------------------------------------------------------------------4
2、 Start/stop--------------------------------------------------------------------------------4
3、 Sync--------------------------------------------------------------------------------------5

4、 Fill-in-------------------------------------------------------------------------------------5
5、 Intro/ending----------------------------------------------------------------------------5
6、 Tempo adjustment---------------------------------------------------------------------5
7、 Accompaniment volume adjustment------------------------------------------------5
8、 Chord Volume Adjustment------------------------------------------------------------5
Chord Function--------------------------------------------------------------------------------6
1、 Single finger-----------------------------------------------------------------------------6
2、 Fingered----------------------------------------------------------------------------------6
3、 Chord close------------------------------------------------------------------------------6
Recording function--------------------------------------------------------------------------6
1、 Record--------------------------------------------------------------------------------6
2、 Play back---------------------------------------------------------------------------------6
Demo song--------------------------------------------------------------7
Guide------------------------------------------------------------------------7
1、 Lesson 1---------------------------------------------------------------------------------7
2、 Lesson 2---------------------------------------------------------------------------------7
Installation of piano body-----------------------------------------------------------------7
Set-up Guide-----------------------------------------------------------------------------------8
Appendix I, Table of Voice------------------------------------------------------------------9
Appendix II, Table of Style---------------------------------------------------------------10
Appendix III, Table of Demo song------------------------------------------------------11
Appendix IV, Trouble shooting----------------------------------------------------------11
Appendix V, Technical specifications--------------------------------------------------12

01 Panel Control and External Function
1. Panel Control
1.Power Switch 7.Recording/Play back
2.Master Volume 8.LED Display screen
3.Start/Stop/Sync/Fill-in/ 9.Style/Tone
/Intro/Ending 10.Touch/Split/Dual/Sustain/Vibrato
4.Accompaniment Volume 11.Demo,Lesson 1,Lesson 2
5.Metronome, tempo 12.Single Finger/Finger Chord/Chord Close
6.Chord Volume 13.Data Wheel
2、External function
①Pedal Sustain ③Headphone output
②110V input ④Line out
Preparation before performance
Power connection
1.First Make sure whether the power switch is in the
OFF position. If not, switch to OFF position.
2.Connect power cord: Insert power cord in power
socket.
★Caution: When you are not using this piano, you
should remove the plug from the power socket to avoid damaging the piano parts or
from the piano being powered on for long periods of time.
Caution
•Be sure power voltage is AC 110V+10%, Too high or low of Voltage will cause
the damage to the electrical piano.
•Do not pull out power cord from power socket when the power is on.

•Fuse replacement shall only be made by qualified person.
02 Preparation before performance
External Function

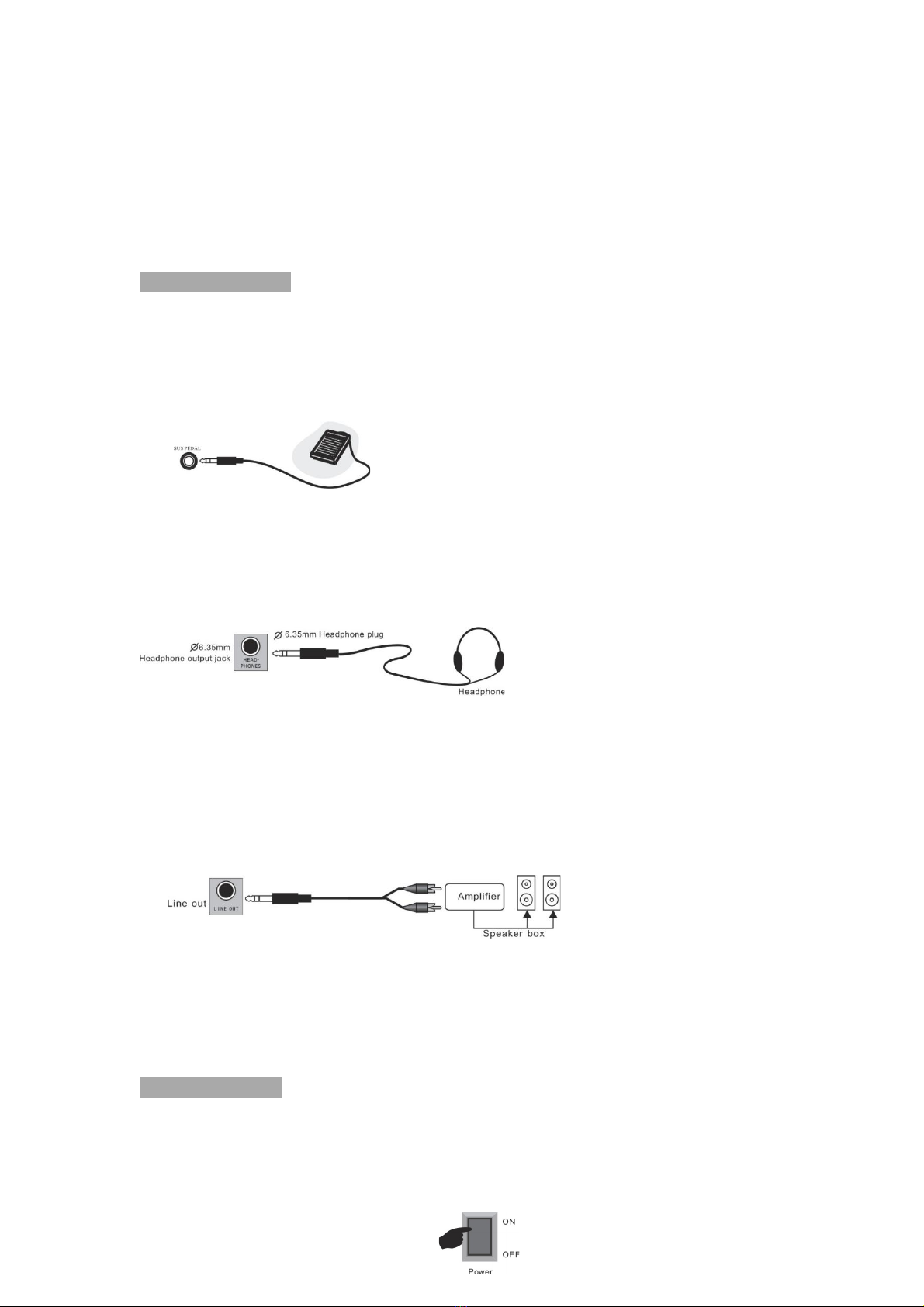

1. Use of Sustain Pedal:
The function of sustain can produce natural sustain by stepping upon sustain
pedal when you perform. Please insert the plug of sustain pedal into SUS PEDAL
jack. You can open/close the sustain function.
2. Use of headphone：
Insert headphone plug into “HEADPHONE” jack in the rear of electrical piano. At
the same time, internal speaker cuts off automatically. It does not interfere with
“Line Out” if you use headphone during performance.
3. Connection with Amplifier or Hi-Fi Equipment：
This electrical piano has built-in speaker system. It can be connected to any
other external amplifier or speaker system. First turn off the power of electrical
piano and external equipment, then insert one end of stereo audio cable into
LINE IN or Aux IN jack of other hi-fi equipment and insert the other end into
LINE OUT jack in rear panel of electronic piano.
Notice: All the above external components are not included with this product.
Basic Operation
III.Basic Operation
1. Turn on power:
Press [POWER] button to turn on power, press it again to turn off power of
electrical piano.

03 Basic Operation

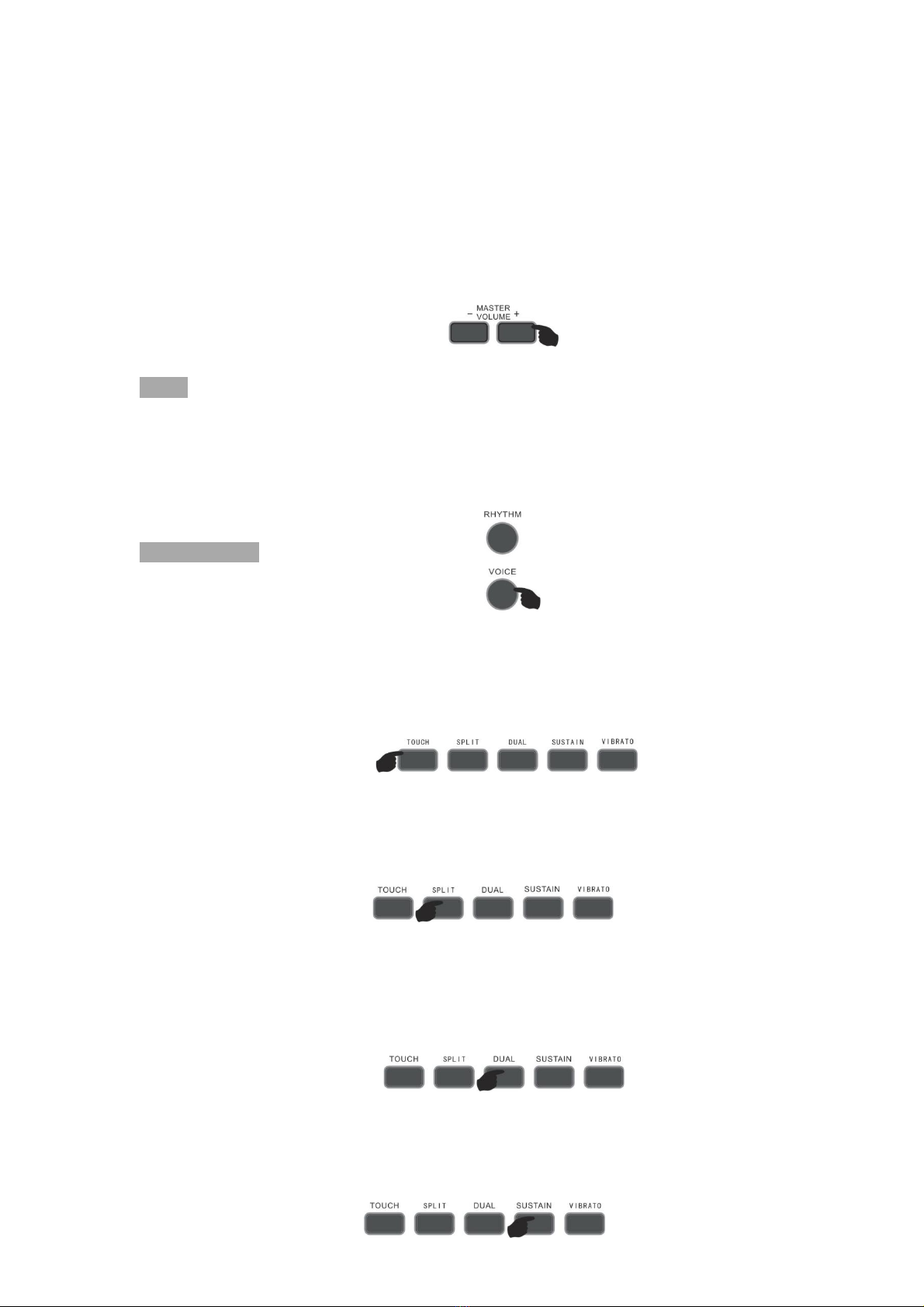

2.Master Volume :
Press [MASTER VOLUME] "+,-"button, To adjust the volume of the piano. You
can also use data wheel rotary button to adjust. The default Volume is 14, When the
electrical piano is open.
VOICE
1.Voice Selection:
Press the voice button to enter into the tone settings use the “Data Wheel” to
cycle through different voice options
Effect & Control
1. Touch:
This electrical piano is touch responsible. When the piano is on, touch
response function starts automatically. When you play keys with different velocity,
the electrical piano will play different volumes. Press [TOUCH] button, the touch
function exits and keyboard touch was canceled. Press [TOUCH] button once
again to restart touch function.
2. KEYBOARD SPLIT:
Press [SPLIT] button, from the left 24th key, the keyboard Forms left and right
two tone keyboards. In ’voice’ mode, use data wheel button to adjust voice for
the right key zone.
3. Dual Voice:
Under normal status, press [DUAL] button to enter the mode of “dual voice.”
Namely each note is composed of two voices. The first voice is the voice before you
pressed dual voice button, and the second voice is the selected voice after pressed
dual voice button.
4. Sustain:
Press [SUSTAIN] button to start sustain function. It will produce prolonged effect
if you play with B/W keys at the same time. Press [SUSTAIN] button once again to
exit the function.

04 Basic Operation
5. Vibrato:
Press [VIBRATO] button to start vibrato function. It will produce the aquiver
effect tone if you play with B/W keys at the same time. Press [VIBRATO] button
again to exit the function.
6. Metronome
Press [METRONOME] button, the tick-tock beat sound will occur. There are four
kinds of beats that can be chosen. Press this button again, to cycle through the
kind of beats. The LED has the relative display. Press [START/STOP] button to
exit this function.
7. Data Wheel:
The Data wheel can adjust your own favorite voice or style conveniently during
performance, the LED has the relative display when the Data wheel was rotated
as to you can choose the voice or style you want. Users also can adjust the
volume (Press the volume button firstly, rotate the data wheel, the LED has the
relative display)
Style & Style Function
1. Selecting Style:
This electrical piano has 128 kinds of style for your choice. For style table,
please refer to detailed Appendix. Press [STYLE] button to enter Style selection
function. LED displays current style number. To select style 001-128, Use data
wheel to choose.
2. Start/Stop:
In default status when the piano is open, press the[START/STOP]button to play
STYLE. Press [START/STOP]button again, It can exit other functions.

05 Basic Operation

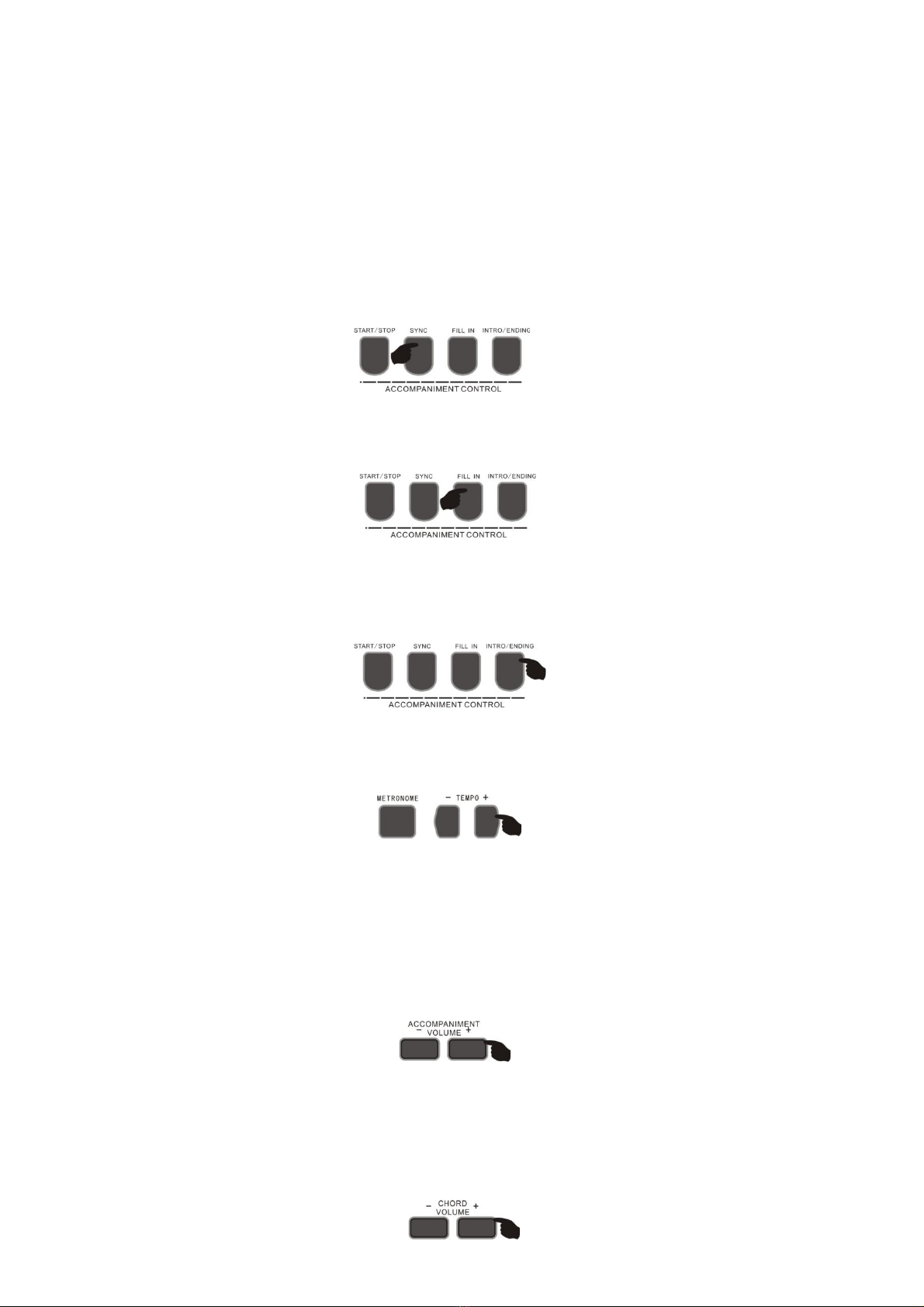

3. Sync Function：
Press [SYNC] button to start sync accompaniment function and press any key of
19 keys in left hand to start style synchronously. If chord function is started,
press relevant key of 19 keys in chord area to start auto chord synchronously. If
a style is being played. Press [SYNC] button to stop style and start sync
accompaniment function. If sync function has been started, press [SYNC] button
to exit sync function.
4. Fill-lN：
Press [FILL-IN] button to insert a intermezzo during style playing as to enhance
the performance effect, then play based on the original style.
5. Intro/Ending:
When you press [INTRO/ENDING] button, an intro will be played, and then it
continues to play after restored to the normal style, when you press
[INTRO/ENDING] button during style playback, the style playback will be finished
after an ending is played.
6. Tempo Adjustment:
Press [Tempo] +/- buttons, it can adjust the playing tempo of “style”,
“metronome”, and “demo song.” the adjustment range is 30-240 bpm. The
default setting is “120” after the power is on.
7. Accompaniment volume adjustment:
The default Accompaniment Vol is 16, you can adjust Accompaniment Vol by
pressing [Accompaniment]+ or - button. The LED has the relative display when
you adjust. The system will restore the default Accompaniment Vol automatically
if you press the Accompaniment Vol+/- button at the same time. The default
settings is 16 after the power is on.
8. Chord Volume Adjustment:
The default Chord Vol is 16, you can adjust Chord Vol by pressing [CHORD
VOL]+ or- button. The LED has the relative display when you adjust. The system will
restore the default Chord Vol automatically if you press the [CHORD VOL] +/-
button at the same time. The default settings are 16 after the power is on.

06 Basic Operation
Chord Accompaniment
1. Single Finger:
When style is started, press [SINGLE FINGER] button to enter the function of
single finger auto chord. Now in chord area 1~19, keys, apply different fingerings
to hear different chord/Accompaniments. Press [START/STOP] button to exit this
function.
2. Fingered:
When style is started, press [FINGER CHORD] button to enter the function of
finger auto bass chord. Now in chord area 1-19, keys apply different fingerings to
hear different chord accompaniments. Press [START/STOP] button to exit this
function.
3. Chord Clear:
Under chord state, press [CHORD CLEAR] button to stop chord accompaniment
while style plays continuously.
Recording Function
1.Press [RECORD] button to enter record model. You can hear metronome sound
and the default settings tempo is 120. Now press any button or drum key to start
recording. The maximum recording time is 180 seconds. When the maximum
recordings storage is full, the metronome will stop and recording cannot continue
every time you press [Record]. The previous recording will be overwritten
2.Press [PLAY] button to begin playing records.

07 Basic Operation
Demo song playing:
Press [DEMO] button to play song. Press this button again, It will play the next song.
(Please refer the 11th page DEMO Appendix). Press [START/STOP] button, the Demo
song play will stop.
Intelligent guide:
1. Lesson-1:When you press any button for learning, no matter whether the
performance is right or wrong. It will produce the correct melody notes, and
repeats its performance that is one button one note model.
2. Lesson-2:the master volume will be closed over when you play the piano key and
follow the Piano key notes. The master volume will recover the song performance
of playing the piano key if you don't play the piano key for 3 seconds
Press [GUIDE] button to enter guide model and press white keys to choose different
songs. Press this button again, exits guide function. The current voice can be
changed if you press voice button and adjust the data wheel in the course of playing.
Installation of piano body:
1. As shown in the figure, using 2 pcs M6X50 screws and 2 pcs nuts, to assemble
left foot and left support board then assemble the right foot and right support
board. A total of 4 pcs M6X50 screws and 4 pcs nuts will be used totally in this
step.
2. As shown in the figure, using 4 pcs M6X50 screws and 4 pcs nuts to connect and
fix the left and right support legs to the middle support board.
3. As shown in the figure, mount the angle irons to the support legs using 12pcs
4x12 screws in the predrilled location.
4. Place piano body on angle irons and mount using 4 pcs m6x20 screws

08 Set-up Guide
Parts:

09 Appendix I. table of Tone
NO.
Name of
Voice
NO.
Name of
Voice
NO.
Name of
Voice
NO.
Name of
Voice
01
Acoustic
Grand Piano
35
Electric Bass
(Pick)
69
Oboe
103
FX
7(echoes)
02
Bright
Acoustic
Piano
36
Fretless Bass
70
English
Horn
104
FX 8(sci-fi)
03
Electric Piano
37
Slap Bass 1
71
Bassoon
105
Sitar
04
Honky-tony
Piano
38
Slap Bass 2
72
Clarinet
106
Banjo
05
Rhodes Piano
39
Synth Bass 1
73
Piccolo
107
Shamisen
06
Chorused
Piano
40
Synth Bass 2
74
Flute
108
Koto
07
Harpsichord
41
Violin
75
Recorder
109
Kalimba
08
Clavichord
42
Viola
76
Pan Flute
110
Bagpipe
09
Celesta
43
Cello
77
Bottle Blow
111
Fiddle
10
Glockenspiel
44
Contrabass
78
Shakuhachi
112
Shanai
11
Music Box
45
Tremolo
Strings
79
Whistle
113
Tinkle Bell
12
Vibraphone
46
Pizzicato
Strings
80
Ocarina
114
Agogo
13
Marimba
47
Orchestral
Harp
81
Lead
1(square)
115
Steel Drums
14
Xylophone
48
Timpani
82
Lead
2(sawtooth
)
116
Wood Block
15
Tubular Bell
49
String
Ensemble 1
83
Lead
3(calliope)
117
Taiko Drum
16
Dulcimer
50
String
Ensemble 2
84
Lead
4(chiff)
118
Melodic
Tom
17
Drawbar
Organ
51
Synth Strings
1
85
Lead
5(charang)
119
Synth Drum
18
Percussive
Organ
52
Synth Strings
2
86
Lead
6(voice)
120
Reverse
Cymbal
19
Rock Organ
53
Choir Aahs
87
Lead
7(fifths)
121
Guitar Fret
Noise
20
Church
Organ
54
Voice Oohs
88
Lead
8(bass+lea
d)
122
Breath
Noise
21
Reed Org
55
Synth Voice
89
Pad 1(new
age)
123
Sea shore
22
Accordion
56
Orchestra
Hit
90
Pad
2(warm)
124
Bird Tweet
23
Harmonica
57
Trumpet
91
Pad 3(poly
synth)
125
Telephone
Ring
24
Tango
Accodion
58
Trombone
92
Pad
4(choir)
126
Helicopter

25
Acoustic
Guitar(Nylon)
59
Tuba
93
Pad
5(bowed)
127
Applause
26
Acoustic
Guitar(Steel)
60
Muted
Trumpet
94
Pad
6(metallic)
128
Gun shot
27
Electric
Guitar(jazz)
61
French Horn
95
Pad 7(halo)
28
Electric
Guitar(clean)
62
Brass Section
96
Pad
8(sweep)
29
Electric
Guitar(muted
)
63
SynthBrass1
97
FX1(rain)
30
Overdrvien
Guitar
64
SynthBrass2
98
FX2(soundt
rack)
31
Distortion
Guitar
65
Soprano Sax
99
FX3(crystal
)
32
Guitar
Harmonics
66
Alto Sax
100
FX4(atmos
phere)
33
Acoustic Bass
67
Tenor Sax
101
FX5(brightn
ess)
34
Electric
Bass(finger)
68
Baritone Sax
102
FX6(goblins
)

10 Appendix II. Table of Style
NO
.
Name of Style
NO
.
Name of
Style
NO
.
Name of
Style
NO.
Name of
Style
01
Club Pop
35
Pop Waltz
69
Calypso
103
Disco Party
02
16 Beat Pop
36
USA March
70
Guad Dance
104
Disco Samba
03
8 Beat Pop
37
Hully Gully
71
Reggae 12
Beat
105
UK Pop
04
8 Beat Soul
38
Tarantella
72
Reggae 16
Beat
106
Club Dance
05
8 Beat Rock
39
Limbo Rock
73
Slow Rock 1
107
Modern R &
B
06
Rap Pop
40
Swing Waltz
74
Slow Rock 2
108
Hip Shuffle
07
Pop Rock
41
Pub Piano
75
Slow Rock 3
109
Charleston
08
60’s Soul
42
Jazz Waltz 1
76
Slow Soul
110
Disco Pop
09
70’s Soul
43
Jazz Waltz 2
77
8 Beat Adria
111
Disco Soul
10
Funk
44
Show Tune
78
Classic Piano
112
Disco Trot
11
16 Beat Shuffle
45
Polka
79
Unplugged
113
Euro Beat
12
Twist
46
Waltz
80
Pop Ballad
114
Rap
13
British Pop
47
Cha Cha
81
Pop New Age
115
Rave
14
Hard Rock
48
Rumba
82
8 Beat
Modern
116
Big Band
Shuffle 1
15
Fusion
49
Jive
83
Country
Ballad
117
Big Band
Shuffle 2
16
Funk Shuffle
50
Pasodoble
84
Love Song
118
Big Band
Shuffle 3
17
Fusion Shuffle
51
Samba 1
85
Modern
Country Pop
119
Fast Band 1
18
Rock’n Roll 1
52
Samba 2
86
Electro Pop
120
Fast Band 2
19
Rock’n Roll 2
53
Schlager
Rock 1
87
Acoustic
Ballad
121
Cat Groove
20
Straight Rock
54
Schlager
Rock 2
88
Piano Ballad
122
Dixie Jazz
21
Jazz Rock
55
Fox Trot
89
R & B Ballad
123
Medium Jazz
22
Fast Gospel
56
Viennese
Waltz
90
Rock Ballad
124
Jazz Big Band
23
Folk Rock
57
Tango 1
91
Slow & Easy
125
Jazz Club
24
Rock Billy
58
Tango 2
92
Analog Ballad
126
Ragtime
25
Rock Boogie
59
Bossanova
93
E_Ballad
127
Country 1
26
Rock Chacha
60
Mambo 1
94
Techno 1
128
Country 2
27
Rock Classical
61
Mambo 2
95
Techno 2
28
Rock Shuffle
62
Bolero
96
Funky Disco
29
Rock Pop
63
Cumbia
97
Saturday
Night
30
Ober Polka
64
Latin Rock
98
Club Latin
31
Polka Pop
65
Disco Latin
99
Disco
Chocolate
32
Blue Grass
66
Tijuana
100
Disco Fox
33
Blue Grass 2
67
Reggae
101
Disco Funk

34
Blue Grass 3
68
Salsa
102
Disco Hands
11 Appendix III. Table of Demo Song
NO.
Code of song
NO.
Code of song
01
Turkish March
07
The Song Of Season
02
Impromptu
08
Serenade
03
Red River
09
Lieder
04
Oh Susanna
10
Katyusha
05
American Patrol
11
Espano
06
Haw-Tree
12
Mozart Piano Sonata
Appendix IV.Trouble Shooting
Trouble
Possible reason/eliminating method
Accompanying a little noise in turning
ON/OFF power
Normal phenomenon. please do not
worry.
After turning on power, press keyboard
but no sound can be emitted
Check whether volume control key is at
proper position or headphone jack is held
by other equipment to break off built-in
speaker system.
Distorted or discontinued sound, or even
system halted.
Using unqualified AC adapter or low
batteries. Please use the AC adapter
provided with this electronic piano or
replace batteries.
The note and its tone for a same voice
are a little different.
This is normal phenomenon caused by
different voice sampling diapason.
When using Sustain function, some tones
have long sustain but some have short
sustain.
This is normal phenomenon since the
sustain setting of different tones are set
to optimum lengths.
Abnormal in volume or accompaniment
volume
Check whether volume control and
accompaniment volume control are in
proper setting.
In SYNC status, auto accompaniment
does not work.
Check whether Single chord or Finger
chord is set, now pressing a note at left-
hand keyboard area(19 keys in the left of
keyboard)
When using AC adapter, the electronic
piano does not emit sound after start up
and indicating LED does not light up.
Check whether power socket is
energized, AC adapter is well plugged,
poor connection of power socket of
inadequate power voltage.
The pitch of note is not correct.
Check whether the parameter of
Transpose is “00”.
When using mobile phone, the electronic
piano will emit noise.
Mobile phone can disturb the electronic
piano. To avoid the noise, turn off mobile
phone or use it far away.

Appendix V. Technical Specifications 12
■Standard
GB8898-2011、GB13837-2012、GB17625.1-2012
■Display
LED display
■Tone
128 voice
■Style
128 auto accompaniments
■Demo song
12 demo songs
■Effect control
Touch, Split, Dual, Sustain, Vibrato, Metronome, Data wheel
■Recording and program
Record, Play
■Intelligent guide
Lesson 1,Lesson 2
■Accompaniment control
Start/Stop, Sync, Fill-in, Intro/Ending
■chord control
Single finger, Finger chord, Chord clrae
■Other control
Power Switch, Master Volume, Accompaniment Volume ,Tempo, Chord Volume
■External port
Head phone ,Line Out ,Sustain Pedal

■Diapason
C3~C8
■Accuracy in musical tuning
≤3cents
■Specifications
1070X490X265(mm)
■Power
AC230V 50Hz
■Output power
6W×2
■Parts provided with electrical piano
Mounting screw, Instruction
