Saxxon EOS BV-100AHD Series User manual
EOS BV-100AHD Series Color
Camera
Waterproof IR Bullet Day&Night
Color Camera
Specification
Model EOS BV-100AHD
Pick Up Element 1/4"CMOS 1.0 Mega Pixels
Effective Picture
Elements ( H*V ) 1280*720
Horizontal Resolution 720P
Minimum Illumination 0.01Lux@（F1.2，AGC ON），0 Lux with IR
Auto Electronic Shut-
ter
PAL 1/50s-1/50000s
NTSC 1/60s-1/50000s
White balance ATW/AWC-SET/Indoor/Outdoor/MANUAL
Gamma Characteristic 0.45
IR Distance 40 Meters ( with 42 pcs IR led)
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Video Output HD-AHD/CVBS
Defog OFF/AUTO
3DNR OFF/LOW/MID/HIGH
D-WDR OFF/ON(Level 0-8)/Auto
Sens-UP X2-X30
Mirror OFF/Mirror/V-Flip/Rotate
OSD YES( OSD controller at cable)
OSD language 12 kinds(Traditional Simplified English Spanish Portu-
guese Russian German French TUR NEL ITA POL)
Motion Detection 4 areas optional
Power/Current 12VDC(±10%)/ 450mA
Lens 2.8-12 mm
Water Resistance IP66
Storage Temperature -30~ +60℃RH95% Max
Operating Temperature -10~ +50℃RH95% Max
Packing List
No Name Number
Model
1. IR Bullet Day&Night Camera
1
EOS BV-100AHD
2. User Guide 1EOS BV-100AHD
Series
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
INTRODUCTION
Congratulations on your purchase of this product. This
User Guide suits EOS BV-100AHD series prod-
uct. We adopt the latest technical of sensor and driver.
The most attractive characteristics are support HD video
and lossless transmission up to 300meters by common 75
-3 type coaxial cable. In addition, it owns the characters of
high definition and stability, strong anti-jamming, rich and
real color. Fixing and using this model are convenient too.
It is very good for you to apply to yours CCTV system.
Please read this instruction manual carefully to en-
sure proper use of the product.

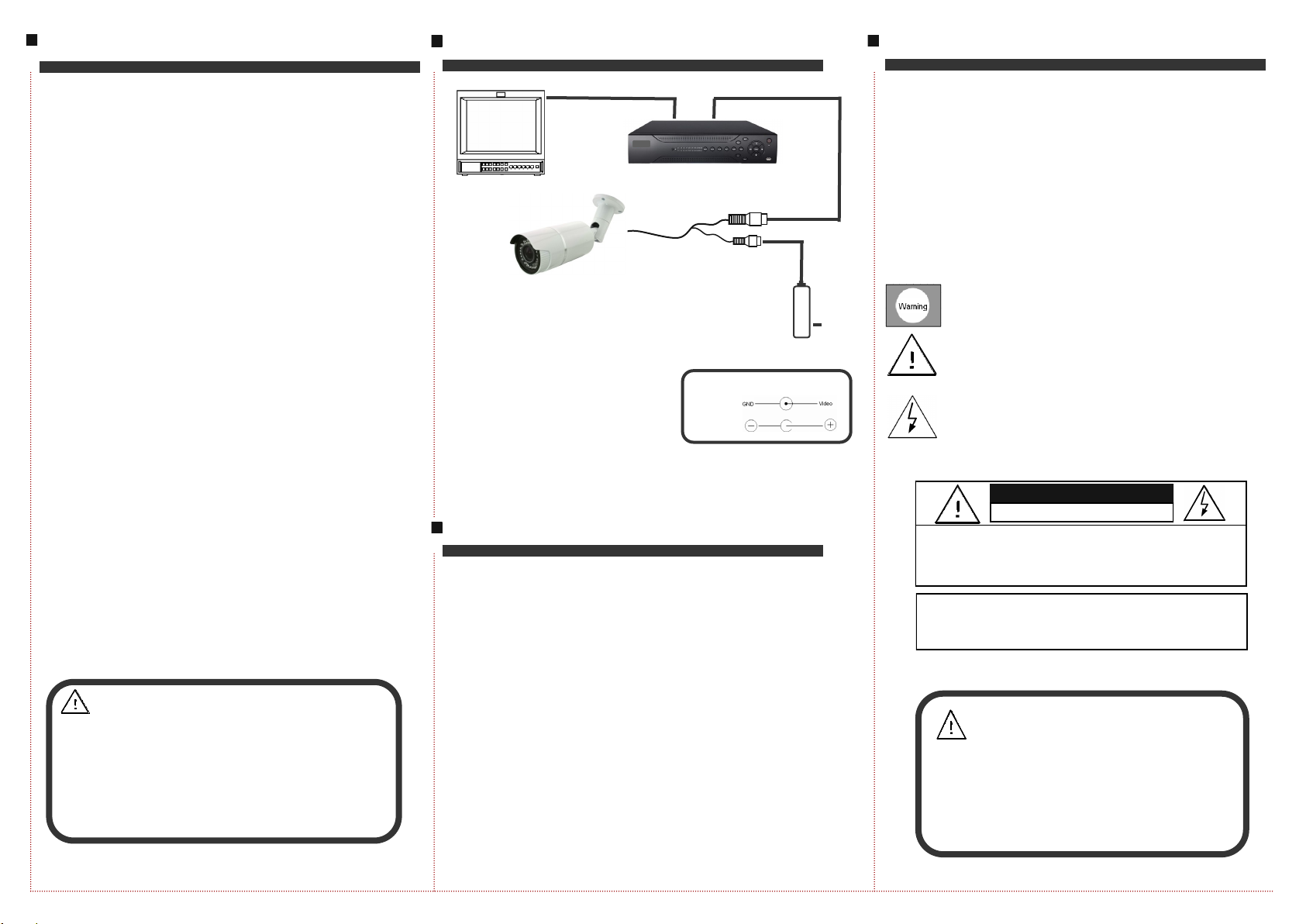

CONNECTING
BRIEF OF PRODUCT
* Sensor
Using high-performance CMOS image sensor, with
millions of pixels resolution.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The color
camera’s AES speed can reach 1/100,000s.
* Gamma Characteristic
Camera Gamma characteristic is 0.45.
* Scanning Mode
NTSC or PAL mode.
* Night-time Vision
0 Lux with IR LED ON. Adopt TaiWan high quality IR
LED, having very good night-vision effect.
TROUBLE AND SOLUTION
Note:
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high
or too low temperatures. The operating temperature is -10℃-
50℃. (Recommendatory operating temperature is -5℃--40℃.)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
into water too long time directly.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to consti-
a risk of electric shock to persons.
Notes：
●The power supply must through safe attestation. Its output voltage、
current、voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BANCK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION:
To prevent electric shocks and risk of fire hazards,
do NOT use other than specified power source.
DC12V Power Supply
Monitor
EOS BV-100AHD
Link wire rule：
Power
Video
Video
12V DC
AHD DVR
