OPERATOR'S MANUAL
29
PARTNO. 03005

OPERATOR'S MANUAL
TABLE OF CONTENTS
SUBJECT PAGE
Introduction...1
Safety/Operating Instructions..1
Assembly Instructions.1
Deck Assembly — 42 & 48.2
Chute Assembly/5BS.3
Counter Balance Assembly.3
Frame Assembly/5BS.4
Engine Mounting/SBS.4
Bucket Support Assembly.5
Illustrated Parts Listing.7-15
A
Hardware Listing.16-19
Warranty.20
30

SCAB
INTRODUCTION
This manual has been prepared to provide the
information you need to correctiy assemble,
operate, and maintain this accessory. Read it
carefully and keep it for future reference. Should
you ever need repair parts or service, contact
your Scag authorized parts and service dealer.
To avoid personal injury, it is imperative that all
safety instructions be observed.
Any references made in this manual to the RH or
LH side are determined with the operator in the
normal operating position.
The replacement of any part on this product by
other than the manufacturer's authorized
replacement part may adversely affect the
performance, durability or safety of this product
and will void the warranty.
The manufacturer reserves the right to make
changes or add improvement to its product at any
time without prior notice or obligation. The
manufacturer also reserves the right to decide,
upon its discretion and at any time, to discontinue
a product.
Scag Power Equipment
SAFETY/OPERATING INSTRUCTIONS
• READ THIS OPERATOR’S MANUAL and
the operator’s manual that is supplied with the
machine this accessory is used on. A
replacement manual is available by contacting
your Scag servicing dealer. The cost for a
replacement manual is $2.00.
• When operating the mower without the grass
catcher attachment, the discharge chute
extension must be installed in the normal, full
down position.
• Never operate your mower without the complete
grass catcher and all guards and covers
installed, or the discharge chute extension
properly installed.
• Before removing grass bucket, disengage
mower, stop engine on both mower and grass
catcher attachment if so equipped and wait for
all movement to stop.
•Always tiim engine off on both mower and
grass catcher if so equipped, remove key and
wait for all movement to stop before servicing,
adjusting mower deck height, or cleaning the
mower.
• Do not modify or alter any component of th
grass catcher attachment.
• Do not allow anyone to ride on the grass catcher
attachment or on the mower.
• Always turn off the engine on both mower and
grass catcher if so equipped, remove the key
and wait for all movement to stop before
removing any debris from the grass catcher
components.
ASSEMBLY INSTRUCTIONS
•Note-
Any instructions atnceming item number refer
to the illustrated parts breakdown on pages 7
thru 15. Use this illustrated parts list as a
reference when following the assembly
instructions.
Remove all crating and lay out all hardware.
Check the hardware list enclosed to ensure
proper assembly.
31

FOR 48" CUTTER DECK
• Mount the reinforcement plate to the underside
of the cutter deck using four (4) carriage bolts,
3/8-16 X 1-1/4". Mount the gear box support
with the carriage bolts using four (4) 3/8"
washers and four (4) 3/8-16" elastic stop nuts.
Finger tighten so the box can be adjusted later.
• On the SSZ-48 mount the front tension bracket
using two (2) 3/8 X 3/4" serrated flange hex head
bolts and two (2) serrated flange nuts and
tighten.
On the SSZ-48 using a 13/32" drill bit, drill
the six (6)holes as indicated in the illustration.
Using an 11/32" drill bit, drill the re m ai n i n g
two (2) holes.
Loosen the right side spindle belt and remove
the spindle pulley (refer to the Operator’s
Manual included with your machine for
instructions).
Mount the double pulley from the grass catcher
assembly carton to RH spindle. Ihe pulley
should be flush with the top of the spindle
assembly. See the illustration. Remount the
right spindle belt to the bottom slot in double
pxiUey and tighten belt.
• Install the tension carriage bolt 3/8 x 2" and the
3/8" elastic nut. Do not tighten at this time.
• Install the belt (P/N 48913 or P/N 48959) on the
top pulley groove of the spindle to the gear box
pulley. Tighten the tension bolt to proper belt
tension.
• Tighten the four (4) nuts on the gear box mount
assembly which you had previously finger
tightened.
• Remove the RH anti-scalp wheels, front and
rear. Locate and assemble the front and rear
receiverbrackets and bracket supports. Fasten
with five (5) 5/16" serrated flange nuts and 5/16
X 3/4" carriage bolts finger tight.
99
• Remount the finnt and rear anti-scalp wheels
with the receiver bracket supports between the

• Remount the front and rear anti-scalp wheels
with the receiver bracket supports between the
anti-scalp wheel and the deck. Mount using 3/
8 X 1" serrated flange bolt. Match the five (5)
slots in the bracket support with those on the
deck mount. Do not fully tighten at this time.
• Mount the latch (P/N 421484) on the rear
receiver assembly using the 3/8-16 x 4" hex
head bolt and 3/8-16 elastic stop nut.
• Insert the blower mounting bracket (P/N 45583)
into the receiver brackets starting with the
front receiver. Hold the rear of mounting
bracket on a 45 degree angle. Insert the hair
pin through the front arm hole of the blower
mount bracket. Lower the back end of mounting
bracket into the rear receiver bracket making
sure that the flat washers are on the outside of
the bracket. Lock in place with the ring pin and
hair pin.
•Note-
Retaining pin should be inserted from the left
side of the bracket.
• Mount blower housing to the mounting bracket
using three (3) 3/8" flat washers and elastic
stop nuts. Do not tighten all the way because
adjustments need to be made.
•Align the blower housing intake with deck
discharge opening. Tighten anti-scalp wheel
brackets, front and rear. While holding blower
housing in place, continue tightening front and
rear receiver brackets.
• On the SSZ-42 moimt the key in the keyway
and slide the pulley (P/N 481012) onto the
blower shaft so that the blower pulley will align
with the gear box pulley. Tighten in place.
• On the SSZ-48 mount key in keyway and slide
the pulley removed from right spindle onto the
blower shaft so that the blower pulley will align
with the gear box pulley. Tighten in place.
• Install the blower drive belt on the gear b(
pulley and blower pulley. Push the blower
housingback while lifting the rear ofthe housing
upward 1/2" and tighten the nuts on the blower
housing. Lower the blower housing bracket
into the rear receiver moimt. Swing the latch
in place and secure with the hair pin.
• Mount weights on chassis as illustrated on
page 13. For the model SSZ48 you will have
to drill two 13/32" holes in the frame. (Use a
weight resting on the frame to mark the hole
placement for drilling.)
CHUTE ASSEMBLY / 5BS
• Place the catcher boot (item 7) on the cutter
deck. Firmly tap into place with front of boot
snug against cutter deck front. Using the boot
as a template, mark the two hole locations on
the cutter deck. Drill holes, first using a 1/8"
drill bit, then finishing with a 13/32" drill bit.
• Install boot using two (2) 3/8-16 x 1" bolts, tv
(2) 3/8" flat washers, and two (2) 3/8-16 wing
nuts.
COUNTER BALANCE ASSEMBLY
• Mount the counter balance bracket (P/N 421345
or P/N 421490) to the front of the kick plate by
removing the two right side dash panel bolts
and far right hinge panel carriage bolt. Use two
(2) 5/16 X 3/4" serrated flange bolts and one (1)
5/16 X1" carriage bolt with a 5/16" flange nut.
Secure the counter balaince bracket to kick
plate.
• Install a 3/8 X 3/4" serrated flange bolt in the
top tab of bracket and secure with a 3/8" flange
nut.
• Install the counter balance lever (P/N 421346)
to the bottom tab of bracket using a 3/8 x 2"
carriage bolt, compression spring, 3/8" flat
washer and 3/8" elastic nut. Tighten so that the
nut is flush with the end of the bolt. ^

istall the spring (P/N 48755) onto the “IT bolt.
Install the “U" bolt to the cutter deck so that the
5/16" flange nuts are flush with the “U* bolt
ends. Lock the top nuts down against the deck.
Tighten the flange nuts under deck 1/4 turn to
lock the “U" bolt in place.
• Mount the counter balance rod (P/N 44093) to
the spring so that the hook faces the rear of the
machine. With the counter balance lever in a
horizontal position, slide the rod into the proper
hole in the lever. See the following illustration.
Pulling up on the lever, hook arm on the bolt in
the top tab. The proper hole depends on where
the deck height is set.
WITH BLOWER MOUNTED
Deck
Hanger
Bracket
Counter
Balance
' Lever
If deck is mounted in the third hole,
lever should be in the fourth hole.
WITHOUT BLOWER MOUNTED
Deck
Hanger
Bracket
Counter
tf deck is mounted in the third hole,
lever should be in the third hole, scooec
FRAME ASSEMBLY / 5BS
• Install the engine mounting frame (P/N 45561)
to the tractor as illustrated.
• With the frame in place, mount the front tube
''f the frame using two (2) 3/8-16 z 2.5" hex head
|ts, flat washers, elastic stop nuts, and front
.dbe clamp. Do not tighten fully until the
remainder of the mountinghardware is in place.
• Mount the rear tube of the frame using four (4)
3/8-16 X 2.5" hex head bolts, flat washers and
elastic stop nuts, along with two (2) rear tube
clamps.
• Mount the lower brace tube using three (3) 3/8-
16 X 2.5" hex head bolts, flat washers, and
elastic stop nuts.
• While holding the engine mounting frame in
place, tighten all the previously mounted
hardware.
ENGINE MOUNTING / 5BS
•Mount the engine and the engine guard
weldment to the engine mounting frame using
three (3) 5/16-18 x 1-3/4" hex head bolts, flat
washers, and elastic stop nuts and one (1) 5/16-
18 X 3.25 for model SSZ61. On the SSZ52 use
two (2) 5/16-18 X l-3/4hex head bolts and two
(2) 5/16-18 X 3.25" hex head bolts.
Ab SSZ-S2 eaciae mount hole* Q
B« SSZ41 eagiae mount holes
/OA A *^08
^j>B_
34

• Mount the rear blower housing assembly using
four (4) 5/16-24 x 1" fine thread bolts and four
(4)5/16"lockwashers. Install into tapped engine
holes.
• Install the fan assembly with key and secure
onto the crankshaft with a 3/8-24 x 2" fine
thread bolt and 3/8" lockwasher.
• Using a rubber mallet, tap, then tighten the
blower fan hub onto the crankshaft. Rotate the
fan to be sure the fan does not hit the housing.
• Install the 8" inlet hose onto the boot and inlet
adapter using two hose clamps.
• Mount the blower inlet adapter to the blower
housing using six (6) 5/16-18 serrated flange
nuts.
• Install the exhaust tube (P/N 481002) to the
machine’s muffler to adequately direct exhaust
gasses away firom the grass catcher engine
mounting frame.
• Fill the 5HP engine with approximately 1/2
quart of oil. Fill fuel tank with firesh gasoline.
Be safe when adding fuel. Add fuel in a well
ventilated area. Wipe any spills before
attempting to start the engine. Connect all
tubes before starting the engine.
•Note-
Properly service engine with oil and fuel.
Note that this is a fixed throttle engine.
Never run mower blades with blower engine
shut off. Boot will plug severely.
When cleaning out boot, always disengage
cutter drive belt and shut off mower and
grass catcher engines.
BUCKET SUPPORT ASSEMBLY
• Using the four “J” hiooks, 5/16 x 3/4" ccurriage
bolts, and 5/16" serrated flange nuts, fasten the
bottom tray to rear fi'ame.
• Mountthesupportfi*ametubetotherearfenders
utihzing the existing fender mount holes.
• Remove the four fender movmt bolts (two eacxi
side) and replace with the 5/16 x 1” carriage
bolts and flange nuts. Moimt all four bolts,
then tighten.
• Mount the side support braces using four (4) 5/
16 X 3/4” carriage bolts and flange nuts. Use
the second hole finm the top on the support
firame to mount the slotted hole in support
brace.
• Install left and right brace hinge plates to the
hinge cover using four (4) 3/8-16 x .75" serrated
flange capscrews, flat washers, and elastic stop
nuts. Tighten within 1/2 turn of being tight.
• Mount the hopper onto the tray bracket so it
rests against the support firame. Put the lid on
top of the hopper and center from side to side.
Legate the two (2) hex head hinge bolts (3/8 x
1-1/2"), twelve (12) spacer washers and two (2)
elastic stop nuts.
• Insert as many spacer washers as needed i
take up the space between the hinge plate and
support frame tubes so that lid remains
centered. Tighten the elastic stop nuts until
snug, then back off 1/8 of a turn so that lid can
pivot easily.
• Tighten four (4) hinge plate bolts on the lid,
starting on right side.
• Install cover support rod by mounting the two
hair pins to inside holes in rod. Shde^e2"flat
washer onto bottom of the rod. Insert the
support rod into the hole on the right hinge
plate and into the lower hole on the arm of the
support bracket. Slide a 3/8" flat washer into
the lower hole and insert a hair pin. Holding
the support rod in place, raise the lid and lock
it open. Insert a hair pin in the lid bracket.
• Insert the elbow in the lid and lock in place.
Mount the hose and hose clamp.
• Recheck all hardware and fittings for prop(
tightness. Test run to verify that the grass
catcher operates properly.
35

CUTTER
DECK
Ref. Part
No. Number Description
42 48
Ref. Part
No. Number Description
42 48
1
04021-10
Nut, Elastic Stop 5/16-18
X X 17
04021-09 Nut, Elastic Stop 3/6-16 X
2
48915 Bearing Assembly X X
16 04017-27 Capscrew, Serr. Flange 3/8-16 x 1 X
3 421319 Cover, Blower Housing
X X 19
421491
Mounting Bracket Rear
X
4
04003-12
Carriage Bolt, 5/16-18 x .75
X X
19 421312 Mounting Bracket, Rear
5
45565
Fan Weldment X X
20 421483
Latch Plate
X
6
04063-06 Key, .25 X .25x1.50
X X 21
421495 Mounting Bracket Front
X
7
04019-03 Nut Serr. Flange 5/16-18
X X 22 45582
Mounting Weldment, Front
X
8
46627
Blower Housing Weldment w/Decals
X X
23 04062-03
Hair Pin, .148 dia. x 2.75
X
9 48136-01 Clamp, Hose
X X
24 04041-07
Flat Washer. 3« (.391 x .938 x .105) X
10
48135-07
Hose, 6* X 48'
X X
25
04040-04 Flat Washer, 5/16 (.344 x .688 x .065)
X
11
48236
Decal, Danger
X X
26 46625
Blower Housing Assembly X
12
45583
Blower Mounting Weldment X X
27
481012 Pulley, Tapered Bore 5.15 O.D.
X
13
04001-30
Bolt, Hex Head 3/8-16 x 4*
X X 27
48924 Pulley, 5.80 O.D..
14
04062-01
Hair Pin, .094 dia. x 1.62
X X 28
48141 Tapered Hub, 1.00 Bore X
15
421484 Latch
X X
29
04001-01
Bolt Hex Head .25-20 x .75
X
16
04067-04
Ring Pin
X X
* Common harCwart which should bs purchased locally. All bolts grads 5 plated, all other testeners zinc plated.
37

DECK/COUNTER BALANCE COMPONENTS (42)
Ref.
No.
Part
Number
Description
1
04001-01
Bolt, Hex Head 1/4-20 x .75
2 48248
Tapered Hub. .875 Bore
3
48924
Pulley, Tapered Bore 5.80 0.0.
4
04017-28
Capscrew, Serr. Flange 3/8-16 x 1.25
5 46635 Belt Cover, w/Decals
6 04029-03
Wingnut, Plastic 3/8-16 x .875
7
04021-09
Nut, Elastic Stop 3/8-16
8
04041-07
Flat Washer, 3/8 (.375 x 2.00 x .060)
9 04003-03
Carriage Bolt, 3/8-16 x 2.00
10
04063-07
Key. Woodruff «9 3/16 x .75
11
48919 Gear Box, 90 Degree Drive
12
04100-01
U-Bolt, 5/16-18 X 2.19
13
48755
Spring. Clutch
14
44093 Rod. Counter Balance
15 04003-03
Carriage Bolt, 3/8-16 x 2.00
16
421346
Lever. Counter Balance
17
04017-26
Capscrew, Serr. Flange 3/8-16 x .75
18
04019-04
Nut, Serr. Flange 3/6-16
19
48215
Grip. Shift Lever
20
04062-01
Hair Pin. .094 x 1.62
21 421490 Mounting Bracket. Counter Balance
22 48050 Spring. Compression
23
04003-04
Carriage Bolt, 5/16-18 x 1.00
24
04017-16 Capscrew, 5/16-16 x .75
25
481012 Pulley. Tapered Bore 5.15 O.D.
26
04019-03 Nut. Serr. Flange 5/16-18
27
421492 Reinforcement Plate. Gear Box
28
04003-11 Carriage Bolt. 3/8-16 x 1.25
29
45580 Support Weldment. Gear Box
30
48073
Decal. Warning
31
48141
Tapered Hub, 1.00 Bore
32 48959 Belt. Gear Box Drive
33 48960 Belt, Blower Drive
34
48715
Decal. Warning
35
04004-14
Stud. 3/8-16 X 6.75
36 04021-05
Nut, Center Lock 3/8-16
37
04001-59 Bolt. Hex Head 1/4-20 x 1.25
38
45331
Discharge Chute
39
44091
Rod, Discharge Chute
40 04062-02
Hair Pin, .080 x 1.19
Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.

SCIUS

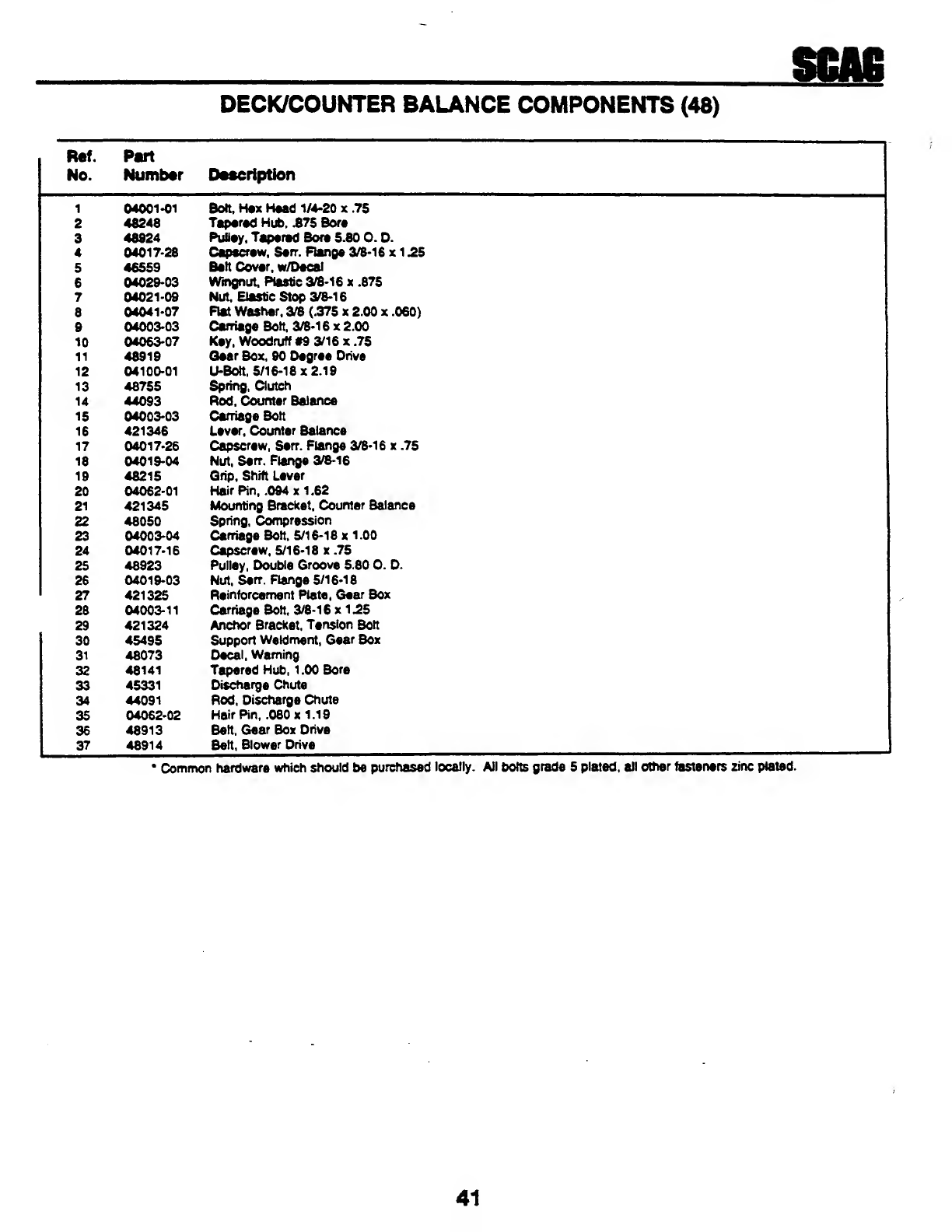

DECK/COUNTER BALANCE COMPONENTS (48)
Ref. Part
No. Number
Description
1
04001*01
Bolt. Hex Head 1/4*20 x .75
2
48248 Tapered Hub, e75 Bore
3
48924
Pulley, Tapered Bore 5.80 0.0.
4
04017*28
Capscrew, Sem Range 3/8-16 x 1.25
5
46559
Belt Cover, w/Deeal
6
04029*03
Wmgnut, Plastic 3/8-16 x .675
7 04021*09
Nut, Elastic Stop 3/8-16
8
04041*07
Rat Washer. 3/8 (.375 x 2.00 x .060)
9
04003*03 Carriage Bolt, 3/8-16 x 2.00
10
04063*07
Key. Woodruff *9 3/16 x .75
11 48919
Gear Box, 90 Degree Drive
12
04100-01
U-Bolt, 5/16*18 X 2.19
13
48755
Spring, Outch
14
44093
Rod, Counter Balance
15
04003*03
Carnage Bolt
16
421346
Lever, Counter Balance
17 04017*26
Capscrew, Serr. Flange 3/8-16 x .75
18
04019-04 Nut. Serr. Flange 3/8-16
19 48215
Grip, Shift Lever
20
04062-01
Hair Rn, .094 x 1.62
21
421345
Mounting Bracket, Counter Balance
22
48050
Spring. Compression
23
04003-04 Carriage Bolt, 5/16*18 x 1.00
24
04017-16
Capscrew, 5/16*18 x .75
25 48923
Pulley, Double Groove 5.80 0. D.
26 04019*03
Nut. Serr. Flange 5/16-16
27
421325
Reinforcement Plate. Gear Box
28 04003-11
Carriage Bolt, 3/8-16 x 1.25
29
421324
Anchor Bracket, Tension Bolt
30
45495
Support Weldment, Gear Box
31
48073 Decal. Warning
32
48141 Tapered Hub, 1.00 Bore
33 45331
Discharge Chute
34
44091
Rod. Discharge Chute
35
04062-02
Hair Pin. .080x1.19
36
46913
Belt, Gear Box Drive
37 48914
Belt, Blower Drive
* Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.
41

WEIGHT KITS 42,48, 52/61
S0003G

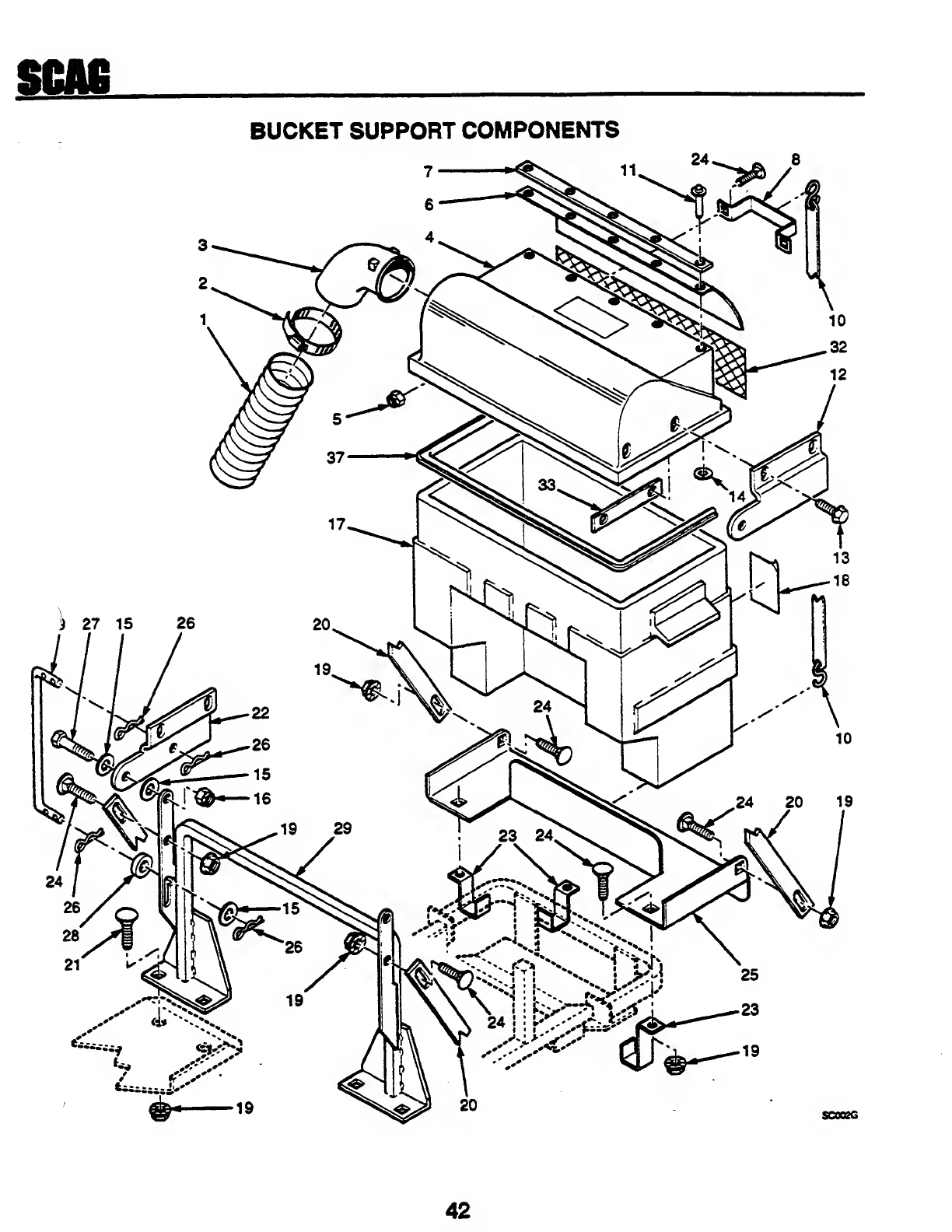

BUCKET SUPPORT COMPONENTS/WEIGHT KITS 42, 48, 52/61
Ref. Part
No. Number
Description
42 48 52 61
Ref.
No. Number
Part
Description
42 48 52 61
1
48135-07 Hosa, 6' X 48'
X X 20
421309 Brace
X
X
X X
48135-08
Hose, 6* X 24'
X X
21
04003-04
Carriage BoK, 5/16-18 x 1.00
X
X X X
2
48136-01
Damp, Hosa
X
X X
X
22
421422 Hinge, RH
X
X X X
3
48909
Elbow, Grass Catcher
X
X X X
23
421308
Damp, Tray
X
X
X X
(Indudas Items 6,7,11 & 14)
24
04003-12
Carriage Bolt 5/16-16 x .75
X
X
X
X
A
46512
Cover Assembly, Grass Catcher
X
X X X 25
421432
Tray
X X
X
X
5
04021-10
Nut, Elastic Stop 5/16-18
X X
X X 26 04062-02
Hair Pin, .080 dia x 1.19
X
X
X X
6
48928
Dafiaetor, Grass Catcher
X X X X
27
04001-20
Bolt. Hex Head 3/6-16 x 1.50
X
X
X X
7 421348
Backing Plata, Deflector
X X X
X
28 04041-10
Flat Washer. 3/8 (.375 x 2.00 x .60)
X
X
X X
8
421300
Handle
X X
X X 29
45552
Support Frame Weldment
X
X
X X
9
44089
Rod, Cover Support
X
X X X 30
04001-47 Bolt, Hex Head 3/8-16 x 5.00
X
10
48137-03
Strap, Rubber
X
X
X X
04001-100 Bolt. Hex Head 3/8-16 x 6.00
X
11
e
Rivet, Pop 3/16*
X X
X X
04001-105
Belt Hex Head 3/8-16 x 5.25
X
X
12
421421
Hinge, LH
X
X X
X
31
421467 Weight Bar
X
13
04017-26
CaMcrew, Serr. Flange 5/16-18 x .75 X
X
X X
42956
Weight Bar
X
X X
14
•
Washer, Pop Rivet
X
X X X 32
421329
Screen
X
X X
X
IS
04041-07
Flat Washer, 3/8 (.391 x .938 x .105)
X
X X
X
33
421418
Plate, Hinge Backing
X
X X
X
16
04021-09
Nut. Elastic Stop 3/8-16
X
X X X
34
421444 Mounting Bracket, Weight Bar
X
X
17
48907
Hopper, Grass Catcher w/Decal
X X
X X 35
421488
Plate, Damping Weight Bar LH
X
18
48922
Decal, Hopper
X
X
X X 36
421489
Plate, Clamping Weight Bar RH
X
19
04019-04
Nut, Serr. Flange 5/16-18
X
X X X
37 481017-01
Seal, Rubber
X
X X
/
* Common hardwar* which should ba purehasad locally. All bolts grada 5 platad, all othar fastanars zinc plated.
43

ENGINE SUPPORT COMPONENTS
R«f. Part _ __
No! Number Description
1 46173 - Engine, Briggs & Stratton 5 hp
2 45080 Btowar Housing Weldment
3 48136-01 Clamp, Hose 6*
4 48135-08 Hose, 6*x24‘
5 48136-02 Clamp, Hose 8'
6 48135-02 Hose. 8'X 29'
7 48132 Boot
6 * Flat Washer 3/6*
9 04022-04 Elastic Wing Nut 3/8-16
10 45077 Fan Weldment
11 45081 Blower Inlet Adapter
12 04019-03 Nut, Serr. Flange 5/16-18
13 04063-06 Key. ,25 x ,25 x 1.50
14 04001-65 Bolt, Hex Hoad 3/6-24 X 2,00
15 04030-04 Lockwasher, 3/8
16 04001-56 Bolt, Hex Head 5/16-24 x 1,0
17 04030-03 Lockwasher, 5/16
18 45374 Engine Guard Weldment
19 45561 Engine Mounting Frame
20 04001-92 Bolt, Hex Head 5/16-18 x 3.25
21 04001-12 Bolt, Hex Head 5/16-16x1.75
22 04040-15 Flat Washer, 5/16 (.375 x .675 x .083)
23 04021-10 Nut, Elastic Stop 5/16-16
24 481002 Tube. Exhaust
25 04001-19 Bolt. Hex Head 3/8-16 x 1.00
26 04001-31 Bolt. Hex Head 3/8-16 x 2.50
27 04041-07 Flat Washer. 3/8 (.391 x .875 x .088)
28 04021-09 Nut. Elastic Stop 3/8-16
29 421440 Tube. Lower Brace
30 421443 Clamp. Rear Tube
31 421442 Clamp, Front Tube
32 46633 Clamp, Muffler
' Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.

HARDWARE PACKAGE
2H3I
48-125-0-1
1
POLY BAG, BLUE LABEL
SSZ-42, SSZ-48 & SSZ-5BS
04001-01 2 HEX HD BOLT. 1/4-20 x .75
FAN PULLEY TO HUB/(SSZ-42), DOUBLE
FAN PULLEY TO HUB/(SSZ-48)
04001-12
3 HEX HD BOLT. SAI6-18 x 1.75
ENGINE MOUNTtNG/(SSZ-5BS)
04001-19
2 HEX HD BOLT. 3/8-16 x 1.00
BOOT/(SSZ-5BS)
1-20
2
HEX HD BOLT. a«-16x1.50
HINGE TO FRAME/(SSZ-42. SS2-48.
& SSZ-5BS)
04001-30
1
HEX HD BOLT, 3/8-16 x 4.00
RETAINER PIVOT/(SSZ-42, SSZ-48)
04001-31
9
HEX HD BOLT. 3/8-16 x 2.50
BRACE CLAMP TO FRAME. FRT SUPT
CLAMP TO FRAME, REAR SUPT CLAMP
TO FRAME. BRACE TO ENGINE MTG/
(SSZ-5BS)
04001-47
2
HEX HD BOLT, 3/8-16 x 5.00
WEIGHT BARS TO FRAME/(SSZ-42)
04001-56
4
HEX HD BOLT. 5/16-24 x 1.0
BLOWER HOUSING MOUNTING/
(SSZ-5BS)
'•65
1
HEX HD BOLT. 3/8-24 X 2.00
BLOWER TO ENGINE/(SSZ-5BS)
SCOOSG
46

HARDWARE PACKAGE
• '-ir.
iiiig
04017*27
4
CAPSCREW, 3«-16 x 1.00 SERR. FLG. HEX HD.
FRONT ANTI-SCALP BRKT, REAR
ANTl-SC/^P BRKT/(SS2-42, SS2-48)
04019-03
22
NUT, 5/16-18 SERR FLANGE HEX HD
TRAY TO BUMPER CLAMP, TRAY TO
BRACE, BRACE TO FRAME, FRAME TO
FENDER/(SSZ-42,48, 5BS), FRONT
RECIEVER BRICT,REAR RECIEVER BRKT
CNTR BAL BRKT BOTTOM, CNTR BAL
SPRING ANCHOR/(SSZ-42,48), INLET
ADAPTER TO BLOWER/(SSZ-5BS)
04019-04 5 NUT, 3/8-16 SERR FLANGE HEX HD
BELT ADJ ANCHOR BRKT/(SSZ-48),
LATCH CNTR BAL LEVER/(SSZ-42,
SSZ-48), SUPT BELT COVER/(SSZ-42)
04021-05
ItFoIv
2
NUT, 3/8-16 CENTER LOCK
SUPT BELT COVER/(SSZ-42)
04021-09
@
NUT, 3/8-16 ELASTIC STOP
HINGE TO FRAME, WEIGHT BARS TO
FRAME/(SSZ-42, 48, 5BS), RETAINER
PIVOT, GEAR BOX ASSY MTQ, BELT
TENSION BOLT, BLOWER HSG TO
FRAME, PIVOT FOR CNTR BAL LEVER/
(SSZ-42,48), BRACE CLAMP TO FRAME,
FRONT SUPT CLAMP TO FRAME,
REAR SUPT CLAMP TO FRAME, BRACE
TO ENGINE MTG/(SSZ-5BS)
04021-10
@
6
NUT, 5/16-18 ELASTIC STOP
HANDLE TO COVER/(SSZ-42, SSZ-48.
SSZ-5BS), ENGINE MOUNTING/
(SSZ-5BS)
04030-03
@
4 LOCKWASHER, 5/16
BLOWER HSG MOUNTING/(SSZ-5BS)
04030-04
1 LOCKWASHER, 3/8
BLOWER TO THE ENGINE/(SSZ-5BS)
J4040-15
2
FLAT WASHER, 5/16 - .375 x .875 x .083
ENGINE MOUNTiNG/(SSZ-5BS)
SC010G

HARDWARE PACKAGE
^^3
04001-92
2
HEX HD BOLT. 5/16-18 x 3^5
ENGINE MOUNTINQ/(SSZ-5BS)
04001-100
2
HEX HD BOLT. 3/8-16 x 6.00
WEIGHT BARS TO FRAME/(SSZ-48)
04001-105
2
HEX HD BOLT, 3/8-16 x 5.25
WEIGHT BAR TO FRAME/(SSZ-5BS)
04003-03
2
CARRIAGE BOLT, 3/8-16 x 2.00 SSN
PIVOT, CNTR BAL LEVER, BELT
TENSION BOLT/(SSZ-42, SSZ-48)
^04003-04 S
CARRIAGE BOLT, 5/16-18 X1.00
FRAME TO FENDER. CNTR BAl
B07T0M/(SSZ-42. SSZ-48), FRA^... lO
FENDER/(SSZ-5BS)'
04003-11
4
CARRIAGE BOLT, 3^16 x 1.25
GEARBOX ASSY. TO DECK/(SSZ-42,
SSZ-48)
04003-12
E
15
CARRIAGE BOLT, 5/16-18 x .75
TRAY TO BUMPER CLAMP, TRAY TO
BRACE. BRACE TO FRAME. HANDLE TO
COVER/(SSZ-42.48, 5BS), FRT
RECIEVER BRKT, REAR RECEIVER
BRKT/(SSZ-42,48.5BS)
04004-14
2
STUD, 3/8-16x6.75
SUPT BELT COVER/(SSZ-42)
04017-16
2
CAPSCREW, 5/16-18 x .75 SERR. FLG. HEX HD.
CNTR BAL BRACKET. TOP/(SSZ-42.
SSZ-48)
r
04017-26
7
CAPSCREW, 3/8-16 x .75 SERR. FLG. HEX HD.
BELT ADJ ANCHOR BRKT/(SS:
LATCH TO CNTR BAL LEVER/{SS- ...,
SSZ-48). HINGE TO COVER/(SSZ-42.
SSZ-48. SSZ-5BS)
SC009G
48

HARDWARE PACKAGE
04041-07
04041-10
04062-01
04062-02
04063-03
04063-06
04067-04
04100-01
FLAT WASHER, 3/6 - ,301 x .938 x .105
FLAT WASHER. 3/8 - .375 x .2.00 x.
HAIR PIN COTTCR, .094 x 1.62
HAIR PIN COTTER, .080 x 1.19
HAIR PIN COTTER, .148 x 2.75
KEY..25X.25X1.50
RING PIN, 3/8x4.25
U-BOLT, 5/16-18x2.19
«
HINGE TO FRAME. WEIGHT BAR TO
FRAME. SUPT ROD TO HINGE BRKT/
(SSZ-42,48,5BS), GEAR BOX ASSY MTG
BLOWER HSG TO FRAME. PIVOT CNTR
BAL LEVER/(SSZ-42,48). BRACE CLAMP
TO FRAME. FRONT SUPT CLAMP TO
FRAME. REAR SUPT CLAMP TO FRAME,
BRACE TO ENGINE MTG/(SSZ-5BS)
SUPT ROD TO HINGE BRICT/(SSZ-42,
SSZ-48, SSZ-5BS)
RETAINER PIN. CNTR BAL ROD/
(SSZ-42. SSZ-48)
DISCH CHUTE HINGE, SUPT ROD/
(SSZ-42, SSZ-48. SSZ-5BS)
BLOWER HSG MOUNTING/
(SSZ-42, SSZ-48)
PULLEY TO BLOWER/(SSZ-42, SSZ-48).
BLOWER TO ENGINE/(SSZ-5BS)
BLOWER HSG RETAINER/(SSZ-42.
SSZ-48)
CNTR BAL SPRING ANCHOR/(SSZ-42.
SSZ-48)
SC011G
