MODEL SWZV
OPERATOR’S MANUAL
THIS MANUALCONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG MOWER. READING
THIS MANUAL CAN PROVIDE YOU WITH
ASSISTANCE IN MAINTENANCE AND AD-
JUSTMENT PROCEDURES TO KEEP YOUR
MOWER PERFORMING TO MAXIMUM EFFI-
CIENCY. THE SPECIFIC MODELS THATTHIS
BOOK COVERS ARE CONTAINED ON THE
INSIDECOVER. BEFORE OPERATINGYOUR
MACHINE, PLEASE READ ALL THE INFOR-
MATION ENCLOSED.
©2008
SCAGPOWEREQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC.
PART NO. 03217
PRINTED1/2008
PRINTED IN USA

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
WARNING:
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and
remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came with
your mower.
* Keep others away from the mower (only one person at a time).
* DO NOT operate on steep slopes.
* Always travel across slopes.
* ALWAYS FOLLOW OSHAAPPROVED OPERATION.
* DO NOT mow on wet grass. Wet grass reduces traction and steering
control.
Thismanualcoverstheoperatinginstructions
andillustratedparts list for:
Alwaysusetheentireserial number listed on the serialnumber
tagwhenreferringtothisproduct.
SWZV36A-16KAI with a serial number of D4000001 to D4099999
SWZV48V-17KAI with a serial number of D4100001 to D4199999
SWZV52V-19KAI with a serial number of D4200001 to D4299999
SWZV52V-23KAE with a serial number of E2700001 to E2799999

I
SUBJECT PAGE
Section 1 - General Information
1.1 Introduction .............................................................................................................................1
1.2 Directional Reference.............................................................................................................1
1.3 Servicing the Engine and DriveTrain Components ................................................................1
1.3 Symbols ............................................................................................................................... 2-3
Section 2 - Safety Information
2.1 Introduction .............................................................................................................................4
2.2 SignalWords ...........................................................................................................................4
2.3 Before Operation Considerations ...........................................................................................4
2.4 OperationConsiderations........................................................................................................5
2.5 Maintenance Considerations ...................................................................................................7
2.6 Safety and Instructional Decals ..............................................................................................8
Section 3 - Specifications ..................................................................................................... 9-10
Section 4 - Operating Instructions
4.1 Controls and Instrument Identification .................................................................................. 11
4.2 Safety Interlock System........................................................................................................12
4.3 Initial Run-In Procedures ......................................................................................................12
4.4 Starting the Engine................................................................................................................12
4.5 Ground Travel and Steering ..................................................................................................13
4.6 Engaging the Deck Drive .....................................................................................................14
4.7 HillsideOperation .................................................................................................................15
4-8 Parking the Mower ...............................................................................................................15
4.9 After Operation ....................................................................................................................15
4.10 Removing Clogged Material .................................................................................................15
4.11 Moving Mower with Engine Stopped ...................................................................................16
4.12 Recommendations for Mowing .............................................................................................16
4.13 Adjusting Cutting Height .......................................................................................................16
Section 5 - Troubleshooting Cutting Conditions............................................................. 17-19
TABLE OF CONTENTS

II
TABLE OF CONTENTS (CONT'D)
SUBJECT PAGE
Section 6 - Adjustments
6.1 Parking Brake Adjustment ....................................................................................................20
6.2 TravelAdjustments ...............................................................................................................20
6.3 Throttle Control and ChokeAdjustments ..............................................................................22
6.4 BeltAdjustment ....................................................................................................................22
6.5 BeltAlignment ......................................................................................................................22
6.6 Cutter Deck Adjustments .....................................................................................................22
Section 7 - Maintenance
7.1 Maintenance Chart ...............................................................................................................27
7.2 LubricationFittingPoints ......................................................................................................28
7.3 Hydraulic System ..................................................................................................................30
7.4 EngineOil .............................................................................................................................31
7.5 Engine Fuel System ..............................................................................................................32
7.6 EngineAir Cleaner................................................................................................................32
7.7 Drive Belts ............................................................................................................................33
7.8 Cutter Blades ........................................................................................................................33
7.9 Tires ......................................................................................................................................34
7.10 Body, Deck and Upholstery ..................................................................................................34
Section 8 - Replacement Parts
Notes ..............................................................................................................................................35
36A Cutter Deck ...................................................................................................................... 36-37
48V, 52V Cutter Deck .............................................................................................................. 38-39
36A Cutter Deck Frame ........................................................................................................... 40-41
48V, 52V Cutter Deck Frame .................................................................................................. 42-43
Cutter Deck Lift Lever............................................................................................................. 44-45
HandleAssembly ...................................................................................................................... 46-47
Hydraulic and Lower Brake Assembly .................................................................................... 48-49
Electrical System and Upper Brake Assembly - Manual Start ................................................ 50-51
Electrical System and Upper Brake Assembly - Electric Start ................................................ 52-53
Hydraulic Pump (BDP-10A) .................................................................................................... 54-55
Replacement Decals................................................................................................................. 56-57
Electrical Schematic - Manual Start ...............................................................................................58
Electrical Schematic - Electric Start...............................................................................................59
Warranty Statement...........................................................................Following Illustrated Parts List

1
Scagapprovedattachmentsandaccessories:
GC-F4 (p/n 9055)
GC-4D (p/n 9054)
Mulch Plate (p/n 9258, 9286, 9287)
Hurricane Mulch System (p/n 9263, 9283, 9284)
Cup Holder (p/n 9240)
Hour Meter (p/n 48023)
Turbo Baffle (p/n 424208, 424209)
Blade Buddy (p/n 9212)
GENERAL INFORMATION
1.1 INTRODUCTION
Yourmower wasbuiltto thehigheststandards intheindustry.
However, the prolonged life and maximum efficiency of
your mower depends on you following the operating,
maintenance and adjustment instructions in this manual.
If additional information or service is needed, contact your
Scag Power Equipment Dealer.
We encourage you to contact your dealer for repairs. All
Scag dealers are informed of the latest methods to service
this equipment and provide prompt and efficient service in
the field or at their service shop. They carry a full line of
Scag service parts.
THEREPLACEMENTOFANYPARTONTHIS
PRODUCTBYOTHERTHANTHE
MANUFACTURER'SAUTHORIZED
REPLACEMENTPARTORUNAUTHORIZED
MODIFICATIONMAYADVERSELYAFFECTTHE
PERFORMANCE,DURABILITYORSAFETYOF
THISPRODUCT.
USEOFOTHERTHANORIGINALSCAG
REPLACEMENTPARTSWILLVOIDTHE
WARRANTY.
For pictorial clarity,some illustrations and figures
in this manual may show shields, guards or plates
open or removed. Under no circumstances should
your mower be operated without these devices in
place.
All information is based upon product information
available at the time of approval for printing. Scag
Power Equipment reserves the right to make changes
at any time without notice and without incurring any
obligation.
1.2 DIRECTION REFERENCE
The“Right” and “Left”, “Front” and “Rear” of themachine
are referenced from the operator’s right and left when
seated in the normal operating position and facing the
forward travel direction.
1.3 SERVICINGTHE ENGINE AND DRIVE
TRAIN COMPONENTS
Thedetailservicingand repairof theengine,hydraulicpumps
and gearboxes are not covered in this manual; only routine
maintenance and general service instructions are provided.
Forserviceofthese components during the limited warranty
period, it is important to contact your Scag dealer or find a
local authorized servicing agent of the component
manufacturer. Any unauthorized work done on these
components during the warranty period may void your
warranty.
Section 1
When ordering parts, always give the model and serial
number of your mower.
WARNING:
USE ONLY SCAG APPROVED ATTACHMENTS
AND ACCESSORIES.
Attachments and accessories manufactured by companies
otherthanScagPowerEquipmentarenotapprovedforuse
on this machine.

2

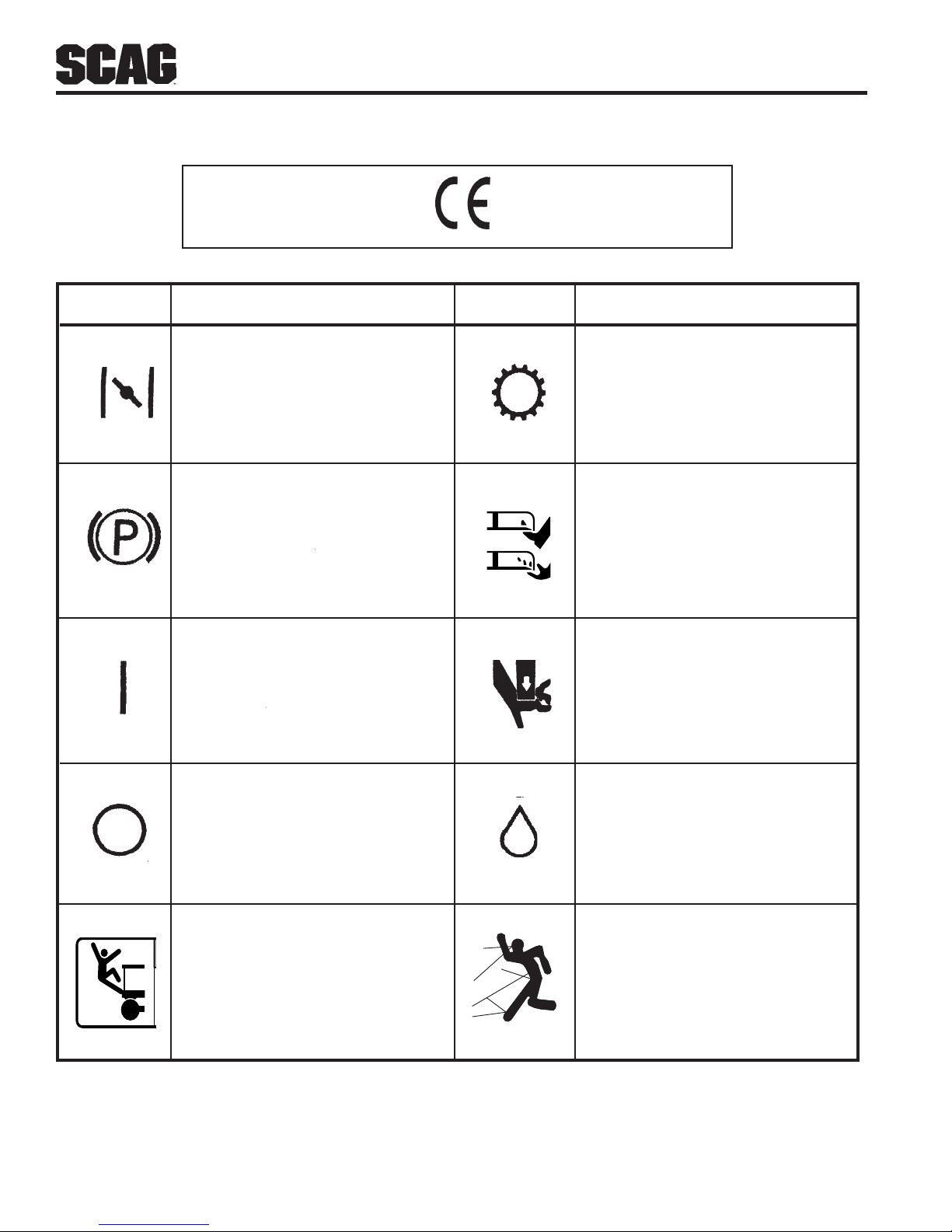

CE Mark
TransmissionChoke
On/Start Spring Tension on Idler
Oil
Off/Stop
SYMBOL DESCRIPTION
SYMBOL DESCRIPTION
ISO Symbols
SpinningBlade
48071S
Parking Brake
WARNING
FALLING HAZARD
USE ONLY SCAG APPROVED
RIDING ATTACHMENTS
SEE OPERATOR'S MANUAL
481109
FallingHazard Thown Object Hazard

3
Slow
Fast
Cutting Element - Engage
Cutting Element - Basic symbol
Cutting Element - Disengage
Continuously Variable - Linear
Read Operator's Manual
Keep Bystanders Away
Pinch Point
481039S
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Hourmeter/Elapsed Operating Hours
Thown Object Hazard

4
SAFETY INFORMATION
2.1 INTRODUCTION
Your mower is only as safe as the operator.
Carelessness or operator error may result in serious
bodily injury or death. Hazard control and accident
prevention are dependent upon the awareness, concern,
prudence, and proper training of the personnel involved in
the operation, transport, maintenance and storage of the
equipment. Make sure every operator is properly trained
and thoroughly familiar with all of the controls before
operating the mower. The owner/user can prevent and is
responsible for accidents or injuries occuring to
themselves, other people or property.
READ THIS OPERATOR’S MANUAL BEFORE
ATTEMPTING TO START YOUR MOWER.
A replacement manual is available from your authorized
Scag Service Dealer or by contacting Scag Power
Equipment, Service Department at P.O. Box 152,
Mayville, WI 53050 or via the Internet at
www.scag.com. The manual for your machine can be
downloaded by using the model and serial number or use
the contact form to make your request. Please indicate
the complete model and serial number of your Scag
product when requesting replacement manuals.
2.2 SIGNAL WORDS
This symbol means “Attention! Become Alert! Your
Safety is Involved!" The symbol is used with the
following signal words to attract your attention to safety
messages found on the decals on the machine and
throughout this manual. The message that follows the
symbol contains important information about safety. To
avoid injury and possible death, carefully read the
message! Be sure to fully understand the causes of
possible injury or death.
Signal Word:
It is a distinctive word found on the safety decals on the
machine and throughout this manual that alerts the
viewer to the existence and relative degree of the
hazard.
The signal word “WARNING” denotes that a hazard
exists on or near the machine that can result in injury or
death if proper precautions are not taken.
The signal word “DANGER” denotes that an extremely
hazardous situation exists on or near the machine that
could result in high probability of death or irrepairable
injury if proper precautions are not taken.
CAUTION:
The signal word “CAUTION” is a reminder of safety
practices on or near the machine that could result in
personal injury if proper precautions are not taken.
Your safety and the safety of others depends significantly
upon your knowledge and understanding of all correct
operating practices and procedures of this machine.
2.3 BEFORE OPERATION
CONSIDERATIONS
1. NEVERallow children to operate this mower. Do
not allow adults to operate this machine without
proper instructions.
2. DO NOT mow when children and/or others are
present. Keep children out of the mowing area and
in the watchful care of a responsible adult other than
the operator. Be alert and turn machine off if a child
enters the area.
3. DO NOT allow children to ride on or play on the
machine, it is not a toy.
4. Clear the area to be mowed of objects that could be
picked up and thrown by the cutter blades.
5. DO NOT operate the machine under the influence of
alcohol or drugs.
WARNING:
Section 2

5
Section 2
8. Keep the machine and attachments in good operating
condition. Keep all shields and safety devices in
place. If a shield, safety device or decal is defective
or damaged, repair or replace it before operating the
machine.
This machine is equipped with an interlock system
intended to protect the operator and others from
injury. This is accomplished by preventing the
engine from starting unless the deck drive is
disengaged, the parking brake is on, and the speed
adjustment lever is in the neutral position. The
systemshutsofftheengineiftheoperatorremoves
both hands from the operator presence grips with
the deck drive engaged and/or the speed
adjustment lever not in the neutral position, or
the parking brake disengaged. Never operate
equipment with the interlock system disconnected
or malfunctioning.
9. Be sure the interlock switches are functioning
correctly.
10. Fuel is flammable; handle it with care. Fill the fuel
tank outdoors. Never fill it indoors. Use a funnel or
spout to prevent spillage. Clean up any spillage
before starting the engine.
11. DO NOT add fuel to a running or hot engine. Allow
the engine to cool for several minutes before adding
fuel. Never fuel indoors or enclosed trailers.
12. Keep flammable objects (cigarettes, matches, etc.),
open flames and sparks away from the fuel tank and
fuel container. Use only approved containers.
13. Equipment must comply with the latest requirements
per SAE J137 and/orANSI/ASAE S279 when driven
on public roads.
If the mower is driven on public roads, it must
comply with state and local ordinances as well as
SAE J137 and/or ANSI / ASAE S279 requirements.
Contact your local authorities for regulations and
equipment requirements.
14. DONOT operate without the side discharge chute
installed and in the down position or with an optional
grass catcher or mulch plate completely installed.
15. Check the blade mounting bolts at frequent intervals
for proper tightness.
16. Make sure all hydraulic fluid connections are tight and
all hydraulic hoses and lines are in good condition
before starting the machine.
2.4 OPERATION CONSIDERATIONS
1. Know the function of all controls and how to stop
quickly.
this material to them.
7. DONOT wear loose fitting clothing. Loose
clothing, jewelry or long hair could get tangled in
moving parts. Do not operate the machine wearing
shorts; always wear adequate protective clothing
including long pants. Wearing safety glasses, safety
shoes and a helmet is advisable and is required by
somelocal ordinances and insurance regulations.
Alwayswear hearing protection.Operating this
machine over prolonged periods of time can
cause loss of hearing.
6. If the operator(s) or mechanic(s) cannot read English
or Spanish, it is the owner's responsibility to explain
WARNING:
-NOTE-
WARNING:
2. Reduce speed and exercise extreme caution on slopes
and in sharp turns to prevent tipping or loss of
control. Be especially cautious when changing
directions on slopes.
3. To prevent tipping or loss of control, start and stop
smoothly, avoid unnecessary turns andtravelatreduced
speed.
4. When using any attachment, never direct the discharge
of material toward bystanders or allow anyone near
the machine while in operation.

6
Section 2
2.4 OPERATION CONSIDERATIONS
(CONT'D)
5. Before attempting to start the engine,disengage power
to the cutter deck, place the speed control lever in the
neutral position and engage the parking brake.
6. If the mower discharge ever plugs, shut off the engine,
remove the ignition key, and wait for all movement to
stop before removing the obstruction.
DO NOT use your hand to dislodge the clogged
discharge chute. Use a stick or other device to
remove clogged material after the engine has
stopped running and the blades have stopped
turning.
7. Bealertforholes, rocks, roots and other hidden hazards
in the terrain. Keep away from any dropoff. Beware
ofoverheadobstructions(lowlimbs,etc.), underground
obstacles(sprinklers,pipes,treeroots,etc.). Cautiously
enter a new area. Be alert for hidden hazards.
8. Disengage power to cutter deck before backing up. Do
not mow in reverse unless absolutely necessary and
then only after observation of the entire area behind
the mower. If you must mow in reverse, maintain a
constant lookout to the rear of the machine and mow
slowly.
9. DO NOT turn sharply. Use care when backing up.
10. Disengage power to cutter deck before crossing roads,
walks or gravel drives.
11. Mow only indaylight or good artificial light.
12. NEVER raise the deck with the blades engaged.
13. Take all possible precautions when leaving the machine
unattended, such as disengaging the mower, lowering
theattachments, setting the parking brake, stoppingthe
engine, and removing the key.
14. Disengage power tothe attachments whentransporting
or when not in use.
15. The machine and attachments should be stopped and
inspected for damage after striking a foreign object,
and damage should be repaired before restarting and
operating the machine.
DO NOT touch the engine or the muffler while the
engine is running or immediately after stopping.
These areas may be hot enough to cause a burn.
DO NOT run the engine inside a building or a
confined area without proper ventilation.
Exhaust fumes are hazardous and contain carbon
monoxide which can cause brain injury and
death.
16. Keep hands and feet away from cutter blades and
moving parts. Contact can injure.
17. Use care when loading or unloading the machine onto
a trailer or truck.
18. Usecarewhenapproachingblindcorners,shrubs,trees,
or other objects that may obscure vision.
19.NEVERleave the machine running unattended.
WARNING:
CAUTION:

7
2.5 MAINTENANCE CONSIDERATIONS &
STORAGE
1. Never make adjustments to the machine with the
engine running unless specifically instructed to do so.
If the engine is running, keep hands, feet, and
clothing away from moving parts.
2. Disengage drives, lower implement, set parking brake,
stop engine and remove key or disconnect spark plug
wire to prevent accidental starting of the engine when
servicing or adjusting the machine. Wait for all
movement to stop before adjusting, cleaning or
repairing.
3. Remove spark plug wire before making any repairs.
4. Keep all nuts, bolts and screws tight, to ensure the
machine is in safe working condition. Check blade
mounting bolts frequently to be sure they are tight.
5. Do not change the engine governor settings or
overspeed the engine. See the engine operator's
manual for information on engine settings.
Section 2
11. Use jack stands to support components when
required.
12. Carefully release pressure from components with
stored energy.
13. Let the engine cool before storing.
14. DO NOT store the machine near an open flame.
15. Shut off fuel while storing or transporting.
16. DO NOT store fuel near flames or drain indoors.
6. To reduce fire hazard, keep the cutting units, drives,
muffler and engine free of grass, leaves, excessive
grease, oil and dirt.
7. Park the machine on level ground and engage the
parking brake.
8. NEVER allow untrained personnel to service the
machine.
9. Use care when checking blades. Wrap the blade(s)
or wear gloves and use caution when servicing
blades. Only replace blades. NEVER straighten or
weld blades.
10. Keep all parts in good working condition. Replace all
worn or damaged decals.
Hydraulic fluid is under high pressure. Keep
body and hands away from pinholes or nozzles
that eject hydraulic fluid under high pressure. If
you need service on your hydraulic system,
please see your authorized Scag dealer. If
hydraulic fluid is injected into the skin, it must
be surgically removed within a few hours by a
doctor or gangrene may result.
WARNING:

8
Section 2

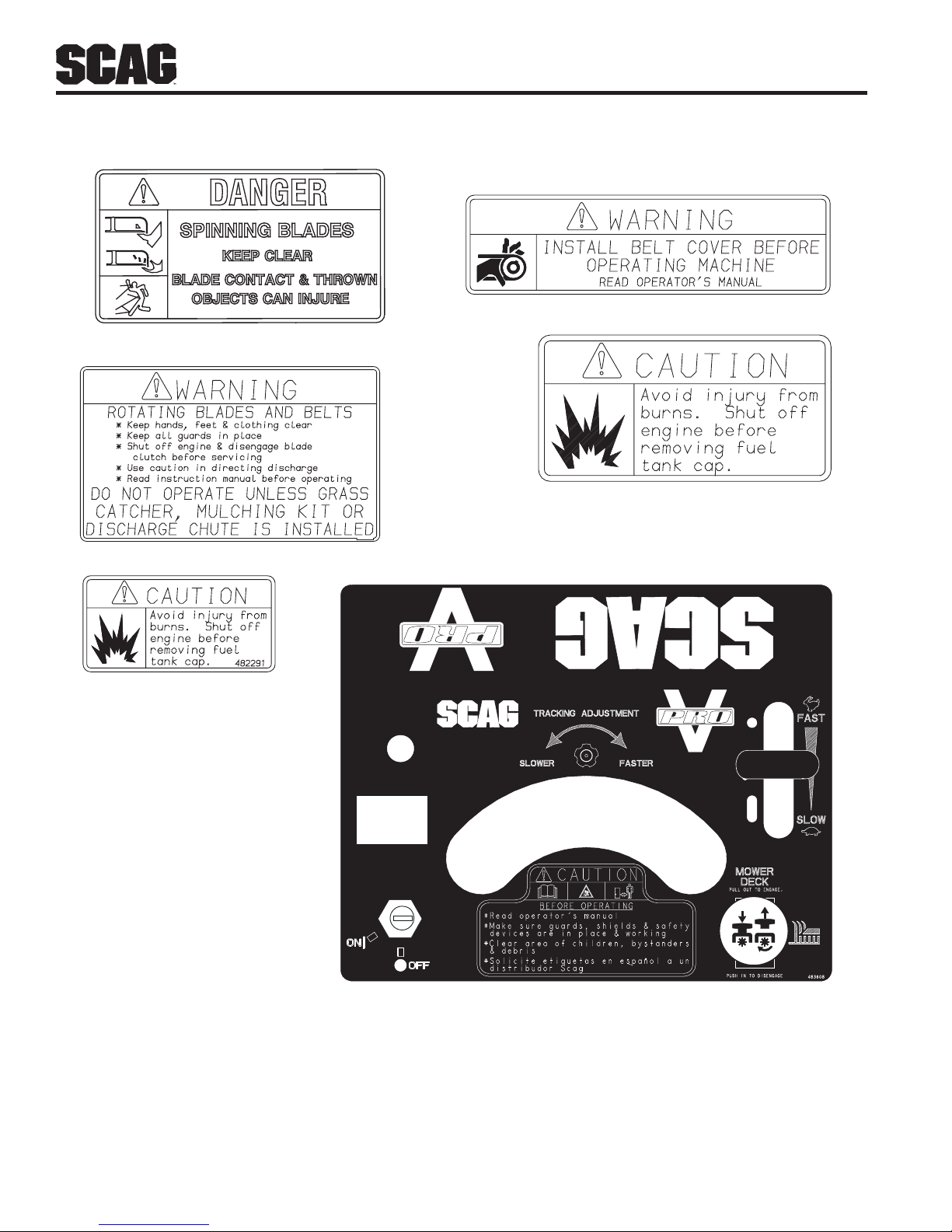

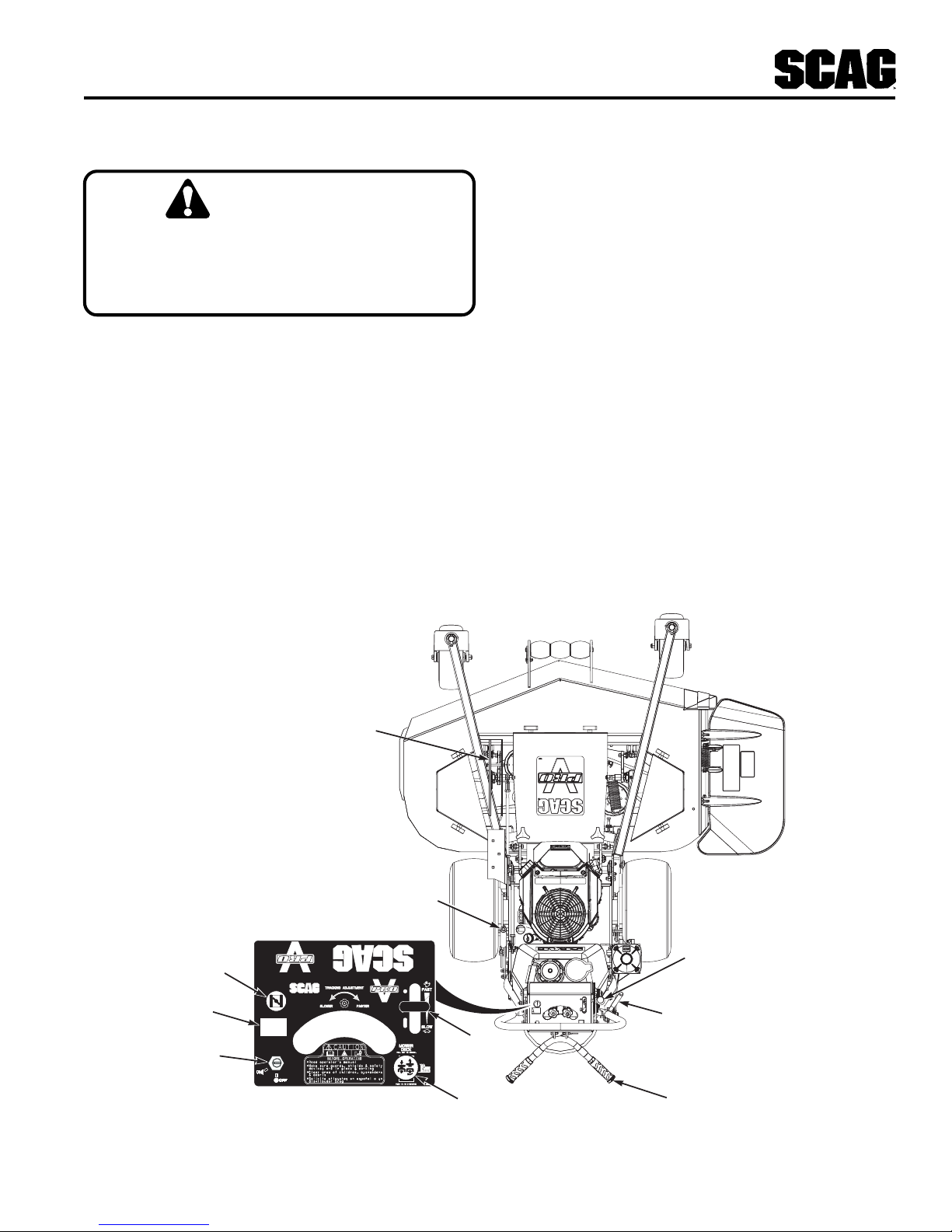

2.6 SAFETY AND INSTRUCTIONAL DECALS
483407
48340
2
48339
7
483406
2008 SWZV Safety Decals
482291
48360
8

9
Section 3 SPECIFICATIONS
ENGINES
General Type: Heavy duty industrial/commercial
Brand: Kawasaki
Models: FH480V (16HP), FH541V (17HP), FH580V (19HP)
Horsepower: 16HP, 17HP & 19HP
Type: 4 cycle gas, vertical shaft engines
Displacement: 16HP=472cc, 17HP=585cc, 19HP=585cc
Cylinders: 2 with cast-iron sleeves
Governor: Mechanical type governor with variable speed control. Settings:
16HP, 17HP & 19HP= 3600 rpm (+/-100 rpm), idle set at 1550
rpm (+/-150 rpm).
Exhaust Group: Side-mount single canister muffler
Fuel Pump Group: Pulse-type fuel pump with with in-line filter
Oil Pump Group: See engine manufacturer's specifications
Valve Group: See engine manufacturer's specifications
Starter/Electrical: Electronic Ignition with recoil starter, solid state ignition
ENGINEDECK
Thickness: 7 gauge steel
Fuel Tank: 5 gallon (18.92 litres) seamless polyethylene with integral cup
holder.
Drive Wheels/Tires: 18 x 6.5-8 four-ply pneumatic tubeless (36")
18 x 8.50-8 four-ply pneumatic tubeless (48" & 52")
Brakes: Dynamic braking through hydro drive system
Axles: 1" tapered
Handle Bars: 1" diameter
DRIVESYSTEM
Type: Hydro drive with two variable displacement pumps and two
cast-iron high torque motors
Hydro Pumps: Two Hydro-Gear Model BDP 10A pumps with dump valves for
movement without running the engine
Drive Wheel Motors: Two 12 cu. inch cast-iron high torque motors
Hydro Fluid Cooling Group: 1-1/2qt. capacity aluminum cooling reservoir, uses, SAE 20W50
fluid and 10 micron filter
Steering / Travel Control:: V-bar technology integrates control of both drive wheels via
single handle assembly. Push handle downward to travel forward,
upward for reverse; pivot the handle to steer.
Speed control range controlled with single lever (patented
design), in-field tracking adjustment
Parking Brakes: 7.5" drum, band brake, one on each wheel
Dump Valves: Allows for movement without engine running
Axles: 1" tapered motor shafts
Wire Harness: 14 gauge wire
Safety Group: Handle actuated operator presence system (patented design),
blade / clutch and transmission interlock to engine kill
Forward Speed Range: 0 to 7.4 mph
Reverse Speed Range: 0 to 3.0 mph

10
Section 3
CUTTERDECKS 36" Advantage, 48" Velocity Plus, 52" Velocity Plus.
Type: Out-front design with anti-scalp rollers
Construction: 36A: 7-gauge steel with 7-gauge (3/16") steel skirt
48V: 7-gauge steel with 7-gauge (3/16") steel skirt
52V:10-gauge steel with 7-gauge (3/16") steel skirt
Cutting Width: 48.0 (122.0 cm), 52.0 " (132.0 cm).
Cutting Height Adjustment: Adjustable from 1" to 4-1/2" in 1/4" increments
Cutter Blades: Marbain,.197 thickness
36A: Two (2) 18"
48V: Three (3) 16.5"
52V: Three (3) 18"
BladeEngagement: Electric blade brake clutch with instrument panel switch
Discharge Opening: Extra wide discharge opening with hinged discharge chute
Caster Wheels: 11 x 4.0-5 Flat free, smooth tread flotation, roller bearings,
with quick pin removal
Spindles: Cast iron housing, taper roller bearing, low maintenance with
top access grease fitting and grease overfill relief poppet
Spindle Pulleys: Split steel with easily removed taper hubs
Idler Pulley: 5" diameter pulley, welded and riveted construction,
1-3/8" O.D. Bearings
Idler Arm: Heavy duty dual ball bearing mounting
Cutter Deck Belts: B-section with Kevlar cord
ADDITIONALSPECIFICATIONS
OPTIONALITEMS/ATTACHMENTS
Fabric Grass Catcher: GC-F4 Grass Catcher with 4 cubic ft. capacity
Metal Grass Catcher: GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull
dump or pick-up and dump
Turbo-Baffle High velocity discharge baffle. Improves quality-of-cut, and
discharge disbursement.
Hurricane Mulch Kit: The unique Hurricane Mulch System employs "eye of the
hurricane" mulching plates combined with bolt-in v-baffles,
flow directors, Eliminator blades, and a side discharge close-off
plate.
Date of Issue: July, 2007
Specifications Subject to Change Without Notice
APPROXIMATEDIMENSIONS SWZV-36A SWZV-48V SWZV-52V
Length:
Tracking Width:
Width:
Width (with discharge chute up):
Height:
Weight
Turning Radius: Zero Zero Zero

11
Section 4
STEERING
CONTROL
HOURMETER
ENGINE
THROTTLE
CONTROL
DECK LIFT
SWZV CONTROLS
PARKING BRAKE
CONTROL
CUTTING HEIGHT
ADJUSTMENT
MOWER DECK SWITCH
IGNITION SWITCH
SPEED
CONTROL
ENGINE CHOKE
CONTROL
OPERATING INSTRUCTIONS
Do not attempt to operate this mower unless you
have read this manual. Learn the location and
purpose of all controls and instruments before you
operate this mower.
4.1 CONTROLS AND INSTRUMENT
IDENTIFICATION
Beforeoperating the mower, familiarize yourself with all
mower and engine controls. Knowing the location,
function and operation of these controls is important for
safe and efficient operation of the mower.
1. IgnitionSwitch (Figure4-1). The ignition switch is
used to start the engine. Manual start engines has two
positions; OFF and ON. Electric Start engines have
three positions; OFF, ON, and START.
CAUTION:
2. Mower Deck Switch (Figure 4-1). Used to engage
and disengage the mower drive system. Pulling up on
the switch will engage the deck drive. Pushing down
on the switch will disengage the deck drive.
3. Engine Choke Control (Figure 4-1). Used to start a
coldengine.
4. Engine Throttle Control (Figure 4-1). Used to
control the engine speed. Pushing the lever forward
increases engine speed. Pulling the lever back
decreases engine speed. Full back position is the
IDLE position. Full forward is the cutting position.
5. Hourmeter (Figure 4-1). Indicates the number of
hours the engine has been operated. It operates
whenever the engine is running. Has preset
maintenance reminders for engine and hydraulic
system oil changes. Will start flashing scheduled
maintenance 2 hours before preset time and continue
flashing until 2 hours after.Automatically resets.
Figure 4-1 Controls

12
Section 4
6. Steering Control (Figure 4-1). Used to control the
mower's travel direction. See Section 4.5 for further
details regarding the mower's travel controls.
7. Speed Control (Figure 4-1). Used to set the
mower's maximum FORWARD speed. See Section
4.5 for further details regarding the mower's travel
controls.
8. Parking Brake Control (Figure 4-1). Used to
engage and disengage the parking brakes. Pull the
lever back to engage the parking brakes. Push the
lever forward to disengage the parking brakes.
9. Deck Lift Lever (Figure 4-1). Used to raise and
lower the cutter deck.
10. Cutting HeightAdjustment (Figure 4-1). Used to
set the cutter deck at the desired cutting height.
4.2 SAFETY INTERLOCK SYSTEM
The mower is equipped with a safety interlock system
that prevents the engine from starting unless the deck
drive is disengaged, the parking brake is engaged and the
speed control lever is in the neutral position. With the
use of "Sensogrip Technology", the interlock system shuts
off the engine if the operator removes both hands from the
steering control with the speed control not in the neutral
position, the cutter blades engaged and/or the parking
brake not engaged.
-IMPORTANT-
The grips on the steering control handle sense
the presence of the operators hand using
"Sensogrip Technology". When using thick
gloves, more hand contact to the steering control
handle may be required.
4.3 INITIAL RUN-IN PROCEDURES (First
Day of Use or Approximately 10 Hours)
1. Check all belts for proper alignment and wear at 2, 4
and 8 hours.
2. Change the engine oil and oil filter after the first 20
hours of operation. (See Section 7.4.)
3. Check oil level in the hydraulic system reservoir. (See
Section 7.3.)
4. Check for loose hardware. Tighten as needed.
5. Check interlock system for proper operation. (See
Section 4.2.)
6. Check tire pressure. Adjust pressure if necessary.
(See Section 7.10.)
4.4 STARTINGTHE ENGINE
1. Be sure the fuel shutoff valve, located on the top right
side of the fuel tank, is completely open. (See Section
7.5.)
2. Place the speed control in the neutral position and
disengage the the cutter blades .
3. Engage the parking brake.
4. If the engine is cold, choke the engine as needed.
5. Move the engine throttle control to about half engine
speed.
6. Turn the ignition key to the On position and pull on
the recoil starter
7. Allow engine to warm before operating the mower.
WARNING:
Never operate the mower with the interlock system
disconnected or malfunctioning. Do not disengage
or bypass any switch; injury to yourself and others
or property damage could result.
CAUTION:
DO NOT USE STARTING FLUIDS. Use of starting
fluids in the air intake system may be potentially
explosive or cause a “runaway”engine condition
that could result in engine damage and/or personal
injury.

13
Section 4
4.5 GROUNDTRAVEL AND STEERING
-IMPORTANT-
If you are not familiar with the operation of a
machine with lever steering and/or hydrostatic
transmissions, the steering and ground speed
operations should be learned and practiced in
an open area, away from buildings, fences, or
obstructions. Practice until you are comfortable
with the handling of the machine before
attempting to mow. Learn the operation on flat
ground before operating on slopes.
-IMPORTANT-
Start practicing with a slow engine speed and
slow forward travel.
Learn to feather the steering controls to obtain a
smooth operating action.
Practice operating the mower until you are
comfortable with the controls before proceeding
to mow.
Forward Travel
To travel forward with the mower, place one hand on the
steering control, disengage the parking brake and push
down and forward on the speed control lever to set the
desired speed. Once the desired forward speed is selected
with the speed control lever, slowly push downward on
the steering control to start forward movement. The
further the speed control lever is moved forward and the
steering control is pushed downward, the greater the
forward speed will be. To decrease the speed, pull
upward on the steering control or pull back on the speed
control lever to set the desired speed. See Figure 4-2.
To stop the forward travel completely, pull the speed
control lever back to the neutral position.
To steer the mower to the left while traveling forward,
move the steering control to the right. The further the
steering control is moved, the quicker the mower will turn
left. See Figure 4-3.
To steer the mower to the right while traveling forward,
move the steering control to the left. The further the
steering control is moved, the quicker the mower will turn
right. See Figure 4-3.
-NOTE-
Smooth operation of the steering control lever
will produce smooth mower operation. While
learning the operation of the steering controls,
keep the travel speed low.
Reverse Travel
To travel in reverse, pull upward on the steering control.
Keep the travel speed low while traveling in reverse.
-NOTE-
The mower may not travel straight in reverse.
Slight adjustments may need to be made using
the steering controls.
To steer left while traveling in reverse, move the steering
control to the left. The further the control is moved, the
quicker the mower will turn left.
To steer right while traveling in reverse, move the steering
control to the right. The further the control is moved, the
quicker the mower will turn right.
To stop the reverse travel, allow the steering control to
return to the neutral position. If the mower is to be
parked, engage the parking brake.
Figure 4-2 Forward / Reverse Controls
PUSH DOWN
FOR FORWARD
PULL UP
FOR REVERSE
FORWARD SPEED
CONTROL
NEUTRAL

14
Section 4
STEERINGTOTHE RIGHTTRAVELING FORWARD
STEERINGTOTHE LEFTTRAVELING IN REVERSE
STEERINGTOTHE LEFTTRAVELING FORWARD
STEERINGTOTHE RIGHTTRAVELING IN REVERSE
SWZV STEERING CONTROLS
4.6 ENGAGINGTHE DECK DRIVE (CUTTER
BLADES)
1. Set the throttle at about 3/4 speed. Do not attempt to
engage the deck drive at high speed as this shortens
the electric clutch life — use only moderate engine
speed when engaging the deck drive.
2. Engage the deck drive by pulling out on the yellow
switch, located on the instrument panel, (Figure 4-4)
to the engage position.
-NOTE-
A squealing noise may be heard when engaging
or disengaging the deck drive. It is caused by
the electric clutch plates meshing as the mower
comes up to speed. This is normal.
3. To disengage the deck drive, push the switch in to the
disengageposition.
4. Always operate the engine at full throttle to properly
maintain cutting speed. If the engine starts to lug
down, reduce the forward speed and allow the
engine to operate at maximum RPM.
Figure 4-3 Steering Controls
Before backing up, observe behind the mower for
persons and obstructions. Clear the area before
backing up. Possible injury or property damage
could occur.
CAUTION:
Figure 4-4 Cutter Engage Switch
STT99CE
S
PULL UP TO ENGAGE
PUSH DOWN TO DISENGAGE
CAUTION:
Disengage power to the mower before backing
up. Do not mow in reverse unless absolutely
necessary and then only after observation of the
entire area behind the mower.

15
Section 4
4.7 HILLSIDE OPERATION
1. This mower has been designed for good traction and
stability under normal mowing conditions. However,
caution must be used when traveling on slopes,
especially when the grass is wet. Wet grass reduces
traction and steering control.
2. To prevent tipping or loss of control, do not start or
stop suddenly, avoid unnecessary turns and travel at
reduced speed. If tires lose traction, disengage blades
and proceed slowly off the slope.
3. Always travel across a slope with a walk behind
mower.
4. Keep tires properly inflated.
4.8 PARKINGTHE MOWER
1. Park the machine on a flat, level surface only. Do
not park the machine on an incline.
2. Place the steering control levers in the neutral
position.
3. Disengage the cutter blades
4. Slow the engine to idle speed.
5. Engage the parking brake.
6. Turn the ignition key to the OFF position and remove
the key.
4.9 AFTER OPERATION
1. Wash the entire mower after each use. Do not use
high pressure spray or direct the spray onto electrical
components.
-IMPORTANT-
Do not wash a hot or running engine. Cold water
will damage the engine. Use compressed air to
clean the engine if it is hot.
2. Keep the entire mower clean to inhibit serious heat
damage to the engine or hydraulic oil circuit.
3. Check the drive belts for proper alignment and any
signs of wear. Correct and adjust if necessary.
4. After the mower has cooled down, fill the fuel tank
with fresh, clean fuel at the end of every day of
operation.
5. Check the tire pressure. Adjust pressure if necessary.
4.10 REMOVING CLOGGED MATERIAL
To avoid injury from burns, allow the mower to
cool before removing the fuel tank cap and
refueling.
CAUTION:
1. If the discharge chute becomes clogged, shut off the
engine and remove the ignition key. Using a stick or
similaritem, dislodge the clogged material. Then
resumenormal mowing.
NEVER PUTYOUR HANDS INTOTHE CHUTE
AREA. Remove the key and only then use a stick
or similar object to remove material if clogging
has occurred.
ROTATING BLADES

16
Section 4
Do not adjust the cutting height with the mower
blades rotating. Disengage the power to the cutter
blades,putleversinthe neutral lock position, apply
the brake and then adjust cutting height.
1. Disengage the power to the cutter blades.
2. Pull on the cutter deck lift lever lever all the way
backward until it locks in place. (Figure 4-6).
3. Insert the lanyard pin into the cutting height index at
the desired cutting height. Pull backward on the
cutter deck lift lever, push and hold the lock button
(Figure 4-6). Slowly release the cutter deck lift lever.
A deck height decal is located on the cutting height
index as an aid in adjusting the deck to the desired
height.
Figure 4-6 Adjusting Cutting Height
WARNING:
4.13 ADJUSTING CUTTING HEIGHT
The mower deck can be adjusted from a height of 1-inch
to 4-1/2 inches at 1/4-inch intervals. To adjust the cutting
height:
8. Use the alternate stripe pattern for best lawn
appearance. Vary the direction of the stripe each
time the grass is mowed to avoid wear patterns in
the grass.
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
4.11 MOVING MOWER WITH ENGINE
STOPPED
To “free-wheel” or move the mower around without the
engine running, place the dump valve levers in the FREE-
WHEEL position. Disengage the parking brake and move
the mower by hand. The dump valve levers must be
returned to the DRIVE position and torqued to 7-10 ft/lbs
to drive the mower.
4.12 RECOMMENDATIONS FOR MOWING
1. Do not mow with dull blades. Adull blade will tear
grass, resulting in poor lawn appearance and require
extra power.
2. The discharge chute must not be removed and must
be kept in the lowest position to deflect grass clippings
and thrown objects downward. Direct the side
discharge away from sidewalks or streets to minimize
cleanup of clippings. When mowing close to
obstacles, direct the discharge away from the
obstacles to reduce the chance of property damage by
thrown objects.
3. Cut grass when it is dry and not too tall. Do not cut
grass too short (cut off 1/3 or less of existing grass for
best appearance). Mow frequently.
4. Keep mower and discharge chute clean.
5. When mowing wet or tall grass, mow the grass twice.
Raise the mower to the highest setting for the first
pass and then make a second pass to the desired
height.
6. Use a slow travel speed for trimming purposes.
7. Operate the engine at full throttle for best cutting.
Mowing with a lower RPM causes the cutter blades
to tear the grass. The engine is designed to be
operated at full speed.
CUTTER DECK
LIFT LEVER
LANYARD PIN
