WARMBRITE LE RANGE
OWNERS MANUAL
Scandia Heating (Aust) Pty Ltd
Head Office
58-62 Access Way
Carrum Downs VIC 3201
Australia
0800 007 107
info@scandiastoves.com.au
www.scandiastoves.com.au
Warmbrite 140LE
Warmbrite 200LE
Warmbrite 200LE Stacker
Warmbrite 300LE
Warmbrite 300LE Stacker
Sc.NZ Version 1.3 13/05/19
Contents of manual may be updated without notice.
For the latest version of this manual please refer to our website: www.scandiastoves.com.au
Wood heater safety 2
Before installing your wood heater 3
Installation 4

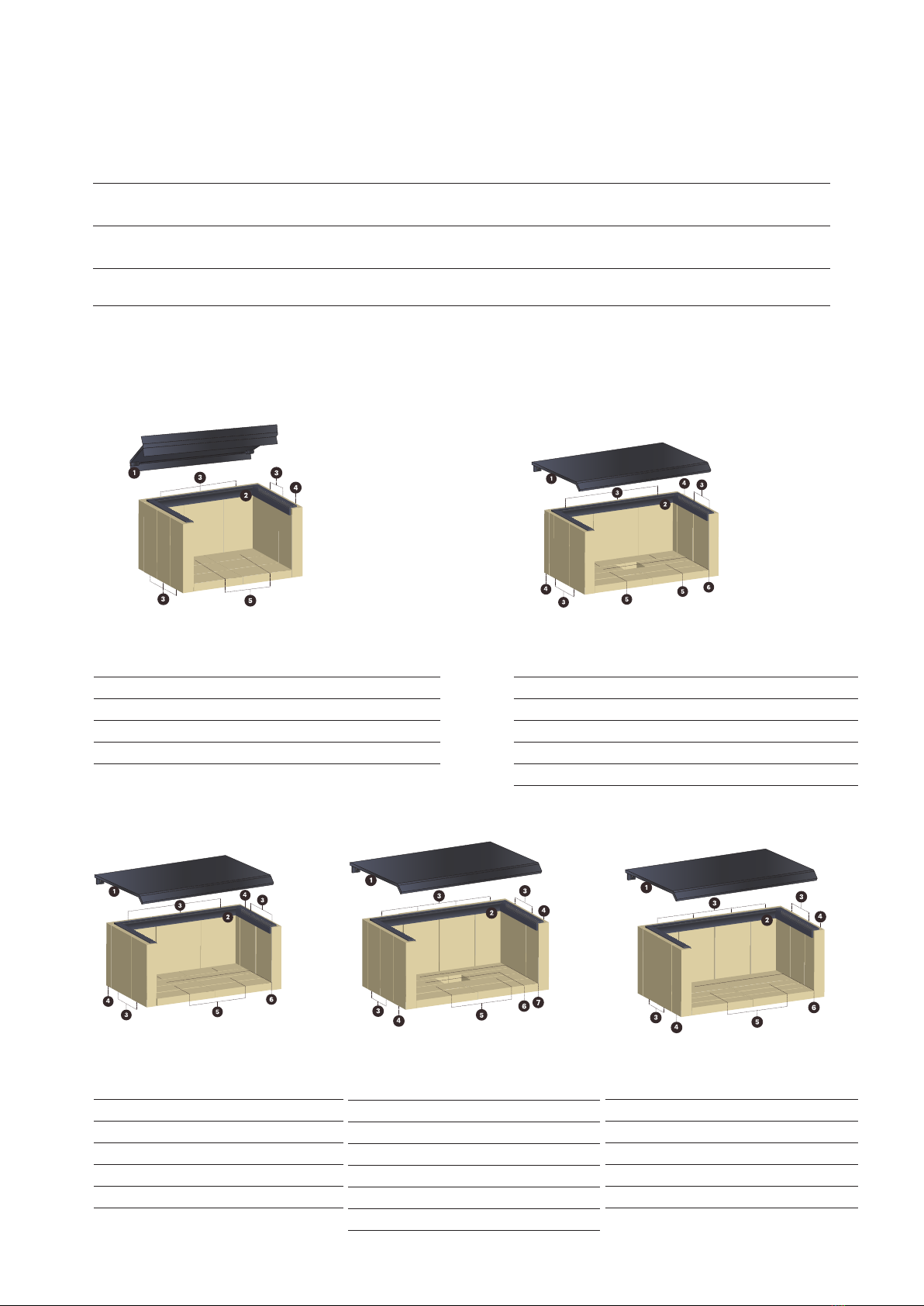

Firebox Assembly 11

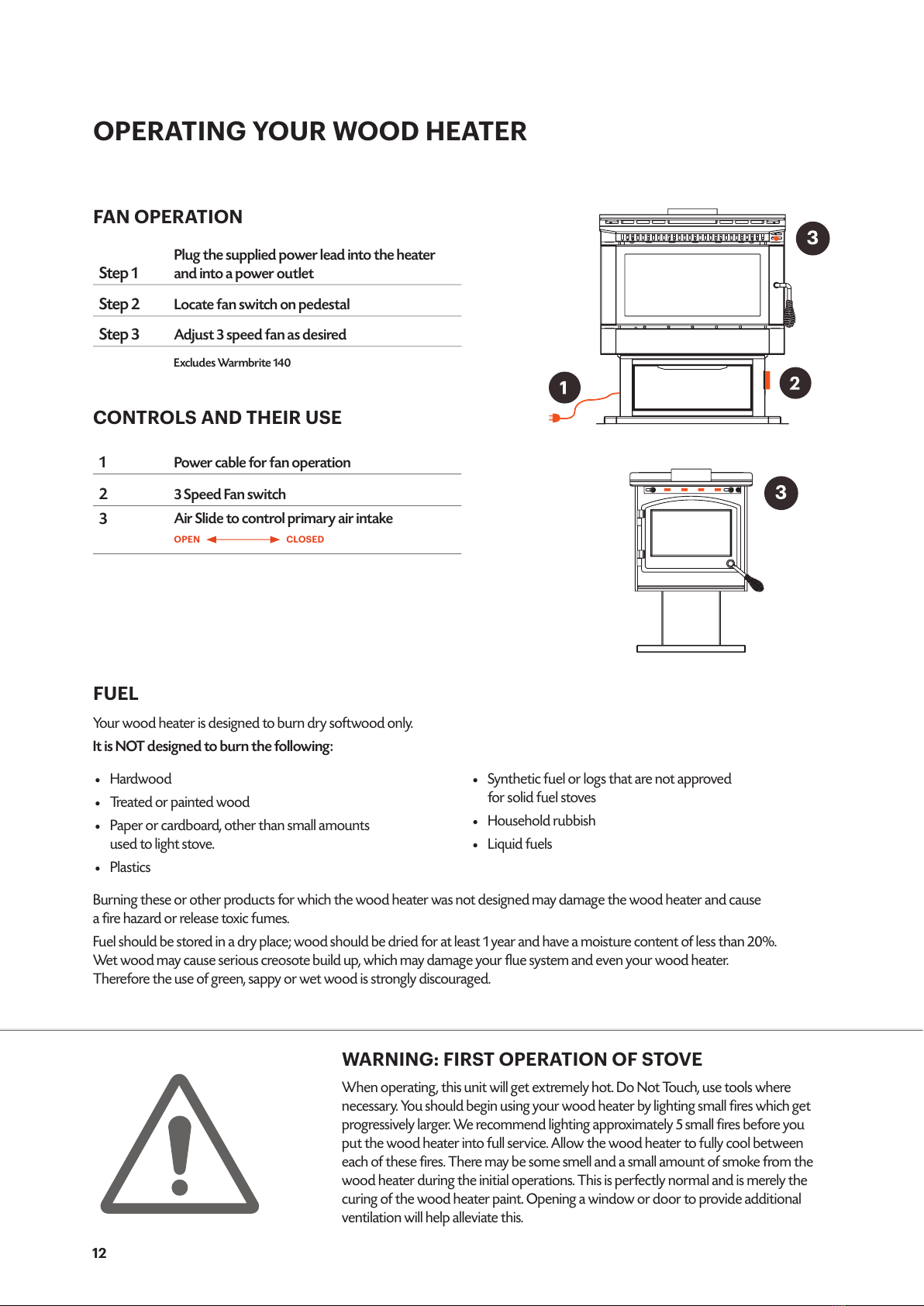

Operating your wood heater 13
Wood heater maintenance 14
Trouble shooting 16
Warranty 17
Exploded diagram/ Spare parts list 19
1
SCANDIA WARMBRITE RANGE
Model Name Model Number
Warmbrite 140LE SCWB140LE
Warmbrite 200LE SCWB200LE
Warmbrite 200LE Stacker SCWB200LE-ST
Warmbrite 300LE SCWB300LE
Warmbrite 300LE Stacker SCWB300LE-ST
CONTENTS
INTRODUCTION
Congratulations on purchasing a genuine Scandia Wood heater. When cared for properly, these high quality,
finely crafted wood heaters will offer many years of reliable performance. This instruction manual has been
developed to ensure optimum performance from your Scandia wood heater. It’s very important that you
thoroughly read and understand all instructions before using your new wood heater.
COUNCIL REQUIREMENTS
Check Local Council Requirements E.g. permits
When installing, operating and maintaining your wood heater, follow the guidelines presented in these instructions,
and make them available to anyone using or servicing the wood heater.
Your city, town, state or territory may require a building permit to install a solid fuel burning appliance.
Always consult your local building inspector or local council to determine what regulations apply in your area.
Your wood heater must be installed by a qualified person whose
work conforms with local council regulations, New Zealand
standards &manufacturers recommendations. Failure to do so will
void your warranty and could possibly void any home insurance.
Please note:
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the electrical supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or similarly qualified
persons in order to avoid hazard.
4. Never place combustible items such as but not limited to furniture, fabric or wood within the specified clearances
tocombustibles.
5. The burning of wood gives off gases which can be extremely dangerous. Wood heaters are designed so that under
normal operating circumstances these gases pass up the flue chimney system and cannot escape into your home,
however it is important that your flue system is properly installed and that you check all joints regularly to ensure that
there are no cracks or gaps, check the door sealing rope and replace when damaged/worn. We recommend a smoke
alarm be fitted in rooms where wood heaters are installed. Do not use your wood heater in a room where negative
pressure conditions exist. Negative pressure environments can cause products of combustion to be drawn from the
fireplace into the room. Caution should be taken when using any form of extraction in a room where a wood heater is
installed.
6. This appliance is designed to specifically burn dry softwood. Do not burn rubbish, driftwood, flammable liquids
oranysubstance containing salts or corrosives.
7. Creosote and soot may accumulate in your flue pipe and chimney. This may ignite, causing a chimney fire. If you suspect
a chimney fire close down the air controls on the wood heater, if the fire persists evacuate people from the building
and call the Fire Brigade. To prevent the accumulation of soot or creosote, check flue and chimney regularly and clean
as necessary. Good burning, hot wood heaters will generally cause a lot less build-up than slow burning wood heaters,
likewise dry wood will cause less build-up than wet wood. We recommend a fire extinguisher be available where wood
heaters are in operation. In the event of a chimney fire do not re-light the wood heater until the heater and the flue
chimney system have been thoroughly checked and repaired/replaced as necessary.
8. Wood heaters get extremely hot and should not be touched when lit. When young children are in the area, we
recommend the use of a suitable fire guard around the wood heater. Always wear protective gloves when reloading
wood heater.
9. Never over-fire your wood heater. If external parts of your wood heater are glowing red then the wood heater is
over-firing and your draught settings should be reduced. Never interfere with the draught mechanisms or adjust your
air settings outside those limits set when the wood heater is manufactured. Never use a secondary fan to supply or
extract air to the wood heater.
10. All users of the wood heater should be aware of the contents of this manual. Please leave this manual where it is
accessible to wood heater users and do not allow anyone to use the wood heater that is unfamiliar with its correct
operation.
11. Never use the wood heater if any parts are missing or damaged, only use genuine parts as replacements.
Never modify your wood heater.
2
WOOD HEATER SAFETY
When properly maintained and operated your wood heater should give you many years of service,
however there are important safety aspects of these products that you need to be aware of when operating a wood heater.
3
BEFORE INSTALLING YOUR WOOD HEATER
You need to consider the following to ensure the safe operation of your wood heater:
- Provision of adequate air to support efficient combustion of the fuel.
- A well sealed flue/chimney system, hereinafter referred to as the “flue system”.
- The protection of combustible materials in proximity of the wood heater.
- A suitable base on which to place your wood heater.
ADEQUATE PROVISION AIR
It is essential for the safe and efficient use of your wood heater that you provide an adequate air supply to your wood heater.
This may mean the provision of an outside air supply to the room, especially if there are extraction units such as cooker hoods or
clothes dryers in the vicinity. Failure to do so will mean that fuel is burned inefficiently causing smoke, blackening the glass and may
also cause smoke to come back into the room. As a simple check for this open a door or window in the room and check if the wood
heater burns more efficiently.
WELL SEALED FLUE SYSTEM
Under no circumstances should you use aluminum or galvanized steel pipes for your wood heater flue. Always fit pipes with the
narrow crimped side down, this allows any creosote to run down the inside of the pipe and not to come out and cause an unsightly
mess and possible fire hazard.
Pipe bends should be kept to a minimum and we do not recommend using more than 2 bends on any installation. Flues must not
pass through ceilings, floors, attics, roofs, or combustible walls without adequate and approved insulation being provided to protect
combustible materials.
The chimney and flue provide a means of taking combusted fuel from the wood heater, as well as a draught to enable the wood
heater to work. It is essential that the flue system is kept in good condition and there are no breaks or cracks allowing contact with
any other combustible materials of the house. It is also essential that the flue system is kept clean and seals are maintained to ensure
the draught is not lost.
The open end of the flue system must be above the height of the apex of the building and any other obstructions, such as trees,
which are within 3 meters (10ft) of the flue system. Failure to do this will affect the efficiency of the wood heater and may cause
down draughts which will mean dangerous products of combustion are emitted into the room.
Under no circumstances should the flue pipe be less than 6” (152mm) internal diameter.
CLEARANCES TO COMBUSTIBLES
It is extremely important that you respect required installation distances and that you respect local installation regulations.
This is for your safety! The manufacturer is not responsible for the product, if it is not installed following these recommendations.
These clearances may only be reduced by means approved by the regulatory authority.
A combustible surface is anything that can burn (i.e. plaster, wall paper, wood, fabrics etc.) These surfaces are not limited to those
that are visible and also include materials that are behind non-combustible materials. If you are not sure of the combustible nature
of a material, consult your local fire officials.
HEARTH REQUIREMENTS
The floor protector must consist of 9mm thick cement fibre sheet which has a thermal resistance of 0.008m2 K/W, per 4mm
thickness or equivalent. Scandia have a complete range of suitable ready to install hearth pads for straight wall and corner
installations.

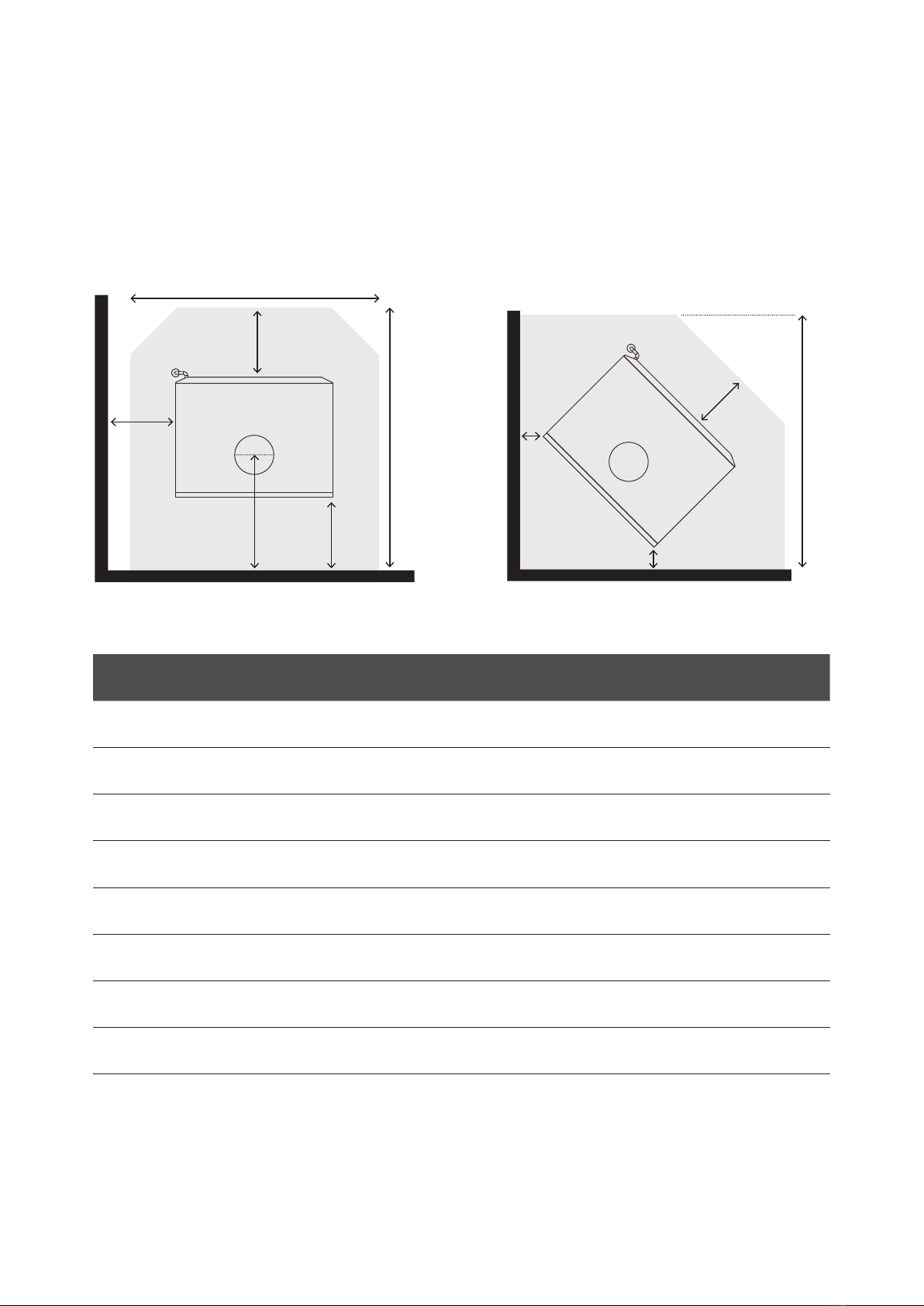

SCWB140LE SCWB200LE / -ST SCWB300LE / ST
ASide of heater to side wall 650* / 550^300 * ^425* / 400^
BCentre of heater flue to rear wall 360* / 310^335*^ / 345*^ 415*^
CRear of heater to rear wall 225* / 175^175*^225*^
DFront of heater to hearth front 300 400*^510*^
EMinimum hearth width 750 900*^1000*^
FMinimum hearth depth 970* / 920^1090*^ / 1100*^ 1330*^
GRear corner of heater to wall 550* / 500^100*^175*^
HMinimum Corner Hearth Depth 1400* / 1350^1200*^ / 1205*^ 1480*^
E
F
A
C
D
B
D
G
GH
E
F
A
C
D
B
D
G
GH
All measurements are in ‘mm’
*When using Scandia decorative mesh flue kit. (Decorative flue is fitted with an additional heat shield)
^When using Scandia Sleek Black / Graphite flue kit. (Sleek black / Graphite flue is fitted with an additional heat shield)
Manufacturers recommendation: Keep all combustible materials at least 1.22 metres (4 feet) away from the appliance.
This include rugs, fabrics, furnishings, papers, firewood, etc. NEVER dry clothing on or within 1.22 metres of the appliance.
4
INSTALLATION
CLEARANCES TO COMBUSTIBLES

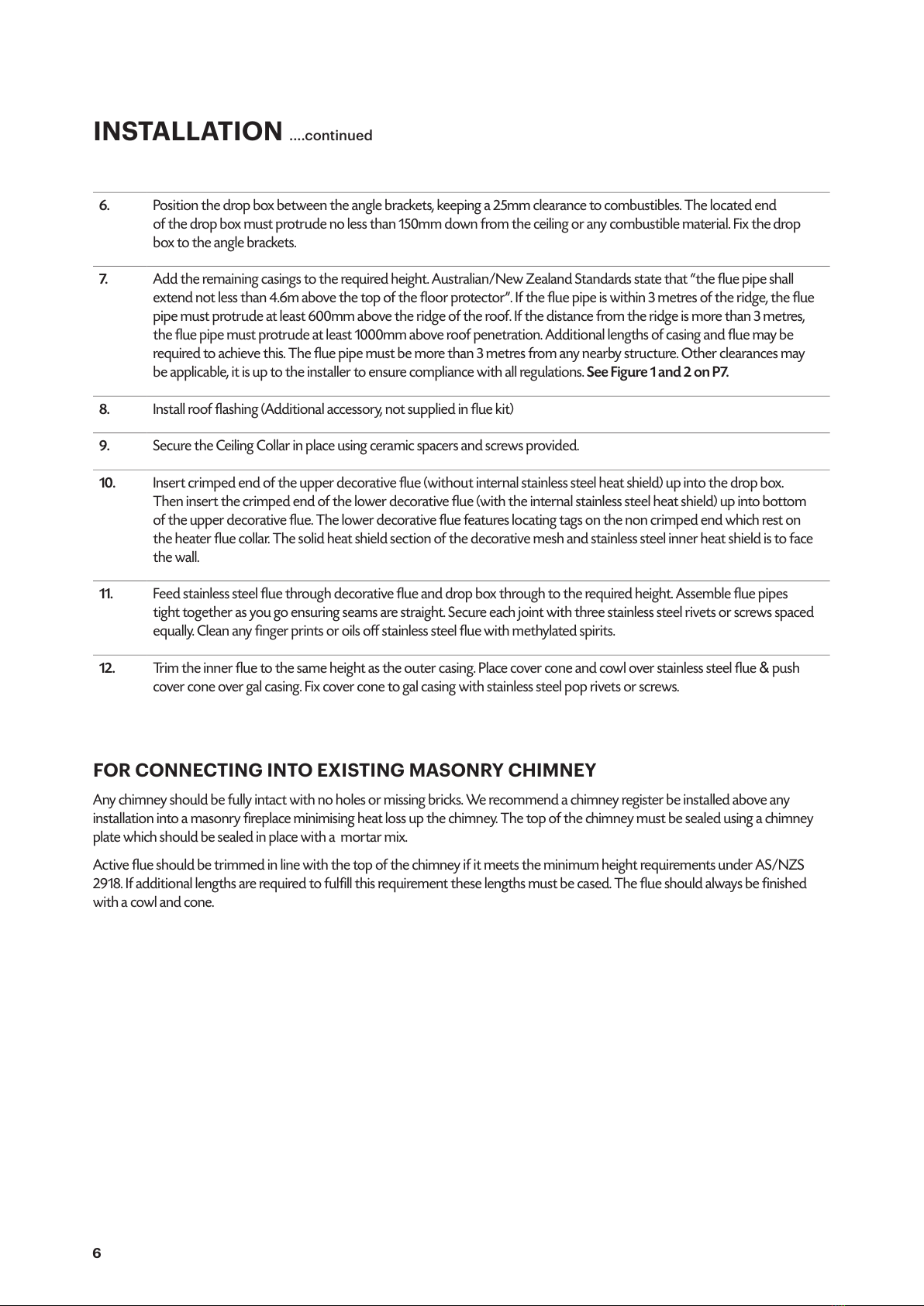

1. Locate wood fire in it’s proposed position according to manufacturers recommendations.
2. Use a plumb bob to mark the ceiling in line with the centre of the flue collar.
3. Check that the outer casing will clear all combustible materials by 25mm. Determine positions of noggins to avoid
cutting, otherwise headers must be installed for strength.
4. Cut a 305mm diameter hole in the ceiling. Directly above cut a hole in the roof to accommodate outer casing.
5. Fix the angle brackets to the joists so that the drop box (first length of located casing) is located in the centre of the hole.

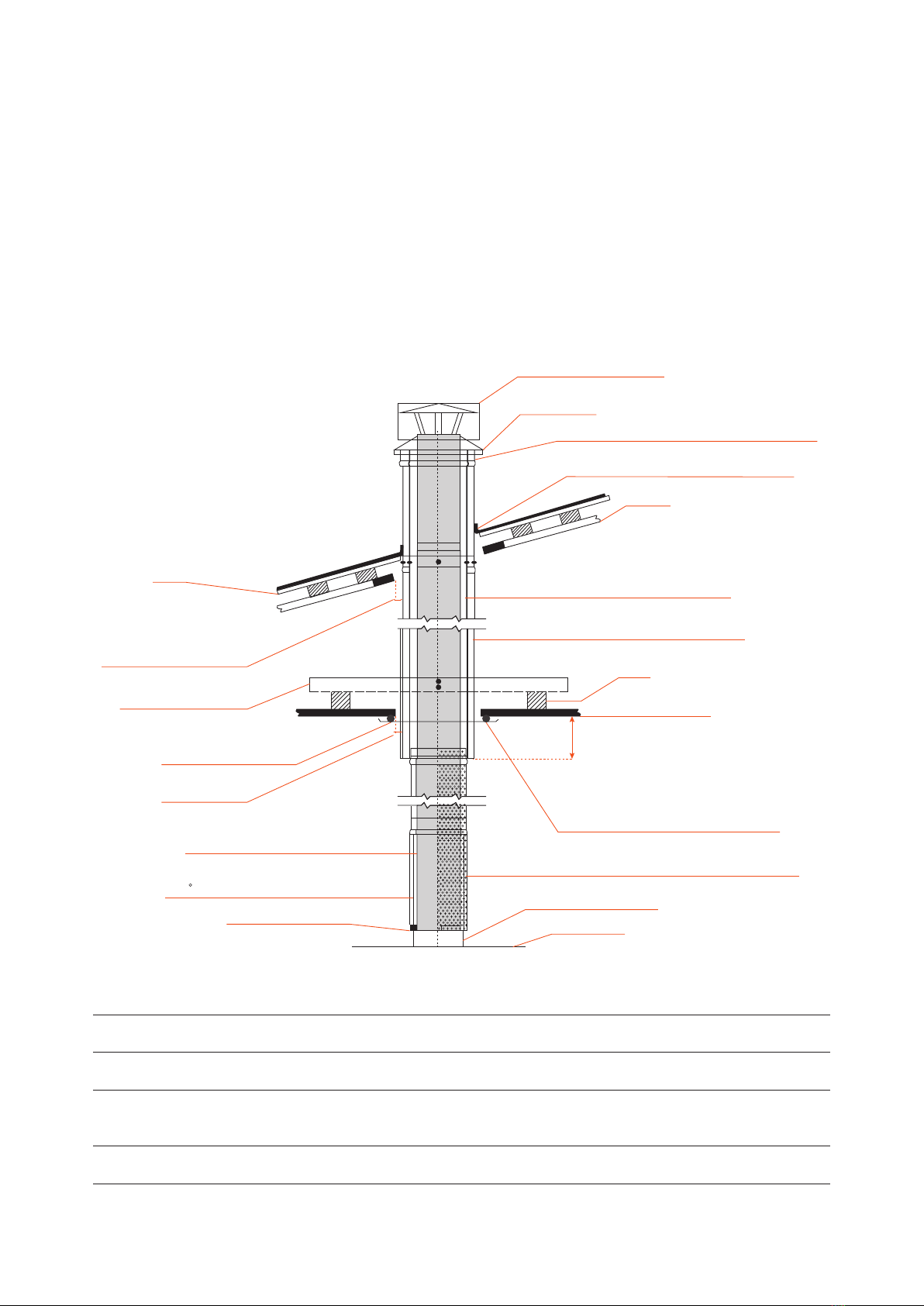

ANTI DOWN DRAFT COWL
ROOF
COVER CONE
SECURE COVER CONE TO CASING W/ SCREW
ROOF FLASHING (NOT SUPPLIED IN KIT)
MIDDLE 8” GALVANISED CASING
OUTER 10” GALVANISED CASING
RAFTER
JOIST
CEILING
HEATER
HEATER FLUE COLLAR
DECORATIVE CASING POSITION, SEAM TO REAR
CERAMIC SPACERS
ANGLE BRACKET
CEILING COLLAR FIXED WITH SCREW,
WITH CERAMIC SPACERS BETWEEN
CEILING COLLAR AND THE CEILING
INNER 6” STAINLESS STEEL FLUE
(CRIMPED END DOWN)
180 FIXED HEAT SHIELD
Min 150mm of drop box must
extend from any combustible
surface including ceiling
Min 25mm from outer
casing to any combustible
material
Min 25mm
LOCATION TAG
5
INSTALLATION ....continued
FOR CONNECTING INTO A STANDARD INSTALLATION
USING SCANDIA DEFAULT FLUE KITS
The following drawing is meant as a guide only. Your wood heater must be installed by a qualified person whose work conforms
with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2018) &manufacturers recommendations.
Scandia wood heaters are independently tested to New Zealand Standards using a Scandia flue kit, we always recommend using
aScandia flue kit when installing a Scandia wood fire.
6. Position the drop box between the angle brackets, keeping a 25mm clearance to combustibles. The located end
of the drop box must protrude no less than 150mm down from the ceiling or any combustible material. Fix the drop
box to the angle brackets.
7. Add the remaining casings to the required height. Australian/New Zealand Standards state that “the flue pipe shall
extend not less than 4.6m above the top of the floor protector”. If the flue pipe is within 3 metres of the ridge, the flue
pipe must protrude at least 600mm above the ridge of the roof. If the distance from the ridge is more than 3 metres,
the flue pipe must protrude at least 1000mm above roof penetration. Additional lengths of casing and flue may be
required to achieve this. The flue pipe must be more than 3 metres from any nearby structure. Other clearances may
beapplicable, it is up to the installer to ensure compliance with all regulations. See Figure 1 and 2 on P7.
8. Install roof flashing (Additional accessory, not supplied in flue kit)
9. Secure the Ceiling Collar in place using ceramic spacers and screws provided.
10. Insert crimped end of the upper decorative flue (without internal stainless steel heat shield) up into the drop box.
Then insert the crimped end of the lower decorative flue (with the internal stainless steel heat shield) up into bottom
ofthe upper decorative flue. The lower decorative flue features locating tags on the non crimped end which rest on
theheater flue collar. The solid heat shield section of the decorative mesh and stainless steel inner heat shield is to face
the wall.
11. Feed stainless steel flue through decorative flue and drop box through to the required height. Assemble flue pipes
tight together as you go ensuring seams are straight. Secure each joint with three stainless steel rivets or screws spaced
equally. Clean any finger prints or oils off stainless steel flue with methylated spirits.
12. Trim the inner flue to the same height as the outer casing. Place cover cone and cowl over stainless steel flue &push
cover cone over gal casing. Fix cover cone to gal casing with stainless steel pop rivets or screws.
FOR CONNECTING INTO EXISTING MASONRY CHIMNEY
Any chimney should be fully intact with no holes or missing bricks. We recommend a chimney register be installed above any
installation into a masonry fireplace minimising heat loss up the chimney. The top of the chimney must be sealed using a chimney
plate which should be sealed in place with a mortar mix.
Active flue should be trimmed in line with the top of the chimney if it meets the minimum height requirements under AS/NZS
2918. If additional lengths are required to fulfill this requirement these lengths must be cased. The flue should always be finished
with a cowl and cone.
6
INSTALLATION ....continued
6m
Increase flue length as
necessary until nothing
within 6m of flue top
ANY NEARBY
STRUCTURE
MINIMUM INSTALLATION CLEARANCES
FIGURE 1
FIGURE 2
7
INSTALLATION ....continued
8
INSTALLATION ....continued

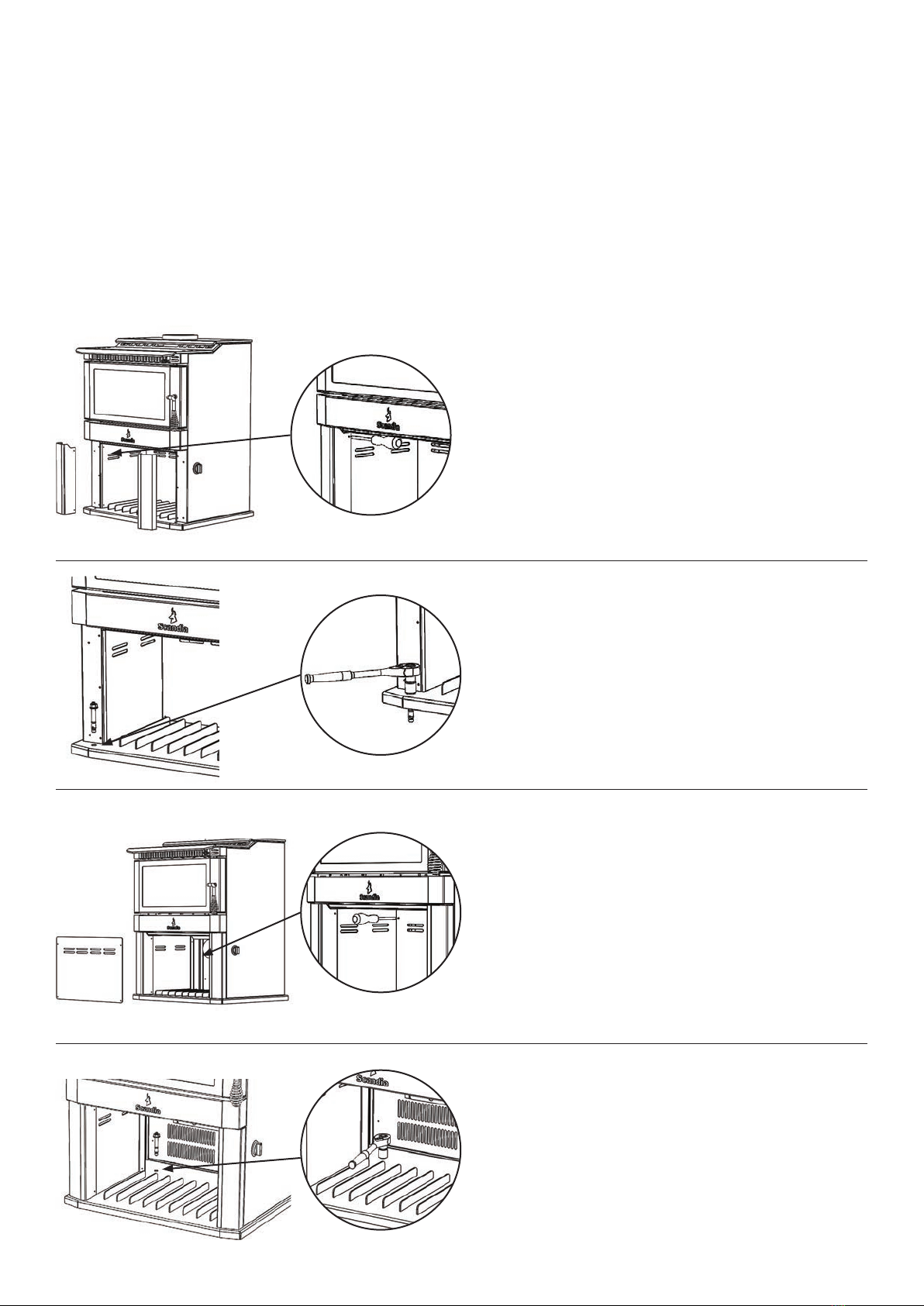

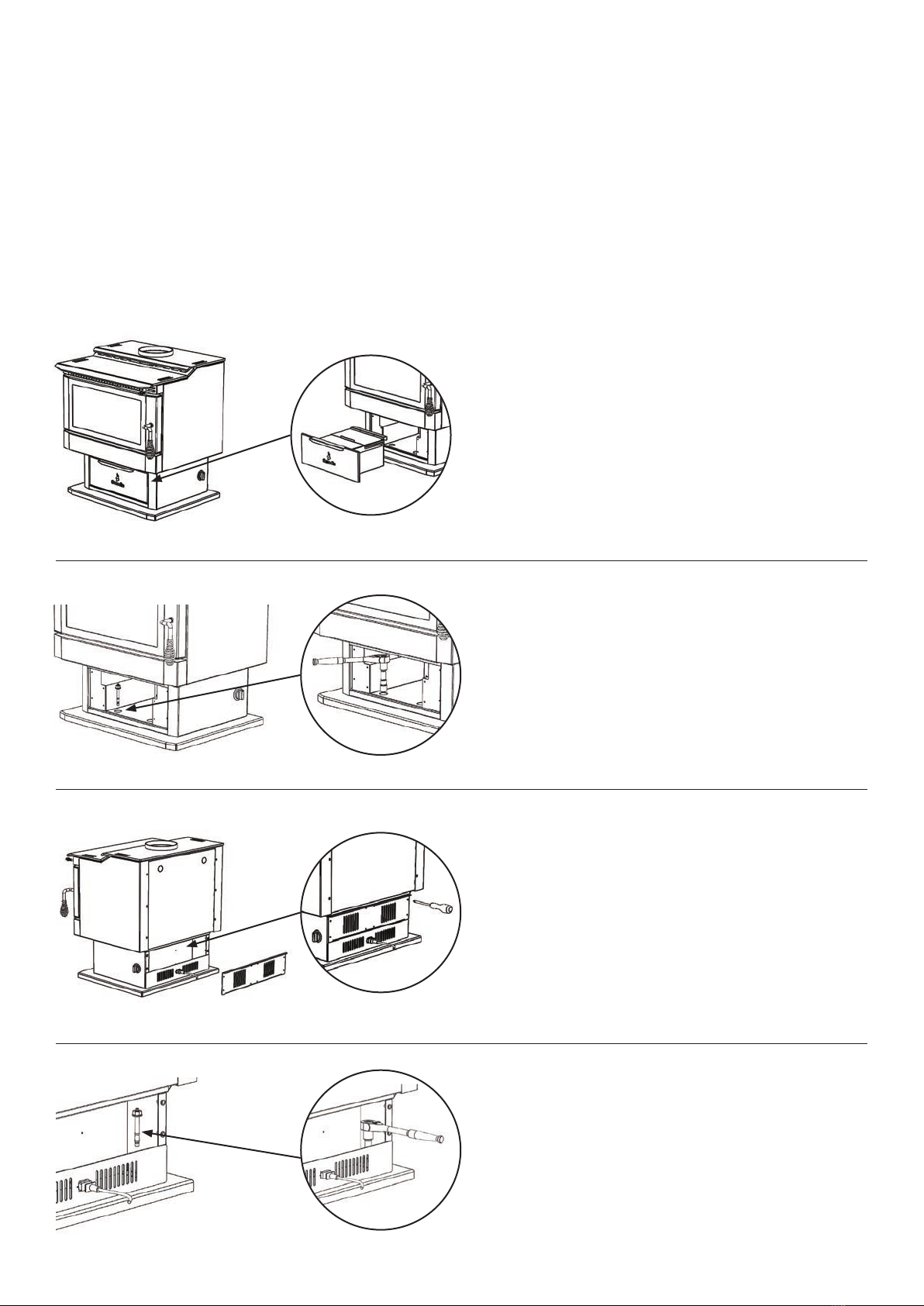

SEISMIC RESTRAINT OF WARMBRITE 140LE PEDESTAL
NEW ZEALAND REQUIREMENT
In order to comply with standard AS/NZS2918:2018, it is required that the wood fire and floor protector be secured to prevent
shifting in the event of an earthquake. Anchor the appliance to the floor through the holes in the base (foot) of the appliance.
STEP 1
Access to the restraint bolt holes is on the inner
side of the plinth stand within the base.
STEP 2
Insert bolts into the base of the heater.
STEP 3
Using a ratcheting socket wrench torque the
bolts as specified by the bolt supplier.
STEP 4
Your heater is now securely fixed at the base.
