Schiller 73-70900 User manual
OP/PARTS MANUAL
MAN 4158496
Rev. A 3-2007
MODELS:
73-70900
CHIPPER SHREDDER CS312
75-70902
CHIPPER SHREDDER BLOWER ATTACHMENT CS3130
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défauts congénitaux et d’autres dangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber que
los gases de escape de los motores
diesel y algunos de sus componentes
producen cáncer, defectos de
nacimiento y otros daños en el
proceso de reproducción humana.
L’
é
mission du moteur de ce mat
é
riel
contient des produits chimiques que
l’Etat de Californie consid
è
re
ê
tre
canc
é
rig
è
nes, provoquer des d
é
fauts
cong
é
nitaux et d’autres dangers en
mati
è
re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.
1
CHIPPER/
SHREDDER
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care. Inc. product. You have purchased a world class product,
one of the best designed and built anywhere.
This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this
product depends to a large extent on how well you read and understand this manual. Treat this product properly
and adjust it as instructed, and it will give you many years of reliable service.
See a Schiller Grounds Care. Inc. dealer for any service or parts needed. Schiller Grounds Care. Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care. Inc. products. You
can trust Schiller Grounds Care. Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care. Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care. Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
3-2007
TABLE OF CONTENTS FIGURES PAGE
DESCRIPTION.................................................................................................................................................2
SPECIFICATIONS............................................................................................................................................3
SAFETY.........................................................................................................................................................4-6
INSTALLATION ...........................................................................................................................................7-13
OPERATION.............................................................................................................................................14, 15
SERVICE...................................................................................................................................................16-20
PARTS SECTION...........................................................................................................................................21
HITCH & DRIVE PARTS ..................................... FIGURE 1 ................................................................... 22, 23
FRAME PARTS ................................................... FIGURE 2 ................................................................... 24, 25
EMERGENCY STOP SWITCH PARTS............... FIGURE 3 ................................................................... 26, 27
CHIPPER/SHREDDER BLOWER PARTS .......... FIGURE 4 ................................................................... 28, 29
2
CHIPPER/
SHREDDER
DESCRIPTION
DESCRIPTION
This Chipper/Shredder is designed to grind, shred, and chip a variety of materials into a useable
processed material to enrich, beautify and landscape. Mounted on the front of the Steiner 4-wheel
drive articulated frame tractor enables the chipper/shredder to be used in a variety of locations.
Small materials such as leaves, yard and garden debris (cornstalks, plants, prunings, vines, etc.) can
easily be processed through the shredder inlet. Sticks and branches should be limited to 1-1/2 inches in
diameter and no longer than 24 inches to avoid excess whipping and wrapping. The processed material can
be placed in a compost pile or spread on the ground as mulch, giving a professionally landscaped look.
The chipper inlet can chip branches up to 4 inches in diameter. Several small branches can be grouped and
fed into the chute together. The chipper can reduce a pile of branches and brush into useful and attractive
decorative landscape chips.
3
CHIPPER/
SHREDDER

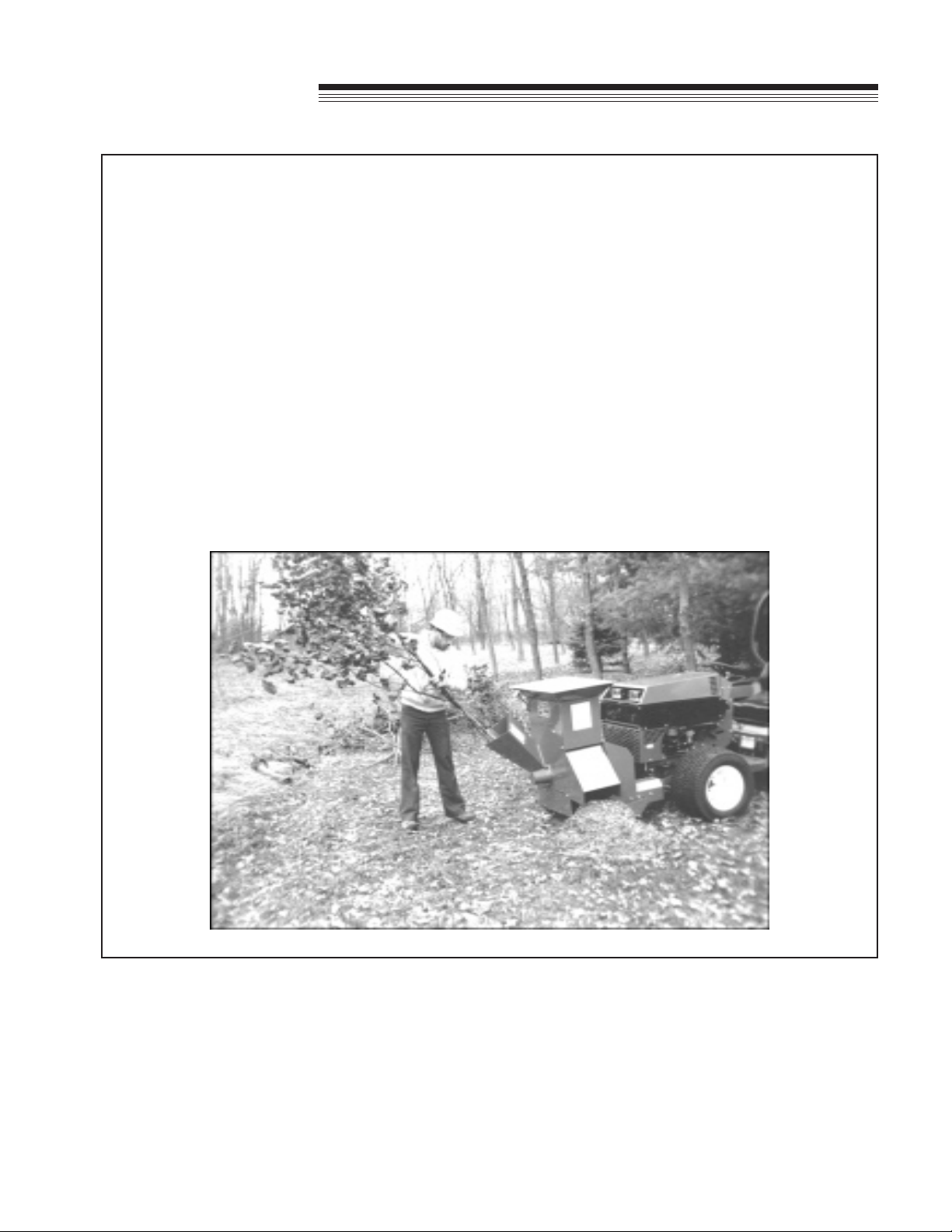

SPECIFICATIONS
Overall Width ................................................................................. 35-5/8"
Overall Height................................................................................ 44-1/2"
Overall Length ............................................................................... 53-1/4"
Chipper Knives .............................................................................. 4 Hardened
Shredder Sections......................................................................... 72 Hardened
Rotor Diameter .............................................................................. 18"
Rotor Width.................................................................................... 12"
Rotor Speed (maximum) ............................................................... 1550 RPM
Shredder Throat Opening.............................................................. 9-1/2" X 11"
Maximum material size for Shredder............................................. 1-1/2" diameter X 24" long
Maximum material size for Chipper............................................... 4" diameter
Application..................................................................................... Steiner 420, 425 & 525 Power Units Only.
Weight ........................................................................................... 430 lbs.
Specications are subject to change without notice.
SPECIFICATIONS
4
CHIPPER/
SHREDDER
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care. Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedby Schiller
Grounds Care. Inc. Engineering Department. Any
Schiller Grounds Care. Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specically approved by Schiller Grounds
Care. Inc.–will result in the Schiller Grounds Care.
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care. Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care. Inc. will vigorously pursue
full indemnification and costs from any party
responsible for such unauthorized post-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manual and on the safety labels attached to Schiller
Grounds Care. Inc. machines. For your safety and
the safety of others, read and follow the information
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNING indicates a hazardous situation which,
if not avoided, COULD result in death or serious
injury.
CAUTION indicatesa potentially hazardoussituation
which, if not avoided, CIOULD result in minor or
moderate injury. It may also be used to alert against
unsafe practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number.
Use this number when ordering parts or seeking
warranty information.
5
CHIPPER/
SHREDDER
SAFETY
1. Read and understand the Owner’s Manual before attempting to operate this machine.
2. Operate all controls from the operator’s seat. NO RIDERS.
3. Keep all shields in place and safety switches adjusted properly.
4. Do not leave equipment unattended. STOP the engine and remove the key.
5. Do not allow minors or the inexperienced to operate this machine.
6. Keep people and pets a safe distance away from machine using power driven attachments. Injury could
result from ying debris.
GENERAL SAFETY
OPERATING SAFETY
1. STOP ENGINE to install drive belt.
2. DO NOT attempt to work on unit or any
attachments with the engine running. STOP
ENGINE!
3. Before leaving the operator's seat:
• Disengage PTO drive.
• Set Parking brake.
• Stop Engine.
ALWAYS WEAR SAFETY GLASSES WHEN OPER-
ATING CHIPPER/SHREDDER.
DO NOT OPERATE WITH PERSONS IN THE
AREA. CHIPPER/SHREDDER MAY PROPEL OB-
JECTS CAUSING POSSIBLE INJURY OR DEATH.
6
CHIPPER/
SHREDDER
SAFETY
SAFETY OPERATING INSTRUCTIONS
1. Wear safety glasses at all times while operating the machine.
2. The operator should also wear heavy boots, gloves and other adequate clothing
to protect himself from branches and other sharp or harmful objects. Avoid
wearing loose-tting clothing.
3. Keep proper balance and footing at all times. Do not overreach.
4. Keep face and body away from the feed opening. Do not allow hands, feet, or
clothing inside the feeding chamber or discharge chute.
5. Move machine to a clear level area outdoors before starting. Do not operate
machine on a paved, concrete or hard gravel surface. Discharged material may
rebound.
6. Emergency stop switch must have cable plugged into outlet on power unit. Do
not operate machine without this emergency stop switch connected.
7. When feeding shreddable material into the machine, be extremely careful that
pieces of metal, rocks, bottles, cans or other foreign objects are not fed into the
feeding chamber.
8. If the machine becomes clogged, disengage PTO, stop engine and allow
machine to come to a complete stop before clearing debris.
9. The chipper/shredder rotor may continue to rotate even with the engine stopped.
Do not attempt any repairs or adjustments until the entire machine has come to
a complete stop. Never operate this machine without the discharge screen in
place.
7
CHIPPER/
SHREDDER
INSTALLATION

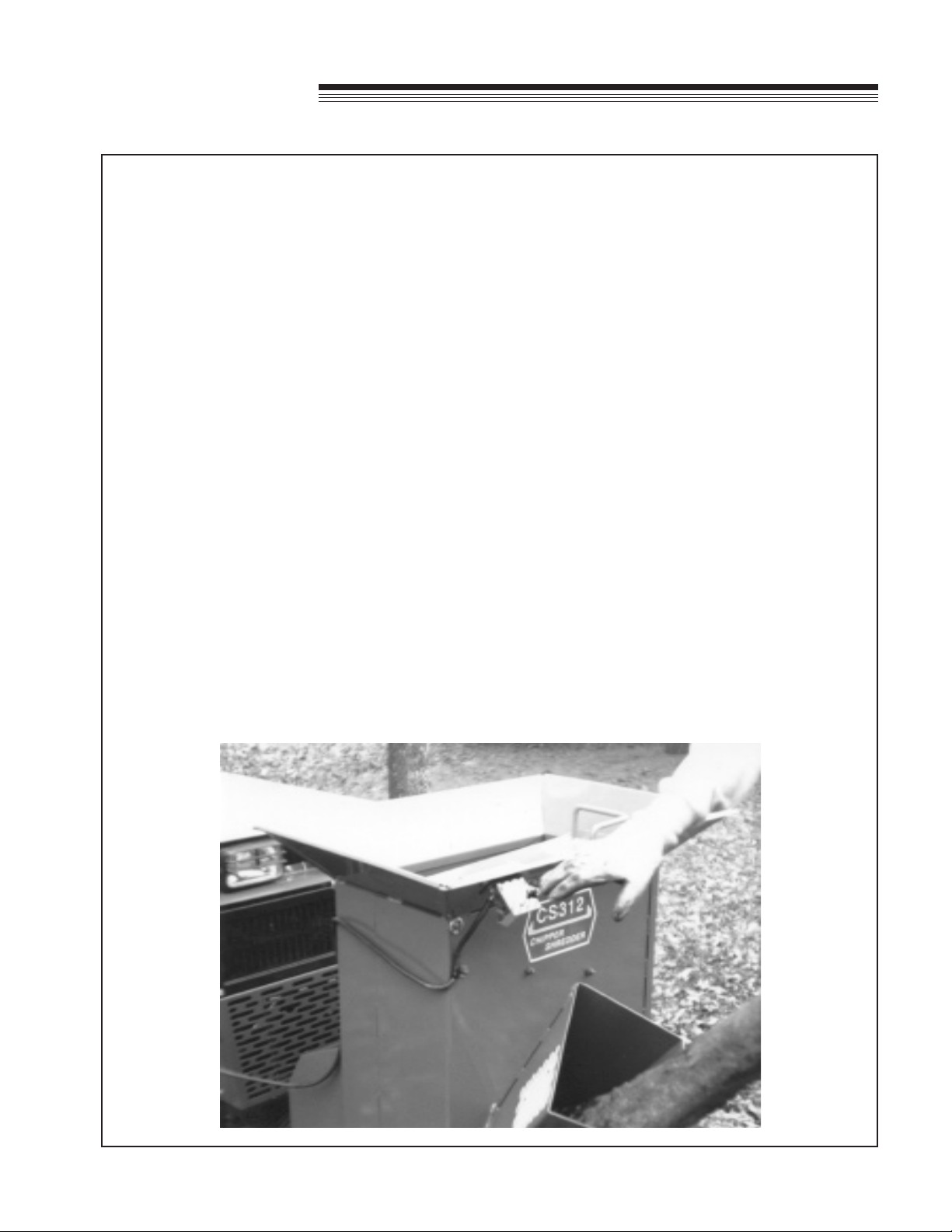

MOUNTING INSTRUCTIONS
The chipper/shredder should be used only on the Steiner 420, 425 and 525 power units equipped
with the required chipper/shredder electrical outlet. (This electrical outlet is shipped with each chipper/
shredder. See Page 27 for electrical outlet installation.)
NOTE: The PTO drive line is subject to shock loads while using the chipper/shredder. Therefore, the
chipper/shredder is not recommended for use on the Steiner 220 power unit. Damage to the hydrostatic
pump may result.
To mount the Chipper/Shredder do the following steps:
1. Open quick hitch latches. Drive tractor into position, aligning the quick hitch. Be sure that both latches
are fully engaged and locked.
2. Stop engine! Do not attempt to install drive belt with engine running.
3. Release double idler assembly to facilitate easy installation of the B-41 drive belt. Put belt over drive
pulley and engage or adjust double idler assembly. (See Power Unit Operator’s Manual for PTO belt
tension adjustment.)
4. Plug emergency stop cable into chipper/shredder electrical outlet on tractor. Be certain the Emergency
Stop Switch is pulled out for normal operation. Do not operate the Chipper/Shredder without this cable
plugged in.
5. Remove clip pin and rotate stand to highest position. Reinsert clip pin.
6. A rear weight bar with 4 weights is recommended to provide additional stability in transport.
7. Start engine, engage PTO and check operation of Emergency Stop Switch. (See photo below)
8
CHIPPER/
SHREDDER
ASSEMBLY
INSTALLATION INSTRUCTIONS FOR EMERGENCY STOP SWITCH OUTLET ON MODEL 420
Model 420
1. Disconnect the battery ground cable.
2. On model 420 with Onan engine, mount the electrical
outlet on the left side of the black upper grille panel with
two 1/4 x 3/4 ange bolts and nuts. Choose a location
using the existing slots in the panel. On models with
Kubota engines, the outlets are mounted on the right side.
3. Connect the new harness (Part No. 30—174) to the
electrical outlet following the wiring diagram on Page 20.
Connect the brown wire to the “W” terminal, the green
wire to the “G” terminal and the black wire to the “BK”
terminal.
4. Locate the safety interlock relay under the dash and nd
the brown wire in the bulk connector. Remove the bulk
connector and carefully release the brown wire from the
connector with a small blade pocket screwdriver. Place
the single black plastic connector on this brown wire and
connect to the new harness matching connector. This is
the seat switch wire.
5. Locate the brown jumper wire on the wiring harness.
(connected with a blue 3M connector) Plug the end of the
brown jumper wire into the safety relay bulk connector
where the brown wire was removed in step 3. Connect
the bulk connector to the safety relay.
6. Route the white wire to the ignition switch. Find the
accessory terminal (white wire). Remove the wire and
place the double male spade adapter on the switch.
Replace the wire and connect the white wire to the other
terminal of the double spade. NOTE: On Kubota tractors,
cut the spade terminal off the white wire, crimp the
enclosed ring terminal to the white wire and attach it to
the accessory terminal of the ignition switch.
7. Check the wiring diagram and snap the brown seat switch
wire in the new relay bulk connector aligned with 87A on
the new relay. The brown wire from the safety relay aligns
with 30. The black wire aligns with 85 and the white wire
with 86. Snap these in place and push the connector on
the relay.
8. Mount the new relay by drilling a hole in the battery tray of
the Onan power units. On Kubota units, drill a hole at a
suitable location on the side of the dash panel.
9. Connect the green wire ring terminal to a suitable ground.
Tie all wires to keep them from contact with moving parts
or exhaust system.
10. Reconnect the battery cable, plug in the chipper/shredder
cable and test the emergency stop switch for proper
operation. Pull the switch out for normal operation. Start
engine and engage the PTO. Push in for emergency stop.
9
CHIPPER/
SHREDDER
ASSEMBLY
Model 425 Tractors with electric clutch:
1. Disconnect the battery ground cable.
2. Mount the Electrical outlet on the right side of the black
upper grille panel with two 1/4 x 3/4 ange bolts and nuts.
Choose a location using the existing slots in the panel.
3. Connect the new harness (Part No. 30—175) to the
electrical outlet following the wiring diagram on Page 20.
Connect the brown wire to the “W” terminal, the green
wire to the “G” terminal and the black wire to the “BK”
terminal.
4. Locate the clutch relay behind the grille and nd the
brown wire in the bulk connector. Remove the bulk
connector and carefully release the brown wire from the
connector with a small blade pocket screwdriver. This is
the seat switch wire. Insert the brown jumper wire (the
one connected with a blue 3M connector) from the new
harness in its place and push the bulk connector on the
clutch relay as before.
5. Route the white wire to the ignition switch. Find the
accessory terminal (white wire). Remove the wire and
place the double male spade adapter on the switch.
Replace the wire and connect the white wire to the other
terminal of the double spade. NOTE: On Kubota tractors,
cut the spade terminal off the white wire, crimp the
enclosed ring terminal to the white wire and attach it to
the accessory terminal of the ignition switch.
6. Check the wiring diagram and snap the brown seat switch
wire in the relay bulk connector aligned with 87A on the
relay. The brown wire from the new harness aligns with
30. The black wire aligns with 85 and the white wire with
86. Snap these in place and push the connector on the
relay.
7. Mount the relay on the rear side of panel using the clutch
relay mounting screw.
8. Connect the green wire ring terminal to a suitable ground.
Tie all wires to keep them from contact with moving parts
or exhaust system.
9. Reconnect the battery cable, plug in the chipper/shredder
cable and test the emergency stop switch for proper
operation. Pull the switch out for normal operation. Start
engine and engage the PTO. Push in for emergency stop.
10. Proper operation will disengage the electric PTO clutch
when the emergency stop switch is pushed “IN”. Do not
use the emergency stop switch as a PTO operational
switch. To restart, disengage tractor PTO switch, pull
emergency knob “OUT” and engage PTO in the normal
manner.
Model 425 Tractors without electric clutch:
1. Disconnect the battery ground cable.
INSTALLATION INSTRUCTIONS FOR EMERGENCY STOP SWITCH OUTLET ON MODEL 425
2. Mount the Electrical outlet on the right side of the black
upper grille panel with two 1/4 x 3/4 ange bolts and nuts.
Choose a location using the existing slots in the panel.
3. Connect the new harness (Part No. 30—174) to the
electrical outlet following the wiring diagram on Page 20.
Connect the brown wire to the “W” terminal, the green
wire to the “G” terminal and the black wire to the “BK”
terminal.
4. Locate the black module under the dash and nd the
brown wire in the bulk connector. Remove the bulk
connector and carefully release the brown wire from the
connector with a small blade pocket screwdriver. Place
the single black plastic connector on this brown wire and
connect to the new harness matching connector. This is
the seat switch wire.
5. Locate the brown jumper wire on the wiring harness.
(connected with a blue 3M connector) Plug the end of the
brown jumper wire into the module bulk connector where
the brown wire was removed in step 3. Connect the bulk
connector to the module.
6. Route the white wire to the ignition switch. Find the
accessory terminal (white wire). Remove the wire and
place the double male spade adapter on the switch.
Replace the wire and connect the white wire to the other
terminal of the double spade. NOTE: On Kubota tractors,
cut the spade terminal off the white wire, crimp the
enclosed ring terminal to the white wire and attach it to
the accessory terminal of the ignition switch.
7. Check the wiring diagram and snap the brown seat switch
wire in the relay bulk connector aligned with 87A on the
relay. The brown wire from the module aligns with 30.
The black wire aligns with 85 and the white wire with 86.
Snap these in place and push the connector on the relay.
8. Mount the relay using one of the module mounting
screws.
9. Connect the green wire ring terminal to a suitable ground.
Tie all wires to keep them from contact with moving parts
or exhaust system.
10. Reconnect the battery cable, plug in the chipper/shredder
cable and test the emergency stop switch for proper
operation. Pull the switch out for normal operation. Start
engine and engage the PTO. Push in for emergency
stop.
11. Proper operation will stop the engine when the emergency
stop switch is pushed “IN”. To restart, disengage PTO
and pull emergency knob “OUT”.
10
CHIPPER/
SHREDDER
ASSEMBLY
TYPICAL EMERGENCY STOP SWITCH WIRING DIAGRAM
Two wiring harnesses are shipped with each Chipper/Shredder to adapt to the following tractors:
Model 420 and 425 Tractors without electric clutch
Part No. Description
30-174 Harness with 44" black and brown wires,...and 20" white wire.
Model 425 Tractors with electric clutch
Part No. Description
30-175 Harness with 33" black and brown wires,...and 57" white wire.
11
CHIPPER/
SHREDDER
ASSEMBLY
INSTALLATION INSTRUCTIONS FOR EMERGENCY STOP SWITCH OUTLET ON MODEL 525
Model 525 Tractors:
1. Disconnect the battery ground cable.
2. Mount the electrical outlet on the left side of the
black upper grille panel with two 1/4 x 3/4 ange
bolts and nuts. Choose a location using the existing
slots in the panel.
3. Remove the dash access panel. Starting at the
dash area, route the new harness (the end without
terminals) along the existing wiring harness through
the center pivot area of the tractor. Continue routing
until the wires reach the electrical outlet.
4. Connect the new harness (Part No. 30—187) to the
electrical outlet following the wiring diagram on this
page. Connect the blue wire to the “W” terminal, the
green wire to the “G” terminal and the black wire to
the “BK” terminal.
5. Locate the clutch relay and circiut breakers in the
dash area. Near the breakers nd the harness with
two blue wires that comes from the seat switch.
Disconnect the bullet connector on the blue seat
switch wire and connect the female bullet connector
of the 5 inch brown wire to the male bullet connector
on the blue seat switch wire. Connect the male
bullet of the new green wire to the female bullet
connector of the blue wire that goes to the front lift
limit switch.
6. Route the blue wire from the new harness to the
Diagram No. 2 for Model 525 Tractors w/o 2 Second Delay
(before serial no. 1197)
PTO switch. Find the PTO switch terminal with the
blue wire attached. Remove the wire and place the
double male spade adapter on the switch. Replace
the wire and connect the new blue wire to the other
terminal of the double spade.
7. Check the wiring diagram and snap the 5 inch brown
seat switch wire in the relay bulk connector aligned
with 87A on the relay. The green wire from the new
harness aligns with 30. The black wire aligns with 85
and the 10 inch black wire with ring terminal with 86.
Snap these in place and push the connector on the
safety relay.
8. Mount the safety relay on the left side of mounting
panel using the clutch relay mounting screw.
9. Connect the black wire ring terminal to a suitable
ground. Tie all wires to keep them from contact with
moving parts or exhaust system.
10. Reconnect the battery cable, plug in the chipper/
shredder cable and test the emergency stop switch
for proper operation. Pull the switch out for normal
operation. Start engine and engage the PTO. Push
in for emergency stop.
11. Replace all shields.
12. Proper operation will disengage the electric PTO
clutch when the emergency stop switch is pushed
“IN”. To restart, pull emergency knob “OUT” and
engage PTO in the normal manner.
12
CHIPPER/
SHREDDER
ASSEMBLY
INSTALLATION INSTRUCTIONS FOR CHIPPER/SHREDDER WIRE HARNESS ON MODEL 525
EQUIPPED WITH 2 SECOND DELAY RELAY
Wiring Diagram for Model 525 Tractors w/2 Second Delay
(after serial number 1197)
Model 525 Tractors:
1. Disconnect the battery ground cable.
2. Mount the electrical outlet on the left side of the black upper
grille panel with two x ange bolts and nuts. Choose a
location using the existing slots in the panel.
3. Remove the dash access panel. Starting at the dash area,
route the new harness (the end without terminals) along the
existing wiring harness through the center pivot area of the
tractor. Continue routing until the wires reach the electrical
outlet.
4. Connect the new wire harness (Part # 30—301) to electrical
outlet installed in Step 2, following the wiring diagram on this
page. Connect the black wire to the BK terminal, the blue
wire to the W terminal, the gray wire to the R terminal, and
the green wire to the G terminal.
5. Install the supplied relay to the same bolt that fastens the top
of the 30 amp breaker. Position the relay so that the relay
plug will clear the other bolts on the electrical mounting plate.
6. Remove the blue wire from the load terminal of the lift cut—off
delay relay and install that wire in the new relay plug so that it
connects with the #87a terminal of the new relay.
7. Install one of the gray wires from the new harness (30—301)
to the load terminal of the lift cut—off delay relay. Either gray
wire can be used.
8. Install the other gray wire from the new harness (30—301)
into the new relay plug so that it will connect with the #30
terminal of the new relay.
9. Install the supplied black wire (approx. 11" long) to the new
relay plug so that it will connect with the #85 terminal of the
new relay. Install the eyelet end to the ground bolt on the
dash. Also install the black wire from the new harness to the
ground bolt.
10. Install the green wire from the new harness (30—301) to the
new relay plug so that it connects with the #86 terminal of the
new relay. Install the relay plug onto the new relay.
11. Locate the light blue wire that goes to the control terminal of
the seat switch delay relay. Cut this wire 3" to 4" from the
delay relay plug and install the supplied male bullet terminals
to both wire ends. Install both ends into the supplied 3—way
electrical connector, also install the blue wire from the new
harness (30—301) into the 3—way connector.
12. Change the wiring on the emergency stop switch following
the wiring diagram on this page. The white wire connects to
the #4 terminal, the black wire connects to the #5 terminal,
the green wire connects to the #2 terminal, and the gray wire
connects to the #3 terminal.
13. Reconnect the battery cable, plug in the chipper/shredder
cable and test the emergency stop switch for proper
operation. Pull the switch out for normal operation. Start
engine and engage the PTO. Push in for emergency stop.
14. Replace all shields.
15. Proper operation will disengage the electric PTO clutch
when the emergency stop switch is pushed “IN”. To restart,
pull emergency knob “OUT” and engage PTO in the normal
manner.
13
CHIPPER/
SHREDDER
ASSEMBLY
Assembly Instructions for: MODEL CS313 CHIPPER / SHREDDER BLOWER
PHOTO 1
PHOTO 2
REFER TO PARTS SECTION FOR
IDENTIFICATION OF PARTS
1. Remove hinge pin (Fig. 4, Item 1) and remove
discharge chute.
2. Remove the end cap from the rotor shaft.
3. Hold blower up to the main frame and secure
with the new hinge pin (Fig. 4, Item 1) supplied
with the blower assembly.
4. Install pulley, bushing and key (Fig. 4, Item 29,
30 & 31) onto the rotor shaft. Do not secure to
shaft at this time.

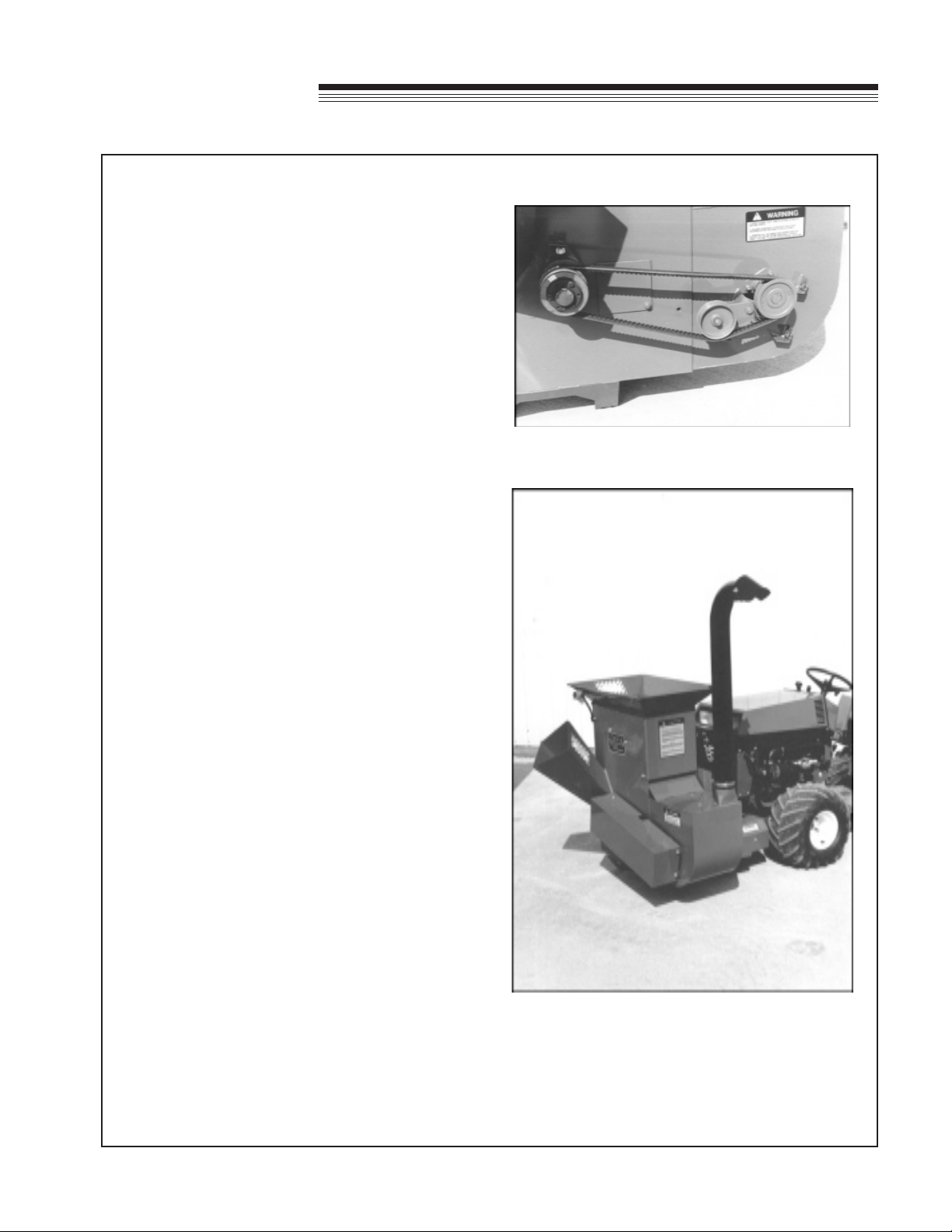

5. Install belt onto the inside groove on the rotor
shaft pulley, and onto the blower pulley. Idler
should run on the inside of belt for correct
tension. (See Photo 1) Align pulleys to within
1/16". Tighten all pulleys on shafts.
6. Install belt guard support bracket (Fig. 4, Item
33) onto top 1/2" bolt for bearing on main frame
and secure with 1/2" lock nut. (Fig. 4, Item 32)
7. Install belt guard (Fig. 4, Item 27) with (4)
5/16" X 3/4" bolts and washers.
8. Install blower spout (Fig. 4, Item 11) on the
blower tube with (2) 5/16" X 3/4" carriage bolts,
(1) 5/16" locknut and (1) spout knob. Install
blower tube onto blower assembly and secure
with clamp. (See Photo 2)
14
CHIPPER/
SHREDDER
OPERATION
OPERATING PRECAUTIONS
This chipper/shredder is designed and tested to offer reasonably safe service, however, failure to
operate it in accordance with the following instructions may result in personal injury or death.
OPERATING INSTRUCTIONS
1. Mount the chipper/shredder according to instructions on Page 7.
A rear weight bar with 4 weights is recommended.
2. Wear safety glasses at all times while operating the machine. Also wear heavy boots, gloves, and adequate
clothing to protect from branches and other sharp or harmful objects. Avoid wearing loose-tting clothing.
3. Do not operate the chipper/shredder in the vicinity of bystanders. Do not allow minors or the inexperienced to
operate this machine.
4. By using the front lift to transport the machine, move it to a clear level area outdoors. Set the parking brake
on the tractor. Do not operate the chipper/shredder on a paved, concrete or hard gravel surface. Discharged
material may rebound. Lower machine before operating. Do not operate in transport position.
5. Before starting the machine, make sure the cutting chamber is empty.
6. When feeding shreddable material into the machine, be extremely careful that pieces of metal, rocks, bottles,
cans or other foreign objects are not fed into the feeding chamber.
7. If the cutting mechanism strikes any foreign object, or if the machine should start making an unusual
noise or vibration or become clogged, immediately push the emergency stop switch, stop engine and allow the
machine to come to a complete stop. Take the following steps:
a. Inspect for damage.
b. Clear the debris.
c. Replace or repair any damaged parts.
d. Check for and tighten any loose parts.
8. Keep face and body away from the feed opening. Do not allow hands, feet or clothing inside the feeding
chamber or discharge chute. Do not overreach. Keep proper balance and footing at all times.
15
CHIPPER/
SHREDDER
OPERATION

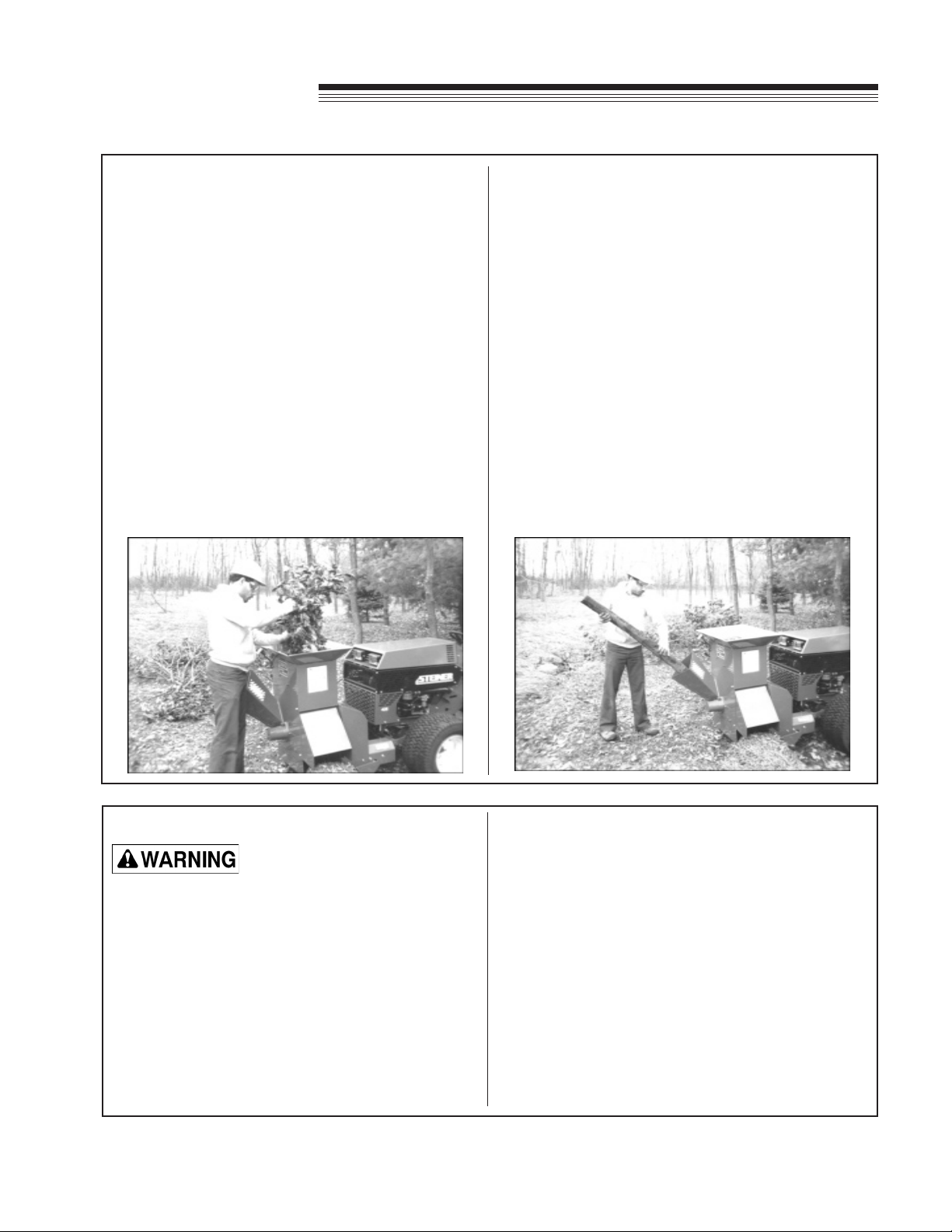

SHREDDING INSTRUCTIONS
1. Place material to be shredded (leaves, garden
debris, sticks and branches up to 1-1/2" diameter
and 24" long, etc.) into the hopper.
2. Feed material evenly into the shredder so that
the tractor does not lug down or the shredder
become clogged. If necessary, use the hopper
lid to push the material through the inlet guards.
If the machine becomes plugged it may be
necessary to remove the discharge shield and
screen to clean rotor. Branches or items that
plug or cause the machine to stall should be fed
slowly and carefully.
3. If equipped with a blower, it is recommended
to alternate between dry and green material to
avoid blower plugging.
CHIPPING INSTRUCTIONS
1. Select limbs that are up to 4 inches in diameter.
Trim side branches that do not t into the chipper
chute. Small diameter branches can be held
together in a bundle and fed in simultaneously.
2. Place limb, butt end rst, into the chipper chute
until it contacts the chipper blades. The actual
feed rate of the limb into the chipper will depend
on the type of material fed, and sharpness of the
cutting blades. Alternately insert and retract the
limb or insert continuously at a rate that will not
stall the tractor. Rotating the branch as it is fed
will improve cutting action. The chipping knives
will dull with use and require periodic sharpening.
Refer to Page 11 for instructions to sharpen
chipper knives.
STOPPING INSTRUCTIONS
Do not leave machine unattended, or attempt any
inspection or service unless the PTO is disengaged
and tractor engine is shut off. Allow machine to
come to a complete stop.
To stop machine proceed as follows:
1. Move tractor throttle to slow position.
2. Disengage PTO and shut off tractor engine.
3. Allow machine to come to a complete stop.
NOTE: The rotor is heavy and has inertia that will
make the rotor continue to turn for some time after
the tractor has been shut off. The stopping time can
be shortened by inserting a branch in the chipper
chute so that it contacts the knives and slows the
rotor to a complete stop.
16
CHIPPER/
SHREDDER
SERVICE
SERVICE SCHEDULE
Daily:
• Check for any signs of loose bolts and tighten as needed.
• Check chipper knives and sharpen or adjust as needed. (See Page 13)
25 Hour:
• In addition to daily service, remove belt shields and check drive belts for wear or cracking. Replace if
worn. (See Page 14)
• Grease rotor bearings and drive shaft bearings.
100 Hour or Annual:
• Remove discharge shield and discharge screen and check rotor. Inspect chipper knives and shredder
sections for wear. Replace worn parts for efcient operation. (See Pages 14 & 15)
Storage:
• Thoroughly clean the machine and store in a dry place to prevent rusting of rotor parts.
17
CHIPPER/
SHREDDER
SERVICE
MAINTENANCE AND ADJUSTMENTS
Before inspecting or servicing any part of the
machine, disengage PTO and make sure all
moving parts have come to a complete stop.
The chipping knives and shredding sections
are sharp! Use care when working on machine
to avoid injury.
SHARPENING CHIPPER KNIVES
It is recommended that the chipper knives are
sharpened every 5 to 15 hours of chipper operation,
depending on the type of wood fed into the chipper.
To remove the chipper knives for sharpening, rst
remove the discharge shield and the discharge
screen. Remove the two 5/16 inch retaining bolts
and pull the screen outward. Remove the knife
access cover. Rotate the rotor so that the bolts
holding the chipper knife are accessible. Remove
the two bolts holding the knife and the knife itself.
Repeat for all 4 knives.

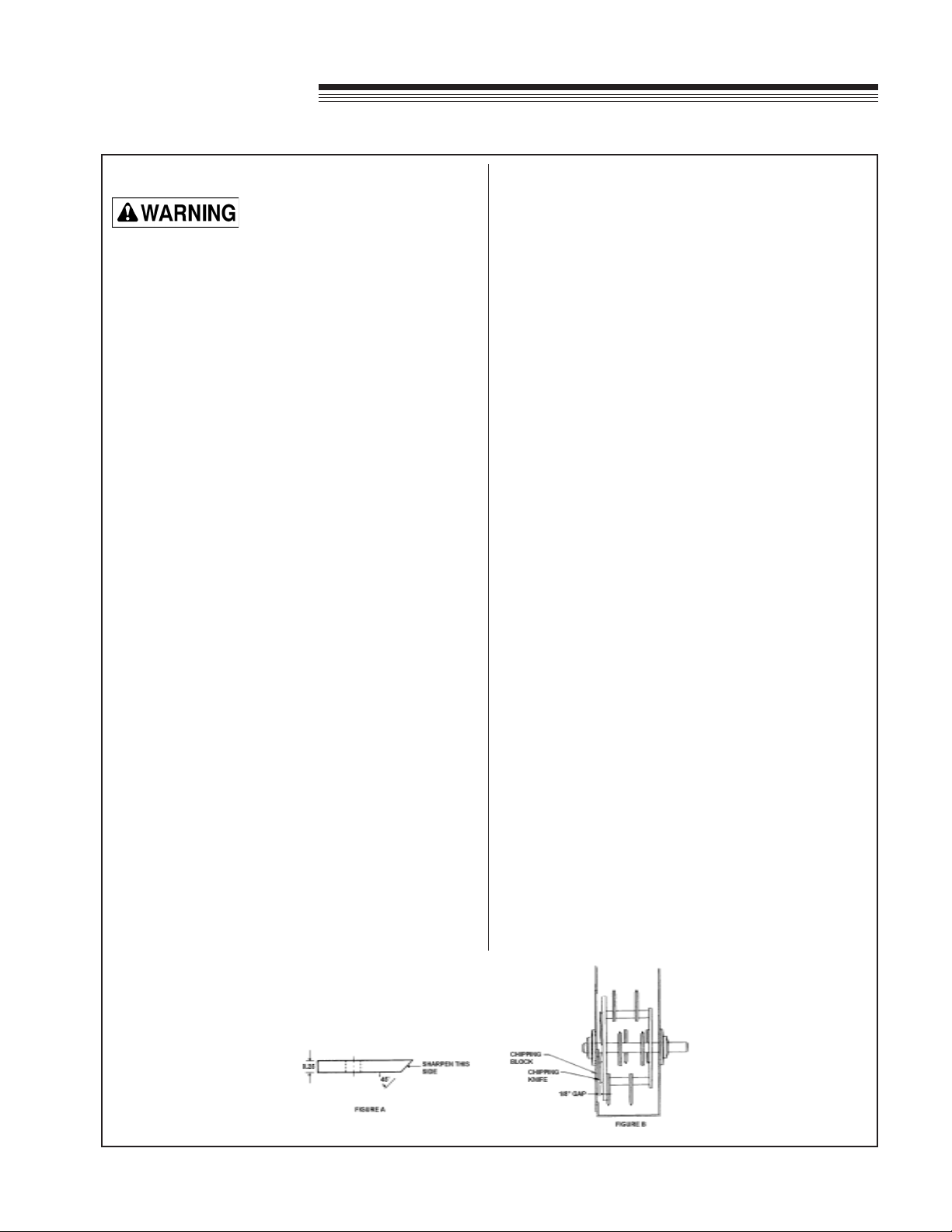

Grind the knife at 45 degrees. (See Figure A) The
knives can be ground on a bench grinder or by a
professional. Be careful when grinding so that the
knife material does not get too hot and change
color, this will remove the knife’s special heat
treated properties. Use short grinding times and
cool with water. Try to remove an equal amount
off each knife to maintain balance. Replace the
chipper knives and tighten bolts to 20 foot pounds.
Replace the discharge screen.
ADJUSTING KNIFE CLEARANCE
The chipper knife should clear the chipping block
by 1/8 inch. (See Figure B) To adjust the knife
clearance, proceed as follows:
A. Remove the belt shield, discharge shield, and the
discharge screen. Remove the shaft cover on
the front side.
B. Loosen the two set screws holding the set collar
at the front rotor bearing. Loosen the set screws
holding the lock collars on the front and rear rotor
bearings.
C. Use a punch and hammer and tap the collars in
a direction opposite shaft rotation so they can
rotate freely.
D. Using a soft face mallet, tap the end of the
rotor shaft to obtain 1/8" clearance between
the chipper knife and the chipper block. (See
Figure B) Knife clearance can be checked at the
chipper inlet chute. Rotate the rotor and check
the clearance on all chipper knives.
E. When the clearance has been set, tighten the
eccentric lock collars on the bearings by rotating
them in the direction of shaft rotation. Using a
punch and hammer, “set” them with a positive
hammer tap. Tighten the lock collar set screws.
Slide the set collar against the front bearing lock
collar and tighten the two set screws.
F. Check the double drive belts for proper
alignment. It may be necessary to move the
pulley on the rotor shaft an equal distance the
rotor was moved.
G. Make sure all set screws are tight and replace
discharge screen and all shields which were
removed.
18
CHIPPER/
SHREDDER
SERVICE
MAINTENANCE AND ADJUSTMENTS
Before inspecting or servicing any part of the
machine, disengage PTO and make sure all
moving parts have come to a complete stop.
The chipping knives and shredding sections are
sharp! Use care when working on machine to
avoid injury.
SHREDDER SECTIONS
The serrated self sharpening shredder sections are
designed to offer long life and can be reversed if they
become dull. To remove or replace the sections,
proceed as follows:
A. Remove discharge shield, discharge screen and
knife access cover.
B. Work with one section shaft at a time. Remove
the #10-24 bolt from the section shaft. The shaft
can be removed through the access hole.
C. Remove sections and section spacers. Be
careful to keep track of the order the spacers
were installed on the shafts so they can be
returned to the original locations. If the spacers
are not installed properly, the rotor will be out of
balance and also will not have proper shredding
action.
D. Reverse or replace sections and reassemble
into the rotor. Reinstall #10-24 bolt and locknut
through spacer and torque to 36 inch pounds.
E. Complete service of all 6 shafts and replace
the knife access cover, discharge screen and
discharge shield.
BELT REPLACEMENT
Check the condition of the double drive belts every
30 hours of operation or annually, whichever occurs
rst. Only replace belts in sets.
To replace belts proceed as follows:
A. Disengage PTO and stop engine.
B. Remove belt shields.
C. Remove belt idler spring and remove belts from
pulleys.
D. Remove 4 bolts attaching hitch assembly to main
frame and completely remove belts.
E. Place new belts around the hitch frame and
attach the hitch assembly to the main frame.
F. Position belts on the pulleys and attach the idler
arm spring.
G. Check the attachment drive belt and replace if
needed. Replace belt shields.
This manual suits for next models
3
Table of contents
