Schiller RYAN LAWNAIRE IV Programming manual

OP / PARTS MANUAL
MAN 4169545 Rev. A 07-2013
MODELS:
554918A
LAWNAIRE IV with EST - HONDA
(S/N 1124 and Lower)
LAWNAIRE WITH
EASY STEER TECHNOLOGY

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some
of its constituents are known to the
State of California to cause cancer,
birth defects and other reproductive
harm.
Californie Proposition 65 Avertissement
Les échappements des moteurs diesel et
certains de leurs composés sont recon-
nus par l’Etat de Californie pour être
cancérigènes, provoquer des défauts con-
génitaux et d’autres dangers en matière de
reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber que
los gases de escape de los motores
diesel y algunos de sus componen-
tes producen cáncer, defectos de
nacimiento y otrosdaños en el proceso
de reproducción humana.
L’ é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid è re ê tre
canc é rig è nes, provoquer des d é fauts
cong é nitaux et d’autres dangers en
mati è re de reproduction.
El estado de California hace saber
que los gases de escape de este pro-
ducto contienen productos quÍmicos
que producen cáncer, defectos de
nacimiento yotros dañosen el proceso
de reproducción humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

1
Lawnaire
IV
with EST
07-2013
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product,
one of the best designed and built anywhere.
This machine comes with a Technical Manual containing safety, operation, parts, maintenance and service
information. The useful life and good service you receive from this machine depends to a large extent on how
well you read and understand this manual. Treat your machine properly, lubricate and adjust it as instructed,
and it will give you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety
features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best
protection, study the manual thoroughly. Learn the proper operation of all controls. Observe all safety precau-
tions. Follow all instructions and warnings completely. Do not remove or defeat any safety features. Make sure
those who operate this machine are as well informed and careful in its use as you are.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You
can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this machine only as directed in the manual, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care, Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
TABLE OF CONTENTS FIGURES ....................................... PAGE
SAFETY.........................................................................................................................................................2-6
SAFETY AND OPERATION DECALS..............................................................................................................7
ASSEMBLY/SET-UP INSTRUCTIONS ........................................................................................................8, 9
CONTROLS.............................................................................................................................................. 10, 11
OPERATION...................................................................................................................................................12
MAINTENANCE/ADJUSTMENTS..................................................................................................................13
TRANSPORTING...........................................................................................................................................14
STORAGE......................................................................................................................................................15
SPECIFICATIONS..........................................................................................................................................16
PARTS SECTION...........................................................................................................................................17
FRAME GROUP.......................................................FIGURE 1...............................................................18, 19
MAIN GROUP-LAWNAIRE IV ..................................FIGURE 2............................................................... 20, 21
HANDLE GROUP.....................................................FIGURE 3...............................................................22, 23
TINE WHEEL GROUP..............................................FIGURE 4...............................................................24, 25
DRUM GROUP.........................................................FIGURE 5...............................................................26, 27
DECAL GROUP........................................................FIGURE6................................................................28, 29

2
Lawnaire
IV
with EST
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number.
Use this number when ordering parts or seeking
warranty information.
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed, developed,tested and approvedby Schiller
Grounds Care, Inc.'s Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specically approved by Schiller Grounds
Care, Inc.–will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care, Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care, Inc. will vigorously pursue
full indemnification and costs from any party
responsible for such unauthorized post-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manual and on the safety labels attached to Schiller
Grounds Care, Inc. machines. For your safety and
the safety of others, read and follow the information
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTION indicates a potentiallyhazardous situation
which,if notavoided,MAY result in minoror moderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.

3
Lawnaire
IV
with EST
PREPARING FOR SAFE OPERATION
Operator preparation and training
Read the Operation & Safety
Manual
- If an operator or mechanic
cannot read, it is the
owner's responsibility
to explain this material
to them. If any portion of
this material is unclear, contact your factory
representative for clarication.
- Become familiar with the safe operation of the
equipment, operator controls and safety signs.
Know how to stop the engine and attachments
quickly in an emergency. Do not operate or allow
another person to operate this machine if there
are any questions about safety.
- All operators and mechanics should be trained.
The owner is responsible for training the users.
- Wear appropriate clothing, including long
trousers and safety goggles or safety glasses
with side shields when operating. Wear
substantial footwear. Do not operate barefoot or
wearing open sandals. Long hair, loose clothing
or jewelry may get tangled in moving parts.
- Wear appropriate hearing protection.
- Never allow children, unskilled or improperly
trained people to operate this equipment. Local
regulations can restrict the age of the operator.
- Keep warning labels and this operator's manual
legible and intact. Replacement labels and
manuals are available from the factory
- Do not operate machine while under the
inuence of drugs or alcohol or any other
condition of impairment.
- The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
Site preparation and circumstances
- Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Only use
accessories and attachments approved by the
manufacturer.
- Clear the area to be aerated of objects such
as rocks, toys, wire or other debris that may be
picked up or thrown by the machine.
- Be sure the area is clear of pets and people,
especially young children. Never assume they
will remain where you last saw them. Stop the
machine if any enter the area.
- Operate only in daylight or in good articial light.
Machine preparation
- Check operator presence interlock system and
brake operation. Adjust or have any problems
repaired before using.
- Do not tamper with or defeat safety devices.
Keep guards, shields and interlock safety devices
in place and in proper working condition. They
are for your protection.
- Keep all fasteners such as nuts, bolts and pins
well secured.
- Visually inspect tines, tine bolts and the drum
assembly for wear or damage. Replace worn or
damaged tines and bolts.
- Verify that machine and attachments, if any, are
in good operating condition.
- Do not engage tines until ready to aerate.
SAFETY

4
Lawnaire
IV
with EST
OPERATING SAFELY
In general
- Use extra care when loading or unloading the
machine into a trailer or truck.
- Slow down and use caution when making turns
and crossing roads and sidewalks. Stop tines if
not aerating.
- Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
- Stop operation if someone approaches.
- Keep all guards in place when operating.
- Do not turn sharply. Use extreme caution when
pulling machine towards you.
- Use counter-weight(s) or wheel weights when
suggested in the operator's manual.
- Never leave a running machine unattended.
Always release drive and stop engine before
leaving the operator's position.
Starting
- Start only according to instructions in this manual
or on the machine.
- Before attempting to start the engine, make sure:
- the traction clutch is disengaged.
- When starting the engine, make sure hands and
feet are clear of the blades.
- Do not change engine governor settings or
overspeed the engine. Operating the engine
at excessive speed can increase the hazard of
personal injury.
Interrupting operation
- Before leaving the operator's position:
- Park on level ground.
- Disengage the traction clutch.
- Shut off the engine.
- Raise the tine:
- when not aerating;
- for transport;
- when crossing surfaces other than grass.
- Disengage the traction clutch, stop the engine, :
- before refueling;
- Disengage the traction clutch, stop the engine,
allow the tines to come to a complete stop, and
disconnect the spark plug wire:
- before clearing blockages;
- before checking, cleaning or working on the
machine;
- before having maintenance or repairs
performed;
- after striking a foreign object. Inspect the
machine for damage and have repairs made
before restarting;
- if the machine begins to vibrate abnormally:
shut off machine immediately. Inspect
and have repairs made as needed before
restarting;
- except for repairs or adjustments as specically
noted, such as for carburetor adjustment,
where the engine must be running. Keep
hands and feet clear of moving parts in these
circumstances.
- Reduce the throttle setting during engine shut-
down and, if the engine is provided with a shut-
off valve, turn the fuel off at the conclusion of
operation.
SAFETY

5
Lawnaire
IV
with EST
MANEUVERING SAFELY
In general
- Slow down before turning.
- Be aware when approaching blind corners,
shrubs, trees, tall grass or other objects that may
obscure vision.
Slope Operation
-Slopes are a major factor in loss-of-control and
tip over accidents that sometimes lead to severe
injury or death. All slopes require extra caution.
- Before operating on slopes, evaluate the risks
involved.
- Do not operate on slopes if uneasy or uncertain.
Ultimate responsibility for safe operation on
slopes rests with the operator.
- Do not operate steep slopes.
A slope is too steep if:
- The machine must be crabbed (turned partially
sideways uphill) to drive across the slope.
- The machine turns downhill going across the
slope.
- You are uneasy about being on the slope
- With walk behind machines, operate across
slopes, not up and down.
- Avoid starting or stopping on a slope. If wheels
lose traction, disengage the traction clutch and
proceed slowly straight down the slope.
- Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
- Do not turn on slopes unless necessary, and then
turn slowly and downhill when possible.
- Do not operate near dropoffs, ditches or
embankments. The machine could suddenly turn
over if a wheel runs over the edge or an edge
caves in.
- Follow the manufacturer's recommendations
for wheel weights or counterweights to improve
stability.
WARNING
MAINTENANCE AND STORAGE SAFETY
In general
- Maintain machine according to manufacturer's
schedule and instructions for maximum safety
and best results.
- Park machine on level ground.
- Never allow untrained personnel to service ma-
chine.
- Guards should only be removed by a qualied
technician for maintenance or service. Replace
when work is complete.
- Adjust or repair only after the engine has been
stopped and the tines have quit rotating.
- Replace parts if worn, damaged or faulty.
For best results, always replace with parts
recommended by the manufacturer.
- Disconnect spark plug wire(s) before making any
repairs.
- Do not dismantle the machine without releasing
or restraining forces which may cause parts to
move suddenly.
- Provide adequate support, e.g. jackstands for
lifted machine or parts if working beneath.
- Do not put hands or feet near or under rotating
parts.
- Clean up spilled oil or fuel thoroughly.
- Replace faulty mufers.
- To reduce re hazards, keep the engine, muf-
er, and fuel storage area free of grass, leaves,
debris buildup or grease.
SAFETY

6
Lawnaire
IV
with EST
Tines
- Tines are sharp and can
cut. Use extra caution when
handling. Wear appropriate
personal protective equip-
ment.
- Only replace tines. Never
straighten or weld them.
- Keep other persons away
from tines.
Fuel
- Petrol (Gasoline) and
diesel fuels are ammable;
petrol (gasoline) vapors are explosive. Use extra
care when handling.
- Store only in containers specically designed for
fuel.
- When refueling or checking fuel level:
- Stop the engine and allow to cool;
- Do not smoke;
- Refuel outdoors only;
- Use a funnel;
- Do not overll;
- If fuel is spilled, do not attempt to start the
engine until the spill is cleaned up and vapors
have cleared.
- Replace caps on fuel containers and tanks
securely.
Sparks from static electricity can start res or cause
explosions. Flowing fuel can generate static electric-
ity. To prevent static electricity sparks:
- Keep fuel containers electrically grounded.
- Do not ll containers in a vehicle or on a truck or
trailer bed with a plastic liner. Fill containers on
the ground away from the vehicle.
- When practical, remove gas powered equip-
ment from the truck or trailer and refuel it on the
ground. If equipment must be refueled on the
truck or trailer, refuel from a portable container
rather than a dispenser nozzle.
- Keep the dispenser nozzle in contact with the rim
of the fuel tank or container opening until fueling
is complete. Do not use a nozzle lock-open
device.
WARNING
Storage
- Stop the engine and allow to cool before storing
- Drain the fuel tank outdoors only.
- Store fuel in an approved container in a cool, dry
place
- Keep the machine and fuel containers in a locked
storage place to prevent tampering and to keep
children from playing with them.
- Do not store the machine or fuel container near
appliances with an open ame such as a water
heater or other appliance with a pilot light.
- Keep petrol (gasoline) storage area free of grass,
leaves and excessive grease to reduce re haz-
ard.
- Clean grass and debris from cutting units, drives,
mufers and engine to help prevent res.
WARNING
SAFETY

7
Lawnaire
IV
with EST
SAFETY AND OPERATION DECALS
Operating Instructions
Thisdecal canbe foundontop ofthehandlebar assembly.
It tells the operator the steps involved; prior to aerating;
loading and transporting and how to aerate.
Warning Hands In Moving Components
This decal is located on the main frame and provides
the operator with three message warnings.
(1) The symbol on the left shows the possible result
of working on machinery with safety shields removed.
Hands and ngers may become entangled in belts. DO
NOT operate the unit without safety shields in place.
(2) The center symbol warns the operator and/or
bystanders to keep hands out of moving components.
(3) The right symbol instructs the operator to read the
service section of the operators manual. Disable spark
plug wire before performing any service or maintenance
on the unit.
Engine Oil Level
This decal is located on the main frame, in front of the
engine. It tells the operator to have the engine level
prior to checking the oil level.
Danger Hands And Feet
This decal is located on the main frame and informs the
operator of areas which are capable of serious injury.
The symbol shows ngers being cut or severed. DO
NOT place hands, feet, ngers or toes under aerator
while operating the unit.
Throttle Control
This decal is located on the handlebar next to the engine
throttle control. It tells the operator which direction to
move the engine throttle for the desired engine speed.
The throttle control decal uses the turtle to represent
slower engine speeds, and the rabbit to represent faster
engine speeds.
Handle Warning-Lawnaire IV Only
This decal is located on the lower end of the handlebars.
It informs the operator that the folding handlebars need
to be securely locked in place prior to aerating.

8
Lawnaire
IV
with EST
ASSEMBLY/SET-UP INSTRUCTIONS
GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW
ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS.
UNPACKING
1. Cut the banding securing the aerator to the
pallet.
2. Grab handle A and pull handle over to other side
of unit.
Banding is under tension and may snap back when
cut. Wear eye protection and stay clear when cutting
the band.
FOR LAWNAIRE IV MODELS
1. Lock down handle with knobs B.
2. Pull up on the transport lift handle Cto raise the
aerator to the transport position.
3. Carefully roll the unit off the pallet.

9
Lawnaire
IV
with EST
ASSEMBLY/SET-UP INSTRUCTIONS
CHECKING THE CLUTCH CABLE
The clutch cable is adjusted prior to shipping;
however, it should be checked before the unit is put
into service.
1. Pull the clutch control handle Dback and down
and make sure the idler engages the belt.
2. Release the clutch control handle Dand make
sure the belt disengages completely.
3. If adjustment is necessary, loosen nut Eon the
clutch spring hardware and adjust its position in
the slot of the clutch lever.
NOTE: Spring extension should not exceed .25 inch
FINAL PREPARATIONS
1. Check the engine oil level. Top off if necessary.
See engine manual for oil requirements.
2. Lubricate the roller chain Hwith Lubriplate
#13563 or equivalent.
3. Fill the gas tank with fresh, clean gasoline.

10
Lawnaire
IV
with EST
CONTROLS
HANDLE CONTROLS
Transport Lift Handle C - Pushing down on the
handle lowers the tines for aerating. Pulling the
handle up raises the tines so the aerator can be
moved or transported without incurring damage to
the unit or the turf.
Clutch Control Handle (Bail) B - Engages aerator
drive clutch. Pull on the handle to engage the clutch.
Release the handle to disengage.
Releasing the clutch on an incline will allow the unit
to roll down the incline.
Throttle Control A - The throttle control, located
on the handle, adjusts the engine speed. Pushing
the control forward increases the speed; pulling the
control back reduces the speed.
Honda Engine Controls
The engine is equipped with a choke D, a fuel valve
Eand an On/Off switch F . The fuel valve and the
On/Off switch must both be in the "ON" position to
start the engine. Turn the On/Off switch to "OFF" to
stop the engine. Using the choke will help start a
cold engine. After the engine starts, adjust the choke
for best running results. Once the engine warms, the
choke should not be needed.
HOUR METER
This machine is equipped with an hour meter. The
display reads to tenths of an hour for the amount of
time that the engine is running. The wire from the
hour meter is wrapped around the spark plug wire
four (4) turns and secured with Ty-wraps.

11
Lawnaire
IV
with EST
CONTROLS
PRE-OPERATION CHECK LIST
(OPERATOR’S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check to make sure all shields and guards are
properly installed and in good condition.
___ Check that all hardware is properly installed.
and secured.
___ Check to be sure engine is free of dirt and
debris. Pay particular attention to the cooling
ns, governor parts and mufer. Clean air
intake screen. Check air cleaner; service if
necessary.
___ Inspect area and remove stones, branches or
other hard objects that might be thrown,
causing injury or damage.
___ Clean area around oil ll dipstick. Remove
dipstick and check to be sure oil is in operating
range (between marks on dipstick). Add oil if
necessary but Do Not Overll. Install dipstick
assembly rmly until cap bottoms out on tube.
Dipstick assembly must always be secured into
ll tube when engine is running.
___ Check all lubrication points and grease as
instructed in manual.
FUELING
- Fill fuel tank with good quality, clean, unleaded
regular gasoline (petrol). Use the octane level
recommended by the engine manufacturer.
- Use a funnel to avoid spilling.
WARNING
TO CHECK OR ADD FUEL:
– Do it outdoors
– Do not smoke
– Stop engine; allow to cool
– Fill to one inch below bottom
of ller neck
– Do not overll
– Clean up spilled fuel
BEFORE STARTING THE ENGINE
- Be familiar with all controls, how each functions
and what each operates.
- Check the oil with the engine level and add if nec-
essary. Open the fuel valve.
- Choke: For cold starts, set the throttle lever to the
half-open position and pull the choke out to the
ON position. For warm starts set the throttle to
the half-open position and the choke to the OFF
position.

12
Lawnaire
IV
with EST
OPERATION
AERATING
NOTE: For best performance and maximum tine
penetration, the lawn should be thoroughly
watered the day before aeration.
1. Rotate the water drum on the front of the unit
until the ller plug Fis positioned at the top.
Remove the plug, ll the drum with water and
replace the plug.
2. Move the engine On/Off switch to the "ON"
position and then pull the recoil starter and choke
as required to start the engine.
3. Lift the transport lift handle if necessary to make
sure the tines are not touching the ground,
advance the throttle, slowly pull back on the
clutch handle control and transport the aerator to
the work area.
NOTE: Never cross hard objects or surfaces (such
as sidewalks, driveways, stepping stones, etc.) with
tines in the down position.
4. Upon reaching the work area, release the clutch
control handle and adjust the throttle speed for
aerating.
5. Push down on the transport lift handle,
lowering the aerating tines to the turf.
6. Pull back slowly on the clutch control handle to
start aerating.
NOTE: For maximum tine penetration into turf,
apply downward pressure on the handle, until drum
is off the ground.
7. At the end of each aerating pass, release the
clutch control handle, lift up on the handle
assembly and pivot the unit on the water drum.
Resume aerating.
8. When nished aerating, lift up on the transport
lift handle to move the unit into transport
position.
9. Drain the water drum when nished with
aerating.

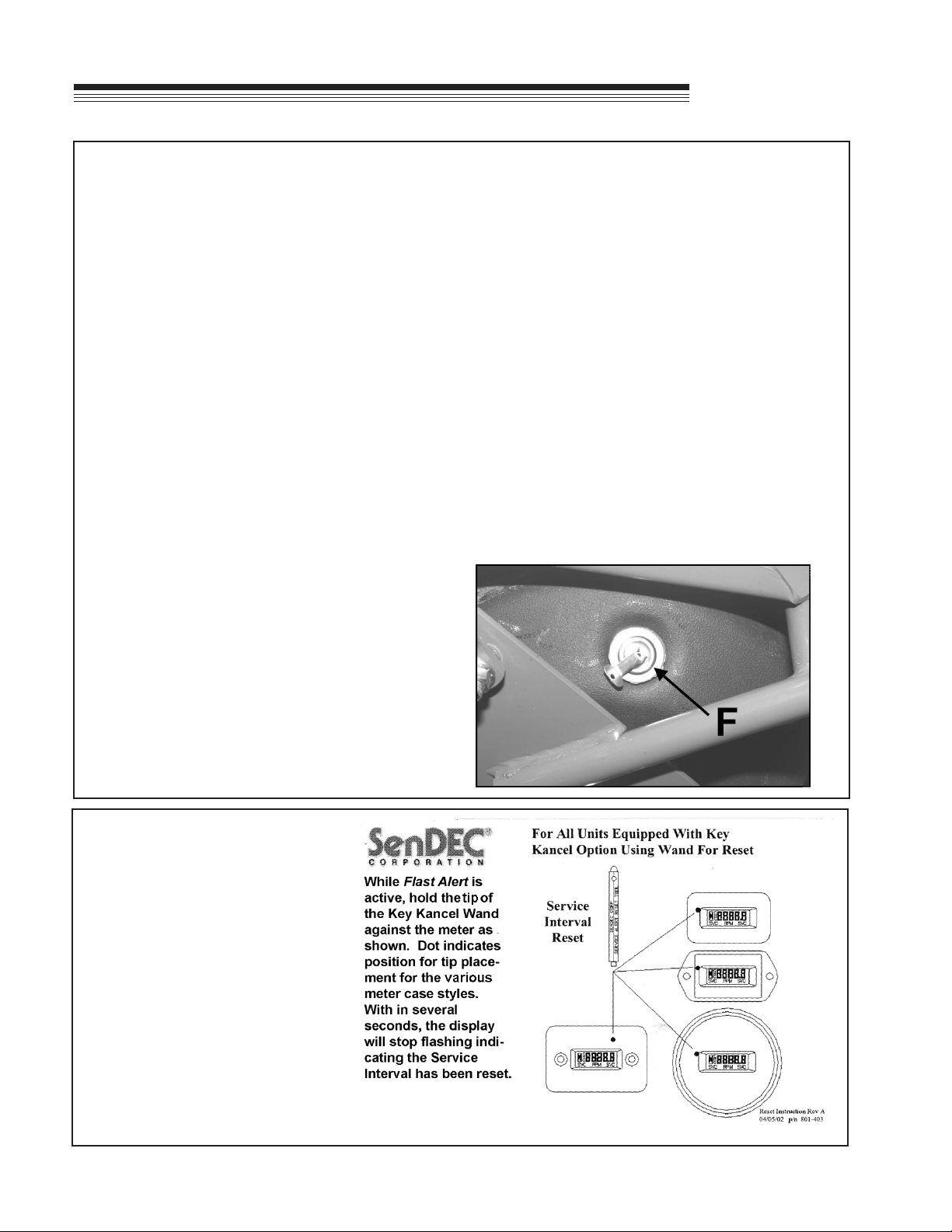

HOUR METER:

13
Lawnaire
IV
with EST
MAINTENANCE & ADJUSTMENTS
MAINTENANCE
Tines:
- Replace damaged or broken tines.
- Do not weld or straighten tines.
- Clean tines after use, inside and out.
- Apply a light coat of oil to tines to prevent rust.
Tine Wheels:
- Grease Bearings in 1-5 at the start of the season
and every 25 hours .
Engine:
- With the engine in a level position check oil
levels in the engine and gear reduction case. Add if
required. (See engine operation manual for details.)
- Inspect air cleaner element. Clean or replace as
necessary.
Lubrication:
- Grease the idler pivot and wheel bearings at
the start of the season and every 25 hours.
- Keep roller chain clean and in proper running
order. Lubricate with Lubriplate #13563 or
equivalent at start of the season and every 25
hours.
ADJUSTMENTS
Clutch Adjustments:
- The clutch cable spring should be extended
1/8" - 1/4" (3 - 6mm) when the clutch is engaged.
TO ADJUST: Loosen the nut E at the clutch cable
mounting point on the clutch control handle. Adjust
the position as needed.
Chain:
- The roller chain should have 1/8" - 1/4" (3 -
6mm) deection at the center point between the
upper idler and water drum sprockets.
TO ADJUST: Loosen the mounting bolt on one of
the movable idler sprockets and slide in its slot until
the desired tension is reached. Tighten the bolt.
Note there are two (2) movable sprockets. If one
does not provide sufcient take-up, use the other.
NOTE: Do not over tighten the chain. Excessive
chain tension will reduce chain and bearing life. It
can also lead to fatigue failure of the frame.

14
Lawnaire
IV
with EST
TRANSPORTING
TRANSPORTING
If a tote trailer will be used to transport the unit, the two
cast weights must be removed from the aerator frame
and a locking shaft installed in their place.
Removing the cast weights and draining the water
drum will decrease the weight for easier loading on a
vehicle or trailer.
To remove the weights, pull up on the latch A securing
the weights Band slide the weights out.
When manually transporting the machine for short
distances:
- Pull up on the transport lift handle so that the tines
are raised.
- Pull back on the clutch control handle (bail) to engage
the drive. The water drum will propel the machine
forward.
Use caution when removing the cast weights.
Each weight is approximately 22 lbs.
NOTE: Be sure to close the fuel shut off valve
before transporting the unit.

15
Lawnaire
IV
with EST
STORAGE INSTRUCTIONS
To prevent possible explosion or ignition of vaporized
fuel, do not store equipment with fuel in tank or
carburetor in an enclosure with open ame (for
example, a furnace or water heater pilot light).
Before the equipment is put into storage for any
period exceeding 30 days, the following steps
should be taken.
1. Drain all fuel from the fuel tank and fuel lines.
2. Start the engine and run until all the fuel is used
from the carburetor oat bowl.
3. While the engine is still warm, drain the
crankcase oil and rell with the proper weight oil
corresponding to the season the equipment will
next be used.
4. Remove the spark plug and squirt a small
amount of engine oil into the cylinder. Turn the
engine over a few times to distribute the oil.
5. Drain the water drum.
NOTE: Always drain the water drum for winter
storage. Freezing water can rupture the drum.
6. Grease the clutch pivot tting, tine wheel and
wheel bearings.
6. Lubricate the chain.
To put the equipment into service after an
extended period of storage:
1. Check for loose parts and tighten if necessary.
2. Check for cracked or broken tines and replace as
necessary.
3. Fill the fuel tank with clean, fresh fuel.
4. Check the engine and gear reduction case oil
levels with the engine in a level position.
5. Start the engine.
6. Check for fuel leaks.
7. Check clutch control operation to make sure the
unit stops when the clutch control is released.
STORAGE

16
Lawnaire
IV
with EST
SPECIFICATIONS
LAWNAIRE IV
Dimensions:
Width.......................................... 28" (711 mm)
Length......................................... 51" (1295 mm)
Length (handle folded)............... 46" (1168 mm)
Height (transport)....................... 47.5" (1206 mm)
Height (handle folded)................ 30" (762 mm)
Net Weight:
Dry, w/o acc. weight................... 240 lbs. (109 Kg)
Dry, w/ acc. weight..................... 279 lbs. (126 Kg)
With water tank full
and acc. weight.......................... 280 lbs. (127 Kg)
Speed:
Transport.......... 3.6 mph (5.8 kph.)
Aerate................. up to 3.5 mph (5.6 kph)
Drive:
Primary....................................... V Belt, 4L section
Secondary..................... #40 plated roller chain
Wheels:
Front................. 11" (279 mm) Dia. water tank
5.2 gal. (19.7 L) max. capacity
Rear.................. 8 x 2.50 semi-pneumatic tires
with 3/4" ball bearings
Aeration:
Tines.... 3/4" (19 mm) formed from .08" hardened
chrome molybdenum alloy steel, 30 per unit
Penetration Depth..................... 2 3/4" (70 mm) max.
Swath Width.............................. 19" (483 mm)
Hole Pattern..... 3 3/4" x 7" (95 x 178 mm) on center
Production..................... Up to 28,975 sq. ft. / hour
. .................... Up to 2692 m² / hour
r
Engines:
Model 554918A Model......................................HONDA GX120K1HX 4 cycle.... 7.2 cu.in. (118 cc)........*3.5
HP (2.6 KW)
Starter.........................................Recoil, on/off switch
Governor....................................3175 ± 125 RPM, no load
Idle Speed..................................1400 + 100 RPM
Fuel Tank.................................. 3.4 qt. (3.2 L)
Gear Reduction.......................................6 to 1
* as tested by manufacturer @ 3600 R.P.M.

17
Lawnaire
IV
with EST
PARTS SECTION
PARTS
SECTION

18
Lawnaire
IV
with EST
FIGURE 1
FRAME GROUP
