SRB 301X1
Operating instructions
Safety-monitoring module
EN 1
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety-monitoring module. The
operating instructions must be available in a legible condition and a
complete version in the vicinity of the device.
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machinery or plant.
The safety-monitoring module must be exclusively used in accordance
with the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
To avoid EMC disturbances, the physical ambient and
operational conditions at the place where the product is in-
stalled, must meet the provisions laid down in the paragraph
"Electromagnetic Compatibility (EMC)" of DIN EN 60204-1.
1.5 General safety instructions
The user must observe the safety instructions in this operating instruc-
tions manual, the country-specific installation standards as well as all
prevailing safety regulations and accident prevention rules.
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications.
Content
1 About this document
1.1 Function ..............................................1
1.2 ..................1
1.3 Explanation of the symbols used ...........................1
1.4 Appropriate use ........................................1
1.5 General safety instructions ...............................1
1.6 Warning about misuse ...................................2
1.7 Exclusion of liability .....................................2
2 Product description
2.1 Ordering code .........................................2
2.2 Special versions........................................2
2.3 Destination and use .....................................2
2.4 Technical data .........................................2
2.5 .....................................3
3 Mounting
3.1 General mounting instructions .............................3
3.2 Dimensions ...........................................3
4 Electrical connection
4.1 General information for electrical connection..................3
5 Operating principle and settings
5.1 LED functions..........................................3
5.2 Description of the terminals ...............................3
5.3 Notes ................................................3
6 Set-up and maintenance
6.1 Functional testing.......................................4
6.2 Maintenance ..........................................4
7 Disassembly and disposal
7.1 Disassembly...........................................4
7.2 Disposal ..............................................4
8 Appendix
8.1 Wiring examples .......................................4
8.2 ......................................4
8.3 ....................................5
8.4 ...................................5
9 Declaration of conformity
9.1 EC Declaration of conformity ..............................6
x.000 / Januar 2014 / v.A. - 101182840-EN / D / 2014-01-28 / AE-Nr. 2856
EN Operating instructions. . . . . . . . . . . . .pages 1 to 6
Translation of the original operating instructions
2
Operating instructions
Safety-monitoring module SRB 301X1
EN
The entire concept of the control system, in which the
safety component is integrated, must be validated to
EN ISO 13849-2.
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed.
1.6 Warning about misuse
In case of inadequate or improper use or manipulations of
the safety-monitoring module, personal hazards or damage
to machinery or plant components cannot be excluded.
The relevant requirements of the standards EN 1088 and
EN ISO 13850 must be observed.
1.7 Exclusion of liability
We shall accept no liability for damages and malfunctions resulting from
defective mounting or failure to comply with this operating instructions
manual. The manufacturer shall accept no liability for damages resulting
from the use of unauthorised spare parts or accessories.
For safety reasons, invasive work on the device as well as arbitrary re-
pairs, conversions and modifications to the device are strictly forbidden;
the manufacturer shall accept no liability for damages resulting from
such invasive work, arbitrary repairs, conversions and/or modifications
to the device.
The safety-monitoring module must only be used when the enclosure is
closed, i.e. with the front cover fitted.
2. Product description
2.1 Ordering code
This operating instructions manual applies to the following types:
SRB 301X1
Only if the information described in this operating instructions
manual are realised correctly, the safety function and therefore
the compliance with the Machinery Directive is maintained.
2.2 Special versions
For special versions, which are not listed in the order code below 2.1,
these specifications apply accordingly, provided that they correspond to
the standard version.
2.3 Destination and use
The safety-monitoring modules for integration in safety circuits are
designed for fitting in control cabinets. They are used for the safe
evaluation of the signals of positive break position switches for safety
functions on sliding, hinged and removable safety guards as well as
emergency stop control devices.
The safety function is defined as the opening of enabling circuits 13-14,
23-24 and 33-34 when the input UB(L+)-A1 are opened. The safety-
relevant current paths with the output contacts 13-14, 23-24 and 33-34
meet the following requirements under observation of a B10d value
assessment (also refer to "Requirements to DIN EN ISO 13849-1"):
– control category 4 – PL e to DIN EN ISO 13849-1
– corresponds to SIL 3 to DIN EN 61508-2
– corresponds to SILCL 3 to DIN EN 62061
(corresponds to control category 4 to DIN EN 954-1)
To determine the Performance Level (PL) of the entire safety function
(e.g. sensor, logic, actuator) to DIN EN ISO 13849-1, an analysis of all
relevant components is required.
2.4 Technical data
General data:
Standards: IEC/EN 60204-1, EN 60947-5-1;
EN ISO 13849-1, IEC/EN 61508
Climate resistance: EN 60068-2-78
Mounting: Snaps onto standard DIN rail to EN 60715
Terminal designations: EN 60947-1
Material of the housings: Plastic, glass-fibre reinforced
thermoplastic, ventilated
Material of the contacts: AgSnO, self-cleaning, positive drive
Weight: 220 g
Start conditions: Automatic or start button
Feedback circuit (Y/N): yes
Pull-in delay:
Drop-out delay in case of "emergency stop":
Bridging in case of voltage drops:
Mechanical data:
Connection type: Screw connection
Cable section: min. 0,25 mm² / max. 2,5 mm²
Connecting cable: rigid or flexible
Tightening torque for the terminals: 0.6 Nm
With removable terminals (Y/N): Nein
Mechanical life: 10 million operations
Electrical life: Derating curve available on request
Resistance to shock: 10 g / 11 ms
Resistance to vibrations
to EN 60068-2-6: 10 ... 55 Hz, amplitude 0.35 mm
Ambient conditions:
Ambient temperature: –25 °C … +60 °C
Storage and transport temperature: –40 °C … +85 °C
Protection class: Enclosure: IP40
Terminals: IP20
Clearance: IP54
Air clearances and creepage
distances to IEC/EN 60664-1: 4 kV/2 (basic insulation)
EMC rating: to EMC Directive
Electrical data:
Contact resistance in new state:
Power consumption: max. 1.4 W / 3.2 VA
Rated operating voltage Ue:24 VDC –15% / +20%,
residual ripple max. 10%,
24 VAC –15% / +10%
Frequency range: 50 / 60 Hz
Fuse rating for the operating voltage: Internal electronic trip,
tripping current > 1 A
Monitored inputs:
Short-circuit recognition (Y/N): No
Wire breakage detection (Y/N): Yes
Earth leakage detection (Y/N): Yes
Number of NO contacts: 0
Number of NC contacts: 1
Cable length: 1,500 m mit 1.5 mm²
2,500 m mit 2.5 mm²,
1-channel
Conduction resistance:
Outputs:
Number of safety contacts: 3
Number of auxiliary contacts: 1
Number of signalling outputs: 0
Switching capacity of the safety contacts: 13-14; 23-24; 33-34:
max. 250 V, 8 A ohmic (inductive in
case of appropriate protective wiring);
min. 10 V / 10 mA
Switching capacity of the auxiliary contacts: 41-42: 24 VDC / 2 A
Fuse rating of the safety contacts: external (Ik= 1000 A)
to EN 60947-5-1
Safety fuse 10 A quick blow, 8 A slow blow
Fuse rating for the auxiliary contacts: external (Ik= 1000 A)
to EN 60947-5-1
Safety fuse 2.5 A quick blow, 2 A slow blow
3
SRB 301X1
Operating instructions
Safety-monitoring module
EN
Utilisation category to IEC/EN 60947-5-1: AC-15: 230 VAC / 6 A
DC-13: 24 VDC / 6 A
Dimensions H x W x D: 100 mm x 22,5 mm x 121 mm
The data specified in this manual are applicable when the
component is operated with rated operating voltage Ue±0%.
2.5 Safety classification
Standards: EN ISO 13849-1, IEC 61508, EN 60947-5-1
PL: up to e
Control category: up to 4
DC: 99% (high)
CCF: > 65 points
PFH value: -8/h
SIL: up to 3
Service life: 20 years
-8/h applies to the combinations of contact
load (current through enabling contacts) and number of switching cy-
cles (nop/y) mentioned in the table below. At 365 operating days per year
and a 24-hours operation, this results in the below-mentioned switching
cycle times (tcycle) for the relay contacts.
Diverging applications upon request.
Contact load nop/y tcycle
20 % 525,600 1.0 min
40 % 210,240 2.5 min
60 % 75,087 7.0 min
80 % 30,918 17.0 min
100 % 12,223 43.0 min
3. Mounting
3.1 General mounting instructions
Mounting: snaps onto standard DIN rails to EN 60715.
Snap the bottom of the enclosure slightly tilted forwards in the DIN rail
and push up until it latches in position.
3.2 Dimensions
All measurements in mm.
Device dimensions (H/W/D): 100 x 22.5 x 121 mm
4. Electrical connection
4.1 General information for electrical connection
As far as the electrical safety is concerned, the protection
against unintentional contact of the connected and therefore
electrically interconnected apparatus and the insulation of the
feed cables must be designed for the highest voltage, which
can occur in the device.
The electrical connection may only be carried out by authorised
personnel in a de-energised condition.
Wiring examples: see appendix
5. Operating principle and settings
5.1 LED functions
B: Status operating voltage (LED is on, when the operating voltage
on the terminals A1-A2 is ON)
i: Status internal operating voltage (LED is on, when the operating
voltage on the terminals A1-A2 is ON and the fuse has not been
triggered).
5.2 Description of the terminals
Voltages: A1
A2
+24 VDC/24 VAC
0 VDC/24 VAC
Outputs: 13-14
23-24
33-34
First safety enabling circuit
Second safety enabling circuit
Third safety enabling circuit
Start: Y1-Y2
41-42
Feedback circuit and external reset
Auxiliary NC contact as signalling contact
U
B
K1
K2
SRB
301X1
13 23 33
A1 Y1 Y2
14 24 34
41 42 A2
Fig. 1
5.3 Notes
Signalling outputs must not be used in safety circuits.
Due to the operating principle of the electronic fuse, the
customer must check that no hazard is caused by an
unexpected restart in circuits without reset button
(automatic reset).
4
Operating instructions
Safety-monitoring module SRB 301X1
EN
6. Set-up and maintenance
6.1 Functional testing
The safety function of the safety-monitoring module must be tested.
The following conditions must be previously checked and met:
1. Correct fixing
2. Check the integrity of the cable entry and connections
3. Check the safety-monitoring module's enclosure for damage.
4. Check the electrical function of the connected sensors and their
influence on the safety-monitoring module and the downstream
actuators
6.2 Maintenance
A regular visual inspection and functional test, including the following
steps, is recommended:
1. Check the correct fixing of the safety-monitoring module
2. Check the cable for damages
3. Check electrical function
The device has to be integrated into the periodic check-ups
according to the Ordinance on Industrial Safety and Health,
Damaged or defective components must be replaced.
7. Disassembly and disposal
7.1 Disassembly
The safety-monitoring module must be disassembled in a de-energised
condition only. Push up the bottom of the enclosure and hang out
slightly tilted forwards.
7.2 Disposal
The safety-monitoring module must be disposed of in an appropriate
manner in accordance with the national prescriptions and legislations.

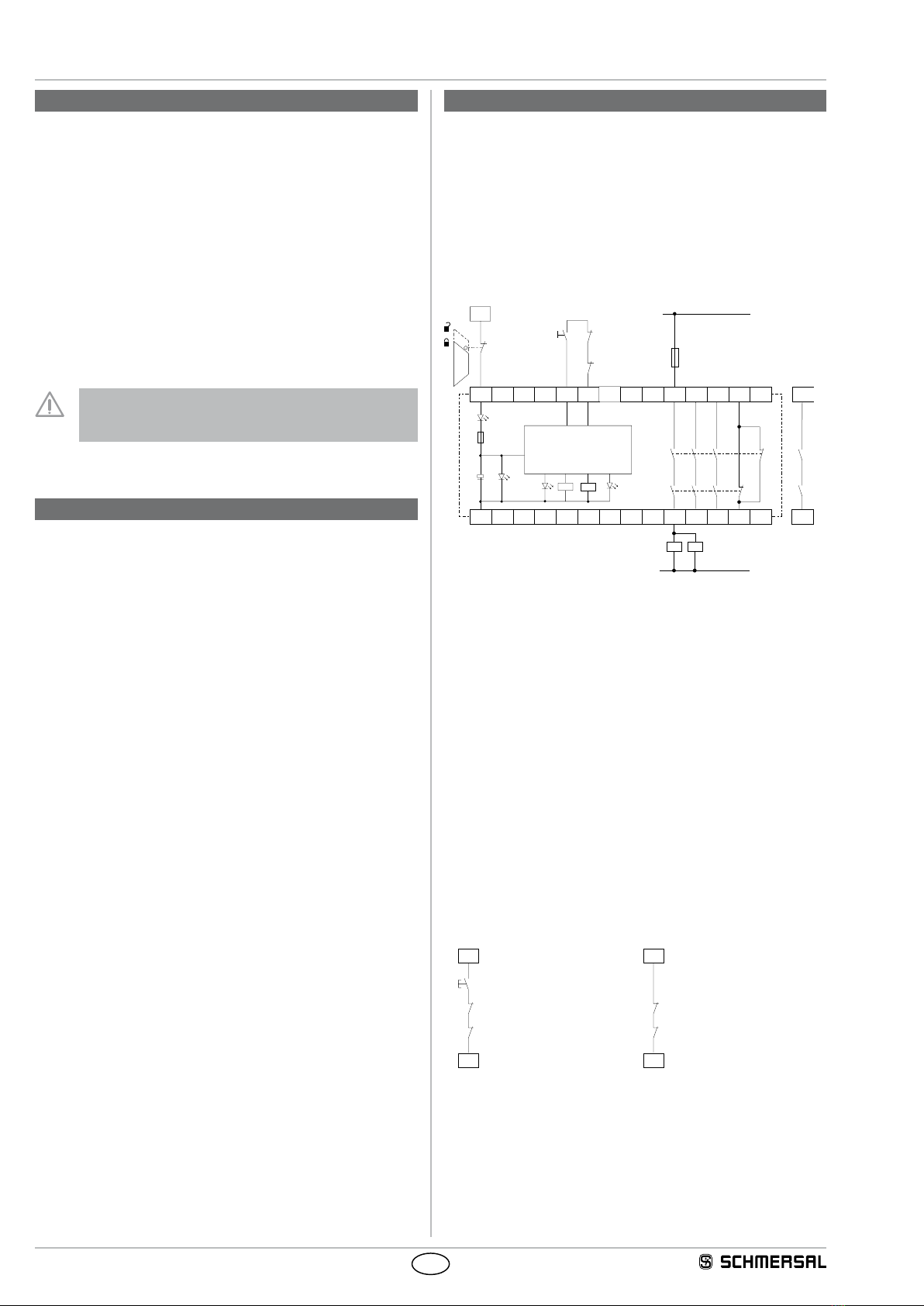

8. Appendix
8.1 Wiring examples
One-channel control, shown for a guard door monitor with one
positive break contact and external reset button
J
(see Fig. 2)
or number of contacts by means of contactors or relays with positive-
guided contacts.
monitoring circuit.
S
= Feedback circuit
K
A
K
B
K1 K2
F1
UB
A1
+UB
Y1 Y2
KA
KB
A2
a)
S
J
L1
N
K
A
K
B
K1
K2
13 23
14 24
33
34
41
42
Fig. 2
a) Logic
8.2 Start configuration
External reset button (non-monitored start) (see Fig. 3)
button.
Automatic start (Fig. 4)
to the terminals X1-X2. If the feedback circuit is not required, establish
a bridge.
gaining access by stepping behind!
operating mode "Automatic start", an automatic restart after a
shutdown in case of emergency must be prevented by the upstream
control to EN 60204-1 paragraph 9.2.5.4.2 and 10.8.3.
Y2
Y1
K
A
J
K
B
Y2
Y1
K
A
K
B
Fig. 3 Fig. 4
5
SRB 301X1
Operating instructions
Safety-monitoring module
EN

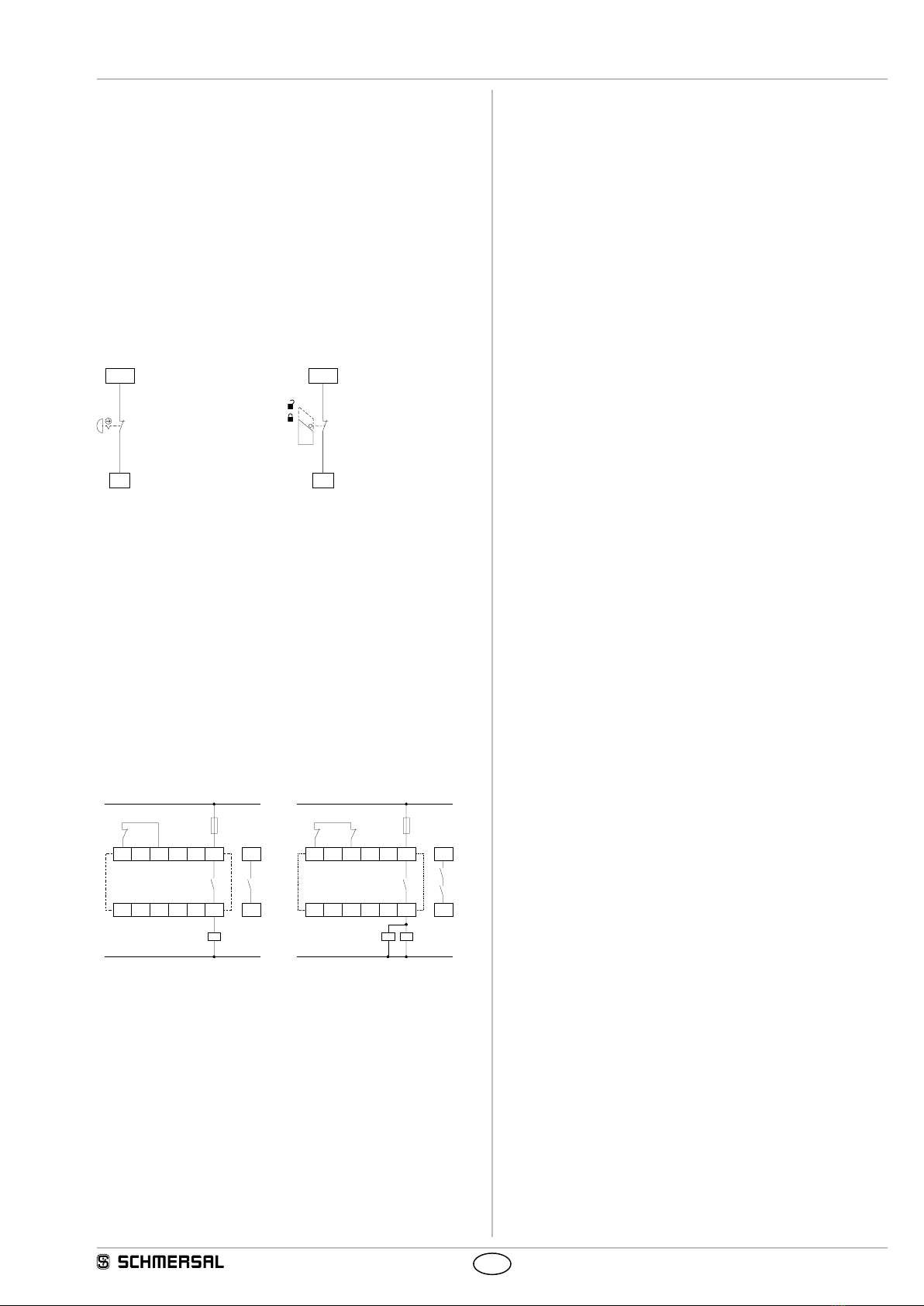

8.3 Sensor configuration
Single-channel emergency stop circuit with command devices to
DIN EN ISO 13850 (EN 418) and EN 60947-5-5 (Fig. 5)
– 1 to EN 954-1
– 2 – PL d to DIN EN ISO 13849-1
Single-channel guard door monitoring circuit with interlocking
devices to EN 1088 (Fig. 6)
– 1 to EN 954-1
– 2 – PL d to DIN EN ISO 13849-1
A1
UB(L+)
A1
UB(L+)
Fig. 5 Fig. 6
8.4 Actuator configuration
Single-channel control (see Fig. 7)
contactors or relays with positive-guided contacts.
S
= Feedback circuit and external reset in series
Dual-channel control with feedback circuit (Fig. 8)
contactors or relays with positive-guided contacts.
S
= Feedback circuit and external reset in series
Y1 Y2 13
14
K
A
K
A
K
A
S
L1
N
Y1 Y2 13
14
K
B
K
A
K
B
K
A
K
B
L1
N
K
A
S
Fig. 7 Fig. 8
6
Operating instructions
Safety-monitoring module SRB 301X1
EN
SRB301X1-C-EN
9. Declaration of conformity
The currently valid declaration of conformity can be
downloaded from the internet at www.schmersal.net.
9.1 EC Declaration of conformity
Name of the safety component: SRB 301X1
Description of the safety component: Safety-monitoring module for
emergency stop circuits and
guard door monitoring
Relevant EC-Directives: 2006/42/EC-EC-Machinery Directive
2004/108/EC EMC-Directive
Person authorized for the compilation
of the technical documentation:
Oliver Wacker
Möddinghofe 30
42279 Wuppertal
quality assurance system, referred
to in Appendix X, 2006/42/EC:
TÜV Rheinland Industrie Service GmbH
Alboinstraße 56
12103 Berlin
ID n°: 0035
K. A. Schmersal GmbH & Co. KG
Möddinghofe 30, D - 42279 Wuppertal
Postfach 24 02 63, D - 42232 Wuppertal
Phone: +49 - (0)2 02 - 64 74 - 0
Telefax +49 - (0)2 02 - 64 74 - 1 00
E-Mail: [email protected]
Internet: http://www.schmersal.com
Place and date of issue: Wuppertal, January 28, 2014
Authorised signature
Philip Schmersal
Managing Director
EC Declaration of conformity
Translation
of the original Declaration of Conformity
Möddinghofe 30
42279 Wuppertal
Germany
www.schmersal.com
We hereby certify that the hereafter described safety components both in its basic design and
construction conform to the applicable European Directives.
Table of contents
Other schmersal Measuring Instrument manuals
