BORIS
the comfortable toilet and shower chair
Instructions for use

Dear Customer,
At this point we would like to thank you for placing your trust in our company and
for purchasing our product.
We ask you to read through the Instructions for use carefully prior to initial com-
missioning of the product, and to observe them. Please note that guidelines and
representations in these Instructions for use may deviate from your product due to
differing equipment.
We reserve the right to make technical modications.
Important information!
Ensure that these Instructions for use remain with the product.
Your Schuchmann Team

Contents Page
1. Preparation of the shower and toilet chair for use
1.1 Transport..................................................................................................................2
1.2 Safety measures prior to use................................................................................... 2
1.3 Safe disposal of the packaging material.................................................................. 2
1.4 Where to keep the instructions for use.................................................................... 2
2. Product description
2.1 General information................................................................................................. 3
2.2 Areas of application, use according to the intended purpose.................................. 3
2.3 Use not in accordance with the intended purpose / warning guidelines.................. 3
2.4 Equipment for basic model...................................................................................... 4
2.5 List of accessories................................................................................................... 4
2.6 Product overview......................................................................................................4
3. Settings
3.1 Seat angle adjustment............................................................................................. 5
3.2 Castors.....................................................................................................................5
3.3 Seat height adjustment............................................................................................ 6
4. Accessories
4.1 Toilet bucket............................................................................................................. 6
4.2 Headrest.................................................................................................................. 7
4.3 Footrest....................................................................................................................7
4.4 Table with padded arm support, pivotable............................................................... 8
4.5 Abduction block with integrated spray protection.....................................................8
4.6 PU insertion pad, two-part....................................................................................... 9
5. Repairs and cleaning
5.1 Care......................................................................................................................... 9
5.2 Repairs.....................................................................................................................9
5.3 Spare parts............................................................................................................ 10
5.4 Duration of use and re-use.................................................................................... 10

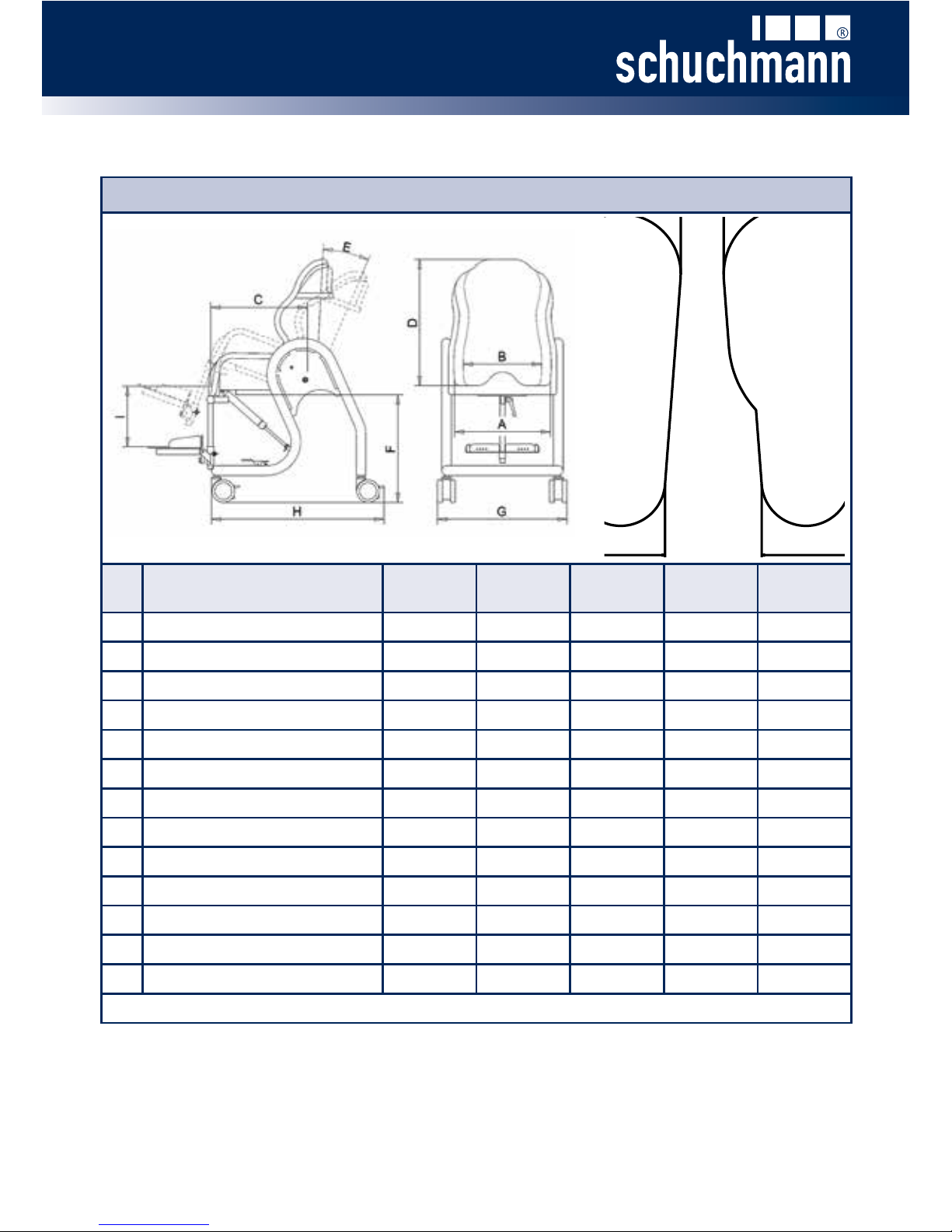

6. Technical data.............................................................................................................. 11
7. Guarantee..................................................................................................................... 12
8. Identication
8.1 EC declaration of conformity.................................................................................. 13
8.2 Serial number / date of manufacture......................................................................14
8.3 Product version...................................................................................................... 14
8.4 Issue of the document............................................................................................14
8.5 Name and address of the manufacturer, specialist dealer supplying the product..14
1

2
1. Preparation of the toilet and shower chair for use
1.1 Transport
On receiving the product, please check it for completeness, lack of faults and check
it for any transport damage.
Inspect the goods in the presence of your forwarder
Should transport damage have occurred, please cause an inventory (determination
of the faults) to be made in the presence of the forwarder. Please send a complaint
in writing to the specialist dealer responsible.
1.2 Safety measures prior to use
Correct usage of the toilet and shower chair requires precise and careful training
of the accompanying person. We ask you to read through the instructions for use
carefully prior to initial commissioning of the toilet and shower chair, and to observe
them.
1.3 Safe disposal of the packaging material
The product packaging should be stored in case the product needs to be transpor-
ted again. Should you have to return the product for repairs or in case of a gua-
rantee claim, please if possible use the original box so that the product is optimally
packaged.
Otherwise, please assist in disposing of the packaging material professionally in or-
der to promote the recycling of resources. For this reason, separate the packaging
materials for recycling according to their classication.
Do not leave packaging materials unattended, as they are a possible source of
danger.
1.4 Where to keep the instructions for use
Please store these instructions for use carefully and ensure that these Instructions
for use remain with the product in case of re-use.

3
2. Product description
2.1 General information
The seat pan is made of a UV-resistant, deep-drawn PE plastic. All metal parts are
produced from rustproof steel and in part are powder-coated.
BORIS is a sturdy toilet and shower chair for at home and in facilities. Its anatomi-
cally-shaped seat pan gives children and teenagers special support. It can be used
as a toilet chair and a shower chair, and is provided in 5 sizes. As a toilet chair, it
can used with the toilet or as a standalone device with a toilet bucket.
2.2 Application areas, use according to the intended purpose
BORIS can be used as a toilet chair over the toilet or as a standalone device with a
toilet bucket, or as a shower chair. Please observe the following guidelines:
Over the toilet
Open the toilet lid and the seat. Adjust the height of the seat pan to the toilet height.
Remove the toilet bucket. Move the toilet chair backwards over the toilet and lock
the rollers.
Standalone unit
As a standalone unit, BORIS can only be used with toilet buckets.
As a shower chair
BORIS consists of water-resistant materials, and can therefore be used
as a shower chair.
CAUTION!
2.3 Use not in accordance with the intended purpose / warning guidelines
• Correct usage of the product requires precise and careful training of the
accompanying person.
• The toilet and shower chair may only be used on stable and at ground.
• Please observe the "Technical data" in these instructions for use for the
maximum permitted patient weight.
• The toilet and shower chair may not be used without supervision.
• The toilet and shower chair may not be used to transport people.
• During adjustment, the patient should not be able to touch the moving parts.

4
2.4 Equipment for basic model
• Anatomically-shaped seat pan made of PE, colour steel blue
• Sub-frame made of stainless steel
• Seat angle adjustment via gas pressure spring 200N
• Mechanical height adjustment
• 4 dual castors (100 mm) with locking devices
2.5 List of accessories
• PU headrest
• PU insertion pad
• Table
• Toilet bucket
• Abduction wedge
• Footrest
• Fixation vest
• Pelvic harness
• Belt holder
Castors
PU insertion pad (seat)
PU insertion pad (back)
PU headrest
Sub-frame
Table
Foot pedal
Abduction wedge
Toilet bucket
2.6 Product overview
The Fig. below is intended to show you the designation of the most important com-
ponents as well as the terms which you will nd in these Instructions for use.
Footrest

5
3. Settings
3.1 Seat angle adjustment
You can innitely adjust the seat pan from (-) 5°
active to 30°
passive. To do this, press the foot pedal (A) at the
front right in travel direction on the base frame,
so that the seat pan angle can be adjusted under
slight pressure or tension. After adjustment, sim-
ply let go of the foot pedal again.
The foot pedal can be secured against inadver-
tent operation with the spring pin (located on the
inside of the foot pedal). To do this, turn the spring
pin until it engages. If necessary, assist engage-
ment by moving the foot pedal gently. The locking
effect is cancelled by pulling out the spring pin
and turning it a quarter turn.
A
3.2 Castors
The toilet and shower chair should always be pre-
vented from rolling away inadvertently through
braking of the 4 castors. To do this, press the bra-
kes (B) down with the tip of your
foot. B
The brake serves merely to prevent inadvertent rolling away on level
surfaces.

6
3.3 Seat height adjustment
You can adjust the height of the seat pan in 2.5
cm steps. To do this, rst loosen the two cap nuts
(A) on the brackets between the pan and base
frame on both sides. Now the height of the seat
pan can be adjusted via the row of holes. Then
please rmly re-tighten the nuts again.
Now please re-adjust the gas pressure spring so
that the seat angle is adjusted correctly again. To
do this, unscrew the gas pressure spring bracket
(B) screw completely out of the thread plate and
reinsert it at the appropriate height. B
A
The setting may only may made with
the seat unoccupied.
4. Accessories
4.1 Toilet bucket
The toilet bucket is pushed from the rear under
the seat pan up to the stop. The narrow guide
prevents the bucket from slipping out.
After using the toilet bucket, please clean and disinfect it and the
seat pan thoroughly. Only use standard commercial disinfectants.

7

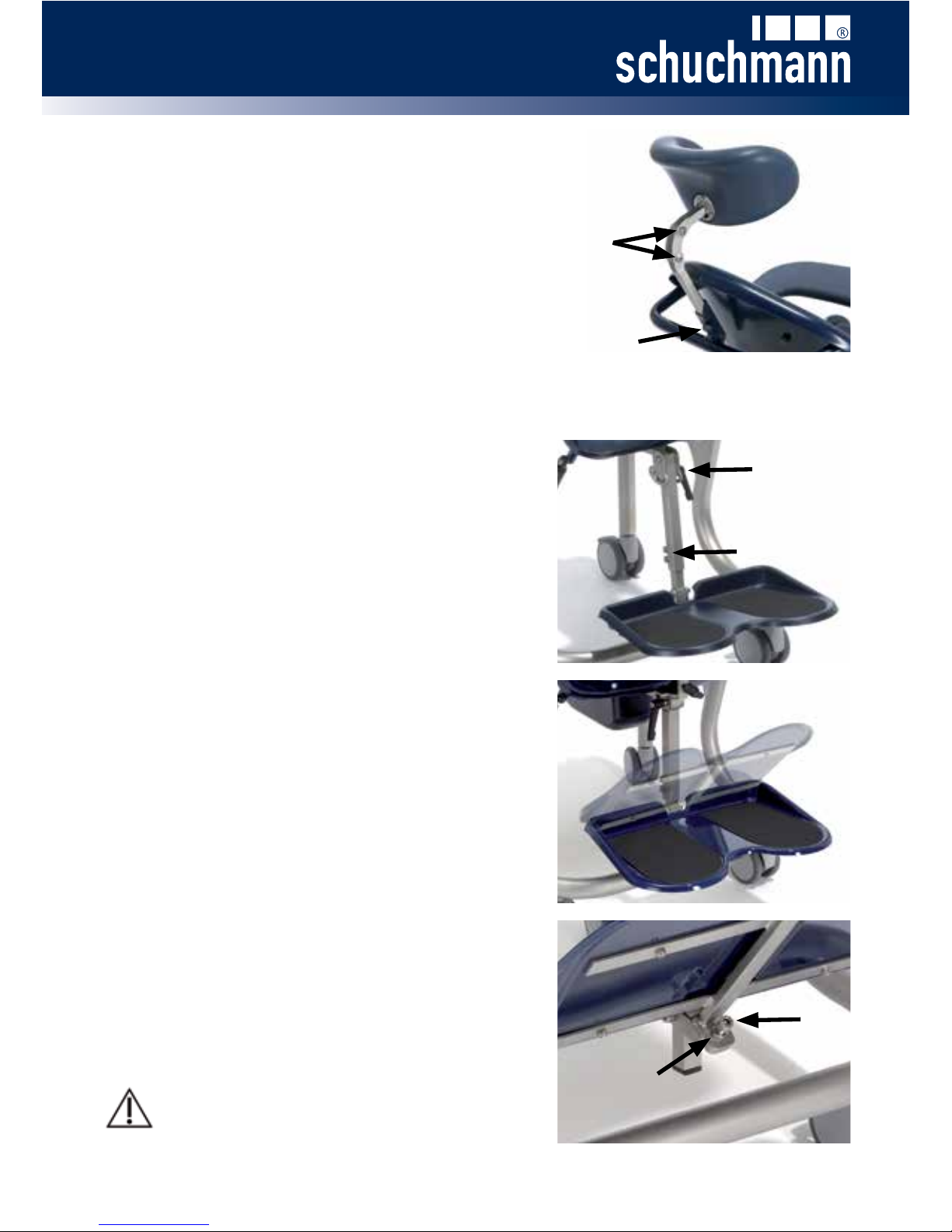

4.2 Headrest
The angle and height-adjustable headrest can be
adapted to the respective patient.
Height adjustment:
To do this, loosen the screw (A) and adjust the height.
Angle adjustment:
To to this, loosen the screws (B) and the headrest
can be adapted.
A
B
Afteralladjustmentwork,rmlyre-
tighten the screw connections you
have loosened!
4.3 Footrest
The footrest can be adjusted in terms of the knee
angle, foot angle and height, and can simply be
folded up for easier access.
Height adjustment:
To do this, loosen the two grub screws (C) and
adjust to the required height.
Knee angle adjustment:
To do this, loosen the clamping lever (D).
Foot angle adjustment:
First loosen the counternut (E) under the footrest,
then screw the adjusting screw (F) in or out for
adjustment of the foot angle, and re-tighten the
counternut again.
D
C
F
E

8

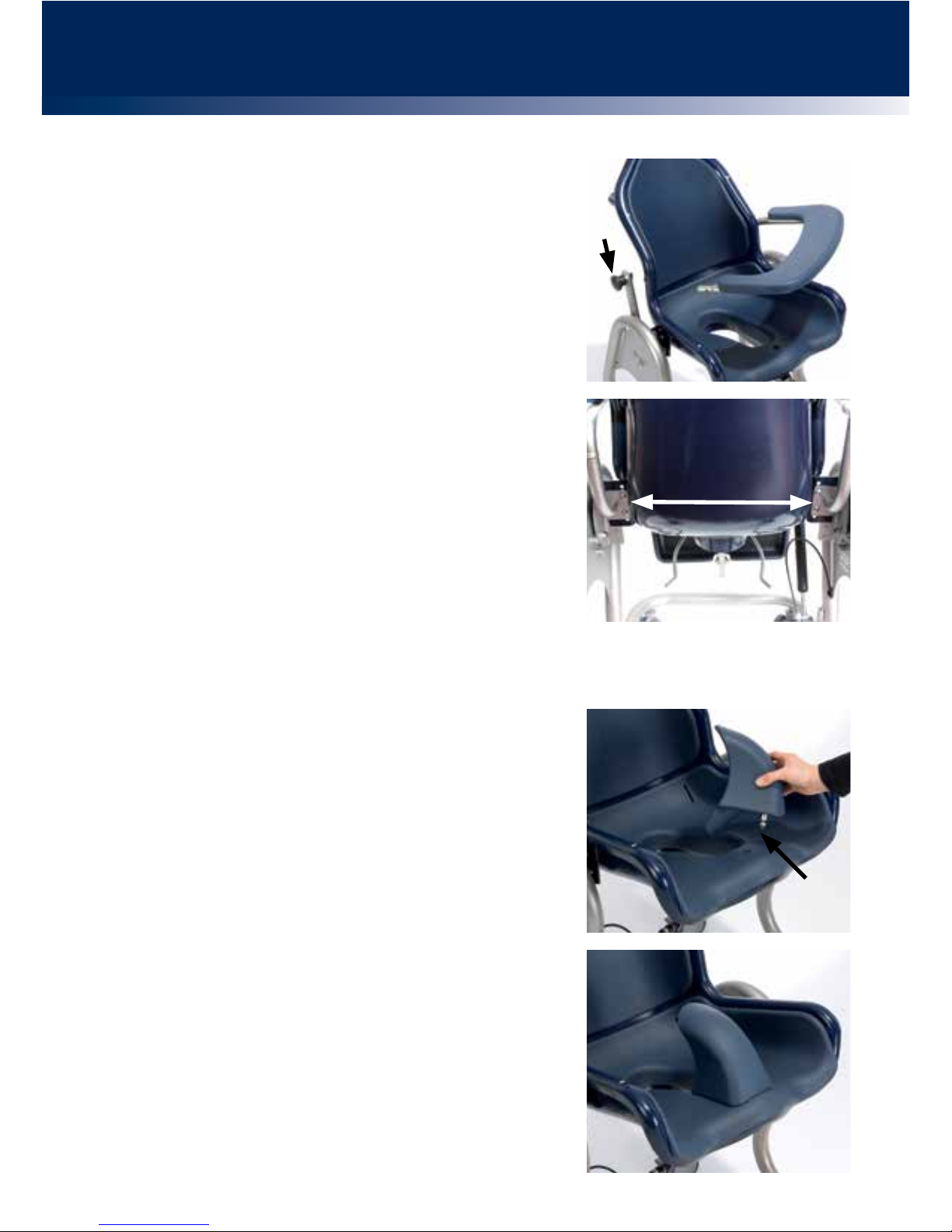

4.4 Table with padded armrest, pivotable
In order to pivot the table, for example to make get-
ting in and out easier, the pull catch (A) is pulled and
the table can be pivoted away around the bracket on
the left-hand side of the pan frame, or removed com-
pletely. When pivoting back, ensure that the table is
correctly engaged again.
The height of the table can be adjusted. To do this,
loosen the screw connections (B) on both sides, ad-
just the height via the perforated plate and rmly re-
tighten the screw connections.
It is advantageous if you remove the support table
rst, and then adjust the brackets individually.
A
B
4.5 Abduction block with integrated spray protection
The abduction block is inserted with the pin (C) into
the round opening at the centre front of the seat pan,
and pushed downwards until it engages audibly.
In order to remove the spray protection, pull out with
slight pressure.
C

9

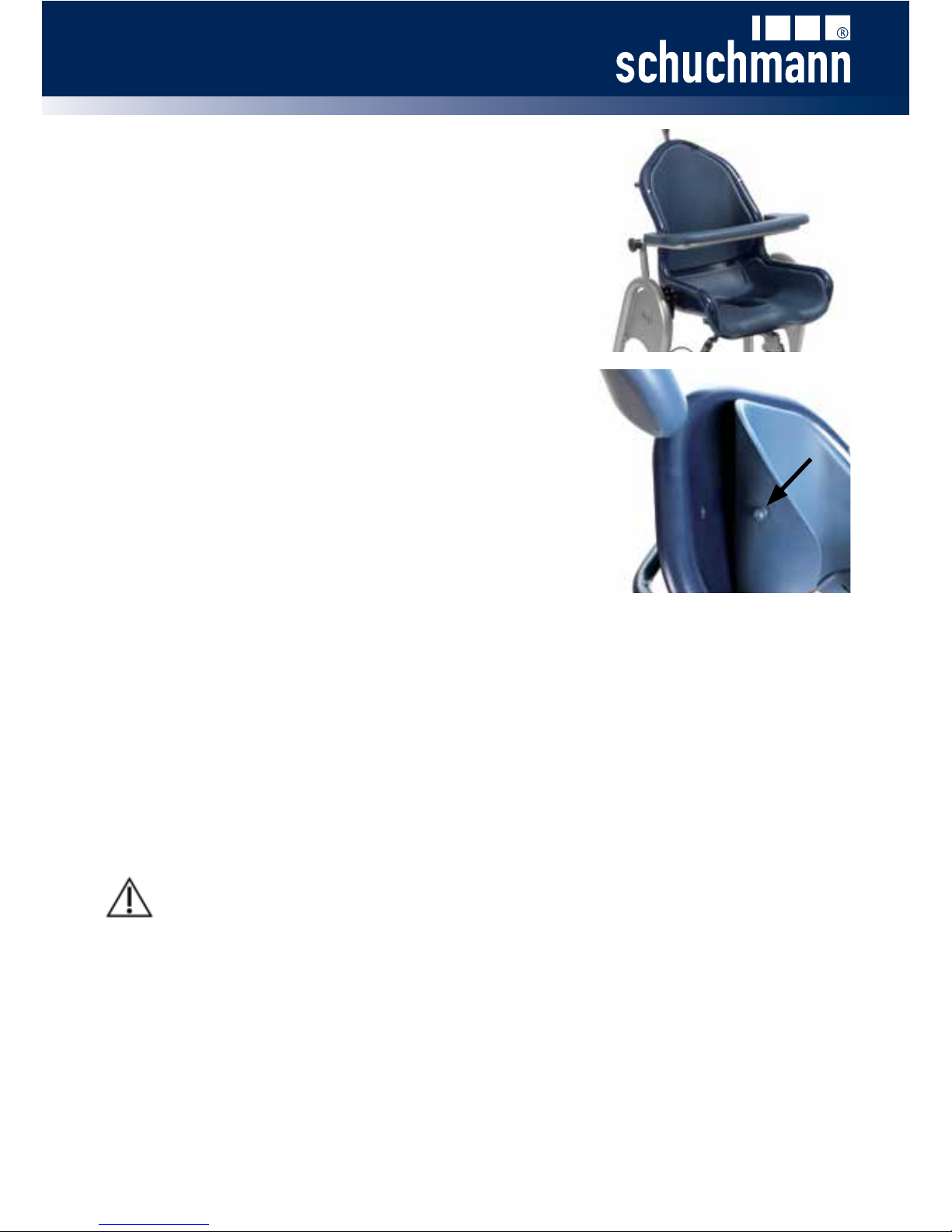

4.6 PUinsertionpad,two-part
For people sensitive to pressure, we offer a two-part
insertion pad, which for example can easily be dis-
mantled for cleaning purposes (with a mild detergent
solution).
To do this, the pad knobs (A) are removed from the
holes in the seat pan, and the pad is removed.
On insertion of the pad knobs, press the pad back
into the seat pan holes.
5. Repairs and cleaning
5.1 Care
Clean the seat and sub-frame regularly with a mild detergent solution and do not
use bleaching agents.
Use standard commercial disinfectants for disinfection purposes. Please then rinse
in clear water and allow to dry.
Do not use aggressive cleaning agents
such as solvents, hard brushes etc.
5.2 Repairs
Please carry out a daily visual inspection and check the toilet and shower chair
regularly for cracks, breaks, missing parts and malfunctions. In case of a defect or
malfunction, please contact the specialist dealer who supplied you with the product
(see Point 8.5).
A

10
5.3 Spare parts
Should you wish to order spare parts, please contact the specialist dealer who sup-
plied you with the toilet and shower chair, stating the serial number (see Point 8.5).
5.4 Durationofuseandre-use
The expected duration of use of our product, dependent on the usage intensity and
amount of re-use, totals up to "8" years, if the usage takes place in accordance with
the information in these instructions for use. It may be possible to use the product
over and above this time period if it is in a safe condition. The expected duration of
use does not refer to wear parts, such as for example covers, wheels, batteries...
The maintenance and evaluation of the condition, and if applicable the potential for
re-use must be decided by the specialist trader.
The toilet and shower chair is suitable for re-use. Prior to forwarding on, please
follow the cleaning and disinfection instructions in Chapter 6.1. Accompanying do-
cuments such as these instructions for use are part of the product, and must be
transferred to the new user.

11
6. Technical data
Dimensions-basicmodel
Boris
Size 0
Boris
Size 1
Boris
Size 2
Boris
Size 3
Boris
Size 4
ASeat width at front 31 cm 36 cm 41 cm 46 cm 51 cm
BSeat width at rear 26 cm 31 cm 36 cm 41 cm 46 cm
CSeat depth 31 cm 36 cm 41 cm 46 cm 48 cm
DBack height 49 cm 51 cm 56 cm 61 cm 65 cm
ESeat angle (-) 5° - 30° (-) 5° - 30° (-) 5° - 30° (-) 5° - 30° (-) 5° - 30°
FCan be positioned over a toilet 47 - 57cm 45 - 55cm 42 - 52cm 42 - 52cm 42 - 52cm
GTotal width 56 cm 61 cm 63 cm 71.5 cm 74 cm
HTotal length 65 cm 65 cm 65 cm 70 cm 70 cm
IMax. lower leg length 38 cm 38 cm 48 cm 48 cm 48 cm
JFront opening width 10 cm 10 cm 10 cm 10 cm 10 cm
KRear opening width 12 cm 12 cm 13.5 cm 13.5 cm 13.5 cm
L* Rear opening width - - 18.5 cm 18.5 cm 18.5 cm
Max. load 60 kg 80 kg 100 kg 100 kg 150 kg
* Only applies to Sizes 2 b. 3 b and 4 b
L
K
M
K

12
7. Guarantee
The two-year statutory guarantee period shall apply for all products. This guarantee
period shall begin with the delivery or handover of the goods. Should a veriable
material or manufacturing fault occur within this time period, we shall, after carriage
paid return to us, view the indicated damage and, if applicable, either repair or de-
liver a new product at our discretion.

13
8.Identication
8.1 EC declaration of conformity
Schuchmann GmbH & Co.KG
Dütestr. 3
D-49205 Hasbergen
Tel.: [phone] / 909 - 0
Fax: [phone] / 909 - 109
declares on their sole responsibility that the product named below is classi-
edasproductclass1
"BORIS" - the comfortable toilet and shower chair
Art. No.:52 00 100 (Size 0) 52 01 100 (Size 1) 52 02 100 (Size 2a)
52 02 200 (Size 2b) 52 03 100 (Size 3a) 52 03 200 (Size 3b)
52 04 100 (Size 4a) 52 04 200 (Size 4b)
The relevant regulations of the regulations and guidelines listed below ac-
cord with:
• EC Directive 93/42/EEC on medical products from 14th June 1993
• DIN EN 12182 Technical aids for the disabled
• EN ISO 14971 Medical products - Application of risk management
on medical products
• ISO 7176-8 Wheelchairs - Part 8: Requirements and tests on static
strength, impact and fatigue strength
This declaration of conformity applies only for products with the article num-
bers stated above.
Date 15.11.2010
Signature ________________________
Name Torsten Schuchmann
Function Safety Representative for Medical Products

14
This product has been delivered by the following specialist dealer:
8.3 Product version
The BORIS toilet and shower chair is available in ve sizes and can be supplemen-
ted through a diverse range of accessories (see Point 4).
8.4 Issue of the document
Instructions for use BORIS toilet and shower chair - Change status D; Issue 08.2014
8.5 Name and address of the manufacturer, specialist dealer
supplying the product
This product was manufactured by:
Schuchmann GmbH & Co. KG
Dütestraße 3 · 49205 Hasbergen
Tel. [phone] · Fax [phone]
[email protected] · www.schuchmann-reha.de
8.2 Serial number / production date
You can nd the serial number, the production date as well as further details on the
type label that is located on each of your products.
Schuchmann GmbH & Co. KG
Dütestr. 3 · 49205 Hasbergen · Germany
www.schuchmann-reha.de · [email protected] · Fon +49 (0) 5405 / 909 - 0
Typ
Product
SN
Max. load
Size
Product name
Article number
Serial number
Size
Max. load
Production date
