Schumacher 00-99-000990-0809 User manual

00-99-000990/0809
READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT.•
FAILURE TO DO SO CAN RESULT IN SERIOUS INJURY OR DEATH.
LEA EL MANUAL COMPLETO ANTES DE UTILIZAR ESTE•
PRODUCTO. CUALQUIER FALLA PODRÍA RESULTAR EN SERIAS
LESIONES O PODRÍA SER MORTAL.
LIRE ENTIÈREMENT LE GUIDE AVANTD’UTILISER CE PRODUIT.•
L’ÉCHEC DE FAIRE AINSI PEUT S’ENSUIVRE DANS LA BLESSURE
SÉRIEUSE OU LA MORT.
OWNER’S MANUAL•
MANUAL dEL USUARiO•
GUidE d’UTiLiSATiON•

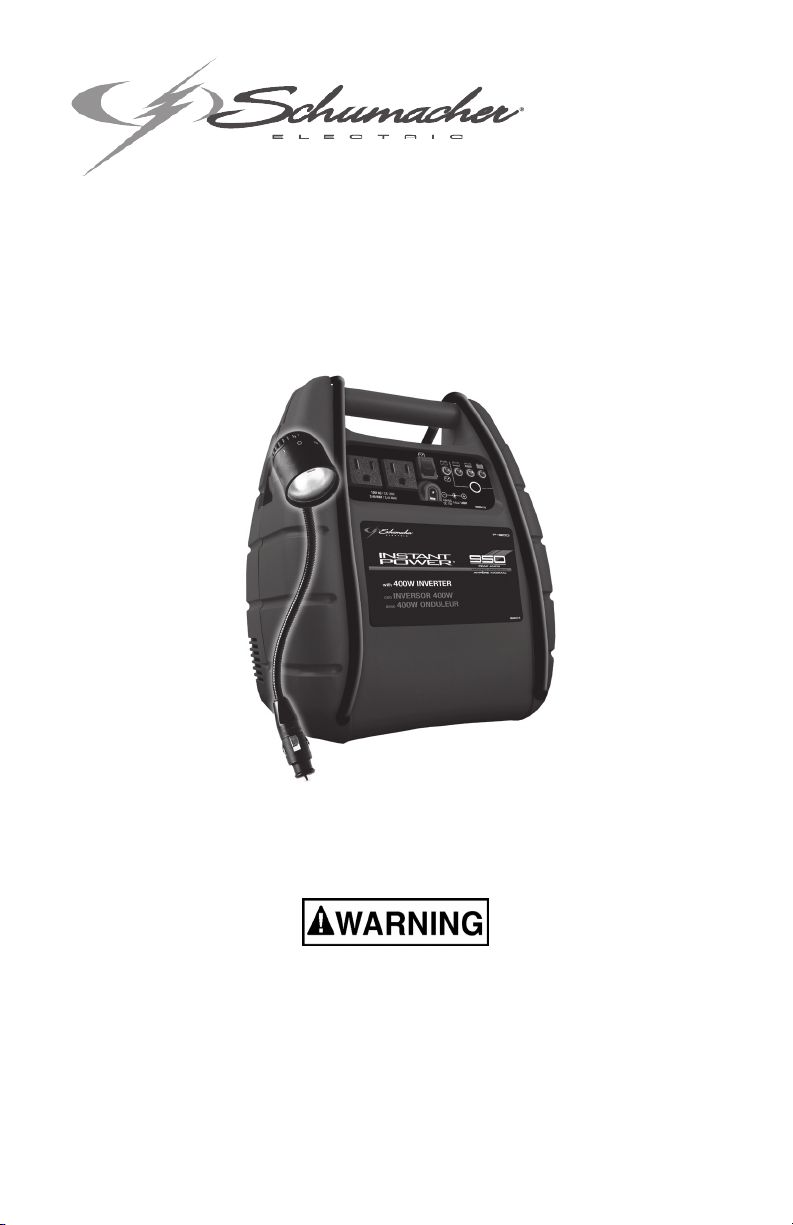

Model / Modelo / Modèle: IP-1800I
Instant Power™
12V DC Power Source / Fuente de Poder para 12V DC /
Source d’Énergie de 12V CC
400 Watt Inverter / Inversor de Corriente de 400 Watt /
Onduleur de 400 Watts

TABLE OF CONTENTSTABLE OF CONTENTS
SECTION PAGE
IMPORTANT SAFETY INSTRUCTIONS 2
PERSONAL PRECAUTIONS 2
CONTROL PANEL 3
CHARGING THE INTERNAL BATTERY OF THE
INSTANT POWER™ 4
OPERATING INSTRUCTIONS 5
STORAGE 8
TROUBLESHOOTING 9
SPECIFICATIONS 9
ACCESSORIES 10
LIMITED WARRANTY 10
ÍNDICE
SECCIÓN PÀGINA
INSTRUCCIONES IMPORTANTES DE SEGURIDAD 13
PRECAUCIONES PERSONALES 13
TABLERO DE CONTROL 14
PARA CARGAR LA BATERIA INTERNA DE LA
INSTANT POWER™ 15
INSTRUCCIONES DE OPERACIÓN 16
ALMACENAJE 19
LOCALIZACIÓN Y SOLUCIÓN DE PROBLEMAS 20
ESPECIFICACIONES 21
ACCESORIOS 21
GARANTÍA LIMITADA 21

CONTAINS SEALED NON-SPILLABLE LEAD-ACID
BATTERY. MUST BE DISPOSED OF PROPERLY.
CONTIENE UNA BATERÍA SELLADA DE ÁCIDO-
PLOMO NO DERRAMABLE QUE DEBE DESECHARSE
APROPIADAMENTE.
CONTIENT UNE BATTERIE À L’ACIDE QUI DOIT ÊTRE
DISPOSÉ CORRECTEMENT.
WARNING: Possible explosion hazard. Contact with battery acid
may cause severe burns and blindness. Keep out of reach of
children.
ADVERTENCIA: Posible riesgo de una explosión. El contacto
con una batería de ácido puede causar quemaduras y ceguera.
Manténgase alejado de los niños.
AVERTISSEMENT : Hasard d’explosion possible. Contact avec
l’acide de batterie peut provoquer sévère brûle et la cécité. Ne le
laissez pas a la portée des enfants.
TABLE DES MATIÈRES
PARTIE PAGE
CONSIGNES DE SÉCURITÉ IMPORTANTES 24
PRÉCAUTIONS PERSONNELLES 24
PANNEAU DE CONTRÔLE 25
CHARGEMENT DE LA BATTERIE INTERNE DE
L’INSTANT POWER™ 26
CONSIGNES D’UTILISATION 27
RANGEMENT 31
TABLEAU DE DÉPANNAGE 31
CARACTÉRISTIQUES 32
ACCESSOIRES 32
GARANTIE LIMITÉE 33

•1 •
IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL.
SAVE THESE INSTRUCTIONS – Charge the Instant Power™ internal
battery immediately after purchase, after every use and every 30 days.
This manual will show you how to use your Instant Power™ safely and
effectively. Please read, understand and follow these instructions and pre-
cautions carefully, as this manual contains important safety and operating
instructions. The safety messages used throughout this manual contain a
signal word, a message and an icon.
The signal word indicates the level of the hazard in a situation.
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury to the operator or
bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury to the operator or
bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in moderate or minor injury to the operator or
bystanders.
Indicates a potentially hazardous situation which, if not avoided,
could result in damage to the equipment or vehicle or property
damage.
Safety messages in this manual contain two different type styles.
Unnumbered type states the hazard.•
Numbered type states how to avoid the hazard.•
The icon gives a graphical description of the potential hazard.
Pursuant to California Proposition 65, this product contains
chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.

•2 •
IMPORTANT SAFETY INSTRUCTIONS1.
Riskofelectricshockorre.
Use only recommended attachments. Use of an attachment not recom-1.1
mended or sold by Schumacher® Electric Corporation may result in a risk
ofre,electricshockorinjurytopersonsordamagetoproperty.
To reduce the risk of electric shock, unplug the1.2 Instant Power™ from the
outlet before attempting any maintenance or cleaning. Simply turning off
the controls will not reduce this risk.
Remove personal metal items such as rings, bracelets, necklaces and1.3
watches when working with a lead-acid battery. A lead-acid battery can
produce a short-circuit current high enough to weld a ring or the like to
metal, causing a severe burn.
Do not operate the1.4 Instant Power™ with a damaged cables or clamps;
takeittoaqualiedserviceperson.(Callcustomerserviceat:1-800-621-
5485.)
Do not operate the1.5 Instant Power™ if it has received a sharp blow, been
droppedorotherwisedamagedinanyway;takeittoaqualiedservice
person.(Callcustomerserviceat:1-800-621-5485.)
Do not disassemble the1.6 Instant Power™;takeittoaqualiedserviceper-
son when service or repair is required. Incorrect reassembly may result in
ariskofreorelectricshock.(Callcustomerserviceat:1-800-621-5485.)
PERSONAL PRECAUTIONS2.
Risk of explosive gases. A spark
near the battery may cause a
battery explosion. To reduce the
risk of a spark near the battery:
Working in the vicinity of a lead-acid battery is dangerous. Batteries gener-2.1
ate explosive gases during normal battery operation. For this reason, it is
of utmost importance that you follow the instructions each time you use
the Instant Power™.
NEVERsmokeorallowasparkorameinthevicinityofabatteryor2.2
engine.
Do not permit the internal battery of the Instant Power™ to freeze. Never2.3
charge a frozen battery.
To prevent sparking, NEVER allow clips to touch together or contact the2.4
same piece of metal.
Be sure the area around the battery is well ventilated while the Instant2.5
Power™ is being used.

•3 •
Risk of contact with battery acid. Battery acid
is a highly corrosive sulfuric acid.
Consider having someone close enough by to come to your aid when you2.6
work near a lead-acid battery.
Have plenty of fresh water and soap nearby in case battery acid contacts2.7
your skin, clothing or eyes.
Wear complete eye and body protection, including safety goggles and pro-2.8
tective clothing. Avoid touching your eyes while working near the battery.
If battery acid contacts your skin or clothing, immediately wash the area2.9
withsoapandwater.Ifacidentersyoureye,immediatelyoodtheeye
with cold running water for at least 10 minutes and get medical attention
right away.
Stay clear of fan blades, belts, pulleys and other parts that may cause2.10
injury.
Clean the battery terminals before using the Instant Power™. During2.11
cleaning, keep airborne corrosion from coming into contact with your eyes,
nose and mouth. Use baking soda and water to neutralize the battery acid
and help eliminate airborne corrosion. Do not touch your eyes, nose or
mouth.
Determine the voltage of the battery by referring to the vehicle owner’s2.12
manual and make sure that the output voltage of the Instant Power™ is
correct.
Make sure that the Instant Power™ cable clips make tight connections.2.13

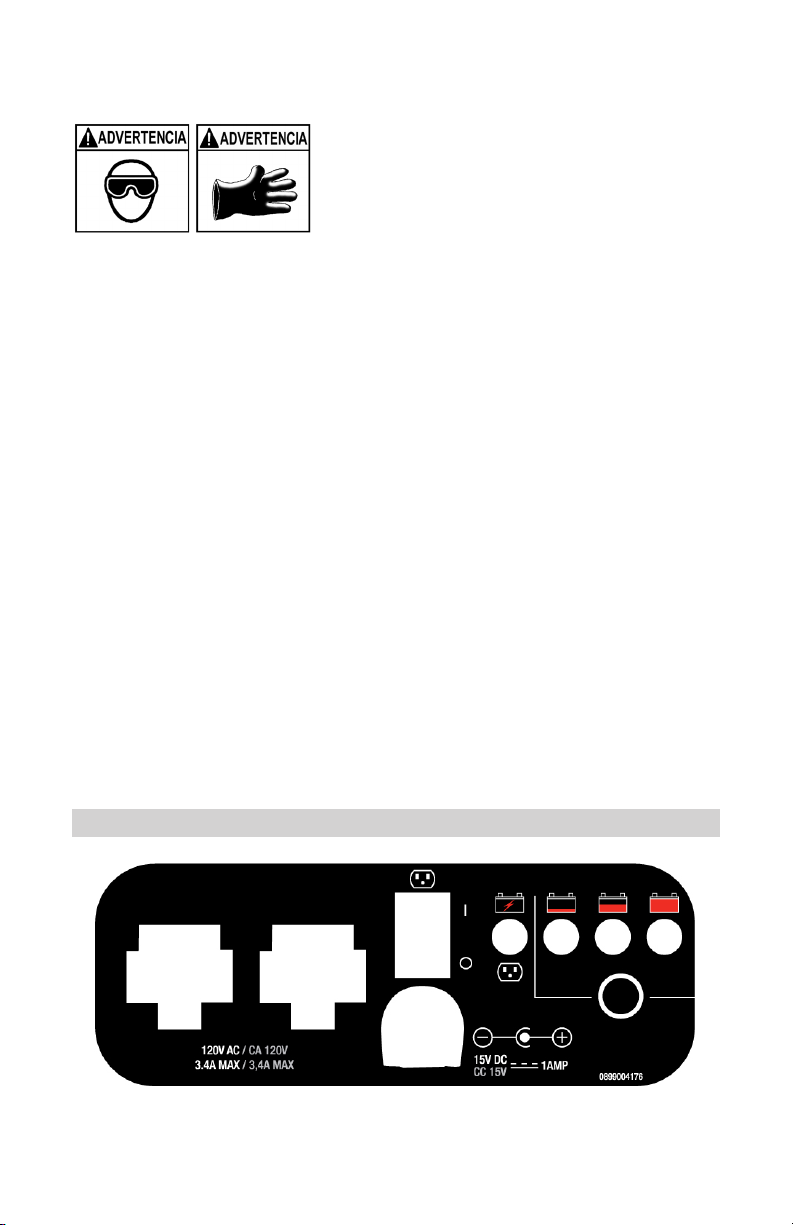

CONTROL PANEL3.

•4 •
CHARGING THE INTERNAL BATTERY OF THE INSTANT POWER™4.
IMPORTANT: CHARGE IMMEDIATELY AFTER PURCHASE, AFTER
EACH USE AND EVERY 30 DAYS TO KEEP THE INSTANT POWER™
INTERNAL BATTERY FULLY CHARGED.
LED Indicators:4.1
TO CHECK THE INTERNAL BATTERY’S CHARGE STATUS, PRESS
THE BATTERY STATUS BUTTON ON THE FRONT OF THE INSTANT
POWER™.
The LEDlightswillindicatethechargelevelasfollows:
A red LED• indicates a 50% or less charge and you should immedi-
ately recharge the Instant Power™.
A yellow LED• indicates a 50 to 75% charge. The Instant Power™
may be used but should be recharged as soon as possible.
A green LED• indicates the internal battery is fully charged.
TheCHARGING(red)LED• indicates the Instant Power™ is charg-
ing(connectedtoanACpowersource.)Atfullcharge,theCHARGED
(green)LED will light.
Charging the Internal Battery using the Included Wall Charger.4.2
NOTE: The ON/OFF switch should be in the OFF position to recharge the
internal battery.
To charge, plug the included wall charger into the charger plug on the1.
front of the Instant Power™.
Plug the wall charger into a 120V electrical wall outlet.2.
TheCHARGING(red)LED3. will light indicating charging.
TheCHARGED(green)LED4. will light when the battery has
reached full charge. This could take up to 72 hours due to the age and
condition of the battery. The charger will automatically go into maintain
mode and maintain the battery at full charge without damaging it.
Charge the Instant Power™ as soon as possible after use.5.
You may also charge the internal battery while driving, using the male-to-
malechargercable(p/n38-99-001564–notincluded).Insertoneendof
the accessory cable into the 12V DC power outlet and the other end into
thevehicle’saccessoryoutlet(lightersocket).Completelydisconnectthe
charger cable when the engine is not running.
TheCHARGING(red)LED and the CHARGED
(green)LED do not operate during this method of charging. Using
this method to charge the battery overrides the maintain mode and the
battery can be overcharged. Monitor the progress of the battery and when
itreachesafull(100%)charge,disconnectthecharger.Donotleavethe
battery unattended or it could explode causing property damage or
personal injury.

•5 •
OPERATING INSTRUCTIONS5.
Jump Starting a Vehicle Engine5.1
Turn the vehicle’s ignition OFF before making the cable connections.1.
Foranegativegroundedsystem,clamptheredclip(+)tothepositive2.
terminal of the battery.
Clamptheblackclip(-)toanunpaintedandunmovingpartofthechas-3.
sis or engine block.
NOTE: In the rare case of jump starting a vehicle that has a positive-
groundedvehicleelectricalsystem,connecttheNEGATIVEblackclip(-)
tothenegativeterminal(-)ofthevehiclebattery.ThenconnectthePOSI-
TIVEredclip(+)toanunpaintedandunmovingpartofthevehiclechassis
or engine block. If you are unsure of the nature of the vehicle’s electrical
grounding system, check the owner’s manual of the vehicle. To disconnect
the clips, reverse the order.
Crank the engine. If the engine does not start within 5-8 seconds,4.
stop cranking and wait at least 1 minute before attempting to start the
vehicleagain.(Thispermitsthebatterytocooldown.)
Aftertheenginestarts,disconnecttheblackclip(-)andthenthered5.
clip(+)inthatorder.
Recharge the Instant Power™ as soon as possible after use.6.
Risk of Explosion.
To prevent sparking, NEVER allow the clips to touch together or
to contact the same piece of metal. Never attempt to jump start a
frozen battery.
Before Using the Inverter5.2
Important Safety Instructions:
Keep the Instant Power™ well ventilated in order to properly disperse1.
heat generated while it is in use. Make sure there are several inches of
clearance around the top and sides and do not block the vents on the
back of the Instant Power™.
Make sure the Instant Power™ is not close to any potential source of2.
ammablefumes,gasesorclothing.
Keep the Instant Power™ dry.3.
DO NOT allow the Instant Power™ to come into contact with rain or4.
moisture.
DO NOT operate the Instant Power™ if you, the Instant Power™, the5.
device being operated or any other surfaces that may come in contact
with any power source are wet. Water and many other liquids can con-
duct electricity, which may lead to serious injury or death.
Do not place the Instant Power™ on or near heating vents, radiators or6.
other sources of heat.
Do not place the Instant Power™ in direct sunlight. The ideal air tem-7.
perature for operation is between 50° and 80°F.
Do not use the inverter near an open engine compartment where8.
fumes or gases may accumulate.
Do not modify the AC receptacles in any way.9.

•6 •
Using the Inverter5.3
It is important to know the continuous wattage of the device you plan to
use with the inverter. The Instant Power™ must be used with devices
drawing 400 watts or less. If the wattage is not marked on the device, use
only devices that draw less than 4 Amps of AC current.
Devices like TVs, fans or electric motors require additional power to start
(commonlyknownasthe“startingorpeakpower”).TheInstantPower™
can supply a momentary surge in wattage; however even devices rated
less than the maximum 400 watts can exceed the inverters surge capabil-
ity and cause an automatic overload shutdown.
Do not use the inverter with a product that draws a higher wattage than
the inverter can provide, as this may cause damage to the inverter and the
product.
Makesurethedeviceyouareusingiscompatiblewithamodiedsine
wave inverter.
Always run a test to establish whether the inverter will
operate a particular piece of equipment or device.
NOTE: In the event of a power overload, the inverter is designed to auto-
matically shut down. This safety feature prevents damaging the inverter
while testing devices and equipment with the 400 watt range.
NOTE: If powering more than one device, start one device at a time to
avoid a power surge and/or inverter overload. The surge load of each
device should not exceed the inverter’s continuous operation wattage rate.
Powering a 120V AC Device5.4
Tooperatea120VACdevice:
Ensure the battery clips are securely clipped on the storage holders.1.
Plug the 120V AC device into the AC power outlet, and push the In-2.
verter Switch ON.
NOTE: the CHARGING LED also functions as the INVERTER ON LED
. When you push the inverter switch to the ON position, the LED will
light.
Ifthedevicedoesnotoperateproperlywhenrstconnectedtothe3.
inverter,pushtheinverterrockerswitchON(I),OFF(0),andON(I)
again in quick succession. If this procedure is not successful, it is likely
that the inverter does not have the required capacity to operate the
device intended.
Charge the Instant Power™ as soon as possible after each use.4.
Risk of electric shock.
Incorrect operation of your inverter may result in damage and
personal injury. The inverter output is 120V AC and can shock or
electrocute the same as any ordinary household AC wall outlet.

•7 •
120V AC Electrical Device Example Run-Time Chart
Appliance Type Estimated
Power Estimated Time*
Spotlights, Sump Pumps,
DVD Players 100 Watts 1.3 Hours
Faxes, TVs, Small Power
Tools 150 Watts 50 Minutes
Computer Printer, Medium
Power Tools, Blenders 200 Watts 40 Minutes
NOTE: These are estimated run-times, actual time may vary. Times are
based on the internal battery being new, fully charged and operated at
room temperature
NOTE: The maximum continuous load is 400 watts. Do not use the
inverter with a product that draws more than 400 watts, as this may cause
damage to the inverter and the product.
Powering a 12V DC Device:5.5
The Instant Power™ is a power source for all 12V DC accessories that are
equippedwitha12Vaccessoryplug.Useitforpoweroutagesandshing
or camping trips. Estimated usage time is listed in the chart below.
Make sure the device to be powered is OFF before inserting the 12V DC
accessory plug into the 12V DC accessory outlet.
Open the protective cover of the DC power outlet on the side of the1.
Instant Power™.
Plug the 12V DC device into the DC power outlet, and turn the 12V DC2.
deviceon(ifrequired).
If the 12V DC device draws more than 15A or has a short circuit, the3.
internal circuit breaker of the Instant Power™ will trip and disconnect
the power to the device. Disconnect the 12V DC device. The breaker
will automatically reset after an overload occurs.
The DC power outlet is wired directly to the internal battery. Extended
operation of a 12V DC device may result in excessive battery drain. Re-
charge immediately after unplugging the 12V DC device.
Appliance Type Estimated Wattage Estimated Usage Time
Cell Phone 4 watts 54 hours
Fluorescent Light 4 watts 54 hours
Radios, Fan 9 watts 24 hours
Depth Finder 9 watts 24 hours
Camcorder, VCR 15 watts 14.4 hours
Electrical Tool 24 watts 9 hours
Electrical Cooler 48 watts 4.5 hours
Car Vacuum, Air
Compressor 80 watts 2.7 hours

•8 •
NOTE: Estimated run-times. Actual time may vary. Times are based on
the internal battery being fully charged
Flex-Light5.6
Tousetheex-light,insertthelight’splugintothe12Vaccessoryoutlet.
The ON/OFF control is on the back of the light.
Light Replacement
The bulb used in the Instant Power™ light is a 12 volt, 5 watt halogen bayo-
net type. Since the bulb needing replacement is not working and the switch
maybeintheONposition,thelampcircuitcouldbe“live”.Use caution
while changing the bulb.
Disconnect the light from the 12V accessory outlet.1.
To replace the bulb, unscrew the cover on the lamp back, remove the2.
old bulb, then replace with a new 12 volt, 5 watt halogen bulb.
Finally, screw the cover onto the lamp housing.3.
STORAGE6.
IMPORTANT:
CHARGE IMMEDIATELY AFTER PURCHASE•
KEEP FULLY CHARGED•
ChargetheInstantPower™internalbatterybeforerstuseandafter
every use thereafter.
All batteries are affected by temperature. The ideal storage temperature is
at 70 degrees Fahrenheit. The internal battery will gradually self-discharge
(losepower)overtime,especiallyinwarmenvironments.Leavingthe
battery in a discharged state may result in permanent battery damage. To
ensure satisfactory performance and avoid permanent damage, charge
the internal battery every month.
The clips on the Instant Power™ are live and will produce arcing or spark-
ing if they come in contact with each other. To prevent accidental arcing,
always keep the clips on the storage holders when not using it to jump
start a vehicle.

•9 •
TROUBLESHOOTING7.
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
The Instant Power™ won’t
jump start my car. Clips are not making a good connection to the
battery.
Connections are reversed.
The Instant Power™ bat-
tery is not charged.
The vehicle’s battery is
defective.
Check for poor connection
to battery and frame. Make
sure connection points are
clean. Rock clips back and
forth for a better connection.
Disconnect the Instant
Power™ and reverse the
clips.
Check the battery charge
status by pressing the
button on the front of the
Instant Power™. See LED
Indicators section of this
manual.
Have the battery checked.
The Instant Power™ won’t
power my 12V device. The 12V device is not turned on.
The Instant Power™ bat-
tery is not charged.
The 12V device draws
more than 15A or has a
short circuit
Turn on the 12V device.
Check the battery charge
status by pressing the
button on the front of the
Instant Power™. See LED
Indicators section of this
manual.
Disconnect the 12V device.
The internal breaker will
automatically reset after a
minute or two. Try the 12V
device again. If it happens
again, replace the 12V
device.
The battery in the Instant
Power™ won’t hold a
charge.
Thebatteryisbad(willnot
accept a charge). Have the battery checked.
SPECIFICATIONS8.
Internal Battery Type Maintenance-free AGM Lead-Acid
Nominal Voltage 12V DC
Capacity 18 Ah
DCPowerOutlet(Max.ContinuousLoad) 15A
Dimensions(HxWxD) 29.21 x 24.13 x 19,66 cm
Weight 8.5 kg.

•10 •
InverterSpecications
Maximum Continuous Power 400 Watts
SurgeCapacity(OutputWattage) 800 Watts
No Load Current Draw <0.4 Amps
Wave Form ModiedSineWave
AC Outlets Two, 120V AC 3-Prong grounded
ACCESSORIES9.
Male-To-Male Accessory Cable-------------------------------------38-99-001564
LIMITED WARRANTY10.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER
DRIVE, MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED
WARRANTY TO THE ORIGINAL RETAIL PURCHASER OF THIS PROD-
UCT. THIS LIMITED WARRANTY IS NOT TRANSFERABLE OR AS-
SIGNABLE.
SchumacherElectricCorporation(the“Manufacturer”)warrantsthis
Instant Power™ for one year and the internal battery for ninety days from
the date of purchase at retail against defective material or workmanship
that may occur under normal use and care. If your unit is not free from
defective material or workmanship, Manufacturers obligation under this
warranty is solely to repair or replace your product, with a new or re-
conditioned unit, at the option of the Manufacturer. It is the obligation of
the purchaser to forward the unit, along with mailing charges prepaid to
the Manufacturer or its authorized representatives in order for repair or
replacement to occur.
Manufacturer does not provide any warranty for any accessories used with
this product that are not manufactured by Schumacher Electric Corpora-
tion and approved for use with this product. This Limited Warranty is void
if the product is misused, subjected to careless handling, repaired, or
modiedbyanyoneotherthanManufacturerorifthisunitisresoldthrough
an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to,
express, implied or statutory warranties, including without limitation, any
impliedwarrantyofmerchantabilityorimpliedwarrantyoftnessforapar-
ticular purpose. Further, Manufacturer shall not be liable for any incidental,
special or consequential damage claims incurred by purchasers, users or
others associated with this product, including, but not limited to, lost prof-
its, revenues, anticipated sales, business opportunities, goodwill, business
interruption and any other injury or damage. Any and all such warranties,
other than the limited warranty included herein, are hereby expressly
disclaimed and excluded. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages or length of implied warranty,
so the above limitations or exclusions may not apply to you. This warranty
givesyouspeciclegalrightsanditispossibleyoumayhaveotherrights
which vary from this warranty.

•11 •
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WAR-
RANTY AND THE MANUFACTURER NEITHER ASSUMES OR AUTHO-
RIZES ANYONE TO ASSUME OR MAKE ANY OTHER OBLIGATION
TOWARDS THE PRODUCT OTHER THAN THIS WARRANTY.
Schumacher Electric Corporation Customer Service
1-800-621-5485
Monday – Friday 7:00 a.m. to 5:00 p.m. CST
Schumacher and the Schumacher Logo are registered trademarks of
Schumacher Electric Corporation

•12 •
IMPORTANTE: LEA Y GUARDE ESTE MANUAL DE INSTRUCCIONES Y
SEGURIDAD.
GUARDE ESTAS INSTRUCCIONES - La Instant Power™ ofrece una
amplia gama de características para satisfacer sus necesidades. Este
manual le mostrará cómo utilizar su cargador en forma segura y efectiva.
Por favor, lea, comprenda y siga estas instrucciones y precauciones cui-
dadosamente, ya que este manual contiene instrucciones operativas y de
seguridad de importancia. Los mensajes de seguridad representados en
estemanualcontienenpalabrasguía,unmensajeyunagura.
La palabra guía indica el nivel de peligro en determinada situación.
Indica una inminente situación de riesgo que, si no se evita,
resultaría mortal o de serios perjuicios al operador o personas
alrededor.
Indica una situación potencialmente riesgoso que, si no se
evita, podría resultar o de serios perjuicios al operador o perso-
nas alrededor.
Indica una situación potencialmente riesgoso que, si no se evita,
podría resultar o de serios perjuicios al operador o personas
alrededor.
Indica una situación potencialmente peligrosa que, de no evi-
tarse, podría causar daño al equipo, al vehículo y propiedades
alrededor.
Los mensajes estipulados en este manual se describen dos tipos de
estilo.
Los que aparecen sin número indican el riesgo.•
Aquellos que aparecen numerados, indican cómo evitar los riesgos.•
Laguramuestraunadescripcióngrácadelpotencialderiesgo.
Conforme a la Propuesta 65 de California, este producto con-
tiene químicos de los cuales en el Estado de California se tiene
conocimiento que provocan cáncer y malformaciones congénitas
u otras lesiones reproductivas.
PELIGRO
ADVERTENCIA
ATENCIÓN
IMPORTANTE
ADVERTENCIA

•13 •
INSTRUCCIONES IMPORTANTES DE SEGURIDAD1.
El riesgo de descarga eléctrica o incendio
Utilice solamente accesorios recomendados. El uso de un accesorio no1.1
recomendado o suministrado por Schumacher® Electric Corporation
puede provocar riesgo de incendio, descarga eléctrica o lesiones a perso-
nas o daño a la propiedad.
Para reducir el riesgo de daños al enchufe o cable eléctrico, jale del1.2
enchufe en lugar de jalar del cable al desconectar la Instant Power™.
No utilice elementos personales de metal tales como anillos, pulseras,1.3
collares y relojes al trabajar con una batería de plomo-ácido. Una batería
deplomo-ácidopuedeproducirunacorrientedecortocircuitolosuciente-
mente elevada como para soldar un anillo o provocar efectos similares
sobre el metal, causando una quemadura de gravedad.
No utilice la Instant Power™ si el mismo posee los cables o las pinzas1.4
dañado; hágalo revisar por una persona capacitada que efectúe repara-
ciones.(Comuníqueseal:1-800-621-5485deServiciosalcliente.)
No utilice la Instant Power™ si el mismo recibió un golpe fuerte, si se1.5
cayó o si sufrió daños de cualquier otra forma; hágalo revisar por una
personacapacitadaqueefectúereparaciones.(Comuníqueseal:1-800-
621-5485 de Servicios al cliente.)
No desarme la Instant Power™; hágalo revisar por una persona capaci-1.6
tada que efectúe reparaciones cuando necesite servicio de mantenimiento
o una reparación. Volver a ensamblar el cargador en forma incorrecta
puedeprovocarriesgodeincendioodescargaeléctrica.(Comuníquese
al:1-800-621-5485deServiciosalcliente.)
PRECAUCIONES PERSONALES2.
Riesgo de gases explosivos. Una chispa cerca de la batería
hacer que la batería explote. Para reducir el riesgo de chis-
pas cerca de la batería:
Resulta peligroso trabajar en forma cercana a una batería de plomo. Las2.1
baterías generan gases explosivos durante su normal funcionamiento. Por
este motivo, resulta de suma importancia que siga las instrucciones cada
vez que utiliza la Instant Power™.
NUNCA fume o permita la presencia de chispas o llamas en la proximidad2.2
de una batería o motor.
No deje que la batería interna se congele. Nunca cargue una batería2.3
congelada.
Para prevenir cortos, NUNCA permita que las pinzas se junten o hagan2.4
contacto por medio de un mismo metal.

•14 •
Asegúrese de que el área que rodea a la batería se encuentre bien venti-2.5
lada mientras el aparato se utiliza.
Riesgo de contacto con el ácido de la batería.
El ácido de la batería es un ácido sulfúrico
altamente corrosivo.
Considere la idea de que alguna persona se encuentre cerca suyo para2.6
poder ayudarlo cuando trabaje en forma cercana a una batería de plomo-
ácido.
Cuente con una gran cantidad de agua potable y jabón a mano en caso2.7
de que el ácido de la batería tenga contacto con su piel, ropa u ojos.
Utilice protección visual y corporal completa, incluyendo gafas de segu-2.8
ridad y prendas de protección. Evite tocar sus ojos mientras trabaje en
forma cercana a la batería.
Si el ácido de la batería tiene contacto con su piel o su ropa, lave de in-2.9
mediato el área afectada con agua y jabón. En caso de que ingrese ácido
en un ojo, sumerja el mismo de inmediato bajo agua potable corriente por
al menos 10 minutos y obtenga atención médica en forma inmediata.
Manténgase alejado de las paletas del ventilador, correas, poleas y otras2.10
piezas que podrían provocar lesiones.
Limpie los terminales de la batería antes de usar la Instant Power™. Du-2.11
rante la limpieza, evite que la corrosión producida por aire tenga contacto
con sus ojos, nariz y boca. Utilice bicarbonato de sodio y agua para neu-
tralizar el ácido de la batería y ayudar a eliminar la corrosión producida
por aire. No toque ojos, nariz o boca.
Determine el voltaje de la batería consultando el manual del usuario del2.12
vehículo y asegúrese de que la tensión de salida del voltaje el aparato
sea la correcta.
AsegúresedequelaspinzasdelaInstantPower™seencuentrenrme-2.13
mente conectadas.
TABLERO DE CONTROL3.

•15 •
PARA CARGAR LA BATERIA INTERNA DE LA INSTANT POWER™4.
IMPORTANTE: CARGUE LA UNIDAD INMEDIATAMENTE DESPUES
DE COMPRARLA, DESPUES DE CADA USO Y CADA 30 DIAS PARA
ASI MANTENER LA INSTANT POWER™ PORTATIL CARGADA
COMPLETAMENTE.
Indicador LED:4.1
PARA VERIFICAR EL ESTADO DE CARGA INTERNA DE LA BATERÍA,
OPRIMA EL BOTÓN DE ESTADO DE LA BATERÍA INTERNA EN LA
DELANTERA DE LA INSTANT POWER™.
LaslucesLEDindicaránelniveldecargaotantedelasiguientemanera:
Una luz roja• indica una carga del 50% o menos y que se debe
recargar inmediatamente.
Una luz amarilla• indica una carga entre el 50 y el 75%. Se puede
usar la Instant Power™ pero debe recargarse lo más pronto posible.
La luz verde• indica que la batería interna está totalmente cargada.
UnaluzLED(roja)CARGANDO• indica que la Instant Power™
estácargando.Acargacompleta,laluzLED(verde)CARGADA
se encenderá.
Cargando la batería interna con el Cargador de Pared incluido.4.2
NOTA: El interruptor ON/OFF no necesita estar en la posición ON para
recargar la batería interna.
Para cargar, conecte el cargador incluido de pared en el localizada al1.
frente de la Instant Power™.
Conecte el cargador en el tomacorriente de pared de 120V.2.
Laluz“CARGANDO”(roja)3. de carga se encenderá indicando que
se encuentra en ese proceso.
Laluz“CARGADO”(verde)4. se encenderá cuando la batería haya
alcanzado su carga total. Esto puede llegar a tomar hasta 72 horas
dependiendo de la edad y condición de la batería. El cargador cambi-
aráautomáticamenteaunlafuncióndemodootanteymantendrála
batería cargada totalmente sin dañar la batería.
Cargue la Instant Power™ tan pronto sea posible, después de usarse.5.
También puede cargar la batería interna mientras maneja usando el
cabledelcargadormacho/macho(#38-99-001564noincluida).Inserte
un extremo del cable en el tomacorriente de 12V CD y el otro extremo
enelencendedordelvehículo(enchufedelencendedordecigarros).
Desconecte completamente el cable del cargador cuando el motor no esté
funcionando.
IMPORTANTE LaluzLED(roja)CARGANDO) ylaluzLED(verde)
CARGADA no funcionan durante este método de carga. El uso de
este método de carga, invalida el modo de mantenimiento y la batería
puede sobrecargarse. Monitoree el progreso de carga de la batería y
cuandoalcancelacargacompleta(100%),desconecteelcargador.No
abandone la batería pues esto podría causar serios daños a la propiedad
o lesiones personales.

•16 •
INSTRUCCIONES DE OPERACIÓN5.
Para arrancar el motor del vehículo5.1
Apague el vehículo antes de hacer conexiones de cables.1.
Paraunsistemaatierra,conectelapinzaroja(+)alpostepositivode2.
la batería.
Conectelapinzanegra(-)aunapartedelasinpinturaeinmovibledel3.
chasis o el marco del motor.
NOTA: En casos muy raros, un arranque de vehículo, tiene un sistema
eléctricopositivoatierra,conectelapinzaNEGATIVA(-)alaterminal
negativa de la batería del auto. Después conecte la pinza roja POSITIVA
(+)aunapartedelasinpinturaeinmovibledelchasisoelmarcodel
motor. Si no esta seguro de las funciones del sistema eléctrico del auto,
consulte el manual de instrucciones del vehículo. Para desconectar los
cables, hágalo en forma reversible.
Arranque el motor. Si el motor no da marcha de entre los 5 y 8 segun-4.
dos, detenga el arranque y espere 1 minuto antes de intentar arran-
carlodenuevo.(Estopermitiráalabateríaqueserecupere.)
Unavezqueelmotorhayaarrancado,desconectelapinzanegra(-)y5.
despuéslaroja(+)eneseorden.
Cargue la Instant Power™ tan pronto sea posible, después de usarse6.
Riesgo de explosión.
Para prevenir chispas, NUNCA, permita que las pinzas hagan
contacto entre sí mismas o por medio de un metal. Nunca intente
arrancar un a batería congelada.
Antes de usar el Inversor5.2
Instrucciones importantes de seguridad:
Mantenga la Instant Power™ bien ventilada para que disperse el calor1.
generadomientrasseusa.Asegúresedequehayasucienteespa-
cio alrededor y hacia arriba para que los ventiladores de la Instant
Power™ no tengan obstrucción.
Tambiénveriquequenoexistafuego,gasesoropaalrededordela2.
Instant Power™.
Mantenga la Instant Power™ en lugar seco.3.
NO permita que la Instant Power™ entre en contacto con lluvia o4.
humedad.
NOoperelaInstantPower™silasuperciedondeestámontadao5.
cualquierotrasupercieseencuentramojada.Elaguaocualquierotro
líquido conducen electricidad, y esto podría conducir a provocar serios
daños y hasta la muerte.
No coloque la Instant Power™ cerca de calentadores, radiadores u6.
otra fuente de calor.
Tampoco exponga la Instant Power™ a los rayos directos del sol. Las7.
temperaturas ideales para la operación de la Instant Power™ oscila
entre los 50° y 80°F.
No use el inversor cerca del compartimiento del motor donde gases o8.
humos se acumulan.
